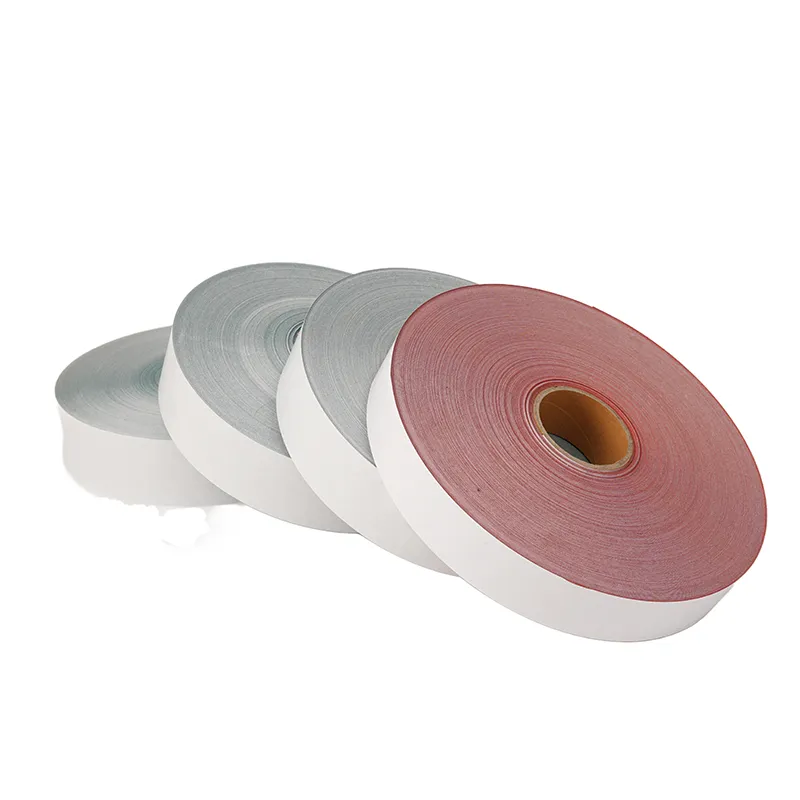

Single Sided Adhesive Fish Paper Insulation Gasket is a flexible electrical insulation material designed for applications that require reliable electrical isolation, dimensional stability, surface protection, gap separation, and convenient adhesive attachment. Also commonly associated with kraft paper insulation, fish paper insulation, fish paper gasket material, adhesive backed fish paper, and electrical insulation paper, this material can be converted into narrow strips, sheets, pads, rings, washers, custom die cut parts, and other shapes for electrical and electronic assemblies.
Kraft paper, commonly referred to as fish paper in electrical insulation applications, delivers outstanding performance in inter-layer insulation of high-frequency circuit boards, motor winding wrapping, and transformer coil isolation. Its controlled thickness and stable physical structure make it suitable for applications where consistent insulation distance and precise dimensional control are important.
A major advantage of this insulation material is its thickness uniformity. The material can be engineered to match micro-gap requirements ranging from approximately 0.1 mm to 1.5 mm, depending on the selected grade and application. Consistent thickness is particularly important when an insulation gasket is installed between conductive surfaces, electronic components, metal housings, winding layers, terminals, or other closely spaced parts.
Another important characteristic is resistance to delamination and warpage after hot-pressing. During electrical and electronic manufacturing, Insulation Materials may encounter pressure, heat, lamination, forming, or other assembly operations. A stable fish paper construction can help maintain its intended geometry after processing.
Single-sided adhesive construction provides adhesive on one side while the opposite side remains an insulating surface. This design is useful when a component needs to be securely positioned against a substrate while the opposite surface must remain electrically non-conductive. Double-sided adhesive construction, by contrast, has adhesive on both sides. Correctly identifying these two configurations is essential during product selection and ordering.
Custom processing is also available for many industrial applications. Slit rolls can be produced in widths ranging from approximately 2.8 mm to 1000 mm, while roll lengths can range from approximately 50 m to 200 m depending on material thickness, width, converting requirements, and production specifications.
This article provides a comprehensive industry-oriented overview of Single Sided Adhesive Fish Paper Insulation Gasket for Electrical Isolation, including its definition, construction, material characteristics, electrical insulation function, thickness control, adhesive configuration, applications, customization, processing, quality considerations, storage, installation, advantages, limitations, and selection principles.
What Is Single Sided Adhesive Fish Paper Insulation Gasket?
Single Sided Adhesive Fish Paper Insulation Gasket is an electrically insulating paper-based material with adhesive applied to only one side.
The term “fish paper” is widely used in electrical insulation because of the material's traditional use in electrical and electromechanical assemblies. Although the name may suggest a specialized type of paper, fish paper is generally understood as a dense, tough, flexible electrical insulation sheet or roll material used for applications where thin, stable insulation is required.
The adhesive backing adds an additional function. Instead of simply placing a loose piece of insulation between components, the adhesive-backed material can be attached directly to a target surface. This can simplify assembly, reduce movement, and improve positioning accuracy.
The basic construction can be described as:
Insulating fish paper substrate + single-sided adhesive layer + optional release liner.
The fish paper provides electrical insulation and mechanical separation. The adhesive provides attachment. The release liner protects the adhesive until the material is ready to be installed.
This combination is particularly useful for applications where insulation must remain in a predetermined position during assembly.
Understanding the Term Fish Paper
Fish paper is a traditional industry term associated with flexible electrical insulation paper.
The material is valued for its combination of:
Electrical insulation
Flexibility
Thin gauge availability
Tear resistance
Dimensional stability
Punchability
Die-cutting capability
Surface protection
Mechanical separation
Fish paper is commonly used in electrical products where a thin insulating barrier is required.
The material can be converted into:
Insulation washers
Terminal barriers
Coil insulation
Slot liners
Battery insulation pieces
Motor winding components
Transformer insulation
PCB insulation layers
Electrical gaskets
Protective pads
Custom die-cut components
Its ability to combine thin thickness with mechanical integrity makes it useful in compact electrical assemblies.
Kraft Paper and Fish Paper in Electrical Insulation
Kraft paper is a paper material produced from cellulose-based fibers through the kraft pulping process. Electrical insulation papers can be engineered and processed for specific electrical and mechanical requirements.
In industrial descriptions, “fish paper” can refer to specialized electrical insulation paper rather than ordinary packaging kraft paper.
This distinction is important.
Ordinary kraft packaging paper should not automatically be considered suitable for electrical insulation. Electrical-grade paper materials are manufactured and controlled for specific characteristics such as thickness, density, electrical resistance, mechanical strength, surface quality, and environmental behavior.
For electrical isolation applications, the material should therefore be selected according to its technical specification rather than simply according to the general word “kraft.”
Main Construction of Single Sided Adhesive Fish Paper
A typical single-sided adhesive fish paper gasket consists of several functional elements.
The fish paper substrate forms the primary insulating barrier.
Its functions include:
Electrical isolation
Mechanical separation
Surface protection
Gap control
Dimensional support
The adhesive is coated on one side only.
Its purpose is to:
Attach the gasket to the selected substrate
Prevent movement during assembly
Improve positioning
Support automated or manual installation
Depending on the construction, a removable liner may cover the adhesive before use.
The liner protects the adhesive from contamination and premature bonding.
Single Sided Adhesive Versus Double Sided Adhesive
This distinction is extremely important when ordering Insulation Gasket Materials.
Single-sided adhesive fish paper has adhesive on one side only.
The opposite side remains a non-adhesive insulating surface.
This construction is appropriate when:
One surface must be bonded
The opposite surface must remain non-tacky
A conductive component needs insulation
A gasket must be positioned against one substrate
Easy installation is required
For example, an insulation pad may be attached to a metal housing using the adhesive side, while the exposed fish paper surface faces a PCB or another electrical component.
Double-sided adhesive fish paper has adhesive on both sides.
Both surfaces are designed to bond to other components.
This can be useful when the insulation layer must be fixed between two substrates.
However, double-sided adhesive is not interchangeable with single-sided adhesive.
If the design requires one pure insulating surface, double-sided adhesive may create an unwanted tacky interface.
Single-sided adhesive means adhesive on one side only.
Double-sided adhesive means adhesive on both sides.
Always confirm the adhesive configuration before ordering, converting, or installing the material.
Electrical Isolation Function
The primary function of Single Sided Adhesive Fish Paper Insulation Gasket is electrical isolation.
Electrical isolation means creating a non-conductive barrier between components that could otherwise come into unwanted electrical contact.
Potential applications include isolation between:
Conductive metal parts
Battery terminals
PCB traces and housings
Motor windings and metal structures
Transformer coils
Electrical terminals
Busbars
Battery cells
Conductive Brackets
Internal electrical components
The required insulation performance depends on the operating voltage, frequency, temperature, geometry, humidity, mechanical stress, and applicable design standards.
The material should therefore be selected using actual engineering requirements.
High Thickness Uniformity
High thickness uniformity is a major advantage in precision insulation applications.
If an insulation sheet has inconsistent thickness, the electrical clearance between components may vary.
For example, an insulation layer designed for a narrow gap may require precise thickness control to maintain consistent separation.
Uniform thickness helps provide:
Predictable insulation distance
Consistent assembly dimensions
Stable die-cutting
Better surface contact
More consistent pressure distribution
Improved production repeatability
Thickness uniformity becomes especially important in micro-gap applications.
Micro-Gap Insulation From 0.1 mm to 1.5 mm
The material can be selected or processed for micro-gap insulation requirements ranging approximately from 0.1 mm to 1.5 mm.
A 0.1 mm insulation layer is extremely thin and may be used where available space is limited.
A 1.5 mm layer provides substantially greater physical separation and may also contribute more significantly to gap filling and cushioning.
The appropriate thickness depends on:
Required electrical clearance
Voltage
Component geometry
Mechanical tolerance
Available installation space
Temperature
Required dielectric performance
Manufacturing tolerance
Thickness should never be selected solely by convenience.
Why Thickness Control Matters in Electrical Gaskets
An insulation gasket is often positioned between surfaces with very small clearances.
If the material is too thin, it may not provide sufficient separation.
If the material is too thick, it may:
Interfere with assembly
Increase dimensional pressure
Prevent proper component seating
Affect fastener engagement
Change enclosure dimensions
Increase manufacturing cost
The ideal thickness balances electrical isolation with mechanical and dimensional requirements.
Resistance to Delamination
Delamination occurs when layers or structures within a material separate from one another.
For adhesive insulation materials, delamination can create several problems.
Potential consequences include:
Loss of mechanical integrity
Surface lifting
Uneven insulation
Contamination
Reduced dimensional stability
Assembly failure
Fish paper insulation with suitable structural integrity can resist separation during processing and use.
Delamination resistance becomes particularly relevant after hot-pressing, lamination, forming, or thermal exposure.
Resistance to Warpage After Hot-Pressing
Warpage refers to unwanted bending, curling, distortion, or dimensional deformation.
Hot-pressing can expose insulation materials to:
Heat
Pressure
Compression
Thermal expansion
Cooling cycles
A material with good dimensional stability can maintain its intended flatness and geometry after processing.
This is particularly useful in:
PCB insulation
Transformer coil insulation
Motor winding components
Laminated electrical structures
Precision gasket applications
Applications in High-Frequency Circuit Boards
High-frequency circuit boards require careful control of electrical and physical interfaces.
Fish paper insulation can be used for selected inter-layer insulation and component separation applications.
Potential functions include:
Separating conductive layers
Protecting PCB edges
Insulating metal supports
Preventing unwanted contact
Providing localized gap control
Protecting sensitive surfaces
Material selection should account for the electrical characteristics of the high-frequency application.
Not every general-purpose insulation paper is appropriate for every high-frequency circuit design.
Inter-Layer Insulation for Circuit Boards
Inter-layer insulation creates a barrier between different conductive structures.
The insulation layer can help maintain separation where:
Conductive traces are closely positioned
Metal frames are near the PCB
Components require localized protection
Multiple structural layers are assembled
Mechanical contact could occur
The thin format of fish paper can be advantageous in compact designs.
Motor Winding Wrapping
Motor winding insulation is another important application.
Electric motors contain copper or aluminum windings that must be electrically isolated from:
Other winding turns
Stator components
Rotor structures
Metal housings
Laminated cores
Sharp edges
Insulating paper materials can be used in selected winding-related applications as slot liners, separators, wrapping materials, barriers, or protective components.
The actual material grade must be selected according to motor temperature class, electrical requirements, mechanical stress, and manufacturing process.
Transformer Coil Isolation
Transformers contain primary and secondary windings and may require multiple insulation barriers.
Fish paper insulation can be considered for:
Coil separation
Layer insulation
Terminal insulation
Edge protection
Bobbin-related insulation
Structural barriers
Transformer insulation systems are highly application-specific.
The insulation material must be compatible with the operating temperature, voltage, winding configuration, impregnation process, and other insulation materials used in the transformer.
Battery Pack Insulation
Single Sided Adhesive Fish Paper Insulation Gasket can also be considered for selected battery applications.
Potential uses include:
Battery cell insulation
Terminal protection
Tab insulation
Busbar isolation
Battery housing insulation
BMS component protection
Inter-layer insulation
For lithium-ion battery packs, the material can be converted into custom shapes for specific cell and component geometries.
18650 Battery Applications
18650 cylindrical cells are widely used in battery packs.
Fish paper insulation can be used in selected areas around:
Cell terminals
Cell groups
Connection points
Battery holders
Busbars
BMS assemblies
The material should be designed so that it does not obstruct required electrical connections or thermal management features.
21700 Battery Applications
21700 cells are larger cylindrical cells and may require different insulation geometry.
Custom die-cut fish paper can provide:
Terminal insulation
Cell separation
Tab protection
Busbar isolation
Housing insulation
The correct dimensions should be established from the battery-pack design.
PCB and Metal Housing Isolation
One of the most practical uses of single-sided adhesive fish paper is between PCB assemblies and metal housings.
The adhesive side can attach to the metal housing or PCB-related surface.
The exposed fish paper side provides a non-tacky insulating interface.
This construction can help:
Reduce accidental electrical contact
Prevent scratches
Protect PCB edges
Improve positioning
Provide localized cushioning
Electrical Terminal Insulation
Terminals often require localized insulation.
Custom fish paper gaskets can be designed around terminal geometry.
Potential designs include:
Terminal washers
Rectangular barriers
Circular insulation pads
Slotted insulation pieces
Custom terminal covers
Precision die cutting can provide consistent geometry for high-volume production.
Battery Terminal Protection
Battery terminals may be close to other conductive components.
A single-sided adhesive insulation pad can be attached around selected terminal areas while maintaining a non-adhesive insulating surface.
This can improve positioning and reduce movement during assembly.
Busbar Insulation
Busbars carry significant electrical current and are generally conductive metal components.
Localized insulation can help separate busbars from nearby conductive structures.
Fish paper may be used in selected low-profile insulation applications where the material's electrical and thermal specifications are appropriate.
The final design should account for:
Voltage
Current
Temperature
Creepage
Clearance
Mechanical movement
Sharp edges
Electrical Gap Sealing
An insulation gasket can provide more than electrical separation.
It may also occupy a physical gap between components.
Potential benefits include:
Reduced movement
Improved positioning
Surface protection
Gap management
Reduced direct metal-to-metal contact
However, electrical insulation should not automatically be treated as an environmental seal.
If water or dust sealing is required, the complete joint design must be evaluated.
Surface Protection
Fish paper can provide a protective barrier between materials.
It may help prevent:
Scratches
Abrasion
Direct contact
Minor impact
Surface contamination
This can be valuable where metal parts are installed near sensitive electrical components.
Mechanical Separation
Mechanical separation is closely related to electrical isolation.
When two components are conductive, even a small amount of movement can create a short-circuit risk.
An insulation gasket can maintain physical separation.
The material should be sufficiently robust to remain in place under expected vibration and handling conditions.
Adhesive Attachment Advantages
The single-sided adhesive layer can improve installation efficiency.
Compared with loose insulation sheets, adhesive-backed fish paper can provide:
Faster positioning
Reduced movement
Better assembly consistency
Easier manual installation
Potential automation compatibility
The adhesive also allows the gasket to remain attached during subsequent assembly steps.
Surface Compatibility
Adhesion depends heavily on the target surface.
Potential substrates include:
Stainless steel
Aluminum
Copper
Painted metal
Powder-coated metal
Plastics
PCB substrates
Composite materials
Surface energy, roughness, cleanliness, temperature, and coating type all influence adhesive performance.
Adhesive Selection
Different adhesive systems provide different performance characteristics.
Important adhesive properties include:
Initial tack
Peel strength
Shear strength
Cohesion
Temperature resistance
Moisture resistance
Aging resistance
Chemical resistance
A strong adhesive is not automatically the best adhesive.
The adhesive should match the substrate and service environment.
Clean Surface Preparation
Before applying the gasket, the surface should generally be clean and dry.
Common contaminants include:
Oil
Grease
Dust
Moisture
Fingerprints
Release agents
Manufacturing residues
Contamination can reduce the actual contact area between adhesive and substrate.
Custom Slit Roll Processing
Custom processing is an important advantage of roll-form fish paper.
Slit widths can range from approximately 2.8 mm to 1000 mm.
This broad width range can support applications ranging from extremely narrow insulation strips to wide sheet-format applications.
Narrow strips may be used for:
Wire insulation
Terminal barriers
Edge protection
Coil wrapping
Small electronic components
Wide rolls can be converted into:
Large insulation sheets
Gasket blanks
Battery pack liners
Industrial insulation components
Custom Roll Lengths
Typical custom roll lengths may range from approximately 50 m to 200 m.
The actual achievable roll length depends on:
Material thickness
Roll diameter
Width
Weight
Adhesive construction
Core size
Processing equipment
Transportation requirements
Longer rolls can reduce the frequency of roll replacement in continuous production.
Shorter rolls may be easier to handle for small-batch production.
Die Cutting and Precision Converting
Fish paper insulation is suitable for many converting processes.
Potential processing methods include:
Die cutting
Slitting
Punching
Sheeting
Kiss cutting
Laser cutting
CNC cutting
Rewinding
Laminating
The selected process depends on geometry, volume, thickness, tolerance, and adhesive configuration.
Custom Die Cut Insulation Gaskets
Custom die-cut parts can be manufactured according to the component geometry.
Examples include:
Circular gaskets
Rectangular pads
Oval insulation pieces
Ring-shaped washers
Slotted barriers
Multi-hole insulation plates
Battery terminal insulators
PCB isolation pads
Custom geometry can reduce manual trimming and improve assembly consistency.
Roll-to-Roll Processing
Roll-to-roll processing can support efficient high-volume manufacturing.
The material can be continuously:
Unwound
Slit
Printed if required
Laminated
Die cut
Rewound
Packaged
Continuous processing can improve production efficiency and reduce handling.
Advantages of Roll-Form Insulation
Roll-form insulation provides several practical benefits.
A single material family can support multiple applications by changing the slit width.
Different production environments can use different roll lengths.
Rolls can be stored compactly compared with large quantities of individual pieces.
Rolls are compatible with industrial converting equipment.
Pre-converted material can reduce manual preparation.
Advantages of Single Sided Adhesive Fish Paper
The single-sided configuration provides a combination of insulation and attachment.
Major advantages include:
Electrical insulation
Easy installation
Controlled positioning
Thin construction
Flexible processing
Customizable geometry
Surface protection
Gap separation
Compatibility with manual or automated assembly
Advantages Over Loose Insulation Paper
Loose insulation paper can move during assembly.
Adhesive-backed insulation reduces this problem.
Potential improvements include:
Better positioning
Reduced slipping
Faster installation
More consistent placement
Reduced need for temporary fixtures
This can be particularly useful in high-volume assembly environments.
Advantages for Compact Electronics
Modern electronics often have limited internal space.
A thin fish paper gasket can provide insulation without adding significant bulk.
This makes it suitable for:
Compact power supplies
Controllers
Sensors
Battery packs
Portable electronics
PCB housings
Small motors
Advantages for High-Precision Applications
Thickness uniformity and controlled converting can support precision applications.
Consistent dimensions help maintain:
Electrical separation
Component alignment
Assembly clearance
Repeatable pressure
Stable geometry
This is particularly important where insulation thickness is measured in fractions of a millimeter.
Thermal Processing Considerations
Fish paper insulation may encounter heat during:
Hot pressing
Lamination
Motor assembly
Transformer processing
Welding
Soldering
Battery manufacturing
The material grade should be selected according to the actual process temperature and duration.
Thermal resistance should be evaluated as a complete material system, including the adhesive.
Hot-Pressing Performance
Hot-pressing introduces both heat and pressure.
Potential material requirements include:
Dimensional stability
Resistance to delamination
Low warpage
Stable thickness
Adhesive compatibility
Mechanical integrity
The specified resistance to delamination and warpage after hot-pressing is particularly relevant to applications where insulation is processed under pressure and elevated temperature.
Temperature Aging
Long-term temperature exposure can alter paper and adhesive properties.
Potential changes include:
Reduced adhesion
Brittleness
Discoloration
Dimensional changes
Reduced mechanical strength
Changes in electrical performance
Temperature aging should therefore be considered during qualification.
Moisture Resistance
Paper-based materials naturally require attention to moisture.
Electrical insulation applications may require controlled moisture resistance.
Moisture can influence:
Electrical properties
Dimensional stability
Adhesive bonding
Mechanical strength
The appropriate grade should be selected according to the expected humidity and water exposure.
Oil and Grease Resistance
Industrial electrical equipment may encounter oils and greases.
Where such exposure is expected, the complete fish paper and adhesive system should be evaluated.
Potential applications include:
Motors
Machinery
Electrical cabinets
Industrial controls
Automotive assemblies
Aging Resistance
Aging resistance helps maintain the gasket's performance during long-term use.
Factors that can accelerate aging include:
High temperature
Humidity
Oxidation
Chemical exposure
Mechanical stress
Repeated thermal cycling
A well-designed insulation system should be tested under realistic aging conditions.
Electrical Performance Testing
Potential electrical tests include:
Dielectric strength
Insulation resistance
Surface resistance
Volume resistance
Breakdown voltage
Electrical aging
The correct test method depends on the intended application.
Mechanical Performance Testing
Mechanical testing can include:
Tensile strength
Elongation
Tear resistance
Puncture resistance
Flexibility
Dimensional stability
Mechanical properties are important because electrical insulation can fail if the material is physically damaged.
Adhesive Performance Testing
Adhesive testing may include:
Peel adhesion
Shear holding power
Tack
Cohesion
Aging retention
Temperature retention
Humidity retention
Testing should use the actual substrate whenever possible.
Dimensional Inspection
Dimensional control is particularly important for precision gaskets.
Inspection may include:
Thickness
Width
Length
Diameter
Hole position
Edge tolerance
Die-cut geometry
Automated vision inspection can be used in high-volume converting operations.
Visual Inspection
The material should be checked for:
Wrinkles
Tears
Contamination
Bubbles
Uneven adhesive
Edge damage
Delamination
Warpage
Surface defects
Visual quality can directly influence downstream processing.
Storage Requirements
Recommended storage principles generally include:
Keep the material dry
Avoid excessive heat
Avoid direct sunlight
Keep original packaging intact
Protect adhesive surfaces from contamination
Avoid excessive pressure
Store rolls on suitable cores
Follow the applicable material storage recommendations
The adhesive side should remain protected until installation.
Handling Recommendations
During handling, avoid:
Excessive bending
Sharp folding
Contamination
Direct contact with adhesive
Excessive stretching
Crushing roll edges
Proper handling helps maintain dimensional accuracy.
Installation Process
A typical installation process includes several stages.
Inspect the target area for damage, burrs, dust, oil, and moisture.
Clean the substrate using a method compatible with the substrate and adhesive.
Confirm that the gasket matches the intended geometry.
Remove the protective release liner immediately before installation.
Align the adhesive gasket carefully.
Apply controlled pressure to promote adhesive contact.
Check for:
Wrinkles
Bubbles
Edge lifting
Misalignment
Exposed conductive areas
Avoiding Incorrect Ordering
Single-sided and double-sided adhesive configurations should never be treated as interchangeable.
When ordering, specify:
Single-sided adhesive
Double-sided adhesive
Adhesive type if required
Backing material
Thickness
Width
Roll length
Core size
Die-cut geometry if applicable
Clear specifications reduce the possibility of receiving the wrong construction.
Product Specification Considerations
A complete product specification can include:
Material name
Insulation type
Adhesive configuration
Thickness
Width
Roll length
Core diameter
Adhesive type
Dielectric properties
Mechanical properties
Temperature range
Surface characteristics
Packaging
Tolerance
This information is useful for purchasing, engineering, quality control, and production departments.
Typical Thickness Range
For Precision Insulation Gasket applications, thicknesses may be selected within a range of approximately 0.1 mm to 1.5 mm.
The actual thickness should be determined according to:
Electrical clearance
Mechanical gap
Component tolerance
Thermal conditions
Assembly method
A very thin material may be ideal for compact electronics, while thicker material may be more appropriate for larger mechanical gaps.
Width Range
Custom slit rolls can be produced from approximately 2.8 mm to 1000 mm wide.
The extremely narrow width range can support:
Coil wrapping
Edge insulation
Terminal insulation
Wire protection
Small electronic components
The wider range can support:
Sheet insulation
Battery pack insulation
Large housing liners
Industrial electrical barriers
Roll Length Range
Custom roll lengths can range from approximately 50 m to 200 m.
Longer rolls may be preferred for:
High-volume manufacturing
Continuous converting
Automated processing
Shorter rolls may be suitable for:
Prototyping
Small production runs
Special specifications
Manual processing
Material Selection Guide
When selecting Single Sided Adhesive Fish Paper Insulation Gasket, consider the following.
Determine:
Operating voltage
Frequency
Dielectric requirement
Insulation distance
Clearance
Creepage
Consider:
Flexibility
Tear resistance
Compression
Vibration
Abrasion
Puncture resistance
Consider:
Continuous temperature
Peak temperature
Hot pressing
Thermal cycling
Heat exposure
Consider:
Humidity
Water
Oil
Grease
Chemicals
Dust
Consider:
Substrate
Peel strength
Shear strength
Removability
Temperature
Aging
Application in Transformer Manufacturing
Transformer manufacturing requires controlled insulation between windings and conductive components.
Fish paper insulation may be used as:
Layer insulation
Coil barriers
Terminal insulation
Edge protection
Separator material
The insulation system must be compatible with the transformer's voltage class and thermal design.
Application in Motor Manufacturing
Motors require insulation between conductive windings and metal structures.
Fish paper may be used for:
Slot insulation
Winding barriers
Terminal insulation
Edge protection
Coil separation
The selected material should be compatible with the motor's temperature class and winding process.
Application in High-Frequency Electronics
High-frequency electronics can have compact geometries and strict electrical separation requirements.
Thin fish paper insulation can provide localized isolation without significantly increasing assembly thickness.
Potential applications include:
PCB edge insulation
Component isolation
Metal shield separation
Housing insulation
Inter-layer protection
High-frequency applications require careful electrical and dimensional evaluation.
Application in Power Electronics
Power electronics often involve higher voltages, currents, and thermal loads.
Potential insulation locations include:
PCB-to-housing interfaces
Busbar barriers
Terminal insulation
Component isolation
Metal frame separation
The insulation system must be selected based on the actual electrical and thermal environment.
Application in Energy Storage Systems
Energy storage systems contain multiple battery modules and electrical components.
Fish paper insulation can be used in selected areas for:
Terminal protection
Busbar isolation
Cell separation
BMS insulation
Housing insulation
The material must be qualified for the specific energy storage architecture.
Application in Automotive Electrical Systems
Automotive electrical assemblies experience:
Vibration
Temperature cycling
Humidity
Mechanical shock
Chemical exposure
An adhesive insulation gasket may provide localized protection in selected areas.
However, automotive applications require appropriate durability testing.
Application in Industrial Control Equipment
Industrial control equipment may contain PCBs, relays, terminals, metal frames, and wiring.
Single-sided adhesive fish paper can provide localized electrical isolation and surface protection.
Potential locations include:
PCB mounting points
Terminal areas
Metal brackets
Internal housings
Wiring channels
Application in Electrical Cabinets
Electrical cabinets often contain conductive rails, terminals, busbars, wiring, and control equipment.
Thin Insulation Gaskets can provide localized separation and protection.
Potential benefits include:
Electrical isolation
Surface protection
Gap control
Component positioning
Application in Consumer Electronics
Compact consumer electronics may require very thin insulation layers.
Potential applications include:
Battery compartments
PCB housings
Metal frame isolation
Connector protection
Component separation
The thin profile of fish paper can be useful where space is restricted.
Comparison With Non-Adhesive Fish Paper
Non-adhesive fish paper provides insulation but requires another method to maintain position.
Single-sided adhesive fish paper adds:
Positioning
Attachment
Faster assembly
Reduced movement
However, the adhesive also introduces additional considerations such as temperature resistance, aging, residue, and substrate compatibility.
Comparison With Double-Sided Adhesive Fish Paper
Single-sided adhesive fish paper has one adhesive surface and one pure insulating surface.
Double-sided adhesive fish paper has adhesive on both sides.
Single-sided construction is generally preferred when:
Only one surface should be bonded
The opposite surface must remain non-tacky
A conductive component needs a clean insulating interface
Double-sided construction is useful when:
The insulation must bond between two substrates
Both surfaces require attachment
The material must remain fixed on both sides
Selecting the wrong construction can negatively affect assembly.
Comparison With Plastic Insulation Films
Plastic insulation films may offer different combinations of:
Flexibility
Dielectric performance
Temperature resistance
Moisture resistance
Chemical resistance
Dimensional stability
Fish paper can be advantageous where paper-based electrical insulation, easy converting, mechanical toughness, and controlled thickness are desired.
The best choice depends on the application.
Comparison With Foam Gaskets
Foam gaskets are generally selected when cushioning and compression are important.
Fish paper is typically thinner and more dimensionally stable.
Therefore:
Fish paper is suitable for thin electrical isolation and precise separation.
Foam is often preferred for larger gap filling and cushioning.
Hybrid constructions can combine insulation with cushioning when necessary.
Potential Limitations
Although fish paper insulation offers many advantages, it is not universally suitable.
Potential limitations may include:
Sensitivity to excessive moisture
Limited compatibility with certain chemicals
Adhesive temperature limitations
Mechanical limitations under severe conditions
Potential dimensional changes under extreme environments
Therefore, application-specific testing remains essential.
Common Installation Problems
Possible causes:
Dirty substrate
Incorrect adhesive
Low application pressure
Excessive surface roughness
Low temperature
Possible causes:
Incorrect alignment
Excessive stretching
Uneven application
Poor converting
Possible causes:
Insufficient adhesive contact
Contaminated surface
Excessive bending
Incorrect material selection
Possible causes:
Insufficient thickness
Mechanical damage
Incorrect insulation grade
Excessive voltage
Environmental degradation
How to Improve Assembly Reliability
Assembly reliability can be improved by:
Selecting the correct fish paper grade.
Confirming single-sided adhesive construction.
Matching thickness to the application.
Preparing the substrate correctly.
Using accurate die-cut geometry.
Applying consistent pressure.
Protecting the material from contamination.
Testing under actual operating conditions.
Inspecting finished assemblies.
Controlling storage conditions.
Quality Management for Custom Rolls
For custom slit rolls, quality control should include:
Width measurement
Thickness measurement
Roll length verification
Edge inspection
Adhesive coating inspection
Core inspection
Surface inspection
Electrical performance verification where required
For high-volume applications, statistical process control can help monitor variation.
Quality Management for Die-Cut Parts
For die-cut insulation gaskets, quality checks may include:
Overall dimensions
Hole diameter
Hole position
Edge quality
Adhesive coverage
Liner alignment
Surface contamination
Part count
Packaging integrity
Packaging of Adhesive Fish Paper
Packaging should protect:
Adhesive surface
Roll edges
Paper substrate
Die-cut components
Material from humidity
Material from contamination
The package should also provide sufficient mechanical support during transportation.
Industrial Automation Compatibility
Adhesive fish paper can be designed for automated production.
Possible automation processes include:
Roll feeding
Automatic dispensing
Die cutting
Pick-and-place
Peel-and-apply
Continuous lamination
Automation requires consistent material dimensions and stable adhesive behavior.
Prototype and Small-Batch Applications
Custom slit rolls are useful for prototyping because engineers can quickly cut and test different shapes.
Prototype work can evaluate:
Fit
Thickness
Adhesion
Electrical isolation
Thermal behavior
Mechanical stability
After validation, the same material can potentially be transferred to larger-scale converting.
Production Efficiency
Using roll-form material can improve production efficiency by reducing:
Manual cutting
Individual part handling
Alignment time
Material preparation
Pre-converted adhesive gaskets can be supplied in formats optimized for automated assembly.
Environmental Considerations
Material efficiency is an important consideration in industrial production.
Roll processing can allow manufacturers to optimize nesting and reduce unnecessary material waste.
Potential sustainability factors include:
Material utilization
Scrap reduction
Longer service life
Efficient converting
Packaging optimization
Recycling options depend on the specific paper, adhesive, liner, and contamination conditions.
Frequently Asked Questions
It is an electrical insulation paper with adhesive applied to one side only.
Fish paper can be used for electrical isolation, motor winding insulation, transformer coil isolation, battery protection, PCB insulation, terminal barriers, and custom gasket applications.
It means adhesive is present on one side only. The opposite side remains a non-adhesive insulating surface.
It is fish paper with adhesive applied to both sides.
Single-sided material bonds on one side and provides a pure insulating surface on the opposite side. Double-sided material bonds on both sides.
Yes, selected grades can be used for battery insulation applications such as terminal protection, cell insulation, tab protection, and localized electrical isolation.
Yes, it can be converted into insulation pads and custom shapes for selected 18650 battery pack applications.
Yes, selected fish paper grades can be converted for 21700 battery insulation and protection applications.
Yes. Single-sided adhesive fish paper is particularly suitable when one side must be attached while the opposite side remains a clean insulating surface.
Application-specific thicknesses can range approximately from 0.1 mm to 1.5 mm.
Custom slit widths can range approximately from 2.8 mm to 1000 mm.
Custom roll lengths can range approximately from 50 m to 200 m depending on specifications.
Yes. Fish paper can be converted into custom gaskets, washers, strips, pads, rings, and other shapes.
Water resistance depends on the specific grade and construction. Paper-based insulation should be evaluated carefully for moisture exposure.
Some electrical insulation grades are suitable for elevated temperatures, but the actual temperature rating should be confirmed for the selected material and adhesive system.
Suitable grades can be designed for resistance to delamination and warpage after hot pressing, but actual process conditions should be tested.
Yes, selected electrical insulation paper grades can be used in motor winding-related applications.
Yes, selected grades can be used for coil isolation, layer insulation, terminal insulation, and other transformer-related applications.
It can be used for selected inter-layer insulation and localized electrical isolation applications, provided its electrical characteristics meet the circuit requirements.
Ordering Information
When requesting Single Sided Adhesive Fish Paper Insulation Gasket, it is useful to specify:
Material: Fish Paper or Electrical Insulation Paper
Adhesive: Single Sided Adhesive
Thickness: Application-specific, approximately 0.1 mm to 1.5 mm
Width: Custom slit width, approximately 2.8 mm to 1000 mm
Roll Length: Approximately 50 m to 200 m
Format: Roll, sheet, or die-cut gasket
Application: Electrical isolation, battery insulation, motor winding, transformer coil, PCB protection, or other use
Surface: One adhesive side and one pure insulation side
Custom Processing: Slitting, die cutting, punching, sheeting, or other converting
Clearly specifying these parameters can reduce ordering errors and help ensure that the supplied material matches the intended application.
Design Recommendations
When designing an insulation gasket, engineers should consider the entire assembly.
The gasket should not interfere with:
Electrical terminals
Grounding points
Connectors
Heat sinks
Ventilation
Fasteners
Moving parts
Inspection areas
Service access
The gasket geometry should also account for manufacturing tolerances.
Electrical Clearance and Creepage
Electrical isolation involves more than simply inserting an insulating sheet.
Engineers should consider:
Clearance through air
Creepage along surfaces
Operating voltage
Transient voltage
Pollution level
Humidity
Material surface properties
The gasket should be integrated into the overall insulation system.
Mechanical Tolerance
The material should accommodate expected assembly tolerance without being excessively compressed or stretched.
For example, a 0.5 mm gasket installed into a nominal 0.5 mm space may experience completely different conditions if the actual manufacturing tolerance varies significantly.
Tolerance analysis should therefore be performed during product design.
Edge Design
Sharp metal edges can damage insulation.
Where necessary, designers should:
Round sharp corners
Remove burrs
Increase edge clearance
Add protective barriers
Use appropriate gasket geometry
This can improve long-term electrical reliability.
Thermal Expansion
Different materials expand at different rates.
A fish paper gasket installed between metal and plastic components may experience mechanical stress during temperature changes.
The design should account for:
Thermal expansion
Thermal contraction
Adhesive movement
Material flexibility
Repeated temperature cycling
Vibration Considerations
Battery packs, motors, automotive electronics, and industrial equipment can experience vibration.
The adhesive should maintain attachment under expected vibration.
The insulation should also resist rubbing and mechanical fatigue.
Long-Term Reliability
Long-term reliability depends on the interaction of:
Paper substrate
Adhesive
Substrate surface
Temperature
Humidity
Mechanical stress
Electrical stress
Chemical exposure
Therefore, accelerated aging tests can be useful during product qualification.
Recommended Qualification Program
A comprehensive qualification program may include:
Verify thickness, width, appearance, and adhesive construction.
Verify insulation resistance and dielectric performance.
Evaluate tensile strength, flexibility, tear resistance, and adhesion.
Expose samples to the expected temperature range.
Evaluate performance under elevated humidity.
Test compatibility with actual oils, greases, solvents, or other fluids.
Install the material in representative components.
Evaluate retention of electrical, mechanical, and adhesive properties after aging.
Importance of Application-Specific Validation
No single fish paper insulation gasket should be considered suitable for every electrical application.
The same 0.5 mm material can perform differently depending on:
Voltage
Temperature
Humidity
Surface
Mechanical stress
Adhesive system
Installation method
Therefore, product qualification should be based on the actual application rather than a generic material description.
Summary of Key Benefits
Single Sided Adhesive Fish Paper Insulation Gasket provides a useful combination of electrical insulation and adhesive attachment.
Key benefits include:
Single-sided adhesive construction
Pure insulation surface on the opposite side
High thickness uniformity
Micro-gap insulation capability
Flexible roll format
Custom slit widths
Custom roll lengths
Die-cut processing
Electrical isolation
Surface protection
Component separation
Positioning during assembly
Resistance to delamination
Resistance to warpage after suitable hot-pressing
Application flexibility
Conclusion
Single Sided Adhesive Fish Paper Insulation Gasket for Electrical Isolation is a practical material for electrical and electronic assemblies requiring thin, controlled, flexible, and adhesive-backed insulation.
Kraft paper, commonly known as fish paper in electrical insulation applications, provides a useful combination of electrical insulation, mechanical separation, flexibility, dimensional stability, and converting capability. Its high thickness uniformity allows the material to address micro-gap requirements ranging from approximately 0.1 mm to 1.5 mm, while suitable grades can provide resistance to delamination and warpage after hot-pressing.
The material can be considered for high-frequency circuit board insulation, motor winding wrapping, transformer coil isolation, battery pack insulation, PCB-to-metal housing isolation, terminal protection, busbar separation, electrical component protection, and many other industrial applications.
Custom processing expands the application range. Slit rolls can be produced in widths from approximately 2.8 mm to 1000 mm, while roll lengths can range from approximately 50 m to 200 m. The material can also be converted into custom die-cut gaskets, pads, washers, strips, rings, barriers, and other precision insulation components.
The distinction between single-sided and double-sided adhesive is particularly important. Single-sided adhesive fish paper has adhesive on one side only, while the opposite side remains a pure insulating surface. Double-sided adhesive fish paper has adhesive on both sides. Selecting the correct construction helps prevent ordering mistakes and ensures that the material performs as intended during assembly.
For electrical isolation applications, material selection should always consider voltage, temperature, humidity, mechanical stress, substrate compatibility, adhesive performance, thickness tolerance, and long-term aging. Proper surface preparation, accurate converting, controlled installation, and application-specific qualification can further improve reliability.
Overall, Single Sided Adhesive Fish Paper Insulation Gasket offers an efficient solution for thin electrical insulation, precision gap separation, component protection, and adhesive positioning across battery, electronics, motor, transformer, PCB, power equipment, and industrial electrical applications.
This website uses cookies to ensure you get the best experience on our website.
WhatsApp
Phone
