Single Sided Adhesive Fish Paper Insulation Gasket for PCB Protection
Single Sided Adhesive Fish Paper Insulation Gasket for PCB Protection is a flexible electrical insulation material designed for circuit board protection, component isolation, gap filling, surface insulation, and electrical separation. It is commonly manufactured by coating one side of a fish paper substrate with a pressure sensitive adhesive and then laminating the adhesive surface with a release liner for storage and handling.
Single sided adhesive fish paper is also known as back adhesive fish paper, adhesive fish paper, fish paper insulation gasket, adhesive fish paper insulation, fish paper Insulating Gasket, electrical insulation fish paper, and self adhesive fish paper. These terms may describe closely related materials used for electrical insulation and protective applications.
The basic structure consists of a fish paper insulation substrate, a pressure sensitive adhesive layer, and a release liner. The fish paper provides the primary electrical insulation, mechanical support, flexibility, and gap filling function. The adhesive provides convenient attachment to a PCB, electronic component, metal housing, battery component, terminal, connector, or other target surface. The release liner protects the adhesive before installation and can be removed when the gasket is ready for application.
Typical fish paper substrate thickness can range from approximately 0.1 mm to 0.5 mm depending on the application and required insulation performance. The actual thickness, adhesive formulation, adhesive thickness, release liner construction, width, length, die cut shape, and tolerance can be selected according to the intended application.
For PCB protection, the material is particularly useful where a thin and flexible insulation layer is needed between a circuit board and another conductive or potentially conductive surface. It can also help fill small gaps, reduce direct contact between components and housings, protect sensitive surfaces from abrasion, and simplify assembly through its peel and stick design.
The single sided adhesive configuration is especially important. Only one side carries the adhesive, while the opposite side remains primarily an insulating fish paper surface. This configuration can be preferable when one side needs to bond to a target component while the opposite side must provide electrical isolation.
Single sided adhesive fish paper is an electrical insulation material based on fish paper, commonly associated with vulcanized fiber type insulating paper and related electrical insulation substrates. One surface is coated with pressure sensitive adhesive, while the other surface retains the insulating characteristics of the base material.
The term "fish paper" is widely used in electrical insulation applications to describe a tough, flexible, paper-like insulating material. It is commonly selected for applications where a combination of electrical insulation, flexibility, mechanical strength, thin construction, and ease of fabrication is required.
When converted into a single sided adhesive fish paper insulation gasket, the substrate becomes easier to install. Instead of requiring a separate mechanical fixing method, the adhesive side can be positioned directly onto the required surface.
This construction is useful in compact electrical assemblies because modern electronic equipment frequently contains limited installation space. A conventional mechanical fastener may be impractical for a thin PCB assembly, while a loose insulation sheet may shift during assembly. A self adhesive fish paper gasket provides a practical alternative by combining insulation with attachment.
The basic construction can be described as:
Fish Paper Insulation Substrate + Pressure Sensitive Adhesive + Release Liner
After the release liner is removed, the adhesive surface can be attached to the designated component or housing.
The non adhesive side continues to function as the primary fish paper insulation surface. This makes single sided adhesive fish paper different from double sided adhesive Insulation Materials.
The difference between single sided and double sided adhesive fish paper should be clearly understood before product selection.
Single sided adhesive fish paper has adhesive on one side only. The opposite side is not coated with adhesive and remains available as an insulating surface.
Double sided adhesive fish paper has adhesive on both sides. Both surfaces can bond to adjacent components or surfaces.
For PCB protection, single sided adhesive fish paper is often appropriate when the gasket must be attached to one component while the opposite surface must remain electrically insulating.
For example, a fish paper gasket may be bonded to the inside of a metal enclosure while the exposed fish paper surface faces a PCB. In this configuration, the adhesive secures the gasket, while the fish paper creates an insulating barrier between the PCB and metal housing.
Double sided adhesive fish paper may be selected when the insulation layer must bond between two surfaces. However, the additional adhesive surface may not be desirable for applications where the opposite side must remain clean, non tacky, or purely insulating.
Correct product identification is therefore important. Product descriptions should clearly specify whether the material is single sided adhesive or double sided adhesive.
Construction of Single Sided Adhesive Fish Paper Insulation Gasket
A typical single sided adhesive fish paper insulation gasket contains three functional layers.
The fish paper substrate is the main insulation layer. It provides electrical separation between conductive surfaces and contributes to the mechanical integrity of the gasket.
The substrate can be manufactured in different thicknesses. Common application ranges may include approximately 0.1 mm, 0.15 mm, 0.2 mm, 0.25 mm, 0.3 mm, 0.4 mm, and 0.5 mm, depending on application requirements.
Thinner materials can be useful for compact electronic assemblies and narrow clearances. Thicker materials can provide increased mechanical support and greater separation where additional material thickness is needed.
Thickness selection should consider the available installation space, electrical insulation requirements, mechanical conditions, bending requirements, and dimensional tolerance.
The adhesive layer is applied to one side of the fish paper. Pressure sensitive adhesive technology allows the gasket to bond when pressure is applied.
Acrylic pressure sensitive adhesive is commonly considered for applications where adhesion stability, environmental resistance, and aging performance are important. Flame retardant adhesive formulations may also be selected for applications requiring enhanced fire performance.
The adhesive formulation should be evaluated according to the application environment. Factors such as surface energy, temperature, humidity, contamination, substrate material, contact pressure, and required service life can influence bonding performance.
The release liner protects the adhesive before installation. It prevents premature adhesion during storage, transportation, slitting, die cutting, and assembly.
During installation, the release liner is peeled away and the exposed adhesive surface is positioned on the target component.
This construction supports clean and efficient assembly, especially when a large number of small insulation gaskets are installed.
Why Fish Paper Is Used for PCB Protection
Printed circuit boards contain conductive traces, solder joints, components, terminals, connectors, and other electrical structures. These elements can require separation from conductive housings, Brackets, frames, battery components, screws, terminals, or other hardware.
A thin fish paper insulation gasket can provide an additional insulation barrier between these surfaces.
The material can help address several common assembly requirements.
First, it provides electrical isolation. The fish paper layer can separate a PCB from an electrically conductive surface.
Second, it can provide gap filling. Small gaps between components and housings can be partially filled with an appropriately designed insulation gasket.
Third, it can provide surface protection. The fish paper layer can reduce direct contact between sensitive surfaces and surrounding components.
Fourth, it can simplify installation. The adhesive layer allows the gasket to remain in position during assembly.
Fifth, it can provide flexible coverage. Fish paper can be converted into strips, sheets, rings, washers, custom shapes, and precision die cut parts.
These characteristics make single sided adhesive fish paper attractive for PCB insulation applications where a thin, flexible, adhesive backed electrical barrier is needed.
Key Features
The primary function of the fish paper insulation gasket is electrical isolation.
The insulating substrate creates a physical and dielectric barrier between potentially conductive surfaces. This can be useful in PCB assemblies, battery packs, electrical equipment, control boards, power electronics, connectors, terminals, and other electronic systems.
The actual insulation performance depends on substrate formulation, thickness, humidity, temperature, geometry, surface condition, and the overall electrical design.
For engineering applications, insulation performance should be verified against the specific voltage, frequency, creepage distance, clearance, temperature, and environmental requirements of the finished assembly.
Fish paper is valued for its combination of insulation and flexibility.
A Flexible Insulation Gasket can conform to slightly uneven surfaces and can be cut into shapes that follow the geometry of a PCB or electronic component.
Flexibility is especially useful in compact assemblies where rigid insulation materials may be difficult to install.
The appropriate material should be selected according to the required bending radius and assembly method.
Water resistance can help the material maintain useful performance when exposed to humidity, moisture, or occasional environmental contamination.
For PCB applications, moisture management is important because water can influence electrical insulation, adhesive bonding, corrosion, and long term reliability.
However, an insulation gasket should not automatically be treated as a waterproof sealing component unless the complete gasket design and adhesive system have been engineered and validated for waterproof sealing.
Wear resistance helps the fish paper surface tolerate handling and limited mechanical contact during assembly.
In applications where a PCB or electronic component may move relative to a housing, suitable insulation material can reduce direct abrasion between surfaces.
The actual wear resistance depends on material thickness, surface condition, contact pressure, movement, and environmental conditions.
Grease resistance can be valuable in electrical equipment exposed to lubricants, mechanical components, assembly processes, or contaminated industrial environments.
The resistance of the complete gasket system should be considered because the adhesive may respond differently to oils and grease than the fish paper substrate.
Aging resistance is important for components expected to remain in service for extended periods.
Environmental aging can be affected by temperature, humidity, ultraviolet exposure, chemicals, mechanical stress, and repeated thermal cycling.
A suitable fish paper insulation gasket can help maintain its intended insulating and protective function when properly selected for the operating environment.
PCB Protection Applications
One of the most common application concepts is separating a PCB from a metal enclosure.
Metal housings are electrically conductive. If a PCB surface, solder joint, exposed terminal, or conductive trace comes into direct contact with the metal housing, an electrical fault can potentially occur.
A fish paper insulation gasket can be installed between the PCB and housing to provide an insulating barrier.
The single sided adhesive surface can secure the insulation material to the housing or PCB support structure.
Electronic components may have different heights, shapes, and positions. In some designs, insulation material is required around or beneath specific components.
A die cut fish paper gasket can be manufactured to follow the required component geometry.
The gasket may contain openings, slots, corners, tabs, or other customized features.
PCB edges can come into contact with housings or mechanical structures.
A fish paper strip or custom cut gasket can be positioned along selected PCB edges to reduce direct contact.
This can provide additional electrical separation and physical protection.
The rear surface of a PCB may face a metal panel, battery component, mounting bracket, or electronic enclosure.
A thin adhesive fish paper insulation layer can be applied to the required area to create additional electrical separation.
This is particularly useful when installation space is limited.
Battery and PCB Assembly Applications
Single sided adhesive fish paper insulation gaskets are also relevant to battery assemblies containing PCB protection structures.
Modern battery packs may contain battery cells, busbars, Nickel Strips, terminals, protection circuits, PCB assemblies, wiring, metal brackets, and housings.
Electrical insulation between these components is essential to prevent unintended conductive contact.
Fish paper insulation can be used around battery terminals, between conductive components, beneath selected circuit boards, or between electrical components and structural surfaces.
For cylindrical battery assemblies, fish paper can be converted into rings, strips, pads, washers, or custom die cut components.
The same material concept can be used with common cylindrical cell formats such as 18650 and 21700 where the design requires an additional insulation layer.
18650 Battery Insulation Applications
18650 battery cells are widely used in battery pack assemblies.
A single sided adhesive fish paper insulation gasket can be designed for specific insulation zones around an 18650 cell assembly.
Potential application areas include:
Battery terminal protection
Cell end insulation
PCB support insulation
Busbar separation
Metal housing isolation
Battery pack component protection
Interlayer insulation
Electrical gap filling
The gasket dimensions should be matched to the actual battery assembly design.
21700 Battery Insulation Applications
21700 cylindrical battery cells are another common cell format.
Compared with smaller cylindrical cells, the larger cell dimensions may require different insulation gasket dimensions.
Fish paper can be die cut or slit according to the required dimensions.
For battery pack construction, the insulation material can be used around electrical connection areas, between conductive components, and between electronic control components and structural surfaces.
PCB Protection in Power Electronics
Power electronics assemblies can contain components operating at relatively high electrical and thermal loads.
Examples include power supply boards, motor controllers, battery management systems, inverter boards, charging systems, industrial control boards, and energy storage electronics.
These assemblies may require insulation between circuit boards and mechanical structures.
A fish paper gasket can provide a thin physical insulation barrier without occupying excessive installation space.
The material can be cut to the required geometry and attached using the adhesive layer.
Application in Motor Electronics
Electric motors and motor control systems may contain windings, terminal boards, sensors, circuit boards, connectors, and metal structures.
Electrical isolation can be required between these elements.
Fish paper insulation has long been associated with electrical insulation applications because of its flexibility and ability to be fabricated into different shapes.
Single sided adhesive versions can simplify placement during motor assembly.
Transformer and Coil Insulation
Transformer coils and electrical windings require insulation between different conductive layers and components.
Fish paper insulation may be used for various electrical isolation and protective purposes depending on the transformer design.
The material can be supplied as rolls or converted into custom insulation components.
Thickness and dielectric requirements should be evaluated according to the transformer design and applicable standards.
Gap Filling and Gap Sealing
The term "gap sealing" can describe a range of applications where a material is used to occupy or cover a gap.
Single sided adhesive fish paper is useful for gap filling where electrical insulation is the primary purpose.
It can help prevent direct contact between two surfaces and provide an insulating layer across a small clearance.
However, electrical gap filling should not automatically be confused with pressure sealing, waterproof sealing, or hermetic sealing.
The correct material depends on whether the application requires electrical insulation, dust protection, moisture protection, mechanical cushioning, or fluid sealing.
Advantages of Single Sided Adhesive Construction
The peel and stick design makes installation straightforward.
The operator removes the release liner, aligns the gasket, and applies it to the designated surface.
This can reduce assembly complexity compared with loose insulation sheets.
The adhesive helps maintain the gasket position during assembly.
This is particularly helpful for small PCB insulation pieces that might otherwise move or fall out of position.
The material can provide insulation without requiring mechanical clips or fasteners.
This can be beneficial where the assembly has limited space.
The substrate can be converted into different geometries.
Common forms include:
Sheets
Rolls
Strips
Pads
Rings
Washers
Die cut gaskets
Custom insulation pieces
This allows the material to support both standard and customized electrical insulation requirements.
Thickness Selection
Thickness is one of the most important parameters when selecting a fish paper insulation gasket.
A typical substrate thickness range may be approximately 0.1 mm to 0.5 mm.
Thin fish paper around 0.1 mm can be useful for tight clearances where minimum material thickness is desired.
Intermediate thicknesses can provide a balance between insulation, flexibility, handling strength, and gap filling.
Thicker fish paper around 0.5 mm can provide increased physical separation and mechanical support.
Thickness selection should not be based solely on gap size. Electrical insulation requirements, dielectric performance, dimensional tolerance, temperature, mechanical stress, and assembly conditions should also be considered.
Width and Roll Length

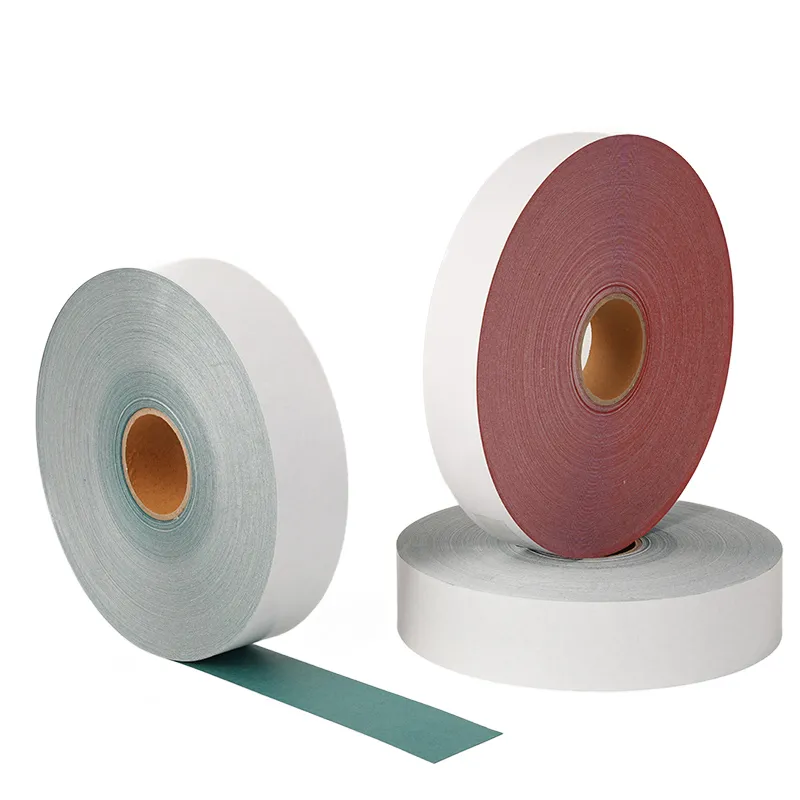

Single sided adhesive fish paper can be supplied in master rolls, slit rolls, sheets, or converted components.
Slit widths can be customized for different applications.
For narrow insulation strips, precise slitting is important because excessive width can interfere with surrounding components.
For larger PCB surfaces, wider material can reduce the number of pieces required during assembly.
Roll length depends on substrate thickness, material construction, application requirements, packaging method, and production configuration.
Common customized roll lengths may be selected according to manufacturing requirements.
Die Cutting and Custom Shapes
Many PCB protection applications require shapes that cannot be achieved efficiently with simple rectangular sheets.
Die cutting allows fish paper insulation to be converted into customized gaskets.
A Die Cut Insulation Gasket can include:
Circular openings
Mounting holes
Slots
Corner cutouts
Notches
Tabs
Internal openings
Perimeter shapes
Asymmetrical profiles
Multiple openings
Custom mounting features
The design can be based on engineering drawings or physical samples.
For mass production, precision die cutting can improve consistency between individual insulation components.
Slitting and Roll Conversion
Slitting is useful when customers require narrow insulation strips.
A wide fish paper roll can be converted into multiple narrow rolls.
This process is suitable for:
PCB edge insulation
Wire insulation
Battery cell insulation
Terminal protection
Coil insulation
Transformer insulation
Electrical gap filling
Component isolation
The required width should be determined by the final application.
Adhesive Performance
The adhesive is a critical component of a single sided adhesive fish paper insulation gasket.
A pressure sensitive adhesive should provide sufficient adhesion to the intended surface without interfering with the primary insulation function.
Common target surfaces may include:
Metal
Plastic
PCB substrates
Electronic housings
Battery components
Electrical Insulation Materials
Painted surfaces
Composite materials
Surface cleanliness is important.
Dust, oil, grease, moisture, release agents, and other contamination can reduce adhesion.
For demanding applications, adhesive compatibility should be evaluated through actual assembly testing.
Acrylic Adhesive Considerations
Acrylic pressure sensitive adhesives are frequently considered for electrical insulation applications because they can provide useful adhesion and environmental resistance.
A flame retardant acrylic adhesive may be selected where enhanced fire performance is required.
The exact performance depends on adhesive chemistry, coating weight, substrate surface, temperature, pressure, aging conditions, and application method.
An adhesive that performs well on metal may behave differently on low surface energy plastics.
Therefore, adhesive selection should be validated against the actual PCB housing, battery component, plastic enclosure, or other surface used in the final product.
Release Liner Function
The release liner is not part of the final installed insulation system.
Its main purpose is to protect the adhesive during manufacturing, storage, transportation, slitting, die cutting, and assembly.
A suitable release liner should allow clean removal without damaging the adhesive coating.
The liner can also make handling easier when small die cut parts are produced.
For automated assembly, liner release characteristics may become especially important because the gasket must separate cleanly and consistently from the liner.
PCB Protection During Assembly
PCB protection is not limited to the final operating condition.
During manufacturing and assembly, circuit boards can be exposed to mechanical contact, handling, vibration, tooling, temporary heat, and other processes.
Fish paper insulation gaskets can serve as temporary or permanent protective components depending on the design.
For example, an insulation pad may be placed between a PCB and a metal fixture during a specific assembly operation.
After assembly, the same material may remain in the finished product as an electrical isolation layer.
High Temperature Process Protection
In certain manufacturing environments, temporary insulation and protection materials are needed during operations involving elevated temperatures.
Examples can include high frequency welding, laser cutting, soldering related processes, thermal assembly, and other localized heat operations.
Fish paper may be selected for temporary protective use depending on the actual temperature, duration, distance from the heat source, and material construction.
The adhesive layer must be evaluated separately because the temperature resistance of the adhesive may differ significantly from that of the fish paper substrate.
For high temperature applications, the complete material construction should be tested rather than relying only on the nominal substrate temperature capability.
Water and Moisture Considerations
Moisture can influence both electrical insulation and adhesive bonding.
A fish paper insulation gasket with good water resistance can offer additional protection in humid environments.
However, the material should be evaluated according to the actual environmental conditions.
Important factors include:
Relative humidity
Condensation
Water exposure
Temperature cycling
Chemical exposure
Long term storage
Operating temperature
Surface contamination
For outdoor or moisture-sensitive electronic equipment, the complete assembly should be tested for environmental durability.
Oil and Grease Resistance
Industrial electrical equipment can be exposed to oils, lubricants, and grease.
A fish paper insulation gasket with suitable resistance can help maintain physical integrity under these conditions.
However, compatibility testing is recommended because the adhesive and fish paper layers may have different chemical resistance.
The exact lubricant composition should be considered during material selection.
Wear and Mechanical Protection
In addition to electrical insulation, fish paper can provide a physical separation layer.
It can reduce direct rubbing between components and protect surfaces from limited mechanical contact.
For applications involving continuous movement, vibration, or high friction, material selection should consider mechanical wear testing.
The gasket thickness, adhesive strength, surface finish, and installation method can all influence service performance.
Aging Resistance
Long term aging is an important consideration for electrical insulation.
Aging can result from:
Heat
Humidity
Thermal cycling
Mechanical stress
Chemical exposure
Electrical stress
Oxidation
Environmental contamination
A suitable insulation gasket should maintain sufficient dimensional and electrical performance over the expected service period.
Accelerated aging tests may be used to evaluate the material for specific applications.
Common PCB Protection Scenarios
Single sided adhesive fish paper insulation gaskets can be considered for numerous PCB-related applications.
Typical scenarios include:
PCB to metal housing isolation
PCB backside insulation
PCB edge protection
Terminal isolation
Connector protection
Battery management system insulation
Power supply board insulation
Motor controller insulation
Inverter board protection
Control board insulation
Electronic module isolation
Circuit board gap filling
Component separation
Electrical contact prevention
Housing insulation
These applications share a common requirement: maintaining controlled electrical separation between components and surrounding structures.
Application in Battery Management Systems
Battery management systems contain electronic control circuits responsible for monitoring and managing battery operation.
The PCB may be mounted near battery cells, busbars, terminals, wires, metal structures, or plastic housings.
A single sided adhesive fish paper insulation gasket can be used to isolate selected areas of the PCB from surrounding structures.
The material can be die cut according to the PCB geometry.
Where required, openings can be incorporated around connectors, mounting points, or other components.
Application in Power Supply Boards
Power supply boards can contain conductive components and metallic heat dissipation structures.
An insulation gasket can be positioned between the PCB and selected mechanical surfaces.
This can reduce the risk of unintended electrical contact while maintaining a compact design.
The exact insulation distance should be determined by the electrical design and applicable safety requirements.
Application in Control Boards
Industrial control boards may be installed inside metal enclosures.
The enclosure can provide mechanical protection but may also introduce conductive surfaces close to the PCB.
Fish paper insulation can act as an electrical barrier between the board and housing.
The adhesive backing helps maintain the correct position during assembly.
Application in Electronic Housings
Plastic and metal electronic housings often contain mounting structures, screws, brackets, and other mechanical elements.
A Custom Insulation Gasket can be used around selected mounting areas or between electronic components and housing structures.
The gasket can be produced in a shape that matches the housing geometry.
Surface Preparation Before Installation
Correct surface preparation can significantly influence adhesive performance.
The surface should generally be clean, dry, and free from dust and oil.
Depending on the substrate, cleaning may involve an appropriate industrial cleaning method.
The surface should be allowed to dry before applying the gasket.
Operators should avoid touching the adhesive surface unnecessarily because fingerprints and contamination can affect bonding.
Installation Procedure
A typical installation process can follow these steps.
First, verify the gasket dimensions and orientation.
Second, clean the target surface.
Third, remove the release liner carefully.
Fourth, avoid touching the adhesive surface.
Fifth, align the gasket with the target area.
Sixth, apply the gasket gradually from one side to the other.
Seventh, press the material firmly against the surface.
Eighth, inspect the gasket for wrinkles, bubbles, lifting edges, or misalignment.
The exact pressure and dwell time should be determined by the adhesive system and assembly requirements.
Storage Recommendations
Proper storage helps maintain adhesive performance.
Single sided adhesive fish paper should generally be stored in a clean, dry environment away from excessive heat, moisture, direct sunlight, and chemical contamination.
Rolls should be protected from crushing and excessive mechanical pressure.
Die cut components should remain on their release liner until installation.
Storage temperature and humidity requirements should follow the material supplier's technical specifications.
Packaging Considerations
Packaging should protect the insulation material from:
Dust
Moisture
Mechanical damage
Adhesive contamination
Edge deformation
Excessive pressure
Unwanted adhesion
For slit rolls, edge protection can help maintain dimensional accuracy.
For die cut gaskets, packaging should prevent the parts from shifting or becoming damaged during transportation.
Quality Control
Quality control is important for electrical insulation gaskets because small dimensional variations can influence assembly.
Typical inspection areas include:
Material thickness
Width
Length
Adhesive coverage
Adhesive uniformity
Release liner condition
Die cut dimensions
Edge quality
Surface appearance
Adhesion
Electrical insulation performance
Dimensional tolerance
Roll winding quality
The inspection criteria should be matched to the application.
Thickness Uniformity
Thickness uniformity is particularly important for PCB protection.
If the material thickness varies significantly, it may create inconsistent gaps or mechanical pressure.
Uniform thickness can help maintain consistent insulation distances and improve assembly repeatability.
For precision applications, thickness should be measured using appropriate inspection equipment and according to an agreed measurement method.
Dimensional Accuracy
Dimensional accuracy becomes especially important for die cut insulation gaskets.
A gasket that is too large may interfere with connectors or components.
A gasket that is too small may fail to cover the required insulation area.
Therefore, the gasket dimensions should be based on engineering drawings, PCB dimensions, housing dimensions, and actual assembly tolerances.
Edge Quality
Clean edges are desirable for insulation components.
Poor cutting quality can produce loose fibers, burr-like edges, uneven profiles, or dimensional inconsistencies.
Precision converting and die cutting can help improve edge quality.
For compact electronic assemblies, clean edges can make installation easier.
Electrical Insulation Testing
Electrical insulation performance may be evaluated through appropriate laboratory or production tests.
Depending on the application, tests may include:
Dielectric strength testing
Insulation resistance testing
Breakdown voltage testing
Surface resistance testing
Volume resistance testing
Humidity aging
Thermal aging
Environmental conditioning
The appropriate test method depends on the final electrical system.
Flame Retardant Considerations
Some electronic applications require insulation materials with improved flame retardant properties.
A flame retardant adhesive can be considered where the application requires enhanced fire behavior.
However, flame retardancy should be evaluated based on the complete construction.
The fish paper substrate, adhesive, release liner, and final assembly may all have different combustion characteristics.
Therefore, the finished material should be tested against the relevant requirements.
Advantages for Modern Electronics Manufacturing
Modern electronic assemblies continue to become smaller and more densely packed.
This creates greater demand for thin insulation materials that can fit into restricted spaces.
Single sided adhesive fish paper provides several advantages for compact manufacturing:
Thin construction
Flexible handling
Electrical isolation
Easy application
Custom die cutting
Narrow slitting
Gap filling
Surface protection
Position stability
Low installation complexity
These features make the material suitable for a broad range of electronic and electrical applications.
Single Sided Adhesive Fish Paper for Precision Applications
Precision electronic assemblies require materials that can maintain consistent dimensions.
The fish paper substrate can be slit or die cut according to defined specifications.
For narrow gaps and small components, dimensional accuracy can be more important than simply selecting the thickest insulation material.
A precision gasket should be designed around the complete assembly rather than treated as an independent component.
Fish Paper Insulation Gasket for Electrical Isolation
Electrical isolation is the central function of many fish paper gasket applications.
The gasket creates a barrier between conductive components.
Potentially conductive surfaces may include:
Metal housings
Mounting brackets
Battery terminals
Busbars
Screws
Connectors
Electrical contacts
Motor components
Transformer components
The insulating layer helps maintain the required separation.
Fish Paper Gasket for Gap Filling
Gap filling applications can involve very small clearances.
A fish paper gasket can occupy a defined space and prevent direct contact.
The material thickness should be selected according to the actual gap.
For gaps between approximately 0.1 mm and 1.5 mm, different material constructions may be considered depending on the desired compression, insulation requirement, and installation geometry.
The nominal material thickness should not automatically be equated with the final installed gap because adhesive thickness, substrate deformation, surface flatness, and assembly pressure can influence the final result.
Why Adhesive Backing Is Useful
A loose insulation sheet can move during assembly.
A self adhesive gasket stays attached to the selected surface after installation.
This provides several manufacturing benefits.
It can reduce assembly errors.
It can simplify positioning.
It can improve repeatability.
It can reduce the need for additional fasteners.
It can help keep small parts in place.
It can support automated or semi automated assembly.
For high volume production, these benefits can contribute to more efficient manufacturing.
Manual Assembly
For manual assembly, single sided adhesive fish paper is easy to handle.
The operator can identify the correct position, peel the liner, align the gasket, and press it into place.
The process does not normally require specialized mechanical fastening equipment.
This makes the material useful for prototypes, small production runs, repair operations, and mass production.
Automated Assembly
Automation may require consistent liner release, dimensional accuracy, roll winding quality, and adhesive performance.
Die cut components can be supplied on a liner in a continuous web.
Automated equipment can pick, position, and apply the insulation component.
For automated production, material specifications should be coordinated with the equipment design.
Environmental Considerations
Environmental performance depends on the substrate, adhesive, operating temperature, humidity, chemicals, and mechanical conditions.
A gasket intended for indoor electronics may have different requirements from one used in automotive, industrial, outdoor, or battery applications.
Before final material selection, engineers should evaluate:
Operating temperature
Storage temperature
Humidity
Chemical exposure
Vibration
Mechanical movement
Electrical voltage
Electrical frequency
Required service life
Fire requirements
Installation method
These factors determine whether a particular fish paper construction is suitable.
Chemical Compatibility
Chemical exposure can affect both insulation materials and adhesives.
Potential contaminants may include:
Oil
Grease
Cleaning agents
Solvents
Coolants
Plasticizers
Lubricants
Industrial chemicals
Chemical compatibility should be evaluated using representative exposure conditions.
Short term exposure and long term exposure can produce different results.
Thermal Cycling
Electronic products may experience repeated temperature changes.
For example, a device may be stored at a low temperature, operated at an elevated temperature, and then cooled again.
Repeated expansion and contraction can place stress on adhesive interfaces.
A suitable single sided adhesive fish paper gasket should therefore be evaluated under the expected thermal cycling conditions.
Vibration and Mechanical Stress
Automotive electronics, industrial equipment, power tools, battery packs, and other devices may experience vibration.
The gasket must remain correctly positioned during operation.
Adhesive bonding and substrate flexibility both influence performance.
Where vibration is significant, testing should be performed under representative mechanical conditions.
Customization Options
Single sided adhesive fish paper insulation gaskets can be customized in several ways.
Customization may include:
Substrate thickness
Adhesive type
Adhesive thickness
Adhesive coverage
Roll width
Roll length
Die cut shape
Hole dimensions
Slot dimensions
Corner radius
Tolerance
Release liner type
Packaging
Custom specifications allow the same basic insulation technology to support different industries.
Common Product Forms
Roll material is useful for manufacturers performing their own cutting or slitting.
Slit rolls are supplied at narrower widths for direct manufacturing use.
Sheets are convenient for manual cutting and prototyping.
Die cut gaskets are ready-to-install components with a predefined geometry.
Strips are useful for edge insulation, gap filling, and linear electrical isolation.
Fish paper washers can provide insulation around screws, terminals, and mounting hardware.
Insulation rings can be used around cylindrical components and battery cell structures.
Recommended Product Specification Areas
When specifying a single sided adhesive fish paper insulation gasket, buyers and engineers should define:
Product type
Fish paper grade
Substrate thickness
Adhesive type
Adhesive thickness
Adhesive side
Release liner type
Width
Length
Die cut dimensions
Tolerance
Operating temperature
Electrical insulation requirement
Environmental resistance
Packaging method
Application method
This information helps prevent incorrect product selection.
Single Sided Adhesive Identification
A product should clearly identify its adhesive configuration.
"Single Sided Adhesive Fish Paper" means that adhesive is present on one side.
"Double Sided Adhesive Fish Paper" means that adhesive is present on both sides.
This distinction should be confirmed before ordering because the two constructions are intended for different assembly conditions.
For PCB protection where only one surface needs to bond, single sided adhesive fish paper is often the more appropriate construction.
Common Terminology
Different industries may use different terms for similar materials.
Common search and product terms include:
Single Sided Adhesive Fish Paper
Adhesive Fish Paper
Back Adhesive Fish Paper
Self Adhesive Fish Paper
Fish Paper Insulation
Fish Paper Insulation Gasket
Fish Paper Gasket
Electrical Insulation Fish Paper
Adhesive Insulation Gasket
Electrical Insulation Gasket
PCB Protection Gasket
Electrical Isolation Gasket
Insulating Paper Gasket
Kraft Paper Insulation
Electrical Insulation Paper
These terms can describe related materials, but specifications should always be checked rather than relying only on terminology.
Selection Guide
When selecting a fish paper insulation gasket for PCB protection, begin by identifying the purpose.
If the primary requirement is electrical isolation, focus on dielectric performance and substrate thickness.
If the primary requirement is gap filling, focus on thickness, dimensional accuracy, and flexibility.
If the primary requirement is easy installation, focus on adhesive type and liner construction.
If the application involves high temperature, evaluate the entire adhesive and substrate system.
If the application involves moisture, evaluate water resistance and long term environmental stability.
If the application involves oil or grease, conduct chemical compatibility testing.
If the component is irregularly shaped, consider precision die cutting.
If the material is applied to a narrow area, consider slit roll conversion.
Design Considerations for PCB Protection
The insulation gasket should cover all areas where electrical contact could occur.
At the same time, excessive material should be avoided because it can interfere with connectors, ventilation, mounting hardware, or other components.
Designers should consider:
PCB dimensions
Housing geometry
Mounting points
Component heights
Clearance requirements
Creepage requirements
Cable routing
Connector location
Heat dissipation
Assembly sequence
Serviceability
A properly designed gasket should integrate with the complete PCB assembly rather than simply covering a large surface without consideration of surrounding components.
Electrical Clearance and Creepage
Insulation gaskets can contribute to electrical separation, but they do not replace proper PCB layout and electrical safety design.
Clearance refers to the shortest distance through air between conductive parts.
Creepage refers to the shortest path along an insulating surface between conductive parts.
The required distances depend on voltage, pollution degree, material characteristics, working environment, and applicable standards.
A fish paper gasket can add a physical insulation barrier, but engineers should verify that the complete assembly meets the required electrical design criteria.
Manufacturing Process
A general manufacturing route may include:
Fish paper substrate preparation
Thickness inspection
Surface treatment if required
Adhesive coating
Drying or curing
Release liner lamination
Slitting
Die cutting
Dimensional inspection
Adhesive inspection
Electrical performance testing
Packaging
The exact manufacturing process varies according to material construction and product requirements.
Adhesive Coating Uniformity
Uniform adhesive coating is important for reliable bonding.
If adhesive coverage is inconsistent, some areas may have insufficient adhesion while other areas may contain excessive adhesive.
Controlled coating processes can help improve consistency.
For precision electrical insulation components, adhesive coating should be inspected according to defined specifications.
Die Cutting Accuracy
Precision die cutting is important for small PCB insulation components.
The cutting tool should produce clean edges and maintain dimensional tolerances.
Tool design should consider material thickness, adhesive characteristics, release liner properties, and the required geometry.
Complex shapes may require specialized tooling or digital cutting methods.
Product Inspection Before Shipment
Typical quality inspection may include visual inspection, dimensional inspection, adhesive inspection, and packaging inspection.
For specialized electrical applications, additional electrical or environmental tests may be specified.
Inspection records can help support consistent production quality.
Troubleshooting Adhesive Problems
If a gasket does not adhere properly, several factors should be investigated.
The surface may be contaminated.
The surface may have low surface energy.
The application temperature may be unsuitable.
Insufficient pressure may have been applied.
The material may have been stored incorrectly.
The adhesive may be incompatible with the target surface.
The gasket may have been contaminated during handling.
The liner may have been removed too early.
A systematic evaluation can identify the cause.
Troubleshooting Gasket Lifting
Edge lifting may result from:
Insufficient surface preparation
Excessive curvature
Insufficient adhesive contact
Incorrect adhesive selection
High temperature exposure
Chemical contamination
Mechanical stress
Small contact area
The gasket design should be reviewed together with the adhesive system and actual application conditions.
Troubleshooting Dimensional Problems
If the gasket does not fit correctly, verify:
Drawing dimensions
Cutting tolerance
Material thickness
Shrinkage
Die alignment
Roll slitting accuracy
PCB tolerance
Housing tolerance
Assembly positioning
The gasket should be designed with consideration for the dimensional tolerances of mating components.
Sustainability and Material Efficiency
Material efficiency can be improved by optimizing gasket geometry.
Nesting multiple die cut parts within a sheet or roll can reduce material waste.
For high volume production, optimized cutting layouts may reduce scrap.
The selection of substrate thickness should also be based on actual requirements rather than automatically choosing a thicker material.
Industrial Applications
Single sided adhesive fish paper insulation gaskets can be used in:
Consumer electronics
Industrial electronics
Battery packs
Energy storage systems
Power tools
Motor control equipment
Electrical equipment
Transformers
Motors
Power supplies
Control systems
Communication equipment
Electronic modules
Automotive electronics
Appliances
Instrumentation
These applications may require different material constructions and performance levels.
Consumer Electronics
Compact consumer electronics often require thin insulation materials.
Fish paper can be used around batteries, circuit boards, connectors, metal brackets, and other internal components.
The adhesive backing helps position the insulation during assembly.
Industrial Electronics
Industrial control systems may require durable insulation materials capable of maintaining performance under demanding environments.
Single sided adhesive fish paper can be considered for PCB isolation, terminal protection, housing insulation, and component separation.
Power Tools
Battery powered power tools contain batteries, electronic control boards, motors, metal components, and mechanical structures.
Fish paper insulation can be used in selected areas where electrical separation is required.
Energy Storage Systems
Energy storage equipment contains battery cells and electronic control systems.
Insulation materials may be required around cell terminals, PCB assemblies, busbars, and structural components.
The appropriate gasket construction should be selected based on the voltage, temperature, environmental conditions, and mechanical requirements of the energy storage system.
Automotive Electronics
Automotive electronic systems may experience vibration, temperature cycling, humidity, and chemical exposure.
Where fish paper insulation is considered for automotive applications, the complete material system should be evaluated under representative automotive environmental conditions.
Important Product Selection Notes
The phrase "fish paper insulation gasket" describes a material category rather than one universal specification.
Different fish paper substrates can have different:
Thickness
Density
Mechanical strength
Dielectric strength
Temperature performance
Moisture resistance
Surface characteristics
Flexibility
Cutting behavior
Similarly, adhesives can have different:
Peel adhesion
Shear strength
Temperature resistance
Chemical resistance
Aging behavior
Flame retardant properties
Therefore, users should select the material according to the complete application.
Frequently Asked Questions
Single sided adhesive fish paper is an insulating fish paper substrate coated with pressure sensitive adhesive on one side and typically protected by a release liner.
A fish paper insulation gasket is a shaped or unshaped fish paper component used for electrical isolation, gap filling, component protection, and insulation.
Yes. It can be used to create electrical separation between a PCB and conductive or mechanical surfaces when the material specifications are suitable for the application.
A common application range is approximately 0.1 mm to 0.5 mm, although other thicknesses may be available depending on the material construction.
Fish paper can provide useful water resistance depending on its construction, but it should not automatically be considered a waterproof sealing material.
Suitable fish paper constructions can provide oil and grease resistance. The complete substrate and adhesive system should be tested against the specific chemical environment.
Yes. Fish paper can be converted into custom die cut insulation gaskets, pads, strips, rings, washers, and other shapes.
Yes. Single sided adhesive fish paper can be supplied in master rolls or slit rolls depending on production requirements.
Single sided adhesive fish paper has adhesive on one side only. Double sided adhesive fish paper has adhesive on both sides.
The non adhesive side consists primarily of the fish paper substrate and is intended to retain the insulation function of the base material.
It can be considered for 18650 battery pack insulation applications when the dimensions and performance requirements are appropriate.
Yes, fish paper insulation components can be designed for 21700 battery assemblies when the material and dimensions meet the application requirements.
Fish paper insulation can be considered for transformer and coil insulation applications where the required electrical and thermal characteristics are satisfied.
Fish paper materials are used in various electrical insulation applications involving motors and windings. The specific grade should be selected according to the motor design.
Its primary function is electrical insulation and protection. Whether it provides mechanical or environmental sealing depends on the complete gasket design and adhesive system.
It may be used in selected high temperature or temporary protection applications, but the complete substrate and adhesive construction should be evaluated at the actual operating temperature.
The target surface should be clean and dry. The release liner is removed, the gasket is aligned, and pressure is applied to establish contact.
Conclusion
Single Sided Adhesive Fish Paper Insulation Gasket for PCB Protection is a practical electrical insulation solution for applications requiring a thin, flexible, adhesive backed insulating barrier.
The material combines a fish paper insulation substrate with pressure sensitive adhesive on one side and a release liner for convenient handling. This construction allows the gasket to be peeled, positioned, and attached directly to the required surface.
Its key characteristics include excellent insulation, flexibility, water resistance, wear resistance, grease resistance, and aging resistance. These properties make it suitable for electrical isolation, PCB protection, battery pack insulation, component separation, gap filling, terminal protection, motor insulation, transformer applications, and various electronic assembly requirements.
The material can be supplied in rolls, slit rolls, sheets, strips, and custom die cut components. Typical fish paper thicknesses may range from approximately 0.1 mm to 0.5 mm, while dimensions and adhesive specifications can be selected according to the application.
For PCB protection, the gasket can provide a controlled insulation layer between circuit boards and metal housings, brackets, battery components, terminals, connectors, and other conductive structures.
The single sided adhesive construction is particularly useful when one surface needs to bond while the opposite surface must remain primarily insulating. This makes it different from double sided adhesive fish paper, which carries adhesive on both sides.
For engineering applications, the final selection should consider electrical insulation requirements, thickness, adhesive compatibility, temperature, humidity, mechanical stress, chemical exposure, dimensional tolerance, and expected service life.
When correctly specified and applied, Single Sided Adhesive Fish Paper Insulation Gasket can provide an efficient combination of electrical isolation, gap filling, surface protection, and assembly convenience for modern PCB and electronic manufacturing.
This website uses cookies to ensure you get the best experience on our website.
WhatsApp
Phone
