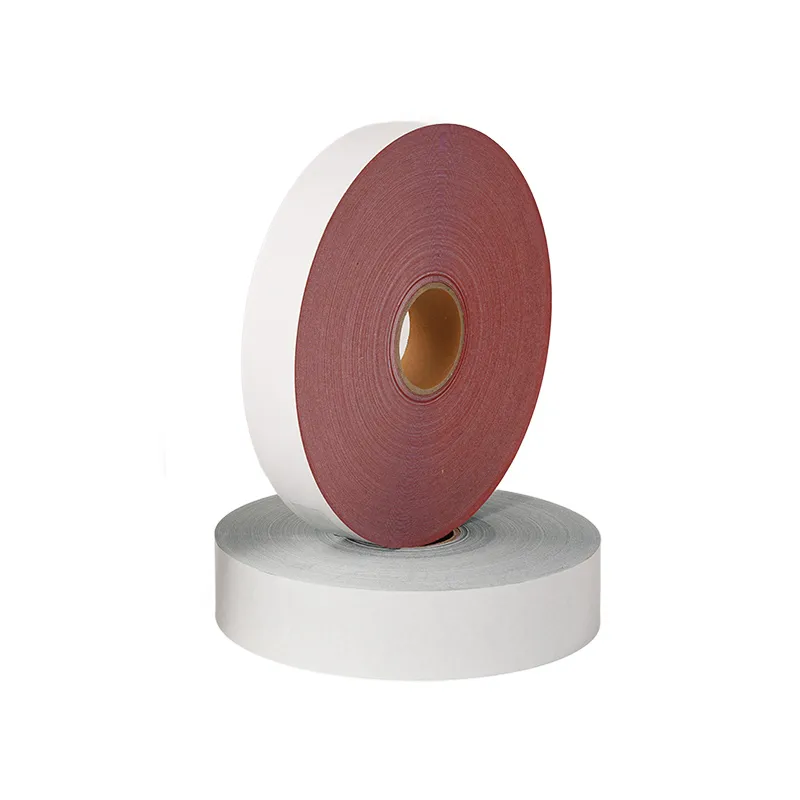

Premium Adhesive Insulation Gasket Roll is a flexible insulation and sealing material designed for applications where electrical isolation, surface protection, gap filling, cushioning, and environmental resistance are required in a compact and easy-to-process format. Combining an insulating backing with an adhesive surface, this type of gasket roll can be converted into custom strips, pads, rings, tabs, barriers, liners, and other protective shapes according to the requirements of an assembly.
In modern electrical and electronic manufacturing, Insulation Materials are expected to perform more than one function. A suitable material may need to separate conductive components, prevent accidental electrical contact, accommodate small dimensional variations, reduce movement between components, protect surfaces against abrasion, and maintain performance when exposed to moisture, oils, grease, temperature changes, and long-term aging. Adhesive Insulation Gasket Materials are particularly useful because they can be applied directly to a target surface without requiring a separate mechanical fastening method.
The term “gasket” traditionally refers to a material positioned between two surfaces to help seal a joint or compensate for surface irregularities. In electrical and electronic assemblies, however, gasket materials can also provide insulation, cushioning, spacing, and component protection. Battery systems are one important example. Current battery-pack designs use various adhesives, sealants, tapes, foams, films, and Insulating Materials to address environmental protection, electrical isolation, mechanical stability, and assembly requirements. SAE’s battery-materials information report specifically recognizes adhesives, sealants, and related materials as important elements in contemporary battery-system applications.
A Premium Adhesive Insulation Gasket Roll can therefore be considered a multifunctional industrial material rather than simply an Adhesive Tape. Its usefulness depends on the backing material, adhesive formulation, thickness, dielectric properties, flexibility, surface characteristics, temperature resistance, chemical resistance, and application method.
This article provides a comprehensive industry-oriented overview of adhesive insulation gasket rolls, including their definition, construction, features, advantages, material considerations, battery applications, PCB protection, high-temperature temporary protection, gap sealing, converting methods, installation considerations, storage, quality control, and selection principles.
A Premium Adhesive Insulation Gasket Roll is a continuous roll-form material consisting of an electrically insulating backing or carrier and an adhesive layer designed to attach the material to a selected surface.
Depending on the product construction, the backing may be a polymer film, insulating paper, nonwoven material, foam, fabric, composite sheet, or another electrically insulating substrate. The adhesive may be pressure-sensitive, heat-activated, rubber-based, acrylic-based, silicone-based, or formulated for a particular industrial environment.
The roll format provides several manufacturing advantages. Instead of purchasing individual pre-cut gaskets for every application, processors can slit, die-cut, laminate, punch, or otherwise convert the material into custom shapes. This flexibility is especially valuable for assemblies with different dimensions or frequent design changes.
The adhesive layer provides positioning and attachment. The insulation layer provides electrical separation and physical protection. When engineered correctly, the combined structure can also help seal small gaps and protect components from moisture, oil, grease, dust, abrasion, and other environmental influences.
It is important to understand that “insulation gasket” does not describe one single chemical composition. Performance depends strongly on the selected construction. A gasket intended for low-voltage electronics may have very different requirements from one used near battery cells, high-temperature processing, power electronics, industrial controls, or metal housings.
For this reason, material selection should be based on actual operating conditions rather than on the product name alone.
A typical adhesive insulation gasket roll may contain several functional layers.
The backing is the primary structural and electrical insulation layer. It provides thickness, flexibility, dimensional stability, and resistance to mechanical handling.
Common backing categories include:
Polymer insulation films
Polyester-based films
Polyimide-based films
Polyethylene-based materials
Polypropylene-based materials
Electrical insulation papers
Fiber-based insulation materials
Nonwoven insulation materials
Flexible foam materials
Composite insulation sheets
Fabric-reinforced insulation materials
The correct backing depends on the required dielectric performance, temperature range, flexibility, tear resistance, abrasion resistance, and chemical exposure.
The adhesive layer enables the gasket to remain attached to the intended surface. Adhesive performance may involve:
Initial tack
Peel adhesion
Shear strength
Cohesion
Surface wetting
Aging resistance
Temperature resistance
Moisture resistance
Chemical resistance
Compatibility with the substrate
Different adhesive systems behave differently on metals, plastics, painted surfaces, coated surfaces, battery materials, PCB substrates, and textured components.
Some adhesive insulation gasket rolls are supplied with a removable release liner. The liner protects the adhesive before application and makes the roll easier to process.
A release liner can also help maintain cleanliness during storage and transportation.
Depending on the application, the construction may include additional layers for:
Reinforcement
Cushioning
Thermal protection
Flame resistance
Surface protection
Dimensional stability
Enhanced sealing
Controlled compression
Improved converting performance
The final construction should be evaluated as a complete system rather than as separate layers.
Key Features of Premium Adhesive Insulation Gasket Roll
One of the most important functions is electrical isolation.
An Insulating Gasket can create a physical barrier between conductive surfaces and reduce the possibility of unintended electrical contact. In battery assemblies, electronic housings, PCB structures, and wiring-related applications, this separation can be an important part of the overall insulation design.
Electrical insulation performance may be evaluated using properties such as dielectric strength, volume resistivity, surface resistivity, dielectric constant, and breakdown voltage. The relevant test method depends on the material and intended application.
The exact electrical rating should always be confirmed from application-specific technical documentation rather than assumed from the term “insulation.”
Flexibility allows the material to conform to curved, irregular, or slightly uneven surfaces.
Flexible Insulation Gasket materials can be particularly useful when components have:
Rounded edges
Small gaps
Irregular profiles
Slight dimensional variation
Narrow installation spaces
Curved battery surfaces
Compact electronic assemblies
Flexibility can also simplify converting and installation.
A material that is too rigid may crack, wrinkle, lift from the surface, or fail to conform to the intended geometry. A material that is appropriately flexible can follow the surface while maintaining functional coverage.
Water and moisture can negatively affect electrical assemblies and mechanical components. An insulation gasket may help reduce the movement of moisture through a protected interface when the material, adhesive, geometry, and installation method are appropriately designed.
Battery-pack sealing applications commonly emphasize protection against water intrusion and environmental contamination. Industrial sealing systems may be designed around specific enclosure requirements and ingress-protection targets.
However, water resistance of the material itself should not automatically be interpreted as a guaranteed enclosure IP rating. The final assembly depends on joint design, compression, seams, corners, substrate condition, and installation quality.
Mechanical abrasion can gradually damage insulation materials.
Wear-resistant gasket materials are useful in assemblies exposed to:
Repeated movement
Vibration
Sliding contact
Mechanical assembly
Handling
Edge contact
Tool contact
Long-term friction
The backing should be selected according to the expected mechanical environment.
Industrial equipment may be exposed to lubricants, oils, greases, cleaning fluids, or other contaminants.
A suitable insulation gasket can provide additional protection where chemical resistance is required. However, resistance varies significantly between material families and adhesive formulations.
Chemical compatibility should therefore be verified against the actual fluid, concentration, temperature, exposure time, and mechanical conditions.
Long-term aging resistance is important when a gasket is expected to remain functional over an extended service period.
Aging can involve:
Thermal exposure
Humidity
Oxidation
UV exposure
Chemical contact
Mechanical cycling
Adhesive degradation
Repeated expansion and contraction
Aging-resistant insulation materials can help maintain electrical and mechanical performance for longer periods.
Battery and enclosure sealing applications frequently consider long-term durability, environmental exposure, compression behavior, and moisture protection as part of material selection.
Gap Sealing Function
One of the major benefits of an insulation gasket is its ability to occupy small gaps between components.
Gaps can occur because of:
Manufacturing tolerances
Uneven surfaces
Component thickness variation
Assembly clearances
Fastener locations
Housing geometry
Thermal expansion
Mechanical movement
A gasket can create a controlled barrier while also providing electrical isolation.
The effectiveness of gap sealing depends on material thickness, compressibility, adhesive behavior, surface condition, joint geometry, and environmental exposure.
For battery systems and electronic housings, sealing is often treated as a system-level function rather than simply a material property. Battery pack sealing, for example, is intended to reduce environmental contamination and water intrusion, with the final performance depending on the complete enclosure and sealing design.
Why Adhesive Insulation Gasket Rolls Are Useful
An adhesive-backed gasket can be positioned directly onto the target surface.
This can reduce the need for:
Mechanical clips
Separate fasteners
Liquid adhesive application
Additional positioning hardware
Complex temporary fixtures
This is especially valuable in compact assemblies where installation space is limited.
Roll materials are suitable for industrial converting processes.
Common converting operations include:
Slitting
Rewinding
Die cutting
Kiss cutting
Punching
Laminating
Sheet cutting
CNC cutting
Custom contour cutting
A single roll can therefore be converted into multiple gasket geometries.
Continuous roll stock can provide efficient production compared with individually manufactured pieces.
Manufacturers can optimize nesting patterns during die cutting to reduce waste and improve material utilization.
Different applications require different shapes.
Examples include:
Rectangular insulation pads
Circular gaskets
Ring-shaped insulation pieces
Battery cell top insulators
Narrow strips
Corner protectors
PCB isolation pads
Housing liners
Terminal barriers
Edge protection strips
Roll material provides a flexible starting format for these custom shapes.
Premium Adhesive Insulation Gasket Roll for Lithium-Ion Battery Packs
Battery packs require carefully controlled electrical isolation and mechanical protection.
The user-specified application scenarios include encapsulation and protection of 18650 and 21700 lithium-ion battery packs, inter-layer insulation, tab protection, PCB-to-metal housing isolation, and temporary protection during high-temperature manufacturing operations.
These applications are technically distinct and should be treated according to their specific requirements.
18650 cells are cylindrical lithium-ion cells with a nominal form factor of approximately 18 mm in diameter and 65 mm in length.
Battery packs built from these cells may require insulation around cell ends, interconnections, busbars, wiring, structural components, and protective housings.
Insulating materials can help prevent unwanted electrical contact between conductive components and adjacent structures.
The exact insulation arrangement depends on:
Cell configuration
Series and parallel architecture
Busbar design
Cell holders
BMS layout
Pack enclosure
Wiring arrangement
Mechanical retention
Operating voltage
Required creepage and clearance
A gasket material should never be treated as a substitute for a complete battery electrical safety design.
21700 cells are larger cylindrical cells than 18650 cells and are widely used in applications requiring increased cell capacity or power density.
The same general principles of electrical isolation apply, but physical dimensions and pack geometry are different.
Insulation components may be required around:
Positive terminals
Cell groups
Busbars
Connection tabs
BMS components
Metal Brackets
Housing interfaces
Wiring channels
A properly converted adhesive insulation gasket can be shaped to fit the required geometry.
Encapsulation and Surface Protection of Battery Packs
The term encapsulation can refer to different processes in battery manufacturing.
In some applications, insulating gasket materials are used as localized protective barriers rather than as the primary structural encapsulant.
Their functions may include:
Electrical isolation
Edge protection
Surface separation
Cushioning
Gap filling
Component positioning
Protection from abrasion
Reduction of accidental contact
Battery-system adhesives, sealants, and related materials can serve multiple functions, and application requirements should be matched to the specific material system. SAE's current battery-materials report emphasizes application-specific performance considerations.
Inter-Layer Insulation in Battery PACK Assemblies
Battery PACK structures may contain multiple layers of conductive and non-conductive components.
Inter-layer insulation can help separate:
Cell groups
Busbars
Metal supports
PCB assemblies
Wiring
BMS components
Battery housings
Structural plates
A Thin Insulation Gasket can be placed between selected surfaces when space is limited.
The key requirements may include:
Dielectric performance
Thickness control
Adhesion
Flexibility
Abrasion resistance
Temperature stability
Chemical compatibility
Dimensional stability
The appropriate material thickness depends on the electrical and mechanical requirements of the design.
Battery Tab Protection
Battery tabs and conductive connections can represent localized areas where electrical isolation is especially important.
An adhesive insulation gasket can be converted into small protective pieces around or adjacent to tabs.
Potential functions include:
Preventing contact with nearby metal
Reducing abrasion
Protecting sharp edges
Providing positioning
Improving surface separation
Supporting assembly consistency
Because battery tabs can experience heat, vibration, and mechanical stress, the material should be selected for the complete operating environment.
PCB Board Insulation
Printed circuit boards frequently operate close to metal housings, brackets, shields, frames, or other conductive structures.
A thin insulation gasket can create separation between the PCB and the metal housing.
This may help:
Prevent accidental short circuits
Protect PCB surfaces
Compensate for small gaps
Reduce mechanical contact
Provide cushioning
Reduce vibration-related abrasion
The gasket geometry should be designed to avoid interfering with connectors, heat sinks, switches, mounting points, grounding structures, and ventilation paths.
Insulation Between PCB Boards and Metal Housings
Metal housings provide mechanical protection and electromagnetic shielding but can also create electrical-contact risks when conductive PCB areas are positioned nearby.
An insulation gasket can act as a localized barrier.
Typical application locations include:
PCB edges
Mounting areas
Housing walls
Metal brackets
Cover interfaces
Connector surroundings
Internal frame structures
The material should not unintentionally cover areas designed for grounding or electrical bonding.
Temporary Protection During High-Temperature Operations
The requested application scenarios also include temporary protective pads for high-temperature operations such as high-frequency welding and laser cutting.
This application requires careful distinction between temporary protection and continuous high-temperature service.
A material described as heat resistant may withstand a specified temperature under controlled conditions, but direct exposure to a welding arc, laser beam, molten metal, sparks, or concentrated thermal energy can create substantially more severe conditions.
Therefore, temporary protective use should be based on actual process parameters, including:
Peak temperature
Exposure duration
Heat flux
Distance from heat source
Contact condition
Surface area
Number of process cycles
Potential sparks or molten particles
Adhesive behavior at elevated temperature
The correct material should be qualified under representative process conditions before production use.
High-Frequency Welding Protection
High-frequency welding and related industrial joining processes can generate localized heat and mechanical energy.
A temporary insulation gasket pad may be used to protect selected surfaces from:
Heat
Scratching
Minor abrasion
Unwanted contact
Process contamination
Temporary mechanical pressure
The pad should be positioned so that it does not interfere with the welding process or create an unintended electrical path.
For applications involving electrical energy, the dielectric characteristics of the insulation should be evaluated together with the equipment's voltage and frequency.
Laser Cutting and Laser Processing Protection
Laser processing generates highly concentrated thermal energy.
Insulation gasket material may sometimes be used as a temporary masking or protective layer when the exposure conditions are compatible with the material.
However, laser wavelength, power density, focus, exposure time, material thickness, and surface condition can dramatically affect behavior.
A material that performs well during brief low-energy exposure may fail under a higher-power laser.
Potential failure modes include:
Melting
Shrinkage
Carbonization
Smoke generation
Adhesive transfer
Surface discoloration
Loss of adhesion
Local penetration
Therefore, laser-processing applications require process-specific testing.
Material Flexibility and Conformability
Flexibility is one of the defining advantages of gasket roll materials.
A flexible insulation gasket can follow:
Curved housings
Cylindrical battery surfaces
Rounded corners
Narrow gaps
Uneven substrates
Slightly irregular profiles
Conformability can reduce the formation of air gaps and improve contact between the gasket and the protected surface.
However, excessive flexibility may reduce dimensional stability during converting or installation.
The best material balances flexibility with:
Tensile strength
Tear resistance
Dimensional stability
Adhesive cohesion
Thickness uniformity
Thickness Selection
Thickness is an important design parameter.
A thinner material may be suitable when:
Space is extremely limited
Electrical separation is the primary function
Minimal dimensional change is required
The surface is relatively smooth
A thicker gasket may be appropriate when:
Gap filling is required
Cushioning is needed
Surface irregularities are significant
Greater mechanical separation is required
Thickness should not be selected solely according to available space.
Electrical, mechanical, thermal, and environmental requirements must be considered simultaneously.
Adhesive Performance
The adhesive is responsible for maintaining contact between the gasket and substrate.
Important characteristics include:
Initial tack determines how easily the gasket adheres during application.
Good initial tack can improve positioning efficiency.
Peel adhesion indicates resistance to removal under peeling forces.
It is influenced by:
Substrate type
Surface cleanliness
Adhesive chemistry
Contact pressure
Temperature
Aging
Shear resistance is important when the gasket experiences forces parallel to the bonded surface.
Cohesion represents the internal strength of the adhesive.
Poor cohesion can cause adhesive residue, splitting, or material transfer.
Surface Preparation
Even a high-performance adhesive may perform poorly if the surface is contaminated.
Common contaminants include:
Dust
Oil
Grease
Moisture
Fingerprints
Release agents
Processing residues
Oxidation
Loose particles
A clean, dry, stable substrate generally provides better adhesive contact.
Surface preparation procedures should be established according to the substrate and adhesive system.
Adhesion to Different Substrates
Adhesive insulation gasket rolls may be applied to:
Stainless steel
Aluminum
Copper
Painted metal
Powder-coated metal
ABS
PC
Nylon
Polycarbonate
Polyester
PCB materials
Composite surfaces
Not all adhesive systems perform equally on all substrates.
Low-surface-energy plastics can be more difficult to bond than clean metals.
Surface texture, coating, temperature, and contamination also influence adhesion.
Water Resistance and Moisture Protection
Moisture resistance is important for battery packs, electronic housings, industrial controls, and outdoor equipment.
Moisture can contribute to:
Corrosion
Electrical leakage
Insulation degradation
Adhesive failure
Component contamination
A gasket can reduce pathways through which water or moisture may move, but the complete joint must be engineered correctly.
For battery enclosures, environmental sealing is commonly considered in relation to water intrusion, contamination, enclosure construction, and ingress protection.
Oil and Grease Resistance
Oil and grease resistance can extend the usefulness of insulation gasket materials in industrial environments.
Potential applications include:
Motor assemblies
Industrial controls
Machinery housings
Power equipment
Automotive components
Electrical cabinets
Mechanical-electrical interfaces
Compatibility testing should consider the actual fluid and temperature.
A material that resists one lubricant may not resist another.
Wear and Abrasion Protection
A gasket can also function as a wear barrier.
When two components repeatedly contact one another, direct contact may cause:
Scratching
Surface wear
Insulation damage
Noise
Particle generation
A flexible insulating layer can reduce direct contact and act as a sacrificial protective interface.
This is particularly useful around metal edges and compact electronic assemblies.
Aging Resistance and Long-Term Reliability
Long-term reliability depends on the stability of every functional layer.
Potential aging mechanisms include:
Thermal oxidation
Hydrolysis
UV degradation
Plasticizer migration
Adhesive oxidation
Moisture absorption
Repeated thermal cycling
Mechanical fatigue
Aging resistance should therefore be evaluated using representative environmental conditions.
Useful qualification programs may include:
Temperature aging
Humidity aging
Thermal cycling
Chemical exposure
Adhesion retention
Dielectric testing after aging
Mechanical testing after aging
Thermal Considerations
Thermal performance is particularly important in battery and power-electronics applications.
A gasket may experience heat from:
Battery operation
Electrical resistance
Power electronics
Welding
Laser processing
Motors
Transformers
Industrial equipment
The material must be evaluated for the actual temperature profile rather than a single nominal temperature.
Temperature can affect:
Adhesive tack
Adhesive cohesion
Dimensional stability
Flexibility
Dielectric strength
Chemical resistance
Compression
Surface condition
Electrical Insulation in Battery Systems
Electrical insulation in battery packs is a system-level safety consideration.
Insulation materials can contribute to separation between conductive components, but the overall design also depends on:
Creepage distance
Clearance distance
Cell voltage
Pack voltage
Busbar arrangement
Mechanical movement
Enclosure geometry
Fault conditions
Thermal behavior
Protection circuitry
Adhesive insulation gasket materials should therefore be considered one component within a broader electrical safety strategy.
Gasket Roll Versus Conventional Gasket Sheets
Roll-form insulation materials provide several advantages over traditional sheet materials.
Continuous supply
Easy slitting
Flexible widths
Efficient die cutting
Lower handling complexity
Easy automation
Custom shapes
Suitable for high-volume converting
Better for large rigid components
Convenient for certain flat-cut applications
Potentially easier for thick materials
Suitable for applications requiring large continuous pieces
The correct format depends on production volume, component geometry, material thickness, and converting equipment.
Die Cutting Adhesive Insulation Gasket Roll
Die cutting is widely used to convert roll stock into custom gasket components.
The process can produce:
Rings
Rectangles
Complex profiles
Tabs
Slots
Holes
Corner shapes
Multi-opening gaskets
Important die-cutting considerations include:
Material thickness
Adhesive tack
Liner type
Cutting tolerance
Shape complexity
Minimum feature size
Production volume
A stable backing and consistent adhesive layer can improve converting performance.
Slitting and Rewinding
Slitting allows a wide roll to be converted into narrower rolls.
Narrow insulation strips can be used for:
Wire protection
Edge insulation
Battery tab protection
PCB isolation
Housing interfaces
Small gap sealing
Rewinding quality is important because telescoping, wrinkles, edge damage, and uneven tension can interfere with downstream processing.
Custom Adhesive Insulation Gasket Shapes
Custom shapes can be designed around the component geometry.
Common designs include:
Circular battery terminal insulators
Rectangular PCB isolation pads
U-shaped edge protectors
L-shaped corner pads
Narrow barrier strips
Custom housing gaskets
Multi-hole insulation plates
Digital cutting and precision die cutting can both support customized gasket geometries.
Quality Control for Adhesive Insulation Gasket Roll
A comprehensive quality-control program may evaluate several characteristics.
Uniform thickness helps maintain predictable insulation and mechanical performance.
Roll width should remain within the specified tolerance.
Adhesive should be applied consistently across the roll.
The material should be checked for:
Wrinkles
Scratches
Contamination
Bubbles
Coating defects
Edge damage
Foreign particles
Depending on application requirements, testing may include:
Dielectric strength
Electrical resistance
Insulation resistance
Breakdown testing
Potential tests include:
Tensile strength
Elongation
Tear resistance
Peel adhesion
Shear adhesion
Testing can include:
Humidity
Water
Oil
Grease
Temperature
Aging
Chemical exposure
Packaging and Storage
Proper storage helps preserve material performance.
General storage considerations include:
Keep material dry
Avoid excessive heat
Protect from direct sunlight
Maintain original packaging
Avoid unnecessary contamination
Prevent excessive compression
Store rolls securely
Follow the supplier's recommended storage period
Adhesive materials can change over time due to temperature and humidity exposure.
Storage conditions should therefore be controlled according to the adhesive system and backing material.
Installation Best Practices
Check for contamination, burrs, sharp edges, oil, dust, and moisture.
Use a substrate-compatible cleaning process.
Confirm the gasket size before installation.
Position the material without stretching unless intentional stretching is part of the application.
Pressure can improve adhesive contact.
Dust and particles underneath the gasket can create local gaps.
Check:
Edge coverage
Wrinkles
Lifting
Bubbles
Misalignment
Exposed conductive surfaces
Common Applications
Premium Adhesive Insulation Gasket Roll can be considered for a broad range of applications.
18650 battery packs
21700 battery packs
Battery modules
Battery PACK assemblies
BMS protection
Battery tab insulation
Busbar isolation
Cell group insulation
PCB insulation
Electronic housing protection
Metal enclosure insulation
Connector protection
Component spacing
Wire protection
Motor insulation
Electrical cabinets
Power equipment
Industrial controls
Machinery interfaces
Equipment housings
Battery assemblies
Electronic modules
Wiring interfaces
Sensor housings
Electrical enclosures
Temporary heat protection
Welding-area protection
Laser-processing protection
Assembly masking
Surface protection
Advantages for Battery Pack Assembly
Adhesive insulation gasket roll can improve battery-pack assembly efficiency in several ways.
Pre-cut adhesive components can be installed quickly.
Adhesive attachment can help keep insulation in the intended location.
Thin insulation layers can provide electrical separation without significantly increasing assembly dimensions.
The roll can be converted to fit different battery configurations.
One material may combine insulation, cushioning, abrasion protection, and gap management.
Relationship Between Insulation and Sealing
Insulation and sealing are related but not identical functions.
Electrical insulation primarily prevents unwanted current flow or conductive contact.
Sealing primarily restricts the movement of:
Water
Air
Dust
Chemicals
Other contaminants
A material may perform both functions, but the final performance depends on the complete assembly.
A gasket used for sealing should be evaluated for compression, surface contact, joint geometry, environmental exposure, and long-term durability.
Adhesive Insulation Gasket Roll for Metal Housings
Metal housings are common in electronics and industrial equipment.
Metal provides strength and shielding but can create electrical-contact risks.
Adhesive insulation gasket roll can be applied to selected areas of the housing to create a non-conductive interface.
Potential locations include:
Housing edges
Mounting brackets
Cover interfaces
Internal walls
PCB mounting areas
Connector openings
The design should preserve necessary grounding and bonding points.
Adhesive Insulation for PCB Protection
PCB assemblies contain conductive traces, components, connectors, and mounting structures.
A protective insulation gasket can help separate the board from nearby conductive structures.
Potential benefits include:
Reduced short-circuit risk
Edge protection
Vibration isolation
Surface cushioning
Gap compensation
Mechanical protection
Material thickness should be selected carefully to avoid interference with components.
Adhesive Insulation for Wiring and Cables
Narrow strips converted from gasket roll can also be used around wires and cables.
Potential functions include:
Edge protection
Contact isolation
Surface protection
Temporary positioning
Abrasion reduction
For high-voltage cable systems, insulation requirements must be established using the electrical design and applicable safety standards.
Environmental Durability
Industrial insulation materials may encounter multiple environmental stresses simultaneously.
For example, a battery enclosure may experience:
Temperature cycling
Humidity
Vibration
Mechanical shock
Dust
Water
Chemical exposure
A gasket should therefore be evaluated under combined conditions whenever possible.
Testing only one environmental factor may not fully predict real-world performance.
Mechanical Cushioning
A flexible gasket may provide limited cushioning between components.
This can help reduce:
Hard contact
Vibration
Rattle
Surface scratching
Local pressure
Cushioning performance depends on material thickness, hardness, compression behavior, and geometry.
Not every electrical insulation gasket is intended to function as a structural vibration isolator.
Dimensional Stability
Dimensional stability is important during converting and assembly.
A material with poor dimensional stability may:
Shrink
Stretch
Curl
Wrinkle
Change shape during temperature exposure
Stable dimensions can improve:
Die-cut accuracy
Positioning
Assembly consistency
Edge coverage
Long-term reliability
Chemical Compatibility
Chemical compatibility should be considered whenever the gasket contacts:
Battery electrolytes
Coolants
Lubricants
Cleaning agents
Solvents
Adhesives
Sealants
Industrial chemicals
Testing should use the actual chemical and expected exposure conditions.
The same material may behave differently at room temperature versus elevated temperature.
Importance of Application-Specific Testing
No universal gasket material is ideal for every application.
Testing should reproduce actual conditions as closely as possible.
For battery applications, testing may include:
Electrical insulation testing
Thermal cycling
Humidity exposure
Vibration
Adhesion retention
Mechanical abrasion
Chemical exposure
For temporary high-temperature protection, testing should reproduce the actual process temperature and exposure duration.
For sealing applications, testing should evaluate the complete joint rather than the material alone.
Selection Guide for Premium Adhesive Insulation Gasket Roll
When selecting a gasket roll, consider the following factors.
Determine the required insulation performance, voltage, dielectric strength, and creepage or clearance requirements.
Identify minimum, normal, peak, and transient temperatures.
Consider flexibility, tensile strength, tear resistance, compression, vibration, and abrasion.
Consider water, humidity, oil, grease, chemicals, dust, and UV exposure.
Identify the substrate and required bond strength.
Determine the required insulation distance and gap-filling capability.
Consider whether the material will be die cut, slit, laminated, punched, or manually cut.
High-volume applications may benefit from continuous roll processing and automated converting.
How to Choose the Right Backing Material
The backing material determines much of the gasket's physical and electrical behavior.
Polyester insulation materials can provide a balance of flexibility, dimensional stability, and electrical insulation.
They are commonly considered for electronic and electrical applications where thin, stable insulation is needed.
Polyimide materials are known for high-temperature performance and are often considered where elevated thermal exposure is important.
They can be useful for specialized electrical insulation and high-temperature processing applications.
Electrical insulation papers and fiber materials can provide economical electrical separation and are commonly used in various electrical assemblies.
Foam can provide cushioning and gap filling in addition to insulation.
Selection depends on compression behavior, temperature, chemical resistance, and electrical properties.
How to Choose the Right Adhesive
Adhesive selection should consider:
Substrate
Temperature
Moisture
Required bond strength
Removability
Aging
Chemical exposure
Surface energy
Application speed
Acrylic adhesives are often selected where aging and environmental performance are important.
Rubber-based adhesives may provide strong initial tack and flexible bonding characteristics.
Silicone-based systems can be considered for demanding temperature environments.
However, adhesive chemistry must always be matched to the complete application.
Adhesive Insulation Gasket Roll and Automation
Modern production lines increasingly use automated material handling and converting.
Roll-form materials can support automation because they can be:
Continuously unwound
Slit
Indexed
Die cut
Picked
Applied
Laminated
Automation can improve repeatability and reduce manual handling.
For battery manufacturing, material dispensing, sealing, and assembly processes are increasingly designed around repeatability and controlled application.
Pre-Cut Gaskets Versus Roll Stock
Both formats have advantages.
Pre-cut gaskets are convenient for direct assembly.
Roll stock is more flexible for:
Multiple product sizes
Custom shapes
Small production batches
Prototyping
Continuous processing
In-house converting
The choice depends on production requirements.
Prototyping With Adhesive Insulation Gasket Roll
Roll material is particularly useful during product development.
Engineers can quickly create prototype:
Insulation pads
Battery separators
PCB barriers
Housing liners
Protective strips
Prototype testing can reveal:
Fit issues
Adhesion problems
Thickness problems
Interference
Thermal behavior
Mechanical wear
After validation, the design can be transferred to a high-volume die-cut process.
Design Considerations for Battery Pack Insulation
Battery pack insulation should be designed around potential fault conditions rather than only normal operation.
Consider:
Component movement
Vibration
Thermal expansion
Abrasion
Sharp edges
Fastener contact
Busbar movement
Cell swelling
Assembly tolerances
The insulation should remain positioned under expected mechanical conditions.
Design Considerations for PCB Housing Insulation
When placing a gasket between a PCB and metal housing, engineers should consider:
PCB thickness
Housing tolerance
Component height
Mounting screws
Grounding points
Connector clearance
Heat dissipation
Ventilation
Serviceability
The gasket should protect the intended areas without interfering with required electrical connections.
Serviceability and Maintenance
Some gasket applications are permanent, while others may require periodic removal.
For serviceable assemblies, adhesive selection should consider:
Removal force
Residue
Repositioning
Reassembly
Surface damage
Battery-pack and electronic assemblies may require repair or replacement, making serviceability an important design consideration.
Certain battery sealing systems are specifically designed to balance environmental sealing with serviceability.
Common Failure Modes
Understanding potential failure modes can improve material selection.
Possible causes include:
Contamination
Poor surface preparation
Excessive stress
Incompatible substrate
High temperature
Possible causes include:
Sharp bending
Poor adhesion
Incorrect geometry
Surface contamination
Possible causes include:
Excessive voltage
Insufficient thickness
Mechanical damage
Thermal degradation
Chemical attack
Possible causes include:
Incorrect installation
Excessive stretching
Poor converting
Uneven tension
Possible causes include:
High temperature
Incorrect backing selection
Thermal aging
Improving Gasket Reliability
Reliability can be improved by:
Selecting the correct backing.
Selecting a compatible adhesive.
Controlling thickness.
Cleaning the substrate.
Designing suitable gasket geometry.
Avoiding unnecessary stretching.
Protecting edges from excessive stress.
Testing under realistic environmental conditions.
Monitoring converting quality.
Maintaining proper storage conditions.
Sustainability Considerations
Material efficiency is increasingly important in industrial manufacturing.
Roll-form insulation materials can support waste reduction through optimized converting and nesting.
Potential sustainability considerations include:
Material utilization
Reduced packaging
Scrap recycling where technically feasible
Longer service life
Reduced component replacement
Efficient converting
Optimized thickness
However, recycling depends strongly on the material composition and adhesive system.
Industry Applications Beyond Battery Packs
Although battery insulation is an important application area, adhesive insulation gasket roll can be relevant to many industries.
Potential applications include:
Portable electronics
Power supplies
Chargers
Electronic housings
Small appliances
Potential applications include:
Controllers
Sensors
Control panels
Power electronics
Industrial instrumentation
Potential applications include:
Battery systems
Electronic control modules
Sensor assemblies
Wiring systems
Enclosures
Potential applications include:
Battery modules
Energy storage cabinets
BMS assemblies
Power conversion equipment
Difference Between Insulation Tape and Insulation Gasket
Insulation tape is generally designed for wrapping, bonding, bundling, masking, or general electrical insulation.
An insulation gasket is more strongly associated with:
Gap filling
Interface protection
Surface separation
Custom geometry
Sealing
Cushioning
The two product categories can overlap.
A roll material may function as both an insulation tape and a gasket material depending on its thickness, construction, adhesive, and application.
Difference Between Gasket and Sealant
A gasket is a preformed material placed between surfaces.
A sealant is generally applied as a liquid, paste, or curable material that forms a seal after application.
Battery sealing technologies may use both preformed gasket approaches and cure-in-place or form-in-place gasketing systems.
Adhesive insulation gasket rolls are advantageous when preformed, thin, flexible, and rapidly applied insulation or sealing components are desired.
Why Material Specifications Matter
A product title alone cannot define suitability.
Technical evaluation may require information about:
Backing composition
Adhesive chemistry
Thickness
Dielectric strength
Operating temperature
Peel adhesion
Tensile strength
Elongation
Chemical resistance
Water resistance
Aging performance
For critical applications, engineering qualification should be based on measured data.
Recommended Technical Evaluation
Before mass production, consider evaluating:
Dielectric breakdown
Insulation resistance
Surface resistivity
Volume resistivity
180-degree peel
90-degree peel
Shear holding power
Tack
Residue
Tensile strength
Elongation
Tear resistance
Abrasion resistance
Temperature aging
Humidity aging
Water immersion
Oil exposure
Grease exposure
Thermal cycling
Battery assembly trial
PCB housing fit
High-temperature process simulation
Laser-process simulation
Welding-process simulation
Frequently Asked Questions
It is a roll-form insulating material with an adhesive layer designed for electrical isolation, gap sealing, surface protection, cushioning, and related industrial applications.
It can be suitable for selected battery-pack insulation and protection applications, including 18650 and 21700 assemblies, provided the material is qualified for the electrical, thermal, mechanical, and environmental requirements.
Yes. A suitable insulating gasket can provide electrical separation and cushioning between PCB assemblies and conductive metal housings.
Some constructions provide strong moisture and water resistance, but final water-sealing performance depends on material selection and the complete joint design.
Certain constructions can provide oil and grease resistance. Compatibility should be verified against the specific fluid and operating temperature.
Some materials can be used for temporary high-temperature protection, but actual process temperature and exposure duration must be evaluated.
Yes. Many roll-form adhesive insulation materials are suitable for die cutting, slitting, punching, and other converting processes.
Yes. Roll stock can be converted into custom widths, lengths, pads, strips, rings, and complex gasket shapes.
Not necessarily. An insulation gasket generally emphasizes interface protection, gap management, sealing, and custom gasket geometry, while insulation tape may emphasize wrapping and general electrical insulation.
No. Material selection should be based on electrical, thermal, mechanical, chemical, environmental, and adhesive requirements.
Best Practices for Industrial Use
The most effective use of adhesive insulation gasket roll begins with application analysis.
First, identify what the material must accomplish. If electrical isolation is the main objective, dielectric requirements should receive priority. If gap sealing is required, thickness, compressibility, adhesion, and joint geometry become important. If the material will be exposed to oil or grease, chemical compatibility should be verified. If it will be used near a high-temperature process, thermal exposure must be measured.
Second, identify the substrate.
Metal, plastic, painted surfaces, PCB materials, and composites can have significantly different adhesion characteristics.
Third, determine the expected environmental conditions.
Temperature, humidity, water, chemicals, vibration, abrasion, and aging should all be considered.
Finally, validate the complete assembly.
A gasket may perform well as an isolated material but fail because of incorrect installation, poor substrate preparation, excessive mechanical stress, or an unsuitable joint design.
Application Summary
| Application Area | Primary Function | Important Considerations |
|---|---|---|
| 18650 Battery Packs | Electrical insulation and protection | Dielectric performance, flexibility, adhesion |
| 21700 Battery Packs | Cell and connection insulation | Geometry, thermal exposure, abrasion |
| Battery PACK Assemblies | Inter-layer insulation | Thickness, electrical separation, durability |
| Battery Tabs | Localized electrical protection | Adhesion, flexibility, heat |
| PCB Boards | Electrical isolation | Dielectric performance, thickness |
| Metal Housings | Surface separation | Adhesion, grounding clearance |
| High-Frequency Welding | Temporary protection | Heat exposure, electrical behavior |
| Laser Cutting | Temporary surface protection | Laser power, exposure time |
| Industrial Equipment | Gap sealing and insulation | Oil, grease, water, aging |
| Electronic Enclosures | Sealing and insulation | Moisture resistance, joint design |
Technical Property Overview
| Property | Why It Matters |
|---|---|
| Electrical Insulation | Helps separate conductive components |
| Flexibility | Allows conformity to curved or uneven surfaces |
| Water Resistance | Helps protect against moisture |
| Wear Resistance | Helps reduce abrasion damage |
| Oil Resistance | Supports industrial environments |
| Grease Resistance | Helps maintain performance in contaminated environments |
| Aging Resistance | Supports long-term durability |
| Adhesion | Keeps the gasket positioned |
| Thickness | Controls insulation distance and gap filling |
| Dimensional Stability | Improves converting and assembly accuracy |
| Tear Resistance | Helps prevent installation damage |
| Temperature Resistance | Supports thermal environments |
| Chemical Resistance | Helps withstand selected fluids and chemicals |
Future Development of Adhesive Insulation Gasket Materials
As electrical systems become smaller and more powerful, insulation materials increasingly need to provide multiple functions within limited space.
Future development trends may include:
Thinner insulation with improved dielectric performance
Higher temperature resistance
Improved flame resistance
Better chemical resistance
Stronger adhesive systems
Improved aging performance
Lower material thickness variation
Better automated converting
More recyclable constructions
Customized multilayer materials
Battery systems are a particularly important area because electrical isolation, environmental sealing, mechanical protection, and serviceability can all influence system design. Current industry literature continues to treat adhesives, sealants, and insulation-related materials as important components of battery-system engineering.
Conclusion
Premium Adhesive Insulation Gasket Roll is a versatile industrial material designed to combine electrical insulation, adhesive attachment, flexible surface protection, gap management, and environmental resistance in a convenient roll format.
Its key features include excellent insulation, flexibility, water resistance, wear resistance, oil and grease resistance, and aging resistance. These characteristics make adhesive insulation gasket materials relevant to battery packs, electronic assemblies, PCB and metal-housing interfaces, industrial equipment, and selected temporary protection processes.
For 18650 and 21700 lithium-ion battery applications, the material can be considered for cell-pack insulation, inter-layer separation, tab protection, and localized surface protection. In electronic assemblies, it can provide an insulating interface between PCB boards and metal housings. In manufacturing environments, suitable constructions may also be used as temporary protective pads during selected high-temperature processes such as high-frequency welding and laser cutting.
The most important principle is application-specific qualification. Electrical insulation, water resistance, oil resistance, aging resistance, adhesive performance, and thermal behavior should be evaluated according to the actual operating environment. Battery-pack sealing and insulation are system-level engineering functions, and the performance of the complete assembly cannot be determined from the gasket material alone.
With appropriate material selection, surface preparation, converting, installation, and testing, adhesive insulation gasket roll can provide a practical solution for electrical separation, gap sealing, component protection, and assembly efficiency across a wide range of industrial applications.
This website uses cookies to ensure you get the best experience on our website.
WhatsApp
Phone
