Self adhesive Cushion Sealing Gasket sheet material is a flexible sealing and cushioning material designed to provide surface protection, gap filling, vibration damping, dust resistance, moisture resistance, and basic thermal or acoustic insulation. It is commonly produced from flexible foam materials such as EVA and supplied in sheets, rolls, strips, pads, or precision die cut shapes.
A self adhesive cushion Sealing Gasket combines two functions into one component: the foam or sponge layer provides cushioning and sealing, while the pressure sensitive adhesive backing allows the gasket to be positioned and attached directly to a substrate. This construction can simplify assembly by reducing the need for separate mechanical fasteners, liquid adhesives, or complicated positioning processes.
EVA foam is particularly useful for gasket applications because closed cell EVA can provide low water absorption, good mechanical strength, chemical resistance, flexibility, resilience, and cushioning performance. These properties make EVA foam suitable for many industrial and commercial sealing applications.
Self adhesive Cushion Sealing Gasket Sheets are widely used around electronic housings, electrical enclosures, appliances, automotive components, lighting assemblies, HVAC equipment, machinery, packaging structures, and other products where a flexible interface is required between two surfaces.
The material can be supplied in different thicknesses, densities, hardness levels, colors, adhesive types, and dimensions. Depending on the application, the sheet can also be converted into custom gasket rings, frames, strips, pads, washers, protective cushions, and irregular profiles.
2. What Is a Self Adhesive Cushion Sealing Gasket?

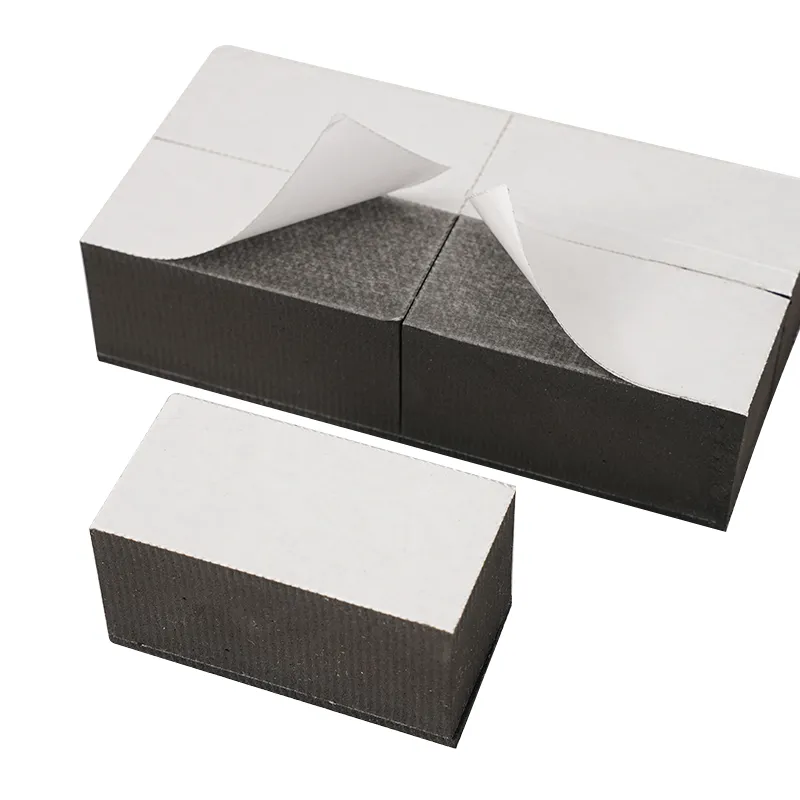

A self adhesive cushion sealing gasket is generally a multilayer component consisting of:
A flexible foam gasket layer
A pressure sensitive adhesive layer
A release liner or release film
The foam layer provides the primary cushioning and sealing function. The adhesive layer keeps the gasket attached to the intended surface during assembly and service. The release liner protects the adhesive before installation.
A typical construction can be represented as:
Release Liner → Pressure Sensitive Adhesive → EVA Foam → Sealing Surface
For double sided applications, the construction may become:
Release Liner → Adhesive → EVA Foam → Adhesive → Release Liner
This configuration allows the gasket to be bonded between two components or attached to a component before final assembly.
Self Adhesive Foam Gaskets are commonly supplied as sheets or rolls and can be converted into custom dimensions using die cutting, CNC cutting, waterjet cutting, slitting, or other fabrication methods.
3. EVA Foam as a Cushion Sealing Material
EVA stands for Ethylene Vinyl Acetate. EVA foam is produced from an EVA copolymer and can be manufactured with a closed cell structure.
The closed cell structure is important because it gives the foam characteristics that are useful in sealing applications. These include low water absorption, flexibility, resilience, lightweight construction, and cushioning performance.
Commercial EVA gasket materials are available in different densities and thicknesses. Some industrial gasket specifications show EVA foam being supplied in multiple density grades, with options for adhesive backing, die cutting, waterjet cutting, slitting, and different colors.
The material is also generally easy to fabricate, making it suitable for both simple gasket strips and complex custom gasket profiles.
4. Main Construction of Self Adhesive Gasket Sheets
| Layer | Material or Function | Main Purpose |
|---|---|---|
| Foam Layer | EVA foam | Cushioning and sealing |
| Adhesive Layer | Acrylic or other PSA | Bonding to substrate |
| Release Liner | Paper or film | Protecting adhesive before installation |
| Surface | Smooth or fine cell structure | Supports consistent sealing contact |
| Optional Second Adhesive | Pressure sensitive adhesive | Double sided attachment |
The exact construction depends on the application, required adhesion, environmental conditions, substrate material, and assembly process.
For example, adhesive backed EVA foam can be produced with adhesive on one side for mounting or positioning. Double sided versions can be used where the foam gasket must bond between two surfaces. Industrial gasket suppliers commonly provide EVA foam with adhesive backing and custom die cut shapes.
5. Key Features
The adhesive backing is one of the most important features of a self adhesive cushion sealing gasket.
Instead of manually applying liquid adhesive during assembly, the operator can remove the release liner and press the gasket onto the required surface.
This can provide:
Faster assembly
Easier positioning
Cleaner installation
Reduced adhesive handling
Better repeatability
Lower assembly complexity
Improved temporary positioning before final assembly
The adhesive should be selected according to the substrate and service environment. Metal, plastic, glass, painted surfaces, and other substrates can have substantially different bonding characteristics.
The foam layer can absorb mechanical pressure and provide a compliant interface between components.
This is especially useful when:
Two surfaces are uneven
Components experience vibration
A housing requires impact protection
Small dimensional variations must be accommodated
A component needs additional cushioning
Noise transmission needs to be reduced
EVA foam is widely recognized for its cushioning, resilience, and impact absorption properties.
A cushion sealing gasket works by compressing against mating surfaces.
When compressed, the foam can conform to small surface irregularities and help close gaps.
This makes it useful for:
Dust sealing
Moisture protection
Housing interfaces
Panel joints
Equipment covers
Electrical enclosures
Appliance assemblies
Closed cell EVA is particularly attractive for applications where low water absorption is important.
EVA foam is a lightweight material, which can be advantageous in applications where the sealing component must not add significant weight.
Lightweight gasket materials can be particularly useful for:
Portable electronics
Automotive components
Consumer appliances
Battery accessories
Packaging
Lighting equipment
Lightweight machinery
The combination of low density and functional sealing performance allows designers to integrate cushioning and sealing without adding a heavy structural component.
Flexible foam can accommodate minor movement between mating surfaces.
The resilience of EVA foam helps the gasket recover after compression, although the actual compression recovery depends on the specific foam formulation, density, thickness, compression level, temperature, and service duration.
For this reason, material testing should be performed when the gasket is intended for continuous compression or demanding environmental conditions.
6. Common Specifications
The following table provides general specification categories for self adhesive EVA cushion sealing gasket sheet material. Actual values should be confirmed according to the selected material grade.
| Parameter | Typical Specification or Option |
|---|---|
| Material | EVA closed cell foam |
| Product Form | Sheet, roll, strip, pad, die cut gasket |
| Adhesive | Acrylic PSA, hot melt or application specific adhesive |
| Adhesive Sides | Single sided or double sided |
| Thickness | Application dependent |
| Density | Available in multiple density grades |
| Hardness | Available in different hardness levels |
| Color | Black, gray, natural and custom colors |
| Surface | Smooth or fine cell structure |
| Water Absorption | Low for suitable closed cell EVA grades |
| Flexibility | Flexible and resilient |
| Cushioning | Good |
| Vibration Damping | Good |
| Chemical Resistance | Good for many common chemicals, grade dependent |
| Weather Resistance | Suitable grades available for outdoor applications |
| Processing | Die cutting, slitting, CNC cutting and other conversion methods |
| Custom Shape | Available |
| Adhesive Liner | Paper or film release liner |
| Application | Sealing, cushioning, insulation, mounting and protection |
Industrial EVA gasket materials are available in different densities, thicknesses, colors, and adhesive configurations. One published specification, for example, describes closed cell EVA in 2 and 4 pound density grades with thicknesses from 1/16 inch upward and adhesive backing options.
7. Typical Physical Properties
The physical properties of EVA foam vary considerably according to formulation and density. Therefore, a general specification should not be treated as a universal material standard.
An example of an industrial closed cell EVA specification reports approximately 32 kg/m³ density, 34.5 kPa compression deflection at 25%, 114 kPa tensile strength, 275% elongation, and 24% compression set at the specified test conditions. A higher density grade listed by the same source has approximately 56 kg/m³ density, 69 kPa compression deflection, 16 lb/in tear strength, and 15% compression set under its specified conditions.
| Property | Example Consideration |
|---|---|
| Density | Determines weight and contributes to mechanical behavior |
| Compression Deflection | Indicates resistance to compression under specified conditions |
| Compression Set | Helps evaluate permanent deformation after compression |
| Tensile Strength | Indicates resistance to pulling forces |
| Elongation | Indicates stretch capability |
| Tear Strength | Indicates resistance to tearing |
| Water Absorption | Important for moisture sealing |
| Hardness | Influences compression and surface conformity |
| Temperature Resistance | Determines suitable service environment |
These values should always be treated as examples rather than guaranteed specifications for every EVA gasket.
8. Thickness Selection
Thickness is one of the most important design parameters for a self adhesive cushion sealing gasket.
A thin gasket may be appropriate where:
The gap is very small
Assembly clearance is limited
Minimal compression is required
The component has tight dimensional tolerances
A thicker gasket may be appropriate where:
The gap is larger
More cushioning is needed
Greater surface irregularity must be accommodated
Additional vibration damping is desired
More compression travel is available
However, increasing thickness does not automatically improve sealing performance.
The gasket must have enough compression to establish contact without being excessively compressed.
A practical gasket design therefore considers:
Initial Thickness + Compression Requirement + Available Assembly Clearance
The final selection should be based on actual compression testing and mating surface conditions.
9. Density Selection
Density is another important material parameter.
Lower density EVA foam generally provides a softer and lighter structure, which can be useful when the gasket must conform easily to irregular surfaces.
Higher density EVA foam can provide greater mechanical strength and structural stability, although it may require greater compression force.
A material comparison should therefore consider:
Density
Hardness
Compression deflection
Compression set
Tensile strength
Tear resistance
Required sealing pressure
Substrate stiffness
Density and hardness should not be treated as identical properties. Two materials with similar density can behave differently if their formulations and cell structures differ.
10. Adhesive Selection
The adhesive layer is just as important as the foam layer.
A gasket can have excellent foam properties but still fail in service if the adhesive is poorly matched to the substrate or environment.
Common adhesive considerations include:
Acrylic pressure sensitive adhesives are frequently considered when long-term adhesion and environmental durability are important.
They can be suitable for many industrial substrates, but the exact performance depends on adhesive formulation.
Hot melt adhesive systems may provide strong initial adhesion and efficient processing for certain applications.
High tack adhesives can be useful when rapid initial bonding is required.
Specialized adhesives may be selected for:
Low surface energy plastics
Painted metal
Powder coated surfaces
Glass
Rough surfaces
High humidity
Outdoor applications
Elevated temperatures
The adhesive should always be evaluated with the actual substrate rather than only considering the nominal adhesive type.
11. Adhesive Backing Structure
A typical self adhesive gasket sheet can have the following construction:
Release Liner
↓
Pressure Sensitive Adhesive
↓
EVA Foam
↓
Sealing Interface
For double sided applications:
Release Liner
↓
Adhesive
↓
EVA Foam
↓
Adhesive
↓
Release Liner
This structure provides flexibility during manufacturing and assembly.
The release liner can also help protect the adhesive during storage, transportation, die cutting, and handling.
12. Die Cut Self Adhesive Gaskets
Die cutting is a common method for converting EVA foam sheets into finished gasket components.
Custom die cutting can produce:
Round gaskets
Rectangular gaskets
Square gaskets
Oval gaskets
Ring gaskets
Frame gaskets
Washer shapes
Custom electronic seals
Equipment enclosure gaskets
Adhesive mounting pads
Cable entry seals
Protective foam components
Industrial EVA gasket materials can be supplied as die cut or waterjet cut components according to specific dimensions.
The die cut process is particularly useful when a product requires thousands of identical gasket components.
13. Custom Gasket Design
A custom cushion sealing gasket can be designed according to:
Length
Width
Thickness
Internal diameter
External diameter
Hole diameter
Corner radius
Adhesive type
Adhesive side
Foam density
Foam hardness
Material color
Compression requirement
Operating environment
The designer should define the gasket geometry according to the mating component rather than choosing the gasket shape independently.
For example, a housing gasket should follow the sealing perimeter of the enclosure.
14. Common Applications
Self adhesive EVA gaskets can be used around electronic housings to help reduce the entry of dust and moisture while providing cushioning between assembled components.
Applications may include:
Control boxes
Electronic housings
Instrument panels
Consumer electronics
Display housings
Communication equipment
Small electrical devices
Electrical equipment frequently requires nonmetallic sealing and cushioning interfaces.
Self adhesive foam gaskets can be used around:
Control cabinets
Junction boxes
Electrical covers
Switch housings
Lighting enclosures
Power equipment housings
The exact insulation and electrical properties must be confirmed for each EVA formulation and application.
EVA foam gasket materials can be used in automotive interior and sealing applications where cushioning, chemical resistance, and low water absorption are beneficial.
Potential applications include:
Interior trim
Instrument panels
Door components
Console assemblies
Decorative panels
Acoustic cushioning
Protective pads
Automotive applications require careful consideration of temperature, vibration, chemicals, aging, and flammability requirements.
Foam gasket materials can be used for:
Duct sealing
Access panels
Equipment housings
Air handling components
Ventilation assemblies
Pipe-related interfaces
The material should be selected according to temperature, humidity, pressure, and environmental exposure.
Self adhesive cushion sealing gaskets can help reduce vibration and protect contact surfaces in appliances.
Potential applications include:
Refrigerators
Air conditioners
Washing machines
Small appliances
Kitchen equipment
Electrical appliance housings
15. Waterproof and Moisture Resistant Applications
Closed cell EVA foam is often considered for applications involving moisture because the cell structure can provide relatively low water absorption.
This can be useful for:
Outdoor equipment
Electrical housings
Automotive interiors
HVAC equipment
Appliance interfaces
Protective enclosures
However, the phrase "waterproof gasket" should not automatically mean that every EVA foam gasket provides a certified IP-rated seal.
Actual waterproofing performance depends on:
Foam structure
Compression
Adhesive bond
Surface condition
Joint design
Gasket continuity
Environmental exposure
Manufacturing tolerances
If an enclosure requires an IP rating, the complete enclosure assembly should be tested rather than relying only on the gasket material specification.
16. Dust Sealing
Self adhesive Cushion Gaskets can help block dust and airborne particles when properly compressed between mating surfaces.
This makes them useful for:
Electrical boxes
Electronic equipment
Industrial controls
Lighting equipment
Appliance housings
Machinery covers
The gasket should completely follow the sealing path without unnecessary gaps or interruptions.
17. Vibration Damping
Foam gasket material can act as a compliant layer between components.
This can reduce direct mechanical contact and help absorb minor vibration.
Typical applications include:
Electronic equipment
Automotive components
Machinery panels
Appliance housings
Lighting assemblies
Control equipment
The vibration damping capability depends on foam density, thickness, hardness, compression, frequency, and system design.
18. Shock Absorption
EVA foam is commonly used as a cushioning material because of its flexible and resilient structure.
A self adhesive EVA cushion gasket can therefore perform multiple functions at the same time:
Sealing + Cushioning + Positioning + Vibration Damping + Surface Protection
This multifunctional behavior is one of the main reasons EVA foam is attractive for industrial component design.
19. Thermal and Acoustic Insulation
EVA foam can also provide thermal and acoustic insulation properties.
These properties can be useful in:
Appliance housings
Automotive interiors
HVAC equipment
Electronic devices
Machinery
Equipment enclosures
However, gasket material should not automatically be considered a high-performance thermal insulation material. Where strict thermal requirements exist, the complete insulation system should be evaluated.
20. Surface Compatibility
Before applying a self adhesive gasket, the substrate should be evaluated.
Common substrates include:
| Substrate | General Consideration |
|---|---|
| Aluminum | Usually suitable after proper cleaning |
| Steel | Surface preparation is important |
| Stainless Steel | Clean surface required |
| ABS Plastic | Adhesive compatibility should be tested |
| PC Plastic | Test adhesive compatibility |
| PP Plastic | Low surface energy may require specialized adhesive |
| PE Plastic | Adhesive selection is important |
| Glass | Generally smooth but must be clean |
| Painted Metal | Paint adhesion and surface condition matter |
| Powder Coating | Surface energy and coating quality should be evaluated |
A clean, dry, contaminant-free surface generally provides better adhesive performance.
Oil, dust, release agents, moisture, grease, and loose coatings can significantly reduce adhesion.
21. Surface Preparation
Recommended preparation can include:
Remove dust and loose particles.
Remove oil and grease.
Ensure the substrate is dry.
Confirm that the coating is firmly bonded.
Avoid touching the prepared adhesive surface.
Apply the gasket with controlled pressure.
Allow appropriate bonding time when required.
The exact cleaning agent should be compatible with the substrate and adhesive.
22. Installation Process
A typical installation procedure is:
Check:
Dimensions
Thickness
Shape
Adhesive condition
Surface contamination
Clean and dry the bonding surface.
Align the gasket with the intended sealing path.
Peel the liner gradually rather than exposing the entire adhesive surface unnecessarily.
Press the gasket evenly onto the substrate.
Bring the mating components together according to the specified assembly sequence.
Confirm that the gasket is compressed consistently around the complete sealing path.
23. Advantages of Self Adhesive Cushion Sealing Gaskets
The adhesive backing eliminates the need for separate liquid adhesive application in many assemblies.
The foam structure can protect components from mechanical impact and surface contact.
The gasket can conform to minor surface irregularities.
EVA foam provides functional performance without significant additional weight.
Sheet and roll materials can be slit, die cut, CNC cut, or otherwise converted.
Dimensions, thickness, shape, density, adhesive, and color can be adapted to different applications.
Closed cell EVA can provide low water absorption, which is useful for many moisture-related sealing applications.
EVA foam can provide good resistance to many chemicals, although compatibility should be verified for specific substances.
24. Limitations
No gasket material is suitable for every application.
Potential limitations include:
Different EVA grades have different temperature capabilities. A published industrial EVA grade, for example, lists a specified temperature range from approximately −78°C to 104°C, but this should not be generalized to every EVA foam product.
Long-term compression can cause permanent deformation.
The adhesive can age differently from the foam.
Some low surface energy plastics can be difficult to bond.
Strong solvents or aggressive chemicals may affect EVA or the adhesive.
Foam gaskets are not automatically suitable for high-pressure fluid sealing.
Applications involving extreme heat may require silicone, fluorosilicone, EPDM, or another specialized sealing material instead.
25. EVA Compared With Other Foam Materials
| Material | Typical Strengths | Common Considerations |
|---|---|---|
| EVA | Lightweight, flexible, cushioning, low water absorption | Temperature and chemical compatibility must be checked |
| EPDM Foam | Excellent weather and ozone resistance | Oil resistance can be limited |
| Neoprene Foam | Balanced weather and chemical performance | Application temperature must be considered |
| Silicone Foam | Excellent high and low temperature performance | Usually higher cost |
| Polyethylene Foam | Lightweight and moisture resistant | Different compression characteristics |
| Polyurethane Foam | Good cushioning and resilience | Open and closed cell grades behave differently |
The correct choice depends on the operating environment rather than simply selecting the material with the highest individual specification.
26. EVA Gasket vs EVA Foam Tape
These products can look similar but serve different purposes.
EVA Foam Tape is generally optimized for bonding and mounting.
EVA Cushion Sealing Gasket is designed primarily around sealing, cushioning, gap filling, and environmental protection.
A foam tape may be used as a gasket in some situations, but a purpose-designed gasket generally provides more control over:
Geometry
Compression
Sealing path
Thickness
Material density
Adhesive coverage
Installation tolerance
27. Sheet, Roll and Die Cut Forms
Self adhesive EVA materials can be supplied in different forms.
Suitable for:
Custom conversion
Large flat components
Manual fabrication
Prototype development
Suitable for:
Continuous strips
Long sealing paths
High-volume production
Automated processing
Suitable for:
High-volume identical parts
Complex shapes
Precise dimensions
Electronic components
Suitable for:
Narrow sealing paths
Edge protection
Long linear joints
Cable and enclosure applications
28. Manufacturing and Converting Processes
A typical production process may include:
EVA Foam Production → Sheet or Roll Formation → Adhesive Lamination → Release Liner Application → Slitting → Die Cutting → Inspection → Packaging
The conversion process can be adjusted according to product geometry.
Common manufacturing processes include:
Lamination
Slitting
Die cutting
Kiss cutting
CNC cutting
Waterjet cutting
Roll cutting
Sheet cutting
The selected method depends on thickness, shape, production volume, dimensional tolerance, and tooling requirements.
29. Quality Control
Quality control for self adhesive cushion sealing gasket sheets can include:
Checking:
Length
Width
Thickness
Hole diameter
Internal dimensions
External dimensions
Position tolerance
Checking:
Density
Hardness
Cell structure
Surface quality
Color consistency
Checking:
Initial tack
Peel adhesion
Holding power
Adhesive coverage
Release liner performance
Checking:
Compression deflection
Compression recovery
Compression set
Depending on the application:
Temperature exposure
Humidity exposure
Water exposure
Chemical exposure
Aging
UV exposure
30. Common Quality Problems
Possible causes include:
Dirty substrate
Excessive moisture
Low surface energy
Incorrect adhesive
Insufficient application pressure
Improper storage
Possible causes include:
Excessive compression
Inadequate foam density
High temperature
Long-term loading
Possible causes include:
Insufficient compression
Gasket discontinuity
Incorrect thickness
Surface irregularity
Adhesive failure
Incorrect joint design
Possible causes include:
Material thickness variation
Cutting tolerance
Die wear
Foam expansion
Inaccurate tooling
31. Storage Recommendations
Self adhesive gasket materials should generally be stored in a clean and dry environment.
Recommended considerations include:
Avoid excessive heat.
Avoid direct sunlight.
Protect adhesive surfaces.
Keep release liners intact.
Avoid excessive compression during storage.
Keep products away from contaminants.
Follow the adhesive manufacturer's storage recommendations.
Storage conditions can influence adhesive performance and foam aging.
32. Packaging Considerations
Finished gasket components can be packaged in:
Plastic bags
PE bags
Cartons
Rolls
Flat sheets
Stacked die cut parts
Protective liner sheets
For precision die cut gaskets, protective packaging can help prevent:
Dust contamination
Adhesive contamination
Shape deformation
Surface damage
Moisture exposure
33. Customization Options
A self adhesive cushion sealing gasket sheet can be customized in many ways.
| Custom Feature | Available Options |
|---|---|
| Material | EVA or application-specific foam |
| Thickness | Custom |
| Density | Multiple grades |
| Hardness | Soft, medium or firm |
| Shape | Round, rectangular, frame, irregular |
| Adhesive | Single or double sided |
| Adhesive Type | Acrylic, hot melt or application specific |
| Color | Black, gray, natural or custom |
| Cutting | Die cut, CNC, waterjet, slit |
| Release Liner | Paper or film |
| Packaging | Sheet, roll, bag, carton |
| Printing | Application dependent |
| Tolerance | Application specific |
Custom gasket manufacturing allows designers to integrate multiple functions into one component.
34. How to Select the Right Material
When selecting a self adhesive cushion sealing gasket sheet, consider the following sequence:
Determine whether the gasket is primarily required for:
Dust sealing
Moisture sealing
Cushioning
Vibration damping
Thermal insulation
Acoustic insulation
Surface protection
Determine the minimum and maximum joint gap.
Define the acceptable compression range.
Choose a foam thickness compatible with the available assembly clearance.
Balance softness, conformability, mechanical strength, and compression force.
Match the adhesive to the substrate and environment.
Consider:
Temperature
Humidity
Water
UV exposure
Chemicals
Oils
Vibration
Prototype testing is recommended before mass production.
35. Purchasing and Specification Checklist
When requesting self adhesive cushion sealing gasket sheet material, provide:
Material type
Foam structure
Thickness
Density
Hardness
Length
Width
Gasket shape
Adhesive side
Adhesive type
Color
Operating temperature
Compression requirement
Substrate type
Environmental requirements
Required certifications
Quantity
Packaging requirements
This information helps prevent misunderstandings during material selection and production.
36. Typical Product Specification Template
| Specification | Customer Requirement |
|---|---|
| Product Name | Self Adhesive Cushion Sealing Gasket Sheet |
| Material | EVA Foam |
| Cell Structure | Closed Cell |
| Thickness | Custom |
| Density | Custom |
| Hardness | Custom |
| Adhesive | Pressure Sensitive Adhesive |
| Adhesive Side | Single or Double Sided |
| Color | Black / Gray / Natural / Custom |
| Shape | Sheet / Strip / Die Cut |
| Surface | Smooth |
| Water Resistance | Application Dependent |
| Temperature Resistance | Grade Dependent |
| Chemical Resistance | Grade Dependent |
| Processing | Die Cutting / Slitting / CNC Cutting |
| Application | Sealing / Cushioning / Insulation / Protection |
37. Industrial Design Considerations
A gasket should be designed as part of the entire assembly rather than as an isolated component.
Important factors include:
Housing stiffness
Fastener spacing
Joint gap
Compression ratio
Surface flatness
Surface roughness
Thermal expansion
Vibration
Adhesive bonding area
Installation sequence
A gasket that works well on a rigid metal housing may behave differently on a flexible plastic enclosure.
Therefore, prototype testing should reproduce the actual housing, fasteners, assembly force, environmental conditions, and expected service duration.
38. Role in Electronic Assembly
Self adhesive cushion sealing gasket sheet material can provide several functions in electronic assembly.
It can help:
Seal enclosure joints
Cushion sensitive components
Reduce vibration
Prevent direct surface contact
Protect against dust
Reduce moisture ingress
Position components
Provide limited thermal or acoustic insulation
For electronic equipment requiring specific IP protection, gasket performance should be validated through complete enclosure testing.
39. Role in Electrical Enclosures
Electrical enclosures often use gaskets around doors, covers, access panels, and cable-related interfaces.
A properly designed foam gasket can help maintain a continuous sealing interface.
The gasket should be:
Correctly sized
Properly compressed
Continuously applied
Securely bonded
Compatible with the enclosure material
The adhesive is particularly important when the gasket must remain attached during repeated assembly and disassembly.
40. Environmental Considerations
EVA foam is widely used because it combines relatively low weight with useful mechanical and sealing properties.
However, "eco-friendly" should not be used as an absolute claim without a specific material and regulatory evaluation.
For projects with environmental requirements, buyers should confirm:
Material composition
RoHS requirements
REACH requirements where applicable
VOC requirements
Recycling considerations
Flame retardancy
Restricted substances
The final compliance status depends on the exact foam, adhesive, liner, additives, and manufacturing process.
41. Flame Retardant Requirements
Standard EVA foam should not automatically be described as flame retardant.
If the application involves:
Electrical equipment
Automotive systems
Battery equipment
Industrial controls
Power electronics
the required flame retardant classification should be explicitly specified.
Testing should be performed on the actual material construction rather than assuming that all EVA foam products have the same flammability performance.
42. Outdoor Applications
Suitable EVA foam grades can be used for certain outdoor sealing and weatherproofing applications.
Important environmental factors include:
Rain
Humidity
Temperature cycling
UV exposure
Ozone
Dust
Chemical contamination
Closed cell EVA has been reported as suitable for weatherproofing applications because of its climate, aging, and low-temperature performance in appropriate grades.
Outdoor testing is still recommended because adhesive aging and UV exposure can affect the complete gasket assembly.
43. Why Self Adhesive Gaskets Are Useful in Manufacturing
Traditional gasket installation may require:
Mechanical fasteners
Separate adhesive
Manual positioning
Complex fixtures
A self adhesive gasket can simplify the process.
The component can be supplied in a ready-to-install format with a release liner.
This can support:
Faster assembly
Repeatable placement
Reduced manual handling
Cleaner production
Easier inventory management
Improved component positioning
For high-volume assembly, precision die cut adhesive gaskets can further reduce installation time.
44. Self Adhesive Gasket for Mass Production
For mass production, the gasket geometry should be optimized for repeatability.
Important considerations include:
Consistent material thickness
Stable adhesive coating
Accurate die cutting
Easy liner removal
Automated or semi-automated placement
Roll or sheet feeding
Waste reduction
Roll-fed or kiss-cut formats can be particularly useful when automated dispensing or continuous assembly is required.
45. Prototype Development
During prototype development, designers may start with:
EVA sheet
Manual cutting
Sample die cutting
CNC cutting
Waterjet cutting
After the dimensions are validated, production tooling can be introduced.
This approach can reduce the risk of producing large quantities of an incorrectly sized gasket.
46. Common Industries
Self adhesive cushion sealing gasket sheet material can be used across many industries, including:
Electronics
Electrical equipment
Automotive
HVAC
Appliances
Lighting
Telecommunications
Industrial machinery
Packaging
Consumer products
Instrumentation
Equipment manufacturing
The exact material specification should always be adapted to the industry and operating conditions.
47. EVA Cushion Sealing Gasket for Electronics
For electronic applications, the gasket may need to combine:
Sealing + Cushioning + Insulation + Positioning + Vibration Damping
The gasket can be placed around a housing perimeter or between individual components.
For compact devices, thin EVA foam can provide cushioning while occupying minimal assembly space.
For larger enclosures, thicker foam may be used to accommodate larger gaps.
48. EVA Gasket for Equipment Protection
Equipment can experience mechanical vibration, accidental impact, transportation shock, and repeated assembly.
A self adhesive cushion gasket can provide a compliant interface between components.
This can reduce:
Direct metal-to-metal contact
Plastic-to-metal contact
Surface scratching
Minor impact
Mechanical noise
It can therefore function as both a sealing component and a protective cushioning layer.
49. Design Tolerances
Dimensional tolerance should be defined according to the actual gasket geometry.
Important dimensions include:
Overall length
Overall width
Thickness
Hole diameter
Hole position
Corner radius
Internal opening
Adhesive coverage
Foam materials are compressible, so dimensional inspection should use appropriate methods.
For critical applications, both the free-state dimension and compressed-state behavior should be evaluated.
50. Compression and Sealing Design
The gasket must be compressed sufficiently to establish continuous contact.
However, excessive compression can cause:
High assembly force
Permanent deformation
Adhesive stress
Foam damage
Reduced recovery
Insufficient compression can cause:
Gaps
Leakage paths
Poor dust protection
Reduced sealing reliability
Therefore, gasket design should balance compression and recovery.
51. Practical Selection Example
Suppose an electronic enclosure has a small uneven joint and requires:
Moisture resistance
Dust protection
Cushioning
Easy installation
A closed cell EVA foam gasket with pressure sensitive adhesive may be considered.
The design process could be:
Measure Joint → Determine Gap → Select Foam Thickness → Select Density → Select Adhesive → Prototype → Compression Test → Environmental Test → Finalize
This method is more reliable than choosing the gasket based only on thickness or adhesive strength.
52. Material Verification
Before production, customers may request:
Technical data sheet
Material specification
Density report
Hardness report
Adhesive performance data
Compression data
Flammability information
Environmental compliance documents
The exact documentation depends on the application and purchasing requirements.
53. Frequently Asked Questions
It is a foam-based sealing and cushioning component with a pressure sensitive adhesive backing for convenient attachment to a substrate.
EVA is an ethylene vinyl acetate copolymer-based foam material commonly used for cushioning, sealing, insulation, and protective applications.
Closed cell EVA can be suitable for many static sealing and cushioning applications because of its low water absorption and flexible structure.
Yes. EVA gasket materials can be converted into custom die cut shapes, strips, pads, and other profiles.
Yes. EVA foam can be supplied with adhesive backing on one or both sides depending on the application.
Closed cell EVA generally has low water absorption, but finished gasket waterproofing depends on compression, geometry, adhesive bonding, and the complete assembly.
Suitable grades can be used in outdoor weatherproofing applications, but the complete material and adhesive system should be tested for UV, temperature, humidity, and aging.
Yes. Thickness, density, shape, dimensions, adhesive type, adhesive side, color, and cutting method can all be customized depending on production requirements.
54. Conclusion
Self adhesive cushion sealing gasket sheet material is a versatile solution for applications that require sealing, cushioning, protection, positioning, vibration damping, or insulation in one lightweight component.
Closed cell EVA foam is particularly useful because it can combine flexibility, resilience, low water absorption, mechanical strength, chemical resistance, and easy fabrication. Industrial EVA gasket materials are available in different density grades and can be supplied as sheets, rolls, adhesive-backed materials, strips, or precision die cut components.
The most important factors when selecting a self adhesive EVA gasket are not simply material name or thickness. A reliable design should consider foam density, hardness, compression behavior, thickness, adhesive type, substrate compatibility, temperature, moisture, chemicals, environmental exposure, and assembly conditions.
For electronic and electrical equipment, self adhesive cushion sealing gaskets can provide a practical interface between housing components while helping reduce dust, moisture, vibration, impact, and surface damage. For industrial applications, custom die cutting and adhesive lamination make it possible to produce gasket components with precise shapes and repeatable dimensions.
Ultimately, the best gasket is the one whose material, adhesive, geometry, and compression characteristics are matched to the actual application. Prototype testing and complete assembly validation remain important for demanding sealing applications.
This website uses cookies to ensure you get the best experience on our website.
WhatsApp
Phone
