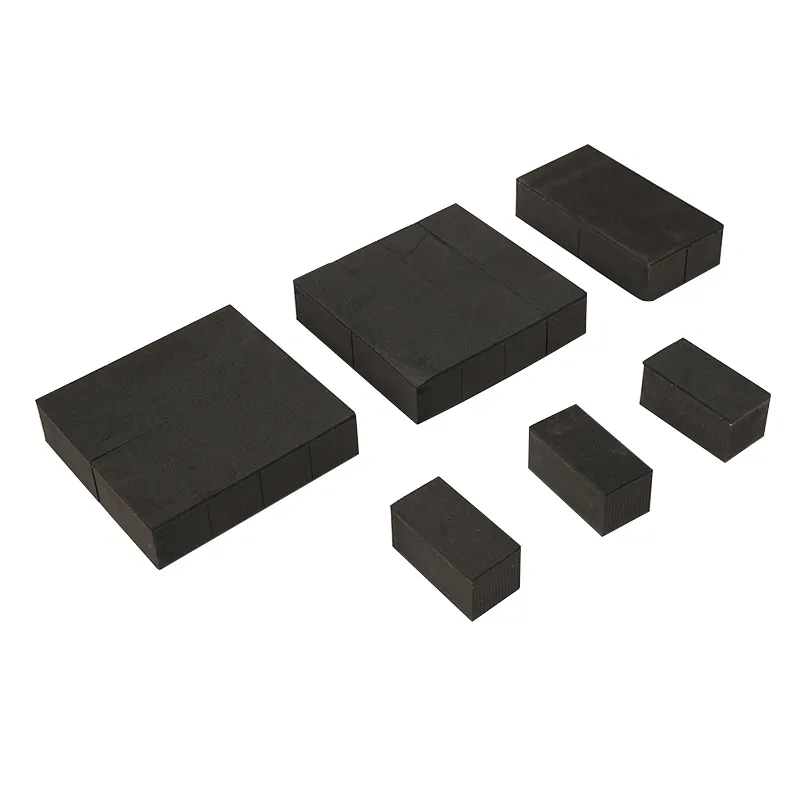

Custom Shape Cushion Sealing Gasket Components are engineered sealing parts designed to provide cushioning, gap filling, protection, insulation, and environmental sealing in products and assemblies with nonstandard dimensions or complex geometries. Unlike standard round, square, or rectangular gasket products, custom shape cushion Sealing Gaskets can be produced to match specific housing profiles, component outlines, mounting structures, openings, covers, battery enclosures, electronic housings, appliance panels, automotive components, and industrial equipment.

These components are commonly manufactured from flexible cellular materials such as EVA foam, polyethylene foam, EPDM foam, neoprene foam, silicone sponge, polyurethane foam, PVC foam, and other sealing-grade materials. The final selection depends on temperature, compression, moisture exposure, chemical contact, mechanical loading, dimensional requirements, adhesion requirements, and expected service life. Closed-cell foam materials are particularly useful where resistance to moisture, air, dust, and environmental contamination is required.

Custom shape cushion sealing gasket components can be supplied as die-cut gaskets, adhesive-backed gaskets, foam seals, cushioning pads, insulation components, sealing strips, rings, washers, frame gaskets, enclosure seals, and other precision-cut forms. Depending on the material and design, manufacturing processes may include die cutting, kiss cutting, slitting, waterjet cutting, CNC cutting, laminating, adhesive coating, and other converting operations. EVA foam, for example, can be converted into custom die-cut and waterjet-cut gasket components and supplied with adhesive backing.

The following guide provides an industry-focused overview of Custom Shape Cushion Sealing Gasket Components, including material characteristics, design considerations, specifications, manufacturing methods, adhesive options, sealing performance, application areas, installation practices, quality control, storage, and selection criteria.

1. What Are Custom Shape Cushion Sealing Gasket Components?

A Custom Shape Cushion Sealing Gasket Component is a purpose-designed gasket or foam sealing part manufactured according to the geometry and functional requirements of a particular application.

The component may have:

• Irregular external contours

• Internal holes

• Mounting holes

• Slots

• Cutouts

• Channels

• Tabs

• Notches

• Multiple thickness zones

• Adhesive-backed surfaces

• Laminated layers

• Multiple sealing areas

• Compression zones

• Cushioning sections

• Protective edges

The primary purpose is to create a controlled interface between two or more surfaces.

In a typical assembly, the gasket is positioned between a housing and cover, panel and frame, battery module and enclosure, electronic component and support structure, or two mating mechanical surfaces. When the assembly is compressed, the gasket deforms and fills surface irregularities and small gaps.

This creates a barrier that can help reduce the penetration of:

• Water

• Moisture

• Dust

• Air

• Dirt

• Oil

• Certain chemicals

• Environmental contaminants

At the same time, a foam gasket can provide mechanical cushioning. It may reduce direct contact between components, absorb minor impacts, compensate for dimensional variation, and reduce vibration transmission.

Closed-cell foam is particularly suitable for many sealing applications because its cellular structure limits fluid penetration and provides compressibility. Closed-cell foam gasket materials are widely considered for sealing because they combine compressibility with resistance to water and air intrusion.

2. Why Custom Shape Gaskets Are Important

Standard gasket shapes are convenient when the application uses simple geometries. However, modern products often contain compact assemblies, curved housings, electronic modules, irregular covers, and space-constrained components.

A standard gasket may not provide adequate coverage around such structures.

Custom shape cushion sealing gasket components solve this problem by matching the actual design of the assembly.

A custom gasket can be designed around:

• Product dimensions

• Housing geometry

• Screw locations

• Cable openings

• Vent openings

• Connector positions

• Heat-generating components

• Moving parts

• Structural ribs

• Curved edges

• Irregular corners

• Required compression areas

This can improve the consistency of the sealing interface and simplify assembly.

Custom geometry can also reduce unnecessary material around the sealing area. Instead of using a large rectangular sheet and manually cutting it during installation, a precision-cut component can arrive ready for assembly.

This is especially useful in high-volume production environments where repeatability, assembly speed, dimensional consistency, and material utilization are important.

3. Main Functions of Cushion Sealing Gasket Components

Custom Shape Cushion Sealing Gasket Components can perform several functions simultaneously.

3.1 Environmental Sealing

The gasket can act as a barrier against water, moisture, dust, and airborne contaminants.

Closed-cell EVA foam, for example, has low water absorption and is used in various industrial and commercial sealing applications.

The actual sealing performance depends on:

• Material structure

• Compression level

• Surface condition

• Gasket thickness

• Contact pressure

• Joint design

• Temperature

• Environmental exposure

A gasket should therefore be selected according to the complete application rather than material name alone.

3.2 Cushioning

Foam gaskets can absorb mechanical contact and provide cushioning between assembled parts.

This can help protect:

• Plastic housings

• Metal panels

• Electronic components

• Battery modules

• Display components

• Sensors

• Control boards

• Covers

• Frames

Cushioning properties are affected by foam density, thickness, compression deflection, resilience, and geometry.

3.3 Gap Compensation

Manufactured parts inevitably have dimensional tolerances.

A flexible gasket can accommodate small variations between mating components.

Instead of requiring perfectly flat or perfectly dimensioned surfaces, the gasket can compress and conform to minor irregularities.

3.4 Vibration Damping

Foam gasket components can reduce direct mechanical contact and help damp vibration.

This is useful in:

• Electronics

• Automotive systems

• Appliances

• Industrial equipment

• Battery assemblies

• Machinery housings

• Lighting systems

The effectiveness depends heavily on material characteristics and the frequency and amplitude of the vibration.

3.5 Noise Reduction

A cushion sealing gasket can also help reduce the transmission of minor mechanical noise.

Foam materials with suitable cellular structures can provide acoustic benefits, although a gasket should not automatically be treated as a dedicated acoustic insulation material.

3.6 Electrical Insulation

Certain foam gasket materials can provide electrical separation between components.

For electronic and electrical applications, however, electrical insulation requirements should be confirmed against the applicable material grade and testing requirements.

3.7 Thermal Separation

A foam component can create physical separation between parts and reduce direct heat transfer.

The actual thermal performance depends on material type, density, thickness, temperature, compression, and assembly conditions.

4. Common Materials for Custom Shape Cushion Sealing Gaskets

Material selection is one of the most important decisions in gasket design.

Different foam and sponge materials have different combinations of:

• Temperature resistance

• Compression recovery

• Chemical resistance

• Water resistance

• Flexibility

• Tensile strength

• Tear resistance

• Compression set

• Density

• Hardness

• Weather resistance

Common materials include EVA, EPDM, neoprene, silicone, polyurethane, polyethylene, and PVC-based foams.

4.1 EVA Foam

Ethylene Vinyl Acetate, commonly known as EVA, is a lightweight flexible foam material frequently considered for cushioning, sealing, insulation, and protective applications.

Closed-cell EVA foam can provide:

• Low water absorption

• Good mechanical strength

• Chemical resistance

• Flexibility

• Elasticity

• Resilience

• Fine cell structure

• Lightweight construction

• Easy fabrication

These characteristics make EVA suitable for custom gasket and cushioning applications.

Typical applications include:

• Electronic enclosures

• Battery components

• Automotive interiors

• Appliances

• Protective housings

• Equipment panels

• Window sealing

• Cushioning assemblies

• Industrial components

One published EVA specification lists a 2 lb/ft³ density grade with a temperature range from approximately -110°F to 220°F, while a higher-density EVA grade is also available with different compression characteristics. These values are examples from specific grades and should not be generalized to every EVA foam formulation.

4.2 EPDM Foam

EPDM foam is widely used where weathering, ozone, UV exposure, and outdoor durability are important.

It is commonly considered for:

• Automotive sealing

• HVAC equipment

• Outdoor enclosures

• Window systems

• Door systems

• Electrical cabinets

• Industrial sealing

Closed-cell EPDM is especially useful for environmental sealing because it can provide resistance to moisture and weather exposure.

However, EPDM is generally not the first choice for applications involving continuous petroleum oil or fuel exposure.

4.3 Neoprene Foam

Neoprene foam is used in applications requiring a combination of flexibility, sealing performance, and resistance to various environmental conditions.

It may be considered for:

• Industrial equipment

• Electrical enclosures

• Automotive components

• Mechanical assemblies

• Vibration isolation

• General-purpose sealing

Neoprene and EPDM blends are also available for applications requiring balanced performance characteristics.

4.4 Silicone Sponge

Silicone sponge is especially attractive for applications involving elevated or changing temperatures.

It is known for:

• Broad temperature capability

• Flexibility

• Weather resistance

• UV resistance

• Ozone resistance

• Good compression recovery

Silicone sponge can therefore be considered for demanding thermal sealing applications.

It is often selected when temperature performance is more important than the lower material cost associated with some general-purpose foams.

4.5 Polyurethane Foam

Polyurethane foam can provide excellent cushioning and vibration absorption.

Depending on its formulation and cell structure, polyurethane foam may be produced in soft, flexible, microcellular, or more resilient grades.

It can be used for:

• Cushioning

• Impact absorption

• Vibration damping

• Spacing

• Sealing

• Protective pads

Some polyurethane gasket materials are specifically formulated for applications ranging from soft conformable seals to firm spacers.

4.6 Polyethylene Foam

Closed-cell polyethylene foam is lightweight and can provide useful moisture resistance, cushioning, and sealing characteristics.

It may be used for:

• Packaging

• Protective components

• Equipment enclosures

• Industrial gaskets

• Cushioning pads

• Spacers

Material selection should be based on actual application requirements rather than simply selecting the lowest-cost foam.

5. Custom Shape Gasket Design

The design of a custom gasket begins with the mating surfaces.

Important design parameters include:

A well-designed gasket should have enough material to create a reliable seal while avoiding excessive compression.

6. Thickness Selection

Thickness is a fundamental parameter in cushion sealing gasket design.

A gasket that is too thin may not adequately compensate for surface irregularities.

A gasket that is too thick may create:

• Excessive assembly force

• Housing deformation

• Uneven compression

• Fastener problems

• Excessive material cost

• Dimensional interference

A practical design therefore balances:

Initial Thickness + Compression + Surface Variation + Assembly Tolerance

The correct value depends on the foam grade and the application.

Thickness options can vary substantially by material and supplier. For example, one published EVA gasket material specification describes rolls starting at 1/16 inch and sheet thicknesses up to 3 inches.

These values should be treated as examples rather than universal specifications.

7. Density and Hardness

Density is another important characteristic.

A lower-density foam generally provides:

• Greater softness

• Easier compression

• Lightweight construction

• Better conformability

A higher-density foam may provide:

• Greater structural support

• Higher compression resistance

• Better dimensional stability

• Increased mechanical strength

However, density alone does not completely define sealing performance.

Two foams with similar densities can have different compression deflection, compression set, tensile strength, tear resistance, and recovery behavior.

Hardness may be specified using different testing systems depending on material type.

For custom gasket design, engineers should consider:

• Density

• Hardness

• Compression deflection

• Compression set

• Tensile strength

• Elongation

• Tear strength

rather than relying on a single specification.

8. Compression Deflection

Compression deflection describes the force required to compress a foam material by a specified percentage.

It is important because a gasket must generate sufficient contact pressure against the mating surfaces.

If the compression force is too low, the gasket may not seal effectively.

If it is too high, the assembly may require excessive mechanical force.

A published EVA gasket specification, for example, reports compression deflection at 25% compression and provides different values for different EVA density grades.

For this reason, compression deflection should be matched to the:

• Fastener system

• Housing strength

• Cover design

• Gasket geometry

• Required sealing pressure

• Assembly method

9. Compression Set

Compression set is a critical property for long-term sealing.

When a foam gasket remains compressed for an extended period, some materials may fail to recover completely after the load is removed.

This permanent deformation can reduce the gasket's ability to maintain sealing pressure.

Low compression set is generally desirable for applications where:

• Long-term compression is expected

• Temperature changes occur

• The gasket must remain resilient

• Repeated assembly is possible

• The sealing interface must remain stable

Published EVA data demonstrates that compression set can vary between different densities and grades, reinforcing the importance of selecting the correct material rather than treating all EVA foam as identical.

10. Closed Cell Versus Open Cell Foam

The cellular structure has a major impact on gasket performance.

Closed Cell Foam

Closed-cell foam contains cells that are substantially enclosed within the material structure.

Typical advantages include:

• Lower water absorption

• Better moisture resistance

• Improved air sealing

• Good cushioning

• Good environmental sealing

• Better resistance to fluid penetration

Closed-cell foams are therefore frequently used for gasket applications.

Open Cell Foam

Open-cell foam contains interconnected cells.

It may be useful for:

• Filtration

• Acoustic absorption

• Airflow applications

• Soft cushioning

However, open-cell foam is generally less suitable when the primary requirement is resistance to water or air penetration.

The correct choice depends on the specific function of the component.

11. Adhesive Backing Options

Custom Shape Cushion Sealing Gasket Components may be supplied with adhesive backing.

Adhesive-backed gaskets can simplify installation by allowing the gasket to be positioned before the final assembly is closed.

Common adhesive configurations include:

• Single-sided adhesive

• Double-sided adhesive

• Transfer adhesive

• Acrylic adhesive

• Rubber-based adhesive

• High-temperature adhesive

• Removable adhesive

Adhesive selection should consider:

• Surface energy

• Surface cleanliness

• Operating temperature

• Humidity

• Chemical exposure

• Required bond strength

• Application speed

• Storage conditions

A gasket may have excellent foam properties but still fail in service if the adhesive is poorly matched to the substrate.

12. Single Sided Adhesive Gaskets

Single-sided Adhesive Foam Gaskets have adhesive on one side and exposed foam on the other.

This configuration is useful when:

1. The gasket needs to be attached to one component.

2. The opposite surface must remain unbonded.

3. Positioning during assembly is important.

4. The gasket must remain removable from one side.

Typical applications include:

• Electronic housings

• Control panels

• Battery components

• Appliance assemblies

• Automotive trim

• Display frames

• Protective covers

The adhesive layer should be selected based on the substrate and expected environmental conditions.

13. Double Sided Adhesive Gaskets

Double-sided adhesive gaskets contain adhesive on both sides.

They can be used when both mating surfaces need to be bonded to the gasket.

Potential benefits include:

• Improved positioning

• Reduced movement

• Simplified assembly

• Additional attachment

• Controlled gasket placement

However, double-sided adhesive construction is not automatically better than single-sided construction.

The appropriate design depends on the mechanical structure of the assembly.

14. Die Cutting Custom Gaskets

Die cutting is one of the most common methods for producing high-volume custom foam gaskets.

A cutting die is manufactured according to the desired gasket profile.

The foam sheet or roll is then cut into repeated shapes.

Die cutting is suitable for:

• Repetitive geometries

• Medium to high production volumes

• Consistent dimensions

• Fast production

• Complex two-dimensional outlines

Custom EVA foam gaskets can be die cut to specified dimensions.

Die-cut components can include:

• Rings

• Frames

• Rectangular gaskets

• Irregular profiles

• Multi-hole gaskets

• Protective pads

• Cushioning inserts

15. Waterjet Cutting

Waterjet cutting is useful for custom gasket prototypes, complex shapes, and lower-volume production.

It can be particularly useful when a dedicated cutting die would not be economical.

Advantages may include:

• No dedicated die required

• Flexible shape changes

• Complex contours

• Prototype suitability

• Reduced tooling investment

Waterjet cutting is specifically listed as an available conversion method for certain EVA foam gasket materials.

16. CNC Cutting

CNC cutting can provide flexible production for custom gasket components.

It may be suitable for:

• Prototype development

• Small production runs

• Complex profiles

• Rapid design modifications

• Digitally controlled dimensions

CNC cutting can work directly from digital design information.

This makes it useful during product development when the gasket geometry may change several times before mass production.

17. Laminated Gasket Structures

Some applications require more than one material layer.

A laminated gasket may combine:

• EVA foam

• Adhesive

• Film

• Fabric

• Rubber

• Plastic film

• Protective liner

A laminated structure can provide additional functional characteristics.

For example, one layer may provide cushioning while another provides adhesive attachment.

Another layer may improve handling or protect the foam surface.

18. Custom Gasket Profiles

Custom shape cushion sealing gasket components can be produced in many profiles.

Common designs include:

Rectangular Gaskets

Used for:

• Electronic enclosures

• Control boxes

• Covers

• Panels

• Battery housings

Circular Gaskets

Used for:

• Ports

• Tubes

• Sensors

• Circular covers

• Mechanical openings

Oval Gaskets

Used for:

• Irregular access openings

• Automotive components

• Equipment housings

Frame Gaskets

Used around:

• Displays

• Screens

• Panels

• Doors

• Covers

Ring Gaskets

Used around:

• Connectors

• Shafts

• Openings

• Pipes

• Sensors

Irregular Gaskets

Designed specifically around the product geometry.

19. Typical Applications

Custom Shape Cushion Sealing Gasket Components can be used across many industries.

Electronics

Applications include:

• Electronic enclosures

• Control panels

• Display modules

• Sensors

• Circuit protection

• Device housings

• Connector assemblies

The gasket can help prevent dust and moisture from entering the housing while also cushioning sensitive components.

Automotive

Potential applications include:

• Interior components

• Instrument panels

• Lighting systems

• Electronic control modules

• Battery systems

• Sensors

• Enclosures

• Trim components

EVA closed-cell foam is documented for automotive gasket applications and can provide useful chemical resistance and cushioning characteristics.

Battery Systems

Battery applications increasingly require precise sealing and cushioning.

Custom foam gaskets may be used around:

• Battery covers

• Battery housings

• Battery modules

• Cell supports

• Electrical interfaces

• Protection structures

The material must be selected carefully based on temperature, electrolyte exposure, compression requirements, flame performance, and electrical requirements.

Appliances

Applications may include:

• Control panels

• Doors

• Covers

• Electronic modules

• Internal supports

• Display assemblies

Foam gaskets can provide sealing, cushioning, and noise reduction.

Industrial Equipment

Custom gaskets can be used in:

• Control cabinets

• Machinery

• Pumps

• Instrumentation

• Automation equipment

• Industrial enclosures

HVAC Systems

Foam gaskets can be used around:

• Panels

• Access doors

• Air handling components

• Duct interfaces

• Equipment housings

The material must be selected according to temperature, humidity, chemical exposure, and compression requirements.

20. Specification Table for Custom Shape Cushion Sealing Gasket Components

The following table can be used as a general product specification framework.

Specific values should always be established from the selected material grade and application requirements. Published EVA specifications, for example, demonstrate that density, compression deflection, tensile strength, elongation, tear strength, compression set, and temperature limits can differ between grades.

21. Important Material Performance Properties

Tensile Strength

Tensile strength indicates how much pulling force a material can withstand before failure.

It becomes important when the gasket is:

• Stretched during installation

• Subjected to mechanical movement

• Integrated around irregular geometry

• Exposed to repeated assembly

Elongation

Elongation indicates how much the material can stretch before breaking.

High elongation can be useful when the gasket must conform around irregular surfaces.

Tear Strength

Tear strength becomes important when the gasket contains:

• Small holes

• Narrow sections

• Sharp corners

• Slots

• Internal cutouts

Poor tear resistance can lead to damage during installation.

Water Absorption

Low water absorption is important for outdoor and moisture-sensitive sealing applications.

Closed-cell EVA materials are characterized by low water absorption in published technical data.

Compression Set

Low compression set is desirable when long-term sealing pressure must be maintained.

Temperature Resistance

The actual operating temperature must remain within the qualified range of the selected material.

A material suitable for room-temperature electronics may not be appropriate for high-temperature machinery.

22. Surface Preparation

Even a well-designed gasket can perform poorly if the mating surface is contaminated.

Before installation, surfaces should generally be:

• Clean

• Dry

• Free from dust

• Free from oil

• Free from grease

• Free from loose particles

• Free from excessive oxidation

For adhesive-backed gaskets, surface preparation becomes especially important.

The exact cleaning procedure should be compatible with the substrate and adhesive system.

23. Installation Guidelines

A typical installation process includes:

Step 1: Inspect the Gasket

Check:

• Shape

• Thickness

• Adhesive liner

• Surface condition

• Cut quality

• Dimensions

Step 2: Inspect the Mating Surface

Confirm that the surface is:

• Clean

• Dry

• Suitable for adhesive bonding

• Free from burrs

• Free from sharp contaminants

Step 3: Align the Gasket

Position the gasket according to the assembly drawing.

Step 4: Remove the Release Liner

For adhesive-backed components, remove the protective liner carefully.

Step 5: Apply the Gasket

Avoid stretching the gasket unless the design specifically allows it.

Step 6: Apply Assembly Pressure

Press the gasket against the substrate to establish contact.

Step 7: Complete Assembly

Install the mating component according to the specified fastening sequence.

Step 8: Inspect the Seal

Check for:

• Gaps

• Wrinkles

• Misalignment

• Compression irregularities

• Adhesive lifting

• Damaged edges

24. Common Design Problems

Several problems can reduce gasket performance.

Excessive Compression

Too much compression can:

• Increase assembly force

• Damage foam

• Distort housings

• Increase compression set

• Reduce long-term recovery

Insufficient Compression

Too little compression may cause:

• Leakage

• Dust entry

• Air leakage

• Poor contact

• Gasket movement

Sharp Corners

Sharp internal corners can increase stress concentration.

Rounded corners are often easier to manufacture and may improve gasket durability.

Narrow Bridges

Very narrow gasket sections can tear during installation.

The minimum width should be evaluated based on material thickness and cutting method.

Poor Adhesion

Adhesive failure may occur when:

• The substrate is contaminated

• The surface energy is unsuitable

• The adhesive is exposed to excessive temperature

• The gasket is installed under tension

• Insufficient application pressure is used

25. Quality Control

Custom gasket manufacturing should include dimensional and material quality checks.

Common inspection points include:

For critical applications, material certificates and batch traceability may also be required.

26. Dimensional Tolerances

The appropriate dimensional tolerance depends on:

• Material thickness

• Material flexibility

• Cutting method

• Part size

• Geometry

• Production volume

• Required sealing performance

A small flat gasket may require relatively tight dimensional control.

A thick soft foam cushion may have greater dimensional variation due to material compressibility.

Therefore, tolerances should be defined specifically for the application.

27. Packaging and Storage

Custom foam gasket components should be packaged to prevent:

• Compression damage

• Contamination

• Moisture exposure

• Adhesive contamination

• Deformation

• Excessive heat exposure

Adhesive-backed gaskets should generally remain protected by their release liners until installation.

Storage conditions should follow the recommendations for the selected material and adhesive.

Long-term storage under excessive heat, humidity, UV exposure, or mechanical compression may affect performance.

28. Custom Shape Gaskets for Electronics

Electronics often require very precise sealing components.

The gasket may need to accommodate:

• Buttons

• Ports

• Displays

• Connectors

• Screws

• LEDs

• Sensors

• Vent structures

A custom shape allows the gasket to follow the actual enclosure design.

For electronic equipment, the gasket can provide a combination of:

• Dust protection

• Moisture resistance

• Cushioning

• Electrical separation

• Component protection

• Vibration reduction

The gasket should not interfere with connectors, switches, ventilation, or heat dissipation.

29. Custom Gaskets for Battery Systems

Battery systems require careful material selection.

A gasket may need to provide:

• Mechanical cushioning

• Electrical separation

• Environmental sealing

• Component protection

• Vibration resistance

• Dimensional compensation

For lithium battery systems, the material should be evaluated for:

• Temperature exposure

• Chemical compatibility

• Flame performance

• Electrical properties

• Compression behavior

• Long-term aging

The correct gasket material cannot be selected based solely on the fact that it is an EVA foam.

30. Custom Shape Cushion Gaskets for Automotive Applications

Automotive systems expose sealing materials to demanding environmental conditions.

Potential factors include:

• Temperature cycling

• Humidity

• Vibration

• Dust

• UV radiation

• Oils

• Cleaning chemicals

• Mechanical movement

Custom foam gaskets may be used for:

• Interior trim

• Electronic modules

• Instrument panels

• Lighting components

• Battery assemblies

• Sensor housings

• Door components

Material selection should reflect the exact location of the gasket.

31. Advantages of Custom Shape Cushion Sealing Gasket Components

Custom components offer several advantages.

Precise Geometry

The gasket follows the actual component design.

Improved Assembly

Pre-cut components can reduce manual cutting and fitting.

Better Material Utilization

The gasket can be designed around the required sealing path.

Integrated Cushioning

The same component can provide sealing and cushioning.

Adhesive Integration

Adhesive backing can simplify installation.

Repeatability

Production cutting can provide consistent geometry.

Flexible Material Selection

Different foam materials can be considered according to the environment.

Design Flexibility

Custom shapes can accommodate holes, corners, slots, and irregular profiles.

32. Custom Gasket Development Process

A typical development process can follow these stages:

Stage 1: Application Analysis

Identify:

• Temperature

• Moisture

• Pressure

• Vibration

• Chemicals

• Surface materials

• Required service life

Stage 2: Drawing Review

Review the:

• CAD drawing

• Gasket path

• Hole locations

• Thickness

• Compression zones

Stage 3: Material Selection

Compare:

• EVA

• EPDM

• Neoprene

• Silicone

• Polyurethane

• Polyethylene

• Other suitable materials

Stage 4: Prototype

Produce initial samples.

Stage 5: Assembly Trial

Install the gasket in the actual component.

Stage 6: Performance Testing

Test:

• Compression

• Sealing

• Adhesion

• Temperature

• Water resistance

• Vibration

• Aging

Stage 7: Design Optimization

Modify:

• Thickness

• Density

• Shape

• Adhesive

• Compression

• Material

Stage 8: Production

Move to the appropriate manufacturing method.

33. Prototype Versus Mass Production

Prototype production often favors flexible cutting methods.

These may include:

• CNC cutting

• Waterjet cutting

• Manual sample cutting

Mass production may favor:

• Die cutting

• Rotary die cutting

• Automated adhesive lamination

• Slitting

• High-speed converting

The best method depends on:

• Quantity

• Part complexity

• Material

• Tolerance

• Production schedule

• Tooling cost

34. Environmental Considerations

Material selection should consider the complete operating environment.

Important questions include:

1. Will the gasket contact water?

2. Will it contact oil?

3. Will it contact fuel?

4. Will it experience UV exposure?

5. Will it experience high temperature?

6. Will it experience low temperature?

7. Will it be exposed to chemicals?

8. Will it be compressed continuously?

9. Will it experience repeated vibration?

10. Will it require flame performance?

A material that performs well in one environment may perform poorly in another.

35. Weather Resistance

Outdoor applications can expose gaskets to:

• Sunlight

• Rain

• Snow

• Humidity

• Ozone

• Temperature cycling

• Windborne contaminants

Weather-resistant materials should be selected when long-term outdoor exposure is expected.

Closed-cell EVA is reported to demonstrate climate, temperature, and aging resistance in outdoor applications, although the suitability of a particular EVA grade must be confirmed for the actual environment.

36. Chemical Resistance

Chemical exposure can include:

• Oils

• Lubricants

• Cleaning agents

• Solvents

• Acids

• Alkalis

• Fuels

No single foam material is resistant to every chemical.

Therefore, compatibility testing should be performed when chemical exposure is important.

Published EVA gasket data identifies good chemical resistance as one of its characteristics, but application-specific compatibility should still be verified.

37. Flame and Fire Considerations

Certain applications may require flame-retardant materials.

Potential industries include:

• Automotive

• Electrical

• Electronics

• Transportation

• Industrial equipment

Relevant requirements may include:

• Flame resistance

• Smoke requirements

• Burning rate

• Electrical safety

• Application-specific regulations

A gasket should not be described as flame retardant merely because it is made from foam.

The exact material grade and applicable testing should be verified.

Some published EVA materials include FMVSS 302 test information, demonstrating how application-specific qualification can be incorporated into material selection.

38. Surface Finish

The surface of a gasket may be:

• Smooth

• Textured

• Laminated

• Adhesive coated

• Film covered

A smooth surface can provide consistent contact.

A laminated surface may improve handling or introduce additional functional characteristics.

The appropriate finish depends on the mating material and sealing mechanism.

39. Gasket Geometry and Sealing Reliability

Geometry is just as important as material.

A gasket that is too narrow may provide insufficient sealing area.

A gasket that is too wide may interfere with screws, connectors, or internal components.

The gasket path should ideally remain continuous unless interruptions are intentionally designed.

Internal corners should be evaluated carefully.

Small holes should have adequate surrounding material.

Narrow bridges should be avoided where they could tear during handling.

40. Cushioning Versus Sealing

Not every foam gasket is optimized for both cushioning and sealing.

A very soft foam may provide excellent cushioning but insufficient compression force.

A firmer foam may provide better structural support but require greater assembly force.

Therefore, the design should establish the primary function:

Sealing First

Choose a material and geometry that maintain contact pressure.

Cushioning First

Choose a material that absorbs impact and controls compression.

Combined Function

Choose a balanced material and geometry.

This distinction is important when designing custom components.

41. Cost Factors

The cost of a custom gasket depends on multiple variables.

Important cost factors include:

• Material type

• Material density

• Material thickness

• Gasket dimensions

• Part complexity

• Adhesive type

• Adhesive coverage

• Cutting method

• Tooling

• Production volume

• Tolerance

• Packaging

• Inspection requirements

Simple shapes in high volumes are generally easier to convert efficiently than complex low-volume parts.

However, the lowest unit price should not be the only purchasing consideration.

A gasket that fails prematurely can cause assembly failures, warranty costs, leakage, contamination, and product damage.

42. How to Select the Right Custom Gasket

A practical selection sequence is:

Step 1

Define the sealing environment.

Step 2

Determine operating temperature.

Step 3

Determine moisture and chemical exposure.

Step 4

Determine required compression.

Step 5

Select the appropriate cell structure.

Step 6

Select material.

Step 7

Select thickness.

Step 8

Determine gasket geometry.

Step 9

Determine adhesive requirements.

Step 10

Prototype and test.

This systematic approach reduces the risk of selecting a gasket solely based on appearance or price.

43. Frequently Asked Questions

What is a Custom Shape Cushion Sealing Gasket?

It is a purpose-designed gasket component manufactured in a specific shape to match an application while providing sealing and cushioning functions.

Can EVA foam be used for Custom Sealing Gaskets?

Yes. Closed-cell EVA foam is used for various gasket and sealing applications because it can provide low water absorption, flexibility, resilience, and useful mechanical properties.

Can custom gaskets have adhesive backing?

Yes. Depending on the material and converting process, custom foam gaskets can be supplied with adhesive backing on one or both sides.

Can irregular gasket shapes be produced?

Yes. Custom cutting methods can produce irregular profiles, holes, slots, corners, and other nonstandard geometries.

Are closed-cell foam gaskets waterproof?

Closed-cell foam generally provides strong resistance to water penetration, but actual waterproof performance depends on material, compression, joint design, adhesive, surface condition, and environmental exposure.

Are EVA gaskets suitable for outdoor applications?

Certain closed-cell EVA grades are used in outdoor applications and are reported to have useful climate and aging resistance. The selected grade must still be evaluated for the specific outdoor environment.

Can foam gaskets provide vibration damping?

Yes. Certain foam materials can provide cushioning and vibration damping, although performance depends on density, thickness, geometry, compression, and vibration frequency.

What cutting method is best?

Die cutting is often suitable for repeat production, while CNC or waterjet cutting can be useful for prototypes and lower-volume custom parts.

How thick should a gasket be?

There is no universal thickness. It should be determined from the gap, compression requirement, material properties, and assembly design.

What is compression set?

Compression set describes permanent deformation after a material has been compressed for a specified period under defined conditions.

Why is compression set important?

Because excessive permanent deformation can reduce the gasket's ability to maintain sealing pressure over time.

44. Custom Shape Cushion Sealing Gasket Components Specification Template

For product documentation, the following format can be used.

This table is intentionally structured as a customizable template because actual performance values vary between material grades and manufacturers.

45. Industry Benefits of Precision Custom Gaskets

Precision custom gaskets can contribute to product development in several ways.

They can reduce:

• Manual cutting

• Assembly variation

• Material waste

• Misalignment

• Installation time

• Rework

• Contamination risk

They can improve:

• Repeatability

• Product appearance

• Assembly consistency

• Component protection

• Environmental sealing

• Cushioning performance

A custom gasket is therefore more than a simple piece of foam. It is a functional interface component designed around the mechanical and environmental requirements of a product.

46. Future Trends in Custom Foam Gasket Components

The development of compact electronic products, electric vehicles, battery systems, smart devices, industrial automation equipment, and energy systems is increasing the need for precision sealing and cushioning components.

Future gasket development is likely to emphasize:

• Thinner gasket structures

• More complex geometries

• Improved compression recovery

• Better adhesive performance

• Lightweight materials

• Improved thermal resistance

• Improved environmental resistance

• Automated cutting

• Digital manufacturing

• Integrated multilayer structures

• More precise dimensional control

As product designs become more compact, custom-shaped gaskets can become increasingly important because standardized sealing profiles may not fit complex modern assemblies.

47. Conclusion

Custom Shape Cushion Sealing Gasket Components are versatile engineering parts designed to combine sealing, cushioning, protection, insulation, gap compensation, and vibration control in a single component.

The most suitable material depends on the application. EVA foam is particularly attractive for applications requiring lightweight construction, flexibility, low water absorption, resilience, and easy conversion. Closed-cell EVA has documented use in industrial and commercial gasket applications, including outdoor and automotive applications.

Other materials such as EPDM, neoprene, silicone sponge, polyurethane, and polyethylene can provide different performance combinations and may be more appropriate under specific temperature, chemical, weathering, or mechanical conditions. Material selection should therefore be based on the actual operating environment.

Custom shape design provides significant flexibility. Gaskets can be manufactured with irregular profiles, holes, slots, adhesive layers, different thicknesses, and other features required by modern assemblies.

A successful gasket design must consider more than material selection. Thickness, density, compression deflection, compression set, geometry, adhesive compatibility, surface preparation, temperature, environmental exposure, and installation method all influence final performance.

For manufacturers, engineers, product designers, and purchasing teams, the most effective approach is to define the application requirements first, select a suitable material family, develop the gasket geometry, prototype the component, perform application-specific testing, and then establish the final production specification.

When properly designed, Custom Shape Cushion Sealing Gasket Components can provide a practical and reliable interface between components while improving protection, cushioning, sealing, assembly efficiency, and overall product durability.
