Premium EVA foam Cushion Sealing Gasket material is a lightweight, flexible, and versatile sealing solution used to create protective barriers between mating surfaces. EVA, or ethylene vinyl acetate, can be manufactured as closed-cell foam with a fine cellular structure that provides a useful combination of cushioning, flexibility, resilience, low water absorption, and sealing performance. Closed-cell EVA foam is widely converted into gaskets, pads, strips, washers, seals, and custom die-cut components for industrial and electronic applications.

A Premium EVA Foam Cushion Sealing Gasket is particularly suitable when an application requires more than simple gap filling. The gasket can simultaneously provide cushioning, surface protection, vibration reduction, dust resistance, moisture resistance, and dimensional separation. Depending on the formulation, thickness, density, hardness, adhesive system, and die-cut geometry, EVA foam gaskets can be adapted to many different enclosure and assembly designs.

In electronic equipment, for example, a cushion sealing gasket may be positioned between a housing and an internal component to reduce movement while helping prevent dust or moisture from entering the enclosure. Similar designs can be used around panels, covers, battery compartments, displays, control modules, electrical housings, appliance components, lighting assemblies, and other equipment.

The performance of a premium EVA foam gasket depends on the complete material system rather than on the word "EVA" alone. Foam density, cell structure, compression behavior, compression set, thickness, surface finish, adhesive compatibility, temperature exposure, and environmental conditions should all be considered before selecting a material.

What Is EVA Foam Cushion Sealing Gasket Material?

EVA foam cushion sealing gasket material is a foam-based gasket material produced from ethylene vinyl acetate. It is commonly available in closed-cell constructions that combine low weight with flexibility and mechanical resilience.

Unlike rigid plastic gaskets, EVA foam can compress when the mating parts are assembled. This allows the gasket to conform to small surface irregularities and compensate for dimensional tolerances. A properly selected foam gasket can therefore maintain contact across a joint without requiring the same level of precision that may be necessary with rigid sealing materials.

Closed-cell EVA foam is also known for low water absorption and good chemical resistance. Typical commercial EVA gasket grades can be supplied as sheets or rolls and converted into custom shapes through die cutting, waterjet cutting, slitting, or other fabrication processes.

Basic Material Structure

The material can be described through several important characteristics:

Key Advantages of Premium EVA Foam Gaskets

1. Lightweight Construction

One of the primary benefits of EVA foam is its relatively low density. A lightweight gasket can add sealing and cushioning functions without significantly increasing the overall weight of an assembly.

This characteristic is valuable in portable electronics, consumer equipment, battery assemblies, lightweight enclosures, transportation equipment, and other applications where weight management is important.

Low-density EVA foam grades can provide a useful balance between flexibility and mechanical performance. Commercial EVA gasket materials are available in different density ranges, allowing designers to select a material according to the required compression behavior and durability.

2. Cushioning Performance

A cushion sealing gasket does more than close a gap. The compressible foam structure can absorb part of the mechanical energy produced by vibration, impact, movement, or assembly pressure.

This makes EVA foam suitable for applications where components need a soft interface between harder surfaces.

Typical cushioning functions include:

• Component protection

• Vibration reduction

• Shock absorption

• Pressure distribution

• Gap compensation

• Surface protection

• Movement limitation

• Contact-load distribution

In electronic equipment, foam gaskets can also distribute housing pressure and reduce concentrated loads on sensitive components. Similar gasket concepts are used for displays, bezels, circuit boards, and internal modules.

3. Sealing and Gap Filling

EVA foam can compress against mating surfaces to fill small gaps and irregularities.

The effectiveness of the seal depends on:

• Foam hardness

• Density

• Thickness

• Compression percentage

• Surface condition

• Joint design

• Contact pressure

• Compression recovery

• Environmental exposure

A foam that is too hard may not conform sufficiently to uneven surfaces. A foam that is too soft may compress excessively under assembly pressure.

Therefore, gasket selection should consider both the required sealing force and the available assembly space.

Closed Cell EVA Foam for Sealing

Closed-cell construction is particularly valuable for sealing applications because the cellular structure limits fluid movement through the foam.

Closed-cell EVA foam is commonly selected when a gasket must provide resistance against moisture and environmental exposure. Commercial EVA gasket materials are described as having low water absorption and good resistance to outdoor conditions.

Closed Cell vs Open Cell Foam

For electronic enclosure applications, closed-cell foam is often preferred when moisture and dust resistance are important.

However, "waterproof" should not automatically be interpreted as a guarantee of a particular enclosure IP rating. Final sealing performance depends on the complete gasket design, compression, joint geometry, material selection, and testing.

EVA Foam Cushion Sealing Gasket for Electronic Assembly

Electronic assemblies frequently contain components that are sensitive to moisture, dust, vibration, impact, and mechanical stress.

A properly designed EVA cushion sealing gasket can provide an interface between components while helping address several of these requirements.

Typical electronic applications include:

• Electronic control housings

• Circuit board enclosures

• Display assemblies

• LED lighting housings

• Sensors

• Control panels

• Consumer electronics

• Electrical boxes

• Battery compartments

• Power supply housings

• Communication equipment

• Appliance assemblies

• Connector housings

• Instrument panels

Foam sealing materials are also used in electronic and electrical equipment for waterproofing, air sealing, soundproofing, and thermal insulation.

Cushioning and Sealing Functions

A premium EVA gasket can combine multiple functions in one component.

Sealing

The gasket creates a compressed interface between two parts and helps reduce the passage of air, dust, or moisture.

Cushioning

The foam absorbs mechanical loads and reduces direct contact between rigid surfaces.

Vibration Control

The resilient foam layer can reduce the transmission of certain vibration forces between components.

Gap Compensation

The compressible structure accommodates small variations in dimensions and surface flatness.

Electrical Isolation

Where the selected EVA formulation has appropriate electrical properties, the gasket may help physically separate components. Specific electrical insulation requirements should always be verified against the material's tested properties.

Surface Protection

The soft foam interface can reduce scratching, rubbing, and concentrated pressure on finished surfaces.

Material Selection for Premium EVA Gaskets

Not all EVA foam is identical. Different grades may have substantially different density, hardness, tensile strength, elongation, compression deflection, compression set, and temperature performance.

For example, published specifications for one closed-cell EVA grade show a density around 32 kg/m³, while a higher-density grade is listed around 56 kg/m³. The higher-density material also shows different compression-deflection, tensile, elongation, tear, and compression-set characteristics.

Material Selection Table

Density and Hardness

Density and hardness should not be treated as interchangeable properties.

Density describes the mass contained within a particular volume of foam. Hardness describes resistance to indentation or deformation.

Two EVA foam materials can have similar densities but different hardness characteristics, or similar hardness values but different densities.

For gasket design, both characteristics should be considered.

General Selection Concept

These are general engineering guidelines rather than universal specifications. Actual material selection should be confirmed through application testing.

Compression Performance

Compression is one of the most important factors in gasket design.

When an EVA foam gasket is installed between two surfaces, it is compressed by the assembly force. The compressed foam generates a reaction force that helps maintain contact with the mating surfaces.

If compression is insufficient, gaps may remain.

If compression is excessive, the gasket may be damaged, permanently deformed, or require excessive assembly force.

Therefore, the design should identify a suitable compression range.

Compression Set

Compression set describes the amount of permanent deformation that remains after a foam sample has been compressed under specified test conditions.

A lower compression set generally indicates better recovery after compression.

Published EVA material data demonstrates that compression-set values can vary significantly between different foam grades, reinforcing the importance of selecting the correct formulation rather than treating all EVA foam as equivalent.

Thickness Selection

Gasket thickness must correspond to the available gap and required compression.

Common considerations include:

• Original gap size

• Surface flatness

• Expected tolerance

• Required sealing pressure

• Compression percentage

• Assembly force

• Temperature changes

• Long-term deformation

• Component movement

A gasket that is too thin may fail to compensate for dimensional variations.

A gasket that is too thick may create excessive compression and make assembly difficult.

Typical Design Approach

The final thickness should be determined from the actual enclosure geometry and compression requirements rather than from a generic thickness recommendation.

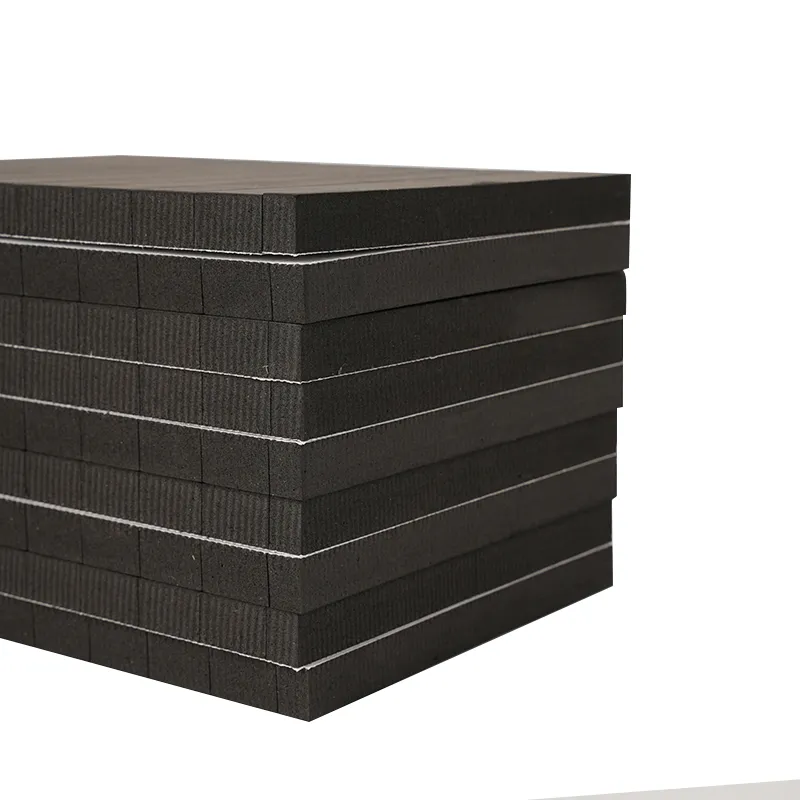

Adhesive Backed EVA Cushion Sealing Gaskets

Adhesive-backed EVA gaskets are widely used when the gasket needs to remain in position during assembly.

A pressure-sensitive adhesive can provide several practical advantages:

• Faster assembly

• Improved gasket positioning

• Reduced movement during installation

• Easier alignment

• Better handling of small gasket shapes

• Simplified automated assembly

Closed-cell EVA gasket materials can be supplied with adhesive backing on one or both sides.

However, adhesive selection is a separate engineering consideration from foam selection.

The adhesive should be evaluated for:

• Surface energy

• Temperature

• Humidity

• Aging

• Peel strength

• Shear strength

• Chemical exposure

• Application speed

• Repositioning requirements

The gasket may have excellent foam properties but still fail if the adhesive system is incompatible with the substrate.

Single Sided and Double Sided Adhesive

Single Sided Adhesive

One side of the gasket contains adhesive while the opposite side remains exposed foam.

This configuration is useful when the gasket needs to be attached to one component before the second component is assembled.

Double Sided Adhesive

Both sides contain adhesive.

This design can help bond the gasket between two surfaces while also providing cushioning and gap filling.

Adhesive performance must be verified independently because the actual adhesive layer can influence overall gasket performance.

Custom Die Cut EVA Gaskets

Custom die cutting is one of the most efficient ways to manufacture large quantities of EVA foam gaskets with repeatable shapes.

A digital drawing can define:

• Outside dimensions

• Inside openings

• Mounting holes

• Corner radii

• Slots

• Cutouts

• Alignment features

• Adhesive areas

• Peel tabs

• Registration marks

Die-cut EVA gaskets are commonly produced in simple rectangular shapes as well as complex profiles.

Commercial EVA gasket materials can also be die cut or waterjet cut to specified dimensions.

Common EVA Gasket Shapes

Rectangular Gaskets

Used for:

• Electronic housings

• Control boxes

• Covers

• Panels

• Battery compartments

Circular Gaskets

Used for:

• Circular openings

• Sensors

• Connectors

• Pipes

• Lenses

Ring Gaskets

Used around holes and cylindrical interfaces.

Frame Gaskets

Used around the perimeter of an enclosure, display, or panel.

Custom Profile Gaskets

Designed according to a specific component drawing.

EVA Foam Cushion Sealing Gasket Specifications

The following table provides a general specification framework for purchasing and engineering.

Typical Physical Properties

Published data for closed-cell EVA gasket materials demonstrates that different grades can offer different performance levels. One example lists density around 32 kg/m³, tensile strength of approximately 414 kPa, elongation around 275%, and a compression set of approximately 24%. A higher-density example lists approximately 56 kg/m³ density, 310% elongation, 16 lb/in tear strength, and approximately 15% compression set.

These figures should be treated as examples of commercially available material grades rather than universal specifications for all EVA foam.

For production purchasing, the supplier's current technical data sheet and actual sample testing should take priority over generalized material descriptions.

Water Resistance and Moisture Protection

Water and moisture protection is a major reason designers select closed-cell foam gasket materials.

The closed-cell structure helps reduce water penetration through the foam itself. Commercial closed-cell EVA gasket materials are characterized by low water absorption and are used in weatherproofing and sealing applications.

However, the gasket is only one part of a waterproof assembly.

Water resistance depends on:

1. Gasket material

2. Gasket geometry

3. Compression

4. Joint design

5. Surface condition

6. Fastener spacing

7. Housing stiffness

8. Environmental exposure

9. Adhesive performance

10. Manufacturing tolerances

A waterproof gasket does not automatically make an enclosure waterproof.

Dust Sealing

EVA foam can also be used as a dust barrier.

A properly compressed perimeter gasket can reduce pathways through which dust and particles could enter an enclosure.

Potential applications include:

• Industrial control boxes

• Electrical housings

• Outdoor electronics

• Instrument panels

• Sensor housings

• Lighting assemblies

• Appliance enclosures

For applications requiring a formal ingress protection rating, the completed assembly should be tested according to the applicable requirements.

Temperature Considerations

Temperature is an important factor when selecting EVA foam.

A gasket may experience:

• Continuous operating temperature

• Short-term temperature peaks

• Heating during operation

• Cold storage

• Thermal cycling

• Outdoor temperature variation

Published data for certain EVA gasket grades shows example operating ranges extending approximately from -78°C to 104°C, but this should not be interpreted as a universal temperature range for EVA foam.

Different EVA formulations can have substantially different temperature performance.

For higher-temperature applications, engineers should evaluate:

• Softening

• Compression recovery

• Permanent deformation

• Adhesive degradation

• Dimensional stability

• Aging

Chemical Resistance

EVA foam can provide useful resistance to many chemicals, but compatibility depends on the exact formulation and chemical exposure.

Potential exposure may include:

• Cleaning agents

• Oils

• Fuels

• Lubricants

• Household chemicals

• Industrial chemicals

• Adhesives

• Solvents

A chemical compatibility test should be performed when the gasket will be exposed to aggressive chemicals for extended periods.

Electrical and Electronic Applications

EVA cushion sealing gaskets are particularly useful in electronic assembly because a single foam component can combine mechanical and environmental functions.

Potential applications include:

Circuit Board Enclosures

A perimeter gasket can help separate the circuit board housing from external environmental exposure.

LED Lighting

Foam sealing materials can be used around lighting housings and related electronic components. Similar foam sealing materials are used commercially for LED lighting housings and circuit boards.

Display Assemblies

A Cushion Gasket can distribute pressure around a display and compensate for assembly tolerances.

Power Supplies

Foam interfaces can help prevent component movement while providing isolation and cushioning.

Battery Equipment

Foam gaskets may be used for enclosure sealing, cushioning, spacing, and vibration control. Battery sealing applications commonly require careful consideration of compression, temperature, electrical compatibility, and chemical exposure.

Automotive and Transportation Applications

Automotive electronics require materials that can tolerate vibration, temperature changes, moisture, and long service periods.

Potential EVA gasket applications include:

• Electronic control housings

• Lighting assemblies

• Sensors

• Display systems

• Battery compartments

• Interior electronic modules

• Cable interfaces

• Control panels

For more demanding automotive applications, engineers may select specialized foam materials with documented weatherability, heat resistance, flame performance, and compression-set characteristics.

Industrial Equipment Applications

Industrial equipment frequently requires protection from:

• Dust

• Moisture

• Vibration

• Mechanical impact

• Temperature variation

• Chemical exposure

A cushion sealing gasket can provide an economical interface between equipment panels and housings.

Common applications include:

• Electrical cabinets

• Control panels

• Industrial sensors

• Machinery covers

• Instrument enclosures

• Power equipment

• Automation equipment

• HVAC equipment

Appliance Applications

EVA foam gasket materials can be used in household appliances where cushioning, sealing, noise reduction, and component protection are required.

Potential uses include:

• Control panels

• Appliance doors

• Electronic modules

• Display panels

• Internal housings

• Protective pads

• Wiring interfaces

Foam sealing materials are already used in electronic appliances and related equipment for dustproofing, sealing, cushioning, and sound-related functions.

Noise and Vibration Reduction

Foam gaskets can reduce direct rigid-to-rigid contact.

This may help reduce:

• Panel rattling

• Contact noise

• Mechanical vibration

• Resonance transmission

• Component movement

The actual acoustic performance depends strongly on foam density, thickness, frequency, mounting pressure, and system geometry.

For specialized acoustic applications, a dedicated acoustic foam should be evaluated rather than assuming every EVA gasket provides identical sound absorption.

Surface Protection

EVA foam is soft enough to act as a protective interface between components.

It can help reduce:

• Scratches

• Abrasion

• Impact marks

• Pressure points

• Surface-to-surface rubbing

This function is especially valuable where a finished housing must remain visually clean.

Gap Filling

One of the simplest uses of EVA foam is filling an unwanted gap.

A properly sized gasket can compensate for:

• Manufacturing tolerances

• Housing deformation

• Surface unevenness

• Assembly variation

• Component thickness differences

The gasket should be selected so that it fills the intended gap without being excessively compressed.

Design Considerations for EVA Cushion Sealing Gaskets

Gasket Width

The gasket width should provide sufficient sealing area while avoiding unnecessary interference with surrounding components.

Gasket Thickness

Thickness should be selected according to the free gap and required compression.

Compression

Compression should be sufficient to maintain contact but not so high that it causes excessive assembly force or permanent deformation.

Corner Design

Sharp corners may create stress concentrations or manufacturing challenges. Rounded corners can sometimes improve gasket continuity and handling.

Joint Design

A continuous perimeter gasket is generally preferable when the objective is to reduce potential leakage paths.

Adhesive Position

For adhesive-backed gaskets, the adhesive should cover the intended bonding area without interfering with required compression or component movement.

Manufacturing Process

Premium EVA foam cushion sealing gaskets can be manufactured through several conversion methods.

1. Material Preparation

The EVA foam sheet or roll is selected according to density, thickness, hardness, and required performance.

2. Lamination

If required, the foam can be laminated with:

• Adhesive films

• Release liners

• Protective films

• Other foam layers

• Fabric substrates

3. Die Cutting

A cutting die is used to create repeated gasket shapes.

This method is especially suitable for medium and high-volume production.

4. Slitting

Large rolls can be converted into narrow strips.

5. CNC or Waterjet Cutting

Complex prototypes and low-volume components can be produced without conventional tooling.

Commercial EVA foam gasket materials can be supplied as die-cut or waterjet-cut components according to specified dimensions.

6. Inspection

Finished gaskets can be checked for:

• Thickness

• Length

• Width

• Hole dimensions

• Adhesive placement

• Edge quality

• Surface defects

• Compression characteristics

Quality Control

A premium EVA foam gasket should be evaluated using appropriate quality-control procedures.

Dimensional Inspection

Critical dimensions should be checked against engineering drawings.

Thickness Inspection

Foam thickness should be controlled because thickness directly affects compression.

Density Testing

Density variation can influence mechanical performance.

Compression Testing

Compression behavior should be checked for the intended application.

Adhesive Inspection

Adhesive coverage and bonding performance should be evaluated for adhesive-backed products.

Visual Inspection

The finished gasket should be checked for:

• Tears

• Cuts

• Surface contamination

• Uneven edges

• Delamination

• Missing adhesive

• Incorrect die-cut geometry

Common Problems and Solutions

EVA Foam vs Other Gasket Materials

EVA is only one option for foam gasket applications.

The correct choice depends on the application rather than simply selecting the material with the highest specification.

For example, specialized silicone foam products can provide high temperature tolerance, flame resistance, water sealing, and excellent compression-set resistance, demonstrating why silicone may be preferable for certain demanding applications.

EVA vs EPDM

EVA is often attractive because of its low weight, flexibility, and ease of fabrication.

EPDM may be preferable where long-term weathering, ozone exposure, and outdoor durability are major priorities.

For outdoor equipment, engineers should compare:

• UV exposure

• Ozone

• Temperature

• Water

• Chemical exposure

• Compression set

• Expected service life

EVA vs Silicone Foam

Silicone foam is often selected for applications involving higher temperatures or stringent flame requirements.

EVA may be preferable when:

• Moderate temperature performance is sufficient

• Low weight is important

• Cost efficiency matters

• Simple die cutting is required

• General cushioning and sealing are needed

Silicone may be preferable when:

• High temperature resistance is critical

• Long-term temperature cycling is severe

• Flame performance is required

• Specialized electrical applications are involved

EVA Foam for Custom Industrial Gaskets

Custom EVA foam cushion sealing gaskets can be designed for almost any planar sealing interface that can be converted through die cutting or related fabrication methods.

Customization can include:

• Custom length

• Custom width

• Custom thickness

• Custom density

• Custom hardness

• Custom hole patterns

• Custom adhesive

• Custom color

• Custom surface finish

• Custom packaging

• Custom release liner

• Custom tolerance

This makes EVA foam particularly useful for OEM components and replacement gasket programs.

OEM and Custom Manufacturing Considerations

When requesting a custom EVA gasket, the following information should be prepared:

1. Engineering drawing

2. CAD file if available

3. Material specification

4. Foam thickness

5. Density requirement

6. Hardness requirement

7. Adhesive requirement

8. Color

9. Quantity

10. Tolerance

11. Operating temperature

12. Environmental exposure

13. Required testing

14. Packaging requirements

Providing these details can reduce development time and help ensure that the gasket matches the intended application.

Packaging Options

Finished EVA gaskets can be supplied in several formats.

Sheet Packaging

Suitable for large flat components.

Roll Packaging

Suitable for long strips and continuous gasket profiles.

Individual Piece Packaging

Suitable for small precision gaskets.

Layered Packaging

Useful for preventing adhesive-backed components from sticking together.

Custom Labeling

Packaging can identify:

• Part number

• Material

• Thickness

• Batch

• Quantity

• Production date

• Application information

Storage Recommendations

EVA foam and adhesive-backed EVA gaskets should be stored in a clean, dry environment.

General storage considerations include:

• Avoid excessive heat

• Avoid direct sunlight

• Protect from contamination

• Keep adhesive surfaces covered

• Avoid unnecessary compression

• Maintain stable storage conditions

• Use appropriate first-in-first-out inventory control

For adhesive-backed products, the adhesive manufacturer's storage recommendations should be followed.

How to Select the Right EVA Cushion Sealing Gasket

A systematic selection process can reduce the risk of premature gasket failure.

Step 1: Identify the Sealing Objective

Determine whether the primary function is:

• Dust sealing

• Moisture sealing

• Air sealing

• Cushioning

• Vibration isolation

• Gap filling

• Electrical separation

• Surface protection

Step 2: Measure the Joint

Record:

• Gap

• Length

• Width

• Corner radius

• Mounting holes

• Surface condition

Step 3: Determine Compression

Identify the available assembly force and acceptable compression range.

Step 4: Select Material Density and Hardness

Choose a foam grade that provides the required balance of conformity and mechanical support.

Step 5: Select Adhesive

If positioning or bonding is necessary, select an adhesive compatible with the mating substrate and environmental conditions.

Step 6: Evaluate Environment

Consider:

• Temperature

• Humidity

• Water

• UV

• Chemicals

• Vibration

• Mechanical stress

Step 7: Prototype

Produce samples and test them in the actual assembly.

Step 8: Validate

Evaluate sealing, compression recovery, adhesive retention, environmental durability, and dimensional stability.

Applications by Industry

Why Choose Premium EVA Foam Cushion Sealing Gasket Material?

Premium EVA foam gasket material is attractive when an application needs a combination of:

• Lightweight construction

• Flexible compression

• Cushioning

• Gap filling

• Moisture resistance

• Low water absorption

• Good mechanical properties

• Easy fabrication

• Custom die cutting

• Adhesive backing

• Cost-efficient production

The key advantage is versatility. One carefully engineered gasket can provide several mechanical and environmental functions simultaneously.

Important Engineering Notes

Although EVA foam is widely used for sealing and cushioning, material selection should never be based only on general descriptions such as "waterproof," "high strength," or "premium."

The actual application should be evaluated using the manufacturer's technical data and, where necessary, physical testing.

Important variables include:

• Exact EVA formulation

• Cell structure

• Density

• Hardness

• Thickness

• Compression

• Compression set

• Temperature

• Chemical exposure

• Adhesive

• Surface energy

• Environmental aging

Published specifications vary substantially among EVA foam grades, confirming that material selection must be application-specific.

Conclusion

Premium EVA Foam Cushion Sealing Gasket Material provides a practical combination of sealing, cushioning, gap filling, protection, and flexible mechanical support. Closed-cell EVA foam is particularly useful for applications where low water absorption, lightweight construction, resilience, and easy fabrication are required.

Custom EVA cushion sealing gaskets can be manufactured as strips, rings, frames, pads, washers, and complex die-cut profiles. Adhesive-backed versions can further simplify assembly and improve positioning.

For electronic and industrial applications, the best results come from matching the EVA foam grade to the actual operating conditions. Density, hardness, thickness, compression behavior, compression set, adhesive selection, temperature, moisture, and chemical exposure should all be considered.

For production applications, prototype testing remains important. The gasket should be evaluated inside the actual housing or assembly because sealing performance is determined by the interaction between the foam, adhesive, mating surfaces, compression, tolerances, and environmental conditions.

In short, EVA foam cushion sealing gasket material is a versatile engineering material for manufacturers seeking a lightweight and customizable solution for sealing and cushioning applications. Its combination of flexibility, low water absorption, resilience, and easy conversion makes it suitable for a wide range of electronic, electrical, industrial, appliance, automotive, and general equipment applications.
