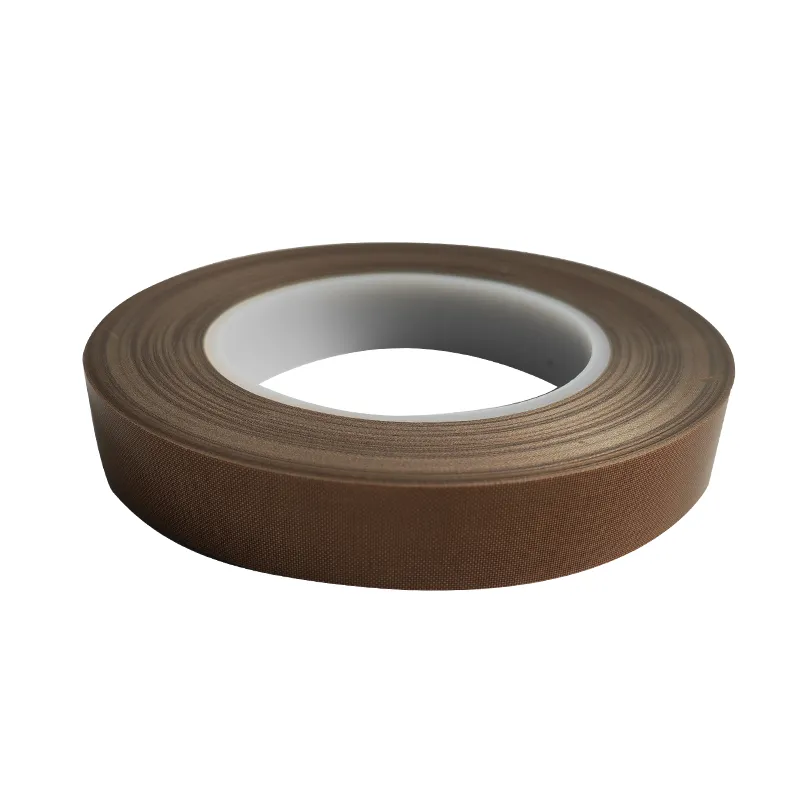

PTFE Adhesive Tape Teflon Tape and PTFE Tape for High Temperature Non Stick Industrial Use

PTFE Adhesive Tape, also known as Teflon Tape or PTFE Tape, is a specialized adhesive tape designed around a polytetrafluoroethylene film substrate and a pressure sensitive adhesive system. Professional PTFE adhesive tape is widely valued for its combination of high temperature resistance, non stick performance, chemical resistance, low friction, release characteristics, moisture resistance, and dimensional stability.

In industrial manufacturing, PTFE adhesive tape can serve as a practical surface protection, release, masking, wrapping, and auxiliary insulation material. It is particularly useful when conventional Adhesive Tapes may suffer from excessive adhesion, thermal degradation, chemical attack, or difficult removal.

Professional applications include lithium battery manufacturing, battery production fixtures, hot pressing equipment, coating machinery, industrial rollers, heat sealing equipment, electrical components, wire processing, packaging machinery, composite processing, laboratory equipment, and other high temperature production environments.

The most important feature of PTFE adhesive tape is that the exposed PTFE surface maintains the characteristic low surface energy of fluoropolymer materials. This provides excellent release behavior and helps reduce unwanted adhesion to production equipment, processed materials, coatings, films, and other surfaces.

What Is PTFE Adhesive Tape?

PTFE adhesive tape is an adhesive-backed tape made using a polytetrafluoroethylene film substrate. PTFE is a fluoropolymer recognized for its exceptionally low friction, chemical resistance, non stick properties, low moisture absorption, and broad temperature capability.

A typical professional PTFE adhesive tape consists of three primary components:

1. PTFE film substrate

2. Pressure sensitive adhesive layer

3. Release liner or release material when required

The PTFE film provides the functional surface. The adhesive allows the tape to attach to a target surface, while the release liner protects the adhesive before application.

Depending on the product construction, PTFE adhesive tape can be supplied as a single sided adhesive tape with an exposed PTFE surface. This construction is particularly useful for applications where one side needs to remain non stick while the other side must remain securely attached to equipment or a component.

PTFE adhesive tape should be distinguished from ordinary plumbing thread sealing tape. Industrial PTFE adhesive tape is engineered as an adhesive-backed fluoropolymer tape, whereas thin PTFE thread seal tape is generally designed for pipe threads and does not have the same adhesive construction.

PTFE Adhesive Tape Structure

The performance of a PTFE adhesive tape depends on the interaction between the PTFE film and adhesive layer.

PTFE Film Substrate

The PTFE film provides the tape with its characteristic:

• Non stick surface

• Low coefficient of friction

• Chemical resistance

• Temperature resistance

• Moisture resistance

• Electrical insulation capability

• Low surface energy

• Release performance

• Smooth surface

• Dimensional stability

PTFE film can be produced in different thicknesses and constructions. Thickness selection influences handling, conformability, mechanical strength, dielectric performance, thermal behavior, and overall durability.

Silicone Pressure Sensitive Adhesive

Professional high temperature PTFE adhesive tape commonly uses a silicone pressure sensitive adhesive.

Silicone adhesive is selected because it can maintain adhesion over a relatively broad temperature range and can provide reliable bonding under demanding processing conditions.

The adhesive formulation affects:

• Initial tack

• Peel adhesion

• Shear resistance

• Temperature resistance

• Residue performance

• Surface compatibility

• Aging resistance

• Removal characteristics

For high temperature industrial applications, adhesive performance should always be evaluated separately from PTFE film temperature capability.

The PTFE substrate may tolerate temperatures that the adhesive cannot tolerate continuously.

PTFE Adhesive Tape Construction

A professional PTFE adhesive tape should therefore not be evaluated only by the temperature rating of PTFE itself. The complete tape construction must be considered.

Premium PTFE Adhesive Tape Features

Premium PTFE adhesive tape is typically selected for professional applications where consistent performance is more important than basic adhesive attachment.

Important performance characteristics include:

High Temperature Resistance

PTFE is capable of operating across a broad temperature range. Depending on the specific formulation, tape construction, adhesive, dwell time, pressure, and environmental conditions, PTFE film may withstand temperatures from approximately -70°C to +260°C.

However, the adhesive system usually has a lower continuous operating limit than the PTFE substrate.

For this reason, professional users should distinguish between:

• PTFE film temperature resistance

• Adhesive temperature resistance

• Short term peak temperature

• Continuous operating temperature

• Actual application temperature

Excellent Non Stick Performance

The low surface energy of PTFE makes it difficult for many materials to adhere strongly to the exposed surface.

This makes PTFE adhesive tape useful for:

• Release surfaces

• Roller wrapping

• Mold protection

• Hot pressing

• Heat sealing

• Coating equipment

• Slurry handling

• Composite processing

• Food processing equipment where suitable grades are used

Low Friction

PTFE has a very low coefficient of friction compared with many conventional engineering materials.

A low friction surface can help:

• Reduce sliding resistance

• Minimize material sticking

• Improve release

• Reduce surface damage

• Facilitate material movement

• Simplify equipment cleaning

Chemical Resistance

PTFE is highly resistant to many chemicals, acids, alkalis, solvents, and aggressive industrial environments.

This characteristic makes PTFE adhesive tape attractive for chemical processing and manufacturing environments where conventional polymer tapes may have limited resistance.

Moisture Resistance

PTFE has very low water absorption.

This can be beneficial in environments where humidity or occasional moisture exposure could affect conventional tape substrates.

Clean Release

A properly selected silicone adhesive PTFE tape can provide clean removal from compatible surfaces.

Clean removal is particularly important in:

• Precision manufacturing

• Coating lines

• Roller maintenance

• Battery production

• Mold maintenance

• Electrical assembly

• Laboratory equipment

Actual residue behavior depends on adhesive formulation, surface condition, temperature, dwell time, pressure, and aging.

PTFE Adhesive Tape Specifications

The following values represent commonly encountered industrial specifications. Actual product specifications vary by manufacturer, grade, adhesive system, and production process.

Common PTFE Adhesive Tape Thicknesses

Thickness selection is an important part of professional PTFE adhesive tape selection.

0.08 mm PTFE Adhesive Tape

Thin PTFE adhesive tape can be suitable for:

• Precision fixtures

• Thin protective layers

• Small components

• Tight clearances

• Light duty masking

• Laboratory applications

• Compact equipment

The thinner construction can provide better conformability and less dimensional buildup.

0.13 mm PTFE Adhesive Tape

A 0.13 mm construction is a commonly considered balance between flexibility, durability, and surface protection.

Potential applications include:

• Roller wrapping

• Industrial fixtures

• Hot pressing

• Coating equipment

• Guide rollers

• Production equipment

• Anti stick surfaces

0.18 mm PTFE Adhesive Tape

A thicker construction can provide increased material thickness and greater durability for applications involving more mechanical contact.

0.25 mm PTFE Adhesive Tape

Thicker PTFE adhesive tape may be selected where greater surface protection, mechanical robustness, or repeated use is required.

The correct thickness depends on the actual equipment geometry and process conditions.

PTFE Adhesive Tape Width Selection

Common widths include:

• 10 mm

• 20 mm

• 25 mm

• 50 mm

• 100 mm

• Custom slit widths

Narrow PTFE adhesive tape can be useful for:

• Small components

• Wires

• Terminals

• Narrow rollers

• Precision masking

Wider PTFE adhesive tape can be useful for:

• Large rollers

• Flat fixtures

• Hot press surfaces

• Industrial equipment

• Large-area protective applications

Custom slitting allows manufacturers and converters to match tape width with equipment dimensions.

PTFE Adhesive Tape Roll Length

Professional PTFE adhesive tape can be supplied in different roll lengths.

Typical options include:

• 10 meter rolls

• 20 meter rolls

• 50 meter rolls

• Custom roll lengths

Longer rolls may reduce replacement frequency in continuous production environments.

Shorter rolls can be practical for:

• Maintenance

• Laboratory use

• Small equipment

• Trial production

• Prototype manufacturing

PTFE Adhesive Tape for Lithium Battery Manufacturing

Lithium battery manufacturing is one of the industrial applications where PTFE adhesive tape can be useful as an auxiliary material.

Battery production includes multiple processes involving heat, pressure, chemicals, films, metal components, rollers, fixtures, and temporary masking.

PTFE adhesive tape can provide a non stick and temperature resistant surface in selected production stages.

Battery Cell Baking Fixtures

During battery cell processing, equipment may experience elevated temperatures.

PTFE adhesive tape can be applied to selected fixture surfaces where non stick performance is needed.

Potential benefits include:

• Reduced material sticking

• Easier fixture cleaning

• Improved release

• Reduced adhesive contamination

• Easier maintenance

The tape must be selected according to actual baking temperature and exposure duration.

Hot Pressing Fixtures

Hot pressing can involve pressure and elevated temperature.

PTFE adhesive tape may be used on selected fixture surfaces to reduce sticking between the fixture and processed components.

This is particularly useful when the production process involves:

• Polymer films

• Adhesive materials

• Protective films

• Battery components

• Composite materials

Formation and Capacity Grading Equipment

PTFE adhesive tape may also be considered for selected tray or fixture applications in formation and capacity grading equipment.

The purpose is generally auxiliary surface protection rather than primary battery insulation.

PTFE Adhesive Tape for Coating Rollers

Coating equipment requires stable roller surfaces.

Battery electrode coating processes can involve active material slurries containing various chemical components. If slurry accumulates on a roller, cleaning requirements can increase and production consistency can be affected.

PTFE adhesive tape can provide a low adhesion surface for selected roller applications.

Potential applications include:

• Back rollers

• Guide rollers

• Support rollers

• Auxiliary rollers

• Edge contact areas

• Maintenance surfaces

The tape can be applied by spiral wrapping or other suitable wrapping methods.

PTFE Roller Wrapping

PTFE roller wrapping is a common industrial application for adhesive-backed PTFE tape.

A roller surface can be wrapped with PTFE tape to create a low-friction, non-stick interface.

Important factors include:

• Roller diameter

• Roller width

• Surface material

• Operating temperature

• Rotation speed

• Contact pressure

• Material being processed

• Required tape thickness

• Wrapping direction

• Overlap ratio

For professional applications, the roller should be properly cleaned and prepared before applying PTFE adhesive tape.

Spiral Wrapping PTFE Adhesive Tape

Spiral wrapping is commonly used when covering cylindrical rollers.

During spiral wrapping, the tape is applied at a controlled angle while maintaining consistent tension.

A suitable overlap can help reduce exposed gaps between adjacent tape layers.

The actual overlap should be determined based on:

• Roller diameter

• Tape width

• Required surface coverage

• Mechanical conditions

• Process requirements

Improper tension can cause:

• Wrinkling

• Edge lifting

• Uneven coverage

• Premature failure

PTFE Adhesive Tape for Industrial Fixtures

Industrial fixtures often require a surface that is:

• Heat resistant

• Non stick

• Chemically resistant

• Easy to clean

• Dimensionally stable

• Low friction

PTFE adhesive tape can be used on selected fixtures where these properties are beneficial.

Potential fixture applications include:

• Pressing fixtures

• Assembly fixtures

• Welding fixtures

• Heating fixtures

• Molding fixtures

• Production jigs

• Inspection fixtures

PTFE Adhesive Tape for Heat Sealing

PTFE materials are widely associated with heat sealing equipment because the surface can resist sticking to heated polymer materials.

PTFE adhesive tape can be used on selected:

• Heat sealing bars

• Heat sealing machines

• Packaging equipment

• Heating surfaces

• Release surfaces

The tape construction must be matched to the actual temperature and pressure.

The adhesive layer should not be exposed directly to temperatures beyond its specified capability unless the application has been validated.

PTFE Adhesive Tape for Packaging Equipment

Industrial packaging equipment often processes:

• Plastic films

• Laminated films

• Adhesive materials

• Heat sealable films

• Flexible packaging materials

PTFE adhesive tape can help provide a release surface on selected machine components.

Potential benefits include:

• Reduced film sticking

• Easier cleaning

• Improved material movement

• Reduced buildup

• Lower maintenance requirements

PTFE Adhesive Tape for Electrical Applications

PTFE is an electrically insulating fluoropolymer and can provide useful dielectric properties.

However, PTFE adhesive tape should not automatically be considered a replacement for dedicated Electrical Insulation Tapes.

Professional electrical applications should evaluate:

• Dielectric strength

• Insulation resistance

• Tape thickness

• Temperature

• Voltage

• Frequency

• Environmental exposure

• Creepage and clearance

• Adhesive performance

PTFE adhesive tape can be used for certain auxiliary electrical insulation, masking, and protective applications.

For demanding primary insulation, dedicated Electrical Insulation Materials such as polyimide, polyester, mica, or other engineered insulation systems may be more appropriate.

PTFE Adhesive Tape vs PI Polyimide Tape

PTFE adhesive tape and PI polyimide tape are both high temperature materials, but their functional priorities are different.

The two tapes should be selected according to function rather than simply temperature rating.

PTFE Adhesive Tape vs FEP

FEP and PTFE are both fluoropolymers, but they have different processing characteristics.

FEP is often encountered as film, tubing, or coating rather than conventional PTFE adhesive tape.

PTFE Adhesive Tape vs PFA

PFA is another fluoropolymer used in demanding chemical and high temperature applications.

Material selection should be based on the complete process rather than fluoropolymer name alone.

Advantages of Premium PTFE Adhesive Tape

1. Excellent Non Stick Surface

The PTFE surface is highly resistant to adhesion from many materials.

This helps reduce:

• Material buildup

• Adhesive contamination

• Slurry sticking

• Polymer sticking

• Mold release problems

2. High Temperature Capability

PTFE film maintains useful properties over a broad temperature range.

This makes PTFE adhesive tape attractive for:

• Heating equipment

• Hot pressing

• Heat sealing

• Industrial ovens

• High temperature fixtures

3. Chemical Resistance

PTFE provides strong resistance to numerous aggressive chemicals.

This is important for:

• Chemical processing

• Battery manufacturing

• Laboratory applications

• Industrial cleaning

• Coating operations

4. Low Friction

The low friction surface supports smooth material movement.

5. Easy Cleaning

Non stick PTFE surfaces are generally easier to clean than many conventional adhesive-backed materials.

6. Moisture Resistance

PTFE absorbs very little moisture, helping maintain stable performance in humid environments.

7. Wide Application Range

Professional PTFE adhesive tape can be used in multiple industries without requiring a completely different tape construction for every application.

Professional PTFE Adhesive Tape Performance

Professional users should evaluate PTFE adhesive tape using application-specific criteria.

PTFE Adhesive Tape Surface Preparation

Proper surface preparation can significantly improve application reliability.

Before applying PTFE adhesive tape, the surface should generally be:

• Clean

• Dry

• Free from oil

• Free from dust

• Free from loose particles

• Free from old adhesive residue

Depending on the surface material, an appropriate cleaning agent may be used.

For metal rollers, additional attention should be paid to:

• Surface roughness

• Anodized coatings

• Existing scratches

• Corrosion

• Contamination

A contaminated surface can reduce adhesive bonding.

How to Apply PTFE Adhesive Tape

A professional application process may include the following steps.

Step 1: Clean the Surface

Remove oil, dust, grease, old adhesive, and other contamination.

Step 2: Dry Completely

Moisture can interfere with adhesive bonding.

Step 3: Measure the Required Length

Determine the required tape length before application.

Step 4: Align the Tape

Position the tape carefully to avoid wrinkles.

Step 5: Apply Controlled Pressure

Use uniform pressure to improve contact between the adhesive and substrate.

Step 6: Avoid Excessive Stretching

Excessive stretching may create dimensional instability after application.

Step 7: Inspect the Edges

Check for lifting, wrinkles, air pockets, or incomplete bonding.

Step 8: Validate Under Operating Conditions

The finished application should be tested under actual temperature, pressure, speed, and chemical exposure conditions.

PTFE Adhesive Tape for Professional Roller Applications

Roller applications require special attention because the tape experiences repeated mechanical movement.

Important considerations include:

• Roller diameter

• Rotation speed

• Surface temperature

• Contact pressure

• Material tension

• Tape thickness

• Adhesive shear strength

• Edge stability

A PTFE adhesive tape suitable for a stationary fixture may not necessarily be suitable for a high-speed rotating roller.

PTFE Adhesive Tape for Lithium Battery Equipment

Lithium battery manufacturing equipment can include:

• Coating machines

• Drying systems

• Hot pressing machines

• Formation equipment

• Capacity grading equipment

• Welding systems

• Assembly equipment

• Inspection equipment

PTFE adhesive tape can be used as an auxiliary process material in selected equipment areas.

Typical purposes include:

Release protection

PTFE helps prevent processed materials from strongly adhering to fixtures.

Surface protection

The tape can protect selected surfaces from contamination or buildup.

Temporary masking

PTFE tape can be used where a temporary high temperature barrier is required.

Roller protection

PTFE tape can create a low adhesion surface on selected rollers.

PTFE Adhesive Tape for Battery Hot Pressing

Battery hot pressing may combine:

• Heat

• Pressure

• Adhesive materials

• Polymer films

• Metal surfaces

A non stick surface can reduce material adhesion to equipment.

However, PTFE adhesive tape should be selected according to:

• Maximum process temperature

• Continuous process temperature

• Pressure

• Contact time

• Fixture geometry

• Adhesive compatibility

PTFE Adhesive Tape for Battery Coating Lines

In electrode coating, equipment surfaces may come into contact with slurry.

PTFE adhesive tape can be used on selected non critical surfaces to help reduce slurry accumulation.

Potential benefits include:

• Easier cleaning

• Lower buildup

• Reduced maintenance

• Improved release

• Protection of equipment surfaces

The tape should not interfere with coating accuracy or introduce contamination.

PTFE Adhesive Tape for Temporary Electrical Masking

PTFE adhesive tape can be useful for temporary masking during certain electrical manufacturing processes.

Potential uses include:

• Temporary isolation

• Surface masking

• Component protection

• Heat exposure protection

• Soldering area masking

• Processing fixture protection

The tape should be removed after processing when it is not intended to become part of the finished insulation system.

PTFE Adhesive Tape for Wire and Cable Applications

PTFE has low moisture absorption and strong chemical resistance.

In selected industrial applications, PTFE adhesive tape can be used for:

• Temporary wire bundling

• Cable protection

• High temperature wire processing

• Component masking

• Laboratory wiring applications

For permanent wire insulation, users should select a tape specifically qualified for the required voltage, temperature, flame, and regulatory requirements.

PTFE Adhesive Tape for Industrial Manufacturing

Industrial manufacturing applications can include:

• Machinery

• Electronics

• Electrical equipment

• Packaging

• Textiles

• Chemical processing

• Automotive production

• Battery manufacturing

• Composite manufacturing

• Laboratory equipment

The broad chemical and temperature resistance of PTFE makes it suitable for demanding production environments.

PTFE Adhesive Tape Chemical Resistance

PTFE is well known for its chemical resistance.

It is resistant to many:

• Acids

• Alkalis

• Solvents

• Oils

• Industrial chemicals

• Cleaning agents

However, no material should be assumed to be compatible with every chemical under every condition.

Chemical compatibility depends on:

• Concentration

• Temperature

• Exposure duration

• Pressure

• Chemical mixture

• Mechanical stress

The adhesive layer may have different chemical resistance from the PTFE film.

Therefore, professional applications should evaluate the complete tape construction.

PTFE Adhesive Tape and Moisture

PTFE has extremely low moisture absorption.

This can provide advantages in:

• Humid manufacturing environments

• Laboratory applications

• Chemical processing

• Electrical applications

• Outdoor equipment

• Battery production

Moisture resistance can help maintain dimensional and surface properties.

PTFE Adhesive Tape and Friction

Low friction is one of the defining characteristics of PTFE.

The low friction surface can help reduce:

• Sliding resistance

• Material drag

• Surface abrasion

• Adhesive buildup

• Mechanical wear

This is why PTFE tape is widely considered for roller, guide, release, and sliding applications.

PTFE Adhesive Tape Color

PTFE adhesive tape can be supplied in different appearances depending on the film and adhesive construction.

Common appearances include:

• White

• Milky white

• Translucent

• Brown

• Light brown

Color does not necessarily determine performance.

Users should focus on:

• PTFE grade

• Film thickness

• Adhesive formulation

• Temperature capability

• Surface properties

• Application requirements

PTFE Adhesive Tape Quality Considerations

When selecting premium PTFE adhesive tape, buyers should evaluate several factors.

Consistent Thickness

Consistent tape thickness helps ensure predictable application performance.

Uniform Adhesive Coating

A uniform adhesive layer helps reduce:

• Weak bonding

• Uneven adhesion

• Edge lifting

• Localized residue

Smooth PTFE Surface

A consistent PTFE surface helps provide stable release performance.

Clean Slitting

Precision slitting can reduce:

• Uneven edges

• Frayed edges

• Width variation

• Application problems

Stable Roll Winding

Good roll winding can make the tape easier to unwind and apply.

PTFE Adhesive Tape Quality Inspection

Professional inspection may include:

• Thickness measurement

• Width measurement

• Peel adhesion testing

• Shear testing

• Temperature exposure

• Residue evaluation

• Surface inspection

• Dielectric testing where applicable

• Chemical resistance testing

• Dimensional stability testing

Testing should reflect the intended application.

Common PTFE Adhesive Tape Applications

PTFE Adhesive Tape for Food Processing

Certain PTFE materials and adhesive constructions may be suitable for food-related applications when specifically designed, tested, and certified for the intended contact conditions.

Potential applications can include:

• Heat sealing equipment

• Conveyor systems

• Packaging machinery

• Release surfaces

• Food processing machinery

A general industrial PTFE adhesive tape should not automatically be considered food contact compliant.

Where food contact is required, users should verify the applicable certification and complete construction.

PTFE Adhesive Tape for Packaging Machinery

Packaging equipment can experience:

• Heat

• Friction

• Film movement

• Adhesive contamination

• Repeated mechanical contact

PTFE adhesive tape can provide a low friction release surface on selected machine components.

Common applications include:

• Sealing jaws

• Heating bars

• Guide surfaces

• Rollers

• Film handling components

PTFE Adhesive Tape for Textile Machinery

Textile manufacturing can involve continuous movement of fibers and fabrics.

Low friction PTFE surfaces can help reduce material sticking and friction in selected machinery.

Potential uses include:

• Guide surfaces

• Heat sealing components

• Sliding surfaces

• Roller protection

• High temperature equipment

PTFE Adhesive Tape for Composite Manufacturing

Composite production may involve:

• Resin systems

• Release materials

• Heated tooling

• Pressure

• Mold surfaces

PTFE can provide a useful release surface for selected applications.

Potential benefits include:

• Easier release

• Reduced resin adhesion

• Easier cleaning

• Surface protection

• Reduced maintenance

PTFE Adhesive Tape for Chemical Processing

PTFE adhesive tape can provide a chemically resistant surface for selected processing environments.

Applications may include:

• Equipment protection

• Temporary masking

• Chemical handling fixtures

• Laboratory processing

• Surface protection

The adhesive should be evaluated independently because silicone adhesives can have different chemical resistance characteristics than PTFE.

PTFE Adhesive Tape for High Temperature Applications

PTFE film is widely recognized as a high temperature fluoropolymer material.

Typical applications include:

• Heat sealing

• Hot pressing

• Heating equipment

• Industrial ovens

• Mold release

• Thermal fixtures

• Roller protection

The adhesive rating must always be considered.

A tape with a PTFE substrate rated for 260°C does not necessarily mean that the complete adhesive-backed tape can operate continuously at 260°C.

Short Term and Long Term Temperature Exposure

Temperature specifications should be interpreted carefully.

Important parameters include:

Short term exposure: A tape may tolerate a higher temperature for a limited period.

Continuous exposure: The adhesive and tape construction must remain stable over long operating periods.

Thermal cycling: Repeated heating and cooling may affect adhesion, dimensional stability, and edge performance.

Pressure combined with heat: Mechanical pressure can accelerate adhesive movement or degradation.

Professional users should test the tape under real operating conditions.

PTFE Adhesive Tape Temperature Selection Guide

PTFE Adhesive Tape Adhesion Considerations

PTFE has naturally low surface energy, which makes direct bonding to PTFE itself difficult.

However, when PTFE film is supplied as adhesive tape, the adhesive is applied to the tape backing using an appropriate surface treatment or manufacturing process.

Adhesion depends on:

• Surface preparation

• Adhesive chemistry

• Temperature

• Pressure

• Contact area

• Dwell time

• Surface roughness

• Contamination

Professional application should use the manufacturer's technical specifications and actual process validation.

PTFE Adhesive Tape Residue

Residue is a major consideration for production environments.

Poorly selected tape may leave:

• Adhesive transfer

• Silicone residue

• Contamination

• Surface marks

A professional grade silicone adhesive PTFE tape should be evaluated for clean removal under the intended conditions.

Testing should include:

• Room temperature removal

• Elevated temperature removal

• Long dwell time

• Repeated application

• Metal surfaces

• Painted surfaces

• Anodized surfaces

• Polymer surfaces

PTFE Adhesive Tape Removal

For clean removal:

1. Allow the process to return to a suitable temperature when appropriate.

2. Lift one tape edge carefully.

3. Remove the tape at a controlled angle.

4. Avoid sudden pulling that may damage the surface.

5. Inspect the substrate for residue.

6. Clean remaining residue using a compatible method if required.

Removal performance depends on adhesive formulation and application conditions.

PTFE Adhesive Tape Storage

Correct storage helps maintain adhesive performance.

Recommended storage conditions generally include:

• Clean environment

• Dry environment

• Moderate temperature

• Protection from direct sunlight

• Protection from excessive humidity

• Original packaging

• Avoiding crushing or deformation

Rolls should be stored in a way that prevents telescoping, edge damage, or deformation.

PTFE Adhesive Tape Shelf Life

Shelf life depends on:

• Adhesive formulation

• Storage temperature

• Humidity

• Packaging

• Manufacturing date

• UV exposure

Users should follow the supplier's specified shelf-life recommendations.

Before large-scale use, older inventory should be inspected and tested if necessary.

PTFE Adhesive Tape Selection Guide

A professional buyer should consider the following questions:

What is the substrate?

Pure PTFE film or another fluoropolymer?

What is the tape thickness?

Select according to mechanical and dimensional requirements.

What adhesive is used?

Silicone adhesive is common for high temperature applications.

What temperature will the tape experience?

Consider continuous and peak temperatures separately.

Is the tape exposed to chemicals?

Check both PTFE and adhesive compatibility.

Is non stick performance the main requirement?

If yes, PTFE can be an appropriate candidate.

Is primary electrical insulation required?

If yes, consider dedicated electrical Insulation Materials and qualification requirements.

Will the tape be wrapped around a roller?

Check tensile strength, flexibility, adhesion, and edge stability.

Will the tape be removed frequently?

Evaluate residue and clean removal.

PTFE Adhesive Tape Purchasing Checklist

Common Mistakes When Choosing PTFE Adhesive Tape

Choosing Based Only on PTFE Temperature Rating

The adhesive may have a lower temperature capability than the PTFE substrate.

Using PTFE Instead of PI for Every Electrical Application

PTFE and polyimide serve different purposes.

Ignoring Chemical Exposure

The PTFE film may be highly resistant while the adhesive system may have different limitations.

Choosing the Wrong Thickness

Very thin tape may be unsuitable for abrasive applications, while thick tape may not fit precision equipment.

Applying Tape to Contaminated Surfaces

Oil, dust, and old adhesive can significantly reduce bonding performance.

Excessive Stretching During Wrapping

Excessive tension can cause dimensional instability and edge lifting.

Assuming All PTFE Tape Is Identical

Different PTFE grades, thicknesses, adhesive systems, and manufacturing processes can produce substantially different performance.

Premium PTFE Adhesive Tape for Professional Applications

The term Premium PTFE Adhesive Tape generally refers to an engineered PTFE adhesive tape designed for demanding applications where consistent quality, clean release, reliable adhesion, temperature performance, and surface protection are important.

Professional PTFE adhesive tape should provide a balanced combination of:

• High temperature resistance

• Excellent release

• Low friction

• Chemical resistance

• Adhesive stability

• Dimensional consistency

• Clean removal

• Uniform coating

• Controlled thickness

• Reliable roll quality

These characteristics make premium PTFE adhesive tape suitable for professional industrial applications rather than simple household use.

PTFE Adhesive Tape for Precision Applications

Precision manufacturing requires controlled tape dimensions.

Important characteristics include:

• Accurate width

• Consistent thickness

• Smooth edges

• Uniform adhesive coating

• Low contamination

• Stable unwinding

• Predictable adhesion

Precision PTFE adhesive tape can be useful for small fixtures, laboratory equipment, electronic assembly, and specialized manufacturing processes.

PTFE Adhesive Tape for Automation

Automated production lines require predictable material behavior.

PTFE adhesive tape can be integrated into automated equipment for:

• Roller protection

• Guide surfaces

• Heat sealing

• Temporary masking

• Release surfaces

• Component handling

Automation increases the importance of:

• Consistent roll dimensions

• Stable adhesive performance

• Reliable unwinding

• Low residue

• Controlled application tension

PTFE Adhesive Tape and Surface Compatibility

PTFE adhesive tape may be applied to:

• Stainless steel

• Aluminum

• Anodized aluminum

• Glass

• Selected plastics

• Painted metal

• Industrial composite surfaces

However, compatibility should be tested before production.

Surface condition strongly influences adhesive performance.

PTFE Adhesive Tape for Aluminum Surfaces

Aluminum rollers and fixtures are common in industrial manufacturing.

PTFE adhesive tape can provide a protective and non stick interface.

Anodized aluminum requires particular attention because surface chemistry and roughness can affect adhesion.

PTFE Adhesive Tape for Stainless Steel

Stainless steel generally provides a smooth and durable surface.

PTFE adhesive tape can be used on stainless steel fixtures, rollers, heating equipment, and processing equipment after appropriate cleaning.

PTFE Adhesive Tape for Laboratory Applications

Laboratory environments may require:

• Chemical resistance

• Temperature resistance

• Low contamination

• Easy cleaning

• Low friction

PTFE adhesive tape can be useful for temporary fixtures, protective surfaces, tubing support, equipment masking, and laboratory processing.

PTFE Adhesive Tape for Maintenance

Maintenance teams can use PTFE adhesive tape for temporary equipment protection and surface repair.

Potential uses include:

• Roller surface maintenance

• Temporary masking

• Fixture protection

• Heat-resistant wrapping

• Component protection

• Low friction surface restoration

For permanent repairs, the tape should not be used outside its designed function.

Environmental Considerations

PTFE is a durable fluoropolymer with excellent chemical and temperature resistance.

However, manufacturing and end-of-life management should follow applicable environmental requirements.

Professional users should consider:

• Process emissions

• Waste management

• Disposal requirements

• Recycling feasibility

• Application-specific regulations

PTFE products should not be intentionally overheated beyond their recommended processing conditions.

Safety Considerations for PTFE Adhesive Tape

PTFE adhesive tape is generally stable under normal operating conditions.

However, excessive heating should be avoided.

Users should follow:

• Product technical data

• Safety documentation

• Equipment temperature limits

• Application instructions

• Industrial safety procedures

The adhesive system may degrade before the PTFE substrate reaches its maximum temperature capability.

PTFE Adhesive Tape Performance Testing

A professional qualification program may include:

Adhesion Test

Measures how strongly the tape bonds to the target surface.

Peel Test

Determines removal force under specified conditions.

Shear Test

Evaluates resistance to sliding under load.

Temperature Test

Determines performance after exposure to elevated temperature.

Residue Test

Examines the surface after tape removal.

Chemical Resistance Test

Evaluates exposure to specified chemicals.

Dielectric Test

Used when electrical insulation performance is relevant.

Dimensional Stability Test

Evaluates changes in dimensions after temperature exposure.

PTFE Adhesive Tape Technical Data Considerations

Technical data should always be interpreted according to test conditions.

For example, a dielectric strength value depends on:

• Film thickness

• Test method

• Electrode geometry

• Temperature

• Humidity

• Test duration

Similarly, peel adhesion depends on:

• Substrate

• Test angle

• Test speed

• Temperature

• Surface cleanliness

Therefore, technical data should not be treated as universal values for every application.

Frequently Asked Questions About PTFE Adhesive Tape

What is PTFE adhesive tape?

PTFE adhesive tape is a tape made from a PTFE film backing with a pressure sensitive adhesive layer, commonly silicone adhesive for high temperature applications.

Is PTFE adhesive tape the same as Teflon tape?

In industrial terminology, PTFE adhesive tape is commonly called Teflon tape. However, “Teflon” is a trademarked brand name, while PTFE is the generic polymer name.

Is PTFE adhesive tape heat resistant?

Yes. PTFE film has excellent temperature resistance. However, the complete adhesive tape must be evaluated based on its adhesive temperature capability.

Is PTFE adhesive tape non stick?

Yes. The exposed PTFE surface provides excellent non stick and release characteristics.

Is PTFE adhesive tape electrically insulating?

PTFE is an electrically insulating material, but the complete adhesive tape should be evaluated according to the required electrical insulation specifications.

Can PTFE adhesive tape be used for battery tabs?

PTFE adhesive tape may be useful for selected auxiliary masking or process applications, but it should not automatically be used as the primary battery tab insulation material.

Can PTFE adhesive tape be used on rollers?

Yes. Roller wrapping is an important industrial application because PTFE provides low friction and non stick characteristics.

Can PTFE adhesive tape be used in hot pressing?

Yes, when the tape construction is suitable for the temperature, pressure, and dwell time of the process.

Does PTFE adhesive tape leave residue?

A properly selected silicone adhesive PTFE tape can provide clean removal, but actual residue performance depends on application conditions.

Is PTFE resistant to chemicals?

PTFE has excellent resistance to many chemicals, acids, alkalis, and solvents. The adhesive should be evaluated separately.

What is the difference between PTFE and PI tape?

PTFE emphasizes non stick, low friction, chemical resistance, and temperature resistance. PI emphasizes electrical insulation, dimensional stability, and high temperature performance.

What thickness of PTFE adhesive tape should I choose?

Common options include 0.08 mm, 0.13 mm, 0.18 mm, and 0.25 mm. The correct thickness depends on the mechanical, thermal, and dimensional requirements.

Can PTFE adhesive tape be customized?

Industrial PTFE adhesive tape can commonly be slit into different widths and supplied in different roll lengths.

PTFE Adhesive Tape Application Summary

Why Choose PTFE Adhesive Tape for Professional Applications?

Professional applications often require more than basic adhesion.

A suitable PTFE adhesive tape can provide a combination of:

Non stick performance
Helps reduce material adhesion and simplify release.

High temperature resistance
Suitable for selected heated manufacturing processes.

Chemical resistance
Provides protection in demanding chemical environments.

Low friction
Supports smooth material movement and roller operation.

Moisture resistance
Maintains stable performance in humid environments.

Cleanability
Reduces buildup and simplifies equipment maintenance.

Surface protection
Helps protect fixtures and production equipment from direct contact.

Processing flexibility
Can be slit, wrapped, and applied to various industrial surfaces.

Conclusion

Premium PTFE Adhesive Tape for Professional Applications is an engineered material designed to combine the unique characteristics of polytetrafluoroethylene PTFE film with the bonding performance of a pressure sensitive adhesive.

PTFE adhesive tape, also known as Teflon adhesive tape or PTFE tape, is particularly valuable where high temperature resistance, non stick performance, low friction, chemical resistance, moisture resistance, release performance, and surface protection are required.

In lithium battery manufacturing, PTFE adhesive tape can be considered for cell baking fixtures, hot pressing equipment, formation and grading fixtures, coating rollers, guide rollers, temporary masking, and other auxiliary production applications.

In general industrial manufacturing, it can be used for heat sealing equipment, packaging machinery, industrial rollers, chemical processing equipment, composite production, electrical processing, laboratory equipment, and high temperature fixtures.

When selecting a professional PTFE adhesive tape, users should evaluate the complete construction rather than focusing only on the PTFE film. Film thickness, adhesive type, total thickness, operating temperature, chemical exposure, surface compatibility, peel strength, residue performance, width, roll length, and application method all influence the final result.

The distinction between PTFE adhesive tape and PI polyimide adhesive tape is particularly important. PTFE is primarily valued for its non stick, low friction, chemical resistance, and temperature resistance, while PI is widely selected where high temperature electrical insulation and dimensional stability are the primary requirements.

Therefore, PTFE adhesive tape should be selected according to the actual function required. For professional applications involving roller protection, mold release, hot pressing, heat sealing, fixture protection, and low friction surfaces, PTFE adhesive tape can provide an effective and versatile solution when properly specified and validated
