Fiber adhesive tape for electrical insulation is a specialized industrial tape designed to provide electrical isolation, mechanical reinforcement, thermal resistance, surface protection, and secure positioning of components in electrical and electronic systems. It is commonly manufactured from a fiber-based backing such as fiberglass cloth, glass fiber fabric, polyester fiber, or other engineered fiber substrates combined with an electrical-grade pressure-sensitive adhesive.
Among these constructions, fiberglass adhesive tape is particularly important for demanding electrical insulation applications because glass fiber provides high tensile strength, dimensional stability, abrasion resistance, and excellent resistance to elevated temperatures. Depending on the adhesive system and tape construction, fiber adhesive tape can be used in motors, transformers, generators, coils, wiring harnesses, battery assemblies, electrical components, industrial equipment, and other applications where conventional pressure-sensitive tapes may not provide sufficient mechanical or thermal performance.
Electrical Insulation Tape is not simply a material for covering exposed conductors. In industrial applications, the tape may form part of a larger insulation system and may need to withstand electrical stress, heat, vibration, mechanical tension, moisture, chemicals, abrasion, and long-term aging. UL's insulating tape certification information identifies electrical, mechanical, thermal, adhesion, flammability, environmental, and surface-tracking performance as important considerations for insulating tape applications.
The combination of a strong fiber backing and a functional adhesive layer allows fiber adhesive tape to perform several functions simultaneously. It can hold components in position, separate conductive surfaces, reinforce insulation structures, protect wire bundles, secure coil windings, provide abrasion protection, and maintain insulation integrity during thermal cycling.

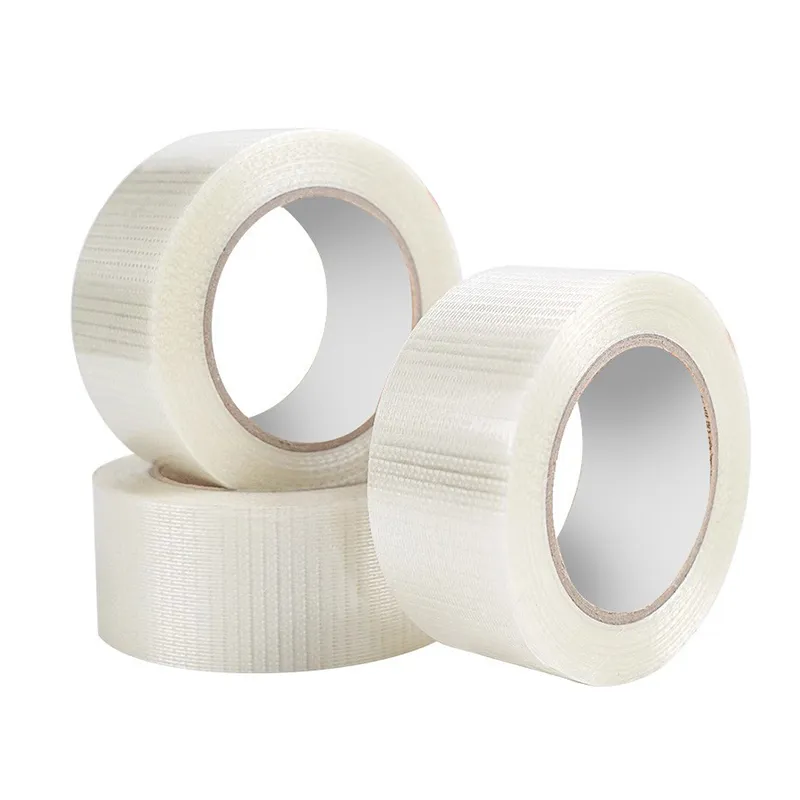

Fiber adhesive tape is a pressure-sensitive adhesive tape constructed with a fiber-based backing and an adhesive coating. The fiber layer provides mechanical strength and structural stability, while the adhesive layer provides bonding and positioning.
For electrical insulation, the backing and adhesive must be selected as a complete system. A fiber substrate may provide excellent tensile strength but may not automatically provide adequate dielectric performance. Likewise, an adhesive may have good initial adhesion but may lose its bonding strength after prolonged exposure to elevated temperatures.
A typical electrical insulation fiber adhesive tape contains three functional elements:
Fiber backing
Electrical-grade adhesive
Release or protective material where required
The fiber backing can be woven, nonwoven, laminated, coated, or specially treated depending on the intended application.
Fiberglass cloth is one of the most widely recognized fiber backings for high-performance electrical insulation. A typical fiberglass electrical tape can combine a glass fiber backing with silicone adhesive, producing a construction suitable for high-temperature electrical insulation. One commercially documented electrical fiberglass tape construction uses a 0.120 mm glass fiber backing, silicone adhesive, a 180°C thermal class, and a dielectric strength of 2.5 kV.
The final performance of fiber adhesive tape depends on the interaction between the backing, adhesive, thickness, coating weight, manufacturing process, application method, and service environment.
Electrical systems generate heat, electrical fields, mechanical stress, and vibration during operation. Insulation Materials must prevent unwanted electrical contact while maintaining their physical structure.
Fiber adhesive tape is useful because it provides a combination of properties that is difficult to obtain from a single conventional tape.
The major benefits include:
High mechanical strength
Good dielectric insulation
Excellent dimensional stability
High temperature resistance
Strong resistance to tearing
Abrasion resistance
Good conformability
Reliable component positioning
Resistance to vibration
Resistance to aging
Good resistance to many chemicals
Compatibility with many electrical insulation systems
Availability in different thicknesses and widths
Suitability for manual and automated application
Fiberglass adhesive tape is especially valuable where the tape must remain mechanically stable under tension. The woven glass fiber structure helps resist stretching and tearing while providing a stable reinforcement layer.
Electrical insulation applications often require more than electrical resistance alone. UL's tape certification information shows that insulating tape evaluation can include dielectric breakdown under dry, elevated-temperature, and humid conditions, tensile strength, elongation, adhesion, heat exposure, flammability, cold exposure, sunlight resistance, and resistance to electrical surface tracking.
This explains why selecting an electrical insulation fiber tape should involve a complete performance assessment rather than focusing only on voltage rating.
Fiberglass adhesive tape consists of woven or engineered glass fibers combined with an adhesive system.
Glass fiber is inherently strong and dimensionally stable. It does not behave like many polymer films that can soften, shrink, or deform significantly when exposed to high temperatures.
This makes fiberglass adhesive tape attractive for:
Motor coil insulation
Transformer insulation
Generator insulation
Stator coil insulation
Wire harness protection
Coil end insulation
Electrical component wrapping
Terminal protection
Cable reinforcement
High-temperature banding
Mechanical reinforcement of insulation systems
A fiberglass electrical tape with silicone adhesive can provide a high level of thermal performance. One documented electrical tape construction is classified at 180°C and has a tensile strength of 300 N/cm, illustrating the mechanical capability that can be achieved with glass fiber backing.
Other fiberglass tape constructions may use rubber or acrylic adhesive systems. The adhesive selection can significantly affect the temperature rating, initial tack, long-term adhesion, flexibility, aging behavior, and compatibility with electrical components.
The backing is the structural portion of the tape.
Fiberglass backing is particularly suitable for applications requiring high tensile strength, dimensional stability, abrasion resistance, and thermal resistance.
The structure of the glass fiber fabric can influence:
Tensile strength
Tear resistance
Flexibility
Edge stability
Surface texture
Conformability
Thickness
Handling characteristics
A tightly woven glass fiber backing generally provides strong mechanical reinforcement, while lighter constructions may provide improved flexibility and easier wrapping around irregular shapes.
The adhesive is responsible for bonding the tape to the target surface.
Common adhesive families include:
Silicone adhesive
Acrylic adhesive
Rubber-based adhesive
Specialized electrical-grade adhesive systems
Silicone adhesives are frequently used when high-temperature performance is required. Electrical fiberglass tape documented by UL can use silicone adhesive and have a temperature rating of 200°C.
Adhesive selection should consider both initial and long-term performance.
Important adhesive characteristics include:
Initial tack
Peel adhesion
Shear strength
Temperature resistance
Aging resistance
Chemical resistance
Moisture resistance
Adhesion to insulation materials
Adhesion after thermal cycling
Residue behavior
Some fiber tapes are treated or coated to improve handling, moisture resistance, surface smoothness, chemical resistance, or dielectric performance.
PTFE-coated fiberglass tape, for example, combines woven fiberglass with a PTFE surface and silicone adhesive. Such constructions can provide high-temperature resistance, chemical resistance, dimensional stability, and dielectric performance. Documented examples include operating ranges extending to approximately 260°C.
However, PTFE-coated fiberglass tape is not identical to conventional fiberglass electrical insulation tape. It is often selected where release, low friction, chemical resistance, or high-temperature surface performance is also required.
The primary purpose of electrical insulation tape is to prevent unwanted electrical conduction between components or between a conductor and its surrounding environment.
One of the most important properties is dielectric strength.
Dielectric strength describes the electrical field or voltage a material can withstand before electrical breakdown occurs under a specified test configuration.
A higher dielectric breakdown value can indicate stronger insulation performance, but the value should never be interpreted independently of tape thickness, test method, humidity, temperature, electrode configuration, and application geometry.
For example, one fiberglass electrical tape specification reports a dielectric strength of 2.5 kV at a total tape thickness of 0.170 mm.
PTFE-coated fiberglass constructions may show substantially different dielectric values depending on thickness. Documented examples include approximately 5,000 V at 3 mil, 6,000 V at 5 mil, 8,000 V at 6 mil, and 9,500 V at 10 mil. These figures demonstrate why thickness and construction must be evaluated together with dielectric performance.
A dielectric strength value should therefore be treated as a tested material characteristic rather than a universal operating-voltage recommendation.
Temperature is one of the most important factors in electrical insulation design.
Electrical equipment may experience:
Continuous operating temperature
Short-term temperature spikes
Hot spots
Thermal cycling
Heat generated by current
Heat transferred from adjacent components
Heat during manufacturing or curing
Fiber adhesive tape must remain mechanically and electrically functional within the intended temperature range.
Fiberglass backing is inherently useful for elevated-temperature applications because glass fibers retain structural stability at temperatures where many ordinary polymer-based materials may lose strength.
However, the adhesive may become the limiting component.
For this reason, the temperature rating of a fiberglass adhesive tape should always be evaluated as a complete construction.
A silicone adhesive system may provide substantially higher temperature resistance than some rubber adhesive systems. Industry examples include fiberglass electrical tape constructions associated with 130°C, 155°C, and 180°C performance levels depending on adhesive type and construction.
Another documented fiberglass electrical tape uses silicone adhesive and is classified at 180°C.
A UL-listed fiberglass cloth tape with silicone adhesive is documented at 200°C.
These examples show that "fiberglass tape" alone does not define the temperature rating. The complete backing-and-adhesive system must be considered.
Electrical insulation systems often experience mechanical stress during installation and operation.
The tape may be:
Pulled during wrapping
Stretched around a component
Bent repeatedly
Pressed against sharp edges
Exposed to vibration
Used to reinforce a joint
Subjected to compression
Wrapped around rotating or vibrating equipment
Fiberglass provides strong mechanical reinforcement.
A high-strength glass fiber backing can resist tearing and maintain dimensional stability during installation. This makes it suitable for coil wrapping, transformer insulation, wire bundling, and mechanical protection.
A documented fiberglass electrical tape specification reports tensile strength of 300 N/cm and elongation of 5%.
Another glass cloth tape specification lists tensile strength around 400–450 N/25 mm depending on adhesive construction.
These figures illustrate the mechanical difference between fiber-reinforced electrical tape and many lightweight polymer film tapes.
Dimensional stability is important when insulation must maintain a controlled position, thickness, and coverage.
A tape that shrinks excessively may expose gaps. A tape that stretches too easily may change its coverage or tension.
Fiberglass backing offers excellent dimensional stability because the glass fiber structure limits excessive elongation.
This property is particularly useful for:
Coil insulation
Transformer insulation
Motor winding applications
Electrical harness wrapping
High-temperature component insulation
Insulation reinforcement
Terminal wrapping
Stable dimensions help maintain consistent insulation coverage during thermal cycling.
Electrical components may be exposed to friction from:
Vibration
Wire movement
Metal edges
Plastic housings
Repeated assembly
Mechanical contact
Routing channels
A fiber-based backing can provide strong resistance to mechanical abrasion.
Fiberglass cloth is particularly suitable when the tape must protect insulation from rubbing or mechanical damage.
This makes fiber adhesive tape useful for harness routing and coil areas where mechanical movement may gradually damage weaker insulation materials.
Tear resistance is another important property for electrical insulation tapes.
A tape with low tear resistance may fail during installation, particularly when wrapped around corners or pulled tightly.
Fiberglass fabric distributes mechanical stress across multiple fibers.
This allows the tape to maintain structural integrity even when subjected to significant tension.
However, fiberglass tape can behave differently from soft polymer films. It may have lower stretch and greater stiffness, so application technique and tape thickness should be matched to the component geometry.
Electrical insulation tape must remain securely attached to its intended surface.
Important adhesion factors include:
Surface cleanliness
Surface energy
Temperature
Pressure during application
Adhesive chemistry
Contact time
Tape tension
Surface roughness
Moisture
Contamination
Aging
Adhesion to steel is commonly reported as a standardized performance parameter, but electrical applications often require adhesion to materials such as:
Polyester insulation
Polyimide film
Fiberglass
Magnet wire coatings
Epoxy
Laminated insulation
Plastic housings
Metal components
A tape that bonds strongly to steel may not automatically provide identical adhesion to every electrical insulation substrate.
Therefore, application-specific testing is recommended for critical electrical assemblies.
Silicone adhesive fiberglass tape is one of the most important constructions for high-temperature electrical insulation.
Silicone adhesive systems can provide:
High-temperature resistance
Good aging performance
Good flexibility
Strong adhesion over a broad temperature range
Resistance to many environmental conditions
Compatibility with demanding electrical applications
A UL certification record documents fiberglass cloth tape with silicone adhesive at 200°C and identifies functions including dielectric insulation, adhesion, bending, compression, and flammability-related use categories.
Another electrical fiberglass tape construction using silicone adhesive has a 180°C thermal class and 2.5 kV dielectric strength.
Silicone fiberglass tape is therefore commonly considered when electrical equipment operates under high thermal loads.
Acrylic adhesive systems can provide good aging characteristics, adhesion, and environmental resistance.
Acrylic adhesives are commonly considered when the application requires:
Stable long-term adhesion
Good resistance to environmental exposure
Good surface compatibility
Moderate to high temperature performance
Clean bonding characteristics
The actual performance depends on the acrylic formulation and backing construction.
Acrylic adhesive fiberglass tape may be used for electrical insulation, harness protection, component positioning, and industrial reinforcement.
The adhesive should always be evaluated against the actual service temperature and insulation materials.
Rubber-based adhesives can offer strong initial tack and good conformability.
They may be useful where the tape must quickly grip a surface during assembly.
However, rubber adhesive systems can have lower high-temperature endurance than some silicone systems.
For this reason, rubber adhesive fiber tape is generally selected when the application's thermal requirements are compatible with the adhesive system.
A glass cloth tape industry specification demonstrates different thermal classes associated with rubber, acrylic, and silicone adhesive constructions.
Motors generate heat, electromagnetic forces, vibration, and mechanical movement.
Electrical insulation tape may be used for:
Coil insulation
Stator winding insulation
Coil end protection
Wire positioning
Lead wire protection
Mechanical reinforcement
Insulation overlap
Abrasion protection
Fiberglass adhesive tape is especially valuable when strong mechanical reinforcement and thermal resistance are required.
In motor applications, the tape must be compatible with the overall insulation system.
Factors such as winding temperature, varnish or impregnation resin, conductor coating, coil geometry, vibration, and thermal class should be considered.
A documented electrical fiberglass tape is specifically described for coils, transformers, stator coil ends, final insulation, stress relief, and thermal resistance.
Transformers require electrical insulation that can withstand electrical stress and temperature while maintaining mechanical stability.
Fiber adhesive tape can be used for:
Coil insulation
Lead insulation
Coil end reinforcement
Core-related insulation structures
Wire positioning
Component separation
Mechanical reinforcement
High-temperature fiberglass tape with silicone adhesive can be particularly useful in dry-type transformer applications.
Industry documentation lists glass cloth with silicone adhesive among electrical insulation tape constructions for high-temperature dry-type transformers and motors.
Transformer insulation design should consider the complete insulation system rather than relying on a tape's dielectric value alone.
Generators can experience high temperature, vibration, electrical stress, and mechanical forces.
Fiber adhesive tape can provide:
Reinforcement
Coil insulation
Wire positioning
Abrasion protection
Electrical separation
Thermal insulation support
The tape should remain stable under continuous operating conditions and should be compatible with varnishes, resins, and other insulation materials used during manufacturing.
Wire harnesses are exposed to bending, abrasion, vibration, and temperature changes.
Fiber adhesive tape can help:
Bundle wires
Secure branch points
Protect against abrasion
Maintain cable routing
Provide thermal protection
Reduce movement
Reinforce harness sections
Compared with soft PVC electrical tape, fiberglass adhesive tape generally offers much stronger mechanical reinforcement and higher thermal resistance, although it may have lower stretch and may require more careful wrapping.
Coil winding is one of the major applications for electrical fiber tape.
During coil manufacturing, insulation materials may need to withstand:
Tension
Repeated wrapping
Heat
Resin impregnation
Mechanical pressure
Electrical stress
Vibration
Fiberglass tape can provide structural reinforcement while maintaining electrical insulation.
The tape can be used as:
Interlayer insulation
Outer wrapping
End protection
Lead securing
Mechanical reinforcement
Final insulation
The adhesive must be compatible with the varnish or impregnation system.
Fiber adhesive tape can be used in many electrical components where insulation and mechanical protection are needed simultaneously.
Potential applications include:
Motors
Transformers
Generators
Coils
Inductors
Relays
Switchgear components
Electrical connectors
Wiring systems
Battery components
Power electronics
Industrial control equipment
The appropriate tape depends on voltage, temperature, mechanical stress, moisture exposure, chemical environment, and regulatory requirements.
Battery systems require electrical insulation and mechanical protection.
Fiber adhesive tape may be considered for:
Battery pack insulation
Cell-to-cell separation support
Busbar insulation support
Wire protection
Terminal protection
Component fixation
Abrasion protection
Thermal protection
However, battery applications can involve high current, elevated temperatures, vibration, electrolyte exposure, and strict safety requirements.
Therefore, tape selection should be based on the complete battery design, including electrical clearance, creepage distance, thermal behavior, flame performance, adhesive stability, and chemical compatibility.
A generic dielectric-strength value should not be used as a substitute for application-specific battery validation.
High-voltage insulation requires careful control of electrical clearances, creepage distances, insulation thickness, surface contamination, moisture, and tracking.
A tape may provide excellent dielectric strength but still be unsuitable for a particular high-voltage design.
Important considerations include:
Dielectric breakdown
Partial discharge environment
Surface tracking
Creepage distance
Clearance
Moisture
Contamination
Temperature
Mechanical movement
Long-term aging
UL's insulating tape testing information specifically identifies dielectric breakdown and electrical surface tracking as important performance areas for applicable tape constructions.
Flame behavior can be important in electrical equipment.
Depending on the application, the tape may need to:
Resist ignition
Limit flame propagation
Maintain insulation integrity
Reduce combustible material exposure
Meet relevant component requirements
UL documentation identifies flammability as one of the functional considerations that may be evaluated for insulating tape.
The flame performance of the entire tape construction depends on both the backing and adhesive.
A fiberglass backing does not automatically mean that the entire tape is flame-retardant.
The adhesive and coatings must also be evaluated.
Surface tracking can occur when electrical stress and surface contamination create a conductive path across an insulating material.
This can be especially important in:
High-voltage equipment
Humid environments
Contaminated environments
Outdoor electrical systems
Power equipment
UL certification information identifies resistance to electrical surface tracking as a potential functional use characteristic and references CTI testing under ASTM D3638 or IEC 60112.
Therefore, CTI information may be relevant when selecting insulation tape for demanding environments.
Moisture can influence electrical insulation performance and adhesive bonding.
Water or humidity may:
Reduce surface insulation resistance
Affect dielectric behavior
Promote contamination
Influence adhesive bonding
Accelerate aging
Increase the risk of electrical tracking
For damp or humid applications, the tape construction should be evaluated under humidity conditions rather than relying solely on dry electrical test results.
UL certification information specifically distinguishes dry and damp-location dielectric applications.
Industrial electrical equipment may come into contact with:
Oils
Solvents
Cleaning agents
Hydraulic fluids
Lubricants
Resins
Varnishes
Plasticizers
Moisture
Industrial contaminants
Fiberglass itself has strong resistance to many environmental conditions, but the adhesive system may have different chemical behavior.
PTFE-coated fiberglass tapes can provide particularly strong chemical resistance in high-temperature environments.
Chemical compatibility should always be verified using the actual chemical concentration, exposure temperature, exposure duration, and substrate.
Tape thickness is one of the most important selection parameters.
Thin tape may provide:
Better flexibility
Easier wrapping
Lower profile
Better conformity around small components
Thicker tape may provide:
Greater insulation thickness
Higher mechanical reinforcement
Better abrasion resistance
Greater dielectric distance
Increased physical protection
However, thicker tape is not automatically better.
The correct thickness depends on:
Required insulation level
Available space
Bend radius
Application method
Temperature
Mechanical stress
Required dielectric performance
Number of wrapping layers
Electrical insulation design should consider the complete multilayer construction.
Common industrial fiber adhesive tape widths can range from narrow strips to wide rolls.
Narrow tape is useful for:
Small wires
Terminals
Coil ends
Narrow insulation areas
Precision wrapping
Wider tape can be useful for:
Large coils
Transformer components
Harness assemblies
Broad surface protection
High-volume industrial wrapping
Some electrical fiberglass tapes can be supplied in very narrow widths for specialized applications. One documented electrical fiberglass tape lists widths beginning at approximately 2.5 mm with incremental width customization.
Roll length affects production efficiency.
Longer rolls can reduce:
Material replacement frequency
Production interruptions
Packaging waste
Manual handling time
Shorter rolls can be useful for:
Maintenance work
Small assemblies
Portable applications
Limited-volume production
Core diameter also matters when the tape is applied with a dispenser or automated equipment.
Industrial tape rolls may use standardized core sizes to improve compatibility with converting and application equipment.
Electrical components rarely have perfectly flat surfaces.
Fiber adhesive tape may need to wrap around:
Cylinders
Wires
Corners
Coil ends
Irregular components
Harness branches
Fiberglass tape has less stretch than many polymer film tapes, so correct tape width and wrapping tension are important.
Excessive tension can cause the tape to distort or create unnecessary stress.
Insufficient tension can result in wrinkles, loose edges, or incomplete contact.
UL functional-use categories include applications where tape must conform and remain in complete contact with the applied surface.
Tensile strength indicates how much force a tape can withstand before breaking.
For electrical insulation tape, high tensile strength is beneficial when:
Wrapping under tension
Reinforcing coils
Protecting harnesses
Securing components
Preventing mechanical movement
Fiberglass tape typically offers much higher tensile strength than many ordinary flexible electrical tapes.
However, high tensile strength should be balanced with flexibility.
A tape can be extremely strong but difficult to apply around tight bends.
Elongation describes how much a tape stretches before breaking.
Low elongation is often desirable for dimensional stability.
Higher elongation can improve conformability.
Fiberglass electrical tapes frequently have relatively low elongation compared with highly elastic polymer tapes.
One documented glass fiber electrical tape has an elongation at break of approximately 5%.
This characteristic contributes to dimensional stability but means that the tape should not be treated like a highly stretchable rubber electrical tape.
Adhesion to steel is commonly used as a standardized tape-performance measurement.
It provides a useful benchmark for adhesive strength, but it is not necessarily representative of every electrical application.
A tape may have different adhesion levels on:
Steel
Aluminum
Copper
Polyester
Polyimide
Epoxy
Fiberglass
Plastic
Painted surfaces
For critical applications, testing on the actual substrate is preferable.
Electrical insulation tape may remain inside equipment for many years.
During service, the tape may experience:
Heat
Humidity
Electrical stress
Vibration
Chemical exposure
Oxidation
Thermal cycling
Aging can affect both the backing and adhesive.
A good electrical insulation tape should maintain adequate:
Adhesion
Dielectric performance
Mechanical strength
Dimensional stability
Surface integrity
Long-term performance should be evaluated using appropriate aging and environmental testing.
Electrical insulation tape may be evaluated according to different standards depending on region and application.
In North America, UL identifies ANSI/CAN/UL 510 and CSA C22.2 No. 197 for applicable insulating tape categories, while component tapes may be evaluated under ANSI/CAN/UL 510A.
Potential evaluation areas include:
Tensile strength
Elongation
Dielectric breakdown
Elevated-temperature dielectric performance
Humidity performance
Adhesion
Heat exposure
Cracking
Corrosion
Flagging
Insulation thickness deformation
Flammability
Cold exposure
Sunlight resistance
Surface tracking
The applicable standard depends on the intended application and certification pathway.
A manufacturer or purchaser should verify the exact standard requirements before specifying a tape for regulated electrical equipment.
UL-listed or UL-recognized tape information can be useful when Electrical Insulation Materials are being incorporated into certified equipment.
However, the existence of a UL recognition or listing does not mean that every tape construction is suitable for every application.
UL explains that recognized component tapes are evaluated according to performance properties relevant to the end-use application, and the end-product manufacturer determines suitability within the complete product investigation.
This distinction is important for engineers and purchasing teams.
The tape should be selected based on:
End-use application
Electrical requirements
Temperature class
Mechanical requirements
Environmental conditions
Adhesive compatibility
Required certification
PVC electrical tape is widely used for general electrical insulation, especially wiring joints and low-to-moderate temperature applications.
Fiber adhesive tape offers different advantages.
Fiberglass tape generally provides:
Higher tensile strength
Better dimensional stability
Better high-temperature performance
Better abrasion resistance
Lower elongation
Stronger reinforcement
PVC tape generally provides:
Greater flexibility
Higher elongation
Easy hand wrapping
Good conformability
Convenient general-purpose electrical insulation
Therefore, neither material is universally superior.
Fiberglass tape is usually considered when mechanical strength and thermal stability are important.
PVC tape is often more convenient for general-purpose wire insulation and applications requiring flexibility.
Polyester electrical insulation tape offers:
Smooth surfaces
Good dielectric performance
Good dimensional stability
Good flexibility
Good resistance to many chemicals
Fiberglass tape provides stronger mechanical reinforcement and often higher resistance to mechanical stress.
Polyester may be preferred for thin insulation and smooth wrapping, while fiberglass can be preferred when tensile strength and abrasion resistance are priorities.
The best choice depends on the insulation system.
Polyimide tape is known for high-temperature electrical insulation and excellent dimensional stability.
Fiberglass adhesive tape offers a different performance balance.
Fiberglass provides:
High mechanical strength
Strong reinforcement
Excellent tear resistance
High-temperature capability
Abrasion resistance
Polyimide provides:
Thin insulation
Excellent dielectric performance
High-temperature stability
Good dimensional stability
Low-profile construction
In some applications, fiberglass and polyimide tapes may be used together as complementary insulation materials.
PTFE-coated fiberglass tape combines fiberglass mechanical reinforcement with PTFE surface characteristics.
It can provide:
Low friction
Non-stick performance
Chemical resistance
High-temperature resistance
Good dielectric properties
Documented PTFE fiberglass constructions demonstrate temperature capability up to approximately 260°C and dielectric values that vary with thickness.
However, PTFE-coated fiberglass tape may be unnecessary for a simple electrical insulation application where low friction or release properties are not needed.
A systematic selection process can reduce application failures.
Identify:
Normal temperature
Maximum continuous temperature
Short-term peak temperature
Thermal cycling conditions
Select a tape construction with an appropriate thermal margin.
Consider:
Voltage
Frequency
Dielectric requirements
Clearance
Creepage
Humidity
Contamination
Surface tracking
Do not rely solely on nominal dielectric strength.
Evaluate:
Tensile stress
Vibration
Abrasion
Bending
Compression
Impact
Installation tension
Fiberglass is particularly attractive where mechanical reinforcement is important.
Determine whether the tape will bond to:
Metal
Plastic
Fiberglass
Polymer film
Painted surfaces
Electrical insulation
Wire coating
Conduct adhesion testing where necessary.
Identify all chemicals that may contact the tape.
Test the complete tape construction if exposure is significant.
Balance:
Electrical insulation
Mechanical protection
Flexibility
Space
Weight
Wrapping efficiency
Choose silicone, acrylic, rubber, or another system based on:
Temperature
Adhesion
Aging
Flexibility
Chemical exposure
Application process
Proper application is essential for electrical insulation performance.
The surface should generally be:
Clean
Dry
Free from oil
Free from dust
Free from loose particles
The tape should be applied with controlled tension.
Avoid:
Excessive stretching
Wrinkles
Air pockets
Loose edges
Contaminated surfaces
Sharp mechanical damage
Uncontrolled overlap
When multiple layers are used, maintain consistent overlap and wrapping tension.
For high-reliability electrical systems, application procedures should be standardized.
Storage conditions can influence adhesive performance.
A suitable storage environment generally avoids:
Excessive heat
Direct sunlight
High humidity
Dust
Chemical contamination
Extreme temperature changes
One documented electrical fiberglass tape recommends storage at approximately 20°C and 50–60% relative humidity and specifies a six-month storage period.
Actual storage requirements should always follow the applicable technical data sheet.
Possible causes include:
Dirty surface
Moisture
Low application pressure
Incompatible substrate
Excessive temperature
Incorrect adhesive system
Aging
Possible causes include:
Insufficient pressure
Surface contamination
Excessive curvature
Incorrect tape width
Adhesive incompatibility
Possible causes include:
Excessive tension
Poor wrapping technique
Irregular surface
Incorrect tape width
Possible causes include:
Excessive tension
Sharp edges
Mechanical damage
Incorrect tape thickness
Poor handling
Possible causes include:
Insufficient overlap
Incorrect thickness
Electrical overstress
Moisture
Surface contamination
Thermal degradation
Mechanical damage
Quality control should evaluate the entire tape construction.
Typical inspection areas include:
Backing thickness
Total thickness
Width
Roll length
Tensile strength
Elongation
Adhesion
Dielectric strength
Thermal resistance
Surface appearance
Edge quality
Winding quality
Adhesive coating uniformity
For specialized electrical applications, additional testing may include:
Humidity aging
Thermal aging
Flammability
Tracking resistance
Chemical resistance
Cold resistance
Long-term adhesion
The actual test program should be based on the intended application.
The production of fiber adhesive tape generally involves several stages.
First, the fiber backing is prepared.
The backing may be:
Woven
Laminated
Coated
Treated
Calendered
Surface modified
The adhesive is then formulated and coated onto the backing.
Coating uniformity is critical because variations can influence:
Adhesion
Thickness
Dielectric performance
Handling
Thermal performance
After coating, the tape may undergo drying, curing, lamination, slitting, inspection, and packaging.
Precision slitting is important for electrical insulation applications because uneven edges can make wrapping difficult.
Electrical insulation tapes may be exposed to different environments.
These can include:
Indoor industrial environments
Outdoor equipment
High humidity
High temperature
Low temperature
Oil exposure
Chemical exposure
Dust
Vibration
A tape that performs well in a laboratory may behave differently under combined environmental stresses.
Therefore, application-specific validation is important for high-reliability systems.
Fiber adhesive tape provides a useful balance of electrical, thermal, and mechanical properties.
Its key advantages include:
The fiber backing provides reinforcement and resistance to tearing.
High-temperature adhesive systems can enable use in demanding thermal environments.
Appropriately engineered tape constructions can provide dielectric isolation.
Glass fiber limits excessive stretching and shrinkage.
The fiber structure can protect wires and insulation from mechanical wear.
The adhesive secures insulation materials during manufacturing and service.
Different backing, adhesive, thickness, and width combinations allow the tape to be adapted to different electrical systems.
Despite its advantages, fiber adhesive tape is not suitable for every application.
Potential limitations include:
Lower flexibility than some polymer tapes
Lower elongation
Possible edge fraying in untreated constructions
Adhesive temperature limitations
Potential difficulty wrapping very small radii
Higher material cost than general-purpose tapes
Need for controlled application tension
The correct selection depends on the balance between electrical, thermal, mechanical, and environmental requirements.
Fiber adhesive tape for electrical insulation is a pressure-sensitive tape using a fiber-based backing and an electrical-grade adhesive to provide electrical isolation, mechanical reinforcement, thermal resistance, and component positioning.
Yes, appropriately engineered fiberglass adhesive tape can be used as an electrical insulation material. Its actual dielectric performance depends on the backing, adhesive, thickness, manufacturing process, and test conditions.
Some fiberglass Adhesive Tapes are designed for high-temperature electrical applications. Silicone adhesive constructions can provide particularly high thermal resistance, with documented examples around 180°C to 200°C depending on construction.
Silicone adhesive is commonly selected for high-temperature electrical insulation because it can provide strong thermal performance. The appropriate adhesive still depends on the application and required certification.
Yes. It can be used for wire harness protection, bundling, reinforcement, abrasion protection, and insulation support when the tape construction is compatible with the wire insulation and operating environment.
It can replace PVC tape in some applications, but not universally. Fiberglass tape is typically stronger and more temperature-resistant, while PVC tape is generally more flexible and easier to stretch around irregular shapes.
The appropriate thickness depends on insulation requirements, voltage, mechanical stress, available space, wrapping method, and required dielectric performance. There is no universal thickness suitable for every application.
Some silicone fiberglass electrical tapes are designed and tested for flame-related requirements, but fiberglass backing alone does not guarantee flame-retardant performance. The complete tape construction and applicable certification should be checked.
Yes. Fiberglass electrical tape is used in transformer-related insulation applications, particularly where mechanical strength and thermal resistance are important.
Yes. Fiberglass adhesive tape can be used for motor coils, stator coil ends, final insulation, mechanical reinforcement, and stress relief.
Fiberglass tape may refer to a non-adhesive glass fiber fabric or tape, while fiberglass adhesive tape specifically includes an adhesive layer for bonding and positioning.
Dielectric strength is the ability of an insulating material to withstand an electrical field before breakdown occurs under specified test conditions.
Not necessarily. Thickness often influences dielectric performance, but dielectric strength also depends on material composition, defects, adhesive, manufacturing quality, moisture, test method, and construction.
Dimensional stability helps the tape maintain consistent coverage and position during thermal cycling and mechanical stress.
It should generally be stored in a clean, dry, temperature-controlled environment away from direct sunlight and contamination. Specific storage conditions should follow the tape manufacturer's technical documentation.
Fiber adhesive tape for electrical insulation is an important engineered material for applications requiring a combination of electrical isolation, mechanical strength, thermal stability, adhesion, and surface protection.
Fiberglass adhesive tape is particularly valuable because glass fiber provides strong mechanical reinforcement, excellent dimensional stability, abrasion resistance, and resistance to elevated temperatures. When combined with a suitable electrical-grade adhesive, it can become a high-performance insulation material for motors, transformers, generators, coils, wire harnesses, electrical components, and industrial equipment.
The most important point when selecting fiber adhesive tape is that the backing and adhesive must be evaluated as a complete system. A fiberglass backing does not automatically guarantee a specific temperature rating, dielectric strength, flame performance, or chemical resistance. Similarly, a high dielectric strength value does not automatically establish suitability for a particular voltage or electrical system.
A professional selection process should consider operating temperature, voltage, dielectric requirements, mechanical stress, substrate compatibility, adhesive performance, humidity, chemical exposure, thickness, width, wrapping method, aging, and relevant standards.
For regulated electrical applications, certification and test requirements should also be considered. UL's insulating tape program demonstrates that electrical tape performance may involve dielectric, mechanical, thermal, adhesion, flammability, environmental, and tracking-related properties rather than a single specification.
With appropriate material selection and application control, fiber adhesive tape can provide a durable and versatile solution for electrical insulation and mechanical reinforcement across a wide range of industrial applications.
This website uses cookies to ensure you get the best experience on our website.
WhatsApp
Phone
