Double Sided Fiberglass Adhesive Tape for high strength bonding is a reinforced pressure sensitive Adhesive Tape designed for applications where strong surface to surface bonding, dimensional stability, shear resistance, and long term holding performance are important. Unlike conventional double sided foam tape, this type of adhesive tape incorporates a fiberglass reinforcement structure that helps limit stretching and deformation during installation and service.
A typical double sided fiberglass adhesive tape construction combines a PET film carrier, bidirectional glass fiber grid reinforcement, double sided acrylic pressure sensitive adhesive, and release liners. This reinforced structure creates a thin adhesive material that can provide high tensile strength while maintaining a relatively low overall thickness.
Double sided fiberglass adhesive tape is particularly useful in industrial assembly, battery manufacturing, electronics, electrical insulation, component fixation, equipment assembly, and other applications where mechanical fasteners may be undesirable. Its double sided adhesive surface allows two components to be bonded directly to each other, while the fiberglass grid helps maintain dimensional stability.
In lithium battery and battery PACK manufacturing, double sided fiberglass adhesive tape can be considered for applications such as battery cell fixation, cooling plate bonding, insulation sheet attachment, FPC Bracket fixation, sampling wire clip attachment, foam lamination, structural component bonding, and identification label mounting.
The material is fundamentally different from single sided fiberglass adhesive tape. Single sided fiberglass tape is primarily associated with high strength wrapping, bundling, reinforcement, and circumferential fixation. Double sided fiberglass adhesive tape is instead intended for surface to surface bonding, where shear strength, low creep, dimensional stability, and reliable adhesion are important.
This article provides a comprehensive overview of double sided fiberglass adhesive tape, including its construction, working principle, advantages, specifications, lithium battery applications, industrial applications, bonding considerations, comparison with other Adhesive Tapes, processing recommendations, and selection factors.
What Is Double Sided Fiberglass Adhesive Tape?
Double sided fiberglass adhesive tape is a reinforced double sided pressure sensitive adhesive tape that uses a fiberglass grid or filament reinforcement layer to improve tensile strength and dimensional stability.
The reinforcement is generally integrated into the carrier structure rather than simply being added as an external surface layer. A representative construction consists of:
PET film carrier
Bidirectional glass fiber grid
Double sided acrylic pressure sensitive adhesive
Glassine release liner
This construction provides a balance between flexibility, thickness control, tensile strength, adhesive performance, and dimensional stability.
The term double sided fiberglass adhesive tape can refer to reinforced double sided tape constructions in which glass fiber or fiberglass is used to reduce elongation and improve mechanical stability. Depending on the manufacturer and application, reinforcement architecture, adhesive formulation, carrier material, thickness, and release liner may vary.
For demanding industrial bonding applications, the fiberglass reinforcement is particularly useful because ordinary unsupported adhesive films can stretch under tension. Excessive stretching may affect positioning accuracy, bond geometry, or long term dimensional stability.
The fiberglass grid provides an internal structural framework that helps the tape resist deformation. This makes reinforced double sided adhesive tape especially useful when components must remain accurately positioned after installation.
Construction of Double Sided Fiberglass Adhesive Tape
PET, or polyethylene terephthalate, can serve as the film carrier within the tape construction. PET provides a thin, stable base for the fiberglass reinforcement and adhesive layers.
The carrier contributes to:
Dimensional stability
Handling strength
Thickness control
Surface uniformity
Processing consistency
Resistance to stretching during application
A PET carrier is particularly useful when the finished tape must remain thin while providing a stable base for adhesive and reinforcement structures.

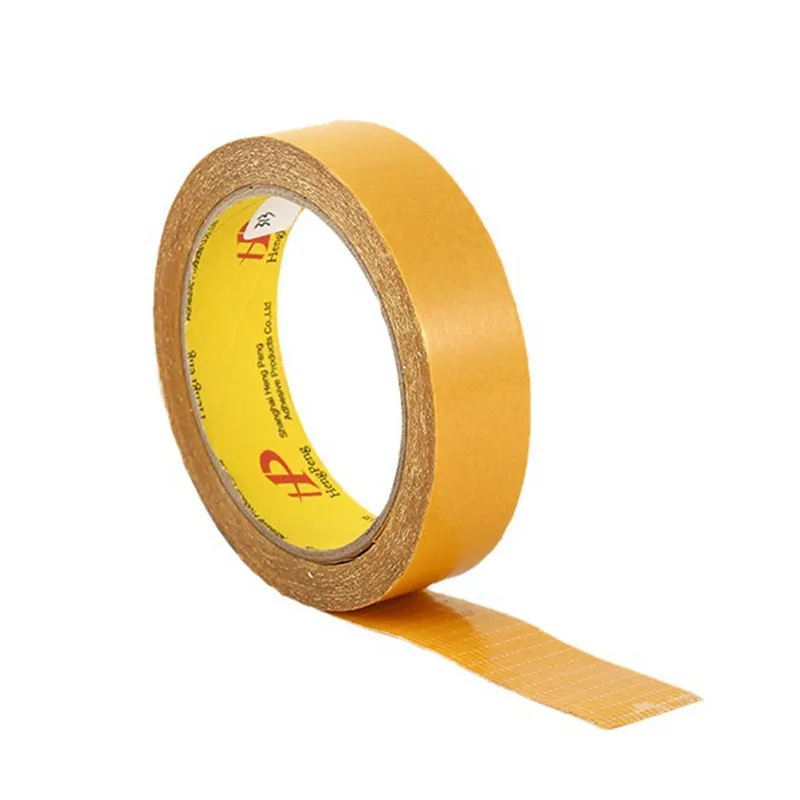

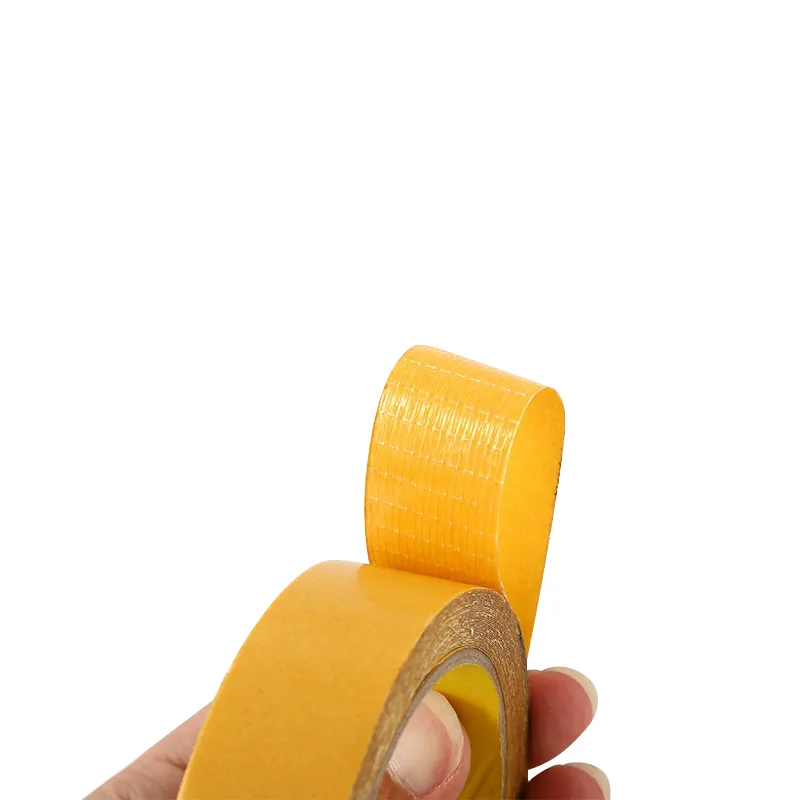

The fiberglass grid is one of the most important structural elements of the tape.
The reinforcement generally consists of glass fibers arranged in two directions, creating a grid-like structure. The warp and weft reinforcement helps resist tensile deformation and contributes to the tape's dimensional stability.
The reference specification describes a PET plus bidirectional glass fiber grid structure and identifies tensile strength in the range of approximately 400–1000 N/25 mm, depending on construction.
Because glass fibers have high tensile strength and low elongation, the reinforcement can help reduce stretching during installation and long term use.
The adhesive system is applied to both sides of the reinforced carrier.
Acrylic pressure sensitive adhesive is commonly considered for lithium battery and battery PACK applications where long term adhesion, temperature resistance, aging resistance, and dimensional stability are important.
The adhesive allows the tape to bond two surfaces without screws, rivets, clamps, or other mechanical fasteners.
Adhesive formulation can be selected according to:
Substrate type
Surface energy
Temperature
Required bond strength
Shear load
Aging conditions
Environmental exposure
Application speed
Removal requirements
For battery applications, compatibility with aluminum housings, battery blue film, Insulation Materials, FPC components, and other substrates should be evaluated before production use.
A release liner protects the adhesive surfaces before application.
Glassine release paper is one possible liner construction. The liner prevents premature adhesion during storage, slitting, die cutting, transportation, and assembly.
During installation, the liner is removed and the exposed adhesive surface is applied to the intended substrate.
For double sided tape, liners can also make it possible to manufacture adhesive backed foam pads, insulation components, labels, and other pre-laminated parts.
How Double Sided Fiberglass Adhesive Tape Works
The bonding process involves several stages.
First, the tape is converted into the required width, strip, sheet, roll, or die cut shape. The release liner protects the adhesive until use.
Second, the liner is removed from one side.
Third, the exposed adhesive is applied to the first substrate. Appropriate pressure helps bring the adhesive into close contact with the surface.
Finally, the second release liner is removed and the second component is positioned against the exposed adhesive.
The result is a surface to surface adhesive joint.
The fiberglass reinforcement does not replace the adhesive. Instead, it provides mechanical reinforcement within the tape structure. The adhesive provides bonding, while the fiberglass grid contributes tensile strength and dimensional stability.
This distinction is important when selecting reinforced double sided adhesive tape.
A tape can have high tensile strength without necessarily having the highest possible peel adhesion. Conversely, a highly aggressive adhesive may not provide sufficient dimensional stability if the carrier stretches excessively.
A well designed double sided fiberglass adhesive tape therefore combines:
Adhesive bonding + fiberglass reinforcement + controlled thickness + dimensional stability.
Main Advantages of Double Sided Fiberglass Adhesive Tape
One of the primary benefits of fiberglass reinforced adhesive tape is its high tensile strength.
The fiberglass grid provides mechanical reinforcement that helps the tape resist stretching. The reference material specifies approximately 400–1000 N/25 mm tensile strength depending on construction.
This makes reinforced tape suitable for applications where ordinary thin double sided adhesive film may deform under tension.
Fiberglass reinforcement can significantly reduce tape elongation.
Low elongation is useful when components need accurate positioning or when the tape must maintain its dimensions during installation.
This is especially valuable for:
Battery module components
Electronic components
FPC brackets
Insulation materials
Structural pads
Equipment components
Thin protective parts
Dimensional stability is important when adhesive tape is used as a structural attachment material.
A tape that stretches excessively can change the position of the bonded component. The glass fiber grid helps limit this movement.
The reference material specifically identifies the reinforced tape as having excellent dimensional stability and low creep compared with foam based double sided tape.
Double sided fiberglass adhesive tape is designed for surface to surface fixation. Therefore, shear resistance is an important consideration.
Shear loads occur when two bonded components tend to slide relative to one another.
Examples include:
Battery cell movement
Bracket movement
FPC component movement
Vibration
Thermal expansion
Equipment vibration
The reinforced construction helps maintain dimensional integrity while the adhesive layer provides the actual surface bonding.
Typical total thicknesses in the reference material include:
0.15 mm
0.18 mm
0.20 mm
0.25 mm
A thickness range of approximately 0.18–0.20 mm is identified as commonly considered for battery PACK applications.
Compared with double sided foam tape, reinforced fiberglass adhesive tape can provide strong bonding without requiring a thick foam carrier.
Double sided fiberglass adhesive tape is easy to integrate into manual and automated assembly processes.
The basic process is:
Position the tape.
Remove the release liner.
Apply the tape.
Press the tape against the substrate.
Remove the second liner.
Attach the second component.
This can simplify assembly and reduce the need for mechanical fasteners.
Double Sided Fiberglass Adhesive Tape for Lithium Battery Manufacturing
Lithium battery manufacturing is one of the important application areas for reinforced double sided adhesive materials.
Battery PACK assemblies contain numerous components that must be positioned accurately while remaining thin, lightweight, and mechanically stable.
Double sided fiberglass adhesive tape can provide an adhesive attachment method for selected components.
Double sided fiberglass adhesive tape can be applied to the bottom or side of cylindrical or prismatic battery cells to help secure them to cooling plates or thermal conductive pads.
The tape can provide:
Surface fixation
Vibration resistance
Controlled bonding
Limited gap compensation
Thin profile
The reference material identifies cell to thermal pad and cooling plate bonding as a typical battery application.
The actual thermal management design must be evaluated separately. Adhesive tape should not automatically be considered a substitute for a dedicated thermal interface material.
Flexible printed circuit components are commonly used in battery module systems.
Double sided fiberglass adhesive tape can be used to attach suitable FPC brackets and related components to module structures.
The tape provides a thin attachment method while helping maintain component positioning.
Battery modules may contain sampling wires and related clips.
Where appropriate, reinforced double sided adhesive tape can be used to secure clips or small structural components to module housings.
This can reduce reliance on screws or rivets for selected secondary components.
Insulation materials can also be laminated with double sided fiberglass adhesive tape.
Potential materials include:
PC film
Electrical insulation paper
Insulation sheets
EVA foam
Other compatible polymer components
The reference material describes pre-laminated adhesive backed structural pads as a practical production approach.
Double sided adhesive tape can also be used to attach identification labels, traceability QR codes, and other marking components.
The reference document specifically identifies aluminum battery housings and module enclosures as possible application surfaces.
Battery PACK Applications
Battery PACK assemblies require numerous components to be installed in limited spaces.
This creates several challenges:
Limited installation space
Vibration
Temperature cycling
Dimensional constraints
Weight reduction
Electrical insulation requirements
Assembly efficiency
A thin reinforced adhesive tape can address some of these mechanical assembly requirements.
However, tape selection should always consider the actual load and environmental conditions.
Important factors include:
Static load
Dynamic load
Shear force
Peel force
Temperature
Humidity
Vibration
Surface condition
Bonding pressure
Dwell time
Expected service life
The source material recommends evaluating battery tape under actual operating conditions, including temperature cycling, vibration, humidity, electrolyte exposure, surface energy, bonding pressure, dwell time, and service life.
Key Specifications
The following specifications summarize the representative values provided in the source material.
| Specification | Typical Range or Description |
|---|---|
| Carrier | PET film |
| Reinforcement | Bidirectional glass fiber grid |
| Adhesive | Double sided acrylic pressure sensitive adhesive |
| Total Thickness | 0.15 / 0.18 / 0.20 / 0.25 mm |
| Common Battery Thickness | 0.18–0.20 mm |
| Tensile Strength | ≥400–1000 N/25 mm |
| Elongation | Very low |
| Long Term Temperature | Approximately -40°C to +120°C |
| Short Term Temperature | Approximately 150°C |
| Automotive Requirement | Approximately -40°C to +130°C |
| Flame Retardancy | UL 94 V-0 grades may be specified |
| Dielectric Strength | Typically ≥3–5 kV |
| Slit Width | 5–50 mm |
| Narrow Structural Width | 6–12 mm |
| Larger Bonding Width | 18–25 mm |
| Die Cutting | Circles, strips, pads and custom shapes |
| Liner | Glassine release liner or comparable release liner |
| Adhesive Construction | Double sided |
| Main Mechanical Advantage | High tensile strength and low creep |
These values are representative rather than universal specifications. Actual performance depends on the tape construction, adhesive formulation, reinforcement architecture, test method, substrate, temperature, and application conditions.
Thickness Selection
Thickness is one of the most important parameters when selecting double sided fiberglass adhesive tape.
A thinner 0.15 mm construction can be considered when:
Installation space is limited
Low profile is important
Components have relatively smooth surfaces
Minimal additional thickness is desired
0.18 mm is identified in the reference material as one of the commonly considered thicknesses for battery PACK applications.
It can provide a balance between thickness, reinforcement, and bonding performance.
A 0.20 mm tape provides a slightly greater material thickness and may be considered where additional adhesive or structural support is desirable.
A 0.25 mm construction may be selected when greater thickness is acceptable and the application requires additional adhesive construction or mechanical support.
Thickness selection should not be based solely on tensile strength. The actual bond geometry, substrate flatness, load direction, temperature, and required service life should also be considered.
Width Selection
The reference material identifies available slit widths of approximately 5–50 mm.
Different widths can be used for different applications.
Suitable for narrow components, clips, wires, small brackets, and compact structural attachment areas.
Suitable for medium size bonding surfaces and component fixation.
The reference material identifies 18–25 mm as common for larger bonding surfaces or die cut adhesive sheets.
Wider tape can be useful for larger surfaces, insulation sheets, foam lamination, or applications requiring greater bonding area.
Die Cut Double Sided Fiberglass Adhesive Tape
Double sided fiberglass adhesive tape can be converted into custom shapes.
Possible die cut formats include:
Round discs
Rectangular pads
Strips
Rings
Tabs
Irregular shapes
Component specific adhesive pads
Die cutting can improve assembly efficiency because operators can receive pre-shaped adhesive components instead of manually cutting tape.
For battery PACK manufacturing, die cut adhesive components can be designed around:
Brackets
Insulation sheets
Wire clips
Housing features
Cooling components
FPC components
The source material specifically notes that circles, strips, pads, and custom shapes can be produced.
Acrylic Adhesive System
The adhesive is a critical part of double sided fiberglass adhesive tape.
The reinforcement provides mechanical strength, but the adhesive determines how the tape bonds to the substrate.
Acrylic pressure sensitive adhesives are commonly considered for applications requiring:
Long term adhesion
Temperature resistance
Aging resistance
Dimensional stability
Compatibility with industrial substrates
The source material states that acrylic pressure sensitive adhesive is commonly considered for lithium battery and battery PACK applications where long term bonding and temperature performance are required.
Low VOC formulations may be preferred in applications where:
Clean production is important
Emissions must be controlled
Indoor production environments are used
Battery manufacturing cleanliness is important
Process compatibility is a concern
The source material notes that low VOC adhesive systems may be preferred where emissions, cleanliness, or process compatibility are important.
Surface Compatibility
Adhesive tape performance depends strongly on the substrate.
Potential substrates include:
Aluminum
PET
PC
Electrical insulation paper
FPC components
Polymer films
EVA foam
Battery blue film
Painted surfaces
Metal housings
However, not every adhesive formulation is compatible with every substrate.
Surface energy, roughness, cleanliness, contamination, moisture, and temperature can influence bond performance.
For battery manufacturing, compatibility with battery blue film, aluminum housings, insulation materials, FPC components, and other substrates should be evaluated before production.
Surface Preparation
Good surface preparation can improve adhesive performance.
Before applying double sided fiberglass adhesive tape, the surface should generally be:
Clean
Dry
Free from dust
Free from oil
Free from grease
Free from loose particles
Contaminated surfaces may reduce effective contact between the adhesive and substrate.
A clean surface also helps improve process consistency.
For production applications, surface preparation should be standardized rather than left entirely to individual operators.
Bonding Pressure
Pressure can improve contact between the adhesive and substrate.
When tape is applied, sufficient pressure should be used to ensure that the adhesive contacts the available surface area.
The appropriate pressure depends on:
Adhesive formulation
Substrate hardness
Surface roughness
Tape thickness
Application speed
Production equipment
The reference material identifies bonding pressure as one of the actual production conditions that should be evaluated for lithium battery applications.
Dwell Time
Pressure sensitive adhesive performance can change after application.
The adhesive may continue to establish contact with the substrate after initial application.
Therefore, dwell time can be an important factor in production testing.
For critical applications, engineers should evaluate:
Initial adhesion
Adhesion after short dwell
Adhesion after extended dwell
High temperature adhesion
Low temperature adhesion
Aging adhesion
The actual dwell time requirement depends on the adhesive system and application.
Temperature Resistance
Temperature resistance is an important consideration for industrial adhesive tape.
The reference construction identifies approximately:
-40°C to +120°C for long term use
Up to approximately 150°C for short term exposure
Approximately -40°C to +130°C for certain automotive requirements
These values depend on adhesive construction and should not be interpreted as universal limits.
Temperature testing should consider both the tape and adhesive.
A carrier may withstand a certain temperature while the adhesive has a lower practical operating limit.
Therefore, the usable temperature range is determined by the complete tape construction rather than the fiberglass reinforcement alone.
Flame Retardancy
Certain battery and energy storage applications may require flame retardant adhesive materials.
The reference material identifies UL 94 V-0 grades as a specification that may be required for certain power battery and energy storage applications.
Flame retardancy requirements should be determined by the final product design and applicable safety requirements.
A tape should not be described as flame retardant merely because fiberglass is present. The complete tape construction and applicable test results must support the relevant claim.
Electrical Insulation
Double sided fiberglass adhesive tape can provide electrical insulation characteristics depending on its construction.
The reference specification identifies dielectric strength of approximately 3–5 kV or higher, depending on construction and testing conditions.
However, dielectric strength should always be distinguished from complete electrical insulation system performance.
For battery systems, insulation design may require consideration of:
Voltage
Creepage distance
Clearance
Surface contamination
Temperature
Humidity
Mechanical movement
Aging
Substrate characteristics
Therefore, the tape should be evaluated as part of the complete electrical insulation design.
Double Sided Fiberglass Adhesive Tape vs Double Sided Foam Tape
Double sided fiberglass adhesive tape and double sided foam tape are both used for bonding, but their structures and mechanical behavior are different.
The reference material compares the two materials in terms of function, tensile strength, creep resistance, temperature resistance, thickness, dimensional stability, cushioning, and battery applications.
| Property | Double Sided Fiberglass Adhesive Tape | Double Sided Foam Tape |
|---|---|---|
| Carrier | PET and fiberglass grid | Foam |
| Main Function | Structural bonding and fixation | Cushioning and bonding |
| Thickness | Approximately 0.15–0.25 mm | Approximately 0.4–2 mm |
| Tensile Stability | High | Moderate |
| Creep Resistance | High | Lower under continuous load |
| Cushioning | Limited | Excellent |
| Gap Filling | Limited | Good |
| Shear Resistance | High | Depends on construction |
| Dimensional Stability | Excellent | Moderate |
| Typical Battery Use | Structural fixation | Cushioning and gap compensation |
Foam tape may be more appropriate when the primary requirement is cushioning or gap filling.
The fiberglass reinforced tape is more appropriate when the primary requirement is thin structural attachment and dimensional stability.
Double Sided Fiberglass Adhesive Tape vs Single Sided Fiberglass Tape
The difference between these two products is fundamental.
Single sided fiberglass tape generally has:
Fiberglass reinforcement
Adhesive on one side
High tensile strength
Wrapping capability
It is commonly used for:
Bundling
Wrapping
Reinforcement
Circumferential fixation
Double sided fiberglass adhesive tape has:
Fiberglass reinforcement
Adhesive on both sides
Release liner
Surface to surface bonding capability
It is commonly considered for:
Component fixation
Structural attachment
Insulation sheet bonding
Cooling plate fixation
FPC bracket fixation
The reference material emphasizes that the two constructions are not directly interchangeable.
Comparison of Three Common Adhesive Tape Types
| Feature | Double Sided Fiberglass Adhesive Tape | Double Sided Foam Tape | Single Sided Fiberglass Adhesive Tape |
|---|---|---|---|
| Adhesive Sides | Two | Two | One |
| Reinforcement | Glass fiber grid | Foam carrier | Fiberglass |
| Main Purpose | Structural bonding | Cushioning and bonding | Wrapping and reinforcement |
| Tensile Strength | High | Moderate | Very high |
| Creep Resistance | High | Lower | High |
| Dimensional Stability | Excellent | Moderate | Excellent |
| Cushioning | Limited | Excellent | Limited |
| Typical Thickness | 0.15–0.25 mm | 0.4–2 mm | 0.13–0.20 mm |
| Battery Application | Cell fixation and component bonding | Cushioning and gap filling | Module wrapping |
| Surface Bonding | Excellent | Excellent | Limited |
| Wrapping | Not primary use | Not primary use | Excellent |
Industrial Applications
Although lithium battery manufacturing is an important application area, double sided fiberglass adhesive tape can also be used across various industrial sectors.
Electronic assemblies often require thin adhesive attachment methods.
Potential applications include:
Component fixation
Insulation sheet attachment
FPC support
Small bracket bonding
Protective film attachment
Label mounting
The thin structure can help reduce additional assembly thickness.
Electrical equipment can use reinforced adhesive tape for selected component attachment and insulation applications.
Potential uses include:
Electrical component fixation
Insulation sheet attachment
Wire management
Protective component bonding
Equipment assembly
Electrical performance should be verified according to the voltage and environmental requirements of the application.
Automotive assemblies can experience:
Vibration
Temperature cycling
Humidity
Mechanical movement
Long service periods
A reinforced double sided adhesive tape can be considered when a thin and mechanically stable bonding method is needed.
Automotive requirements may include temperature performance around -40°C to +130°C, according to the representative battery specification in the source material.
Industrial equipment often contains brackets, protective components, labels, insulation sheets, and other secondary parts that need to be securely positioned.
Double sided fiberglass adhesive tape can simplify assembly by reducing dependence on mechanical fasteners.
Advantages in Automated Manufacturing
Double sided fiberglass adhesive tape can be supplied in rolls or converted into die cut parts.
This supports automated and semi-automated production processes.
Potential advantages include:
Consistent dimensions
Rapid installation
Reduced manual cutting
Reduced mechanical fasteners
Lower assembly complexity
Clean appearance
Repeatable placement
Easy integration with die cutting
Pre-cut adhesive components can be especially useful in high volume manufacturing.
Operators can simply position the component and remove the release liner.
Pre Laminated Adhesive Components
Another useful manufacturing method is to laminate adhesive tape to insulation or cushioning materials before final assembly.
For example:
EVA foam + double sided fiberglass adhesive tape
can become an adhesive backed structural pad.
Similarly:
Insulation sheet + double sided fiberglass adhesive tape
can become a ready to install insulation component.
The source material specifically identifies EVA foam and insulation paper lamination as a typical application.
This approach can reduce assembly steps.
Vibration Resistance
Battery and industrial equipment may experience vibration during transportation or operation.
Adhesive bonding can help distribute load across a relatively large surface area instead of concentrating load at individual screws or rivets.
The fiberglass reinforcement helps the tape maintain dimensional stability.
In battery applications, the reference material identifies vibration resistance as one of the benefits of cell to thermal pad or cooling plate bonding.
Actual vibration performance should be verified through application specific testing.
Creep Resistance
Creep refers to gradual deformation under sustained load.
For structural adhesive applications, excessive creep can result in component movement.
Fiberglass reinforcement helps reduce stretching and contributes to dimensional stability.
This is one reason reinforced double sided tape can be preferable to conventional foam tape for applications where long term dimensional control is important.
The source material describes the fiberglass grid as providing high tensile strength and very low creep, while foam carriers can compress and gradually creep under continuous load.
Chemical and Environmental Considerations
Adhesive tape performance can change depending on environmental conditions.
Important factors include:
Temperature
Humidity
Chemical exposure
Electrolyte exposure
UV exposure
Surface contamination
Mechanical vibration
Aging
For lithium battery applications, electrolyte exposure is particularly important when the tape is located near battery components.
The reference material specifically recommends evaluating electrolyte exposure as part of actual battery application testing.
Storage and Handling Considerations
Proper storage helps maintain adhesive tape performance.
General considerations include:
Keep the tape in its original packaging
Protect the adhesive from contamination
Avoid excessive humidity
Avoid unnecessary exposure to high temperatures
Protect rolls from deformation
Keep release liners intact before use
Avoid contact with dust and oil
The actual storage conditions should follow the technical requirements of the selected adhesive formulation.
Selecting the Right Double Sided Fiberglass Adhesive Tape
When selecting a product, buyers and engineers should consider more than tape thickness.
Important selection parameters include:
Check whether the tape uses PET, fiberglass grid, or another reinforcement structure.
The reinforcement architecture affects tensile strength, elongation, flexibility, and dimensional stability.
Select according to installation clearance and required bonding construction.
Acrylic pressure sensitive adhesive is commonly considered for demanding battery applications.
Higher tensile strength may be useful when the tape experiences pulling forces.
Shear resistance is particularly important for surface to surface structural bonding.
Evaluate both continuous and short term temperature exposure.
For electrical applications, verify dielectric strength and complete insulation requirements.
Where required, verify relevant flame retardancy performance.
Test adhesion to the actual production materials.
Low VOC constructions may be preferred in cleanliness sensitive manufacturing environments.
Long term adhesion should be evaluated under expected operating conditions.
These selection factors are consistent with the source document's recommendation to consider carrier construction, glass fiber density, thickness, adhesive type, tensile strength, shear strength, temperature resistance, dielectric strength, flame retardancy, VOC performance, substrate compatibility, and aging behavior.
Common Width and Format Options
Double sided fiberglass adhesive tape can be converted into various formats.
| Format | Typical Use |
|---|---|
| Narrow Roll | Small brackets and clips |
| Standard Roll | General industrial bonding |
| Wide Roll | Large surface bonding |
| Strip | Linear structural fixation |
| Die Cut Circle | Small component fixation |
| Die Cut Pad | Bracket or insulation attachment |
| Custom Shape | Application specific assembly |
| Adhesive Sheet | Larger surface lamination |
The reference material identifies 5–50 mm slit widths and die cut circles, strips, pads, and custom shapes.
Common Questions About Double Sided Fiberglass Adhesive Tape
Its fiberglass reinforcement can provide substantially better tensile and dimensional stability than an unsupported adhesive film. However, actual bonding strength depends on adhesive formulation, substrate, surface preparation, temperature, and loading conditions.
It can be considered for selected lithium battery and battery PACK applications, including cell fixation, cooling plate bonding, insulation sheet attachment, FPC bracket fixation, and other structural component attachment.
It can provide electrical insulation characteristics depending on construction, with representative dielectric strength of approximately 3–5 kV or higher in the source specification.
However, the tape should not automatically be treated as the complete primary insulation system.
Neither material is universally better.
Fiberglass reinforced tape is generally more suitable for thin structural bonding, high dimensional stability, and low creep.
Foam tape is generally more suitable when cushioning, compression, and gap filling are important.
It can provide an alternative fastening method for suitable components and load conditions. The source material specifically describes it as an alternative to screws and rivets where appropriate.
It should not automatically replace mechanical fasteners in every structural application.
Yes. The source material identifies die cut circles, strips, pads, and custom shapes as possible formats.
Double sided acrylic pressure sensitive adhesive is commonly considered for lithium battery and battery PACK applications.
Quality Evaluation and Testing
For demanding industrial applications, adhesive tape should be evaluated under actual conditions rather than relying only on nominal specifications.
A practical test program may include:
Peel adhesion testing
Shear adhesion testing
Tensile testing
Elongation testing
Dielectric strength testing
Temperature aging
Humidity aging
Vibration testing
Temperature cycling
Chemical exposure
Electrolyte exposure
Substrate compatibility
Residue evaluation
Dimensional stability testing
Testing should use the actual substrate materials and production conditions whenever possible.
This is particularly important for lithium battery applications because battery assemblies may combine aluminum, polymer films, insulation materials, FPC components, adhesives, cooling components, and other materials.
Production Process Considerations
A typical application process may include:
Surface cleaning → Tape positioning → First liner removal → Tape application → Pressure application → Second liner removal → Component placement → Final bonding
For automated production, additional steps may include:
Roll feeding → Slitting → Die cutting → Liner separation → Robotic placement → Pressure application → Inspection
Process control can help maintain:
Bonding position
Tape dimensions
Applied pressure
Surface cleanliness
Application speed
Bonding time
Consistent processing is especially important when the tape is used in high volume battery PACK production.
Why Fiberglass Reinforcement Matters
The fiberglass reinforcement is the defining mechanical feature of this tape construction.
Without reinforcement, thin adhesive films can stretch when pulled.
With a bidirectional fiberglass grid, tensile forces can be distributed through the reinforcement structure.
This provides several benefits:
Reduced elongation
Better dimensional stability
Higher tensile strength
Improved resistance to deformation
Better positioning stability
This is particularly useful for applications where the tape must maintain a fixed geometry after installation.
Structural Bonding vs Cushioning
It is useful to distinguish structural bonding from cushioning.
A structural bonding tape is expected to maintain component position and resist movement.
A cushioning tape is designed to accommodate movement, absorb vibration, or compensate for gaps.
Double sided fiberglass adhesive tape is generally closer to the structural bonding category.
Double sided foam tape is generally closer to the cushioning category.
The source comparison identifies limited cushioning performance for fiberglass grid tape and excellent cushioning performance for foam tape.
Therefore, product selection should begin with the required function rather than simply selecting the tape with the highest advertised adhesive strength.
Advantages for Lightweight Assembly
Replacing mechanical fasteners with adhesive tape can reduce the number of individual hardware components.
Potential assembly benefits include:
No drilling
No screw tightening
No rivet installation
Reduced hardware inventory
Lower assembly complexity
Thin bond line
Cleaner appearance
Faster component placement
For suitable secondary structural components, this can support lightweight assembly design.
Application Limitations
Despite its advantages, double sided fiberglass adhesive tape is not suitable for every application.
Potential limitations include:
Limited gap filling compared with foam tape
Adhesion depends on substrate compatibility
High temperature can affect adhesive performance
Surface contamination can reduce bonding
Heavy peel loads may require alternative designs
Long term environmental exposure must be tested
Electrical insulation requirements must be evaluated separately
Structural loads must be validated through testing
Therefore, the correct approach is to select the tape based on the actual application rather than assuming that reinforced adhesive tape is universally suitable.
Double Sided Fiberglass Adhesive Tape for High Strength Bonding
The phrase high strength bonding describes one of the main reasons fiberglass reinforcement is incorporated into double sided adhesive tape.
The combination of a pressure sensitive adhesive and fiberglass grid allows the tape to provide both:
Adhesive bonding performance
and
Mechanical reinforcement.
This makes the material particularly attractive for applications where a thin adhesive product must withstand mechanical stress while maintaining dimensional stability.
Future Development of Reinforced Adhesive Tape
The development of industrial adhesive tapes continues to focus on:
Higher bonding strength
Better temperature resistance
Lower VOC emissions
Improved flame retardancy
Better electrical insulation
Higher shear strength
Lower creep
Thinner constructions
Better die cutting
Improved automation compatibility
Longer service life
For battery applications, additional attention may be given to compatibility with new cell formats, cooling systems, insulation materials, FPC assemblies, and high volume automated manufacturing.
Conclusion
Double sided fiberglass adhesive tape for high strength bonding is a reinforced adhesive material designed for surface to surface bonding where tensile strength, shear resistance, dimensional stability, and low creep are important.
A typical construction combines a PET carrier, bidirectional glass fiber grid, double sided acrylic pressure sensitive adhesive, and release liner.
The fiberglass reinforcement helps limit stretching, while the acrylic adhesive provides surface bonding. This combination creates a thin adhesive solution for industrial assembly applications.
In lithium battery and battery PACK manufacturing, typical applications include cell to cooling plate fixation, thermal pad attachment, FPC bracket fixation, sampling wire clip attachment, insulation sheet bonding, foam lamination, structural component fixation, and identification label attachment.
Representative specifications include thicknesses of 0.15–0.25 mm, tensile strength of approximately 400–1000 N/25 mm, long term temperature performance around -40°C to +120°C, and available slit widths of approximately 5–50 mm, although actual values depend on tape construction and testing conditions.
Compared with double sided foam tape, fiberglass reinforced adhesive tape provides better dimensional stability and lower creep but less cushioning and gap filling. Compared with single sided fiberglass tape, it is designed for surface to surface bonding rather than circumferential wrapping and reinforcement.
For professional applications, tape selection should consider carrier structure, fiberglass grid construction, thickness, adhesive type, tensile strength, shear resistance, temperature range, dielectric performance, flame retardancy, VOC characteristics, substrate compatibility, environmental exposure, and long term aging.
The most suitable double sided fiberglass adhesive tape is therefore not simply the tape with the highest nominal strength. It is the tape whose construction, adhesive system, dimensions, and environmental performance match the actual bonding requirements.
This website uses cookies to ensure you get the best experience on our website.
WhatsApp
Phone
