Premium EVA Foam Cushion Sealing Gasket Material is a versatile closed-cell foam material designed for cushioning, sealing, insulation, shock absorption, gap filling, and surface protection. Made from cross-linked or semi-cross-linked ethylene vinyl acetate foam, this material combines softness, elasticity, compressibility, resilience, lightweight construction, and reliable dimensional stability. These characteristics make EVA foam an effective solution for applications where components need to be protected from vibration, impact, moisture, dust, surface contact, and mechanical stress.
EVA foam Cushion Sealing Gasket Material is widely used in battery systems, electronic equipment, electrical assemblies, automotive components, industrial machinery, appliance housings, packaging systems, lighting products, communication equipment, and precision assemblies. Depending on the required performance, EVA foam can be manufactured in different densities, hardness levels, thicknesses, surface finishes, and adhesive configurations.
A major advantage of closed-cell EVA foam is its ability to provide both cushioning and sealing functions within a relatively thin material layer. When compressed between two components, the foam can compensate for small dimensional variations and surface irregularities. This helps create a more stable contact interface while reducing vibration and preventing direct contact between assembled components.
The material can also be supplied as sheets, rolls, strips, pads, gaskets, adhesive-backed pieces, and custom die-cut components. Custom processing allows manufacturers to produce EVA cushion Sealing Gaskets according to specific drawings, dimensions, hole patterns, profiles, and assembly requirements.
For battery and electronic applications, EVA foam gasket material can be particularly useful where controlled compression, electrical isolation, cushioning, and gap management are required. Common thicknesses include 0.5 mm, 1 mm, 2 mm, 3 mm, 5 mm, 8 mm, and 10 mm, while 1–3 mm thicknesses are frequently considered for battery cell gap applications.
What Is EVA Foam Cushion Sealing Gasket Material?
EVA foam cushion sealing gasket material is a flexible foam-based sealing and cushioning material manufactured from ethylene vinyl acetate. EVA is a copolymer that combines the flexibility and toughness of polyethylene with the enhanced elasticity and softness provided by vinyl acetate content.
When EVA is processed into a closed-cell foam, the material contains numerous small, mostly isolated gas-filled cells. This cellular structure reduces material weight while providing cushioning and compressibility. The closed-cell structure can also improve resistance to moisture penetration compared with open-cell foam structures.
An EVA foam gasket can perform several functions simultaneously. It can act as a sealing interface, cushioning layer, protective spacer, vibration-reduction component, insulation layer, or gap-filling material. The actual performance depends on the EVA formulation, foam structure, density, hardness, thickness, compression level, adhesive system, temperature, and application environment.
Cross-linked EVA foam generally provides improved dimensional stability, resilience, mechanical strength, and resistance to permanent deformation compared with many lower-grade non-cross-linked foam structures. Semi-cross-linked EVA foam can provide a balance between flexibility, processability, and mechanical performance.
The term "cushion sealing gasket" describes the combined purpose of the component. Rather than functioning only as a conventional sealing gasket, the material can absorb mechanical stress and provide a soft interface between components.
This makes EVA foam cushion sealing gaskets useful for assemblies where rigid materials would create excessive point pressure, vibration, scratching, noise, or mechanical stress.
Base Material
Base Material: Cross-linked or semi-cross-linked EVA foam with a closed-cell structure.
Ethylene vinyl acetate foam is the primary material used for this type of cushion sealing gasket. The foam structure can be adjusted during manufacturing to achieve different levels of density, hardness, flexibility, resilience, and compression performance.
Cross-linked EVA foam is commonly selected when higher dimensional stability and mechanical durability are required. Cross-linking creates a more stable polymer network that can help the foam retain its shape during repeated compression and handling.
Semi-cross-linked EVA foam provides another material option where a balance between softness, processing performance, and structural stability is required. The exact properties depend on the formulation and manufacturing process.
The closed-cell structure is particularly important for sealing and cushioning applications. Compared with highly open-cell structures, closed-cell EVA foam generally offers better resistance to liquid absorption and can provide a more consistent compression response.
| Property | Typical Description |
|---|---|
| Base polymer | Ethylene vinyl acetate |
| Foam structure | Closed cell |
| Cross-linking | Cross-linked or semi-cross-linked |
| Surface | Smooth, textured, adhesive-backed, or customized |
| Flexibility | Flexible and resilient |
| Cushioning | Good impact and vibration absorption |
| Compression | Compressible with recovery |
| Processing | Die cutting, punching, slitting, strip cutting |
| Adhesive option | Single-sided or double-sided |
| Application | Sealing, cushioning, insulation, protection, spacing |
EVA Foam Hardness
EVA Hardness: 25, 38, 45, 60, 70 Shore C, and other hardness options.
Hardness is an important parameter when selecting EVA foam cushion sealing gasket material. Different hardness levels provide different compression behavior, flexibility, surface pressure, and cushioning characteristics.
Soft EVA foam is generally suitable for applications where gentle cushioning, conformability, and low compression force are important. Higher hardness EVA foam can provide improved support and resistance to compression under load.
For example, a softer EVA gasket may conform more easily to irregular surfaces and provide a comfortable cushioning interface. A harder EVA gasket may be better suited to applications requiring structural support, controlled spacing, and higher compression resistance.
The specified hardness levels of 25, 38, 45, 60, and 70 Shore C represent different material hardness options. Actual hardness measurement should be verified using the applicable testing method and material specification because hardness scales and testing conditions can affect reported values.
| EVA Hardness | General Characteristics | Typical Application Consideration |
| 25 | Very soft and flexible | Soft cushioning and surface protection |
| 38 | Soft with improved support | Electronics and light cushioning |
| 45 | Balanced softness and support | General sealing and cushioning |
| 60 | Firm and compression resistant | Structural gap filling and support |
| 70 | Harder and more supportive | High-load spacing and protection |
Hardness should not be considered independently. Density, thickness, compression ratio, cell structure, temperature, adhesive properties, and contact area also influence actual gasket performance.
EVA Foam Density
Density: Commonly 0.3–0.8 g/cm³. Higher density provides better compression resistance, while lower density offers a softer and more flexible cushioning effect.
Density is another important characteristic of EVA foam cushion sealing gasket material. It affects weight, firmness, compression behavior, resilience, mechanical strength, and overall feel.
Lower-density EVA foam generally provides a softer and lighter cushioning effect. It can be useful when the primary objective is gentle protection, light cushioning, or filling relatively low-pressure gaps.
Higher-density EVA foam generally provides greater material support and compression resistance. It may be more appropriate when the gasket must withstand higher mechanical loads or maintain a stable thickness under compression.
However, higher density does not automatically mean better performance for every application. A sealing gasket must be matched to the actual compression requirements of the assembly.
| Density Range | General Performance | Suitable Considerations |
| 0.3–0.4 g/cm³ | Lightweight and softer | Cushioning and protection |
| 0.4–0.5 g/cm³ | Balanced flexibility | General gasket applications |
| 0.5–0.6 g/cm³ | Improved support | Compression and gap filling |
| 0.6–0.7 g/cm³ | Firm and durable | Mechanical protection |
| 0.7–0.8 g/cm³ | Higher density and support | Higher compression applications |
The actual density range should be selected according to the required compression force, thickness, application temperature, environmental conditions, and expected service life.
EVA Foam Thickness
Thickness: 0.5 / 1 / 2 / 3 / 5 / 8 / 10 mm.
Thickness determines the amount of available cushioning, gap-filling capability, compression distance, and installation space required by an EVA cushion sealing gasket.
Thin EVA foam sheets such as 0.5 mm and 1 mm are useful when assembly tolerances are tight and only a small cushioning or sealing layer is required. Thicknesses of 2 mm and 3 mm are commonly considered for applications requiring greater gap filling and cushioning.
Thicker materials such as 5 mm, 8 mm, and 10 mm can provide greater compression travel and cushioning capacity, but they require sufficient installation space.
For battery cell gap applications, 1–3 mm EVA foam is frequently considered because these thicknesses can provide cushioning and spacing without consuming excessive internal space.
| Thickness | General Application |
| 0.5 mm | Thin sealing and surface protection |
| 1 mm | Compact sealing and insulation |
| 2 mm | Cushioning and battery gap management |
| 3 mm | Increased gap filling and cushioning |
| 5 mm | Larger cushioning spaces |
| 8 mm | Thick cushioning and shock absorption |
| 10 mm | High-gap cushioning applications |
Thickness tolerance should be defined according to the application. For precision assemblies, dimensional tolerances may need to be specified on the engineering drawing.
Adhesive Options
Adhesive: Single-sided adhesive available with acrylic or rubber-based pressure-sensitive adhesive. Die-cut processing is available. Double-sided adhesive is optional.
Adhesive-backed EVA foam provides a convenient method for attaching a gasket to a component before final assembly. The adhesive layer can help prevent the gasket from moving, slipping, folding, or becoming misaligned during installation.
Single-sided adhesive is commonly used when the gasket needs to remain attached to one component while the second component is assembled later.
Double-sided adhesive is useful when the EVA foam gasket must bond to two surfaces. This configuration can simplify assembly and improve positioning.
Acrylic and rubber-based pressure-sensitive adhesives offer different performance characteristics. Acrylic adhesives are often selected for applications requiring good aging and environmental resistance, while rubber-based adhesives can provide strong initial tack and good bonding to a variety of surfaces.
Adhesive selection should consider substrate type, surface energy, temperature, humidity, chemical exposure, assembly pressure, and expected service life.
| Configuration | Description | Typical Benefit |
| No adhesive | Plain EVA foam | Flexible positioning and mechanical assembly |
| Single-sided adhesive | Adhesive on one side | Easy attachment to one component |
| Double-sided adhesive | Adhesive on both sides | Convenient two-surface bonding |
| Acrylic adhesive | Acrylic pressure-sensitive adhesive | Good general environmental stability |
| Rubber adhesive | Rubber-based pressure-sensitive adhesive | Strong initial tack |
Before production, adhesive compatibility should be evaluated with the actual mating materials.
Temperature Resistance
Temperature Resistance: -40 to +80°C, with short-term resistance up to 100°C.
Temperature resistance is an important factor when EVA foam cushion sealing gaskets are used in automotive, battery, electronic, electrical, and industrial environments.
The commonly specified operating range is approximately -40 to +80°C, with short-term exposure up to approximately 100°C depending on the EVA formulation, foam density, adhesive, compression condition, and exposure duration.
Temperature can influence foam hardness, compression recovery, dimensional stability, adhesive tack, and long-term aging.
At lower temperatures, foam materials can become less flexible. At elevated temperatures, polymeric foam can gradually soften or experience changes in compression performance.
For applications involving continuous exposure to higher temperatures, silicone foam may be considered as an alternative. Silicone foam generally provides stronger high-temperature performance, although it has different mechanical, cost, processing, and bonding characteristics.
| Temperature Condition | Consideration |
| Around -40°C | Low-temperature flexibility should be evaluated |
| -20 to +60°C | Common general-purpose range |
| +60 to +80°C | Long-term performance should be verified |
| Around +80 to +100°C | Short-term exposure may be possible depending on formulation |
| Above +100°C | Alternative high-temperature foam may be required |
Temperature performance should always be validated under the actual combination of temperature, compression, adhesive, humidity, and service duration.
Compression Set and Long-Term Performance
Compression Set: Less than 10–15%, helping the material maintain its cushioning and sealing performance under long-term compression.
Compression set describes the permanent deformation that remains after a foam material has been compressed under defined test conditions and then allowed to recover.
For a cushion sealing gasket, low compression set is desirable because the material needs to maintain sufficient thickness and recovery after prolonged compression.
An EVA foam gasket with good compression recovery can continue to provide cushioning and contact pressure after extended service. If permanent deformation becomes excessive, the gasket may lose some of its sealing, cushioning, or gap-filling function.
The target compression set of less than 10–15% should be treated as a specification target rather than a universal value. Actual results depend on the foam formulation, density, hardness, compression ratio, temperature, test method, and exposure time.
| Factor | Effect on Performance |
| Density | Influences support and compression resistance |
| Hardness | Influences compression force |
| Thickness | Determines available compression travel |
| Compression ratio | Strongly affects permanent deformation |
| Temperature | Can influence recovery and aging |
| Time | Longer compression can increase deformation |
| Foam structure | Influences resilience and recovery |
| Material formulation | Determines overall mechanical performance |
For demanding applications, compression testing under actual operating conditions is recommended.
Closed Cell Structure
The closed-cell structure of EVA foam is one of the most important characteristics for cushion sealing gasket applications.
Closed-cell foam consists primarily of isolated internal cells. This structure allows the material to remain lightweight while maintaining useful cushioning and compression characteristics.
The closed-cell structure can also reduce liquid absorption compared with many open-cell materials. This makes EVA foam useful in applications where resistance to moisture and environmental exposure is required.
When compressed between two surfaces, the cells deform and help distribute pressure across the contact area. This can reduce localized stress and improve the interface between mating components.
The closed-cell structure also contributes to the foam's ability to act as a spacer. By selecting an appropriate thickness and density, manufacturers can use EVA foam to maintain a controlled distance between components.
Cushioning Performance
EVA foam is widely recognized for its cushioning characteristics. When subjected to impact or pressure, the foam can absorb part of the mechanical energy through deformation of its cellular structure.
This makes EVA cushion sealing gaskets useful for protecting delicate components from vibration, impact, contact pressure, and mechanical movement.
Cushioning performance depends on material density, hardness, thickness, compression ratio, loading speed, temperature, and geometry.
A soft and thick EVA gasket can provide substantial cushioning, while a thin and firm gasket may provide more controlled spacing and sealing.
The ideal configuration should be selected based on the actual mechanical requirements of the application rather than simply choosing the softest or thickest material.
Sealing Performance
Although EVA foam is not intended to replace every type of high-performance elastomeric seal, it can provide effective sealing and interface protection in many moderate-duty applications.
When compressed against a mating surface, the foam can fill small gaps and compensate for minor surface irregularities.
The sealing effect depends on the gasket thickness, compression ratio, surface condition, foam recovery, gasket geometry, and environmental exposure.
EVA foam cushion sealing gaskets can be used to help reduce the entry of dust, moisture, air, and contaminants in suitable applications.
For applications involving high pressure, aggressive chemicals, continuous high temperatures, or critical fluid containment, specialized sealing materials may be more appropriate.
Vibration and Shock Absorption
Mechanical vibration can cause unwanted noise, component movement, fatigue, and premature wear. EVA foam cushion sealing gaskets can help reduce the transmission of vibration between contacting components.
The foam acts as a flexible interface between rigid surfaces. Instead of allowing two components to make direct rigid contact, the gasket provides a compliant layer.
This can be particularly useful in electronic housings, battery assemblies, automotive components, electrical enclosures, industrial equipment, and appliances.
The effectiveness of vibration damping depends on the foam's hardness, density, thickness, compression level, and frequency range. Therefore, material selection should be based on the actual vibration environment when vibration control is a critical requirement.
Electrical Insulation
EVA foam can also serve as a physical insulating layer in many electrical and electronic assemblies.
The material can separate components, reduce direct contact, protect surfaces, and provide additional mechanical cushioning.
For electrical applications, insulation performance should be evaluated according to the required voltage, temperature, humidity, thickness, frequency, and applicable electrical standards.
A gasket used for mechanical protection should not automatically be considered an electrically certified insulation component. If electrical insulation is a critical safety function, the specific material grade and test requirements should be verified.
Battery Cell Gap Applications
EVA foam cushion sealing gasket material can be used in selected battery and energy storage applications where cushioning, spacing, protection, and controlled compression are required.
Battery assemblies can experience dimensional tolerances, vibration, thermal expansion, mechanical movement, and assembly pressure. A suitable foam gasket can help compensate for small dimensional differences and provide a compliant interface.
For battery cell gap applications, 1–3 mm thicknesses are commonly considered. However, the correct thickness depends on the cell configuration, available space, compression ratio, thermal conditions, and assembly design.
The foam should not interfere with required thermal management, venting, electrical isolation, or safety features.
| Parameter | Typical Consideration |
| Material | Closed-cell EVA foam |
| Thickness | Commonly 1–3 mm for selected cell gap applications |
| Hardness | Selected according to compression requirements |
| Density | Commonly selected within 0.3–0.8 g/cm³ |
| Adhesive | Single-sided or double-sided |
| Processing | Die cutting and custom punching |
| Function | Cushioning, spacing, protection, gap management |
Battery applications should always be validated through engineering and safety testing.
Automotive Applications
Automotive systems contain numerous components that require cushioning, sealing, spacing, vibration control, and surface protection.
EVA foam cushion sealing gaskets can be used in suitable interior and non-critical under-hood or enclosure applications where the material's temperature and environmental limits are appropriate.
Potential uses include electronic housings, control modules, display assemblies, interior components, cable protection interfaces, battery-related components, sensor housings, and trim interfaces.
The material can help reduce rattling and direct contact between components while providing a flexible interface.
For high-temperature engine compartment applications, material selection should be carefully reviewed because continuous high-temperature exposure may exceed the recommended EVA operating range.
Electronics and Electrical Applications
Electronic devices often contain closely packed components that require controlled spacing and protection.

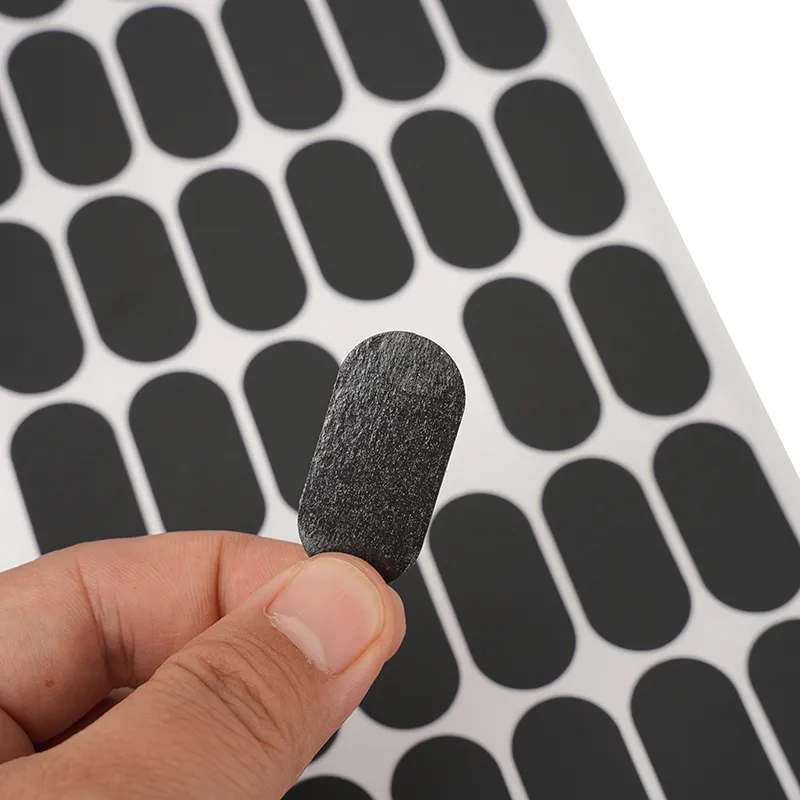

EVA foam cushion sealing gaskets can be die cut into precise shapes for electronic housings, displays, control panels, connectors, battery compartments, sensor assemblies, and other components.
The gasket can provide cushioning between rigid parts while helping prevent scratching and unwanted movement.
Adhesive-backed EVA foam can simplify assembly because the gasket can be positioned on one component before final installation.
For sensitive electronic devices, the gasket material should be selected according to the required temperature, humidity, electrical, flame, and outgassing requirements.
Industrial Applications
Industrial equipment frequently requires flexible interface materials for vibration control, sealing, spacing, and component protection.
EVA cushion sealing gaskets can be manufactured in custom shapes to match machine housings, covers, panels, mounting interfaces, and protective structures.
The material is lightweight and relatively easy to process, making it suitable for high-volume die-cut components.
Industrial applications may include control cabinets, equipment panels, machinery enclosures, automation systems, electrical boxes, instrumentation, and protective assemblies.
Appliance Applications
Household and commercial appliances can use foam gaskets to reduce vibration, prevent rattling, protect surfaces, and provide controlled spacing.
EVA foam can be used in selected appliance assemblies where operating temperatures and environmental conditions are within the material's capabilities.
Adhesive-backed foam can simplify installation and help maintain gasket positioning during assembly.
Applications can include control panels, housing interfaces, electronic modules, protective covers, display assemblies, and internal support structures.
Packaging and Product Protection
EVA foam is also widely used for product protection because it is lightweight, flexible, and capable of absorbing impact.
Custom-cut EVA pads can protect components during transportation, storage, and handling.
When used as a cushion sealing gasket, the material can provide both protective cushioning and a controlled interface between components.
This dual function can help reduce the number of separate components required in some assemblies.
Custom Die Cutting
Specifications: Custom die cutting, punching, slitting, and strip cutting are available according to customer requirements, with various shapes, sizes, and specifications available.
Die cutting is one of the most common processing methods for EVA foam gasket materials.
A custom die can produce repeatable gasket shapes from EVA foam sheets or rolls. The process is suitable for producing holes, slots, profiles, mounting openings, tabs, corners, and other geometric features.
Custom die cutting is particularly useful for electronic and battery components where the gasket must match a specific component outline.
The die-cutting process can be combined with adhesive lamination to create ready-to-install adhesive-backed gaskets.
Punching and Precision Processing
Punching can be used to produce holes and specific shapes in EVA foam.
Precision processing is important when the gasket must align with connectors, fasteners, vents, mounting holes, or other components.
The required processing tolerance depends on the final assembly. Some applications may require general dimensional tolerances, while precision electronic components may require tighter control.
Manufacturing drawings should clearly identify overall dimensions, hole sizes, thickness, adhesive side, orientation, and tolerance requirements.
Slitting and Strip Cutting
EVA foam can be supplied as narrow strips for continuous sealing, cushioning, edge protection, or spacing applications.
Slitting converts wider rolls or sheets into narrower widths according to the required specification.
Strip cutting is useful for applications where long continuous gasket sections are required rather than individual die-cut parts.
Common examples include panel interfaces, enclosure edges, protective strips, cushioning strips, and mounting surfaces.
Surface Options
EVA foam can be supplied with different surface characteristics depending on the manufacturing process and application.
Possible surface options include smooth surfaces, textured surfaces, adhesive-coated surfaces, laminated surfaces, and customized functional layers.
A smooth surface can be useful where clean contact and easy assembly are required.
A textured surface may be selected when additional friction or handling characteristics are desired.
Adhesive lamination adds a pressure-sensitive adhesive layer to one or both sides.
Surface selection should be based on the mating material, required friction, adhesive compatibility, environmental exposure, and assembly method.
Advantages of Premium EVA Foam Cushion Sealing Gasket Material
Premium EVA foam cushion sealing gasket material offers several practical advantages for industrial and commercial applications.
EVA foam has a low material weight compared with many solid rubber or plastic gasket materials. This can be valuable in portable electronics, automotive components, battery systems, and lightweight industrial assemblies.
The foam can deform under pressure and return toward its original shape, providing a flexible interface between components.
The compressible structure allows EVA foam to fill small gaps and compensate for minor dimensional variation.
The flexible foam layer can help reduce mechanical vibration and prevent direct contact between rigid surfaces.
EVA foam can help prevent scratching, impact damage, and surface-to-surface contact.
The material can be die cut, punched, slit, and cut into strips or custom shapes.
Single-sided and double-sided adhesive configurations can simplify installation.
Density, hardness, thickness, geometry, and adhesive configuration can be adjusted according to application requirements.
EVA Foam Versus Solid Rubber Gaskets
EVA foam and solid rubber gaskets are both used for sealing and cushioning, but they have different performance characteristics.
Solid rubber generally provides stronger elastomeric sealing performance in demanding fluid and pressure applications. EVA foam is often preferred when lightweight cushioning, gap filling, impact absorption, and surface protection are more important.
EVA foam is also easier to process into lightweight adhesive-backed die-cut shapes.
The best material depends on the application requirements.
| Feature | EVA Foam | Solid Rubber |
| Weight | Low | Higher |
| Cushioning | Excellent for many applications | Moderate to excellent |
| Gap filling | Good | Good |
| Flexibility | Good | Good to excellent |
| High temperature | Moderate | Material dependent |
| Processing | Easy die cutting | Depends on rubber type |
| Lightweight design | Excellent | Moderate |
| Adhesive backing | Common | Available |
EVA Foam Versus Silicone Foam
Silicone foam is generally preferred for applications requiring higher continuous temperature resistance.
EVA foam is often more economical and provides useful cushioning, sealing, and protection for moderate-temperature applications.
When the operating temperature exceeds the recommended EVA range for prolonged periods, silicone foam may be considered.
| Feature | EVA Foam | Silicone Foam |
| General temperature range | Moderate | Higher |
| High-temperature performance | Limited compared with silicone | Excellent |
| Cushioning | Good | Good |
| Flexibility | Good | Excellent |
| Cost | Generally lower | Generally higher |
| Processing | Easy | Application dependent |
| General industrial use | Wide | Specialized |
EVA Foam Versus PE Foam
Both EVA and polyethylene foam can be used for cushioning and sealing.
EVA generally provides good elasticity and flexibility, while PE foam can offer strong lightweight cushioning and chemical resistance depending on formulation.
The choice should be based on required compression recovery, hardness, density, temperature, bonding, and environmental performance.
Selecting the Correct EVA Gasket
Selecting an EVA cushion sealing gasket should begin with the actual application requirements.
The first consideration is the required function. Determine whether the gasket is primarily intended for sealing, cushioning, insulation, vibration reduction, spacing, impact protection, or a combination of these functions.
Next, determine the required thickness. The gasket should be thick enough to fill the intended gap but not so thick that it creates excessive assembly pressure.
Hardness should then be selected according to the desired compression force and support level.
Density should be evaluated together with hardness because two materials with similar hardness may have different mechanical behavior if their densities differ.
The adhesive system should be selected according to the mating surfaces and environmental conditions.
Temperature should be evaluated over the complete operating range rather than only the normal room-temperature condition.
Finally, the gasket geometry should be designed according to the assembly drawing.
Important Design Factors
Compression ratio is one of the most important design parameters. Excessive compression can increase assembly force and accelerate permanent deformation.
Insufficient compression may reduce sealing and holding performance.
Smooth, clean surfaces generally provide more predictable contact.
Dust, oil, moisture, release agents, and surface contamination can reduce adhesive and sealing performance.
A gasket that is too narrow may not provide adequate sealing or cushioning.
A gasket that is excessively wide may increase material consumption and assembly force.
Sharp corners can create stress concentrations during die cutting and installation. Rounded corners may improve handling and reduce tearing in some designs.
The adhesive layer should be positioned according to the assembly sequence. Release liners should protect the adhesive until installation.
Recommended Manufacturing Specifications
A technical specification for EVA cushion sealing gasket material can include the following parameters:
| Specification | Typical Options |
| Material | Cross-linked or semi-cross-linked EVA foam |
| Cell structure | Closed cell |
| Hardness | 25, 38, 45, 60, 70 and other options |
| Density | 0.3–0.8 g/cm³ |
| Thickness | 0.5, 1, 2, 3, 5, 8, 10 mm |
| Adhesive | None, acrylic, rubber-based |
| Adhesive side | Single-sided or double-sided |
| Temperature | Approximately -40 to +80°C |
| Short-term temperature | Up to approximately 100°C depending on formulation |
| Compression set target | Less than 10–15% under specified test conditions |
| Processing | Die cutting, punching, slitting, strip cutting |
| Shape | Custom |
| Size | Custom |
| Color | Application dependent |
| Packaging | Sheet, roll, strip, or custom parts |
The values shown are general reference ranges and should be confirmed against the actual material grade and application requirements.
Quality Control Considerations
Quality control is essential for consistent EVA cushion sealing gasket performance.
Important inspection items can include thickness, density, hardness, dimensions, adhesive properties, surface condition, compression performance, and visual appearance.
For die-cut products, dimensional inspection should verify overall length, width, hole position, cut profile, and edge quality.
For adhesive-backed products, adhesive coverage should be checked to ensure the required area is properly coated.
Material identification and batch control are also important for industrial production because EVA foam performance can vary between material grades.
| Inspection Item | Purpose |
| Thickness | Verify dimensional consistency |
| Density | Control material structure |
| Hardness | Confirm compression characteristics |
| Dimensions | Ensure assembly compatibility |
| Adhesive coverage | Verify bonding area |
| Surface quality | Identify defects |
| Compression performance | Evaluate long-term cushioning |
| Temperature performance | Confirm application suitability |
Storage and Handling
EVA foam gasket materials should be stored in a clean, dry environment away from excessive heat, direct sunlight, moisture, and contamination.
Adhesive-backed materials should remain protected by their release liner until installation.
Excessive pressure during storage can deform foam components, particularly soft and thin materials.
Roll materials should be stored according to the manufacturer's recommended orientation to reduce unnecessary deformation.
Before assembly, surfaces should be clean and free from dust, oil, grease, moisture, and other contaminants.
Proper storage helps maintain the dimensional stability and adhesive performance of the finished gasket.
Installation Guidelines
Before installation, verify the gasket dimensions, adhesive side, orientation, and mating surface.
Clean the bonding surface if adhesive attachment is required.
Remove the release liner carefully without touching the adhesive excessively.
Position the gasket accurately before applying final pressure.
Avoid stretching the gasket during installation unless the design specifically allows it.
Apply sufficient pressure to establish consistent contact between the gasket and the mating surface.
For critical applications, conduct assembly validation to confirm that the gasket provides the required cushioning, sealing, and positioning performance.
Common Applications
Premium EVA Foam Cushion Sealing Gasket Material can be used in many industries and assemblies.
Battery cell cushioning
Battery module gap filling
Battery pack component protection
Energy storage enclosure interfaces
Battery insulation support
Cell spacing applications
Electronic housing gaskets
Display cushioning
Camera module protection
Sensor cushioning
Connector protection
Electronic enclosure sealing
Automotive electronic housings
Interior component cushioning
Control module protection
Cable interface protection
Sensor housing interfaces
Battery-related cushioning
Electrical enclosure gaskets
Control cabinet interfaces
Panel sealing
Component insulation
Equipment cushioning
Machine housing gaskets
Equipment panel sealing
Vibration reduction
Protective spacers
Mechanical component cushioning
Housing interfaces
Control panel cushioning
Display protection
Electronic module protection
Anti-rattle applications
Why Choose Custom EVA Cushion Sealing Gaskets?
Custom EVA cushion sealing gaskets can provide a better fit than generic gasket shapes.
A custom gasket can be designed around the exact dimensions of a component, including holes, slots, mounting areas, corners, and cutouts.
This can improve assembly efficiency and reduce unnecessary material overlap.
Custom die cutting also allows large numbers of identical gasket components to be produced with consistent dimensions.
For automated assembly, custom adhesive-backed parts can reduce manual positioning work.
Environmental and Application Considerations
EVA foam selection should consider the complete service environment.
Humidity can affect adhesive performance and some material properties.
UV exposure can contribute to aging depending on formulation and exposure duration.
Chemical exposure should be evaluated before use in environments containing oils, solvents, fuels, cleaning chemicals, or other aggressive substances.
Temperature cycling can also affect long-term dimensional stability and adhesive performance.
For outdoor applications, environmental resistance should be verified through suitable testing.
Sustainability and Material Efficiency
EVA foam is lightweight, which can help reduce material weight in certain product designs.
Custom die cutting can also improve material utilization when nesting multiple gasket shapes within a sheet or roll.
Material thickness should be optimized rather than unnecessarily increased. Using the minimum thickness that meets the functional requirements can reduce material consumption and product weight.
Where sustainability is an important design requirement, manufacturers can evaluate material formulation, production waste, packaging, and end-of-life considerations.
Frequently Asked Questions
An EVA cushion sealing gasket is a closed-cell EVA foam component designed to provide cushioning, sealing, gap filling, protection, insulation, or vibration reduction between assembled parts.
The main material is cross-linked or semi-cross-linked ethylene vinyl acetate foam with a closed-cell structure.
Common options include 25, 38, 45, 60, and 70 Shore C, with additional hardness levels available depending on material formulation.
A commonly specified range is approximately 0.3–0.8 g/cm³. The appropriate density depends on the required compression and cushioning performance.
Typical thicknesses include 0.5, 1, 2, 3, 5, 8, and 10 mm. Other thicknesses can be produced according to application requirements.
For selected battery cell gap applications, 1–3 mm is commonly considered. The final thickness should be determined according to the battery design, available space, compression ratio, and thermal requirements.
Yes. EVA foam can be supplied with single-sided acrylic or rubber-based pressure-sensitive adhesive. Double-sided adhesive configurations are also available.
Yes. EVA foam can be die cut, punched, slit, and strip cut into custom shapes and dimensions.
Closed-cell EVA foam can provide good resistance to moisture penetration compared with open-cell foam, but the actual waterproof performance depends on the foam structure, seams, compression, surface design, and application.
EVA foam can be used in moderate-temperature applications. A commonly specified range is approximately -40 to +80°C, with short-term exposure up to approximately 100°C depending on formulation. For continuous high-temperature applications, silicone foam may be more appropriate.
EVA foam can provide physical separation and electrical insulation in suitable applications. However, electrical insulation performance should be verified according to the specific material grade and application requirements.
Yes. EVA foam can act as a compliant cushioning layer and help reduce vibration and mechanical contact between components.
Yes, provided the application remains within the material's temperature, mechanical, adhesive, and environmental limits.
Yes. EVA cushion sealing gaskets can be customized in thickness, density, hardness, shape, size, adhesive configuration, and processing method.
Conclusion
Premium EVA Foam Cushion Sealing Gasket Material provides a practical combination of cushioning, sealing, gap filling, vibration reduction, insulation, and surface protection.
Its cross-linked or semi-cross-linked closed-cell structure allows manufacturers to select different hardness, density, and thickness combinations for specific applications.
Typical hardness options include 25, 38, 45, 60, and 70 Shore C. Common density ranges are approximately 0.3–0.8 g/cm³, while available thicknesses can include 0.5, 1, 2, 3, 5, 8, and 10 mm.
Single-sided acrylic or rubber-based pressure-sensitive adhesive can be added for convenient installation, while double-sided adhesive is also available for applications requiring bonding to two surfaces.
For battery cell gap applications, 1–3 mm EVA foam is commonly considered when the design requires cushioning and spacing within a limited installation area.
The typical temperature resistance range is approximately -40 to +80°C, with short-term exposure up to approximately 100°C depending on the material formulation and application conditions. For long-term high-temperature environments, silicone foam can be considered as an alternative.
Custom processing is another major advantage. EVA foam can be die cut, punched, slit, and strip cut into various shapes and sizes according to customer drawings and engineering requirements.
When selecting an EVA cushion sealing gasket, engineers should evaluate hardness, density, thickness, compression ratio, compression set, temperature, adhesive compatibility, surface condition, environmental exposure, and expected service life.
With appropriate material selection and custom processing, EVA foam cushion sealing gaskets can provide reliable cushioning, sealing, protection, and gap-management solutions across battery, electronics, electrical, automotive, appliance, packaging, and industrial applications.
This website uses cookies to ensure you get the best experience on our website.
WhatsApp
Phone
