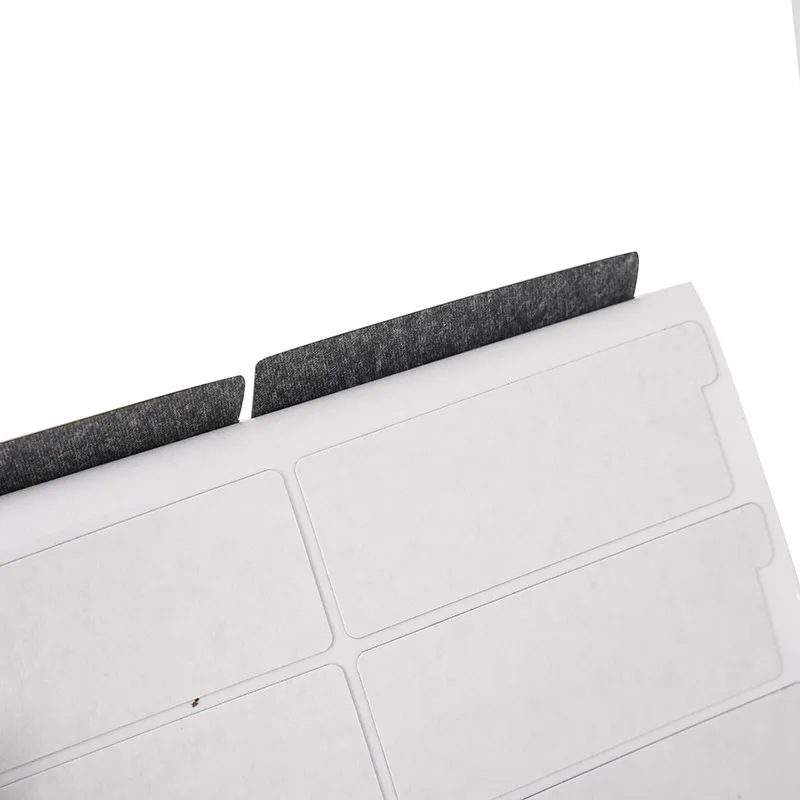

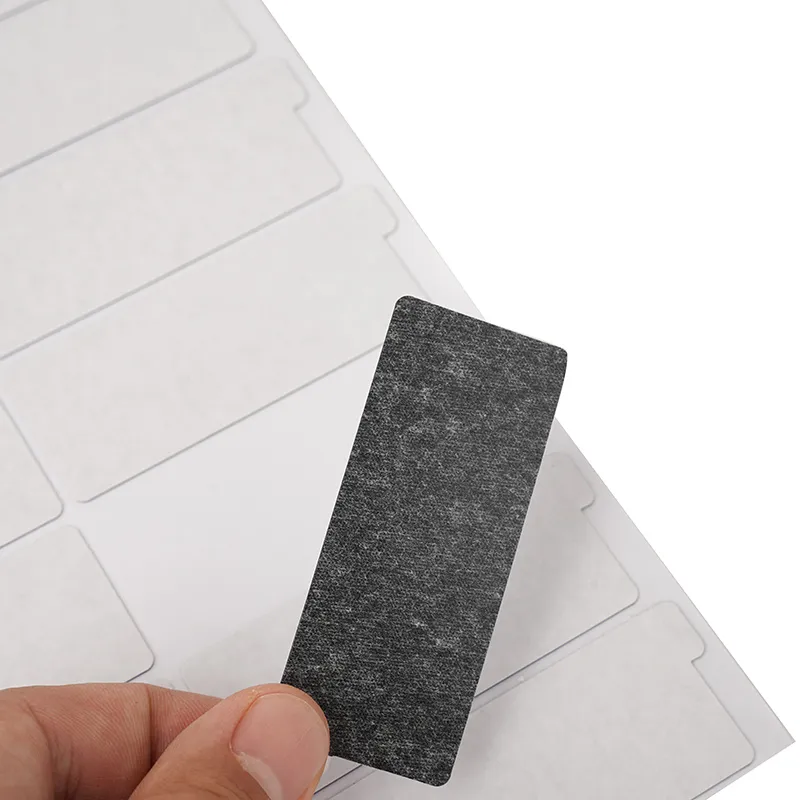

Durable EVA Foam Cushion Sealing Gasket Sheet is a versatile closed-cell or semi-closed-cell foam material designed for cushioning, insulation, sealing, vibration reduction, surface protection, and gap filling. EVA foam gasket sheets are widely used in battery assemblies, electronic equipment, electrical insulation systems, automotive components, appliances, packaging, machinery, construction products, and general industrial applications.

EVA stands for Ethylene Vinyl Acetate, a flexible polymer material known for its lightweight structure, resilience, softness, chemical resistance, moisture resistance, and excellent shock-absorbing performance. By adjusting the EVA formulation, foam density, hardness, cell structure, thickness, and additives, manufacturers can produce materials suitable for different levels of cushioning, sealing, insulation, compression, and protection.

EVA Foam Pad/Gasket is a commonly used cushioning, insulation, and sealing auxiliary material in lithium battery modules and battery PACK assemblies. It is often used together with materials such as fish paper (electrical insulation paper) and structural adhesive.

EVA is a new type of environmentally friendly plastic material with excellent cushioning, shock absorption, thermal insulation, moisture resistance, and chemical resistance properties. It is also non-toxic and does not absorb water.

EVA foam is available in several types, including eco-friendly EVA, standard EVA, high-elasticity EVA, anti-static EVA (with anti-static agents added), fire-retardant EVA (with flame-retardant additives), and high-hardness EVA.

The combination of flexibility, resilience, low weight, and processing versatility makes EVA foam particularly useful where a component needs to absorb impact, isolate vibration, protect surfaces, compensate for dimensional tolerances, or provide a soft sealing interface.

1. What Is EVA Foam Cushion Sealing Gasket Sheet?

EVA Foam Cushion Sealing Gasket Sheet is a sheet-form foam material made primarily from ethylene vinyl acetate and processed into a flexible cellular structure. It can be supplied as flat sheets, rolls, strips, pads, die-cut gaskets, adhesive-backed parts, custom shapes, or laminated components.

The material can be manufactured in different densities and hardness levels. Softer EVA foam generally provides better cushioning and conformability, while harder EVA foam can offer stronger structural support and dimensional stability.

As a gasket material, EVA foam can fill small gaps between two surfaces. When compressed, the foam can conform to surface irregularities and help reduce the movement of air, dust, moisture, or other contaminants through a joint. As a cushioning material, it can absorb mechanical energy and reduce the transmission of impact and vibration.

EVA foam gasket sheet can also function as a protective interface between components. It can reduce direct contact between hard surfaces and help prevent scratches, abrasion, rattling, and impact damage.

Because EVA foam can be converted into many shapes, it is suitable for both simple and complex component designs. Die cutting, slitting, laminating, adhesive coating, and CNC processing can be used depending on the required application.

2. EVA Foam Material Characteristics

The performance of an EVA foam gasket depends on its formulation, vinyl acetate content, density, cell structure, thickness, hardness, additives, and manufacturing process.

Typical material characteristics include:

• Lightweight construction

• Flexible foam structure

• Good cushioning performance

• Good shock absorption

• Good vibration damping

• Moisture resistance

• Water resistance

• Thermal insulation

• Electrical insulation

• Chemical resistance

• Good resilience

• Good compression recovery

• Easy cutting and converting

• Good surface protection

• Low abrasion against many surfaces

• Available in multiple hardness levels

• Available in multiple colors

• Available in multiple thicknesses

• Suitable for custom die-cutting

• Compatible with adhesive backing when properly processed

The exact properties should always be evaluated according to the intended application and actual material specification.

3. Why EVA Foam Is Used for Cushioning

One of the most important functions of EVA foam is cushioning.

When an EVA foam pad is compressed or subjected to impact, its cellular structure can absorb part of the mechanical energy. This helps reduce the force transmitted to sensitive components.

For example, electronic components inside a housing may experience vibration during transportation or operation. A properly selected EVA foam pad can create a resilient interface between components and reduce movement.

In battery assemblies, EVA foam may be used as a cushioning layer where controlled compression and separation are required. The foam can help accommodate minor dimensional variation and reduce direct mechanical contact.

Cushioning performance depends on factors such as:

A thicker foam is not automatically better. The correct thickness depends on the available space, required compression, expected load, and desired recovery.

4. EVA Foam for Sealing Applications

EVA foam gasket material is often used for low-pressure sealing and gap-filling applications.

When installed between two surfaces, a foam gasket can be compressed to create a continuous contact interface. This can help reduce the passage of dust, moisture, air, and other environmental contaminants.

A successful foam sealing design depends on:

1. Surface condition

2. Gasket thickness

3. Compression ratio

4. Foam density

5. Gasket width

6. Joint geometry

7. Temperature

8. Environmental exposure

9. Adhesive selection when required

10. Long-term compression behavior

EVA foam can conform to relatively uneven surfaces because its flexible structure allows it to accommodate small surface irregularities.

However, EVA foam should not automatically be considered suitable for every high-pressure or high-temperature sealing application. Engineers should select gasket materials according to pressure, temperature, chemical exposure, compression requirements, and expected service life.

5. EVA Foam for Lithium Battery Modules and PACK Assemblies

EVA Foam Pad/Gasket is a commonly used cushioning, insulation, and sealing auxiliary material in lithium battery modules and battery PACK assemblies.

Battery assemblies contain multiple components that may require separation, cushioning, insulation, positioning, and protection. EVA foam can be used as an auxiliary material in areas where flexible spacing or cushioning is required.

Potential applications include:

• Battery module cushioning

• Battery PACK cushioning

• Cell spacing support

• Component isolation

• Electrical insulation assistance

• Housing interface protection

• Gap filling

• Vibration reduction

• Surface protection

• Anti-rattle applications

• Protective lining

• Cable and component separation

EVA foam can also be combined with other materials.

For example, fish paper, also known as electrical insulation paper in many industrial applications, may be used for electrical insulation and separation. Structural adhesive may be used where permanent bonding and structural fixation are required. EVA foam can provide a different function, such as cushioning, spacing, vibration reduction, and surface protection.

The specific combination depends on the battery architecture and engineering requirements.

6. EVA Foam and Fish Paper in Battery Applications

Fish paper is widely used as an electrical insulation material in battery and electrical assemblies. EVA foam and fish paper can serve different but complementary purposes.

EVA foam should not be treated as a direct replacement for every electrical insulation material. In battery applications, engineers should verify dielectric properties, flame behavior, temperature resistance, dimensional stability, and compatibility with the specific battery system.

7. EVA Foam and Structural Adhesive

Structural adhesive and EVA foam can also be used in the same assembly while performing different functions.

Structural adhesive is generally intended to create a bonded connection between components. EVA foam is often used where cushioning, compression, spacing, sealing, or vibration isolation is needed.

A typical assembly may therefore use:

• Adhesive for structural bonding

• EVA foam for cushioning

• Fish paper for electrical insulation

• PET or other films for surface protection

• Fasteners for mechanical retention

The selection of each material should be based on its specific engineering role rather than using one material for every function.

8. Main Advantages of Durable EVA Foam Gasket Sheet

Durable EVA Foam Cushion Sealing Gasket Sheet provides a combination of physical and processing advantages.

8.1 Excellent Cushioning

EVA foam can absorb mechanical impacts and reduce contact forces between components.

This makes it useful for:

• Electronics

• Battery assemblies

• Packaging

• Machinery

• Automotive components

• Appliances

• Protective pads

8.2 Shock Absorption

The cellular structure helps dissipate mechanical energy during impact.

A properly selected foam grade can help protect sensitive components from shocks generated during transportation, assembly, or operation.

8.3 Vibration Reduction

EVA foam can create a flexible barrier between components and reduce direct transmission of vibration.

This can help minimize:

• Rattling

• Mechanical noise

• Component movement

• Surface contact

• Vibration transmission

8.4 Moisture Resistance

EVA foam has good resistance to moisture and water compared with many open-cell foam materials.

This property makes EVA useful for applications where protection from humid environments is required.

However, the actual water resistance of a gasket depends on the foam structure, surface condition, compression, joint design, and installation quality.

8.5 Thermal Insulation

Foam contains numerous cellular structures that can reduce heat transfer compared with many solid materials.

EVA foam can therefore provide a degree of thermal insulation in suitable applications.

It should not, however, be considered a substitute for specialized high-temperature insulation unless its thermal performance meets the required specifications.

8.6 Chemical Resistance

EVA foam provides resistance to many commonly encountered chemicals, although compatibility varies with formulation and exposure conditions.

Chemical compatibility should be tested when the gasket will contact:

• Oils

• Cleaning agents

• Solvents

• Adhesives

• Fuels

• Electrolytes

• Industrial chemicals

8.7 Lightweight Construction

EVA foam is significantly lighter than many solid rubber, metal, or rigid polymer components.

This makes it useful when weight reduction is important.

8.8 Easy Processing

EVA foam sheet can be processed using common converting methods.

These include:

• Die cutting

• Slitting

• Strip cutting

• Punching

• Laminating

• Adhesive coating

• CNC cutting

• Kiss cutting

• Custom contour cutting

9. EVA Foam Types

Different EVA foam types can be selected according to application requirements.

9.1 Eco-Friendly EVA Foam

Eco-friendly EVA is designed for applications where material selection, environmental considerations, and product safety are important.

Typical applications may include:

• Consumer products

• Packaging

• Electronics

• Household products

• Industrial pads

• Protective components

The term eco-friendly can cover different formulations, so actual environmental performance should be verified using the relevant material documentation.

9.2 Standard EVA Foam

Standard EVA is a general-purpose material used for cushioning, padding, protection, spacing, and sealing.

It is often selected because of its balanced performance and relatively simple processing.

9.3 High-Elasticity EVA Foam

High-elasticity EVA is designed to provide improved flexibility and recovery after compression.

It can be useful for:

• Cushioning

• Compression pads

• Vibration isolation

• Protective interfaces

• Repeated compression applications

9.4 Anti-Static EVA Foam

Anti-static EVA contains additives or uses a formulation designed to reduce electrostatic charge accumulation.

Anti-static EVA may be used in:

• Electronics

• Semiconductor packaging

• Electronic component protection

• ESD-sensitive assembly areas

• Precision equipment packaging

Anti-static performance should be specified using measurable electrical resistance or electrostatic performance requirements rather than relying only on the product name.

9.5 Fire-Retardant EVA Foam

Fire-retardant EVA foam contains flame-retardant additives or uses a formulation intended to improve resistance to ignition or flame propagation.

It can be considered for applications where fire performance is an important design requirement.

The specific flame-retardant rating must be verified against the applicable test standard. Fire-retardant EVA should not be described as completely fireproof.

9.6 High-Hardness EVA Foam

High-hardness EVA provides greater resistance to deformation compared with softer foam grades.

It can be useful for:

• Support pads

• Spacers

• Protective inserts

• Structural cushioning

• Component positioning

• Mechanical interfaces

10. Typical EVA Foam Gasket Specifications

Actual specifications vary by manufacturer and application.

The values should be treated as general selection information rather than universal material specifications.

11. EVA Foam Density and Hardness

Density and hardness are two important parameters when selecting an EVA gasket.

Density describes the mass of foam per unit volume. Higher-density EVA generally provides greater material mass and can offer increased support, although the relationship between density and mechanical performance depends on the formulation.

Hardness describes resistance to indentation or deformation under a specified test method.

A soft EVA foam may be ideal for cushioning and conformability, while a harder EVA foam may be better for structural support and positioning.

12. EVA Foam Thickness Selection

EVA gasket sheets can be produced in different thicknesses.

Thickness selection should consider:

• Required compression

• Available installation space

• Gap dimensions

• Required cushioning distance

• Load

• Surface flatness

• Compression recovery

• Tolerance

• Assembly method

A thicker gasket can provide more cushioning space, but excessive thickness may cause assembly problems or excessive compression.

A thin gasket may be easier to install in compact assemblies but may provide less cushioning and gap compensation.

Therefore, the correct EVA foam thickness should be determined by testing the actual assembly.

13. EVA Foam Compression and Recovery

Compression behavior is especially important for gasket applications.

When an EVA foam gasket is compressed, its thickness decreases. After the load is removed, the foam may recover toward its original thickness.

Compression recovery depends on:

• Foam formulation

• Density

• Hardness

• Cell structure

• Compression ratio

• Temperature

• Compression duration

• Number of compression cycles

• Environmental exposure

For applications requiring long-term compression, engineers should conduct compression-set and recovery testing under representative conditions.

14. EVA Foam as a Gap-Filling Material

Many industrial assemblies contain small gaps caused by dimensional tolerances, surface irregularities, component geometry, or assembly variation.

EVA foam can fill these gaps while maintaining a degree of flexibility.

Typical gap-filling applications include:

• Electronic housings

• Battery assemblies

• Appliance panels

• Automotive interiors

• Machinery covers

• Packaging inserts

• Display equipment

• Control cabinets

The foam can also reduce direct movement between components.

15. EVA Foam Electrical Insulation Applications

EVA is available in grades that provide electrical insulation properties.

Electrical insulation applications can include:

• Battery components

• Electronic housings

• Wire interfaces

• Electrical equipment

• Transformer-related components

• Appliance components

• Cable protection

• Insulating spacers

However, electrical insulation performance should be verified through appropriate testing.

Important electrical parameters may include:

• Dielectric strength

• Volume resistivity

• Surface resistivity

• Insulation resistance

• Breakdown voltage

The actual requirements depend on voltage, temperature, humidity, geometry, and industry standards.

16. EVA Foam for Battery PACK Cushioning

Battery PACK assemblies can contain numerous cells, modules, housings, busbars, cables, connectors, insulation layers, and structural components.

EVA foam can be incorporated as a cushioning or spacing material where required.

Potential benefits include:

• Reduced mechanical contact

• Improved component protection

• Gap compensation

• Vibration reduction

• Surface cushioning

• Improved assembly tolerance management

• Auxiliary sealing

• Component positioning

The exact placement depends on the battery design.

EVA foam used in battery systems should be evaluated for temperature resistance, chemical compatibility, flame behavior, electrical properties, compression behavior, and long-term durability.

17. EVA Foam for Electronics

Electronics are sensitive to mechanical shock, vibration, dust, moisture, and physical contact.

EVA foam pads and gaskets can provide a soft interface between electronic components and housings.

Common uses include:

• Display cushioning

• PCB protection

• Battery cushioning

• Speaker sealing

• Housing gaskets

• Connector protection

• Cable management

• Anti-rattle pads

• Component spacers

Die-cut EVA foam can be manufactured into precise shapes that correspond to the geometry of the electronic assembly.

18. EVA Foam for Automotive Applications

Automotive components often require lightweight materials that can provide cushioning, vibration isolation, and protection.

EVA foam can be used in areas such as:

• Interior trim

• Door panels

• Instrument panels

• Console components

• Battery systems

• Electronic modules

• Lighting assemblies

• Storage compartments

• Protective pads

For automotive applications, additional requirements may include temperature resistance, odor requirements, fogging performance, flame behavior, aging resistance, and chemical compatibility.

19. EVA Foam for Industrial Equipment

Industrial equipment can experience vibration, mechanical impact, movement, and dimensional variation.

EVA foam gasket sheet can provide:

• Cushioning

• Spacing

• Surface protection

• Anti-rattle performance

• Vibration damping

• Gap filling

• Light-duty sealing

It can be converted into custom pads for equipment panels, machine covers, enclosures, control boxes, and protective interfaces.

20. EVA Foam for Household Appliances

EVA foam is also used in household appliance components where cushioning and protection are required.

Applications may include:

• Refrigerators

• Washing machines

• Air-conditioning equipment

• Kitchen appliances

• Small electrical appliances

• Consumer electronics

• Water-related equipment

The foam can reduce movement and contact between internal components and help protect surfaces during assembly and operation.

21. Adhesive-Backed EVA Foam Gasket

Adhesive-backed EVA foam is available with pressure-sensitive adhesive on one or both sides.

A single-sided adhesive gasket has adhesive on one surface, while the opposite surface remains exposed foam.

A double-sided adhesive gasket has adhesive on both surfaces.

Adhesive selection is critical because adhesive performance can change with temperature, humidity, surface energy, aging, and chemical exposure.

22. EVA Foam Surface Treatment

EVA foam can be supplied with different surface treatments.

Possible surface options include:

• Smooth surface

• Textured surface

• Film laminated surface

• Fabric laminated surface

• Adhesive coated surface

• Release liner

• Printed surface

Surface treatment can improve handling, appearance, bonding, abrasion resistance, or compatibility with other materials.

23. Custom Die-Cut EVA Gaskets

One of the major advantages of EVA foam sheet is its suitability for custom converting.

Die cutting can produce:

• Rings

• Squares

• Rectangles

• Washers

• Strips

• Frames

• Corner pads

• Complex profiles

• Custom holes

• Multi-opening gaskets

Custom die-cut EVA gaskets can improve assembly consistency because the finished part can match the geometry of the application.

24. EVA Foam Gasket Design Considerations

Good gasket design begins with understanding the assembly.

Important factors include:

Surface Condition

Surfaces should be clean and free from excessive dust, oil, grease, or loose particles.

Compression

The gasket must be compressed sufficiently for the intended application without being excessively compressed.

Thickness

The gasket thickness should match the available gap and required compression.

Width

A wider gasket may provide greater contact area, while a narrow gasket may be easier to fit into compact designs.

Temperature

The service temperature should remain within the recommended range of the selected EVA material and adhesive system.

Chemical Exposure

Any liquids or chemicals contacting the gasket should be evaluated for compatibility.

Mechanical Load

The expected compression load and repeated loading should be considered.

25. EVA Foam Installation Guidelines

Proper installation is essential for reliable gasket performance.

Recommended practices include:

1. Clean the contact surfaces.

2. Remove dust and loose particles.

3. Confirm the gasket dimensions.

4. Check the gasket thickness.

5. Avoid stretching the foam excessively during installation.

6. Position the gasket accurately.

7. Apply consistent pressure when using adhesive-backed products.

8. Avoid unnecessary folding or sharp bending.

9. Check that the gasket is not twisted.

10. Confirm that the assembly provides the intended compression.

For adhesive-backed EVA, the adhesive liner should normally be removed immediately before installation to minimize contamination.

26. Factors Affecting EVA Foam Durability

Durability is influenced by multiple environmental and mechanical factors.

These include:

• Temperature

• Humidity

• UV exposure

• Chemical contact

• Compression

• Repeated movement

• Abrasion

• Mechanical impact

• Adhesive aging

• Storage conditions

• Installation quality

A durable EVA foam gasket should therefore be selected based on the actual operating environment rather than appearance alone.

27. EVA Foam Moisture Resistance

EVA foam is commonly selected for moisture-resistant cushioning and sealing applications.

Its resistance to water is influenced by the cellular structure and surface characteristics.

Closed-cell EVA generally provides better resistance to water penetration than highly open-cell foam structures.

Potential moisture-related applications include:

• Outdoor equipment

• Battery housings

• Electronic enclosures

• Appliances

• Packaging

• Protective covers

• Industrial equipment

Nevertheless, a foam gasket should not be considered waterproof solely because it is made from EVA. The complete joint design determines sealing performance.

28. EVA Foam Chemical Resistance

EVA foam has useful chemical resistance against many substances, but no foam is universally resistant to every chemical.

Potentially relevant chemicals include:

• Water

• Mild detergents

• Some dilute chemicals

• Certain oils

• Some cleaning solutions

• Adhesive systems

Testing is recommended when the material is exposed to aggressive solvents, fuels, concentrated chemicals, battery electrolytes, or unknown substances.

A chemical compatibility test can evaluate:

• Swelling

• Softening

• Shrinkage

• Hardening

• Surface degradation

• Weight change

• Adhesive failure

• Mechanical property changes

29. Fire-Retardant EVA Foam

Fire-retardant EVA foam can be produced with additives designed to improve flame performance.

This type of material may be used in applications where fire behavior is an important consideration.

However, fire-retardant does not mean fireproof.

A specification should clearly identify the applicable flame test and rating. Different standards measure different characteristics, so the test method must be considered alongside the rating.

Potential applications include:

• Electrical equipment

• Electronic housings

• Battery-related components

• Transportation equipment

• Industrial equipment

30. Anti-Static EVA Foam

Anti-static EVA foam is designed to reduce the accumulation or uncontrolled discharge of electrostatic charge.

This is particularly important when protecting electrostatic-sensitive components.

Potential applications include:

• Semiconductor packaging

• Electronic component protection

• PCB handling

• Precision instruments

• Electronic assembly

• ESD work areas

Anti-static EVA should be selected according to the required resistance range and application environment.

31. EVA Foam Color Options

EVA foam can be manufactured in various colors.

Common colors include:

• Black

• White

• Gray

• Blue

• Red

• Green

• Yellow

Black EVA foam is frequently selected for industrial applications because it provides a clean appearance and can hide minor surface contamination.

White EVA may be selected for applications where visual cleanliness is important.

Custom colors can be considered where identification or product appearance is important.

32. EVA Foam Sheet Versus EVA Foam Pad

EVA foam sheet is generally supplied as a larger continuous material that can be converted into specific parts.

An EVA foam pad is typically a finished piece cut to a particular size and shape.

33. EVA Foam Versus Rubber Gasket

EVA foam and rubber gasket materials have different characteristics.

EVA foam is lightweight and suitable for cushioning, spacing, and light-duty sealing.

Rubber materials may provide stronger performance in demanding sealing environments, especially where high temperature, pressure, repeated dynamic movement, or aggressive chemicals are involved.

The correct choice depends on the application rather than simply selecting the lowest-cost material.

34. EVA Foam Versus Silicone Foam

Silicone foam is often selected for applications requiring higher temperature resistance and long-term environmental stability.

EVA foam is generally more economical and offers excellent cushioning and processing characteristics.

35. EVA Foam Versus PE Foam

EVA and polyethylene foam are both widely used in cushioning and protective applications.

EVA generally offers good flexibility, resilience, and softness. PE foam can offer excellent chemical resistance, lightweight construction, and structural support depending on the grade.

36. EVA Foam Manufacturing Process

A simplified EVA foam production process can include several stages.

Material Preparation

EVA resin and other ingredients are selected according to the required properties.

Mixing

The raw materials and additives are mixed to achieve a consistent formulation.

Foaming

The material is processed to create the desired cellular structure.

Shaping

The foam is formed into sheets, rolls, blocks, or other basic forms.

Cooling and Stabilization

The material is cooled and stabilized to achieve the required dimensions.

Cutting

Large foam sheets can be converted into strips, pads, or custom shapes.

Adhesive Coating

Where required, pressure-sensitive adhesive can be applied.

Die Cutting

Custom gaskets can be die-cut to precise dimensions.

Inspection

Finished materials can be checked for dimensions, appearance, density, hardness, and other specified properties.

37. Quality Control for EVA Foam Gasket Sheet

Quality control helps ensure consistent gasket performance.

Common inspection items include:

The exact testing program should be established according to the application.

38. Storage of EVA Foam Sheets

Proper storage helps maintain material performance.

Recommended storage conditions generally include:

• Dry environment

• Moderate temperature

• Protection from direct sunlight

• Protection from excessive humidity

• Clean storage area

• Avoidance of heavy compression

• Protection from oils and chemicals

• Proper packaging

Adhesive-backed EVA should receive additional attention because adhesive properties may change during prolonged storage.

39. Packaging of EVA Foam Gaskets

EVA foam products should be packaged to prevent:

• Dust contamination

• Moisture exposure

• Compression damage

• Deformation

• Surface contamination

• Adhesive contamination

Die-cut gaskets are often separated by release liners, films, sheets, or protective packaging depending on the application.

Proper packaging is especially important for precision components used in electronics and battery assemblies.

40. Common EVA Foam Gasket Applications

Durable EVA Foam Cushion Sealing Gasket Sheet can be used in many industries.

Battery Industry

• Battery cells

• Battery modules

• Battery PACK assemblies

• Battery housings

• Protective interfaces

• Component spacing

Electronics

• Electronic housings

• Display components

• PCB protection

• Speaker assemblies

• Consumer electronics

Automotive

• Interior components

• Electronic modules

• Lighting systems

• Battery systems

• Trim components

Appliances

• Refrigeration equipment

• Washing machines

• Air-conditioning units

• Kitchen appliances

Industrial Equipment

• Machine panels

• Control boxes

• Enclosures

• Protective pads

• Vibration interfaces

Packaging

• Product protection

• Equipment packaging

• Shock absorption

• Surface protection

41. Common EVA Foam Gasket Shapes

Custom EVA gaskets can be produced in many geometries.

Common designs include:

• Circular gaskets

• Oval gaskets

• Rectangular gaskets

• Square gaskets

• Ring gaskets

• Frame gaskets

• Strip gaskets

• Corner pads

• U-shaped profiles

• Custom contour parts

• Multi-hole gaskets

The geometry should correspond to the mating surfaces and assembly requirements.

42. EVA Foam Gasket Selection Guide

When selecting an EVA foam gasket, consider the following questions:

What is the primary function?

Is the material required for cushioning, sealing, insulation, spacing, vibration reduction, or surface protection?

What thickness is required?

Determine the initial gap and desired compression.

What hardness is appropriate?

Choose a softer grade for conformability and cushioning or a harder grade for support.

Is adhesive required?

Select non-adhesive, single-sided adhesive, or double-sided adhesive construction.

Is fire retardancy required?

If yes, select a grade with verified flame performance.

Is anti-static performance required?

If the component is sensitive to electrostatic discharge, select an appropriate anti-static EVA grade.

What is the operating temperature?

Confirm that the material and adhesive are suitable for the actual environment.

What chemicals will contact the foam?

Evaluate compatibility before production.

What dimensional tolerance is required?

Precision die-cutting may be necessary for complex assemblies.

43. Important EVA Foam Gasket Design Parameters

44. Benefits of Custom EVA Foam Gaskets

Custom EVA foam gaskets offer several advantages over generic pads.

They can be designed to:

• Match exact component dimensions

• Reduce excess material

• Improve assembly positioning

• Simplify installation

• Provide consistent coverage

• Create specific openings

• Follow irregular component profiles

• Integrate adhesive layers

• Support automated assembly

Custom die-cut parts are especially useful for high-volume manufacturing.

45. EVA Foam for Vibration Isolation

Vibration can cause noise, component fatigue, connector movement, and mechanical wear.

EVA foam can act as a flexible interface between components.

Potential vibration-related applications include:

• Electronic housings

• Battery modules

• Machinery

• Appliances

• Automotive components

• Control equipment

The effectiveness of vibration isolation depends on the foam's stiffness, thickness, load, frequency range, and mounting configuration.

46. EVA Foam for Surface Protection

Hard surfaces can be damaged when they contact other hard components.

EVA foam creates a soft protective layer that can reduce:

• Scratches

• Abrasion

• Impact

• Surface marking

• Contact noise

This makes EVA foam useful for painted surfaces, plastic housings, metal panels, glass-related components, and finished products.

47. EVA Foam for Thermal Insulation

EVA foam can provide thermal resistance because the cellular structure reduces direct heat transfer.

Applications may include:

• Appliance insulation assistance

• Electronic equipment

• Battery auxiliary components

• Packaging

• Industrial equipment

• Protective covers

The actual thermal performance depends on thickness, density, temperature, and foam structure.

For demanding thermal insulation systems, EVA should be evaluated alongside specialized Insulation Materials.

48. EVA Foam Environmental Considerations

EVA is often considered a useful material for lightweight and durable products because it can provide long service life with relatively low material weight.

Environmental considerations may include:

• Material composition

• Manufacturing process

• Additives

• Product lifetime

• Packaging

• Waste management

• Recycling options

• Application-specific environmental requirements

Terms such as "eco-friendly EVA" should be supported by appropriate material documentation rather than used as an unsupported marketing claim.

49. EVA Foam Product Advantages at a Glance

50. Frequently Asked Questions About EVA Foam Gasket Sheet

What does EVA stand for?

EVA stands for Ethylene Vinyl Acetate, a polymer material commonly processed into flexible foam products.

What is EVA foam used for?

EVA foam is used for cushioning, shock absorption, vibration reduction, insulation, gap filling, surface protection, sealing, packaging, and component spacing.

Is EVA foam waterproof?

Many EVA foam structures provide good water and moisture resistance, especially closed-cell grades. However, complete waterproof sealing depends on material structure, compression, joint design, and installation.

Is EVA foam suitable for battery applications?

EVA foam can be used as an auxiliary cushioning, spacing, sealing, and protection material in battery modules and PACK assemblies when the selected grade meets the application's mechanical, thermal, electrical, chemical, and safety requirements.

Is EVA foam electrically insulating?

Certain EVA foam grades provide useful electrical insulation properties. The actual dielectric and resistance values must be verified according to the material specification.

Can EVA foam be adhesive backed?

Yes. EVA foam can be supplied with single-sided or double-sided pressure-sensitive adhesive.

Can EVA foam be die cut?

Yes. EVA foam sheet is highly suitable for die cutting, slitting, punching, laminating, and other converting processes.

Is EVA foam flame retardant?

Standard EVA is not automatically flame retardant. Specialized fire-retardant EVA grades are available and should be selected when flame performance is required.

Is EVA foam anti-static?

Standard EVA is not necessarily anti-static. Anti-static EVA is produced using appropriate formulations or additives.

Can EVA foam replace rubber gaskets?

EVA foam can replace certain rubber gaskets in suitable low-pressure cushioning and sealing applications, but it should not be assumed to be a universal replacement.

What EVA foam thickness should I choose?

The correct thickness depends on the gap, compression requirement, load, tolerance, and required cushioning performance.

Can EVA foam be used outdoors?

Some EVA foam products can be used in outdoor environments, but UV exposure, temperature variation, moisture, and chemical exposure should be considered.

51. EVA Foam Gasket Application Checklist

52. Conclusion

Durable EVA Foam Cushion Sealing Gasket Sheet is a versatile material for cushioning, sealing, insulation, vibration reduction, gap filling, and surface protection. Its combination of lightweight construction, flexibility, resilience, moisture resistance, thermal insulation, and easy processing makes it suitable for a wide range of industrial and commercial applications.

In lithium battery modules and battery PACK assemblies, EVA Foam Pad/Gasket can serve as an important auxiliary material for cushioning, spacing, insulation assistance, vibration reduction, component protection, and gap management. It can be used alongside fish paper, structural adhesive, PET film, and other functional materials, with each material performing its specific engineering role.

EVA foam is available in multiple grades, including eco-friendly EVA, standard EVA, high-elasticity EVA, anti-static EVA, fire-retardant EVA, and high-hardness EVA. Different grades can be selected according to the mechanical, electrical, thermal, chemical, and safety requirements of the application.

For industrial gasket design, material selection should consider thickness, density, hardness, compression, recovery, surface condition, adhesive requirements, temperature, chemical exposure, electrical properties, and flame performance. Custom die-cut EVA foam gaskets can provide accurate dimensions and consistent installation for electronic, battery, automotive, appliance, machinery, and other applications.

Overall, EVA Foam Cushion Sealing Gasket Sheet provides a practical combination of cushioning, protection, flexibility, lightweight construction, and processing versatility. When properly selected and designed, EVA foam can contribute to improved component protection, assembly reliability, vibration control, gap compensation, and product durability.
