A Durable EVA Cushion Sealing Gasket Sheet is a flexible foam material designed to provide cushioning, sealing, vibration absorption, spacing, insulation support, and protection in a wide range of industrial applications. EVA, or ethylene vinyl acetate, is a closed-cell foam material valued for its combination of softness, resilience, low water absorption, chemical resistance, weather resistance, and processing flexibility.

EVA Cushion Sealing Gasket Sheets can be supplied as full sheets, rolls, strips, adhesive-backed sheets, or precision die-cut components. Depending on the required application, the material can be produced in different thicknesses, densities, hardness levels, colors, and adhesive configurations. These characteristics make EVA foam suitable for battery assemblies, electronic equipment, electrical enclosures, automotive components, industrial machinery, packaging systems, and general sealing applications.

In lithium battery systems, EVA foam can provide an additional cushioning and isolation layer between components. It can help compensate for dimensional tolerances, reduce mechanical contact, absorb vibration, and provide auxiliary protection against dust and moisture. However, material selection must always consider the operating temperature, chemical environment, compression requirements, electrical insulation requirements, and applicable safety standards.

This article provides an industry-focused overview of EVA cushion Sealing Gasket sheets, including material characteristics, construction, applications, advantages, specifications, processing methods, adhesive options, lithium battery applications, design considerations, installation practices, and purchasing considerations.

1. What Is an EVA Cushion Sealing Gasket Sheet?

An EVA cushion sealing gasket sheet is a foam sheet manufactured from ethylene vinyl acetate-based material. Its cellular structure gives the material a combination of flexibility and mechanical resilience while allowing it to function as a cushioning and sealing layer.

Unlike rigid plastic sheets, EVA foam can compress under mechanical pressure and recover much of its original thickness after the load is removed. This makes it useful where components require a compliant interface.

A typical EVA cushion sealing gasket can perform several functions simultaneously:

• Cushioning

• Vibration damping

• Shock absorption

• Gap filling

• Surface protection

• Auxiliary sealing

• Moisture resistance

• Dust protection

• Spacing

• Noise reduction

• Assembly tolerance compensation

The gasket can be converted into specific shapes using die cutting, slitting, punching, laminating, adhesive coating, or other fabrication methods.

For applications requiring convenient installation, one side or both sides of the EVA foam may be laminated with pressure-sensitive adhesive. The adhesive backing allows the gasket to be positioned accurately before final assembly.

2. Basic Material Characteristics of EVA Foam

EVA foam is widely used because it combines several properties that are difficult to obtain from a single conventional material.

Its closed-cell structure can provide relatively low water absorption compared with many open-cell foams. The material can also provide good resilience, flexibility, and cushioning performance.

The exact properties depend on factors such as:

• EVA copolymer composition

• Vinyl acetate content

• Foam density

• Cell structure

• Foaming process

• Crosslinking method

• Material formulation

• Surface treatment

• Adhesive selection

Therefore, two EVA foam sheets with the same nominal thickness may perform differently in compression, recovery, temperature resistance, and sealing applications.

Typical Material Characteristics

Actual values should be confirmed against the specific material grade and supplier technical data sheet.

3. Why EVA Is Used for Cushion Sealing Gaskets

The primary reason EVA foam is used for cushion sealing gaskets is its ability to provide a compliant interface between two surfaces.

When assembled between components, the foam can compress and conform to minor surface irregularities. This can improve contact between the gasket and the mating surfaces.

For mechanical assemblies, EVA can also reduce direct contact between hard materials. This can be particularly useful when components experience vibration, impact, thermal expansion, or assembly movement.

The material is also relatively easy to convert into customized gasket geometries.

Common forms include:

• Rectangular gaskets

• Circular gaskets

• Ring gaskets

• Frame gaskets

• Strip gaskets

• Corner pads

• Protective pads

• Custom die-cut gaskets

• Adhesive-backed seals

• Multi-layer laminated gaskets

4. EVA Cushion Sealing Gasket for Lithium Battery Systems

EVA foam can be used in selected areas of lithium battery systems where cushioning, spacing, vibration reduction, and auxiliary sealing are required.

Battery packs contain multiple components that may experience mechanical stress during transportation, charging, discharging, thermal cycling, and vehicle or equipment operation.

EVA foam can provide a compliant interface between selected components.

Its use may include:

• Cell cushioning

• Cell isolation

• Module cushioning

• Housing interfaces

• Cooling system support

• Busbar auxiliary isolation

• Dust protection

• Enclosure joint cushioning

• Assembly tolerance compensation

However, EVA should not automatically be considered a replacement for purpose-designed electrical insulation, fire barriers, or structural materials. Battery designs should be evaluated according to their electrical, thermal, mechanical, and fire-safety requirements.

5. Applications of EVA in Lithium Battery Systems

5.1 Cushioning and Isolation Between Battery Cells

EVA foam can be placed between prismatic or cylindrical battery cells to absorb expansion and contraction stresses caused by thermal changes during charging and discharging.

Battery cells can experience dimensional changes during operation. If neighboring components are in direct hard contact, repeated expansion and contraction may contribute to surface wear or mechanical stress.

A properly selected EVA cushioning layer can provide a compliant interface.

Its functions may include:

• Reducing direct hard contact

• Absorbing mechanical vibration

• Providing spacing

• Compensating for small dimensional variations

• Reducing surface-to-surface impact

• Supporting cell positioning

The thickness and compression behavior must be carefully selected because excessive compression can influence assembly dimensions and mechanical loading.

5.2 Cushioning Pads Between Modules and Battery Enclosures

EVA foam can also be used between battery modules and enclosure components.

For example, EVA cushioning material may be positioned beneath a liquid cooling plate or between a battery module and an aluminum housing when the design requires additional support or vibration damping.

Potential functions include:

• Cushioning

• Vibration damping

• Gap compensation

• Surface protection

• Assembly tolerance compensation

• Reduction of mechanical contact

The actual design should account for compression set, temperature exposure, coolant compatibility, and long-term mechanical loading.

5.3 Insulation and Isolation for Tabs and Busbars

Adhesive-backed EVA sheets may be used as auxiliary isolation layers around selected metal connectors, tabs, and busbar areas.

They can help separate metal components and reduce the possibility of unintended physical contact.

However, EVA generally should not be treated as equivalent to dedicated Electrical Insulation Materials such as fish paper, Nomex, polyimide film, or other engineered insulation systems.

For applications involving significant voltage or current, the electrical insulation system should be designed according to the required dielectric, creepage, clearance, thermal, and flame-retardancy requirements.

Therefore, EVA may serve as an auxiliary insulation and cushioning layer, rather than necessarily functioning as the primary electrical insulation barrier.

5.4 Battery Pack Sealing and Dust Protection

EVA foam can also be used around enclosure joints to provide auxiliary sealing and dust protection.

The foam can compress between two mating surfaces and fill small gaps.

Potential benefits include:

• Reduced dust entry

• Reduced moisture penetration

• Surface cushioning

• Vibration damping

• Gap filling

• Protection against minor mechanical movement

For demanding sealing applications, especially those involving prolonged environmental exposure, higher temperatures, or stringent ingress protection requirements, specialized sealing materials such as silicone foam may be more appropriate.

6. EVA Gasket Applications Beyond Lithium Batteries

The application range of EVA cushion sealing gasket sheets extends well beyond battery systems.

Electronics

EVA foam gaskets can be used in:

• Electronic housings

• Display assemblies

• Control panels

• Sensor housings

• Small electronic enclosures

• PCB protection

• Connector cushioning

The material can reduce vibration and protect sensitive components from direct mechanical contact.

Electrical Equipment

EVA gasket sheets can be used around:

• Electrical enclosures

• Control cabinets

• Junction boxes

• Cable entry areas

• Electrical equipment covers

• Protective panels

The actual sealing capability depends on the gasket geometry, compression ratio, adhesive system, and enclosure design.

Automotive Components

Potential automotive applications include:

• Interior trim cushioning

• Component spacing

• Electronic module cushioning

• Protective pads

• Vibration damping

• Auxiliary sealing

Material selection should consider temperature, humidity, automotive chemicals, and long-term compression.

Industrial Equipment

EVA cushion sealing gaskets can also be used in:

• Machinery

• Pumps

• Equipment housings

• Instrumentation

• Industrial control systems

• Protective covers

• Mechanical assemblies

7. Main Advantages of Durable EVA Cushion Sealing Gasket Sheets

7.1 Good Cushioning Performance

EVA foam can absorb mechanical energy and reduce direct impact between components.

This makes it useful for assemblies exposed to vibration or repeated mechanical movement.

7.2 Good Water Resistance

Closed-cell EVA foam generally provides good resistance to water and moisture.

This characteristic is useful in applications where the gasket may be exposed to humidity or occasional water contact.

However, water resistance should not automatically be interpreted as complete waterproof sealing. The overall sealing performance depends on gasket design and installation.

7.3 Good Chemical Resistance

EVA foam can offer resistance to many common chemicals, oils, and cleaning agents.

Nevertheless, compatibility varies by formulation and chemical concentration. Testing is recommended when the gasket will contact aggressive chemicals.

7.4 Good Flexibility

The material can deform under compression and conform to mating surfaces.

This flexibility allows EVA gaskets to compensate for relatively small dimensional variations.

7.5 Excellent Processability

EVA foam is easy to process using various converting technologies.

Common methods include:

• Die cutting

• Slitting

• Punching

• Laminating

• Adhesive coating

• Heat pressing

• CNC cutting

• Kiss cutting

This makes it suitable for custom gasket production.

8. EVA Foam Density and Hardness

Density and hardness are important considerations when selecting an EVA gasket.

A low-density foam may provide softer cushioning and easier compression, while a higher-density grade may provide greater mechanical support and dimensional stability.

Hardness affects:

• Compression force

• Recovery

• Surface conformity

• Cushioning

• Support capability

• Installation behavior

General Comparison

These categories are general descriptions rather than universal industry grades.

9. Thickness Selection

EVA cushion sealing gasket sheets can be produced in various thicknesses.

Common thickness ranges may include:

• 0.5 mm

• 1 mm

• 1.5 mm

• 2 mm

• 3 mm

• 5 mm

• 6 mm

• 8 mm

• 10 mm

• Custom thicknesses

The correct thickness depends on the required compression, available installation space, gap tolerance, and mechanical loading.

A thicker gasket does not necessarily provide better sealing.

If the gasket is excessively thick, it may:

• Require excessive compression

• Affect assembly dimensions

• Increase closure force

• Reduce dimensional stability

• Create uneven pressure

Therefore, gasket thickness should be selected together with compression requirements and mating-surface geometry.

10. Compression and Recovery

Compression behavior is one of the most important factors in gasket selection.

When an EVA gasket is compressed, the foam cells deform. After the load is removed, the material attempts to recover its original thickness.

This property contributes to cushioning and gap compensation.

Important parameters include:

• Compression ratio

• Compression force

• Compression set

• Recovery rate

• Long-term deformation

• Temperature-dependent compression

For long-term sealing applications, compression set is particularly important.

A gasket that permanently loses too much thickness may gradually lose contact pressure.

11. Adhesive Backing Options

Many EVA cushion sealing gasket sheets can be supplied with adhesive backing.

The adhesive layer simplifies installation by allowing the gasket to be temporarily or permanently attached to one surface before final assembly.

Typical adhesive configurations include:

• Single-sided adhesive

• Double-sided adhesive

• High-tack adhesive

• General-purpose adhesive

• Acrylic adhesive

• Rubber-based adhesive

The adhesive should be selected according to:

• Surface material

• Temperature

• Humidity

• Chemical exposure

• Required bonding strength

• Removal requirements

• Application duration

Adhesive Configuration

The adhesive is a separate functional layer and should be evaluated independently from the EVA foam itself.

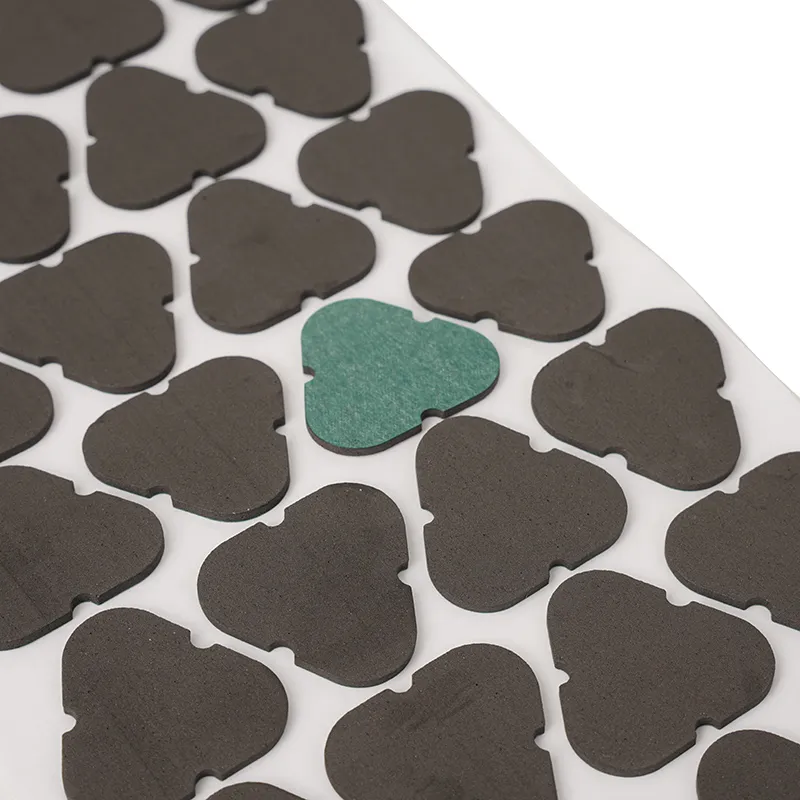

12. Die-Cut EVA Cushion Sealing Gaskets

Die cutting is one of the most common manufacturing methods for custom EVA gasket components.

A die-cut gasket can be manufactured according to a specified drawing or CAD profile.

Common features include:

• Circular holes

• Slots

• Cutouts

• Notches

• Internal openings

• Mounting holes

• Irregular profiles

• Multiple adhesive zones

Die cutting can provide consistent dimensions and efficient production for medium and large quantities.

For highly complex designs or low-volume prototypes, digital cutting or CNC cutting may be considered.

13. Custom EVA Gasket Shapes

A custom EVA cushion sealing gasket can be designed to match the geometry of a specific component.

Typical custom shapes include:

Ring Gaskets

Used around circular openings and cylindrical components.

Frame Gaskets

Used around electronic panels, displays, housings, and enclosure covers.

Strip Gaskets

Suitable for long joints, cabinet doors, equipment panels, and linear interfaces.

Corner Gaskets

Designed to protect corners or provide cushioning around irregular assemblies.

Complex Die-Cut Gaskets

Used when the gasket requires multiple holes, slots, channels, or irregular edges.

14. EVA Cushion Gasket Surface Characteristics

The surface of an EVA gasket may be smooth, textured, laminated, adhesive-coated, or otherwise treated depending on the application.

Surface characteristics influence:

• Adhesion

• Friction

• Compression

• Contact behavior

• Installation

• Appearance

A laminated surface may improve compatibility with adhesives or other materials.

In some applications, surface treatment can improve bonding performance.

15. EVA Foam for Vibration Damping

Vibration is a common concern in industrial machinery, vehicles, electronics, and battery systems.

Hard component-to-component contact can transmit vibration directly through an assembly.

EVA foam introduces a compliant layer that can absorb part of the mechanical energy.

Potential benefits include:

• Reduced vibration transmission

• Lower mechanical noise

• Reduced component wear

• Improved assembly comfort

• Protection of sensitive components

The actual vibration damping performance depends on density, thickness, frequency, compression, temperature, and system design.

16. EVA Foam for Thermal Insulation

EVA foam contains many small cells that can reduce heat transfer compared with solid materials.

As a result, EVA sheets may provide useful thermal insulation in selected applications.

Potential uses include:

• Battery assemblies

• Electronic housings

• Equipment panels

• Thermal protection layers

• HVAC-related components

• Packaging

However, EVA should not be selected solely based on its thermal insulation properties. Continuous operating temperature and exposure conditions must also be evaluated.

17. EVA Foam for Sound Absorption

The cellular structure of EVA can help reduce certain mechanical noises and vibration-related sounds.

It may be used as a secondary acoustic material in:

• Machinery

• Automotive interiors

• Equipment housings

• Electronics

• Enclosures

For demanding acoustic applications, specialized acoustic foam may provide better performance.

18. Weather Resistance

EVA foam can provide useful resistance to environmental exposure.

Potential environmental factors include:

• Moisture

• Humidity

• Sunlight

• Temperature fluctuations

• Outdoor storage

However, long-term UV exposure may affect certain EVA formulations.

For outdoor applications, material testing should include:

• UV exposure

• Temperature cycling

• Humidity

• Water exposure

• Adhesive aging

19. Chemical Resistance

EVA foam can resist many common chemicals, but no single EVA formulation is universally resistant to every chemical.

Potentially compatible environments may include exposure to:

• Water

• Mild acids

• Mild alkalis

• Some oils

• Grease

• Common cleaning agents

Before using an EVA gasket in a chemically aggressive environment, compatibility testing should be conducted.

20. Environmental and Safety Considerations

EVA is widely considered a useful polymer for applications where flexibility, low water absorption, and processing versatility are required.

Different EVA grades can have different formulations and additives.

Depending on the end-use market, buyers may request compliance documentation related to:

• RoHS

• REACH

• Halogen restrictions

• Material composition

• Flame retardancy

• Environmental requirements

Compliance requirements vary by product, market, and application.

A general EVA sheet should not be assumed to meet a specific regulatory requirement without appropriate documentation.

21. EVA Cushion Sealing Gasket Specifications

The following table provides common specification categories for EVA gasket materials.

Actual specifications should be confirmed with the material supplier or manufacturer.

22. Typical Applications by Industry

23. EVA Gasket vs Other Foam Materials

EVA is only one option for foam gasket applications.

Other commonly used materials include:

• EPDM

• Silicone foam

• Neoprene

• Polyurethane foam

• PE foam

• Nitrile foam

Each material has different advantages.

Material selection should be based on actual environmental and mechanical requirements.

24. EVA vs Silicone Foam for Battery Applications

EVA and silicone foam can both be considered for cushioning and sealing applications, but they are not interchangeable in every battery design.

EVA can be attractive where:

• Cost efficiency is important

• Good cushioning is required

• Moderate temperature exposure is expected

• Easy die cutting is desired

• Adhesive backing is required

• Large-volume production is needed

Silicone foam may be more suitable when:

• Higher continuous temperatures are expected

• Wider temperature stability is required

• Long-term environmental exposure is severe

• More demanding sealing performance is required

The final selection should be based on actual operating conditions.

25. EVA Gasket Design Considerations

Good gasket performance depends on more than the foam material.

Engineers should consider:

Gasket Thickness

Select a thickness that provides sufficient compression without creating excessive assembly force.

Compression

Determine the required compression range based on the gasket's mechanical properties.

Contact Area

A sufficient contact area can improve stability and reduce local pressure concentrations.

Surface Roughness

Very rough surfaces may require thicker or softer materials.

Adhesive Placement

The adhesive area should match the intended installation surface.

Temperature

Evaluate both short-term peak temperature and continuous operating temperature.

Chemical Exposure

Consider oils, solvents, cleaning agents, coolants, and other chemicals.

Mechanical Movement

If the components move relative to each other, select an EVA grade with suitable resilience and compression recovery.

26. Manufacturing Process of EVA Cushion Sealing Gaskets

The manufacturing process can vary depending on product structure and quantity.

A typical process may include:

1. EVA foam material preparation

2. Thickness selection

3. Lamination if required

4. Adhesive coating

5. Protective liner application

6. Slitting or sheet cutting

7. Die cutting

8. Dimensional inspection

9. Visual inspection

10. Packaging

For complex products, additional operations may include:

• Multi-layer lamination

• Partial adhesive coating

• Kiss cutting

• Printing

• Surface treatment

• CNC cutting

• Special punching

27. Quality Control

Quality control is important for Cushion Sealing Gasket Materials because dimensional variation can affect assembly.

Typical inspection items include:

• Thickness

• Length

• Width

• Density

• Hardness

• Compression

• Adhesive strength

• Die-cut dimensions

• Surface condition

• Color consistency

• Material defects

For battery-related applications, additional testing may be required according to the overall battery design.

28. Common Defects in EVA Gaskets

Possible manufacturing defects include:

Dimensional Variation

The gasket may be outside the specified length or width.

Uneven Thickness

Variations can affect compression and sealing.

Surface Contamination

Dust, oil, or foreign particles can reduce adhesive performance.

Incomplete Cutting

Poor die-cutting can leave unwanted material around holes or edges.

Adhesive Transfer

Adhesive may transfer incorrectly during handling or storage.

Edge Deformation

Improper processing can deform narrow gasket sections.

Proper process control can reduce these problems.

29. Storage of EVA Cushion Sealing Gasket Sheets

Correct storage can help maintain gasket performance.

Recommended general practices include:

• Store in a clean and dry environment

• Avoid direct sunlight

• Keep away from excessive heat

• Protect adhesive surfaces from contamination

• Avoid unnecessary compression during storage

• Keep protective liners intact

• Follow adhesive manufacturer's storage recommendations

Adhesive-backed EVA products may have more specific temperature and humidity requirements.

30. Installation Guidelines

Before installation, mating surfaces should be clean and dry.

Typical installation steps include:

1. Clean the mating surface.

2. Confirm gasket dimensions.

3. Remove the protective liner if adhesive-backed.

4. Align the gasket carefully.

5. Apply uniform pressure.

6. Avoid stretching the gasket unnecessarily.

7. Confirm that holes and openings remain aligned.

8. Complete final assembly according to the equipment design.

For adhesive-backed products, sufficient bonding pressure and appropriate surface preparation can improve adhesion.

31. Advantages of Custom Die-Cut EVA Gaskets

Custom die-cutting provides several advantages over manually cut foam.

Better Dimensional Consistency

Production tooling can provide repeatable gasket dimensions.

Faster Assembly

Pre-cut components can be installed directly.

Reduced Material Waste

Nested die layouts can improve material utilization.

Complex Shapes

Multiple holes, cutouts, and irregular profiles can be produced.

Adhesive Integration

Adhesive backing can be incorporated into the manufacturing process.

High-Volume Production

Die cutting is suitable for repeated production runs.

32. Adhesive EVA Cushion Sealing Gasket

An adhesive EVA cushion sealing gasket combines foam cushioning with pressure-sensitive adhesive.

This construction can reduce the number of assembly steps.

Typical structure:

Release Liner → Adhesive Layer → EVA Foam → Optional Surface Layer

The adhesive bonds the EVA gasket to the selected component while the foam provides cushioning and gap compensation.

The correct adhesive should be selected according to:

• Substrate type

• Surface energy

• Temperature

• Humidity

• Bonding duration

• Required peel strength

• Required shear strength

33. EVA Gasket for Electronic Assembly

Electronic assemblies often contain sensitive components that benefit from cushioning.

EVA gasket sheets can be used around:

• Displays

• Enclosures

• Battery compartments

• Sensors

• Control modules

• Connector assemblies

• Small equipment housings

The foam can reduce direct mechanical contact and provide additional protection against vibration.

For electronic products, electrical insulation requirements should be evaluated separately from cushioning performance.

34. EVA Cushion Gaskets for Enclosures

An enclosure gasket can help reduce the passage of dust, moisture, and contaminants between mating surfaces.

EVA foam may provide an economical auxiliary sealing solution when the environmental requirements are moderate.

However, enclosure sealing depends on:

• Gasket compression

• Contact pressure

• Joint design

• Surface flatness

• Fastener spacing

• Material recovery

• Environmental exposure

The gasket material alone does not determine the final ingress protection level.

35. Battery Pack Cushioning Design

In a battery pack, EVA cushioning material can be used strategically rather than continuously throughout the entire assembly.

Potential locations include:

• Between cells

• Between modules

• Between module and housing

• Around selected Brackets

• Beneath selected cooling components

• Around enclosure interfaces

The exact placement depends on the battery architecture.

Engineers should ensure that the foam does not interfere with:

• Cooling channels

• Electrical connections

• Venting systems

• Pressure relief structures

• Service access

• Mechanical fastening

• Thermal management

36. Important Considerations for Lithium Battery Applications

Battery applications have more stringent requirements than ordinary packaging applications.

Before selecting an EVA cushion sealing gasket, engineers should evaluate:

• Operating temperature

• Peak temperature

• Cell expansion

• Compression

• Long-term compression set

• Chemical compatibility

• Electrical insulation requirements

• Flame-retardancy requirements

• Mechanical vibration

• Moisture exposure

• Cooling system compatibility

The gasket should be considered part of the complete battery system rather than as an isolated material.

37. Packaging Options

EVA cushion sealing gasket sheets can be supplied in several formats.

Rolls

Suitable for long strips and continuous production.

Sheets

Suitable for die cutting and batch processing.

Pre-Cut Gaskets

Ready for direct assembly.

Adhesive-Backed Rolls

Suitable for automated or semi-automated processing.

Individual Pieces

Useful for small assemblies and manual installation.

Packaging should prevent deformation, contamination, moisture exposure, and adhesive damage.

38. Customization Options

Manufacturers can generally customize EVA gasket products according to application requirements.

Possible customization parameters include:

• Length

• Width

• Thickness

• Density

• Hardness

• Color

• Shape

• Hole diameter

• Hole position

• Adhesive type

• Adhesive coverage

• Release liner

• Surface treatment

• Lamination

• Packaging format

For custom products, a technical drawing or sample can help define the required geometry.

39. How to Select the Right EVA Cushion Sealing Gasket

A practical selection process can begin with the following questions:

1. What is the gasket used for?

2. Is the primary function cushioning, sealing, spacing, or protection?

3. What thickness is available?

4. What compression is required?

5. What temperature will the gasket experience?

6. Will it contact water or chemicals?

7. Is adhesive backing required?

8. Is electrical insulation required?

9. Is flame retardancy required?

10. Does the product need custom die cutting?

Answering these questions can significantly improve material selection.

40. Common Purchasing Specifications

When requesting an EVA gasket quotation, buyers should provide as much technical information as possible.

41. EVA Cushion Sealing Gasket Sheet for Industrial Equipment

Industrial equipment often requires components that can withstand vibration, movement, dust, moisture, and repeated assembly.

EVA cushion gasket sheets can provide:

• Mechanical cushioning

• Gap compensation

• Surface protection

• Vibration damping

• Auxiliary sealing

• Noise reduction

They can be especially useful when equipment contains multiple rigid components that require a flexible interface.

42. Role of EVA in Mechanical Protection

Mechanical protection is one of the most common uses of EVA foam.

When a hard component is exposed to vibration or impact, EVA can act as an intermediate layer.

The foam absorbs part of the mechanical energy and reduces concentrated contact forces.

This principle can be applied to:

• Electronics

• Battery systems

• Automotive components

• Machinery

• Industrial controls

• Packaging

43. Limitations of EVA Cushion Sealing Gaskets

Despite its advantages, EVA is not suitable for every sealing application.

Potential limitations include:

• Temperature limitations compared with silicone

• Possible compression set under prolonged loading

• UV aging depending on formulation

• Limited resistance to certain aggressive chemicals

• Adhesive aging under extreme conditions

• Limited suitability for demanding primary electrical insulation

• Flame-retardancy differences between grades

Therefore, material selection should be based on the complete application environment.

44. EVA Foam and Flame Retardancy

Standard EVA foam should not automatically be considered flame retardant.

If flame performance is important, a specifically formulated flame-retardant grade should be requested.

Possible requirements may include:

• Flame-retardant additives

• Specific flammability ratings

• Low smoke requirements

• Halogen-free formulations

The exact certification should be verified through appropriate test documentation.

45. Environmental Considerations

EVA products may be selected for applications where manufacturers require materials with certain environmental characteristics.

Depending on the grade and additives, customers may request:

• RoHS compliance

• REACH-related documentation

• Halogen-free options

• Low-emission formulations

• Recyclability information

Environmental requirements should be verified based on the specific formulation rather than assumed from the EVA material name alone.

46. Why EVA Is Suitable for Custom Gasket Manufacturing

EVA foam is particularly attractive for custom gasket manufacturing because it can be converted efficiently into many shapes.

Its processing flexibility allows manufacturers to produce:

• Small gaskets

• Large gaskets

• Thin pads

• Thick cushions

• Narrow strips

• Large sheets

• Complex die-cut components

This versatility supports applications ranging from consumer electronics to industrial battery systems.

47. EVA Cushion Sealing Gasket Sheet for Export Products

Export products may require consistent dimensions and documented material properties.

For international supply, buyers may request:

• Material specifications

• Dimensional tolerances

• Adhesive specifications

• Environmental compliance documents

• Test reports

• Packaging requirements

• Product drawings

Clear technical documentation can simplify quality control between suppliers and customers.

48. Product Specification Example

A customized EVA cushion sealing gasket may be described as follows:

This table is an example format rather than a universal product specification.

49. Best Practices for EVA Gasket Design

A successful EVA gasket design should balance cushioning, sealing, compression, durability, and manufacturability.

Important principles include:

• Select an appropriate foam density.

• Avoid unnecessary compression.

• Provide sufficient gasket width.

• Consider long-term compression set.

• Match the adhesive to the substrate.

• Account for temperature changes.

• Consider chemical exposure.

• Provide adequate dimensional tolerances.

• Avoid sharp internal corners where possible.

• Validate the design through prototype testing.

50. Conclusion

A Durable EVA Cushion Sealing Gasket Sheet is a versatile foam component for cushioning, vibration damping, gap filling, auxiliary sealing, insulation support, and component protection.

Its combination of flexibility, resilience, moisture resistance, chemical resistance, thermal insulation, sound-damping capability, and excellent processability makes EVA foam useful across electronics, electrical equipment, automotive components, industrial machinery, packaging, and lithium battery systems.

In lithium battery applications, EVA can be used for cushioning and isolation between battery cells, cushioning between modules and enclosures, auxiliary isolation around tabs and busbars, and enclosure joint protection. However, EVA should be selected based on the specific thermal, mechanical, chemical, electrical, and safety requirements of the battery system.

For industrial gasket applications, customized EVA sheets can be manufactured in different thicknesses, densities, hardness levels, colors, shapes, and adhesive configurations. Die cutting, laminating, adhesive coating, slitting, and other converting processes make it possible to produce application-specific gasket components.

The best EVA cushion sealing gasket is not simply the softest or thickest option. It is the material and geometry that provide the appropriate compression, recovery, cushioning, sealing, adhesion, and long-term stability for the intended operating environment.
