A Custom Die Cut Cushion Sealing Gasket Sheet is a precision converted sealing and cushioning component manufactured from flexible sheet, foam, sponge, rubber, or polymer materials and cut into a specified shape. It is designed to provide controlled compression, gap filling, surface protection, vibration damping, insulation, and sealing between mating components.

Custom die cut gasket sheets are widely used in electronics, electrical equipment, battery assemblies, industrial machinery, automotive components, appliances, communication equipment, control cabinets, lighting systems, HVAC equipment, and other applications where a consistent interface is required. Depending on material selection and construction, a cushion Sealing Gasket can help prevent the entry of dust, moisture, air, and other contaminants while also absorbing minor dimensional variation between assembled parts.

Unlike generic gasket products, a custom die cut Cushion Sealing Gasket Sheet can be manufactured according to a specific drawing, CAD profile, thickness, material grade, adhesive requirement, hole pattern, internal opening, and dimensional tolerance. This makes the product particularly useful for electronic housings and compact assemblies where space is limited and a standard gasket may not provide the required fit.

For modern electronic assemblies, the gasket is often expected to perform more than one function. A single component may provide environmental sealing while also cushioning a cover, reducing vibration, preventing surface scratching, maintaining electrical isolation, or assisting with assembly positioning. Foam and sponge gasket materials are particularly useful when a low compression force is needed.

What Is a Custom Die Cut Cushion Sealing Gasket Sheet?

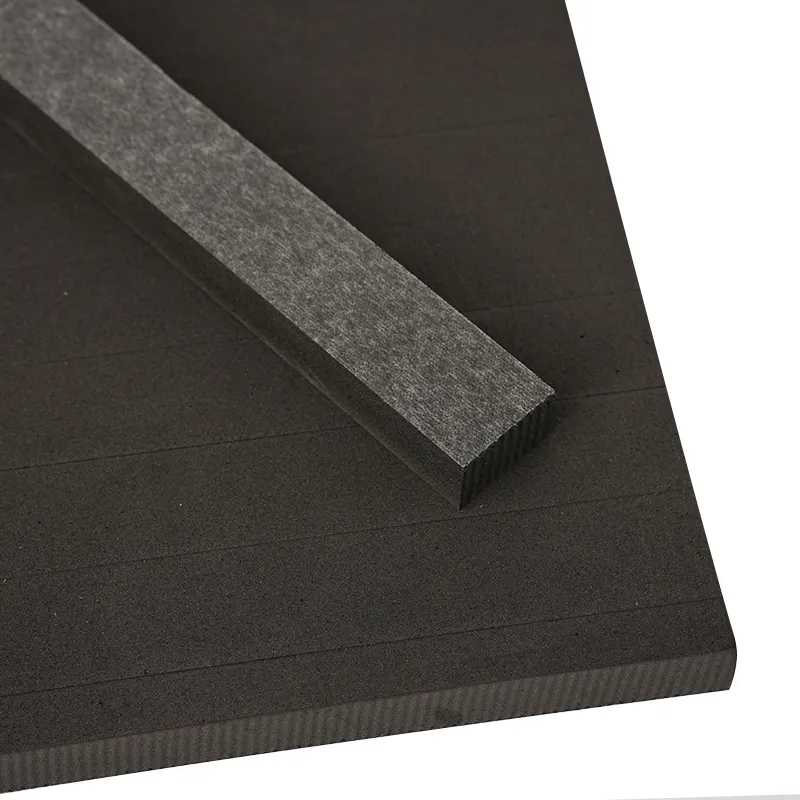

A custom die cut cushion sealing gasket sheet starts with a sheet or roll of gasket material. The material is converted into a predetermined geometry using die cutting, precision cutting, laser cutting, waterjet cutting, or another suitable converting process.

The finished component may have:

• A simple rectangular profile

• A circular or ring-shaped profile

• An irregular outline

• Multiple internal openings

• Mounting holes

• Slots

• Notches

• Alignment features

• Adhesive backing

• Multi-layer construction

• Protective liners

• Different thickness zones

Die cutting is particularly useful when a large quantity of identical gasket components must be produced with consistent dimensions. Custom gasket manufacturers commonly work with closed-cell foams, open-cell foams, EPDM, silicone, neoprene, nitrile, polyethylene foam, EVA, polyurethane foam, and other flexible materials.

The basic principle is simple: the gasket is positioned between two mating surfaces and compressed during assembly. Compression allows the gasket to conform to small surface irregularities and maintain contact around the intended sealing area. Proper material selection and compression design are therefore essential to achieving reliable performance.

Main Functions of Cushion Sealing Gasket Sheets

1. Sealing Against Dust

Electronic housings and industrial enclosures can be exposed to airborne particles, dust, fibers, and manufacturing debris. A properly designed cushion sealing gasket creates a barrier around the joint.

Closed-cell foam materials are commonly considered for dust sealing because their cellular structure can provide a continuous barrier when appropriately compressed. Foam gasket products are widely used for electronic enclosures and outdoor equipment where environmental sealing is required.

2. Moisture Protection

A cushion sealing gasket can help reduce the possibility of moisture entering through a joint, cover, panel, housing, or enclosure.

Water resistance depends on the gasket material, cellular structure, surface condition, compression level, joint geometry, and installation quality. Therefore, a gasket should not automatically be described as waterproof simply because it is made from foam or rubber.

For applications exposed to outdoor conditions, EPDM is frequently considered because of its weathering, ozone, and UV resistance.

3. Gap Filling

Manufacturing tolerances can produce small gaps between mating components. A cushion sealing gasket fills these gaps and compensates for minor dimensional variation.

This is especially valuable for:

• Electronic enclosures

• Control boxes

• Battery housings

• Electrical cabinets

• Display assemblies

• Sensor housings

• Lighting enclosures

• Industrial equipment

Custom die cutting allows the gasket profile to follow the actual joint geometry rather than relying on a generic shape.

4. Cushioning

The word cushion is important because many gasket sheets provide both sealing and mechanical cushioning.

A compressible foam gasket can absorb minor impacts and distribute contact pressure across an assembly. This can help reduce localized stress on plastic housings, covers, circuit boards, displays, and other sensitive components.

5. Vibration Reduction

Foam and sponge materials can provide a degree of vibration isolation. Depending on material density, thickness, compression characteristics, and mounting conditions, a gasket can help reduce transmission of mechanical vibration.

This makes cushion sealing gaskets useful in:

• Electronic equipment

• Automotive assemblies

• Industrial machinery

• Motors

• Sensors

• Communication equipment

• Battery systems

Gasket applications can combine sealing with vibration and noise management when the selected material is suitable for the operating environment.

6. Electrical Insulation

Certain gasket materials are electrically nonconductive and can provide separation between components.

For electrical applications, material selection should consider dielectric requirements, temperature, thickness, surface contamination, compression, and the specific electrical design.

A Cushion Gasket should not be assumed to provide electrical insulation without verifying the material's electrical properties.

7. Thermal Insulation

Some foam materials can provide thermal insulation because their cellular structure contains air or gas-filled cells.

However, thermal performance depends strongly on material type, density, thickness, temperature, compression, and assembly conditions.

Silicone foam, for example, can be selected for applications involving heat resistance and electrical insulation, while EVA and PE foam may be appropriate for less demanding cushioning and insulation applications.

Key Advantages of Custom Die Cut Cushion Sealing Gaskets

Precise Shape

The gasket can be designed around the actual component geometry.

Consistent Dimensions

Production tooling allows repeated parts to maintain a consistent profile when appropriate process controls are used.

Material Flexibility

Different foam, rubber, sponge, adhesive, and polymer materials can be considered according to the application.

Easy Assembly

Adhesive-backed versions can simplify installation by keeping the gasket positioned before final assembly.

Low Compression Force

Foam and sponge materials can provide sealing with relatively low compression force compared with some solid gasket materials.

Multi-Functional Construction

A single gasket can combine sealing, cushioning, insulation, vibration damping, and gap filling.

Efficient Material Utilization

Nesting multiple gasket profiles within a sheet or web can improve material utilization and reduce waste during production.

Custom Geometry

Irregular shapes, holes, slots, corners, cutouts, and internal openings can be incorporated into the design.

Common Materials for Cushion Sealing Gasket Sheets

Material selection is one of the most important parts of gasket design. Different materials offer different combinations of flexibility, compression recovery, temperature resistance, chemical resistance, environmental resistance, and cost.

The following table provides a general starting point rather than a universal specification.

Published material guides similarly identify EVA, PE, EPDM, silicone, neoprene, nitrile, polyurethane, and other foam materials as common choices for die cut gasket applications.

EVA Cushion Sealing Gasket Sheet

EVA, or ethylene vinyl acetate, is a lightweight foam material frequently used for cushioning, insulation, protective pads, and selected sealing applications.

Its lightweight structure makes EVA attractive when the product needs to reduce weight while maintaining cushioning performance.

Typical characteristics include:

• Lightweight construction

• Flexible structure

• Good cushioning

• Low water absorption

• Good chemical resistance

• Easy die cutting

• Available in multiple densities

• Available in different thicknesses

EVA is often suitable for indoor electronic assemblies, protective pads, equipment interfaces, and applications where moderate sealing performance is sufficient.

For demanding high-temperature sealing or long-term heavy compression, another material may be more appropriate.

EPDM Cushion Sealing Gasket Sheet

EPDM is widely considered for applications exposed to weather, ozone, sunlight, and environmental aging.

It can be useful for:

• Outdoor enclosures

• Automotive equipment

• HVAC equipment

• Electrical cabinets

• Industrial machinery

• Lighting systems

• Weather seals

EPDM foam and sponge materials are commonly associated with weather resistance and low water absorption.

EPDM is therefore a strong candidate when the gasket must maintain performance during outdoor exposure.

Silicone Cushion Sealing Gasket Sheet

Silicone is frequently selected when temperature resistance, flexibility, electrical insulation, and environmental stability are important.

Silicone foam can be manufactured in different cellular structures and firmness levels. It is used in electronics, lighting, industrial equipment, outdoor enclosures, and other applications where temperature and environmental performance are important.

Typical considerations include:

• Operating temperature

• Compression recovery

• Hardness

• Thickness

• Flame performance

• Electrical insulation

• Surface finish

• Adhesive compatibility

Silicone is generally more specialized than basic EVA or PE foam, so it should be selected based on actual application requirements rather than simply choosing the highest-performance material.

PE Cushion Sealing Gasket Sheet

Polyethylene foam is a lightweight material used for cushioning, spacing, insulation, moisture protection, and selected sealing applications.

PE foam can be useful where the product requires:

• Low weight

• Moisture resistance

• Good cushioning

• Easy cutting

• Moderate insulation

• Cost-effective production

Closed-cell PE foam is commonly used in enclosure sealing and protective applications.

Neoprene Cushion Sealing Gasket Sheet

Neoprene foam can provide a combination of flexibility, environmental resistance, and general-purpose sealing performance.

It is often considered for industrial applications involving:

• Oils

• Weather exposure

• Ozone

• Abrasion

• Vibration

• General mechanical sealing

Neoprene closed-cell materials are commonly available in different densities and firmness levels, allowing the gasket to be selected according to compression requirements.

Nitrile Cushion Sealing Gasket Sheet

Nitrile foam and rubber are commonly selected when resistance to oils and petroleum-based fluids is important.

Typical applications can include:

• Automotive equipment

• Machinery

• Industrial equipment

• Fuel-related assemblies

• Oil-exposed components

Nitrile should be selected when its chemical resistance profile matches the actual fluid exposure.

PU Foam Cushion Sealing Gasket Sheet

Polyurethane foam can provide good flexibility and cushioning performance. Open-cell PU foam is often used for dust and moisture sealing, cushioning, thermal insulation, and acoustic applications.

Compared with many closed-cell materials, open-cell foam behaves differently under compression and should be selected based on the required sealing mechanism.

Open Cell vs Closed Cell Gasket Materials

The cellular structure has a significant influence on gasket behavior.

Closed-cell foam is often preferred for environmental sealing, while open-cell foam can be valuable where softness, air permeability, or cushioning is the primary requirement.

Common Specifications and Parameters

A custom cushion sealing gasket should be specified according to the complete application rather than only its outside dimensions.

Actual specifications should always be confirmed against the selected material grade and engineering drawing.

Thickness Selection

Thickness is one of the most important parameters for a cushion sealing gasket.

A thicker gasket can provide more compression travel and greater gap compensation, but excessive thickness can create assembly problems.

A thin gasket may be appropriate when:

• Assembly space is limited

• The mating surfaces are relatively flat

• Only a small amount of cushioning is required

• Low profile is important

A thicker gasket may be considered when:

• The joint has a larger gap

• More cushioning is needed

• Surface variation is significant

• Greater vibration isolation is required

The correct thickness should be established through mechanical testing rather than selected solely according to appearance.

Density and Compression

Foam density affects how a cushion sealing gasket responds to compression.

Lower-density foam may provide:

• Softer compression

• Lower compression force

• Greater cushioning

• Easier deformation

Higher-density foam may provide:

• Greater structural support

• Higher resistance to deformation

• Different compression characteristics

• Improved dimensional stability in some applications

Compression performance also depends on thickness, material formulation, cellular structure, temperature, compression duration, and joint design.

Compression Set

Compression set is an important consideration for sealing products that remain compressed for long periods.

A gasket that experiences permanent deformation may lose some of its ability to maintain contact with the mating surfaces.

For long-term sealing applications, engineers should evaluate:

• Compression set

• Compression force

• Recovery

• Temperature

• Aging

• Chemical exposure

• Assembly pressure

Material selection should therefore be based on actual operating conditions rather than simply choosing a soft or thick foam.

Custom Die Cutting Process

The manufacturing process normally begins with engineering requirements and a material selection.

Step 1: Drawing Review

The required gasket geometry is reviewed.

Important information includes:

• Overall dimensions

• Internal openings

• Holes

• Slots

• Corner radii

• Thickness

• Tolerance

• Adhesive requirement

• Material specification

Step 2: Material Selection

The material is selected according to:

• Temperature

• Moisture

• Chemical exposure

• Compression

• Vibration

• Electrical requirements

• Environmental conditions

• Cost target

Step 3: Tooling Development

For repeated die cut production, a cutting die can be designed according to the gasket geometry.

Step 4: Material Preparation

Sheet or roll material is prepared for converting.

Step 5: Die Cutting

The material is cut into the required shape.

Depending on the material and production requirements, alternative processes such as laser cutting or waterjet cutting may be considered. Custom gasket production commonly uses die cutting, laser cutting, and waterjet processes.

Step 6: Adhesive Lamination

If a self-adhesive gasket is required, pressure sensitive adhesive can be laminated to one side or both sides.

Step 7: Inspection

Finished parts are inspected for:

• Dimensions

• Cut quality

• Surface condition

• Adhesive position

• Missing features

• Contamination

• Material consistency

Step 8: Packaging

The finished gasket sheets or individual parts are packaged to prevent contamination, deformation, and damage.

Adhesive Backed Cushion Sealing Gaskets

Pressure sensitive adhesive backing is a common option for custom gasket products.

An adhesive-backed gasket provides two functions:

1. Sealing or cushioning

2. Temporary or permanent positioning during assembly

This can simplify installation because the gasket can be attached to one component before the final mating component is installed.

Common adhesive systems include acrylic and silicone pressure sensitive adhesives. The appropriate adhesive depends on:

• Substrate

• Surface energy

• Temperature

• Humidity

• Required bond strength

• Aging conditions

• Removal requirements

Custom gasket converters commonly offer adhesive-backed foam and gasket configurations.

Single Sided and Double Sided Adhesive Gaskets

Single Sided Adhesive

Adhesive is applied to one side of the gasket.

Suitable for applications where the gasket must be attached to one housing or panel.

Double Sided Adhesive

Adhesive is applied to both sides.

This can be useful when the gasket must remain fixed between two components during assembly.

The adhesive should be selected together with the gasket material rather than treated as an independent component.

Applications

Electronic Enclosures

Cushion sealing gaskets are frequently used around covers, doors, display panels, and access openings.

They can help:

• Reduce dust entry

• Reduce moisture entry

• Fill gaps

• Cushion mating surfaces

• Reduce vibration

• Improve assembly consistency

Battery Assemblies

Gaskets can be used around battery housings, covers, electronic control units, and auxiliary components.

Depending on the material, they may provide:

• Cushioning

• Insulation

• Environmental sealing

• Vibration reduction

• Gap filling

Battery applications require careful consideration of temperature, compression, electrical insulation, chemical exposure, and flame performance.

Automotive Electronics

Automotive assemblies can expose gasket materials to vibration, temperature cycling, moisture, oils, UV radiation, and other environmental conditions.

Material selection should therefore be based on the specific automotive environment.

Control Cabinets

Electrical control cabinets require protection against dust, moisture, and environmental contamination.

A properly designed gasket around a cabinet door or panel can improve enclosure sealing.

Lighting Equipment

Gaskets can be used between lighting housings, lenses, covers, and mounting surfaces.

Silicone and EPDM materials may be considered where temperature and outdoor weather exposure are significant.

HVAC Equipment

Foam and rubber gaskets are commonly used to seal panels, ducts, housings, and service openings.

EPDM and closed-cell foam materials may be considered depending on temperature and environmental requirements.

Industrial Equipment

Industrial machinery often requires gaskets that provide both sealing and vibration management.

Typical applications include:

• Pumps

• Motors

• Control boxes

• Sensors

• Machinery covers

• Inspection panels

• Equipment housings

Custom Shapes and Geometries

One of the biggest advantages of custom die cut gasket sheets is the ability to manufacture complex profiles.

Possible features include:

• Rounded corners

• Internal holes

• Mounting holes

• Long slots

• Cable openings

• Connector cutouts

• Ventilation openings

• Screw clearance holes

• Alignment holes

• Irregular external profiles

This is particularly useful for electronic equipment where space is limited and every millimeter of the gasket profile may affect assembly.

Dimensional Accuracy

Gasket dimensions should be controlled according to the material and manufacturing process.

Important dimensions can include:

• Outside diameter

• Inside diameter

• Overall length

• Overall width

• Hole diameter

• Hole spacing

• Slot width

• Corner radius

• Material thickness

Tolerance requirements should be realistic and matched to the material's characteristics.

For example, flexible foam can behave differently from rigid plastic sheet during cutting and measurement.

Surface Finish

The gasket surface can affect sealing and adhesive performance.

Important surface considerations include:

• Smoothness

• Roughness

• Compression behavior

• Surface contamination

• Adhesive compatibility

• Lamination quality

A clean surface is particularly important when adhesive backing is used.

Multi Layer Cushion Sealing Gaskets

Some applications require more than one material layer.

A multi-layer gasket may combine:

• Foam

• Adhesive

• Film

• Rubber

• Insulation material

• Protective liner

For example, a foam layer can provide cushioning while an adhesive layer provides positioning.

Multi-layer gasket construction can be used to combine different performance characteristics into one assembly component.

Die Cut Gasket Sheet vs Standard Gasket

Custom die cut gaskets are especially useful when a standard gasket cannot achieve the required fit or when the gasket needs to integrate with a specific enclosure geometry.

Material Selection Guide

This table is only a material-selection starting point. Final selection should be based on the actual operating environment and verified material data. Different gasket materials have substantially different chemical, temperature, compression, and environmental properties.

Environmental Resistance

Water Resistance

Closed-cell foam and appropriate rubber materials can provide effective moisture barriers when properly designed and compressed.

Dust Resistance

A continuous gasket interface can help reduce dust penetration into an enclosure.

UV Resistance

EPDM and silicone are often considered for applications involving outdoor UV exposure.

Ozone Resistance

EPDM is particularly well known for applications requiring resistance to ozone and weathering.

Chemical Resistance

Chemical resistance depends strongly on polymer chemistry.

A gasket exposed to oils, fuels, solvents, cleaning agents, or industrial chemicals should be tested against the specific chemical.

Temperature Considerations

Temperature is an essential parameter in gasket selection.

A gasket used near a motor, power supply, LED system, battery pack, engine compartment, or heating component may experience elevated temperatures.

The following factors should be reviewed:

• Continuous operating temperature

• Short-term peak temperature

• Temperature cycling

• Compression at temperature

• Adhesive temperature resistance

• Thermal aging

• Dimensional stability

Do not select a gasket solely according to a generic maximum temperature. The complete assembly and exposure time must be considered.

Flame Retardant Gasket Materials

Some electronic and electrical applications require specific flame performance.

Potential requirements may include:

• UL 94 classifications

• Application-specific flammability requirements

• Automotive requirements

• Electrical enclosure requirements

The exact rating must be verified for the specific material grade. A general statement that a foam gasket is "flame retardant" does not establish a particular certification or rating.

Electrical Insulation Applications

A cushion sealing gasket may also function as an electrical insulation layer.

Potential applications include:

• Battery housings

• Power electronics

• Control panels

• Electrical enclosures

• Circuit board assemblies

• Connectors

• Sensors

Important parameters can include:

• Dielectric strength

• Volume resistivity

• Surface resistivity

• Thickness

• Temperature resistance

• Moisture exposure

For safety-critical electrical applications, material documentation and testing should be obtained from the material supplier.

Vibration and Shock Applications

Mechanical vibration can cause:

• Fastener loosening

• Noise

• Component movement

• Surface wear

• Connector stress

• Fatigue

A properly selected cushion gasket can create a compliant interface between components.

However, gasket performance depends on:

• Material density

• Thickness

• Hardness

• Compression

• Mounting pressure

• Frequency

• Vibration amplitude

Therefore, gasket selection for vibration control should ideally be validated under representative conditions.

Quality Control

A professional custom die cut gasket program should consider quality at several stages.

Incoming Material Inspection

Verify:

• Material type

• Thickness

• Density

• Hardness

• Surface quality

• Adhesive specification

In Process Inspection

Check:

• Cutting accuracy

• Tool alignment

• Part dimensions

• Burrs

• Tears

• Lamination position

Finished Product Inspection

Verify:

• Overall dimensions

• Internal openings

• Hole locations

• Thickness

• Adhesive coverage

• Cleanliness

• Packaging condition

Packaging and Storage

Gasket materials should be stored according to the requirements of the selected material and adhesive system.

Storage considerations can include:

• Temperature

• Humidity

• Direct sunlight

• Dust

• Compression

• Contamination

• Adhesive liner protection

Finished adhesive-backed gaskets should generally remain protected by their release liner until installation.

Improper storage can affect adhesive performance, material flexibility, dimensional stability, and surface quality.

How to Specify a Custom Die Cut Cushion Sealing Gasket

When requesting a custom gasket, provide as much technical information as possible.

A useful specification package can include:

1. Product drawing

2. Material type

3. Material grade

4. Thickness

5. Density

6. Hardness

7. Adhesive requirement

8. Adhesive side

9. Operating temperature

10. Environmental exposure

11. Compression requirement

12. Dimensional tolerance

13. Color

14. Quantity

15. Packaging requirements

16. Application description

The more complete the specification, the easier it is to evaluate material compatibility and manufacturing feasibility.

Common Design Mistakes

Choosing Material by Price Alone

The cheapest foam may not provide the required compression recovery, temperature resistance, or environmental durability.

Ignoring Compression

A gasket needs appropriate compression to maintain contact.

Using Excessive Thickness

Too much thickness can create assembly interference.

Ignoring Adhesive Compatibility

The adhesive must work with both the gasket material and the mating substrate.

Overly Tight Tolerances

Extremely tight tolerances may increase manufacturing cost without improving actual sealing performance.

Ignoring Environmental Conditions

Outdoor, automotive, battery, industrial, and indoor electronics applications can have very different requirements.

Custom Die Cut Cushion Sealing Gasket Design Checklist

Custom Die Cut Cushion Sealing Gasket for Electronics

Electronic equipment is one of the most common areas where precision gasket design is important.

Electronic housings often contain sensitive components that must be protected from:

• Dust

• Moisture

• Vibration

• Impact

• Heat

• Electrical contact

• Contamination

A die cut cushion sealing gasket can be positioned between an enclosure and its cover to create a controlled interface.

For compact electronics, thin foam gasket materials can provide sealing without occupying excessive internal space.

Adhesive-backed construction can also make automated or manual assembly easier.

Custom Die Cut Cushion Sealing Gasket for Battery Systems

Battery systems require careful consideration because they may experience vibration, temperature cycling, electrical hazards, and mechanical compression.

Potential gasket functions include:

• Housing sealing

• Cushioning

• Cell or module protection

• Electrical isolation

• Cover sealing

• Vibration reduction

• Gap filling

Material selection should consider the complete battery environment, including temperature, electrolyte exposure where relevant, compression, flame requirements, and electrical insulation.

Custom Die Cut Cushion Sealing Gasket for Electrical Equipment

Electrical equipment may require gaskets around:

• Control cabinets

• Junction boxes

• Terminal boxes

• Switchgear

• Power supplies

• Inverters

• Controllers

• Sensors

• Connectors

A gasket can help create a controlled interface between the enclosure and removable cover.

For outdoor electrical equipment, environmental resistance becomes particularly important.

Custom Die Cut Cushion Sealing Gasket for Industrial Equipment

Industrial equipment may require a combination of:

• Sealing

• Vibration damping

• Cushioning

• Insulation

• Gap filling

• Surface protection

Industrial gasket design should account for mechanical loading, temperature, chemicals, dust, oil, vibration, and maintenance requirements.

Why Custom Die Cutting Is Suitable for Gasket Sheets

Custom die cutting provides an efficient method for producing repeated two-dimensional gasket profiles.

It is especially useful when:

• Many identical parts are required

• The gasket geometry is flat

• The material can be cut with a die

• Consistent dimensions are required

• Adhesive lamination is needed

• Complex cutouts are included

For prototypes or certain complex geometries, laser or waterjet cutting may provide an alternative before dedicated tooling is introduced.

Production Volume Considerations

The appropriate manufacturing process can depend on production volume.

The actual production strategy depends on material, geometry, tolerance, order quantity, and tooling economics.

Cost Factors

The price of a custom die cut cushion sealing gasket can depend on:

• Material

• Material thickness

• Density

• Hardness

• Gasket dimensions

• Geometry complexity

• Adhesive

• Die tooling

• Cutting method

• Production quantity

• Tolerances

• Packaging

• Inspection requirements

A simple rectangular EVA gasket may be relatively straightforward to produce, while a multi-layer silicone gasket with adhesive, tight tolerances, multiple holes, and complex geometry can require considerably more processing.

Conclusion

A Custom Die Cut Cushion Sealing Gasket Sheet is a versatile engineered component that can combine sealing, cushioning, insulation, vibration reduction, gap filling, and surface protection within one precisely shaped part.

The most important design decision is not simply choosing the gasket shape. Material, thickness, compression, adhesive, temperature, environmental exposure, chemical compatibility, and dimensional tolerance must all work together.

EVA and PE foam can be attractive for lightweight cushioning and general applications. EPDM is frequently considered for outdoor and weather-resistant sealing. Silicone can be useful where temperature resistance and electrical insulation are important. Neoprene and nitrile can be considered for applications requiring particular environmental or oil resistance. The appropriate material should always be selected according to actual operating conditions and verified through technical data and testing.

Custom die cutting further allows manufacturers and engineers to create gasket profiles that match specific housings, panels, battery enclosures, electronic assemblies, industrial equipment, and other components. By combining accurate geometry with appropriate material selection, a custom cushion sealing gasket can improve assembly consistency and provide reliable long-term interface performance.
