Industrial Cushion Sealing Gasket for Equipment Protection is a specialized sealing and cushioning component designed to protect industrial equipment from dust, moisture, vibration, impact, temperature fluctuations, surface irregularities, and other environmental or mechanical stresses. These gasket components are widely used in electrical enclosures, industrial control cabinets, machinery housings, electronic equipment, automotive systems, battery assemblies, HVAC equipment, instrumentation, automation systems, and other applications where reliable protection and controlled compression are required.

Among the various gasket materials available, silicone rubber is particularly useful for applications that require flexibility, electrical insulation, weather resistance, aging resistance, and broad temperature capability. Silicone can also be combined with a pressure-sensitive adhesive backing to create a convenient single-sided adhesive gasket that can be positioned directly onto a mating surface during assembly.

A single-sided adhesive silicone gasket consists of a silicone rubber or silicone foam sealing layer on one side and an adhesive layer protected by a release liner on the opposite side. After the liner is removed, the gasket can be positioned and pressed onto the intended surface. Pressure-sensitive adhesive systems are commonly used with gaskets because they allow the assembler to position the part before final assembly. The selection of adhesive should consider adhesion, temperature, chemical compatibility, UV exposure, and other application requirements.

The following guide provides a comprehensive industry overview of Industrial Cushion Sealing Gasket for Equipment Protection, including material characteristics, silicone gasket construction, single-sided adhesive technology, performance requirements, specifications, manufacturing methods, equipment applications, installation procedures, quality control, design considerations, and selection guidelines.

1. What Is an Industrial Cushion Sealing Gasket?

An Industrial Cushion Sealing Gasket is a flexible sealing component installed between two mating surfaces to create a controlled interface. It can prevent or reduce the passage of dust, moisture, air, light, and other environmental contaminants while simultaneously providing cushioning between components.

In industrial equipment, a gasket may be positioned between:

• Equipment housings

• Electrical cabinet doors

• Control panels

• Machine covers

• Access doors

• Electronic enclosures

• Battery housings

• Instrument panels

• HVAC panels

• Metal frames

• Plastic housings

• Protective covers

• Mechanical assemblies

The gasket can compensate for minor surface irregularities and manufacturing tolerances. When the mating parts are assembled, the gasket is compressed and conforms to the contact surfaces.

This compression creates the sealing interface.

A cushion sealing gasket can therefore perform several functions at the same time:

Silicone gasket materials are commonly used where environmental sealing, electrical insulation, UV resistance, weather resistance, and broad temperature performance are required.

2. Why Equipment Protection Requires Cushion Sealing

Industrial equipment often operates in environments that contain dust, moisture, vibration, heat, chemicals, and mechanical movement.

Without an appropriate sealing interface, contaminants can enter through very small gaps between mating components.

These contaminants may include:

• Dust

• Water droplets

• Humidity

• Oil mist

• Dirt

• Metal particles

• Industrial residues

• Cleaning agents

• Airborne contaminants

The gasket creates an interface that reduces the likelihood of these contaminants entering sensitive areas.

For electronic equipment, a gasket may protect:

• Circuit boards

• Sensors

• Connectors

• Displays

• Switches

• Power modules

• Controllers

• Communication components

For mechanical equipment, the gasket may protect:

• Bearings

• Actuators

• Motors

• Control systems

• Sensors

• Internal mechanisms

• Electrical connections

For industrial cabinets, the gasket can help maintain the integrity of the enclosure while allowing the door or cover to be opened and closed.

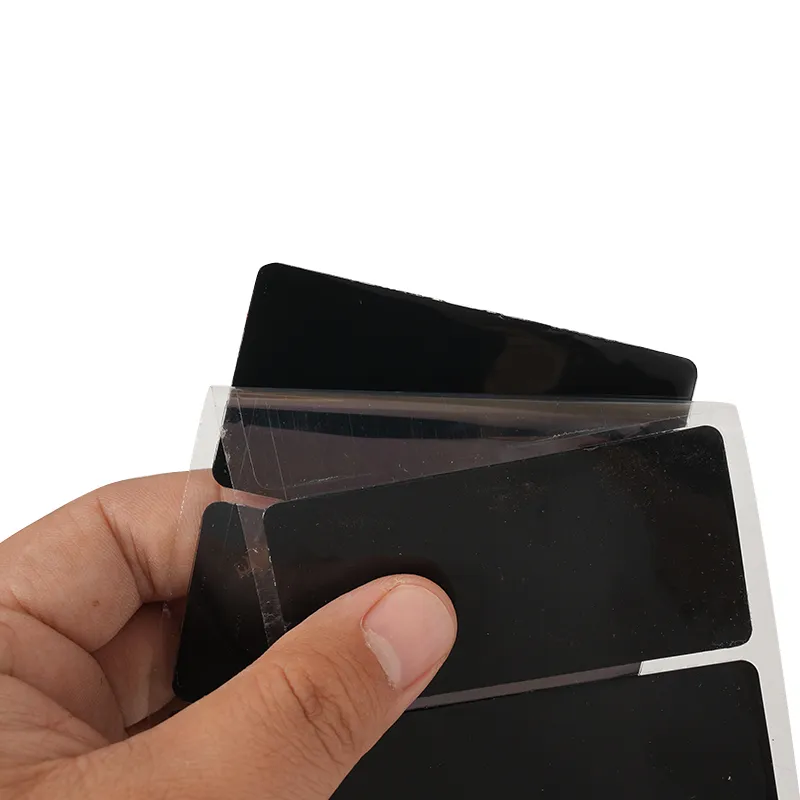

3. Single Sided Adhesive Silicone

Single Sided Adhesive Silicone

Single Sided Adhesive Silicone consists of a flexible silicone rubber or silicone foam layer on one side and a pressure-sensitive adhesive on the opposite side.

The adhesive is generally protected by a removable release liner.

The basic construction can be represented as:

Silicone Rubber or Silicone Foam → Pressure Sensitive Adhesive → Release Liner

During installation:

1. The gasket is inspected.

2. The mating surface is cleaned.

3. The release liner is removed.

4. The adhesive side is positioned.

5. Pressure is applied.

6. The gasket is compressed when the equipment is assembled.

Single-sided adhesive silicone gasket products are particularly useful when the gasket needs to remain attached to one component before the final enclosure or assembly is installed.

Pressure-sensitive adhesive systems are widely used with gasket materials because they can function as both an assembly aid and a bonding interface.

4. Core Performance Characteristics of Silicone Gaskets

Silicone is an important gasket material because it combines flexibility with resistance to heat, weathering, and environmental aging.

Depending on the formulation and construction, silicone gasket materials may provide:

• Broad temperature resistance

• Low-temperature flexibility

• High-temperature stability

• Electrical insulation

• UV resistance

• Ozone resistance

• Weather resistance

• Moisture resistance

• Good aging resistance

• Chemical resistance

• Flexible compression

• Vibration damping

• Low compression set in selected grades

However, these properties vary considerably between silicone formulations.

A silicone solid rubber, silicone sponge, closed-cell silicone foam, and thermally conductive silicone material should not be treated as identical products.

Each material should be evaluated according to the actual application.

5. Temperature Resistance

Temperature performance is one of the most important reasons silicone is selected for industrial sealing applications.

Silicone materials can maintain flexibility across a broad temperature range, although the exact range depends on the formulation, hardness, reinforcement, adhesive, and application.

Some silicone adhesive and gasket systems are engineered for continuous service at temperatures around or above 250°C, while other silicone systems have lower operating limits.

Therefore, the statement that every silicone gasket can operate continuously from -60°C to +250°C should not be treated as a universal specification.

Instead, the correct approach is:

Selected Silicone Grade + Selected Adhesive + Actual Application = Qualified Temperature Range

For example, a silicone gasket itself may tolerate a high temperature while the pressure-sensitive adhesive has a lower service limit.

This distinction is especially important for industrial equipment.

6. Typical Temperature Specification Framework

A product specification may use a format such as:

Published technical information demonstrates that silicone adhesive and gasket systems can offer broad temperature capability. For example, a high-temperature silicone PSA product is specified for continuous service from approximately -73°C to 260°C, with short-term intermittent exposure up to approximately 315°C. This is an example of a specific adhesive formulation, not a universal silicone gasket specification.

7. Thickness Options

Industrial cushion sealing gaskets are available in different thicknesses according to the required sealing gap, cushioning effect, compression, and equipment structure.

Common thickness categories can include:

The actual available thickness depends on whether the material is solid silicone, sponge silicone, foam silicone, laminated silicone, or another construction.

Thickness should not be selected solely according to the size of the gap.

The designer should also consider:

• Compression ratio

• Compression force

• Surface flatness

• Housing rigidity

• Fastener force

• Gasket recovery

• Long-term compression

• Installation tolerance

8. Silicone Hardness

Silicone rubber hardness is commonly expressed using Shore hardness.

Typical silicone gasket hardness ranges may include:

• Shore A30

• Shore A40

• Shore A50

• Shore A60

• Shore A70

• Shore A80

Some silicone foam products use different hardness scales because highly compressible cellular materials may not be appropriately characterized using standard Shore A testing.

Hardness influences:

• Compression force

• Conformability

• Cushioning

• Recovery

• Handling

• Sealing pressure

• Resistance to deformation

A softer silicone gasket generally conforms more easily to irregular surfaces.

A harder silicone gasket may provide greater mechanical support and dimensional stability.

9. Cushioning Performance

Cushioning is an important characteristic of industrial gasket components.

The gasket can act as a flexible interface between two rigid components.

For example, a metal equipment cover installed directly against a metal housing may generate:

• Noise

• Vibration

• Surface damage

• Mechanical stress

• Abrasion

A silicone gasket introduces a compliant layer between the two surfaces.

This can reduce direct mechanical contact.

Cushioning performance depends on:

• Material hardness

• Density

• Thickness

• Cell structure

• Compression

• Frequency of vibration

• Temperature

• Geometry

Silicone foam products are used in gasketing, insulation, dampening, and sensitive component protection applications.

10. Vibration Damping

Industrial machines often generate continuous vibration.

Examples include:

• Motors

• Pumps

• Compressors

• Fans

• Gearboxes

• Conveyors

• Robotic equipment

• Industrial drives

A flexible gasket can help isolate mating components from small mechanical movements.

The gasket should not be considered a complete vibration isolation system unless specifically engineered for that purpose.

However, it can provide useful localized damping and cushioning.

For equipment protection, this can help reduce:

• Surface contact

• Rattling

• Minor impact

• Mechanical noise

• Component movement

Silicone foam gasket products are specifically used in vibration damping and sensitive component protection applications.

11. Electrical Insulation

Silicone is widely used in electrical and electronic applications because selected silicone formulations offer strong dielectric properties.

Potential applications include:

• Electrical cabinets

• Power electronics

• Control systems

• Sensors

• Electronic housings

• Circuit protection

• Cable assemblies

• Battery systems

Silicone gasket materials can create a physical barrier between conductive components.

They can also help prevent moisture from reaching sensitive electrical interfaces.

Some silicone materials are specifically formulated for electrical insulation, while other silicone products are intentionally filled to provide conductive or EMI shielding performance.

Therefore, the material must be selected according to whether the application requires:

Electrical insulation

or

Electrical conductivity / EMI shielding

These are fundamentally different material requirements.

Silicone is widely used in electronics because of its electrical insulation, flexibility, and broad temperature capability.

12. Moisture Resistance

Industrial equipment may operate in:

• Humid factories

• Outdoor environments

• Washdown areas

• Refrigeration systems

• HVAC systems

• Marine environments

• Transportation equipment

Moisture can damage:

• Circuit boards

• Electrical contacts

• Sensors

• Connectors

• Metal components

A properly designed silicone gasket can help reduce moisture penetration through an enclosure joint.

Closed-cell silicone foam is particularly useful for environmental sealing because its cellular structure can reduce fluid penetration.

The final sealing performance still depends on:

• Compression

• Joint design

• Surface condition

• Gasket continuity

• Corner design

• Fastener spacing

• Adhesive system

13. Dust Protection

Dust ingress can be a major problem for industrial equipment.

Fine particles can accumulate around:

• Fans

• Motors

• Circuit boards

• Switches

• Connectors

• Sensors

• Mechanical mechanisms

A cushion sealing gasket can create a continuous sealing path around an enclosure.

The gasket should be designed so that there are no unintended gaps at:

• Corners

• Fastener locations

• Cable openings

• Door joints

• Connector interfaces

Environmental and dust sealing are among the common functions of engineered gasket materials.

14. UV and Weather Resistance

Outdoor equipment may be exposed to:

• Sunlight

• UV radiation

• Rain

• Snow

• Ozone

• Humidity

• Temperature cycling

Silicone is commonly selected for outdoor sealing because it can provide good resistance to UV radiation, ozone, and weathering.

This makes silicone useful for:

• Outdoor electrical cabinets

• Lighting equipment

• Solar equipment

• Communication equipment

• Industrial control systems

• Transportation equipment

Silicone's UV, ozone, and weather resistance are documented among its commonly used properties in enclosure gasket applications.

15. Aging Resistance

Long-term gasket performance depends heavily on material aging.

A gasket may remain compressed for years.

During this period it may experience:

• Heat

• Cold

• Humidity

• UV

• Chemical exposure

• Vibration

• Mechanical compression

A suitable silicone material can maintain flexibility and sealing performance over long periods.

However, aging performance is not determined by the silicone rubber alone.

The adhesive, liner, substrate, and joint design must also be considered.

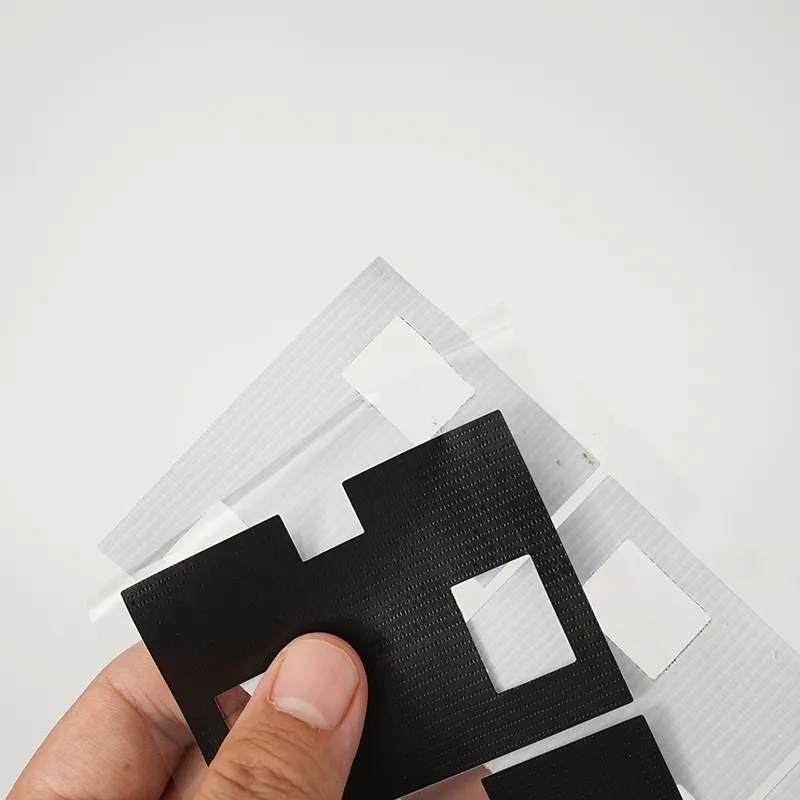

16. Single Sided Adhesive Silicone Construction

A typical single-sided adhesive silicone gasket may contain four primary layers:

A carrier may be used when additional dimensional stability is required.

Technical gasket guidance notes that adhesive systems may be supplied with support carriers to reduce gasket stretching during manufacturing and assembly.

17. Pressure Sensitive Adhesive

Pressure-sensitive adhesive, commonly called PSA, is an adhesive system designed to form a bond when pressure is applied.

The basic installation process is:

Remove Liner → Position Gasket → Apply Pressure → Establish Adhesive Contact

PSA systems are widely used with gasket materials.

Common adhesive chemistries include:

• Acrylic PSA

• Silicone PSA

• Rubber-based PSA

Silicone PSA is particularly useful when bonding to silicone elastomers or when broad temperature performance is required.

Technical gasket guidance identifies silicone PSA as a useful adhesive choice for silicone elastomers and notes its broad temperature capability.

18. Acrylic Adhesive

Acrylic adhesives can provide strong adhesion to many surfaces.

They are commonly considered when the gasket must bond to:

• Metal

• Plastic

• Painted surfaces

• Glass

• Composite materials

The actual performance depends on:

• Adhesive formulation

• Substrate

• Surface preparation

• Temperature

• Humidity

• Contact pressure

• Dwell time

Acrylic and silicone PSAs have different performance characteristics, so the adhesive should be selected according to the actual application.

19. Silicone Adhesive

Silicone PSA is often selected when the gasket itself is silicone and the application requires broad temperature capability.

Advantages can include:

• Good compatibility with silicone

• Good flexibility

• High-temperature performance

• UV resistance

• Aging resistance

• Chemical resistance

Silicone PSA technology is available for applications requiring adhesion to difficult-to-wet surfaces and low-surface-energy substrates.

20. Why Silicone Is Difficult to Bond

Silicone rubber has a low-energy surface.

It is:

• Non-polar

• Chemically stable

• Relatively inert

• Non-porous

These characteristics make silicone excellent for many demanding environments but challenging for conventional adhesive bonding.

Research on silicone adhesion explains that silicone's low-energy, non-polar, non-porous surface makes it difficult for many conventional adhesives to establish strong molecular contact.

This is why silicone gasket manufacturing may require:

• Surface cleaning

• Primer

• Adhesion promoter

• Plasma treatment

• Corona treatment

• Specialized silicone adhesive

• Controlled lamination

21. Silicone Adhesive Backing Treatment

A typical industrial adhesive backing process may include several stages.

Stage 1: Surface Cleaning

Remove:

• Oil

• Grease

• Dust

• Mold release agents

• Processing residues

• Fingerprints

Suitable cleaning methods depend on the substrate and manufacturing process.

Isopropyl alcohol is commonly used for cleaning many surfaces, but compatibility should be verified before production.

22. Primer Application

A silicone-compatible primer or adhesion promoter can improve adhesive bonding.

Primer technology is used specifically to improve adhesion to silicone and other low-surface-energy elastomers.

The primer should be:

• Applied uniformly

• Applied at the correct coating weight

• Allowed to dry or cure as specified

• Protected from contamination

• Compatible with the adhesive

The exact primer should be selected according to the adhesive system.

23. Lamination

After the surface has been properly prepared, the adhesive layer can be laminated to the silicone.

Lamination parameters may include:

• Pressure

• Roller speed

• Temperature

• Adhesive thickness

• Line tension

• Web alignment

Proper lamination helps reduce:

• Air bubbles

• Wrinkles

• Adhesive voids

• Edge lifting

• Uneven bonding

24. Pressure Application

Pressure-sensitive adhesive generally requires pressure to establish intimate contact.

During gasket installation, pressure can be applied by:

• Hand roller

• Pressure roller

• Flat press

• Assembly fixture

• Automated laminating equipment

The amount of pressure required depends on the adhesive and substrate.

25. Ultra Thin Silicone Gaskets

Ultra-thin silicone gasket components may be used where space is extremely limited.

Typical applications include:

• Mobile electronics

• Sensors

• Circuit boards

• Small connectors

• Precision instruments

• Miniature housings

Possible thicknesses include:

0.1–0.5 mm

However, very thin silicone materials may provide limited cushioning compared with thicker foam products.

Their primary functions may instead include:

• Surface protection

• Electrical insulation

• Minor gap sealing

• Anti-scratch protection

• Thin environmental barriers

26. Medium Thickness Cushion Gaskets

The approximately 1–5 mm range is commonly useful for general cushioning and sealing.

Applications may include:

• Industrial enclosures

• Appliance panels

• Machine covers

• Door seals

• Control cabinets

• Equipment feet

• Protective pads

The actual optimum thickness depends on the required compression and available assembly space.

27. Thick Silicone Cushion Components

Thicker silicone foam can be useful where the application requires:

• Large gap compensation

• Greater cushioning

• Low compression force

• Impact absorption

• Vibration damping

Thick foam products are often used where a low-force enclosure must still maintain environmental sealing.

Some silicone foam products are specifically designed for low-force enclosure sealing and sensitive component protection.

28. Thermally Conductive Silicone Gaskets

Some silicone gasket materials contain thermally conductive fillers.

These materials can provide both:

• Thermal transfer

• Electrical insulation

Potential applications include:

• Power electronics

• LED modules

• Battery systems

• Inverters

• Motor controllers

• Semiconductor assemblies

The basic concept is to transfer heat from a heat-generating component toward:

• Heat sinks

• Metal housings

• Cooling plates

• Thermal spreaders

Thermally conductive silicone should not be confused with conventional silicone sealing foam.

The filler system can significantly alter:

• Hardness

• Thermal conductivity

• Compressibility

• Electrical properties

• Density

• Cost

29. Industrial Equipment Applications

Industrial cushion sealing gaskets are used in many types of equipment.

Electrical Enclosures

Gaskets may be installed around:

• Doors

• Covers

• Cable entry areas

• Inspection panels

• Control interfaces

Control Cabinets

The gasket can help protect:

• PLC systems

• Controllers

• Relays

• Power supplies

• Circuit breakers

• Communication equipment

Industrial Machinery

Applications can include:

• Machine covers

• Inspection doors

• Sensor housings

• Motor enclosures

• Control modules

Automation Equipment

Gaskets can protect:

• Sensors

• Robotics controllers

• Motion control systems

• Cameras

• Electronic modules

30. Electronics Equipment Protection

Electronic equipment requires controlled environmental conditions.

Moisture, dust, and vibration can reduce reliability.

Silicone cushion gaskets can be used around:

• Displays

• Circuit boards

• Connectors

• Switches

• Sensors

• Control panels

• Electronic housings

The gasket can also reduce direct mechanical contact between sensitive components and rigid housings.

31. Battery Equipment Protection

Battery systems increasingly use specialized sealing and cushioning components.

Potential gasket locations include:

• Battery covers

• Module housings

• Electronic control units

• Sensor interfaces

• Protective plates

• Electrical interfaces

Important design considerations include:

• Temperature

• Compression

• Chemical compatibility

• Electrical insulation

• Flame requirements

• Vibration

• Long-term aging

Battery applications should always use a material grade specifically qualified for the actual operating environment.

32. HVAC Equipment

HVAC equipment can experience:

• Moisture

• Temperature changes

• Condensation

• Vibration

• Air pressure

• Dust

Gaskets may be used around:

• Access doors

• Panels

• Fan housings

• Electrical compartments

• Duct interfaces

• Control boxes

A gasket can reduce air leakage and prevent unwanted contamination.

33. Industrial Lighting

Lighting equipment may require sealing against:

• Rain

• Dust

• Humidity

• Temperature cycling

Silicone gasket materials can be useful because of their weather resistance and broad temperature capabilities.

Applications include:

• Outdoor lights

• Industrial luminaires

• LED housings

• Control modules

• Electrical junction areas

34. Automotive Equipment

Automotive systems experience:

• Vibration

• Temperature cycling

• Humidity

• UV exposure

• Oils

• Cleaning agents

Custom silicone gaskets can be used in:

• Electronic control modules

• Lighting

• Sensors

• Battery systems

• Instrumentation

• Interior electronics

The exact material must be selected according to the automotive environment.

35. Chemical Resistance

Silicone provides useful resistance to many environmental conditions, but chemical compatibility must always be verified.

Potential exposures include:

• Oils

• Lubricants

• Cleaning agents

• Acids

• Alkalis

• Solvents

• Fuels

Chemical resistance depends on:

• Silicone formulation

• Chemical concentration

• Exposure time

• Temperature

• Mechanical stress

A gasket should be tested under actual or simulated service conditions when chemical exposure is significant.

36. Flame Resistance

Some industrial applications require flame-resistant materials.

Potential sectors include:

• Transportation

• Electrical equipment

• Industrial automation

• Power systems

• Battery equipment

Flame performance is dependent on the exact silicone formulation.

Therefore, a general silicone gasket should not automatically be described as flame retardant.

If flame performance is required, the material should be selected according to the applicable test standard and application requirement.

37. Gasket Geometry

Industrial cushion sealing gaskets can be manufactured in many shapes.

Common designs include:

• Rectangular

• Square

• Circular

• Oval

• Ring

• Frame

• Irregular

• Multi-hole

• Slotted

• Cornered

• Custom profile

The gasket should follow the actual sealing path.

A continuous gasket path is generally preferred where uninterrupted sealing is required.

38. Custom Shape Gasket Design

Custom shapes may include:

• Mounting holes

• Cable cutouts

• Connector openings

• Slots

• Tabs

• Notches

• Rounded corners

• Internal openings

A custom shape allows the gasket to fit around existing components.

This can reduce:

• Manual trimming

• Installation errors

• Material waste

• Assembly time

39. Corner Design

Corners are important in gasket performance.

Sharp corners can create:

• Stress concentration

• Material tearing

• Difficult installation

• Poor adhesive contact

Rounded corners may improve:

• Durability

• Cutting quality

• Adhesive continuity

• Handling

• Sealing consistency

The appropriate corner radius depends on the gasket thickness and material.

40. Compression Design

Compression is fundamental to sealing.

The gasket should be compressed enough to maintain contact but not so much that the material becomes permanently damaged.

Important factors include:

• Initial thickness

• Compression percentage

• Material hardness

• Compression deflection

• Housing stiffness

• Fastener spacing

• Temperature

• Long-term aging

A gasket that is under-compressed may leak.

A gasket that is over-compressed may experience:

• Excessive assembly force

• Permanent deformation

• Adhesive failure

• Housing deformation

41. Compression Set

Compression set refers to the permanent deformation that remains after a gasket has been compressed for a defined period under specified conditions.

Low compression set is generally desirable.

This is especially important for:

• Long-term enclosure sealing

• High-temperature equipment

• Repeated compression

• Outdoor equipment

• Industrial machinery

Certain silicone foam materials are specifically developed for low compression set performance at elevated temperatures.

42. Sealing Force

A gasket must generate enough contact force to maintain a seal.

However, excessive sealing force can create unnecessary mechanical loading.

The ideal design balances:

Compression + Recovery + Surface Conformability + Assembly Force

This is why hardness and thickness should be selected together.

43. Surface Preparation for Adhesive Gaskets

Surface preparation is one of the most important factors in adhesive gasket performance.

The mating surface should generally be:

• Clean

• Dry

• Smooth enough for bonding

• Free of oil

• Free of grease

• Free of dust

• Free of release agents

The exact cleaning process depends on the substrate.

Metal, glass, painted surfaces, plastics, and silicone may require different preparation methods.

44. Adhesive Application Process

A typical industrial process may include:

Step 1: Clean the Silicone

Remove contaminants from the silicone surface.

Step 2: Apply Primer

Use a compatible silicone primer when required.

Step 3: Allow Primer to Dry

Follow the specific primer manufacturer's process requirements.

Step 4: Apply PSA

Laminate the selected pressure-sensitive adhesive.

Step 5: Apply Pressure

Use controlled pressure to establish uniform contact.

Step 6: Apply Release Liner

Protect the adhesive until final assembly.

Step 7: Die Cut

Convert the laminated material into the final gasket shape.

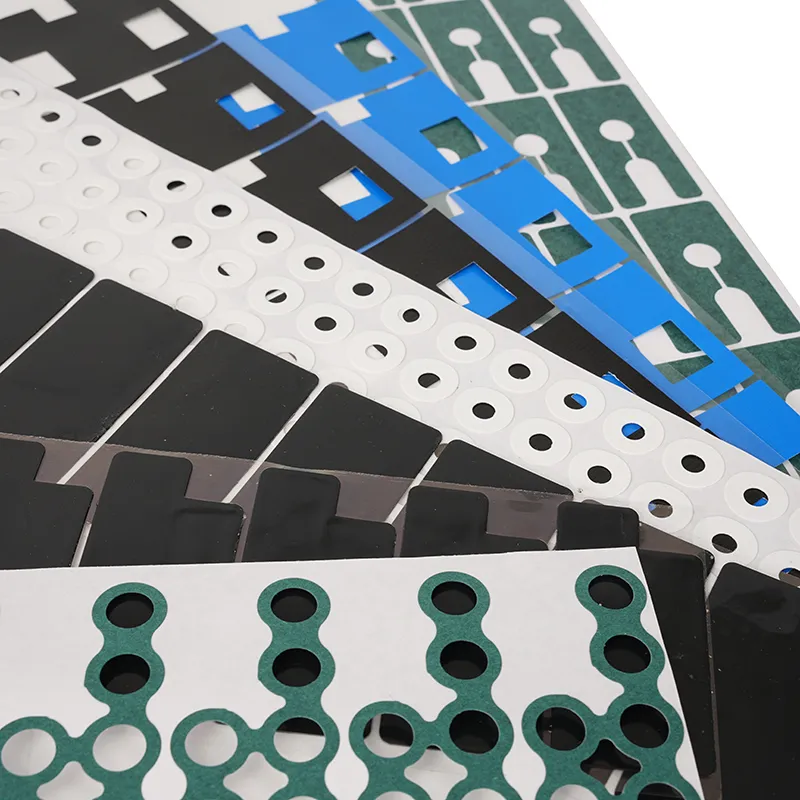

45. Manufacturing Methods

Several manufacturing technologies can be used.

Die Cutting

Suitable for:

• High-volume production

• Repeated geometries

• Precise profiles

• Adhesive-backed gaskets

Rotary Die Cutting

Suitable for continuous production of high-volume components.

CNC Cutting

Useful for:

• Prototypes

• Low-volume production

• Design changes

• Complex shapes

Waterjet Cutting

Useful for:

• Thick materials

• Complex profiles

• Prototypes

• Specialized gasket shapes

Lamination

Used to combine:

• Silicone

• PSA

• Film

• Carrier

• Release liner

46. Die Cut Silicone Gaskets

Die cutting can provide repeatable gasket profiles.

Advantages include:

• Consistent geometry

• High production efficiency

• Repeatable holes

• Controlled dimensions

• Automated processing

Die-cut silicone gasket products are available with pressure-sensitive adhesive backing for industrial applications.

47. Quality Control

Quality control should cover both material and dimensional properties.

48. Dimensional Tolerances

Tolerance selection depends on:

• Material thickness

• Gasket size

• Geometry

• Cutting process

• Material flexibility

• Application requirements

Thin silicone films may require different tolerance considerations from thick silicone foam.

The tolerance should be defined according to the sealing function rather than simply choosing an arbitrary value.

49. Adhesive Bond Testing

Adhesive performance can be evaluated through:

• Peel adhesion

• Shear adhesion

• Static shear

• Environmental aging

• Temperature aging

• Humidity exposure

• Repeated assembly testing

Pressure-sensitive adhesive selection should consider both the gasket material and the mating surface.

Technical sealing guidance identifies adhesion properties, temperature capability, chemical compatibility, UV resistance, and special properties as important PSA selection criteria.

50. Environmental Testing

For demanding equipment applications, testing may include:

• High-temperature aging

• Low-temperature aging

• Temperature cycling

• Humidity testing

• Water exposure

• Dust exposure

• UV exposure

• Chemical exposure

• Vibration testing

• Compression aging

Testing should simulate actual operating conditions whenever possible.

51. Silicone Gasket Specification Table

52. Material Selection Comparison

Silicone is often preferred when the equipment requires a combination of temperature resistance, flexibility, electrical insulation, and environmental durability.

53. Silicone Versus EVA

Silicone and EVA foam can both be used for cushion sealing.

Silicone is generally more attractive when the application emphasizes:

• High temperature

• Long-term flexibility

• UV exposure

• Ozone resistance

• Weathering

• Electrical insulation

EVA may be attractive when the application emphasizes:

• Lightweight construction

• Cost efficiency

• Cushioning

• Easy die cutting

• General-purpose sealing

• Low water absorption

The final selection should always be based on actual application requirements.

54. Silicone Versus EPDM

EPDM is widely used for outdoor sealing.

Silicone may be preferred when:

• Higher temperature capability is required

• Electrical insulation is important

• Broad temperature flexibility is required

EPDM may be preferred when:

• Weather resistance is important

• Cost efficiency is important

• The application does not require silicone's temperature performance

Chemical exposure must be considered for both.

55. Equipment Protection Benefits

Industrial cushion sealing gaskets can provide several important benefits.

Reduced Contamination

Helps reduce dust and moisture entering equipment.

Mechanical Cushioning

Protects surfaces from direct contact.

Vibration Control

Provides localized damping.

Gap Compensation

Accommodates small dimensional variations.

Electrical Protection

Provides physical and electrical separation where applicable.

Assembly Efficiency

Single-sided adhesive backing can simplify installation.

Product Reliability

A properly designed gasket can support long-term enclosure integrity.

56. Common Installation Errors

Several installation mistakes can reduce gasket performance.

Contaminated Surface

Oil and dust can reduce adhesive bonding.

Incorrect Alignment

A gasket that is positioned incorrectly may leave an open sealing path.

Excessive Stretching

Stretching can change gasket dimensions and create gaps.

Excessive Compression

Can cause deformation and increased assembly force.

Insufficient Compression

May result in poor environmental sealing.

Premature Liner Removal

Can expose the adhesive to contamination before installation.

57. Best Installation Practices

Recommended practices include:

1. Verify the gasket dimensions.

2. Inspect the adhesive surface.

3. Clean the mating surface.

4. Allow the surface to dry.

5. Remove the release liner carefully.

6. Avoid touching the adhesive.

7. Align the gasket with the sealing path.

8. Apply controlled pressure.

9. Avoid stretching the material.

10. Complete the assembly according to the design.

11. Inspect corners and joints.

12. Verify compression.

58. Packaging Requirements

Industrial silicone gaskets should be packaged to protect them from:

• Dust

• Oil

• Moisture

• Excessive compression

• UV exposure

• Mechanical deformation

Adhesive-backed gasket components should remain covered by their release liners until installation.

Parts should not be stored under excessive pressure because permanent deformation can affect final assembly.

59. Storage Conditions

Storage requirements depend on:

• Silicone formulation

• Adhesive chemistry

• Release liner

• Packaging

• Expected shelf life

Important considerations include:

• Moderate temperature

• Controlled humidity

• Protection from direct sunlight

• Clean storage

• Avoidance of heavy stacking

• Avoidance of adhesive contamination

The adhesive may have different storage requirements from the silicone rubber itself.

60. Custom Industrial Gasket Design

Custom gasket design begins with the equipment structure.

Required information may include:

• CAD drawing

• Gasket outline

• Housing dimensions

• Fastener positions

• Compression gap

• Surface material

• Operating temperature

• Environmental exposure

• Adhesive requirements

A well-designed gasket should fit the sealing path without interfering with:

• Screws

• Connectors

• Switches

• Cables

• Vents

• Moving parts

61. Prototype Development

Before mass production, prototype testing is recommended for critical applications.

Prototype development may include:

Design Review

Check the gasket path.

Material Selection

Choose the appropriate silicone grade.

Sample Production

Use CNC, waterjet, or prototype die cutting.

Assembly Testing

Install the gasket in the actual equipment.

Environmental Testing

Evaluate temperature, humidity, water, vibration, and other conditions.

Optimization

Adjust:

• Thickness

• Hardness

• Geometry

• Adhesive

• Compression

62. High Temperature Industrial Gaskets

High-temperature applications may include:

• Engines

• Industrial ovens

• Heating systems

• Power equipment

• Electrical cabinets

• Lighting equipment

• Industrial machinery

Silicone is often considered because of its broad temperature capability.

However, the adhesive layer must be evaluated separately.

A gasket rated for high temperature does not automatically mean that its PSA can withstand the same temperature.

63. Low Temperature Industrial Gaskets

Low-temperature environments may include:

• Refrigeration

• Cold storage

• Outdoor equipment

• Transportation

• Cryogenic-adjacent systems

Silicone can retain flexibility at low temperatures, depending on the formulation.

The gasket should be evaluated for:

• Flexibility

• Compression recovery

• Adhesive performance

• Shrinkage

• Surface adhesion

64. Enclosure Gaskets

Enclosure sealing is one of the most common industrial gasket applications.

The gasket can be installed around the perimeter of:

• Doors

• Covers

• Access panels

• Junction boxes

• Control cabinets

A continuous perimeter gasket can help maintain the enclosure's environmental integrity.

Silicone rubber is widely used for electrical enclosure sealing because of its temperature stability, electrical insulation, UV resistance, and long-term durability.

65. Low Force Enclosure Sealing

Some equipment designs cannot tolerate high closing forces.

Examples include:

• Thin plastic housings

• Lightweight panels

• Electronics

• Portable devices

A soft silicone foam gasket can provide sealing with relatively low compression force.

This can simplify enclosure design.

Low-force silicone foam products are specifically used for gasketing and enclosure applications where conformability and low compression force are important.

66. Industrial Door Sealing

Industrial doors may require:

• Dust sealing

• Air sealing

• Moisture resistance

• Cushioning

• Noise reduction

A flexible silicone gasket can accommodate repeated opening and closing.

The gasket profile should be selected according to:

• Door geometry

• Closing force

• Required compression

• Temperature

• Environmental exposure

67. Control Cabinet Gaskets

Control cabinets often contain sensitive electrical components.

The gasket may protect:

• PLCs

• Power supplies

• Contactors

• Relays

• Communication modules

• Circuit breakers

Single-sided adhesive silicone can simplify installation because the gasket can be attached to the door or housing before final assembly.

68. Sensor Protection

Sensors may be exposed to:

• Moisture

• Dust

• Vibration

• Temperature changes

• Mechanical impact

A custom silicone gasket can protect the sensor interface while allowing required openings for sensing functions.

The gasket geometry must be designed so it does not interfere with the sensor's operation.

69. Display and Control Panel Gaskets

Display modules can benefit from thin silicone gasket components.

Potential functions include:

• Dust sealing

• Moisture protection

• Cushioning

• Anti-rattle

• Light blocking

• Electrical separation

The gasket can be die cut into a frame surrounding the display.

70. EMI and Shielding Applications

Some industrial equipment requires electromagnetic compatibility.

In these applications, the gasket may need to provide both:

• Environmental sealing

• EMI shielding

Standard insulating silicone is not suitable for conductive shielding.

Special conductive silicone formulations may contain conductive fillers such as:

• Nickel-based fillers

• Silver-based fillers

• Graphite

• Other conductive materials

These products should be specified separately from ordinary insulating silicone gaskets.

71. Thermally Conductive Sealing Applications

Thermally conductive silicone materials can combine:

• Thermal transfer

• Mechanical compliance

• Electrical insulation

This is useful for:

• Power modules

• LED assemblies

• Battery systems

• Inverters

• Motor controllers

The gasket must be designed for both thermal and mechanical requirements.

72. Design Considerations for Long-Term Reliability

Long-term gasket reliability depends on the entire system.

The designer should evaluate:

Material

Is the silicone suitable for the environment?

Geometry

Does the gasket provide sufficient sealing area?

Compression

Is the gasket compressed within the recommended range?

Adhesive

Can the PSA maintain attachment?

Substrate

Is the mating surface compatible?

Environment

Will temperature, humidity, chemicals, or UV affect performance?

Assembly

Can the gasket be installed consistently?

73. Cost Considerations

The total cost of an industrial gasket depends on:

• Material

• Thickness

• Density

• Hardness

• Adhesive

• Shape

• Tooling

• Cutting method

• Production volume

• Tolerances

• Inspection

• Packaging

Single-sided adhesive construction can increase material cost but may reduce assembly labor.

Custom die cutting may require tooling investment but can reduce per-piece cost at higher volumes.

74. Production Volume and Manufacturing Method

The best manufacturing method depends on the actual geometry and material.

75. Why Custom Gaskets Improve Assembly

A custom-cut gasket arrives in its final shape.

This can reduce the need for workers to:

• Measure

• Cut

• Trim

• Punch holes

• Align manually

The result can be:

• Faster assembly

• More consistent placement

• Less material waste

• Lower risk of installation errors

For large-volume equipment production, these benefits can become significant.

76. Industrial Cushion Sealing Gasket Selection Checklist

Before selecting a gasket, confirm:

Material

What silicone grade is required?

Temperature

What is the minimum and maximum service temperature?

Compression

How much compression is available?

Environment

Will the gasket contact water, oil, chemicals, dust, or UV?

Adhesive

Is single-sided adhesive required?

Surface

What material will the gasket bond to?

Geometry

What is the exact gasket profile?

Thickness

How much space is available?

Hardness

How soft or firm should the gasket be?

Testing

What performance validation is required?

77. Frequently Asked Questions

What is an Industrial Cushion Sealing Gasket?

It is a flexible gasket component designed to provide environmental sealing while also offering cushioning and protection between equipment components.

What is Single Sided Adhesive Silicone?

It is a silicone rubber or silicone foam gasket with pressure-sensitive adhesive on one side and a release liner protecting the adhesive.

Can silicone gaskets withstand high temperatures?

Many silicone grades provide excellent high-temperature performance, but the exact limit depends on the silicone formulation and the adhesive system.

Can silicone gaskets work at low temperatures?

Selected silicone grades retain flexibility at low temperatures. The complete gasket and adhesive system should be evaluated for the actual low-temperature requirement.

Why is primer sometimes required?

Silicone has a low-energy and chemically inert surface, which can make conventional adhesive bonding difficult. Primers can improve adhesion to silicone and other low-surface-energy elastomers.

Can silicone gaskets be supplied with adhesive?

Yes. Silicone gasket materials can be supplied with pressure-sensitive adhesive backing.

Can the gasket be custom shaped?

Yes. Silicone gasket materials can be converted into custom profiles using die cutting, CNC cutting, waterjet cutting, and other processes.

Are silicone gaskets waterproof?

Silicone gasket materials can provide excellent moisture and environmental sealing when properly designed and compressed. Actual waterproof performance depends on the complete joint design.

Can silicone be used for electrical insulation?

Selected silicone formulations provide excellent electrical insulation properties and are widely used in electrical and electronic applications.

Can silicone gaskets provide vibration damping?

Yes. Silicone foam and other compliant silicone materials can provide cushioning and vibration damping.

Is every silicone gasket flame retardant?

No. Flame resistance depends on the specific formulation and qualification of the material.

Is every silicone gasket thermally conductive?

No. Conventional silicone is generally selected for insulation and sealing. Thermally conductive silicone requires specific conductive filler systems.

78. Industrial Cushion Sealing Gasket Product Specification Template

79. Advantages of Single Sided Adhesive Silicone Gaskets

Single-sided adhesive silicone gaskets provide a combination of sealing and assembly convenience.

Key advantages include:

• Easy installation

• Precise positioning

• Flexible sealing

• Cushioning

• Vibration damping

• Electrical insulation

• Moisture protection

• UV resistance

• Broad temperature capability

• Custom geometry

• Reduced assembly time

Silicone PSA systems can also provide strong adhesion in applications involving silicone and other difficult-to-bond substrates when the correct adhesive system and surface preparation are used.

80. Future Development of Industrial Gasket Technology

Industrial equipment is becoming:

• Smaller

• More powerful

• More automated

• More electronically integrated

• More energy efficient

These trends create new gasket requirements.

Future gasket designs are likely to emphasize:

• Thinner sealing structures

• More complex custom profiles

• Better compression recovery

• Higher temperature capability

• Improved adhesive systems

• Better moisture resistance

• Improved flame performance

• Thermal management

• EMI shielding

• Automated die cutting

• Digital manufacturing

• Multilayer gasket structures

The gasket is increasingly becoming an engineered functional component rather than a simple sealing accessory.

81. Conclusion

Industrial Cushion Sealing Gasket for Equipment Protection is an important component for improving the environmental protection, mechanical stability, and long-term reliability of industrial equipment.

Single Sided Adhesive Silicone is particularly useful when the gasket must combine flexible silicone performance with convenient adhesive installation. The basic structure consists of silicone rubber or silicone foam, a pressure-sensitive adhesive, and a protective release liner.

Silicone can provide excellent flexibility, electrical insulation, weather resistance, UV resistance, ozone resistance, and broad temperature capability. However, the actual performance depends on the selected silicone formulation and should always be verified against the application requirements.

The commonly quoted -60°C to +250°C temperature range should be regarded as an application-specific target rather than a universal specification for every silicone gasket. In particular, the silicone layer and adhesive layer can have different temperature limitations. Published technical examples show that specialized silicone PSA and gasket systems can operate across very broad temperature ranges, but their values vary by formulation.

Silicone also presents a unique adhesive challenge because its surface has low surface energy and high chemical inertness. Appropriate cleaning, primers, adhesion promoters, and adhesive selection may therefore be required to achieve durable bonding.
