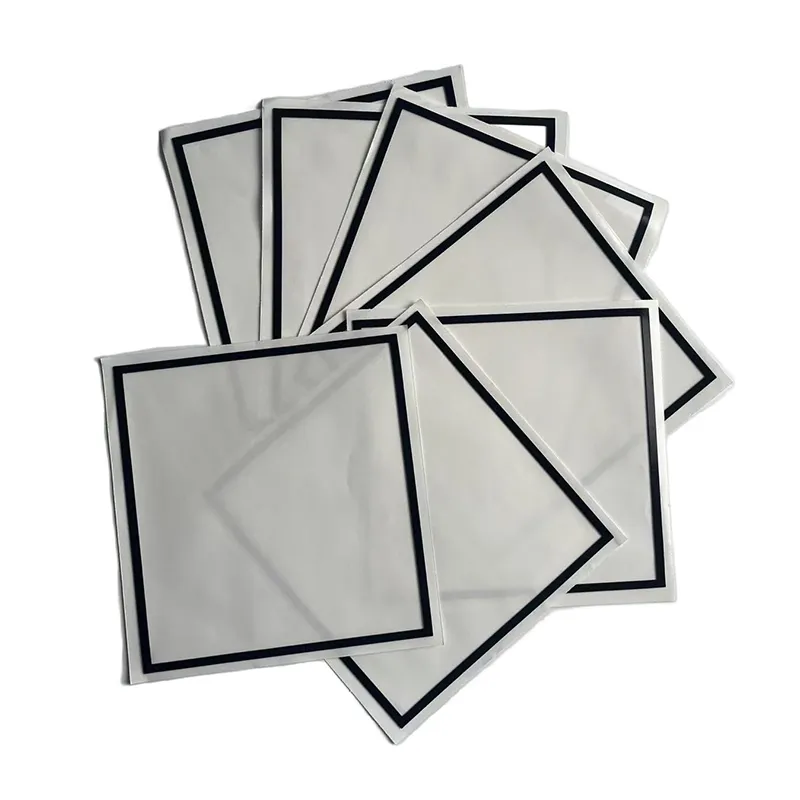

A Durable Rubber Cushion Sealing Gasket is an engineered rubber sealing component designed to provide reliable sealing, cushioning, vibration reduction, gap filling, surface protection, and mechanical isolation between mating components. Combining the elasticity of rubber with the functional characteristics of a gasket, this type of sealing component is widely used in industrial equipment, machinery, electrical systems, electronic enclosures, automotive assemblies, appliances, battery systems, control cabinets, and general mechanical applications.

Rubber cushion Sealing Gaskets are especially useful when a conventional rigid gasket cannot adequately accommodate surface irregularities, compression, vibration, thermal expansion, or dimensional variation. The resilient nature of rubber allows the gasket to deform under compression and maintain contact with mating surfaces, helping create a continuous sealing interface.

Material selection is one of the most important factors in gasket performance. NBR, EPDM, CR, SBR, silicone rubber, FKM, HNBR, and other elastomers can provide different combinations of temperature resistance, chemical compatibility, compression recovery, flexibility, abrasion resistance, weather resistance, and mechanical strength. Industrial sealing references emphasize that the operating temperature and media exposure should be considered together when selecting an elastomer.

This guide explains the construction, materials, specifications, advantages, design considerations, manufacturing methods, installation requirements, applications, maintenance considerations, and selection principles for Durable Rubber Cushion Sealing Gaskets.

1. What Is a Durable Rubber Cushion Sealing Gasket?

A Durable Rubber Cushion Sealing Gasket is a flexible sealing component manufactured from an elastomeric material and designed to sit between two or more mating surfaces.

Unlike a simple flat sealing washer, a rubber cushion sealing gasket can perform several functions simultaneously:

• Sealing against water and moisture

• Preventing dust penetration

• Filling assembly gaps

• Absorbing vibration

• Reducing mechanical noise

• Cushioning components

• Compensating for dimensional variation

• Protecting surfaces from direct contact

• Providing electrical isolation

• Improving enclosure protection

• Reducing impact between components

• Maintaining sealing pressure during service

The gasket is normally compressed between mating surfaces. Rubber elasticity allows it to deform and conform to the contact surfaces. When properly designed, this deformation generates sufficient contact pressure to maintain the seal.

The exact performance depends on rubber formulation, hardness, thickness, compression ratio, surface condition, temperature, chemical exposure, geometry, and installation conditions.

A durable gasket therefore should not be selected simply according to hardness or thickness. The complete operating environment should be considered.

2. Basic Construction

A typical rubber cushion sealing gasket consists of a resilient rubber body.

Depending on the application, the gasket may also incorporate:

• Pressure sensitive adhesive

• Reinforcement materials

• Surface coatings

• Fabric backing

• Foam structures

• Conductive fillers

• Thermally conductive fillers

• Protective liners

• Metal inserts

• Customized surface treatments

Basic Structure

For many industrial applications, a solid rubber gasket is selected where dimensional stability and compression resistance are important. Rubber foam or sponge structures may be selected when greater cushioning, gap compensation, or low compression force is required.

3. Why Rubber Is Used for Cushion Sealing Gaskets

Rubber is particularly suitable for sealing and cushioning because elastomeric materials can undergo significant deformation and recover toward their original shape.

This property enables rubber gaskets to accommodate:

• Surface unevenness

• Assembly tolerances

• Minor dimensional changes

• Vibration

• Mechanical movement

• Thermal expansion

• Compression

• Small gaps between components

Different rubber families provide different performance characteristics. For example, NBR is commonly selected where resistance to petroleum-based fluids is important, while EPDM is widely used for water, weather, ozone, and steam-related applications. Silicone provides excellent temperature capability and electrical insulation characteristics, but its mechanical and abrasion properties differ from many conventional rubbers.

Therefore, Durable Rubber Cushion Sealing Gasket is a product category rather than a single material specification.

4. Key Advantages of Durable Rubber Cushion Sealing Gaskets

4.1 Reliable Sealing

The primary function of a rubber cushion sealing gasket is to maintain contact between mating surfaces.

When compressed correctly, the gasket can help prevent:

• Water

• Dust

• Air

• Moisture

• Oil

• Dirt

• Process contaminants

from entering or escaping through the joint.

The actual sealing capability depends on gasket geometry, material, compression, surface condition, and operating environment.

4.2 Cushioning Performance

The rubber body provides a cushioning effect between components.

This can reduce direct contact between:

• Metal and metal

• Plastic and metal

• Glass and metal

• Electronic housings

• Machine components

• Enclosures and panels

The cushioning function can be particularly valuable where vibration or mechanical shock may cause component damage.

4.3 Vibration Reduction

Rubber is naturally suitable for absorbing mechanical vibration.

A properly selected rubber Cushion Gasket can help reduce vibration transmission between connected components.

Typical applications include:

• Motors

• Pumps

• Compressors

• Electrical cabinets

• Electronic enclosures

• Appliances

• Automotive components

• Industrial machinery

4.4 Gap Compensation

Manufactured components rarely have perfectly uniform mating surfaces.

A rubber gasket can compensate for relatively small variations in:

• Flatness

• Surface roughness

• Part thickness

• Assembly tolerance

• Housing dimensions

• Panel alignment

This makes rubber cushion gaskets useful for equipment housings and enclosure assemblies.

4.5 Electrical Insulation

Many rubber materials have useful electrical insulating characteristics.

Silicone, EPDM, and other nonconductive elastomers can be used in applications requiring electrical separation, depending on the specific formulation and required electrical properties.

Silicone elastomers, for example, are recognized for their insulating properties.

4.6 Environmental Protection

A properly designed gasket can help protect an assembly from environmental contamination.

Typical environmental challenges include:

• Humidity

• Rain

• Dust

• Condensation

• Ozone

• UV exposure

• Cleaning fluids

• Temperature cycling

EPDM is particularly recognized for weathering, ozone, and aging resistance.

5. Common Rubber Materials

Material selection should be based on actual service conditions rather than simply choosing the hardest or most durable rubber.

5.1 NBR Rubber

Nitrile butadiene rubber, commonly called NBR, is widely used for applications involving mineral oils and grease.

Typical advantages include:

• Good mechanical properties

• Good oil resistance

• Good tensile performance

• Good flexibility

• Useful compression properties

• Good gas impermeability

NBR is widely used for industrial sealing applications involving petroleum-based fluids.

Typical Applications

• Oil seals

• Machinery gaskets

• Hydraulic equipment

• Automotive components

• Industrial equipment

• Oil-containing systems

NBR is generally not the preferred choice for applications dominated by ozone, weathering, or certain polar chemicals.

5.2 EPDM Rubber

EPDM is widely used for outdoor and water-related sealing applications.

Typical characteristics include:

• Excellent ozone resistance

• Good weather resistance

• Good aging resistance

• Good low-temperature performance

• Good resistance to water

• Good resistance to steam

• Good resistance to many inorganic chemicals

Industrial EPDM gasket materials are commonly used for contact with water, diluted acids, hot water, and steam.

Typical Applications

• Outdoor equipment

• Electrical enclosures

• Water systems

• HVAC equipment

• Automotive cooling systems

• Door seals

• Window seals

• Industrial machinery

EPDM is generally unsuitable for many petroleum-based fluids, so compatibility must be checked before use.

5.3 Silicone Rubber

Silicone rubber is commonly selected when wide temperature capability, flexibility, weather resistance, and electrical insulation are important.

Typical characteristics include:

• Excellent temperature resistance

• Good low-temperature flexibility

• Good weather resistance

• Good ozone resistance

• Good electrical insulation

• Long-term flexibility

However, silicone does not automatically provide the best resistance to abrasion, tearing, or every chemical environment. Material selection must therefore consider the actual application.

Some industrial silicone sheet products are specified across very broad temperature ranges, including approximately -60°C to +230°C depending on the formulation.

Typical Applications

• Electronic equipment

• Electrical insulation

• Heating equipment

• Appliances

• Outdoor electronics

• Lighting equipment

• Industrial enclosures

5.4 CR Rubber

Chloroprene rubber, commonly called CR or neoprene, provides a useful combination of weather resistance, aging resistance, mechanical strength, and general-purpose sealing performance.

CR can be useful for:

• Industrial equipment

• Outdoor machinery

• Gaskets

• Washers

• Vibration applications

• Mechanical protection

Industrial CR sheet materials are used for gasket manufacturing and can provide good compression, wear, aging, ozone, oil, and grease resistance depending on formulation.

5.5 SBR Rubber

Styrene butadiene rubber is a general-purpose elastomer that can offer good mechanical performance and abrasion resistance.

SBR is commonly considered for applications where:

• High abrasion resistance is required

• Cost efficiency is important

• General mechanical cushioning is needed

• Oil exposure is limited

Natural rubber and SBR materials can offer high resilience and low compression set, although oil and hydrocarbon exposure may limit their suitability.

5.6 FKM Rubber

FKM is a fluorocarbon elastomer used in demanding applications requiring strong chemical and temperature resistance.

Typical characteristics include:

• High temperature capability

• Good oil resistance

• Good chemical resistance

• Good ozone resistance

• Good weather resistance

• Good aging resistance

Certain FKM grades are designed for long-term use around 200°C, although actual limits depend on formulation and application conditions.

5.7 HNBR Rubber

Hydrogenated nitrile butadiene rubber is derived from NBR through hydrogenation of the butadiene component.

HNBR can provide:

• Good mechanical strength

• Improved heat resistance compared with conventional NBR

• Good oil resistance

• Good aging resistance

• Good ozone resistance

It is frequently considered for demanding industrial and automotive sealing applications.

6. Rubber Material Comparison

The table represents general material-selection guidance rather than a substitute for compound-specific testing.

7. Important Specifications

A Durable Rubber Cushion Sealing Gasket should be specified using several parameters rather than a single dimension.

Common Specification Parameters

8. Rubber Hardness

Hardness is one of the most common specifications for rubber gaskets.

It is commonly measured using Shore hardness, particularly Shore A for elastomeric materials.

Typical industrial rubber gasket hardness may include:

• Shore A 40

• Shore A 50

• Shore A 60

• Shore A 70

• Shore A 80

• Shore A 90

The appropriate hardness depends on:

• Required sealing pressure

• Compression force

• Surface irregularity

• Gap size

• Mechanical loading

• Installation method

• Vibration

• Temperature

A softer rubber can conform more easily to irregular surfaces, while a harder rubber may provide greater dimensional stability and resistance to deformation.

Neither is universally better.

9. Thickness Selection

Gasket thickness has a major influence on sealing and cushioning performance.

Common industrial rubber gasket thicknesses may include:

Actual thickness should be determined from the joint design.

An excessively thick gasket can create assembly problems, while an excessively thin gasket may fail to compensate for surface irregularities.

10. Compression Performance

Compression is central to gasket design.

When a rubber gasket is compressed between two surfaces, the rubber deforms and creates contact pressure.

The design must balance:

Sealing pressure + gasket recovery + compression force + dimensional tolerance

A gasket that is compressed too little may fail to seal.

A gasket that is compressed too much may experience:

• Excessive installation force

• Permanent deformation

• Premature material fatigue

• Reduced recovery

• Damage to mating components

Compression set is therefore an important consideration for long-term sealing.

Industrial sealing references identify increasing compression set as one of the consequences of rubber aging and elevated temperature exposure.

11. Compression Set

Compression set describes the tendency of an elastomer to retain deformation after prolonged compression.

Low compression set is generally desirable for static sealing because the gasket needs to maintain contact pressure over time.

Factors affecting compression set include:

• Rubber formulation

• Hardness

• Temperature

• Compression level

• Exposure duration

• Chemical environment

• Manufacturing process

A gasket used in a high-temperature enclosure may require a different material from a gasket used at room temperature.

12. Temperature Resistance

Temperature is a critical factor in rubber gasket selection.

Rubber properties can change as temperature changes.

At elevated temperatures, aging may accelerate and compression set can increase. At sufficiently low temperatures, elastomers may become less flexible.

Trelleborg notes that increasing temperature can accelerate rubber aging and increase compression set, potentially resulting in hardening and brittleness when exposure is excessive.

General Material Temperature Comparison

These are general categories. The actual service temperature should always be based on the specific compound, exposure duration, compression condition, and application.

13. Chemical Resistance

Chemical compatibility is another major consideration.

Potentially relevant media include:

• Mineral oils

• Grease

• Fuels

• Water

• Steam

• Detergents

• Acids

• Alkalis

• Solvents

• Hydraulic fluids

• Coolants

No rubber compound provides universal chemical resistance.

Parker emphasizes that both temperature and media exposure are decisive factors in selecting a suitable base elastomer.

For example:

• NBR is commonly favored for petroleum oils.

• EPDM is generally favored for water and many weathering environments.

• FKM can be appropriate for demanding oil and temperature conditions.

• Silicone can be attractive for temperature and electrical applications.

14. Water and Moisture Resistance

A rubber cushion sealing gasket can provide useful protection against moisture when correctly designed and installed.

Applications include:

• Electrical enclosures

• Outdoor control cabinets

• Lighting housings

• Battery housings

• Electronic equipment

• Appliance panels

• Industrial equipment covers

The actual waterproofing performance depends on gasket geometry, compression, joint design, surface condition, and installation.

A gasket material alone does not automatically guarantee a specific ingress protection rating.

15. Dust Protection

Dust can enter equipment through surprisingly small gaps.

A properly compressed rubber gasket can reduce the size of the leakage path and prevent dust from entering an enclosure.

Dust sealing is important for:

• Electrical cabinets

• Control panels

• Sensors

• Electronic equipment

• Industrial machines

• Outdoor devices

• Automotive electronics

For dusty environments, gasket continuity and corner geometry are particularly important.

16. Vibration and Shock Protection

Industrial equipment frequently experiences vibration.

Sources may include:

• Motors

• Pumps

• Fans

• Compressors

• Gearboxes

• Rotating machinery

• Transportation equipment

A rubber cushion sealing gasket can serve both sealing and mechanical isolation functions.

It can reduce direct contact between mating components and help absorb small amounts of mechanical energy.

However, it should not automatically be treated as a dedicated vibration isolator. The required dynamic performance should be evaluated separately for severe vibration applications.

17. Electrical Insulation Applications

Rubber gaskets can also serve as insulating barriers.

Potential applications include:

• Electrical enclosures

• Power supplies

• Battery assemblies

• Control cabinets

• Circuit board housings

• Transformers

• Electrical connectors

• Motor housings

Electrical performance should be evaluated using the appropriate material specification and test requirements.

Important properties may include:

• Dielectric strength

• Volume resistivity

• Surface resistivity

• Insulation resistance

• Arc resistance

• Flame performance

18. Adhesive Backed Rubber Cushion Sealing Gaskets

Some rubber cushion sealing gaskets are manufactured with pressure-sensitive adhesive on one side.

The adhesive layer provides several benefits:

• Easy positioning

• Faster assembly

• Reduced movement during installation

• Improved handling

• Simplified installation

• Better alignment before final assembly

A typical construction is:

Rubber body → adhesive layer → release liner

During installation, the release liner is removed and the gasket is pressed onto the prepared surface.

19. Surface Preparation for Adhesive Gaskets

Adhesive performance is strongly affected by surface condition.

Before installation, the bonding surface should generally be:

• Clean

• Dry

• Free from oil

• Free from grease

• Free from dust

• Free from loose particles

• Free from mold release contamination

For difficult substrates, a compatible primer may be considered.

The exact cleaning agent and primer should be selected according to the adhesive manufacturer's technical instructions and substrate compatibility.

20. Common Gasket Shapes

Durable Rubber Cushion Sealing Gaskets can be manufactured in many geometries.

Common shapes include:

• Round gaskets

• Rectangular gaskets

• Square gaskets

• Oval gaskets

• Ring gaskets

• Frame gaskets

• Strip gaskets

• Custom contour gaskets

• Die cut gaskets

• Washer gaskets

• Hole gaskets

• Panel gaskets

Custom geometry is particularly useful when the mating surface has an irregular profile.

21. Die Cut Rubber Cushion Sealing Gaskets

Die cutting is widely used for producing flat rubber gasket components.

A die can cut the material into a specified shape with:

• Outer profile

• Inner holes

• Slots

• Corners

• Mounting openings

• Complex contours

Die cut gaskets are useful for high-volume production because repeatable geometry can be achieved when tooling and process conditions are properly controlled.

22. Molded Rubber Gaskets

Molded gaskets are manufactured using a mold that defines the final geometry.

Molding can be appropriate when the gasket requires:

• Three-dimensional geometry

• Raised sealing beads

• Integrated features

• Complex cross sections

• Precise mounting structures

• Custom profiles

Molded rubber gaskets are commonly found in automotive, industrial, electrical, and appliance applications.

23. Extruded Rubber Profiles

For continuous sealing applications, rubber can be extruded into long profiles.

Extruded gasket profiles are suitable for:

• Doors

• Windows

• Cabinets

• Machinery

• Panels

• Enclosures

• Industrial equipment

The continuous profile can then be cut to length or joined into a frame.

24. Manufacturing Process

A typical Durable Rubber Cushion Sealing Gasket manufacturing process may include the following stages.

Step 1: Material Selection

Select the appropriate rubber compound based on:

• Temperature

• Chemical exposure

• Mechanical load

• Compression

• Weathering

• Electrical requirements

Step 2: Rubber Compounding

The elastomer is combined with appropriate additives, fillers, curing agents, pigments, and processing materials.

Step 3: Sheet or Profile Production

The compound can be processed into:

• Sheets

• Rolls

• Profiles

• Molded blanks

Step 4: Cutting or Molding

The rubber is converted into the required gasket geometry.

Step 5: Surface Treatment

If required, the gasket may receive:

• Adhesive

• Primer

• Coating

• Surface treatment

Step 6: Inspection

Important characteristics can include:

• Dimensions

• Thickness

• Hardness

• Appearance

• Adhesive coverage

• Compression characteristics

Step 7: Packaging

Gaskets should be packaged to prevent:

• Deformation

• Contamination

• Excessive compression

• UV exposure

• Moisture exposure

25. Quality Control

Quality control is essential for durable sealing components.

Typical inspection items include:

Testing requirements should be established according to the final application.

26. Surface Design

Gasket surfaces may be:

• Smooth

• Textured

• Fabric reinforced

• Adhesive coated

• Primer treated

• Low friction

• High friction

A smooth surface is common for general sealing.

A textured surface may be selected for handling or specific friction requirements.

Adhesive-backed products generally require a controlled adhesive coating to maintain consistent bonding.

27. Cushioning Versus Sealing

Although these functions often occur together, they are not identical.

Sealing

The primary objective is to prevent fluid, air, dust, or moisture movement.

Cushioning

The primary objective is to absorb contact forces, vibration, or impact.

Combined Function

A Durable Rubber Cushion Sealing Gasket can perform both functions when designed appropriately.

This makes the product useful for applications where conventional rigid gaskets cannot provide sufficient cushioning.

28. Typical Industrial Applications

Industrial Machinery

Rubber cushion sealing gaskets are commonly used around:

• Machine covers

• Access panels

• Gearboxes

• Pumps

• Motors

• Compressors

• Control systems

They can help reduce vibration and protect internal components from environmental contamination.

Electrical Equipment

Applications may include:

• Electrical cabinets

• Switchgear enclosures

• Control panels

• Power supplies

• Junction boxes

• Motor housings

The gasket can help provide environmental protection and electrical isolation.

Electronic Equipment

Electronic housings frequently require thin and precise gaskets.

Applications include:

• Electronic enclosures

• Sensors

• Displays

• Controllers

• Communication equipment

• Industrial computers

Automotive Applications

Rubber cushion sealing gaskets may be used around:

• Electronic modules

• Battery systems

• Lighting housings

• Control units

• Interior components

• Engine compartment components

Material selection should account for temperature, oil, fuel, vibration, ozone, and environmental exposure.

Battery Systems

Battery assemblies can require:

• Cushioning

• Electrical isolation

• Dust protection

• Moisture protection

• Vibration resistance

The gasket material and adhesive must be compatible with the battery enclosure and expected thermal environment.

29. Appliance Applications

Household and commercial appliances may use rubber cushion sealing gaskets around:

• Doors

• Panels

• Control interfaces

• Motors

• Electrical compartments

• Mounting structures

Applications can include washing machines, refrigeration equipment, ovens, microwave equipment, and other appliances.

The exact rubber material depends on temperature, moisture, detergent exposure, and mechanical conditions.

30. Outdoor Equipment

Outdoor equipment is exposed to environmental stresses that may include:

• Rain

• Humidity

• UV radiation

• Ozone

• Temperature cycling

• Dust

• Wind

• Condensation

For these applications, weather-resistant elastomers such as EPDM may be considered.

EPDM is recognized for strong ozone, weathering, and aging resistance.

31. Factors Affecting Gasket Life

The service life of a rubber cushion sealing gasket depends on several factors.

Material

Different elastomers have different aging mechanisms.

Temperature

Higher temperatures generally accelerate aging.

Compression

Excessive compression can increase permanent deformation.

Chemicals

Incompatible fluids can cause swelling, softening, hardening, cracking, or other degradation.

Ozone and UV

Some rubber compounds are more vulnerable to environmental aging than others.

Mechanical Movement

Repeated movement can produce wear and fatigue.

Installation

Incorrect installation can cause:

• Twisting

• Stretching

• Pinching

• Misalignment

• Adhesive failure

Storage

Improper storage can also reduce gasket performance.

32. Storage Recommendations

Rubber gasket products should generally be stored in a clean and controlled environment.

Recommended considerations include:

• Avoid direct sunlight

• Avoid excessive heat

• Avoid ozone-generating equipment

• Keep products clean

• Avoid unnecessary deformation

• Avoid excessive compression

• Protect adhesive surfaces

• Maintain original packaging when practical

Storage conditions should follow the material and adhesive supplier's recommendations.

33. Installation Guidelines

Proper installation is essential for reliable sealing.

Step 1: Inspect the Gasket

Check for:

• Cuts

• Cracks

• Surface contamination

• Deformation

• Incorrect dimensions

Step 2: Inspect the Mating Surface

The surface should be:

• Clean

• Dry

• Smooth enough for the gasket

• Free from sharp burrs

• Free from excessive contamination

Step 3: Align the Gasket

Position the gasket accurately.

Avoid:

• Stretching

• Twisting

• Folding

• Overlapping unless specifically designed

Step 4: Apply Compression

Fasteners should be tightened according to the equipment design.

Avoid excessive compression.

Step 5: Inspect the Final Assembly

Check:

• Gasket alignment

• Uniform contact

• Visible gaps

• Pinching

• Adhesive lifting

• Uneven compression

34. Common Installation Problems

Gasket Leakage

Possible causes include:

• Insufficient compression

• Excessive surface roughness

• Incorrect gasket thickness

• Incorrect material

• Poor alignment

• Damaged gasket

Adhesive Failure

Possible causes include:

• Dirty substrate

• Oil contamination

• Insufficient pressure

• Incorrect adhesive

• Poor surface preparation

• Excessive temperature

Permanent Deformation

Possible causes include:

• Excessive compression

• Excessive temperature

• Incompatible material

• Long-term loading

• Chemical attack

Cracking

Possible causes include:

• Excessive temperature

• Ozone exposure

• UV exposure

• Chemical incompatibility

• Aging

• Excessive mechanical stress

35. How to Choose the Right Rubber Cushion Sealing Gasket

A systematic selection process can reduce the risk of premature failure.

Step 1: Identify the Application

Determine whether the gasket is primarily required for:

• Sealing

• Cushioning

• Vibration reduction

• Insulation

• Waterproofing

• Dust protection

• Surface protection

Step 2: Determine the Environment

Identify:

• Indoor or outdoor

• Dry or wet

• Static or dynamic

• Clean or contaminated

• Normal or harsh industrial environment

Step 3: Determine Temperature

Record:

• Minimum operating temperature

• Maximum operating temperature

• Continuous temperature

• Short-term temperature

• Temperature cycling

Step 4: Identify Chemical Exposure

Determine whether the gasket will contact:

• Oil

• Grease

• Fuel

• Water

• Steam

• Acid

• Alkali

• Solvent

• Cleaning agent

Step 5: Select Rubber Type

Choose a suitable elastomer based on the combined requirements.

Step 6: Determine Hardness

Select hardness based on:

• Compression

• Gap

• Surface irregularity

• Mechanical load

Step 7: Determine Geometry

Specify:

• Length

• Width

• Thickness

• Hole pattern

• Corner radius

• Profile

• Tolerance

Step 8: Select Adhesive if Needed

For adhesive-backed products, evaluate:

• Substrate

• Temperature

• Humidity

• Bond strength

• Application method

36. Specification Example

The following is an example specification format for a custom rubber cushion sealing gasket.

These values are examples only and should be customized according to the actual product design.

37. Custom Rubber Cushion Sealing Gaskets

Many industrial applications require custom dimensions rather than standard gasket sizes.

Customization may include:

• Custom thickness

• Custom width

• Custom length

• Custom hole patterns

• Custom shapes

• Custom hardness

• Custom rubber compound

• Custom adhesive

• Custom color

• Custom surface treatment

Custom gaskets are particularly useful when the mating component has a unique geometry.

38. Thin Rubber Cushion Gaskets

Thin rubber gaskets are useful where installation space is limited.

Potential applications include:

• Electronic housings

• Sensors

• Circuit boards

• Small electrical devices

• Precision instruments

• Compact equipment

Thin gasket designs must balance sealing performance with manufacturing tolerance and compression requirements.

39. Thick Rubber Cushion Gaskets

Thicker rubber gaskets can provide greater cushioning and gap compensation.

They may be used for:

• Heavy equipment

• Large enclosures

• Machinery

• Vibration control

• Impact protection

• Large panel joints

However, increased thickness does not automatically mean better sealing.

The gasket must still be compressed correctly.

40. Closed Cell Rubber Gaskets

Closed cell rubber foam contains cells that are largely isolated from each other.

This structure can provide:

• Low water absorption

• Lightweight construction

• Cushioning

• Compressibility

• Gap filling

• Insulation

Closed cell rubber foam is often selected when both sealing and cushioning are required.

41. Open Cell Rubber Foam

Open cell foam has interconnected cells.

It can provide different cushioning and airflow characteristics from closed cell materials.

Open cell materials may be suitable for certain acoustic, filtration, or cushioning applications, but they should not automatically be assumed to provide the same moisture sealing performance as closed cell structures.

42. Rubber Gasket Versus Foam Gasket

The correct choice depends on the required sealing pressure and mechanical characteristics.

43. Rubber Gasket Versus Silicone Gasket

Silicone is itself a type of rubber, but it has distinct properties.

This comparison is general and should not replace compound-specific technical data.

44. Rubber Cushion Sealing Gaskets for Equipment Protection

Industrial equipment often requires simultaneous sealing and protection.

A Durable Rubber Cushion Sealing Gasket can help protect equipment by reducing the pathway for contaminants while also creating a soft interface between components.

This is useful for:

• Machine housings

• Electrical cabinets

• Industrial controllers

• Pump assemblies

• Motor housings

• Automation equipment

• Control equipment

The gasket can also help prevent direct metal-to-metal contact during assembly.

45. Role in Equipment Reliability

Sealing components may be relatively small compared with the equipment they protect, but their performance can have a significant effect on system reliability.

A properly designed gasket can help reduce:

• Moisture ingress

• Dust contamination

• Mechanical contact

• Vibration transmission

• Surface damage

• Environmental exposure

For this reason, gasket selection should be treated as an engineering decision rather than simply a consumable component choice.

46. Design Considerations for Engineers

Engineers designing rubber cushion sealing gaskets should consider:

1. Gasket geometry

2. Compression ratio

3. Material hardness

4. Rubber compound

5. Operating temperature

6. Chemical exposure

7. Surface finish

8. Fastener spacing

9. Joint rigidity

10. Environmental exposure

11. Assembly method

12. Required service life

The gasket should be considered together with the mating components.

A good gasket cannot compensate for a fundamentally unsuitable joint design.

47. Importance of Compression Uniformity

Uniform compression is essential.

Uneven compression can create areas of:

• High stress

• Low sealing pressure

• Permanent deformation

• Premature wear

• Leakage

Fastener positioning, flange flatness, gasket thickness, and housing stiffness all influence compression distribution.

For larger rectangular gaskets, corners may require particular attention.

48. Corner Design

Corners can become stress concentration areas.

Sharp corners may increase:

• Gasket stretching

• Compression variation

• Installation difficulty

• Local leakage risk

Rounded corners can sometimes provide a more uniform gasket path.

The optimal corner geometry depends on the gasket material and mating component design.

49. Surface Roughness

A gasket must be able to conform to the mating surface.

If the surface is excessively rough, the gasket may not completely fill microscopic channels.

If the surface is too irregular, local sealing pressure may become inconsistent.

Therefore, the mating surface should be evaluated during gasket design.

50. Dimensional Tolerance

A Durable Rubber Cushion Sealing Gasket should be manufactured within an appropriate dimensional tolerance.

Important dimensions include:

• Outer dimensions

• Inner dimensions

• Thickness

• Hole diameter

• Hole position

• Width

• Profile height

Tolerances should reflect:

• Material behavior

• Manufacturing method

• Assembly requirements

• Functional sealing requirements

51. Adhesive Selection

When a rubber gasket uses adhesive, adhesive compatibility becomes another design parameter.

Important factors include:

• Rubber surface chemistry

• Substrate type

• Temperature

• Humidity

• Peel strength

• Shear strength

• Application pressure

• Aging

Silicone surfaces can be challenging to bond because of their low surface energy, so specialized adhesive systems or surface treatments may be necessary for silicone-based products.

52. Pressure Sensitive Adhesive Gaskets

Pressure sensitive adhesive systems can provide convenient installation.

The general installation process is:

1. Clean the substrate.

2. Dry the surface.

3. Position the gasket.

4. Remove the release liner.

5. Apply the gasket.

6. Apply uniform pressure.

7. Allow the adhesive to develop its required bond.

Adhesive specifications should always be evaluated according to the actual rubber compound and substrate.

53. Environmental Aging

Rubber materials can age due to:

• Heat

• Oxygen

• Ozone

• UV radiation

• Chemicals

• Humidity

• Mechanical stress

Aging may lead to:

• Hardening

• Softening

• Cracking

• Loss of elasticity

• Increased compression set

• Surface deterioration

Different elastomers have different aging mechanisms and environmental resistance.

54. Ozone Resistance

Ozone can cause cracking in susceptible rubber materials, particularly under tensile strain.

For outdoor equipment, ozone-resistant rubber can significantly improve service reliability.

EPDM, silicone, CR, and certain specialty elastomers are commonly considered where ozone and weather exposure are important.

55. UV Resistance

UV exposure can accelerate surface aging in some rubber compounds.

For outdoor applications, material selection should consider:

• UV intensity

• Exposure duration

• Surface temperature

• Color

• Environmental pollutants

Black formulations are commonly used in outdoor rubber products, but color alone should not be treated as proof of UV resistance.

56. Chemical Swelling

When rubber absorbs a chemical, it may swell.

Swelling can alter:

• Dimensions

• Hardness

• Mechanical strength

• Compression

• Sealing pressure

The chemical compatibility of the actual rubber compound should therefore be evaluated before production.

57. Why Material Selection Matters

A gasket can have excellent mechanical properties but still fail if it is exposed to an incompatible chemical.

For example, a rubber that performs well with water may perform poorly with petroleum oils.

Similarly, a material suitable for room-temperature operation may not maintain its properties at elevated temperatures.

Industrial material selection guidance consistently emphasizes evaluating the actual operating environment rather than relying on general material labels alone.

58. Common Industries

Durable Rubber Cushion Sealing Gaskets can be found across numerous industries.

Industrial Machinery

Used for equipment covers, access panels, housings, and vibration-related applications.

Automotive

Used in electronic modules, housings, lighting, battery systems, and various sealing assemblies.

Electronics

Used for enclosure sealing, dust protection, moisture protection, and component cushioning.

Electrical

Used in cabinets, control boxes, power equipment, and electrical housings.

Appliances

Used around doors, panels, motors, controls, and internal compartments.

HVAC

Used for equipment housings, panels, ducts, and mechanical interfaces.

Automation

Used in sensors, controllers, machine housings, and protective enclosures.

59. Advantages for Industrial Equipment

A Durable Rubber Cushion Sealing Gasket can provide a combination of:

• Sealing

• Cushioning

• Protection

• Flexibility

• Vibration reduction

• Gap compensation

• Electrical insulation

• Environmental resistance

This multifunctional capability makes rubber gasket components attractive for equipment protection.

60. Product Selection Checklist

Before selecting a gasket, consider the following checklist:

61. Recommended Product Specification Format

For technical product pages, a clear specification section can use the following structure:

Product Name

Durable Rubber Cushion Sealing Gasket

Product Type

Industrial Rubber Sealing and Cushioning Component

Material Options

NBR, EPDM, CR, SBR, Silicone, FKM, HNBR, and other application-specific elastomers

Available Forms

• Die Cut

• Molded

• Extruded

• Sheet

• Strip

• Ring

• Custom Shape

Adhesive Options

• Non Adhesive

• Single Sided Adhesive

• Pressure Sensitive Adhesive

Applications

• Industrial Equipment

• Machinery

• Electronics

• Electrical Enclosures

• Automotive Systems

• Battery Assemblies

• Appliances

• Control Cabinets

62. Benefits of Custom Manufacturing

Custom rubber gasket production can provide advantages when standard sizes do not match the application.

Potential benefits include:

• Exact dimensions

• Custom profiles

• Application-specific hardness

• Material optimization

• Custom adhesive backing

• Complex cutouts

• Improved assembly efficiency

• Reduced material waste

Custom manufacturing should begin with accurate drawings, dimensions, material requirements, and application conditions.

63. Engineering Drawing Requirements

A gasket drawing should ideally identify:

• Overall dimensions

• Thickness

• Hole dimensions

• Hole positions

• Corner radius

• Material

• Hardness

• Tolerance

• Adhesive side

• Surface requirements

• Packaging requirements

For complex components, a 2D engineering drawing and 3D model can both be useful.

64. Sustainable Product Considerations

Industrial gasket design can also consider material efficiency.

Potential approaches include:

• Optimized gasket geometry

• Reduced unnecessary thickness

• Efficient die layouts

• Longer service life

• Reduced replacement frequency

• Material recycling where practical

• Reduced packaging

• Appropriate material selection

Long service life can contribute to reduced maintenance and replacement requirements.

65. Common Questions

What is a Durable Rubber Cushion Sealing Gasket?

It is a rubber-based gasket designed to provide sealing while also offering cushioning, vibration reduction, gap compensation, or component protection.

What rubber is best for sealing?

There is no universal best rubber. NBR, EPDM, silicone, CR, FKM, HNBR, and other elastomers each have different performance characteristics.

Can rubber gaskets be used outdoors?

Yes, provided the selected rubber has appropriate weather, ozone, UV, temperature, and moisture resistance.

Can rubber gaskets resist oil?

Some rubber materials, particularly NBR and certain FKM formulations, are well suited to oil exposure. The exact compound should be checked.

Can rubber cushion gaskets absorb vibration?

They can help reduce vibration transmission and provide cushioning, although severe vibration isolation may require a dedicated isolator.

Can rubber gaskets be adhesive backed?

Yes. Single-sided pressure sensitive adhesive is a common configuration for easy installation and positioning.

Can rubber gaskets be customized?

Yes. Custom dimensions, shapes, thicknesses, hardness levels, materials, and adhesive systems can be specified.

What hardness should be selected?

The appropriate hardness depends on the required compression, sealing pressure, surface condition, gap, and mechanical environment.

66. Final Selection Summary

A Durable Rubber Cushion Sealing Gasket is a versatile industrial component combining sealing and cushioning functions in a single flexible material.

The most important selection factors are:

1. Rubber material

2. Temperature

3. Chemical exposure

4. Hardness

5. Thickness

6. Compression

7. Joint geometry

8. Surface condition

9. Environmental exposure

10. Adhesive requirements

11. Vibration

12. Required service life

NBR can be advantageous for oil-related applications, EPDM is widely used for weather and water exposure, silicone is often selected for broad temperature and insulation requirements, while FKM and HNBR can address more demanding industrial conditions.

The best gasket is therefore not simply the thickest, hardest, or most expensive option. It is the material and geometry that provide the required sealing pressure, recovery, cushioning, environmental resistance, and service life under the actual operating conditions.
