Flexible Cushion Sealing Gasket materials are widely used in electronics, electrical equipment, machinery, automotive systems, industrial equipment, appliances, lighting products, and other applications where cushioning, sealing, insulation, vibration control, surface protection, and reliable bonding are required. Among the various flexible gasket materials available, single-sided adhesive silicone is particularly useful when a soft, resilient, temperature-resistant sealing or protective layer needs to be installed quickly and securely.
A single-sided adhesive silicone gasket combines the functional properties of silicone rubber with a pressure-sensitive adhesive backing. The silicone side provides flexibility, cushioning, electrical insulation, moisture resistance, and resistance to environmental aging, while the adhesive side allows the gasket to be attached directly to a substrate after the release liner is removed.
This type of Flexible Cushion Sealing Gasket can be manufactured as sheets, strips, pads, washers, rings, die-cut gaskets, custom shapes, and other precision components. Depending on the application, the material can be supplied in different thicknesses, hardness levels, colors, adhesive systems, and surface finishes.
What Is a Flexible Cushion Sealing Gasket?
A flexible cushion sealing gasket is a compressible or resilient material designed to sit between two surfaces or around a component to provide one or more protective functions.
Unlike rigid sealing components, flexible gasket materials can conform to irregular surfaces, compensate for small dimensional variations, absorb vibration, reduce impact, and help prevent direct contact between assembled components.
A flexible Cushion Gasket may be used for:
Surface protection
Vibration damping
Shock absorption
Electrical insulation
Moisture protection
Dust reduction
Gap filling
Sealing
Noise reduction
Component positioning
Anti-slip protection
Thermal protection
Dielectric isolation
Mechanical cushioning
The exact performance depends on the silicone formulation, thickness, hardness, adhesive type, compression conditions, temperature, substrate, and environmental exposure.
Single-Sided Adhesive Silicone
Single-Sided Adhesive Silicone features a soft silicone rubber layer on one side and a strong pressure-sensitive adhesive (PSA), such as 3M adhesive, on the other side. Simply peel off the release liner and apply it directly to the desired surface.
This construction makes single-sided adhesive silicone especially convenient for custom gasket manufacturing. The silicone provides the cushioning and insulation function, while the adhesive backing helps hold the gasket in the required position during assembly and operation.
The adhesive layer can also reduce installation time because no additional liquid adhesive or mechanical fastening is necessarily required.
A typical structure can be described as:
Silicone Rubber Layer + Pressure-Sensitive Adhesive + Release Liner
The silicone layer determines many of the gasket's physical characteristics, while the adhesive layer determines bonding performance.
Core Performance and Specifications
Typical continuous operating temperatures for silicone materials can range from approximately -60°C to +250°C, depending on the silicone formulation, thickness, application conditions, and adhesive system.
Silicone maintains useful flexibility over a broad temperature range. At elevated temperatures, properly selected silicone can remain stable without excessive softening. At low temperatures, silicone generally retains flexibility better than many conventional rubber materials.
However, the actual operating temperature of a single-sided adhesive silicone gasket is also limited by the adhesive. A silicone rubber layer may tolerate higher temperatures than the PSA backing.
Therefore, the temperature rating of the complete adhesive gasket should always be evaluated based on the entire construction rather than silicone rubber alone.
Flexible and Resilient Cushioning
One of the major advantages of silicone gasket material is its flexibility.
Silicone rubber can deform under compression and recover its original shape when the load is removed, depending on the formulation and compression conditions.
This property makes silicone suitable for:
Cushion pads
Protective gaskets
Shock-absorbing components
Anti-vibration pads
Sealing strips
Gap fillers
Electrical insulation pads
Protective barriers
Flexible silicone can accommodate small surface irregularities and dimensional tolerances. This can be useful when two components have slightly different surfaces or when the gasket must follow a curved or irregular profile.
Electrical Insulation Properties
Silicone is widely used as an electrical insulation material because it can provide good dielectric performance while maintaining flexibility.
Single-sided Adhesive Silicone Sheets can be used to isolate conductive components from:
Metal housings
Circuit boards
Electrical terminals
Connectors
Battery components
Busbars
Power supply components
Electronic assemblies
Mechanical Brackets
The electrical insulation performance depends on material formulation, thickness, voltage, frequency, temperature, humidity, and other application conditions.
For high-voltage applications, engineers should select the gasket according to the required dielectric strength, creepage distance, clearance, flame rating, and applicable electrical safety requirements.
Moisture Resistance
Silicone rubber generally provides good resistance to moisture and environmental exposure.
A silicone gasket can help reduce the movement of moisture through a joint or protect sensitive components from environmental exposure when properly designed and installed.
This makes flexible silicone gasket material useful for:
Electronic housings
Outdoor equipment
Lighting assemblies
Industrial controls
Electrical enclosures
Sensors
Appliances
Automotive electronic systems
It is important to distinguish between a gasket material's inherent moisture resistance and the sealing performance of a finished assembly. Proper compression, surface preparation, joint design, and adhesive selection are essential for reliable sealing.
Vibration and Shock Protection
Electronic and mechanical assemblies can experience vibration during transportation, operation, or equipment movement.
A flexible cushion sealing gasket can act as a compliant interface between components. Instead of allowing rigid surfaces to make direct contact, the silicone layer can absorb some mechanical movement and reduce surface-to-surface impact.
This makes silicone cushion gaskets suitable for:
Control panels
Electronic housings
Motor assemblies
Industrial equipment
Communication devices
Automotive components
Appliances
Power equipment
The effectiveness of vibration damping depends on material hardness, thickness, compression, frequency, load, and mounting design.
Aging Resistance
Silicone is known for its resistance to aging under many environmental conditions.
Compared with some conventional rubber materials, silicone can maintain its flexibility and functional properties over a broad range of temperatures and environmental conditions.
Potential advantages include:
Good weather resistance
Good ozone resistance
Good UV resistance
Good temperature stability
Good moisture resistance
Low-temperature flexibility
Long-term elasticity
The actual service life depends on the formulation and application environment.
Flame-Resistant Silicone Gasket Materials
For electrical and electronic applications, flame resistance can be an important material-selection requirement.
Flame-retardant silicone compounds can be formulated to meet specific flammability requirements. Depending on the material grade, the silicone gasket may be suitable for applications where resistance to ignition and flame propagation is required.
Potential applications include:
Power supplies
Electrical control equipment
Battery systems
Electronic housings
LED lighting
Industrial control systems
Communication equipment
Automotive electronics
A specific flame rating should never be assumed simply because a material is silicone. The selected grade should be verified against the applicable test standard and required rating.
Thickness Options
Single-sided adhesive silicone gasket materials can be produced in many thicknesses.
Typical thicknesses may range from approximately 0.1 mm to 20 mm, depending on the product construction and manufacturing method.
Thin silicone sheets are useful where:
Assembly clearance is limited
Minimal added thickness is required
Electrical isolation is needed
Surface protection is required
Precision die cutting is necessary
Thicker silicone materials can provide greater:
Cushioning
Shock absorption
Gap filling
Compression
Surface protection
Vibration isolation
The appropriate thickness should be selected according to the available installation space, compression requirements, load, tolerance, and desired cushioning effect.
Silicone Hardness
Silicone gasket materials can be manufactured in different hardness levels.
Common hardness ranges may include approximately Shore A30 to Shore A80.
Softer silicone grades can provide greater flexibility and cushioning, while harder silicone grades can offer greater dimensional support and resistance to deformation.
For example, a softer silicone gasket may be appropriate for:
Cushioning
Soft sealing
Surface protection
Vibration absorption
Gap compensation
A harder silicone gasket may be more appropriate for:
Structural spacing
Mechanical support
Higher compression loads
Dimensional stability
Component positioning
Hardness should be selected based on the actual application rather than simply choosing the softest or hardest material available.
Adhesive Backing Options
The pressure-sensitive adhesive is an important part of a single-sided adhesive silicone gasket.
Common configurations include:
A non-adhesive silicone sheet has no pressure-sensitive adhesive layer. It can be mechanically installed, compressed between components, or combined with another adhesive system.
One side contains a pressure-sensitive adhesive while the opposite side remains silicone rubber.
This configuration is particularly useful when the gasket must be permanently or semi-permanently attached to one surface.
Both sides contain adhesive layers.
Double-sided adhesive silicone can be useful when the gasket must connect two surfaces while also providing cushioning or insulation.
Adhesive-backed silicone products are commonly supplied with a release liner.
The liner protects the adhesive before installation and is removed immediately before bonding.
Pressure-Sensitive Adhesive Selection
Pressure-sensitive adhesive selection should consider the substrate, operating temperature, surface energy, environmental exposure, required bond strength, and expected service life.
Possible substrates include:
Metal
Aluminum
Stainless steel
Painted surfaces
Plastic
Glass
Polycarbonate
ABS
Electronic housings
Composite materials
Acrylic PSA is commonly selected for demanding industrial applications because it can offer good environmental resistance and long-term bonding performance.
However, not every adhesive works equally well with every substrate. Surface contamination, oil, dust, moisture, roughness, and low surface energy can significantly affect adhesion.
Adhesive Examples
For demanding applications, high-performance adhesive systems such as 3M 467, 3M 468, or equivalent industrial-grade adhesive materials may be used depending on the application.
Flame-retardant adhesive systems may also be selected when the finished gasket must satisfy specific fire-safety requirements.
The adhesive should be considered as an integral component of the gasket system.
A silicone rubber layer may withstand temperatures that the adhesive cannot tolerate. Therefore, the temperature range of the adhesive-backed product should be confirmed independently.
Surface Options
Silicone gasket materials can be supplied with different surface finishes.
A smooth silicone surface can provide:
Easy cleaning
Low surface friction
Consistent appearance
Easy handling
A textured or matte surface can provide:
Increased friction
Reduced sliding
Improved handling
Better positioning during assembly
For certain protective gasket applications, a textured silicone surface can help reduce movement after installation.

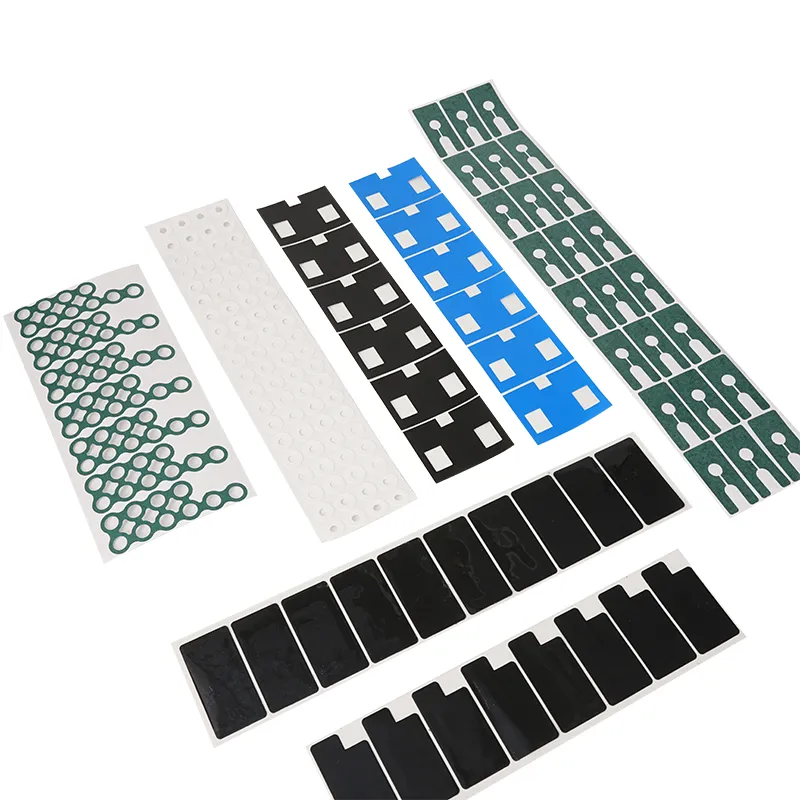

Custom Die-Cut Silicone Gaskets
Die cutting is one of the most common manufacturing methods for custom silicone gasket components.
A flat silicone sheet or adhesive-backed silicone roll can be converted into precise shapes using a suitable cutting process.
Possible shapes include:
Circles
Rings
Rectangles
Squares
Washers
Strips
Frames
Tabs
Holes
Slots
Irregular profiles
Multi-hole gaskets
Custom insulation pads
Custom die-cut silicone gaskets can reduce manual trimming and simplify assembly.
Custom Silicone Gasket Manufacturing
Custom gasket manufacturing normally begins with a drawing, CAD file, sample, or dimensional specification.
Important design parameters include:
Overall length
Overall width
Thickness
Hole diameter
Hole position
Corner radius
Material hardness
Adhesive type
Surface finish
Color
Tolerance
Packaging requirements
For high-volume applications, tooling can be developed specifically for the required gasket geometry.
Flexible Cushion Sealing Gasket for Electronic Devices
Electronic devices frequently contain components that require protection from mechanical contact and environmental exposure.
A flexible silicone gasket can be positioned between electronic components and housings to provide cushioning and insulation.
Common applications include:
Circuit board protection
Display module cushioning
Electronic enclosure sealing
Connector insulation
Sensor protection
LED assembly protection
Power supply insulation
Battery component protection
Switch protection
Control panel sealing
Because silicone is flexible, it can accommodate minor dimensional variations without creating excessive mechanical stress on delicate components.
Silicone Gasket for Power Supply Applications
Power supplies often contain conductive components, heat-producing components, circuit boards, and metal housings.
Insulating silicone gasket materials can be used to separate conductive areas and protect components from mechanical contact.
Applications may include:
Transformer insulation
PCB protection
Housing insulation
Component cushioning
Terminal isolation
Heat-resistant spacing
Vibration reduction
For high-temperature power electronics, both the silicone material and adhesive must be evaluated for continuous operating temperature.
Silicone Gasket for Battery Applications
Flexible silicone insulation and gasket materials can also be used in battery assemblies.
Potential functions include:
Electrical isolation
Surface protection
Component cushioning
Anti-vibration protection
Gap filling
Wire protection
Terminal isolation
Battery applications require careful consideration of voltage, temperature, electrolyte exposure, mechanical compression, flame resistance, and long-term reliability.
For lithium battery insulation, the material should be selected according to the specific cell, module, pack construction, electrical insulation requirements, and safety architecture.
Silicone is not automatically suitable for every battery insulation position, and material compatibility should be validated before mass production.
Silicone Gasket for Automotive Electronics
Automotive electronic systems can experience temperature changes, vibration, humidity, dust, and mechanical stress.
Flexible silicone gasket materials are therefore commonly considered for:
Automotive control modules
Sensors
Lighting systems
Battery systems
Charging equipment
Connectors
Electronic housings
Instrument panels
A suitable silicone gasket can provide a flexible interface while helping maintain electrical isolation and mechanical protection.
Silicone Gasket for LED Lighting
LED lighting systems may require insulation, cushioning, sealing, and thermal-environment resistance.
Silicone gasket components can be used around:
LED modules
Lighting housings
Optical components
Driver housings
Electrical terminals
Protective covers
Silicone is especially useful where flexibility and temperature resistance are required.
Silicone Gasket for Industrial Equipment
Industrial machinery can experience continuous vibration, temperature changes, dust, moisture, and mechanical movement.
Flexible cushion sealing gaskets can help protect sensitive components and reduce direct contact between rigid surfaces.
Potential applications include:
Industrial control cabinets
Motors
Sensors
Pumps
Electrical equipment
Automation systems
Instrumentation
Control panels
Mechanical assemblies
Silicone Cushion Gasket for Surface Protection
A silicone gasket does not necessarily have to function as a conventional fluid seal.
It can also be used as a protective cushion between two surfaces.
For example, a thin silicone pad can be placed between a metal component and a plastic housing to reduce:
Scratching
Impact
Noise
Vibration
Surface damage
Direct contact
This makes silicone suitable for protective pads, anti-slip components, and cushioning interfaces.
Silicone as an Anti-Vibration Material
Flexible silicone has useful elastic characteristics that make it suitable for vibration-control applications.
A silicone pad can be positioned between a vibrating component and its mounting structure.
The material can help isolate mechanical movement and reduce transmission of vibration.
The correct material hardness and thickness are important. A gasket that is too soft may compress excessively, while one that is too hard may not provide sufficient cushioning.
Silicone Sealing and Gap Filling
Flexible silicone gasket material can fill small gaps between mating surfaces.
Gap filling is particularly useful where:
Surface flatness varies
Manufacturing tolerances exist
Components have irregular profiles
Compression is required
Direct contact must be avoided
A custom-cut gasket can be designed to follow the perimeter of a housing or component.
Silicone Gasket Shapes
The flexibility of silicone makes it suitable for many custom geometries.
Common shapes include:
Round Silicone Gasket
Round gaskets are commonly used around holes, terminals, shafts, connectors, and circular components.
Rectangular Silicone Gasket
Rectangular gaskets can be used for electronic housings, display frames, panels, and control equipment.
Silicone Washer
Silicone washers provide insulation and cushioning around fasteners and mounting points.
Silicone Strip
Silicone strips are useful for long sealing edges, protective barriers, and cushioning interfaces.
Silicone Frame Gasket
Frame-shaped gaskets can follow the perimeter of an electronic housing or display.
Custom Die-Cut Silicone Pad
Complex geometries can be produced according to engineering drawings.
Flexible Silicone Gasket Materials
The most common material construction consists of silicone rubber combined with an adhesive backing.
Depending on the application, silicone can be engineered for different characteristics such as:
High-temperature resistance
Flame resistance
Electrical insulation
Low-temperature flexibility
Soft cushioning
High resilience
Weather resistance
UV resistance
Moisture resistance
The final material specification should always be matched to the intended use.
Silicone Gasket Material Selection
When selecting a flexible cushion sealing gasket, several factors should be considered.
Determine the minimum and maximum operating temperature.
The silicone rubber and adhesive should both be compatible with the actual temperature range.
Select the hardness according to the required compression and cushioning performance.
Choose thickness according to available space, compression, insulation requirements, and mechanical protection.
Evaluate the adhesive against the actual substrate.
For electrical applications, determine required dielectric properties and insulation thickness.
For electrical equipment, determine whether a specific flame-retardant grade or certification is required.
Consider:
Humidity
Water
UV exposure
Ozone
Dust
Chemicals
Temperature cycling
Vibration
The desired geometry and volume determine whether die cutting, laser cutting, molding, or another manufacturing method is most appropriate.
Typical Specification Range
A flexible silicone gasket can be specified across a broad range of dimensions and material properties.
Material: Silicone Rubber
Adhesive: Acrylic PSA or application-specific pressure-sensitive adhesive
Construction: Single-sided adhesive
Optional Construction: Non-adhesive or double-sided adhesive
Typical Thickness: 0.1–20 mm
Typical Hardness: Shore A30–A80
Typical Temperature Range: Approximately -60°C to +250°C for suitable silicone grades
Colors: Black, white, transparent, gray, red, and other custom colors depending on material availability
Surface: Smooth, matte, textured, or application-specific finish
Shape: Sheet, strip, pad, washer, ring, frame, or custom die-cut shape
Backing: Release liner for adhesive-backed products
These values are general industry ranges rather than universal specifications. Actual product performance should be confirmed against the selected material grade.
Why Use Single-Sided Adhesive Silicone?
Single-sided adhesive silicone combines several functions into one component.
It can provide:
Cushioning
The silicone layer absorbs mechanical contact and provides a soft interface.
Insulation
Silicone can electrically separate conductive surfaces.
Protection
The flexible material can protect surfaces from scratches and impact.
Positioning
The adhesive keeps the gasket in the desired location during assembly.
Sealing
When appropriately designed and compressed, silicone can help close gaps.
Temperature Resistance
Suitable silicone grades can perform across a wide temperature range.
Environmental Resistance
Silicone offers good resistance to many common environmental conditions.
Installation of Adhesive-Backed Silicone Gaskets
Proper installation can significantly affect gasket performance.
Before application, the substrate should generally be:
Clean
Dry
Free from dust
Free from oil
Free from grease
Free from loose particles
The release liner should be removed carefully without contaminating the adhesive.
The gasket should then be aligned with the target area and pressed firmly against the substrate.
Avoid excessive stretching during installation because stretching can change the final dimensions of flexible silicone components.
For critical applications, the bonding process should be validated under actual operating conditions.
Surface Preparation
Surface preparation is especially important for pressure-sensitive adhesives.
A contaminated surface may reduce adhesive contact and cause premature lifting.
Potential contaminants include:
Oil
Grease
Dust
Moisture
Release agents
Fingerprints
Loose particles
For difficult substrates, a suitable surface treatment or primer may be considered if recommended by the adhesive manufacturer.
Adhesive Bond Strength
Pressure-sensitive adhesive performance is influenced by:
Surface energy
Contact area
Applied pressure
Bonding temperature
Dwell time
Surface cleanliness
Substrate texture
Adhesive formulation
A larger contact area generally provides more total bonding area, but the actual holding force also depends on adhesive properties and application conditions.
Flexible Cushion Gasket vs. Rigid Insulation Sheet
Flexible silicone gaskets and rigid insulation sheets serve different purposes.
A flexible gasket is generally better when:
Cushioning is required
Surface irregularities exist
Vibration is present
The component must conform to a curved surface
A soft interface is required
Rigid insulation sheets may be more suitable when:
High dimensional stability is required
Structural support is necessary
A rigid electrical barrier is needed
Very thin rigid insulation is preferred
Material selection should therefore be based on the functional requirements rather than simply the material name.
Silicone Gasket vs. Foam Gasket
Silicone and foam materials are both used for cushioning and sealing, but they have different characteristics.
Silicone generally offers:
Wider temperature capability
Good resilience
Good environmental resistance
Good electrical insulation
Good aging resistance
Foam materials may provide:
Higher compressibility
Lightweight construction
Strong gap filling
Lower material cost in some applications
The best material depends on temperature, compression, sealing requirements, mechanical load, and environmental exposure.
Silicone Gasket vs. Rubber Gasket
Conventional rubber materials can be appropriate for many sealing applications, while silicone provides specific advantages in temperature and environmental resistance.
Silicone is often selected when the application requires:
Broad temperature resistance
Low-temperature flexibility
Good weather resistance
Electrical insulation
Long-term flexibility
Other rubber materials may be preferred where resistance to specific oils, fuels, solvents, or mechanical conditions is more important.
Die-Cut Adhesive Silicone for Electronics
Precision die-cut silicone components are particularly useful in electronics because many electronic assemblies contain compact components and complex geometries.
A custom die-cut silicone gasket can be manufactured with:
Small holes
Internal openings
Tabs
Slots
Mounting holes
Multiple cutouts
Irregular contours
This allows the gasket to fit around connectors, terminals, wires, switches, circuit boards, and mechanical features.
Custom Thickness Silicone Gasket
Thickness is an important design parameter.
A thin silicone gasket can provide insulation and surface protection without significantly increasing assembly dimensions.
A medium-thickness gasket can provide a balance between cushioning and dimensional control.
A thick silicone pad can provide greater compression, impact protection, and gap filling.
The selected thickness should consider:
Compression percentage
Available space
Component tolerance
Required dielectric distance
Mechanical load
Thermal expansion
Assembly method
Color Options
Silicone gasket materials can be supplied in various colors.
Black silicone is commonly used in industrial and electronic applications because it provides a clean appearance and can help conceal internal components.
Transparent silicone can be useful when visual inspection or light transmission is required.
White silicone can be selected for applications where a clean or highly visible surface is preferred.
Other colors may be available for identification or design purposes.
Color itself does not automatically determine electrical, flame, or temperature performance.
Flame-Retardant Silicone Cushion Gaskets
Flame-retardant silicone can be considered for applications involving electrical equipment and enclosed electronic assemblies.
A flame-retardant gasket may help reduce the contribution of the gasket material to fire propagation.
However, flame resistance is a system-level safety consideration. The complete assembly should be evaluated according to applicable requirements.
A specific UL94 rating, for example, should only be claimed when the actual material construction has been tested and qualified for that rating.
Applications in Electrical Insulation
Single-sided adhesive silicone can be used as a flexible electrical insulation component in:
Power supplies
Transformers
Battery assemblies
Electrical enclosures
Motor systems
Control equipment
Switchgear
Electronic devices
Circuit protection systems
Wiring assemblies
Its flexibility makes it useful where a rigid insulation board cannot easily conform to the required geometry.
Applications in Mechanical Protection
Flexible silicone gaskets can also provide mechanical protection.
They can be used between:
Metal and plastic
Metal and glass
PCB and housing
Battery and enclosure
Connector and bracket
Display and frame
Cover and housing
The silicone layer helps reduce direct contact and mechanical stress.
Advantages of Custom Die-Cut Gaskets
Custom die-cutting provides several manufacturing advantages.
A custom gasket can be designed around the exact geometry of the application rather than relying on generic shapes.
Benefits can include:
Consistent dimensions
Repeatable geometry
Reduced manual trimming
Faster assembly
Cleaner installation
Better component positioning
Reduced material waste when properly nested
Easy integration into automated assembly
For large-volume production, dedicated tooling can make repeated gasket production more efficient.
Small-Volume and Large-Volume Production
Flexible silicone gaskets can be manufactured for prototypes, small batches, and mass production.
For prototypes, simplified cutting methods may be used to verify:
Dimensions
Thickness
Adhesive selection
Assembly position
Compression
Function
Once the design is validated, production tooling can be developed for larger quantities.
Large-volume production can benefit from dedicated die-cutting tools and optimized material layouts.
Quality Considerations
Important quality characteristics for flexible cushion sealing gaskets include:
Thickness consistency
Hardness consistency
Dimensional accuracy
Clean die-cut edges
Adhesive coverage
Adhesive cleanliness
Release liner quality
Surface appearance
Material uniformity
Correct shape
Correct hole position
For electrical insulation applications, additional testing may be required according to the intended use.
Storage of Adhesive Silicone Gaskets
Adhesive-backed silicone products should generally be stored under controlled conditions appropriate for the adhesive system.
Important considerations include:
Avoid excessive heat
Avoid direct sunlight
Protect from moisture
Keep away from contamination
Keep the release liner intact
Avoid excessive compression
Maintain suitable packaging
Storage recommendations may differ depending on the adhesive formulation.
Packaging Considerations
Custom silicone gaskets can be packaged in:
Rolls
Sheets
Stacks
Individual pieces
Plastic bags
Trays
Protective liners
Small precision parts may require special packaging to prevent deformation or contamination.
For adhesive-backed parts, packaging should protect the adhesive surface and prevent premature bonding.
How to Choose the Right Flexible Cushion Sealing Gasket
A practical selection process can include the following steps.
Determine whether the gasket is primarily required for:
Cushioning
Sealing
Electrical insulation
Vibration damping
Surface protection
Gap filling
Component positioning
Identify minimum and maximum operating temperatures.
Choose a thickness that fits the available installation space and required compression.
Determine whether a soft, medium, or hard silicone material is required.
Consider the substrate, temperature, environmental conditions, and required bond strength.
Provide the required dimensions, holes, slots, corners, and cutouts.
Test the finished gasket under representative operating conditions.
Common Design Considerations
When designing a custom flexible silicone gasket, engineers should consider the entire assembly rather than the gasket alone.
Important factors include:
Compression: Excessive compression can permanently deform some gasket constructions.
Clearance: The gasket must fit within the available space.
Thermal Expansion: Components and gasket materials may expand at different rates.
Adhesion: The adhesive must remain attached under actual environmental conditions.
Electrical Isolation: Required voltage and insulation distance should be considered.
Flammability: Applicable fire-safety requirements should be identified.
Chemical Exposure: Compatibility with oils, solvents, cleaning agents, and other chemicals should be checked.
Mechanical Stress: Vibration, impact, compression, and repeated movement can affect service life.
Flexible Cushion Sealing Gasket for Protection in Electronics
Modern electronic products often require compact components that combine several functions.
A single-sided adhesive silicone gasket can provide cushioning, insulation, surface protection, and positioning in one component.
This makes the material suitable for applications where assembly space is limited and components need a flexible protective interface.
Potential uses include:
PCB insulation
Battery protection
Display cushioning
Connector isolation
Housing sealing
Terminal insulation
Sensor protection
Electronic module protection
Flexible Silicone Insulation Pads
Silicone insulation pads can be produced as flat sheets or precision die-cut parts.
A pad can isolate a component from a metal surface while also providing cushioning.
For example, an electronic component mounted near a metal housing may require a flexible insulation layer to prevent accidental contact.
The pad can be designed with holes or cutouts around mounting points and terminals.
Single-Sided Adhesive Silicone for Assembly Efficiency
One major advantage of adhesive-backed gasket materials is assembly convenience.
Traditional gaskets may require:
Mechanical fasteners
Separate adhesive
Manual positioning
Additional fixing components
A pressure-sensitive adhesive backing can simplify installation.
The operator can remove the release liner and position the gasket directly on the substrate.
This can improve assembly consistency and reduce the number of separate components.
Flexible Sealing Gasket for Protection
The term protective sealing gasket can cover a wide range of components.
Depending on the design, a gasket may protect against:
Mechanical impact
Abrasion
Moisture
Dust
Electrical contact
Vibration
Surface damage
Component movement
Silicone is particularly attractive when flexibility and temperature resistance are important.
Environmental Performance
Silicone gasket materials are frequently selected for applications involving changing environmental conditions.
Potential environmental exposures include:
Temperature cycling
Humidity
UV radiation
Ozone
Outdoor weather
Vibration
Dust
However, the exact resistance depends on the silicone formulation and adhesive.
Application-specific environmental testing is recommended for critical products.
Long-Term Reliability
A gasket's long-term reliability depends on the complete material system.
Important variables include:
Silicone formulation
Adhesive formulation
Temperature
Compression
Humidity
Chemical exposure
UV exposure
Vibration
Installation quality
Substrate compatibility
A gasket that performs well under laboratory conditions may behave differently under actual field conditions.
For this reason, product validation should reproduce the most demanding expected operating conditions.
Flexible Silicone Gasket for Custom Applications
Custom silicone gasket materials are useful when standard gasket dimensions cannot meet a specific application.
Custom solutions can accommodate:
Special thicknesses
Unusual shapes
Complex cutouts
Different hardness levels
Custom adhesive configurations
Special surface textures
Specific colors
High-volume production requirements
This flexibility makes silicone a versatile material for industrial and electronic component protection.
Conclusion
Flexible Cushion Sealing Gasket Material for Protection provides a practical solution for applications requiring a combination of cushioning, sealing, electrical insulation, vibration reduction, surface protection, and flexible assembly.
Single-Sided Adhesive Silicone combines a resilient silicone rubber layer with a pressure-sensitive adhesive backing. The release liner can be removed before installation, allowing the gasket to be directly attached to the target surface.
Typical silicone material specifications can include thicknesses from approximately 0.1 mm to 20 mm, hardness levels around Shore A30 to A80, and operating temperatures that may reach approximately -60°C to +250°C for suitable silicone grades. Actual performance depends on the silicone formulation and, for adhesive-backed products, the adhesive system.
The material can be manufactured as sheets, strips, pads, washers, rings, frames, and precision die-cut components. It can be customized according to thickness, hardness, adhesive, color, surface finish, dimensions, and geometry.
For electronic, electrical, automotive, industrial, and battery-related applications, material selection should consider temperature, electrical insulation, flame resistance, mechanical stress, environmental exposure, substrate compatibility, and long-term reliability.
A properly designed single-sided adhesive silicone gasket can provide a compact and efficient combination of protection, cushioning, insulation, positioning, and sealing, making it a versatile material for modern electronic and industrial assemblies.
This website uses cookies to ensure you get the best experience on our website.
WhatsApp
Phone
