PVC Heat Shrink Tubing for Cable Protection
PVC Heat Shrink Tubing is a widely used insulating and protective material for wires, cables, cable joints, electrical terminals, connectors, and other components that require mechanical protection and electrical insulation. When exposed to controlled heat, PVC heat shrink tubing contracts around the underlying cable or component, creating a close-fitting protective layer. This simple shrinking process makes it useful for cable organization, insulation, surface protection, bundling, identification, and packaging-related applications.
PVC Heat Shrink Tubing for Cable Protection is particularly suitable when a transparent or highly visible protective covering is required. The material can provide a combination of high transparency, high shrinkage, good mechanical strength, convenient processing, and relatively economical production. Depending on the formulation and manufacturing process, PVC shrink materials can be produced in different thicknesses, widths, shrinkage ratios, colors, and dimensional configurations to meet different application requirements.
PVC-based shrink materials are also commonly associated with packaging protection. In packaging applications, shrink film can help hold products together, reduce loosening during transportation, protect surfaces from contamination, and make unauthorized opening more noticeable. For cable-related applications, the same basic shrink principle can be adapted to produce protective tubing that conforms around cables and electrical components.
Although PVC remains an established shrink material, the industry is increasingly evaluating alternative materials such as PETG heat shrink film and other polymer systems. This transition is influenced by requirements related to environmental considerations, processing characteristics, material performance, and application-specific regulations.
This guide explains the structure, functions, characteristics, specifications, processing methods, advantages, limitations, applications, selection factors, and storage considerations associated with PVC Heat Shrink Tubing for Cable Protection.

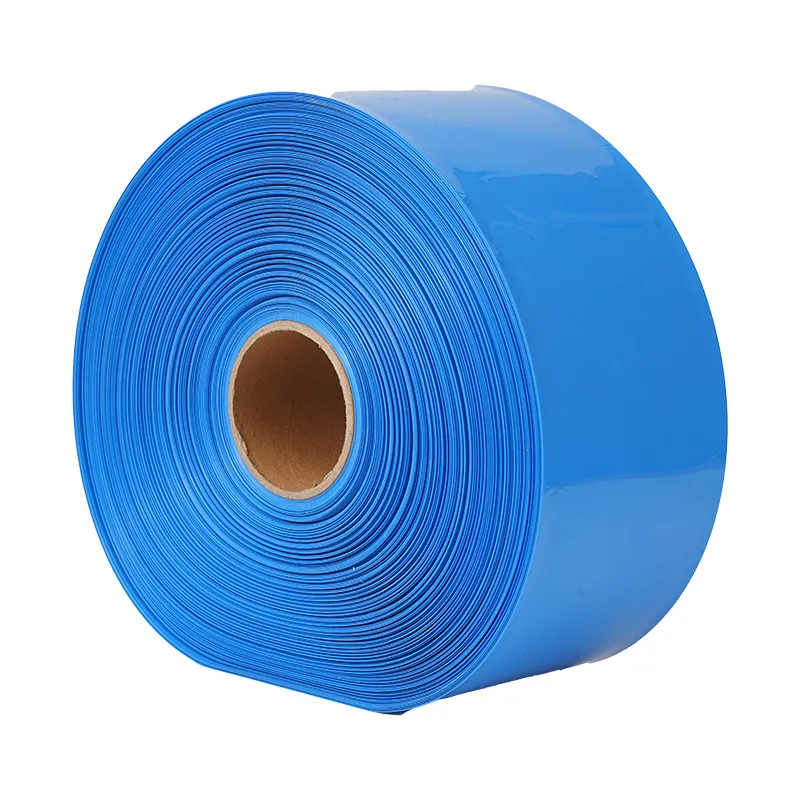

PVC Heat Shrink Tubing is a thermoplastic protective sleeve manufactured from polyvinyl chloride resin and formulated with additives that allow the material to shrink when exposed to controlled heat.
The tubing is generally supplied in an expanded state. During installation, the tubing is positioned over a wire, cable, terminal, connector, or other component. Heat is then applied using a suitable heating device. As the temperature increases, the polymer structure relaxes and the tubing contracts toward its original dimensions.
After cooling, the tubing remains closely fitted around the protected component.
This process provides several useful functions:
Electrical insulation
Cable surface protection
Mechanical protection
Moisture and contamination resistance
Cable bundling
Connector protection
Terminal insulation
Abrasion reduction
Identification support
Packaging stabilization
PVC Heat Shrink Tubing can therefore serve as both an electrical insulation material and a general-purpose protective sleeve.
One important function associated with PVC shrink materials is packaging protection.
When PVC shrink film or tubing is heated around a packaged item, the material contracts and forms a tight outer layer. This can help stabilize the package and reduce unwanted movement.
Shrink packaging can provide a protective barrier around products during storage, handling, and transportation. The transparent surface allows the packaged product to remain visible while helping reduce exposure to dust, dirt, handling marks, and minor surface contamination.
For industrial products, electrical components, consumer products, hardware, and small assemblies, shrink packaging can help maintain a neat appearance while providing an additional protective layer.
Shrink material can help keep packaged components together. Once the material contracts, it creates tension around the package and reduces the likelihood of individual parts becoming separated.
For cable-related assemblies, heat shrink tubing can also provide strain relief and help maintain the relative position of wires, terminals, and connectors.
A sealed shrink layer can make unauthorized opening more visible. If the shrink material has been cut, torn, punctured, or removed, the condition of the package may become immediately apparent.
This does not mean PVC shrink material should be considered a complete security system. Instead, its primary role is to provide a visible protective seal and make unwanted interference easier to detect.
PVC Heat Shrink Tubing is selected for many applications because of its combination of transparency, shrinkability, strength, and processing convenience.
High transparency is one of the important characteristics of clear PVC shrink materials.
Transparent tubing allows users to observe the protected cable, wire marking, terminal, connector, or underlying product without removing the protective layer.
This can be useful for:
Cable identification
Visual inspection
Product packaging
Component verification
Wire marking visibility
Assembly inspection
Product presentation
High transparency can also make the finished product appear cleaner and more professional.
A high shrinkage ratio allows the tubing to accommodate a relatively broad range of cable diameters.
Before shrinking, the tubing must be sufficiently large to pass over the cable or component. After heating, it contracts to form a closer fit.
Shrinkage performance depends on material formulation, tubing dimensions, manufacturing conditions, heating temperature, heating method, and the geometry of the protected object.
A higher shrinkage capability can be advantageous when the component has irregular dimensions or when a tight protective fit is required.
PVC shrink tubing can provide useful tensile strength and resistance to everyday handling.
The mechanical strength of the final product depends on:
PVC formulation
Wall thickness
Processing conditions
Shrink ratio
Heating conditions
Cooling conditions
Environmental temperature
Mechanical loading
A thicker wall generally provides greater physical protection, although it can also require more installation space and greater heating energy.
PVC Heat Shrink Tubing is relatively convenient to process.
Installation typically involves three basic steps:
Select the appropriate tubing size.
Position the tubing over the cable or component.
Apply controlled heat until the tubing contracts evenly.
A heat gun is commonly used for installation because it provides controlled localized heating.
For certain applications, industrial heating equipment may be used to achieve more consistent processing.
The principal material used in this product category is polyvinyl chloride, commonly abbreviated as PVC.
PVC is a versatile thermoplastic polymer that can be formulated for different mechanical, electrical, thermal, and processing requirements.
For heat shrink applications, the PVC compound is engineered to achieve controlled dimensional recovery when heated.
The final material formulation may include stabilizers, plasticizers, pigments, processing aids, and other additives depending on the intended application.
Material formulation has a direct influence on:
Flexibility
Transparency
Shrink behavior
Mechanical strength
Temperature resistance
Surface characteristics
Processing performance
Long-term stability
Because PVC formulations vary, buyers should evaluate the actual technical specification rather than assuming that every PVC heat shrink product has identical properties.
The heat shrink process is based on the dimensional memory of the polymer.
During manufacturing, the tubing is produced and expanded under controlled conditions. This creates a temporary expanded geometry.
When the tubing is later heated, molecular structures become more mobile. The material tends to return toward its previously established dimensions.
The result is radial contraction.
For cable protection, the tubing should be selected so that its expanded internal diameter is large enough to pass over the cable or connector while its recovered diameter is small enough to create a secure fit.
The correct relationship between expanded diameter, recovered diameter, cable diameter, and shrink ratio is essential for successful installation.
Shrinkage ratio is one of the most important specifications when selecting PVC Heat Shrink Tubing.
A shrink ratio describes how much the tubing can contract relative to its original expanded dimensions.
For example, a product may be designed with a nominal shrink ratio suitable for cables with different diameter ranges.
However, the actual recovered dimension can vary according to heating conditions and the shape of the protected object.
Users should therefore evaluate both:
Expanded diameter
Recovered diameter
rather than considering shrink ratio alone.
The tubing should not be so small that installation becomes difficult. It should also not remain excessively loose after heating.
Wall thickness affects the physical protection and handling characteristics of PVC Heat Shrink Tubing.
Thin-wall tubing is often preferred when:
Space is limited
Flexibility is important
Minimal added diameter is desired
Cable identification must remain highly visible
Lightweight protection is sufficient
Thicker-wall tubing can be more suitable when:
Greater abrasion resistance is required
Additional mechanical protection is needed
A stronger protective sleeve is preferred
The cable is exposed to more demanding handling conditions
Thickness should always be selected according to the actual application rather than simply choosing the thickest available material.
For PVC shrink film and related shrink products, width is an important manufacturing and packaging parameter.
For tubular products, dimensional specifications commonly include:
Flat width
Expanded inner diameter
Recovered inner diameter
Wall thickness
Length
Shrink ratio
For custom products, dimensional tolerances should also be considered.
Consistent dimensions are important because variation can influence installation speed, finished appearance, and protection performance.
When purchasing or specifying PVC Heat Shrink Tubing, users should consider the following parameters:
Material type
Material grade
Transparency
Color
Expanded diameter
Recovered diameter
Wall thickness
Shrink ratio
Length
Operating temperature
Shrink temperature
Tensile strength
Elongation
Electrical insulation performance
Flame behavior
Surface finish
Dimensional tolerance
Packaging method
Storage conditions
Different industries may require additional specifications.
PVC Heat Shrink Tubing is frequently used for cable protection because it can create a compact protective layer around wires and cables.
The tubing can provide an additional insulation layer over exposed or vulnerable wire sections.
When two wires are joined, heat shrink tubing can be positioned over the joint and heated after the electrical connection has been completed.
The tubing then forms a protective sleeve around the joint.
Electrical terminals and crimped connections can be protected with appropriately sized tubing.
Heat shrink tubing can help protect connector areas from abrasion, accidental contact, and contamination.
Several wires can be grouped together using suitable shrink tubing.
This can improve cable organization and reduce loose wires.
When properly designed, heat shrink tubing can help reduce mechanical movement at cable termination points.
However, it should not be assumed to replace a dedicated strain-relief component when substantial mechanical loads are present.
One of the major reasons for using heat shrink tubing is electrical insulation.
PVC is naturally useful as an electrical insulating polymer, and properly manufactured PVC heat shrink tubing can provide a dielectric barrier around conductive components.
The insulation performance of a specific product depends on:
Material formulation
Wall thickness
Manufacturing quality
Voltage level
Environmental conditions
Surface contamination
Temperature
Frequency
Mechanical damage
For electrical applications, users should verify the relevant electrical ratings and applicable standards for the exact product.
Cable insulation may be exposed to abrasion during installation and operation.
A heat shrink sleeve can provide another layer of physical protection.
Potential benefits include:
Reduced surface abrasion
Improved handling durability
Protection from minor scratches
Improved cable organization
Reduced exposure to dust
Additional insulation
Improved appearance
The actual mechanical performance depends strongly on wall thickness and material formulation.
Standard PVC heat shrink tubing can provide some resistance to environmental contamination when it forms a close-fitting sleeve.
However, standard heat shrink tubing should not automatically be considered waterproof.
If a cable assembly requires a sealed moisture barrier, a specialized adhesive-lined or waterproof heat shrink system may be more appropriate.
The selection should depend on the required environmental protection level.
Temperature is an important consideration during both installation and service.
During installation, sufficient heat must be applied to activate shrinkage. Excessive heating, however, can damage the tubing, cable insulation, connector, or surrounding materials.
During operation, the tubing must remain within its specified service temperature range.
Users should consider:
Minimum operating temperature
Maximum operating temperature
Installation temperature
Heat exposure
Temperature cycling
Winter conditions
Outdoor exposure
Proximity to heat sources
One known limitation of some PVC shrink materials is increased stiffness or hardening at low temperatures.
In cold environments, PVC can become less flexible. This may affect installation, bending, handling, or long-term performance depending on the formulation.
For applications involving outdoor winter exposure or low-temperature operation, users should verify the low-temperature characteristics of the selected PVC formulation.
A product suitable for indoor cable organization may not necessarily be suitable for severe cold environments.
Some PVC shrink materials can have a tendency to attract or retain dust on the surface.
This can be relevant to transparent packaging applications where visual cleanliness is important.
Dust attraction can affect:
Appearance
Product presentation
Optical clarity
Cleaning requirements
Long-term surface cleanliness
For applications where environmental cleanliness is particularly important, alternative materials or specialized surface treatments may be considered.
PETG is increasingly used as an alternative shrink material in some packaging applications.
PETG heat shrink film can offer different combinations of clarity, shrink performance, processing behavior, and environmental characteristics.
The choice between PVC and PETG should be based on application requirements rather than assuming that one material is universally better.
PVC may remain attractive because of its:
Established processing technology
Availability
Cost efficiency
Good transparency
Strong shrink behavior
Broad application history
PETG may be selected when specific packaging, environmental, appearance, or regulatory requirements favor it.
Material substitution should always be evaluated using actual technical data.
Industrial applications often require reliable cable organization and protection.
PVC Heat Shrink Tubing can be used around:
Control cables
Electrical wires
Sensor cables
Small harnesses
Terminal connections
Connector assemblies
Instrumentation wiring
Low-voltage cable systems
Electronic assemblies
The tubing can provide both practical protection and a clean finished appearance.
Electronic assemblies frequently contain numerous small wires and connectors.
Heat shrink tubing can help separate, insulate, and organize these components.
Typical applications include:
PCB wiring
Sensor connections
Small electronic harnesses
Power connections
Connector terminals
Component leads
Cable transitions
Transparent PVC tubing is particularly useful when visual inspection of the underlying connection is desirable.
Cable assemblies in transportation equipment can experience vibration, abrasion, temperature changes, and frequent handling.
Heat shrink tubing can provide additional protection to suitable cable sections.
However, automotive and transportation applications may require specialized materials with specific resistance to:
Automotive fluids
High temperatures
Vibration
Abrasion
Oil
Fuel
Chemical exposure
Standard PVC tubing should therefore only be used when its specifications match the application.
Heat shrink materials are also used in consumer products and household electrical assemblies.
Potential uses include:
Cable repair
Wire organization
Charger cable protection
Connector insulation
Small appliance wiring
Electronic accessories
DIY electrical projects
The main attraction is the relatively simple installation process.
PVC shrink film is widely associated with packaging.
The shrink process can help create a tight outer package around products.
Applications can include:
Product grouping
Retail packaging
Component packaging
Small hardware packaging
Protective wrapping
Tamper-evident packaging
Product stabilization
The high transparency of clear PVC shrink material allows the contents to remain visible.
Packaging products can become loose during transportation because of vibration and repeated movement.
Shrink packaging helps maintain tension around the packaged products.
This can reduce:
Product separation
Package movement
Component displacement
Loose wrapping
Handling problems
The effectiveness depends on package geometry, material thickness, shrink ratio, heating conditions, and the type of product being wrapped.
Shrink packaging can provide visual evidence of package interference.
An intact shrink layer generally indicates that the package has not been visibly opened or disturbed.
If the layer is damaged, cut, punctured, or removed, the package condition can become easier to identify.
For this reason, shrink materials can be useful for products where visual package integrity is important.
However, shrink packaging should be considered a deterrent and visual indicator rather than a complete anti-tampering security system.
PVC Heat Shrink Tubing provides several practical advantages.
The installation process is relatively straightforward.
After shrinking, the tubing adds relatively little bulk compared with many mechanical protective sleeves.
Transparent versions allow the underlying cable or component to remain visible.
Different diameters and wall thicknesses allow users to match the tubing to different cable sizes.
The material provides an additional protective layer.
PVC can provide useful electrical insulation when appropriately specified.
Heat shrinking can produce a neat and uniform finished appearance.
The same basic material category can be used in electrical, electronic, packaging, and general protective applications.
PVC is not suitable for every application.
Potential limitations include:
Low-temperature hardening
Surface dust attraction
Limited high-temperature capability compared with specialized materials
Material-specific environmental considerations
Potential sensitivity to certain chemicals
Performance differences between formulations
Possible restrictions in specific packaging applications
Users should evaluate the actual operating environment before selecting PVC.
A reliable installation process can improve the final performance of PVC Heat Shrink Tubing.
Measure the outside diameter of the cable or component that will be protected.
Choose a tubing size that can slide over the cable while still providing sufficient recovery after heating.
Cut the required length using a clean cutting tool.
Avoid excessively sharp or irregular edges.
Place the tubing over the cable section before applying heat.
For connector applications, ensure that the tubing is correctly positioned before shrinking.
Use a suitable heat gun or controlled heating device.
Move the heat source continuously around the tubing rather than concentrating heat on one location.
The tubing should contract progressively.
Avoid excessive heating.
Allow the material to cool naturally before applying significant mechanical stress.
A household hair dryer may be insufficient for many PVC heat shrink tubing applications because a standard hair dryer often does not provide enough concentrated heat to activate the material efficiently.
A proper heat gun is generally more suitable because it can provide a higher and more controlled temperature.
The heat source should be moved continuously to reduce the risk of overheating.
Overheating can cause:
Surface deformation
Discoloration
Excessive shrinking
Material damage
Cable insulation damage
Connector deformation
Burning or degradation
The correct heating method depends on the tubing specification.
Users should always follow the manufacturer's technical instructions for the selected material.
Proper storage helps preserve the condition of PVC shrink materials.
Recommended conditions generally include:
Cool storage areas
Dry environments
Protection from direct sunlight
Protection from excessive heat
Avoidance of sharp objects
Clean storage surfaces
Controlled humidity where appropriate
Long-term exposure to heat, ultraviolet radiation, or unsuitable environmental conditions can affect polymer performance.
PVC Heat Shrink Tubing should be packaged to prevent deformation and contamination.
Tubing should not be compressed excessively for long periods if such compression could permanently deform the material.
During transportation, products should be protected from:
Excessive heat
Moisture
Direct sunlight
Sharp edges
Heavy compression
Chemical contamination
Quality control is important for consistent heat shrink performance.
Common inspection items include:
Outer diameter
Inner diameter
Wall thickness
Shrink ratio
Transparency
Surface quality
Tensile strength
Elongation
Electrical properties
Dimensional stability
Appearance
Length consistency
For high-volume production, statistical quality control can help maintain dimensional consistency.
A high-quality transparent PVC heat shrink product should generally have a clean and consistent surface.
Potential defects may include:
Bubbles
Wrinkles
Scratches
Uneven thickness
Foreign particles
Discoloration
Surface contamination
The acceptable defect level depends on the intended application.
Packaging applications may place greater emphasis on appearance, while industrial cable applications may prioritize dimensional and electrical performance.
Selecting the correct size is essential.
The expanded tubing diameter must be sufficiently large to pass over the target component.
The recovered diameter should then provide a suitable fit.
Users should consider the largest part of the component that the tubing must pass over.
For example, if a cable has a connector larger than the cable body, the tubing must be large enough to pass over the connector before shrinking.
This is one of the most common sizing considerations in practical installation.
The final tubing should not be selected solely according to the cable diameter.
The recovery capability and installation path must also be considered.
A practical selection process includes:
Measure the cable.
Measure the largest component.
Determine the required recovered diameter.
Select an appropriate shrink ratio.
Check wall thickness.
Verify temperature requirements.
Confirm electrical and mechanical specifications.
Transparent PVC Heat Shrink Tubing is particularly useful where visibility matters.
The clear material allows users to inspect:
Cable labels
Wire colors
Terminals
Solder joints
Connector positions
Product surfaces
This can simplify inspection and maintenance.
Transparent tubing is also commonly used when the protective layer should not significantly change the appearance of the product.
PVC shrink tubing can also be produced in different colors.
Colored tubing can support:
Wire identification
Circuit organization
Polarity identification
Phase identification
Cable grouping
Product appearance
Color coding can help technicians identify cable functions more quickly.
Some applications require customized dimensions.
Customization may involve:
Diameter
Length
Thickness
Color
Transparency
Shrink ratio
Printing
Packaging
Roll length
Custom specifications should be based on actual application requirements.
Over-customization can increase manufacturing complexity, so standard sizes are generally preferable when they can satisfy the application.
For suitable cable repairs, heat shrink tubing can cover damaged or exposed sections after the underlying electrical problem has been correctly repaired.
The tubing should not be considered a substitute for proper electrical repair.
The damaged conductor must be restored using an appropriate repair method before the protective sleeve is applied.
Cable harnesses can become difficult to manage when multiple wires are routed together.
Heat shrink tubing can help group wires into a more organized bundle.
Benefits can include:
Improved appearance
Reduced loose wires
Easier routing
Better identification
Reduced movement between wires
Additional abrasion protection
The tubing size should allow the wire bundle to fit without excessive compression.
Maintenance personnel often require materials that are easy to install and store.
Heat shrink tubing is compact and available in many dimensions.
It can be useful for routine electrical maintenance involving:
Wire insulation
Terminal protection
Cable organization
Connector reinforcement
Small repairs
Harness identification
The environmental impact of polymer materials has become an increasingly important consideration.
PVC remains widely used, but some applications are moving toward alternative materials due to environmental, recycling, regulatory, or brand requirements.
PETG heat shrink film is one alternative that is increasingly considered in certain packaging applications.
Material selection should consider:
Product life
Recycling requirements
Disposal method
Application regulations
Packaging regulations
Material composition
Required performance
There is no universal replacement material for every PVC application.
When comparing PVC and PETG shrink materials, users should examine actual technical requirements.
Important comparison factors include:
Transparency
Shrink performance
Shrink temperature
Mechanical strength
Environmental resistance
Processing requirements
Packaging requirements
Regulatory requirements
Cost
End-of-life considerations
The correct material depends on the intended application.
The heat shrink industry continues to develop in response to changing application requirements.
Important trends include:
More environmentally conscious material selection
Greater demand for transparent protective materials
Improved dimensional consistency
Better processing control
Increased customization
Lightweight cable protection
Higher-performance polymer formulations
Improved packaging efficiency
As electrical and electronic products become more compact, protective materials must also provide reliable performance within limited installation space.
PVC Heat Shrink Tubing may be used in:
Electrical manufacturing
Electronics manufacturing
Cable assembly
Appliance manufacturing
Industrial equipment
Telecommunications
Consumer electronics
Packaging
Hardware packaging
Electrical maintenance
General manufacturing
DIY electrical projects
The specific suitability depends on the product grade and technical requirements.
Before purchasing PVC Heat Shrink Tubing, users should ask:
What cable diameter needs protection?
What is the largest component that the tubing must pass over?
What recovered diameter is required?
What wall thickness is appropriate?
Is transparent material required?
What shrink ratio is needed?
What operating temperature will the tubing experience?
Will the product be exposed to moisture?
Will it encounter oil, solvents, or chemicals?
Is flame performance required?
Is outdoor exposure expected?
Are specific electrical certifications required?
Will the tubing be installed manually or automatically?
What packaging format is most convenient?
Answering these questions can significantly reduce sizing and performance problems.
Several mistakes can reduce the effectiveness of heat shrink tubing.
If the tubing is too small to pass over the component, installation becomes impossible.
If the tubing is too large, it may not recover sufficiently to create a secure fit.
Uneven heating can cause irregular shrinking.
Excessive heat can damage both the tubing and the protected cable.
Insufficient length may leave parts of the cable joint exposed.
The tubing should normally be positioned before a connector or terminal prevents it from being slid into place.
Heat shrink tubing generally requires limited maintenance after correct installation.
Periodic inspection can still be useful for critical cable assemblies.
Check for:
Cracks
Cuts
Abrasion
Discoloration
Loosening
Shrink deformation
Chemical damage
Thermal damage
If the protective sleeve becomes damaged, the underlying cable should also be inspected.
Long-term performance depends on the interaction between material formulation and environmental conditions.
Important factors include:
Temperature
UV exposure
Humidity
Mechanical stress
Chemical contact
Electrical loading
Installation quality
Storage history
A properly selected and correctly installed product can provide durable protection for many applications.
Despite the development of alternative polymer systems, PVC continues to have a strong position in many heat shrink applications.
Its advantages include:
Established manufacturing technology
Wide availability
Good clarity
Good shrink performance
Flexible product configurations
Relatively simple installation
Cost-effective production
Broad application experience
For many general-purpose cable protection applications, these characteristics make PVC a practical material.
Future heat shrink products are likely to focus on improved combinations of:
Environmental performance
Mechanical durability
Transparency
Flame resistance
Temperature resistance
Chemical resistance
Processing efficiency
Recycling compatibility
The selection of PVC, PETG, polyolefin, or another polymer should continue to be based on application-specific performance requirements.
PVC Heat Shrink Tubing for Cable Protection is a practical protective material for electrical wires, cables, terminals, connectors, cable assemblies, and selected packaging applications.
Its major characteristics include high transparency, high shrinkage, good strength, and convenient processing. These features allow PVC shrink tubing to form a close-fitting protective sleeve after controlled heating.
In packaging applications, PVC shrink material can provide packaging protection, help prevent loosening, stabilize products during transportation, and provide visible evidence of package interference. In cable applications, PVC Heat Shrink Tubing can provide electrical insulation, mechanical protection, cable organization, terminal protection, connector coverage, and improved finished appearance.
The principal product material is PVC shrink material. Important parameters include shrinkage ratio, thickness, width, expanded diameter, recovered diameter, length, temperature range, mechanical properties, and electrical performance.
However, PVC also has limitations. Some PVC formulations may become harder in winter or attract dust on the surface. These characteristics can be important in low-temperature environments and appearance-sensitive packaging applications. For this reason, some packaging applications are gradually evaluating or adopting alternative materials such as PETG heat shrink film.
The most suitable heat shrink material should always be selected according to the actual application. Cable diameter, connector size, shrink ratio, wall thickness, temperature, environmental exposure, electrical requirements, mechanical loading, and regulatory requirements should all be evaluated before purchase.
When properly selected, correctly installed, and appropriately stored, PVC Heat Shrink Tubing can provide an efficient and economical solution for cable protection, electrical insulation, component protection, cable organization, and packaging stabilization.
This website uses cookies to ensure you get the best experience on our website.
WhatsApp
Phone
