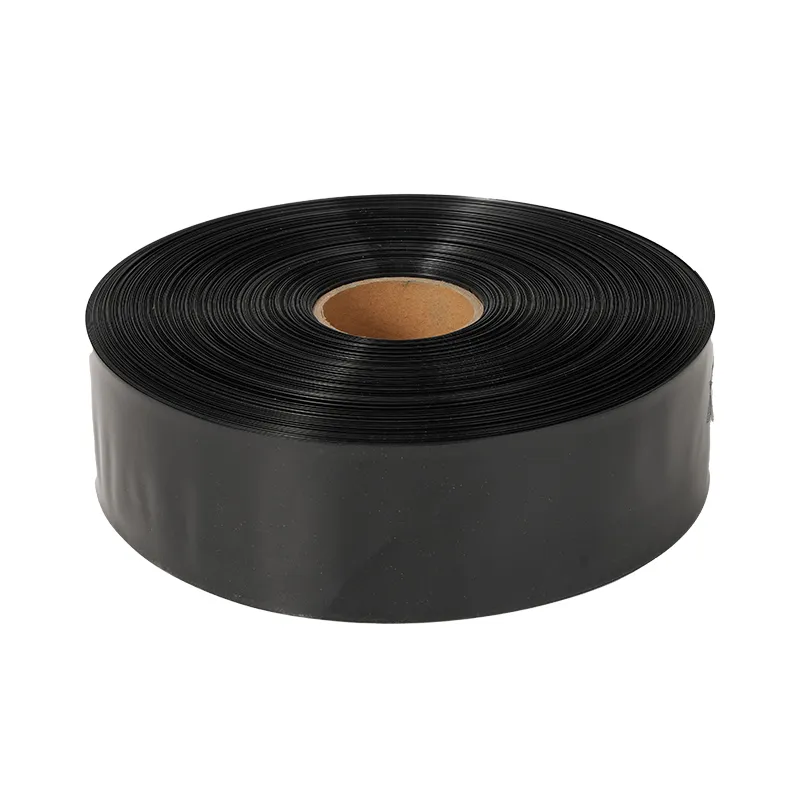

Flame Retardant Heat Shrink Tubing for Cables is a specialized insulating and protective material designed to improve the electrical insulation, mechanical protection, identification, bundling, and environmental resistance of wires and cables. When exposed to controlled heat, the tubing contracts around the cable, forming a close-fitting protective layer. Flame retardant formulations are developed to reduce the tendency of the material to support flame propagation and can provide an additional level of protection in electrical and electronic assemblies.

Heat shrink tubing is widely used in cable harnesses, electrical connections, terminal protection, wire splices, battery assemblies, automotive wiring, industrial equipment, electronic devices, power systems, communication equipment, appliances, and other cable-management applications. Depending on the material formulation, wall thickness, shrink ratio, temperature rating, and flame-retardant performance, heat shrink tubing can be adapted to different installation and environmental requirements.

Flame retardant heat shrink tubing is particularly useful where cable insulation and fire-performance considerations are important. It can cover exposed conductors, protect cable joints, reinforce connections, reduce movement, and provide a neat finished appearance. The shrinking process also helps the tubing conform to irregular cable shapes and components.

Common Heat Shrink Tubing Materials include polyolefin, PVC, fluoropolymer, elastomer, and other engineered polymer systems. PVC heat shrink materials are valued for their flexibility, transparency or color options, processability, electrical insulation, and relatively economical production. Flame-retardant PVC formulations can be used where specific electrical and mechanical requirements need to be balanced with processing efficiency.

What Is Flame Retardant Heat Shrink Tubing?

Flame retardant heat shrink tubing is a thermally shrinkable polymer tube formulated with materials and additives intended to improve resistance to ignition and flame propagation. Before heating, the tubing has a larger diameter that allows it to be positioned over a wire, cable, connector, terminal, or joint. When heated within its recommended temperature range, the polymer structure contracts and the tubing becomes tightly fitted around the underlying component.

The resulting sleeve provides several functions:

• Electrical insulation

• Cable protection

• Mechanical reinforcement

• Abrasion resistance

• Moisture protection

• Connection protection

• Strain relief

• Wire identification

• Cable bundling

• Surface protection

• Improved assembly appearance

The flame-retardant characteristic adds another layer of functional performance. Instead of considering only mechanical and electrical properties, engineers can select a heat shrink material according to its behavior when exposed to heat or flame.

The actual fire performance of a heat shrink tube depends on its formulation, thickness, processing conditions, test method, and applicable standard. Therefore, a product should not be described simply as flame retardant without confirming the relevant technical specification and testing requirements.

Why Use Flame Retardant Heat Shrink Tubing for Cables?

Cables are frequently installed in environments where heat, electrical energy, vibration, movement, chemicals, moisture, and mechanical stress may be present. Conventional insulation alone may not provide adequate protection for exposed cable joints or connection points.

Flame retardant heat shrink tubing provides a practical way to reinforce vulnerable sections of a cable assembly.

Electrical Insulation

Heat shrink tubing can cover exposed conductive areas and provide an additional insulating layer around wires, terminals, and cable joints. This helps reduce the possibility of accidental contact between conductive components.

Mechanical Protection

The tubing creates a protective sleeve around the cable. Depending on the formulation and wall thickness, it can help protect against abrasion, scratches, minor impacts, and handling damage.

Flame Retardant Performance

Flame retardant formulations are designed to reduce flame propagation under specified test conditions. This property is particularly relevant to electrical equipment, control systems, transportation equipment, appliances, and other applications where fire performance is an important design consideration.

Cable Organization

Heat shrink tubing can group individual wires and create cleaner cable harnesses. This can simplify assembly and improve the appearance of electrical systems.

Connection Protection

Cable splices, crimp terminals, solder joints, and connector transitions can become mechanically vulnerable points. Heat shrink tubing can cover these areas and provide additional physical protection.

Key Features of Flame Retardant Heat Shrink Tubing

Flame Retardant Performance

The primary feature of flame retardant heat shrink tubing is its ability to provide improved resistance to flame propagation compared with a standard non-flame-retardant formulation.

Different products can have very different flame-retardant properties. Buyers should therefore evaluate the exact test method, thickness, material grade, and certification applicable to the intended application.

Electrical Insulation

Heat shrink tubing is commonly used as an additional insulating layer around electrical conductors. Electrical insulation performance depends on material composition, thickness, dielectric properties, surface condition, and operating environment.

High Shrinkage

Heat shrink tubing is manufactured in an expanded state. When heated, the material contracts toward its original dimensions.

A high shrink ratio allows the tubing to accommodate components with different diameters. Typical commercial ratios may include 2:1, 3:1, and higher ratios depending on the product design.

Flexible Construction

Flexible heat shrink tubing can conform to curved wires and cable assemblies. Flexibility is particularly useful for harnesses that must bend during installation or operation.

Strong Cable Protection

The tubing forms a protective barrier around the cable surface. It can help reduce damage caused by friction, handling, installation, and contact with nearby components.

Easy Installation

Heat shrink tubing can generally be installed by positioning the tube over the target area and applying controlled heat. A hot-air gun or other suitable heating equipment is commonly used.

Clean Appearance

After shrinking, the tubing forms a neat sleeve around the cable. Colored versions can also help identify different circuits, phases, connections, or harness groups.

Material Options

Different polymer systems are used to manufacture heat shrink tubing. Material selection should be based on operating temperature, flexibility, chemical exposure, flame performance, electrical requirements, and mechanical demands.

PVC Heat Shrink Tubing can be attractive for applications requiring economical processing, flexibility, transparency, color options, and general-purpose cable protection. However, PVC formulations contain chlorine and should be selected carefully when environmental requirements or halogen-free specifications apply.

PVC Heat Shrink Material Background

PVC heat shrink film and PVC heat shrink tubing are related polymer-based shrinkable materials, but they are not identical products and should not be treated as interchangeable.

PVC heat shrink film is commonly used as a packaging material. PVC heat shrink tubing is manufactured in tubular form for applications such as cable protection, electrical insulation, bundling, and connection protection.

PVC heat shrink film is generally produced from PVC resin through controlled film-forming processes. Certain formulations use ethylene-process PVC resin as a primary raw material and may employ secondary blow-molding processes to achieve the desired film structure.

The physical properties commonly associated with PVC heat shrink film include high transparency, high shrinkage, and good tensile strength.

These characteristics provide useful background when evaluating PVC-based shrinkable materials, although cable heat shrink tubing requires additional technical evaluation because electrical insulation, flame retardancy, dimensional recovery, temperature resistance, and mechanical protection are important considerations.

Application Features

Environmental Performance

PVC-based shrinkable materials may be manufactured according to specific regional or industry standards. The supplied reference identifies GB12023-89 in relation to PVC shrink film used primarily for the outer packaging of food, daily necessities, electronic products, and electrical appliances.

For cable applications, however, packaging-film standards should not automatically be interpreted as electrical cable-tubing certifications. Cable insulation products should be evaluated against the standards and testing requirements applicable to their intended electrical application.

When environmental performance is a purchasing requirement, users should also consider material composition, halogen content, additives, recyclability, disposal requirements, and the regulations applicable to the target market.

Easy Processing

Heat shrink tubing is generally easy to process when the correct tube size and heating conditions are selected. Installation typically involves sliding the tubing over the cable or connection, positioning it correctly, and applying controlled heat.

For PVC shrinkable materials, controlled hot-air processing can create a close-fitting protective layer. The process should avoid excessive heating because overheating can cause discoloration, deformation, brittleness, or surface damage.

Strong Weather Resistance

Certain PVC shrink materials can provide useful resistance to environmental exposure. The supplied material description notes infrared blocking and heat-retention performance for PVC heat shrink film, making such materials suitable for some outdoor or long-term storage packaging applications.

For cable heat shrink tubing, weather resistance must be evaluated according to the actual material formulation and intended outdoor exposure. UV resistance, moisture resistance, temperature cycling, water absorption, and chemical exposure can all affect long-term performance.

Limitations

Environmental Concerns

PVC contains chlorine, and certain PVC formulations may raise environmental concerns compared with halogen-free materials. This can restrict their use in applications where low-halogen, halogen-free, or environmentally preferred materials are required.

For projects involving enclosed public spaces, transportation systems, sensitive electronic equipment, or specific regulatory requirements, engineers may consider halogen-free polyolefin or other specialized materials.

Material selection should therefore consider the complete application rather than relying solely on price or basic shrink performance.

Brittleness

PVC shrinkable materials can become more brittle after certain processing or environmental exposures. Excessive heating, low-temperature exposure, aging, UV radiation, chemical contact, or unsuitable formulation can influence flexibility.

Correct installation temperature and appropriate storage conditions are important for maintaining material performance.

Physical Properties

Flame Retardant Heat Shrink Tubing Size Selection

Correct sizing is one of the most important factors in heat shrink tubing installation.

The tube should be large enough to slide easily over the cable, connector, terminal, or joint before heating. At the same time, the recovered diameter should be sufficiently small to create a close fit after shrinking.

A basic sizing approach is:

Maximum component diameter ≤ expanded inside diameter

and

Recovered inside diameter should be smaller than or approximately equal to the target component diameter

The actual selection should also account for irregular shapes, connector dimensions, installation clearance, and the manufacturer's recommended recovery range.

Shrink Ratio

Shrink ratio describes the relationship between the tubing's expanded diameter and its recovered diameter.

For example, a 2:1 heat shrink tube can theoretically recover to approximately half of its expanded diameter under the specified conditions.

A 3:1 product offers a broader recovery range and can therefore be useful when the component diameter changes significantly along the length of the assembly.

Higher shrink ratios can be especially useful for cable connectors, irregular joints, terminals, and components with substantial diameter differences.

However, shrink ratio alone does not determine product quality. Recovery force, wall thickness, flexibility, temperature range, electrical properties, and flame-retardant performance must also be considered.

Flame Retardant Performance Considerations

When selecting flame retardant heat shrink tubing, buyers should request technical documentation describing the applicable fire-performance test.

Important factors include:

• Test method

• Material grade

• Tubing wall thickness

• Flame exposure time

• Flame propagation behavior

• Self-extinguishing behavior

• Smoke characteristics

• Halogen content

• Certification requirements

• Application environment

A flame-retardant material is not necessarily fireproof. Heat shrink tubing should not be described as capable of preventing all fires. Its purpose is generally to reduce flame propagation or improve fire behavior under defined test conditions.

Electrical Insulation Applications

Flame retardant heat shrink tubing can be used in a wide range of electrical insulation applications.

Wire Terminals

The tubing can cover terminal connections and help prevent accidental contact with conductive surfaces.

Cable Splices

Cable splice areas may have exposed or mechanically vulnerable sections. Heat shrink tubing can provide additional insulation and protection.

Solder Joints

After soldering wires together, heat shrink tubing can be positioned over the joint and shrunk to create a protective sleeve.

Crimp Connections

Crimp terminals can be covered with heat shrink tubing to improve insulation and provide additional mechanical support.

Battery Connections

Heat shrink tubing is frequently used around battery wires, terminals, and cable connections where electrical insulation and mechanical protection are required.

Motor Wiring

Motors often contain multiple wires and connections that may experience vibration and heat. Properly selected heat shrink tubing can protect vulnerable sections.

Cable Harness Protection

Cable harnesses contain multiple wires routed together. Without suitable protection, wires can rub against each other or surrounding components.

Flame retardant heat shrink tubing can provide a compact outer layer around selected sections of a harness.

Benefits may include:

• Improved organization

• Abrasion protection

• Wire bundling

• Connection reinforcement

• Identification

• Reduced movement

• Cleaner appearance

• Additional insulation

For complex harnesses, larger-diameter heat shrink tubing or high-shrink-ratio products may be required.

Automotive Applications

Automotive electrical systems contain numerous cables, connectors, sensors, motors, and control units.

Heat shrink tubing can be used for:

• Automotive wiring harnesses

• Battery cables

• Sensor wires

• Lighting connections

• Motor wiring

• Control wiring

• Terminal connections

• Cable splices

• Electrical repairs

Automotive applications can expose tubing to temperature changes, vibration, oil, moisture, road chemicals, and mechanical movement. Material selection should therefore be based on the actual operating environment.

Industrial Applications

Industrial equipment often requires durable cable protection.

Flame retardant heat shrink tubing may be used in:

• Control cabinets

• Industrial machinery

• Motors

• Power equipment

• Automation systems

• Sensors

• Instrumentation

• Communication systems

• Factory wiring

• Electrical panels

Industrial installations may require specific flame, temperature, chemical, and mechanical performance. Technical specifications should be checked before material selection.

Electronic Applications

Electronic equipment contains compact wires and connectors that can benefit from organized insulation.

Heat shrink tubing may be used for:

• PCB wiring

• Sensor cables

• Power connections

• Signal wires

• Connector transitions

• Battery wiring

• Internal harnesses

• Small electrical assemblies

Thin-wall heat shrink tubing is often preferred where space is limited, while thicker tubing may be selected where additional mechanical protection is required.

Outdoor Cable Applications

Outdoor cables can be exposed to:

• Sunlight

• Rain

• Humidity

• Temperature cycling

• Dust

• Wind

• Chemical contamination

• Mechanical stress

Heat shrink tubing can provide an additional protective layer, but outdoor suitability should be confirmed through UV resistance, weathering, moisture resistance, and temperature testing.

Not every flame retardant heat shrink tube is suitable for continuous outdoor exposure.

Color Options

Heat shrink tubing is available in multiple colors for identification and cable management.

Common colors include:

• Black

• Blue

• Green

• Lime green

• Red

• Yellow

• White

• Clear

• Custom colors

The requested product color specification can be expressed as:

Product Colors: Blue, Lime Green, Black, and Custom Colors as Specified by the Customer.

Colored heat shrink tubing can help distinguish cable groups, circuits, voltage levels, functions, or assembly stages.

Custom colors may be useful for OEM production and specialized cable identification.

Transparency

Transparent or clear heat shrink tubing can be useful when visual inspection of the underlying component is important.

Potential applications include:

• Label protection

• Connector inspection

• Cable identification

• Component protection

• Wire marking

• Visual quality inspection

Opaque colors are generally more suitable when complete visual coverage and strong color identification are required.

Wall Thickness

Wall thickness directly affects mechanical protection and electrical insulation.

Thin-wall tubing offers:

• Lightweight construction

• Easy installation

• Small finished diameter

• Good flexibility

• Reduced material consumption

Medium-wall tubing offers a balance between flexibility and protection.

Thick-wall tubing can provide:

• Higher mechanical protection

• Increased abrasion resistance

• More substantial insulation

• Better protection for larger cable joints

The appropriate wall thickness depends on the application.

Temperature Performance

Temperature performance is an essential selection criterion.

During installation, the tubing must reach its required recovery temperature without overheating the cable insulation or nearby components.

During service, the tubing should remain within its recommended operating temperature range.

Temperature considerations include:

• Minimum operating temperature

• Maximum operating temperature

• Shrink temperature

• Continuous exposure

• Short-term exposure

• Thermal cycling

• Heat aging

The exact temperature rating must be obtained from the technical data for the selected material.

Installation Guide

Step 1: Select the Correct Tubing

Choose the appropriate diameter, shrink ratio, wall thickness, material, color, and flame-retardant grade.

Step 2: Prepare the Cable

Make sure the cable surface is clean and dry. Remove oil, dust, moisture, and other contaminants where necessary.

Step 3: Cut the Tubing

Cut the required length using a clean cutting tool. Avoid creating sharp edges that could damage the cable or tubing.

Step 4: Position the Tubing

Slide the heat shrink tubing over the cable before completing the final connection if the connector or terminal is too large to pass through the tubing.

Step 5: Apply Controlled Heat

Use a suitable heat source. Apply heat gradually and evenly around the tubing.

Step 6: Allow Recovery

Continue heating until the tubing has contracted sufficiently around the cable. Avoid overheating.

Step 7: Inspect the Finished Assembly

Check for:

• Uniform recovery

• Proper positioning

• Surface damage

• Wrinkles

• Burn marks

• Incomplete shrinkage

• Exposed conductive areas

Common Installation Mistakes

Using the Wrong Diameter

Tubing that is too small may not fit over the cable or connector. Tubing that is too large may not recover sufficiently.

Applying Excessive Heat

Too much heat can cause polymer degradation, discoloration, deformation, or damage to nearby cable insulation.

Uneven Heating

Heating only one side may produce uneven recovery and an irregular finished surface.

Installing Over Dirty Surfaces

Oil, dust, moisture, or chemicals can reduce the quality of the finished assembly.

Ignoring the Connector Size

The cable diameter alone is not enough for sizing. The largest component that the tubing must pass over should also be considered.

Selecting Material Without Checking Fire Requirements

A generic heat shrink tube should not automatically be considered flame retardant. The actual material grade and fire-performance documentation should be verified.

Storage Recommendations

Heat shrink tubing should be stored in a clean and dry environment.

Recommended conditions generally include:

• Avoid direct sunlight

• Avoid excessive heat

• Avoid prolonged moisture exposure

• Keep away from chemicals

• Avoid excessive compression

• Maintain original packaging where possible

• Prevent sharp objects from contacting the tubing

Long-term storage conditions can affect flexibility, color, shrink performance, and surface quality.

PVC-based materials in particular should be protected from excessive heat and prolonged exposure to unsuitable environmental conditions.

Quality Inspection

Quality control for flame retardant heat shrink tubing may include dimensional, mechanical, electrical, thermal, and flame-performance testing.

Flame Retardant Heat Shrink Tubing vs Standard Heat Shrink Tubing

Flame Retardant PVC Heat Shrink Tubing

PVC heat shrink tubing can be formulated to provide flame retardant properties while maintaining useful flexibility and processability.

Potential advantages include:

• Good transparency or colorability

• Flexible construction

• Easy processing

• Good dimensional recovery

• Electrical insulation

• General cable protection

• Economical production

• Multiple color options

However, PVC contains chlorine, so it may not be appropriate for applications requiring halogen-free materials.

PVC formulations can also become harder or more brittle under certain environmental conditions. Therefore, the specific formulation should be matched to the expected service temperature and environment.

Polyolefin Flame Retardant Heat Shrink Tubing

Flame-retardant polyolefin heat shrink tubing is another common option for electrical and cable protection.

Advantages can include:

• Good electrical insulation

• Good mechanical strength

• Flexible installation

• Balanced thermal performance

• Wide application range

• Good recovery characteristics

Polyolefin is often selected when the application requires a combination of electrical insulation and mechanical protection.

Halogen-free polyolefin options are also available for applications where reduced halogen content is required.

Selection Guide

When purchasing flame retardant heat shrink tubing for cables, consider the following factors:

1. Cable Diameter

Measure the cable or cable bundle carefully.

2. Largest Component Diameter

Check whether the tubing must pass over a connector or terminal.

3. Recovered Diameter

Make sure the final recovered tubing will fit securely.

4. Shrink Ratio

Select a suitable recovery ratio for changes in diameter.

5. Wall Thickness

Choose thin, medium, or thick wall according to the protection required.

6. Material

Select PVC, polyolefin, fluoropolymer, elastomer, or another polymer based on application requirements.

7. Flame Performance

Confirm the applicable fire test and certification.

8. Operating Temperature

Check both installation and service temperature requirements.

9. Environmental Exposure

Consider moisture, chemicals, UV radiation, abrasion, vibration, and temperature cycling.

10. Color

Select a standard or custom color for identification.

Custom Heat Shrink Tubing

Custom heat shrink tubing can be manufactured or supplied according to customer requirements.

Possible customization areas include:

• Diameter

• Length

• Wall thickness

• Shrink ratio

• Material

• Color

• Transparency

• Flame-retardant formulation

• Packaging

• Printing

• Application-specific specifications

Custom colors such as blue, lime green, black, or customer-specified colors can support product identification and OEM requirements.

Custom dimensions can also reduce material waste and improve installation efficiency.

Packaging and Handling

Heat shrink tubing should be packaged to prevent deformation and contamination.

Depending on the product format, it may be supplied as:

• Continuous rolls

• Cut lengths

• Bundles

• Individual pieces

• Custom packages

Packaging should protect the tubing from dust, moisture, excessive pressure, sunlight, and mechanical damage.

For industrial orders, consistent labeling is useful for identifying:

• Material

• Size

• Color

• Batch

• Production date

• Shrink ratio

• Applicable specifications

Applications by Industry

Cable Harness Protection Applications

Flame retardant heat shrink tubing is particularly useful for selected sections of wire harnesses.

A cable harness may contain multiple conductors with different functions. Heat shrink tubing can consolidate wires into a protected group while helping maintain a clean routing path.

For harness applications, the following characteristics are especially useful:

• Flexible construction

• Appropriate shrink ratio

• Flame retardant performance

• Good electrical insulation

• Abrasion resistance

• Color identification

• Easy processing

• Consistent recovery

When a harness includes connectors, branches, or large terminals, high-shrink-ratio tubing can provide greater installation flexibility.

Packaging Film and Cable Tubing Considerations

PVC heat shrink film is primarily a packaging material, while flame retardant heat shrink tubing is an electrical and mechanical protection product.

The two products share the fundamental principle of thermal shrinkage but have different design objectives.

PVC heat shrink film may be used for:

• Food packaging

• Daily necessities

• Consumer goods

• Electronic product packaging

• Electrical appliance packaging

Flame retardant heat shrink tubing is designed for:

• Wire insulation

• Cable protection

• Electrical connections

• Harness protection

• Terminal insulation

• Splice protection

The supplied application information regarding packaging should therefore be understood as background information about PVC shrinkable materials rather than as a direct specification for electrical cable tubing.

Advantages of Flame Retardant Heat Shrink Tubing

The main advantages can be summarized as follows:

Improved Fire Performance

Flame-retardant formulations can help reduce flame propagation under defined test conditions.

Electrical Insulation

The tubing creates an additional insulating barrier around cables and connections.

Mechanical Protection

It helps protect cable surfaces against abrasion and minor physical damage.

Flexible Installation

The tubing can accommodate curved wires and irregular assemblies.

Clean Appearance

After shrinking, the material forms a compact protective sleeve.

Identification

Color options can make cable systems easier to identify and maintain.

Connection Reinforcement

It can reinforce soldered, crimped, or spliced cable connections.

Moisture Protection

Some formulations can provide resistance to moisture and environmental exposure.

Limitations and Considerations

Despite its advantages, flame retardant heat shrink tubing is not suitable for every application.

Important limitations include:

• Material-specific temperature limitations

• Potential brittleness in unsuitable conditions

• Different chemical resistance among materials

• UV performance varies by formulation

• Not every flame retardant product is halogen-free

• Flame retardant does not mean fireproof

• Excessive heating can damage the tubing

• Incorrect sizing can reduce protection

• Certification requirements vary by market

The correct product should always be selected based on the complete application environment.

Frequently Asked Questions

What is flame retardant heat shrink tubing?

Flame retardant heat shrink tubing is a polymer sleeve designed to shrink around cables, wires, terminals, and electrical connections while providing insulation, mechanical protection, and improved resistance to flame propagation according to its specified performance grade.

Is flame retardant heat shrink tubing fireproof?

No. Flame retardant and fireproof are not interchangeable terms. Flame retardant tubing is designed to reduce flame propagation or improve fire behavior under defined test conditions.

Can flame retardant heat shrink tubing be used for wire harnesses?

Yes. It can be used to bundle and protect sections of wire harnesses, provided that the selected diameter, material, temperature rating, and flame performance are suitable.

What colors are available?

Common colors include black, blue, green, lime green, red, yellow, white, and transparent. Custom colors may also be available depending on the product specification.

Can PVC heat shrink tubing be flame retardant?

Yes. PVC formulations can be designed with flame-retardant characteristics. The actual flame performance must be confirmed through the relevant technical specification.

Is PVC heat shrink tubing environmentally friendly?

Environmental performance depends on the formulation and application requirements. PVC contains chlorine, so it may not meet requirements for halogen-free or low-halogen applications.

How is heat shrink tubing installed?

The tubing is placed over the target cable or connection and heated evenly using an appropriate heat source until it recovers around the component.

Can a hair dryer be used?

A household hair dryer may not generate sufficient temperature for many heat shrink tubing products. A controlled hot-air tool is generally more suitable for professional installation.

What shrink ratio should I choose?

The shrink ratio should be selected according to the difference between the tubing's expanded diameter and the final component diameter. Higher shrink ratios are useful for irregular or significantly changing diameters.

Can heat shrink tubing protect cable joints?

Yes. Heat shrink tubing can provide electrical insulation and mechanical protection around suitable cable joints, splices, solder connections, and terminals.

Conclusion

Flame Retardant Heat Shrink Tubing for Cables is a versatile material for electrical insulation, cable protection, wire harness organization, connection reinforcement, and improved fire-performance requirements. Its ability to contract around wires and cable assemblies creates a compact protective layer that can improve the durability and appearance of electrical systems.

When selecting flame retardant heat shrink tubing, users should evaluate more than the basic shrink function. Material type, flame performance, shrink ratio, expanded diameter, recovered diameter, wall thickness, operating temperature, electrical insulation, mechanical strength, environmental resistance, and color should all be considered.

PVC heat shrink tubing can provide flexibility, easy processing, color options, and economical cable protection. At the same time, its chlorine-containing composition means that it may not be appropriate for applications requiring halogen-free materials. PVC shrinkable film used for packaging should also be distinguished from electrical heat shrink tubing because the two products have different design purposes and performance requirements.

For cable harness protection, electrical connections, automotive wiring, industrial equipment, electronic assemblies, battery systems, and general cable management, the most appropriate heat shrink tubing should be selected according to the actual operating conditions and applicable technical standards.

A properly selected and correctly installed flame retardant heat shrink tube can provide a practical combination of insulation, mechanical protection, cable organization, and fire-performance characteristics, making it an important component in modern electrical and electronic assemblies.
