Heat Shrink Tubing for wire harness protection is a widely used electrical insulation and cable management material designed to protect bundled wires, terminals, connectors, cable joints, and harness assemblies from mechanical damage and environmental exposure. Heat shrink tubing is manufactured from thermoplastic materials that contract when exposed to controlled heat. During installation, the tubing is positioned over a wire harness or connection and then heated until it shrinks tightly around the underlying components.
Wire harnesses are essential in automotive systems, industrial equipment, electrical control cabinets, household appliances, communication equipment, battery assemblies, and electronic devices. Because harnesses frequently contain multiple wires, terminals, splices, connectors, and protective components in a limited space, reliable insulation and mechanical protection are important. Heat shrink tubing provides an efficient way to organize and protect these components while maintaining a relatively compact assembly.
Depending on the material, construction, shrink ratio, wall thickness, temperature resistance, and application requirements, heat shrink tubing can provide electrical insulation, abrasion resistance, moisture protection, strain relief, bundling, identification, and protection against contamination.
PVC heat shrink film is a packaging material made primarily from ethylene-process PVC resin and manufactured using a secondary blow-molding process. It has the following characteristics:
High Transparency: The surface is smooth and free from spots, oil stains, and wrinkles. When stored at room temperature, it is resistant to fading and discoloration.
High Shrinkage: When heated, the molecular chains rearrange to form a tightly fitted, transparent protective layer. The shrinkage rate can be adjusted according to specific packaging requirements.
High Strength: It offers high tensile strength, excellent puncture resistance, and strong tear resistance, making it suitable for complex packaging applications.
Although PVC heat shrink film and heat shrink tubing are related shrinkable polymer products, they are not identical products. Heat shrink tubing is generally supplied in tubular form for covering wires, cables, terminals, and components, while heat shrink film is typically supplied as a film or sleeve material for packaging and wrapping applications. For wire harness protection, tubular heat shrink products are generally more suitable because they can surround the harness and contract around its external profile.
Heat shrink tubing for wire harness protection is a tubular insulating material that contracts when heated. It is commonly installed over individual wires, groups of wires, cable splices, terminals, connectors, and complete wire harness sections.
Before heating, the tubing has a larger internal diameter that allows it to slide over the target component. After heating, the tubing contracts radially and forms a closer fit around the wire harness.
The basic working principle is based on the thermal memory of the polymer material. During manufacturing, the tubing is expanded and then cooled into an enlarged tubular shape. When sufficient heat is applied during installation, the material attempts to return toward its original dimensions.
This contraction creates a secure protective covering around the harness.
Heat shrink tubing is particularly useful where traditional electrical tape may be difficult to apply consistently. Tape can loosen, unwind, collect dirt, or create an uneven surface. Heat shrink tubing provides a more uniform protective layer and can also improve the appearance and organization of a wire harness.
For professional wire harness assembly, heat shrink tubing may be used together with cable ties, braided sleeving, corrugated conduit, terminal connectors, adhesive systems, and other cable management products.
A wire harness combines multiple electrical conductors into an organized assembly. In many applications, the harness must operate in environments involving vibration, movement, temperature changes, moisture, dust, chemicals, and mechanical contact.
Unprotected wires can experience several types of damage.
Repeated movement can cause wires to rub against surrounding components. Over time, abrasion can damage the insulation. Heat shrink tubing provides an additional protective barrier around the wire insulation.
A damaged wire insulation layer can increase the possibility of electrical leakage, short circuits, or accidental contact between conductors. Heat shrink tubing adds another layer of electrical insulation around selected sections.
Moisture, dust, oil, and other contaminants may enter vulnerable connection areas. Standard heat shrink tubing can provide basic environmental protection, while specially designed adhesive-lined tubing can provide enhanced sealing.
Automotive equipment, industrial machinery, motors, pumps, and electrical equipment may generate continuous vibration. Properly selected heat shrink tubing can help stabilize connections and reduce direct exposure to vibration-related abrasion.
Multiple wires can become difficult to manage when they are routed through compact equipment. Heat shrink tubing can help group wires and create a cleaner, more organized harness structure.
Heat shrink tubing for wire harness protection can perform several functions simultaneously.
| Function | Description |
|---|---|
| Electrical Insulation | Adds an additional insulating layer around wires and connections |
| Mechanical Protection | Helps protect wires from abrasion, scratches, and minor impact |
| Harness Bundling | Groups multiple wires into a more organized assembly |
| Strain Relief | Helps reduce mechanical stress around selected connections |
| Moisture Protection | Provides a barrier against moisture depending on tubing construction |
| Contamination Protection | Helps prevent dust, dirt, and other contaminants from contacting protected areas |
| Connector Protection | Covers selected connector backshells and terminal areas |
| Cable Identification | Colored tubing can assist with circuit identification |
| Surface Protection | Creates a smooth external protective layer |
| Appearance Improvement | Produces a cleaner and more professional harness finish |
Key Advantages of Heat Shrink Tubing for Wire Harness Protection
One of the primary purposes of heat shrink tubing is electrical insulation. When installed correctly, the tubing creates an additional dielectric barrier around wires, splices, terminals, and other electrical components.
The actual electrical performance depends on the polymer material, wall thickness, voltage requirements, temperature, installation quality, and product specifications.
For higher-voltage applications, engineers should always verify dielectric strength, insulation resistance, applicable safety standards, and operating conditions before selecting a tubing product.
Wire harnesses often contain several conductors with different functions. Heat shrink tubing can group wires together and reduce visual clutter.
A properly organized harness is easier to install, inspect, maintain, and troubleshoot. It can also reduce the likelihood of wires becoming entangled with surrounding components.
Large-diameter heat shrink tubing can be used for multiple-wire bundles when the tubing dimensions and shrink ratio are appropriate.
Wire insulation can be damaged when repeatedly exposed to sharp edges, vibration, movement, or contact with other components.
Heat shrink tubing creates an additional protective layer. The effectiveness depends on wall thickness and material properties.
For high-abrasion applications, thicker-wall tubing or specially engineered protective sleeves may be more appropriate than thin-wall tubing.
Heat shrink tubing is relatively lightweight and can provide protection without adding excessive bulk.
This is particularly useful in automotive and electronic assemblies where installation space is limited.
Compared with some rigid protective conduits, heat shrink tubing can conform more closely to the shape of the harness.
A properly installed heat shrink tube produces a smooth and consistent appearance.
Colored tubing can also provide visual identification for different circuits, harness branches, or connection groups.
Black heat shrink tubing is widely used for general-purpose cable protection, while other colors may be selected for identification or design requirements.
Common Heat Shrink Tubing Materials
Different polymers are used for heat shrink tubing because different applications require different combinations of temperature resistance, flexibility, chemical resistance, electrical insulation, and mechanical strength.
PVC heat shrink tubing is commonly used for general electrical insulation and wire protection applications.
Typical advantages include:
Good transparency options
Good flexibility
Good electrical insulation
Good mechanical strength
Smooth surface
Easy processing
Cost-effective construction
PVC is commonly used where moderate environmental and temperature performance is sufficient.
Polyolefin heat shrink tubing is widely used in electrical and electronic applications. It provides a useful balance of flexibility, electrical insulation, mechanical protection, and temperature performance.
It is commonly selected for wire harnesses, cable joints, terminals, batteries, electronic assemblies, and automotive wiring.
Fluoropolymer materials are selected for demanding environments requiring high chemical resistance, temperature performance, or thin-wall construction.
They can be useful in aerospace, electronics, chemical processing, and specialized industrial applications.
Elastomeric tubing provides greater flexibility and can be useful where repeated bending and dynamic movement are important.
Material selection should always be based on the actual operating environment rather than simply selecting the most commonly used material.
Heat Shrink Tubing Specification Table
| Specification | Typical Consideration | Importance |
|---|---|---|
| Material | PVC, polyolefin, fluoropolymer, elastomer | Determines overall performance |
| Shrink Ratio | Common ratios include 2:1, 3:1, and higher | Determines dimensional coverage |
| Pre-Shrink Diameter | Diameter before heating | Must fit over the harness |
| Recovered Diameter | Diameter after heating | Determines final fit |
| Wall Thickness | Thin, medium, or thick wall | Influences protection |
| Length | Custom or standard lengths | Depends on application |
| Color | Black, clear, red, yellow, blue, and others | Identification and appearance |
| Operating Temperature | Material-specific range | Must match working environment |
| Tensile Strength | Material-dependent | Indicates mechanical strength |
| Elongation | Material-dependent | Indicates flexibility and stretch |
| Dielectric Strength | Material-dependent | Important for electrical insulation |
| Flame Resistance | Application-specific | Important for selected electrical systems |
| Chemical Resistance | Material-specific | Important for industrial environments |
| Adhesive Lining | Available on selected products | Improves sealing |
| Transparency | Available on selected materials | Useful for inspection |
Understanding Shrink Ratio
Shrink ratio is one of the most important specifications when selecting heat shrink tubing.
A 2:1 heat shrink tube can generally contract to approximately half of its original expanded diameter under appropriate heating conditions. A 3:1 tube provides greater dimensional flexibility because it can accommodate a wider range of component diameters.
For example, if a tubing product has an expanded internal diameter of 20 mm and a nominal 2:1 shrink ratio, its recovered diameter may approach approximately 10 mm under specified conditions.
However, actual recovery depends on the material, manufacturing process, heating conditions, and product specification.
When selecting tubing, users should consider both the largest diameter that the tubing must pass over and the smallest diameter that it must securely cover after shrinking.
How to Select the Correct Heat Shrink Tubing Size
Selecting the correct size is essential for successful wire harness protection.
Measure the outside diameter of the complete wire bundle or component that the tubing needs to cover.
The tubing must be large enough to slide over the harness, connector, terminal, or other component.
After shrinking, the tubing should fit tightly enough to provide the intended protection without creating unnecessary stress.
If the harness diameter varies significantly, a higher shrink ratio may provide greater flexibility.
Thin-wall tubing may be suitable for compact electrical insulation. Thick-wall tubing may be more appropriate when stronger mechanical protection is required.
Heat Shrink Tubing Installation Process
Proper installation is important for achieving consistent wire harness protection.
Make sure the wire harness is clean, dry, and free from sharp contamination or unnecessary surface defects.
Choose a tube with appropriate material, diameter, shrink ratio, wall thickness, color, and temperature rating.
Slide the tubing over the wire harness before completing the final connection when the connection design requires pre-installation.
Use a suitable heat source to heat the tubing evenly.
Move the heat source gradually around the tubing rather than concentrating heat in one location.
After cooling, check that the tubing has recovered uniformly and that there are no visible burns, holes, excessive deformation, or uncovered areas.
Heating Methods
Several heating methods can be used depending on the application.
A heat gun is one of the most common tools for professional heat shrink tubing installation. It allows controlled heating and can produce relatively uniform results.
High-volume production environments may use controlled heating systems to achieve consistent processing conditions.
Some electrical assembly environments use dedicated heat shrink processing equipment for repeatable production.
An open flame is generally less desirable because uncontrolled flame exposure can damage the tubing, wire insulation, connector, or surrounding components.
Important Installation Precautions
Heat shrink tubing should be heated gradually and evenly.
Excessive localized heating may cause:
Surface discoloration
Material deformation
Burning
Uneven shrinkage
Damage to wire insulation
Damage to connectors
Reduced mechanical performance
The correct heating temperature depends on the specific tubing material and manufacturer specification. Users should avoid assuming that all heat shrink tubing has the same recovery temperature.
Wire Harness Applications
Heat shrink tubing is used in many wire harness applications.
Automotive wiring systems contain numerous branches, connectors, terminals, sensors, actuators, and power circuits.
Heat shrink tubing can be used to protect:
Wire splices
Terminal connections
Connector backs
Harness branches
Battery cables
Sensor wiring
Lighting wiring
Motor wiring
Automotive applications may require resistance to vibration, temperature changes, oils, fluids, and mechanical abrasion.
Industrial machines often contain motors, sensors, switches, control systems, and power connections.
Heat shrink tubing can protect selected wire harness sections from mechanical contact and improve harness organization.
Inside control cabinets, multiple cables and conductors may need to be grouped and identified.
Heat shrink tubing can provide additional insulation and help create a cleaner wiring structure.
Battery assemblies require careful management of electrical connections.
Heat shrink tubing can be used around selected battery wires, terminals, busbar connections, and cable joints when the product is suitable for the electrical and thermal requirements.
Compact electronic products often contain dense wiring and small electrical connections.
Thin-wall heat shrink tubing can provide insulation while maintaining a relatively small overall assembly diameter.
Heat Shrink Tubing for Cable Splices
Cable splices are common locations for additional protection.
A properly selected tube can cover the splice and extend onto the surrounding cable insulation.
The required tube length should be sufficient to cover the complete connection area with an appropriate overlap.
For applications where moisture sealing is important, adhesive-lined heat shrink tubing may be considered.
Heat Shrink Tubing for Terminals
Terminal connections can be exposed to vibration, contamination, and mechanical movement.
Heat shrink tubing can provide insulation around the terminal barrel and adjacent wire section.
The tubing should not interfere with the electrical contact area of the terminal.
Correct positioning is therefore important before heating.
Heat Shrink Tubing for Connectors
Heat shrink tubing can be used around selected connector assemblies to provide additional strain relief and mechanical protection.
The tubing size should account for the connector's largest dimension.
For connectors with significant dimensional differences between the connector body and cable, a higher shrink ratio may simplify installation.
Clear Heat Shrink Tubing
Transparent or clear heat shrink tubing is useful when visual inspection of the underlying wire or connection is desirable.
Advantages can include:
Visibility of the connection
Easy identification
Inspection of labels
Clean appearance
Protection without completely hiding the underlying component
Clear PVC-based shrinkable materials may be particularly useful in applications where transparency is important.
Colored Heat Shrink Tubing
Colored heat shrink tubing can help identify circuits and wire groups.
Common colors include:
Black
Red
Yellow
Blue
Green
White
Clear
Color coding can simplify installation, maintenance, inspection, and troubleshooting.
However, color should be treated as an identification method rather than a substitute for proper electrical labeling.
Thin Wall and Thick Wall Heat Shrink Tubing
Thin-wall heat shrink tubing is useful where space is limited.
Typical applications include:
Small wires
Electronic components
Compact harnesses
Terminal insulation
Low-profile cable protection
Thick-wall tubing provides greater material thickness after recovery.
It can be selected for applications where additional mechanical protection or environmental resistance is required.
The increased wall thickness can also increase the overall diameter of the finished harness.
Adhesive Lined Heat Shrink Tubing
Adhesive-lined heat shrink tubing contains an internal adhesive layer.
When heated, the outer tubing shrinks while the adhesive softens and flows around the underlying component.
After cooling, the adhesive can improve sealing and mechanical bonding.
This construction can be useful for applications exposed to moisture or demanding environmental conditions.
However, adhesive-lined tubing is not automatically suitable for every application. Users should verify compatibility with wire insulation, connectors, chemicals, temperature conditions, and required rework procedures.
PVC Heat Shrink Film and Heat Shrink Tubing
PVC heat shrink film and heat shrink tubing both use the thermal shrinkage behavior of polymer materials, but they serve different purposes.
PVC heat shrink film is commonly associated with packaging protection.
PVC heat shrink tubing is specifically formed as a tube and is commonly used for electrical insulation, wire protection, harness bundling, and component covering.
The packaging-oriented properties of PVC heat shrink film can include high transparency, high shrinkage, high strength, and easy processing.
The supplied material description can be summarized as follows:
| Property | PVC Heat Shrink Film Description |
|---|---|
| Main Material | Ethylene-process PVC resin |
| Manufacturing | Secondary blow-molding process |
| Appearance | Smooth and transparent |
| Transparency | High |
| Shrinkage | High and adjustable |
| Strength | High tensile strength |
| Puncture Resistance | Good |
| Tear Resistance | Good |
| Main Function | Packaging protection |
| Processing | Easy heat shrinking |
| Surface | Smooth and clean |
When developing content for wire harness protection, it is important not to present PVC heat shrink film and PVC heat shrink tubing as exactly the same product. Their forms and typical applications differ.
Mechanical Protection Performance
Wire harnesses may encounter repeated bending, rubbing, and movement.
Heat shrink tubing provides an additional outer layer that can reduce direct contact between the wire insulation and surrounding components.
The actual mechanical performance depends on:
Polymer type
Wall thickness
Shrink ratio
Tensile strength
Elongation
Abrasion resistance
Installation quality
Operating temperature
For severe mechanical environments, users should evaluate the complete protection system rather than relying on heat shrink tubing alone.
Temperature Considerations
Temperature is a critical factor in selecting heat shrink tubing.
Every polymer has a specific temperature range. The tubing should be capable of operating continuously and intermittently within the actual environmental conditions.
Consider:
Ambient temperature
Internal heat generation
Nearby heating elements
Engine compartments
Motors
Battery systems
Outdoor exposure
Heating and cooling cycles
A material that performs well at room temperature may not be appropriate for high-temperature applications.
Chemical Resistance
Industrial and automotive environments may expose wire harnesses to:
Oils
Fuels
Cleaning agents
Solvents
Hydraulic fluids
Greases
Water
Industrial chemicals
Chemical resistance varies significantly between polymer types.
Therefore, material compatibility should be evaluated based on the specific chemical, concentration, temperature, exposure duration, and mechanical conditions.
Moisture Protection
Moisture can cause corrosion and reduce the reliability of electrical connections.
Standard heat shrink tubing can provide a physical barrier, but it should not automatically be considered waterproof.
Where sealing is required, adhesive-lined or specially engineered waterproof heat shrink products may be more appropriate.
The actual sealing performance depends on tubing construction, adhesive compatibility, substrate condition, installation, and environmental exposure.
Flame Retardancy
Some electrical and electronic applications require flame-retardant materials.
Flame performance is highly dependent on the specific formulation and product certification.
When flame resistance is required, users should select tubing with verified flame-retardant performance and applicable testing documentation rather than assuming that a polymer is automatically flame resistant.
Electrical Performance
Heat shrink tubing can provide useful electrical insulation, but the required performance depends on the application.
Important parameters may include:
Dielectric strength
Volume resistivity
Insulation resistance
Breakdown voltage
Wall thickness
Operating temperature
Environmental exposure
For high-voltage applications, electrical design should be evaluated according to the relevant engineering requirements and standards.
Common Wire Harness Protection Problems
If the tubing cannot pass over the largest component, installation becomes difficult or impossible.
Select a larger initial diameter or a higher shrink-ratio product.
If the recovered diameter remains too large, the tubing may not provide the desired fit.
Check the shrink ratio and minimum recovered diameter.
Uneven heating can cause irregular recovery.
Move the heat source evenly around the tubing and avoid concentrated heating.
Excessive heat can damage the tubing or underlying wire.
Follow the recommended recovery temperature and use controlled heating.
Movement may occur if the tubing is not properly sized or if the surface is contaminated.
Select an appropriate tubing size and clean the substrate before installation.
Heat Shrink Tubing Selection Guide
| Requirement | Recommended Consideration |
|---|---|
| General wire insulation | Thin-wall heat shrink tubing |
| Multiple wire bundling | Larger-diameter tubing |
| Large diameter variation | Higher shrink ratio |
| Moisture sealing | Adhesive-lined tubing |
| High abrasion | Thick-wall construction |
| Visual inspection | Clear tubing |
| Circuit identification | Colored tubing |
| Compact electronic assembly | Thin-wall construction |
| High-temperature environment | High-temperature polymer |
| Chemical exposure | Chemically resistant material |
| Flexible harness | Flexible polymer formulation |
| Heavy mechanical protection | Thick-wall tubing |
Quality Factors to Consider
When evaluating heat shrink tubing, appearance alone is not sufficient.
Important quality factors include:
Consistent diameter and wall thickness help produce predictable installation results.
The tubing should be free from obvious holes, cracks, contamination, severe wrinkles, and other defects.
The tubing should recover consistently under the specified heating conditions.
Tensile strength, elongation, tear resistance, and abrasion resistance may be important depending on the application.
For insulation applications, electrical characteristics should meet the requirements of the intended system.
The product should remain stable within the specified operating temperature range.
Storage and Handling
Heat shrink tubing should be stored under appropriate environmental conditions.
Excessive heat, direct sunlight, moisture, chemicals, and mechanical pressure can affect polymer products over time.
Recommended handling practices include:
Keep products clean and dry.
Avoid unnecessary exposure to direct sunlight.
Avoid excessive storage temperatures.
Keep tubing away from incompatible chemicals.
Prevent sharp objects from damaging the tubing.
Avoid excessive compression during storage.
Keep product packaging intact when possible.
Proper storage helps maintain material quality before installation.
Packaging of Heat Shrink Tubing

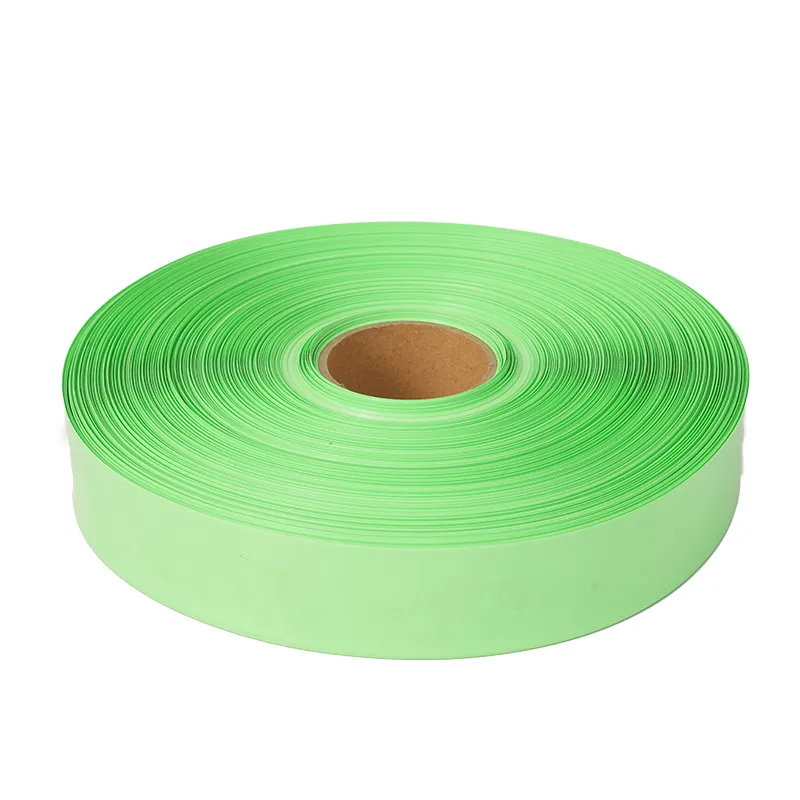

Heat shrink tubing may be supplied in rolls, continuous lengths, cut pieces, or customized forms.
Packaging requirements depend on product dimensions and customer application.
Typical packaging information may include:
| Item | Description |
|---|---|
| Product Name | Heat Shrink Tubing |
| Material | PVC, Polyolefin, or Other Polymer |
| Color | Standard or Custom |
| Diameter | Pre-shrink diameter |
| Length | Standard or Custom |
| Shrink Ratio | 2:1, 3:1, or Other |
| Wall Thickness | Nominal recovered wall |
| Packing Form | Roll, spool, or cut length |
| Application | Wire and harness protection |
Many wire harness applications require customized dimensions.
Potential customization options may include:
Inner diameter
Length
Wall thickness
Shrink ratio
Color
Transparency
Material
Printing
Adhesive lining
Packaging method
Customization should be based on actual application requirements.
For mass production, consistent dimensional tolerances and repeatable shrink performance are particularly important.
Wire Harness Protection in Automotive Systems
Automotive wire harnesses often operate in demanding conditions.
A harness may be routed near:
Engines
Motors
Batteries
Exhaust systems
Suspension components
Body panels
Doors
Sensors
Lighting systems
The selected heat shrink tubing should therefore be compatible with the temperature, vibration, fluids, abrasion, and installation environment.
Different sections of the same vehicle harness may require different protective materials.
Wire Harness Protection in Industrial Automation
Industrial automation systems use sensors, motors, controllers, switches, actuators, and communication components.
Heat shrink tubing can help organize wiring around these components.
It can also provide additional protection at connection points where wires are repeatedly exposed to vibration or movement.
For industrial systems, users should consider:
Operating temperature
Chemical exposure
Mechanical movement
Cable routing
Maintenance requirements
Electrical insulation
Flame requirements
Wire Harness Protection in Consumer Electronics
Electronic devices often have compact internal wiring.
Thin-wall heat shrink tubing can provide insulation without adding excessive bulk.
Applications may include:
Internal wire joints
Battery connections
Speaker wires
Motor wires
Sensor wires
Small cable assemblies
Connector transitions
Clear tubing can also allow inspection of the protected connection.
Wire Harness Protection for Battery Systems
Battery wiring requires careful consideration of insulation and mechanical protection.
Heat shrink tubing may be used around selected wire joints, terminals, and connection areas.
Important considerations include:
Voltage
Current
Temperature
Battery chemistry
Mechanical vibration
Required insulation
Available space
The tubing material must be compatible with the battery environment and surrounding components.
Environmental Considerations
Heat shrink tubing can contribute to longer-lasting wire harness assemblies by reducing exposure to mechanical and environmental stress.
However, product selection should account for the entire service environment.
Relevant factors include:
Temperature
Humidity
Water exposure
UV exposure
Chemicals
Vibration
Abrasion
Bending
Electrical load
Installation space
A product that is suitable for indoor electronics may not necessarily be suitable for outdoor automotive equipment.
Heat Shrink Tubing Compared with Electrical Tape
| Feature | Heat Shrink Tubing | Electrical Tape |
|---|---|---|
| Installation | Requires heating | Manual wrapping |
| Appearance | Smooth and uniform | Depends on wrapping |
| Long-Term Stability | Generally stable when properly selected | Can loosen over time |
| Harness Bundling | Very effective | Moderate |
| Moisture Sealing | Possible with specialized products | Depends on application |
| Thickness Control | Relatively consistent | Depends on wrapping |
| Identification | Colored options | Many colors |
| Rework | Requires cutting | Can often be unwound |
| Professional Finish | High | Variable |
Heat shrink tubing does not completely replace electrical tape in every application. Each protection method has advantages depending on the design.
Heat Shrink Tubing Compared with Cable Sleeving
Cable sleeving and heat shrink tubing serve different purposes.
Braided sleeving can cover longer cable sections while allowing flexibility and easy installation.
Heat shrink tubing is particularly useful for localized insulation, termination, strain relief, and connection protection.
In many harness designs, sleeving and heat shrink tubing can be used together.
Best Practices for Wire Harness Protection
Do not select tubing solely according to the wire diameter. Consider the complete harness and any connectors or terminals that the tubing must pass over.
The final recovered diameter should provide the intended fit.
Too much heat can damage the tubing and the underlying components.
Oil, dust, and contamination can interfere with installation and sealing.
After recovery, allow the tubing to cool before applying significant mechanical stress.
Check for complete coverage, uniform shrinkage, surface damage, and exposed areas.
Frequently Asked Questions
Heat shrink tubing is used to provide electrical insulation, mechanical protection, cable bundling, strain relief, connector protection, and environmental protection around wires and electrical connections.
Yes. Properly selected heat shrink tubing can protect wire harnesses from abrasion, contamination, mechanical contact, and selected environmental conditions.
There is no single material that is best for every application. PVC, polyolefin, fluoropolymer, elastomeric, and other materials each provide different performance characteristics.
A 2:1 shrink ratio indicates that the tubing can contract to approximately half of its original expanded diameter under specified recovery conditions.
A 3:1 shrink ratio indicates a greater dimensional recovery range than 2:1 tubing. It can be useful when the harness contains larger components that the tubing must pass over.
Yes. Clear heat shrink tubing is available for applications where the underlying wire, label, or connection needs to remain visible.
PVC heat shrink tubing can be used for suitable general-purpose wire insulation and protection applications when its temperature, electrical, and environmental properties meet the application requirements.
Standard heat shrink tubing should not automatically be considered waterproof. Adhesive-lined or specially designed sealing heat shrink tubing can provide enhanced moisture protection.
In many applications, heat shrink tubing can provide a cleaner and more stable alternative to electrical tape, but it does not replace tape in every installation.
Generally, heat shrink tubing is intended for single installation. Once recovered, it normally needs to be cut away for removal.
Conclusion
Heat shrink tubing for wire harness protection is a practical solution for improving electrical insulation, mechanical protection, harness organization, and connection reliability. Its ability to contract around wires and components makes it suitable for a wide range of electrical, electronic, automotive, industrial, and battery applications.
The most important factors when selecting heat shrink tubing include material, pre-shrink diameter, recovered diameter, shrink ratio, wall thickness, operating temperature, electrical properties, chemical resistance, flexibility, and environmental requirements.
PVC-based shrinkable materials are valued for characteristics such as transparency, strength, flexibility, and easy processing. PVC heat shrink film is particularly associated with packaging protection, while PVC heat shrink tubing is formed specifically for tubular electrical and cable protection applications.
For wire harness protection, correct sizing and installation are just as important as material selection. The tubing should be large enough to pass over the harness or connector while still providing sufficient recovery after heating. Uniform heating, proper surface preparation, and careful inspection can help achieve consistent results.
Whether used for a single wire connection, a multi-wire harness, a battery cable, a terminal, or an industrial cable assembly, heat shrink tubing provides an efficient method for creating a cleaner and more protected wiring system.
This website uses cookies to ensure you get the best experience on our website.
WhatsApp
Phone
