EVA Foam Cushion Sealing Gasket is a versatile sealing, cushioning, insulation, and protective material widely used in industrial equipment, electronics, electrical products, automotive components, appliances, packaging systems, machinery, and general manufacturing applications. Made from ethylene vinyl acetate foam, this type of gasket combines the flexibility of foam with the sealing performance required for component protection and assembly.

An EVA Foam Cushion Sealing Gasket with Strong Adhesion is particularly useful when a component needs to be securely positioned while also requiring protection against moisture, vibration, impact, dust, heat transfer, and surface movement. When supplied with a pressure sensitive adhesive layer, the gasket can be attached directly to a housing, panel, cover, frame, enclosure, or other mating surface.

EVA foam is characterized by its closed cell structure, resilience, lightweight construction, moisture resistance, and good cushioning properties. These characteristics allow EVA foam gaskets to perform several functions simultaneously. A properly designed gasket can create a compression interface between two components, compensate for minor surface irregularities, reduce vibration transmission, and help prevent the penetration of moisture and contaminants.

Because EVA foam can be manufactured in different densities, thicknesses, hardness levels, colors, and adhesive configurations, it is suitable for both standard and customized sealing solutions. The material can also be converted into rolls, sheets, strips, pads, washers, rings, frames, and precision die cut shapes.

What Is an EVA Foam Cushion Sealing Gasket?

An EVA Foam Cushion Sealing Gasket is a flexible gasket made from EVA foam that is designed to provide cushioning, sealing, insulation, spacing, and surface protection between two components.

EVA stands for ethylene vinyl acetate, a copolymer that can be processed into flexible foam materials with a range of physical properties. By adjusting the formulation, foam density, cell structure, hardness, and thickness, manufacturers can produce EVA foam materials for different industrial requirements.

A cushion sealing gasket is generally installed between two mating surfaces. When the components are assembled, the gasket can compress and conform to surface irregularities. This compression helps create a more consistent contact interface.

When an adhesive backing is added, the gasket becomes easier to install because the adhesive holds the gasket in the intended position before and during assembly.

Typical EVA Foam Gasket Functions

Key Material Characteristics of EVA Foam

EVA foam is widely selected for cushion sealing gaskets because it offers a useful balance between flexibility, resilience, weight, processability, and resistance to moisture.

Its performance depends on the specific EVA formulation and foam structure. Therefore, actual material specifications should always be confirmed against the requirements of the intended application.

1. Excellent Water Resistance

EVA foam with a closed cell structure generally has low water absorption compared with many open cell foam materials. The closed cells help reduce the penetration of water and moisture into the material.

This makes EVA foam suitable for applications where a gasket must provide moisture resistance or help protect components from occasional exposure to water.

Typical applications include:

• Electronic housings

• Electrical enclosures

• Outdoor equipment

• Automotive components

• Appliance panels

• Battery assemblies

• Industrial control equipment

• Lighting equipment

• Protective covers

• Mechanical housings

A closed cell EVA gasket can also help compensate for small surface irregularities between mating parts. When compressed, the foam forms a contact interface that can help reduce potential leakage paths.

However, water resistance does not automatically mean that every EVA gasket is waterproof under every pressure or environmental condition. Final waterproof performance depends on gasket geometry, compression, adhesive performance, joint design, surface condition, and environmental exposure.

2. Excellent Corrosion and Chemical Resistance

EVA foam offers useful resistance to many common environmental substances and chemicals. Depending on formulation and exposure conditions, EVA can resist contact with substances such as water, seawater, grease, and certain acids and alkalis.

This property can make EVA foam useful in industrial environments where the sealing material may be exposed to moisture, oils, cleaning agents, or other contaminants.

Potential applications include:

• Industrial machinery

• Electrical cabinets

• Automotive components

• Marine equipment

• Outdoor equipment

• Manufacturing equipment

• Protective enclosures

Chemical resistance should always be evaluated against the exact chemical, concentration, temperature, exposure time, and mechanical stress involved.

3. Excellent Processability

One of the major advantages of EVA foam is its ease of conversion.

EVA foam sheets and rolls can be processed into customized gasket designs using techniques such as:

• Die cutting

• Slitting

• Cutting

• Laminating

• Adhesive coating

• Heat pressing

• Punching

• Kiss cutting

• Profile cutting

• Custom contour cutting

This processing flexibility allows EVA foam to be converted into simple rectangular pads as well as complex sealing frames and precision-shaped components.

Common EVA Gasket Shapes

4. Excellent Vibration Resistance

EVA foam has good resilience and cushioning properties, making it useful for applications involving vibration, impact, or repeated mechanical movement.

A properly selected EVA Cushion Gasket can help absorb mechanical energy between components. Instead of allowing two hard surfaces to directly contact each other, the foam creates a flexible intermediate layer.

This can be particularly useful in:

• Electronic equipment

• Motors

• Industrial machinery

• Automotive assemblies

• Battery systems

• Pumps

• Control panels

• Household appliances

The vibration damping performance depends on foam density, thickness, hardness, compression level, frequency, temperature, and the mechanical design of the assembly.

5. Thermal Insulation and Temperature Protection

EVA foam contains a cellular structure that can reduce direct heat transfer compared with solid materials.

For this reason, EVA foam may be used for:

• Thermal separation

• Heat insulation

• Cold protection

• Component spacing

• Appliance insulation

• Equipment protection

• Packaging applications

EVA foam can maintain useful flexibility across a range of temperatures, but the appropriate temperature range depends on the material grade.

For applications involving continuous high temperatures, temperature-resistant foam materials should be evaluated carefully before selection.

6. Sound Insulation and Noise Reduction

The cellular structure of EVA foam can help reduce mechanical contact noise and vibration-related sound.

When installed between two rigid surfaces, an EVA gasket can reduce direct contact and provide a soft interface.

Applications may include:

• Appliance panels

• Electronic enclosures

• Automotive interior components

• Machinery covers

• Industrial equipment

• Control cabinets

EVA foam should not automatically be considered a complete acoustic insulation system. Its actual acoustic performance depends on thickness, density, cell structure, installation method, frequency, and system design.

Strong Adhesion for Reliable Installation

An adhesive-backed EVA cushion sealing gasket combines the physical properties of EVA foam with an adhesive layer.

The adhesive backing can provide several assembly benefits.

Main Adhesive Benefits

1. Easy Positioning

   The adhesive holds the gasket in its intended position during assembly.

2. Reduced Movement

   The gasket is less likely to shift while components are being aligned.

3. Faster Assembly

   Operators can apply the gasket directly to the target surface without using a separate adhesive application process.

4. Clean Installation

   Pre-applied adhesive can simplify production and reduce additional assembly steps.

5. Improved Component Alignment

   Adhesive fixation can help maintain the gasket position before the final components are fastened.

6. Suitable for Complex Shapes

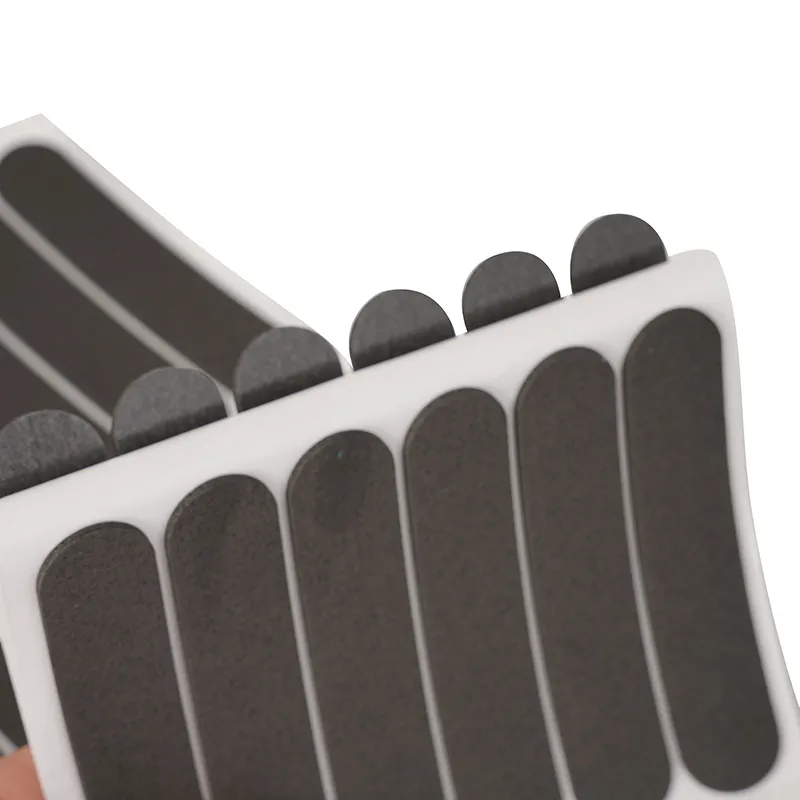

   Adhesive-backed die cut EVA gaskets can be produced in customized shapes for specific housings and components.

EVA Foam Cushion Sealing Gasket Structure

A typical adhesive EVA cushion sealing gasket may consist of several layers.

The actual construction can vary according to application requirements.

For example, a gasket may use single-sided adhesive when the opposite surface requires free movement. Double-sided adhesive may be selected when the gasket must attach to two components.

Single Sided and Double Sided Adhesive EVA Gaskets

Single Sided Adhesive EVA Gasket

A single-sided adhesive gasket has adhesive on one side and exposed EVA foam on the opposite side.

It is commonly used when one side of the gasket must remain flexible or when the gasket is installed against a second component without adhesive bonding.

Typical applications include:

• Electronic housings

• Appliance panels

• Equipment covers

• Protective pads

• Battery assemblies

• Display components

Double Sided Adhesive EVA Gasket

Double-sided adhesive EVA foam has adhesive on both sides.

It can be useful when the gasket needs to be securely attached between two components.

Applications include:

• Panel mounting

• Electronic components

• Display assembly

• Automotive trim

• Equipment enclosures

• Decorative panels

• Industrial equipment

Common EVA Foam Gasket Specifications

The following specifications are commonly considered when selecting an EVA foam cushion sealing gasket.

Thickness Selection

Thickness is one of the most important considerations when selecting an EVA foam gasket.

A thin gasket may be appropriate when only limited cushioning or spacing is required. A thicker gasket can provide greater compression, gap filling, and impact absorption.

However, increasing thickness does not automatically improve every sealing application.

The correct thickness depends on:

• Required compression

• Gap size

• Surface flatness

• Required cushioning

• Assembly pressure

• Adhesive strength

• Component tolerance

• Operating temperature

• Environmental exposure

Thickness Selection Guide

EVA Foam Density

Density affects the overall mechanical behavior of EVA foam.

Higher density EVA foam can provide greater structural support and resistance to compression in many applications. Lower density EVA foam may provide softer cushioning and greater compressibility.

The appropriate density depends on the desired balance between:

• Compression

• Resilience

• Cushioning

• Weight

• Support

• Recovery

• Surface conformity

For a sealing gasket, density should be selected together with thickness and hardness rather than considered independently.

EVA Foam Hardness

Hardness is another important factor.

A soft EVA foam gasket can conform well to irregular surfaces and provide effective cushioning.

A harder EVA gasket can provide stronger support and better dimensional stability in applications requiring controlled spacing.

General Comparison

Actual performance depends on the material formulation and manufacturing process.

Custom Die Cut EVA Cushion Sealing Gaskets

Die cutting is a widely used conversion method for manufacturing customized EVA gaskets.

A die cut gasket can be produced according to a customer-supplied drawing, CAD file, sample, or dimensional specification.

Common customized features include:

• Mounting holes

• Screw holes

• Internal openings

• External contours

• Rounded corners

• Notches

• Tabs

• Slots

• Positioning holes

• Adhesive zones

• Multi-layer structures

Custom die cutting allows the gasket to match the geometry of the target component.

Adhesive Selection

The adhesive layer is a critical component of an adhesive EVA gasket.

Different adhesive systems can provide different levels of:

• Initial tack

• Peel strength

• Shear strength

• Temperature resistance

• Moisture resistance

• Aging resistance

• Surface compatibility

The adhesive should be selected according to the substrate.

Common substrates include:

• ABS

• PC

• PVC

• Aluminum

• Stainless steel

• Painted metal

• Glass

• Acrylic

• Wood

• Other plastics

Surface cleanliness is also important. Dust, oil, moisture, release agents, and other contaminants can reduce adhesive performance.

Surface Preparation Before Installation

For reliable adhesion, the mounting surface should generally be clean, dry, and free from oil or dust.

A typical preparation process may include:

1. Remove visible dust.

2. Remove grease or oil contamination.

3. Ensure the surface is dry.

4. Check the surface condition.

5. Apply the gasket carefully.

6. Press the gasket evenly.

7. Avoid unnecessary repositioning after application.

8. Allow sufficient bonding time when required.

The exact preparation method depends on the substrate and adhesive system.

Environmental Performance

EVA foam is widely considered a practical material for applications requiring lightweight cushioning and moisture resistance.

The material is available in different grades, including formulations designed for specific environmental or performance requirements.

Potential material options include:

• Standard EVA

• Eco-oriented EVA

• High-elasticity EVA

• Antistatic EVA

• Flame-retardant EVA

• High-hardness EVA

• High-density EVA

• Low-density EVA

Not every EVA formulation has the same environmental or regulatory properties. Compliance should therefore be verified according to the specific material grade.

Water Resistance and Sealing Performance

The closed cell structure of suitable EVA foam can provide good resistance to water and moisture.

When compressed between two surfaces, the gasket can help reduce potential paths for moisture and contaminants.

However, gasket sealing performance depends on several design factors:

• Compression ratio

• Gasket thickness

• Foam density

• Surface condition

• Joint geometry

• Adhesive bonding

• Environmental pressure

• Temperature

• Assembly tolerances

For demanding waterproof applications, the entire assembly should be tested rather than relying solely on the foam material specification.

Applications of EVA Cushion Sealing Gaskets

EVA foam cushion sealing gaskets can be used across many industries.

Electronics

EVA gaskets can provide cushioning and protection for:

• Electronic housings

• Circuit board assemblies

• Displays

• Control panels

• Sensors

• Battery compartments

• Communication equipment

Electrical Equipment

Applications include:

• Electrical enclosures

• Control cabinets

• Switchgear components

• Power equipment

• Wiring systems

• Junction boxes

Automotive

EVA foam gasket materials can be used in:

• Interior components

• Electronic modules

• Lighting systems

• Battery systems

• Control units

• Trim components

• Protective panels

Appliances

Common applications include:

• Refrigerators

• Washing machines

• Air conditioners

• Kitchen appliances

• Small household appliances

• Electronic control panels

Industrial Equipment

EVA cushion gaskets can be used for:

• Machinery housings

• Equipment panels

• Protective covers

• Industrial cabinets

• Control equipment

• Pumps and motors

Advantages of EVA Foam Cushion Sealing Gaskets

Lightweight Construction

EVA foam is lightweight compared with many solid gasket materials.

This makes it useful for applications where weight reduction is important.

Excellent Cushioning

The foam structure absorbs mechanical contact and helps protect components against impact.

Good Moisture Resistance

Suitable closed cell EVA grades offer good resistance to moisture and water exposure.

Easy Processing

EVA foam can be cut, die cut, laminated, slit, and adhesive coated efficiently.

Flexible Customization

The material can be supplied in different:

• Thicknesses

• Densities

• Hardness levels

• Colors

• Shapes

• Adhesive configurations

Strong Adhesion

When combined with a suitable pressure sensitive adhesive, EVA foam gaskets can provide reliable attachment during assembly.

Good Vibration Damping

The flexible foam layer helps reduce direct mechanical contact between components.

Thermal Insulation

EVA foam can provide useful thermal separation in suitable applications.

Sound Reduction

The foam structure can help reduce contact noise and vibration-related sound.

EVA Gasket vs Other Foam Materials

Different foam materials have different performance characteristics.

Material selection should be based on the actual operating environment rather than material name alone.

EVA Foam Gasket Manufacturing Process

A typical EVA foam gasket manufacturing process may include several stages.

Step 1: Material Selection

The appropriate EVA foam grade is selected according to density, hardness, thickness, and application requirements.

Step 2: Foam Preparation

The EVA material is manufactured into a suitable foam sheet or roll.

Step 3: Surface Treatment

The material may be laminated or coated with adhesive depending on the final application.

Step 4: Adhesive Lamination

A pressure sensitive adhesive can be laminated onto one or both sides.

Step 5: Die Cutting

The adhesive EVA foam is cut into the required shape.

Step 6: Inspection

Finished gaskets may be inspected for:

• Dimensions

• Thickness

• Shape

• Adhesive coverage

• Surface quality

• Cutting accuracy

Step 7: Packaging

The finished products are packed to protect the adhesive surface and maintain product cleanliness.

Common Quality Control Points

Quality control is important for adhesive EVA cushion sealing gaskets because dimensional accuracy and adhesive consistency can directly affect assembly performance.

Design Considerations

When designing an EVA foam cushion sealing gasket, engineers should consider the complete assembly.

Important factors include:

Compression

The gasket should be compressed sufficiently to create the desired contact interface without excessive compression that could damage the foam or reduce service life.

Tolerance

Manufacturing tolerances of both the gasket and mating components should be considered.

Surface Condition

Rough or contaminated surfaces may reduce sealing and adhesive performance.

Temperature

The expected minimum and maximum operating temperatures should be considered when selecting both foam and adhesive.

Chemical Exposure

If the gasket will contact oils, solvents, cleaning agents, acids, alkalis, or other chemicals, compatibility should be evaluated.

Mechanical Load

Repeated compression, vibration, impact, and movement can affect long-term gasket performance.

Customization Options

EVA foam cushion sealing gaskets can be customized for different applications.

Common customization options include:

• Custom length

• Custom width

• Custom thickness

• Custom density

• Custom hardness

• Custom shape

• Custom color

• Single-sided adhesive

• Double-sided adhesive

• Die cut profiles

• Kiss cut parts

• Laminated structures

• Custom holes

• Custom slots

• Custom release liners

Customized EVA gaskets are particularly useful when standard gasket dimensions cannot meet the requirements of a specialized component.

Packaging and Storage

Adhesive EVA foam gaskets should be packaged carefully to protect the foam and adhesive surface.

Storage conditions can influence adhesive performance and material properties.

Recommended storage practices generally include:

• Keep products clean and dry.

• Avoid direct sunlight.

• Avoid excessive heat.

• Protect adhesive surfaces from contamination.

• Avoid unnecessary compression during storage.

• Keep release liners intact before installation.

• Follow the adhesive manufacturer's recommended storage conditions.

Proper packaging can help maintain product quality before assembly.

Frequently Asked Questions

What is an EVA foam cushion sealing gasket?

It is a flexible EVA foam component designed to provide sealing, cushioning, insulation, spacing, vibration reduction, or surface protection between assembled components.

Does EVA foam absorb water?

Closed cell EVA foam generally has low water absorption and good moisture resistance, although actual performance depends on the specific grade and construction.

Can EVA foam gaskets be adhesive backed?

Yes. EVA foam can be laminated with pressure sensitive adhesive on one or both sides.

Can EVA gaskets be custom die cut?

Yes. EVA foam is well suited to die cutting and can be produced in customized shapes and dimensions.

Can EVA foam be used for vibration reduction?

Yes. Its flexible cellular structure can provide cushioning and help reduce mechanical vibration and impact.

Is EVA foam suitable for outdoor applications?

Suitable EVA grades can provide useful weather and moisture resistance. However, long-term outdoor performance should be verified for the specific formulation and exposure conditions.

Can EVA gaskets be used for electronics?

Yes. EVA gaskets are commonly considered for cushioning, spacing, insulation, protection, and sealing in electronic assemblies.

Can EVA foam be supplied in different colors?

Yes. EVA foam can be produced or converted in various colors depending on material formulation and production requirements.

Conclusion

An EVA Foam Cushion Sealing Gasket with Strong Adhesion provides a practical combination of cushioning, sealing, moisture resistance, vibration damping, insulation, and easy installation. Its closed cell structure, flexible construction, and excellent processability make EVA foam suitable for a broad range of industrial and commercial applications.

For applications requiring adhesive attachment, an adhesive-backed EVA gasket can simplify assembly and help maintain accurate gasket positioning. The material can also be die cut into precise shapes, making it suitable for electronic housings, electrical equipment, automotive components, appliances, machinery, battery systems, and industrial enclosures.

The most appropriate EVA gasket should be selected according to thickness, density, hardness, compression requirements, adhesive type, operating temperature, chemical exposure, surface condition, and environmental requirements. For demanding sealing applications, the complete gasket assembly should be tested under actual operating conditions.
