Adhesive EVA Cushion Sealing Gasket Material is a flexible foam-based sealing and cushioning material designed for applications that require shock absorption, vibration control, surface protection, gap filling, insulation, moisture resistance, and reliable adhesion. EVA, or ethylene vinyl acetate, is a versatile polymer that can be formulated into different foam densities, hardness levels, thicknesses, colors, and surface structures.

An adhesive EVA cushion Sealing Gasket combines the physical properties of EVA foam with a pressure-sensitive adhesive layer. This construction allows the gasket to be supplied as sheets, rolls, strips, pads, washers, frames, rings, or precision die-cut components. Depending on the application, the adhesive may be applied to one side or both sides of the EVA foam.

The material is widely suitable for electronic equipment, electrical assemblies, appliances, automotive components, industrial equipment, packaging, lighting products, communication equipment, battery assemblies, control panels, mechanical housings, and general industrial sealing applications.

Unlike rigid sealing components, an EVA foam gasket can compress when pressure is applied. This compression capability allows the material to compensate for small surface irregularities and dimensional tolerances. When properly selected, an adhesive EVA cushion sealing gasket can create a soft interface between two components while also helping reduce vibration and prevent direct contact.

EVA is a versatile environmentally conscious plastic material with excellent cushioning, shock absorption, thermal insulation, moisture resistance, and chemical resistance. It is generally non-toxic and has low water absorption, making EVA foam suitable for many indoor and industrial applications where a lightweight and resilient material is required.

The addition of adhesive makes installation faster and more convenient. Instead of using mechanical fasteners or liquid adhesive during assembly, the gasket can be supplied with a release liner that is removed immediately before installation.

2. What Is an Adhesive EVA Cushion Sealing Gasket?

An adhesive EVA cushion sealing gasket is generally composed of three basic layers:

1. EVA foam layer

2. Pressure-sensitive adhesive layer

3. Release liner

The EVA foam provides cushioning, compression, insulation, and gap-filling properties. The adhesive layer provides attachment to the mating surface. The release liner protects the adhesive before assembly.

A typical structure can be represented as:

Release Liner → Adhesive Layer → EVA Foam

For double-sided adhesive designs:

Release Liner → Adhesive Layer → EVA Foam → Adhesive Layer → Release Liner

The actual construction can be modified according to application requirements.

The gasket can therefore perform several functions at the same time. It can cushion a component, fill a gap, reduce vibration, provide a barrier against dust and moisture, and help maintain the position of a part.

3. Material Characteristics of EVA Foam

EVA foam is a closed-cell or semi-closed-cell polymer foam available in a broad range of physical configurations. Its properties depend on the EVA formulation, vinyl acetate content, foaming process, density, cell structure, and additives.

One important advantage of EVA foam is its balance between flexibility and resilience. The material can be compressed during assembly and recover part of its original thickness after the load is removed.

This characteristic makes EVA useful for cushion sealing gaskets where a controlled compression interface is required.

Major EVA Material Properties

• Good cushioning performance

• Good shock absorption

• Good vibration damping

• Low water absorption

• Moisture resistance

• Thermal insulation

• Electrical insulation

• Lightweight construction

• Good chemical resistance

• Flexible and resilient structure

• Easy die cutting

• Easy laminating

• Available in multiple colors

• Available in multiple densities

• Available in multiple thicknesses

• Suitable for adhesive backing

• Suitable for custom shapes

EVA can also be formulated into specialized grades.

The exact performance of a particular EVA material should always be verified against the manufacturer's technical specification because different formulations can have significantly different properties.

4. Cushioning Performance

One of the main reasons EVA foam is selected for cushion sealing gaskets is its ability to absorb mechanical energy.

When a component experiences impact, vibration, or compression, the foam structure can deform and absorb part of the applied energy. This helps reduce the mechanical load transferred to the protected component.

For electronic equipment, this can be particularly useful when the gasket is positioned between a housing and an internal component. The EVA gasket can create a soft contact layer and reduce direct hard-to-hard contact.

For industrial equipment, an EVA Cushion Gasket may also help reduce rattling and movement caused by vibration.

Cushioning Applications

EVA cushion sealing gaskets can be used for:

• Electronic housing cushioning

• PCB support interfaces

• Display assembly protection

• Appliance panel cushioning

• Battery component cushioning

• Automotive interior components

• Mechanical enclosure interfaces

• Lighting assemblies

• Control panel components

• Communication equipment

• Packaging protection

• Equipment mounting interfaces

The required EVA density and hardness depend heavily on the applied load. A soft foam is more conformable, while a higher-density foam generally provides greater support.

5. Sealing and Gap Filling

An EVA cushion sealing gasket can also function as a flexible gap-filling material.

Many assemblies contain small gaps caused by manufacturing tolerances, surface irregularities, component dimensions, or assembly design. A properly sized foam gasket can occupy these gaps and create a more controlled interface.

The gasket can help reduce the passage of:

• Dust

• Moisture

• Air

• Light

• Noise

• Small particles

However, EVA should not automatically be considered a substitute for specialized high-performance environmental sealing materials. For demanding applications involving continuous immersion, extreme pressure, aggressive chemicals, or severe temperatures, a material specifically designed for those conditions may be more appropriate.

For general industrial cushioning and sealing, EVA provides a practical balance between performance, processing convenience, and cost.

6. Adhesive Backing Technology

The adhesive layer is a critical part of an adhesive EVA cushion sealing gasket.

The adhesive must provide sufficient attachment to the intended substrate while maintaining stability throughout transportation, storage, assembly, and service.

Different adhesive systems can be selected depending on the substrate and environmental requirements.

The adhesive selection should consider:

• Surface energy

• Surface cleanliness

• Operating temperature

• Humidity

• UV exposure

• Chemical exposure

• Required peel strength

• Required shear strength

• Assembly speed

• Storage period

• Required removability

The same EVA foam may perform very differently when paired with different adhesive systems.

7. Self Adhesive EVA Gasket Construction

A self adhesive EVA gasket is particularly convenient for production lines because the installer does not need to apply liquid adhesive separately.

The general assembly process is:

1. Clean the mating surface.

2. Confirm the gasket orientation.

3. Remove the release liner.

4. Position the gasket accurately.

5. Apply sufficient pressure.

6. Complete the assembly.

7. Allow the adhesive to develop its required bond strength when necessary.

Proper surface preparation is important.

Oil, dust, moisture, grease, release agents, and other contaminants can reduce adhesive performance. Smooth and clean surfaces generally provide more consistent bonding than contaminated surfaces.

For automated assembly, adhesive EVA gaskets can also be supplied in rolls, strips, sheets, or converted formats suitable for dispensing and placement equipment.

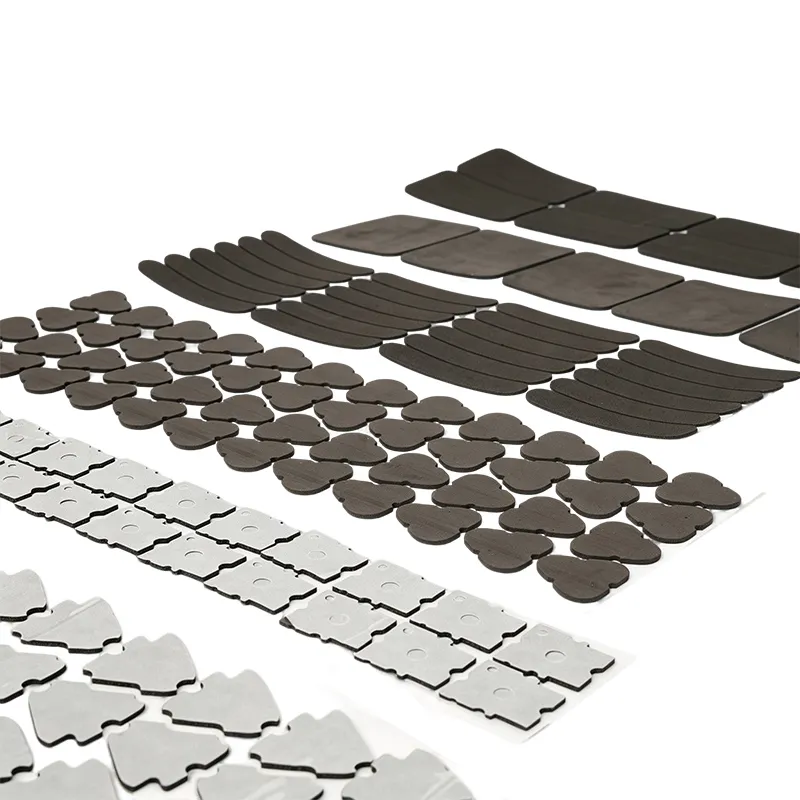

8. Custom Die Cut EVA Cushion Sealing Gaskets

Custom die cutting is one of the most useful processing methods for EVA gasket production.

Instead of supplying only standard rectangular foam sheets, manufacturers can convert EVA material into precise profiles based on customer drawings or dimensional requirements.

Common shapes include:

• Rectangles

• Squares

• Circles

• Rings

• Frames

• Washers

• Strips

• Custom outlines

• Multi-hole gaskets

• Slotted gaskets

• Corner pads

• Protective pads

A custom die-cut gasket can include internal holes, mounting openings, ventilation areas, cable passages, corner radii, and asymmetric profiles.

Dimensional accuracy is important because an oversized gasket may interfere with assembly, while an undersized gasket may not provide adequate coverage.

9. EVA Gasket Thickness

Thickness is one of the most important specifications for an EVA cushion sealing gasket.

Common thickness options may range from very thin foam layers to several millimeters or more depending on the application.

The appropriate thickness depends on:

• Required compression

• Gap dimensions

• Cushioning requirement

• Assembly pressure

• Available installation space

• Surface irregularity

• Required sealing effect

The nominal thickness alone does not determine sealing performance. Foam density, compression behavior, adhesive thickness, and surface conditions must also be considered.

10. EVA Density and Hardness

Density affects the physical behavior of EVA foam.

Low-density EVA is generally softer and more compressible. Higher-density EVA usually provides greater support and structural stability.

Hardness should be selected according to the pressure applied during assembly.

A gasket that is too soft may collapse excessively under load. A gasket that is too hard may not conform adequately to surface irregularities.

Therefore, material selection should consider the complete compression profile rather than hardness alone.

Typical Material Selection Logic

Soft EVA

Suitable for:

• Cushioning

• Surface protection

• Light compression

• Delicate components

Medium EVA

Suitable for:

• General sealing

• Equipment assembly

• Electronics

• Appliance components

Hard EVA

Suitable for:

• Support pads

• Mechanical interfaces

• Higher-load applications

• Structural cushioning

11. Waterproof and Moisture Resistant Performance

EVA foam is known for its relatively low water absorption and good moisture resistance.

This makes EVA cushion sealing gaskets useful in applications where protection from humidity or occasional water exposure is required.

A properly compressed EVA gasket can reduce pathways through which moisture and contaminants could enter an assembly.

However, waterproof performance depends on the complete gasket design, including:

• Foam cell structure

• Gasket thickness

• Compression ratio

• Adhesive performance

• Surface condition

• Joint design

• Environmental exposure

Therefore, a gasket should not be described as fully waterproof solely because it is made from EVA foam. Actual sealing performance should be evaluated under the intended conditions.

12. Thermal Insulation

EVA foam contains a cellular structure that can reduce heat transfer compared with many solid materials.

As a result, EVA can provide a degree of thermal insulation when used as a cushion or separator.

Potential applications include:

• Electrical equipment

• Appliance housings

• Battery assemblies

• Lighting equipment

• Industrial control equipment

• Packaging

• Mechanical equipment

The thermal performance depends on density, thickness, cell structure, temperature, and compression.

For applications involving sustained high temperatures, the selected EVA formulation and adhesive must be tested for dimensional stability and bonding performance.

13. Electrical Insulation

EVA is also widely used as an electrical insulating and separating material in suitable low-voltage applications.

An EVA gasket can help prevent direct contact between adjacent components and provide a flexible insulating interface.

Potential uses include:

• Electrical housings

• Wire management

• Electronic assemblies

• Battery component separation

• Control panels

• Appliance assemblies

Electrical insulation performance depends on material formulation, thickness, humidity, temperature, and electrical conditions.

For high-voltage or safety-critical applications, the specific electrical properties and applicable safety requirements should be verified before production use.

14. Chemical Resistance

EVA generally demonstrates useful resistance to moisture and many common chemicals, although its resistance varies according to formulation and exposure conditions.

Potential exposure should be considered before selecting EVA for industrial sealing.

Relevant factors include:

• Chemical concentration

• Exposure time

• Temperature

• Chemical type

• Mechanical stress

• Foam density

• Adhesive chemistry

For applications involving oils, fuels, solvents, acids, alkalis, or other aggressive substances, compatibility testing is recommended.

The EVA foam and adhesive should be evaluated separately because the adhesive may have different chemical resistance from the foam.

15. Weather Resistance

EVA can offer useful weather resistance for many general applications.

Its performance may include resistance to:

• Humidity

• Temperature variation

• Moderate outdoor exposure

• Physical aging

However, prolonged UV exposure can affect polymeric materials. For outdoor applications, the EVA formulation, color, stabilizers, adhesive system, and exposure conditions should be considered.

Black EVA is commonly selected in some outdoor or industrial applications because carbon-based pigmentation can contribute to UV stability, but actual performance depends on the formulation.

16. Sound Absorption and Vibration Control

The cellular structure of EVA foam can help reduce certain forms of vibration and sound transmission.

An adhesive EVA cushion sealing gasket can act as a soft interface between rigid surfaces.

This can help reduce:

• Rattling

• Surface vibration

• Mechanical noise

• Impact noise

• Minor component movement

Typical applications include electronic enclosures, appliance panels, automotive components, industrial equipment, and machine housings.

For demanding acoustic applications, EVA may be combined with other sound-control materials.

17. Advantages of Adhesive EVA Cushion Sealing Gasket Material

The main advantages include:

Lightweight

EVA foam has a low mass compared with many solid rubber, plastic, and metal gasket materials.

Flexible

The foam can conform to moderately uneven surfaces.

Cushioning

The material absorbs mechanical impact and reduces direct contact.

Moisture Resistance

EVA's low water absorption makes it useful for general moisture-resistant applications.

Electrical Insulation

Suitable grades can provide useful electrical isolation.

Easy Processing

EVA can be cut, laminated, slit, punched, and die cut.

Adhesive Backing

Self-adhesive construction simplifies installation.

Customization

Thickness, density, color, shape, adhesive, and dimensions can be customized.

Cost Efficiency

EVA is widely available and can be processed efficiently for high-volume applications.

18. Common Applications

Adhesive EVA cushion sealing gaskets are used across many industries.

Electronics

Common applications include:

• Electronic housings

• Display assemblies

• Control panels

• PCB support

• Sensor housings

• Battery assemblies

• Communication devices

The gasket can cushion components and reduce movement inside an enclosure.

Electrical Equipment

Applications include:

• Electrical cabinets

• Switchgear components

• Power equipment

• Wiring assemblies

• Control boxes

• Appliance housings

Automotive

Potential uses include:

• Interior trim

• Electronic modules

• Lighting assemblies

• Control units

• Battery components

• Noise reduction interfaces

Industrial Equipment

Applications may include:

• Machine housings

• Instrument panels

• Control equipment

• Mechanical interfaces

• Equipment doors

• Protective pads

Packaging

EVA foam is widely used as protective packaging material because it combines lightweight construction with cushioning performance.

19. Common Specifications and Parameters

These parameters should be treated as general industry reference points rather than universal guaranteed specifications.

20. EVA Cushion Gasket vs Rubber Gasket

EVA and rubber are both used for cushioning and sealing, but they have different characteristics.

Material selection should be based on actual environmental and mechanical requirements.

21. EVA Cushion Gasket vs EPDM

EPDM is often selected for demanding outdoor sealing applications, while EVA is frequently selected for lightweight cushioning, gap filling, insulation, and general sealing.

EPDM may be more suitable where long-term weathering, ozone resistance, and rubber-like elasticity are major requirements.

EVA can be advantageous where lightweight construction, die cutting, cushioning, and adhesive-backed assembly are more important.

Neither material is universally superior.

22. EVA Cushion Gasket vs Silicone Foam

Silicone foam can provide superior high-temperature performance and long-term environmental stability in demanding conditions.

EVA, however, is often easier to process and more economical for general industrial applications.

EVA may therefore be suitable for:

• Consumer electronics

• Appliances

• General equipment

• Packaging

• Low to moderate temperature applications

Silicone foam may be considered for:

• High-temperature environments

• Extreme weather

• Specialized electrical insulation

• Long-term outdoor exposure

The correct material should be selected based on actual operating conditions.

23. Die Cutting Process

A typical EVA gasket conversion process may include:

1. Material inspection

2. Foam roll or sheet preparation

3. Adhesive lamination

4. Release liner application

5. Slitting

6. Die cutting

7. Waste removal

8. Dimensional inspection

9. Visual inspection

10. Packaging

Die cutting provides repeatable shapes and is especially useful for high-volume production.

For complex profiles, digital cutting or CNC-based methods may be considered during prototyping.

24. Customization Options

Custom adhesive EVA cushion sealing gaskets can be developed according to:

• Product dimensions

• Foam thickness

• Foam density

• Foam hardness

• Adhesive type

• Adhesive thickness

• Color

• Shape

• Hole position

• Slot design

• Compression requirement

• Packaging format

• Release liner type

A custom drawing should normally specify the critical dimensions, tolerance requirements, adhesive area, material thickness, and installation direction.

25. Design Considerations

When designing an EVA cushion sealing gasket, engineers should consider the following.

Gap Size

The gasket should be sized according to the actual gap rather than simply matching the nominal component dimensions.

Compression

The gasket needs enough compression to remain in contact with the mating surfaces without excessive deformation.

Surface Condition

Rough, dusty, oily, or contaminated surfaces can reduce adhesive performance.

Temperature

The operating temperature should be considered for both EVA foam and adhesive.

Chemical Exposure

Potential exposure to oils, solvents, cleaning agents, or industrial chemicals should be evaluated.

Assembly Method

The gasket may be manually installed or applied using automated equipment.

Tolerance

Dimensional tolerances should account for foam expansion, compression, die-cutting variation, and component tolerances.

26. Adhesive Selection Guide

The final adhesive choice should always be validated on the actual substrate.

27. Suitable Substrates

Adhesive EVA gaskets can potentially bond to many substrates, including:

• ABS plastic

• PC plastic

• PVC

• Painted metal

• Aluminum

• Stainless steel

• Glass

• Acrylic

• Wood

• Coated surfaces

However, adhesion depends strongly on surface energy and surface treatment.

Low-surface-energy plastics may require specialized adhesive formulations or surface preparation.

28. Surface Preparation

For reliable bonding, surfaces should generally be:

• Clean

• Dry

• Free from oil

• Free from dust

• Free from grease

• Free from release agents

• Free from loose particles

For some applications, cleaning with a compatible solvent or using a suitable surface treatment may improve adhesion.

The cleaning method must be compatible with the substrate and production environment.

29. Installation Recommendations

For manual installation, the following sequence is generally recommended:

Clean → Align → Peel → Apply → Press → Inspect

The release liner should remain on the adhesive until immediately before installation.

Avoid touching the exposed adhesive surface with dirty or oily fingers.

The gasket should be positioned carefully before applying strong pressure.

Once the gasket has been installed, excessive repositioning should be avoided because repeated removal and reapplication can reduce adhesive performance.

30. Quality Control

Quality control for adhesive EVA cushion sealing gaskets may include:

• Thickness inspection

• Length and width inspection

• Density testing

• Hardness testing

• Adhesive peel testing

• Adhesive tack testing

• Compression testing

• Dimensional inspection

• Visual inspection

• Die-cut accuracy

• Release liner inspection

• Packaging inspection

For high-volume applications, statistical process control can help maintain dimensional consistency.

31. Packaging and Storage

Adhesive EVA products should be stored in a clean and dry environment.

Recommended storage considerations include:

• Avoid direct sunlight

• Avoid excessive heat

• Avoid excessive humidity

• Keep away from contaminants

• Protect adhesive surfaces

• Maintain original packaging when possible

• Avoid excessive compression during storage

Storage conditions can affect adhesive performance and foam dimensions.

32. Environmental Considerations

EVA is often described as an environmentally friendly alternative for many applications because it can be formulated without certain materials associated with traditional flexible plastics.

EVA is also lightweight, which can reduce material consumption and transportation weight.

However, environmental performance depends on the complete formulation and manufacturing process.

Important considerations include:

• Raw material selection

• Additives

• Adhesive chemistry

• Manufacturing process

• Product lifespan

• Waste generation

• Recycling infrastructure

A product should only be described as meeting a particular environmental regulation when the actual material and finished product have been verified against that requirement.

33. Why Choose EVA for Cushion Sealing Applications?

EVA offers a balanced combination of:

Cushioning + Sealing + Insulation + Flexibility + Moisture Resistance + Adhesive Compatibility + Easy Processing

This combination makes EVA particularly useful when a single material needs to provide several secondary functions.

For example, a gasket installed inside an electronic enclosure can simultaneously:

• Fill a gap

• Reduce vibration

• Cushion a component

• Prevent direct contact

• Provide electrical separation

• Reduce dust entry

• Simplify assembly

This multifunctional nature is one of the main reasons EVA foam remains widely used in industrial converting and gasket applications.

34. Frequently Asked Questions

What is an adhesive EVA cushion sealing gasket?

It is a flexible EVA foam gasket with pressure-sensitive adhesive backing. It can provide cushioning, gap filling, sealing, insulation, vibration reduction, and surface protection.

Is EVA waterproof?

EVA has good moisture resistance and relatively low water absorption, but the waterproof performance of a finished gasket depends on the foam, compression, adhesive, joint design, and application conditions.

Can EVA gaskets be die cut?

Yes. EVA foam is highly suitable for die cutting and can be converted into custom shapes.

Can EVA gaskets be made self adhesive?

Yes. EVA foam can be laminated with single-sided or double-sided pressure-sensitive adhesive.

Can EVA be used for electronic equipment?

Yes. Appropriate EVA grades can be used for cushioning, insulation, gap filling, and component protection in electronic assemblies.

Is EVA resistant to chemicals?

EVA provides useful resistance to many common chemicals, but compatibility depends on the formulation and chemical exposure conditions.

Can EVA be used outdoors?

Certain EVA formulations can be used in outdoor applications, but UV exposure, temperature, humidity, and adhesive durability should be evaluated.

What colors are available?

Common colors include black, white, gray, red, blue, and green, with custom colors available depending on material and production requirements.

Can the thickness be customized?

Yes. EVA foam is available in different thicknesses and can be laminated to achieve specific thickness requirements.

Can EVA be supplied in rolls?

Yes. Depending on the conversion method, EVA can be supplied as rolls, sheets, strips, pads, or die-cut parts.

35. Conclusion

Adhesive EVA Cushion Sealing Gasket Material provides a practical combination of cushioning, shock absorption, moisture resistance, thermal insulation, electrical insulation, vibration reduction, gap filling, and easy assembly.

Its lightweight structure and flexible foam characteristics make EVA suitable for many industrial and commercial applications. The material can be supplied in different densities, hardness levels, thicknesses, colors, and adhesive configurations.

For customized applications, EVA foam can be die cut, punched, laminated, slit, and converted into complex gasket profiles. Single-sided and double-sided adhesive options further improve installation efficiency.

The most important factors when selecting an EVA cushion sealing gasket include foam density, thickness, hardness, compression characteristics, adhesive type, operating temperature, chemical exposure, moisture conditions, dimensional tolerances, and substrate compatibility.

For general electronics, electrical equipment, industrial equipment, appliances, packaging, automotive components, and other applications requiring a lightweight flexible interface, EVA remains a versatile gasket material.
