EVA foam Cushion Sealing Gaskets are flexible sealing and cushioning components manufactured from ethylene vinyl acetate foam. They are widely used in industrial equipment, electronic assemblies, electrical enclosures, machinery, automotive components, packaging systems, appliances, lighting products, and other applications where a lightweight material is needed to provide sealing, cushioning, vibration absorption, surface protection, and gap compensation.

EVA foam is particularly useful for gasket applications because it combines flexibility, resilience, low density, mechanical strength, chemical resistance, and low water absorption. Closed-cell EVA foam is especially suitable when a gasket must help limit the passage of moisture, dust, and other environmental contaminants. Industry material references also show that EVA foam can be supplied as sheets, rolls, strips, adhesive-backed materials, and custom die-cut gasket components.

An EVA foam cushion Sealing Gasket can be designed as a simple flat gasket, adhesive-backed gasket, frame gasket, rectangular seal, circular seal, irregular die-cut component, cushioning pad, or multi-feature sealing part. The final geometry depends on the equipment structure, mating surfaces, compression requirements, installation method, and environmental conditions.

This guide provides general industry information about EVA foam cushion sealing gaskets for industrial use, including material characteristics, construction, advantages, applications, design considerations, manufacturing methods, specifications, installation, quality control, storage, and material selection.

1. What Is an EVA Foam Cushion Sealing Gasket?

An EVA foam cushion sealing gasket is a flexible component made from EVA foam and designed to sit between two mating surfaces. Its primary function is to create a controlled interface between components while also providing cushioning and tolerance compensation.

EVA stands for ethylene vinyl acetate, a copolymer that can be formulated and processed into flexible foam. In gasket applications, EVA is frequently produced as closed-cell foam. A closed-cell structure contains individual cells that are substantially separated from one another, helping the material resist water absorption and limiting the passage of liquids and gases through the foam structure.

The term cushion sealing gasket emphasizes two functions:

1. Sealing

2. Cushioning

The sealing function helps reduce the movement of moisture, dust, air, and other environmental contaminants through a joint. The cushioning function allows the gasket to absorb compression, compensate for minor surface irregularities, reduce direct contact between components, and help distribute mechanical pressure.

Because EVA foam is lightweight and flexible, it can be useful when a rigid sealing material would add excessive weight or fail to accommodate surface variation.

2. Basic Structure of EVA Foam Gaskets

EVA foam cushion sealing gaskets generally consist of a flexible foam body. Depending on the product design, the gasket may also include an adhesive layer, release liner, surface treatment, laminated film, or another functional layer.

A basic EVA gasket may include:

Not every EVA gasket contains all of these layers. A simple compression gasket may consist only of EVA foam, while an adhesive-backed industrial gasket may include an adhesive and release liner.

The choice of construction should be based on the application rather than on the gasket name alone.

3. Why EVA Foam Is Used for Industrial Sealing

EVA foam offers a useful combination of physical properties for industrial sealing and cushioning. Typical closed-cell EVA gasket materials are described as lightweight, flexible, resilient, mechanically strong, chemically resistant, and low in water absorption.

The material can therefore perform several functions within one component.

For example, an EVA foam gasket installed between an enclosure cover and housing may:

• Fill a small gap

• Reduce vibration transmission

• Cushion mating components

• Reduce dust entry

• Help limit moisture penetration

• Prevent direct surface contact

• Compensate for manufacturing tolerances

• Improve assembly consistency

• Reduce rattling

• Provide a soft contact interface

This multifunctional performance makes EVA foam attractive for applications where a traditional rigid gasket would not provide sufficient compliance.

4. Main Advantages of EVA Foam Cushion Sealing Gaskets

4.1 Lightweight Construction

One of the major advantages of EVA foam is its low density.

A lightweight gasket can reduce the overall weight of an assembly while still providing useful sealing and cushioning functions. This can be valuable in portable electronics, transportation equipment, lightweight enclosures, consumer products, and battery-related assemblies.

Published EVA material data commonly identifies low density and lightweight construction as important characteristics.

4.2 Flexible and Resilient

EVA foam can deform under compression and recover after the load is reduced.

This flexibility allows an EVA gasket to conform to small irregularities between mating surfaces. Resilience also helps the gasket maintain contact when the assembly experiences minor movement.

For industrial applications, this characteristic is particularly useful when the two mating surfaces are not perfectly rigid or when dimensional tolerances must be accommodated.

4.3 Low Water Absorption

Closed-cell EVA foam is commonly selected when low water absorption is required.

Industrial material references specifically identify low water absorption as a characteristic of closed-cell EVA foam.

However, low water absorption does not automatically mean that every EVA gasket provides a certified waterproof enclosure. Waterproof performance depends on:

• Gasket geometry

• Compression

• Joint design

• Surface condition

• Adhesive system

• Compression uniformity

• Material grade

• Environmental exposure

Therefore, an application requiring a specific ingress-protection rating should be validated through appropriate testing.

4.4 Good Chemical Resistance

EVA foam can provide good resistance to many chemicals, although performance varies according to formulation, concentration, exposure time, temperature, and chemical type.

Published gasket material data describes EVA foam as having excellent or good chemical resistance.

For industrial use, compatibility testing is recommended whenever the gasket will contact:

• Cleaning agents

• Lubricants

• Fuels

• Solvents

• Industrial chemicals

• Process fluids

• Oils

The chemical resistance of EVA should never be assumed solely from the material name.

5. Cushioning and Vibration Absorption

A major reason to use an EVA cushion sealing gasket rather than a rigid gasket is its ability to provide cushioning.

The foam structure can help absorb mechanical energy and reduce direct contact between components. EVA foam is also used for shock absorption and cushioning applications.

In equipment assemblies, the gasket can help:

• Reduce rattling

• Reduce impact between parts

• Protect painted surfaces

• Reduce vibration transmission

• Maintain spacing

• Absorb minor dimensional changes

The gasket should nevertheless be designed around the actual mechanical load. Excessive compression can permanently deform the foam and reduce sealing performance.

6. Compression Performance

Compression performance is one of the most important considerations when selecting an EVA foam gasket.

When a gasket is compressed, the foam deforms and creates contact pressure against the mating surfaces.

Several factors affect this behavior:

• Foam density

• Foam formulation

• Cell structure

• Thickness

• Compression percentage

• Compression duration

• Temperature

• Loading conditions

• Joint geometry

Material suppliers commonly publish compression-deflection and compression-set data for EVA foam. For example, representative closed-cell EVA materials show measurable compression-deflection values at 25% compression and compression-set results under defined test conditions.

These numbers should be treated as material-specific reference data rather than universal values for all EVA products.

7. Compression Set

Compression set describes the tendency of a foam material to retain deformation after being compressed for a specified period and then released.

A lower compression set can generally be desirable for applications where long-term sealing pressure must be maintained.

However, compression set alone does not determine gasket performance.

The actual service life also depends on:

• Compression level

• Temperature

• Joint movement

• Environmental exposure

• Material formulation

• Surface condition

• Installation accuracy

For a permanent industrial enclosure seal, compression-set testing under representative conditions can be more meaningful than relying only on a general material datasheet.

8. EVA Foam Density and Firmness

EVA foam is available in different density and firmness levels.

Lower-density EVA foam may provide greater softness and compressibility, while higher-density material may offer greater mechanical support and resistance to deformation.

A typical selection process considers:

Actual performance must be confirmed using the selected grade because density, firmness, and compression behavior vary among EVA formulations.

9. Thickness Selection

Gasket thickness is another important design parameter.

Common industrial EVA foam gasket materials are available in multiple thicknesses. Published examples show EVA foam supplied from thin sheet formats to much thicker foam sections, depending on material grade and manufacturer.

The correct thickness depends on:

• Joint gap

• Required compression

• Surface flatness

• Dimensional tolerance

• Desired cushioning

• Installation method

• Available assembly space

A gasket should not simply be made as thick as possible.

An excessively thick gasket can create:

• Excessive assembly force

• Uneven compression

• Component deformation

• Difficulty closing housings

• Adhesive stress

• Poor dimensional control

A gasket that is too thin may fail to compensate for surface irregularities.

10. Surface Condition of Mating Parts

The quality of the mating surfaces has a direct influence on gasket performance.

Before installing an EVA cushion sealing gasket, the mating surfaces should generally be:

• Clean

• Dry

• Free from loose particles

• Free from excessive oil

• Free from dust

• Free from sharp burrs

• Free from contamination

For adhesive-backed EVA gaskets, surface preparation becomes even more important because adhesive bonding depends heavily on the substrate condition.

Typical substrates may include:

• ABS plastic

• PC plastic

• PP plastic

• Aluminum

• Stainless steel

• Painted metal

• Glass

• Powder-coated surfaces

• Other engineered plastics

Adhesive selection should be matched to the actual substrate and service environment.

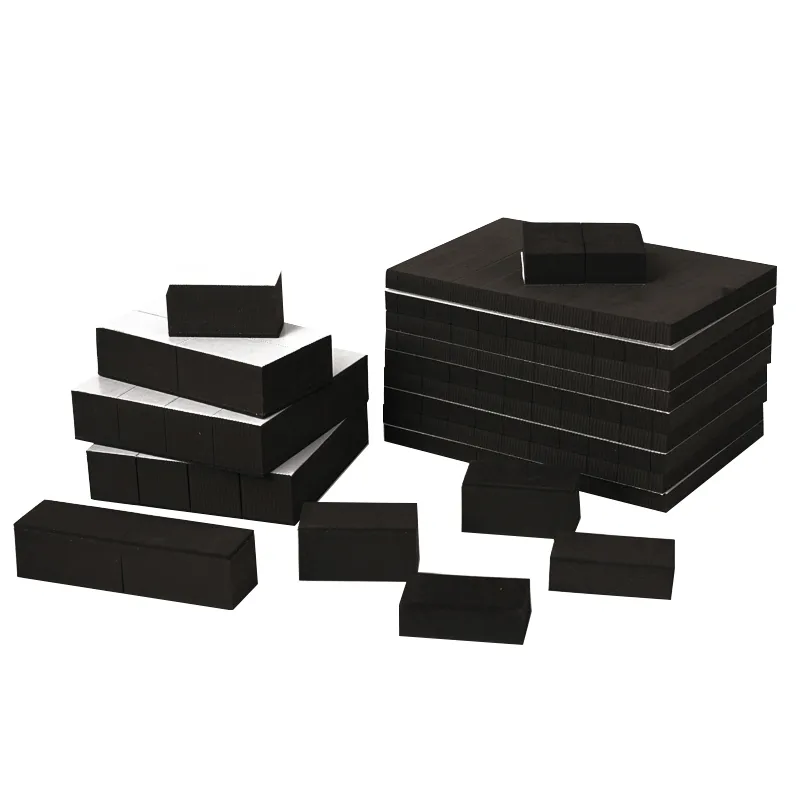

11. Adhesive Backed EVA Cushion Sealing Gaskets

An adhesive-backed EVA gasket contains a pressure-sensitive adhesive layer on one or both sides.

This design can simplify assembly because the gasket can be positioned and temporarily or permanently attached before final component installation.

Common advantages include:

• Easier positioning

• Reduced gasket movement

• Faster assembly

• Reduced requirement for mechanical clips

• Better handling of thin gasket profiles

• Improved repeatability

EVA foam is commercially available with adhesive backing on one or both sides, including custom die-cut configurations.

Adhesive selection should consider:

• Substrate material

• Surface energy

• Operating temperature

• Humidity

• UV exposure

• Chemical exposure

• Required bond strength

• Removal requirements

• Application method

The EVA foam itself may be suitable for an application while the adhesive system may not be, so the two should be evaluated separately.

12. Single-Sided and Double-Sided Adhesive Gaskets

Single-Sided Adhesive

A single-sided adhesive EVA gasket has adhesive on one side and exposed EVA foam on the other.

It is commonly used when the gasket needs to be attached to one component before assembly.

Double-Sided Adhesive

A double-sided adhesive EVA gasket has adhesive on both sides.

It can be useful when the foam needs to bond to both mating surfaces or when the gasket also functions as a cushioning mounting pad.

13. Custom Die Cutting

Custom die cutting is one of the most common methods for producing EVA foam gaskets.

A sheet or roll of EVA foam is converted into a specific gasket shape using a cutting tool.

Possible profiles include:

• Rectangles

• Squares

• Rings

• Frames

• Circles

• Oval seals

• Irregular outlines

• Multi-hole gaskets

• Panel gaskets

• Enclosure seals

Custom die cutting can produce repeatable gasket dimensions and is suitable for medium- to high-volume production.

Industry suppliers also describe EVA foam as available in custom die-cut and waterjet-cut forms.

14. CNC and Waterjet Cutting

For prototypes or low-volume custom parts, CNC cutting and waterjet cutting can be useful alternatives to traditional die cutting.

These methods may reduce the need for dedicated tooling during product development.

They can be particularly useful for:

• Prototype gaskets

• Engineering samples

• Low-volume production

• Large gaskets

• Complex geometries

• Design validation

Waterjet and CNC processes may offer flexibility, although production economics depend on part geometry, material thickness, tolerance, and order volume.

15. EVA Foam Gasket Specifications

A typical specification sheet may contain the following information:

Published EVA material data confirms that density, compression deflection, tensile strength, elongation, tear strength, compression set, water absorption, and temperature performance can all vary according to the specific grade.

16. Representative EVA Material Data

The following values are examples from published EVA foam material specifications and should not be interpreted as universal specifications.

These figures are based on representative published specifications from specific EVA closed-cell foam grades. Actual material selection should always be based on the current technical datasheet for the exact grade being purchased.

17. Temperature Resistance

Temperature resistance is an important factor for industrial EVA gaskets.

Published EVA foam specifications can show broad temperature ranges, but the exact operating range depends on the foam formulation and the conditions under which the material is used. Some published closed-cell EVA grades list service temperatures from approximately −110°F to 220°F.

However, users should distinguish between:

• Short-term temperature exposure

• Continuous operating temperature

• Compression at temperature

• Adhesive temperature resistance

• Thermal aging

• Dimensional stability

A gasket that survives a brief high-temperature exposure may not maintain its sealing performance during continuous high-temperature service.

18. Environmental Resistance

Industrial EVA foam gaskets may be exposed to:

• Moisture

• Rain

• Humidity

• Dust

• Temperature changes

• UV radiation

• Atmospheric pollutants

• Cleaning chemicals

• Mechanical vibration

Closed-cell EVA can be useful for outdoor and environmental sealing applications because of its low water absorption and reported resistance to climate and aging.

Nevertheless, long-term outdoor performance should be evaluated for the actual formulation, color, UV exposure, temperature cycle, and mechanical compression.

19. Electrical and Electronic Applications

EVA cushion sealing gaskets can be used in electronic and electrical assemblies where a flexible interface is required.

Potential applications include:

• Electronic enclosures

• Control boxes

• Instrument housings

• Display assemblies

• Battery housings

• Sensor housings

• LED assemblies

• Small electrical cabinets

• Power supply housings

• Communication equipment

The gasket can help reduce dust and moisture entry while also preventing direct contact between housing components.

When electrical insulation is required, the actual dielectric performance of the selected EVA material should be verified using the appropriate technical documentation.

A gasket should not automatically be described as electrically insulating simply because it is made from foam.

20. Industrial Equipment Applications

EVA foam cushion sealing gaskets are suitable for many general industrial assemblies.

Examples include:

• Machinery covers

• Pump housings

• Equipment doors

• Control panels

• Instrument cabinets

• Inspection covers

• Protective enclosures

• Access panels

• Mounting interfaces

• Equipment cushioning systems

In these applications, the gasket can perform a combination of sealing, cushioning, spacing, vibration reduction, and surface protection.

21. Automotive Applications

EVA foam can be used in selected automotive gasket and cushioning applications.

Possible uses include:

• Interior trim

• Enclosure seals

• Cushioning interfaces

• Component isolation

• Noise reduction

• Protective pads

• Interior equipment sealing

Industry references describe EVA foam as suitable for certain automotive gasket applications, particularly where chemical resistance, cushioning, and low water absorption are useful.

Automotive applications can require additional testing for temperature, vibration, chemicals, flame performance, aging, and durability.

22. Battery and Energy Equipment

EVA cushion sealing gaskets may also be considered for selected battery and energy equipment assemblies.

Potential functions include:

• Housing sealing

• Cell protection

• Component cushioning

• Cover sealing

• Vibration isolation

• Gap compensation

• Insulating interface layers

However, battery applications often involve elevated temperatures, electrical safety requirements, chemical exposure, and strict flame-retardancy requirements.

Therefore, EVA should be selected only after confirming the actual operating conditions and required compliance specifications.

23. HVAC and Appliance Applications

EVA foam gaskets may be used in:

• Appliance housings

• Air-conditioning equipment

• Ventilation equipment

• Refrigeration components

• Control panels

• Access covers

• Fan assemblies

• Equipment doors

The gasket may help reduce air leakage, vibration, dust entry, or direct surface contact.

For HVAC applications, compression behavior and temperature resistance should be evaluated carefully because the gasket may experience repeated thermal cycling.

24. Lighting and LED Applications

In lighting assemblies, EVA foam gasket components may be used around:

• LED housings

• Lens interfaces

• Electrical compartments

• Driver enclosures

• Outdoor lighting covers

• Junction interfaces

The gasket can help cushion the lens or cover while contributing to environmental protection.

For outdoor lighting, the entire assembly must be evaluated rather than relying on gasket material alone.

25. Packaging and Protective Applications

Although industrial EVA gaskets are primarily sealing components, EVA foam is also widely used for cushioning and protective applications.

It can be used around:

• Electronic equipment

• Precision components

• Tools

• Instruments

• Consumer products

• Fragile assemblies

Its lightweight construction and cushioning characteristics make it useful where protection from impact and vibration is important.

26. Sound and Vibration Management

EVA foam has useful acoustic and cushioning characteristics, and published material references identify acoustic properties as one of its potential advantages.

A gasket can therefore serve as an interface between vibrating components.

Potential benefits include:

• Reduced rattling

• Reduced contact noise

• Vibration isolation

• Surface protection

• Improved assembly feel

The actual acoustic performance depends strongly on thickness, density, frequency, compression, and mounting conditions.

27. EVA Foam Versus EPDM

EVA and EPDM are both used in sealing applications, but they have different performance profiles.

The appropriate material depends on the actual environment rather than simply the gasket type.

28. EVA Foam Versus Neoprene

Neoprene is often selected where oil, weathering, and flame-related performance are important.

EVA may be preferable when:

• Low weight is important

• Cushioning is required

• Low water absorption is needed

• Cost-effective foam construction is desired

• Flexible die-cut components are needed

Neoprene may be preferable where:

• Oil resistance is important

• Weather exposure is severe

• Specific flame requirements apply

Material selection should always be based on documented performance.

29. EVA Foam Versus Polyethylene Foam

EVA and polyethylene foam can both be used for cushioning and sealing.

EVA is often valued for:

• Flexibility

• Elasticity

• Resilience

• Good mechanical properties

• Chemical resistance

Polyethylene foam may be selected where different stiffness, chemical, or cost characteristics are required.

The correct choice depends on the application's compression and environmental requirements.

30. EVA Foam Gasket Design Considerations

A good gasket design should begin with the joint rather than the material.

Important questions include:

1. What is the joint gap?

2. How much compression is available?

3. What is the acceptable assembly force?

4. Does the joint move?

5. Is moisture protection required?

6. Is dust protection required?

7. What temperature will the gasket experience?

8. Is adhesive required?

9. What chemicals may contact the gasket?

10. What dimensional tolerance is required?

These questions help determine the material grade, thickness, density, hardness, geometry, and adhesive system.

31. Gasket Width

Gasket width must be sufficient to create a reliable contact area.

If the gasket is too narrow:

• Sealing pressure may be concentrated

• Installation becomes difficult

• Manufacturing tolerances become more significant

If the gasket is excessively wide:

• Material cost increases

• Compression force may increase

• Housing design may become inefficient

The gasket width should therefore be matched to the joint structure.

32. Corner Design

Corners are particularly important for frame-shaped EVA gaskets.

Poorly designed corners may result in:

• Local compression differences

• Stress concentration

• Gaps

• Overlap

• Installation distortion

Common approaches include:

• Rounded corners

• Die-cut continuous profiles

• Butt joints

• Mitre joints

• Specialized corner geometry

The appropriate method depends on gasket thickness and production process.

33. Holes and Cutouts

Many industrial EVA gaskets contain holes for:

• Screws

• Bolts

• Connectors

• Switches

• Sensors

• Cable passages

• Ventilation openings

The hole diameter and tolerance should be designed according to the mating hardware.

Small holes can be especially sensitive to die-cutting tolerance and material compression.

34. Adhesive Liner Selection

The release liner protects the adhesive before assembly.

Common liner requirements include:

• Easy release

• Stable storage

• Compatibility with adhesive

• Resistance to humidity

• Clean removal

• Suitable die-cutting behavior

The liner should not be considered merely packaging. Poor liner selection can make automated assembly difficult.

35. Automated Assembly

EVA cushion sealing gaskets can be designed for manual or automated assembly.

For automated installation, important considerations include:

• Roll format

• Continuous strip format

• Carrier liner

• Peel force

• Part spacing

• Die-cut accuracy

• Registration marks

• Automatic peeling

• Component orientation

A gasket intended for automated assembly may require a different construction from a manually installed gasket.

36. Production Tolerances

Gasket tolerance depends on:

• Material thickness

• Foam density

• Cutting method

• Part dimensions

• Tool design

• Compression

• Required assembly accuracy

For high-precision applications, the gasket drawing should specify:

• Overall dimensions

• Thickness

• Hole size

• Position tolerance

• Corner radius

• Adhesive location

• Foam density

• Material grade

Avoid specifying unnecessarily tight tolerances because foam materials naturally exhibit dimensional variation.

37. Manufacturing Process

A typical custom EVA gasket manufacturing process may include:

Step 1: Material Selection

Select the appropriate EVA foam grade based on density, thickness, firmness, temperature, chemical exposure, and compression requirements.

Step 2: Material Inspection

Check:

• Thickness

• Surface quality

• Density

• Color

• Cell structure

• Physical condition

Step 3: Adhesive Lamination

If required, adhesive is laminated onto one or both sides of the EVA foam.

Step 4: Slitting

Large rolls may be slit into narrower rolls.

Step 5: Die Cutting

The EVA sheet or roll is converted into the required gasket shape.

Step 6: Waste Removal

Excess matrix material is removed.

Step 7: Inspection

Finished gaskets are checked for:

• Dimensions

• Shape

• Adhesive position

• Surface defects

• Cleanliness

Step 8: Packaging

The finished parts are packaged to prevent contamination, deformation, and adhesive exposure.

38. Die Cutting Versus Waterjet Cutting

The optimal process depends on production quantity, geometry, tolerance, material thickness, and development stage.

39. Quality Control

Industrial EVA gaskets should be inspected according to their intended function.

Typical quality checks include:

• Material identification

• Thickness measurement

• Density verification

• Hardness or firmness

• Compression performance

• Dimensional accuracy

• Visual inspection

• Adhesive position

• Adhesive contamination

• Surface defects

• Packaging condition

For demanding applications, additional testing may include:

• Compression set

• Tensile strength

• Tear strength

• Water absorption

• Temperature aging

• Chemical resistance

• Flammability

• Environmental aging

Published EVA specifications commonly use ASTM methods for physical property testing.

40. Common Defects in EVA Gaskets

Potential manufacturing defects include:

Dimensional Variation

The gasket may be outside the specified dimensional tolerance.

Uneven Cutting

The cutting edge may be irregular.

Surface Damage

The foam surface may show scratches, compression marks, or contamination.

Adhesive Misalignment

The adhesive may not match the specified location.

Liner Problems

The release liner may wrinkle or separate incorrectly.

Material Compression

Improper storage can deform foam before installation.

Contamination

Dust, oil, and particles can reduce adhesive performance.

41. Storage Recommendations

EVA gaskets should be stored under conditions appropriate for the selected material and adhesive system.

General practices include:

• Keep products clean

• Avoid excessive compression

• Avoid direct sunlight

• Protect adhesive surfaces

• Avoid unnecessary heat

• Keep products dry

• Maintain packaging integrity

• Follow adhesive shelf-life recommendations

Adhesive-backed products require particular attention because adhesive performance can change during prolonged storage.

42. Installation Recommendations

A general installation process is:

1. Clean the mating surface.

2. Allow the surface to dry.

3. Confirm gasket orientation.

4. Remove the release liner if adhesive-backed.

5. Avoid touching the exposed adhesive.

6. Position the gasket accurately.

7. Apply uniform pressure.

8. Assemble the mating component.

9. Avoid stretching the gasket unless specifically designed for installation under tension.

10. Verify that the gasket is not folded, twisted, or displaced.

Correct installation can be as important as material selection.

43. Common Industrial Applications

44. Benefits for Electronic Assembly

EVA cushion sealing gaskets can be particularly useful in electronic assemblies because they combine:

• Low weight

• Flexible compression

• Cushioning

• Surface protection

• Low water absorption

• Custom die-cut capability

A precisely cut gasket can follow the perimeter of an electronic enclosure and help create a controlled interface between the cover and housing.

45. Benefits for Industrial Enclosures

Industrial enclosures may need protection against:

• Dust

• Moisture

• Mechanical vibration

• Surface damage

• Environmental contamination

A properly designed EVA foam gasket can contribute to this protection by filling the interface between the enclosure body and cover.

However, enclosure protection ratings should be verified through complete system testing.

46. Custom Colors

EVA foam gaskets can be available in several colors depending on material formulation and production requirements.

Common industrial colors include:

• Black

• Gray

• Natural

• White

• Custom colors

Published EVA gasket materials are available in black, gray, and natural colors.

Color selection can be used for:

• Product identification

• Assembly differentiation

• Visual inspection

• Brand consistency

• Application requirements

47. Custom Shapes

Custom EVA cushion sealing gaskets can be produced in virtually any practical flat profile that can be processed by the selected cutting method.

Examples include:

• Circular rings

• Rectangular frames

• Square seals

• Oval seals

• U-shaped seals

• L-shaped seals

• Irregular perimeter seals

• Multi-hole gaskets

• Connector seals

• Panel seals

The final design should account for material thickness and cutting limitations.

48. Custom EVA Gasket Drawings

A professional gasket drawing should ideally identify:

• Overall length

• Overall width

• Thickness

• Hole dimensions

• Hole locations

• Corner radius

• Material

• Density

• Adhesive

• Adhesive side

• Tolerance

• Color

• Packaging

• Inspection requirements

For custom production, a CAD drawing is generally preferable to a simple verbal description.

49. Procurement Checklist

Before purchasing an EVA foam cushion sealing gasket, confirm:

50. How to Select the Right EVA Foam Gasket

A practical selection process can follow these steps.

Step 1: Define the Joint

Measure the joint dimensions and expected gap.

Step 2: Determine Compression

Identify the available compression and acceptable assembly force.

Step 3: Determine Environment

Consider:

• Temperature

• Humidity

• Water

• Dust

• UV

• Chemicals

• Vibration

Step 4: Select Foam Grade

Choose an EVA grade with appropriate density and compression characteristics.

Step 5: Select Thickness

Choose a thickness that can fill the joint without creating excessive assembly force.

Step 6: Determine Adhesive Requirements

Select single-sided, double-sided, or non-adhesive construction.

Step 7: Develop the Geometry

Create the gasket profile based on the mating component.

Step 8: Test

Perform compression, environmental, and sealing tests where required.

51. Limitations of EVA Foam Gaskets

EVA foam is versatile, but it is not suitable for every application.

Potential limitations include:

• Limited performance at extreme temperatures depending on grade

• Material-specific chemical resistance

• Potential permanent deformation under excessive compression

• Adhesive limitations

• UV aging depending on formulation

• Different grades having significantly different physical properties

• Not every EVA grade meeting specific flame requirements

For demanding industrial applications, alternative materials such as EPDM, neoprene, silicone, polyurethane, or specialized foams may be more appropriate.

Material selection should therefore be based on actual service conditions.

52. EVA Gasket and Waterproofing

Closed-cell EVA can contribute to moisture protection because its structure has low water absorption.

However, a gasket does not automatically make an enclosure waterproof.

Waterproof performance also depends on:

• Compression

• Joint design

• Surface finish

• Fastener spacing

• Corner geometry

• Gasket continuity

• Adhesive quality

• Assembly accuracy

For a high-level waterproof requirement, the complete enclosure should be tested after assembly.

53. EVA Gasket for Dust Protection

A continuous EVA gasket can help reduce dust movement through a joint.

This is particularly useful in:

• Electronic enclosures

• Industrial control boxes

• Outdoor equipment

• Instrument housings

• Electrical cabinets

The gasket should form a continuous seal without gaps or discontinuities.

54. EVA Gasket for Vibration Isolation

When equipment vibrates, rigid component-to-component contact can create noise and wear.

An EVA Cushion Gasket can create a flexible interface that helps reduce direct contact.

Applications may include:

• Fan housings

• Electronic modules

• Control equipment

• Instrument panels

• Machinery covers

• Automotive interior components

The correct density and thickness are important because an overly soft gasket may allow excessive movement.

55. EVA Foam and Surface Protection

EVA foam can protect surfaces from:

• Scratches

• Impact

• Vibration

• Abrasion

• Direct contact

This is especially useful when painted, polished, coated, or decorative surfaces are involved.

A thin EVA gasket can function as both a seal and a protective cushion.

56. EVA Foam for Tolerance Compensation

Manufactured components rarely have perfectly identical dimensions.

A foam gasket can compensate for small variations between:

• Housing covers

• Panels

• Frames

• Electronic enclosures

• Metal components

• Plastic components

The foam compresses to accommodate dimensional variation.

This can simplify mechanical design and assembly.

57. Engineering Considerations for Long-Term Sealing

For long-term applications, engineers should consider:

• Compression set

• Material aging

• Thermal cycling

• Environmental exposure

• Adhesive aging

• Joint movement

• Compression uniformity

A gasket that seals effectively immediately after assembly may perform differently after months of thermal and mechanical cycling.

Testing should therefore simulate actual service conditions where reliability is important.

58. Testing Methods

Possible evaluation methods include:

Dimensional Testing

Measure:

• Length

• Width

• Thickness

• Hole position

• Profile dimensions

Mechanical Testing

Evaluate:

• Compression deflection

• Compression set

• Tensile strength

• Tear strength

• Elongation

Environmental Testing

Evaluate:

• Water exposure

• Temperature cycling

• Humidity

• UV exposure

• Chemical contact

Assembly Testing

Evaluate:

• Installation force

• Compression

• Adhesion

• Sealing performance

• Component fit

Published EVA technical specifications commonly reference ASTM-based testing for physical characteristics.

59. Packaging of EVA Gaskets

Proper packaging helps prevent:

• Dust contamination

• Compression deformation

• Adhesive contamination

• Moisture exposure

• Surface damage

Depending on the product, EVA gaskets may be supplied as:

• Individual pieces

• Stacked sheets

• Rolls

• Continuous strips

• Carrier-liner rolls

• Bags

• Cartons

High-volume adhesive gasket products are often designed around efficient roll or sheet packaging.

60. Why Custom EVA Gaskets Are Valuable for Industrial Products

Standard gasket shapes are convenient for simple applications, but custom EVA gaskets offer greater flexibility.

Custom manufacturing allows engineers to specify:

• Exact dimensions

• Specific hole patterns

• Special cutouts

• Adhesive placement

• Material thickness

• Density

• Color

• Packaging format

This makes custom EVA foam cushion sealing gaskets suitable for specialized equipment and products with unique housing geometries.

61. Product Specification Template

A product page for an EVA cushion sealing gasket may use the following specification format:

62. Frequently Asked Questions

What is an EVA foam cushion sealing gasket?

It is a flexible gasket made from ethylene vinyl acetate foam that combines sealing and cushioning functions.

Is EVA foam waterproof?

Closed-cell EVA generally has low water absorption, but complete waterproof performance depends on the gasket design and assembled product.

Can EVA gaskets be adhesive backed?

Yes. EVA foam can be supplied with adhesive backing on one or both sides.

Can EVA foam be die cut?

Yes. EVA foam is commonly converted into custom die-cut gasket shapes.

Is EVA suitable for outdoor applications?

Certain closed-cell EVA grades can be used in outdoor applications, but outdoor suitability depends on temperature, UV exposure, formulation, and aging requirements.

Can EVA gaskets be used for electronics?

Yes. They can be used for enclosure sealing, cushioning, vibration reduction, and environmental protection, provided the selected material meets the application's electrical and environmental requirements.

Can EVA foam replace rubber gaskets?

In some applications, yes. However, EVA and rubber materials have different temperature, chemical, compression, and aging characteristics.

What colors are available?

Common options include black, gray, and natural, with other colors possible depending on the material and production requirements.

63. Final Selection Guide

When selecting an EVA foam cushion sealing gasket for industrial use, the most important factors are not simply material name and thickness. A reliable selection should consider the complete application.

The key parameters are:

Material: EVA foam
Cell structure: Closed cell where low water absorption and environmental sealing are required
Density: Selected according to compression and support requirements
Thickness: Selected according to joint gap and compression
Firmness: Selected according to assembly force and sealing pressure
Adhesive: Selected according to substrate and environmental conditions
Shape: Designed according to mating components
Temperature: Confirmed against actual service conditions
Chemical resistance: Verified against actual exposure
Compression set: Considered for long-term sealing
Manufacturing method: Die cutting, CNC, waterjet, or other suitable process
Testing: Based on the actual performance requirements

EVA foam cushion sealing gaskets are particularly valuable because one lightweight component can provide sealing, cushioning, vibration reduction, surface protection, and tolerance compensation. Closed-cell EVA is especially useful where low water absorption and flexible compression are required. Industry specifications demonstrate that EVA foam can be manufactured in different densities, thicknesses, and configurations, including adhesive-backed and custom die-cut forms.

For industrial applications, however, the correct EVA grade should always be selected based on the complete operating environment. Material datasheets provide a starting point, while prototype testing and application-specific validation provide the strongest basis for final selection.
