A Cushion Sealing Gasket for Heat Resistant Applications is a specially designed sealing component used to provide cushioning, gap filling, insulation, vibration reduction, dust protection, moisture resistance, and reliable sealing in environments where elevated temperatures are present. Unlike ordinary cushioning materials, a heat resistant cushion Sealing Gasket must maintain sufficient elasticity, dimensional stability, compression recovery, and sealing performance after repeated exposure to heat.

Heat resistant gaskets are widely used in industrial equipment, electrical enclosures, electronic devices, automotive components, battery systems, HVAC equipment, appliances, machinery, lighting systems, thermal equipment, process equipment, and other applications where components must be sealed while accommodating thermal expansion, mechanical vibration, surface irregularities, or assembly tolerances.

The performance of a cushion sealing gasket depends on much more than its nominal temperature rating. Material composition, gasket thickness, density, hardness, compression ratio, adhesive system, surface condition, pressure, chemical exposure, thermal cycling, installation method, and expected service life all influence the final sealing performance.

For this reason, selecting a Heat Resistant Cushion Sealing Gasket should be treated as an application engineering decision rather than simply choosing the material with the highest advertised temperature resistance.

Industry references show that common high-temperature gasket materials include silicone, EPDM, fluorocarbon elastomers, fluorosilicone, PTFE, graphite, compressed gasket materials, and ceramic-based materials. Their useful temperature ranges vary considerably, and the actual operating limit should always be evaluated together with pressure, media compatibility, compression, and environmental conditions.

What Is a Cushion Sealing Gasket?

A cushion sealing gasket is a compressible sealing element placed between two mating surfaces. Its primary purpose is to fill microscopic and macroscopic gaps between components and create a continuous sealing interface.

The word cushion describes an important additional function. Instead of simply blocking fluid or air movement, a cushion sealing gasket can absorb mechanical movement and compensate for variations between mating parts.

A properly selected gasket can help:

• Fill assembly gaps

• Compensate for surface irregularities

• Reduce vibration

• Absorb mechanical shock

• Reduce noise transmission

• Prevent dust ingress

• Reduce moisture penetration

• Improve enclosure sealing

• Provide thermal insulation

• Protect sensitive components

• Maintain contact during thermal expansion

• Improve assembly consistency

• Reduce rattling between components

When the gasket is exposed to elevated temperatures, the material must continue to provide adequate sealing force without excessive hardening, softening, cracking, shrinking, flowing, or permanent deformation.

What Makes a Gasket Heat Resistant?

Heat resistance refers to the ability of a gasket material to retain useful physical and mechanical properties when exposed to elevated temperatures.

A heat resistant gasket does not necessarily remain unchanged at high temperature. Instead, the material should maintain an acceptable level of performance throughout the intended service period.

Important characteristics include:

Thermal Stability

Thermal stability allows the gasket to resist degradation during prolonged exposure to heat.

Compression Recovery

The gasket should recover sufficiently after compression so that it can continue maintaining contact with the mating surfaces.

Low Compression Set

Compression set describes permanent deformation after a gasket has been compressed for a period of time. Excessive compression set can reduce sealing force and create leakage paths.

Dimensional Stability

A gasket should retain its designed thickness and geometry as temperatures change.

Resistance to Thermal Cycling

Many applications do not remain at a constant temperature. Components may repeatedly heat and cool. The gasket therefore needs to tolerate expansion and contraction without cracking or losing sealing contact.

Chemical Compatibility

Heat can accelerate chemical reactions. A gasket that performs well at room temperature may behave differently when exposed to chemicals at elevated temperatures.

Mechanical Stability

The gasket must retain sufficient strength, flexibility, and resistance to tearing or extrusion under the expected operating conditions.

Key Advantages of Cushion Sealing Gaskets for Heat Resistant Applications

1. Reliable Heat Resistance

The primary advantage is the ability to maintain sealing performance under elevated temperature conditions.

Different materials provide different thermal capabilities. Industry gasket references commonly identify silicone, fluorosilicone, fluorocarbon, EPDM, PTFE, graphite, and ceramic materials for various levels of heat exposure.

The appropriate material depends on the actual service environment rather than temperature alone.

2. Cushioning Performance

A cushion sealing gasket can absorb mechanical contact between components.

This is especially useful where rigid components may vibrate, move slightly, or experience thermal expansion.

The gasket acts as a compliant interface that can reduce direct component-to-component contact.

3. Gap Compensation

Manufactured components are rarely perfectly flat or perfectly aligned.

A compressible gasket can compensate for:

• Surface roughness

• Minor dimensional variation

• Assembly tolerances

• Small gaps

• Uneven contact surfaces

• Thermal expansion differences

This helps create a more consistent sealing interface.

4. Vibration Reduction

In machinery, automotive equipment, electronic devices, and industrial systems, vibration can create noise, fatigue, and component movement.

A resilient cushion sealing gasket can help isolate mating components and reduce direct vibration transmission.

5. Dust Protection

A properly compressed gasket can reduce the entry of dust and particulate contamination.

This is particularly important for:

• Electrical enclosures

• Electronic housings

• Control cabinets

• Battery compartments

• Industrial equipment

• Lighting systems

• Outdoor equipment

6. Moisture and Water Resistance

Depending on material selection and gasket design, cushion sealing gaskets can help prevent water, humidity, condensation, and other moisture from entering a protected assembly.

Closed-cell foam gasket structures are particularly useful where low water absorption and compressibility are required.

7. Electrical Insulation

Some gasket materials offer useful electrical insulation properties.

Heat resistant Insulating Gaskets can therefore be used around electrical housings, power systems, battery assemblies, electronic components, and other applications where sealing and insulation are required simultaneously.

8. Thermal Insulation

Certain gasket structures can reduce heat transfer between adjacent components.

The effectiveness of thermal insulation depends on material density, thickness, thermal conductivity, compression, contact area, and temperature difference.

9. Improved Assembly Protection

A Cushion Gasket can prevent rigid surfaces from directly contacting one another.

This can help protect:

• Painted surfaces

• Coated surfaces

• Plastic housings

• Glass components

• Metal panels

• Electronic modules

• Battery components

Common Heat Resistant Gasket Materials

Material selection is one of the most important decisions in gasket design.

The following materials are frequently considered for heat resistant sealing applications.

These figures are general reference values rather than guaranteed service limits. Actual performance depends on compound formulation, exposure duration, pressure, chemical environment, gasket geometry, and application conditions.

Silicone Cushion Sealing Gaskets

Silicone is one of the most widely considered materials for heat resistant cushion sealing applications.

Silicone rubber combines flexibility with broad temperature performance and strong resistance to weathering, ozone, and many environmental conditions.

Industry gasket references commonly list silicone service capability around the 200°C to 260°C range depending on formulation and application.

Silicone is particularly useful where a gasket must remain flexible across repeated temperature changes.

Typical Silicone Applications

• Electronic housings

• LED lighting

• Electrical enclosures

• Control equipment

• Household appliances

• HVAC systems

• Food processing equipment

• Medical equipment

• Automotive components

• High-temperature cushioning applications

Silicone can be manufactured as:

• Silicone rubber sheet

• Silicone foam

• Silicone sponge

• Silicone gasket

• Silicone sealing strip

• Die-cut silicone gasket

• Adhesive-backed silicone gasket

• Custom silicone cushion gasket

EPDM Cushion Sealing Gaskets

EPDM is widely used where resistance to water, steam, ozone, weathering, and outdoor exposure is important.

EPDM generally has a lower temperature capability than silicone or some high-temperature fluorocarbon materials, but it can provide an attractive balance between temperature performance, weather resistance, flexibility, and cost.

Industry references commonly place EPDM around the 150°C range, although exact limits depend on the formulation.

EPDM is generally not preferred for applications involving prolonged exposure to petroleum-based oils and fuels.

Typical EPDM Applications

• HVAC systems

• Outdoor enclosures

• Water systems

• Steam-related applications

• Automotive weather sealing

• Industrial equipment

• Electrical cabinets

• Door and window sealing

FKM and Fluorocarbon Cushion Gaskets

FKM, commonly referred to as fluorocarbon elastomer, is frequently selected when both heat resistance and chemical or oil resistance are important.

FKM can provide strong resistance to many oils, fuels, and high-temperature fluids. However, its low-temperature flexibility and chemical compatibility should be evaluated for every application.

A gasket handbook from the Fluid Sealing Association lists fluorocarbon elastomer temperature limits around 199°C for the referenced material category, while other commercial grades may have different ratings.

Typical Applications

• Automotive sealing

• Fuel systems

• Industrial machinery

• Chemical equipment

• Hydraulic equipment

• High-temperature fluid systems

• Oil-exposed equipment

Fluorosilicone Cushion Sealing Gaskets

Fluorosilicone combines many of the useful temperature properties of silicone with improved resistance to fuels and certain oils.

It is often considered when ordinary silicone provides adequate temperature performance but insufficient resistance to hydrocarbon exposure.

Fluorosilicone gasket references commonly show temperature capability in approximately the 200°C to 260°C range depending on grade and testing conditions.

Potential applications include:

• Automotive systems

• Aerospace equipment

• Fuel system components

• Engine compartments

• Electronic housings exposed to fluids

• High-temperature seals

PTFE Cushion Sealing Gaskets

PTFE is valued primarily for its chemical resistance and broad temperature capability.

The Fluid Sealing Association lists virgin, expanded, and filled PTFE materials with a maximum temperature of approximately 260°C in its reference table.

PTFE is less elastomeric than rubber materials, so gasket design becomes especially important.

PTFE is commonly considered for:

• Chemical processing

• Corrosive media

• High-purity systems

• High-temperature chemical equipment

• Aggressive fluid applications

For applications requiring significant cushioning and recovery, a flexible elastomer or foam structure may be more appropriate.

Graphite and Ceramic Gasket Materials

When temperatures exceed the practical range of many polymeric gasket materials, graphite, ceramic fiber, and other high-temperature gasket materials may be considered.

The Fluid Sealing Association handbook lists graphite and phyllosilicate materials among high-temperature gasket categories, with some materials reaching several hundred degrees Celsius or substantially higher depending on service conditions.

These materials are generally more appropriate for high-temperature industrial sealing than for soft cushioning applications.

A key distinction is that heat resistance and cushioning performance are not always provided by the same material.

For example, a furnace application may require extreme temperature resistance but have little need for soft compression. Conversely, an electronic enclosure may require moderate-to-high temperature resistance combined with excellent cushioning and low compression force.

Material Comparison Table

The table is a general material-selection guide. Specific compounds can have substantially different properties.

Important Gasket Specifications

A professional cushion sealing gasket specification should include more than material name.

The following parameters are commonly important.

Thickness Selection

Gasket thickness affects compression, gap compensation, sealing force, thermal insulation, and overall assembly dimensions.

A thicker gasket can provide greater gap-filling capability, but excessive thickness may create assembly problems.

Thickness selection should consider:

1. Gap size

2. Surface flatness

3. Compression capability

4. Available installation space

5. Required sealing pressure

6. Thermal expansion

7. Fastener force

8. Material hardness

9. Compression set

10. Expected service life

Common commercial gasket products may be available in many thicknesses, but the correct thickness should be determined by the application rather than selected solely based on availability.

Hardness Selection

Hardness affects how easily the gasket compresses and conforms to mating surfaces.

A softer gasket generally requires less compression force and can better accommodate surface irregularities.

A harder gasket can provide greater mechanical stability and resistance to deformation.

Typical gasket hardness ranges vary widely by material and application.

For a cushion sealing gasket, hardness should be considered together with:

• Compression ratio

• Contact pressure

• Surface roughness

• Gap size

• Operating temperature

• Material thickness

• Required recovery

Compression and Sealing Performance

Compression is central to gasket performance.

A gasket generally needs enough compression to create continuous contact with the mating surfaces.

However, excessive compression can cause:

• Permanent deformation

• Reduced gasket thickness

• Increased assembly force

• Material damage

• Adhesive failure

• Extrusion

• Premature aging

Insufficient compression can result in:

• Leakage

• Dust penetration

• Moisture ingress

• Reduced vibration isolation

• Poor sealing around surface irregularities

The correct compression window should therefore be determined from the selected material and gasket design.

Compression Set and Heat Aging

Compression set becomes particularly important in heat resistant gasket applications.

At elevated temperature, polymeric materials can gradually lose their ability to recover after compression. Long-term exposure can cause stress relaxation and permanent deformation.

This can reduce the force available to maintain sealing contact.

Industry technical guidance specifically notes that long-term elevated temperature exposure can lead to compression set and stress relaxation, reducing the gasket's ability to maintain sealing pressure.

Heat aging may result in:

• Hardening

• Softening

• Cracking

• Shrinkage

• Loss of elasticity

• Permanent deformation

• Surface deterioration

• Adhesive degradation

• Loss of sealing force

Therefore, a gasket should be evaluated under realistic time and temperature conditions rather than only under short-duration laboratory testing.

Thermal Cycling

Many industrial systems experience repeated temperature changes.

For example, an electronic device may heat during operation and cool after shutdown. An automotive component may experience cold starts followed by high operating temperatures. Industrial equipment may repeatedly cycle between ambient temperature and process temperature.

Thermal cycling can create differential expansion between:

• Metal housing

• Plastic housing

• Glass

• Rubber gasket

• Foam gasket

• Adhesive

• Coating

A Flexible Cushion Sealing Gasket can compensate for some of this movement.

The gasket should be selected based on the expected temperature range and number of thermal cycles.

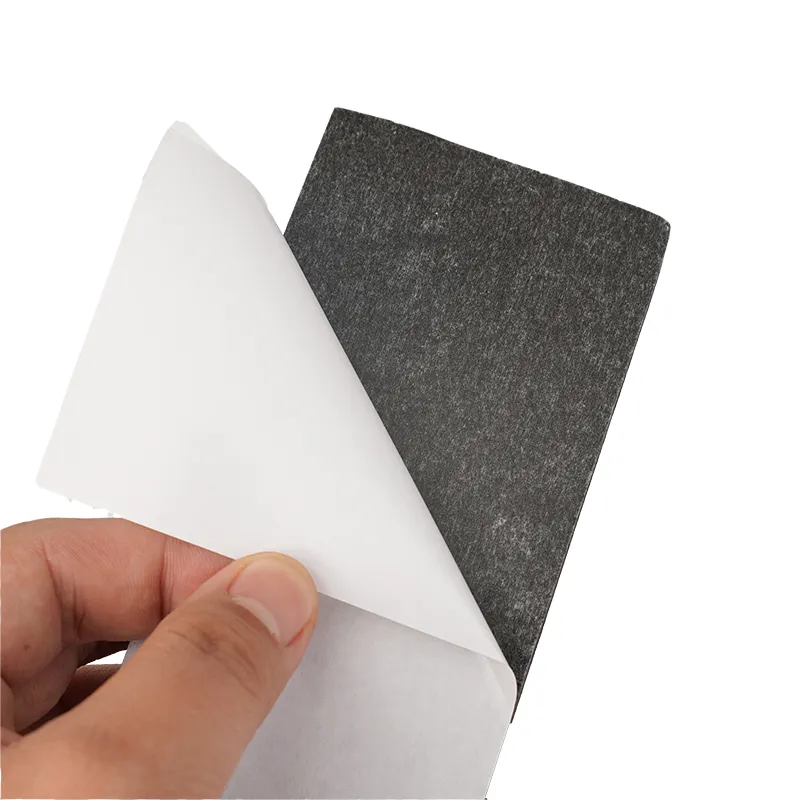

Adhesive Backed Cushion Sealing Gaskets

Single-sided adhesive gasket materials are commonly used when fast installation and accurate positioning are required.

A single-sided adhesive layer can temporarily or permanently hold the gasket in position before final assembly.

Typical advantages include:

• Easier installation

• Reduced component movement

• Improved positioning

• Faster assembly

• Cleaner application

• Reduced need for separate mechanical fixation

However, the adhesive must also be compatible with the temperature environment.

The gasket itself may withstand 200°C while the adhesive layer may have a substantially lower practical temperature limit.

Therefore, the gasket temperature rating and adhesive temperature rating must be evaluated separately.

Heat Resistant Adhesive Considerations

When an adhesive-backed cushion gasket is used, important adhesive properties include:

• Continuous temperature resistance

• Short-term temperature resistance

• Peel adhesion

• Shear strength

• Surface compatibility

• Aging resistance

• Moisture resistance

• Chemical resistance

• Outgassing

• Repositionability

• Residue characteristics

The adhesive may be acrylic, silicone-based, rubber-based, or another engineered adhesive system.

A high-temperature silicone gasket with an ordinary pressure-sensitive adhesive should not automatically be considered a high-temperature adhesive gasket.

Closed Cell Foam Cushion Sealing Gaskets

Closed cell foam is frequently used when sealing and cushioning are required simultaneously.

A closed cell structure can provide:

• Low water absorption

• Lightweight construction

• Compressibility

• Cushioning

• Gap filling

• Thermal insulation

• Vibration reduction

EVA foam, silicone foam, EPDM foam, neoprene foam, and other closed-cell materials may be considered depending on temperature and chemical requirements.

For higher temperature applications, silicone foam and certain specialized elastomeric materials may be preferable to conventional low-temperature foam products.

EVA Foam and Heat Resistant Applications

EVA foam is widely used for cushioning, sealing, packaging, insulation, and protective applications.

However, EVA should not automatically be classified as a high-temperature gasket material simply because it is a foam material.

The operating temperature of an EVA gasket depends on the exact formulation, density, crosslinking, thickness, adhesive, and exposure conditions.

For applications involving continuous elevated temperatures, material qualification should be performed before production use.

EVA can be useful in moderate-temperature applications where cushioning, lightweight construction, adhesive backing, and economical fabrication are priorities.

Silicone Foam Cushion Sealing Gaskets

Silicone foam can be particularly useful when both cushioning and high-temperature performance are needed.

Compared with many conventional polymer foams, silicone foam can maintain useful flexibility across a broad temperature range.

Potential applications include:

• Electrical cabinets

• LED equipment

• Electronic housings

• Industrial control systems

• Automotive components

• Thermal equipment

• Appliance sealing

• High-temperature enclosure sealing

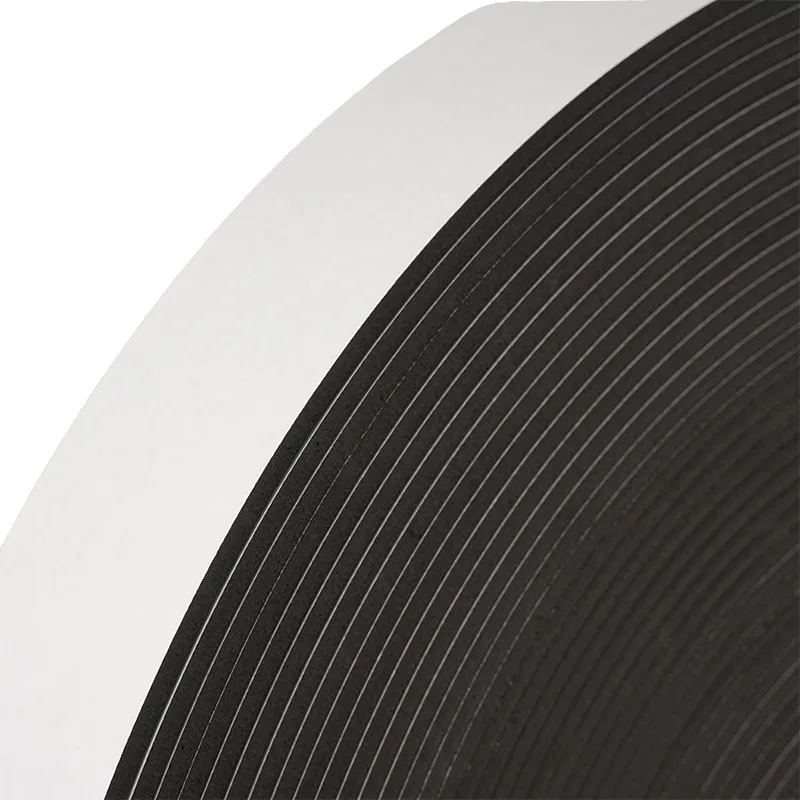

Silicone foam can be converted into:

• Die-cut gaskets

• Strips

• Pads

• Rolls

• Sheets

• Custom shapes

• Adhesive-backed seals

Applications of Heat Resistant Cushion Sealing Gaskets

Automotive Applications

Automotive systems expose sealing components to heat, vibration, moisture, oils, chemicals, and repeated thermal cycling.

Heat Resistant Cushion Gaskets may be used around:

• Engine components

• Battery packs

• Electronic control units

• Lighting assemblies

• Sensors

• Electrical housings

• HVAC modules

• Interior electronics

• Charging systems

Material selection must account for temperature, fluid exposure, vibration, and long-term aging.

Electric Vehicle Battery Applications

Battery systems require sealing materials that can provide mechanical protection while helping prevent contamination and moisture ingress.

Potential applications include:

• Battery pack covers

• Battery module interfaces

• Cell protection

• Electrical enclosures

• Busbar insulation areas

• Battery management system housings

• Charging components

• Power electronics

A battery gasket may need to combine:

• Cushioning

• Sealing

• Electrical insulation

• Compression recovery

• Thermal stability

• Moisture resistance

• Flame performance

• Adhesive compatibility

Electronic Enclosures

Electronic equipment often requires a gasket between a housing and cover.

The gasket helps prevent:

• Dust

• Moisture

• Condensation

• Vibration

• Mechanical contact

At the same time, the gasket can provide cushioning between rigid enclosure components.

Heat resistant gasket materials are particularly useful when internal electronics generate substantial heat.

LED Lighting

LED equipment generates heat around electronic components.

A cushion sealing gasket can help provide:

• Housing sealing

• Lens cushioning

• Moisture protection

• Dust protection

• Vibration reduction

• Electrical insulation

Silicone is frequently considered for lighting applications because of its temperature and weather resistance.

HVAC Equipment

HVAC systems can experience temperature fluctuations, moisture, vibration, and pressure differences.

Gaskets can be used around:

• Panels

• Access doors

• Filters

• Air handling housings

• Duct connections

• Compressors

• Heat exchangers

• Control boxes

EPDM and silicone are among the materials commonly considered depending on operating conditions.

Industrial Machinery

Industrial equipment often requires gaskets to withstand heat, vibration, pressure, oil, water, chemicals, and mechanical movement.

Applications can include:

• Pumps

• Motors

• Compressors

• Gearboxes

• Control cabinets

• Process equipment

• Heating equipment

• Industrial enclosures

The gasket must be selected according to the specific operating environment.

Heat Resistant Gasket Design Considerations

A successful gasket design begins with understanding the complete application.

Temperature

Determine:

• Minimum temperature

• Normal operating temperature

• Maximum continuous temperature

• Maximum intermittent temperature

• Heating rate

• Cooling rate

• Number of thermal cycles

Pressure

Determine whether the gasket is exposed to:

• Atmospheric pressure

• Vacuum

• Low pressure

• High pressure

• Pulsating pressure

Media

Identify contact with:

• Water

• Steam

• Oils

• Fuels

• Solvents

• Acids

• Alkalis

• Cleaning chemicals

• Refrigerants

• Process fluids

Mechanical Movement

Consider:

• Vibration

• Compression

• Shear

• Expansion

• Contraction

• Misalignment

• Mechanical shock

Installation

Evaluate:

• Manual assembly

• Automated assembly

• Adhesive backing

• Mechanical compression

• Bolted joints

• Snap-fit housings

Surface Preparation

Even a high-quality gasket may fail if the mating surface is unsuitable.

Before installation, the surface should generally be:

• Clean

• Dry

• Free from oil

• Free from dust

• Free from loose particles

• Free from excessive corrosion

• Suitable for adhesive bonding where required

For adhesive-backed gasket products, surface preparation becomes particularly important.

Contamination can reduce adhesive contact and create localized leakage paths.

Gasket Installation

Proper installation can significantly affect sealing performance.

A typical installation process includes:

1. Verify gasket dimensions.

2. Confirm material compatibility.

3. Clean the mating surface.

4. Remove dust and contaminants.

5. Align the gasket correctly.

6. Avoid excessive stretching.

7. Apply uniform compression.

8. Check corners and joints.

9. Inspect for wrinkles or folds.

10. Complete the final assembly according to the design requirements.

For adhesive-backed products, avoid touching the adhesive surface unnecessarily.

Common Gasket Shapes

Heat resistant cushion sealing gaskets can be produced in many shapes.

Die Cut Cushion Sealing Gaskets

Die cutting is widely used for producing repeatable gasket shapes.

Die-cut gaskets can include:

• Holes

• Slots

• Internal openings

• External profiles

• Tabs

• Mounting features

• Corner radii

• Complex outlines

Die cutting can provide efficient production for medium and high-volume applications.

For complex gasket geometry, digital cutting, CNC cutting, waterjet cutting, or other conversion methods may also be considered.

Custom Cushion Sealing Gaskets

Custom gasket production allows the sealing component to match the actual product design.

Important custom specifications may include:

• Length

• Width

• Thickness

• Material

• Hardness

• Density

• Adhesive

• Compression ratio

• Hole pattern

• Shape

• Tolerance

• Temperature range

• Surface treatment

Custom gaskets are particularly useful where standard sizes cannot provide sufficient sealing or cushioning.

Gasket Tolerances

Dimensional tolerances are important because excessive variation can affect assembly and sealing.

Relevant dimensions may include:

• Thickness

• Width

• Length

• Hole diameter

• Hole position

• Outer diameter

• Inner diameter

• Profile height

The required tolerance should be based on the actual application.

Tighter tolerances may increase manufacturing complexity and cost, while unnecessarily loose tolerances can affect sealing consistency.

Heat Resistant Gasket Failure Modes

Understanding common failure modes helps engineers select suitable materials.

Compression Set

The gasket remains permanently compressed and loses recovery.

Thermal Cracking

Long-term heat exposure can cause surface cracking or embrittlement.

Hardening

Some elastomers become harder after thermal aging.

Softening

Other materials may soften under excessive heat.

Shrinkage

Dimensional changes can create gaps.

Adhesive Failure

The gasket may separate from the substrate because the adhesive is not suitable for the operating temperature.

Chemical Swelling

Exposure to incompatible fluids can cause the material to expand or soften.

Extrusion

A soft gasket can move into an excessive clearance gap under pressure.

Surface Deterioration

Heat and chemicals can degrade the surface and reduce sealing performance.

High-temperature seal references identify compression set, hardening, swelling, thermal degradation, and material flow as important mechanisms to consider when selecting sealing materials.

How to Improve Heat Resistant Gasket Service Life

Service life can often be improved by optimizing the complete sealing system.

Choose the Correct Material

Do not select material based only on temperature.

Control Compression

Avoid both under-compression and excessive compression.

Match Adhesive to Temperature

The adhesive system should have adequate temperature and environmental resistance.

Reduce Sharp Edges

Sharp housing edges can cut or damage soft gasket materials.

Control Surface Condition

Smooth and clean mating surfaces improve sealing consistency.

Avoid Excessive Stretching

Stretching can reduce gasket cross-section and create dimensional instability.

Consider Thermal Expansion

Different materials expand at different rates.

Test Under Real Conditions

Laboratory testing should represent actual temperature, pressure, media, compression, and cycling conditions whenever possible.

Testing Methods

Testing requirements vary by application.

Potential evaluations include:

• Heat aging

• Compression set

• Tensile strength

• Elongation

• Hardness

• Tear strength

• Compression recovery

• Water absorption

• Chemical resistance

• Oil resistance

• Flame performance

• Adhesion

• Thermal cycling

• Leakage testing

• Dimensional stability

ASTM D573 is commonly associated with accelerated aging of rubber compounds in air, while other standards address compression set, physical properties, and material-specific performance.

Testing should be selected according to the actual product requirements.

Temperature Rating Should Not Be the Only Selection Criterion

A common mistake is choosing a gasket simply because its maximum temperature rating is higher than the application temperature.

For example, a gasket may withstand a particular temperature but have poor resistance to the operating fluid.

Another material may have excellent chemical resistance but insufficient elasticity.

A third material may provide excellent cushioning but inadequate heat aging performance.

Therefore, selection should consider at least:

Temperature + Pressure + Media + Compression + Movement + Service Life

This approach provides a much more reliable basis for material selection.

Typical Specification Template

The following specification format can be used for a Cushion Sealing Gasket for Heat Resistant Applications.

Recommended Material Selection by Application

This table is intended as an initial selection guide. Actual material compatibility should be verified against the complete operating environment.

Heat Resistant Cushion Sealing Gasket for Electrical Applications

Electrical equipment often combines heat, vibration, moisture, and insulation requirements.

A gasket can provide several functions simultaneously.

It can:

• Seal an enclosure

• Reduce dust entry

• Prevent moisture penetration

• Cushion electrical components

• Isolate vibration

• Provide electrical insulation

• Reduce mechanical noise

• Compensate for assembly tolerances

Silicone and certain foam materials are often considered for electrical enclosure sealing because they can combine flexibility, insulation, environmental resistance, and temperature performance.

Heat Resistant Cushion Sealing Gasket for Battery Systems

Battery systems are increasingly designed around compact packaging and demanding thermal environments.

A battery gasket may need to maintain sealing during:

• Charging

• Discharging

• Thermal cycling

• Mechanical vibration

• Vehicle movement

• Environmental exposure

Potential functions include:

• Housing sealing

• Moisture protection

• Dust protection

• Electrical isolation

• Cushioning

• Component positioning

• Vibration reduction

For battery systems, gasket selection should consider thermal conditions, electrolyte or chemical exposure where relevant, electrical properties, flame requirements, compression behavior, and long-term aging.

Heat Resistant Cushion Sealing Gasket for Industrial Equipment

Industrial equipment often requires durable sealing around access panels, housings, covers, flanges, doors, and removable components.

A cushion sealing gasket can improve equipment reliability by reducing contamination and maintaining a consistent interface.

Potential industrial applications include:

• Pumps

• Motors

• Compressors

• Generators

• Control cabinets

• Industrial ovens

• Heating equipment

• Process equipment

• Power equipment

• Machinery housings

Where temperatures are high and pressure is significant, gasket selection should be performed using the full operating specification.

Heat Resistant Gasket and Environmental Protection

A sealing gasket can contribute to enclosure protection against environmental conditions.

Potential environmental factors include:

• Dust

• Water

• Humidity

• Salt spray

• Ozone

• UV radiation

• Temperature fluctuations

• Industrial chemicals

• Cleaning agents

EPDM is widely recognized for weather and ozone resistance, while silicone also provides strong resistance to weathering and temperature changes.

However, chemical compatibility must still be evaluated individually.

Cushion Sealing Gasket for Outdoor Applications

Outdoor equipment can experience extreme environmental changes.

During the day, an enclosure may heat significantly under sunlight. At night, it may cool rapidly.

Rain, humidity, UV exposure, ozone, dust, and wind can further challenge the sealing system.

A suitable outdoor gasket should therefore combine:

• Temperature resistance

• Weather resistance

• UV resistance

• Ozone resistance

• Water resistance

• Compression recovery

• Long-term flexibility

EPDM and silicone are commonly considered for these applications.

Cushion Sealing Gasket for Thermal Equipment

Thermal equipment includes devices that intentionally generate or transfer heat.

Examples include:

• Heating systems

• Ovens

• Industrial heaters

• Heat exchangers

• Thermal processing equipment

• Laboratory equipment

• Heating appliances

In these applications, the gasket must be selected according to actual surface temperature and heat exposure.

If temperatures exceed the capability of elastomeric materials, specialized graphite, ceramic, or metallic gasket systems may be required.

Product Design Advantages

A properly engineered heat resistant cushion sealing gasket can provide multiple functions in a single component.

Instead of using separate:

• Cushion pads

• Insulation layers

• Sealing strips

• Positioning tapes

• Vibration isolation materials

a multifunctional gasket may combine several functions.

This can simplify assembly and reduce component count.

However, multifunctional designs should be validated carefully because optimizing one property may reduce another.

For example:

• Increasing hardness may improve mechanical stability but reduce cushioning.

• Increasing thickness may improve gap filling but increase assembly force.

• Increasing density may improve structural stability but reduce compressibility.

• Selecting a high-temperature material may increase cost.

• Adding adhesive may simplify assembly but introduce an additional temperature limitation.

How to Select the Right Cushion Sealing Gasket

A practical selection process can follow these steps.

Step 1: Define the Temperature

Identify continuous and intermittent temperatures.

Step 2: Identify the Sealing Media

Determine whether the gasket contacts water, steam, oil, fuel, solvents, chemicals, or other fluids.

Step 3: Determine Compression

Calculate the available compression and required sealing force.

Step 4: Identify Movement

Consider vibration, thermal expansion, mechanical movement, and assembly tolerances.

Step 5: Select the Material

Choose the material that meets the complete application requirements.

Step 6: Select Thickness

Determine the thickness required to fill the available gap.

Step 7: Select Hardness or Density

Balance compressibility and structural stability.

Step 8: Select Adhesive

If adhesive backing is required, verify its temperature and environmental resistance.

Step 9: Design the Geometry

Create the gasket profile, holes, corners, tabs, and other features.

Step 10: Validate the Design

Perform thermal, compression, chemical, and sealing tests as appropriate.

Quality Considerations

Consistent manufacturing is important for gasket reliability.

Important quality factors include:

• Uniform thickness

• Consistent hardness

• Stable density

• Accurate dimensions

• Clean die-cut edges

• Correct adhesive coverage

• Consistent adhesive bonding

• Controlled material composition

• Proper packaging

• Traceability

For precision sealing applications, dimensional inspection should be performed according to the relevant engineering drawing.

Storage and Handling

Gasket materials should be stored according to their material and adhesive requirements.

General considerations include:

• Avoid excessive heat

• Avoid direct sunlight

• Protect from moisture

• Prevent contamination

• Avoid unnecessary compression

• Protect adhesive surfaces

• Maintain original packaging where practical

• Follow material-specific storage requirements

Incorrect storage can reduce adhesive performance or accelerate material aging before installation.

Why Custom Gaskets Are Increasingly Important

Modern equipment is becoming more compact and more integrated.

This creates increasingly complex sealing requirements.

A single gasket may need to fit around:

• Electronic components

• Fasteners

• Connectors

• Vent openings

• Irregular housing shapes

• Heat-generating components

• Battery modules

• Mechanical interfaces

Custom die-cut or converted gaskets can be designed around these features.

Custom geometry can also improve material utilization and assembly efficiency.

Cushion Sealing Gasket Manufacturing Processes

Depending on material and geometry, manufacturing may involve:

Die Cutting

Suitable for repeatable flat gasket shapes.

Slitting

Used to convert rolls into narrow strips.

Laminating

Used to combine foam, film, fabric, foil, or adhesive layers.

Kiss Cutting

Useful for adhesive-backed gasket materials where the liner remains intact.

CNC Cutting

Useful for prototypes and complex shapes.

Waterjet Cutting

Can produce complex profiles without traditional dies.

Compression Molding

Suitable for certain rubber gasket geometries.

Extrusion

Used for continuous profiles and sealing strips.

The appropriate process depends on volume, geometry, material, tolerance, and production requirements.

Heat Resistant Cushion Sealing Gasket SEO and Product Page Content Structure

For an industrial product page, the content should clearly explain:

1. Product definition

2. Material

3. Heat resistance

4. Cushioning function

5. Sealing performance

6. Applications

7. Specifications

8. Custom options

9. Installation considerations

10. Material selection

11. Quality considerations

Natural terminology such as heat resistant gasket, cushion sealing gasket, high temperature gasket, heat resistant sealing material, industrial gasket, silicone gasket, foam sealing gasket, and Custom Sealing Gasket can help users understand the product without relying on unnatural keyword repetition.

The goal should be useful technical information rather than excessive keyword repetition.

Frequently Asked Questions

What is a heat resistant cushion sealing gasket?

A heat resistant cushion sealing gasket is a compressible sealing component designed to maintain sealing and cushioning performance under elevated temperatures.

What materials are commonly used?

Common materials include silicone, EPDM, FKM, fluorosilicone, PTFE, specialized foam materials, graphite, and ceramic-based materials.

Is silicone suitable for high-temperature gaskets?

Silicone is widely used for high-temperature sealing applications because it combines flexibility and broad temperature performance. Exact temperature capability depends on the compound and service conditions.

Is EPDM suitable for heat resistant applications?

Yes. EPDM is commonly used for moderate high-temperature applications, particularly where water, steam, ozone, and weather resistance are important.

Is FKM suitable for oil and high-temperature applications?

FKM is commonly selected for applications requiring resistance to heat and many oils and fuels. The specific compound should be checked against the actual fluid and temperature.

Can a gasket have adhesive backing?

Yes. Single-sided adhesive backing can simplify installation and positioning. However, the adhesive temperature rating must be evaluated separately from the gasket material.

Can EVA foam be used as a heat resistant gasket?

EVA foam can be used for cushioning and sealing in suitable temperature ranges, but its exact temperature performance depends on formulation and construction. It should be qualified before use in continuous high-temperature applications.

Can heat resistant gaskets be customized?

Yes. Custom gaskets can be produced in different thicknesses, shapes, dimensions, hardnesses, densities, adhesive configurations, and material grades.

What causes high-temperature gasket failure?

Common causes include excessive temperature, compression set, chemical incompatibility, thermal cycling, excessive compression, insufficient compression, adhesive failure, material aging, and mechanical damage.

How should gasket temperature resistance be evaluated?

Evaluate continuous temperature, intermittent temperature, exposure duration, thermal cycling, pressure, chemical exposure, compression, and required service life together.

Conclusion

A Cushion Sealing Gasket for Heat Resistant Applications is a multifunctional sealing component designed to combine sealing, cushioning, gap compensation, vibration reduction, environmental protection, and thermal stability.

The best gasket is not necessarily the material with the highest temperature rating. Effective gasket selection requires consideration of the entire operating environment, including temperature, pressure, chemicals, moisture, compression, mechanical movement, surface condition, adhesive compatibility, and expected service life.

Silicone is frequently considered where flexibility and high-temperature performance are important. EPDM is valuable for water, steam, weather, and ozone exposure. FKM is commonly selected where high temperature and oil resistance are required. Fluorosilicone can be useful where heat and fuel resistance are needed, while PTFE is particularly attractive for aggressive chemical environments. For extreme temperatures, graphite, ceramic, and other specialized gasket materials may be required.

For cushion sealing applications, however, thermal performance must be balanced with compression recovery, flexibility, dimensional stability, and sealing force. A well-designed gasket should maintain contact with the mating surfaces while accommodating manufacturing tolerances, vibration, thermal expansion, and environmental changes.

By carefully matching gasket material, thickness, hardness, density, adhesive, geometry, and compression requirements to the application, engineers can improve sealing reliability and reduce premature gasket failure.
