High Voltage Epoxy Sheet for Electrical Insulation, Battery Modules, Busbars and Industrial Applications

Epoxy Sheet is a rigid electrical insulation material widely used in electrical equipment, electronic assemblies, battery systems, power distribution components, industrial machinery, and high voltage applications. Among the most commonly used types are glass fiber reinforced epoxy laminates such as FR-4, G10, G11, and traditional 3240 epoxy sheets. These materials combine a rigid structural form with strong electrical insulation, mechanical stability, dimensional stability, and resistance to heat and many environmental conditions.

An Epoxy Sheet for High Voltage Insulation is designed to provide an electrically insulating barrier between conductive components while also maintaining mechanical separation and structural support. Unlike thin flexible insulation films, a rigid epoxy fiberglass sheet can function simultaneously as an insulation barrier, support plate, separator, spacer, mounting substrate, or structural component.

In high voltage equipment, insulation performance cannot be evaluated only by the material name. The actual suitability of an epoxy sheet depends on material grade, thickness, dielectric strength, operating temperature, electrical stress, humidity, surface condition, creepage distance, clearance distance, mechanical loading, and the overall insulation system. Therefore, epoxy sheets are normally selected according to the requirements of the complete electrical assembly rather than by a single material property.

FR-4 epoxy fiberglass sheet is especially common in electrical and electronic applications because it combines woven glass fiber reinforcement with an epoxy resin matrix. The glass fiber provides mechanical reinforcement, while the cured epoxy resin provides electrical insulation and dimensional stability. Depending on the formulation and specification, FR-4 materials can also provide flame-retardant characteristics.

For battery modules and battery packs, rigid epoxy sheets are frequently used in areas where high electrical insulation and mechanical rigidity are needed. Typical examples include module end plate insulation liners, busbar insulation bases, battery pack separators, structural supports, and manufacturing fixtures.

1. What Is an Epoxy Sheet for High Voltage Insulation?

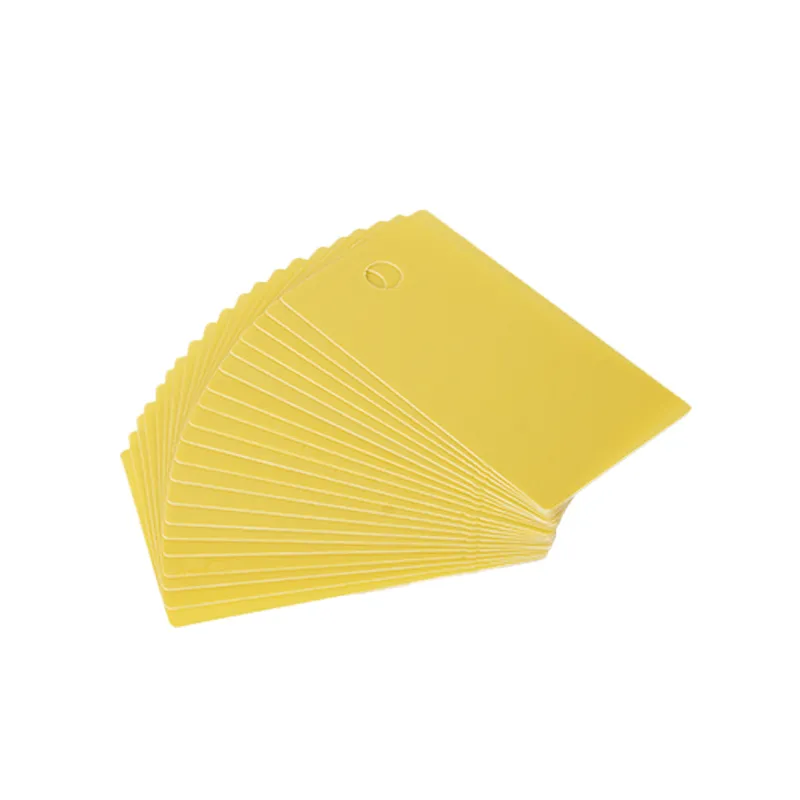

An epoxy sheet for high voltage insulation is a rigid or semi-rigid laminate manufactured primarily from epoxy resin and reinforcing materials such as woven glass fiber. The material is formed into sheet stock through resin impregnation, layering, pressing, heating, and curing.

The resulting laminate has a relatively high mechanical stiffness compared with many flexible insulation films. Its electrical insulation properties make it suitable for separating conductive parts and reducing the possibility of unintended current paths.

Common industry descriptions include:

• Epoxy Sheet

• Epoxy Insulation Sheet

• Epoxy Fiberglass Sheet

• Epoxy Glass Fiber Sheet

• Epoxy Laminate Sheet

• Fiberglass Epoxy Sheet

• FR-4 Sheet

• FR-4 Fiberglass Sheet

• G10 Epoxy Sheet

• G11 Epoxy Sheet

• 3240 Epoxy Sheet

• Electrical Insulation Epoxy Sheet

• High Voltage Insulation Sheet

Although these names are often used interchangeably in product searches, they do not always describe exactly the same material. Different grades can have different resin systems, reinforcement structures, thermal characteristics, flame behavior, electrical properties, and mechanical performance.

For this reason, purchasing specifications should identify the required material grade and performance rather than relying only on the general term "epoxy sheet."

2. Construction of Epoxy Fiberglass Insulation Sheet

A typical fiberglass reinforced epoxy sheet consists of two primary components:

During production, glass fiber cloth is impregnated with epoxy resin. Multiple impregnated layers can then be stacked and consolidated under controlled pressure and temperature.

The curing process transforms the resin into a cross-linked thermoset polymer. Once fully cured, the material generally maintains its shape under conditions where many thermoplastic materials could soften or deform.

The glass reinforcement is particularly important for applications requiring dimensional stability. When the sheet is used as a support plate or separator in electrical equipment, the material must maintain its position even when exposed to mechanical pressure, vibration, thermal cycling, or assembly forces.

3. Why Epoxy Sheet Is Used for High Voltage Insulation

High voltage insulation requires reliable electrical separation between conductive components. A rigid epoxy fiberglass sheet can provide this separation while also functioning as a structural element.

Important characteristics include:

Electrical Insulation

The epoxy resin matrix and glass fiber reinforcement create a material with high electrical resistance. Properly selected laminate can electrically separate conductors, terminals, busbars, metal structures, and electronic components.

Dielectric Performance

Dielectric strength is an important property when determining whether a material can withstand a specified electrical stress. The actual dielectric performance depends on material grade, thickness, test method, temperature, humidity, and material condition.

Mechanical Rigidity

High voltage insulation components are often required to remain fixed in position. A flexible film may provide electrical isolation but may not provide sufficient mechanical support. Epoxy fiberglass sheets can serve as rigid insulating barriers.

Dimensional Stability

Electrical assemblies can experience heating and cooling cycles. A dimensionally stable insulation sheet helps maintain consistent spacing between components.

Thermal Resistance

Many epoxy fiberglass grades can operate across relatively broad temperature ranges. However, the permitted continuous operating temperature depends strongly on the specific material grade and resin formulation.

Flame Retardant Performance

FR-4 is generally associated with flame-retardant epoxy fiberglass laminate. Flame behavior must still be confirmed against the applicable material certification and application requirements.

Moisture Resistance

Properly manufactured epoxy fiberglass laminate generally has good resistance to moisture compared with many porous Insulation Materials. However, moisture absorption can affect electrical properties, especially in demanding high voltage applications.

Chemical Resistance

Epoxy laminates can provide resistance to many industrial chemicals, oils, and solvents. Actual compatibility depends on chemical concentration, exposure time, temperature, and laminate formulation.

4. High Voltage Insulation Requires System Level Design

It is important to understand that an epoxy sheet alone does not automatically make an assembly safe for high voltage use.

A high voltage insulation system may involve:

• Solid insulation

• Air insulation

• Creepage distance

• Clearance distance

• Insulating supports

• Barriers

• Spacers

• Encapsulation

• Coatings

• Electrical terminals

• Conductive components

• Grounded metal structures

The epoxy sheet forms only one part of this system.

For example, a thick epoxy sheet may provide strong solid insulation, but insufficient spacing around the edge of the sheet could still create an electrical safety problem. Similarly, contamination, moisture, sharp conductive edges, or mechanical damage can reduce insulation reliability.

Therefore, high voltage applications should consider the complete electrical design and applicable safety standards.

5. Typical Material Grades

Different epoxy fiberglass sheet grades are available for different electrical and mechanical requirements.

FR-4 is widely recognized in PCB manufacturing, but FR-4 grade laminate is also used outside conventional printed circuit boards. When supplied as machined sheet material, it can become a rigid insulation component for electrical and industrial assemblies.

G10 is a glass epoxy laminate commonly used for electrical insulation and mechanical applications. G11 is generally associated with higher temperature performance than standard G10 materials, although exact properties vary by specification.

The traditional 3240 designation is widely encountered in Chinese industrial markets. Export specifications may instead use internationally recognized material descriptions or customer-specific technical requirements.

6. Epoxy Sheet Compared with Flexible Insulation Films

Epoxy fiberglass sheets and flexible insulation films serve different purposes.

A PC or polyester film may be preferred when extremely thin insulation is required. Nomex may be preferred for applications requiring specialized high temperature insulation. Epoxy fiberglass sheet is generally selected when electrical insulation must be combined with rigidity and mechanical support.

7. Epoxy Sheet in Battery Modules and Battery Packs

Lithium battery systems contain multiple electrically active components that must be properly isolated.

A battery module can contain:

• Battery cells

• Cell tabs

• Busbars

• BMS sampling boards

• Insulating films

• End plates

• Module frames

• Cooling structures

• Electrical connectors

• Structural Brackets

• Protective barriers

An epoxy fiberglass sheet can be used in selected areas where a rigid insulating barrier is required.

The material should be chosen according to the actual voltage level, temperature, mechanical loading, environmental exposure, electrical safety requirements, and manufacturing process.

8. Typical Applications in Battery Modules and Battery Packs

1. Module End Plate Insulation Liner

FR-4 sheets are inserted between the metal end plates and battery cells or cell tabs in prismatic battery modules, providing high electrical insulation, dimensional stability, and structural support.

In a prismatic battery module, the metal end plates can provide mechanical compression and structural support. Because these plates may be electrically conductive, insulation may be required between the metal structure and electrically active battery components.

A rigid epoxy fiberglass sheet can function as an insulating liner while maintaining a stable physical position.

Important considerations include:

• Sheet thickness

• Electrical insulation requirement

• Mechanical compression

• Surface flatness

• Temperature exposure

• Cell geometry

• Edge clearance

• Assembly tolerance

• Potential mechanical abrasion

The sheet should not be treated simply as a decorative or protective layer. It can form part of the module's physical and electrical separation system.

2. Busbar and Sampling Board Insulation Base

FR-4 sheets are placed beneath BMS sampling PCBs and busbars as rigid insulating bases, offering better rigidity and structural stability than thin PC sheets.

Busbars can carry substantial electrical current and may be positioned close to other conductive structures. A rigid insulation base can help maintain controlled separation and provide a stable mounting surface.

The application may involve:

• Busbar support

• BMS sampling board support

• Electrical isolation

• Mechanical positioning

• Component separation

• Mounting support

• Wiring organization

Compared with thin flexible insulation materials, epoxy fiberglass sheet can provide greater resistance to deformation during assembly.

However, the insulation base should be designed with sufficient clearance and creepage distance. The edges of conductive busbars should also be considered because sharp edges can concentrate electrical fields and potentially damage nearby insulation.

3. Battery Pack Internal Separator and Support

FR-4 sheets are used in structural separation areas that require high electrical insulation, arc resistance, moisture resistance, and mechanical stability.

Battery packs may contain multiple electrically active sections. Internal barriers can help separate electrical components from metal structures and other conductive elements.

Potential functions include:

• Electrical separation

• Structural support

• Component positioning

• Mechanical protection

• Barrier formation

• Thermal environment separation

• Prevention of unintended conductive contact

The actual use of FR-4 or another epoxy laminate should be evaluated against the battery pack's electrical, thermal, mechanical, and safety requirements.

4. Testing Fixtures and Tooling Boards

FR-4 sheets are commonly used as probe boards for formation testing equipment, positioning fixture substrates, and other production tooling. These applications are not part of the battery itself but are widely used in battery manufacturing lines.

Because FR-4 is rigid, electrically insulating, and machinable, it is suitable for many manufacturing fixtures.

Examples include:

• Battery formation fixtures

• Electrical testing fixtures

• Probe positioning plates

• Cell alignment fixtures

• Module assembly tooling

• BMS testing fixtures

• Inspection fixtures

• Drilling templates

• Positioning plates

• Production line support boards

These applications demonstrate that epoxy fiberglass sheet is not limited to permanent battery components. It can also support the manufacturing process.

9. Epoxy Sheet for Busbar Insulation

Busbars are important conductive components in electrical systems. They may be manufactured from copper, aluminum, or other conductive metals.

Because busbars can operate at elevated electrical potential, surrounding structures must provide appropriate insulation.

Epoxy sheets can be used as:

• Busbar insulation barriers

• Busbar support plates

• Busbar mounting bases

• Busbar separators

• Busbar spacers

• Electrical barrier plates

• Terminal insulation plates

The material thickness should be selected according to the electrical requirements and mechanical conditions.

A rigid sheet can also help prevent movement of the busbar during assembly and operation.

10. Epoxy Sheet for High Voltage Electrical Equipment

High voltage electrical equipment may include:

• Switchgear

• Transformers

• Motors

• Generators

• Power converters

• Inverters

• Distribution equipment

• Electrical cabinets

• Power supply equipment

• Energy storage systems

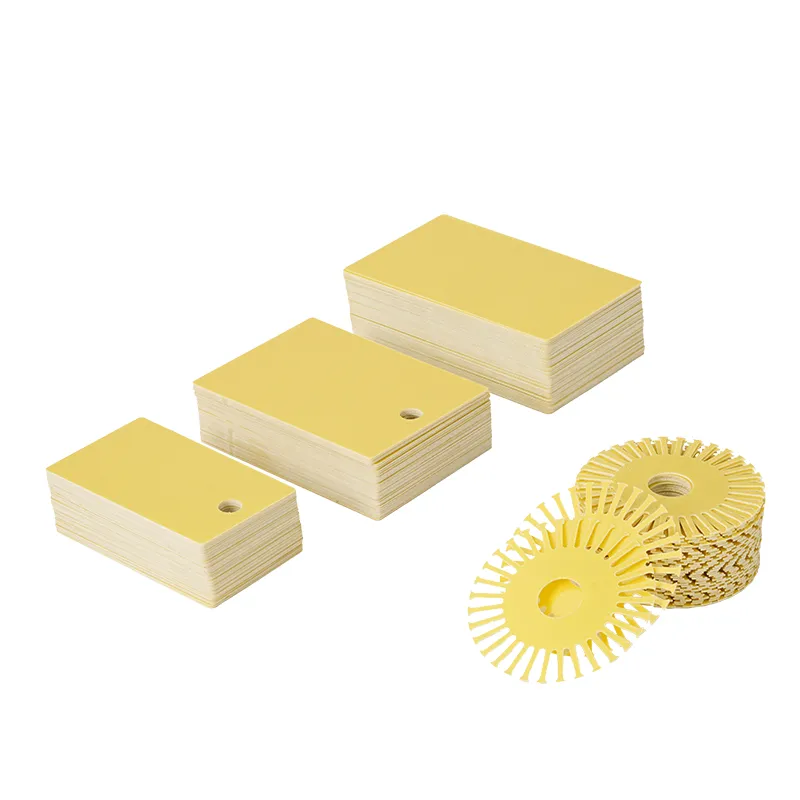

In these applications, epoxy sheet can be machined into components such as:

• Insulation barriers

• Mounting plates

• Terminal supports

• Spacers

• Washers

• Brackets

• Bushings

• Structural supports

• Partition plates

The ability to machine the material makes it possible to produce complex insulating structures from standard sheet stock.

11. Advantages of Epoxy Fiberglass Sheet

High Electrical Insulation

One of the primary advantages of epoxy fiberglass laminate is its electrical insulation performance.

The material can be used to electrically separate conductive components while maintaining a stable physical structure.

High Rigidity

Rigid construction makes epoxy sheet suitable for structural insulation applications.

Good Dimensional Stability

Glass reinforcement reduces deformation and contributes to dimensional stability.

Good Mechanical Strength

The woven glass reinforcement provides mechanical strength and resistance to bending and deformation.

Heat Resistance

Certain epoxy laminate grades are suitable for elevated temperature environments.

Flame Retardant Options

FR-4 materials are available with flame-retardant characteristics appropriate for many electronic and electrical applications.

Machinability

Epoxy fiberglass sheet can commonly be:

• Cut

• Drilled

• Milled

• Routed

• Punched

• CNC machined

Proper machining equipment and dust control should be used because glass fiber reinforced materials can generate abrasive dust during machining.

Chemical Resistance

Many epoxy laminates show good resistance to common industrial environments.

Structural Insulation

Unlike thin films, epoxy sheets can combine insulation and structural support in one component.

12. Key Specifications of Epoxy Sheet

The following table provides common specification categories for high voltage insulation applications.

These specifications should be confirmed with the technical datasheet of the exact grade being supplied.

13. Thickness Selection

Thickness is one of the most important parameters when selecting an epoxy sheet for electrical insulation.

Common sheet thicknesses can range from thin laminates to several millimeters or more. The appropriate thickness depends on:

• Operating voltage

• Transient voltage

• Dielectric requirements

• Mechanical load

• Required rigidity

• Creepage distance

• Clearance distance

• Environmental conditions

• Mounting method

• Temperature

• Safety standards

A thicker sheet generally provides greater physical separation, but thickness alone does not determine complete electrical safety.

For example, a high voltage design may require a combination of solid insulation and sufficient creepage and clearance distances.

Therefore, engineers should not select sheet thickness based solely on voltage.

14. Surface Quality

The surface of an insulation sheet should be consistent and free from defects that could affect assembly or electrical performance.

Important surface characteristics include:

• Flatness

• Smoothness

• Cleanliness

• Uniformity

• Edge condition

• Absence of major cracks

• Absence of delamination

• Absence of severe scratches

• Dimensional consistency

For precision electrical assemblies, surface quality can influence mechanical fit and insulation reliability.

15. Dimensional Stability

Dimensional stability is especially important in battery modules and high voltage electrical assemblies.

During operation, materials can experience:

• Heating

• Cooling

• Vibration

• Compression

• Mechanical stress

• Assembly pressure

• Humidity changes

A dimensionally stable epoxy fiberglass sheet helps maintain the intended position of conductive and insulating components.

This is one of the major differences between rigid epoxy laminate and thin flexible insulation film.

16. Dielectric Strength

Dielectric strength describes the electrical field strength that an insulating material can withstand under a specified test condition before electrical breakdown occurs.

It is normally expressed in units such as kV/mm.

However, dielectric strength should not be interpreted as a simple operating voltage rating.

Actual insulation design must consider:

• Material thickness

• Test direction

• Temperature

• Humidity

• Frequency

• Electrode geometry

• Surface contamination

• Aging

• Mechanical damage

• Manufacturing variation

A material with a high laboratory dielectric strength does not automatically mean that a particular finished component can be safely operated at the same electrical stress.

17. Creepage and Clearance

Two important concepts in high voltage insulation design are creepage and clearance.

Clearance is the shortest distance through air between conductive parts.

Creepage is the shortest distance along the surface of an insulating material between conductive parts.

An epoxy sheet may provide excellent solid insulation, but the geometry around the sheet still matters.

Designers may need to consider:

• Sheet thickness

• Surface distance

• Edge geometry

• Conductive contamination

• Humidity

• Altitude

• Pollution level

• Operating voltage

• Transient conditions

For high voltage equipment, these factors should be evaluated according to the relevant electrical safety standards.

18. Arc Resistance Considerations

Epoxy fiberglass materials can be used in electrical structures where resistance to electrical tracking and arcing is important.

However, "arc resistant" should not be interpreted as unlimited resistance to electrical arcs.

Actual performance depends on:

• Material grade

• Resin system

• Glass reinforcement

• Electrical voltage

• Arc energy

• Exposure duration

• Electrode geometry

• Environmental contamination

• Surface condition

High voltage systems should use the appropriate tested material grade and system design.

19. Flame Retardant Performance

FR-4 is commonly selected when flame-retardant characteristics are required.

The term FR generally refers to flame-retardant material classification, but exact performance depends on the grade and applicable test standard.

For safety-critical applications, the supplier's material certification should be reviewed.

Relevant documentation may include:

• Flame classification

• Electrical properties

• Thermal properties

• Mechanical properties

• Material composition

• Test conditions

• Certification information

20. Moisture and Humidity

Humidity can influence electrical insulation performance.

Moisture may affect:

• Surface resistance

• Volume resistance

• Dielectric behavior

• Dimensional properties

• Electrical tracking

• Long-term reliability

Epoxy fiberglass laminate generally offers good moisture resistance, but no conventional laminate should be assumed to be completely moisture-proof.

High voltage applications in humid environments should consider enclosure design, surface contamination, condensation, and the actual material specification.

21. Chemical Resistance

Epoxy fiberglass sheet may be exposed to:

• Oils

• Cleaning agents

• Industrial chemicals

• Electrolyte-related environments

• Solvents

• Lubricants

Chemical compatibility depends on the exact formulation and exposure conditions.

Testing should be considered when the material will be exposed to aggressive chemicals for extended periods.

22. Temperature Performance

Temperature affects both mechanical and electrical properties.

When selecting an epoxy sheet, engineers may evaluate:

• Continuous operating temperature

• Short-term temperature exposure

• Thermal cycling

• Glass transition characteristics

• Dimensional stability

• Dielectric performance at elevated temperature

• Flame behavior

G11 materials are often considered where higher temperature capability is required compared with general-purpose G10 materials, but exact performance must be confirmed from the manufacturer's specification.

FR-4 grades can also vary considerably in thermal performance.

23. Epoxy Sheet for Battery Pack Structural Insulation

Modern battery packs require a combination of:

• Electrical insulation

• Mechanical stability

• Thermal management

• Weight control

• Dimensional accuracy

• Fire safety

• Manufacturability

Epoxy fiberglass sheet can address the electrical and mechanical portions of this requirement in selected locations.

Possible applications include:

The actual application depends on the battery architecture.

24. Epoxy Sheet Versus PC Sheet

PC sheets are often selected for thin insulation and flexible or semi-flexible protection.

Epoxy fiberglass sheets are generally more rigid.

The choice depends on whether the application prioritizes rigidity or flexibility.

25. Epoxy Sheet Versus Nomex

Nomex is an aramid-based insulation material frequently selected for electrical insulation and high temperature applications.

Epoxy fiberglass sheet differs because it is rigid and structural.

Both materials have important roles, but they are not direct replacements for every application.

26. Epoxy Sheet Versus Barley Paper

Barley paper is often used as a cushioning or insulation material around battery cells and electrical components.

Epoxy fiberglass sheet has substantially greater rigidity.

The two materials can be used together because their functions are different.

27. Manufacturing Process

A general epoxy fiberglass laminate production process includes several stages.

Step 1: Glass Fiber Preparation

E-glass fiber cloth is prepared as the reinforcement material.

Step 2: Resin Impregnation

The glass fabric is impregnated with epoxy resin.

Step 3: Prepreg Formation

The impregnated reinforcement can be partially cured to create prepreg material.

Step 4: Layer Stacking

Multiple layers are arranged according to the desired thickness and laminate structure.

Step 5: Hot Pressing

Heat and pressure consolidate the layers and remove voids.

Step 6: Curing

The epoxy resin undergoes thermosetting and forms a cross-linked matrix.

Step 7: Cooling

The laminate is cooled under controlled conditions.

Step 8: Surface Finishing

The sheet may be trimmed, sanded, or otherwise finished.

Step 9: Cutting

Large sheets can be cut into standard dimensions.

Step 10: Machining

Custom components can be CNC machined, drilled, milled, routed, or punched.

Step 11: Inspection

Final inspection can include:

• Thickness measurement

• Length and width measurement

• Flatness

• Visual inspection

• Electrical testing

• Mechanical testing

• Flame performance verification where applicable

28. CNC Machining of Epoxy Sheet

CNC machining is commonly used to convert epoxy fiberglass sheet into precision electrical insulation components.

Typical machined parts include:

• Insulating brackets

• Support plates

• Spacer plates

• Barrier plates

• Mounting plates

• Terminal supports

• Busbar supports

• Battery separators

• Fixture boards

Machining parameters should be selected for reinforced laminate materials because glass fibers can be abrasive.

Proper cutting tools, dust extraction, ventilation, and personal protective equipment are important during machining.

29. Custom Epoxy Sheet Fabrication

Many electrical applications require customized shapes rather than simple rectangular sheets.

Typical custom requirements include:

• Holes

• Slots

• Cutouts

• Rounded corners

• Mounting holes

• Grooves

• Steps

• Notches

• Curved profiles

• Complex CNC contours

Custom fabrication allows an epoxy sheet to become a finished insulating component rather than simply a raw material.

30. Common Applications Outside Battery Systems

Epoxy fiberglass sheets are used in many industries.

Electrical Equipment

• Switchgear

• Distribution equipment

• Transformer components

• Motor components

• Generator components

• Power supplies

Electronics

• PCB support

• Electronic insulation

• Component mounting

• Testing fixtures

• Semiconductor tooling

Automotive

• Battery modules

• Battery packs

• Electric motor components

• Power electronics

• Charging equipment

Industrial Equipment

• Machine insulation

• Electrical barriers

• Mechanical supports

• Positioning fixtures

• Industrial tooling

Energy Storage

• Battery insulation

• Busbar barriers

• Module supports

• Pack structures

• Electrical separators

31. Product Selection Guide

When selecting an epoxy sheet for high voltage insulation, consider the following factors.

32. Typical Quality Inspection

Quality inspection may include several categories.

Visual Inspection

Inspect for:

• Cracks

• Delamination

• Bubbles

• Surface contamination

• Scratches

• Uneven surfaces

• Edge defects

Dimensional Inspection

Check:

• Thickness

• Length

• Width

• Flatness

• Hole position

• Machined dimensions

Electrical Inspection

Depending on the application, testing may include:

• Dielectric strength

• Insulation resistance

• Surface resistance

• Volume resistivity

• Dielectric constant

Mechanical Inspection

Possible properties include:

• Flexural strength

• Tensile strength

• Compressive strength

• Impact strength

Thermal Inspection

Possible evaluations include:

• Thermal resistance

• Temperature stability

• Thermal expansion

• Heat aging

33. Packaging and Storage

Epoxy sheets should be protected from excessive moisture, contamination, impact, and bending during transportation and storage.

Recommended storage considerations include:

• Keep sheets flat

• Avoid excessive stacking loads

• Protect from water

• Avoid prolonged outdoor exposure

• Prevent surface contamination

• Avoid impact on edges

• Maintain stable storage conditions

• Use protective packaging for precision-machined components

For high voltage insulation applications, clean storage is particularly important because contamination on the surface can affect insulation performance.

34. Installation Considerations

Proper installation is as important as material selection.

During installation:

1. Inspect the sheet for damage.

2. Clean the surface if necessary.

3. Confirm dimensions.

4. Verify mounting holes and cutouts.

5. Avoid sharp mechanical damage.

6. Ensure sufficient clearance.

7. Ensure sufficient creepage distance.

8. Prevent conductive particles from remaining on the surface.

9. Avoid excessive compression.

10. Confirm that the insulation remains correctly positioned after assembly.

An epoxy sheet should not be forced into a position that causes cracking or delamination.

35. Common Problems and Solutions

36. Design Considerations for Battery Applications

Battery applications require special attention because electrical, thermal, and mechanical requirements can occur simultaneously.

Designers should evaluate:

Electrical Voltage

Determine the maximum continuous and transient voltage.

Mechanical Compression

Module structures may apply significant compression to cells and insulation components.

Thermal Conditions

The insulation sheet may experience elevated temperature during charging, discharging, or fault conditions.

Cell Movement

The sheet should remain securely positioned during vibration and mechanical cycling.

Electrical Clearance

The design should prevent accidental contact between conductive components.

Creepage

Surface distances should be adequate for the actual voltage and environmental conditions.

Manufacturing Tolerance

Battery components may have tight dimensional requirements.

Service Conditions

The insulation system should remain effective throughout the expected service life.

37. High Voltage Insulation in Energy Storage Systems

Energy storage systems often operate at significantly higher voltage than individual battery cells.

As voltage increases, insulation design becomes increasingly important.

Potential insulation components include:

• Busbar barriers

• Battery module separators

• Terminal insulation plates

• Service disconnect barriers

• Power electronics supports

• Connector insulation structures

• Electrical cabinet partitions

• Inverter insulation components

Epoxy fiberglass sheet can provide a combination of rigidity and electrical insulation in selected locations.

38. Epoxy Sheet for Power Electronics

Power electronics assemblies can generate electrical and thermal stresses.

Applications may include:

• Inverters

• Converters

• Power supplies

• Motor controllers

• Charging systems

• Energy storage converters

• DC distribution systems

Epoxy fiberglass sheets can be used for mechanical support and electrical isolation around these assemblies.

When temperatures are elevated, a suitable high-temperature laminate grade should be considered.

39. Epoxy Sheet for Transformer Insulation

Transformers contain conductive windings and structural components that require electrical isolation.

Epoxy fiberglass sheet can be machined into:

• Insulating barriers

• Coil supports

• Terminal supports

• Spacers

• Structural plates

• Mounting components

The exact insulation system depends on transformer design, voltage class, thermal class, and applicable standards.

40. Epoxy Sheet for Motor and Generator Applications

Electric motors and generators contain coils, windings, conductive terminals, and metal structures.

Rigid epoxy laminate may be used for:

• Terminal insulation

• Coil supports

• Mounting plates

• Insulating barriers

• Structural components

The actual material grade should be matched to temperature and electrical requirements.

41. Advantages for Industrial Electrical Components

Epoxy sheet provides several advantages for industrial component manufacturers.

Design Flexibility

Standard sheet stock can be machined into different geometries.

Mechanical Strength

The glass reinforcement provides structural strength.

Electrical Separation

The material provides a stable insulating barrier.

Dimensional Stability

The laminate can maintain its geometry during operation.

Production Efficiency

CNC machining and cutting processes allow repeatable production of custom components.

Material Availability

Common grades such as FR-4 and G10 are widely used in electrical and electronic industries.

42. Epoxy Sheet Color and Appearance

Epoxy fiberglass sheet is commonly available in colors such as:

• Green

• Black

• Natural

• Yellow

• Brown

Color does not necessarily indicate electrical performance.

For example, green FR-4 is common in PCB-related applications, but color should not be used as the basis for determining material grade.

Technical specifications should always be used to identify the actual insulation properties.

43. Environmental Considerations

Epoxy fiberglass laminate is a durable thermoset material, but its environmental performance depends on manufacturing, use, and end-of-life handling.

Important considerations include:

• Material composition

• Production waste

• Machining dust

• Recycling limitations

• Service life

• Disposal requirements

Because glass fiber reinforced thermoset composites are difficult to remelt, end-of-life recycling differs from thermoplastic materials.

Manufacturers and users should follow applicable local waste handling regulations.

44. Safety Considerations During Machining

Machining fiberglass reinforced epoxy materials can produce fine dust.

During cutting or machining:

• Use appropriate dust extraction

• Maintain ventilation

• Wear suitable respiratory protection where required

• Protect eyes

• Protect skin

• Use appropriate cutting tools

• Keep machining areas clean

• Follow equipment safety instructions

These considerations are especially important for continuous production environments.

45. Why Rigid Epoxy Insulation Is Important

A high voltage insulation material should not only prevent electrical conduction. In many applications, it must also maintain physical separation.

This is where rigid epoxy fiberglass sheet offers a major advantage.

A single component can provide:

Electrical insulation + mechanical support + dimensional stability + separation + machinability

This combination makes epoxy sheet useful in complex electrical assemblies.

46. Technical Specification Example

The following is a general example of how an epoxy insulation sheet specification can be organized. Actual values should always be taken from the selected material grade datasheet.

47. Frequently Asked Questions

What is an Epoxy Sheet?

An epoxy sheet is a rigid thermoset sheet material commonly manufactured from epoxy resin reinforced with glass fiber. It is widely used for electrical insulation, mechanical support, structural separation, and industrial components.

Is FR-4 an epoxy sheet?

FR-4 is a type of flame-retardant glass fiber reinforced epoxy laminate. It is commonly supplied as sheet material and used in PCB, electrical insulation, battery, and industrial applications.

Is G10 the same as FR-4?

G10 and FR-4 are related glass epoxy laminate materials, but they are not always identical. FR-4 generally includes flame-retardant characteristics, while G10 refers more broadly to a glass epoxy laminate family. Exact properties depend on the grade.

Is epoxy sheet suitable for high voltage insulation?

Selected epoxy fiberglass grades can be used for high voltage insulation applications. Suitability depends on dielectric performance, thickness, creepage, clearance, temperature, environment, and the overall electrical design.

Can epoxy sheet be used in lithium battery modules?

Yes. Selected epoxy fiberglass sheets can be used as rigid insulating liners, separators, busbar support plates, structural insulation components, and manufacturing fixtures in lithium battery systems.

Is FR-4 better than PC sheet?

Neither material is universally better. FR-4 is generally more rigid and structurally stable, while PC sheet can provide greater flexibility and thin-film insulation.

Is epoxy sheet waterproof?

Epoxy fiberglass laminate generally has good moisture resistance, but it should not automatically be considered completely waterproof. Environmental exposure should be evaluated for the specific application.

Can epoxy sheet be machined?

Yes. Epoxy fiberglass sheets can commonly be cut, drilled, milled, routed, punched, and CNC machined.

Can epoxy sheet withstand high temperatures?

Some grades provide good elevated-temperature performance. The maximum operating temperature should be determined from the specific material specification.

What is 3240 epoxy sheet?

3240 is a traditional Chinese industrial designation commonly associated with glass fiber reinforced epoxy electrical insulation laminate.

48. How to Choose the Right Epoxy Sheet

A practical selection process can follow these steps:

Step 1: Determine Electrical Requirements

Identify operating voltage, transient voltage, insulation requirements, and electrical safety requirements.

Step 2: Determine Mechanical Requirements

Identify whether the sheet functions only as insulation or also as a structural support.

Step 3: Determine Temperature Requirements

Identify continuous and peak operating temperatures.

Step 4: Determine Environmental Requirements

Evaluate humidity, chemicals, dust, vibration, and contamination.

Step 5: Select Material Grade

Choose an appropriate grade such as FR-4, G10, G11, or another qualified epoxy laminate.

Step 6: Determine Thickness

Select thickness according to mechanical and electrical requirements.

Step 7: Determine Dimensions

Specify sheet dimensions or finished component dimensions.

Step 8: Determine Machining Requirements

Identify holes, slots, cutouts, edges, and tolerances.

Step 9: Verify Testing

Confirm that the material has the necessary electrical, thermal, mechanical, and flame performance data.

Step 10: Validate the Complete Assembly

The final insulation system should be evaluated rather than relying solely on the raw material specification.

49. Industry Applications Summary

50. Conclusion

Epoxy Sheet for High Voltage Insulation is a versatile rigid insulation material that combines electrical insulation with mechanical strength and dimensional stability. Glass fiber reinforced epoxy laminates such as FR-4, G10, G11, and 3240 are widely used in electrical and industrial applications where a rigid insulating barrier is required.

In lithium battery modules and battery packs, epoxy fiberglass sheets can be used as module end plate insulation liners, busbar and BMS sampling board insulation bases, internal separators, structural supports, and production tooling boards. Their rigidity makes them particularly useful when thin flexible insulation films cannot provide sufficient structural stability.

For high voltage applications, material selection should consider more than the nominal voltage. Dielectric strength, thickness, creepage, clearance, temperature, humidity, contamination, mechanical stress, flame performance, and long-term reliability should all be considered.

The key advantages of epoxy fiberglass sheet include high electrical insulation, high rigidity, mechanical strength, dimensional stability, machinability, and availability in different grades. These characteristics make epoxy sheet an important engineering material for battery systems, power electronics, electrical equipment, industrial machinery, and manufacturing fixtures.

For professional applications, the exact material grade and technical datasheet should always be verified before use. A qualified epoxy sheet should be selected based on the complete electrical and mechanical requirements of the finished product rather than on a general material name alone.
