Epoxy Sheet for Switchgear Insulation is a rigid electrical insulation material widely used in medium voltage and high voltage electrical equipment, switchgear assemblies, distribution systems, control cabinets, busbar systems, circuit breaker structures, transformer components, and industrial electrical insulation applications. Common epoxy sheets are manufactured from woven E-glass fiber cloth impregnated with epoxy resin and consolidated through heat and pressure. Depending on the material grade and application requirements, these laminates may be identified as FR-4 Sheet, G10 Sheet, Epoxy Fiberglass Sheet, Epoxy Insulation Sheet, or 3240 Epoxy Sheet.

The combination of high dielectric strength, mechanical rigidity, dimensional stability, low moisture absorption, good machinability, and resistance to electrical tracking makes epoxy fiberglass laminate useful for applications where a thin flexible insulating film is not sufficient. In switchgear, the material can function as an insulating barrier, support plate, phase separator, mounting plate, busbar support component, spacer, structural insulation part, and protective liner.

Switchgear insulation must perform more than one function. It needs to electrically separate conductive components while maintaining sufficient mechanical strength to withstand assembly loads, vibration, short-circuit forces, thermal cycling, and long-term service conditions. For this reason, rigid epoxy fiberglass sheets are often selected for structural insulation components.

The exact material grade should always be selected according to the electrical voltage, creepage and clearance requirements, operating temperature, mechanical loading, flame-retardant requirements, environmental conditions, manufacturing method, and applicable standards.

What Is an Epoxy Sheet for Switchgear Insulation?

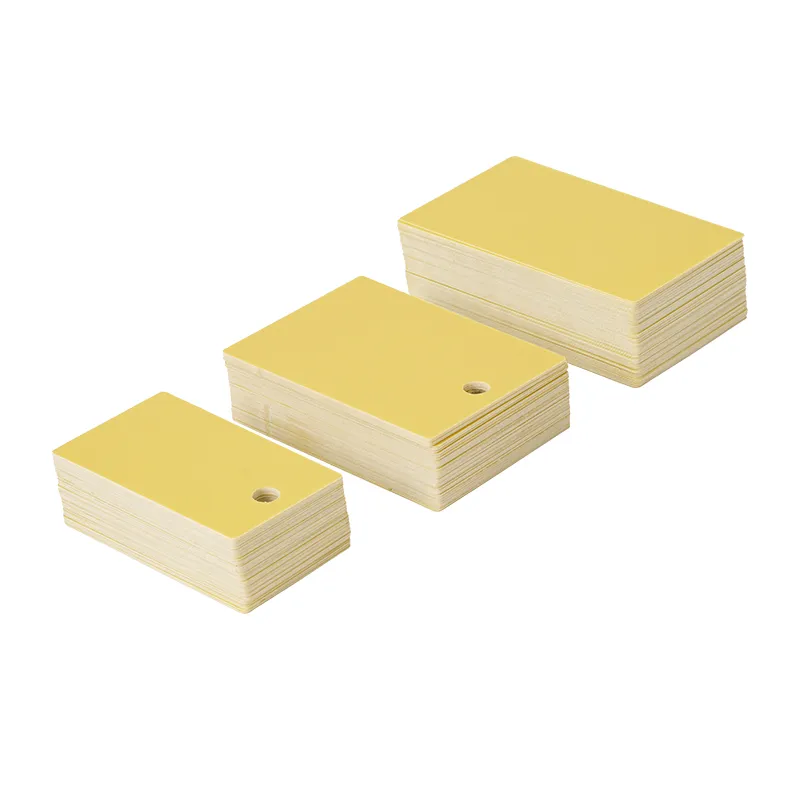

An epoxy sheet for switchgear insulation is a rigid laminate made primarily from electrical-grade glass fiber reinforcement and an epoxy resin matrix. The glass fabric provides mechanical reinforcement, while the cured epoxy resin provides electrical insulation, bonding between the reinforcement layers, environmental resistance, and structural integrity.

Unlike ordinary plastic sheets, epoxy fiberglass laminates have a composite construction. Their properties are determined by the interaction between the resin system, glass fiber type, weave construction, laminate thickness, curing process, and final material grade.

In switchgear, the sheet is typically machined into components rather than simply installed as a flat sheet. Common fabricated parts include:

• Busbar insulation plates

• Phase barriers

• Insulating partitions

• Circuit breaker insulation plates

• Terminal insulation boards

• Mounting plates

• Support Brackets

• Spacer plates

• Barrier panels

• Electrical separation plates

• Cable support components

• Switchgear structural insulation

• Arc barrier components

• Transformer insulation supports

• High voltage test fixtures

The material is especially valuable when electrical insulation must also provide structural support.

Epoxy Sheet ≠ PC Mylar Sheet

Epoxy fiberglass sheet and PC Mylar-type insulation films serve different engineering purposes and should not automatically be treated as interchangeable materials.

Epoxy sheets are generally thicker and rigid. Typical industrial thicknesses can start around 0.5 mm, while thicknesses of 1–5 mm are frequently considered for structural insulation components. Thicker sheets can also be manufactured for applications requiring greater mechanical rigidity.

PC insulation films are normally much thinner and more flexible. Typical thicknesses may range from approximately 0.125–0.5 mm, depending on the application and film grade. They are useful for wrapping, surface insulation, conformal insulation, slot insulation, and applications where the material needs to follow a curved or irregular surface.

The primary distinction is therefore not simply the chemical composition. It is the functional role of the material.

For switchgear insulation, epoxy fiberglass sheet is generally more appropriate when the insulating component must retain its shape and support mechanical loads.

Material Composition of Epoxy Fiberglass Sheet

The basic construction of an epoxy fiberglass laminate consists of two major components:

1. E-glass fiber reinforcement

2. Cured epoxy resin

E-glass fiber is used because it provides high tensile strength, good electrical insulation characteristics, dimensional stability, and resistance to many operating environments.

The epoxy resin binds the glass fiber layers together and forms the continuous matrix of the laminate. During manufacturing, glass fabric is impregnated with resin and consolidated under controlled temperature and pressure. The resulting laminate has a dense and rigid structure.

Material formulation can be adjusted depending on the intended application. For example, different resin systems may be selected for:

• Higher temperature resistance

• Better flame retardancy

• Improved electrical performance

• Reduced moisture absorption

• Better machinability

• Halogen-free requirements

• Higher mechanical strength

• Improved dimensional stability

Therefore, the term "epoxy sheet" alone does not completely define the performance of the material. The specific grade and technical data should always be confirmed.

Common Epoxy Sheet Grades

Several terms are commonly encountered in the electrical insulation industry.

FR-4 is particularly common in applications where flame-retardant performance is important. G10 is also widely recognized as a high-strength glass epoxy laminate. However, exact properties depend on the manufacturer's formulation, laminate construction, thickness, and applicable test standard.

The designation should therefore be considered a starting point rather than a substitute for a complete technical specification.

Key Advantages of Epoxy Sheet for Switchgear Insulation

1. High Electrical Insulation Performance

One of the primary reasons for using epoxy fiberglass sheet in switchgear is its electrical insulation capability.

The material can electrically separate conductive components and help prevent unintended current paths. Properly designed insulating barriers can increase the distance between energized conductors and grounded or differently phased components.

Electrical performance depends on several factors, including:

• Material thickness

• Surface condition

• Moisture

• Temperature

• Electric field intensity

• Creepage distance

• Clearance

• Contamination

• Material grade

• Test method

For this reason, dielectric strength should not be evaluated as a single universal value. The actual design must consider the complete electrical environment.

2. High Mechanical Rigidity

Switchgear insulation is often exposed to mechanical loads that thin films cannot withstand.

Epoxy fiberglass sheet provides rigid support for:

• Busbars

• Terminals

• Conductors

• Circuit breaker components

• Insulating barriers

• Mounting structures

• Electrical connectors

The glass fiber reinforcement significantly improves mechanical strength compared with many unreinforced plastic sheets.

This makes epoxy sheet particularly suitable for applications where the insulation component also functions as a structural support.

3. Good Dimensional Stability

Switchgear assemblies require accurate component positioning. Excessive deformation or dimensional change can affect electrical clearance and mechanical alignment.

Glass fiber reinforced epoxy laminates generally provide good dimensional stability over a wide range of operating conditions.

This property is particularly useful for:

• Busbar supports

• Phase barriers

• Terminal plates

• Precision mounting plates

• Electrical fixtures

• Circuit breaker support structures

4. Low Moisture Absorption

Moisture can negatively affect electrical insulation performance. It can also contribute to dimensional changes, surface leakage, and deterioration under certain operating conditions.

Epoxy fiberglass laminates generally have relatively low water absorption compared with many conventional porous Insulation Materials.

A typical technical specification may state water absorption below approximately 0.1%, but the actual value depends on the material grade and test method.

Low moisture absorption contributes to:

• Better dimensional stability

• More consistent insulation performance

• Improved environmental resistance

• Reduced moisture-related deformation

However, low water absorption does not mean that the material is completely waterproof under all conditions.

Typical Specifications of Epoxy Sheet for Switchgear

The following table provides representative industry parameters. These values are for general reference rather than a universal material specification.

Actual values should always be verified against the technical data sheet of the selected material.

Why Epoxy Sheet Is Suitable for Switchgear Insulation

Switchgear contains multiple conductive components operating at different electrical potentials. The insulation system must prevent unwanted electrical contact while maintaining sufficient mechanical spacing.

A rigid epoxy sheet can simultaneously provide:

Electrical separation + mechanical support + dimensional stability + environmental resistance.

This combination makes it particularly useful for switchgear structures.

For example, a busbar support may need to:

• Hold a conductor in a defined position

• Maintain phase-to-phase separation

• Maintain phase-to-ground separation

• Resist mechanical forces

• Withstand temperature variations

• Maintain its dimensions over time

• Provide reliable electrical insulation

A flexible film may provide excellent surface insulation but cannot necessarily perform the mechanical support function. An epoxy fiberglass sheet can often perform both roles.

Applications in Switchgear

1. Busbar Insulation Support

Busbars carry substantial electrical current and are frequently arranged in parallel configurations. The supporting insulation must maintain electrical separation while mechanically securing the busbars.

Epoxy fiberglass sheets can be machined into:

• Busbar support plates

• Busbar separators

• Insulating brackets

• Spacer blocks

• Mounting components

The rigid structure helps maintain the designed conductor position.

2. Phase Separation Barriers

Phase barriers are used to separate conductors belonging to different electrical phases.

Epoxy sheets can be fabricated into rigid barriers that provide a physical insulating partition.

Advantages include:

• High rigidity

• Stable dimensions

• Good electrical insulation

• Easy machining

• Good resistance to mechanical vibration

The final barrier geometry should be designed according to the electrical clearance and creepage requirements of the equipment.

3. Circuit Breaker Insulation Components

Circuit breakers contain conductive components, mechanical mechanisms, terminals, and connection structures.

Epoxy fiberglass laminates may be used as:

• Insulating plates

• Mounting plates

• Spacers

• Internal barriers

• Support components

The material selection must account for switching conditions, temperature, voltage, mechanical stress, and potential arc exposure.

4. Terminal Insulation Plates

Terminal areas require controlled separation between conductive connection points.

Machined epoxy sheets can be used as terminal insulation plates or mounting substrates.

The rigid material can help maintain accurate terminal positioning and prevent accidental contact between conductive components.

5. Electrical Cabinet Insulation

In switchboards and electrical control cabinets, epoxy sheets can serve as rigid insulating panels.

Potential applications include:

• Component mounting insulation

• Busbar separation

• Terminal isolation

• Electrical barriers

• Support plates

• Protective partitions

The material can be cut and drilled according to cabinet layout requirements.

Epoxy Sheet for High Voltage Insulation

High voltage insulation requires careful control of electrical geometry. Material selection alone cannot guarantee insulation performance.

Important design factors include:

• Rated voltage

• Impulse voltage

• Working voltage

• Clearance

• Creepage distance

• Pollution level

• Altitude

• Humidity

• Temperature

• Surface contamination

• Electric field concentration

• Material tracking characteristics

A thicker epoxy sheet may improve physical separation, but simply increasing thickness does not automatically solve every high-voltage insulation problem.

The complete insulation system must be engineered around the operating environment.

Dielectric Strength and Insulation Thickness

Dielectric strength is commonly expressed in kV/mm. It represents the electric field level that a material can withstand under a specified test condition before electrical breakdown occurs.

For epoxy fiberglass laminate, a representative dielectric strength may fall in the range of approximately 20–35 kV/mm, depending on:

• Resin formulation

• Glass fabric construction

• Laminate thickness

• Test standard

• Temperature

• Moisture

• Surface condition

• Manufacturing quality

It is important to distinguish between material dielectric strength and the insulation voltage rating of a finished switchgear assembly.

A finished component may have a lower practical voltage capability because of:

• Air gaps

• Surface leakage

• Sharp edges

• Contamination

• Mechanical joints

• Holes

• Fasteners

• Creepage paths

• Local electric field concentration

Therefore, a material data sheet should not be used alone to determine the rated voltage of a complete electrical device.

Creepage Distance and Clearance

Two important concepts in switchgear insulation are clearance and creepage distance.

Clearance

Clearance is the shortest distance through air between two conductive parts.

Creepage Distance

Creepage distance is the shortest distance along an insulating surface between conductive parts.

The required distances depend on the electrical system and applicable standards.

Epoxy sheets can be designed with:

• Slots

• Grooves

• Extended barriers

• Ribs

• Step structures

• Cutouts

These features can help increase creepage paths or improve physical separation.

Machining accuracy is important because improperly designed openings or edges can reduce the intended insulation distance.

Flame Retardancy

Switchgear insulation may need to satisfy flame-retardant requirements depending on the equipment category and applicable standards.

FR-4 is widely recognized as a flame-retardant glass epoxy laminate family. Certain FR-4 grades can achieve UL 94 V-0 performance under the applicable test conditions.

However, "FR-4" should not automatically be treated as a universal certification for every sheet. Buyers should verify:

• Exact material grade

• Applicable UL recognition

• Thickness

• Flame classification

• Certification status

• Test conditions

For critical electrical equipment, documentation should be matched to the exact material specification.

Temperature Resistance

Electrical equipment can experience temperature increases caused by:

• Load current

• Contact resistance

• Switching operations

• Ambient temperature

• Enclosure temperature

• Nearby heat sources

Suitable epoxy fiberglass laminates can provide good thermal resistance.

For certain FR-4 grades, continuous-use temperatures may be approximately 130–155°C, while short-term exposure may approach 180°C, depending on the material formulation.

These figures should not be interpreted as universal limits.

Important thermal properties include:

• Continuous operating temperature

• Short-term temperature capability

• Glass transition temperature

• Thermal decomposition behavior

• Thermal expansion

• Dimensional stability

The selected material should be evaluated against the actual thermal profile of the switchgear.

Mechanical Properties

Mechanical strength is one of the most important differences between rigid epoxy fiberglass sheet and flexible insulation film.

Glass reinforcement provides:

• High tensile strength

• Good flexural strength

• Good compressive resistance

• High rigidity

• Improved dimensional stability

These properties are beneficial when the insulation component is also a support structure.

Potential mechanical loads include:

• Fastener pressure

• Busbar weight

• Assembly force

• Vibration

• Transportation shock

• Thermal expansion

• Short-circuit electromagnetic forces

The sheet thickness and mounting structure should be designed according to the expected load.

Machining of Epoxy Insulation Sheets

Epoxy fiberglass sheets can be fabricated into complex electrical insulation components.

Common machining operations include:

Because glass fiber is abrasive, suitable carbide tooling is often preferred.

Machining parameters should be optimized to minimize:

• Edge chipping

• Delamination

• Burr formation

• Surface damage

• Excessive dust

• Tool wear

Proper extraction and workplace controls are also important when machining fiberglass reinforced materials.

CNC Machined Epoxy Insulation Parts

Modern switchgear often requires custom-shaped insulating components rather than simple rectangular sheets.

CNC machining allows manufacturers to produce:

• Precision mounting plates

• Busbar supports

• Phase barriers

• Insulating brackets

• Terminal plates

• Spacers

• Custom separators

• Electrical fixtures

Digital drawings can define:

• Overall dimensions

• Hole positions

• Hole diameters

• Slots

• Corner radii

• Chamfers

• Countersinks

• Mounting patterns

This makes epoxy fiberglass sheet suitable for prototype production as well as larger-volume industrial manufacturing.

Surface Finish

The surface condition of an epoxy sheet can influence electrical performance.

A suitable surface should generally be:

• Clean

• Dry

• Free from oil

• Free from conductive contamination

• Free from severe cracks

• Free from excessive delamination

Surface defects can become locations for electrical stress concentration or contamination accumulation.

For high-voltage applications, surface cleanliness is particularly important because dust, moisture, and conductive particles can create leakage paths.

Epoxy Sheet and Arc Resistance

Electrical switching equipment can be exposed to electrical arcs under abnormal or switching conditions.

Arc resistance describes a material's ability to resist degradation caused by an electrical arc under specified testing conditions.

A material with good arc resistance can be advantageous for:

• Switchgear barriers

• Circuit breaker components

• Electrical partitions

• High-voltage insulation structures

• Busbar separation components

However, arc resistance should be considered together with the overall arc containment and protection design of the equipment.

An epoxy sheet is not a substitute for proper arc-rated switchgear construction.

Tracking Resistance

Electrical tracking occurs when a conductive path develops along the surface of an insulating material, often under the combined influence of electrical stress, moisture, and contamination.

Tracking resistance is particularly relevant to:

• Outdoor electrical equipment

• High-voltage switchgear

• Contaminated environments

• Humid environments

• Industrial electrical systems

Material selection should therefore consider the required tracking performance as well as dielectric strength.

Moisture and Environmental Stability

Switchgear may be installed in environments with varying levels of:

• Humidity

• Temperature

• Dust

• Industrial contamination

• Chemical exposure

• Condensation

Epoxy fiberglass laminate offers relatively low moisture absorption and good dimensional stability, making it suitable for many industrial electrical applications.

Nevertheless, the complete insulation system should be protected from persistent condensation and severe contamination where required.

Epoxy Sheet vs Other Electrical Insulation Materials

Epoxy fiberglass sheet is only one option for electrical insulation.

The best material depends on the required combination of electrical, mechanical, thermal, chemical, and environmental properties.

Epoxy Sheet vs G10 and FR-4

G10 and FR-4 are closely related glass fiber epoxy laminate materials, but their specifications can differ.

G10 is commonly associated with high mechanical and electrical performance.

FR-4 generally refers to a flame-retardant glass epoxy laminate meeting the applicable material requirements.

For switchgear, the choice should be based on the actual requirements rather than simply selecting the most familiar grade name.

Epoxy Sheet vs 3240 Epoxy Board

3240 epoxy board is a traditional electrical insulating laminate widely used in industrial applications.

It is generally based on glass fiber cloth and epoxy resin.

FR-4 is more commonly selected where higher flame-retardant performance and more modern material requirements are needed.

Exact performance should be confirmed from the material certificate.

Typical Applications in Electrical Equipment

Epoxy insulation sheets are used in many types of equipment.

Switchgear

• Busbar supports

• Phase barriers

• Insulation plates

• Terminal separators

• Mounting plates

Control Cabinets

• Electrical barriers

• Component support plates

• Terminal insulation

• Mounting structures

Transformers

• Insulating spacers

• Structural insulation

• Support plates

• Electrical separation components

Motors and Generators

• Terminal insulation

• Structural electrical insulation

• Support components

• Slot-related insulating structures

Power Distribution Equipment

• Busbar supports

• Phase separators

• Insulating brackets

• Protective barriers

Typical Applications in Battery Modules and Battery Packs

Although this article focuses on switchgear insulation, epoxy fiberglass sheets are also widely considered for rigid insulation structures in lithium battery systems.

1. Module End Plate Insulation Liner

FR-4 sheets are inserted between metal end plates and battery cells or cell tabs in prismatic battery modules, providing high electrical insulation, dimensional stability, and structural support.

2. Busbar and Sampling Board Insulation Base

FR-4 sheets can be placed beneath BMS sampling PCBs and busbars as rigid insulating bases, offering greater rigidity and structural stability than thin PC sheets.

3. Battery Pack Internal Separator and Support

FR-4 sheets can be used in structural separation areas requiring high electrical insulation, arc resistance, moisture resistance, and mechanical stability.

4. Testing Fixtures and Tooling Boards

FR-4 sheets are commonly used as probe boards for formation testing equipment, positioning fixture substrates, and other production tooling. These applications are not part of the battery itself but are widely used in battery manufacturing lines.

Battery Application Comparison

Thickness Selection

Thickness is one of the most important design parameters.

Common industrial thicknesses include:

0.5 mm, 1.0 mm, 1.5 mm, 2.0 mm, 3.0 mm, 5.0 mm, and 10 mm.

Custom thicknesses may also be available depending on manufacturing capability.

For structural battery insulation, 1–3 mm is often considered a practical range. For switchgear, thickness may be selected based on mechanical strength, electrical spacing, installation geometry, and applicable standards.

A thicker sheet can provide:

• Greater mechanical rigidity

• Greater physical separation

• Increased puncture resistance

• Better dimensional support

However, thicker does not always mean better. Excessive thickness can increase:

• Weight

• Cost

• Assembly space

• Machining time

• Material consumption

The optimal thickness should therefore be determined by the application.

Color Options

Epoxy fiberglass sheets are available in several colors.

Common colors include:

• Green

• Yellow

• Natural

• Orange

• Black

Green and yellow are commonly associated with FR-4-type materials, while orange and black can be found in certain 3240 epoxy boards.

Color alone should never be used to identify a material grade.

Material certification and technical documentation are more reliable for grade identification.

Halogen-Free and Low-Halogen Options

Some electrical applications may require reduced halogen content.

Halogen-free epoxy laminate formulations can be considered for applications where environmental or equipment requirements specify reduced halogen content.

Potential advantages include:

• Reduced halogen content

• Compatibility with environmental requirements

• Appropriate flame-retardant design

• Suitable electrical performance

However, "halogen-free" should be verified against a specific testing requirement rather than assumed from the product description.

Advantages for High Voltage Switchgear

Epoxy fiberglass insulation provides several advantages for high-voltage equipment:

1. High electrical insulation capability

2. High mechanical rigidity

3. Good dimensional stability

4. Low moisture absorption

5. Good machinability

6. Good thermal resistance

7. Availability in multiple thicknesses

8. Customizable geometry

9. Suitable for rigid barriers

10. Suitable for structural insulation

The combination of these characteristics makes it useful for components where electrical insulation and mechanical strength are required simultaneously.

Design Considerations for Switchgear Insulation

Proper material selection is only one part of insulation design.

Engineers should consider:

Electrical Voltage

Determine the normal operating voltage and relevant transient or impulse conditions.

Clearance

Ensure sufficient air distance between conductive components.

Creepage

Provide sufficient surface distance along insulating components.

Temperature

Consider normal operating temperature and abnormal temperature events.

Mechanical Load

Calculate forces from assembly, vibration, transportation, and electrical fault conditions.

Environmental Conditions

Evaluate humidity, dust, pollution, condensation, altitude, and chemical exposure.

Flame Retardancy

Determine whether a specific flame classification is required.

Arc Conditions

Evaluate whether the material may be exposed to electrical arcs.

Manufacturing

Consider cutting, drilling, routing, tolerance, edge quality, and assembly requirements.

Edge Design and Electrical Performance

Sharp edges and corners can produce local electric field concentration.

For high-voltage components, designers may therefore consider:

• Rounded corners

• Controlled edge radii

• Smooth machined surfaces

• Appropriate barrier geometry

• Avoidance of unnecessary sharp conductive interfaces

The specific geometry depends on voltage level and equipment design.

Machining quality can therefore be an important part of the insulation system.

Hole and Slot Design

Holes are often necessary for mounting epoxy insulation plates.

However, holes can affect:

• Creepage distance

• Clearance

• Mechanical strength

• Stress concentration

• Contamination paths

Designers should carefully evaluate hole positions relative to conductive components.

Slots can sometimes be used to modify creepage paths or reduce material weight, but they must be designed without compromising mechanical integrity.

Fastener Considerations

Mechanical fasteners can influence insulation performance.

Metal screws, bolts, washers, and brackets may introduce conductive paths.

The design should consider:

• Fastener material

• Washer dimensions

• Fastener location

• Clearance

• Creepage

• Edge distance

• Mechanical load

• Torque

Where necessary, additional insulating sleeves or washers may be incorporated into the assembly.

Installation and Handling

Epoxy fiberglass sheets are rigid but can still be damaged through improper handling.

During installation:

• Avoid excessive impact

• Prevent sharp bending

• Protect machined edges

• Keep surfaces clean

• Avoid contamination

• Check for cracks

• Verify dimensions before assembly

• Prevent excessive fastening pressure

Damaged insulation should be inspected before installation in critical electrical equipment.

Quality Inspection

Quality control for epoxy insulation sheets may include:

Testing should be performed according to the applicable standard and material specification.

Storage of Epoxy Insulation Sheets

Proper storage helps maintain material quality.

Recommended general practices include:

• Store in a clean and dry environment

• Avoid excessive humidity

• Keep sheets flat where appropriate

• Prevent mechanical deformation

• Protect from direct contamination

• Avoid unnecessary exposure to chemicals

• Keep machined components protected

Before use, the material should be inspected for moisture, contamination, damage, and dimensional changes.

Packaging Considerations

Rigid epoxy sheets can be heavy and relatively brittle at thin edges.

Packaging should protect against:

• Impact

• Scratching

• Edge damage

• Bending

• Moisture

• Contamination

Machined components may require additional protective packaging around holes, corners, and thin sections.

Custom Epoxy Insulation Components

A major advantage of epoxy fiberglass sheet is its ability to be fabricated into custom shapes.

Typical custom products include:

• Insulating plates

• Phase barriers

• Busbar supports

• Electrical separators

• Mounting plates

• Terminal barriers

• Spacer rings

• Insulating brackets

• Custom electrical fixtures

A technical drawing can define the exact requirements.

Useful drawing information includes:

• Material grade

• Thickness

• Overall dimensions

• Hole locations

• Hole diameter

• Tolerance

• Chamfer dimensions

• Corner radius

• Surface requirements

• Quantity

CNC Machining Advantages

CNC machining provides accurate repeatability for electrical insulation components.

Advantages include:

• Consistent dimensions

• Complex geometry

• Repeatable hole positions

• Accurate slots

• Controlled chamfers

• Custom profiles

• Suitable production repeatability

For high-volume production, optimized tooling and machining parameters can improve production efficiency.

Environmental Considerations

Switchgear can operate under demanding environmental conditions.

Potential factors include:

• High humidity

• Low temperature

• High temperature

• Dust

• Salt contamination

• Industrial pollution

• Condensation

• Vibration

• Chemical exposure

Epoxy fiberglass laminate generally offers good environmental stability, but the selected grade should match the actual application.

Outdoor switchgear may have significantly different insulation requirements from indoor electrical cabinets.

Advantages and Limitations

Advantages

• High rigidity

• Good electrical insulation

• Good dimensional stability

• Low moisture absorption

• Good mechanical strength

• Good machinability

• Multiple thickness options

• Customizable geometry

• Suitable for structural insulation

• Suitable for electrical barriers

• Available in flame-retardant grades

Limitations

• Limited flexibility

• More difficult to bend than polymer film

• Glass fibers can accelerate tool wear

• Machining may produce fiberglass dust

• Not every grade is suitable for high-temperature service

• Not every grade has the same flame classification

• Material grade must be verified

• Surface contamination can affect high-voltage insulation

• The sheet alone does not determine complete equipment insulation performance

Epoxy Sheet Selection Guide

A practical selection process can include the following steps.

Step 1: Determine the Electrical Requirement

Identify:

• Working voltage

• Transient voltage

• Impulse conditions

• Required insulation level

Step 2: Determine the Mechanical Requirement

Identify:

• Load

• Support span

• Fastener arrangement

• Vibration

• Impact

• Fault forces

Step 3: Determine Thickness

Select a thickness that provides the required mechanical rigidity and physical separation.

Step 4: Select Material Grade

Compare:

• FR-4

• G10

• G10/FR-4

• 3240

• Other application-specific epoxy laminates

Step 5: Verify Thermal Performance

Check:

• Continuous temperature

• Short-term temperature

• Thermal expansion

• Dimensional stability

Step 6: Verify Environmental Performance

Consider:

• Humidity

• Water exposure

• Pollution

• Chemical exposure

• Outdoor conditions

Step 7: Determine Machining Requirements

Define:

• Holes

• Slots

• Chamfers

• Countersinks

• Profiles

• Tolerances

Typical Technical Data Reference

These values are indicative. The exact material certificate should be used for engineering approval.

Common Questions About Epoxy Sheet for Switchgear Insulation

Is epoxy sheet suitable for high voltage insulation?

Suitable grades can be used for high-voltage insulation components, but the suitability depends on the complete electrical design. Voltage rating, creepage, clearance, temperature, contamination, and applicable standards must all be considered.

Is FR-4 the same as epoxy sheet?

FR-4 is a specific family of flame-retardant glass fiber epoxy laminate. "Epoxy sheet" is a broader description and may include FR-4, G10, 3240, and other epoxy-based laminates.

Can epoxy sheet replace PC insulation film?

Not in every application. Epoxy sheet is rigid and structural, while PC film is flexible and suitable for thin insulation. They serve different purposes.

Can epoxy sheet be CNC machined?

Yes. It can commonly be drilled, routed, cut, chamfered, and countersunk with appropriate tooling.

Is FR-4 waterproof?

FR-4 has relatively low water absorption, but it should not be considered completely waterproof. Environmental exposure and assembly design still matter.

What thickness is suitable for switchgear?

There is no universal thickness. Thickness must be selected according to electrical spacing, mechanical loads, installation space, and applicable standards. Industrial sheets are available in many thicknesses, including approximately 0.5–10 mm.

Is 3240 suitable for electrical insulation?

3240 epoxy glass laminate is widely used for electrical insulation and mechanical support. Whether it is suitable for a specific switchgear application depends on the required electrical, thermal, mechanical, and flame-retardant performance.

Conclusion

Epoxy Sheet for Switchgear Insulation is a versatile rigid insulation material for electrical equipment requiring a combination of electrical insulation, mechanical rigidity, dimensional stability, and machinability. E-glass fiber reinforced epoxy laminate can be fabricated into busbar supports, phase barriers, insulating plates, terminal separators, mounting boards, spacers, and other structural electrical insulation components.

FR-4, G10, G10/FR-4, and 3240 are among the commonly encountered epoxy fiberglass laminate grades. FR-4 is particularly useful where flame-retardant performance is required, while G10 is widely recognized for high mechanical and electrical performance. Traditional 3240 epoxy laminate remains relevant in many industrial electrical insulation applications.

For switchgear and high-voltage equipment, material selection should not rely solely on nominal dielectric strength or thickness. A reliable insulation system requires consideration of clearance, creepage distance, operating voltage, impulse conditions, temperature, humidity, contamination, mechanical forces, flame resistance, arc exposure, surface condition, and manufacturing tolerances.

The difference between rigid epoxy sheet and flexible PC insulation film is also important. Epoxy fiberglass sheet is designed for applications where the insulation component must retain its shape and potentially provide mechanical support. PC film is more appropriate where thin, flexible, conformal insulation is required.

With appropriate material selection, thickness, machining, installation, and electrical design, epoxy fiberglass sheet can provide a practical solution for rigid insulation in switchgear, power distribution equipment, industrial electrical systems, battery PACK structures, testing fixtures, and other high-performance electrical applications.
