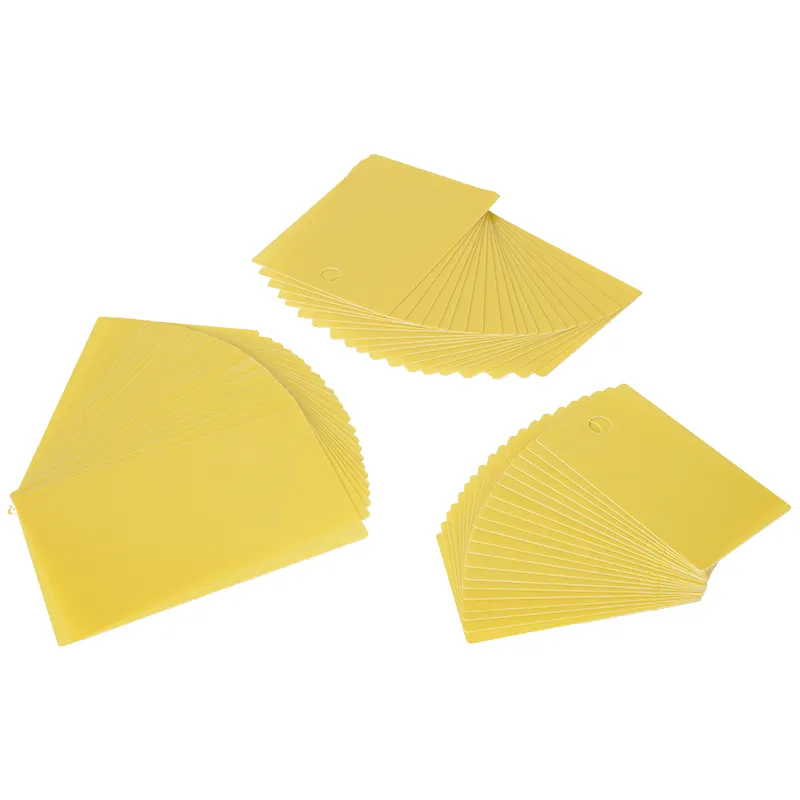

Epoxy Sheet for Circuit Boards is a high-performance electrical insulation and structural laminate widely used in printed circuit boards, electrical equipment, electronic assemblies, industrial control systems, battery modules, power equipment, and precision insulating components. Also known as an Epoxy Board, Epoxy Fiberglass Sheet, FR-4 Sheet, Glass Epoxy Sheet, or, in certain industrial markets, 3240 Epoxy Sheet, this material combines the mechanical strength of woven glass fiber with the electrical insulation and dimensional stability of cured epoxy resin.
Epoxy Sheet (Epoxy Board / FR-4 Sheet) is a commonly used high-rigidity insulating support and separator material in lithium battery modules. It serves a different function from PC Mylar sheets, which are generally used for thin flexible insulation, barley paper, which is often used for cell cushioning and electrical isolation, and Nomex, which is selected when high-temperature insulation performance is particularly important.
The basic construction of a conventional glass epoxy sheet consists of E-glass fiber cloth impregnated with epoxy resin, followed by controlled hot pressing and curing. The resulting laminate has a rigid structure with excellent electrical insulation, good mechanical strength, low moisture absorption, dimensional stability, and resistance to many chemicals and environmental conditions.
In circuit board applications, Epoxy Sheet is especially important because it provides a stable insulating substrate for copper circuits and electronic components. FR-4 is one of the most widely recognized glass-reinforced epoxy laminate materials used in printed circuit board manufacturing.
For industrial applications, however, it is important to distinguish between the general term "epoxy sheet" and specific grades such as FR-4 and 3240. Different grades can have different resin systems, glass cloth constructions, electrical characteristics, thermal properties, flame-retardant performance, mechanical strength, and applicable standards.
This guide explains the construction, characteristics, advantages, specifications, applications, selection factors, manufacturing process, and common uses of Epoxy Sheet for Circuit Boards and related electrical insulation applications.
1. What Is Epoxy Sheet for Circuit Boards?
Epoxy Sheet for Circuit Boards is a rigid laminate manufactured by combining reinforcing glass fiber material with an epoxy resin system. The glass fiber provides mechanical reinforcement, while the epoxy resin bonds the individual layers together and provides electrical insulation.
The material is generally produced in sheet form and can subsequently be cut, drilled, milled, punched, routed, laminated, or otherwise machined according to the requirements of the final application.
In printed circuit board manufacturing, FR-4 epoxy fiberglass laminate is widely used as a substrate for copper-clad laminates. Copper foil can be bonded to one or both sides of the insulating laminate to create a material suitable for circuit fabrication.
The basic structure can be represented as:
E-glass fiber cloth + epoxy resin + controlled lamination and curing = rigid epoxy fiberglass sheet
When copper foil is added to the laminate, the material becomes a copper-clad laminate suitable for PCB manufacturing.
An Epoxy Sheet without copper cladding can also be used independently as an insulating structural component. Typical examples include electrical barriers, terminal supports, insulating washers, spacers, mounting plates, busbar supports, battery module separators, and mechanical insulation components.
2. Epoxy Sheet, Epoxy Board, FR-4 Sheet, and 3240 Epoxy Sheet
The terminology surrounding epoxy fiberglass sheets can sometimes be confusing because different industries and regions use different names.
"Epoxy Sheet" is a broad descriptive term for a rigid sheet material based on epoxy resin and reinforcement, often glass fiber.
"Epoxy Board" generally refers to a rigid epoxy-based insulating board. In many industrial markets, the term is used interchangeably with glass epoxy sheet.
This name emphasizes the combination of fiberglass reinforcement and epoxy resin.
FR-4 refers to a recognized flame-retardant grade of glass-reinforced epoxy laminate widely associated with printed circuit boards and electrical insulation.
3240 is a traditional industrial designation commonly encountered in the Chinese Electrical Insulation Materials market. It generally describes a glass cloth reinforced epoxy laminate with electrical insulation properties.
Although 3240 and FR-4 may appear similar in physical construction and applications, they should not automatically be treated as identical materials. The exact resin system, flame-retardant characteristics, testing standards, temperature rating, electrical properties, and manufacturing requirements should be confirmed from the material specification.
3. Basic Material Construction
The performance of an epoxy fiberglass sheet is determined by its raw materials, fiber architecture, resin formulation, pressing conditions, curing process, thickness, and final machining.
The main components are:
E-glass fiber cloth
Epoxy resin
Curing agents
Flame-retardant additives when required
Processing additives
Copper foil when supplied as copper-clad laminate
E-glass fiber is the primary reinforcement used in many electrical-grade epoxy laminates.
The glass fibers are woven into cloth and arranged in a controlled structure. The woven reinforcement provides tensile strength, flexural strength, dimensional stability, and resistance to deformation.
Compared with an unreinforced resin sheet, glass-reinforced epoxy laminate can provide significantly higher mechanical rigidity and structural stability.
Epoxy resin acts as the matrix material that surrounds and bonds the glass fibers.
After curing, the epoxy system forms a rigid thermoset structure. Unlike thermoplastic materials, a fully cured epoxy laminate does not normally soften and flow in the same manner when reheated.
The resin contributes to:
Electrical insulation
Chemical resistance
Adhesion
Mechanical bonding
Dimensional stability
Moisture resistance
Thermal performance
The proportion of glass reinforcement to resin influences the final properties of the sheet.
A higher glass content can influence stiffness, strength, dimensional stability, and machining characteristics, while the resin content affects electrical insulation, surface characteristics, and laminate density.
The exact construction depends on the intended application and thickness.
4. How Epoxy Fiberglass Sheet Is Manufactured
The production of Epoxy Sheet involves several controlled stages.
E-glass fiber is processed into woven glass cloth. The cloth is cleaned, treated, and prepared for resin impregnation.
The epoxy resin system is formulated with the required curing agents and additives.
For FR-4 materials, the formulation may include flame-retardant components designed to meet applicable flammability requirements.
The glass cloth is impregnated with epoxy resin.
The goal is to distribute resin consistently throughout the glass reinforcement while maintaining the required resin content.
The impregnated glass cloth can be partially cured into a controlled intermediate material commonly known as prepreg.
Prepreg can then be stacked into multiple layers according to the required laminate construction.
Multiple glass cloth layers are stacked to achieve the desired thickness and mechanical structure.
The orientation and construction of the layers influence the final laminate properties.
The stacked material is subjected to heat and pressure.
During hot pressing, the epoxy resin flows between the glass fibers and bonds the layers together.
The epoxy resin undergoes chemical cross-linking and becomes a rigid thermoset matrix.
Controlled curing is essential for achieving consistent electrical, mechanical, and thermal performance.
The laminate is cooled under controlled conditions to reduce internal stress and maintain dimensional stability.
The sheet can be sanded, polished, trimmed, or otherwise finished depending on the application.
Finished sheets can be supplied in standard dimensions or cut into customized shapes.
Common machining processes include:
CNC routing
Drilling
Saw cutting
Milling
Punching
Slotting
Edge trimming
5. Why FR-4 Is Widely Used for Circuit Boards
FR-4 has become a standard material family for many printed circuit board applications because it offers a balanced combination of electrical insulation, mechanical rigidity, thermal performance, dimensional stability, processability, and cost.
A PCB substrate must perform several functions simultaneously.
It must:
Electrically isolate conductive circuits.
Provide mechanical support for copper traces.
Maintain dimensional stability during processing.
Withstand soldering and assembly temperatures.
Resist moisture to an appropriate degree.
Support mechanical drilling and routing.
Maintain structural integrity during service.
FR-4 is particularly suitable because glass reinforcement provides rigidity while the epoxy matrix provides insulation and bonding.
6. Key Properties of Epoxy Sheet for Circuit Boards
One of the most important characteristics of epoxy fiberglass sheet is its high electrical insulation capability.
The cured epoxy resin and glass reinforcement form a dielectric structure that can electrically isolate conductive components.
This makes the material useful for:
PCB substrates
Electrical barriers
Insulating spacers
Terminal boards
Busbar supports
Motor insulation
Transformer insulation
Battery module insulation
Electrical properties vary according to grade, thickness, moisture condition, temperature, and test method.
Compared with flexible plastic insulation films, epoxy fiberglass sheets are substantially more rigid.
This rigidity allows them to function as structural insulating components rather than simply thin dielectric barriers.
They can support:
Electronic components
Copper conductors
Busbars
Battery cells
Electrical terminals
Mounting hardware
Dimensional stability is important in circuit board manufacturing and precision electrical assemblies.
Glass fiber reinforcement helps limit deformation and dimensional changes.
This is particularly valuable when the material must maintain accurate hole locations, mounting positions, or separation distances.
Epoxy fiberglass laminates can withstand temperatures significantly higher than many common flexible plastic films.
The actual operating temperature depends on the grade, resin system, laminate construction, duration of exposure, and application environment.
FR-4 materials are commonly selected for electronic assemblies where the substrate must tolerate elevated processing and operating temperatures.
FR-4 is associated with flame-retardant glass-reinforced epoxy laminate.
The exact flame-retardant classification must be confirmed from the specific material documentation.
This property is particularly important for electronic and electrical assemblies where reducing the spread of combustion is part of the safety design.
Cured epoxy resin generally provides resistance to a variety of chemicals and environmental substances.
However, resistance varies according to chemical concentration, exposure time, temperature, and resin formulation.
For demanding chemical environments, application-specific compatibility testing is recommended.
7. Typical Specification Range
The following table provides a general reference for commonly encountered epoxy fiberglass sheet specifications. Actual values vary by grade and manufacturer.
| Property | Typical Description |
|---|---|
| Base reinforcement | E-glass fiber cloth |
| Resin system | Epoxy resin |
| Material type | Rigid thermoset laminate |
| Common grade | FR-4 |
| Traditional industrial grade | 3240 |
| Appearance | Smooth rigid sheet |
| Color | Commonly green, natural, yellowish, or customized |
| Thickness | Commonly available from thin sheets to several millimeters |
| Form | Flat rigid sheet |
| Electrical insulation | High |
| Mechanical rigidity | High |
| Dimensional stability | Good to excellent |
| Moisture resistance | Good |
| Chemical resistance | Good, depending on exposure |
| Flame retardancy | Available in FR-4 grades |
| Machinability | Good with suitable tools |
| Surface | Smooth, hard, and rigid |
| Reinforcement | Woven glass fiber |
| Matrix | Cured epoxy resin |
The table is intended for general material selection rather than a guaranteed technical specification.
8. Common Thicknesses of Epoxy Sheet
Epoxy fiberglass sheets are available in many thicknesses.
Thin sheets may be selected for electrical barriers where limited space is available.
Medium-thickness sheets are frequently used for structural electrical insulation.
Thicker sheets can be used for:
Mechanical support
Busbar supports
Battery module separators
Mounting plates
Insulating Brackets
Structural electrical components
Thickness selection depends on electrical clearance, mechanical load, available space, machining requirements, and thermal conditions.
For circuit boards, the substrate thickness also influences impedance, mechanical stiffness, drilling requirements, and overall PCB construction.
9. Epoxy Sheet for Printed Circuit Boards
The most recognized application of FR-4 epoxy laminate is printed circuit board manufacturing.
A typical rigid PCB consists of layers of copper foil, glass-reinforced epoxy laminate, and additional insulating structures.
Depending on the PCB design, the board can be:
Single-sided
Double-sided
Multilayer
In a multilayer PCB, several copper layers are separated by dielectric material.
The epoxy fiberglass substrate provides mechanical support while maintaining electrical isolation between conductive layers.
10. Single-Sided Circuit Boards
A single-sided PCB generally has conductive copper circuitry on one side of the insulating substrate.
FR-4 can provide the rigid base required to maintain the shape of the circuit board.
Typical applications include:
Simple control circuits
Consumer electronics
Industrial control panels
Power supply boards
Basic electronic modules
LED control assemblies
The selection of board thickness depends on the mechanical and electrical requirements.
11. Double-Sided Circuit Boards
Double-sided PCBs contain conductive copper layers on both sides of the insulating substrate.
FR-4 provides the dielectric separation between the two conductive surfaces.
Through-hole structures and plated vias can electrically connect circuits between layers.
The material therefore plays both a mechanical and electrical role.
12. Multilayer Circuit Boards
Multilayer circuit boards contain multiple conductive and insulating layers.
FR-4-based laminate and prepreg are commonly used to build multilayer structures.
The dielectric layers must provide:
Electrical isolation
Mechanical bonding
Dimensional stability
Suitable dielectric characteristics
Compatibility with lamination
Appropriate thermal performance
The thickness and construction of each dielectric layer can influence electrical performance and PCB manufacturing quality.
13. Epoxy Sheet as an Electrical Insulation Material
Epoxy fiberglass sheets are widely used beyond PCB substrates.
Their combination of rigidity and electrical insulation makes them suitable for structural insulation.
Typical components include:
Spacers can maintain a controlled distance between electrical components.
Machined epoxy laminate can be produced into washers for electrical isolation around bolts and mounting hardware.
Rigid epoxy boards can support terminals and electrical connection points.
Busbars carrying high current require reliable mechanical support and electrical separation.
Epoxy fiberglass sheets can be machined into brackets and support plates.
Flat sheet material can be installed between conductive components to provide electrical separation.
14. Epoxy Sheet in Lithium Battery Modules
Epoxy Sheet is also used in lithium battery modules where rigid electrical insulation and mechanical support are required.
In battery module construction, different Insulation Materials have different functions.
For example:
PC Mylar is commonly used as a thin flexible insulating film.
Barley paper can be used as a cushioning or insulating layer.
Nomex is selected where high-temperature electrical insulation is required.
Epoxy fiberglass sheet is selected where greater rigidity and structural support are needed.
This distinction is important.
An epoxy board should not simply be treated as a replacement for every flexible insulation material.
Its major advantage is the combination of:
Electrical insulation + rigidity + structural support + dimensional stability
15. Battery Module Separator Applications
Battery module separators may be exposed to mechanical pressure, vibration, electrical potential differences, and temperature variations.
A rigid epoxy fiberglass separator can help maintain spacing between components and provide a stable insulating barrier.
Potential uses include:
Cell separation
Busbar isolation
Module structural insulation
End plates
Support plates
Electrical barriers
Mounting components
Pack-level insulation structures
The final design must consider the battery chemistry, voltage level, thermal environment, mechanical loading, and applicable safety requirements.
16. Comparison with PC Mylar Sheet
PC Mylar-type insulation films and epoxy fiberglass sheets have significantly different characteristics.
| Feature | Epoxy Fiberglass Sheet | PC Mylar-Type Film |
|---|---|---|
| Structure | Rigid laminate | Flexible film |
| Reinforcement | Glass fiber | Polymer film |
| Rigidity | High | Low to moderate |
| Flexibility | Low | High |
| Structural support | Excellent | Limited |
| Thickness | Generally thicker | Often very thin |
| Formability | Limited | Excellent |
| Electrical insulation | Excellent | Excellent |
| Typical role | Structural insulation | Thin barrier insulation |
| Machining | Good | Limited depending on film |
| Battery use | Rigid separator/support | Flexible cell insulation |
The correct choice depends on the purpose of the component.
17. Comparison with Barley Paper
Barley paper is frequently used as a thin electrical insulating and cushioning material in battery and electrical applications.
Epoxy fiberglass sheet differs primarily in rigidity.
Barley paper can conform to surfaces and provide cushioning, whereas epoxy board maintains its shape and can provide structural support.
| Feature | Epoxy Fiberglass Sheet | Barley Paper |
|---|---|---|
| Rigidity | High | Low |
| Cushioning | Limited | Good |
| Structural support | High | Low |
| Flexibility | Low | High |
| Insulation | High | High |
| Typical battery function | Support and separation | Cushioning and insulation |
| Machining | Easy to machine | Generally cut or die-cut |
18. Comparison with Nomex Insulation
Nomex is widely recognized as a high-temperature electrical insulation material.
Epoxy fiberglass sheet offers higher structural rigidity, while Nomex products are commonly selected when thermal endurance and flexible insulation are primary requirements.
| Feature | Epoxy Fiberglass Sheet | Nomex-Type Insulation |
|---|---|---|
| Form | Rigid board | Paper or flexible material |
| Rigidity | High | Low |
| Thermal resistance | Good | Very high in appropriate grades |
| Structural support | Excellent | Limited |
| Flexibility | Low | High |
| Typical application | Rigid insulation | High-temperature insulation |
| Mechanical strength | High | Application dependent |
Material selection should always be based on the actual operating temperature and electrical requirements.
19. Advantages of Epoxy Sheet for Circuit Boards
The primary advantage is reliable electrical isolation.
Glass reinforcement significantly improves structural strength compared with unreinforced resin sheets.
The material maintains a stable shape under normal service conditions.
Glass fiber reinforcement reduces dimensional deformation.
Appropriate grades can withstand elevated temperatures associated with electronic manufacturing and operation.
FR-4 grades provide flame-retardant characteristics required by many electronic applications.
The sheet can be drilled, cut, routed, and milled with suitable equipment.
The material can be used for both circuit board substrates and standalone electrical insulation components.
20. Surface Characteristics
The surface of an epoxy fiberglass sheet is generally hard and relatively smooth.
Surface quality can affect:
Adhesive bonding
Copper lamination
Printing
Coating
Electrical insulation
Machining
Visual appearance
For PCB applications, surface cleanliness and compatibility with copper-clad processing are especially important.
For mechanical insulation components, surface finish may be less critical unless the component must bond to another material.
21. Moisture Absorption
Moisture absorption is an important consideration for electrical insulation materials.
Glass epoxy laminates generally have relatively good resistance to moisture compared with many porous Insulating Materials.
However, moisture can still influence:
Dielectric properties
Dimensional stability
Mechanical strength
Soldering behavior
Long-term reliability
Storage conditions should therefore be controlled when material is intended for precision PCB manufacturing.
22. Thermal Expansion
All materials experience dimensional changes with temperature.
The glass reinforcement in epoxy fiberglass laminate helps control thermal expansion.
This is particularly important for PCBs because copper and dielectric materials have different coefficients of thermal expansion.
During heating and cooling cycles, excessive mismatch can contribute to mechanical stress.
Appropriate laminate selection is therefore important for demanding multilayer PCB applications.
23. Dielectric Properties
For electrical and PCB applications, dielectric performance is a critical factor.
Important parameters may include:
Dielectric constant
Dissipation factor
Dielectric strength
Insulation resistance
Surface resistance
Volume resistivity
These values can vary with:
Frequency
Temperature
Moisture
Resin content
Glass construction
Material grade
Test method
For high-frequency circuits, standard FR-4 may not always be the ideal choice, and specialized low-loss laminates may be required.
24. Dielectric Strength
Dielectric strength indicates the ability of an insulating material to withstand an electric field without electrical breakdown.
Epoxy fiberglass laminates can provide high dielectric strength when correctly manufactured and used under appropriate environmental conditions.
However, actual performance depends on:
Material thickness
Moisture
Surface condition
Temperature
Applied voltage
Test configuration
Manufacturing quality
Therefore, dielectric strength should be considered together with creepage and clearance requirements.
25. Insulation Resistance
Insulation resistance measures how effectively the material resists unwanted electrical current.
High insulation resistance is essential in circuit boards and electrical insulation components.
Poor material quality, moisture, contamination, surface damage, or excessive temperature can reduce insulation resistance.
Clean manufacturing and proper storage can help preserve electrical performance.
26. Flame Retardancy
FR-4 is generally associated with flame-retardant epoxy fiberglass laminate.
Flame-retardant performance can be especially important in:
Consumer electronics
Industrial electronics
Power equipment
Control systems
Battery assemblies
Electrical cabinets
The exact classification should always be verified against the technical documentation for the specific grade.
27. Mechanical Machining
Epoxy fiberglass sheet can be machined into complex insulating components.
Common processes include:
CNC machining
Routing
Drilling
Saw cutting
Milling
Slotting
Chamfering
Edge trimming
Because the material contains glass fiber, machining generates abrasive dust and can wear cutting tools.
Appropriate tooling, ventilation, dust extraction, and process control are important in industrial machining.
28. Drilling Epoxy Fiberglass Sheet
Drilling is common in both PCB production and mechanical insulation fabrication.
The drilling process may be used to create:
Mounting holes
Through-holes
Ventilation holes
Fastener holes
Alignment holes
Connector openings
Tool selection and drilling parameters should be adjusted to the laminate thickness and construction.
Improper drilling can cause delamination, rough holes, cracking, or excessive tool wear.
29. Cutting Epoxy Sheet
Epoxy fiberglass sheets can be cut into custom shapes.
Industrial cutting methods include:
Circular saw cutting
CNC routing
Milling
Waterjet cutting in suitable applications
Specialized punching processes
The appropriate process depends on sheet thickness, tolerance, production volume, and geometry.
30. Adhesive Bonding
Epoxy fiberglass sheet can be bonded to metals, plastics, ceramics, and other materials using suitable adhesives.
Bonding performance depends on:
Surface preparation
Adhesive selection
Surface roughness
Temperature
Pressure
Curing conditions
Environmental exposure
For structural applications, adhesive compatibility should be validated through testing.
31. Epoxy Sheet for Busbar Insulation
Busbars are conductive metal components used for power distribution.
Because busbars can carry substantial electrical current, reliable insulation and mechanical separation are essential.
Epoxy fiberglass sheet can be machined into:
Busbar supports
Insulating barriers
Mounting plates
Spacers
Terminal supports
Protective shields
The rigid construction helps maintain stable positioning of the conductive components.
32. Epoxy Sheet for Motor and Transformer Components
Electrical motors, generators, transformers, and other electromagnetic equipment often require rigid insulating components.
Epoxy fiberglass sheet may be used for:
Insulating plates
Terminal supports
Spacers
Wedges
Barriers
Structural components
The material can withstand mechanical forces while maintaining electrical isolation.
33. Industrial Control Equipment
Industrial control systems often contain:
Relays
Contactors
Terminals
Busbars
Circuit boards
Power modules
Epoxy insulation boards can provide rigid support and electrical isolation for these components.
They can also be machined into custom brackets and mounting structures.
34. Power Electronics Applications
Power electronics equipment can generate substantial heat and electrical stress.
Epoxy fiberglass materials may be used as structural insulation around:
Power modules
Busbars
Heat sinks
Terminals
Switchgear
Inverters
Converters
For high-temperature applications, the specific resin system and thermal rating should be evaluated carefully.
35. Battery Pack Applications
In battery packs, rigid insulating materials may be required to separate electrical conductors and structural components.
Epoxy fiberglass sheet can be used for:
Cell separators
Insulating barriers
Busbar supports
End plates
Module separators
Mounting plates
Structural insulation
The selected thickness should account for voltage, mechanical load, available installation space, and required insulation distance.
36. Factors to Consider When Selecting Epoxy Sheet
Selecting an epoxy fiberglass sheet should involve more than simply choosing a thickness.
Important factors include:
Determine whether the application requires general epoxy laminate, 3240, FR-4, or another specialized grade.
Choose a thickness based on electrical and mechanical requirements.
Consider dielectric strength, insulation resistance, dielectric constant, and other relevant characteristics.
Consider both continuous operating temperature and short-term temperature exposure.
For electrical equipment, determine whether a specific flame-retardant classification is required.
Consider tensile strength, flexural strength, compressive strength, and impact requirements.
For precision components, thermal and moisture-related dimensional changes should be considered.
If the sheet will be CNC machined, tooling and machining characteristics are important.
Surface requirements depend on whether the material will be bonded, coated, laminated, or used as a standalone component.
37. General Technical Specification Checklist
| Specification | Why It Matters |
|---|---|
| Material grade | Determines overall performance |
| Thickness | Influences insulation and rigidity |
| Glass cloth construction | Influences strength and stability |
| Resin system | Influences thermal and electrical properties |
| Dielectric strength | Indicates electrical insulation capability |
| Insulation resistance | Indicates resistance to leakage current |
| Flame rating | Important for fire safety |
| Flexural strength | Indicates mechanical load capability |
| Tensile strength | Indicates structural strength |
| Water absorption | Indicates moisture sensitivity |
| Thermal performance | Determines operating temperature suitability |
| Dimensional stability | Important for precision assemblies |
| Surface quality | Affects bonding and processing |
| Machining tolerance | Important for custom parts |
| Sheet dimensions | Affects manufacturing efficiency |
38. Standard Sheet Sizes
Epoxy fiberglass laminate is available in various sheet dimensions.
Large sheets can improve material utilization for industrial cutting operations, while smaller sheets may be more convenient for low-volume production.
Typical purchasing specifications may include:
Length
Width
Thickness
Tolerance
Flatness
Surface finish
Color
Material grade
For CNC machining, larger sheet sizes can reduce material waste when multiple components are nested efficiently.
39. Thickness Tolerance
Thickness tolerance is important for precision electrical components.
Variations in thickness can influence:
Electrical clearance
Mechanical dimensions
Assembly fit
Lamination thickness
PCB impedance
Mounting geometry
The required tolerance should be defined according to the final application.
High-precision electronic applications may require tighter control than general mechanical insulation applications.
40. Color of Epoxy Fiberglass Sheet
Epoxy fiberglass sheet is commonly available in several colors.
FR-4 is often associated with green, but other colors can also be supplied.
Color is generally an identification or aesthetic feature rather than the primary determinant of performance.
Material selection should be based on technical specifications rather than color alone.
41. Storage Recommendations
Proper storage helps maintain material quality.
General storage practices include:
Store sheets in a clean and dry environment.
Avoid prolonged exposure to high humidity.
Keep material flat to reduce warping.
Protect surfaces from contamination.
Avoid unnecessary mechanical impact.
Maintain original packaging where practical.
Prevent contact with corrosive substances.
PCB-grade materials may have additional storage and moisture-management requirements.
42. Packaging and Handling
Because epoxy fiberglass sheet is rigid but can still be damaged by impact or improper handling, packaging should protect edges and surfaces.
Suitable packaging may include:
Protective film
Moisture-resistant wrapping
Reinforced cartons
Wooden cases for large sheets
Edge protection
Palletized packaging
Handling should prevent bending, cracking, chipping, and surface contamination.
43. Common Defects
Potential defects in epoxy fiberglass sheet can include:
Delamination
Cracks
Voids
Surface scratches
Resin-rich areas
Resin-starved areas
Uneven thickness
Warping
Fiber exposure
Edge chipping
Contamination
Quality control should inspect the sheet according to the requirements of the intended application.
44. Delamination
Delamination occurs when layers within a laminate lose their intended bonding.
Possible causes include:
Improper impregnation
Inadequate curing
Excessive mechanical stress
Thermal cycling
Poor manufacturing control
Improper machining
Delamination can reduce both mechanical integrity and electrical reliability.
45. Why Glass Fiber Matters
Glass fiber is not simply a filler.
It is a structural reinforcement that provides a major portion of the mechanical strength and dimensional stability of the laminate.
The woven structure distributes loads through the laminate and helps reduce deformation.
This is one reason glass epoxy sheets perform differently from solid plastic sheets.
46. Epoxy Sheet Versus Pure Epoxy Resin Sheet
A pure epoxy resin sheet contains no woven glass reinforcement.
It can provide useful electrical insulation, but its mechanical behavior is different from glass-reinforced epoxy laminate.
Glass fiber reinforcement generally provides:
Greater rigidity
Higher mechanical strength
Better dimensional stability
Better resistance to deformation
For structural electrical insulation, glass epoxy laminate is often preferred.
47. Epoxy Sheet Versus Phenolic Board
Phenolic insulation boards are another type of electrical insulating material.
Compared with phenolic boards, glass epoxy laminate generally provides a stronger combination of mechanical strength, dimensional stability, and electrical performance.
However, material selection depends on application requirements and cost considerations.
48. Epoxy Sheet Versus G10
G10 is a glass fiber and epoxy laminate material with strong mechanical and electrical insulation characteristics.
FR-4 is closely related to G10 but includes flame-retardant characteristics in its recognized material classification.
The exact differences depend on the applicable material standard and formulation.
For applications involving fire safety requirements, FR-4 may be preferred over a non-flame-retardant G10 material.
49. Applications in Electronic Manufacturing
Epoxy fiberglass sheets can be used throughout electronic manufacturing.
Common applications include:
Printed circuit boards
Insulating plates
Component supports
Terminal boards
Electrical brackets
Spacers
Mounting plates
Protective barriers
Test fixtures
Assembly fixtures
Its rigidity makes it especially useful where the insulation component must also maintain mechanical geometry.
50. Applications in Industrial Equipment
Industrial equipment often requires durable insulating components that can withstand mechanical loading.
Typical applications include:
Switchgear
Control cabinets
Transformers
Motors
Generators
Inverters
Power supplies
Industrial controllers
Electrical distribution equipment
The material can be machined into custom parts to match specific equipment designs.
51. Applications in Renewable Energy Equipment
Epoxy fiberglass insulation can also be used in renewable energy equipment.
Potential applications include:
Solar power electronics
Energy storage systems
Battery packs
Inverters
Power conversion systems
Electrical control cabinets
The combination of insulation and mechanical strength can be useful in compact electrical assemblies.
52. Applications in Automotive Electronics
Automotive electronic systems require materials that can withstand vibration, temperature changes, electrical stress, and limited installation space.
Epoxy fiberglass laminate may be incorporated into:
Battery modules
Electronic control assemblies
Power distribution components
Insulating barriers
Mounting structures
Busbar supports
The final material grade should be selected according to automotive-specific environmental and reliability requirements.
53. Applications in Aerospace and Transportation
Electrical insulation materials used in transportation systems may require strict control over mechanical, electrical, thermal, and fire-related characteristics.
Specialized epoxy fiberglass laminates can be used in selected structural and electrical insulation applications.
The required material standard must be established before use in regulated transportation systems.
54. PCB Manufacturing Process Compatibility
FR-4 epoxy laminate is compatible with many common PCB manufacturing processes.
These may include:
Copper lamination
Drilling
Plating
Etching
Routing
Soldering
Component assembly
Surface finishing
Material quality and construction consistency are important because PCB manufacturing involves multiple thermal, chemical, and mechanical processes.
55. Soldering and Thermal Processing
PCB assemblies may be exposed to elevated temperatures during soldering.
The laminate must maintain adequate dimensional stability and structural integrity during these processes.
Modern electronic manufacturing can involve:
Reflow soldering
Wave soldering
Selective soldering
Hot-air processing
Component rework
The suitable laminate grade depends on the thermal profile and application requirements.
56. High-Frequency Circuit Considerations
Standard FR-4 is suitable for many general-purpose circuits.
However, high-frequency circuits can require more specialized dielectric materials.
Important characteristics include:
Stable dielectric constant
Low dissipation factor
Controlled thickness
Low dielectric loss
Consistent glass/resin construction
For high-speed and high-frequency PCB applications, the material should be selected according to signal integrity requirements rather than simply choosing a general-purpose FR-4 sheet.
57. High-Voltage Applications
High-voltage systems require careful consideration of insulation thickness, dielectric strength, creepage, clearance, contamination, and environmental conditions.
Epoxy fiberglass sheet can be useful as a rigid insulating barrier.
However, material thickness alone does not guarantee safe high-voltage performance.
The complete electrical design must consider:
Working voltage
Transient voltage
Surface contamination
Humidity
Temperature
Creepage distance
Clearance
Material dielectric strength
58. Electrical Clearance and Creepage
In electrical assemblies, air distance and surface distance are both important.
A rigid epoxy sheet can provide a physical barrier, but the overall design must still maintain suitable creepage and clearance distances.
Edges, holes, slots, fasteners, and contamination can all influence electrical safety.
59. Environmental Resistance
Epoxy fiberglass sheets can perform well in many industrial environments.
Resistance may be required against:
Moisture
Heat
Dust
Chemicals
Vibration
Mechanical stress
Electrical stress
The exact environmental resistance depends on the laminate grade and service conditions.
60. Long-Term Reliability
Long-term reliability depends on material quality and application design.
Factors affecting service life include:
Continuous temperature
Thermal cycling
Humidity
Electrical voltage
Mechanical stress
Chemical exposure
UV exposure
Installation conditions
Manufacturing quality
Material testing under actual or simulated operating conditions can help establish reliability.
61. Quality Control
Quality control for epoxy fiberglass sheet may include:
Checking for cracks, delamination, scratches, contamination, and surface defects.
Measuring length, width, thickness, flatness, and tolerance.
Testing insulation resistance, dielectric strength, and other electrical parameters.
Testing flexural, tensile, compressive, or impact characteristics when required.
Evaluating thermal resistance and dimensional behavior.
For FR-4 products, appropriate flame-retardant classification testing may be performed.
62. Custom Epoxy Sheet Fabrication
Industrial users may require custom-cut or machined epoxy fiberglass components.
Customization can include:
Custom dimensions
Holes
Slots
Cutouts
Grooves
Chamfers
Rounded corners
CNC-machined profiles
Custom fabrication can reduce assembly time and eliminate additional machining by the end user.
63. CNC Machined Epoxy Board Components
CNC machining is suitable for producing precision insulating components from epoxy fiberglass laminate.
Possible components include:
Mounting brackets
Electrical barriers
Insulating plates
Busbar supports
Battery separators
Terminal supports
Spacers
Fixtures
Designers should account for the abrasive nature of glass fiber when selecting machining tools and tolerances.
64. Design Considerations
When designing an epoxy fiberglass component, engineers should consider:
Required thickness.
Mechanical loading.
Electrical voltage.
Creepage distance.
Clearance.
Temperature.
Moisture.
Chemical exposure.
Machining tolerances.
Assembly method.
Fastener placement.
Thermal expansion.
A good design balances electrical insulation with structural requirements.
65. Choosing Between FR-4 and 3240
FR-4 and 3240 may both be described as glass epoxy laminates, but their technical specifications should not be assumed to be identical.
When selecting between them, verify:
Applicable standard
Resin formulation
Flame rating
Dielectric properties
Thermal properties
Mechanical properties
Thickness tolerance
Moisture performance
Intended application
For international PCB applications, FR-4 is generally the more familiar designation.
For traditional electrical insulation applications, 3240 may remain widely used.
66. Advantages for Circuit Board Substrates
FR-4 epoxy fiberglass sheets provide a balanced material platform for circuit board construction.
Major advantages include:
High rigidity
Good electrical insulation
Good thermal stability
Good dimensional stability
Flame-retardant grades
Mechanical durability
Broad processing compatibility
Availability in multiple thicknesses
Compatibility with multilayer construction
This combination explains why glass epoxy laminate remains widely used in electronic manufacturing.
67. Limitations of Epoxy Fiberglass Sheet
Despite its many advantages, epoxy fiberglass sheet is not suitable for every application.
Potential limitations include:
Limited flexibility
Difficult bending
Glass-fiber abrasive wear during machining
Higher density than thin polymer films
Potential dust generation during machining
Limited suitability for extreme temperatures depending on grade
Not always ideal for high-frequency circuits
Higher thickness than flexible insulation films
Understanding these limitations helps engineers select the appropriate insulation material.
68. When to Use Epoxy Sheet
Epoxy fiberglass sheet is particularly suitable when an application requires:
Rigid electrical insulation
Mechanical support
Stable dimensions
Machinable insulating components
High electrical resistance
Flame-retardant performance
Structural separation
Custom-shaped insulation
It is less suitable when the primary requirement is extreme flexibility or very thin conformable insulation.
69. Common Industrial Forms
Epoxy fiberglass materials can be supplied as:
Flat sheets
Plates
Custom-cut panels
CNC-machined parts
Copper-clad laminates
Prepreg
Laminated blocks
The appropriate form depends on whether the material is intended for PCB production or standalone insulation components.
70. Frequently Asked Questions
An epoxy sheet for circuit boards is generally a rigid glass-fiber-reinforced epoxy laminate used as an electrical insulating substrate or structural insulation component. FR-4 is one of the most common grades used in PCB applications.
FR-4 is a glass-fiber-reinforced epoxy laminate material with flame-retardant characteristics. It can therefore be described as a type of epoxy fiberglass sheet.
It is primarily made from woven E-glass fiber cloth impregnated with epoxy resin and cured under controlled heat and pressure.
3240 is a traditional industrial designation for a glass-cloth-reinforced epoxy electrical insulation laminate commonly used in electrical and mechanical insulation applications.
Not necessarily. Both are glass-reinforced epoxy laminate materials, but their specifications, resin systems, standards, flame performance, and technical properties can differ.
Yes. It can generally be cut, drilled, milled, routed, and CNC machined using suitable tools and dust-control measures.
Yes. Electrical insulation is one of its primary functions.
FR-4 has good moisture resistance, but it should not automatically be considered completely waterproof. Long-term moisture exposure can affect electrical and dimensional properties.
Yes. Rigid epoxy fiberglass sheet can be used for electrical barriers, separators, busbar supports, mounting plates, and structural insulation in battery modules, subject to the requirements of the specific battery design.
Standard glass-reinforced epoxy sheet is rigid and is not intended for applications requiring significant bending.
71. Epoxy Sheet Selection Guide
A practical selection process can follow these steps.
Determine whether the sheet will be used for:
PCB manufacturing
Electrical insulation
Battery modules
Busbar insulation
Motor insulation
Transformer components
Mechanical support
Identify:
Working voltage
Insulation requirements
Dielectric strength
Creepage
Clearance
Identify:
Continuous temperature
Short-term temperature
Thermal cycling
Soldering temperature
Consider:
Load
Vibration
Compression
Impact
Fastener stress
Machining requirements
Compare FR-4, 3240, G10, and other specialized grades according to the actual specifications.
Define:
Length
Width
Thickness
Tolerance
Flatness
Determine whether the sheet will be:
Cut
Drilled
CNC machined
Laminated
Bonded
Coated
72. Application Summary
| Application | Main Function of Epoxy Sheet |
|---|---|
| Printed circuit board | Insulating substrate |
| Multilayer PCB | Dielectric layer |
| Battery module | Rigid insulation and separation |
| Busbar assembly | Electrical barrier and support |
| Motor | Electrical insulation |
| Transformer | Structural insulation |
| Switchgear | Insulating support |
| Power electronics | Electrical isolation |
| Industrial control | Mounting and insulation |
| Electrical terminal | Structural support |
| Test fixture | Rigid insulating structure |
| Electronic assembly | Component support |
| Energy storage | Barrier and mechanical insulation |
73. Why Epoxy Sheet Remains Important in Modern Electronics
The development of increasingly compact electronic systems has increased the demand for materials that can combine multiple functions.
A modern insulating component may need to provide:
Electrical isolation
Mechanical support
Dimensional stability
Thermal resistance
Flame retardancy
Chemical resistance
Machinability
Epoxy fiberglass laminate can provide this combination in a single rigid material.
This multifunctional capability makes it useful in both traditional electrical equipment and modern electronic systems.
74. Future Applications
As electronic systems become more compact and power density increases, insulating materials will continue to play an important role.
Potential areas of continued demand include:
Electric vehicles
Battery energy storage
Industrial automation
Renewable energy
Power electronics
Data center equipment
Advanced control systems
Smart electronic devices
High-density PCB assemblies
Material development is expected to focus on improved thermal stability, lower dielectric loss, higher reliability, improved flame performance, and better dimensional control.
75. Conclusion
Epoxy Sheet for Circuit Boards is a versatile rigid electrical insulation material with a broad range of applications in electronics, electrical equipment, battery systems, power electronics, industrial controls, and PCB manufacturing.
Its basic structure combines E-glass fiber cloth and cured epoxy resin, producing a rigid laminate with excellent electrical insulation, high mechanical strength, good dimensional stability, useful thermal performance, and good machining characteristics.
Epoxy Sheet (Epoxy Board / FR-4 Sheet) is a commonly used high-rigidity insulating support and separator material in lithium battery modules. Its primary advantage in this type of application is its ability to combine electrical insulation with mechanical support. This differentiates it from PC Mylar sheets, which are typically used for thin flexible insulation; barley paper, which is commonly selected for cushioning and electrical isolation; and Nomex, which is particularly valuable where high-temperature electrical insulation is required.
For circuit board applications, FR-4 remains one of the most widely recognized glass-reinforced epoxy laminate materials. It can provide the rigid dielectric foundation required for single-sided, double-sided, and multilayer PCB construction.
For traditional electrical insulation applications, 3240 epoxy sheet is also widely encountered. Although FR-4 and 3240 share similarities, they should not automatically be considered identical. Their exact performance should be evaluated according to the applicable material specifications and standards.
When selecting Epoxy Sheet for Circuit Boards, important factors include material grade, thickness, glass cloth construction, resin system, dielectric properties, mechanical strength, thermal resistance, flame retardancy, moisture resistance, dimensional stability, surface quality, and machining requirements.
With its combination of rigidity, insulation, strength, stability, and processing flexibility, epoxy fiberglass sheet remains an important material for modern electrical and electronic manufacturing.
This website uses cookies to ensure you get the best experience on our website.
WhatsApp
Phone
