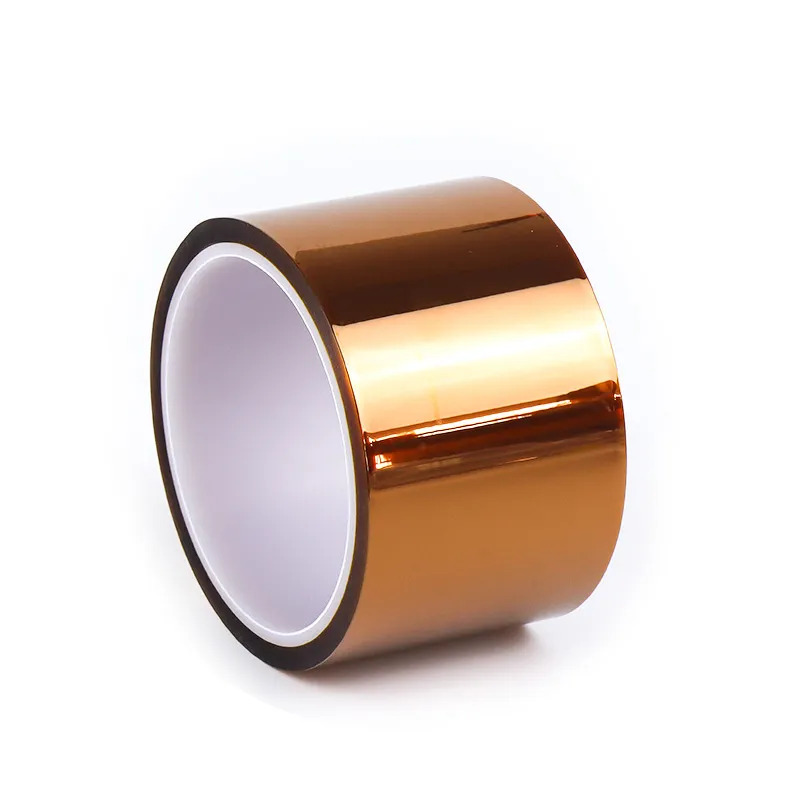

PI polyimide adhesive tape is a high temperature Insulating Adhesive Tape widely used in electronics, electrical manufacturing, lithium battery production, battery PACK assembly, semiconductor processing, transformers, motors, circuit board manufacturing, and other industrial applications where reliable insulation and thermal stability are required.
Polyimide adhesive tape is commonly known as PI tape, polyimide tape, or Kapton Tape. It consists of a thin polyimide film carrier coated with a pressure sensitive adhesive. Depending on the application, the adhesive may be an acrylic adhesive or a silicone adhesive. The combination of a dimensionally stable polyimide film and a carefully selected adhesive system allows the tape to provide electrical insulation, high temperature resistance, masking, component protection, and temporary fixation.
Compared with conventional polyester adhesive tape, polyimide adhesive tape is generally selected for applications involving higher temperatures, tighter dimensional requirements, demanding electrical insulation, or specialized manufacturing processes.
In modern electronics manufacturing, high temperature polyimide adhesive tape is especially valuable because electronic components are frequently exposed to soldering, reflow, thermal aging, chemical processing, electrical testing, and assembly operations. The tape must maintain its physical structure and adhesive performance while protecting sensitive surfaces and electrically isolating conductive components.
1. What Is Polyimide Adhesive Tape?
Polyimide adhesive tape is a pressure sensitive adhesive tape based on a polyimide film substrate. Polyimide is a high-performance polymer known for its thermal stability, electrical insulation characteristics, dimensional stability, and resistance to many industrial environments.
The basic construction normally consists of three functional layers:
Polyimide film substrate
Pressure sensitive adhesive
Release liner where required
Single-sided polyimide adhesive tape has adhesive on one side of the polyimide film. Double-sided constructions may use adhesive on both sides for specialized bonding and insulation applications.
The polyimide film provides the main thermal and electrical characteristics, while the adhesive determines adhesion, removability, chemical compatibility, temperature performance, residue behavior, and bonding reliability.
This distinction is important when selecting a high temperature polyimide adhesive tape. Two tapes may use similar polyimide film but perform differently because their adhesive formulations are different.
2. Why Polyimide Tape Is Used in Electronics
Electronic manufacturing involves many processes that expose materials to heat, pressure, chemicals, electrical fields, and mechanical stress.
Ordinary Adhesive Tapes may soften, shrink, deform, lose adhesion, or leave residue when exposed to elevated temperatures. Polyimide adhesive tape is designed for applications where greater thermal and dimensional stability is needed.
The most important advantages include:
High temperature resistance
Electrical insulation
Good dielectric performance
Dimensional stability
Thin and lightweight construction
Good mechanical strength
Resistance to many chemicals
Reliable adhesion
Clean masking performance
Low thickness options
Precision slitting capability
Compatibility with automated manufacturing
Availability in customized widths and die cut shapes
Because of these characteristics, polyimide tape is widely used for electronic component insulation, PCB masking, transformer insulation, wire wrapping, battery tab insulation, soldering protection, and high temperature masking.
3. High Temperature Performance of Polyimide Adhesive Tape
High temperature resistance is one of the main reasons manufacturers select polyimide adhesive tape instead of ordinary polyester or general-purpose adhesive tape.
The polyimide film itself can withstand significantly elevated temperatures, but the complete tape temperature rating depends on the adhesive system, thickness, surface, exposure time, pressure, and application environment.
For this reason, it is important to distinguish between the temperature resistance of the polyimide film and the recommended continuous operating temperature of the finished adhesive tape.
A polyimide film may tolerate very high temperatures, while the adhesive may have a lower recommended operating range. Therefore, a specification such as "high temperature resistant" should always be evaluated together with the actual adhesive formulation and intended process.
Typical application environments may include:
Electronic soldering
Reflow processing
Wave soldering
Coil winding
Electrical component assembly
Battery formation
Battery aging
High temperature masking
Powder coating
Thermal processing
Component protection
PCB manufacturing
For demanding applications, users should evaluate both short-term peak temperature and long-term operating temperature.
4. Electrical Insulation Properties
Polyimide is widely recognized as an electrical insulation material. Polyimide adhesive tape can provide a thin insulating barrier between conductive components.
Typical electronic insulation applications include:
Wire insulation
Coil insulation
Transformer insulation
Motor insulation
PCB insulation
Battery tab insulation
Busbar edge insulation
BMS wire isolation
Connector insulation
Component separation
High voltage area protection
The dielectric strength of a finished tape depends on film thickness, adhesive composition, manufacturing quality, humidity, temperature, test method, and other factors.
For example, a 0.06 mm polyimide adhesive tape may provide a dielectric strength of several kilovolts under a specified test method, but the exact value should always be confirmed using the product's technical specification.
Electrical insulation should not be evaluated from thickness alone. The complete construction and actual operating conditions must be considered.
5. Polyimide Adhesive Tape Structure
The polyimide film is the primary carrier of the tape.
It provides:
Thermal stability
Electrical insulation
Dimensional stability
Mechanical support
Chemical resistance
Thin profile
Surface protection
Polyimide film is commonly available in thin gauges suitable for precision electronic applications.
Typical film thicknesses may include:
0.025 mm
0.05 mm
0.075 mm
0.10 mm
0.125 mm
Other customized thicknesses
The appropriate thickness depends on the required insulation level, mechanical strength, available space, wrapping radius, and manufacturing process.
The adhesive layer bonds the tape to the target surface.
Common adhesive systems include:
Acrylic adhesive
Silicone adhesive
Acrylic adhesive systems may be selected when strong adhesion, chemical resistance, and long-term bonding are important.
Silicone adhesive systems are commonly selected for applications involving elevated temperatures or surfaces where high-temperature adhesive performance is required.
The adhesive selection is just as important as the polyimide film selection.
Some polyimide adhesive tape products are supplied with a release liner for easier die cutting, handling, storage, and application.
Release liners may be used when the tape is converted into:
Die cut insulation pieces
Battery tab insulation parts
Electronic component pads
Protective shapes
Precision mounting pieces
6. Typical Specifications of High Temperature Polyimide Adhesive Tape
| Specification | Typical Range or Description |
|---|---|
| Substrate | Polyimide film |
| Common Name | PI Tape or Polyimide Tape |
| Common Market Name | Kapton Tape |
| Adhesive | Acrylic or silicone pressure sensitive adhesive |
| Film Thickness | Approximately 0.025–0.10 mm for many electronic applications |
| Total Thickness | Approximately 0.05–0.10 mm for selected battery applications |
| Color | Amber, brown, black, or natural depending on construction |
| Temperature Resistance | Application dependent; high temperature grades can support demanding thermal processes |
| Dielectric Strength | Application dependent and commonly specified in kV |
| Flame Retardancy | UL 94 rated grades may be available |
| Width | Narrow precision slit widths through wider industrial rolls |
| Roll Length | Common options include 33 m, 50 m, and 66 m |
| Processing | Slitting, die cutting, laminating, and custom converting |
These specifications are representative rather than universal. Actual values vary according to tape construction and intended application.
7. Polyimide Adhesive Tape for Lithium Battery Manufacturing
Lithium battery manufacturing is one of the important application areas for high temperature polyimide adhesive tape.
Battery cells and battery modules contain conductive metal components, electrical connections, Insulation Materials, and heat-sensitive components. During manufacturing, these components may be exposed to elevated temperatures, electrolyte environments, mechanical handling, and electrical testing.
Polyimide tape can provide an additional insulation and protection layer in selected manufacturing processes.
Typical applications include:
Battery tab insulation
Tab root wrapping
Cell termination
High voltage isolation
Busbar edge protection
BMS wire isolation
Temporary masking
Battery formation masking
Battery aging masking
Component fixation
Wire routing assistance
8. Battery Tab Insulation
Battery tabs are electrically conductive components that connect the internal electrode structure to the external circuit.
Aluminum and copper tabs may be used depending on the battery design and polarity.
The tab area can require electrical isolation from:
Cell housing
Metal Brackets
Busbars
Other conductive components
Battery module structures
Polyimide adhesive tape can be wrapped around the appropriate tab area to create an insulating barrier.
The tape thickness must be selected according to the available space and insulation requirements. A thin polyimide tape can provide insulation without significantly increasing assembly dimensions.
For cylindrical, prismatic, and pouch battery designs, the exact wrapping method depends on cell construction.
9. Tab Taping and Cell Termination
After winding or stacking, battery cells may require termination or temporary fixation.
Polyimide adhesive tape can be used for selected termination processes because the polyimide film maintains dimensional stability under elevated temperatures.
A suitable adhesive can help maintain attachment during subsequent production stages.
Important selection factors include:
Adhesion to the cell surface
Temperature resistance
Electrolyte compatibility
Clean removal requirements
Electrical insulation
Film thickness
Mechanical strength
The adhesive should be evaluated under actual battery production conditions rather than relying only on room-temperature adhesion testing.
10. High Voltage Insulation in Battery Modules and PACKs
Battery modules and PACK systems contain high voltage conductive paths.
Polyimide adhesive tape may be used for auxiliary insulation and protection in areas such as:
Busbar edges
Electrical connection points
BMS sampling wires
High voltage wiring
Low voltage wiring
Connector areas
Metal component edges
The tape can help isolate conductive components from adjacent structures.
However, tape selection should be based on the electrical design and applicable safety requirements. Adhesive tape should not automatically be considered a substitute for engineered primary insulation systems.
11. Battery Formation and Aging Masking
Battery formation and aging are important manufacturing stages.
During these processes, battery cells may experience elevated temperatures and controlled electrical conditions.
High temperature polyimide adhesive tape can be used as a masking or temporary protection material where its temperature capability is suitable.
Potential applications include:
Surface masking
Temporary insulation
Component protection
Process identification
Fixture protection
Temporary wire fixation
Clean removal is particularly important when the tape is used as a process masking material.
12. Electrolyte Resistance Considerations
Lithium battery environments can expose materials to electrolyte and other chemical substances.
A polyimide film may have strong chemical resistance, but the adhesive layer can behave differently.
Therefore, electrolyte resistance must be evaluated at the complete tape level.
For battery-specific applications, testing may involve conditions such as:
Elevated temperature
Controlled immersion time
Electrolyte exposure
Adhesion evaluation
Swelling evaluation
Residue evaluation
Visual inspection
A representative test condition may involve exposure around 60–80°C for 72 hours, but the actual test method should be established according to the battery design and material qualification requirements.
13. Polyimide Tape for PCB Manufacturing
Printed circuit board manufacturing is another major application area.
Polyimide adhesive tape can be used for:
PCB masking
Soldering protection
Reflow process masking
Wave soldering masking
Component protection
Gold finger masking
Connector protection
Temporary fixation
Electrical insulation
The thin polyimide film can provide heat-resistant masking while maintaining relatively low dimensional change.
14. Gold Finger Masking
Gold fingers are exposed conductive contacts commonly found on certain electronic boards and connectors.
During surface treatment or other manufacturing processes, selected areas may require protection.
Polyimide tape can be die cut or slit into suitable shapes for masking.
Important characteristics include:
Clean removal
Accurate dimensions
Sufficient adhesion
Temperature resistance
Low residue
Surface compatibility
For automated manufacturing, precision converting can improve application consistency.
15. Reflow Soldering Applications
Reflow soldering exposes PCBs and electronic assemblies to elevated temperatures.
A suitable polyimide adhesive tape can be used to protect selected areas during the process.
Applications may include:
Component masking
Connector protection
Sensor protection
Surface masking
Temporary fixation
Wire protection
The tape should be selected according to the actual reflow temperature profile rather than a single peak temperature number.
The dwell time at elevated temperature can be just as important as the peak temperature.
16. Wave Soldering Applications
Wave soldering is another thermal process where masking materials can be useful.
Polyimide tape may protect selected PCB areas from solder exposure or prevent unwanted contact with solder.
A suitable tape should provide:
Adequate adhesion
High temperature resistance
Clean removal
Low residue
Dimensional stability
Tape thickness and adhesive characteristics should be considered when the tape is applied close to soldered components.
17. Transformer and Motor Insulation
Polyimide adhesive tape is also used in electrical equipment manufacturing.
Potential applications include:
Transformer coil insulation
Motor winding insulation
Wire insulation
Coil wrapping
Layer insulation
Lead wire protection
Terminal insulation
The thin construction allows insulation to be added without significantly increasing the size of the electrical component.
For high-performance electrical systems, insulation selection should be based on the required voltage, temperature class, mechanical conditions, and applicable standards.
18. Wire and Cable Protection
Polyimide adhesive tape can be used to wrap or secure wires in high-temperature electronic assemblies.
Potential applications include:
Wire bundling
Wire insulation
Cable protection
Connector protection
Lead wire fixation
Sensor wire protection
The tape's thin structure is useful when space is limited.
However, the required mechanical protection level should be considered because polyimide tape is primarily selected for insulation and thermal performance rather than heavy abrasion protection.
19. Advantages of High Temperature Polyimide Adhesive Tape
The polyimide film maintains stability at temperatures where many conventional plastic films would deform.
Polyimide provides effective electrical insulation in many electronic and electrical applications.
The film can maintain relatively stable dimensions during thermal cycling.
Thin polyimide tape can be used where available space is limited.
Polyimide film can resist many chemicals, although the adhesive must be evaluated separately.
The adhesive system can provide reliable bonding to appropriate surfaces.
Properly selected tape can provide clean masking and removal during manufacturing.
Polyimide tape can be slit or die cut into complex shapes for automated electronic assembly.
20. Polyimide Adhesive Tape vs PET High Temperature Tape
Polyimide and PET are both polymer film materials, but they are not interchangeable for every application.
| Comparison | PI Polyimide Adhesive Tape | PET High Temperature Adhesive Tape |
|---|---|---|
| Film | Polyimide | Polyester |
| Thermal Performance | Higher temperature capability | Generally lower |
| Dimensional Stability | Excellent for demanding thermal applications | Good but more temperature dependent |
| Electrical Insulation | Excellent | Good |
| Thin Construction | Available | Available |
| High Temperature Processing | Widely used | More limited |
| Battery Tab Insulation | Commonly selected | Generally less suitable for demanding applications |
| PCB Thermal Masking | Common | Application dependent |
| General Masking | Excellent | Suitable for lower temperature applications |
| Cost | Generally higher | Generally lower |
The choice should be based on actual process conditions rather than material name alone.
21. PI Polyimide Adhesive Tape vs PTFE Adhesive Tape
PI and PTFE adhesive tapes have different functional priorities.
PTFE tape is widely valued for:
Non-stick performance
Low friction
Chemical resistance
Release performance
High temperature capability
Polyimide tape is widely valued for:
Electrical insulation
Thermal stability
Dimensional stability
High temperature masking
Electronic assembly
For battery tab insulation, PI tape is generally more appropriate when electrical insulation is the primary requirement.
For hot press mold release or roller anti-stick applications, PTFE adhesive tape may be more appropriate.
Therefore, these materials should not be treated as direct substitutes.
22. Adhesive Selection for Polyimide Tape
Adhesive selection can significantly affect tape performance.
Acrylic pressure sensitive adhesive can provide:
Good adhesion
Chemical resistance
Aging resistance
Strong bonding
Suitable performance for many electronic applications
Lithium battery specific acrylic adhesive systems may be designed for compatibility with battery manufacturing environments.
Silicone adhesive systems are often selected for:
High temperature applications
Difficult thermal processes
Certain low surface energy substrates
Applications requiring high-temperature adhesive performance
Silicone adhesives may have different adhesion and residue characteristics from acrylic systems.
The adhesive should therefore be selected according to the process rather than simply choosing the highest temperature rating.
23. Common Polyimide Tape Thicknesses
Thickness has a major effect on application performance.
Common film thicknesses may include:
0.025 mm: Suitable for extremely thin insulation and precision applications.
0.05 mm: A widely used thickness for electronic insulation and battery-related applications.
0.075 mm: Provides additional mechanical support and insulation.
0.10 mm: Suitable when greater thickness and durability are required.
For lithium battery applications, total tape thickness may commonly fall around 0.05–0.10 mm depending on the construction.
Thicker tape generally provides more material and may improve handling, but it can increase assembly dimensions.
24. Common Polyimide Tape Widths
Polyimide adhesive tape can be converted into narrow widths for electronic applications.
Typical slit widths include:
2 mm
3 mm
5 mm
8 mm
10 mm
15 mm
20 mm
25 mm
50 mm
Custom widths can be produced according to application requirements.
Narrow tape is useful for:
Battery tabs
Wires
Small components
PCB traces
Connector areas
Precision masking
Wider tape is useful for:
Surface masking
Component protection
Large insulation areas
Industrial applications
25. Polyimide Adhesive Tape Roll Length
Common industrial roll lengths include:
33 m
50 m
66 m
Other roll lengths may be available depending on tape width, thickness, core size, converting equipment, and customer requirements.
For automated production, roll consistency is important because unstable winding or telescoping can affect feeding and application.
26. Color Options
Amber or brown is the most recognizable color of polyimide adhesive tape.
Other colors may include:
Black
Natural
Transparent or translucent constructions depending on design
Color can be used for:
Process identification
Component identification
Visual inspection
Different production stages
Color does not automatically determine electrical or thermal performance. Performance should always be confirmed through technical specifications.
27. Flame Retardant Polyimide Adhesive Tape
Some polyimide adhesive tape constructions can be designed to meet flame retardancy requirements such as UL 94 classifications.
A V-0 rated tape may be selected for applications requiring a higher level of flame resistance.
However, the UL rating applies to a specific material construction and test condition. Users should confirm whether the complete tape assembly meets the requirements of the intended application.
Flame retardancy may be important in:
Battery systems
Electrical equipment
Power electronics
Automotive electronics
Industrial control equipment
Consumer electronics
28. Dielectric Strength and Electrical Testing
Dielectric strength is an important parameter for Electrical Insulation Tape.
A typical polyimide adhesive tape may have a dielectric strength expressed in volts or kilovolts.
For example, certain 0.06 mm constructions may be specified at approximately 5 kV under defined testing conditions.
However, dielectric strength is affected by:
Film thickness
Adhesive thickness
Temperature
Humidity
Surface condition
Test electrode configuration
Test duration
Manufacturing quality
Therefore, a single dielectric strength number should not be used to predict real-world electrical safety without considering the complete system.
29. Surface Compatibility
Polyimide adhesive tape can be applied to many surfaces, but adhesive performance varies.
Common substrates include:
Aluminum
Copper
Stainless steel
Polycarbonate
PET
Polyimide
Glass
PCB surfaces
Painted metal
Anodized metal
Before mass production, compatibility testing should evaluate:
Initial adhesion
Peel adhesion
Holding power
Residue
Surface damage
Temperature aging
Chemical exposure
Clean and properly prepared surfaces generally provide more consistent bonding.
30. Clean Removal and Residue Performance
For temporary masking applications, clean removal is extremely important.
Potential residue can interfere with:
Electrical contacts
Soldering
Surface treatment
Adhesive bonding
Optical inspection
Component assembly
Residue performance depends heavily on:
Adhesive chemistry
Temperature
Dwell time
Surface type
Storage conditions
Removal angle
Removal speed
Therefore, "clean removal" should be evaluated under actual process conditions.
31. Storage of Polyimide Adhesive Tape
Proper storage helps preserve adhesive performance.
Recommended general storage practices include:
Keep rolls in their original packaging
Store in a clean and dry environment
Avoid excessive humidity
Avoid direct sunlight
Avoid unnecessary heat exposure
Protect rolls from contamination
Avoid crushing or deformation
Follow the supplier's recommended shelf life
Temperature and humidity control can be particularly important for pressure sensitive adhesive products.
32. Handling Polyimide Adhesive Tape
Before application, the target surface should generally be clean and free of:
Dust
Oil
Grease
Moisture
Loose particles
Excessive release agents
Operators should avoid touching the adhesive surface unnecessarily.
When applying narrow tape, controlled tension can help avoid wrinkles.
Excessive stretching should be avoided because it can affect the final tape geometry.
For automated applications, consistent web tension and roll winding quality can improve process stability.
33. Die Cutting Polyimide Adhesive Tape
Polyimide adhesive tape can be converted into precision die cut parts.
Common shapes include:
Rectangles
Rings
Discs
Tabs
Strips
Custom profiles
Die cut polyimide parts are useful for:
Battery insulation
PCB protection
Connector insulation
Sensor assembly
Electronic component mounting
Wire fixation
Precision die cutting can reduce manual labor and improve repeatability.
34. Polyimide Tape for Automated Production
Modern electronics manufacturing increasingly depends on automated assembly.
Polyimide tape can be supplied in forms suitable for:
Automatic dispensing
Roll-to-roll processing
Die cut application
Slitting
Laminating
Robotic placement
Important roll characteristics include:
Consistent width
Uniform thickness
Stable winding
Controlled adhesive coating
Low edge damage
Consistent release performance
For high-volume production, material consistency can be as important as nominal performance.
35. Quality Control for Polyimide Adhesive Tape
A professional quality control program may evaluate:
Checks the consistency of the polyimide substrate.
Measures the complete tape construction.
Evaluates bonding strength to specified substrates.
Measures the force required to remove the tape.
Evaluates resistance to sliding under load.
Measures mechanical resistance.
Measures dimensional change under tension.
Evaluates electrical insulation capability.
Evaluates performance under defined thermal exposure.
Checks whether adhesive remains on the substrate after removal.
Evaluates performance after exposure to specified chemicals.
36. Important Factors When Selecting High Temperature Polyimide Adhesive Tape
Choosing a polyimide adhesive tape based only on temperature rating is not recommended.
Users should consider:
Film thickness
Total thickness
Adhesive type
Adhesion level
Operating temperature
Peak temperature
Exposure time
Electrical insulation requirements
Dielectric strength
Chemical exposure
Electrolyte compatibility
Surface type
Removal requirements
Flame retardancy
Tape width
Roll length
Die cut requirements
Production speed
Storage conditions
Applicable standards
A tape that performs well in one application may not provide the same performance in another.
37. Polyimide Tape for Consumer Electronics
Consumer electronics contain compact electronic components where thermal and electrical management are important.
Polyimide tape may be used in:
Smartphones
Tablets
Laptops
Cameras
Wearable devices
Chargers
Power supplies
Electronic modules
Typical functions include insulation, component protection, masking, wire fixation, and thermal process protection.
Its thin construction is particularly useful in compact electronic assemblies.
38. Polyimide Tape for Automotive Electronics
Automotive electronic systems may operate in environments involving:
Temperature variation
Vibration
Electrical loads
Humidity
Chemical exposure
Polyimide adhesive tape can be considered for selected insulation and protection applications.
Potential uses include:
Battery systems
Wiring assemblies
Sensors
Electronic control units
Motor systems
Power electronics
Connector protection
Automotive applications generally require additional qualification because long-term reliability requirements can be demanding.
39. Polyimide Tape for Power Electronics
Power electronic equipment can generate significant heat.
Examples include:
Inverters
Power supplies
Transformers
Motors
Battery management systems
Charging equipment
Industrial controllers
Polyimide adhesive tape can provide electrical isolation and thermal process protection in selected locations.
The tape thickness should be optimized to provide adequate insulation without interfering with component assembly.
40. Polyimide Adhesive Tape for Semiconductor Processing
Semiconductor and electronic component manufacturing can involve high temperatures and precise surface processing.
Polyimide tape can be used for selected masking and protection operations.
Potential applications include:
Wafer process masking
Component protection
Temporary fixation
Lead protection
Surface masking
Thermal process protection
Because semiconductor processes are highly sensitive to contamination, low-residue and clean-processing performance can be particularly important.
41. Polyimide Adhesive Tape for Coil Winding
Coil winding applications require thin insulation that can withstand mechanical handling.
Polyimide tape can be wrapped around:
Copper wires
Coil assemblies
Transformer windings
Motor windings
Electrical leads
Its thin profile allows multiple insulation layers without excessive dimensional increase.
The adhesive must also be compatible with the winding process and operating temperature.
42. Polyimide Tape for Transformer Manufacturing
Transformer manufacturing requires reliable insulation between conductive layers and components.
Polyimide adhesive tape can be used for:
Layer insulation
Coil insulation
Lead fixation
Terminal insulation
Winding protection
The exact insulation design depends on voltage, temperature, frequency, mechanical structure, and applicable electrical standards.
43. Benefits for High Density Electronics
As electronic devices become smaller, insulation materials must often provide high performance in limited space.
Polyimide adhesive tape offers:
Thin construction
High temperature capability
Electrical insulation
Flexible application
Precision converting
Low added thickness
These characteristics make it suitable for compact electronic assemblies.
44. Environmental and Chemical Considerations
Polyimide film has good resistance to many industrial chemicals, but the complete tape construction must be considered.
Potential environmental factors include:
Heat
Humidity
Electrolyte
Cleaning chemicals
Oils
Solvents
UV exposure
Electrical stress
Mechanical vibration
The adhesive may react differently from the polyimide film.
Therefore, chemical compatibility should always be tested on the complete finished tape.
45. Common Problems During Application
Possible causes include insufficient surface cleaning, unsuitable adhesive, low application pressure, or excessive temperature.
Possible causes include excessive heat, long dwell time, adhesive degradation, or incompatible surfaces.
Possible causes include excessive tension, uneven application, or improper dispensing.
Possible causes include contamination, insufficient pressure, narrow contact area, or surface energy issues.
Possible causes include excessive thermal exposure or unsuitable tape construction.
Possible causes include dust, oil, moisture, low surface energy, or inappropriate adhesive selection.
46. How to Improve Polyimide Tape Application
A reliable application process can include:
Clean the substrate.
Dry the surface.
Select the appropriate tape thickness.
Select acrylic or silicone adhesive according to temperature requirements.
Apply sufficient pressure.
Avoid excessive stretching.
Prevent wrinkles and trapped air.
Maintain appropriate storage conditions.
Validate the tape under actual production temperatures.
Conduct aging and compatibility testing.
These steps can improve consistency and reduce production defects.
47. High Temperature Polyimide Adhesive Tape for Electronics
The electronics industry continues to require materials that combine thermal resistance, electrical insulation, mechanical stability, and precision processing.
High temperature polyimide adhesive tape addresses many of these requirements in one thin material.
It is suitable for applications where:
Space is limited
Electrical isolation is required
Temperature is elevated
Masking is necessary
Clean removal is important
Dimensional stability is required
Automated processing is used
This combination makes polyimide adhesive tape a common material in advanced electronic manufacturing.
48. Polyimide Tape for Electrical Insulation
Electrical insulation is one of the most important uses of PI tape.
The tape can be used between conductive components to reduce the possibility of:
Short circuits
Electrical contact
Surface arcing
Unwanted conductive paths
However, the required insulation system should always be designed according to voltage, current, temperature, creepage, clearance, mechanical conditions, and relevant safety requirements.
Tape should not be selected solely because it has a high dielectric strength rating.
49. PI Tape for Battery PACK Assembly
Battery PACK assembly involves many components that require positioning and insulation.
Polyimide adhesive tape can assist with:
High voltage insulation
BMS wire isolation
Busbar edge protection
Wire fixation
Component separation
Temporary process masking
The exact role depends on the PACK design.
For critical safety insulation, the tape should be evaluated as part of the complete insulation system.
50. Future Applications of Polyimide Adhesive Tape
The increasing use of electrification, renewable energy, energy storage, automation, and advanced electronics continues to create demand for high-performance insulation materials.
Potential growth areas include:
Electric vehicles
Battery energy storage
Power electronics
Semiconductor equipment
Flexible electronics
Advanced sensors
Industrial automation
High-density computing equipment
Charging systems
Smart electronic devices
As electronic systems become smaller and more powerful, thin high-temperature insulation materials will remain important.
51. Frequently Asked Questions
Polyimide adhesive tape is a pressure sensitive adhesive tape using polyimide film as its primary substrate. It is commonly used for high-temperature insulation, masking, component protection, and electronic assembly.
Kapton is a well-known trade name for polyimide film. In general industry discussions, "Kapton Tape" is commonly used to describe polyimide adhesive tape, although the actual tape construction and manufacturer-specific specifications may vary.
Yes, polyimide film is an electrical insulating material and PI Adhesive Tape is widely used for electrical insulation. Actual dielectric performance depends on the complete tape construction and test conditions.
Polyimide film has excellent thermal stability. However, the practical temperature rating of the finished adhesive tape depends on the adhesive system and exposure conditions.
Amber or brown is the most common appearance. Black and other constructions may also be available.
Yes. PI adhesive tape is widely used in selected lithium battery manufacturing applications such as tab insulation, termination, high-voltage isolation, BMS wire protection, and high-temperature masking.
Not necessarily. PET generally has a lower temperature capability than polyimide and should not automatically be used as a replacement in demanding high-temperature insulation applications.
The polyimide film has good chemical resistance, but electrolyte resistance must be evaluated for the complete tape, particularly the adhesive layer.
Yes. Polyimide adhesive tape can be slit, laminated, and die cut into custom shapes.
The correct thickness depends on electrical insulation requirements, available space, mechanical strength, wrapping design, and process conditions.
52. Conclusion
High temperature polyimide adhesive tape for electronics is a versatile material for electrical insulation, thermal protection, masking, component fixation, and industrial assembly.
PI polyimide adhesive tape combines a thin polyimide film with an application-specific pressure sensitive adhesive. This construction provides a useful balance of high temperature resistance, electrical insulation, dimensional stability, chemical resistance, thinness, and processing flexibility.
In lithium battery manufacturing, polyimide adhesive tape can be used for battery tab insulation, tab root wrapping, cell termination, high-voltage isolation, busbar edge protection, BMS wire isolation, and formation or aging process masking.
In electronics manufacturing, common applications include PCB masking, reflow protection, wave soldering protection, transformer insulation, motor winding insulation, wire protection, connector masking, and electronic component assembly.
When selecting a PI adhesive tape, users should consider more than the nominal temperature rating. Important factors include polyimide film thickness, total tape thickness, adhesive chemistry, adhesion, dielectric strength, electrolyte resistance, chemical compatibility, flame retardancy, residue performance, surface compatibility, roll dimensions, and actual process conditions.
For demanding electronic and battery applications, material qualification should be performed under representative operating conditions. This approach helps ensure that the selected high temperature polyimide adhesive tape provides reliable insulation and stable performance throughout manufacturing and service.
This website uses cookies to ensure you get the best experience on our website.
WhatsApp
Phone
