A Custom Support Bracket for Electronic Components is a molded or machined component designed to securely position, support, separate, and protect electronic or electrical components during assembly and operation. In modern electronic equipment, battery modules, control systems, power supplies, communication devices, industrial electronics, and energy storage assemblies, small structural components play an important role in maintaining accurate component positioning and reliable system performance.
Custom Support Brackets can be designed according to component dimensions, installation requirements, insulation requirements, thermal management needs, assembly methods, and available installation space. Depending on the application, the bracket may be manufactured from engineering plastics such as ABS, PP, PC, PA nylon, or other suitable Insulating Materials.
For cylindrical battery applications, a Support Bracket can also function as a cell positioning holder or cell spacer. A typical design may include circular openings for cylindrical cells, ventilation slots, positioning ribs, locking features, and assembly interfaces. For example, a bracket with a 21.3 mm hole diameter can be designed for a specific cylindrical cell configuration where the dimensional tolerance and fit are properly matched to the actual cell and assembly requirements.
The purpose of a custom support bracket is not simply to hold a component in place. A properly designed bracket can combine several functions, including mechanical positioning, electrical isolation, spacing, airflow management, assembly assistance, and protection against unwanted movement.
A custom support bracket is a component manufactured according to a specific application rather than being limited to a standard universal size. The design can be modified to accommodate different component dimensions, mounting patterns, spacing requirements, environmental conditions, and assembly processes.
In electronic equipment, components often need to remain in a precise position throughout transportation, installation, vibration, thermal cycling, and long-term operation. Without appropriate support, components can shift, rub against adjacent parts, interfere with electrical connections, or experience mechanical stress.
A support bracket creates a defined physical relationship between components. It can provide a stable mounting location while maintaining predetermined distances between adjacent components.
Common functions include:
Component positioning
Component spacing
Mechanical support
Electrical insulation
Assembly alignment
Vibration reduction
Thermal airflow management
Protection from accidental contact
Cable and wire routing support
Battery cell positioning
Module assembly assistance
Custom support brackets are particularly useful when a standard bracket cannot provide the required dimensions or combination of functions.
A cylindrical Battery Cell Support Bracket is designed to hold cylindrical cells securely in predetermined positions. The circular openings help establish consistent cell spacing and prevent excessive movement during battery module assembly.
For the specified application, the bracket can be designed with a 21.3 mm hole diameter. The actual hole size should always be evaluated together with the cell diameter, manufacturing tolerance, holder material, thermal expansion, assembly method, and required retention force.
A properly designed opening can help prevent a cell from moving excessively while still allowing practical insertion during assembly.
Cell positioning is particularly important in battery pack manufacturing because inconsistent cell spacing can affect:
Module dimensions
Electrical connection alignment
Nickel Strip positioning
Busbar installation
Cooling airflow
Insulation distances
Assembly efficiency
Overall mechanical stability
A cell holder therefore provides more than basic mechanical support. It establishes a repeatable cell layout that can make downstream assembly easier.
Plastic support brackets can provide electrical isolation between adjacent cylindrical cells and between cells and nearby structural components.
This is particularly useful in battery modules where multiple conductive cell terminals are installed in a relatively compact space. A suitable insulating bracket can help maintain separation and reduce the possibility of unintended physical contact.
The electrical insulation performance depends on the selected material, thickness, geometry, operating environment, contamination level, temperature, and applicable electrical requirements.
Common engineering plastics used for insulating brackets include:
ABS
PP
PC
PA nylon
FR-grade engineering plastics
Other application-specific insulating polymers
Material selection should be based on the actual electrical, thermal, mechanical, and regulatory requirements of the finished assembly.
Thermal management is an important consideration in compact electronic assemblies and battery modules.
A support bracket can incorporate slots, openings, ribs, channels, or an open-grid structure to allow air to move around components. These features may help create cooling airflow paths and reduce obstruction around heat-generating components.
For cylindrical battery modules, the geometry of the holder can be designed to leave appropriate spaces between cells. Openings in the bracket can also reduce unnecessary material and improve airflow around the cell surface.
However, a bracket should not be considered a complete thermal management system by itself. Actual cooling performance depends on the entire system, including:
Cell arrangement
Airflow direction
Fan capacity
Ventilation area
Heat generation
Housing design
Ambient temperature
Thermal interface materials
Module enclosure geometry
The bracket should therefore be considered one part of the overall thermal design.
A support bracket can simplify the assembly of multiple components by providing a fixed positioning reference.
For battery modules, cell holders can help keep cylindrical cells aligned while nickel strips, busbars, connectors, Insulation Materials, and other components are installed.
During nickel strip spot welding, the holder can reduce unwanted cell movement and help maintain a consistent cell layout.
A stable positioning structure can improve assembly repeatability and reduce the need for manual adjustment.
Typical assembly benefits include:
Faster component positioning
Consistent cell spacing
Reduced movement
Easier alignment
Improved assembly repeatability
Better access to welding areas
Simplified module handling
The bracket does not replace proper welding procedures or electrical safety controls. Instead, it provides mechanical positioning assistance during assembly.
Cylindrical battery cell holders are commonly designed as an upper and lower pair.
The upper holder and lower holder can work together to position the two ends of the cylindrical cells. This arrangement provides a stable framework for assembling multiple cells into a module.
The paired design can help control:
Cell spacing
Cell alignment
Cell orientation
Module dimensions
Terminal positioning
Mechanical stability
The upper and lower components may use matching holes, alignment posts, clips, snap-fit features, or other mechanical interfaces.
The exact design depends on the cell type, module configuration, assembly process, and required mechanical retention.
Support Bracket vs Structural End Plate
A support bracket and a structural end plate are not the same component.
A battery cell support bracket is primarily a plastic positioning and insulating component. Its main functions are to organize cylindrical cells, maintain spacing, provide insulation, support assembly, and potentially assist airflow.
A structural side plate or end plate has a different purpose. It may contribute to the mechanical strength and structural integrity of the battery module.
For certain battery module configurations, structural plates may be made from:
Aluminum
Steel
FR-4 Epoxy Board
Other structural materials
The selection depends on the module architecture and mechanical requirements.
The bracket and structural plate can work together, but they should not be considered interchangeable.
| Component | Typical Material | Main Function | Typical Application |
|---|---|---|---|
| Support Bracket | ABS, PP, PC, PA | Positioning and insulation | Cylindrical cell modules |
| Cell Holder | Engineering plastic | Cell spacing and alignment | Battery pack assembly |
| Cell Spacer | Plastic or insulating material | Separation | Cylindrical cells |
| Structural End Plate | Aluminum, steel, FR-4 | Structural reinforcement | Battery module |
| Side Plate | Metal or composite | Mechanical support | Battery pack enclosure |
| Insulation Sheet | Polymer or composite | Electrical isolation | Battery module |
| Busbar Support | Plastic or insulating material | Electrical component positioning | Battery assemblies |
Materials for Custom Support Brackets
Material selection has a direct influence on the performance of a custom support bracket. The ideal material depends on the required mechanical strength, temperature resistance, electrical insulation, flame behavior, dimensional stability, chemical resistance, cost, and manufacturing process.
ABS is commonly used for molded plastic components because it provides a practical balance between strength, impact resistance, dimensional stability, appearance, and processing characteristics.
ABS support brackets can be suitable for general electronic component positioning and battery holder applications where the operating temperature and flame-retardancy requirements are compatible with the selected ABS grade.
Potential advantages include:
Good impact resistance
Good dimensional stability
Easy injection molding
Good surface appearance
Practical cost
Easy customization
Different ABS grades have different performance characteristics, so the material specification should be confirmed according to the application.
Polypropylene is a lightweight polymer that offers good chemical resistance and low density.
PP can be considered when lightweight construction, chemical resistance, and cost efficiency are important.
Its relatively low density can reduce component weight, which can be useful in portable electronic equipment and battery assemblies.
However, the temperature performance and dimensional behavior of PP should be evaluated carefully for applications involving elevated operating temperatures.
Polycarbonate is known for its combination of impact resistance and dimensional stability.
PC support brackets can be considered for applications requiring stronger impact resistance or higher temperature performance than some general-purpose plastics.
PC is used in various electrical and electronic components where mechanical durability and dimensional stability are important.
The specific PC grade should be selected according to operating temperature, flame-retardancy requirements, electrical performance, and environmental conditions.
PA, commonly known as nylon, is used in many mechanical and electrical components where good mechanical strength and wear resistance are required.
PA support brackets can be useful for applications involving repeated mechanical loading or demanding mechanical conditions.
One important consideration is moisture absorption. Nylon can absorb moisture, which may influence dimensions and mechanical properties.
Therefore, dimensional tolerances and environmental conditions should be considered during design.
For certain electrical and electronic applications, flame-retardant materials may be required.
Flame-retardant grades can be selected when the finished product must meet specified flame performance requirements.
The exact flame rating should not be assumed solely from the material name. It should be verified against the relevant material grade and testing standard.
A custom bracket intended for electronic equipment should therefore be specified using the required material grade rather than simply stating "flame retardant plastic."
Material Comparison
| Material | Key Characteristics | Potential Advantages | Design Considerations |
|---|---|---|---|
| ABS | Balanced mechanical performance | Easy molding and good impact resistance | Temperature limits depend on grade |
| PP | Lightweight and chemical resistant | Low density and economical | Thermal expansion and stiffness |
| PC | High impact resistance | Good dimensional stability | Material cost and processing |
| PA Nylon | Strong and wear resistant | Good mechanical performance | Moisture absorption |
| Flame Retardant Plastic | Improved flame performance | Suitable for specified applications | Grade and certification must be verified |
| FR-4 | Glass reinforced epoxy | Electrical insulation and rigidity | More suitable for structural or electrical boards |
| Aluminum | Strong and lightweight metal | Structural strength and heat conduction | Conductive and requires electrical isolation where needed |
| Steel | High mechanical strength | Structural reinforcement | Higher weight and possible corrosion concerns |
Custom Design Options
A major advantage of a custom support bracket is the ability to modify its geometry according to the application.
Possible design features include:
Circular cell openings
Rectangular component openings
Mounting holes
Snap-fit clips
Locking tabs
Alignment pins
Positioning ribs
Reinforcement ribs
Ventilation slots
Cooling channels
Cable openings
Connector openings
Screw mounting points
Adhesive mounting surfaces
Interlocking structures
Upper and lower matching structures
The geometry can be optimized according to the component dimensions and assembly requirements.
21.3 mm Hole Diameter for Cylindrical Cells
For a cylindrical cell holder designed around a 21.3 mm hole diameter, the opening is intended to establish a defined positioning interface for the relevant cylindrical cell configuration.
However, a hole diameter should not be treated as a universal standard for every cylindrical cell.
The correct dimensional relationship depends on:
Actual cell diameter
Cell dimensional tolerance
Plastic shrinkage
Holder dimensional tolerance
Operating temperature
Required insertion force
Required retention force
Assembly method
Cell surface characteristics
A suitable engineering design should evaluate the actual cell dimensions before finalizing the mold.
For injection molded components, mold shrinkage and material behavior must also be considered.
| Parameter | Example Requirement |
|---|---|
| Hole Diameter | 21.3 mm |
| Component Type | Cylindrical Cell Holder |
| Main Function | Cell Positioning |
| Material | ABS or Application Specific Plastic |
| Manufacturing Process | Injection Molding |
| Structure | Upper and Lower Holder |
| Additional Function | Insulation |
| Optional Feature | Ventilation Slots |
| Application | Battery Module Assembly |
Injection Molding Process
Many plastic support brackets are manufactured through injection molding.
Injection molding is suitable for producing repeated quantities of geometrically consistent plastic components.
The general process includes:
Plastic material preparation
Material heating
Plasticization
Injection into the mold
Pressure holding
Cooling
Mold opening
Part ejection
Inspection
Packaging
For custom support brackets, mold design is especially important because small features such as clips, ribs, holes, ventilation openings, and alignment structures can influence tooling complexity.
Mold Design Considerations
A well-designed mold can improve dimensional consistency and production efficiency.
Important considerations include:
Excessively thick sections can increase cooling time and potentially create molding defects. Uniform wall thickness is generally preferred where practical.
Appropriate draft angles can help the molded component release from the mold without damaging the part.
Ribs can improve stiffness without requiring a large increase in overall wall thickness.
Mounting bosses can provide locations for screws or other fasteners.
Snap-fit structures can simplify assembly and reduce the need for additional fasteners.
Openings can help reduce material use and provide airflow paths.
Critical dimensions such as cell holes, mounting holes, alignment features, and interlocking structures should receive appropriate dimensional tolerances.
Advantages of Custom Support Brackets
A custom bracket can provide controlled positioning of components according to a predefined layout.
This is especially valuable when multiple cylindrical cells must be arranged in a consistent pattern.
The bracket can act as a positioning fixture during assembly, reducing manual adjustment.
Insulating plastics can help separate components from one another and from conductive structures.
A properly fitted holder can reduce movement caused by handling, vibration, and assembly operations.
The bracket establishes a repeatable arrangement, making the overall module more organized.
Dimensions, holes, slots, ribs, mounting structures, and other features can be customized.
Plastic brackets can provide functional support without adding the weight associated with metal structures.
Injection molding can produce large quantities of components with consistent geometry when properly designed and controlled.
Applications of Custom Support Brackets
Custom support brackets are used in many industries.
Battery pack assemblies use support brackets to position cylindrical cells and maintain spacing.
Energy storage modules can use plastic holders to organize cells within larger battery assemblies.
Small brackets can support circuit boards, connectors, batteries, displays, and other internal components.
Industrial control equipment may use custom brackets for mounting electronic modules and wiring components.
Support components can be used to organize internal electrical components and provide insulation.
Communication devices often contain densely arranged electronic components that require controlled positioning.
Vehicle electronic systems can use custom plastic brackets for component positioning, cable routing, and electrical isolation.
Lightweight plastic brackets can help secure internal components while minimizing overall product weight.
Battery Module Applications
One important application of custom support brackets is cylindrical battery module assembly.
A typical cylindrical battery module may contain numerous cells arranged in rows and columns.
The holder establishes the physical arrangement of these cells.
For example, a support structure can help define:
Cell-to-cell spacing
Row spacing
Column spacing
Cell orientation
Terminal alignment
Module height
Cooling openings
Welding access
This makes the cell holder an important assembly component even though it may not be the primary structural component of the finished battery pack.
Support Brackets for 21700 Cells
21700 cylindrical cells are commonly used in high-capacity battery applications.

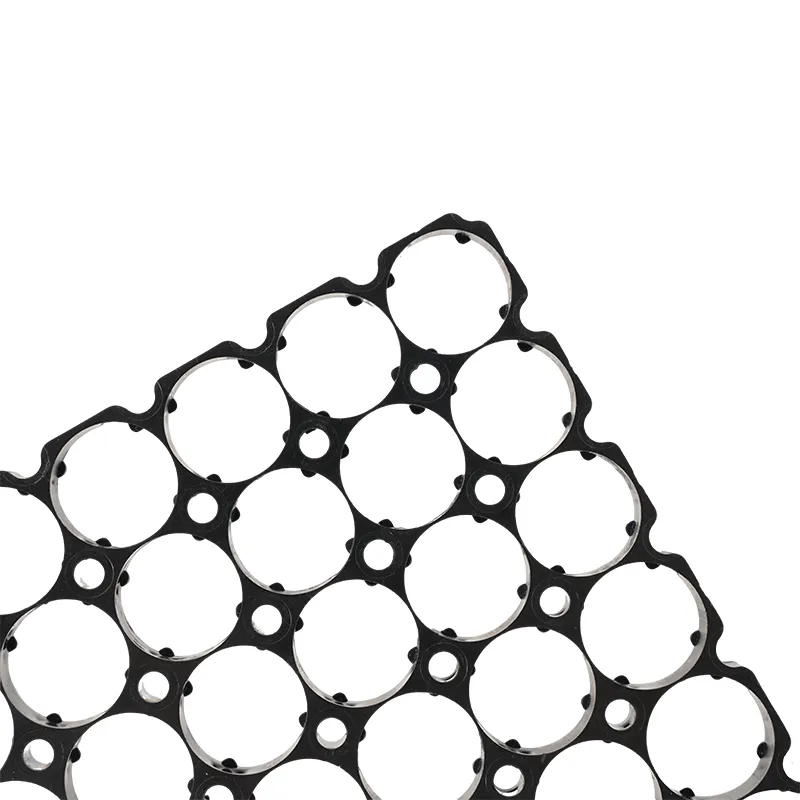

A custom 21700 cell holder can be designed with openings that correspond to the external dimensions of the cell.
A staggered arrangement can be used when the module design requires cells to be offset from one another.
A 21700 staggered battery holder may therefore include alternating positioning geometry to create a compact cell arrangement.
Possible design features include:
Circular cell openings
Staggered cell positions
Ventilation slots
Alignment posts
Snap-fit structures
Upper and lower holder matching
Welding access
Insulating walls
The actual geometry should be designed around the specific cell and module requirements rather than relying only on nominal cell dimensions.
Support Brackets for 18650 Cells
18650 cells are another common cylindrical battery format.
Because 18650 cells have different dimensions from 21700 cells, the holder geometry must be designed accordingly.
A 18650 holder may use:
Circular openings
Grid arrangements
Staggered arrangements
Ventilation channels
Upper and lower holders
Locking tabs
Alignment features
A bracket designed for one cylindrical cell size should not automatically be assumed to fit another.
Staggered Cell Holder Design
A staggered holder arranges adjacent cells with an offset pattern.
This configuration can help achieve a compact arrangement depending on the module geometry.
The design may provide advantages in:
Space utilization
Cell positioning
Airflow arrangement
Module organization
Mechanical stability
However, the electrical connection layout and cooling strategy must also be considered.
The holder should be designed together with the complete module rather than treated as an isolated component.
Electrical Insulation Considerations
Electrical insulation is an important function of plastic cell holders.
The bracket can create physical separation between adjacent cells and between conductive battery components and surrounding structures.
Important factors include:
Material dielectric properties
Material thickness
Surface contamination
Temperature
Humidity
Creepage distance
Clearance distance
Mechanical damage
Long-term aging
The required insulation performance depends on the voltage level and system design.
A plastic bracket should not automatically be treated as a certified insulation barrier unless its material and geometry have been evaluated against the relevant requirements.
Thermal Management Considerations
Battery cells and electronic components can generate heat during operation.
A holder can assist thermal management by providing space for airflow.
Open structures can allow air to circulate around components more effectively than a completely solid structure.
However, airflow openings must be balanced against mechanical requirements.
Too many openings may reduce stiffness, while too little open area may restrict airflow.
The design process should therefore consider both:
Mechanical strength + thermal airflow
rather than optimizing only one characteristic.
Mechanical Design Considerations
A support bracket needs enough mechanical strength to maintain component positioning during normal handling and operation.
Important design parameters include:
Material strength
Wall thickness
Rib geometry
Mounting method
Load direction
Vibration
Impact
Temperature
Long-term creep
Assembly force
For battery applications, the holder may be exposed to repeated thermal expansion and contraction.
The plastic material and geometry should therefore be selected to maintain adequate dimensional stability under the expected operating conditions.
Dimensional Tolerance
Dimensional tolerance is especially important for a custom support bracket.
Critical dimensions may include:
Cell hole diameter
Center-to-center spacing
Overall length
Overall width
Overall height
Mounting hole diameter
Clip dimensions
Alignment pin dimensions
Slot width
Wall thickness
For example, a 21.3 mm cell opening should be specified together with its acceptable tolerance rather than treating 21.3 mm as an unrestricted exact dimension.
Tolerance requirements should be determined based on the actual cell dimensions and assembly process.
Surface and Edge Design
The surface of a plastic holder should be designed to avoid unnecessary damage to nearby components.
Smooth surfaces and properly designed edges can reduce the possibility of scratching insulation, cables, cell wrappers, or other components.
Sharp corners may also create stress concentration.
Rounded corners and suitable transitions can improve both manufacturability and mechanical durability.
Assembly Methods
Custom support brackets can be assembled using different methods.
Snap-fit structures allow components to lock together without separate fasteners.
Screw holes or bosses can be integrated when a more secure mechanical connection is required.
Interlocking structures can connect multiple brackets or modules.
Certain applications may use adhesive bonding, provided the selected adhesive is compatible with the material and operating environment.
Battery cell holders commonly use upper and lower components to retain cylindrical cells.
Product Specification Reference Table
| Specification | Typical Description |
|---|---|
| Product Type | Custom Support Bracket |
| Application | Electronic Components and Battery Modules |
| Main Material | ABS |
| Alternative Materials | PP, PC, PA Nylon |
| Manufacturing | Injection Molding |
| Cell Type | Cylindrical Battery Cells |
| Example Hole Diameter | 21.3 mm |
| Main Function | Positioning and Support |
| Electrical Function | Insulation and Isolation |
| Thermal Function | Airflow Support |
| Assembly Function | Cell Alignment |
| Design | Custom |
| Structure | Upper and Lower Holder |
| Surface | Molded Plastic Surface |
| Custom Features | Holes, Slots, Ribs, Clips, Posts |
| Application Type | Electronic and Battery Assembly |
How to Select a Custom Support Bracket
Selecting a suitable support bracket requires more than choosing a material.
The following factors should be evaluated.
Determine whether the bracket will support a cylindrical cell, circuit board, connector, cable, power module, sensor, or another electronic component.
Measure the component accurately and identify the critical dimensions.
Determine the required center-to-center spacing, mounting position, orientation, and assembly direction.
The material should be appropriate for the expected operating and storage temperatures.
For electrical applications, determine the required insulation distance and material performance.
If thermal management is required, include suitable openings and channels.
Injection molding is suitable for many repeated plastic parts, while prototypes may use alternative manufacturing methods.
The bracket should be compatible with the intended assembly method.
Tooling investment and unit cost should be evaluated according to production volume.
Critical dimensions should have appropriate tolerances based on the complete assembly.
Customization Options
A custom support bracket can be modified in many ways.
Possible customization includes:
Length
Width
Height
Hole diameter
Hole spacing
Number of holes
Cell arrangement
Staggered arrangement
Slot dimensions
Rib thickness
Wall thickness
Mounting holes
Locking tabs
Snap-fit structures
Alignment pins
Cable openings
Ventilation openings
Material grade
Surface finish
Color
Packaging method
This makes custom support brackets suitable for specialized electronic assemblies where standard components cannot satisfy the complete design requirements.
Color Customization
Plastic support brackets can generally be produced in different colors according to material availability and manufacturing requirements.
Common colors include:
Black
White
Gray
Blue
Green
Natural
Custom colors
Color can be useful for visual identification, assembly orientation, product differentiation, and internal component organization.
Color should not be considered a substitute for material identification or electrical safety labeling.
Quality Control
Quality control is important for custom molded support brackets because small dimensional variations can affect component fit and assembly.
Typical inspection items include:
Overall dimensions
Hole diameter
Hole spacing
Wall thickness
Surface condition
Flash
Warpage
Cracks
Deformation
Material identification
Assembly fit
Clip function
Alignment accuracy
For battery cell holders, the cell opening and center spacing are particularly important.
Common Manufacturing Defects
Injection molded brackets may experience several types of defects if mold design or processing conditions are not properly controlled.
Potential defects include:
Flash
Warpage
Sink marks
Short shots
Weld lines
Flow marks
Burn marks
Dimensional variation
Ejection marks
The severity and significance of these defects depend on the application and the location of the defect.
For precision support brackets, critical functional areas should receive greater inspection attention.
Why Custom Support Brackets Matter in Electronic Assembly
Electronic equipment continues to become smaller, lighter, and more densely integrated.
As component density increases, mechanical positioning becomes increasingly important.
A small support bracket can provide several functions simultaneously:
Positioning + Insulation + Spacing + Assembly Support + Airflow
This multifunctional design can reduce the number of separate components required in an assembly.
In battery systems, for example, a single molded holder may establish the location of multiple cylindrical cells while also maintaining spacing and providing a path for cooling air.
Custom Support Bracket for Electronic Components: Design Checklist
Before finalizing a custom support bracket, engineers should review the following:
| Design Item | Key Question |
|---|---|
| Component Type | What component will the bracket hold? |
| Dimensions | What are the exact component dimensions? |
| Hole Diameter | What opening size is required? |
| Tolerance | What dimensional tolerance is acceptable? |
| Material | Which plastic grade is appropriate? |
| Temperature | What operating temperature is expected? |
| Insulation | What electrical isolation is required? |
| Airflow | Are ventilation openings necessary? |
| Assembly | How will the bracket be installed? |
| Retention | How will the component be prevented from moving? |
| Structure | Is reinforcement required? |
| Production | What quantity is required? |
| Tooling | Is injection molding appropriate? |
| Quality | Which dimensions require inspection? |
| Environment | Will the product face moisture, chemicals, vibration, or heat? |
Application Comparison
| Application | Bracket Function | Typical Material Considerations |
|---|---|---|
| Cylindrical Battery Module | Cell positioning | ABS, PP, PC, PA |
| Electronic Control Unit | Component support | ABS, PC, PA |
| Power Supply | Insulation and mounting | Engineering plastic |
| PCB Assembly | Board positioning | Insulating plastic |
| Cable Assembly | Cable support | Flexible or rigid polymer |
| Connector Assembly | Connector positioning | Engineering plastic |
| Energy Storage | Cell organization | Flame-rated engineering plastic where required |
| Industrial Electronics | Mechanical support | Application-specific plastic |
| Consumer Electronics | Lightweight positioning | ABS, PC, PP |
| Battery Holder | Cell spacing and alignment | ABS, PP, PC, PA |
Frequently Asked Questions
A custom support bracket is a component specifically designed to support, position, separate, or secure an electronic or mechanical component according to application-specific dimensions and requirements.
ABS, PP, PC, and PA nylon are commonly considered for plastic support brackets. The final material depends on temperature, mechanical, electrical, environmental, and regulatory requirements.
Yes. A properly designed plastic holder can position cylindrical cells, maintain spacing, provide insulation, and assist battery module assembly.
It refers to the nominal diameter of the circular opening in the holder. The appropriate tolerance and fit must be determined according to the actual cell dimensions and application requirements.
A bracket with slots, openings, or an open-grid structure can help create airflow paths. Actual thermal performance depends on the complete cooling system.
Many cylindrical cell modules use paired upper and lower holders to secure cells at both ends. The exact configuration depends on the battery module design.
No. A support bracket primarily provides positioning, spacing, insulation, and assembly support. A structural end plate is generally intended to provide mechanical reinforcement or structural containment.
Yes. Dimensions, hole patterns, spacing, material, ribs, slots, mounting features, clips, and other details can be customized.
ABS can be suitable for many general electronic component support applications, provided the selected grade meets the application's temperature, mechanical, electrical, and flame performance requirements.
Plastic brackets are commonly considered for cell positioning and insulation in battery pack assemblies. Their suitability depends on the complete battery design and material requirements.
Conclusion
A Custom Support Bracket for Electronic Components is a practical component for organizing and securing electronic, electrical, and battery assemblies. Its value comes from its ability to combine mechanical positioning with other functions such as electrical insulation, component spacing, assembly assistance, and airflow management.
For cylindrical battery applications, a custom holder can securely position cells through accurately designed openings. A 21.3 mm hole diameter can be specified for a particular cell configuration when confirmed against the actual cell dimensions and required tolerances. Upper and lower holders can work together to secure the two ends of cylindrical cells, helping maintain consistent spacing and alignment during module assembly.
Plastic materials such as ABS, PP, PC, and PA nylon provide different combinations of strength, weight, dimensional stability, temperature resistance, and processing characteristics. Material selection should always be based on the actual application rather than relying on a generic material recommendation.
It is also important to distinguish a plastic cell support bracket from a structural end plate. The bracket is primarily a positioning and insulation component, while the structural plate may contribute to the overall mechanical strength of the module. Both can work together as part of an integrated battery or electronic assembly.
With appropriate material selection, dimensional control, mold design, ventilation geometry, and assembly features, a custom support bracket can provide a reliable and repeatable solution for modern electronic components, cylindrical battery cells, energy storage modules, and industrial electrical assemblies.
This website uses cookies to ensure you get the best experience on our website.
WhatsApp
Phone
