An ABS Plastic Support Bracket for Electrical Systems is a molded plastic component designed to support, position, separate, insulate, and organize electrical or electronic components within equipment, battery assemblies, control systems, wiring structures, and industrial electrical devices. ABS, or acrylonitrile butadiene styrene, is widely used for support components because it provides a useful combination of mechanical strength, dimensional stability, electrical insulation, processability, surface quality, and cost efficiency.

In electrical systems, Support Brackets are rarely used only as simple mechanical holders. A well-designed bracket can perform several functions simultaneously. It can maintain component alignment, prevent movement during assembly, provide electrical separation, create ventilation channels, guide wires and cables, reserve clearance for conductive components, and simplify the overall assembly process.

For cylindrical battery applications, an ABS Plastic Support Bracket can also function as a cell holder, cell spacer, battery positioning bracket, or battery module support component. For example, a bracket designed for staggered 21700 cylindrical cells can accurately position cells through appropriately sized openings while maintaining consistent spacing between adjacent cells. This helps improve assembly accuracy and reduces unwanted cell movement during electrical connection processes such as Nickel Strip spot welding.

The versatility of ABS plastic support brackets makes them suitable for electrical systems ranging from battery packs and energy storage modules to control cabinets, electronic assemblies, wiring systems, power equipment, and industrial automation devices.

1. What Is an ABS Plastic Support Bracket?

An ABS plastic support bracket is a structural or positioning component manufactured primarily from ABS thermoplastic. It is generally produced through injection molding, allowing manufacturers to create repeatable shapes with precise dimensions, integrated mounting features, ventilation openings, cable routing channels, positioning holes, clips, ribs, and other functional structures.

Unlike a conventional metal support bracket, an ABS plastic support bracket is electrically nonconductive under normal operating conditions. This makes it useful when electrical insulation is required between components or between an electrical component and a surrounding structure.

The bracket can be designed as a single-piece component or as part of a paired assembly. In battery applications, for example, upper and lower holders can work together to secure the two ends of cylindrical cells. In electronic equipment, a support bracket may hold a circuit board, connector, sensor, cable bundle, or electrical module in a defined position.

The exact structure depends on the application. A support bracket used for a battery module may prioritize cell spacing and ventilation, while a bracket used for a control cabinet may prioritize cable management and mounting stability.

2. Why ABS Is Used for Electrical Support Brackets

ABS is one of the most widely used engineering plastics for molded components. It combines several properties that are useful in electrical system applications.

Key advantages include:

• Good mechanical strength

• Good impact resistance

• Useful dimensional stability

• Electrical insulation

• Good injection molding performance

• Smooth and attractive surface finish

• Relatively low material cost

• Easy customization

• Good suitability for complex molded structures

• Availability in multiple colors and grades

ABS can also be modified with flame-retardant additives when the application requires improved flame resistance. For projects requiring specific fire performance, the selected ABS grade should be evaluated according to the applicable testing standard rather than assuming that all ABS materials have the same flame-retardant characteristics.

For electrical equipment, this distinction is important. Standard ABS and flame-retardant ABS should be treated as different material options.

3. Main Functions of ABS Plastic Support Brackets

ABS plastic support brackets can perform several functions within electrical systems.

3.1 Component Positioning

One of the most important functions is accurate positioning.

Electronic and electrical components often need to remain in a fixed location during assembly and operation. A molded bracket can provide positioning holes, slots, ribs, clips, or cavities that prevent unwanted movement.

In battery applications, cell positioning is especially important. Cylindrical cells arranged in a battery module need consistent spacing to maintain the intended pack geometry.

A properly designed support bracket can reduce:

• Cell movement

• Component misalignment

• Assembly errors

• Contact interference

• Wiring displacement

• Mechanical vibration

3.2 Electrical Insulation

Plastic support brackets can provide physical separation between conductive components.

ABS is generally electrically insulating, making it suitable for applications where conductive metal components should not directly contact a supporting structure.

Typical applications include:

• Battery cell isolation

• PCB support

• Wire routing

• Connector positioning

• Terminal separation

• Electrical enclosure components

• Power module support

The actual dielectric performance required depends on voltage, temperature, geometry, contamination, creepage distance, clearance distance, and other application conditions.

3.3 Mechanical Support

A support bracket provides mechanical stability.

Electrical components may experience vibration, shock, handling forces, or repeated assembly operations. A properly designed ABS bracket can help distribute these forces and maintain component positioning.

For battery modules, the bracket can prevent cylindrical cells from shifting during assembly. In electronic equipment, it can support boards or connectors and reduce unnecessary movement.

3.4 Ventilation and Heat Dissipation

Electrical systems generate heat during operation. Although ABS itself is not a heat sink material, the geometry of a plastic support bracket can help maintain airflow.

Ventilation slots and open-grid structures can create air passages between components.

A Battery Cell Support Bracket may include:

• Ventilation slots

• Open windows

• Airflow channels

• Side openings

• Structural ribs

• Clearance spaces

These features can help improve air circulation around cylindrical cells.

However, the bracket should not be described as a dedicated cooling device unless the complete system has been designed and tested for that purpose.

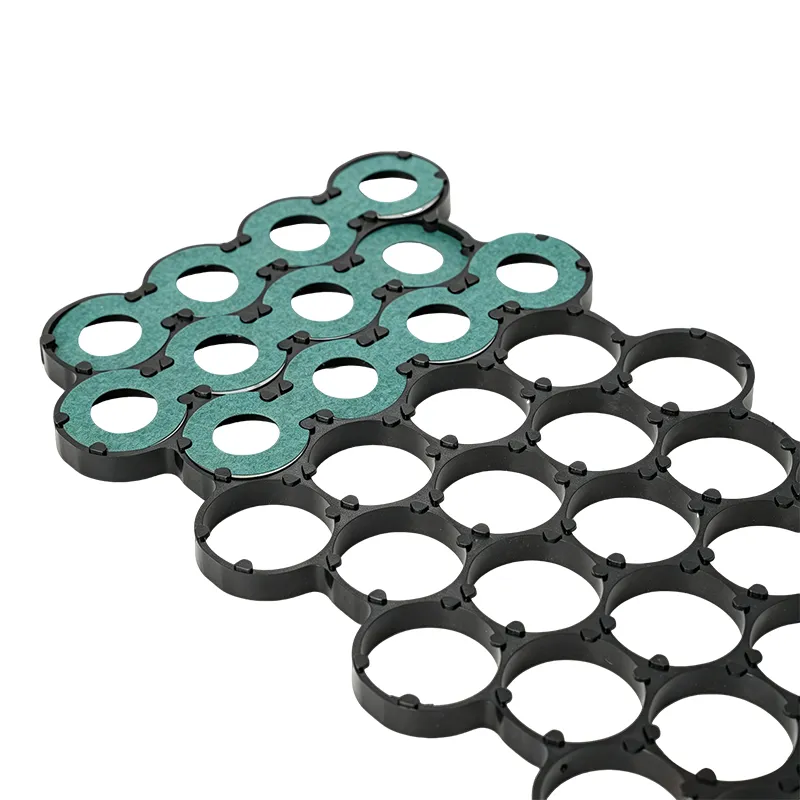

4. ABS Support Brackets for Cylindrical Battery Cells

One important application of ABS plastic support brackets is cylindrical battery pack assembly.

Cylindrical cells such as 21700 and 18650 cells are commonly arranged into modules using dedicated positioning components.

A 21700 staggered battery support bracket can be designed to accommodate cylindrical cells in an offset arrangement. The bracket provides consistent cell spacing and helps maintain the desired module geometry.

For the specification described in this application, the typical hole diameter is 21.3 mm.

The exact opening dimension should always be confirmed against the actual cell dimensions, tolerance requirements, insulation layer, manufacturing process, and intended fit.

5. 21700 Battery Cell Support Bracket

A 21700 cylindrical cell generally has a nominal diameter of approximately 21 mm. A molded support bracket can therefore be designed with a carefully selected opening diameter to provide positioning without creating excessive interference.

A 21.3 mm hole diameter may be used in a particular support bracket design, but the correct dimension should be determined according to the complete mechanical design.

The bracket may be used for:

• Cell positioning

• Cell spacing

• Cell alignment

• Electrical isolation

• Module assembly

• Nickel Strip Welding preparation

• Airflow management

• Cable routing

The bracket can be manufactured in different configurations depending on the number and arrangement of cells.

6. Common Cell Arrangements

Battery support brackets can be designed for various cell configurations.

Staggered arrangements can be useful when designers want to increase packing efficiency or optimize the available internal space.

The actual arrangement should be determined by the electrical configuration, mechanical enclosure, cooling requirements, cell dimensions, wiring requirements, and safety design.

7. Common Specifications and Parameters

The values above are typical engineering references rather than universal material specifications. Actual performance depends on resin grade, additives, wall thickness, design geometry, processing conditions, operating environment, and testing methods.

8. Material Options

8.1 ABS

ABS is the most common choice for many general-purpose support bracket applications.

Advantages include:

• Good impact resistance

• Good dimensional stability

• Good surface appearance

• Easy processing

• Cost efficiency

• Good electrical insulation

• Suitable rigidity for many structural positioning applications

ABS is particularly suitable for general battery pack support brackets and electrical equipment components where extreme temperature resistance is not required.

8.2 Flame Retardant ABS

Flame-retardant ABS can be selected when improved fire performance is required.

For electrical and energy storage applications, customers may request a material grade that has been tested to UL 94 V-0.

It is important to specify the exact material grade and obtain the appropriate documentation because not every ABS compound has the same flame-retardant performance.

For automotive, energy storage, power electronics, and export applications, flame performance may be an important purchasing requirement.

8.3 Polycarbonate

PC can be selected when higher temperature resistance and impact performance are needed compared with many standard ABS grades.

Potential applications include:

• Electrical equipment near heat sources

• Higher-temperature electronic assemblies

• Specialized battery modules

• Components requiring improved heat resistance

The actual operating temperature should be based on the selected PC grade rather than a generic material name.

8.4 Polypropylene

PP is lightweight and economical.

It may be selected for applications where:

• Lower cost is important

• Moderate mechanical performance is acceptable

• Chemical resistance is beneficial

• High-temperature performance is not the primary requirement

PP is generally softer than ABS, so structural requirements should be carefully evaluated.

8.5 PA66

PA66, also known as nylon 66, is suitable for applications requiring higher temperature resistance and good mechanical properties.

It may be considered for:

• High-temperature electrical assemblies

• Components near heat sources

• Automotive applications

• Industrial electrical equipment

Depending on the formulation, PA66 may absorb moisture, which can influence dimensional and mechanical properties. Therefore, material selection should consider the actual environment.

9. Flame Retardant Requirements

Flame retardancy is an important consideration for electrical support components.

The commonly referenced UL 94 standard classifies the flammability behavior of plastic materials under specified test conditions. V-0 is a commonly requested rating for electrical and electronic applications where higher flame performance is required.

However, UL 94 V-0 should not be treated as a universal requirement for every plastic support bracket.

The appropriate rating depends on:

• Product category

• Electrical design

• Applicable regulations

• Customer requirements

• Installation environment

• Fire risk

• End-product certification

When ordering a flame-retardant support bracket, buyers should specify the desired rating and request material documentation or test information when necessary.

10. Temperature Resistance

Temperature resistance is another important parameter.

A plastic bracket may be exposed to heat generated by:

• Battery cells

• Electrical current

• Power electronics

• Motors

• Transformers

• Connectors

• Soldering processes

• External heat sources

A typical ABS support bracket may be suitable for moderate-temperature applications, while PC and PA66 can be considered when higher temperature resistance is required.

These values are general reference ranges. They should not replace the technical data sheet for the selected material grade.

11. Ventilation Slot Design

Ventilation slots are frequently integrated into battery support brackets and electrical component holders.

Their purpose may include:

• Improving air circulation

• Reducing enclosed heat accumulation

• Reducing material weight

• Providing visual access

• Allowing cable passage

• Creating clearance around components

For battery applications, ventilation openings can help maintain airflow between cylindrical cells.

The shape and size of ventilation slots should be designed according to mechanical strength, airflow requirements, manufacturing limitations, and electrical safety considerations.

12. Cable Routing Channels

Modern electrical systems often contain a large number of wires and cables.

A support bracket can incorporate cable routing channels to improve organization.

Cable routing features can help:

• Maintain wiring paths

• Prevent cable movement

• Reduce tangling

• Improve assembly efficiency

• Maintain separation between cables and other components

• Improve serviceability

For custom injection-molded brackets, cable channels can often be integrated directly into the molded geometry.

13. Nickel Strip Clearance

Battery pack support brackets may include special clearance areas for nickel strips.

Nickel strips are commonly used to connect cylindrical battery cells in battery pack assembly. During spot welding, sufficient clearance around the connection area is important.

A molded bracket may therefore include:

• Nickel strip clearance notches

• Welding access openings

• Connection channels

• Terminal clearance

• Wiring passages

The exact geometry should be designed together with the battery cell arrangement and electrical connection method.

14. Upper and Lower Support Brackets

Some cylindrical battery assemblies use matched upper and lower support brackets.

The upper and lower components work together to locate the cells from opposite ends.

A typical configuration may consist of:

Upper holder + cylindrical cells + lower holder

This arrangement can improve:

• Cell alignment

• Mechanical stability

• Cell spacing

• Assembly consistency

• Electrical isolation

The two halves may have identical or different designs depending on the battery architecture.

Some applications require only a single-sided positioning component, so the assembly configuration should always be confirmed before ordering.

15. Support Bracket vs Structural End Plate

An ABS plastic support bracket should not automatically be considered a structural end plate.

These components may have different functions.

Plastic Support Bracket

A support bracket is mainly used for:

• Cell positioning

• Spacing

• Insulation

• Assembly support

• Cable management

• Ventilation

Structural End Plate

A structural end plate is typically designed for:

• Module compression

• Structural reinforcement

• External load management

• Mechanical protection

Structural end plates may be manufactured from materials such as aluminum, steel, or FR-4 Epoxy Board depending on the application.

The support bracket and structural end plate can work together, but they should not be treated as interchangeable components.

16. Advantages of ABS Plastic Support Brackets

Lightweight Construction

Plastic brackets are significantly lighter than many metal alternatives.

This can be particularly valuable in portable electrical equipment, battery systems, and transportation applications where overall weight is an important design factor.

Electrical Insulation

ABS provides nonconductive separation between components, subject to the material grade and application conditions.

Design Flexibility

Injection molding allows complex shapes to be manufactured efficiently.

Integrated Features

A single molded part can combine:

• Mounting holes

• Positioning holes

• Ribs

• Slots

• Clips

• Cable channels

• Ventilation openings

• Identification markings

Cost Efficiency

For medium and high-volume production, injection molding can provide consistent parts with relatively low per-piece production costs after tooling has been established.

17. Injection Molding Process

Most ABS plastic support brackets are manufactured through injection molding.

The basic process includes:

1. Plastic pellets are prepared.

2. The material is heated and plasticized.

3. Molten plastic is injected into a mold.

4. The material fills the mold cavity.

5. The part cools and solidifies.

6. The mold opens.

7. The molded bracket is ejected.

8. Secondary inspection or processing may be performed.

Injection molding is particularly suitable for support brackets because it can produce repeated parts with consistent geometry.

18. Mold Design Considerations

A successful Custom Support Bracket begins with suitable mold design.

Important factors include:

• Wall thickness

• Draft angle

• Rib design

• Boss structure

• Gate location

• Ejection method

• Shrinkage allowance

• Parting line

• Mold cooling

• Venting

Improper wall thickness can cause warping, sink marks, voids, or inconsistent dimensions.

For battery holders, dimensional accuracy around cell openings is particularly important.

19. Wall Thickness

Wall thickness affects the strength, weight, cooling behavior, and molding quality of an ABS support bracket.

Excessively thick sections may increase cooling time and create sink marks.

Extremely thin sections may reduce mechanical strength and create filling difficulties.

A balanced wall thickness helps achieve:

• Consistent molding

• Stable dimensions

• Adequate strength

• Lower material consumption

• Better production efficiency

The ideal wall thickness should be determined according to the specific geometry and material grade.

20. Dimensional Accuracy

Dimensional accuracy is critical when a support bracket is used for precision positioning.

For battery cell holders, important dimensions may include:

• Hole diameter

• Hole spacing

• Center-to-center distance

• Overall length

• Overall width

• Overall height

• Wall thickness

• Slot dimensions

• Mounting hole location

For a 21700 staggered cell bracket, the specified 21.3 mm opening should be verified against the actual cell dimensions and required fit.

21. Color Options

Black is one of the most common colors for ABS plastic support brackets.

Black can provide:

• A professional appearance

• Good visual consistency

• Easy identification in industrial assemblies

• Compatibility with many electrical enclosure designs

However, custom colors can be produced when required.

Possible options include:

• Black

• White

• Gray

• Blue

• Green

• Red

• Custom colors

Color selection should be based on identification requirements, customer specifications, material availability, and production conditions.

22. Environmental Compliance

For products used in international electrical equipment, environmental compliance can be an important purchasing requirement.

RoHS compliance may be requested for electrical and electronic components.

Depending on the target market and application, customers may also request documentation relating to:

• Material composition

• Restricted substances

• Flame-retardant additives

• Regulatory compliance

• Material safety information

Compliance requirements should be confirmed according to the destination market and final product category.

23. Applications of ABS Plastic Support Brackets

ABS support brackets can be used in many industries.

Battery Applications

• 21700 battery packs

• 18650 battery packs

• Energy storage modules

• Power battery systems

• Rechargeable battery assemblies

• Battery management systems

Electrical Applications

• Electrical cabinets

• Control panels

• Power distribution equipment

• Wiring systems

• Electrical enclosures

• Terminal assemblies

Electronic Applications

• PCB assemblies

• Sensors

• Connectors

• Control modules

• Electronic housings

• Power supplies

Industrial Applications

• Automation equipment

• Industrial controllers

• Machinery

• Electrical instruments

• Control systems

• Equipment assemblies

24. Battery Pack Assembly

During battery pack assembly, cell positioning is an important manufacturing step.

A support bracket can make the assembly process more consistent by establishing a defined cell layout.

A typical process may include:

1. Position the lower bracket.

2. Insert cylindrical cells.

3. Confirm cell alignment.

4. Install the upper bracket if required.

5. Secure the assembly.

6. Install nickel strips or other electrical connections.

7. Perform electrical inspection.

8. Install the assembly into the enclosure.

The bracket does not replace electrical protection systems, battery management systems, Insulation Materials, or structural components.

25. Nickel Strip Spot Welding Applications

Battery cell holders are frequently used during nickel strip spot welding.

The bracket helps maintain the position of the cells while welding equipment connects the cells.

Advantages may include:

• Improved cell alignment

• Reduced movement

• Consistent welding position

• Easier assembly

• Improved production repeatability

The support bracket should provide appropriate clearance around welding areas so that it does not interfere with welding electrodes or electrical connections.

26. Custom ABS Support Bracket Design

Custom support brackets are often developed according to customer drawings, CAD files, samples, or application requirements.

Customization may include:

• Hole diameter

• Cell spacing

• Cell arrangement

• Overall dimensions

• Ventilation openings

• Cable channels

• Mounting holes

• Identification numbers

• Logo markings

• Snap-fit structures

• Reinforcing ribs

• Nickel strip clearance

• Color

• Material grade

A custom bracket should be designed around the actual assembly environment rather than adapted only from a generic standard product.

27. Custom Identification and Numbering

Battery modules and electronic assemblies may require identification marks.

Molded brackets can sometimes include:

• Cell numbers

• Polarity indicators

• Assembly marks

• Reference numbers

• Position indicators

• Customer-specific identification

These markings can improve assembly accuracy and reduce installation errors.

28. Cable Routing and Wiring Management

Cable management is increasingly important as electrical systems become more compact.

A support bracket can be designed with integrated routing channels.

These channels may guide:

• Battery wires

• Sensor cables

• Signal wires

• Power cables

• Communication wires

• Temperature sensor wires

Keeping wiring in a defined position can improve assembly quality and reduce the risk of unwanted contact with moving or hot components.

29. Mechanical Strength Considerations

Although ABS is strong for many plastic applications, the bracket must be designed according to the expected load.

Important factors include:

• Load direction

• Cell weight

• Assembly force

• Vibration

• Shock

• Temperature

• Wall thickness

• Rib structure

• Mounting method

For higher mechanical loads, reinforcing ribs or alternative materials may be required.

30. ABS Support Bracket for Electrical Insulation

Electrical insulation is one of the major reasons plastic brackets are used instead of bare metal supports.

The bracket can create physical separation between:

• Battery cells

• Conductive strips

• Terminals

• Wires

• Circuit boards

• Metal enclosures

However, the bracket should not be regarded as the only insulation barrier in a safety-critical electrical system unless it has been specifically evaluated for that purpose.

31. Comparison of Common Materials

The best material depends on the intended application rather than simply selecting the strongest material.

32. Purchasing and Quotation Key Points

When purchasing an ABS plastic support bracket, buyers should provide as much technical information as possible.

Specify the Cell Model and Arrangement

For battery applications, clearly identify the cell model.

For example:

21700 staggered cell arrangement

The required hole diameter and center spacing should also be provided.

Confirm Flame Retardancy

If fire performance is important, specify the required rating.

For example:

UL 94 V-0 flame-retardant ABS

Standard ABS without flame-retardant additives may not provide the same flame classification.

Match Material to Operating Conditions

For normal battery pack applications, flame-retardant ABS may be appropriate.

For higher-temperature environments, PC or PA66 may be considered.

Confirm Upper and Lower Configuration

Determine whether the design requires:

• Upper holder

• Lower holder

• Upper and lower matched set

• Single-sided holder

Provide Drawings or Samples

CAD drawings, dimensional drawings, product samples, or clear photographs can significantly improve quotation accuracy.

33. Customization and Tooling

Custom injection molding generally requires tooling.

Tooling requirements depend on:

• Product dimensions

• Geometry

• Number of cavities

• Production volume

• Material

• Required tolerance

• Surface finish

• Automation requirements

A simple bracket may require relatively straightforward tooling, while a complex battery holder with multiple openings, clips, ribs, and channels may require a more sophisticated mold.

For custom products, tooling cost and MOQ should be considered separately from the unit price.

34. MOQ Considerations

The minimum order quantity for a custom ABS support bracket can vary significantly.

It may depend on:

• Mold cost

• Material cost

• Production quantity

• Machine setup

• Color

• Packaging

• Secondary processing

Custom injection-molded components are generally more economical at higher production volumes because tooling costs can be distributed across more units.

A typical custom project may involve several hundred to several thousand pieces, but the actual MOQ should be negotiated according to the product and production conditions.

35. Quality Inspection

Quality control is important for electrical support brackets because dimensional errors can affect the final assembly.

Common inspection items include:

• Overall dimensions

• Hole diameter

• Hole spacing

• Wall thickness

• Flatness

• Burrs

• Flash

• Cracks

• Warping

• Color consistency

• Material identification

• Flame-retardant documentation where applicable

For battery cell holders, dimensional inspection around the cell openings is particularly important.

36. Common Manufacturing Defects

Injection-molded ABS brackets may experience several potential defects.

Flash

Excess material may appear along the mold parting line.

Warping

Uneven cooling or unsuitable geometry may cause deformation.

Sink Marks

Thick sections may shrink unevenly and create visible depressions.

Short Shot

Insufficient filling can leave incomplete sections.

Weld Lines

Flow fronts may meet and create visible lines.

Burn Marks

Improper venting or excessive injection conditions may cause discoloration.

Proper mold design and processing control can reduce these issues.

37. Design for Assembly

A good support bracket should make assembly easier.

Design features can include:

• Self-positioning holes

• Snap-fit structures

• Alignment ribs

• Guide slots

• Polarity markings

• Cable channels

• Clearance openings

• Easy-grip edges

These features can reduce assembly time and improve production consistency.

38. Compact Battery Module Design

Space is often limited in battery packs.

A compact ABS support bracket can help optimize the available space by precisely arranging cells.

Staggered cell arrangements can provide an efficient geometric layout.

However, compact design should not compromise:

• Thermal management

• Electrical isolation

• Wiring clearance

• Serviceability

• Structural integrity

• Safety spacing

The bracket should therefore be developed as part of the complete battery module design.

39. Support Bracket and Airflow

Airflow can be an important consideration in battery and electronic equipment.

A bracket with strategically positioned openings can create air passages.

Potential benefits include:

• Better natural convection

• Improved forced-air circulation

• Reduced enclosed heat accumulation

• Lower material weight

Airflow performance depends on the complete enclosure and cooling system. The bracket should therefore be evaluated together with the surrounding structure.

40. Surface Finish

ABS injection molding can produce a variety of surface finishes.

Possible finishes include:

• Smooth

• Matte

• Textured

• Fine grain

• Molded identification surface

Surface finish can affect:

• Appearance

• Grip

• Scratch visibility

• Cleaning

• Part release

For industrial electrical components, functional performance is generally more important than decorative appearance.

41. Black ABS Support Brackets

Black is a common choice for electrical support components.

Black ABS can provide a consistent industrial appearance and can visually integrate with battery packs, electrical enclosures, wiring assemblies, and electronic equipment.

It is also frequently used for battery cell holders because the color is practical for industrial environments.

Other colors may be used for identification or product differentiation.

42. Environmental and Chemical Considerations

The operating environment should be considered during material selection.

Potential environmental factors include:

• Humidity

• Temperature

• Dust

• Oil

• Cleaning chemicals

• Solvents

• UV exposure

• Mechanical vibration

Standard ABS may not be the best option for every chemical or outdoor environment.

If a bracket will be exposed to aggressive chemicals or prolonged outdoor conditions, alternative materials or specialized grades may need to be evaluated.

43. ABS Support Bracket for Industrial Electrical Systems

Industrial electrical systems often require components that combine mechanical positioning and electrical insulation.

ABS support brackets can be used in:

• Control cabinets

• Industrial controllers

• Power distribution equipment

• Electrical panels

• Automation systems

• Sensor assemblies

• Wiring structures

Their injection-molded geometry allows multiple functional features to be incorporated into a single component.

44. ABS Support Bracket for Energy Storage

Energy storage systems frequently contain multiple cylindrical or prismatic battery cells.

For cylindrical cell systems, support brackets can maintain cell spacing and help organize the module.

Potential functions include:

• Cell positioning

• Cell separation

• Insulation

• Airflow management

• Wiring organization

• Assembly support

Material selection should consider the temperature and fire-performance requirements of the complete energy storage system.

45. Importance of Cell Spacing

Correct cell spacing helps maintain mechanical organization.

If cells move excessively, they may interfere with:

• Nickel strips

• Busbars

• Wiring

• Insulation materials

• Enclosure components

A support bracket provides a physical reference structure that helps maintain the intended cell arrangement.

For high-density battery systems, cell spacing should be carefully defined during the engineering stage.

46. Electrical Clearance and Isolation

Electrical systems require appropriate clearance and isolation distances.

The support bracket can contribute to physical separation, but it should be designed according to the voltage and insulation requirements of the final assembly.

Relevant considerations include:

• Working voltage

• Transient voltage

• Pollution level

• Material characteristics

• Creepage distance

• Clearance distance

• Temperature

• Humidity

A generic plastic bracket should not automatically be assumed to satisfy a particular electrical safety standard.

47. Custom Color and Material Selection

Customers may request custom colors for:

• Product identification

• Assembly differentiation

• Brand consistency

• Polarity indication

• Production management

Material color can usually be incorporated through the resin or masterbatch used during molding.

For flame-retardant products, color selection should also be evaluated against the selected material formulation.

48. Long-Term Dimensional Stability

Dimensional stability is important when the bracket must maintain accurate cell positioning over time.

Factors affecting dimensional stability include:

• Material grade

• Temperature

• Moisture

• Mechanical stress

• Mold design

• Processing conditions

• Storage environment

For applications with strict dimensional requirements, engineering validation should be performed under actual operating conditions.

49. Why Choose a Custom ABS Support Bracket?

A custom bracket can provide a better fit than a generic component.

Benefits may include:

• Exact cell positioning

• Optimized dimensions

• Integrated cable channels

• Integrated ventilation

• Customized mounting points

• Improved assembly efficiency

• Reduced secondary components

• Better integration with the enclosure

Custom molding is particularly useful when the electrical system has a unique mechanical structure.

50. Conclusion

An ABS Plastic Support Bracket for Electrical Systems is a versatile molded component for positioning, supporting, separating, insulating, and organizing electrical and electronic assemblies.

For cylindrical battery applications, it can function as a cell positioning holder or spacer for configurations such as staggered 21700 battery cells, with a representative 21.3 mm opening depending on the specific design.

ABS is widely selected because it provides a practical balance of mechanical performance, electrical insulation, dimensional stability, processing efficiency, and cost. Where higher flame resistance is required, a suitable flame-retardant ABS grade can be considered. For higher-temperature applications, PC or PA66 may provide an alternative material solution.

Important purchasing parameters include cell model, arrangement, hole diameter, material grade, flame-retardant rating, temperature requirements, ventilation design, cable routing, nickel strip clearance, color, and environmental compliance.

For custom projects, buyers should clearly define the mechanical dimensions, cell arrangement, operating temperature, electrical environment, assembly method, and applicable material requirements. A properly engineered support bracket can improve assembly efficiency, component positioning, electrical isolation, and overall system organization.
