A Custom ABS Plastic Support Bracket is an injection molded plastic component designed to provide mechanical support, positioning, separation, alignment, and protection for components used in industrial assemblies. In lithium battery manufacturing, custom plastic support structures are particularly important because cylindrical battery cells must be accurately positioned and securely maintained throughout battery pack assembly, transportation, operation, and service.

For 21700 cylindrical lithium battery packs, plastic components are commonly used as cell holders, cell spacers, battery brackets, cell positioning frames, battery separators, and structural support parts. These components help maintain the designed spacing between individual cells while reducing unwanted movement, improving assembly efficiency, and supporting the overall mechanical structure of the battery module.

Most 21700 battery holders are made from ABS as a commonly used material. Depending on the application, PP, PC, or PA nylon may also be selected, particularly where higher temperature resistance, improved mechanical performance, chemical resistance, or specific electrical properties are required. These plastic components are generally manufactured through injection molding, allowing manufacturers to produce precise geometries, repeated mounting features, ventilation openings, alignment structures, and customized connection details.

In the lithium battery industry, a 21700 staggered battery holder generally refers to a cell positioning holder or cell spacer designed to arrange cylindrical 21700 cells in a controlled configuration. The staggered design can allow adjacent cylindrical cells to be positioned with optimized spacing and can be useful when a battery module requires a compact arrangement.

A custom ABS Plastic Support Bracket is not limited to battery applications. Similar injection molded support structures are widely used in electronics, electrical equipment, automotive components, industrial machinery, consumer products, communication equipment, power systems, and other applications where lightweight and accurately molded plastic components are required.

1. What Is a Custom ABS Plastic Support Bracket?

A custom ABS plastic support bracket is an injection molded structural component manufactured according to a specific dimensional, mechanical, electrical, or assembly requirement.

Unlike a standard off-the-shelf bracket, a Custom Support Bracket can be designed around the exact dimensions and functional requirements of the final assembly. This may include customized mounting holes, positioning pins, clips, ribs, grooves, openings, locking structures, cell cavities, ventilation channels, and other integrated features.

ABS, or acrylonitrile butadiene styrene, is a widely used thermoplastic engineering plastic. It is valued for its balance of impact resistance, rigidity, dimensional stability, surface quality, machinability, and injection molding performance.

For battery pack applications, an ABS Support Bracket may be designed to accommodate cylindrical battery cells such as 18650 or 21700 cells. A 21700 cell has a nominal diameter of approximately 21 mm and a nominal length of approximately 70 mm, although actual cell dimensions can vary according to cell construction and manufacturer specifications.

The bracket therefore needs to be designed around the actual cell dimensions and the required assembly tolerance rather than relying only on a nominal cell designation.

Common Functions of a Custom Plastic Support Bracket

A custom ABS support bracket may perform several functions simultaneously:

• Cell positioning

• Cell spacing

• Mechanical support

• Assembly alignment

• Battery pack organization

• Structural reinforcement

• Component separation

• Cable routing

• Connector positioning

• Protection against unwanted movement

• Integration with battery enclosures

• Support for busbars or electrical connection components

• Ventilation and thermal management assistance

• Simplification of battery module assembly

The exact function depends on the geometry and application.

2. 21700 Battery Holder and Cell Spacer

The 21700 battery holder is a specialized plastic component designed to accommodate cylindrical 21700 cells.

A cell holder typically contains multiple circular or semi-circular cavities. Each cavity provides a controlled location for an individual cylindrical cell. When multiple holders are assembled together, they create a structured battery module in which the cells remain properly aligned.

A cell spacer serves a similar purpose but may emphasize the spacing and separation function rather than fully surrounding or supporting the battery cell.

The terms commonly used in the industry include:

These terms can overlap, and the preferred terminology depends on the actual design.

3. Why ABS Is Commonly Used

ABS is frequently selected for custom plastic support brackets because it provides a useful balance between cost, mechanical performance, appearance, and manufacturability.

One important advantage of ABS is its relatively good impact resistance. Battery holders and brackets can experience mechanical loads during assembly and transportation. A plastic that is excessively brittle may crack when subjected to impact or excessive installation force.

ABS also provides good dimensional stability for many general-purpose structural plastic applications. This helps maintain the designed position of battery cells, mounting features, and connecting components.

Another important advantage is injection molding compatibility. ABS can be molded into relatively complex geometries, allowing manufacturers to integrate multiple functional features into one component.

Typical ABS Advantages

• Good impact resistance

• Good rigidity

• Good dimensional stability

• Good surface appearance

• Easy injection molding

• Good machinability

• Good design flexibility

• Competitive material cost

• Wide availability

• Suitable for customized geometries

However, ABS should not automatically be considered the best material for every battery application. The actual operating temperature, electrical requirements, flame-retardancy requirements, chemical exposure, mechanical loads, regulatory requirements, and enclosure design should all be evaluated before material selection.

4. Alternative Materials

Although ABS is widely used, other thermoplastics may be appropriate depending on the application.

PP

Polypropylene, commonly abbreviated as PP, is lightweight and has good chemical resistance. It can be useful where low density and chemical resistance are important.

PP generally provides good resistance to many common chemicals and can offer good fatigue resistance. However, its stiffness and dimensional behavior differ from ABS, so the component geometry may need to be adjusted.

PC

Polycarbonate, or PC, is known for high impact strength and relatively good temperature performance.

For applications requiring higher impact resistance or greater temperature capability than a general-purpose ABS component can provide, PC may be considered.

PC can also provide good dimensional performance, although material cost may be higher.

PA Nylon

Polyamide, commonly called nylon or PA, is frequently considered for applications requiring higher mechanical performance and temperature resistance.

PA grades can provide:

• High mechanical strength

• Good wear resistance

• Good temperature resistance

• Good fatigue performance

• Good engineering performance

However, many nylon grades absorb moisture, which can influence dimensions and mechanical properties. Therefore, the environmental conditions and material grade need to be considered carefully.

Material Comparison

The material should be selected according to the actual application rather than simply choosing the most expensive or highest-performance polymer.

5. Injection Molding Manufacturing

Most custom ABS plastic support brackets are manufactured using injection molding.

Injection molding is a high-volume manufacturing process in which thermoplastic material is heated until it becomes sufficiently fluid, injected into a mold cavity under pressure, cooled, and then ejected as a finished component.

This process is particularly suitable for battery holders because battery pack components are often produced in relatively large quantities and require repeatable dimensions.

Basic Injection Molding Process

1. Plastic pellets are loaded into the molding machine.

2. The material is heated.

3. The molten plastic is injected into the mold.

4. The material fills the cavity.

5. Pressure is maintained during the packing stage.

6. The component cools and solidifies.

7. The mold opens.

8. The finished component is ejected.

9. The part is inspected.

10. Secondary operations are performed if required.

Injection molding allows the bracket to incorporate features that would otherwise require multiple separate parts.

6. Custom Mold Design

Mold design is one of the most important stages in the development of a custom ABS plastic support bracket.

A battery holder may contain numerous circular cell openings, thin walls, reinforcing ribs, locking clips, mounting holes, and positioning structures. These features need to be considered when designing the mold.

A good mold design should provide:

• Proper material flow

• Uniform filling

• Appropriate cooling

• Easy part ejection

• Controlled shrinkage

• Suitable draft angles

• Adequate mold strength

• Reasonable cycle time

• Consistent dimensional performance

For a 21700 battery holder, the circular cell cavities need particular attention because excessive dimensional variation can result in cells being too loose or too difficult to install.

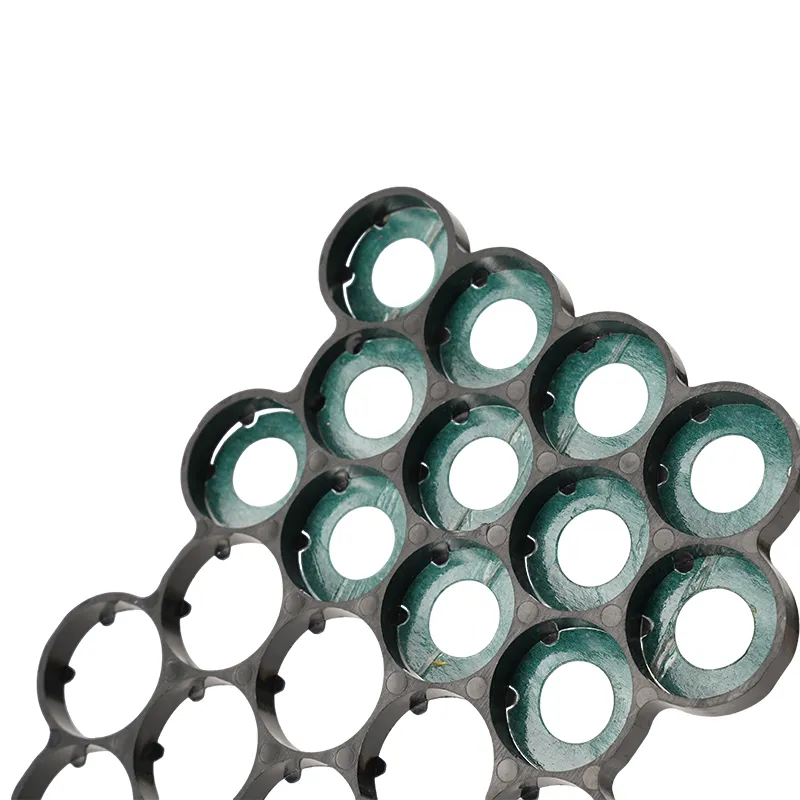

7. 21700 Staggered Battery Holder Design

A staggered battery holder uses an offset arrangement of cylindrical cells rather than placing every cell in a simple rectangular grid.

This type of arrangement can provide several potential design benefits depending on the battery pack geometry.

For example, a staggered configuration can allow designers to optimize the use of internal space, increase packing efficiency, or create a desired mechanical layout.

However, the actual benefit depends on:

• Cell diameter

• Cell length

• Required cell spacing

• Busbar configuration

• Thermal requirements

• Enclosure dimensions

• Electrical connection method

• Required mechanical strength

• Manufacturing tolerances

The holder should therefore be designed as part of the complete battery pack rather than as an isolated plastic component.

8. Cell Positioning

One of the most important functions of a battery holder is maintaining accurate cell positioning.

Cylindrical cells should remain in their intended locations during assembly and operation. Excessive movement can complicate electrical connection, increase mechanical stress, or interfere with other components.

A properly designed holder can help maintain:

• Cell center distance

• Cell orientation

• Cell alignment

• Vertical positioning

• Horizontal positioning

• Separation between adjacent cells

The required clearance should be determined from the actual cell dimensions and the operating environment.

9. Cell Spacing

Spacing between cylindrical battery cells is an important design consideration.

The required spacing depends on the cell manufacturer, pack construction, thermal design, electrical configuration, mechanical requirements, and enclosure design.

A plastic spacer may provide a defined gap between neighboring cells.

The spacing can help:

• Prevent direct mechanical contact

• Improve assembly consistency

• Create room for structural features

• Support thermal management design

• Provide routing space

• Accommodate dimensional tolerances

The holder should not be designed solely around the nominal 21700 cell diameter. The actual cell dimensional tolerance must be taken into account.

10. Mechanical Support

A support bracket can provide mechanical stability for battery cells and related components.

During transportation, battery packs may experience vibration and mechanical shock. During assembly, components may also experience insertion and clamping forces.

A properly engineered plastic bracket can distribute these loads and reduce unwanted movement.

Common structural features include:

• Reinforcing ribs

• Support walls

• Cross members

• Circular cell pockets

• Snap-fit structures

• Mounting tabs

• Screw holes

• Alignment pins

• Locking clips

The correct combination depends on the application.

11. Electrical Insulation Considerations

Plastic battery holders can also contribute to electrical isolation.

Many thermoplastic materials are electrically insulating. A plastic support structure can help keep conductive components physically separated from each other.

However, the plastic holder should not automatically be considered the sole electrical insulation barrier unless its material grade, geometry, thickness, dielectric properties, creepage distance, clearance, and applicable standards have been specifically evaluated.

Electrical insulation requirements should be considered together with:

• Cell voltage

• Pack voltage

• Busbar design

• Nickel Strip configuration

• Electrical terminals

• Wiring

• BMS components

• Enclosure construction

The complete battery assembly must be evaluated as a system.

12. Flame Retardant Material Options

For some battery applications, flame-retardant plastic grades may be considered.

A standard ABS grade and a flame-retardant ABS grade are not equivalent. Flame-retardant grades are specially formulated to reduce the tendency of the material to sustain combustion under specified test conditions.

If flame performance is required, the material grade should be clearly specified.

Possible material requirements may include:

• Flame retardant ABS

• UL recognized material

• Specified UL 94 rating

• Halogen-free material

• Low smoke material

• Specific temperature rating

The actual requirement depends on the finished product and applicable regulations.

13. Dimensional Accuracy

Dimensional accuracy is particularly important for custom battery holders.

The cell opening, cell spacing, mounting holes, connector positions, and external dimensions all influence assembly compatibility.

Important dimensions may include:

The values should be determined from engineering drawings and application requirements rather than using generic dimensions.

14. Design Tolerances

Plastic injection molded parts naturally experience dimensional variation because of material shrinkage, mold conditions, cooling behavior, and processing parameters.

Therefore, tolerances should be defined realistically.

A custom ABS bracket with unnecessarily tight tolerances may increase mold complexity and manufacturing cost without providing meaningful functional benefits.

Critical dimensions should receive tighter control than non-critical decorative dimensions.

For example, the diameter of a cell positioning opening may be more important than the exact dimension of an external non-functional surface.

15. Wall Thickness

Wall thickness affects many aspects of an injection molded component.

If the wall is too thin, the part may lack sufficient mechanical strength or may not fill properly during molding.

If the wall is too thick, the part may experience:

• Sink marks

• Longer cooling time

• Internal stress

• Warpage

• Increased material consumption

For this reason, a balanced wall thickness is generally preferred.

Ribs can be used to improve stiffness without simply making every wall substantially thicker.

16. Reinforcing Ribs

Reinforcing ribs are common features in custom ABS support brackets.

A rib adds structural stiffness while minimizing additional material compared with a solid thick section.

For battery holders, ribs can be positioned around:

• Cell cavities

• Mounting points

• Outer walls

• Connector supports

• Frame sections

Proper rib design helps improve mechanical stability while supporting efficient molding.

17. Mounting Features

Custom support brackets can incorporate multiple mounting features.

These may include:

• Screw holes

• Bolt holes

• Snap-fit clips

• Push-fit connections

• Mounting tabs

• Alignment pins

• Slots

• Hooks

• Locking mechanisms

Integrated mounting features can reduce the number of separate fasteners required during assembly.

18. Snap Fit Design

Snap-fit structures can provide a convenient way to connect plastic battery holders to adjacent components.

A snap-fit system may allow:

• Tool-free assembly

• Quick installation

• Reduced component count

• Simplified servicing

• Faster production

However, snap-fit features need to be designed around the mechanical properties of the selected material.

Repeated assembly and disassembly may require a material with suitable fatigue performance.

19. Ventilation and Thermal Considerations

Battery packs generate heat during charging and discharging. A plastic cell holder can influence the available airflow around the cells.

Some battery holder designs therefore incorporate openings, channels, gaps, or ventilation structures.

The plastic holder itself should not be considered a complete thermal management system. Battery thermal behavior depends on the complete module design, including:

• Cell chemistry

• Electrical current

• Cell spacing

• Heat generation

• Airflow

• Cooling plates

• Thermal interface materials

• Enclosure design

• Operating conditions

The holder should be designed to support the overall thermal management strategy.

20. Battery Pack Assembly

A custom 21700 battery holder can simplify battery pack assembly.

Instead of manually positioning every cylindrical cell independently, cells can be inserted into a preconfigured holder.

This can help improve assembly consistency and reduce positioning errors.

A typical assembly concept may involve:

1. Preparing the battery cells.

2. Inspecting the cells.

3. Installing cells into the holder.

4. Positioning the holder within the battery enclosure.

5. Installing electrical connection components.

6. Installing BMS components.

7. Connecting wiring.

8. Completing mechanical fastening.

9. Performing electrical inspection.

10. Performing final assembly testing.

The exact procedure depends on the battery pack design.

21. Manufacturing Advantages of Custom Injection Molded Brackets

Custom injection molded brackets can provide several manufacturing benefits.

Consistent Geometry

Once the mold and process are properly established, repeated parts can be manufactured with consistent geometry.

High Production Efficiency

Injection molding is particularly suitable for medium- and high-volume production.

Integrated Features

Multiple mechanical features can be molded into one component.

Reduced Assembly

A single molded bracket may replace several smaller support pieces.

Repeatable Appearance

Injection molding can produce consistent surface quality.

Material Efficiency

Appropriate structural design can minimize unnecessary material usage.

22. Customization Options

A custom ABS plastic support bracket can be customized in many ways.

23. Surface Finish

The surface finish of an injection molded bracket can be selected according to the application.

A smooth surface may be preferred when easy cleaning or a clean appearance is required.

A textured surface can help reduce the visibility of minor molding marks and may provide a different tactile appearance.

Possible surface characteristics include:

• Smooth

• Matte

• Textured

• Glossy

• Molded finish

The appropriate finish should be considered during mold design because the mold surface directly influences the finished component.

24. Color Selection

ABS plastic brackets can be manufactured in various colors.

Black is commonly used for industrial plastic components because it can provide a practical appearance and can help hide minor surface contamination.

Other colors may be selected for:

• Product identification

• Assembly orientation

• Visual differentiation

• Brand requirements

• Safety identification

Custom color matching may be possible depending on material grade and manufacturing requirements.

25. Product Identification

Custom molded plastic components can incorporate identification features.

Examples include:

• Part numbers

• Revision numbers

• Material codes

• Assembly indicators

• Orientation marks

• Molded arrows

• Position labels

These features can be integrated into the mold rather than applied through secondary printing.

26. Application in Lithium Battery Packs

The lithium battery industry is one of the important application areas for cylindrical cell holders.

21700 cells are used in various battery pack designs because their cylindrical format allows manufacturers to configure cells into different series and parallel arrangements.

A plastic support bracket helps organize the cells into the intended mechanical structure.

Potential applications include:

• Battery modules

• Energy storage systems

• Portable power equipment

• Electric mobility systems

• Power tools

• Industrial battery packs

• Backup power systems

• Battery testing equipment

• Customized energy systems

The specific suitability of a plastic material must always be verified against the requirements of the final battery product.

27. Cell Arrangement

The cell arrangement determines the geometry of the holder.

Common arrangements include:

• Straight rows

• Rectangular arrays

• Offset rows

• Staggered layouts

• Compact arrangements

• Customized module layouts

A staggered arrangement may allow cylindrical cells to be positioned in an offset pattern.

The final geometry should account for electrical connection, thermal management, mechanical support, and enclosure dimensions.

28. Importance of Battery Cell Tolerance

Not all 21700 cells have exactly the same dimensions.

Manufacturing tolerances may exist in:

• Diameter

• Length

• Terminal geometry

• Insulation sleeve thickness

• End cap configuration

Therefore, the holder should be designed around the actual cell specification.

A holder that is too tight may make assembly difficult, while excessive clearance may permit undesirable movement.

29. Compatibility With Battery Sleeves

Many cylindrical cells have an external insulating sleeve.

The effective outer diameter of the cell may therefore be slightly different from the bare metal cell body.

This should be considered when determining the cell cavity dimensions.

The holder should also avoid creating unnecessary mechanical damage to the cell insulation sleeve.

30. Electrical Connection Components

A cell holder may be used alongside various electrical connection components.

Depending on the battery design, these may include:

• Nickel strips

• Busbars

• Wiring

• Connectors

• Terminal components

• BMS wiring

The plastic structure can provide positioning support for some of these components.

However, the holder should not interfere with electrical connections or create unwanted mechanical stress.

31. BMS Integration

A battery management system, or BMS, monitors and manages battery pack operation.

The plastic support structure may be designed with space for:

• BMS mounting

• Wire routing

• Connector installation

• Sensor placement

• Cable management

A custom bracket can therefore help organize the relationship between battery cells and control electronics.

32. Cable Routing

Custom support brackets can incorporate cable routing channels.

These channels can help keep wires away from moving components and maintain a more organized internal assembly.

Potential features include:

• Wire channels

• Cable clips

• Routing slots

• Cable tie locations

• Connector holders

Proper cable routing can simplify assembly and service.

33. Vibration Resistance

Battery packs installed in vehicles, machinery, or portable equipment may experience vibration.

The holder should be designed to minimize unnecessary cell movement.

Mechanical stability can be improved through:

• Proper cell cavity fit

• Reinforcing ribs

• Secure frame connections

• Appropriate spacing

• Strong mounting structures

The complete battery assembly should be tested under the expected vibration environment.

34. Impact Considerations

Battery modules may experience impact during handling or transportation.

ABS can provide useful impact resistance for many general-purpose applications, but the actual performance depends on the specific grade and environmental temperature.

Material selection should therefore consider both normal operating conditions and foreseeable mechanical events.

35. Temperature Considerations

Temperature is an important factor in battery holder material selection.

ABS can be suitable for many general-purpose applications, but its temperature capability depends on the specific grade.

For applications with higher operating temperatures, designers may evaluate:

• PC

• PA

• High-temperature ABS grades

• PC ABS

• Other engineering thermoplastics

The selected material should be evaluated against the maximum continuous operating temperature and any short-term temperature peaks.

36. Chemical Resistance

Battery systems may contain materials that can influence polymer selection.

The plastic component may encounter:

• Cleaning agents

• Oils

• Greases

• Electrolyte-related contaminants

• Adhesives

• Industrial chemicals

Chemical resistance should therefore be considered when selecting the material.

PP and certain PA or PC grades may have different chemical resistance characteristics compared with ABS.

37. Moisture and Humidity

Environmental humidity can influence plastic performance.

This is particularly relevant for materials such as nylon, which can absorb moisture.

ABS generally has relatively low moisture absorption compared with many nylon grades, although environmental conditions still need to be considered.

For outdoor or humid applications, material selection should include environmental exposure requirements.

38. Outdoor Applications

Custom plastic support brackets may be used in outdoor battery equipment.

Outdoor applications can expose the material to:

• UV radiation

• Rain

• Temperature changes

• Humidity

• Dust

• Wind

• Mechanical vibration

For outdoor use, a UV-resistant material grade or appropriate protective design may be required.

Standard indoor-grade ABS should not automatically be assumed to be suitable for prolonged outdoor exposure.

39. Lightweight Structural Design

One major advantage of plastic support brackets is their low weight compared with many metal alternatives.

Reducing the weight of a battery module can be valuable in:

• Portable equipment

• Electric vehicles

• Mobile power systems

• Robotics

• Consumer electronics

• Industrial equipment

A properly designed plastic structure can provide sufficient mechanical support without adding unnecessary mass.

40. Cost Considerations

Injection molded plastic components can be cost-effective in medium- and high-volume production.

However, custom tooling introduces an initial mold investment.

The overall economics depend on:

• Part complexity

• Mold size

• Number of cavities

• Material

• Production volume

• Cycle time

• Secondary operations

• Quality requirements

For large production volumes, the tooling cost can be distributed across many parts.

41. Prototyping

Before mass production, prototypes can help verify the mechanical design.

Prototype evaluation can check:

• Cell fit

• Cell spacing

• Assembly process

• Mounting compatibility

• Interference

• Structural strength

• Enclosure fit

• Cable routing

Prototype parts may be produced using different manufacturing methods depending on the development stage.

42. Design Validation

A custom battery holder should undergo appropriate validation before production.

Possible evaluation areas include:

• Dimensional inspection

• Assembly testing

• Mechanical testing

• Temperature testing

• Vibration testing

• Environmental testing

• Material verification

• Electrical insulation evaluation

• Flame performance evaluation where applicable

The exact tests should be determined by the final product requirements.

43. Quality Control

Quality control is essential for injection molded plastic battery components.

Typical inspection items include:

• Overall dimensions

• Cell cavity dimensions

• Wall thickness

• Mounting hole dimensions

• Surface defects

• Warpage

• Flash

• Cracks

• Color consistency

• Material identification

Common Injection Molding Defects

Proper mold design and process control can reduce these issues.

44. CAD Design

Computer-aided design is commonly used to develop custom plastic support brackets.

A CAD model can define:

• Cell locations

• Cell spacing

• Mounting points

• Overall dimensions

• Wall thickness

• Ribs

• Clips

• Openings

• Assembly interfaces

Three-dimensional CAD data also allows the bracket to be checked against the battery enclosure and surrounding components before tooling begins.

45. Engineering Drawing Requirements

A production drawing should clearly define critical requirements.

A typical drawing may include:

• Part name

• Part number

• Material

• Color

• Overall dimensions

• Critical dimensions

• Tolerances

• Surface finish

• Molded features

• Inspection requirements

• Revision information

Clear documentation helps reduce manufacturing misunderstandings.

46. Material Selection Guide

The following general guide can help during initial material selection.

This table is a general engineering reference. The final material should be selected based on actual operating conditions and the specific grade data sheet.

47. ABS Plastic Support Bracket Advantages

A custom ABS plastic support bracket can provide several practical advantages.

Lightweight

Plastic is generally lighter than metal, helping reduce assembly weight.

Custom Geometry

Injection molding allows complex shapes to be produced.

Integrated Functions

Mounting, alignment, spacing, and support features can be incorporated into one part.

Good Appearance

ABS can provide a clean molded surface.

Good Impact Performance

Appropriate ABS grades can withstand moderate mechanical impact.

Efficient Production

Injection molding supports repeatable production for larger quantities.

Flexible Design

The geometry can be customized for different battery pack configurations.

48. Custom Versus Standard Brackets

A standard bracket may be suitable when the application uses common dimensions.

A custom bracket is more appropriate when the design requires:

• Special cell spacing

• Unusual battery configurations

• Custom enclosure dimensions

• Integrated mounting features

• Special ventilation

• Unique cable routing

• Custom colors

• Specialized material grades

Comparison

49. How to Specify a Custom ABS Battery Holder

When requesting a custom plastic support bracket, several details should be provided.

Important information includes:

1. Battery cell type

2. Cell dimensions

3. Number of cells

4. Cell arrangement

5. Required cell spacing

6. Overall module dimensions

7. Mounting method

8. Material requirements

9. Temperature requirements

10. Flame-retardancy requirements

11. Color

12. Surface finish

13. Quantity

14. CAD drawing

15. Application environment

The more complete the technical information, the easier it is to develop a suitable design.

50. Recommended Technical Specification Format

A product specification can be organized as follows:

51. Packaging of Plastic Battery Holders

Plastic brackets should be packaged to prevent deformation, scratching, contamination, or breakage during transportation.

Packaging methods may include:

• PE bags

• Cartons

• Protective separators

• Foam protection

• Layered packaging

• Customized trays

The packaging method should be appropriate for the geometry and shipping environment.

52. Storage Requirements

Plastic components should generally be stored in a clean and dry environment.

Long-term storage should consider:

• Temperature

• Humidity

• Direct sunlight

• Dust

• Chemical exposure

• Mechanical loading

Heavy objects should not be stacked on delicate plastic components if deformation could occur.

53. Sustainability Considerations

Material selection increasingly includes sustainability considerations.

ABS, PP, PC, and PA are thermoplastic materials, meaning they can generally be reheated and processed under appropriate recycling systems.

However, recycling feasibility depends on:

• Material grade

• Additives

• Contamination

• Color

• Mixed materials

• Local recycling infrastructure

Where sustainability is important, designers can consider material identification and simplified material combinations.

54. Design for Manufacturing

Design for manufacturing, often called DFM, is particularly important for injection molded components.

A DFM review can identify:

• Excessively thick sections

• Insufficient draft

• Difficult undercuts

• Poor gate locations

• Uneven wall thickness

• Difficult ejection areas

• Mold complexity

• Potential warpage

Addressing these issues before mold production can reduce development time and manufacturing costs.

55. Draft Angles

Draft angles allow molded parts to be removed from the mold more easily.

Without sufficient draft, the component may stick to the mold surface or require excessive ejection force.

The required draft depends on:

• Surface finish

• Material

• Mold design

• Part geometry

• Texture

Textured surfaces may require more draft than smooth surfaces.

56. Gate Location

Gate location influences material flow during injection molding.

For complex battery holders, gate placement should be evaluated carefully to achieve balanced filling.

Poor gate placement may contribute to:

• Weld lines

• Uneven filling

• Warpage

• Flow marks

• Dimensional variation

Mold flow analysis can be useful for complex designs.

57. Cooling System

Cooling is a major part of injection molding.

Uneven cooling can cause dimensional differences and warpage.

A properly designed cooling system helps the mold achieve consistent cycle times and stable part dimensions.

Battery holders with many repeated cavities may require careful cooling channel design.

58. Ejection System

The ejection system removes the molded component from the mold.

Possible ejection methods include:

• Ejector pins

• Ejector plates

• Sleeves

• Other specialized structures

The ejection system should apply force to structurally appropriate areas.

59. Importance of Parting Line Design

The mold parting line affects the appearance and functionality of the finished plastic bracket.

A poorly positioned parting line can create unwanted flash or visible marks in critical areas.

For battery holders, the parting line should ideally be positioned where it does not interfere with cell insertion or assembly.

60. Common Applications Beyond Battery Packs

Although 21700 battery holders are an important application, custom ABS plastic support brackets can also be used in:

• Electrical equipment

• Electronic devices

• Automotive systems

• Industrial machinery

• Communication equipment

• Power supplies

• Control cabinets

• Consumer electronics

• Robotics

• Instrumentation

• Automation equipment

The same injection molding principles apply to many of these applications.

61. Automotive Applications

Automotive electrical systems use numerous plastic brackets and holders.

Potential functions include:

• Wire routing

• Connector positioning

• Sensor support

• Cable protection

• Component mounting

For automotive applications, material requirements may be more demanding than general industrial applications.

Temperature cycling, vibration, chemical exposure, and flame performance may all need to be considered.

62. Electronics Applications

Electronic products often require compact plastic support structures.

Custom ABS brackets can be used to hold:

• Circuit boards

• Wires

• Connectors

• Batteries

• Sensors

• Small modules

ABS can be attractive for these applications because of its molding performance and surface appearance.

63. Industrial Equipment

Industrial equipment may require rugged plastic support components.

A custom bracket can help:

• Reduce assembly time

• Organize wiring

• Support components

• Protect sensitive parts

• Reduce vibration

• Improve maintenance access

The required material grade should correspond to the industrial environment.

64. Battery Module Design Considerations

The plastic holder is only one part of a battery module.

A complete battery design may include:

• Cells

• Cell holders

• Busbars

• Insulation Materials

• BMS

• Sensors

• Wiring

• Enclosure

• Cooling components

• Mechanical fasteners

The holder should be developed together with the complete system.

65. Importance of Cell Orientation

Some cylindrical battery designs have specific terminal structures and electrical connection requirements.

The holder may therefore need to ensure consistent cell orientation.

Orientation features can reduce assembly mistakes and help maintain correct electrical configuration.

66. Assembly Efficiency

A well-designed custom holder can improve production efficiency.

Instead of individually measuring and positioning every cell, the holder establishes the intended geometry.

Potential benefits include:

• Faster assembly

• Better repeatability

• Reduced positioning errors

• Easier inspection

• Simplified automation

This can be particularly useful in high-volume battery production.

67. Automation Compatibility

Custom plastic holders can be designed with automated assembly in mind.

Features may include:

• Consistent reference surfaces

• Alignment points

• Robot-friendly geometry

• Automatic cell insertion access

• Standardized orientation

• Machine-readable identification

Automation requirements should be considered early in the design process.

68. Inspection and Measurement

Quality inspection can include dimensional measurement using:

• Calipers

• Micrometers

• Coordinate measuring machines

• Optical measurement systems

• Custom inspection fixtures

For high-volume production, inspection fixtures can help rapidly verify critical dimensions.

69. Product Consistency

Consistency is important when plastic holders are used in battery modules.

Variation in cell cavity dimensions or mounting locations may accumulate across a large module.

Process control should therefore focus on critical dimensions and molding stability.

70. Long-Term Performance

The long-term performance of a plastic support bracket depends on:

• Material grade

• Operating temperature

• Mechanical load

• Chemical exposure

• UV exposure

• Moisture

• Vibration

• Design geometry

A material that performs well in an indoor application may not provide the same performance in an outdoor or high-temperature application.

71. Choosing ABS for General Applications

ABS is a practical choice when the application requires a balance of:

• Cost

• Strength

• Impact resistance

• Appearance

• Processing performance

• Dimensional stability

It is often suitable for general industrial and electronic support components.

However, engineers should use the specific material manufacturer's technical data when confirming suitability.

72. Choosing PC for Higher Impact Requirements

PC may be considered where high impact resistance is important.

It can be useful when the support bracket must withstand greater mechanical impact or elevated temperatures than a standard ABS grade can tolerate.

However, PC can have higher material and processing costs.

73. Choosing PA Nylon for Engineering Applications

PA can provide strong mechanical performance and good temperature resistance.

It is frequently considered for demanding engineering components.

The main consideration is moisture absorption, which can affect dimensional behavior.

For precision battery holders, this characteristic should be evaluated carefully.

74. Choosing PP for Lightweight Applications

PP is attractive when lightweight construction and chemical resistance are important.

It can be suitable for certain battery holder designs, although its stiffness and dimensional characteristics differ from ABS.

The part geometry may need to be adapted to the material.

75. Custom ABS Plastic Support Bracket SEO Content Summary

A custom ABS plastic support bracket is a versatile injection molded component for mechanical support, positioning, spacing, and protection.

For 21700 lithium battery packs, it can function as a:

• Battery cell holder

• Cell spacer

• Cell positioning bracket

• Battery module frame

• Battery pack support

• Staggered cell holder

Its effectiveness depends on proper material selection, dimensional design, injection molding quality, and integration with the complete battery system.

76. Frequently Asked Questions

What is a 21700 battery holder?

A 21700 battery holder is a plastic or other structural component designed to position and support cylindrical 21700 battery cells within a battery pack.

What is the common material for a 21700 cell holder?

ABS is commonly used, while PP, PC, PA nylon, PC ABS, and specialized engineering plastics may also be considered.

Is ABS suitable for battery holders?

ABS can be suitable for many general-purpose battery holder applications because it offers a useful balance of impact resistance, rigidity, dimensional stability, appearance, and injection molding performance. The specific material grade should be evaluated for the actual operating conditions.

What is a staggered battery holder?

A staggered battery holder positions cylindrical cells in offset rows rather than a simple straight grid. This configuration can help optimize the use of available space depending on the battery module design.

Can the bracket be customized?

Yes. A custom injection molded bracket can be designed according to cell size, cell quantity, spacing, mounting requirements, enclosure dimensions, and other application-specific requirements.

Can ABS battery holders be made in different colors?

Yes. ABS can generally be produced in a range of colors depending on the selected material grade and coloring system.

Can a battery holder include mounting holes?

Yes. Mounting holes, slots, clips, pins, tabs, and other fastening features can be incorporated into the mold design.

Can the holder support cable routing?

Yes. Cable channels, clips, slots, and routing structures can be integrated into a custom plastic holder.

Is injection molding suitable for mass production?

Yes. Injection molding is particularly suitable for medium- and high-volume production because it can provide repeatable parts and efficient cycle times after the tooling process is established.

Can other materials be used instead of ABS?

Yes. PP, PC, PA nylon, PC ABS, and other suitable thermoplastics may be selected depending on mechanical, thermal, chemical, flame, and environmental requirements.

77. Conclusion

A Custom ABS Plastic Support Bracket provides a practical solution for applications requiring accurate positioning, mechanical support, separation, and organization of components.

In lithium battery manufacturing, the 21700 cell holder, cell spacer, battery bracket, and staggered battery holder are important plastic components for organizing cylindrical battery cells into a stable mechanical arrangement.

ABS is a commonly selected material because it offers a balanced combination of impact resistance, rigidity, dimensional stability, appearance, processing performance, and cost. However, PP, PC, PA nylon, PC ABS, and other engineering plastics may be considered when the application requires different mechanical, thermal, chemical, or flame-retardant characteristics.

Injection molding allows manufacturers to produce highly customized support brackets with integrated cell cavities, spacing structures, mounting holes, alignment features, reinforcing ribs, clips, ventilation openings, and cable management features.

For a successful custom 21700 battery holder design, engineers should consider the actual cell dimensions, cell spacing, operating temperature, mechanical loads, electrical insulation requirements, enclosure dimensions, thermal management strategy, manufacturing tolerances, material grade, and production volume.

A well-designed custom plastic support bracket can simplify battery pack assembly, improve cell positioning, reduce unnecessary movement, support mechanical stability, and integrate multiple structural functions into a single injection molded component.
