Custom adhesive Cushion Sealing Gasket products are engineered sealing, cushioning, insulation, and protection components designed for applications where conventional flat gaskets or standard foam pads cannot fully satisfy assembly requirements. By combining a flexible foam substrate with pressure-sensitive adhesive technology, adhesive cushion Sealing Gaskets can provide controlled compression, gap filling, vibration absorption, surface protection, dust resistance, moisture resistance, and positioning performance in a single component.

Among the various foam materials used for custom gasket manufacturing, EVA foam is widely selected for applications requiring a combination of flexibility, cushioning, dimensional adaptability, low water absorption, and practical processing performance. EVA foam gasket products can be manufactured in different densities, hardness levels, thicknesses, widths, shapes, and adhesive configurations. They can also be processed through die cutting, slitting, laminating, and other converting methods to meet application-specific requirements.

Custom adhesive cushion sealing gaskets are used across electronics, electrical equipment, battery systems, automotive components, appliances, lighting products, industrial equipment, packaging systems, communication equipment, and mechanical assemblies. Their function may range from simple cushioning and anti-slip support to auxiliary sealing, electrical isolation, vibration damping, and component protection.

The performance of a custom gasket depends on much more than the foam material itself. Product selection must consider compression requirements, gap dimensions, temperature exposure, environmental conditions, adhesive compatibility, surface energy, assembly method, aging requirements, and expected service life. For this reason, custom gasket design generally begins with the actual application environment rather than a predetermined material specification.

EVA foam is particularly useful when the gasket needs to remain lightweight while providing sufficient resilience and compression recovery. Its closed-cell structure can help limit water absorption and provide effective cushioning. When combined with a suitable pressure-sensitive adhesive, EVA foam can also be converted into single-sided adhesive gaskets or double-sided adhesive gasket assemblies.

In battery applications, EVA foam cushion sealing gaskets can provide valuable support between battery cells, modules, cooling structures, and enclosures. However, material selection must always reflect the actual electrical, thermal, mechanical, and safety requirements of the battery system. EVA foam should not automatically be treated as a substitute for dedicated high-performance electrical insulation or high-temperature sealing materials.

What Is a Custom Adhesive Cushion Sealing Gasket?

A custom adhesive cushion sealing gasket is a precision-cut component made from a compressible material and one or more adhesive layers. The gasket is designed to occupy a defined space between two or more components while providing cushioning, sealing, isolation, or surface protection.

Unlike a standard gasket with a fixed shape and size, a custom adhesive cushion sealing gasket can be manufactured according to a specific drawing, dimensional requirement, assembly configuration, or application environment.

Typical construction may include:

1. Foam or elastomeric substrate

2. Pressure-sensitive adhesive layer

3. Release liner

4. Optional protective film

5. Optional laminate or functional surface layer

The substrate provides the primary cushioning or sealing function, while the adhesive helps maintain the gasket position during assembly and service. Depending on the application, the adhesive can be applied to one side or both sides.

Single-sided adhesive gaskets are useful when the gasket needs to remain attached to one component before final assembly. Double-sided adhesive gaskets are suitable when the gasket must bond two surfaces while simultaneously providing cushioning or sealing.

Custom adhesive gasket products may also incorporate holes, slots, notches, channels, tabs, rounded corners, irregular profiles, or other geometries. Precision die cutting makes it possible to produce complex gasket shapes while maintaining consistent dimensions across production batches.

Why Custom Gasket Design Matters

A gasket that performs well in one assembly may not perform adequately in another. Differences in compression, surface condition, temperature, humidity, vibration, chemical exposure, and assembly tolerances can significantly affect gasket performance.

Custom design allows the gasket to be optimized for the actual application.

Important design factors include:

• Required gasket thickness

• Available installation space

• Compression ratio

• Contact pressure

• Required sealing level

• Foam density

• Foam hardness

• Adhesive type

• Surface material

• Operating temperature

• Environmental exposure

• Expected service life

• Assembly method

• Required dimensional tolerance

• Die-cut geometry

• Peel strength

• Shear resistance

• Compression recovery

• Compression set

A properly designed gasket can reduce unnecessary material use while improving assembly consistency. It can also simplify component installation by combining several functions into one converted part.

EVA Foam as a Cushion Sealing Gasket Material

EVA, or ethylene-vinyl acetate, is a flexible polymer material commonly processed into foam for cushioning, insulation, sealing support, and protective applications.

EVA foam can be produced in different grades with different densities, hardness levels, cell structures, and physical properties. Cross-linked and semi-cross-linked EVA foam structures are frequently used where dimensional stability, resilience, and cushioning performance are required.

A closed-cell EVA foam structure contains individual or interconnected cellular regions that help provide lightweight cushioning and reduced water absorption compared with many open-cell foam structures.

For gasket applications, EVA foam offers several useful characteristics:

• Lightweight construction

• Flexible cushioning

• Good impact absorption

• Good dimensional adaptability

• Low moisture absorption for suitable closed-cell grades

• Good resistance to many common environmental conditions

• Easy die cutting

• Easy laminating

• Easy slitting

• Availability in different thicknesses

• Availability in different hardness levels

• Compatibility with pressure-sensitive adhesive systems

The final performance depends on the specific EVA grade, foam structure, density, hardness, thickness, adhesive system, and processing conditions.

EVA Applications in Lithium Battery Systems

EVA foam can be used in selected lithium battery applications where cushioning, spacing, isolation, protection, or auxiliary sealing is required. Battery assemblies are mechanically demanding systems because cells and modules can experience dimensional changes, vibration, assembly tolerance variation, thermal cycling, and repeated mechanical loading.

EVA foam can help accommodate these mechanical conditions when appropriately designed.

Cell-to-Cell Cushioning and Isolation

EVA foam can be inserted between prismatic or cylindrical battery cells to provide cushioning and spacing. During charging and discharging, battery cells may undergo dimensional changes associated with electrochemical and thermal processes. The resulting expansion and contraction can create mechanical stress within the cell assembly.

A properly selected EVA foam layer can provide a compliant interface between neighboring cells. Instead of allowing rigid components to remain in direct contact, the foam can absorb part of the mechanical movement and help distribute contact pressure.

Potential benefits include:

• Reduced hard-contact friction

• Reduced surface abrasion

• Improved cushioning

• Controlled spacing

• Compensation for dimensional tolerances

• Reduction of localized contact pressure

• Support for module assembly

The actual foam thickness must be selected according to the available cell gap and the required compression range. For many applications, a thin gasket is preferred because excessive foam thickness can occupy valuable module space.

For battery cell applications, material selection should also consider flame behavior, temperature exposure, electrical properties, aging, compression set, and compatibility with neighboring materials.

Module-to-Enclosure Cushioning Pads

EVA foam can also function as a cushioning layer between battery modules and structural enclosures.

A battery module may be installed inside an aluminum or other metal enclosure. During assembly and operation, small dimensional differences can occur between components. A compliant foam pad can help compensate for these tolerances while reducing direct metal-to-metal contact.

Potential application locations include:

• Between a battery module and enclosure

• Beneath selected cooling structures

• Around support Brackets

• Between structural frames and module housings

• At contact points between battery components and protective panels

The gasket may provide both mechanical cushioning and positioning assistance.

In some designs, adhesive backing is used to hold the foam in place during assembly. This can reduce movement before the battery enclosure is completely assembled.

Cushioning Beneath Liquid Cooling Plates

Battery thermal management systems can contain cooling plates or other thermal control components. EVA foam may be used in selected designs as an auxiliary cushioning layer between structural components, provided the material's thermal, compression, and environmental properties are suitable.

The purpose is generally not to replace the thermal interface material between a heat-generating component and a cooling surface. Instead, the foam may serve as a mechanical support or cushioning component around the thermal management structure.

The design should ensure that the foam does not interfere with required thermal contact areas or cooling performance.

Tab and Busbar Insulation and Isolation

Single-sided adhesive EVA sheets can be used as auxiliary isolation layers around selected battery tabs, busbars, or metallic connectors.

The purpose is to separate metal components from nearby structures and reduce the possibility of unintended contact.

However, EVA foam should not automatically be considered a replacement for dedicated Electrical Insulation Materials. In applications requiring high dielectric strength, high temperature resistance, flame resistance, or long-term electrical reliability, materials specifically engineered for those requirements may be more appropriate.

Common dedicated Insulation Materials include fish paper, aramid paper such as Nomex-type materials, polyester films, polyimide films, and other engineered electrical insulation products.

EVA can therefore serve as an auxiliary cushioning and isolation layer where its electrical characteristics are suitable for the application.

Battery Pack Sealing and Dust Protection

EVA foam can be applied around selected enclosure joints and seams as an auxiliary sealing material.

A compressible foam gasket can fill small gaps between mating surfaces and help reduce the penetration of dust, moisture, and other environmental contaminants.

Typical locations may include:

• Battery enclosure covers

• Access panels

• Inspection openings

• Peripheral frame areas

• Cable entry areas

• Auxiliary component covers

• Protective housing interfaces

For demanding waterproofing applications, gasket design becomes more critical. Compression ratio, surface flatness, joint geometry, environmental exposure, and long-term compression behavior all need to be considered.

For high-temperature or highly demanding sealing environments, silicone foam or other specialized sealing materials may be more appropriate than EVA.

Material and Technical Specifications

These values are general industry-oriented ranges. Actual specifications should be confirmed according to the selected EVA foam grade, adhesive system, testing method, and application environment.

EVA Foam Hardness Selection

Hardness is an important consideration when designing an adhesive cushion sealing gasket.

A softer EVA foam can provide better compliance and cushioning when the mating surfaces have irregularities or when the assembly requires greater deformation.

A harder EVA foam can provide stronger structural support and better resistance to compression under certain loading conditions.

Common hardness options may include approximately:

• 25

• 38

• 45

• 60

• 70

The appropriate hardness depends on the required compression force, gap size, contact pressure, surface geometry, and desired recovery.

A very soft gasket may compress easily but may not provide sufficient long-term support. A very hard gasket may provide greater mechanical support but may require higher assembly pressure and may not conform as effectively to uneven surfaces.

Therefore, hardness should be selected together with density and thickness rather than considered independently.

EVA Foam Density

Density is another important parameter.

Common EVA foam gasket materials may have densities in the range of approximately 0.3–0.8 g/cm³.

Higher-density foam generally provides:

• Greater resistance to compression

• Increased structural support

• Improved resistance to deformation

• Greater material mass per unit volume

Lower-density foam generally provides:

• Softer cushioning

• Lower compression force

• Greater flexibility

• Lightweight construction

The correct density depends on the purpose of the gasket.

For example, a soft cushioning pad designed to accommodate assembly tolerance may benefit from a lower-density material, while a support pad subjected to repeated compression may require a higher-density grade.

Thickness Selection

Available EVA foam thicknesses may include:

0.5 mm, 1 mm, 2 mm, 3 mm, 5 mm, 8 mm, and 10 mm.

Other thicknesses can also be considered for custom applications.

Thickness selection should consider:

• Initial gap

• Desired compression

• Available assembly space

• Required cushioning

• Required sealing

• Installation tolerance

• Adhesive thickness

• Expected dimensional changes

• Long-term compression

In battery cell-to-cell applications, approximately 1–3 mm may be considered for certain cell gap designs, but the actual requirement must be determined from the battery module structure and engineering specifications.

A thicker foam layer does not necessarily provide better sealing. Excessive thickness can increase compression requirements, alter assembly dimensions, or create undesirable mechanical forces.

Single-Sided Adhesive EVA Gaskets

Single-sided adhesive EVA gaskets have adhesive on one surface and exposed foam on the opposite surface.

This configuration is useful when the gasket needs to be attached to one component while the other surface remains flexible.

Typical applications include:

• Battery module cushioning

• Electronic enclosure cushioning

• Protective pads

• Anti-vibration interfaces

• Component positioning

• Auxiliary insulation

• Cable and connector protection

• Surface protection

Acrylic and rubber-based pressure-sensitive adhesives are commonly considered depending on the application.

The adhesive should be selected according to surface type, temperature, humidity, aging requirements, required bond strength, and assembly process.

Double-Sided Adhesive EVA Gaskets

Double-sided adhesive EVA gaskets contain adhesive layers on both sides of the foam.

This configuration can provide:

• Strong positioning

• Component bonding

• Cushioning

• Gap filling

• Vibration damping

• Auxiliary sealing

Double-sided adhesive foam products are often useful when the gasket must remain fixed between two components during assembly and operation.

However, the adhesive system must be carefully selected. Adhesive performance can change with temperature, surface energy, contamination, humidity, and long-term loading.

Acrylic Pressure-Sensitive Adhesive

Acrylic pressure-sensitive adhesive is commonly used when long-term environmental stability is important.

Depending on the formulation, acrylic adhesive can provide good resistance to:

• Temperature variation

• Aging

• Humidity

• UV exposure

• Certain chemicals

Acrylic adhesives are often suitable for industrial and electronic assemblies where long-term bonding stability is required.

Surface preparation remains important. Dust, oil, moisture, release agents, and other contaminants can reduce adhesive performance.

Rubber-Based Pressure-Sensitive Adhesive

Rubber-based pressure-sensitive adhesives can provide good initial tack and bonding performance on various surfaces.

They may be useful where:

• High initial adhesion is required

• Rapid assembly is important

• The substrate has relatively low surface energy

• The application does not require extreme long-term temperature exposure

The appropriate adhesive should always be evaluated according to actual operating conditions.

Custom Die-Cut Gasket Manufacturing

Die cutting is widely used to convert EVA foam rolls or sheets into customized gasket components.

A die-cut gasket can be manufactured with:

• Holes

• Slots

• Internal openings

• External contours

• Notches

• Tabs

• Rounded corners

• Multiple adhesive zones

• Asymmetric profiles

The die-cutting process can provide consistent dimensions and efficient production for repeated components.

For high-volume applications, die cutting can significantly reduce manual assembly work and improve part-to-part consistency.

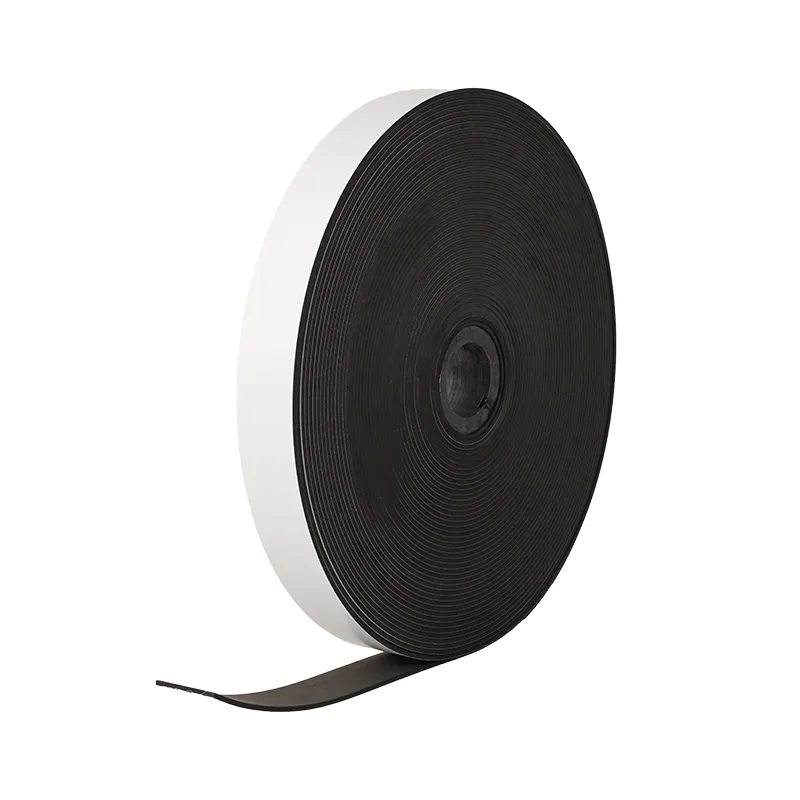

EVA Roll Material for Gasket Production

EVA roll material is particularly useful for continuous gasket converting processes.

Roll-form EVA foam can be supplied in different:

• Widths

• Thicknesses

• Densities

• Hardness levels

• Surface finishes

• Adhesive configurations

The roll format allows manufacturers to slit, laminate, coat, and die cut the material according to the final gasket design.

Available widths may range from approximately 2.8 mm to 1200 mm depending on material and processing capabilities.

Roll material can be especially useful for producing long strips, continuous seals, narrow cushioning tapes, and high-volume die-cut parts.

Cushioning Performance

The primary mechanical advantage of EVA foam is its ability to deform under compression.

When a gasket is compressed between two components, the foam can absorb part of the mechanical movement and distribute contact pressure over a larger area.

This can help reduce:

• Shock transmission

• Vibration

• Surface damage

• Localized pressure

• Component movement

• Assembly noise

For electronic and battery assemblies, cushioning can be particularly useful because rigid components may be sensitive to impact, abrasion, and repeated mechanical loading.

Compression and Recovery

Compression performance is essential for cushion sealing gasket design.

A gasket must compress enough to make effective contact while maintaining sufficient recovery after mechanical movement.

Important properties include:

• Compression force

• Compression recovery

• Compression set

• Resilience

• Stress relaxation

Compression set describes the degree to which a foam material remains permanently deformed after prolonged compression.

A lower compression set is generally desirable when a gasket must maintain its thickness and contact performance over an extended period.

A target compression set of less than approximately 10–15% may be considered for selected applications, but actual performance depends on the material grade and test method.

Moisture and Water Resistance

Closed-cell EVA foam can provide useful resistance to water and moisture penetration.

The cellular structure limits the amount of water that can enter the foam compared with many open-cell materials.

This can make EVA foam useful for:

• Dust protection

• Moisture barriers

• Enclosure interfaces

• Battery housings

• Electronic equipment

• Outdoor equipment

• Industrial equipment

However, foam alone should not be assumed to provide a guaranteed waterproof seal.

The actual sealing performance depends on gasket geometry, compression, surface condition, joint design, material recovery, adhesive performance, and environmental exposure.

Chemical Resistance

EVA foam can provide resistance to a range of common environmental substances, although resistance varies by formulation and exposure conditions.

Potential environmental exposures may include:

• Water

• Humidity

• Oils

• Mild acids

• Mild alkalis

• Cleaning agents

• Industrial contaminants

In applications involving aggressive chemicals, actual chemical compatibility should be verified through material testing.

Chemical resistance should never be inferred solely from the generic EVA material name because different formulations and additives can behave differently.

Temperature Resistance

A commonly referenced operating range for selected EVA foam gasket grades is approximately -40°C to +80°C, with short-term exposure potentially reaching approximately 100°C depending on material formulation.

Temperature performance is affected by:

• EVA formulation

• Cross-linking structure

• Foam density

• Adhesive type

• Compression

• Exposure duration

• Thermal cycling

• Chemical environment

For applications involving continuous high temperatures, silicone foam or other high-temperature gasket materials may provide a more suitable solution.

The adhesive layer can also become the limiting component even when the foam substrate itself remains stable.

EVA Versus Silicone Foam

EVA foam and silicone foam can both be used in cushioning and sealing applications, but they have different performance profiles.

EVA is often attractive when cost efficiency, cushioning, processing flexibility, and moderate environmental resistance are important.

Silicone foam may be preferred where high temperature resistance, long-term elasticity, and demanding environmental performance are required.

EVA Versus Fish Paper

Fish paper is a specialized electrical insulation material commonly used in battery and electrical applications.

Compared with EVA foam, fish paper is primarily intended for electrical insulation and mechanical separation rather than soft cushioning.

For battery systems, the two materials may sometimes perform complementary functions rather than replacing one another.

EVA Versus Nomex-Type Aramid Paper

Aramid insulation materials are engineered for demanding electrical insulation applications and can provide strong thermal and electrical performance.

EVA foam is softer and more compressible, making it useful for cushioning and gap compensation.

Therefore, EVA and aramid paper should be selected based on different functional requirements.

EVA may be useful for:

• Cushioning

• Gap filling

• Vibration absorption

• Surface protection

• Auxiliary isolation

Aramid insulation materials may be selected for:

• Electrical insulation

• High-temperature insulation

• Electrical separation

• High-performance battery insulation

The final battery design may use several different materials simultaneously.

Surface Compatibility

Adhesive gasket performance depends strongly on the surface to which the gasket is bonded.

Common substrates include:

• Aluminum

• Stainless steel

• Painted metal

• ABS

• Polycarbonate

• Acrylic

• Glass

• Various plastics

• Composite materials

Smooth, clean surfaces generally provide better adhesive contact.

Contaminants such as oil, dust, moisture, mold-release agents, and fingerprints can significantly reduce adhesion.

Surface energy is also important. Some low-surface-energy plastics require specialized adhesive systems or surface treatment.

Assembly Considerations

Correct assembly can have a significant effect on gasket performance.

Recommended considerations include:

1. Clean the bonding surface.

2. Ensure the surface is dry.

3. Align the gasket accurately.

4. Avoid stretching the foam during installation.

5. Apply uniform pressure during bonding.

6. Allow sufficient adhesive contact.

7. Avoid contamination of the adhesive surface.

8. Control the final compression.

9. Verify dimensional tolerances.

10. Evaluate the assembled component under actual operating conditions.

The release liner should generally remain on the adhesive until the gasket is ready for installation.

Custom Gasket Shapes

Custom adhesive cushion sealing gaskets can be produced in many shapes.

Common configurations include:

• Rectangular pads

• Square pads

• Circular rings

• Oval rings

• Frame gaskets

• Strip gaskets

• Washer shapes

• Corner pads

• Irregular profiles

• Multi-hole gaskets

• Connector protection pads

• Battery cell separators

• Module cushioning frames

The geometry should be designed according to the actual mating surfaces.

A well-designed gasket should avoid unnecessary sharp corners where they could create stress concentrations or complicate die cutting.

Adhesive Gasket Tolerance

Dimensional tolerance is an important factor in custom gasket production.

Potential dimensions requiring control include:

• Overall length

• Overall width

• Thickness

• Hole diameter

• Hole position

• Internal opening

• Outer profile

• Adhesive placement

• Release liner dimensions

Tolerance requirements should be established according to the application.

Extremely tight tolerances may require additional processing controls and inspection procedures.

Battery Module Gasket Design

Battery modules often contain numerous components with limited installation space.

A custom gasket can combine several functions into one component, including:

• Cushioning

• Positioning

• Isolation

• Gap filling

• Surface protection

• Auxiliary sealing

The gasket geometry can be designed around cell arrangements, busbars, connectors, cooling structures, and module frames.

For example, a die-cut EVA sheet can include openings for connectors while maintaining cushioning around the surrounding structure.

Battery Pack Enclosure Applications

Battery packs may be exposed to:

• Vibration

• Dust

• Moisture

• Temperature cycling

• Mechanical shock

• Assembly stress

• Pressure changes

A custom foam gasket can provide an auxiliary barrier between enclosure components.

Common areas include:

• Cover perimeters

• Inspection panels

• Electrical access openings

• Connector interfaces

• Auxiliary control boxes

• Structural contact points

For critical waterproofing applications, gasket materials and joint designs should be validated against the required ingress protection level.

Vibration Damping

EVA foam can absorb mechanical energy generated by vibration and impact.

This makes it useful in:

• Battery assemblies

• Electronic housings

• Automotive components

• Industrial control equipment

• Communication devices

• Appliances

The effectiveness of vibration damping depends on foam density, thickness, hardness, compression, frequency, and load.

A material that performs well at one vibration frequency may not provide the same damping characteristics under another mechanical condition.

Impact Protection

Foam gasket products can also act as impact protection layers.

When an assembly experiences shock, the foam deforms and absorbs part of the impact energy.

This can reduce the direct transfer of force to sensitive components.

Typical applications include:

• Electronic modules

• Battery modules

• Control boards

• Display assemblies

• Sensors

• Enclosures

• Portable devices

Dust Protection

Closed-cell foam gaskets can help reduce dust penetration at enclosure joints.

When compressed between mating surfaces, the foam can conform to small surface irregularities.

The effectiveness of the dust barrier depends on:

• Compression

• Gasket width

• Surface condition

• Joint design

• Foam recovery

• Installation accuracy

A wider gasket does not automatically guarantee better sealing. The complete joint design must be evaluated.

Custom Width Options

EVA roll material can be converted into various widths.

A broad width range from approximately 2.8 mm to 1200 mm can support different product requirements, including:

• Narrow sealing strips

• Battery cell separators

• Electronic component pads

• Wide enclosure gaskets

• Continuous foam tape

• Large frame gaskets

Customized widths can reduce material waste and simplify downstream die-cutting.

Surface Finishes

Depending on the EVA foam grade and converting process, the material may have different surface characteristics.

Possible surface requirements include:

• Smooth surface

• Textured surface

• Laminated surface

• Adhesive-coated surface

• Film-laminated surface

• Release-liner-backed surface

Surface selection can affect adhesive bonding, friction, compression, and appearance.

Lamination Options

EVA foam can be laminated with other materials when additional functions are required.

Potential laminated structures may include:

• EVA plus adhesive

• EVA plus polyester film

• EVA plus protective film

• EVA plus fabric

• EVA plus electrical insulation film

• EVA plus double-sided adhesive

Lamination can create a multi-functional gasket that combines cushioning with insulation, reinforcement, or surface protection.

Die-Cut Adhesive Cushion Gaskets

Die-cut adhesive cushion gaskets are particularly useful for repeatable industrial production.

A die can be designed to produce a specific geometry, allowing multiple gasket components to be produced from a sheet or roll.

Advantages may include:

• Consistent dimensions

• High production efficiency

• Complex geometry

• Reduced manual cutting

• Repeatable assembly

• Easy integration into automated production

For high-volume applications, the die-cut format can significantly improve assembly efficiency.

Typical Application Industries

Custom adhesive cushion sealing gasket products can be used across multiple industries.

Automotive

Applications may include:

• Battery packs

• Electronic control units

• Sensors

• Lighting systems

• Interior components

• Wiring assemblies

• Enclosures

Lithium Battery

Applications may include:

• Cell cushioning

• Module cushioning

• Busbar isolation

• Enclosure support

• Auxiliary sealing

• Surface protection

Electronics

Applications may include:

• Circuit board housings

• Displays

• Control panels

• Electronic enclosures

• Sensors

• Connectors

Appliances

Applications may include:

• Control panels

• Motor housings

• Door assemblies

• Protective pads

• Vibration damping

Industrial Equipment

Applications may include:

• Control cabinets

• Machine covers

• Instrument panels

• Protective housings

• Mechanical interfaces

Product Selection Guide

Quality Control Considerations

Quality control for custom adhesive cushion sealing gaskets may include inspection of:

• Foam thickness

• Foam density

• Hardness

• Compression performance

• Compression set

• Adhesive adhesion

• Peel strength

• Shear resistance

• Die-cut dimensions

• Hole position

• Surface condition

• Release liner quality

• Visual appearance

• Material consistency

For battery applications, additional testing may be required according to the battery manufacturer's engineering requirements.

Material qualification should be based on actual operating conditions rather than generic product descriptions.

Storage Recommendations

Adhesive-backed foam materials should generally be stored in a clean, dry environment away from excessive heat, direct sunlight, moisture, and contamination.

Recommended storage considerations include:

• Keep material in original packaging when possible.

• Avoid prolonged exposure to direct sunlight.

• Protect adhesive surfaces from dust.

• Maintain stable environmental conditions.

• Avoid excessive compression during storage.

• Rotate inventory according to adhesive shelf-life requirements.

• Avoid contact with chemicals that could affect the adhesive.

Storage conditions can influence adhesive performance and material aging.

Common Design Problems

Several problems can occur when an adhesive cushion sealing gasket is incorrectly specified.

Gasket Too Soft

A gasket that is too soft may compress excessively and lose dimensional stability.

Gasket Too Hard

A gasket that is too hard may not conform adequately to irregular surfaces.

Gasket Too Thick

Excessive thickness can increase assembly force and alter component positioning.

Gasket Too Thin

Insufficient thickness may prevent adequate gap filling or cushioning.

Adhesive Incompatibility

An adhesive that does not match the surface can experience poor adhesion or premature failure.

Excessive Temperature

Long-term exposure beyond the material's recommended temperature range can accelerate aging.

Excessive Compression

Permanent compression can reduce the gasket's ability to recover.

Poor Surface Preparation

Dust, oil, and moisture can significantly reduce adhesive bonding performance.

Advantages of Custom Adhesive Cushion Sealing Gasket Products

Custom gasket solutions offer several practical benefits:

Application-Specific Dimensions

The gasket can be produced to match the exact installation geometry.

Multi-Functional Performance

A single component can provide cushioning, positioning, auxiliary sealing, and surface protection.

Improved Assembly Efficiency

Pre-cut adhesive gaskets can reduce manual cutting and positioning.

Material Flexibility

Different EVA densities, hardness levels, thicknesses, and adhesive systems can be selected.

Complex Shapes

Die cutting allows complex profiles and openings.

Reduced Material Waste

Custom roll widths and nesting patterns can improve material utilization.

Consistent Production

Repeatable die-cutting processes can provide consistent component dimensions.

Customization Options

Custom adhesive cushion sealing gasket products can be customized in multiple ways.

Available options may include:

• Material type

• EVA density

• EVA hardness

• Foam thickness

• Gasket width

• Gasket length

• Shape

• Adhesive type

• Adhesive thickness

• Adhesive location

• Single-sided adhesive

• Double-sided adhesive

• Release liner

• Lamination

• Die-cut geometry

• Packaging format

Customization allows the gasket to match the actual mechanical and assembly requirements of the application.

Application Engineering Considerations

Before selecting a gasket, engineers should identify the actual functional requirements.

Questions may include:

1. What is the required gasket thickness?

2. How much compression is available?

3. What level of cushioning is required?

4. Is sealing required or is the gasket mainly for cushioning?

5. What surfaces will the adhesive contact?

6. What is the operating temperature?

7. Will the gasket be exposed to water or humidity?

8. Will oils or chemicals be present?

9. Is electrical insulation required?

10. What is the expected service life?

11. Will the gasket experience vibration?

12. Will the gasket experience repeated compression?

13. Is die cutting required?

14. Is single-sided or double-sided adhesive preferred?

15. What dimensional tolerances are required?

Answering these questions helps determine the most suitable material structure.

EVA Gasket for Electronics

Electronic devices frequently contain small gaps between housings, panels, circuit assemblies, and structural components.

EVA foam can fill these gaps while providing cushioning and vibration damping.

Custom die-cut EVA gaskets can be designed around:

• Connectors

• Screws

• Sensors

• Circuit boards

• Displays

• Cable routes

• Housing edges

The gasket can be manufactured as a thin adhesive pad, frame, ring, strip, or irregular shape.

EVA Gasket for Electrical Enclosures

Electrical enclosures often require protection against dust, vibration, and environmental contamination.

A closed-cell EVA gasket can provide a compressible interface between an enclosure cover and its frame.

Adhesive backing can help keep the gasket aligned during assembly.

For demanding outdoor or high-temperature electrical enclosure applications, the complete gasket system should be evaluated for temperature, UV, moisture, chemical exposure, and aging.

EVA Gasket for Mechanical Equipment

Mechanical equipment can experience vibration, impact, and dimensional variation.

An adhesive cushion gasket can help isolate contact points and reduce vibration transfer.

Applications may include:

• Machine covers

• Access doors

• Inspection panels

• Motor housings

• Instrument enclosures

• Control boxes

The gasket thickness and hardness should be selected according to the mechanical load.

Environmental Considerations

A gasket should be evaluated under its complete environmental exposure.

Important factors include:

• Temperature

• Humidity

• Water

• UV exposure

• Oil

• Chemical contact

• Dust

• Vibration

• Mechanical shock

• Compression

• Thermal cycling

Laboratory material properties alone may not accurately predict long-term performance in a complete assembly.

Application-level validation is therefore recommended for critical products.

Packaging and Handling

Custom die-cut gaskets should be packaged to prevent deformation, contamination, and adhesive damage.

Suitable packaging may include:

• Stacked sheets

• Rolls

• Individual pieces

• Release-liner-backed stacks

• Protective film packaging

• Plastic bags

• Cartons

The packaging method should correspond to the shape and adhesive configuration.

Small precision parts may require protective liners or separation layers to prevent sticking.

Summary

Custom adhesive cushion sealing gasket products provide a practical solution for applications that require cushioning, gap filling, positioning, auxiliary sealing, vibration damping, surface protection, and component isolation.

EVA foam is particularly useful because it can be manufactured in different densities, hardness levels, thicknesses, and cellular structures. Its closed-cell structure can provide useful moisture resistance and cushioning while remaining suitable for die cutting and adhesive lamination.

In lithium battery systems, EVA foam can be used for cell-to-cell cushioning, module-to-enclosure cushioning, selected busbar and tab isolation, and auxiliary battery enclosure sealing. For cell-to-cell applications, EVA foam can help absorb mechanical stress associated with dimensional changes during battery operation and reduce direct hard contact between components.

Single-sided adhesive EVA sheets can assist with positioning and auxiliary isolation, while double-sided adhesive EVA foam can combine cushioning with component bonding.

However, gasket material should always be selected according to actual application requirements. EVA is not automatically a substitute for high-performance electrical insulation materials such as fish paper or aramid insulation, nor is it always the preferred material for continuous high-temperature sealing. Silicone foam and other specialized materials may be more appropriate for demanding thermal or sealing environments.

With customized thicknesses, densities, hardness levels, widths, adhesive systems, and die-cut geometries, EVA foam gasket products can be adapted to a wide range of industrial and electronic applications.

A well-designed custom adhesive cushion sealing gasket should balance compression, recovery, adhesion, environmental resistance, dimensional stability, and manufacturability. When these factors are considered together, EVA foam can provide an efficient and versatile material solution for modern cushioning, sealing, isolation, and protection requirements.
