A Cushion Sealing Gasket for Dustproof and Waterproof Systems is an engineered sealing component designed to create a flexible barrier between mating surfaces, helping prevent the entry of water, moisture, dust, dirt, air, and other environmental contaminants. Cushion Sealing Gaskets are widely used in electrical equipment, electronic enclosures, industrial machinery, automotive components, lighting systems, communication equipment, control cabinets, appliances, packaging systems, and many other applications where reliable environmental sealing is required.
Among various foam-based sealing materials, EVA roll material is an important option for producing Flexible Cushion Sealing Gaskets. EVA, or ethylene vinyl acetate, is a lightweight closed-cell foam material that combines cushioning, flexibility, resilience, moisture resistance, thermal insulation, and convenient fabrication characteristics. When converted from EVA roll material into die-cut gaskets, strips, pads, seals, or custom profiles, the material can provide a practical sealing interface for many industrial applications.
The closed-cell structure of EVA foam is particularly valuable for dustproof and waterproof sealing. Unlike open-cell foam structures that can allow greater fluid penetration, closed-cell EVA foam has a dense cellular structure that helps reduce water absorption and moisture penetration. This makes EVA Cushion Sealing Gasket Material suitable for applications where the sealing component must maintain dimensional stability and cushioning properties in humid or wet environments.
A cushion sealing gasket also performs more than a simple sealing function. It can compensate for surface irregularities, absorb vibration, reduce mechanical noise, provide thermal insulation, protect components from impact, and maintain contact pressure between assembled parts. These combined functions make foam sealing gaskets useful in modern equipment where environmental protection and mechanical protection are required at the same time.
A cushion sealing gasket is a flexible sealing component positioned between two surfaces to form a protective barrier. The gasket is normally compressed during assembly. Its resilience allows it to conform to small surface irregularities and maintain contact between the mating components.
Depending on the application, a cushion sealing gasket may be manufactured as a sheet, roll, strip, tape, die-cut part, washer, frame, ring, pad, or customized three-dimensional profile.
The primary purposes of a cushion sealing gasket include:
Preventing water penetration
Reducing dust entry
Limiting moisture transmission
Compensating for dimensional tolerances
Absorbing vibration
Reducing impact
Providing thermal insulation
Improving acoustic performance
Protecting surfaces from abrasion
Creating a controlled sealing interface
EVA foam is especially suitable when the application requires a combination of softness, resilience, low weight, flexibility, and resistance to moisture.
EVA roll material is a continuous roll-form foam material based on ethylene vinyl acetate. Its roll format makes it convenient for converting operations such as slitting, die cutting, laminating, adhesive coating, contour cutting, and custom gasket production.
EVA roll material can be manufactured in different thicknesses, densities, hardness levels, colors, surface finishes, and adhesive configurations depending on the intended application.
For gasket manufacturing, EVA roll material provides several practical advantages. The continuous material format reduces the need for unnecessary joints and makes it easier to produce long sealing strips or repeated gasket components. It can also be converted into different shapes according to engineering drawings.
Typical processing methods include:
Die cutting
Slitting
Roll cutting
CNC cutting
Kiss cutting
Lamination
Adhesive coating
Heat pressing
Compression forming
Profile cutting
Custom contour cutting
The material can therefore serve as a flexible base for manufacturing both standard and customized cushion sealing gasket components.
One of the most important characteristics of EVA foam for sealing applications is its closed-cell structure.
A closed-cell foam contains individual cells that are substantially separated from one another. This structure reduces the pathways through which water and moisture can travel through the material. As a result, properly selected EVA foam can provide excellent resistance to water absorption and moisture exposure.
Features a closed-cell foam structure that does not readily absorb water, providing excellent moisture resistance and water resistance.
For dustproof and waterproof systems, this characteristic can be important because the gasket may be exposed to condensation, splashing water, humidity, cleaning processes, or outdoor environmental conditions.
A cushion sealing gasket made from suitable closed-cell EVA material can help create a continuous barrier around:
Electrical enclosures
Control boxes
Battery housings
Display panels
Lighting assemblies
Electronic equipment
Instrument panels
Outdoor cabinets
Communication equipment
Mechanical covers
The gasket itself should be correctly designed and compressed during assembly. Water resistance is not determined by the foam material alone. Surface condition, compression ratio, joint design, gasket geometry, assembly pressure, and environmental exposure all affect the final sealing performance.
Dust and fine particles can enter equipment through very small gaps. In electrical and electronic systems, accumulated dust can interfere with heat dissipation, moving components, connectors, switches, and sensitive electronic elements.
A flexible cushion sealing gasket can close small gaps between mating surfaces and help prevent environmental particles from entering the enclosure.
The compressible nature of EVA foam allows the gasket to accommodate minor variations in surface flatness. When the gasket is compressed appropriately, it can maintain contact across the sealing area.
Typical dustproof applications include:
Electrical cabinets
Industrial control panels
Electronic housings
Sensor enclosures
Instrument cases
Lighting fixtures
Communication equipment
Outdoor electronics
Machinery covers
Consumer appliances
The final dust protection level depends on the complete enclosure design, including gasket compression, corners, fasteners, joints, vents, cable openings, and access doors.
EVA foam can offer useful resistance to many environmental conditions and commonly encountered substances.
EVA sealing material can provide resistance to seawater, oils, acids, alkalis, and selected chemicals, depending on the specific EVA formulation, exposure concentration, temperature, and duration.
This makes EVA foam attractive for applications where a sealing gasket may encounter moisture, industrial environments, oils, or cleaning agents.
The material is also commonly valued for its:
Antibacterial characteristics
Low odor
Non-toxic characteristics in suitable grades
Lightweight structure
Environmental resistance
Stable cushioning behavior
Chemical compatibility should always be evaluated against the actual substance used in the application. Strong solvents, concentrated chemicals, elevated temperatures, or prolonged exposure can affect polymeric foam materials differently.
For demanding chemical sealing applications, material compatibility testing is recommended before large-scale production.
A major advantage of EVA roll material is its convenient processing performance.
EVA roll material can be supplied in continuous lengths without unnecessary joints and can be processed by heat pressing, cutting, adhesive coating, laminating, and other fabrication methods.
The roll format is particularly suitable for converting operations because manufacturers can produce long continuous strips or efficiently process large quantities of gasket components.
The material can be converted into:
Flat gaskets
Adhesive-backed gaskets
Sealing strips
Cushion pads
Foam washers
Rectangular seals
Circular seals
Frame gaskets
Custom die-cut parts
Protective foam components
Precision die cutting can be used when repeatable gasket dimensions are required.
A gasket positioned between rigid components can also act as a cushioning layer.
EVA foam offers good resilience, tensile strength, toughness, and cushioning performance. Its flexible structure can help absorb mechanical vibration and reduce the direct transmission of impact between assembled components.
This can be useful in:
Machinery
Motors
Electrical equipment
Electronic assemblies
Automotive components
Household appliances
Industrial control systems
Protective equipment housings
The appropriate foam density and hardness should be selected according to the mechanical load. A gasket that is too soft may compress excessively, while a gasket that is too hard may not conform adequately to surface irregularities.
Therefore, compression behavior is an important consideration when selecting EVA cushion sealing gasket material.
EVA foam contains numerous gas-filled cells that contribute to its thermal insulation properties.
EVA foam can provide useful heat insulation, thermal retention, cold protection, and low-temperature performance. Suitable grades can perform in demanding cold environments and can also tolerate exposure to sunlight depending on formulation and stabilization.
Thermal insulation can be beneficial in sealing applications where the gasket separates components with different temperatures.
Potential applications include:
Refrigeration equipment
HVAC systems
Electrical enclosures
Outdoor control boxes
Thermal equipment
Appliance assemblies
Automotive components
Insulated panels
The actual service temperature should be confirmed against the specific EVA grade and application conditions.
The closed-cell structure of EVA foam can contribute to sound insulation and noise reduction.
When used as a cushion sealing gasket, EVA foam can reduce direct contact between rigid surfaces and help minimize vibration-related noise. The sealing layer can also reduce small air gaps that may contribute to unwanted sound transmission.
EVA foam is therefore used in applications where both sealing and cushioning are required.
Examples include:
Appliance housings
Electronic equipment
Automotive interiors
Machinery panels
Enclosures
Control cabinets
Equipment covers
Industrial panels
Acoustic performance depends on thickness, density, installation conditions, frequency range, surface structure, and the overall equipment design.
Key Advantages of EVA Cushion Sealing Gaskets
EVA cushion sealing gaskets combine several useful properties in a single flexible material.
EVA foam is lightweight compared with many solid sealing materials. This can help reduce the overall weight of assemblies.
The foam can compress and recover, allowing it to conform to uneven or slightly irregular surfaces.
Closed-cell EVA construction provides strong resistance to water absorption and moisture.
The foam structure can absorb impact and vibration.
The cellular structure provides thermal resistance suitable for many moderate insulation applications.
The flexible foam can help reduce noise caused by vibration and surface contact.
Roll material can be converted into many gasket shapes using common foam-processing technologies.
EVA foam can be combined with pressure-sensitive adhesive systems when adhesive-backed installation is required.
Thickness, width, length, shape, and die-cut geometry can be customized for different applications.
Continuous roll material can support high-volume converting operations and automated processing.
Typical EVA Cushion Sealing Gasket Structure
A typical EVA sealing gasket may consist of one or more functional layers.
| Layer | Typical Function |
|---|---|
| EVA Foam Core | Cushioning and sealing |
| Adhesive Layer | Bonding the gasket to a surface |
| Release Liner | Protecting adhesive before installation |
| Surface Treatment | Improving bonding or handling |
| Lamination Layer | Adding protection or functionality |
Not every gasket requires every layer. A basic non-adhesive EVA gasket may consist only of the foam itself.

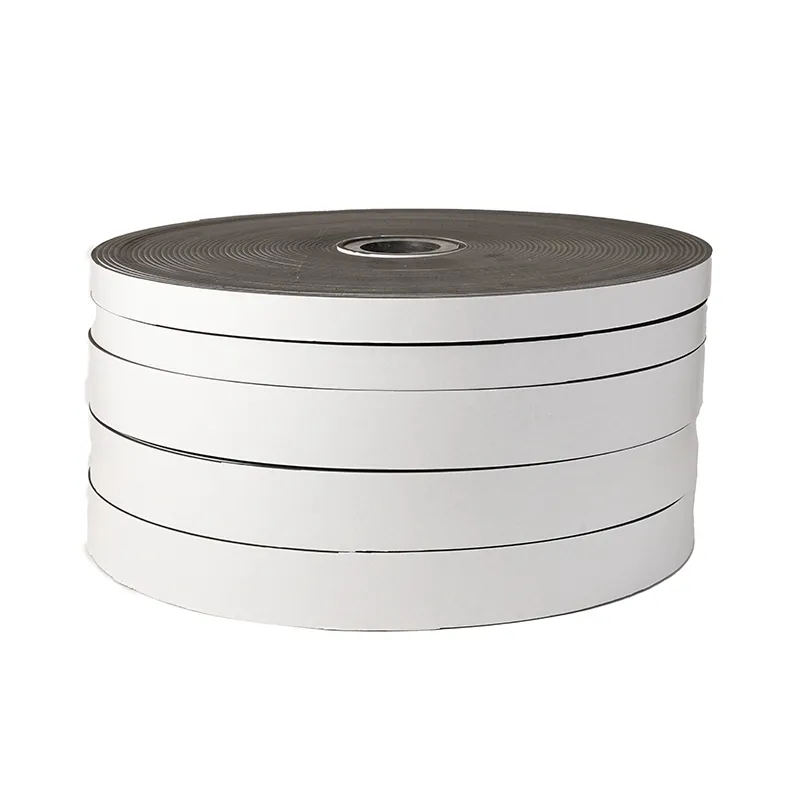

An adhesive-backed EVA gasket may include a pressure-sensitive adhesive on one side. Double-sided adhesive constructions can be used when the gasket must bond to two surfaces.
EVA Roll Material Specifications
The exact specifications should be selected according to the sealing environment, compression requirements, assembly geometry, and required durability.
| Specification | Typical Consideration |
| Material | EVA Closed Cell Foam |
| Form | Roll, Sheet, Strip, Die Cut |
| Structure | Closed Cell |
| Thickness | Application dependent |
| Width | Customizable |
| Length | Roll dependent |
| Density | Selected according to load |
| Hardness | Selected according to compression |
| Color | Various options |
| Surface | Smooth, textured, laminated, or coated |
| Adhesive | Optional |
| Waterproofing | Excellent moisture resistance |
| Cushioning | Good |
| Thermal Insulation | Good |
| Sound Insulation | Good |
| Processability | Excellent |
| Application | Sealing, cushioning, insulation, protection |
Thickness Selection
Thickness is one of the most important parameters when designing a cushion sealing gasket.
A thin gasket may be appropriate for a small clearance or precision enclosure. A thicker gasket may be preferred where there are larger surface variations or where greater cushioning is required.
Thickness selection should consider:
Gap size
Surface flatness
Compression ratio
Required sealing pressure
Fastener spacing
Assembly tolerance
Temperature variation
Expected deformation
Mechanical loading
The gasket should not simply be selected based on maximum thickness. Excessive compression can increase assembly force and may permanently deform the foam. Insufficient compression may result in inadequate surface contact.
Density Selection
EVA foam density influences cushioning, compression, resilience, dimensional stability, and handling characteristics.
A lower-density EVA foam may provide greater softness and cushioning. A higher-density material may provide improved structural support and resistance to compression.
| Density Consideration | General Effect |
| Lower Density | Softer, more compressible |
| Medium Density | Balanced sealing and cushioning |
| Higher Density | Greater support and dimensional stability |
The ideal density depends on the application rather than simply selecting the highest or lowest value.
Hardness and Compression
Hardness affects the force required to compress the gasket.
For an enclosure requiring a low closing force, a softer foam may be advantageous. For applications exposed to higher mechanical loads, a firmer material may be more appropriate.
Important compression-related factors include:
Compression set
Compression force
Recovery
Resilience
Permanent deformation
Load-bearing capability
A properly designed gasket should maintain sufficient recovery after repeated opening and closing cycles.
Adhesive Backed EVA Gaskets
Adhesive-backed EVA foam is commonly used when the gasket needs to remain accurately positioned during assembly.
A pressure-sensitive adhesive can simplify installation by allowing the gasket to be attached to one component before final assembly.
Common adhesive configurations include:
Single-sided adhesive
Double-sided adhesive
High-tack adhesive
General-purpose adhesive
High-temperature adhesive
Low-temperature adhesive
The adhesive must be selected according to the substrate, surface energy, temperature, humidity, and expected service conditions.
A clean, dry, and properly prepared surface generally improves adhesive bonding.
Single-Sided Adhesive EVA Foam
Single-sided adhesive EVA foam has adhesive applied to one side of the foam while the opposite surface remains exposed.
This construction is useful when:
The gasket needs to be fixed to one mating component.
The gasket must remain in position during assembly.
The opposite surface must remain compressible.
The gasket requires convenient manual installation.
The component contains a defined gasket channel.
Typical applications include enclosure doors, electrical boxes, control panels, electronic housings, and equipment covers.
Double-Sided Adhesive EVA Foam
Double-sided adhesive EVA foam contains adhesive on both sides of the foam.
This construction can be useful when the gasket needs to bond simultaneously to two components or when additional positioning stability is required.
However, double-sided adhesive foam should not automatically be considered a replacement for mechanical sealing. The adhesive system must be compatible with the application and environmental conditions.
Waterproof System Applications
EVA cushion sealing gaskets are suitable for many types of waterproof system assemblies.
Electrical enclosures often require protection against moisture and dust. A flexible gasket can be positioned around a door, cover, display opening, or access panel.
Electronic devices may use foam gaskets around housings and removable panels to reduce contamination and provide cushioning.
Outdoor equipment can encounter rain, humidity, dust, sunlight, and temperature fluctuations. Properly designed gaskets help reduce environmental exposure.
Lighting housings can use foam seals around covers, lenses, and access panels.
Industrial control cabinets may use gasket strips around doors and panels to improve environmental protection.
Automotive assemblies can require sealing and cushioning around interior and exterior components, depending on the location and environmental requirements.
Dustproof System Applications
Dustproof applications require careful attention to the entire enclosure rather than relying solely on the gasket.
Common applications include:
Industrial control boxes
Electrical cabinets
Sensors
Electronic instruments
Communication devices
Motor housings
Battery enclosures
Consumer appliances
Mechanical equipment
Outdoor electronic equipment
A continuous gasket with properly designed corners can help reduce pathways for dust penetration.
Industrial Uses
EVA cushion sealing gasket material can be used in numerous industrial fields.
Used for enclosure sealing, insulation, cushioning, panel protection, and component spacing.
Used for housing seals, display frame gaskets, battery compartment seals, and protective pads.
Used for vibration reduction, panel cushioning, sealing, and component protection.
Used around doors, panels, covers, and internal components.
Used for insulation, sealing, vibration control, and gap filling.
Used for protective seals, anti-vibration pads, and enclosure sealing.
Used as a cushioning and protective sealing material for sensitive components.
Advantages of Roll Format
The roll format of EVA material offers manufacturing and logistics advantages.
Continuous roll material can be slit into narrow strips for gasket applications. It can also be laminated with adhesive or other functional materials before die cutting.
Advantages include:
Continuous production
Reduced joint requirements
Efficient storage
Easy slitting
High-speed converting
Consistent material thickness
Convenient die cutting
Suitable for automated processing
Flexible width selection
Efficient large-volume production
For long sealing strips, EVA roll material can be particularly convenient because the material can be processed continuously.
Die-Cut EVA Sealing Gaskets
Die cutting is a common method for producing shaped EVA gaskets.
The process can produce:
Circular gaskets
Rectangular gaskets
Oval gaskets
Frame-shaped gaskets
Custom outlines
Holes
Slots
Notches
Mounting openings
Die-cut components can be produced according to engineering drawings and dimensional requirements.
For high-volume applications, die cutting can offer efficient and repeatable production.
Custom EVA Cushion Gaskets
Custom gasket design can accommodate unique equipment geometries.
Customization may involve:
Custom thickness
Custom width
Custom length
Custom density
Custom hardness
Custom shape
Adhesive backing
Laminated surfaces
Special die-cut patterns
Custom roll dimensions
A custom gasket should be designed around the actual sealing gap and compression conditions rather than simply copying the dimensions of the mating surface.
Sealing Design Considerations
A successful gasket system depends on more than material selection.
Large surface irregularities may require a thicker or more conformable gasket.
The gasket must receive adequate compression to establish continuous contact.
Fastener spacing affects pressure distribution across the gasket.
Sharp corners may require special attention to prevent gaps or excessive stretching.
If a gasket requires a joint, the joint should be designed carefully to reduce potential leakage paths.
Temperature changes can influence foam flexibility, adhesive performance, and dimensional stability.
Actual chemicals should be tested against the selected EVA formulation.
Water and Moisture Protection
A gasket can contribute to water resistance by closing the interface between two components.
The effectiveness of a waterproof enclosure depends on:
Gasket material
Gasket thickness
Compression
Surface quality
Joint construction
Fastener pressure
Drainage design
Cable entry design
Ventilation design
Assembly quality
A gasket should therefore be regarded as one part of a complete waterproof system.
Moisture and Humidity Resistance
Humidity can affect many types of equipment over long periods. Closed-cell EVA foam helps reduce water uptake and can therefore be useful in humid environments.
Applications may include:
Coastal equipment
Outdoor cabinets
Refrigeration equipment
Air-conditioning systems
Marine-related equipment
Electronic enclosures
Industrial machinery
Where continuous exposure to high humidity is expected, the complete gasket assembly should be tested under representative environmental conditions.
Chemical Resistance
EVA foam may provide useful resistance to selected chemicals, but compatibility depends on formulation.
Before using EVA sealing material in a chemical environment, consider:
Chemical concentration
Contact time
Temperature
Pressure
Mechanical stress
Foam density
Surface treatment
Adhesive type
Common substances that may need evaluation include:
Oils
Greases
Mild acids
Mild alkalis
Seawater
Cleaning agents
Industrial fluids
Laboratory compatibility testing is recommended for aggressive or unfamiliar chemicals.
Outdoor Performance
Outdoor sealing components may experience:
Rain
Humidity
Dust
UV exposure
Temperature changes
Wind
Salt spray
Mechanical vibration
EVA foam can provide useful environmental resistance, but outdoor durability depends on the exact formulation and stabilization system.
For long-term outdoor use, designers should evaluate UV resistance, temperature range, compression set, adhesive aging, and weathering performance.
Temperature Performance
Temperature is an important factor in gasket selection.
At low temperatures, some materials may become harder or less flexible. At high temperatures, foam may soften or experience changes in compression behavior.
A suitable EVA gasket should be evaluated for:
Minimum operating temperature
Maximum operating temperature
Temperature cycling
Thermal expansion
Compression recovery
Adhesive performance
The actual temperature range should be confirmed using the technical specification of the selected EVA grade.
Cushioning and Impact Protection
The same foam structure that provides sealing can also provide cushioning.
When a rigid component experiences mechanical impact, EVA foam can absorb part of the impact energy through controlled deformation.
This makes EVA foam useful for:
Protective housings
Electronics
Packaging
Machinery covers
Transportation equipment
Appliance assemblies
Automotive components
The cushioning function can also reduce scratching and surface damage between mating components.
Vibration Isolation
Mechanical vibration can cause noise, fatigue, loosening, and component wear.
A flexible EVA gasket can separate rigid surfaces and reduce direct mechanical contact.
Potential benefits include:
Reduced vibration transmission
Reduced rattling
Improved component protection
Reduced surface wear
Lower mechanical noise
For high-frequency or high-load vibration applications, material selection should be based on actual dynamic testing.
Sound Insulation
The closed-cell foam structure and flexible nature of EVA can contribute to sound attenuation.
A sealing gasket can reduce air gaps and create a more controlled interface between panels.
Acoustic performance depends on:
Foam thickness
Density
Surface area
Compression
Frequency
Assembly structure
Adjacent materials
For demanding acoustic applications, EVA should be considered as one component of a larger sound-control system.
Thermal Insulation
EVA foam can provide insulation by limiting heat transfer through the gasket area.
This is useful where a sealing interface also needs to reduce thermal exchange.
Applications may include:
Refrigerated equipment
HVAC systems
Electrical housings
Thermal panels
Appliances
Industrial equipment
The insulation value depends on foam density, thickness, temperature, and construction.
Surface Adhesion
For adhesive-backed gasket applications, surface preparation is critical.
Before applying an adhesive-backed EVA gasket:
Remove dust and loose particles.
Remove grease and oil.
Ensure the surface is dry.
Verify that the substrate is compatible with the adhesive.
Apply the gasket evenly.
Avoid stretching the foam excessively.
Apply sufficient pressure during installation.
Allow appropriate bonding time when required.
Poor surface preparation can significantly reduce adhesive performance.
Installation Guidelines
Proper installation helps maximize sealing performance.
The gasket should be positioned accurately along the intended sealing path. Excessive stretching should be avoided because it can create thin areas or dimensional changes.
Corners should be handled carefully. Where the gasket geometry requires a joint, the joint should be positioned appropriately and designed to maintain continuity.
The mating components should be assembled with sufficient pressure to compress the gasket without excessive deformation.
Common Manufacturing Processes
EVA roll material can be converted through several processes.
Large rolls can be slit into narrower rolls or strips.
Flat gaskets can be cut into precise shapes.
EVA can be laminated with films, fabrics, adhesives, or other foam layers.
One or both surfaces can receive an adhesive layer.
Heat and pressure can be used for certain forming and bonding operations.
Complex shapes and prototypes can be produced using digital cutting systems.
Adhesive-backed gasket rolls can be converted into peelable individual parts while leaving the liner intact.
Quality Control
Quality control is important for gasket manufacturing.
Typical inspection items include:
Thickness
Width
Length
Density
Hardness
Compression behavior
Surface condition
Adhesive coverage
Dimensional tolerance
Die-cut accuracy
Appearance
Packaging condition
For critical sealing applications, additional testing may be required.
Recommended Technical Data Categories
When evaluating EVA roll material for a sealing gasket, buyers and engineers may request technical data covering:
| Data Category | Purpose |
| Material Type | Identifies foam construction |
| Density | Indicates structural characteristics |
| Thickness | Determines gap filling |
| Hardness | Indicates compression resistance |
| Compression Set | Evaluates long-term recovery |
| Tensile Strength | Indicates mechanical strength |
| Elongation | Indicates flexibility |
| Water Absorption | Evaluates moisture resistance |
| Temperature Range | Defines service conditions |
| Chemical Resistance | Evaluates compatibility |
| Adhesive Type | Determines bonding characteristics |
| Surface Finish | Supports installation and handling |
| Dimensional Tolerance | Ensures assembly accuracy |
EVA Compared With Other Foam Sealing Materials
Different foam materials provide different combinations of properties.
| Material | Water Resistance | Cushioning | Thermal Insulation | Typical Processing |
| EVA Foam | Excellent | Excellent | Good | Easy |
| PE Foam | Excellent | Good | Good | Easy |
| EPDM Foam | Excellent | Good | Good | Moderate |
| Silicone Foam | Excellent | Good | Good | Moderate |
| PU Foam | Variable | Excellent | Good | Easy |
| Neoprene Foam | Good | Good | Good | Moderate |
EVA is often selected when balanced performance, flexibility, cushioning, moisture resistance, and convenient converting are required.
EVA Sealing Gasket for Electrical Equipment
Electrical equipment often requires a combination of sealing and insulation.
EVA foam can be used around enclosure doors, access covers, control panels, and component interfaces.
The gasket can help prevent environmental contaminants from entering while also providing cushioning between rigid components.
For electrical applications, designers should consider electrical insulation requirements, temperature, flame performance, chemical exposure, and regulatory requirements where applicable.
EVA Sealing Gasket for Electronic Devices
Electronic devices frequently contain sensitive components that can be affected by dust, moisture, vibration, and impact.
An EVA gasket can provide a flexible barrier around:
Displays
Housing covers
Battery compartments
Connector areas
Control panels
Sensor openings
Electronic modules
The material can also help reduce rattling between housing components.
EVA Sealing Gasket for Automotive Applications
Automotive equipment can encounter vibration, humidity, temperature changes, dust, oils, and mechanical stress.
EVA foam may be used for selected automotive sealing and cushioning applications where its properties meet the required performance specifications.
Potential uses include:
Interior trim
Instrument panels
Electronic modules
Lighting components
Battery-related components
Protective covers
Panel cushioning
Automotive applications generally require careful validation of temperature, aging, chemical compatibility, compression set, and durability.
EVA Gasket for Outdoor Enclosures
Outdoor enclosures require protection against environmental conditions.
A properly designed EVA cushion sealing gasket can help reduce exposure to:
Rainwater
Humidity
Dust
Dirt
Wind-blown particles
Salt-containing environments
The gasket should be integrated into a complete enclosure design with appropriate drainage and cable-entry protection.
EVA Foam for Marine and Coastal Equipment
Marine and coastal environments can expose equipment to seawater, salt spray, humidity, and temperature fluctuations.
EVA's water resistance and resistance to selected environmental conditions can make it useful for appropriate marine-related sealing applications.
However, continuous saltwater exposure should be evaluated using actual material and adhesive compatibility testing.
EVA Roll Material Storage
Proper storage helps maintain material quality before conversion.
Recommended general practices include:
Keep rolls in a clean and dry environment.
Avoid unnecessary exposure to direct sunlight.
Protect adhesive surfaces from contamination.
Avoid excessive compression during storage.
Maintain suitable storage temperature.
Keep rolls properly packaged.
Rotate inventory according to material shelf-life requirements.
Adhesive-backed EVA products may have specific storage requirements provided by the adhesive manufacturer.
Packaging of EVA Roll Material
EVA roll material should be packaged to protect it from dust, moisture, contamination, deformation, and unnecessary mechanical damage.
Depending on the material, packaging may include:
Plastic film
Protective paper
Cartons
Pallets
Protective end caps
Moisture-resistant packaging
The packaging format should be suitable for the roll dimensions and transportation conditions.
Selecting the Right EVA Cushion Sealing Gasket
The selection process should begin with the actual application requirements.
Consider:
Required sealing function
Water exposure
Dust exposure
Operating temperature
Compression gap
Surface condition
Required cushioning
Chemical exposure
Adhesive requirements
Expected service life
Assembly method
Dimensional tolerance
A gasket should be selected based on the complete system rather than on a single material characteristic.
Common Design Mistakes
Several common design issues can reduce sealing performance.
An excessively thin gasket may not fill the gap. An excessively thick gasket may require excessive compression.
Without sufficient contact pressure, gaps may remain.
Too much compression can increase assembly force and accelerate permanent deformation.
Dust, oil, and moisture can reduce adhesive bonding.
Temperature changes can affect foam and adhesive performance.
Poorly designed corners may create leakage pathways.
Excessive stretching may reduce dimensional stability.
An improperly designed gasket joint can become a weak sealing area.
Advantages for High-Volume Manufacturing
EVA roll material is well suited to high-volume gasket converting.
Continuous roll production allows efficient processing and can reduce manual handling.
Potential manufacturing benefits include:
High material utilization
Continuous production
Efficient slitting
Fast die cutting
Automated feeding
Repeatable dimensions
Easy adhesive lamination
Convenient packaging
These characteristics make EVA roll material practical for standardized gasket programs and customized industrial components.
Sustainability Considerations
Material efficiency is an important consideration in modern manufacturing.
EVA foam is lightweight, which can reduce material weight in some applications. Roll processing can also be optimized to reduce unnecessary waste through nesting and efficient cutting layouts.
When developing a gasket product, sustainability considerations may include:
Material utilization
Scrap reduction
Packaging reduction
Production efficiency
Product durability
Service life
Recycling considerations
The appropriate environmental strategy depends on the complete product and regional waste-management infrastructure.
Applications by Industry
| Industry | Common Gasket Function |
| Electronics | Dust and moisture protection |
| Electrical | Enclosure sealing |
| Automotive | Cushioning and sealing |
| Appliances | Panel and door sealing |
| Machinery | Vibration reduction |
| HVAC | Gap sealing and insulation |
| Lighting | Housing sealing |
| Communication | Environmental protection |
| Battery Equipment | Housing sealing |
| Industrial Controls | Cabinet sealing |
| Packaging | Cushioning |
| Outdoor Equipment | Weather protection |
Product Form Options
EVA cushion sealing material can be supplied in various forms.
Suitable for continuous processing and strip production.
Suitable for die cutting and larger flat components.
Suitable for linear sealing applications.
Suitable for precise custom geometries.
Suitable for applications requiring easy positioning.
Suitable for applications requiring additional surface characteristics.
Performance Summary
| Property | EVA Cushion Sealing Gasket Performance |
| Water Resistance | Excellent |
| Moisture Resistance | Excellent |
| Dust Protection | Excellent when properly compressed |
| Cushioning | Excellent |
| Flexibility | Good to Excellent |
| Vibration Resistance | Good |
| Thermal Insulation | Good |
| Sound Insulation | Good |
| Processability | Excellent |
| Roll Processing | Excellent |
| Adhesive Lamination | Available |
| Die Cutting | Excellent |
| Lightweight | Excellent |
| Chemical Resistance | Application dependent |
| Outdoor Durability | Formulation dependent |
Why EVA Roll Material Is Suitable for Sealing Gaskets
EVA roll material combines the characteristics needed for many sealing and cushioning applications in one convenient foam construction.
Its closed-cell structure provides moisture resistance. Its flexible structure enables compression and cushioning. Its roll format facilitates continuous processing. Its surface can be laminated or adhesive coated when required. Its foam structure can provide thermal and acoustic benefits in addition to sealing.
This combination makes EVA a practical choice for applications where a gasket must perform multiple functions.
A well-designed EVA cushion sealing gasket can therefore serve simultaneously as:
A water-resistant barrier
A dust barrier
A cushioning layer
A vibration-reduction layer
A thermal insulation layer
A sound-reduction layer
A protective interface
A positioning aid during assembly
Future Trends in Cushion Sealing Gasket Materials
Modern equipment is becoming smaller, lighter, more integrated, and more exposed to demanding environmental conditions. These trends are increasing the need for multifunctional sealing materials.
Future gasket development is expected to focus on:
Improved compression recovery
Better dimensional stability
Higher temperature resistance
Improved adhesive systems
More precise die cutting
Automated gasket placement
Improved environmental durability
Lower material waste
Customized multi-layer constructions
Advanced sealing geometries
EVA foam remains relevant because its flexible structure and convenient converting characteristics allow it to be adapted to many different product designs.
Frequently Asked Questions
An EVA cushion sealing gasket is a flexible closed-cell foam sealing component made from ethylene vinyl acetate material. It is used to reduce water, moisture, dust, vibration, impact, heat transfer, and noise between mating surfaces.
EVA roll material is continuous EVA foam supplied in roll form. It can be slit, laminated, adhesive coated, die cut, or otherwise converted into sealing strips, gaskets, pads, and custom components.
Closed-cell EVA foam has excellent resistance to water absorption and moisture. Its suitability for a specific waterproof enclosure depends on foam characteristics, compression, joint design, and the complete sealing system.
Yes. Properly compressed closed-cell EVA foam can help close gaps and reduce dust entry in electrical, electronic, industrial, automotive, and outdoor equipment.
EVA can resist many commonly encountered substances, including selected oils, acids, alkalis, and seawater. Actual chemical resistance depends on formulation, concentration, temperature, and exposure duration.
Yes. EVA roll material and sheet material can be efficiently die cut into customized gasket shapes.
Yes. EVA foam can be supplied with single-sided or double-sided adhesive backing depending on the application.
Yes. EVA foam is widely used for cushioning because its cellular structure can absorb impact and mechanical vibration.
Yes. The cellular structure of EVA foam can provide useful thermal insulation and cold protection.
Yes. EVA foam can contribute to sound reduction by reducing rigid surface contact, absorbing vibration, and closing small gaps.
Selected EVA formulations can be used in outdoor applications. UV exposure, temperature, humidity, and weathering requirements should be evaluated for the intended service environment.
The correct thickness depends on the sealing gap, compression ratio, surface flatness, assembly force, and required cushioning performance.
An EVA gasket generally refers to a component designed for a specific sealing interface, while an EVA sealing strip may be supplied as a continuous strip for linear or general sealing applications.
Its closed-cell structure limits water uptake and reduces pathways for moisture penetration compared with many open-cell foam structures.
Yes. EVA gaskets can be customized in thickness, density, hardness, width, length, shape, adhesive configuration, and laminated construction.
Conclusion
A Cushion Sealing Gasket for Dustproof and Waterproof Systems provides a multifunctional solution for protecting equipment from environmental contamination while also offering cushioning, vibration reduction, thermal insulation, and sound reduction.
EVA roll material is particularly useful for gasket production because its closed-cell structure provides excellent water and moisture resistance, while its flexible foam structure provides good resilience and cushioning. The material can be processed through slitting, die cutting, heat pressing, adhesive coating, lamination, and other converting methods.
Its key characteristics include excellent water resistance, useful chemical resistance, convenient processing, strong cushioning performance, thermal insulation, and sound insulation. These properties make EVA cushion sealing gasket material suitable for electrical enclosures, electronic housings, machinery, appliances, automotive components, outdoor equipment, lighting systems, communication equipment, HVAC systems, and many other industrial applications.
For reliable dustproof and waterproof performance, however, the gasket should always be considered as part of a complete sealing system. Correct material selection, thickness, compression, adhesive compatibility, surface preparation, joint design, fastening pressure, and environmental testing all contribute to final performance.
When properly selected and designed, EVA roll material can be converted into highly versatile cushion sealing gaskets that provide an effective combination of environmental protection, mechanical cushioning, thermal insulation, and acoustic control.
This website uses cookies to ensure you get the best experience on our website.
WhatsApp
Phone
