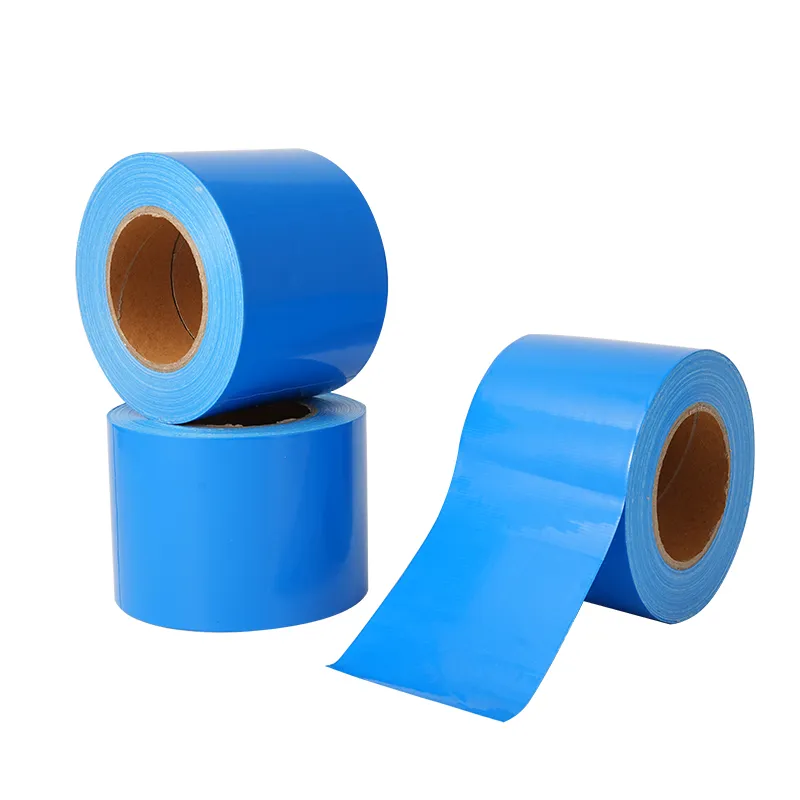

Cloth Adhesive Tape for Cable Wrapping is a flexible, durable, and practical adhesive material designed for bundling, securing, protecting, and organizing cables, wires, and wire harnesses in industrial, electrical, automotive, battery, packaging, maintenance, and workshop environments. Unlike rigid cable clamps, cable ties, or mechanical fasteners, cloth adhesive tape combines a woven or fabric-based backing with a pressure-sensitive adhesive, allowing it to conform closely to irregular cable bundles and provide quick temporary or semi-permanent fixation.
Cloth adhesive tape is commonly recognized by names such as cloth tape, fabric adhesive tape, cloth-backed tape, utility cloth tape, duct tape, and cable wrapping tape. The exact construction varies according to the intended application. Typical constructions may include a polyethylene-coated surface, polyester or cotton woven fabric backing, and a rubber-based, hot-melt, or acrylic pressure-sensitive adhesive.
For cable wrapping applications, the fabric backing provides flexibility and mechanical support, while the adhesive layer provides attachment to cable jackets, protective sleeves, packaging surfaces, harness components, and other substrates. This combination makes cloth adhesive tape useful when users need a simple solution for organizing cables without adding complicated mechanical hardware.
In industrial environments, cloth adhesive tape is particularly useful for external wire harness bundling, temporary cable fixation, packaging, maintenance, identification, surface protection, and general workshop applications. However, it is important to distinguish general-purpose cloth adhesive tape from specialized Electrical Insulation Tape. Standard cloth adhesive tape should not automatically be treated as a primary electrical insulation material, particularly in high-voltage, high-temperature, or battery-cell applications.
For lithium battery manufacturing and battery PACK assembly, cloth adhesive tape is generally more appropriate for external packaging, temporary wire harness bundling, transportation protection, and production-line organization. Materials such as polyimide adhesive tape or specialized fiberglass adhesive tape may be more appropriate when the application requires high-temperature resistance, structural reinforcement, or electrical insulation.
What Is Cloth Adhesive Tape for Cable Wrapping?
Cloth Adhesive Tape for Cable Wrapping is a pressure-sensitive adhesive tape constructed with a woven fabric or cloth backing and an adhesive coating. The fabric reinforcement gives the tape better tensile strength and tear resistance than many ordinary paper or thin plastic tapes.
The tape can normally be applied by hand without specialized equipment. Depending on the adhesive system and backing construction, it may be torn by hand, cut with scissors, or processed using an automatic tape dispenser.
The main purpose of cloth adhesive tape in cable wrapping is not to replace the electrical insulation provided by a cable jacket. Instead, it is generally used to organize multiple cables into a bundle, hold protective materials in position, prevent loose wires from moving excessively, and provide external mechanical protection.
The tape can conform to curved surfaces and irregular cable bundles. This characteristic is particularly useful for wire harnesses containing multiple cable diameters, connectors, branch points, and protective sleeves.
A typical cable wrapping construction may contain three basic components:
Surface coating or protective layer
Woven fabric or cloth backing
Pressure-sensitive adhesive layer
The surface may be coated with polyethylene or another protective material to improve moisture resistance and surface durability. The fabric backing may consist of polyester, cotton, rayon, or blended fibers. The adhesive can be formulated using rubber, hot melt, acrylic, or other pressure-sensitive systems.
The exact performance depends heavily on the combination of these components. Therefore, two products both marketed as cloth adhesive tape may have significantly different temperature resistance, adhesion, tensile strength, residue performance, flame resistance, and outdoor durability.
Basic Structure of Cloth Adhesive Tape
The fabric backing is the mechanical reinforcement layer of the tape. It provides flexibility, tensile strength, tear resistance, and conformability.
Polyester fabric is commonly selected when higher dimensional stability and tensile strength are desired. Cotton fabric may provide a softer and more flexible feel. Blended fabric constructions can be designed to balance flexibility, strength, tear resistance, and cost.
For cable wrapping, the backing should be flexible enough to wrap around cable bundles without cracking or separating.
Some cloth Adhesive Tapes use a polyethylene coating over the fabric. The PE layer can improve surface protection and provide additional resistance to moisture and handling.
A PE-coated fabric tape can be useful in packaging, maintenance, temporary protection, and general workshop environments.
The coating also contributes to the tape's appearance. Common colors include silver gray, black, red, blue, yellow, green, and other colors used for identification or visual organization.
The adhesive is responsible for bonding the cloth tape to the cable surface or another substrate.
Common adhesive systems include:
Natural rubber adhesive
Synthetic rubber adhesive
Hot melt adhesive
Acrylic adhesive
Modified rubber adhesive
Rubber-based adhesive systems are often valued for strong initial tack and good adhesion to many common surfaces. Acrylic systems can offer improved aging or environmental resistance depending on the formulation.
The adhesive must be selected according to the cable jacket, operating temperature, expected dwell time, surface energy, removal requirements, and environmental conditions.
Why Use Cloth Adhesive Tape for Cable Wrapping?
Cable wrapping can be performed using many different products, including cable ties, spiral wraps, heat-shrink tubing, hook-and-loop fasteners, PVC electrical tape, PET tape, fiberglass tape, and specialized automotive harness tape.
Cloth adhesive tape offers a different combination of characteristics.
Cloth adhesive tape can conform to cable bundles with different shapes and diameters. This makes it suitable for irregular harness assemblies.
The tape can generally be wrapped by hand. There is no requirement for drilling, riveting, clamping hardware, or special assembly equipment.
The fabric reinforcement provides greater mechanical strength than many lightweight adhesive films. This can help maintain the integrity of an external cable bundle during handling.
Many cloth tapes can be torn or cut easily. This is useful in maintenance workshops and production environments where operators need to quickly adjust cable bundle lengths.
The cloth layer can provide a physical barrier against abrasion and general handling damage.
Cloth adhesive tape is useful when cables need to be temporarily positioned before final installation.
Bundling several loose cables together can reduce cable movement and improve the appearance and organization of an assembly.
Cloth Adhesive Tape for Industrial Cable Wrapping
Industrial equipment often contains large numbers of electrical cables, control wires, sensor cables, communication cables, and power lines.
Uncontrolled cable movement can cause several practical problems. Loose cables can interfere with moving components, become difficult to inspect, or become damaged during transportation and maintenance.
Cloth adhesive tape can provide a convenient method for organizing external cable groups.
Typical industrial applications include:
Control cabinet cable bundling
Machine wiring organization
Sensor cable bundling
Motor cable organization
Temporary harness fixation
Workshop cable repair
External wire protection
Cable routing assistance
Equipment maintenance
Packaging protection
The tape should be selected according to the operating environment. Standard cloth adhesive tape may be appropriate for ordinary workshop temperatures but may not be suitable for continuous exposure to elevated temperatures, oils, solvents, chemicals, outdoor weather, or high-voltage electrical conditions.
Cloth Adhesive Tape in Cable Harness Assembly
Cable harness assembly often requires multiple wires to follow a defined route.
A harness may contain:
Power cables
Signal wires
Sensor cables
Communication wires
Grounding wires
Control cables
Connector branches
Protective sleeves
Cloth adhesive tape can be used to group these wires together and temporarily maintain their position.
The tape can also be used around branch points when a suitable construction is selected.
However, cable harness designers should avoid applying excessive tension during wrapping. Excessive tension can compress cable insulation, deform flexible wires, or place unnecessary stress on connectors.
The wrapping method should therefore balance secure bundling with sufficient flexibility.
Lithium Battery and PACK Related Applications
Cloth adhesive tape can be used in selected external and auxiliary applications in lithium battery manufacturing and battery PACK assembly.
It is important to understand the difference between external packaging and internal battery insulation.
Cloth adhesive tape can be used to bundle and secure energy storage boxes, module cartons, wooden cases, and other outer packaging structures.
Compared with conventional OPP carton sealing tape, the fabric reinforcement can provide stronger mechanical support for certain packaging applications.
It may be used around corners, package joints, protective boards, and external reinforcement points.
This application is mainly mechanical and packaging related rather than electrical.
Cloth adhesive tape can be used to bundle external sections of thick BMS wire harnesses.
The tape can help organize cables and reduce loose cable movement during assembly, inspection, or transportation.
However, cloth adhesive tape should not be used as the primary insulation material for high-voltage battery cell areas. Critical electrical insulation should use an insulation system specifically designed and validated for the required voltage, temperature, electrolyte exposure, flame-retardancy, and aging conditions.
Cloth adhesive tape can be used for temporary production-line fixation, workstation marking, protective covering, and temporary attachment.
For example, operators may use it to secure a cable route temporarily while installing other components.
Because general cloth adhesive tape may have limited temperature resistance, it should not automatically be introduced into high-temperature processing stages.
Cloth adhesive tape can temporarily secure pearl cotton, EPE foam, protective sheets, and cushioning materials inside outer packaging.
This can prevent cushioning materials from shifting during transportation.
Important Limitation for Battery Applications
Cloth adhesive tape is not equivalent to PI polyimide adhesive tape or fiberglass adhesive tape.
Standard cloth adhesive tape may have temperature resistance in the range of approximately 60–80°C, depending on the construction and adhesive. Some specialized products may offer higher performance, but the actual specification must be confirmed for the particular product.
It may also leave adhesive residue after prolonged use or under elevated temperatures.
Standard cloth tape may have no flame-retardant rating or only basic flame-retardant performance.
Therefore, cloth adhesive tape should generally not be selected for:
Battery tab primary insulation
High-voltage battery insulation
Internal cell module structural fixing
High-temperature formation processes
High-temperature electrical insulation
Critical flame-retardant insulation
Direct insulation of energized high-voltage conductors
For these applications, specialized PI polyimide adhesive tape, fiberglass adhesive tape, or another validated electrical insulation system may be more appropriate.
Typical Industrial Cloth Adhesive Tape Specifications
The following values represent typical reference ranges and should not be treated as universal specifications.
| Item | Typical Parameter |
|---|---|
| Backing | PE coated woven cotton or polyester fabric |
| Total Thickness | 0.20 / 0.25 / 0.28 / 0.30 mm |
| Common Thickness | 0.25–0.30 mm |
| Adhesive | Natural rubber, hot melt, or acrylic |
| Peel Adhesion | Approximately ≥12–18 N/25 mm on steel for selected constructions |
| Tensile Strength | Medium to high due to fabric reinforcement |
| Temperature Resistance | Approximately 60–80°C long term; short-term exposure may reach around 100°C depending on adhesive |
| Flame Retardancy | Standard grades may have no flame rating; selected customized grades may achieve UL 94 V-0 |
| Common Widths | 48 / 50 / 60 / 72 mm |
| Common Roll Size | 48 or 50 mm × 50 m |
| Colors | Silver gray, black, red, blue, yellow, green, camouflage and other colors |
These specifications are intended as general industry references. Actual performance depends on backing construction, adhesive formulation, coating weight, manufacturing process, and testing conditions.
Cloth Adhesive Tape vs Fiberglass Adhesive Tape vs PI Adhesive Tape
The following comparison reflects the typical application differences shown in the supplied reference material.
| Comparison | Cloth Adhesive Tape | Single-Sided Fiberglass Adhesive Tape | PI Adhesive Tape (Kapton) |
|---|---|---|---|
| Recommended Application | ✓ Outer carton packaging / wire harness bundling | ✓ Module bundling | ✓ Battery tab insulation / termination |
| Substrate | PE + woven fabric backing | PET + fiberglass mesh | Polyimide film |
| Temperature Resistance | 60–80°C | 80–120°C (adhesive dependent) | 260°C |
| Tensile Strength | Medium to High | Very High (fiberglass reinforced) | General |
| Electrical Insulation | Low (not intended as primary insulation) | Medium (can be used as auxiliary insulation) | High (primary insulation) |
| Lithium Battery Applications | Outer carton packaging, bundling thick wire harnesses | Circumferential bundling of battery cell modules | Battery tab wrapping, winding termination |
Cloth Adhesive Tape vs OPP Packaging Tape
Cloth adhesive tape and OPP packaging tape are both used for packaging, but their structures are different.
OPP tape generally uses a polypropylene film backing. It is lightweight and suitable for carton sealing.
Cloth adhesive tape uses a fabric reinforcement, which can provide higher tear resistance and better conformability in certain applications.
For heavier or irregular packaging, cloth tape can provide additional mechanical reinforcement.
However, OPP tape may be more economical for high-volume carton sealing where extremely high mechanical reinforcement is not required.
The appropriate tape depends on:
Package weight
Surface condition
Required holding strength
Application temperature
Transportation conditions
Required removal behavior
Packaging cost
Cloth Adhesive Tape vs PVC Electrical Tape
PVC electrical tape is specifically designed for electrical insulation applications, while general cloth adhesive tape is mainly a mechanical bundling and fixing material.
PVC electrical tape typically provides electrical insulation characteristics that general cloth tape may not provide.
Cloth tape is often preferred when the primary objective is:
Mechanical bundling
Cable organization
Temporary fixing
Abrasion protection
Packaging reinforcement
PVC electrical tape may be considered when electrical insulation is specifically required and the product is appropriately rated.
Neither product should be selected for critical applications solely based on appearance or adhesive strength. Electrical insulation must be evaluated according to voltage, temperature, dielectric strength, flame performance, aging, and applicable standards.
Cloth Adhesive Tape vs Fiberglass Adhesive Tape
Fiberglass adhesive tape contains glass fiber reinforcement, which provides substantially higher tensile strength than ordinary fabric-backed tape.
This makes fiberglass adhesive tape suitable for applications involving:
Strong bundling
Structural reinforcement
Heavy-duty packaging
Module wrapping
High-tension applications
Cloth adhesive tape is generally more flexible and easier to handle.
Fiberglass tape is more appropriate when tensile strength and dimensional stability are primary requirements.
For lithium battery module bundling, fiberglass reinforcement may provide better mechanical performance than ordinary cloth tape.
Cloth Adhesive Tape vs PI Polyimide Tape
PI polyimide adhesive tape uses a polyimide film backing rather than a fabric backing.
Polyimide is widely used in high-temperature electrical insulation applications because of its combination of thermal stability, dimensional stability, and dielectric properties.
Cloth adhesive tape is generally intended for external mechanical bundling and temporary fixing.
PI tape is more appropriate for applications such as:
Battery tab insulation
Electrical component insulation
High-temperature masking
Winding termination
High-voltage isolation
Electronics manufacturing
The two products should therefore not be considered interchangeable.
Cable Wrapping Techniques
Proper application can significantly affect the performance of cloth adhesive tape.
In spiral wrapping, the tape is applied diagonally around the cable bundle.
This technique provides continuous coverage and allows the tape to follow the shape of the harness.
The overlap percentage should be selected according to the required protection and flexibility.
Partial wrapping uses tape only at selected points.
This method can be useful when the primary objective is to hold a cable bundle in position rather than completely cover the cable.
Tape can be applied near the ends of a cable bundle to maintain organization.
Care should be taken to avoid excessive adhesive exposure around connectors.
Branch points may require additional wrapping to keep cables organized.
The tape should not restrict the required movement of flexible cable branches.
Surface Preparation Before Cable Wrapping
Surface preparation influences adhesion.
The cable surface should be reasonably clean and free from:
Dust
Oil
Grease
Water
Loose particles
Heavy contamination
For industrial applications, cleaning procedures should be compatible with the cable jacket.
Some cable materials may be sensitive to solvents. Aggressive cleaning chemicals should therefore not be used without confirming material compatibility.
A clean and dry surface generally provides more predictable adhesion than a contaminated surface.
Temperature Considerations
Temperature is one of the most important factors when selecting cloth adhesive tape.
A tape rated for ordinary workshop conditions should not automatically be used in high-temperature equipment.
The temperature performance of the complete tape is determined by both the backing and the adhesive.
For example, a fabric backing may remain physically intact at a certain temperature while the adhesive softens, flows, loses cohesion, or leaves residue.
Therefore, users should evaluate:
Continuous operating temperature
Short-term peak temperature
Heating and cooling cycles
Dwell time
Surface temperature
Adhesive shear performance
Removal requirements
A temperature rating should always be interpreted together with the specific test method.
Adhesive Residue Considerations
Adhesive residue is a common consideration in maintenance and cable wrapping.
Residue may increase when the tape is exposed to:
High temperatures
Long dwell times
UV exposure
Oil
Chemicals
High pressure
Rough surfaces
For temporary applications, a removable adhesive may be preferable.
For permanent bundling, stronger adhesion may be more important than clean removal.
The correct adhesive should therefore be selected based on the intended service life.
Moisture and Environmental Resistance
Cloth adhesive tape may offer a certain level of moisture resistance, especially when the fabric backing is coated with PE.
However, moisture resistance should not be confused with complete waterproofing.
Outdoor applications may expose the tape to:
Rain
Humidity
Temperature cycling
Sunlight
Wind
Dust
Standard cloth tape may not be suitable for prolonged outdoor exposure.
For outdoor cable wrapping, a tape specifically tested for UV resistance, moisture resistance, and environmental aging should be considered.
Flame Retardancy
Not every cloth adhesive tape is flame retardant.
Some standard cloth tapes may have no formal flame-retardancy classification.
Specialized versions may be manufactured using flame-retardant backing or adhesive systems.
A product claiming UL 94 V-0 performance should be evaluated based on the actual construction and applicable test method.
For battery systems, flame performance can be particularly important because internal battery components may be exposed to elevated temperatures and abnormal operating conditions.
General-purpose cloth tape should therefore not be assumed to have flame-retardant properties.
Electrical Insulation Limitations
Cloth adhesive tape may look similar to electrical tape, but visual appearance does not establish electrical insulation performance.
General cloth tape is primarily a mechanical adhesive material.
Its electrical insulation characteristics may be insufficient for:
High-voltage cables
Battery tabs
Busbars
High-voltage battery modules
Energized electrical terminals
Primary electrical insulation
When electrical insulation is required, users should select a product with verified dielectric strength, insulation resistance, flame performance, temperature rating, and applicable electrical standards.
Cable Wrapping in Automotive Applications
Automotive wire harnesses require careful material selection because cables may experience vibration, heat, moisture, abrasion, and chemical exposure.
Cloth adhesive tape can be useful in selected external harness applications.
Typical uses may include:
Harness bundling
Branch organization
Noise reduction
Abrasion protection
Temporary harness fixation
Assembly assistance
However, automotive harnesses may require specialized automotive fabric tape with controlled noise performance, temperature resistance, aging characteristics, and low-residue properties.
General-purpose workshop cloth tape should not automatically be substituted for automotive-qualified harness tape.
Cable Wrapping in Electronics Manufacturing
Electronics production environments often require temporary cable organization.
Cloth adhesive tape can be used to:
Hold cables during assembly
Organize external wiring
Secure protective sleeves
Temporarily fix connectors
Bundle low-voltage wiring
Mark cable groups
For sensitive electronic equipment, residue and adhesive outgassing may be important considerations.
Where cleanroom compatibility or low-outgassing performance is required, a specialized tape should be selected rather than assuming standard cloth tape is suitable.
Workshop Maintenance Applications
Cloth adhesive tape is widely useful in maintenance work because it can be applied quickly.
Maintenance personnel may use it for:
Temporary cable bundling
Hose organization
Protective wrapping
Temporary fixture attachment
Marking
Packaging repair
Surface protection
Equipment organization
Its versatility makes it a convenient workshop material.
However, temporary maintenance tape should not be mistaken for a permanent repair solution when mechanical, electrical, thermal, or safety requirements are critical.
Packaging Applications
Cloth adhesive tape can reinforce cartons, wooden cases, protective boards, and transport packaging.
Its woven backing helps resist tearing when the tape is subjected to tension.
For battery transportation packaging, the tape may be used for external reinforcement, but packaging must still comply with the relevant transportation and safety requirements.
The tape itself should not be considered a substitute for certified dangerous-goods packaging systems.
Cable Wrapping for BMS Harnesses
Battery Management System harnesses can contain multiple small signal wires and larger power-related conductors.
Cloth tape may be used around external sections to organize the harness.
The advantages include:
Easy application
Flexible wrapping
Fast bundling
Visual organization
Temporary fixation
However, BMS harnesses can be part of a high-voltage battery system. The tape's role should therefore be clearly defined.
If the tape is only providing external mechanical bundling, general cloth tape may be appropriate under suitable conditions.
If the tape is expected to provide electrical insulation, a qualified electrical insulation material should be selected instead.
Cable Wrapping and Vibration
Vibration can cause loose cables to rub against equipment surfaces.
Over time, repeated movement may contribute to abrasion.
Cloth adhesive tape can reduce free movement by grouping cables together.
The fabric backing can also provide a protective external layer.
However, the tape should not be stretched excessively during application. Excessive tension can create unnecessary mechanical stress and may reduce long-term performance.
Cable Wrapping and Abrasion Protection
Cable jackets can be damaged by repeated contact with metal edges, plastic structures, or other components.
A cloth wrapping layer can help reduce direct surface contact.
For demanding abrasion environments, specialized abrasion-resistant cable protection should be considered.
Cloth adhesive tape is best viewed as one component of a broader cable protection strategy.
Color Options and Cable Identification
Cloth adhesive tape is commonly available in multiple colors.
Color coding can assist with:
Cable grouping
Maintenance identification
Production organization
Routing identification
Temporary marking
Packaging classification
Common colors include black, silver gray, red, blue, yellow, green, and camouflage patterns.
Color coding should be standardized within a facility to avoid confusion.
Width Selection
Tape width affects both wrapping efficiency and material consumption.
Narrow tape can be useful for:
Small cable bundles
Branch points
Narrow harnesses
Precision temporary fixation
Wider tape may be better for:
Large cable bundles
Packaging reinforcement
Broad protective surfaces
External wire harnesses
Typical industrial widths may include 48 mm, 50 mm, 60 mm, and 72 mm.
Custom slitting can provide narrower widths for specific cable-wrapping requirements.
Thickness Selection
Thickness influences flexibility, handling, mechanical support, and overall bundle size.
Common cloth tape thicknesses may include approximately:
0.20 mm
0.25 mm
0.28 mm
0.30 mm
A thicker tape may provide stronger mechanical support, while a thinner tape may conform more easily to small cable bundles.
For precision cable harnesses, excessive thickness may increase the final harness diameter.
Tensile Strength
The woven backing provides the tape with mechanical reinforcement.
Compared with unsupported adhesive films, fabric-backed tape generally provides better resistance to tearing and tension.
Tensile strength is particularly relevant when the tape is used for:
Cable bundling
Packaging reinforcement
Temporary fixation
Harness organization
Transport protection
However, tensile strength does not indicate electrical insulation performance.
A tape can have high tensile strength while being unsuitable for electrical insulation.
Peel Adhesion
Peel adhesion measures the force required to remove the tape from a defined substrate under specified testing conditions.
A typical industrial cloth tape may provide peel adhesion around 12–18 N/25 mm on steel, depending on construction.
Actual adhesion depends on:
Substrate
Surface cleanliness
Temperature
Pressure during application
Dwell time
Adhesive formulation
Tape age
Therefore, peel adhesion data should be interpreted as a laboratory reference rather than a guarantee of performance on every cable jacket.
Clean Removal
Clean removal may be important for temporary cable bundling.
A tape designed for temporary use should ideally remove without damaging the cable jacket or leaving excessive adhesive residue.
However, clean removal can become more difficult after prolonged exposure to elevated temperatures or environmental conditions.
Testing should be conducted on the actual cable material whenever removal is important.
Storage of Cloth Adhesive Tape
Proper storage helps maintain adhesive performance.
Tape should generally be stored:
In a dry environment
Away from direct sunlight
Away from excessive heat
In its original packaging
Away from aggressive chemicals
Under stable indoor conditions
Improper storage can cause adhesive aging, edge deformation, contamination, or changes in tack.
Manufacturing Quality Factors
The quality of cloth adhesive tape depends on several manufacturing factors.
Important factors include:
Fabric quality
Coating uniformity
Adhesive coating weight
Adhesive consistency
Lamination quality
Slitting accuracy
Roll winding tension
Edge quality
Surface cleanliness
A uniform adhesive coating helps maintain consistent adhesion.
A stable fabric structure helps reduce tearing and deformation during application.
Accurate slitting helps ensure consistent tape width.
Common Problems During Cable Wrapping
Tape lifting may occur when the cable surface is contaminated or when the adhesive is incompatible with the substrate.
Residue may occur after long-term application or exposure to elevated temperatures.
Edge curling can result from poor storage, excessive tension, or unsuitable backing construction.
Tape may break when excessive tension is applied or when the fabric reinforcement is insufficient.
Adhesion may decrease because of temperature, moisture, oil, dust, or chemical contamination.
How to Select Cloth Adhesive Tape for Cable Wrapping
A practical selection process should evaluate the following factors.
Identify whether the cable jacket is PVC, PE, XLPE, rubber, silicone, TPU, or another material.
Different cable materials have different surface energies and chemical compatibility.
Determine the normal and peak temperatures.
Do not select a tape based only on the expected room temperature if the cable will later enter a heated area.
Decide whether the tape is needed for:
Temporary assembly
Short-term maintenance
Transportation
Long-term external bundling
Consider tensile strength, tear resistance, abrasion resistance, and vibration.
Determine whether the tape provides mechanical bundling only or must contribute to electrical insulation.
For critical electrical insulation, use a tape specifically tested for the electrical requirement.
Evaluate exposure to:
Water
Humidity
Oil
Solvents
UV radiation
Dust
Chemicals
If the tape must later be removed, prioritize clean-removal performance.
Advantages of Cloth Adhesive Tape for Cable Wrapping
Cloth adhesive tape provides several practical advantages.
Flexible construction: The woven backing can conform to curved cable bundles.
Mechanical reinforcement: Fabric provides useful tensile and tear resistance.
Fast application: Operators can apply the tape quickly without mechanical fasteners.
Easy handling: Many cloth tapes can be manually torn or easily cut.
Wide application range: The tape can be used for cables, packaging, maintenance, and temporary fixation.
Visual identification: Multiple colors can assist cable organization.
External protection: The fabric layer can reduce abrasion and handling damage.
Cost efficiency: For general-purpose bundling, cloth tape can be a practical alternative to more complex fastening systems.
Limitations of Cloth Adhesive Tape
Despite its versatility, cloth adhesive tape has important limitations.
It is not automatically a high-temperature tape.
It is not automatically flame retardant.
It is not automatically a primary electrical insulation tape.
It may leave adhesive residue.
Its long-term outdoor durability varies.
Its chemical resistance varies according to adhesive formulation.
Its performance can decline when exposed to high temperatures, oils, solvents, or prolonged environmental aging.
These limitations should be considered before selecting the product for a critical application.
Best Practices for Cable Wrapping
Use a clean and dry surface.
Apply sufficient pressure during installation.
Avoid excessive stretching.
Maintain consistent overlap during spiral wrapping.
Avoid covering connectors unless specifically required.
Do not obstruct connector locking mechanisms.
Do not place general-purpose cloth tape over components that generate significant heat.
Do not rely on standard cloth tape as primary high-voltage insulation.
Inspect the wrapped cable after installation.
Replace damaged or contaminated tape where necessary.
Frequently Asked Questions
Cloth adhesive tape is commonly used to bundle, organize, secure, and protect cables and wire harnesses. It is particularly useful for external mechanical fixation and temporary assembly.
General cloth adhesive tape should not automatically be considered primary electrical insulation. Electrical insulation applications require a product with verified dielectric and thermal performance.
It can be used for selected external cable bundling and temporary fixation, provided the temperature and environmental conditions are suitable. It should not replace qualified high-voltage Insulation Materials.
Some PE-coated cloth tapes provide good moisture resistance, but waterproof performance depends on the specific construction. Standard cloth tape should not automatically be considered fully waterproof.
General industrial cloth tape may have a relatively limited temperature range, often around 60–80°C for long-term use. Specialized products may offer higher performance.
Not in every application. Fiberglass tape generally provides higher tensile strength and better dimensional stability. Cloth tape is more commonly used for general bundling and temporary fixation.
No. PI polyimide tape is designed for demanding high-temperature electrical insulation and masking applications. General cloth tape is primarily a mechanical bundling material.
Common colors include silver gray, black, red, blue, yellow, green, and camouflage. Other colors may be available depending on construction and manufacturing requirements.
Industrial cloth adhesive tape commonly comes in widths such as 48 mm, 50 mm, 60 mm, and 72 mm, while narrower custom slit widths can be produced for cable applications.
Industry Application Overview
Cloth Adhesive Tape for Cable Wrapping serves a practical role between simple packaging tape and specialized Electrical Insulation Materials.
For general cable management, its fabric reinforcement provides mechanical support and flexibility.
For battery PACK applications, it can be useful around external wire harnesses and packaging structures.
For industrial maintenance, it provides a fast method of temporary fixation and cable organization.
For packaging, it offers reinforcement beyond what is normally expected from lightweight carton sealing tape.
For high-temperature electrical insulation, however, specialized materials such as PI polyimide adhesive tape should generally be considered.
For high-strength bundling, fiberglass adhesive tape may provide better tensile performance.
This distinction is important because selecting tape based solely on adhesive strength can lead to incorrect material selection.
Future Trends in Cloth Adhesive Tape for Cable Wrapping
The development of industrial adhesive tapes continues to focus on better adhesion, cleaner removal, improved environmental resistance, and more specialized constructions.
Potential development directions include:
Low-VOC adhesive systems
Improved clean-removal performance
Higher temperature resistance
Improved flame retardancy
Better chemical resistance
Higher tensile strength
More precise slitting
Lightweight constructions
Recycled backing materials
More sustainable adhesive systems
Improved automotive harness performance
Specialized battery PACK applications
As cable systems become more compact and complex, adhesive tape manufacturers increasingly need to balance mechanical strength with flexibility and dimensional stability.
Conclusion
Cloth Adhesive Tape for Cable Wrapping is a versatile industrial adhesive material for cable bundling, wire harness organization, temporary fixation, packaging reinforcement, maintenance, and external protection.
Its primary strengths come from the combination of a woven fabric backing and pressure-sensitive adhesive. The fabric provides mechanical reinforcement, while the adhesive allows quick attachment to cable jackets and other surfaces.
In industrial and workshop applications, cloth adhesive tape offers a convenient solution for organizing cables and temporarily securing components.
In lithium battery and PACK environments, it can be used for outer packaging, external BMS wire harness bundling, temporary production-line fixation, and transportation cushioning protection.
However, cloth adhesive tape should not be confused with specialized electrical insulation materials. General-purpose cloth tape is normally not intended for battery tab insulation, high-voltage primary insulation, internal cell-module structural fixing, or high-temperature processing.
When choosing Cloth Adhesive Tape for Cable Wrapping, users should evaluate backing material, thickness, adhesive type, peel adhesion, tensile strength, temperature resistance, flame performance, cable compatibility, environmental resistance, residue performance, width, roll length, and required service life.
For ordinary cable management and maintenance, cloth adhesive tape can provide a simple and efficient solution. For high-temperature insulation, PI polyimide adhesive tape may be more appropriate. For high-strength mechanical bundling, fiberglass adhesive tape may be a better choice.
The correct tape is therefore determined not by the name of the product alone, but by the actual mechanical, thermal, electrical, chemical, and environmental requirements of the application.
This website uses cookies to ensure you get the best experience on our website.
WhatsApp
Phone
