Cloth Adhesive Tape for Maintenance Work is a versatile pressure sensitive adhesive tape designed for general industrial maintenance, workshop repair, temporary fixing, bundling, packaging reinforcement, surface protection, and a wide range of non-critical assembly applications. With a flexible fabric backing, strong adhesive layer, and durable surface construction, cloth adhesive tape provides a practical combination of tensile strength, conformability, quick application, and easy handling.
Cloth adhesive tape is commonly known as cloth tape, fabric adhesive tape, duct tape, cloth duct tape, fabric backed tape, industrial cloth tape, maintenance tape, or utility adhesive tape. Depending on the backing material, adhesive formulation, coating method, thickness, and surface treatment, different cloth tapes can provide different levels of adhesion, tensile strength, temperature resistance, moisture resistance, flexibility, and surface protection.
For maintenance work, the major advantage of cloth adhesive tape is its ability to provide a fast and convenient method of securing, bundling, wrapping, marking, reinforcing, and temporarily repairing materials without requiring specialized equipment. It can be manually torn or cut, conforms well to irregular surfaces, and can often be applied quickly during production-line maintenance or workshop operations.
Cloth adhesive tape is especially useful where a combination of strong adhesion, fabric reinforcement, flexibility, and convenient application is required. However, it is important to distinguish general-purpose cloth adhesive tape from specialized Electrical Insulation Tapes, high-temperature insulation tapes, battery insulation tapes, and structural bonding tapes. The appropriate tape should always be selected according to the actual working environment and performance requirements.
What Is Cloth Adhesive Tape?
Cloth adhesive tape is a single-sided pressure sensitive adhesive tape consisting of a fabric-based backing and an adhesive coating. The backing commonly consists of polyester fabric, cotton fabric, or a polyester-cotton blended fabric. A polyethylene or similar coating may be applied to the outer surface to improve moisture resistance, handling characteristics, and surface protection.
The adhesive layer may be based on natural rubber, synthetic rubber, hot melt adhesive, or acrylic pressure sensitive adhesive. The adhesive formulation determines many of the tape's practical properties, including initial tack, peel adhesion, holding power, temperature resistance, aging performance, and residue characteristics.
The fabric reinforcement provides greater tensile strength than many conventional carton sealing tapes. This makes cloth adhesive tape suitable for applications where a tape must withstand pulling forces, wrapping tension, or moderate mechanical stress.
Unlike a rigid mechanical fastener, cloth adhesive tape creates a flexible bond. It can follow curved surfaces, irregular edges, pipes, cables, packaging materials, panels, temporary protective materials, and many other substrates.
The surface may have a plain weave, textured finish, matte finish, or characteristic cloth pattern. Silver gray, black, red, blue, yellow, green, and plaid-pattern surfaces are commonly associated with different cloth tape constructions.
Structure of Cloth Adhesive Tape
A typical industrial cloth adhesive tape contains several functional layers.
The fabric backing provides mechanical reinforcement. Polyester, cotton, and polyester-cotton blended fabrics are commonly used.
Polyester fabric generally provides good tensile strength, dimensional stability, and resistance to stretching. Cotton or cotton-blended fabric can provide flexibility and conformability. The exact balance depends on yarn structure, weave density, coating, and thickness.
A polyethylene coating may be applied to the outer surface of the fabric. This coating can improve resistance to moisture and provide a smoother or more protective exterior.
The PE surface also helps the tape maintain its overall structure during handling and application. Different surface coatings can be selected for different requirements.
The adhesive layer is responsible for bonding the tape to the substrate.
Natural rubber adhesive is frequently used when strong initial tack and general-purpose adhesion are important. Hot melt adhesive systems can provide efficient manufacturing and strong bonding characteristics. Acrylic adhesive systems can be considered when improved aging, weather resistance, or selected outdoor performance is required.
Because adhesive formulation varies considerably, users should not assume that every cloth adhesive tape has the same temperature resistance, residue behavior, or long-term adhesion.
Why Use Cloth Adhesive Tape for Maintenance Work?
Maintenance work frequently requires fast, flexible, and practical fixing methods. Traditional mechanical fastening may require drilling, screws, clips, tools, or additional preparation. Cloth adhesive tape can provide an immediate temporary or semi-permanent fixing solution in many less demanding applications.
One of its main advantages is ease of use.
A maintenance worker can generally remove the required length, apply it to a clean surface, press it into position, and continue working. This reduces the need for additional equipment.
Another advantage is flexibility.
The fabric backing can conform to curved or irregular surfaces more effectively than rigid materials. It can be wrapped around cables, hoses, packaging materials, protective covers, temporary guards, and other objects.
Cloth adhesive tape also provides mechanical reinforcement.
The fabric structure helps the tape resist tearing and stretching better than many ordinary thin packaging tapes.
Key Advantages of Cloth Adhesive Tape
Industrial cloth adhesive tape can provide strong adhesion to many common substrates, including cardboard, plastics, coated surfaces, metal, wood, fabric, and selected painted surfaces.
The actual adhesion depends on substrate cleanliness, surface energy, adhesive formulation, pressure, temperature, and contact time.
For maintenance applications, strong initial adhesion is particularly useful because the tape can quickly secure loose materials and provide immediate holding force.
The woven fabric backing gives cloth tape greater tensile strength than many conventional packaging tapes.
This reinforcement is useful for bundling, wrapping, reinforcement, and temporary fixing.
Cloth adhesive tape is flexible and can follow curved or irregular surfaces.
This makes it suitable for pipes, cables, protective materials, packaging corners, equipment surfaces, and temporary coverings.
Cloth tape can generally be applied without specialized equipment. Many constructions can be torn manually, which is useful during field maintenance and workshop operations.
Maintenance teams often need a quick method of securing a component while a permanent repair is being arranged.
Cloth adhesive tape can provide temporary fixation for selected non-critical applications.
The reinforced fabric structure can provide greater mechanical support than conventional OPP carton sealing tape in selected packaging applications.
Cloth adhesive tape can be used to protect surfaces from abrasion, contamination, scratches, or accidental movement during selected maintenance activities.
Typical Specifications of Cloth Adhesive Tape
The following specifications reflect the typical industrial and lithium battery PACK related cloth adhesive tape construction provided for this product category. Actual values vary according to adhesive formulation, backing construction, manufacturing process, and intended application.
Backing material: PE coated film combined with cotton or polyester blended fabric, with mesh-like fiber reinforcement.
Total thickness: Common constructions include 0.20 mm, 0.25 mm, 0.28 mm, and 0.30 mm, with 0.25–0.30 mm commonly used for general industrial packaging and reinforcement applications.
Adhesive type: Natural rubber or hot melt adhesive is common. Acrylic adhesive may be selected for certain low-temperature or outdoor applications.
Peel adhesion: A typical reference range is approximately 12–18 N/25 mm or higher on steel, depending on the tape construction and test conditions.
Tensile strength: Relatively high because of the fabric reinforcement. Cloth adhesive tape can provide stronger mechanical support than many conventional OPP carton sealing tapes.
Temperature resistance: Typical long-term use may be around 60–80°C, while short-term exposure may reach approximately 100°C for suitable constructions. Silicone adhesive versions can offer higher temperature capability, but these are less common in general-purpose cloth tape.
Flame retardancy: Standard grades generally do not have a flame-retardant rating. Selected silver or black constructions may be available with UL 94 V-0 performance when specially designed and tested for that requirement.
Common widths: 48 mm, 50 mm, 60 mm, and 72 mm are common industrial widths.
Common roll configuration: A 48 mm or 50 mm × 50 m roll is a commonly used format for general packaging and maintenance applications.

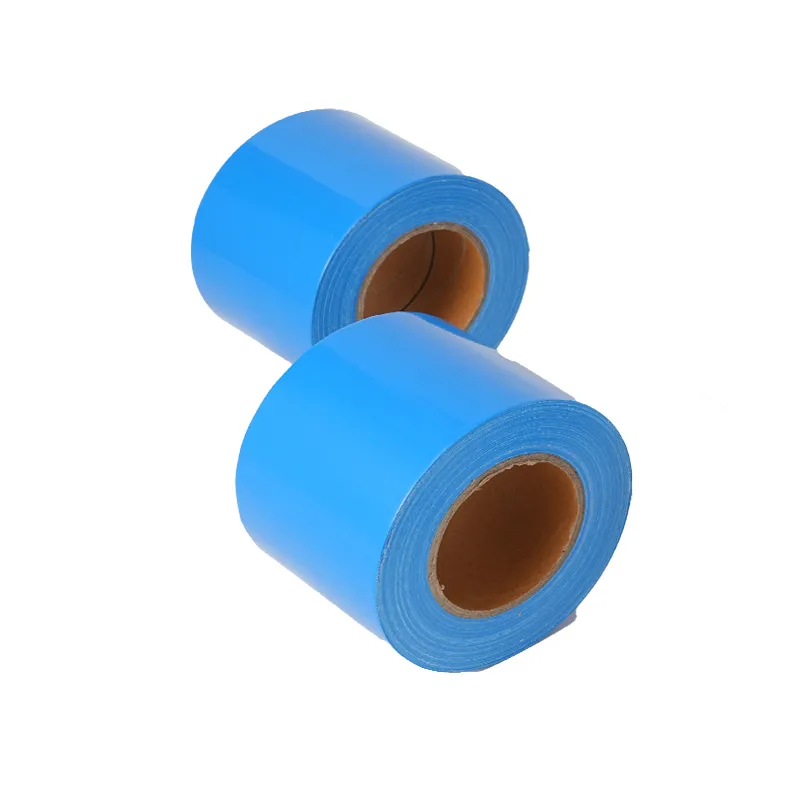

Colors: Silver gray is a common industrial color. Black, red, blue, yellow, green, and plaid-pattern versions may also be available.
These values should be treated as typical reference specifications rather than universal performance guarantees. For critical applications, the final product specification should be confirmed through technical documentation and application testing.
Cloth Adhesive Tape for Workshop Maintenance
Workshop environments require materials that can be applied quickly and handled easily. Cloth adhesive tape is suitable for many routine maintenance tasks where the primary requirement is temporary fixing, bundling, marking, wrapping, or protection.
It can be used around workbenches, equipment covers, protective sheets, packaging materials, cables, hoses, and temporary guards.
For example, a maintenance team may use cloth adhesive tape to hold a protective cover in position while equipment is being serviced. It can also be used to temporarily secure loose packaging material or identify a work area.
Because the tape is flexible, it can conform to uneven workshop surfaces.
However, workshop use does not automatically mean that the tape is suitable for electrical insulation, high-temperature machinery, or safety-critical fastening. Those applications require materials specifically engineered for the relevant conditions.
Cloth Adhesive Tape for General Repair
General repair is one of the broadest application categories for cloth adhesive tape.
The tape can be used to reinforce damaged packaging, secure temporary covers, hold protective materials, bundle selected items, and provide temporary surface protection.
Its fabric reinforcement makes it more mechanically robust than many thin plastic tapes.
For temporary repairs, the surface should generally be cleaned before application. Dust, oil, moisture, grease, and loose particles can reduce adhesive performance.
The tape should be pressed firmly against the substrate to improve contact between the adhesive and the surface.
For permanent repairs, users should evaluate whether cloth adhesive tape can withstand the expected temperature, moisture, mechanical load, chemicals, and service life. In many cases, cloth tape is better considered a maintenance or temporary fixing material rather than a permanent structural adhesive.
Cloth Adhesive Tape for Packaging Reinforcement
Packaging is an important application for industrial cloth adhesive tape.
It can reinforce cartons, wooden cases, storage boxes, protective packaging, and selected transport containers.
Compared with standard OPP carton sealing tape, fabric-reinforced cloth adhesive tape can offer improved tensile support for certain packaging operations.
This makes it useful for:
Outer carton reinforcement
Wooden case bundling
Energy storage box packaging
Battery module outer packaging
Heavy packaging reinforcement
Temporary package closure
Corner reinforcement
Protective material fixing
Transport cushioning fixation
The actual load-bearing capability depends on tape width, adhesive strength, fabric construction, package weight, surface condition, and wrapping method.
Cloth adhesive tape should not be regarded as a substitute for certified strapping systems when heavy loads or safety-critical transportation requirements are involved.
Cloth Adhesive Tape for Battery PACK Applications
Cloth adhesive tape can have selected applications around lithium battery PACK production and packaging.
However, it is important to distinguish external packaging and temporary fixing applications from internal battery insulation and structural applications.
For example, cloth adhesive tape can be considered for the external packaging of energy storage boxes or the outer cartons and wooden cases used for battery modules.
It can also be used for temporary bundling of external BMS cable harnesses when the application does not require electrical insulation performance.
Another application is temporary fixation of cushioning materials such as pearl cotton or EPE foam inside external packaging.
These applications are different from internal battery cell insulation.
Battery Pack Outer Box Sealing and Reinforcement
In energy storage and battery module logistics, outer packaging may require additional reinforcement.
Cloth adhesive tape can be wrapped around cartons, wooden cases, or protective packaging to improve packaging integrity.
Its fabric backing provides mechanical reinforcement while the adhesive holds the tape against the packaging surface.
For larger battery packages, tape may be combined with other packaging systems rather than used as the sole load-bearing component.
The appropriate solution depends on package weight, transportation conditions, vibration, humidity, temperature, and required storage duration.
Temporary External Wire Harness Bundling
Cloth adhesive tape can be used for selected temporary bundling applications involving external wire harnesses.
For example, thick BMS wire harnesses outside the cell area may require temporary organization during assembly, maintenance, or transportation.
The tape can help hold wires together and reduce movement.
However, cloth adhesive tape should not automatically be treated as an electrical insulation material.
In particular, it should not be used as the primary insulation for high-voltage battery components unless the specific tape has been engineered, tested, and approved for that application.
For demanding electrical insulation, specialized materials such as polyimide adhesive tape or other application-specific insulation systems should be evaluated.
Temporary Production Line Fixing
Production lines frequently require temporary fixation during installation, adjustment, maintenance, and changeover.
Cloth adhesive tape can be used to hold temporary protective sheets, signs, labels, covers, and non-critical components.
It can also help mark work areas or temporarily position materials during maintenance.
One important limitation is temperature.
General cloth adhesive tape commonly has a temperature range around 60–80°C for long-term use, depending on construction. Therefore, it should not automatically be introduced into high-temperature production processes.
If a manufacturing process involves elevated temperatures, a high-temperature adhesive tape specifically designed for that environment should be selected.
Temporary Fixing of Transportation Cushioning Materials
Cloth adhesive tape can be used to temporarily secure cushioning materials inside transport packaging.
Materials such as pearl cotton and EPE foam can move during transportation if they are not properly positioned.
Cloth adhesive tape can temporarily hold these cushioning materials in place during packaging.
This is especially useful when packaging battery modules, energy storage equipment, industrial components, and other products requiring vibration protection.
The tape itself is not intended to replace engineered cushioning systems. Instead, it acts as a convenient auxiliary fixation material.
Cloth Adhesive Tape for Equipment Maintenance
Equipment maintenance often involves temporary protection and positioning.
Cloth adhesive tape may be used to secure protective sheets, hold loose covers, organize temporary wiring, mark maintenance areas, or stabilize non-critical materials during servicing.
Its flexibility makes it suitable for surfaces that are difficult to cover with rigid materials.
The adhesive should be compatible with the equipment surface.
For painted surfaces, plastics, coated metals, and finished panels, testing a small area before full application can help determine whether the tape leaves residue or affects the surface.
Cloth Adhesive Tape for Cable Management
Cable management is another common general-purpose application.
Cloth tape can bundle selected low-risk cables and help prevent loose wires from moving around a work area.
It can also provide temporary organization during equipment installation.
However, the tape should not be confused with specialized cable insulation tape.
A cloth adhesive tape may provide physical bundling without providing the electrical insulation properties required for energized conductors.
Where electrical safety is involved, the appropriate insulation system should be selected based on voltage, temperature, environment, and applicable standards.
Cloth Adhesive Tape for Surface Protection
During maintenance operations, nearby surfaces can be exposed to dust, abrasion, scratches, or accidental contact.
Cloth adhesive tape can be used together with protective film, paper, fabric, or plastic sheets.
For example, a protective sheet can be positioned over a work surface and temporarily secured with cloth adhesive tape.
The tape's flexibility makes it easy to wrap around corners and irregular edges.
The adhesive strength should be selected carefully because excessive adhesion can make removal difficult or cause surface damage.
Cloth Adhesive Tape for Temporary Masking
Cloth adhesive tape can be used for selected temporary masking applications.
Masking may involve covering an area during maintenance, painting, cleaning, assembly, or transportation.
However, standard cloth tape is not equivalent to specialized high-temperature masking tape.
If the process involves elevated temperatures, solvent exposure, aggressive chemicals, or precision painting, a tape designed specifically for that process should be selected.
Temperature Resistance of Cloth Adhesive Tape
Temperature performance is one of the most important limitations of general-purpose cloth adhesive tape.
Typical cloth tape constructions may provide long-term temperature resistance around 60–80°C and short-term exposure around 100°C, depending on the adhesive and backing.
The adhesive often becomes the limiting component.
At elevated temperatures, the adhesive can soften, lose holding power, flow, or leave residue after removal.
For this reason, cloth adhesive tape should not be used automatically in ovens, high-temperature battery formation equipment, hot-pressing equipment, or other elevated-temperature production processes.
Specialized high-temperature tapes such as polyimide tape may be more appropriate when the application requires sustained high-temperature electrical insulation.
Adhesive Selection
The adhesive system strongly affects the overall performance of cloth adhesive tape.
Natural rubber adhesive can provide strong initial tack and good adhesion for general industrial applications.
It is often suitable for packaging, bundling, temporary fixing, and maintenance.
However, rubber-based adhesives may have limitations in high-temperature, UV, and long-term aging environments.
Hot melt adhesive systems can provide strong adhesion and efficient processing.
They are widely used in various industrial adhesive tape constructions.
Their temperature and aging characteristics depend on the formulation.
Acrylic adhesive can provide improved aging and environmental resistance for selected applications.
It may be considered for low-temperature, outdoor, or longer-term applications depending on the formulation.
Acrylic cloth tape should still be evaluated for the specific substrate and operating environment.
Peel Adhesion
Peel adhesion describes the force required to remove adhesive tape from a specified substrate under controlled test conditions.
For the typical industrial cloth tape specification described above, peel adhesion to steel may be approximately 12–18 N/25 mm or higher.
Higher peel adhesion can be useful when the tape must remain securely attached.
However, maximum adhesion is not always the most desirable characteristic.
For temporary maintenance applications, excessive adhesion may increase removal difficulty or increase the possibility of residue or surface damage.
Therefore, the best cloth adhesive tape is not necessarily the tape with the highest adhesive strength. It is the tape whose adhesion is appropriate for the intended application.
Tensile Strength
Tensile strength is a key performance characteristic of fabric-backed adhesive tape.
The woven reinforcement helps the tape resist stretching and tearing.
This is particularly useful when tape is wrapped around packaging, bundles, protective materials, or other objects.
Compared with thin plastic packaging tape, cloth adhesive tape can provide greater mechanical support.
However, tensile strength should not be confused with structural load-bearing capability.
The tape should not be used as the sole support for heavy or safety-critical components unless the specific product has been tested and approved for that purpose.
Thickness Selection
Common industrial cloth adhesive tape thicknesses include 0.20 mm, 0.25 mm, 0.28 mm, and 0.30 mm.
A thickness of approximately 0.25–0.30 mm is commonly considered for applications requiring stronger mechanical support.
Thinner tape can provide easier conformability and lower material consumption.
Thicker tape can provide increased body, handling strength, and mechanical reinforcement.
The correct thickness depends on:
Required tensile strength
Surface shape
Application method
Required flexibility
Packaging weight
Adhesive performance
Required durability
Removal requirements
Thickness should therefore be selected according to the actual application rather than simply choosing the thickest available tape.
Width Selection
Common cloth adhesive tape widths include:
48 mm
50 mm
60 mm
72 mm
A 48 mm or 50 mm width is widely convenient for general packaging and maintenance applications.
Narrower widths may be preferred for small components or cable bundling.
Wider tape can provide greater coverage for packaging reinforcement and surface protection.
Custom slit widths can also be produced for specialized industrial requirements.
Color Options
Silver gray is one of the most recognizable colors for industrial cloth adhesive tape.
Other available colors may include:
Black
Red
Blue
Yellow
Green
Plaid patterns
Color can be used for identification, organization, visual marking, packaging differentiation, or maintenance management.
For example, different colors can help distinguish different work areas or maintenance categories.
However, color alone does not indicate a specific performance rating. The technical specification should always be checked separately.
Cloth Adhesive Tape vs OPP Carton Sealing Tape
Cloth adhesive tape and OPP carton sealing tape serve different purposes.
OPP tape is generally lightweight, economical, and suitable for standard carton closure.
Cloth adhesive tape has a reinforced fabric backing and can provide greater tensile support.
For heavier packaging or situations requiring additional reinforcement, cloth adhesive tape can provide advantages.
However, OPP tape may remain more economical for routine carton sealing where high mechanical reinforcement is not required.
Cloth Adhesive Tape vs Fiberglass Adhesive Tape
Cloth adhesive tape and fiberglass adhesive tape are also different products.
Fiberglass adhesive tape uses glass fiber reinforcement to provide high tensile strength and dimensional stability.
It may be selected for demanding bundling and reinforcement applications.
Cloth adhesive tape generally emphasizes flexibility, easy handling, packaging support, and general maintenance use.
Fiberglass tape is often better suited to applications requiring stronger reinforcement and reduced elongation.
Therefore, the two products should be selected based on mechanical requirements.
Cloth Adhesive Tape vs PI Polyimide Tape
PI polyimide adhesive tape is primarily designed for high-temperature electrical insulation and specialized electronic applications.
Cloth adhesive tape is generally designed for general maintenance, bundling, packaging, temporary fixing, and surface protection.
PI tape typically provides much higher temperature resistance than general-purpose cloth tape.
For battery tab insulation, high-temperature electrical insulation, and demanding electronic applications, polyimide tape may be more appropriate.
Cloth tape should not be considered a direct substitute for PI tape.
Cloth Adhesive Tape vs PTFE Adhesive Tape
PTFE adhesive tape is primarily valued for non-stick performance, chemical resistance, low friction, and high-temperature capability.
Cloth adhesive tape is primarily valued for mechanical reinforcement, strong general-purpose adhesion, flexibility, and easy handling.
PTFE adhesive tape is commonly considered for release surfaces, roller protection, hot-process fixtures, and anti-stick applications.
Cloth tape is more appropriate for maintenance, packaging, bundling, and temporary fixation.
The two products have fundamentally different performance priorities.
Limitations of Cloth Adhesive Tape
Despite its versatility, cloth adhesive tape has several limitations.
It is generally not intended to serve as the primary insulation system for lithium battery cells.
It is also not automatically suitable for high-temperature processes.
General cloth tape may have limited flame-retardant performance.
Some adhesive systems may leave residue after prolonged use.
Environmental exposure can affect adhesive performance.
Therefore, product selection should consider temperature, humidity, chemical exposure, mechanical load, surface compatibility, and service duration.
Cloth Adhesive Tape Is Not a Battery Cell Internal Structural Material
A key distinction should be made between external maintenance and packaging applications and internal battery structural applications.
General cloth adhesive tape should not be used for internal cell module bundling, battery tab wrapping, or high-temperature battery areas unless the exact product has been specifically engineered and qualified for those conditions.
Its typical temperature resistance of approximately 60–80°C for long-term use may be insufficient for high-temperature battery manufacturing processes.
Its adhesive may also leave residue.
Its flame-retardant performance may be limited or absent in standard constructions.
For internal battery insulation and demanding applications, specialized materials such as PI polyimide adhesive tape, fiberglass adhesive tape, or other application-specific Insulation Materials should be evaluated.
Maintenance Applications in Industrial Workshops
Industrial workshops perform a wide variety of tasks, from machine maintenance to packaging repair and temporary assembly.
Cloth adhesive tape can support these activities by providing a convenient material for:
Temporary fixing
Surface protection
Cable bundling
Packaging repair
Equipment marking
Protective sheet attachment
Cushioning material fixation
Temporary wrapping
Reinforcement
General repair
Its broad utility makes it a common consumable in maintenance environments.
Application on Metal Surfaces
Cloth adhesive tape can adhere to many metal surfaces, including steel and selected aluminum surfaces.
Before application, the surface should generally be free from oil, grease, dust, loose particles, and excessive moisture.
Smooth metal surfaces may provide good contact with the adhesive.
However, anodized, painted, powder-coated, oxidized, or chemically treated surfaces can behave differently.
Testing is recommended when surface appearance and residue-free removal are important.
Application on Plastic Surfaces
Cloth adhesive tape can also be applied to various plastics.
However, plastic surface energy varies considerably.
Some low-surface-energy plastics can be difficult to bond.
The adhesive formulation should therefore be selected according to the plastic substrate.
Long-term contact may also affect certain sensitive plastic surfaces.
Application testing can help evaluate adhesion and removal behavior.
Residue Considerations
Residue is an important consideration in maintenance work.
Adhesive residue can occur when tape is left on a surface for a long time, exposed to elevated temperatures, exposed to sunlight, or applied to porous or contaminated surfaces.
Rubber-based adhesives can have different residue characteristics from acrylic adhesive systems.
When clean removal is required, users should select a tape designed for removable applications.
A small-scale test can help determine whether the adhesive leaves visible residue.
Moisture and Environmental Resistance
PE-coated cloth tape can provide useful resistance to moisture compared with uncoated fabric.
However, water resistance does not mean that every cloth adhesive tape is fully waterproof.
Moisture can still affect adhesive performance, especially at tape edges or under prolonged exposure.
Outdoor applications should therefore be evaluated according to actual environmental conditions.
For long-term outdoor exposure, acrylic adhesive constructions may be considered when their performance matches the application.
Flame Retardancy
Standard cloth adhesive tape generally should not be assumed to be flame retardant.
Some specialized constructions may be available with flame-retardant performance.
Selected silver or black products may be manufactured to meet UL 94 V-0 requirements when specifically designed and tested.
However, flame retardancy is a product-specific property.
Users should request the relevant test information rather than assuming that color, thickness, or backing material automatically provides a particular flame rating.
Choosing the Right Cloth Adhesive Tape
A practical selection process should consider several factors.
Determine whether the tape will be used for maintenance, packaging, bundling, temporary fixation, marking, or surface protection.
Identify whether the tape will be applied to steel, aluminum, plastic, wood, cardboard, fabric, foam, or another material.
Determine the minimum and maximum operating temperatures.
Consider whether strong permanent adhesion or easier removal is more important.
Determine whether the tape must resist tension, tearing, vibration, or movement.
Consider moisture, chemicals, UV exposure, dust, and other environmental factors.
A tape intended for a few hours may have different requirements from one expected to remain attached for months.
Surface Preparation
Proper surface preparation can significantly improve adhesive performance.
The surface should generally be clean and dry.
Oil, grease, dust, loose particles, and excessive moisture should be removed.
For difficult surfaces, a compatible cleaning method can be used.
The tape should be applied evenly without excessive wrinkles.
Firm pressure can help the adhesive make better contact with the substrate.
Application Method
A typical application process includes the following steps:
Step 1: Clean the surface.
Remove dust, oil, moisture, and loose contaminants.
Step 2: Measure the required tape length.
Allow enough tape to provide the desired overlap or coverage.
Step 3: Cut or tear the tape.
Many fabric-backed tapes can be manually torn.
Step 4: Position the tape.
Place it carefully on the intended surface.
Step 5: Apply pressure.
Press the tape firmly to maximize adhesive contact.
Step 6: Inspect the application.
Check the edges and bonding area for lifting, wrinkles, or incomplete contact.
Storage of Cloth Adhesive Tape
Proper storage can help maintain adhesive performance.
Cloth adhesive tape should generally be stored in a clean, dry environment away from excessive heat and direct sunlight.
Extreme temperatures can affect the adhesive.
Rolls should remain protected from dust and moisture.
Avoid unnecessary compression or deformation of the rolls.
Following the manufacturer's recommended storage conditions is preferable when specific requirements are available.
Quality Inspection
Industrial users may evaluate cloth adhesive tape using several criteria.
The fabric surface should be uniform and free from obvious defects.
The total thickness should meet the required specification.
Peel adhesion can be evaluated against a specified substrate.
The reinforced backing can be tested for tensile performance.
The tape can be evaluated under the intended temperature conditions.
Removal testing can determine whether significant adhesive residue remains.
When required, flame-retardant performance should be verified through the applicable testing method.
Common Maintenance Problems and Tape Selection
Different maintenance problems require different tape characteristics.
For loose packaging, a high-adhesion cloth tape may be appropriate.
For cable bundling, flexibility and easy application may be more important.
For surface protection, moderate adhesion and clean removal may be preferable.
For heavy packaging reinforcement, tensile strength and width become more important.
For high-temperature equipment, general cloth tape may not be suitable at all.
This demonstrates why choosing tape based only on the word "industrial" is insufficient.
Industrial Packaging Applications
Cloth adhesive tape can support many packaging processes.
It may be used for:
Carton reinforcement
Case bundling
Protective cover fixation
Edge reinforcement
Cushioning material fixation
Temporary package closure
Shipping preparation
Storage packaging
Equipment wrapping
Its fabric reinforcement provides useful mechanical strength while its adhesive surface provides convenient attachment.
Energy Storage Packaging Applications
Energy storage equipment often requires substantial external packaging protection.
Cloth adhesive tape may be used to reinforce outer cartons, secure protective materials, and hold cushioning materials in place.
It can also support temporary packaging operations during warehouse handling and transportation preparation.
However, it should not be used as a substitute for certified structural packaging components where the package must withstand significant transportation loads.
Maintenance of Production Equipment
During machine maintenance, temporary fixation can be necessary.
Cloth adhesive tape may be used to secure protective film, hold covers in position, mark areas, or organize temporary materials.
It can also assist during equipment changeovers.
Because production equipment may generate heat, users should check the actual operating temperature before applying cloth tape.
Workshop Organization and Identification
Colored cloth Adhesive Tapes can also support workshop organization.
Different colors can be used to visually distinguish:
Maintenance areas
Temporary repair zones
Packaging categories
Cable groups
Storage areas
Work-in-progress materials
This can improve visual organization without requiring permanent markings.
Why Fabric Reinforcement Matters
The fabric layer is one of the most important differences between cloth adhesive tape and simple plastic adhesive tape.
The woven reinforcement helps limit stretching.
It also improves tear resistance and gives the tape a stronger physical body.
During wrapping, the fabric can help distribute mechanical stress across the tape.
This is particularly useful for packaging reinforcement and bundling.
Low Temperature Applications
Some cloth adhesive tapes can be used at lower temperatures, but adhesive performance may decrease as temperature falls.
The exact low-temperature performance depends on adhesive formulation.
Acrylic systems can offer different low-temperature characteristics from rubber or hot melt adhesives.
When using cloth adhesive tape in refrigerated environments or cold outdoor conditions, the selected product should be tested under the actual application temperature.
Outdoor Applications
Some cloth adhesive tapes can be used outdoors for temporary applications.
However, outdoor performance depends on UV resistance, moisture resistance, adhesive stability, temperature cycling, and backing durability.
Standard indoor cloth tape should not automatically be considered suitable for long-term outdoor exposure.
For outdoor use, users should select an adhesive system and backing specifically designed for environmental exposure.
Chemical Exposure
General cloth adhesive tape should not automatically be considered resistant to strong chemicals.
The PE backing can provide some protection, but the adhesive may be affected by solvents, oils, acids, alkalis, or other chemicals.
For chemical environments, the tape should be evaluated against the actual chemical.
Specialized fluoropolymer or other chemical-resistant adhesive tapes may be more suitable for demanding applications.
Maintenance Safety Considerations
Cloth adhesive tape is a useful maintenance material, but it should not be used to replace safety-critical components.
It should not be used as a substitute for electrical insulation where electrical safety depends on the tape.
It should not be used to support heavy suspended loads unless the product has been specifically tested for that purpose.
It should not be used in high-temperature processes unless the tape is specifically rated for those temperatures.
It should not be used inside battery cells or critical battery insulation systems without qualification.
These limitations are important when distinguishing general maintenance tape from specialized industrial adhesive materials.
Common Industrial Uses
Cloth adhesive tape can be used in:
Machine maintenance: temporary covers, marking, wrapping, and fixing.
Workshop repair: general temporary repair and reinforcement.
Packaging: carton and case reinforcement.
Warehouse operations: package identification and temporary securing.
Transportation: cushioning material fixation.
Production lines: temporary positioning and protection.
Electrical assembly: limited external bundling where electrical insulation is not required.
Energy storage packaging: outer box reinforcement and protective material fixation.
Construction maintenance: selected temporary fixing and protection applications.
General industrial work: wrapping, bundling, marking, and repair.
Benefits for Maintenance Teams
A maintenance department often values consumables that are easy to store, easy to use, and suitable for multiple tasks.
Cloth adhesive tape meets many of these requirements.
A standard roll can be used for packaging, bundling, temporary protection, and general repair.
This versatility can simplify workshop inventory management.
The tape also does not normally require a dedicated applicator.
Its manual handling characteristics are particularly convenient when workers need to make quick repairs.
Cost and Material Efficiency
The economic value of cloth adhesive tape comes not only from the tape price but also from application efficiency.
A material that can be quickly torn, positioned, and pressed onto a surface can reduce installation time.
For temporary maintenance work, avoiding drilling or mechanical fastening can also reduce labor.
However, cost should be evaluated together with performance.
A low-cost tape that fails quickly may require repeated application.
Therefore, the appropriate selection balances adhesive performance, fabric strength, temperature resistance, service life, and application requirements.
Custom Cloth Adhesive Tape
Industrial users may require customized tape widths, lengths, colors, adhesive systems, or backing constructions.
Custom slitting can produce narrow rolls for cable bundling or wider rolls for packaging reinforcement.
Color customization can support identification and branding.
Adhesive customization can address different substrates and temperature ranges.
Special flame-retardant constructions may also be available for applications requiring specific performance.
Any customized specification should be validated through appropriate testing.
Frequently Asked Questions
Cloth adhesive tape is a single-sided pressure sensitive adhesive tape with a fabric reinforcement backing. It is commonly used for maintenance, bundling, packaging, temporary fixing, wrapping, and protection.
Some cloth tapes have good moisture resistance because of a PE-coated backing, but not every cloth tape is fully waterproof. Actual performance depends on the construction.
General-purpose cloth adhesive tape is usually suitable for moderate temperatures rather than extreme heat. A typical reference range is around 60–80°C for long-term use and up to approximately 100°C for short-term exposure, depending on construction.
General cloth adhesive tape should not automatically be used as primary electrical insulation. Specialized electrical insulation tape should be selected when electrical safety is involved.
It may have selected external packaging or temporary fixing applications, but general cloth tape should not be used automatically for internal battery insulation, tab wrapping, or high-temperature areas.
Fabric reinforcement generally provides greater tensile support than conventional OPP carton sealing tape, although actual performance depends on the specific products being compared.
Many cloth tapes can be removed manually, but residue and removal force depend on adhesive type, application time, temperature, substrate, and environmental conditions.
Silver gray is common, while black, red, blue, yellow, green, and plaid-pattern constructions may also be available.
48 mm, 50 mm, 60 mm, and 72 mm are common industrial widths, while custom slit widths can also be produced.
How to Select Cloth Adhesive Tape for Maintenance Work
When selecting a cloth adhesive tape, consider the following checklist:
Application: Determine whether the tape will be used for maintenance, packaging, bundling, protection, marking, or temporary fixation.
Backing: Choose the appropriate fabric structure according to the required tensile strength and flexibility.
Adhesive: Select rubber, hot melt, acrylic, or another adhesive according to the required adhesion and environmental resistance.
Thickness: Consider 0.20–0.30 mm constructions according to mechanical requirements.
Width: Choose 48–72 mm for common industrial applications or request custom slitting.
Temperature: Verify the actual service temperature.
Surface: Test compatibility with metal, plastic, cardboard, wood, foam, painted surfaces, and other substrates.
Removal: Evaluate residue and removal force when clean removal is important.
Flame performance: Verify certification when flame retardancy is required.
Battery application: Distinguish external packaging applications from internal battery insulation requirements.
Conclusion
Cloth Adhesive Tape for Maintenance Work is a practical and versatile material for industrial workshops, maintenance operations, packaging, bundling, temporary fixing, surface protection, and transportation preparation.
Its combination of fabric reinforcement, pressure sensitive adhesion, flexibility, tensile strength, easy handling, and broad application versatility makes it useful for many routine industrial tasks.
A typical construction consists of a PE coated film combined with cotton or polyester blended fabric reinforcement and a rubber, hot melt, or acrylic pressure sensitive adhesive. Typical total thicknesses include 0.20, 0.25, 0.28, and 0.30 mm, with 0.25–0.30 mm frequently considered for stronger industrial applications. Typical widths include 48, 50, 60, and 72 mm, while 48 mm or 50 mm × 50 m is a common roll configuration.
For the specification described above, peel adhesion to steel can be approximately 12–18 N/25 mm or higher, while temperature resistance is typically around 60–80°C for long-term use, with short-term exposure up to approximately 100°C, depending on the adhesive construction. Standard versions generally do not provide a flame-retardant rating, while specially engineered products may offer UL 94 V-0 performance.
In lithium battery and energy storage applications, cloth adhesive tape should mainly be considered for external packaging, temporary bundling, production-line protection, transportation cushioning fixation, and other non-critical auxiliary applications.
It should not automatically be used for battery tab insulation, internal cell module bundling, high-voltage insulation, or high-temperature battery processing. For those demanding applications, specialized materials such as PI polyimide adhesive tape, fiberglass adhesive tape, or other application-specific insulation materials should be selected according to technical requirements.
Ultimately, the best cloth adhesive tape is not simply the strongest or thickest product. It is the construction that provides the right balance of adhesion, tensile strength, flexibility, temperature resistance, environmental compatibility, residue performance, width, thickness, and service life for the intended maintenance application.
This website uses cookies to ensure you get the best experience on our website.
WhatsApp
Phone
