In the lithium battery industry, an 18650 straight-line battery holder generally refers to a cell positioning holder, cell spacer, or cell holder. It is a commonly used plastic auxiliary component for arranging cylindrical battery cells into battery packs and battery modules. The primary purpose of this type of ABS Plastic Support Bracket is to maintain accurate cell positioning, consistent spacing, electrical separation, and mechanical stability during battery assembly.
An 18650 straight-line battery holder is designed around the dimensions of standard 18650 cylindrical cells. In a typical configuration, the holder provides approximately 19 mm cell spacing and an approximately 18.5 mm cell hole diameter, although actual dimensions can vary according to cell dimensions, holder design, manufacturing tolerances, insulation requirements, and the intended battery pack structure.
Unlike a metal structural bracket, an 18650 Battery Cell Support Bracket is primarily a plastic positioning and insulation component. It does not normally replace the structural frame, enclosure, end plate, or side plate of a complete battery pack. Instead, it works together with other battery pack components to create an organized, stable, and electrically insulated cell assembly.

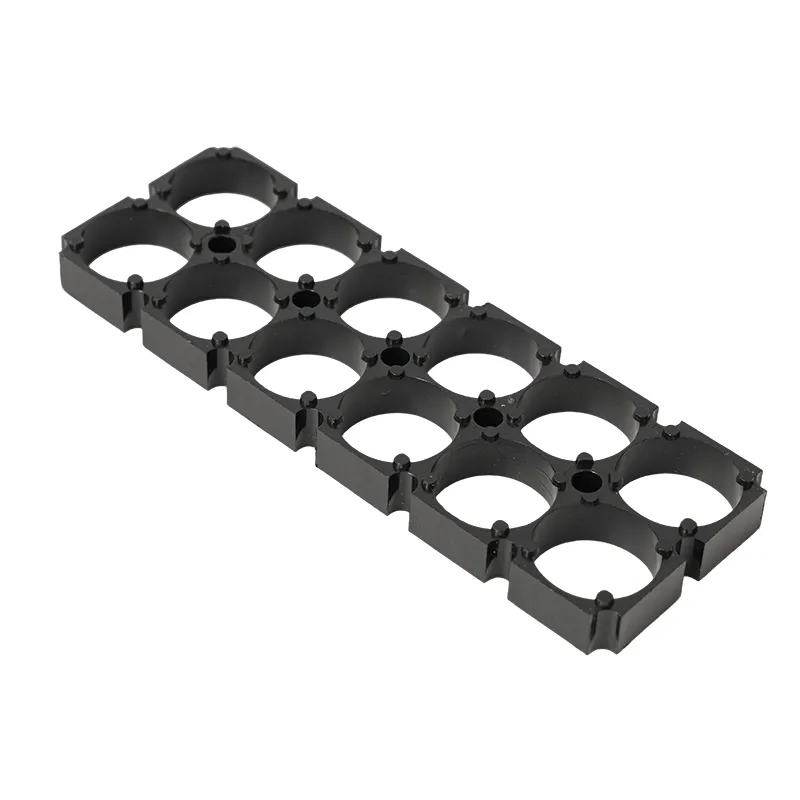

An 18650 straight line battery holder is a molded plastic component designed to hold multiple cylindrical 18650 battery cells in a straight-line arrangement. The cells are inserted into individual circular openings or positioning cavities, allowing the holder to maintain a consistent center-to-center distance between neighboring cells.
The holder can be manufactured as a single-cell positioning piece, a multi-cell array, or a modular component that can be combined with additional holders. Depending on the battery pack design, the holder may include ventilation openings, cable routing features, Nickel Strip clearance areas, snap-fit structures, alignment features, and mounting points.
For battery pack manufacturers, the primary advantages of an 18650 cell holder include improved assembly efficiency, consistent cell positioning, reduced movement during welding, and better separation between adjacent cells.
The holder is especially useful when multiple cylindrical cells need to be assembled into a compact battery module. Without an appropriate cell positioning structure, individual cells can move, rotate, or become unevenly spaced during assembly. This can complicate Nickel Strip Welding and make the overall battery pack geometry less consistent.
A well-designed plastic Support Bracket for mounting provides a repeatable positioning reference for every cylindrical cell. This makes the assembly process easier to control and can improve the consistency of the finished battery module.
The material used for an 18650 battery holder directly affects mechanical strength, temperature resistance, dimensional stability, electrical insulation, flame resistance, and long-term durability.
ABS is one of the commonly used materials for general-purpose battery cell holders because it offers a useful balance between rigidity, impact resistance, processing performance, dimensional stability, and cost.
Other thermoplastics may also be selected depending on the operating environment.
| Material | Typical Characteristics | Common Considerations |
|---|---|---|
| ABS | Rigid, impact resistant, easy to injection mold | Common choice for general battery holders |
| PP | Lightweight, economical, good chemical resistance | Softer and less rigid than ABS |
| PC | Good impact resistance and higher temperature capability | Suitable for more demanding thermal conditions |
| PA | Strong, wear resistant, good temperature resistance | May absorb moisture and requires material-specific processing |
| PA66 | High mechanical strength and temperature resistance | Useful for higher-temperature applications |
| Flame Retardant ABS | Improved flame resistance compared with standard ABS | Suitable when higher fire-performance requirements apply |
Material selection should be based on the complete operating environment rather than on cost alone. Factors such as maximum operating temperature, heat generated by the cells, enclosure ventilation, mechanical loading, vibration, exposure to chemicals, required flame rating, and regulatory requirements should all be considered.
For general-purpose battery pack applications, ABS can provide a practical combination of strength and manufacturability. For higher-temperature environments, PC or PA-based materials may be considered where their properties better match the application.
Most ABS 18650 cell holders are manufactured through plastic injection molding. Injection molding is well suited to battery holders because it can produce repeated circular cell openings, alignment structures, ventilation channels, mounting points, and other detailed geometries with relatively consistent dimensions.
During injection molding, plastic resin is heated until it reaches a suitable flow condition. The molten material is then injected into a specially designed mold cavity. After filling and cooling, the molded component is ejected from the mold.
The design of the injection mold can influence:
Hole diameter
Cell spacing
Wall thickness
Overall dimensions
Surface finish
Ventilation openings
Snap-fit structures
Alignment features
Mounting points
Parting lines
Ejection marks
Dimensional consistency
For custom ABS plastic support brackets, tooling design is particularly important. A well-designed mold can help maintain consistent cell positioning across large production quantities.
The most important function is to maintain the position of each cylindrical cell.
An 18650 cell holder creates individual positioning locations for the cells. This helps prevent cells from moving laterally during assembly and operation.
The typical configuration described for this type of holder uses approximately 18.5 mm openings and approximately 19 mm cell spacing. Actual production dimensions should always be confirmed against the intended battery cell and holder design.
Consistent positioning is particularly important when nickel strips are welded across multiple cells. If the cells shift during assembly, the welding process may become more difficult and the finished module may have uneven geometry.
Uniform spacing helps organize the battery module and creates a predictable arrangement between adjacent cells.
The distance between cells can affect:
Module dimensions
Cooling space
Insulation clearance
Nickel strip routing
Cell accessibility
Mechanical stability
Assembly repeatability
A straight-line holder provides a fixed positioning structure so that the cells remain aligned according to the intended pack layout.
A plastic cell holder can provide physical separation between neighboring cylindrical cells.
Because ABS, PP, PC, and PA are electrically Insulating Materials under appropriate conditions, a molded holder can help reduce direct contact between adjacent cells.
However, a plastic holder should not automatically be treated as the sole electrical insulation system for a battery pack. Complete battery insulation may also require cell sleeves, insulating films, end insulation, busbar insulation, barriers, or other dedicated Electrical Insulation Materials.
The holder helps reduce cell movement during assembly and handling.
Mechanical stability can be particularly important for battery modules exposed to:
Vibration
Transportation
Repeated handling
Equipment movement
Automotive applications
Portable power equipment
Energy storage systems
A suitable cell holder can reduce relative movement between cells and help maintain the designed cell arrangement.
During battery pack assembly, cylindrical cells may be connected using nickel strips or other conductive interconnects.
The holder helps keep cells in their intended positions while the nickel strip is positioned and welded.
This is particularly useful during spot welding, where accurate cell positioning can help maintain consistent strip alignment.
The support bracket itself is not the electrical conductor. Its role is to provide mechanical positioning and separation.
Some 18650 cell holders incorporate ventilation slots, open-grid structures, or spaces between cell rows.
These features can help create airflow paths around the cylindrical cells.
Airflow design is especially relevant when a battery module produces significant heat during charging or discharging.
The holder should therefore be considered as one component of the battery thermal-management system rather than as a complete cooling solution.
Common Specifications of an 18650 ABS Support Bracket
| Parameter | Typical Description |
|---|---|
| Product Type | 18650 straight line cell holder |
| Application | Cylindrical lithium battery pack assembly |
| Compatible Cell | 18650 cylindrical cell |
| Hole Diameter | Approximately 18.5 mm |
| Cell Spacing | Approximately 19 mm |
| Material | ABS commonly used |
| Alternative Materials | PP, PC, PA, PA66 |
| Manufacturing Process | Injection molding |
| Structure | Straight-line cell arrangement |
| Insulation | Electrical separation between adjacent cells |
| Ventilation | Optional slots or open structures |
| Assembly | Upper and lower holders may be used |
| Welding Support | Helps maintain cell position during nickel strip spot welding |
| Color | Black commonly used |
| Customization | Hole size, spacing, layout, slots, markings, mounting features |
| Flame Resistance | Flame-retardant grades may be available depending on material |
| Compliance | RoHS or other requirements may be specified according to project needs |
These specifications are general industry references rather than universal standards. The exact dimensions should be confirmed according to the battery cell manufacturer's dimensional tolerances and the actual holder design.
18650 Battery Holder Structure
An 18650 support bracket can have several structural configurations.
The straight-line design places cylindrical cells in a regular linear arrangement. This structure is relatively simple and can be suitable for battery modules where the cells need to remain parallel and evenly spaced.
Multiple straight-line sections can be integrated into a larger battery holder. This allows manufacturers to create battery assemblies containing different numbers of cells.
Common arrangements can include:
2 cells
3 cells
4 cells
5 cells
6 cells
8 cells
10 cells
12 cells
Larger customized arrays
The exact configuration depends on the required voltage, capacity, physical dimensions, and electrical architecture of the battery pack.
Many cylindrical battery modules use two positioning components.
One holder is installed near one end of the cells and another holder is installed near the opposite end.
This configuration can provide more stable positioning because the cylindrical cells are supported at two locations.
The upper and lower holders may be identical or may have different structures depending on the pack design.
Advantages of ABS Plastic Support Brackets
ABS can provide suitable rigidity for many battery holder applications. A rigid holder can help maintain the relative position of cylindrical cells.
ABS is widely used for molded plastic components where moderate impact resistance is required.
This can be beneficial during assembly and transportation.
ABS can be processed using conventional injection molding technology, making it suitable for components with repeated holes and detailed structural features.
A properly designed ABS component can maintain relatively stable dimensions under normal operating conditions.
Dimensional stability is important because cell positioning depends on accurate hole dimensions and center spacing.
ABS is electrically insulating and can provide physical separation between cells.
Compared with metal brackets, molded plastic holders are generally lightweight.
This can help reduce the non-cell weight of battery modules.
Injection molding allows designers to integrate multiple functions into one component.
A single support bracket may include:
Cell openings
Alignment structures
Ventilation slots
Cable channels
Mounting holes
Snap-fit features
Identification markings
Nickel strip clearance
Assembly guides
ABS Support Bracket vs Metal Bracket
An ABS cell positioning holder should not be confused with a structural metal bracket.
| Feature | ABS Cell Support Bracket | Metal Structural Bracket |
|---|---|---|
| Primary Purpose | Cell positioning and separation | Structural support |
| Typical Material | ABS, PP, PC, PA | Aluminum, steel, stainless steel |
| Electrical Insulation | Generally insulating | Usually conductive unless insulated |
| Weight | Lightweight | Generally heavier |
| Cell Positioning | Excellent for molded cell cavities | Depends on design |
| Ventilation Design | Easy to integrate | Requires additional fabrication |
| Manufacturing | Injection molding | Stamping, machining, extrusion, bending |
| Typical Use | Battery cell holder | Structural frame or enclosure |
| Custom Geometry | Highly flexible | Depends on manufacturing method |
In a complete battery pack, plastic positioning brackets and structural metal components can work together. The plastic holder maintains cell alignment, while the metal structure may provide external mechanical strength.
Importance of 18.5 mm Hole Diameter
The specified 18.5 mm hole diameter is an important dimensional parameter for an 18650 cell holder.
A cylindrical 18650 cell has a nominal diameter of approximately 18 mm, but actual cell dimensions can vary depending on manufacturer, protective wrapping, insulating sleeve, tolerance, and cell construction.
The holder opening therefore needs to be designed carefully.
If the opening is too small, cell insertion may become difficult or may damage the cell wrapper.
If the opening is too large, the cell may have excessive movement.
The appropriate hole size should balance:
Easy assembly
Secure positioning
Cell dimensional tolerance
Protective sleeve thickness
Thermal expansion
Manufacturing tolerance
Required mechanical stability
For this reason, the stated 18.5 mm hole diameter should be treated as a design specification rather than a universal requirement for every 18650 cell.
Importance of 19 mm Cell Spacing
The approximately 19 mm cell spacing determines the center-to-center arrangement of adjacent cells.
Maintaining consistent spacing can improve the appearance and dimensional stability of the finished battery pack.
It can also influence the amount of space available for:
Airflow
Insulation
Nickel strips
Busbars
Wiring
Structural reinforcement
Thermal materials
A 19 mm center spacing is therefore an important parameter when designing an 18650 straight-line holder.
For custom battery projects, the spacing should be verified against the complete cell assembly, including cell wrappers and other insulating components.
Ventilation and Heat Dissipation
Lithium battery cells can generate heat during charging, discharging, and high-current operation.
A battery holder with ventilation slots or open-grid sections can help avoid completely blocking airflow around the cells.
Typical ventilation features include:
Side openings
Longitudinal slots
Cross ventilation holes
Open-grid structures
Inter-cell air channels
End ventilation openings
The exact ventilation structure should be matched to the battery pack's thermal-management strategy.
For passive cooling systems, open structures can support natural convection.
For forced-air cooling systems, the holder can be designed to maintain clear airflow channels between cell rows.
The holder itself does not guarantee a specific temperature reduction. Thermal performance depends on cell chemistry, electrical load, enclosure design, ambient temperature, airflow rate, thermal interface materials, and the overall cooling architecture.
Nickel Strip Spot Welding Applications
One of the important applications for an 18650 cell holder is battery pack assembly using nickel strip spot welding.
During assembly, multiple cylindrical cells are arranged in the holder. Nickel strips are then positioned over the appropriate cell terminals and connected using a suitable welding process.
The support bracket helps prevent cells from shifting during this process.
A stable arrangement can make it easier to:
Position nickel strips
Maintain consistent cell spacing
Align welding points
Reduce cell movement
Organize wiring
Assemble larger cell groups
The plastic holder should be designed with appropriate clearance around welding areas.
It should not interfere with the welding electrodes or electrical connection points.
Customization of ABS Plastic Support Brackets
Custom injection molding allows an 18650 support bracket to be adapted to different battery pack designs.
Customization may include:
The cell opening can be adjusted according to the actual cylindrical cell dimensions and protective sleeve.
Center-to-center spacing can be customized to meet the requirements of the battery module.
The number of cell positions can be changed according to the battery pack configuration.
Additional openings can be integrated to improve airflow.
Cable routing channels can be added to organize wires and reduce interference with neighboring components.
Specific clearance areas can be designed around nickel strip connection points.
Mounting holes, clips, tabs, and other fastening structures can be integrated into the holder.
Numbering or identification features can help simplify cell arrangement and assembly.
Snap-fit connections can allow multiple plastic sections to connect without additional fasteners.
Custom ABS Support Bracket Design Considerations
When designing a custom ABS plastic support bracket for mounting, several factors should be evaluated.
The first step is to confirm the actual diameter and length of the intended 18650 cell.
The protective PVC or other insulating sleeve can affect the effective external diameter of the cell.
The holder opening should provide adequate clearance while preventing excessive cell movement.
Cell spacing should be coordinated with the complete battery layout.
The plastic wall must be thick enough to provide sufficient mechanical strength while remaining suitable for injection molding.
Injection-molded components generally require appropriate draft angles to allow reliable mold release.
Ventilation features should be positioned without unnecessarily reducing the mechanical strength of the holder.
The holder should be designed according to how cells will be inserted and removed.
If two holders are used, their positioning features should align accurately.
Common Applications
An 18650 ABS cell support bracket can be used in various cylindrical lithium battery applications.
The holder can organize multiple 18650 cells in portable battery assemblies.
Cylindrical cells can be arranged into larger battery modules using modular support brackets.
Battery packs for power tools may use cylindrical cells that require mechanical positioning.
Battery modules for electronic equipment can use cell holders to maintain compact cell arrangements.
Battery assemblies for backup systems may require stable cell positioning and insulation.
Test fixtures and battery modules can use positioning brackets to maintain repeatable cell locations.
The holder can simplify the physical assembly of multi-cell cylindrical battery configurations.
Industrial battery systems may use customized cell holders designed for specific module dimensions.
Common Battery Holder Configurations
| Configuration | Typical Use |
|---|---|
| Single Cell Holder | Individual cell positioning |
| 2 Cell Holder | Small battery packs |
| 3 Cell Holder | Compact battery assemblies |
| 4 Cell Holder | Small battery modules |
| 5 Cell Holder | Custom battery layouts |
| 6 Cell Holder | Multi-cell battery packs |
| 8 Cell Holder | Compact energy modules |
| 10 Cell Holder | Higher-capacity battery assemblies |
| 12 Cell Holder | Larger battery modules |
| Custom Array Holder | Specialized battery pack designs |
The actual configuration should be selected according to the battery pack electrical design and mechanical requirements.
Quality Control for ABS Battery Support Brackets
Quality control is important because dimensional errors in a cell holder can affect the entire battery assembly.
Important inspection items include:
Hole diameter
Cell spacing
Overall length
Overall width
Overall height
Wall thickness
Flatness
Alignment
Flash
Burrs
Surface defects
Warpage
Cracks
Material consistency
Color consistency
Flame-retardant grade where applicable
For high-volume production, dimensional inspection can be performed using gauges, calipers, coordinate measuring equipment, optical measurement systems, or dedicated inspection fixtures.
Common Defects in Injection Molded Battery Holders
Uneven cooling can cause molded plastic components to deform.
Excess material may appear along the mold parting line.
Insufficient filling can result in incomplete structures.
Uneven cooling or excessive wall thickness can cause surface depressions.
Flow fronts can meet and form visible lines in the molded component.
Process conditions, material behavior, mold wear, and cooling differences can influence dimensions.
Improper material selection, excessive stress, or unsuitable design geometry can contribute to cracking.
Proper mold design and process control can help reduce these defects.
Flame Retardant ABS Options
For applications requiring improved fire performance, a flame-retardant ABS grade may be selected.
A commonly referenced classification is UL 94 V-0, although the actual flame-retardant classification must be verified for the specific material grade and finished component.
Not every ABS material is automatically UL 94 V-0.
When purchasing a flame-retardant battery holder, buyers should confirm:
Material grade
Flame rating
Test standard
Certification documentation
Color compatibility
Operating temperature
Mechanical properties
The required fire-performance specification should be determined according to the battery system, applicable regulations, and end-use environment.
Environmental and Compliance Considerations
Modern battery components may need to satisfy environmental and material compliance requirements.
Depending on the target market, buyers may request compliance with requirements such as:
RoHS
REACH
Applicable material declarations
Customer-specific restricted substance requirements
Compliance requirements vary by market and application.
A supplier specification should therefore clearly identify the material grade and any applicable compliance documentation.
Advantages of Injection Molded ABS Battery Holders
Injection molding provides several advantages for high-volume production.
First, it allows multiple cell openings to be produced as one integrated component.
Second, repeated parts can be manufactured with relatively consistent geometry.
Third, structural details can be integrated into the mold rather than assembled separately.
Fourth, large production volumes can reduce the average molding cost after tooling has been developed.
Finally, customized designs can combine cell positioning, ventilation, cable routing, and mounting functions into a single plastic component.
Battery Holder Design and Assembly Efficiency
An effective cell positioning bracket can improve assembly efficiency because it creates a defined location for each cell.
Instead of manually measuring every cell position, operators can place cells directly into the molded cavities.
This can reduce assembly variability and make the battery module more repeatable.
For semi-automatic or automated production, the holder geometry can also be designed to work with assembly fixtures.
The use of clear positioning features can simplify:
Cell loading
Cell inspection
Nickel strip placement
Welding
Wiring
Module handling
Final inspection
Support Bracket vs Cell Holder
The terms support bracket, cell holder, and cell spacer may sometimes be used interchangeably in product descriptions, but they can describe slightly different functions.
A cell holder generally emphasizes retaining and positioning individual cells.
A cell spacer emphasizes spacing and separation between neighboring cells.
A support bracket emphasizes mechanical support and positioning.
A single molded component may perform all three functions.
For SEO and product classification, descriptions such as 18650 Cell Holder, 18650 Cell Spacer, ABS Battery Support Bracket, and Cylindrical Cell Positioning Bracket can accurately describe different aspects of the same general component, provided they match the actual product design.
Comparison of Common Plastic Materials
| Material | Rigidity | Temperature Resistance | Cost Level | Typical Use |
|---|---|---|---|---|
| ABS | Good | Moderate | Medium | General battery holders |
| PP | Moderate | Moderate | Low | Cost-sensitive applications |
| PC | High | Higher | Higher | Higher-temperature applications |
| PA | High | High | Higher | Mechanical and thermal applications |
| PA66 | High | High | Higher | More demanding environments |
Actual material properties depend on the exact grade, additives, molding conditions, and component geometry.
How to Choose an 18650 Support Bracket
Selecting a suitable durable ABS plastic support bracket for mounting should begin with the battery cell specifications.
Confirm that the application uses 18650 cylindrical cells.
Check the actual external diameter, including the protective wrapper.
Determine whether an approximately 18.5 mm opening provides the required fit.
For the described straight-line configuration, approximately 19 mm spacing is a key reference.
ABS is suitable for many general applications, while PC or PA may be considered for higher-temperature environments.
If fire performance is important, specify the required flame-retardant grade.
For applications with significant heat generation, consider slotted or open-grid designs.
Determine whether the application requires one holder or matched upper and lower holders.
Check whether the holder needs screw holes, snap fits, clips, tabs, or other mounting structures.
Confirm material and environmental requirements for the target market.
Custom Manufacturing Options
A custom manufacturer can modify an ABS support bracket according to a battery pack drawing or 3D model.
Typical custom parameters include:
Cell hole diameter
Cell spacing
Cell count
Overall dimensions
Holder thickness
Ventilation openings
Cable channels
Mounting holes
Snap-fit features
Cell numbering
Identification marks
Color
Material
Flame-retardant grade
Surface finish
For larger production quantities, custom tooling may be justified because the same molded design can be reproduced repeatedly.
Packaging and Storage
Plastic battery holders should be stored in conditions that minimize deformation, contamination, and excessive environmental exposure.
Recommended considerations include:
Keep products dry
Avoid excessive heat
Prevent heavy stacking
Protect against deformation
Avoid contamination
Keep packaging intact
Store away from direct sunlight where appropriate
For long-term storage, the supplier and buyer should follow the material manufacturer's recommended storage conditions.
Product Specification Example
| Specification | Example |
|---|---|
| Product Name | 18650 Straight Line Battery Cell Support Bracket |
| Product Type | Cell Holder and Cell Spacer |
| Main Material | ABS |
| Optional Materials | PP PC PA PA66 |
| Compatible Cell | 18650 Cylindrical Cell |
| Hole Diameter | 18.5 mm |
| Cell Spacing | 19 mm |
| Manufacturing | Injection Molding |
| Arrangement | Straight Line |
| Insulation | Cell-to-Cell Physical Separation |
| Cooling | Optional Ventilation Slots |
| Welding Support | Nickel Strip Spot Welding Positioning |
| Assembly | Upper and Lower Holder |
| Color | Black or Custom Color |
| Flame Retardancy | Optional According to Material Grade |
| Compliance | RoHS Available According to Material |
| Customization | Available |
| Application | Lithium Battery Pack and Module Assembly |
Why Use an 18650 Straight Line Cell Holder?
An 18650 straight-line holder provides a simple and repeatable method of organizing cylindrical battery cells.
Its primary value comes from combining several functions into one molded component:
Cell positioning + spacing + insulation + mechanical stabilization + assembly assistance + ventilation support.
For battery pack manufacturers, this integrated structure can simplify the mechanical design of the cell array.
Instead of developing separate positioning pieces, spacers, and ventilation structures, a molded plastic holder can incorporate several of these features into one component.
This can reduce assembly complexity and improve the repeatability of the battery module.
Conclusion
A Durable ABS Plastic Support Bracket for Mounting can serve as an important auxiliary component for 18650 cylindrical lithium battery assemblies. In this application, the product is commonly described as an 18650 straight-line battery holder, cell spacer, cell holder, or cell positioning support bracket.
The typical design described here uses an approximately 18.5 mm cell opening and approximately 19 mm cell spacing to organize 18650 cylindrical cells. The holder can provide mechanical positioning, cell-to-cell separation, assembly support, and optional airflow channels.
ABS is a commonly used material because it offers a practical combination of rigidity, impact resistance, injection molding capability, electrical insulation, and cost efficiency. Depending on temperature, mechanical, and fire-performance requirements, alternative materials such as PP, PC, PA, or PA66 may also be considered.
For more demanding battery applications, customized designs can include flame-retardant materials, ventilation structures, cable routing channels, nickel strip clearance, mounting points, snap-fit features, and identification markings.
The final holder dimensions should always be matched to the actual 18650 cell dimensions, protective wrapping, assembly tolerances, battery pack architecture, thermal-management strategy, and applicable safety requirements.
An appropriately designed ABS plastic support bracket for mounting can therefore provide a practical foundation for stable cylindrical cell positioning and efficient battery module assembly.
This website uses cookies to ensure you get the best experience on our website.
WhatsApp
Phone
