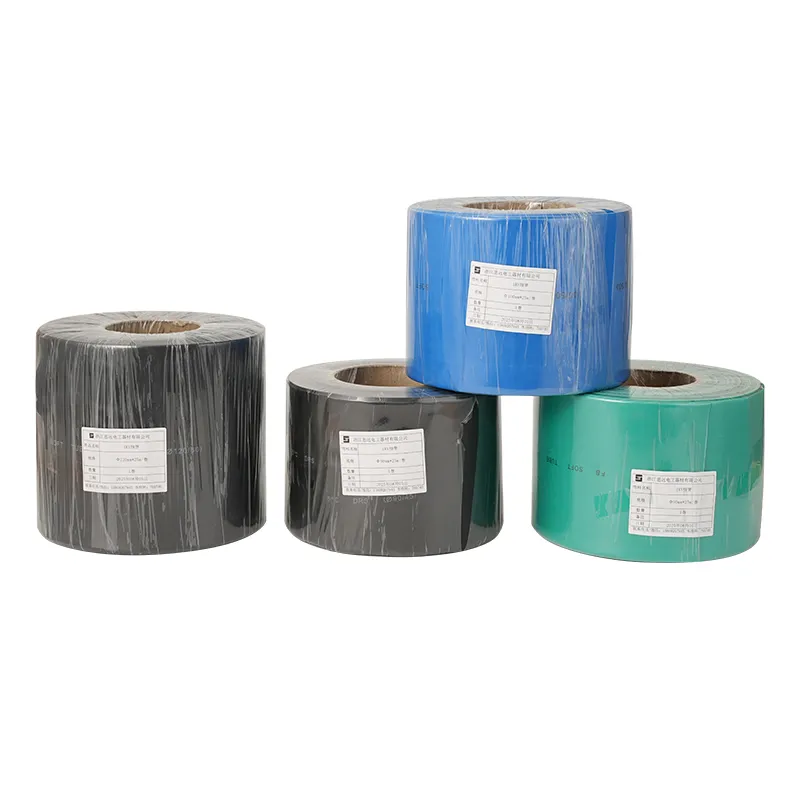

1kV Thin-Wall Heat Shrink Tubing is a flexible heat-shrinkable insulation material designed to provide electrical insulation, surface protection, moisture resistance, dust protection, and improved appearance for wires, cables, electronic components, battery assemblies, lighting components, and various industrial products. With its thin-wall construction, flexible structure, and controlled shrinkage performance, this type of heat shrink tubing can be used where reliable insulation and compact protection are required without adding excessive bulk to the finished assembly.
Thin-wall heat shrink tubing is commonly selected for applications where space is limited and a clean, professional surface finish is important. Compared with thicker protective sleeves, thin-wall tubing can provide a lightweight insulation layer while maintaining flexibility around covered components. It can also conform closely to the surface of a wire, terminal, electronic component, capacitor, battery, or other cylindrical or irregularly shaped object after heating.
The term 1kV generally identifies a tubing product intended for electrical insulation applications associated with voltage levels up to 1,000 volts under specified conditions. Actual electrical performance depends on the material formulation, wall thickness, shrink ratio, installation conditions, operating environment, and applicable testing standards. Therefore, the appropriate product specification should always be selected according to the actual electrical design and application requirements.
The product described in this guide has a flattened width of 30 mm to 680 mm and a wall thickness of 0.08 mm to 0.15 mm. These dimensions allow the material to cover a broad range of components and packaging applications. The relatively thin wall is particularly suitable for applications requiring compact insulation, surface protection, identification, and decorative finishing.
1. What Is 1kV Thin-Wall Heat Shrink Tubing?
1kV Thin-Wall Heat Shrink Tubing is a heat-responsive polymer sleeve that contracts when exposed to an appropriate heating source. Before heating, the tubing is supplied in an expanded state. During installation, heat causes the material to shrink toward the underlying component, creating a close-fitting protective layer.
The tubing can be used for electrical insulation, mechanical protection, moisture resistance, dust protection, corrosion reduction, component identification, and product appearance enhancement.
The thin-wall design is one of its most important characteristics. A wall thickness of approximately 0.08 mm to 0.15 mm makes the tubing suitable for applications where a large protective sleeve would be unnecessary or where installation space is restricted.
For electronic and electrical applications, the tubing can help isolate conductive surfaces and reduce the possibility of accidental contact. For battery and electronic component applications, it can also provide an additional external protective layer over the component surface.
The broad flattened width range of 30 mm to 680 mm makes this material adaptable to products with different dimensions. Depending on the original tube diameter, shrink ratio, and application method, the tubing can be selected for small electrical components as well as larger cylindrical products and packaging structures.
2. Key Characteristics of Thin-Wall Heat Shrink Tubing
Several characteristics make thin-wall heat shrink tubing suitable for electrical and industrial applications.
The thin-wall structure allows the finished product to remain relatively compact. This is especially useful when components are installed inside limited spaces.
A thin insulation layer can reduce the overall outside diameter of a protected wire or component compared with the use of a heavy-wall sleeve.
Electrical insulation is one of the primary applications of heat shrink tubing. Once properly installed, the tubing forms an insulating layer around the covered surface.
It can be used to reduce direct contact between conductive components and surrounding materials. This makes it useful for wires, terminals, battery connections, electronic components, and other electrical assemblies.
A properly installed heat shrink sleeve can help reduce exposure to moisture and humidity. This is particularly useful in environments where condensation or occasional contact with water may occur.
Moisture protection can help maintain the appearance and service condition of covered components.
The close-fitting structure can help prevent dust and small particles from accumulating directly on the protected surface.
This is beneficial for electronic components, lighting assemblies, battery components, and electrical connections.
Heat shrink tubing can provide a physical barrier between the covered component and the external environment. By reducing exposure to moisture, dust, and contaminants, it can contribute to corrosion protection.
However, heat shrink tubing should not automatically be considered a complete corrosion-proofing system. Application conditions and the compatibility of the tubing with the protected material should be evaluated.
In addition to functional protection, heat shrink tubing can improve the visual appearance of products.
It can cover exposed surfaces, irregular connections, manufacturing marks, and component transitions, creating a cleaner and more uniform appearance.
This is particularly useful for consumer electronics, lighting products, batteries, electrical assemblies, and packaged components.
3. Product Specifications
The following specifications describe the dimensional range of the product discussed in this guide.
| Specification | Range | Description |
|---|---|---|
| Product Type | 1kV Thin-Wall Heat Shrink Tubing | Thin-wall heat-shrinkable insulation material |
| Flattened Width | 30–680 mm | Width measured in flattened condition |
| Wall Thickness | 0.08–0.15 mm | Nominal thin-wall thickness range |
| Application | Electrical and component protection | Suitable for insulation and surface protection |
| Main Functions | Insulation and protection | Electrical insulation, moisture, dust and corrosion protection |
| Form | Tubular heat-shrinkable material | Designed to shrink around covered components |
| Typical Uses | Batteries, capacitors, electronics, lighting | Multiple industrial and electronic applications |
Actual finished dimensions can vary depending on tubing expansion, shrinkage, processing conditions, and product design. Customers should confirm detailed dimensional tolerances and electrical performance requirements before production.
4. Flattened Width: 30 mm–680 mm
The specified flattened width range of 30 mm to 680 mm provides flexibility for different component sizes.
Flattened width is commonly used to describe the width of a tubular material when it is laid flat. It is particularly useful when discussing large-diameter tubing or sleeve materials.
A wider flattened width can accommodate larger components, while narrower widths can be selected for smaller assemblies.
The available width range can be useful in applications involving:
Electrolytic capacitors
Battery housings
Battery packs
Electronic components
Lighting products
LED assemblies
Cylindrical components
Electrical insulation structures
Decorative component sleeves
Packaging applications
For production applications, the appropriate flattened width should be selected based on the actual circumference, diameter, shrink ratio, and installation requirements of the covered object.
5. Wall Thickness: 0.08–0.15 mm
The specified wall thickness is 0.08 mm to 0.15 mm.
This relatively thin construction provides several potential advantages.
First, it can reduce the amount of material surrounding a component. This is useful for compact electronic and electrical products.
Second, thin-wall tubing can provide flexibility around curved surfaces and cylindrical components.
Third, the finished product can maintain a relatively low profile. This can be important when the protected component must fit into a housing, enclosure, connector, or compact electronic assembly.
The wall thickness selected for a particular application should consider the required insulation performance, mechanical protection, processing conditions, operating temperature, environmental exposure, and applicable electrical requirements.
A thinner wall is not automatically better for every application. Where high mechanical strength, severe abrasion resistance, or demanding environmental sealing is required, a different tubing construction may be more appropriate.
6. Electrical Insulation Applications
Electrical insulation is one of the most important uses of 1kV Thin-Wall Heat Shrink Tubing.
Electrical systems often contain exposed conductors, terminals, connections, solder joints, battery tabs, and component leads. These areas can require an insulating layer to reduce the possibility of accidental electrical contact.
Thin-wall heat shrink tubing can be applied over suitable components to create an additional insulating barrier.
Common electrical insulation applications include:
Wire insulation
Cable connection insulation
Terminal insulation
Battery terminal protection
Electronic component insulation
Capacitor insulation
LED lead insulation
Electrical connection protection
Component lead protection
Power connection insulation
The tubing should be correctly sized and properly installed to achieve the intended insulation performance.
7. Application for Electrolytic Capacitors
Electrolytic capacitors are widely used in power supplies, electronic circuits, industrial equipment, consumer electronics, lighting systems, and other electrical products.
A capacitor may have a metal body that requires external insulation or surface protection. Heat shrinkable tubing can be used as an insulating sleeve around the capacitor body.
The tubing can provide several functions:
Electrical insulation
Surface protection
Moisture resistance
Dust protection
Improved appearance
Component identification
Protection against accidental contact
The thin-wall construction is particularly useful when the capacitor must maintain a compact overall diameter.
Heat shrink tubing can also provide a consistent external finish that improves the visual appearance of capacitor assemblies.
8. Battery Applications
Battery products frequently contain conductive components, terminals, tabs, wires, connectors, and metal housings.
1kV Thin-Wall Heat Shrink Tubing can be used as part of battery component insulation and protection systems.
Typical battery-related applications include:
Battery packs
Rechargeable batteries
Battery terminals
Battery wires
Battery tabs
Battery connectors
Energy storage components
Power battery assemblies
Electronic battery modules
For battery applications, the tubing can help separate conductive areas from surrounding components.
It can also improve the appearance of battery assemblies and provide an additional protective layer against dust and moisture.
When used around battery components, the selected tubing should be compatible with the battery's operating temperature, chemical environment, electrical requirements, and assembly process.
9. Electronic Component Protection
Electronic components often require compact insulation and surface protection.
Examples include:
Capacitors
Resistors
Sensors
Connectors
Terminals
Electronic modules
Component leads
Circuit protection components
Small electrical assemblies
Thin-wall heat shrink tubing is useful where the protective material needs to follow the shape of the component without significantly increasing its size.
The tubing can also help organize component assemblies and create a consistent external appearance.
10. Lighting Applications
Lighting products contain many electrical connections and electronic components that may benefit from insulation and surface protection.
Potential applications include:
LED lighting
LED strips
LED modules
Lighting wires
Lamp components
Lighting connectors
Lighting terminals
Electronic lighting assemblies
Heat shrink tubing can be used around suitable electrical connections and component sections.
For LED products, the tubing may also be used around LED pins or leads where additional insulation and protection are required.
11. LED Pin Protection
LED pins are conductive and relatively small, making them suitable for compact insulation solutions.
Thin-wall heat shrink tubing can be used around selected LED leads to provide:
Electrical insulation
Contact protection
Dust protection
Moisture resistance
Improved appearance
Wire organization
The small wall thickness can be beneficial for compact LED assemblies because it minimizes the additional size around the protected lead.
Proper heating control is important when working with small electronic components. Excessive heat may damage sensitive components or nearby materials.
12. Bottle-Neck Combination Packaging
Another application of heat shrinkable material is bottle-neck combination packaging.
In this type of application, the heat shrink material can be used around a bottle neck or combined product section to create a unified appearance.
The tubing or sleeve can provide:
Improved product appearance
Surface protection
Dust resistance
Moisture resistance
Product identification
Packaging integration
Heat shrinkable packaging materials are commonly selected when a clean and closely fitted appearance is desired.
The appropriate shrink temperature and processing method should be selected according to the material and the packaged product.
13. Appearance Enhancement
Heat shrink tubing is not limited to electrical insulation.
For many products, appearance is an important part of product quality.
An external sleeve can cover:
Exposed metal
Uneven surfaces
Component transitions
Electrical connections
Manufacturing marks
Product joints
After heating, the tubing can create a smoother and more uniform appearance.
This is especially useful for products intended for consumer markets where visual presentation is important.
14. Moisture Protection
Moisture can affect electrical and electronic components in many ways.
Water vapor, condensation, humidity, and liquid contamination may contribute to electrical leakage, corrosion, oxidation, and deterioration of certain materials.
A properly selected and installed heat shrink sleeve can provide an additional barrier against environmental moisture.
Potential moisture-sensitive applications include:
Battery assemblies
Electronic components
Electrical connections
Lighting components
Outdoor electrical products
Automotive wiring
Industrial equipment
However, standard thin-wall heat shrink tubing should not automatically be considered equivalent to a fully sealed waterproof system. Where complete environmental sealing is required, the product design should specify an appropriate sealing structure and material.
15. Dust Protection
Dust and airborne particles can accumulate on electrical and electronic products.
Dust contamination may affect appearance and, depending on the application, may interfere with electrical or mechanical performance.
Heat shrink tubing provides a close-fitting external layer that can reduce direct exposure of the covered surface to dust.
This makes it useful for:
Electronic components
Electrical connections
Battery components
Lighting products
Industrial electrical assemblies
Component packaging
16. Corrosion Protection
Metallic components can be affected by moisture, oxygen, salts, chemicals, and other environmental contaminants.
Heat shrink tubing can reduce direct environmental exposure by forming a polymer barrier around the covered surface.
Potential benefits include:
Reduced moisture exposure
Reduced dust contamination
Reduced surface contamination
Additional environmental protection
Improved component appearance
For demanding corrosion environments, the complete material system should be evaluated rather than relying on the tubing alone.
17. Benefits of Thin-Wall Construction
Thin-wall heat shrink tubing offers several practical advantages.
The thin wall minimizes the additional thickness around the protected component.
Less material can result in a lightweight finished assembly.
The tubing can conform to many cylindrical and irregular surfaces after heating.
The finished sleeve can provide a neat and consistent surface.
Thin-wall construction can be useful in compact electrical housings and electronic devices.
Depending on the product design, thin-wall tubing can be processed using controlled hot air or other suitable heating equipment.
18. Heat Shrink Tubing and Electrical Safety
Electrical insulation products play an important role in reducing accidental contact between conductive surfaces.
However, the correct tubing must be selected for the actual electrical system.
Important considerations include:
Working voltage
Insulation thickness
Electrical strength
Operating temperature
Environmental conditions
Shrink ratio
Component dimensions
Installation quality
Applicable standards
The term 1kV should therefore be treated as an application-related specification rather than a universal guarantee for every possible installation.
Engineering teams should verify the actual electrical performance of the selected product before use in safety-critical applications.
19. Material Selection
The performance of heat shrink tubing depends heavily on the polymer formulation.
Common heat shrink materials used in the broader industry include:
Polyolefin
PVC
Fluoropolymer
Elastomer
Cross-linked polymer materials
Different materials provide different combinations of:
Flexibility
Temperature resistance
Chemical resistance
Mechanical strength
Electrical insulation
Flame resistance
Shrink performance
Environmental durability
For general electrical insulation and component protection, polyolefin-based heat shrink materials are widely used because of their balance of flexibility, electrical insulation, and processing characteristics.
For specialized environments, other materials may be selected.
20. Heat Shrink Ratio
Heat shrink tubing is normally supplied in an expanded condition and contracts when heated.
The shrink ratio describes the relationship between the expanded and recovered dimensions.
Typical industrial heat shrink products may have different shrink ratios depending on their design.
The appropriate ratio should be selected according to the shape and dimensions of the component.
A tubing product should not be selected solely by its initial diameter. The installer should consider:
Component diameter
Maximum installation diameter
Final recovered diameter
Shrink ratio
Wall thickness
Available installation space
21. Installation Process
A typical heat shrink tubing installation process includes several basic steps.
Choose a tubing size that can fit over the component before heating and shrink sufficiently around it after heating.
Cut the tubing to the required length using a clean cutting method.
Slide the tubing over the wire, cable, component, terminal, battery part, or other object.
Use a suitable controlled heat source.
A hot air tool is commonly used because it allows relatively controlled heating.
Move the heat source around the tubing rather than concentrating heat on one location.
After shrinking, allow the tubing to cool naturally before applying mechanical stress.
22. Heating Considerations
Correct heating is important for achieving a good finished result.
Excessive heating can potentially damage the tubing, component, wire insulation, or nearby electronic parts.
Insufficient heating may result in incomplete shrinkage.
Important installation considerations include:
Use controlled heat
Avoid direct flame unless specifically permitted
Heat evenly
Avoid overheating sensitive components
Maintain appropriate distance from the heat source
Allow the finished assembly to cool naturally
For production applications, automated or semi-automated heating systems may provide more consistent processing.
23. Dimensional Selection Guide
| Application | Important Selection Factor | Recommended Consideration |
|---|---|---|
| Wire insulation | Wire diameter | Select suitable pre-shrink size |
| Cable protection | Cable outer diameter | Consider recovered diameter |
| Battery terminal | Terminal dimensions | Allow sufficient installation clearance |
| Capacitor sleeve | Component diameter | Match tubing circumference |
| LED pin | Pin diameter | Use compact thin-wall tubing |
| Electronic component | Component profile | Consider irregular shapes |
| Lighting component | Connection size | Verify electrical insulation needs |
| Bottle-neck packaging | Neck circumference | Select appropriate sleeve width |
| Large component | Flattened width | Consider 30–680 mm range |
| Compact assembly | Wall thickness | Consider 0.08–0.15 mm construction |
24. Typical Application Areas
The versatility of 1kV Thin-Wall Heat Shrink Tubing allows it to be used in multiple industries.
Electrical wires, terminals, connectors, cable assemblies, and electrical components can use heat shrink tubing for insulation and protection.
Electronic components can benefit from compact insulation and surface protection.
Battery terminals, battery wires, tabs, connectors, and battery modules can use heat shrink tubing as part of an insulation system.
LED pins, lamp wiring, lighting connectors, and electronic lighting components can be protected using suitable heat shrink material.
Automotive wires, connectors, sensors, terminals, and electrical assemblies may use heat shrink tubing where appropriate.
Motors, control equipment, electrical panels, sensors, and industrial wiring can benefit from compact insulation sleeves.
Heat shrinkable materials can also be used for bottle-neck and combination packaging applications.
25. Customized OEM Services
For battery accessory manufacturers and electrical component manufacturers, customization capability can be an important part of heat shrink tubing supply.
OEM services can help manufacturers obtain material that matches their product dimensions, colors, printing requirements, processing methods, and packaging specifications.
Blue is available as a product color, and other colors can be customized according to customer requirements.
Color customization can be useful for:
Product identification
Polarity identification
Circuit identification
Brand differentiation
Assembly management
Visual appearance
Different colors can help production personnel quickly identify different components or electrical functions.
Printing can be customized according to product requirements.
Possible printed information includes:
Company logos
Brand names
Voltage specifications
Product codes
Component identification
Warning labels
Safety messages
Safety messages such as “Do Not Short Circuit” can be printed where appropriate.
Customized printing can combine identification and safety communication in a single component.
Precision slitting can be used to process material according to customer requirements.
Available widths can include dimensions such as:
60 mm
65 mm
70 mm
Other widths can be produced according to specific requirements and manufacturing capabilities.
High-precision slitting can help maintain consistent material dimensions for downstream production.
Heat Shrink Tubing Materials can also be integrated with other Electrical Insulation Materials for die-cutting and supporting product delivery.
Potential complementary materials include:
Fish paper
Electrical insulation paper
Insulation sheets
Die-cut electrical components
This approach can help customers source multiple insulation components according to a coordinated design.
26. Heat Shrink Tubing for Battery Accessories
Battery accessory manufacturers often require more than a standard roll of insulation material.
They may need:
Specific colors
Printed markings
Customized widths
Customized lengths
Precision slitting
Die-cut supporting insulation
Consistent packaging
Production-compatible dimensions
For this reason, OEM customization can be an important consideration when selecting thin-wall heat shrink tubing.
A customized supply program can help integrate Insulation Materials into an existing battery assembly process.
27. Integration with Fish Paper
Fish paper, also known as electrical insulation paper, is widely used as an electrical insulating material.
It can be used in combination with heat shrink tubing in battery and electrical applications.
Potential functions include:
Electrical insulation
Component separation
Surface protection
Battery insulation
Terminal insulation
When heat shrink tubing and fish paper are combined, they can form complementary insulation structures.
The appropriate material thickness and die-cut shape should be selected based on the product design.
28. Integration with Epoxy Sheets
Epoxy sheets are another common electrical insulation material.
They can provide structural support and electrical insulation in applications where a flexible heat shrink sleeve alone is insufficient.
Heat shrink tubing can be combined with die-cut epoxy sheet components to create a more complete insulation solution.
Possible applications include:
Battery assemblies
Electrical components
Terminal insulation
Structural electrical insulation
Component separation
29. Why Choose Thin-Wall Heat Shrink Tubing?
Thin-wall heat shrink tubing can be advantageous when an application requires a combination of:
Electrical insulation
Compact dimensions
Flexible installation
Surface protection
Moisture resistance
Dust protection
Improved appearance
Customizable colors
Custom printing
Precision processing
The material can be particularly attractive for manufacturers that need an insulation solution without significantly increasing the dimensions of the final product.
30. Quality Considerations
When evaluating heat shrink tubing, buyers and engineers should consider more than dimensional specifications.
Important quality factors include:
Consistent width and wall thickness can improve production stability.
A smooth and uniform surface can improve appearance and processing performance.
Uniform shrinkage can help produce a consistent finished appearance.
Electrical insulation characteristics should match the application requirements.
The tubing should be suitable for the expected installation and operating temperature.
The material should provide an appropriate level of flexibility and resistance to handling.
For customized products, printed markings should remain clear and durable under the intended conditions.
31. Storage Recommendations
Proper storage can help maintain the condition of heat shrink tubing before installation.
General storage practices include:
Keep material in a clean and dry environment
Avoid excessive heat
Avoid direct sunlight
Protect material from contamination
Avoid unnecessary mechanical deformation
Keep packaging closed when possible
Follow the supplier's recommended storage conditions
Long-term exposure to unsuitable environmental conditions may affect polymer performance.
32. Packaging and Delivery
Heat shrink tubing can be supplied in different forms depending on production requirements.
Common supply formats may include:
Rolls
Continuous tubing
Cut lengths
Custom lengths
Slit material
Printed material
Customized packaging
For industrial customers, packaging should protect the tubing from contamination, moisture, deformation, and unnecessary mechanical stress during transportation.
Customized packaging can also help identify product specifications, dimensions, colors, and production batches.
33. Common Product Selection Mistakes
Several mistakes can occur when selecting heat shrink tubing.
Tubing that is too small may be difficult to install.
Tubing that is too large may not recover sufficiently around the component.
The required insulation performance may depend on the recovered wall thickness.
The tubing must be suitable for the expected operating environment.
Excessive heating can damage both the tubing and the protected component.
A visually attractive tubing product may not necessarily meet the required electrical performance.
Chemical exposure, moisture, UV exposure, mechanical stress, and temperature should all be considered.
34. Technical Selection Checklist
Before ordering 1kV Thin-Wall Heat Shrink Tubing, manufacturers can evaluate the following factors:
| Selection Item | Key Question |
|---|---|
| Voltage | Is the electrical insulation suitable for the intended voltage? |
| Width | Is the flattened width suitable for the component? |
| Thickness | Does 0.08–0.15 mm meet the design requirement? |
| Shrink Ratio | Can the tubing recover sufficiently? |
| Temperature | Is the material suitable for installation and operation? |
| Color | Is a standard or customized color required? |
| Printing | Is logo or warning printing required? |
| Slitting | Is customized width processing required? |
| Die Cutting | Are complementary insulation components required? |
| Environment | Will the product face moisture, dust, chemicals, or heat? |
| Packaging | Is customized packaging necessary? |
| Quantity | Is the material required for small-batch or mass production? |
35. Frequently Asked Questions
It is a thin-wall heat-shrinkable insulation material designed for electrical insulation and component protection applications associated with voltage levels up to 1,000 volts under specified conditions.
The specified flattened width is 30 mm to 680 mm.
The specified wall thickness is 0.08 mm to 0.15 mm.
Yes. Suitable heat shrink tubing can be used for battery wires, terminals, tabs, connectors, battery packs, and other battery-related components.
Yes. It can be used as an external insulating and protective sleeve for suitable electrolytic capacitor applications.
Customized printing can include company logos, voltage information, product identification, warning labels, and safety messages such as “Do Not Short Circuit.”
Yes. Blue is available, and other colors can be customized according to customer requirements.
Yes. Precision slitting can provide customized widths such as 60 mm, 65 mm, and 70 mm, depending on production requirements.
Die-cutting services can be combined with complementary electrical insulation materials such as fish paper and epoxy sheets.
Heat shrink tubing can provide a protective barrier against moisture exposure when properly selected and installed. Complete waterproofing should be evaluated separately according to the application.
36. Conclusion
1kV Thin-Wall Heat Shrink Tubing is a versatile insulation and protection material for electrical, electronic, battery, lighting, industrial, and packaging applications.
With a specified flattened width of 30 mm to 680 mm and wall thickness of 0.08 mm to 0.15 mm, the material can support applications ranging from compact electronic components and LED pins to larger cylindrical products and packaging structures.
Its key functions include electrical insulation, moisture resistance, corrosion protection, dust protection, surface protection, and appearance enhancement.
The material can be applied to electrolytic capacitors, batteries, electronic components, lighting products, LED pins, electrical connections, and bottle-neck combination packaging.
For manufacturers, customized OEM processing can further increase application flexibility. Available customization options can include blue and other customized colors, logo printing, voltage marking, warning messages, precision slitting, customized widths, and die-cutting combined with fish paper or epoxy sheets.
For professional electrical applications, the final tubing selection should be based on actual voltage, temperature, dimensions, shrink ratio, environmental conditions, insulation requirements, and applicable industry standards. Proper material selection and controlled installation are essential for achieving reliable long-term performance.
This website uses cookies to ensure you get the best experience on our website.
WhatsApp
Phone
