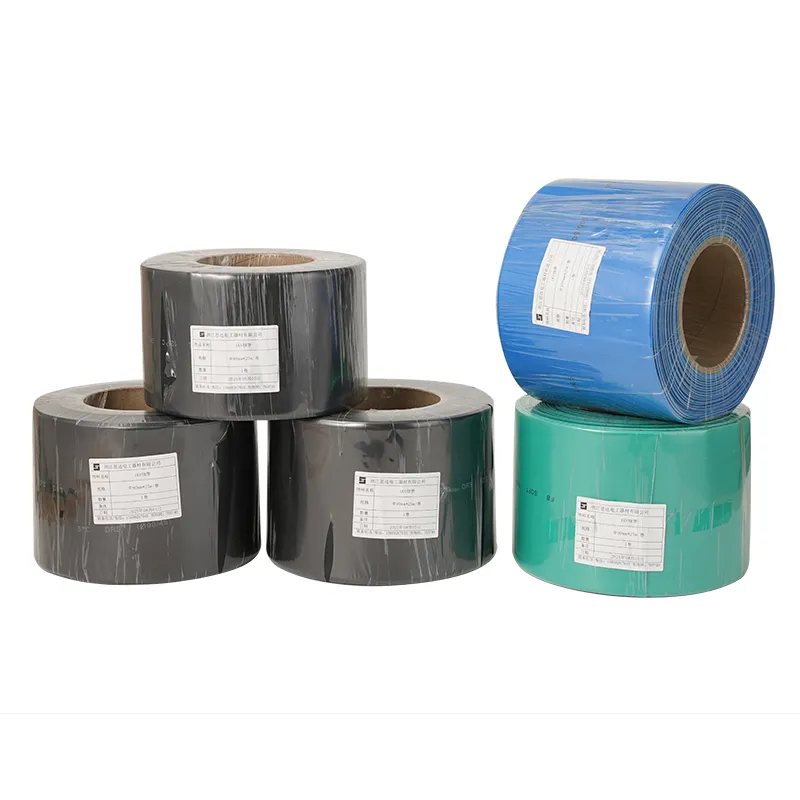

1kV Thin-Wall Heat Shrink Tubing is a compact electrical insulation material designed to protect wires, cables, terminals, connectors, battery components, and other conductive electrical parts. It is widely used in electrical equipment, electronic assemblies, battery packs, cable harnesses, industrial controls, automotive wiring, power systems, communication equipment, and general electrical insulation applications.
The main purpose of thin-wall heat shrink tubing is to create a protective insulating layer around an electrical component without adding excessive bulk. Before installation, the tubing is supplied in an expanded form. After the tubing is positioned over the target component, controlled heat causes the polymer material to contract and conform closely to the underlying surface.
The term 1kV Thin-Wall Heat Shrink Tubing generally describes heat shrink tubing intended for insulation applications involving electrical systems up to the 1kV class, subject to the actual product construction, wall thickness, dielectric performance, temperature rating, applicable testing requirements, installation conditions, and relevant standards. The nominal voltage designation should therefore always be verified against the technical specification of the selected product.
Thin-wall construction is especially useful for applications where space is limited. Modern battery assemblies, electronic devices, electrical control systems, and compact cable harnesses often contain components positioned close together. A thick insulation layer may increase the overall size of the assembly or make routing difficult. Thin-wall heat shrink tubing provides a practical alternative by combining insulation, wire protection, identification, and efficient installation in a relatively compact form.
For battery accessory manufacturers, electrical insulation suppliers, cable assembly manufacturers, and OEM customers, customization is also an important part of product development. Color customization, printing, precision slitting, fixed-length cutting, and die-cutting support can allow heat shrink tubing to become part of a complete electrical insulation solution.
This guide provides an industry-focused overview of 1kV thin-wall heat shrink tubing, including its definition, construction, material characteristics, electrical insulation properties, dimensions, shrink ratio, applications, installation methods, OEM customization, quality control, storage, packaging, and selection considerations.
What Is 1kV Thin-Wall Heat Shrink Tubing?
1kV Thin-Wall Heat Shrink Tubing is a heat-recoverable polymer sleeve used primarily for electrical insulation and physical protection.
The tubing is manufactured with a larger initial diameter than its final recovered diameter. This expanded construction allows the product to be installed over wires, terminals, connectors, cable joints, and other components. When heated within the recommended recovery temperature range, the tubing contracts toward its original dimensions.
After cooling, the tubing remains closely fitted around the protected component.
A typical thin-wall heat shrink product may use polyolefin or another engineered thermoplastic insulation material. Material selection depends on the desired combination of electrical insulation, flexibility, temperature resistance, chemical resistance, flame performance, mechanical durability, shrink characteristics, and environmental stability.
The phrase thin-wall refers to the relatively low wall thickness compared with medium-wall and thick-wall heat shrink products. Thin-wall products are generally selected when electrical insulation and light mechanical protection are required without the additional thickness associated with heavy-duty protective tubing.
The 1kV designation is related to the intended electrical application. It should not be treated as a substitute for a complete electrical specification. Actual voltage suitability depends on factors such as dielectric strength, insulation resistance, wall thickness, creepage and clearance requirements, temperature, moisture, contamination, installation quality, and applicable safety standards.
How Thin-Wall Heat Shrink Tubing Works
Heat shrink tubing works through the thermal recovery behavior of its polymer structure.
During manufacturing, the material is processed into a controlled shape and expanded to a specified diameter. The expanded dimensions are retained until heat is applied during installation.
When the tubing is exposed to sufficient heat, the polymer structure begins to recover. The diameter decreases, allowing the tubing to conform to the surface underneath.
The basic installation process involves four important stages:
Selecting the correct tubing size.
Positioning the tubing over the component.
Applying controlled heat.
Allowing the tubing to recover and cool.
The final result is a close-fitting sleeve around the wire or electrical component.
The quality of the finished installation depends on tubing dimensions, shrink ratio, heating temperature, heating method, component geometry, surface condition, and operator technique.
Main Functions of 1kV Thin-Wall Heat Shrink Tubing
The primary function of heat shrink tubing is electrical insulation.
It creates a non-conductive barrier around conductive components. This can help reduce accidental electrical contact and improve the insulation structure of wire connections.
For electrical applications, the selected tubing should have electrical properties appropriate to the voltage, temperature, and environmental conditions of the assembly.
Thin-wall heat shrink tubing can protect wires from minor abrasion, handling damage, surface contamination, and contact with surrounding components.
It is commonly used around wire joints, cable transitions, terminals, soldered connections, and exposed sections of conductor insulation.
Crimp terminals and solder joints can represent vulnerable areas in a wire assembly.
Heat shrink tubing can cover these areas and create a cleaner transition between the conductor and the surrounding insulation.
Colored tubing can be used to organize electrical wiring.
Different colors may be assigned to different circuits, functions, voltage groups, or assembly positions according to the customer's wiring system.
Although thin-wall tubing is not designed to replace heavy-duty mechanical protection, it can provide additional support around wire transitions and connection points.
The recovered sleeve may help stabilize the connection and reduce movement.
Heat shrink tubing can help reduce exposure to dust, moisture, dirt, and other environmental contaminants.
However, standard thin-wall tubing should not automatically be considered waterproof. Applications requiring a sealed or watertight connection should use a product specifically designed and tested for sealing performance.
Advantages of Thin-Wall Heat Shrink Tubing
One of the most important advantages of thin-wall heat shrink tubing is its compact finished profile.
It can provide electrical insulation without significantly increasing the outside diameter of the cable or wire assembly.
This makes it suitable for:
Compact battery packs
Electronic devices
Wire harnesses
Control panels
Sensors
Small electrical connectors
Portable electronic equipment
Thin-wall tubing generally maintains good flexibility after recovery.
This is useful when the protected wire must bend during installation or operation.
Heat recovery can be completed quickly when suitable heating equipment and properly sized tubing are used.
For high-volume manufacturing, efficient heat shrink processing can contribute to improved assembly productivity.
A properly installed sleeve produces a neat and uniform appearance.
This is especially useful for finished electronic products, battery accessories, cable assemblies, and industrial equipment.
Color and printing options allow heat shrink tubing to provide both insulation and product identification.
Heat shrink tubing can be customized for specific production requirements through color selection, printing, slitting, cutting, die cutting, packaging, and labeling.
Typical Applications
| Application | Typical Function |
|---|---|
| Electrical Wires | Electrical insulation |
| Cable Harnesses | Wire protection and organization |
| Battery Packs | Terminal and wire insulation |
| Battery Accessories | Component protection |
| Electronic Devices | Compact insulation |
| Power Supplies | Connection insulation |
| Motors | Terminal and wire protection |
| Transformers | Wire insulation |
| Control Panels | Cable identification |
| Automotive Electronics | Harness protection |
| LED Lighting | Wire and solder joint protection |
| Solar Equipment | Connection insulation |
| Industrial Controls | Wire protection |
| Communication Equipment | Cable insulation |
| Sensors | Connection protection |
| Consumer Electronics | Compact wire insulation |
Application in Battery Packs
Battery packs often contain multiple conductive components located within a limited physical area.
Thin-wall heat shrink tubing can be used around battery wires, terminal connections, cable transitions, and selected conductive components where an insulating sleeve is appropriate.
In battery applications, insulation must be considered carefully because battery systems can deliver high current even when the nominal voltage is relatively low.
A suitable insulation material can help reduce the risk of unintended conductive contact during assembly and operation.
Heat shrink tubing can also be used together with other Insulation Materials to provide layered protection.
Common complementary materials include:
Fish paper
Electrical insulation paper
PET insulation film
Polyimide film
Electrical tape
Insulating barriers
Die-cut insulation parts
The final insulation system should be designed according to the actual electrical and mechanical requirements of the battery assembly.
Application in Battery Accessories
Battery accessory manufacturers may require insulation products that can be adapted to different battery models, cable sizes, terminal configurations, and production processes.
Thin-wall heat shrink tubing can provide a flexible solution for different wire and connection sizes.
Customized colors can help identify specific components.
Printed information can provide additional identification or safety instructions.
Precision slitting and cutting can reduce the need for customers to perform secondary processing.
Die-cut fish paper and epoxy sheet can be supplied alongside tubing as part of a more complete insulation component package.
Material Selection
Material selection has a direct influence on the performance of heat shrink tubing.
Polyolefin is commonly used for electrical heat shrink tubing because it provides a useful balance of:
Electrical insulation
Flexibility
Heat recovery
Mechanical protection
General environmental resistance
Processing efficiency
Different polyolefin formulations may have different operating temperature ranges and electrical properties.
Some electrical applications require flame-retardant tubing.
Flame-retardant formulations are designed to reduce material flammability under defined test conditions.
If flame performance is required, customers should specify the required test method or certification rather than assuming that all heat shrink tubing has identical flame-retardant properties.
Some applications may require specialized heat shrink compounds with improved resistance to:
High temperature
Chemicals
Fuels
Oils
Abrasion
UV exposure
Flame
Environmental aging
The appropriate material should be selected based on the actual operating environment.
Important Technical Characteristics
| Technical Characteristic | Why It Matters |
|---|---|
| Dielectric Strength | Indicates resistance to electrical breakdown |
| Insulation Resistance | Indicates electrical insulating capability |
| Wall Thickness | Influences insulation and physical protection |
| Shrink Ratio | Determines installation range |
| Expanded Diameter | Determines installation compatibility |
| Recovered Diameter | Determines final fit |
| Operating Temperature | Determines long-term thermal suitability |
| Recovery Temperature | Determines installation requirements |
| Flexibility | Influences cable routing |
| Chemical Resistance | Important in industrial environments |
| Flame Performance | Important for selected safety applications |
| Abrasion Resistance | Important for moving or exposed wiring |
| Color Stability | Important for identification |
| Printability | Important for OEM identification |
Shrink Ratio Explained
Shrink ratio is one of the most important dimensions when selecting heat shrink tubing.
A commonly available 2:1 product may recover to approximately half of its expanded diameter.
A 3:1 product may provide a greater recovery range and can therefore accommodate larger differences between the installation diameter and final component diameter.
For example, a connector may be much larger than the cable connected to it. A higher shrink ratio can make it easier to install tubing over the connector and still achieve a relatively close fit around the smaller cable after heating.
However, actual recovered dimensions depend on the specific product.
Customers should always review the manufacturer's dimensional specification rather than calculating final dimensions solely from the nominal shrink ratio.
Expanded Diameter and Recovered Diameter
Two dimensions are particularly important:
Expanded diameter refers to the approximate internal diameter before recovery.
Recovered diameter refers to the approximate internal diameter after heat recovery.
The tubing must be large enough in its expanded condition to pass over the component.
The recovered diameter should be sufficiently small to fit closely around the protected component.
A good selection should account for:
Maximum component diameter
Minimum component diameter
Connector size
Terminal shape
Cable insulation thickness
Required final wall thickness
Shrink ratio
Wall Thickness
Thin-wall heat shrink tubing is designed for applications where a relatively compact insulation layer is desirable.
The wall thickness influences:
Electrical insulation
Mechanical protection
Flexibility
Heat transfer
Finished diameter
Material consumption
A thicker wall generally provides more physical protection, while a thinner wall can improve flexibility and reduce overall size.
For 1kV applications, the actual wall thickness and electrical performance should always be checked against the required insulation design.
Electrical Insulation Performance
Electrical insulation performance is determined by multiple factors.
Important properties may include:
Dielectric strength indicates the electric field level that an insulating material can withstand under specified test conditions before breakdown occurs.
Insulation resistance indicates how effectively the material resists electrical current leakage.
Volume resistivity describes the electrical resistance characteristics of the material through its volume.
Surface resistivity relates to electrical resistance across the material surface.
Breakdown voltage represents the voltage level associated with electrical failure under defined test conditions.
Actual performance can vary with temperature, humidity, material thickness, surface contamination, aging, and mechanical damage.
Temperature Performance
Temperature is a critical factor for electrical insulation.
Heat shrink tubing may experience temperature from:
Current-generated heat
Nearby components
Ambient temperature
Installation equipment
Thermal cycling
Enclosed electrical environments
Customers should distinguish between:
Recovery temperature — the temperature required to activate the heat shrink process.
Operating temperature — the temperature the tubing is designed to withstand during service.
These are not the same specification.
A tubing product may require a relatively high temperature for recovery while operating continuously at a lower temperature after installation.
Flame Retardancy
Flame-retardant heat shrink tubing may be required for selected electrical and electronic applications.
The level of flame resistance should be confirmed through relevant test information.
Potential applications where flame performance may be considered include:
Electrical control equipment
Power electronics
Industrial wiring
Transportation equipment
Battery systems
Electronic devices
Customers should specify the required flame-retardant classification or test standard where applicable.
Chemical Resistance
Electrical wiring can be exposed to chemicals during manufacturing or service.
Potential substances include:
Oils
Lubricants
Cleaning agents
Solvents
Fuels
Battery contaminants
Salts
Industrial chemicals
Chemical resistance depends on the tubing material.
A product that performs well in a dry indoor environment may not provide the same performance in a chemically aggressive environment.
Compatibility testing is recommended for critical applications.
Moisture Resistance
Heat shrink tubing can reduce direct exposure of wires and connections to moisture.
However, moisture resistance depends on:
Material construction
Recovery quality
Surface condition
Component geometry
Installation method
Environmental exposure
Standard thin-wall tubing is not automatically a waterproof sealing product.
Where water ingress prevention is a critical requirement, a suitable sealed heat shrink system should be considered.
Mechanical Protection
Thin-wall heat shrink tubing provides basic mechanical protection.
It can help reduce:
Surface abrasion
Minor scratching
Handling damage
Contact between wires
Movement around terminals
For severe mechanical environments, thicker insulation systems or specialized protective products may be more appropriate.
Installation Process
Measure the maximum outside diameter of the wire, connector, terminal, or assembly.
Select a tubing size that can pass over the largest component before heating.
Cut the tubing cleanly to the desired length.
Place the tubing over the connection before applying heat.
Use a controlled heat gun or suitable heating equipment.
Move the heat source around the tubing to achieve even recovery.
Check that the tubing has recovered evenly and covers the intended area.
Allow the assembly to cool naturally before applying significant mechanical stress.
Heat Shrink Installation Tips
A controlled heat gun is generally more appropriate than a household hair dryer for professional heat shrink installation.
A hair dryer may not provide enough heat or sufficiently controlled temperature to achieve consistent recovery.
Avoid concentrating excessive heat on one location.
Excessive local heating can cause:
Surface deformation
Discoloration
Burning
Shrink distortion
Damage to nearby components
During production, controlled heating equipment can improve consistency.
For sensitive battery and electronic components, the heating process should be designed to avoid unnecessary thermal stress.
Common Installation Problems
| Problem | Possible Cause | Recommended Consideration |
|---|---|---|
| Tubing Does Not Shrink Enough | Insufficient heat | Check heating temperature |
| Tubing Burns | Excessive localized heat | Move heat source continuously |
| Loose Finished Fit | Wrong tubing size | Check recovered diameter |
| Tubing Cannot Pass Over Connector | Diameter too small | Select larger expanded diameter |
| Uneven Recovery | Uneven heating | Apply heat uniformly |
| Surface Damage | Excessive temperature | Reduce heat exposure |
| Poor Appearance | Incorrect positioning | Position before heating |
| Exposed Connection | Tubing too short | Increase required length |
Household Hair Dryer Versus Heat Gun
For professional electrical assembly, a controlled heat gun is generally preferred.
A household hair dryer is designed primarily for drying hair and typically operates at lower temperatures than equipment specifically designed for heat shrink processing.
A heat gun allows the operator to apply a higher and more controlled level of heat.
For mass production, automated heating systems may provide even better repeatability.
The heating method should always be compatible with the specific tubing material and its recommended recovery temperature.
OEM Customization
For battery accessory manufacturers, strong customization capabilities are essential:
Color Customization: Blue is available, with colors customizable according to customer requirements.
Printing Customization: Supports printing company logos, voltage specifications, warning labels, and safety messages such as “Do Not Short Circuit.”
Slitting Service: Equipped with high-precision slitting machines, the material can be slit to any required width, such as 60 mm, 65 mm, or 70 mm, according to customer specifications.
Die Cutting Service: Can be combined with fish paper (electrical insulation paper) and epoxy sheets for die-cutting and complete supporting product delivery.
Color Customization
Color is an important customization option for electrical insulation products.
Blue heat shrink tubing can be selected when a customer requires a blue appearance or uses blue as part of an internal wiring identification system.
Custom colors may also be considered for OEM production.
Color customization can support:
Circuit identification
Product differentiation
Wire classification
Assembly identification
Polarity marking according to the customer's wiring system
Visual product consistency
For repeated OEM production, color consistency between production batches is important.
The color specification should therefore be confirmed before mass production.
Printing Customization
Heat shrink tubing can be printed with identification information when the tubing diameter, material, printing area, and production process are suitable.
Possible printing content includes:
Company logos
Voltage specifications
Product numbers
Wire numbers
Model numbers
Warning labels
Safety messages
Polarity information
Assembly instructions
Batch identification
A safety message such as “Do Not Short Circuit” can be used as a visual warning for battery-related products.
Printing should be evaluated for:
Character size
Print position
Print spacing
Ink adhesion
Surface compatibility
Abrasion resistance
Environmental exposure
Production speed
Slitting Service
Precision slitting is useful when customers require customized insulation material widths.
The material can be processed according to specified width requirements.
Examples include:
60 mm
65 mm
70 mm
Other customer-defined widths
High-precision slitting can help reduce secondary processing and improve production efficiency.
For OEM orders, customers may specify:
Finished width
Width tolerance
Roll diameter
Core diameter
Winding direction
Roll length
Quantity
Packaging method
Label requirements
Die Cutting Service
Die cutting allows Electrical Insulation Materials to be converted into custom shapes.
This is particularly useful for battery accessory manufacturing.
Suitable supporting materials may include:
Fish paper
Electrical insulation paper
Epoxy sheet
PET insulation film
Other electrical insulating sheets
A customer can provide a drawing or dimensional specification for a required insulation part.
The die-cut component can then be used together with heat shrink tubing to create a more complete electrical insulation assembly.
Fish Paper for Electrical Insulation
Fish paper is a commonly used electrical insulation material.
It can be used in battery packs and electrical assemblies to create insulating barriers between conductive components and surrounding structures.
Fish paper is generally flexible and can be converted into custom shapes through die cutting.
When combined with thin-wall heat shrink tubing, fish paper can provide broader surface insulation while the heat shrink tubing protects wires and localized electrical connections.
This complementary structure can be useful in compact battery assemblies.
Epoxy Sheet for Electrical Insulation
Epoxy sheet is a rigid or semi-rigid insulation material used in electrical and industrial applications.
It can provide:
Electrical insulation
Dimensional stability
Mechanical support
Structural separation
Custom die-cut shapes
In a battery assembly, a die-cut epoxy sheet may be used as a structural insulating barrier, while thin-wall heat shrink tubing protects flexible wire connections.
This combination allows manufacturers to address different insulation requirements within the same assembly.
OEM Product Development
A typical customized product development process can include several stages.
| Development Stage | Main Activity |
|---|---|
| Requirement Review | Confirm application and technical requirements |
| Product Selection | Select tubing material and construction |
| Dimension Confirmation | Confirm diameter and wall thickness |
| Shrink Ratio Selection | Confirm recovery range |
| Color Confirmation | Select standard or custom color |
| Printing Design | Confirm logo and text |
| Slitting Specification | Confirm width and tolerance |
| Die Cutting Design | Confirm insulation component dimensions |
| Sampling | Produce samples |
| Testing | Evaluate samples |
| Approval | Confirm final specification |
| Mass Production | Manufacture approved product |
| Inspection | Conduct quality inspection |
| Packaging | Prepare finished goods |
Quality Control
Quality control is important for heat shrink tubing because dimensional consistency can directly influence installation performance.
Common inspection items include:
Expanded diameter
Recovered diameter
Wall thickness
Length
Shrink ratio
Color
Surface appearance
Printing quality
Printing position
Electrical properties
Heat recovery
Packaging condition
For OEM production, customers may establish inspection tolerances for critical dimensions.
Sample approval before mass production can help reduce specification misunderstandings.
Dimensional Quality
Dimensional consistency is especially important when heat shrink tubing is installed automatically.
A variation in diameter can affect:
Installation speed
Final fit
Shrink appearance
Wall thickness
Electrical insulation
Automated processing
Precision manufacturing and inspection can therefore support more stable production results.
Printing Quality Control
Printed heat shrink tubing should be checked for:
Correct text
Correct logo
Print position
Print clarity
Print adhesion
Repetition spacing
Surface damage
Color contrast
Incorrect voltage information or warning text can create serious product identification problems, so printed information should be carefully verified before mass production.
Packaging Options
Heat shrink tubing can be supplied in different formats.
| Packaging Type | Suitable Application |
|---|---|
| Continuous Roll | High-volume processing |
| Fixed-Length Pieces | Assembly-line use |
| Small Bags | Small batch applications |
| Bundles | Industrial production |
| Cartons | Bulk shipment |
| Custom Labels | OEM identification |
| Custom Packaging | Brand-specific projects |
Packaging requirements can include:
Roll length
Piece length
Quantity per package
Core size
Carton quantity
Label information
Product code
Batch number
Storage Recommendations
Heat shrink tubing should generally be stored in a clean and dry environment.
Recommended storage conditions should protect the material from unnecessary exposure to:
Direct sunlight
Excessive heat
High humidity
Dust
Chemicals
Sharp objects
Excessive compression
Proper storage can help maintain the dimensional and physical properties of the material before installation.
Printed tubing should also be stored in a way that minimizes surface abrasion.
Shelf and Inventory Management
For industrial production, inventory should be managed according to the material supplier's recommended storage conditions and shelf-life guidance.
Products should be protected from environmental conditions that may accelerate material aging.
First-in, first-out inventory practices can help maintain consistent material turnover.
Application in Electrical Wire Harnesses
Electrical wire harnesses often contain multiple wires, terminals, connectors, and branch points.
Thin-wall heat shrink tubing can be applied to:
Solder joints
Crimp terminals
Wire splices
Connector exits
Cable transitions
Branch points
Exposed conductor areas
Repair locations
The compact structure helps preserve cable flexibility.
Color-coded tubing can also make harness inspection and maintenance easier.
Application in Automotive Electrical Systems
Automotive wiring may be exposed to:
Vibration
Temperature changes
Moisture
Dust
Oils
Mechanical movement
Heat shrink tubing can be used around electrical connections, wire repairs, terminals, and harness transition points.
Automotive applications may require specific temperature, flame, chemical, vibration, and environmental performance.
The appropriate product should be selected according to the actual vehicle application and applicable requirements.
Application in Industrial Equipment
Industrial electrical equipment may contain motors, sensors, control circuits, power wires, terminal blocks, and complex cable systems.
Thin-wall heat shrink tubing can help protect and organize wiring.
Industrial environments may require resistance to:
Oils
Cleaning agents
Abrasion
Heat
Vibration
Dust
Chemical exposure
The tubing material should therefore be matched to the actual industrial environment.
Application in Electronic Equipment
Electronic equipment often requires compact insulation because internal components are closely spaced.
Thin-wall heat shrink tubing can be used in:
Power supplies
Controllers
Sensors
LED products
Communication equipment
Portable electronics
Battery-powered devices
Electronic instruments
The small finished profile can help preserve valuable internal space.
Application in Motors and Transformers
Motor and transformer assemblies contain numerous electrical conductors and connection points.
Heat shrink tubing may be used for localized insulation and protection where the material's temperature rating is suitable.
Because motor and transformer environments can experience elevated temperatures, thermal compatibility should be confirmed before selection.
Application in Solar and Power Equipment
Solar and power equipment contains electrical connections that may be exposed to outdoor or industrial environments.
Heat shrink tubing can be used around suitable wire connections and cable transitions.
For outdoor applications, customers should consider:
UV exposure
Temperature cycling
Moisture
Rain
Dust
Chemical exposure
Mechanical stress
Standard indoor heat shrink tubing should not automatically be used for outdoor environments without verifying its environmental suitability.
Selection Guide
Selecting the right 1kV thin-wall heat shrink tubing requires more than choosing a nominal diameter.
Determine the operating voltage and required insulation performance.
Identify the maximum diameter that the tubing must pass over.
Ensure that the tubing can shrink sufficiently to provide a close fit.
Select an appropriate shrink ratio for the application.
Determine the required final insulation thickness.
Check both installation temperature and operating temperature.
Consider moisture, chemicals, oils, UV exposure, vibration, and abrasion.
Choose a standard color or specify a custom color.
Determine logo, voltage, warning, identification, and text requirements.
Determine whether slitting, cutting, or die cutting is needed.
Determine whether fish paper, electrical insulation paper, epoxy sheet, or other Insulating Materials are required.
Specify roll length, piece length, labeling, and carton requirements.
Comparison With Other Insulation Materials
| Feature | Thin-Wall Heat Shrink Tubing | Thick-Wall Heat Shrink Tubing | Electrical Tape | Fish Paper | Epoxy Sheet |
|---|---|---|---|---|---|
| Electrical Insulation | Excellent for suitable applications | Excellent for suitable applications | Good for suitable applications | Excellent for suitable applications | Excellent for suitable applications |
| Flexibility | High | Medium | High | High | Low |
| Finished Thickness | Low | Higher | Variable | Low to medium | Medium to high |
| Wire Protection | Excellent | Excellent | Good | Limited | Limited |
| Terminal Protection | Excellent | Excellent | Good | Limited | Limited |
| Structural Support | Low to medium | Medium to high | Low | Low | High |
| Heat Recovery | Yes | Yes | No | No | No |
| Color Options | Multiple | Multiple | Multiple | Limited | Limited |
| Printing | Possible | Possible | Possible | Possible | Possible |
| Slitting | Possible | Possible | Possible | Possible | Possible |
| Die Cutting | Limited by product form | Limited by product form | Limited | Excellent | Excellent |
| Battery Applications | Widely applicable | Widely applicable | Application dependent | Widely applicable | Widely applicable |
The best insulation solution depends on the application.
Heat shrink tubing is particularly useful for flexible wiring and localized electrical connections, while fish paper and epoxy sheet are more suitable for broader or structurally defined insulation barriers.
Sustainability and Material Efficiency
Thin-wall construction can reduce the amount of polymer material required compared with thicker insulation products.
This may be beneficial in applications where lightweight and compact design are important.
Material efficiency can also contribute to reduced package volume and simplified cable routing.
However, sustainability should be evaluated across the entire product lifecycle, including raw materials, manufacturing, processing, service life, recycling considerations, and disposal.
Customers should consider the environmental requirements of their target market when selecting insulation materials.
Manufacturing Efficiency
Heat shrink tubing can support efficient production because it can be processed quickly after the correct size is selected.
For high-volume manufacturing, customized dimensions can reduce the amount of secondary processing.
OEM services such as:
Precision slitting
Fixed-length cutting
Printing
Color customization
Die-cut insulation
Custom packaging
can help integrate insulation material into a customer's production process.
This can reduce handling steps and improve assembly consistency.
Why OEM Customization Matters
Standard heat shrink tubing may not always match a customer's production requirements.
For example, a battery accessory manufacturer may need:
A specific blue color
A company logo
A voltage marking
A warning message
A specific width
A specific roll length
Die-cut fish paper
Die-cut epoxy insulation
Custom labels
Customized packaging
OEM customization can convert a standard insulation material into a product that is easier to use in a particular manufacturing process.
Customized OEM Service Summary
| OEM Service | Customer Requirement | Typical Benefit |
|---|---|---|
| Color Customization | Blue or other specified color | Identification and product differentiation |
| Logo Printing | Company logo | Brand and product identification |
| Voltage Printing | Voltage specification | Electrical identification |
| Warning Printing | Safety message | Visual safety reminder |
| Slitting | 60 mm, 65 mm, 70 mm or other widths | Reduced secondary processing |
| Cutting | Fixed lengths | Faster assembly |
| Die Cutting | Custom insulation shapes | Integrated insulation solution |
| Fish Paper Matching | Battery insulation parts | Broader surface insulation |
| Epoxy Sheet Matching | Rigid insulation parts | Structural electrical insulation |
| Custom Packaging | Customer-specific packaging | Easier inventory and distribution |
Frequently Asked Questions
It is a thin-wall heat-recoverable polymer sleeve intended for electrical insulation and wire protection in applications that may involve the 1kV class, subject to the product's actual technical specifications and applicable standards.
It can be suitable for battery wires, terminals, cable connections, and accessory components when the tubing's electrical, thermal, mechanical, and environmental properties meet the application requirements.
Yes. Blue is a common customization requirement, and other colors may be available according to material and production conditions.
Yes, suitable heat shrink tubing can support customized printing of company logos, product information, voltage specifications, and identification marks.
Yes. Safety messages such as “Do Not Short Circuit” can be printed when the tubing diameter and printing area provide sufficient space.
Yes. Voltage information can be included as part of a customized identification design.
Yes. Precision slitting can be performed according to customer requirements, including widths such as 60 mm, 65 mm, and 70 mm.
Yes. Heat shrink tubing can be used together with fish paper as part of a battery insulation solution.
Yes. Suitable epoxy sheet can be die cut into customized insulation components according to drawings or dimensional specifications.
Standard thin-wall tubing should not automatically be considered waterproof. A dedicated sealing product should be selected when water sealing is a critical requirement.
In many suitable applications, heat shrink tubing can provide a more uniform and professional insulation layer than electrical tape. However, the correct choice depends on access, geometry, environment, electrical requirements, and installation conditions.
The appropriate shrink ratio depends on the difference between the installation diameter and final component diameter. A higher ratio can provide greater installation flexibility, but actual product dimensions must be checked.
A controlled heat gun or suitable heating system is generally recommended. Heat should be applied evenly to avoid overheating one section.
A household hair dryer may not provide sufficient or controlled heat for reliable professional recovery. Controlled heat equipment is generally preferred.
Yes. Depending on the product structure, OEM customization can include color, printing, dimensions, slitting, cutting, packaging, labeling, and supporting die-cut insulation components.
Final Product Specification Checklist
Before ordering 1kV thin-wall heat shrink tubing, customers should confirm the following:
| Requirement | Confirmation |
|---|---|
| Product Type | 1kV Thin-Wall Heat Shrink Tubing |
| Application | Electrical wire protection |
| Voltage Requirement | Confirm actual system voltage |
| Material | Confirm polymer type |
| Expanded Diameter | Confirm |
| Recovered Diameter | Confirm |
| Shrink Ratio | Confirm |
| Wall Thickness | Confirm |
| Operating Temperature | Confirm |
| Recovery Temperature | Confirm |
| Color | Blue or customized |
| Printing | Logo, voltage, warning message |
| Warning Text | “Do Not Short Circuit” if required |
| Slitting | 60 mm, 65 mm, 70 mm or customized |
| Cutting | Fixed length if required |
| Fish Paper | Required or not required |
| Epoxy Sheet | Required or not required |
| Die Cutting | Confirm drawing and tolerance |
| Packaging | Confirm |
| Labeling | Confirm |
| Testing | Confirm applicable requirements |
Conclusion
1kV Thin-Wall Heat Shrink Tubing for Electrical Wire Protection provides a compact and versatile method for insulating wires, cables, terminals, connectors, battery components, and electrical assemblies.
Its main advantages include compact construction, flexible installation, electrical insulation, wire protection, identification capability, and efficient heat recovery. The material can be applied to a wide range of electrical and electronic assemblies where space, insulation, and production efficiency are important.
For battery accessory manufacturers, OEM customization can significantly improve the practical value of heat shrink tubing. Color customization, printing customization, precision slitting, fixed-length cutting, and die-cutting support allow the product to match different manufacturing processes.
Blue heat shrink tubing can be used for visual identification or customer-specific product requirements. Customized printing can include company logos, voltage specifications, product information, warning labels, and safety messages such as “Do Not Short Circuit.”
Precision slitting can provide customized widths such as 60 mm, 65 mm, and 70 mm, helping customers reduce secondary processing. Heat shrink tubing can also be combined with fish paper and epoxy sheets to provide a more comprehensive electrical insulation solution.
The correct tubing should always be selected according to actual electrical voltage, dielectric performance, diameter, shrink ratio, wall thickness, operating temperature, environmental conditions, and applicable standards.
For professional OEM projects, technical specifications should be confirmed before mass production. Sample testing, dimensional inspection, printing verification, heat recovery testing, and packaging confirmation can help improve consistency between the customer's requirements and the finished product.
With appropriate material selection, controlled installation, precision processing, and customized OEM services, 1kV thin-wall heat shrink tubing can support reliable electrical insulation, organized wire assemblies, compact battery designs, and efficient industrial production.
This website uses cookies to ensure you get the best experience on our website.
WhatsApp
Phone
