PVC Heat Shrink Tubing for Cable Repair Applications

Introduction

PVC Heat Shrink Tubing for Cable Repair Applications is a practical thermoplastic insulation and protection material used to restore, reinforce, identify, and protect electrical wires and cables. PVC heat shrink tubing is designed to contract when heated, allowing it to conform closely around a cable, wire joint, connector, terminal, or damaged insulation area.

Cable insulation can be damaged during installation, maintenance, transportation, vibration, abrasion, or long-term service. Scratches, cuts, cracks, exposed conductors, loose protective jackets, and worn insulation can create electrical and mechanical risks. PVC heat shrink tubing provides a convenient method of covering suitable damaged or repaired areas while improving the finished appearance of the cable assembly.

Unlike rigid sleeves, PVC heat shrink tubing is flexible before and after shrinking. This makes it useful for cable repair locations where the protected section may experience bending, movement, vibration, or mechanical handling. It can also be used as an additional protective layer over cable joints, wire splices, terminals, and other electrical connection areas.

PVC heat shrink tubing is available in different diameters, wall thicknesses, colors, lengths, and shrink ratios. Selection should be based on cable diameter, repaired area dimensions, electrical requirements, temperature conditions, mechanical exposure, and the required level of environmental protection.

This guide provides an industry-focused overview of PVC heat shrink tubing for cable repair applications, including its construction, properties, benefits, specifications, installation process, material considerations, applications, limitations, customization options, quality factors, storage recommendations, and frequently asked questions.

1. What Is PVC Heat Shrink Tubing?

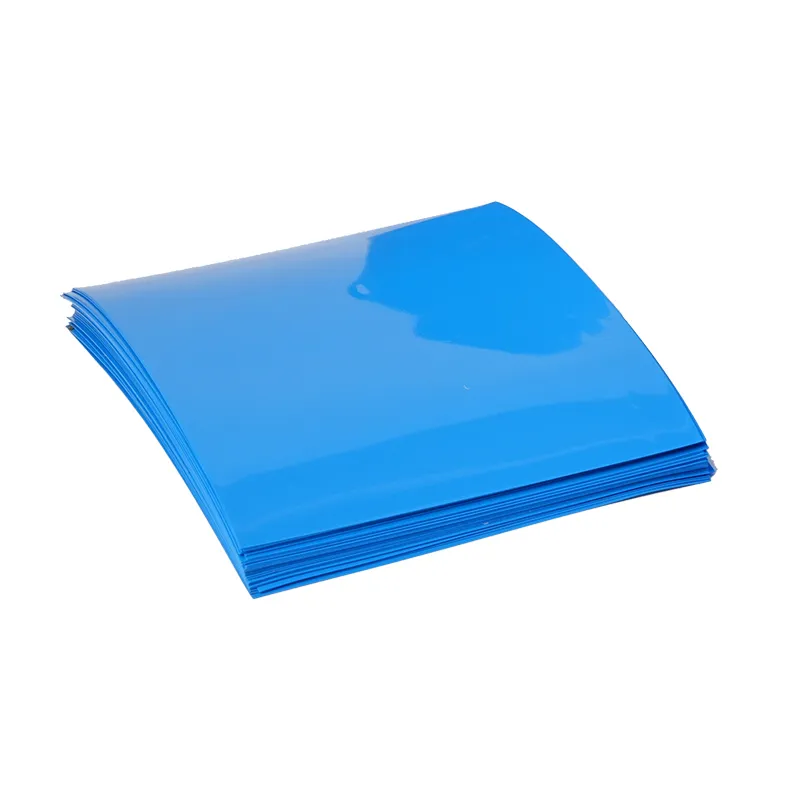

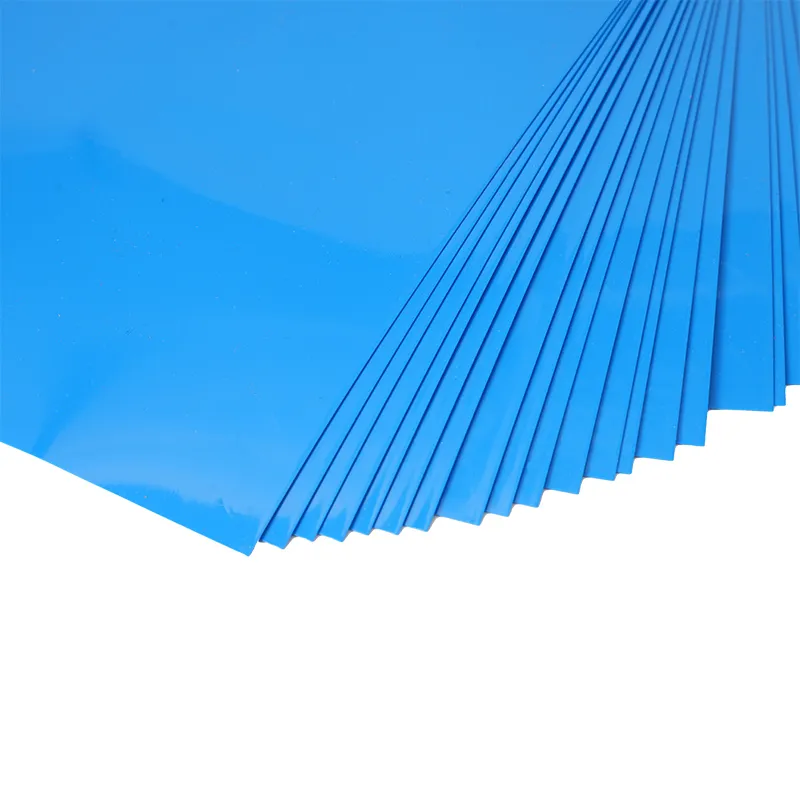

PVC Heat Shrink Tubing is a tubular polymer material manufactured from heat-shrinkable polyvinyl chloride. It is supplied in an expanded form and contracts when exposed to an appropriate heat source.

The contraction process allows the tubing to fit around the cable or component being protected.

PVC heat shrink tubing can serve several functions at the same time:

• Electrical insulation

• Cable repair

• Wire protection

• Surface protection

• Mechanical reinforcement

• Moisture resistance

• Dust protection

• Corrosion reduction

• Abrasion protection

• Component identification

• Appearance improvement

For cable repair applications, the tubing is commonly positioned over the damaged area before heating. Once heated, it shrinks and forms a closer-fitting protective layer.

The final result depends on the original tubing dimensions, shrink ratio, heating conditions, cable dimensions, and material formulation.

2. Why PVC Heat Shrink Tubing Is Used for Cable Repair

Cable insulation can deteriorate for many reasons.

Common causes include:

• Mechanical abrasion

• Sharp edges

• Repeated bending

• Vibration

• Heat exposure

• Installation damage

• Tool damage

• Aging

• Chemical contamination

• Moisture

• Transportation damage

• Accidental cuts

When the conductive portion of a cable remains structurally suitable but the outer insulation has been damaged, a protective sleeve may be used as part of the repair process.

PVC heat shrink tubing can cover the affected section and provide an additional insulation layer.

It can also make a repaired cable easier to identify visually because the tubing can be supplied in different colors.

3. Main Advantages of PVC Heat Shrink Tubing

PVC heat shrink tubing offers several practical advantages for cable repair and electrical protection.

3.1 Flexible Construction

PVC is naturally suitable for flexible tubing applications. The material can accommodate moderate bending and movement after installation.

This makes it useful for cables that cannot remain completely rigid.

3.2 Easy Installation

PVC heat shrink tubing can be installed using a suitable controlled heat source.

The basic process involves positioning the tubing over the damaged or repaired section and applying heat evenly until the material contracts.

3.3 Electrical Insulation

PVC heat shrink tubing can provide an insulating barrier over suitable electrical components.

This can reduce accidental contact with conductive surfaces and help restore the external insulation layer of a repaired cable.

3.4 Mechanical Protection

The tubing can reinforce cable sections exposed to handling, rubbing, or moderate mechanical stress.

3.5 Moisture Resistance

A properly installed PVC sleeve can reduce direct exposure to humidity and moisture.

The level of environmental protection depends on the tubing design, installation quality, cable construction, and whether additional sealing materials are used.

3.6 Dust Protection

The tubing forms a close-fitting outer layer that can reduce direct exposure to dust and particles.

3.7 Improved Appearance

A damaged cable may have an uneven or unattractive appearance after repair.

PVC heat shrink tubing creates a cleaner external surface and can help standardize the appearance of repaired cable assemblies.

3.8 Color Identification

PVC heat shrink tubing is available in multiple colors.

Color selection can help with:

• Wire identification

• Cable grouping

• Circuit identification

• Polarity identification

• Maintenance marking

• Product appearance

4. Product Structure

PVC heat shrink tubing generally consists of a heat-shrinkable polymer tube.

The material is processed into an expanded tubular structure. During manufacturing, the polymer is treated so that it can contract when heated.

The basic structure can be described as:

The exact formulation varies according to product design and performance requirements.

5. PVC Heat Shrink Tubing for Cable Repair

Cable repair is one of the most common practical applications of heat shrink tubing.

A repaired cable may require protection at:

• Damaged insulation

• Wire splices

• Cable joints

• Terminal connections

• Connector transitions

• Exposed insulation

• Abraded cable jackets

• Repaired conductor sections

The tubing can be installed over the affected area and heated until it conforms to the cable surface.

For electrical repairs, the underlying conductor and electrical connection should be properly repaired before applying the tubing.

Heat shrink tubing should not be treated as a substitute for repairing a damaged conductor.

6. Cable Repair Process

A typical cable repair process using PVC heat shrink tubing includes several steps.

Step 1: Inspect the Cable

Determine whether the damage is limited to the outer insulation or whether the conductor itself is damaged.

If the conductor is damaged, the electrical repair should be completed before applying protective tubing.

Step 2: Select Suitable Tubing

Choose tubing with an appropriate:

• Inner diameter

• Recovered diameter

• Wall thickness

• Shrink ratio

• Length

• Temperature rating

• Electrical rating

Step 3: Cut the Tubing

Cut a suitable length of tubing.

The tubing should extend beyond the damaged area sufficiently to provide stable coverage.

Step 4: Position the Tubing

Slide the tubing over the cable before completing a permanent connection whenever possible.

If the cable is already assembled and the tubing cannot be slipped over the end, a different repair system may be necessary.

Step 5: Complete the Cable Repair

Repair the conductor, splice, terminal, or connector according to the applicable electrical procedure.

Step 6: Position the Tubing

Move the heat shrink tubing over the repaired area.

Step 7: Apply Heat

Use controlled heat and move the heat source around the tubing.

Step 8: Allow Cooling

Allow the repaired area to cool before applying bending or mechanical stress.

7. Important Cable Repair Considerations

Not every damaged cable can be repaired using standard PVC heat shrink tubing.

Before beginning a repair, consider:

• Extent of conductor damage

• Cable voltage

• Current capacity

• Operating temperature

• Cable flexibility

• Environmental exposure

• Mechanical stress

• Chemical exposure

• Required insulation level

• Applicable electrical regulations

If the cable has severe conductor damage, internal insulation failure, overheating, or structural degradation, replacement may be more appropriate than external insulation repair.

8. Product Specifications

The exact specifications of PVC heat shrink tubing vary by product design.

The following table provides common specification categories that buyers should evaluate.

9. Diameter Selection

Correct diameter selection is essential.

The tubing must be large enough to slide over the cable or repaired connection before heating.

After heating, it should shrink sufficiently to create a close fit.

A simple selection process is:

1. Measure the maximum diameter of the component.

2. Check the tubing's pre-shrink inside diameter.

3. Confirm that it can pass over the largest section.

4. Check the recovered diameter.

5. Confirm that the recovered tubing will fit tightly around the cable.

6. Consider the required wall thickness.

Choosing tubing solely by nominal cable diameter can lead to installation problems.

10. Shrink Ratio

The shrink ratio describes the relationship between the tubing's expanded and recovered dimensions.

For example, a tubing product with a higher shrink ratio can accommodate a wider range of component diameters.

Shrink ratio is especially important when repairing cable joints or connectors because the repaired section may be significantly larger than the original cable.

The installer should always verify the actual product's published shrink ratio rather than assuming a universal value for PVC heat shrink tubing.

11. Wall Thickness

Wall thickness affects the finished protective layer.

Thin-wall tubing can provide:

• Compact insulation

• Low added weight

• Easy installation

• Flexible finishing

Medium-wall or heavy-wall tubing may provide greater mechanical protection.

The appropriate wall thickness depends on the application.

For compact electronic cables, thin-wall PVC heat shrink tubing may be preferred.

For cables exposed to higher mechanical stress, a thicker protective sleeve may be more appropriate.

12. Electrical Insulation Performance

PVC heat shrink tubing is frequently used as an electrical insulation material.

When correctly installed, it creates a polymeric barrier around the cable or electrical connection.

Potential functions include:

• Preventing accidental conductor contact

• Covering exposed insulation areas

• Separating conductive components

• Protecting cable joints

• Reinforcing electrical connections

However, electrical insulation requirements vary significantly between applications.

For high-voltage, safety-critical, or regulated electrical systems, the exact electrical rating and applicable test standards must be confirmed.

13. Cable Splice Protection

Cable splices are common locations for electrical and mechanical stress.

A splice may have a larger diameter than the original cable because of:

• Connector hardware

• Crimp terminals

• Solder

• Wire twists

• Insulation Materials

Heat shrink tubing can cover the splice and create a uniform protective layer.

The tubing can help:

• Insulate the connection

• Reduce movement

• Protect against abrasion

• Improve appearance

• Reduce exposure to dust and moisture

For demanding environments, additional sealing materials may be required.

14. Wire Joint Protection

Wire joints can be vulnerable to mechanical movement and environmental exposure.

PVC heat shrink tubing can be installed over appropriate wire joints to reinforce the connection area.

The finished sleeve can reduce stress on the connection and help keep the joint insulated.

For automotive, industrial, and electronic applications, the selected tubing should be compatible with the wire insulation and operating environment.

15. Connector Protection

Electrical connectors may contain exposed transitions between the connector body and cable.

Heat shrink tubing can be used around suitable connector transitions.

Potential benefits include:

• Strain reduction

• Insulation

• Surface protection

• Cable organization

• Improved appearance

The tubing size must be large enough to pass over the connector section before shrinking.

16. Terminal Protection

Terminals can be exposed to mechanical handling, dust, moisture, and accidental contact.

PVC heat shrink tubing can be applied over suitable terminal connections.

Applications include:

• Battery terminals

• Wire terminals

• Crimp terminals

• Ring terminals

• Spade terminals

• Electrical connection points

The final insulation system must maintain the required electrical clearance and mechanical reliability.

17. Moisture Protection

Moisture can contribute to electrical deterioration and corrosion.

PVC heat shrink tubing can create an external barrier around suitable cable sections.

It may be used for:

• Outdoor wiring

• Industrial cables

• Automotive wiring

• Lighting cables

• Electronic assemblies

• Battery wiring

However, standard PVC heat shrink tubing should not automatically be considered watertight.

If a cable repair must withstand immersion, high humidity, or direct water exposure, an appropriate sealing system should be specified.

18. Dust and Contamination Protection

Dust can accumulate around electrical joints and damaged cable surfaces.

Heat shrink tubing can cover these areas and reduce direct exposure to environmental particles.

This is especially useful in:

• Industrial environments

• Workshops

• Electrical cabinets

• Automotive applications

• Manufacturing equipment

• Lighting assemblies

A clean external surface can also simplify inspection and maintenance.

19. Abrasion Protection

Cable insulation can become damaged when cables rub against:

• Metal edges

• Plastic housings

• Cable trays

• Machinery

• Other cables

• Moving components

PVC heat shrink tubing can add another protective layer around the cable.

This can help reduce surface abrasion during normal handling and operation.

For severe abrasion environments, specialized heavy-wall or mechanically reinforced tubing may be more suitable.

20. Mechanical Reinforcement

A repaired cable may have a localized area that is weaker than the original cable.

Heat shrink tubing can provide additional external support.

It can help distribute minor mechanical forces over a larger area.

However, heat shrink tubing should not be considered a structural replacement for a damaged cable jacket or conductor.

Where cables experience significant pulling, bending, crushing, or torsional forces, a suitable strain-relief or mechanical protection system may be required.

21. PVC Heat Shrink Tubing for Automotive Cable Repair

Automotive wiring systems contain numerous electrical connections and cables.

Heat shrink tubing may be used for suitable repair and protection applications involving:

• Vehicle wiring

• Sensor cables

• Lighting wiring

• Battery cables

• Connector wires

• Control wiring

• Accessory wiring

Automotive environments can expose materials to:

• Temperature changes

• Vibration

• Oil

• Fuel

• Moisture

• Dust

• Road contaminants

Therefore, automotive applications require careful material selection.

The PVC formulation must be appropriate for the specific environmental conditions.

22. PVC Heat Shrink Tubing for Industrial Cable Repair

Industrial cables may experience continuous movement, vibration, dust, oil, moisture, and mechanical stress.

Heat shrink tubing can be used for appropriate maintenance and repair applications.

Potential uses include:

• Machine wiring

• Control cables

• Sensor wiring

• Motor wiring

• Power equipment

• Industrial lighting

• Control panels

• Instrumentation systems

For industrial applications, users should evaluate the tubing's temperature, chemical, mechanical, and electrical characteristics.

23. PVC Heat Shrink Tubing for Electronic Wiring

Electronic devices often contain small wires and connectors that require compact insulation.

Thin-wall PVC heat shrink tubing can be useful for:

• Signal wires

• Power wires

• Component leads

• Small cable assemblies

• Connector transitions

• Electronic repair work

The tubing can provide a clean finished appearance while adding an insulation layer.

24. PVC Heat Shrink Tubing for Battery Cable Repair

Battery cables may require insulation and terminal protection.

Heat shrink tubing can be applied over appropriate battery cable connections.

Potential applications include:

• Battery terminals

• Battery wires

• Battery connectors

• Power cables

• Charging cables

• Battery pack wiring

Battery applications require particular attention to electrical current, heat generation, chemical exposure, and mechanical stress.

The selected tubing must be appropriate for the actual battery system.

25. PVC Heat Shrink Tubing for Lighting Applications

Lighting equipment frequently contains wires, terminals, and small electrical connections.

Heat shrink tubing can be used for:

• LED wiring

• Lamp wiring

• Lighting connectors

• Lighting terminals

• Power leads

• Electronic lighting components

It can improve insulation and appearance while helping protect the wiring from dust and moisture.

26. Color Options

PVC heat shrink tubing is often available in multiple colors.

Common colors include:

Color coding should follow the relevant electrical and safety requirements of the application.

Color should not be used as the only method of identifying an electrically important connection where regulations require additional marking.

27. Transparent PVC Heat Shrink Tubing

Clear heat shrink tubing can be useful when users need to inspect the underlying cable or connection.

Potential advantages include:

• Visual inspection

• Component identification

• Protection without completely hiding markings

• Easy maintenance

• Product visibility

Clear tubing is especially useful for applications where the underlying printed label or cable marking needs to remain visible.

28. Black PVC Heat Shrink Tubing

Black is one of the most common colors for cable protection.

It provides a professional appearance and can hide minor surface contamination.

Black PVC heat shrink tubing is commonly used for:

• Cable repair

• Wire insulation

• Automotive wiring

• Electrical assemblies

• Industrial equipment

• General-purpose cable protection

29. Heat Shrink Tubing for Cable Jacket Repair

Cable jackets provide mechanical and environmental protection.

When a jacket becomes scratched or damaged, PVC heat shrink tubing may provide an additional external protective layer where the underlying cable remains suitable for continued use.

Before repair, the cable should be inspected carefully.

If the internal insulation or conductor has been compromised, external tubing alone may not be sufficient.

30. Cable Repair Versus Cable Replacement

Heat shrink tubing can be useful for minor and localized cable insulation damage, but it does not make every damaged cable safe to continue using.

Replacement may be preferable when:

• The conductor is severely damaged

• The cable has overheated

• Internal insulation has failed

• The cable has extensive cracking

• Multiple sections are damaged

• The cable has experienced severe mechanical stress

• The original electrical characteristics can no longer be verified

Heat shrink tubing should be considered part of a repair process rather than a universal substitute for cable replacement.

31. Installation Tools

Common tools for heat shrink tubing installation include:

• Hot air heat gun

• Temperature-controlled heat gun

• Industrial heating equipment

• Controlled heating chamber

• Appropriate cutting tools

• Cable preparation tools

A heat gun is often preferred because it allows the installer to apply heat evenly.

Open flames should generally be avoided unless the specific tubing manufacturer permits the method and the process is controlled appropriately.

32. Installation Temperature

The correct heating temperature depends on the material formulation.

PVC heat shrink tubing should be heated according to its specified processing conditions.

Overheating can cause:

• Material deformation

• Surface damage

• Discoloration

• Burning

• Cable insulation damage

• Component damage

Underheating can cause:

• Incomplete shrinkage

• Loose fit

• Uneven appearance

• Reduced mechanical stability

Controlled heating is therefore essential.

33. Installation Quality

A high-quality installation should produce a tubing surface that is:

• Even

• Smooth

• Closely fitted

• Free from burning

• Free from excessive wrinkles

• Properly positioned

• Secure around the repaired section

The tubing should not be overheated to the point of melting or burning.

After installation, the cable should be inspected before returning to service.

34. Advantages Over Conventional Tape

Heat shrink tubing can offer several advantages compared with ordinary electrical tape.

Tape remains useful for many electrical applications, but heat shrink tubing can provide a more consistent and professional finished appearance.

35. Limitations of PVC Heat Shrink Tubing

PVC heat shrink tubing is versatile, but it has limitations.

It may not be the best choice for applications requiring:

• Extremely high temperature resistance

• Extreme chemical resistance

• Continuous high mechanical stress

• Complete underwater sealing

• Specialized high-voltage insulation

• Extreme outdoor UV resistance

• Very high flexibility at low temperatures

Other polymer systems may be more suitable for specialized environments.

36. Temperature Considerations

Temperature is an important factor in cable repair.

The tubing must withstand both:

1. Installation temperature

2. Operating temperature

A product may shrink at a temperature substantially higher than its normal operating temperature.

Therefore, the installer must distinguish between shrink temperature and continuous operating temperature.

A cable repair should not use tubing that cannot withstand the cable's normal service temperature.

37. Chemical Resistance

Industrial cables may come into contact with:

• Oils

• Greases

• Cleaning agents

• Solvents

• Fuels

• Industrial chemicals

PVC resistance varies depending on formulation and chemical concentration.

For chemical environments, compatibility testing or manufacturer technical data should be reviewed before use.

38. UV Exposure

Outdoor cables may be exposed to ultraviolet radiation.

UV exposure can cause certain polymer materials to degrade over time.

For long-term outdoor use, users should confirm whether the selected PVC heat shrink tubing has suitable UV resistance.

Additional protective measures may be required in harsh outdoor environments.

39. Flexibility

Cable repair tubing should be sufficiently flexible for the intended application.

Flexibility becomes especially important when the cable is:

• Frequently bent

• Routed through tight spaces

• Connected to moving components

• Subject to vibration

• Used in portable equipment

PVC formulations can be designed with different flexibility characteristics.

40. Flame Retardancy

Some electrical applications require flame-retardant materials.

Flame-retardant PVC heat shrink tubing may be available for applications where reduced flame propagation is required.

The actual flame-retardant classification should be verified against the applicable standard rather than assumed from the word PVC alone.

41. Cable Identification

Colored heat shrink tubing can help organize complex wiring systems.

It can be used to identify:

• Circuit groups

• Voltage groups

• Positive and negative conductors

• Signal cables

• Control cables

• Maintenance sections

Customized printing can further improve identification.

Printed information may include:

• Cable number

• Voltage

• Product code

• Company logo

• Warning message

42. Custom Printing

For industrial production, custom printing can improve traceability.

Possible printed information includes:

• Brand name

• Company logo

• Voltage rating

• Cable identification

• Product model

• Warning information

• Safety instructions

For example, a manufacturer may request printed safety text such as “Do Not Short Circuit.”

Printing specifications should be evaluated for durability under the actual application environment.

43. Custom Lengths

Heat shrink tubing can be supplied as continuous rolls or pre-cut lengths.

Pre-cut lengths can help reduce installation labor.

Custom lengths may be useful for:

• Automated production

• Repetitive cable assemblies

• Battery manufacturing

• Electronic component assembly

• Electrical harness production

The required length should provide sufficient coverage beyond the repair area.

44. Slitting and Cutting

For manufacturing applications, precision cutting and slitting can provide more consistent dimensions.

Potential benefits include:

• Consistent product length

• Reduced material waste

• Faster assembly

• Improved production efficiency

• Easier inventory management

Custom processing can be particularly useful for high-volume cable repair and cable assembly operations.

45. OEM Customization

OEM customization may include:

• Custom diameter

• Custom length

• Custom color

• Custom printing

• Custom packaging

• Customized marking

• Special production requirements

For cable accessory manufacturers, customized PVC heat shrink tubing can help integrate the material into existing production processes.

46. Packaging Options

PVC heat shrink tubing may be supplied in:

• Rolls

• Spools

• Bundles

• Cut lengths

• Bags

• Customized packaging

Packaging should protect the material from:

• Excessive heat

• Direct sunlight

• Moisture

• Dust

• Mechanical deformation

47. Storage Recommendations

Proper storage helps maintain material quality.

Recommended general practices include:

• Store in a clean environment

• Avoid direct sunlight

• Avoid excessive heat

• Protect from moisture

• Keep away from sharp objects

• Avoid prolonged compression

• Keep packaging closed

• Follow applicable storage instructions

Storage conditions can influence polymer aging and dimensional stability.

48. Quality Control

Quality control for PVC heat shrink tubing can include inspection of:

Dimensional Accuracy

Check:

• Inner diameter

• Wall thickness

• Length

• Ovality

• Shrink dimensions

Surface Quality

Check for:

• Scratches

• Pinholes

• Contamination

• Uneven color

• Bubbles

• Surface defects

Shrink Performance

Evaluate:

• Shrink temperature

• Recovery

• Final diameter

• Surface appearance

Electrical Performance

Where required, evaluate:

• Dielectric strength

• Insulation resistance

• Voltage performance

Mechanical Performance

Depending on the application, evaluate:

• Tensile strength

• Elongation

• Abrasion resistance

• Flexibility

49. Manufacturing Process

The general manufacturing process for heat shrink tubing may include several stages.

Polymer Preparation

PVC resin and selected additives are prepared according to the required formulation.

Extrusion

The material is processed into tubular form.

Crosslinking or Heat-Shrink Processing

Depending on the specific heat shrink technology, the tubing receives treatment that enables dimensional recovery.

Expansion

The tubing is expanded to a larger diameter.

Cooling and Stabilization

The expanded structure is cooled and stabilized.

Cutting or Winding

The finished tubing is supplied in rolls or cut lengths.

Inspection

The product is inspected for dimensions, appearance, and required performance characteristics.

50. PVC Material Characteristics

PVC is widely used in electrical and industrial applications because it offers a useful combination of:

• Electrical insulation

• Flexibility

• Processing convenience

• Surface durability

• Cost efficiency

• Color availability

Different PVC formulations can produce significantly different properties.

Therefore, the word PVC alone does not define all performance characteristics.

The final product should always be evaluated according to its technical specification.

51. Cable Repair in Consumer Electronics

Consumer electronics contain numerous small wires and connectors.

PVC heat shrink tubing can be used for appropriate repair and insulation applications in:

• Small appliances

• Electronic equipment

• Audio equipment

• Lighting products

• Power adapters

• Small electrical devices

Its compact design can provide insulation without adding excessive bulk.

52. Cable Repair in Industrial Electronics

Industrial electronics often require durable cable protection.

Applications can include:

• Sensors

• Controllers

• Motors

• Control panels

• Industrial lighting

• Automation equipment

• Monitoring systems

The tubing can provide additional protection around electrical connections and repaired insulation sections.

53. Cable Repair for Power Wiring

Power cables carry higher currents and may require greater attention to insulation.

Heat shrink tubing can be used for suitable low- and medium-power cable repair applications depending on the electrical rating of the tubing.

For high-voltage systems, specialized high-voltage cable repair materials may be required.

Users should always verify the tubing's electrical specifications before use.

54. Cable Repair for Signal Wires

Signal wires are often small and flexible.

Thin-wall PVC heat shrink tubing can provide:

• Compact insulation

• Wire identification

• Mechanical protection

• Connection reinforcement

The low-profile design can be beneficial for electronic wiring systems.

55. Cable Harness Applications

Cable harnesses often contain multiple wires grouped together.

Heat shrink tubing can be used to:

• Group wires

• Protect transitions

• Reinforce branches

• Improve appearance

• Provide identification

A correctly sized sleeve can help create a cleaner harness structure.

56. Strain Relief Applications

Cable connections can experience mechanical stress at the point where the cable enters a connector.

Heat shrink tubing can sometimes provide additional strain relief when properly designed.

It can distribute minor bending forces over a longer length of cable.

For severe strain conditions, dedicated strain-relief components may be necessary.

57. Environmental Protection

A cable repair sleeve can help protect against several environmental factors.

Actual protection levels depend on the product and installation.

58. Choosing Between PVC and Other Heat Shrink Materials

Different applications may require different polymers.

PVC is often selected where cost, flexibility, insulation, and general protection are important.

59. Cost Efficiency

PVC heat shrink tubing can be a cost-effective cable protection material.

Its advantages may include:

• Simple installation

• Low material consumption

• Consistent dimensions

• Reduced manual wrapping

• Multiple color options

• Easy processing

• Availability in different sizes

For mass production, automated cutting and heating can further improve processing efficiency.

60. Production Efficiency

Manufacturers can improve cable repair efficiency by standardizing:

• Tubing diameter

• Tubing length

• Heating process

• Cable preparation

• Inspection procedures

• Packaging

• Product identification

Standardization helps reduce installation variation and improve production consistency.

61. Common Installation Problems

Tubing Does Not Fit

The pre-shrink diameter may be too small.

Tubing Remains Loose

The recovered diameter may be too large for the cable.

Uneven Shrinkage

Heat may not have been distributed evenly.

Surface Burning

The heat source may be too hot or too close.

Cable Insulation Damage

Excessive heat may have been applied.

Tubing Moves After Installation

The selected tubing may not provide sufficient recovery or the surface may be unsuitable.

62. Troubleshooting Guide

63. Maintenance Considerations

After cable repair, periodic inspection can help identify future deterioration.

Check for:

• Cracks

• Discoloration

• Loose tubing

• Mechanical damage

• Heat damage

• Chemical exposure

• Moisture penetration

• Cable movement

The inspection frequency should be based on the operating environment and importance of the cable.

64. Safety Considerations

When installing heat shrink tubing:

• Follow electrical safety procedures.

• Disconnect power before performing repairs.

• Verify the cable is de-energized.

• Use appropriate protective equipment.

• Use controlled heating equipment.

• Avoid overheating.

• Maintain ventilation where required.

• Follow applicable electrical regulations.

For professional electrical repair, the entire repair procedure should be performed by appropriately qualified personnel.

65. Frequently Asked Questions

What is PVC heat shrink tubing used for?

PVC heat shrink tubing is used for electrical insulation, cable repair, wire protection, connector protection, terminal insulation, cable identification, and surface protection.

Can PVC heat shrink tubing repair a damaged cable?

It can protect and insulate suitable localized cable damage when the underlying conductor and cable structure remain suitable for repair. It should not be used to conceal severe conductor or insulation failure.

Is PVC heat shrink tubing waterproof?

Standard PVC heat shrink tubing can provide moisture resistance, but it should not automatically be considered fully waterproof. Sealing requirements depend on the specific product and installation.

Can PVC heat shrink tubing be used outdoors?

Some PVC heat shrink products may be suitable for outdoor applications, but UV resistance and environmental durability should be confirmed for long-term exposure.

Can it be used on battery cables?

Yes, suitable PVC heat shrink tubing can be used for appropriate battery wiring and terminal protection applications, provided the electrical, thermal, and environmental requirements are satisfied.

Can PVC heat shrink tubing be printed?

Yes. Depending on the product and manufacturing process, custom logos, identification information, voltage markings, and warning messages may be printed.

Is PVC heat shrink tubing flexible?

PVC heat shrink tubing is generally flexible, although flexibility varies according to the formulation, wall thickness, temperature, and product construction.

How is PVC heat shrink tubing installed?

The tubing is positioned over the cable or repair area and heated using an appropriate controlled heat source until it contracts around the component.

Can heat shrink tubing replace electrical tape?

It can replace tape in many suitable applications, particularly where a clean, consistent, and durable sleeve is preferred. However, the correct material must be selected for the application.

What diameter heat shrink tubing should I choose?

Choose tubing that can slide over the largest part of the repair before heating and can shrink sufficiently to fit closely around the cable after heating.

66. Final Summary

PVC Heat Shrink Tubing for Cable Repair Applications provides a practical solution for insulating, reinforcing, protecting, and improving the appearance of suitable repaired wires and cables.

Its heat-shrinkable structure allows the tubing to contract around the cable after controlled heating, creating a close-fitting protective sleeve.

Key advantages include:

• Electrical insulation

• Cable repair support

• Wire protection

• Mechanical reinforcement

• Moisture resistance

• Dust protection

• Abrasion protection

• Surface protection

• Cable identification

• Improved appearance

• Flexible installation

• Multiple color options

• Custom printing possibilities

• Custom sizing and cutting

PVC heat shrink tubing can be used in electrical equipment, automotive wiring, industrial machinery, consumer electronics, battery assemblies, lighting systems, cable harnesses, and many other applications.

For reliable cable repair, correct product selection is essential. Users should evaluate cable diameter, tubing diameter, shrink ratio, wall thickness, electrical rating, operating temperature, environmental exposure, mechanical stress, and applicable standards.

Most importantly, heat shrink tubing is an insulation and protection component, not a universal replacement for a severely damaged cable. Proper inspection of the cable and correct electrical repair procedures should always be completed before the tubing is installed.

With suitable material selection, controlled heating, correct sizing, and appropriate installation, PVC heat shrink tubing can provide a clean, compact, and practical method for cable repair and electrical protection across a wide range of industrial and commercial applications.
