PVC Heat Shrink Tubing for Reliable Wire Protection is a practical insulating and protective material designed for covering electrical wires, battery connections, electronic components, LED leads, terminals, cable sections, and other suitable electrical assemblies. Manufactured from heat-shrinkable polyvinyl chloride, PVC Heat Shrink Tubing is supplied in an expanded form and contracts when exposed to controlled heat.
The shrinking process allows the tubing to conform closely to the surface of a wire or component. After cooling, the recovered sleeve provides a neat protective covering that can help improve electrical insulation, reduce exposure to dust and moisture, protect surfaces from minor abrasion, and improve the overall appearance of electrical assemblies.
PVC Heat Shrink Tubing is widely used because it combines convenient installation with reliable insulation and component protection. It can be supplied in different diameters, wall thicknesses, colors, lengths, and packaging formats to meet different application requirements.
For wire protection projects, selecting the correct tubing size is essential. The tubing should be large enough to slide over the wire, terminal, connector, or battery assembly before heating while still being capable of shrinking sufficiently to create a close and stable fit.
This guide explains the characteristics, applications, specifications, installation process, sizing principles, usage tips, advantages, limitations, and common considerations associated with PVC Heat Shrink Tubing.
What Is PVC Heat Shrink Tubing?

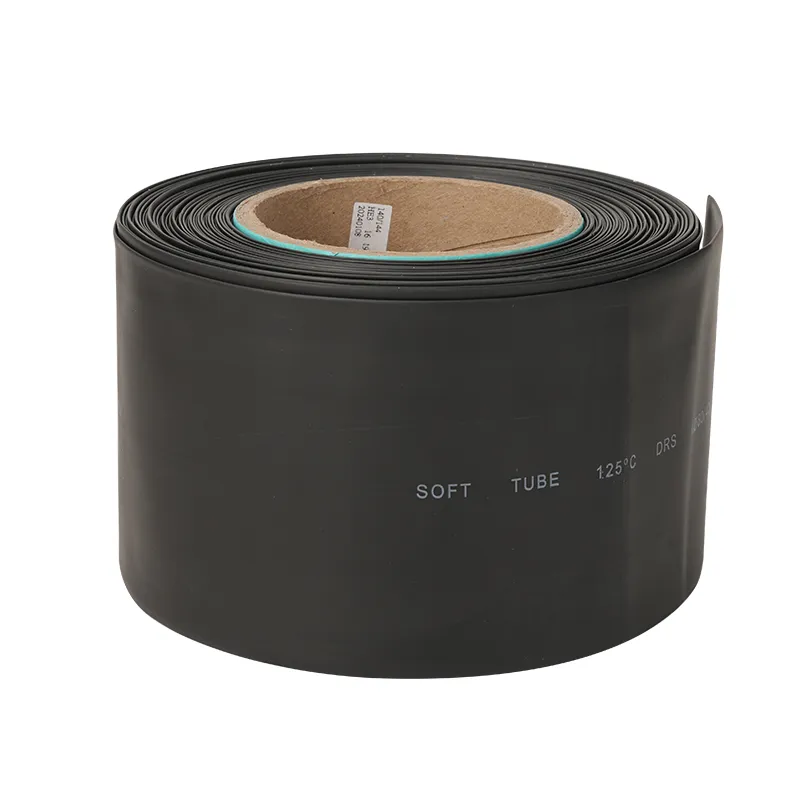

PVC Heat Shrink Tubing is a thermoplastic insulating sleeve made primarily from polyvinyl chloride that has been specially processed to shrink when heated.
Unlike conventional PVC tubing, heat shrink tubing is manufactured so that its dimensions can change when exposed to an appropriate temperature. The tubing is initially expanded during production. When heat is applied, the material contracts toward its original dimensions.
This property allows one sleeve size to accommodate a range of component dimensions within its specified shrink range.
PVC Heat Shrink Tubing can be used around:
Electrical wires
Cable connections
Battery assemblies
Electronic components
Capacitors
LED leads
Lighting wires
Terminals
Connectors
Small electrical assemblies
Suitable packaging components
The final performance depends on material formulation, dimensions, heating conditions, component geometry, installation quality, and operating environment.
Why PVC Heat Shrink Tubing Is Used for Wire Protection
Electrical wires may be exposed to mechanical handling, dust, moisture, accidental contact, and surface contamination. Bare or inadequately protected conductive sections can also create electrical and safety concerns.
PVC Heat Shrink Tubing provides an additional insulating layer around suitable wires and electrical connections.
The tubing can help:
Cover exposed conductive surfaces.
Improve electrical insulation.
Reduce contact with dust and moisture.
Protect against minor abrasion.
Improve wire organization.
Create a clean external appearance.
Provide color identification.
Protect selected connections and terminals.
Reduce the risk of accidental contact between conductive parts.
Create a consistent protective sleeve in production assemblies.
The tubing is particularly useful when a compact insulating solution is required.
Product Features
PVC Heat Shrink Tubing provides a protective physical barrier between the covered wire or component and the surrounding environment.
When correctly selected and installed, the sleeve can reduce direct exposure to dust, moisture, dirt, and other common contaminants.
Environmental performance depends on the specific tubing construction and installation conditions. Standard PVC heat shrink tubing should not automatically be considered a completely waterproof or hermetically sealed product.
Electrical insulation is one of the main functions of PVC Heat Shrink Tubing.
The tubing forms a nonconductive layer around the covered surface. This can help isolate wires, terminals, leads, and other conductive parts from surrounding components.
The exact electrical performance should always be evaluated according to the technical requirements of the intended application.
PVC Heat Shrink Tubing is designed to provide predictable shrinking and stable physical performance within its specified conditions.
Consistent shrinkage is particularly important for production applications where multiple wires or components need to receive uniform protection.
One of the useful characteristics of many PVC Heat Shrink Tubing products is relatively low shrinkage temperature.
This can make the tubing convenient to install using controlled hot air.
However, the actual shrinkage temperature varies according to formulation and product design. Users should follow the applicable technical specifications.
PVC Heat Shrink Tubing can shrink relatively quickly when sufficient and evenly distributed heat is applied.
Fast shrinkage can improve assembly efficiency and reduce processing time, particularly when many components must be covered.
PVC Heat Shrink Tubing can provide a flexible protective layer around suitable wires and components.
The flexibility depends on material formulation, tubing dimensions, wall thickness, temperature, and application conditions.
After shrinking, the tubing can create a smooth and uniform external surface.
This can make electrical assemblies look cleaner and more organized.
Main Advantages
| Advantage | Description |
|---|---|
| Electrical Insulation | Creates a nonconductive protective layer |
| Wire Protection | Covers and protects suitable wires and leads |
| Moisture Resistance | Helps reduce direct exposure to moisture |
| Dust Protection | Helps keep contaminants away from covered surfaces |
| Fast Shrinking | Supports efficient installation |
| Low Shrink Temperature | Convenient for controlled heat installation |
| Flexible Construction | Suitable for many compact assemblies |
| Color Identification | Different colors can help identify circuits |
| Improved Appearance | Creates a neat and consistent finish |
| Simple Installation | Requires basic cutting and controlled heating |
| Space Efficiency | Provides protection without bulky mechanical hardware |
| Production Efficiency | Suitable for repetitive assembly operations |
Applications of PVC Heat Shrink Tubing
PVC Heat Shrink Tubing can be used in many electrical and electronic applications.
Wire insulation is one of the most common uses.
The tubing can cover selected portions of a wire, connection, terminal, or lead.
It can be particularly useful when an exposed section needs an additional insulating layer.
Heat shrink tubing can be applied to suitable cable sections and connections.
It can help organize cable assemblies and protect selected areas from handling damage and contamination.
PVC Heat Shrink Tubing can be used for suitable battery sleeves and battery assembly applications.
It can provide an insulating external covering and improve the appearance of battery assemblies.
The selected tubing must be compatible with the battery's temperature and operating conditions.
PVC heat shrink sleeves are commonly associated with electrolytic capacitor covering.
The sleeve can provide:
Electrical insulation
Surface protection
Product identification
Moisture resistance
Dust protection
Improved appearance
LED products often contain small electrical leads that require insulation.
Heat shrink tubing can cover these leads and provide a clean, compact protective layer.
Lighting assemblies may contain multiple wires, terminals, and electronic components.
PVC Heat Shrink Tubing can be used around appropriate electrical connections to provide insulation and protection.
Electronic components can benefit from compact insulating sleeves.
Applications may include selected terminals, wires, leads, connectors, and small assemblies.
PVC heat shrink material may also be used for selected bottle-neck and combination packaging applications where a decorative or protective sleeve is desired.
Application Reference Table
| Application | Primary Function | Potential Benefit |
|---|---|---|
| Electrical Wire | Insulation | Covers exposed areas |
| Cable Connection | Protection | Helps protect the connection |
| Battery | Insulation and covering | Provides a clean protective sleeve |
| Electrolytic Capacitor | Sleeving | Insulation and appearance |
| LED Lead | Electrical insulation | Covers small exposed leads |
| Lighting Assembly | Connection protection | Improves insulation and organization |
| Electronic Component | Component covering | Protects selected surfaces |
| Terminal | Insulation | Reduces accidental contact |
| Connector | Protection | Provides additional covering |
| Bottle Neck | Packaging | Decorative and protective coverage |
PVC Heat Shrink Tubing for Reliable Wire Protection
Reliable wire protection requires more than simply placing tubing over a wire.
The tubing must be correctly sized, properly positioned, evenly heated, and allowed to cool without unnecessary mechanical stress.
A successful installation should create a close-fitting sleeve without excessive wrinkles, gaps, cracks, burning, or deformation.
The following factors are particularly important:
The tubing must fit over the wire or connection before shrinking.
The tubing must have enough recovery capability to create a close final fit.
Wall thickness should correspond to the required insulation and protection level.
Heat should be applied evenly to avoid localized overheating.
The tubing should cover the required area without interfering with connectors or moving parts.
The finished installation should be visually inspected before the assembly is placed into service.
Understanding Shrink Ratio
Shrink ratio describes how much the tubing can contract from its expanded state.
For example, a tubing product may have a certain expanded diameter and a smaller recovered diameter.
The actual shrink ratio depends on the specific product.
When choosing tubing, users should consider both the initial diameter and recovered diameter rather than selecting the tubing based only on the wire diameter.
A wire may be relatively small while a connector at one end is significantly larger.
In this situation, the tubing must be large enough to pass over the connector while still recovering sufficiently around the smaller wire.
How to Select the Correct Size
Selecting the correct size is one of the most important steps in using PVC Heat Shrink Tubing.
Consider the following dimensions:
Wire diameter
Cable diameter
Connector diameter
Terminal size
Battery diameter
Component diameter
Maximum installation diameter
Minimum recovered diameter
Required coverage length
The tubing should be large enough to slide over the largest part of the assembly that it must cover.
At the same time, the tubing should have an appropriate recovered diameter so that it does not remain excessively loose after heating.
Layflat Width and Flat Width
The flattened width of heat shrink tubing is commonly called the layflat width or flat width.
This measurement can be useful when purchasing or specifying certain tubing products.
A simple practical method can be used to understand the approximate flattened dimension.
Wrap a sheet of paper around the product or object, remove the paper, flatten it, and measure the resulting width.
This provides a practical reference for the circumference-related dimension.
For precise manufacturing specifications, however, the manufacturer's dimensional data should be used.
Practical Size Selection Tip
When purchasing heat shrink tubing, a slightly larger size can make installation easier.
For many general applications, users may consider selecting tubing approximately 5–10 mm larger than the product or required size, depending on the actual tubing dimensions and application.
The reason is simple:
A tubing size that is too small may not pass over the product or connector.
A slightly larger tubing size may be easier to install and can still shrink securely if its recovery range is appropriate.
However, the 5–10 mm guideline should not be treated as a universal engineering rule.
The correct size depends on:
Tubing shrink ratio
Initial diameter
Recovered diameter
Component shape
Component diameter
Connector size
Wall thickness
Application requirements
Usage Tips
A household hair dryer can be used to shrink the tubing when the product and application permit the use of relatively low and controlled heat.
For heat shrink tubing with a relatively large diameter or longer length, tools such as a heat gun or heat shrink machine can be used to provide sufficient and even heating for complete shrinking.
When using a household hair dryer, the hot air should be distributed evenly around the tubing.
The user should avoid holding the heat source too close to one location for an extended period.
For larger tubing, a heat gun may provide more effective heating.
For repeated production, a heat shrink machine may provide more consistent heating and processing efficiency.
The heating method should always be compatible with the specific tubing and the component underneath it.
Shrinking Method
Open the end of the tubing and insert the battery into the sleeve.
Leave approximately 3 mm of tubing extending beyond each end of the battery, when this configuration is suitable for the specific product and application.
Then use a household hair dryer with hot air to heat the tubing evenly until it fully shrinks around the battery.
If there are wrinkles or creases in the tubing, apply hot air to the affected areas for a slightly longer period.
The tubing will gradually shrink and the wrinkles can be smoothed out as the material contracts.
For other wire protection applications, the same basic process can be adapted according to the dimensions and geometry of the component.
The user should ensure that the tubing is properly positioned before heating because repositioning becomes more difficult after significant shrinkage occurs.
Detailed Installation Procedure
Check the tubing before installation.
Look for:
Cracks
Cuts
Surface damage
Contamination
Deformation
Incorrect dimensions
Damaged tubing should not be used for critical insulation applications.
Measure the wire, cable, battery, terminal, or component.
If a connector must pass through the tubing, measure the largest part that the tubing needs to pass over.
Choose a suitable tubing size and shrink ratio.
Make sure the tubing can fit over the component before shrinking.
Cut the required length.
Avoid excessive stretching or deformation while cutting.
Slide the tubing over the intended section.
Position it before applying heat.
Start applying heat evenly.
Move the heat source around the tubing instead of concentrating heat on one location.
The tubing should gradually contract.
Watch for uneven shrinkage or excessive deformation.
Once the tubing has achieved the desired recovery, stop heating.
Avoid unnecessary additional heating.
Let the tubing cool naturally.
Avoid pulling, twisting, or moving the tubing excessively while it is still hot.
Check that the tubing is:
Fully shrunk
Properly positioned
Free of cracks
Free of severe wrinkles
Free of burn marks
Properly covering the intended area
Hair Dryer Installation
A household hair dryer can be convenient for certain small heat shrink tubing applications.
The advantages include:
Easy availability
Simple operation
Lower processing complexity
Convenient for small projects
Suitable for some low-temperature shrinking products
However, a household hair dryer may not provide enough heat for every type or size of tubing.
For larger diameters or thicker walls, a controlled heat gun or dedicated shrinking equipment may be more appropriate.
The user should confirm that the heat generated by the hair dryer is sufficient to activate the tubing without overheating the component.
Heat Gun Installation
A heat gun is commonly used when stronger and more concentrated hot air is needed.
It can provide faster heating than a household hair dryer.
However, excessive heat can damage PVC tubing or the component underneath it.
Best practices include:
Maintain an appropriate distance.
Keep the heat source moving.
Heat evenly around the tubing.
Avoid prolonged heating in one location.
Monitor the surface during shrinking.
Follow the tubing manufacturer's recommended processing conditions.
Heat Shrink Machine Installation
For repetitive manufacturing operations, heat shrink machines can provide more consistent processing.
A heat shrink machine can help control:
Heating temperature
Heating time
Air distribution
Production speed
Shrink consistency
This can be especially useful when large quantities of wires, battery assemblies, or electronic components need to be processed.
Avoiding Wrinkles and Creases
Wrinkles can occur for several reasons.
Possible causes include:
Uneven heating
Incorrect tubing size
Irregular component geometry
Insufficient shrinkage
Excessive tubing length
Improper positioning
When a wrinkle appears, controlled additional heat may help the material recover further.
The heat source should be moved carefully around the affected section.
Excessive heating should be avoided.
Wire Protection Performance
PVC Heat Shrink Tubing can provide several layers of protection around suitable wires.
The sleeve separates conductive surfaces from external contact.
The material can help protect wires against minor abrasion and handling damage.
The sleeve can reduce direct exposure to dust and moisture.
The sleeve can hide exposed wire sections and create a cleaner appearance.
Colored tubing can help distinguish wires and components.
Specifications of PVC Heat Shrink Tubing
Actual specifications vary by product design and manufacturer. The following table provides a general industry reference.
| Specification | General Description |
|---|---|
| Material | PVC |
| Product Type | Heat Shrink Tubing |
| Main Function | Electrical insulation and protection |
| Form | Tubular sleeve |
| Initial Diameter | Expanded installation diameter |
| Recovered Diameter | Final diameter after shrinking |
| Wall Thickness | Varies according to product |
| Shrink Ratio | Product specific |
| Shrink Temperature | Product specific |
| Operating Temperature | Product specific |
| Color | Various options |
| Length | Standard or customized |
| Packaging | Rolls or cut lengths |
| Application | Wires, cables, components, batteries, LEDs |
| Processing | Controlled heating |
| Surface | Generally smooth after shrinking |
Diameter Selection Table
| Application | Selection Consideration |
|---|---|
| Small Wire | Small inner diameter |
| LED Lead | Small and flexible tubing |
| Standard Cable | Diameter matched to cable |
| Battery | Diameter matched to battery body |
| Capacitor | Diameter matched to capacitor |
| Terminal | Must fit over terminal |
| Connector | Must fit over largest connector section |
| Cable Joint | Must accommodate the joint diameter |
| Large Assembly | Larger tubing and suitable shrink ratio |
Wall Thickness Selection
Wall thickness affects the final physical and insulating characteristics of the tubing.
Thin-wall tubing may be appropriate when:
Space is limited.
Flexibility is important.
Only basic insulation is required.
The component is small.
Thicker-wall tubing may be considered when:
Greater mechanical protection is needed.
The environment is more demanding.
Additional physical coverage is required.
The thickest available tubing is not automatically the best option.
The wall thickness should be appropriate for the application.
Color Options
PVC Heat Shrink Tubing can be produced in different colors.
Common color options include:
Black
Red
Blue
Yellow
Green
White
Clear
Transparent
Color can be used for:
Wire identification
Circuit identification
Component identification
Product design
Packaging appearance
Visual organization
Color consistency can be particularly important for commercial electrical products.
Black PVC Heat Shrink Tubing
Black heat shrink tubing is widely used for general electrical protection.
It provides a professional appearance and can conceal the underlying wire or component.
Black tubing is commonly selected for:
Cable protection
Electrical wiring
Battery assemblies
Electronic products
General insulation
Industrial assemblies
Transparent PVC Heat Shrink Tubing
Transparent or clear heat shrink tubing allows the underlying component or printed marking to remain visible.
This can be useful when product identification needs to remain readable after installation.
Potential applications include:
Component covering
Label protection
Identification
Electronic assemblies
Packaging
Colored PVC Heat Shrink Tubing
Colored heat shrink tubing can provide visual identification.
For example, different colors may be assigned to different wire groups or assembly functions.
Color coding can simplify inspection and maintenance when consistently applied.
PVC Heat Shrink Tubing for Battery Sleeves
Battery sleeves require careful size selection.
The tubing should be able to pass over the battery body and shrink sufficiently to create a close fit.
For battery applications, consider:
Battery diameter
Battery length
Terminal location
Operating temperature
Charging conditions
Required insulation
Shrink temperature
Wall thickness
The tubing should not interfere with safety components, vents, terminals, or other functional structures.
PVC Heat Shrink Tubing for Capacitor Sleeves
Capacitor sleeving requires a clean and consistent fit.
The sleeve can provide:
Electrical insulation
Product identification
Surface protection
Dust protection
Improved appearance
For cylindrical capacitors, accurate diameter selection is particularly important.
PVC Heat Shrink Tubing for LED Wires
LED leads are often relatively small and may require compact insulation.
PVC Heat Shrink Tubing can cover exposed LED lead sections and provide a clean finish.
The tubing should be sufficiently small after shrinking while remaining easy to install before heating.
PVC Heat Shrink Tubing for Electrical Terminals
Terminals may contain exposed conductive surfaces that require insulation.
Heat shrink tubing can cover selected terminal areas and reduce the chance of accidental contact.
When installing over terminals, make sure the tubing can pass over the widest section before shrinking.
PVC Heat Shrink Tubing for Cable Connections
Cable connections can benefit from an additional insulating and protective sleeve.
Heat shrink tubing can provide a neat transition between cable sections and selected connectors or joints.
For cable connection applications, the tubing size should accommodate the largest connection area.
Environmental Protection
PVC Heat Shrink Tubing can help protect wires and components from common environmental contaminants.
Potential environmental benefits include:
Reduced moisture exposure
Reduced dust exposure
Reduced contamination
Reduced surface contact
Improved cleanliness
However, the actual protection level depends on the tubing construction and installation.
If the application requires complete sealing, a specialized sealing solution may be necessary.
Mechanical Protection
Heat shrink tubing can provide a protective outer surface.
It can help reduce damage caused by:
Minor abrasion
Handling
Surface contact
Light friction
Repeated assembly operations
It should not be assumed to replace heavy-duty mechanical protection where severe abrasion, crushing, impact, or bending loads are expected.
Chemical Considerations
When PVC Heat Shrink Tubing is used in an environment containing chemicals, oils, solvents, or other aggressive substances, compatibility should be evaluated.
Material performance may vary depending on:
Chemical concentration
Exposure time
Temperature
Contact frequency
Tubing formulation
Application-specific compatibility testing may be necessary.
Temperature Considerations
Temperature is an important factor in both installation and operation.
During installation, the tubing must reach its required shrinkage temperature.
During operation, the tubing should remain within its specified service temperature range.
The heating tool should not expose the component to temperatures that exceed its own thermal limitations.
This is particularly important for:
Batteries
Electronic components
LED assemblies
Plastic connectors
Sensitive sensors
Insulated wires
Electrical Safety
PVC Heat Shrink Tubing can provide electrical insulation, but the complete electrical system must be evaluated.
Important considerations include:
Working voltage
Insulation requirements
Dielectric properties
Operating temperature
Moisture exposure
Surface contamination
Mechanical stress
Applicable electrical standards
For high-voltage or safety-critical applications, users should verify the actual product specifications and required certifications.
Manufacturing Considerations
For manufacturers, consistent tubing quality is important.
Production quality may involve checking:
Diameter
Wall thickness
Length
Shrink ratio
Shrink temperature
Surface appearance
Color
Electrical properties
Material consistency
Consistent incoming material can help reduce variation in final assemblies.
Storage Recommendations
PVC Heat Shrink Tubing should generally be stored in a clean, dry environment.
Recommended considerations include:
Avoid direct sunlight.
Avoid excessive heat.
Keep away from sharp objects.
Protect from contamination.
Avoid excessive compression.
Maintain suitable packaging.
Follow product-specific storage recommendations.
Proper storage helps preserve the physical characteristics of the tubing before installation.
Quality Inspection Checklist
| Inspection Item | Purpose |
|---|---|
| Diameter | Confirm dimensional accuracy |
| Wall Thickness | Confirm insulation and material consistency |
| Length | Confirm required coverage |
| Surface | Check for defects |
| Color | Confirm appearance and identification |
| Shrinkage | Confirm recovery performance |
| Electrical Properties | Verify insulation requirements |
| Flexibility | Confirm handling characteristics |
| Packaging | Protect material during storage and transportation |
Common Installation Problems
If the tubing is too small, it may not pass over the product or connector.
Choose a larger initial diameter with an appropriate recovered diameter.
If the tubing is excessively large, it may remain loose after shrinking.
Choose a smaller size or a product with a more suitable shrink ratio.
Possible causes include insufficient heat or incorrect processing.
Apply sufficient controlled heat according to the product requirements.
Possible causes include excessive temperature or prolonged heating.
Reduce the heat intensity and keep the heat source moving.
Possible causes include uneven heating or unsuitable sizing.
Apply controlled additional heat to the affected area.
The tubing may not have been positioned correctly before heating.
Position the sleeve carefully before applying heat.
PVC Heat Shrink Tubing vs Electrical Tape
Electrical tape and heat shrink tubing can both be used for electrical insulation, but they have different characteristics.
| Feature | PVC Heat Shrink Tubing | Electrical Tape |
|---|---|---|
| Installation | Heat-assisted | Adhesive wrapping |
| Appearance | Uniform sleeve | Depends on wrapping |
| Coverage | Continuous sleeve | Layered wrapping |
| Position Stability | Generally good after shrinking | Depends on adhesive |
| Installation Speed | Fast for suitable components | Can require manual wrapping |
| Color Options | Various | Various |
| Compact Finish | Generally excellent | Depends on layers |
| Wire Organization | Good | Moderate |
| Repeated Production | Suitable | More labor intensive |
Heat shrink tubing can provide a more consistent appearance when repeated electrical assemblies are produced.
PVC Heat Shrink Tubing vs Ordinary PVC Sleeves
| Feature | PVC Heat Shrink Tubing | Ordinary PVC Sleeve |
|---|---|---|
| Shrinks With Heat | Yes | Generally no |
| Final Fit | Changes after heating | Remains approximately the same |
| Installation | Heat-assisted | Push-on or mechanical |
| Insulation | Application dependent | Application dependent |
| Appearance | Close-fitting after shrinking | Depends on original size |
| Size Adjustment | Through shrinkage | Limited |
| Processing | Requires heat | Usually no heating |
Benefits for Production Assembly
PVC Heat Shrink Tubing can improve production efficiency in several ways.
Cutting and positioning the tubing are straightforward.
Heat-assisted shrinking can be completed relatively quickly.
Correctly controlled heating can create consistent sleeves.
Different colors can support production organization.
Compared with tape wrapping, heat shrink tubing can reduce repetitive manual wrapping work.
The finished sleeve can remain relatively compact.
Selection Guide for Reliable Wire Protection
| Requirement | Selection Approach |
|---|---|
| Small wire | Small suitable diameter |
| Large cable | Larger diameter |
| Connector present | Size for largest connector section |
| Battery sleeve | Match battery diameter |
| Capacitor sleeve | Match capacitor body diameter |
| Heat sensitive component | Consider lower-temperature shrink tubing |
| High mechanical demand | Consider thicker wall or alternative material |
| Visual identification | Select suitable color |
| Fast production | Use compatible heat shrink equipment |
| Large production volume | Consider automated or controlled heating |
| Moisture exposure | Evaluate environmental protection requirements |
| High electrical demand | Verify electrical specifications |
Usage Tips for Better Results
Measure the component before selecting tubing.
Consider the largest diameter the tubing must pass over.
Do not select tubing solely according to the wire diameter.
Check the recovered diameter.
Check the shrink ratio.
Cut the tubing cleanly.
Position it before heating.
Apply heat evenly.
Keep the heat source moving.
Avoid overheating.
Allow the tubing to cool before handling.
Inspect the finished sleeve.
Use the appropriate heating tool for the tubing size.
For larger tubing, consider a heat gun or shrinking machine.
For repeated production, maintain consistent heating conditions.
Detailed Product Specification Reference
| Parameter | General Description |
|---|---|
| Material | Polyvinyl Chloride |
| Abbreviation | PVC |
| Product | Heat Shrink Tubing |
| Primary Application | Wire Protection |
| Secondary Applications | Components, batteries, capacitors, LEDs |
| Installation Method | Heat Shrinking |
| Heating Tool | Hair Dryer, Heat Gun, or Shrinking Machine |
| Initial Form | Expanded Tube |
| Final Form | Recovered Sleeve |
| Electrical Function | Insulation |
| Environmental Function | Protection from selected contaminants |
| Mechanical Function | Minor surface protection |
| Appearance | Smooth protective covering |
| Colors | Multiple options |
| Length | Standard or customized |
| Diameter | Multiple sizes |
| Wall Thickness | Multiple options |
| Shrink Ratio | Product dependent |
| Shrink Temperature | Product dependent |
| Operating Temperature | Product dependent |
Why Correct Heating Matters
Heat shrink tubing is designed to respond to temperature.
If the heating is insufficient, the material may not recover completely.
If the heating is excessive, the material may become damaged.
Controlled heating provides a balance between sufficient shrinkage and material protection.
For this reason, the heat source should be moved around the tubing.
Circular movement helps distribute heat around the sleeve.
For longer tubing sections, the user should work progressively along the length instead of concentrating heat at one point.
Practical Example: Battery Sleeve Installation
A simple battery sleeve installation can be performed as follows:
Measure the battery diameter.
Measure the battery length.
Select tubing with a suitable initial diameter.
Ensure the tubing can pass over the battery.
Cut the required length.
Insert the battery into the tubing.
Leave approximately 3 mm extending beyond each end when appropriate.
Apply warm air evenly.
Allow the tubing to contract.
Pay additional attention to wrinkled areas.
Stop heating when the sleeve has fully recovered.
Allow the assembly to cool.
Inspect the finished surface.
The exact dimensions and heating process should be adjusted according to the actual battery and tubing specifications.
Practical Example: Wire Protection
For a wire protection application:
Identify the section requiring insulation.
Measure the wire and any connector.
Select tubing large enough to pass over the largest section.
Cut the tubing to the required length.
Slide the tubing into position.
Apply heat evenly.
Allow the tubing to shrink around the wire.
Inspect the final sleeve.
Confirm that the required area is fully covered.
This method can provide a neat and efficient insulating sleeve for suitable wires.
Frequently Asked Questions
PVC Heat Shrink Tubing is used for wire protection, electrical insulation, battery sleeves, capacitor covering, LED lead insulation, lighting assemblies, terminals, connectors, electronic components, and selected packaging applications.
A household hair dryer may be suitable for certain low-temperature heat shrink tubing products and small applications. Larger or thicker tubing may require a heat gun or dedicated heat shrink machine.
A heat gun generally provides stronger and more concentrated heat. It can be more suitable for larger tubing, thicker walls, and faster shrinking. However, excessive heat can damage the tubing or the covered component.
For the installation method described in this guide, approximately 3 mm can be left beyond each end of the battery when suitable for the specific application.
Layflat width, also called flat width, is the width measured when heat shrink tubing is flattened.
A simple method is to wrap a sheet of paper around the product, remove the paper, flatten the paper, and measure its width. Precise product specifications should be obtained from technical data when accuracy is required.
The tubing generally needs to be large enough to fit over the product before shrinking. In some general applications, choosing tubing approximately 5–10 mm larger can make installation easier, but this is not a universal rule.
It may not fit over the product or connector, making installation difficult or impossible.
It may not shrink sufficiently to form a close-fitting sleeve.
Yes, suitable PVC Heat Shrink Tubing can be used for certain battery insulation and protective applications, provided its thermal, electrical, and dimensional characteristics are compatible.
Yes. Wire insulation and protection are among the most common applications.
It can help reduce moisture exposure, but standard heat shrink tubing should not automatically be treated as a waterproof sealing system.
Yes, a properly fitted sleeve can help reduce direct exposure to dust and contaminants.
It can reduce environmental exposure that contributes to corrosion, but it should not be considered a universal corrosion prevention system.
Many PVC heat shrink tubing products provide useful flexibility. Actual flexibility depends on formulation, dimensions, temperature, and wall thickness.
Maintenance and Inspection
Heat shrink tubing generally requires limited maintenance once correctly installed.
However, electrical assemblies should be periodically inspected where service conditions are demanding.
Look for:
Cracks
Splits
Abrasion
Discoloration
Shrinkage changes
Surface damage
Exposure of previously covered conductors
If significant damage is found, the complete electrical assembly should be evaluated before continued operation.
Industry Applications
PVC Heat Shrink Tubing can be found in many industries and product categories, including:
Electrical manufacturing
Electronics manufacturing
Lighting production
Battery assembly
Consumer electronics
Industrial equipment
Electrical wiring
Component manufacturing
Packaging
LED products
Small electrical appliances
Instrumentation
Control equipment
Its broad application range is related to its combination of insulation, protection, appearance, and convenient installation.
Environmental and Sustainability Considerations
Environmental considerations should be evaluated throughout the material lifecycle.
Important factors include:
Material composition
Manufacturing process
Product lifespan
Application durability
Waste management
Disposal requirements
Applicable environmental regulations
The environmental characteristics of a PVC heat shrink product depend on its formulation and manufacturing process.
When environmental compliance is important, users should obtain product-specific documentation.
Packaging Options
PVC Heat Shrink Tubing can be supplied in different formats.
Common packaging forms include:
Rolls
Spools
Cut lengths
Pre-cut sleeves
Bundles
Customized packages
Rolls can be useful for continuous processing.
Pre-cut pieces can reduce preparation work during manual assembly.
Customization
Depending on production requirements, PVC Heat Shrink Tubing may be customized in:
Diameter
Length
Wall thickness
Color
Printing
Packaging
Surface finish
Shrinkage characteristics
Customized tubing can be useful for electrical products that require consistent dimensions or visual identification.
Quality Control
Quality control is important when heat shrink tubing is used for electrical insulation.
Potential quality checks include:
Measure tubing diameter, length, and wall thickness.
Look for surface defects, contamination, cracks, and inconsistent color.
Verify that the tubing recovers as expected under suitable heating conditions.
Where required, evaluate electrical insulation properties according to applicable specifications.
Install the tubing on representative components and verify the final appearance and fit.
Final Selection Checklist
Before purchasing or using PVC Heat Shrink Tubing for reliable wire protection, consider:
What component needs protection?
What is the largest diameter?
What is the wire diameter?
Is there a connector?
What is the required final diameter?
What wall thickness is needed?
What shrink ratio is appropriate?
What temperature is required for shrinking?
What operating temperature will the component experience?
Is electrical insulation required?
Is moisture exposure expected?
Is dust exposure expected?
Is color identification required?
Is the application manual or automated?
Will a hair dryer provide enough heat?
Would a heat gun be more suitable?
Is a heat shrink machine required?
What length is needed?
What storage conditions are required?
Conclusion
PVC Heat Shrink Tubing for Reliable Wire Protection is a versatile material for electrical insulation, wire covering, component protection, battery sleeving, capacitor covering, LED lead insulation, and selected packaging applications.
Its major advantages include convenient installation, reliable insulation, stable performance, relatively low shrinkage temperature, fast shrinkage, flexible protection, moisture resistance, dust protection, corrosion protection, and improved appearance.
Correct sizing is one of the most important factors in achieving reliable results. The tubing should be large enough to pass over the product or connector while maintaining an appropriate recovered diameter after heating.
The flattened dimension of heat shrink tubing is commonly called layflat width or flat width. A simple practical method is to wrap a sheet of paper around the product, remove it, flatten it, and measure the resulting width. For precise manufacturing work, product-specific dimensional data should always be used.
For small applications, a household hair dryer may be suitable when the tubing has an appropriate shrinkage temperature. Larger or longer tubing may require a heat gun or heat shrink machine to provide sufficient and uniform heating.
During installation, the tubing should be positioned carefully, heated evenly, and allowed to shrink naturally. If wrinkles or creases appear, controlled additional heating may help smooth the affected areas.
For battery sleeve applications, approximately 3 mm of tubing can be left beyond each end when appropriate for the specific application. The actual dimensions should be adjusted according to the battery design and tubing specifications.
A general purchasing guideline is to consider tubing approximately 5–10 mm larger than the product or required size when appropriate. However, this should not replace proper evaluation of the tubing's initial diameter, recovered diameter, shrink ratio, component dimensions, and application requirements.
When correctly selected, installed, and inspected, PVC Heat Shrink Tubing can provide a practical, clean, and efficient solution for reliable wire protection and electrical insulation.
This website uses cookies to ensure you get the best experience on our website.
WhatsApp
Phone
