Single Sided Adhesive Fish Paper Roll is a flexible electrical insulation material designed for applications where reliable dielectric separation, gap filling, surface protection, and convenient installation are required. Also known as adhesive fish paper, self adhesive fish paper, back adhesive fish paper, adhesive vulcanized fiber paper, or fish paper insulation tape in some industrial contexts, this material combines the physical characteristics of electrical grade fish paper with a pressure sensitive adhesive layer on one side.
Fish paper is commonly associated with electrical grade vulcanized fiber. It is valued for its flexibility, mechanical strength, forming characteristics, and electrical insulating performance. Industry sources describe fish paper as a lightweight dielectric material used in electrical insulation, gaskets, washers, motor components, transformers, batteries, circuit breakers, and electronic equipment. It is available in sheets, rolls, and slit coils, making it suitable for both manual assembly and converting operations.
The addition of a single-sided pressure sensitive adhesive creates a practical peel-and-stick insulation solution. Instead of requiring separate mechanical fastening, liquid adhesive, or complicated installation procedures, the adhesive-backed fish paper can be positioned directly onto a clean surface and pressed into place. This characteristic is particularly useful when insulation components need to remain accurately positioned during assembly.
The term “single sided” is important because the adhesive is applied to only one surface of the fish paper. The opposite surface remains primarily an insulating fish paper surface. This construction allows one side to bond to a component, housing, board, battery surface, metal part, or other substrate while the exposed side continues to provide an electrical insulation barrier.
Depending on the material grade and adhesive system, adhesive-backed fish paper can be supplied as rolls, narrow slit rolls, sheets, strips, die-cut parts, washers, rings, pads, and custom-shaped insulation components. Commercial fish paper is commonly available in different thicknesses and widths, while converting processes such as slitting, punching, forming, and die cutting can produce application-specific components.
For industrial insulation applications, the combination of electrical insulation, flexibility, mechanical durability, adhesive attachment, and convenient converting makes Single Sided Adhesive Fish Paper Roll a useful material for electrical assemblies, electronic equipment, battery packs, motor insulation, transformer components, PCB protection, terminal insulation, gap filling, and general Insulating Gasket applications.
What Is Single Sided Adhesive Fish Paper?
Single Sided Adhesive Fish Paper is an electrical insulation material consisting of a fish paper substrate and a pressure sensitive adhesive coating applied to one side.
The basic construction can be described as:
Fish Paper Substrate + Pressure Sensitive Adhesive + Release Liner
The fish paper substrate provides the primary mechanical and electrical insulation function. The adhesive layer provides attachment to the target surface. A release liner may be laminated over the adhesive during storage, transportation, converting, and installation.
Fish paper itself is generally associated with vulcanized fiber or electrical grade insulating fiber materials. These materials are known for their dielectric properties, mechanical strength, flexibility, and suitability for punching and forming.
When the material is manufactured as a single-sided adhesive roll, the construction becomes particularly convenient for applications requiring continuous or repeated insulation installation.
The material can be unwound from a roll, cut to length, peeled from the release liner, positioned on the component, and pressed into place.
This simple installation method can reduce assembly steps and improve positioning consistency.
The single-sided adhesive construction also makes the product different from double-sided adhesive insulation material. With single-sided adhesive fish paper, only one surface is designed for bonding. The other surface remains available as an insulating and protective surface.
This is particularly useful when the application requires insulation between an electrically active component and a metal housing, circuit board, battery structure, terminal, Bracket, or other conductive component.
Understanding Fish Paper Insulation
Fish paper has a long history in electrical insulation applications and is often used as a flexible alternative to rigid insulating boards or certain plastic films.
Electrical grade fish paper is valued because it can combine:
Electrical insulation
Mechanical strength
Flexibility
Formability
Punchability
Wear resistance
Dimensional stability
Gap filling capability
Surface separation
Component protection
Commercial descriptions of fish paper commonly identify applications such as motor slot insulation, phase insulation, liner insulation, transformer insulation, electrical gaskets, washers, fuse components, circuit breakers, electrical appliances, and electronic devices.
The material is especially useful where an insulating layer needs to conform to a surface rather than remain completely rigid.
For example, a thin fish paper layer can be placed between two components to prevent direct electrical contact. It can also be formed around an edge, inserted into a narrow gap, or converted into a gasket or washer.
When combined with pressure sensitive adhesive, the material becomes easier to install because the insulation layer can remain attached to the selected surface during subsequent assembly.
Core Features
The most important function of Single Sided Adhesive Fish Paper Roll is electrical insulation.
The fish paper substrate creates a dielectric barrier between electrically conductive components. This can help reduce the possibility of unwanted electrical contact and support the required insulation structure of an electrical assembly.
Electrical insulation requirements vary according to voltage, temperature, geometry, creepage and clearance requirements, mechanical conditions, environmental exposure, and applicable safety standards. Therefore, material selection should always be based on the actual application rather than relying only on a general material description.
Fish paper is widely used as an electrical insulation material because of its dielectric characteristics and mechanical properties.
For this reason, Single Sided Adhesive Fish Paper Roll can be considered for applications such as:
Electrical component isolation
Battery insulation
Terminal protection
PCB protection
Motor winding insulation
Transformer insulation
Coil insulation
Wire and cable separation
Electrical enclosure insulation
Insulating gasket production
Component barrier protection
Flexibility and Conformability
Flexibility is another important advantage.
Unlike thick rigid insulating boards, thin fish paper can be bent, wrapped, folded, or formed according to the geometry of a component.
This characteristic can be useful when electrical insulation must follow:
Curved surfaces
Narrow edges
Component corners
Small gaps
Irregular profiles
Cylindrical components
Battery cell surfaces
Motor winding structures
Transformer components
Industry references describe fish paper as flexible and suitable for forming, bending, punching, and converting.
The adhesive backing further improves handling because the insulation layer can be fixed in the desired position.
Water Resistance
The specified feature set for Single Sided Adhesive Fish Paper Roll includes water resistance.
Water resistance can be important when Insulating Materials are exposed to humidity, condensation, occasional moisture, or environmental contamination.
However, water resistance should not automatically be interpreted as complete waterproofing.
The actual moisture performance depends on:
Fish paper grade
Paper density
Surface treatment
Adhesive formulation
Adhesive coverage
Edge exposure
Lamination structure
Temperature
Humidity
Duration of exposure
For demanding environments, application-specific testing should be performed before final material selection.
In general insulation assemblies, maintaining stable insulation performance under the expected environmental conditions is more important than selecting a material based on a single property.
Wear Resistance
Single Sided Adhesive Fish Paper Roll also provides useful wear resistance.
During assembly and service, insulating materials can experience friction against:
Metal edges
Plastic housings
Circuit boards
Battery components
Wire harnesses
Brackets
Fasteners
Electrical terminals
A mechanically durable insulation layer can help reduce damage caused by repeated contact.
Fish paper is recognized for its mechanical strength and resistance to wear, making it suitable for electrical components that require both insulation and physical protection.
Grease Resistance
Grease resistance can be beneficial in electrical and mechanical environments where lubricants, oils, or grease may be present.
Potential application environments include:
Motors
Electrical machinery
Automotive electrical assemblies
Industrial equipment
Mechanical control systems
Bearings and nearby electrical components
Power equipment
The actual chemical compatibility should be evaluated against the specific oil or grease involved.
Different adhesive systems can respond differently to chemicals, solvents, oils, and elevated temperatures. Therefore, the adhesive layer should be tested separately when long-term exposure to industrial fluids is expected.
Aging Resistance
Aging resistance is another important property for long-term insulation applications.
Electrical insulation components may remain inside equipment for extended periods. During service, they can experience:
Temperature changes
Humidity
Mechanical stress
Electrical stress
Oxidation
Environmental contamination
Repeated assembly vibration
A material with good aging resistance can help maintain its physical and insulating characteristics over its expected service life.
The actual aging performance depends on the substrate, adhesive, operating temperature, humidity, electrical conditions, and application design.
Gap Sealing and Gap Filling
One of the most practical uses of Single Sided Adhesive Fish Paper Roll is gap sealing.
A thin insulation layer can be positioned over a small opening, gap, joint, edge, or interface to create a physical barrier between components.
This can provide several functions simultaneously:
Electrical separation
Surface protection
Gap filling
Component positioning
Edge protection
Dust and contamination reduction
Prevention of accidental contact
Because fish paper can be supplied in thin gauges, it can be useful where available assembly space is limited.
For precision applications, the thickness of the fish paper should be selected according to the actual gap and mechanical tolerance.
Why Use a Single Sided Adhesive Construction?
A conventional insulation sheet may require:
Mechanical fasteners
Clips
Heat staking
Additional adhesive
Manual positioning
Special fixtures
Single-sided adhesive fish paper simplifies the installation process.
The operator can remove the release liner, align the material, and press the adhesive surface onto the target component.
This construction is particularly useful when:
The component is small
The installation space is narrow
The insulation must stay in position
The assembly process is repetitive
Manual installation needs to be simplified
A temporary positioning function is required
The insulation needs to follow a surface
The adhesive layer can also reduce movement of the insulation during subsequent assembly operations.
Single Sided Versus Double Sided Adhesive Fish Paper
The difference between single-sided and double-sided adhesive fish paper should be considered carefully.
Single-sided adhesive fish paper has adhesive on one surface.
The opposite surface remains a non-adhesive insulating surface.
This construction is appropriate when the insulation needs to be bonded to one component while remaining electrically isolated from another component.
Double-sided adhesive fish paper has adhesive on both surfaces.
It is more suitable when the insulation layer must bond between two surfaces.
However, double-sided adhesive can change the assembly behavior because both surfaces become adhesive interfaces.
For many electrical insulation applications, single-sided adhesive fish paper provides a cleaner and simpler configuration.
Correct identification of the adhesive side is especially important during ordering and assembly.
Single Sided Adhesive Fish Paper Roll for PCB Protection
Printed circuit boards contain conductive traces, solder joints, components, connectors, and metal structures that may need electrical separation from nearby conductive surfaces.
Single Sided Adhesive Fish Paper Roll can be used as a protective insulating layer between a PCB and:
Metal housings
Brackets
Mounting structures
Battery compartments
Internal shields
Fasteners
Conductive supports
The adhesive surface can attach the fish paper to the selected location, while the exposed fish paper surface provides electrical separation.
For PCB applications, material thickness must be carefully selected.
A thicker insulation layer may provide greater mechanical separation, but excessive thickness can interfere with assembly tolerances.
A thinner layer can save space but may require more precise handling.
The appropriate thickness therefore depends on the mechanical gap, electrical requirements, temperature, and assembly design.
Battery Pack Insulation Applications
Battery systems are another important application area for fish paper insulation.
Fish paper has been used for battery insulation and related components because the material can provide a combination of electrical separation, flexibility, mechanical protection, and easy converting.
Single-sided adhesive fish paper can be considered for:
Battery pack insulation
Cell insulation
Terminal insulation
Battery module barriers
Busbar insulation
Battery housing protection
Battery component isolation
Local gap insulation
Protective pads
In cylindrical battery assemblies such as 18650 and 21700 formats, insulating components may be required around cell terminals and adjacent conductive structures.
The exact shape and thickness should be selected based on the cell design and battery pack architecture.
Battery insulation is a safety-critical application. Material qualification should consider electrical, thermal, mechanical, chemical, and flammability requirements rather than relying solely on nominal fish paper properties.
Motor Insulation Applications
Fish paper is widely associated with motor insulation.
Common motor insulation applications include:
Slot liners
Phase insulation
Turn-to-turn insulation
Coil insulation
Winding protection
End insulation
Electrical barrier components
Insulating washers
Electrical insulation sources identify fish paper for use in motor winding and slot insulation applications.
Single-sided adhesive fish paper may be useful when a localized insulation layer needs to remain fixed during assembly.
The adhesive can help prevent the material from moving before final assembly.
However, the adhesive temperature rating must be compatible with the motor's actual operating conditions.
Transformer Insulation
Transformers contain multiple electrical components that require insulation between conductive structures.
Fish paper can be used in transformer-related insulation applications where a flexible electrical barrier is required.
Potential uses include:
Coil insulation
Layer insulation
Local barrier insulation
Terminal insulation
Structural insulation
Component separation
Insulating gasket components
Fish paper is documented as a material used in transformer and electrical insulation applications.
When adhesive-backed fish paper is used inside transformer assemblies, the adhesive system should be selected according to temperature, electrical stress, chemical exposure, and expected service life.
Electrical Gasket Applications
The term “Insulation Gasket” refers to a gasket-like component whose primary function may be electrical isolation rather than conventional fluid sealing.

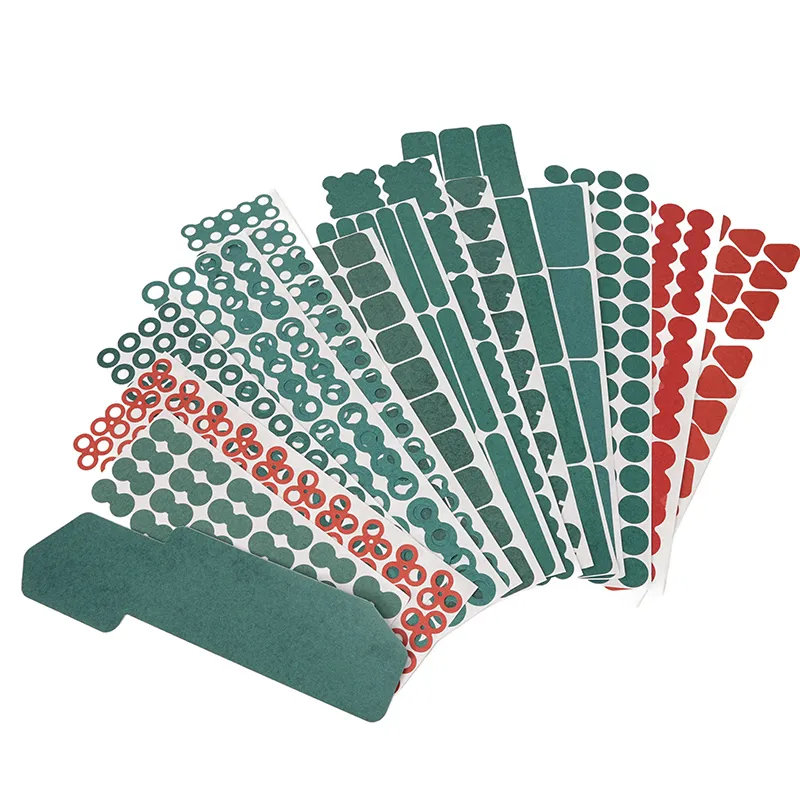

Single Sided Adhesive Fish Paper Roll can be converted into:
Insulation gaskets
Insulating washers
Insulation rings
Barrier pads
Spacer components
Terminal covers
Protective strips
Custom electrical shapes
Fish paper gasket materials are commonly associated with high dielectric insulation, forming, bending, and electrical component separation.
The adhesive backing can make these components easier to install because the gasket can be temporarily or permanently attached to the designated surface.
Electrical Isolation
Electrical isolation is a fundamental function of Insulation Gasket Materials.
When two conductive parts are positioned close to one another, an insulating barrier can prevent direct electrical contact.
Examples include:
Metal housing and PCB
Battery terminal and enclosure
Busbar and support structure
Coil and metal frame
Motor winding and core
Transformer winding and support
Connector and mounting bracket
The required insulation thickness depends on the electrical design.
Design engineers should consider:
Working voltage
Transient voltage
Breakdown strength
Creepage distance
Clearance
Temperature
Humidity
Mechanical pressure
Material condition
Contamination
The fish paper itself should not be treated as a universal substitute for a complete insulation system.
Mechanical Protection
In addition to electrical insulation, Single Sided Adhesive Fish Paper Roll can provide mechanical protection.
The material can help create a buffer between components and reduce direct contact.
This is useful when components have:
Sharp edges
Rough surfaces
Metal corners
Fasteners
Vibration
Repeated movement
Assembly friction
A properly positioned fish paper layer can reduce the possibility of abrasion between electrical components and adjacent structures.
Thermal Considerations
Fish paper is often selected for electrical applications where a combination of insulation and temperature resistance is required.
Some commercial fish paper grades are specified for electrical insulation classes around the low-to-moderate temperature range, while other specialized products may have different thermal ratings.
The adhesive layer is frequently the limiting factor.
For this reason, users should evaluate:
Continuous operating temperature
Short-term peak temperature
Thermal cycling
Adhesive softening
Adhesive flow
Adhesive aging
Substrate dimensional stability
A fish paper substrate that can withstand a certain temperature does not necessarily mean the complete adhesive-backed product has the same temperature rating.
The complete construction must be evaluated.
Material Thickness
Thickness is one of the most important specifications for Single Sided Adhesive Fish Paper Roll.
Thin fish paper can be used where:
Space is limited
Small gaps need filling
PCB protection is required
Battery insulation requires minimal thickness
Component tolerances are tight
Thicker fish paper can provide:
Greater mechanical separation
Increased rigidity
Better gap filling
More physical protection
Commercial fish paper products are available in different thickness ranges, with examples in industry listings ranging from very thin electrical grades to thicker vulcanized fiber sheets.
Thickness should therefore be selected according to the actual application instead of using one universal specification.
Roll Format
The roll format provides several manufacturing and assembly advantages.
A Single Sided Adhesive Fish Paper Roll can be:
Unwound continuously
Slit into narrow widths
Cut into predetermined lengths
Die cut into shapes
Laminated with other materials
Converted into strips
Converted into pads
Converted into washers
Converted into rings
Roll stock is especially useful for automated or semi-automated manufacturing.
Industry suppliers commonly offer fish paper in rolls, sheets, or slit coils and support converting processes such as punching, slitting, and die cutting.
Slitting and Custom Widths
Slitting allows a wide fish paper roll to be converted into narrower rolls.
This is useful when the insulation application requires a specific width.
Narrow slit rolls can be used for:
Wire insulation
Edge protection
Small component insulation
Terminal insulation
Battery assemblies
Coil wrapping
Narrow gap sealing
Custom widths can also reduce material waste.
For production applications, roll width, core diameter, winding direction, adhesive side orientation, and roll length should be specified clearly.
Die Cutting
Single Sided Adhesive Fish Paper is highly suitable for converting into custom insulation components.
Typical die-cut shapes include:
Rings
Washers
Pads
Rectangles
Squares
Strips
Tabs
Covers
Barriers
Terminal insulators
Battery gaskets
PCB protection pieces
Die cutting can produce large quantities of identical components with consistent dimensions.
Industry references identify fish paper as a material that can be punched, formed, and die cut for custom electrical components.
Adhesive Performance
The adhesive layer is a critical component of single-sided adhesive fish paper.
A pressure sensitive adhesive is designed to bond when sufficient pressure is applied.
Important adhesive characteristics include:
Initial tack
Peel adhesion
Holding power
Shear resistance
Temperature resistance
Aging resistance
Moisture resistance
Chemical resistance
Substrate compatibility
Acrylic pressure sensitive adhesives are commonly used for electrical insulation constructions, while other adhesive systems may be selected for specific temperature or chemical environments.
The correct adhesive should be chosen according to the surface and operating conditions.
Surface Compatibility
Single Sided Adhesive Fish Paper Roll can potentially bond to many common engineering surfaces, but adhesive performance depends strongly on surface condition.
Potential substrates include:
Metals
Plastics
Painted surfaces
Electrical insulation boards
Battery housings
PCB surfaces
Polymer films
Composite materials
Before application, the surface should generally be:
Clean
Dry
Free from loose particles
Free from excessive oil
Free from dust
Free from grease
Smooth enough for the adhesive to make sufficient contact
Surface preparation can significantly affect adhesive performance.
Installation Procedure
A typical installation process includes the following steps.
Clean the application surface and remove dust, loose particles, oil, grease, and other contaminants.
Determine the required insulation size.
Avoid unnecessary overlap unless the design specifically requires it.
Cut the Single Sided Adhesive Fish Paper Roll to the required length or shape.
Peel away the release liner carefully.
Avoid touching the adhesive surface excessively.
Align the fish paper with the target component.
Press the fish paper firmly onto the surface.
Pressure helps improve adhesive contact.
Check for:
Wrinkles
Air pockets
Misalignment
Exposed conductive areas
Lifted edges
Contamination
Incomplete bonding
Proper installation can improve the reliability of the insulation assembly.
Advantages for Manufacturing
Single Sided Adhesive Fish Paper Roll can improve manufacturing efficiency in several ways.
First, roll stock can simplify material handling.
Second, adhesive backing eliminates the need for a separate adhesive application step.
Third, the material can be slit into standardized widths.
Fourth, it can be converted into custom die-cut components.
Fifth, the peel-and-stick structure can reduce component movement during assembly.
These advantages can be particularly valuable in:
Electronics assembly
Battery assembly
Electrical equipment manufacturing
Motor manufacturing
Transformer manufacturing
Automotive electronics
Industrial control equipment
Consumer electronics
Application in Electronic Equipment
Electronic equipment often contains closely spaced conductive components.
Insulating materials can be used to separate these components and protect sensitive surfaces.
Single Sided Adhesive Fish Paper Roll can be considered for:
PCB insulation
Connector insulation
Terminal protection
Component isolation
Metal enclosure separation
Battery compartment insulation
Wire routing protection
Electronic module protection
Its flexible structure makes it suitable for compact assemblies where rigid insulation boards are difficult to install.
Application in Automotive Electronics
Automotive electronic assemblies can encounter:
Vibration
Temperature cycling
Humidity
Mechanical movement
Oil and grease
Limited installation space
For this reason, Electrical Insulation Materials need to be selected carefully.
Single-sided adhesive fish paper may be useful for localized insulation and protection where its material and adhesive specifications match the operating conditions.
Potential areas include:
Battery-related assemblies
Control modules
Electrical connectors
Wire harness components
Motor systems
Power electronics
Sensor assemblies
Electrical housings
Automotive applications require application-specific qualification.
Application in Power Electronics
Power electronics often require reliable separation between conductive components and housings.
Potential applications include:
Inverters
Power modules
Controllers
Switching devices
Electrical terminals
Busbar systems
Power supply assemblies
Single Sided Adhesive Fish Paper Roll can provide a thin insulating barrier without requiring a rigid molded component.
Application in Transformers and Inductors
Transformers and inductors contain coils and conductive windings that may require localized insulation.
Fish paper can be used for:
Coil barriers
Layer separation
Winding protection
Terminal insulation
Structural insulation
Insulating washers
The flexible nature of fish paper makes it useful for formed electrical components.
Application in Household Electrical Equipment
Electrical appliances may contain:
Motors
Transformers
PCBs
Heating components
Electrical connectors
Metal housings
Wiring systems
Insulation Materials can be used to separate conductive parts from surrounding structures.
Fish paper has documented applications in electrical appliances and electrical devices.
Application in Circuit Protection
Electrical protection systems such as circuit breakers, fuse assemblies, and related components can require insulating barriers.
Fish paper is commonly associated with electrical components including fuse tubes, circuit breakers, insulating washers, and electrical instruments.
Single-sided adhesive versions can simplify installation when the insulation needs to remain fixed to a specific surface.
Application in Insulating Washers
Insulating washers are designed to separate fasteners from conductive components.
Single Sided Adhesive Fish Paper Roll can be die cut into washer shapes.
Common applications include:
Screws
Bolts
Terminals
PCB mounting
Electrical brackets
Metal housings
The exact dimensions should be determined by the mechanical and electrical design.
Application in Insulating Spacers
Spacers can maintain physical separation between components.
Fish paper is useful when the spacer must also provide electrical insulation.
Potential uses include:
PCB mounting
Battery modules
Electrical terminals
Motor components
Transformer components
Electronic housings
Application in Terminal Protection
Electrical terminals can require insulation to prevent accidental contact.
A small adhesive-backed fish paper pad can be placed around or over a terminal area where appropriate.
This can provide:
Electrical separation
Surface protection
Contact prevention
Component positioning
The insulation geometry should always be designed according to the terminal structure.
Application in Battery Cell Insulation
Battery cells can have closely spaced conductive areas.
Insulating components can help separate terminals and conductive structures.
Fish paper is commonly associated with battery insulation applications, and adhesive-backed versions can provide convenient attachment.
For cylindrical battery packs, die-cut rings and pads can be produced from fish paper.
For larger battery modules, slit strips and custom barriers can also be considered.
Application in PCB and Metal Housing Separation
One common use of thin adhesive-backed insulation is creating a barrier between a circuit board and a metal enclosure.
Without an appropriate insulating layer, a conductive enclosure could potentially contact exposed conductive areas of a PCB.
The fish paper layer can provide physical separation.
The adhesive helps keep the insulation positioned correctly.
This is especially useful where the PCB and housing are assembled closely together.
Application in Gap Sealing
Gap sealing does not necessarily mean fluid sealing.
In electrical assemblies, a gap-sealing insulation gasket may be intended to:
Block direct electrical contact
Cover openings
Separate surfaces
Reduce movement
Protect edges
Fill small spaces
Prevent contamination from entering a sensitive area
Single Sided Adhesive Fish Paper Roll is well suited to such localized applications because it combines a flexible substrate with an adhesive attachment surface.
Material Selection Factors
When selecting Single Sided Adhesive Fish Paper Roll, several parameters should be evaluated.
Choose a thickness that meets both electrical and mechanical requirements.
The width should match the application or converting process.
Select an adhesive compatible with the target surface and operating temperature.
Consider initial tack, peel adhesion, and long-term holding power.
Evaluate continuous and peak temperature exposure.
Consider the expected environmental moisture.
Check compatibility with oils, grease, solvents, and cleaning agents.
Evaluate vibration, bending, compression, abrasion, and movement.
The insulation system should be evaluated against the actual voltage and electrical safety requirements.
Storage Recommendations
Adhesive-backed insulation materials should be stored under appropriate conditions.
Recommended considerations include:
Keep rolls clean
Protect from excessive humidity
Avoid direct sunlight
Avoid excessive heat
Keep the original packaging intact
Avoid crushing the roll
Store on a stable surface
Prevent contamination of the adhesive
Avoid unnecessary removal of the release liner
Storage conditions can affect adhesive performance.
Handling Recommendations
When handling Single Sided Adhesive Fish Paper Roll:
Use clean hands or gloves when necessary
Avoid touching the adhesive excessively
Do not drag the adhesive across contaminated surfaces
Keep the release liner in place until installation
Avoid sharp bending beyond the material capability
Prevent excessive stretching
Store partially used rolls properly
Correct handling helps preserve both the insulation and adhesive properties.
Quality Considerations
A quality Single Sided Adhesive Fish Paper Roll should have consistent:
Thickness
Width
Surface condition
Adhesive coating
Adhesive coverage
Roll winding
Edge quality
Release liner performance
Thickness uniformity is especially important for precision insulation applications.
Uneven thickness can affect:
Mechanical clearance
Electrical separation
Assembly tolerances
Die cutting
Surface contact
Therefore, thickness control is an important part of insulation material quality.
Common Converting Options
The material can be converted into multiple formats.
Converts wide rolls into narrow rolls.
Converts roll stock into flat sheets.
Produces narrow insulation strips.
Produces repeatable custom shapes.
Produces holes, washers, rings, and other components.
Combines fish paper with other insulating or functional materials.
Allows dimensions and shapes to be adapted to the application.
Commercial fish paper suppliers commonly identify slitting, punching, forming, die cutting, sheets, rolls, and slit coils as available formats or processing options.
Single Sided Adhesive Fish Paper Roll for Industrial Insulation
Industrial electrical equipment often requires compact insulating components.
Single-sided adhesive fish paper can provide a practical solution for:
Electrical panels
Control cabinets
Motor systems
Power supplies
Transformers
Industrial controllers
Electrical instruments
Relay assemblies
Terminal systems
Sensor equipment
Its flexible structure allows the insulation to be adapted to many component geometries.
Benefits of Roll-Based Insulation Material
Using roll stock can offer several benefits compared with pre-cut sheets.
Rolls can provide:
Continuous material
Efficient storage
Flexible cutting
Easy slitting
Automated feeding
Reduced handling
Efficient material utilization
Compatibility with converting equipment
For high-volume production, roll formats can support automated or semi-automated processes.
Single Sided Adhesive Fish Paper for Manual Assembly
Manual assembly is another area where adhesive-backed fish paper can be useful.
A technician can:
Measure the required area.
Cut the required piece.
Remove the release liner.
Position the insulation.
Apply pressure.
Inspect the finished assembly.
This process is relatively simple and does not necessarily require specialized adhesive dispensing equipment.
Single Sided Adhesive Fish Paper for Automated Production
For automated production, roll material can be integrated with:
Slitting equipment
Die-cutting equipment
Automatic dispensing systems
Pick-and-place processes
Labeling systems
Laminating systems
Continuous converting lines
The actual automation method depends on the roll dimensions, liner design, adhesive properties, equipment configuration, and component geometry.
Environmental Considerations
Environmental conditions can affect both the fish paper substrate and adhesive.
Important environmental factors include:
Temperature
Humidity
Water
Oil
Grease
Chemicals
Dust
UV exposure
Mechanical vibration
For indoor electrical equipment, the material requirements may be relatively moderate.
For outdoor, automotive, industrial, or high-temperature applications, more extensive testing may be required.
Electrical Safety Considerations
Insulation materials should always be treated as part of the complete electrical design.
The correct material selection depends on:
Voltage
Current
Frequency
Temperature
Material thickness
Dielectric strength
Creepage
Clearance
Pollution level
Mechanical conditions
Applicable standards
A generic fish paper specification should not be interpreted as proof that the material is suitable for every electrical application.
For safety-critical equipment, the complete insulation system should be validated according to applicable industry and product standards.
Why Fish Paper Remains Useful
Modern electrical equipment contains many advanced insulation materials, including polyester films, polyimide films, aramid papers, fiberglass materials, and engineered polymer films.
Fish paper remains useful because it offers a distinctive combination of:
Flexibility
Mechanical strength
Electrical insulation
Formability
Punchability
Wear resistance
Cost efficiency
Easy converting
Industry references continue to identify fish paper as an electrical insulation material used across motors, transformers, batteries, appliances, electronic devices, gaskets, washers, and related components.
Fish Paper Compared With Plastic Insulation Films
Plastic films such as PET and polyimide may provide excellent electrical insulation and dimensional stability.
Fish paper offers a different balance of properties.
Fish paper can be advantageous when:
Mechanical toughness is important
Punching is required
Forming is required
A paper-like surface is preferred
A gasket-like structure is required
Cost efficiency is important
A thicker flexible insulation layer is required
The best material depends on the application.
There is no single insulation material that is ideal for every electrical system.
Fish Paper Compared With Ordinary Paper
Ordinary paper should not automatically be substituted for electrical grade fish paper.
Electrical grade fish paper is specifically developed for demanding insulation applications and has physical and dielectric properties that distinguish it from general-purpose paper.
For electrical applications, users should select a material designed and qualified for the intended insulation function.
Fish Paper Compared With Rigid Insulation Board
Rigid electrical insulation boards can provide structural support and high stiffness.
However, they may be difficult to install around curved or irregular components.
Fish paper offers greater flexibility and can often be bent, punched, formed, and converted into customized shapes.
This makes it useful for localized insulation where rigid boards are unnecessary.
Fish Paper Compared With Electrical Tape
Traditional electrical tape is primarily designed as a flexible Adhesive Tape.
Single Sided Adhesive Fish Paper is different because the substrate itself provides a relatively robust electrical insulation structure.
The fish paper can also be die cut into precise shapes.
Therefore, it can function as a more structured insulation gasket or protective component rather than simply a wrapping tape.
Common Product Forms
Single Sided Adhesive Fish Paper Roll can be supplied as:
Full width rolls
Narrow slit rolls
Short rolls
Long production rolls
Sheets
Strips
Pads
Gaskets
Washers
Rings
Die-cut components
Custom shapes
This versatility allows the same basic material family to serve both small-scale manual assembly and large-scale industrial manufacturing.
Customization Options
Depending on the converting capability, customization may include:
Thickness
Width
Roll length
Slit width
Adhesive type
Adhesive coverage
Release liner
Shape
Die-cut pattern
Hole dimensions
Inner diameter
Outer diameter
Corner radius
Packaging format
Custom processing is particularly valuable when standard roll dimensions do not match a production requirement.
Typical Product Naming
The same or similar material may appear under different names in industrial catalogs.
Common terminology includes:
Single Sided Adhesive Fish Paper
Adhesive Fish Paper
Self Adhesive Fish Paper
Adhesive Backed Fish Paper
Fish Paper Insulation
Fish Paper Insulation Roll
Electrical Fish Paper
Electrical Insulation Fish Paper
Vulcanized Fiber Paper
Adhesive Vulcanized Fiber
Fish Paper Gasket
Fish Paper Insulation Gasket
Fish Paper Insulation Sheet
Fish Paper Insulation Roll
Single Sided Fish Paper
Adhesive Electrical Insulation Paper
Electrical Insulation Gasket Material
Using several accurate industry terms can make product descriptions easier for engineers, purchasing teams, maintenance professionals, and manufacturers to understand.
Key Benefits at a Glance
Single Sided Adhesive Fish Paper Roll provides a combination of insulation and installation convenience.
Major benefits include:
Electrical insulation: Helps separate conductive components.
Flexible structure: Can conform to many component geometries.
Adhesive attachment: Allows convenient peel-and-stick installation.
Gap sealing: Helps cover and fill localized gaps.
Mechanical protection: Provides a barrier against abrasion and contact.
Wear resistance: Suitable for applications involving physical contact.
Grease resistance: Useful in selected mechanical and electrical environments.
Aging resistance: Supports long-term insulation applications when properly specified.
Water resistance: Provides useful resistance in suitable environmental conditions.
Easy converting: Can be slit, cut, punched, formed, and die cut.
Roll format: Supports efficient production and material handling.
Product Selection Guide
When selecting a Single Sided Adhesive Fish Paper Roll, consider the following questions:
Determine the minimum electrical and mechanical insulation thickness.
Select a roll width that matches the installation area or converting equipment.
Choose an adhesive compatible with the substrate and operating conditions.
Consider continuous and peak temperatures.
Verify chemical compatibility before use.
Consider adhesive shear strength and substrate durability.
If so, evaluate the complete battery safety and insulation requirements.
Check electrical clearance, component geometry, and surface compatibility.
Provide detailed drawings and dimensional requirements.
Frequently Asked Questions
It is an electrical insulation material consisting of a fish paper substrate with pressure sensitive adhesive applied to one side.
It means the adhesive is present on one side only. The opposite side remains a non-adhesive insulating surface.
Yes. Electrical grade fish paper is widely used for electrical insulation and is available in forms such as sheets, rolls, and slit coils.
Fish paper is used in battery insulation applications, including battery pack and cell-related insulation. The specific material must be qualified for the intended battery design.
Yes, it can be considered for localized PCB insulation and separation from conductive structures when the thickness, adhesive, temperature, and electrical requirements are appropriate.
Yes. Fish paper is commonly converted through punching, forming, slitting, and die cutting.
Yes. Fish paper is commonly available in roll, sheet, and slit-coil formats.
No. Single-sided adhesive fish paper has adhesive on one side, while double-sided adhesive fish paper has adhesive on both sides.
Yes. Fish paper is used for electrical gasket and washer applications, and adhesive-backed constructions can provide convenient installation.
Water resistance varies according to the specific material construction. A product described as water resistant should not automatically be treated as completely waterproof.
Fish paper grades can provide useful heat resistance, but the allowable operating temperature depends on the specific substrate and adhesive system. Some commercial electrical fish paper products are specified for particular insulation temperature classes.
Not universally. Fish paper, PET, polyimide, aramid, and other insulation materials have different performance characteristics. The correct material should be selected according to the actual electrical, thermal, mechanical, and environmental requirements.
Conclusion
Single Sided Adhesive Fish Paper Roll for Insulation Applications is a versatile electrical insulation material designed to combine the useful characteristics of fish paper with the installation convenience of pressure sensitive adhesive.
Its key features include good electrical insulation, flexibility, water resistance, wear resistance, grease resistance, aging resistance, and useful gap sealing capability. These characteristics make it suitable for a broad range of electrical and electronic applications.
The material can be used for PCB protection, battery insulation, electrical isolation, motor insulation, transformer insulation, terminal protection, insulating gaskets, washers, spacers, component barriers, and gap-filling applications.
Its roll format provides flexibility for industrial converting, while adhesive backing simplifies manual and automated assembly.
Fish paper is widely recognized as an electrical insulation material with applications including motors, transformers, batteries, electrical devices, circuit breakers, gaskets, washers, and electronic equipment.
For production applications, the most important factors are not simply the name of the material but the complete construction. Thickness, fish paper grade, adhesive type, adhesive thickness, release liner, temperature rating, electrical properties, chemical compatibility, dimensional stability, and converting requirements should all be considered.
For this reason, Single Sided Adhesive Fish Paper Roll is best viewed as a flexible insulation platform that can be converted into the exact format required by an electrical or electronic assembly.
Whether supplied as a continuous roll, narrow slit roll, strip, sheet, gasket, washer, ring, pad, or precision die-cut component, the material can provide an efficient method of creating electrical barriers and protective insulation in compact assemblies.
This website uses cookies to ensure you get the best experience on our website.
WhatsApp
Phone
