Introduction to Self-adhesive Shellac Paper Roll

Self-adhesive Shellac Paper Roll is a specialized electrical insulation material designed for applications requiring reliable insulation, gap filling, protection, and easy installation. It combines the excellent dielectric properties of shellac insulation paper with a pressure-sensitive adhesive layer, allowing users to apply the material quickly after removing the release liner.

Single-sided Adhesive Shellac Paper, also known as Adhesive-backed Shellac Paper or Shellac Paper Insulation Gaskets, is manufactured by coating one side of base shellac insulation paper with a pressure-sensitive adhesive layer and adding a protective release liner. The adhesive layer is commonly made from acrylic flame-retardant adhesive, providing stable bonding performance while maintaining the electrical insulation characteristics of the base material.

Unlike traditional insulation paper that requires additional fixing methods, self-adhesive shellac paper provides a convenient peel-and-stick installation process. This feature makes it suitable for precision applications where accurate positioning, reliable insulation, and efficient assembly are required.

The product is commonly produced using shellac paper with thicknesses ranging from 0.1 mm to 0.5 mm. Different thickness options allow users to select suitable materials for various insulation distances, mechanical protection requirements, and gap filling applications.

Self-adhesive Shellac Paper Roll is widely used in electrical equipment, lithium battery assemblies, electronic components, motors, transformers, PCB protection systems, and other industrial applications where stable insulation performance is essential.

Definition of Single-sided Adhesive Shellac Paper

Single-sided Adhesive Shellac Paper is an insulating paper product with adhesive coating applied to only one surface. The opposite side remains a pure insulation substrate, preserving the original electrical and mechanical characteristics of shellac paper.

The structure usually consists of three layers:

The single-sided adhesive structure provides a balance between strong positioning ability and insulation performance.

Compared with double-sided adhesive Insulation Materials, single-sided adhesive shellac paper offers:

Overview of Shellac Paper Insulation Material

Shellac paper, also commonly known as green shell paper or electrical insulating paperboard, is a traditional insulation material used in electrical and mechanical applications.

It is generally produced from:

• Wood fiber pulp

• Mixed pulp materials

• Cotton fiber blended pulp

Through specialized manufacturing processes, the material achieves a combination of:

• Electrical insulation capability

• Mechanical flexibility

• Moisture resistance

• Abrasion resistance

• Aging resistance

Shellac paper is commonly available in different colors:

The color difference is generally related to formulation and production processing methods.

Material Structure of Adhesive-backed Shellac Paper

The structure of adhesive-backed shellac paper determines its performance in industrial applications.

Base Insulation Paper Layer

The base shellac insulation paper provides the primary electrical protection function.

Main characteristics include:

• High dielectric strength

• Good flexibility

• Stable thickness

• Resistance to mechanical stress

The insulation paper layer is responsible for maintaining electrical separation between conductive components.

Adhesive Layer

The adhesive layer provides bonding capability.

Common adhesive characteristics include:

Acrylic flame-retardant adhesive is commonly selected because it provides reliable adhesion while maintaining insulation compatibility.

Release Liner Layer

The release liner protects the adhesive surface before use.

Functions include:

• Preventing contamination

• Maintaining adhesive quality

• Supporting easy peeling

• Improving storage stability

Before application, users simply remove the liner and press the material onto the target surface.

Product Features of Self-adhesive Shellac Paper Roll

1. Excellent Electrical Insulation Performance

Electrical insulation is the primary function of shellac paper materials.

The material helps prevent:

• Electrical short circuits

• Unwanted current flow

• Component contact issues

• Insulation breakdown

Applications requiring electrical separation benefit from the stable dielectric properties of shellac paper.

2. Flexible Material Structure

Self-adhesive shellac paper combines flexibility with structural stability.

Flexibility allows it to:

• Fit irregular surfaces

• Fill narrow spaces

• Wrap around components

• Adapt to assembly requirements

This makes it suitable for precision electrical applications.

3. Convenient Peel-and-stick Installation

The self-adhesive design simplifies installation.

Traditional insulation materials may require:

• Mechanical fixing

• Additional bonding methods

• Complex assembly procedures

Self-adhesive shellac paper only requires:

1. Remove release liner

2. Position material

3. Apply pressure

4. Complete installation

This improves assembly efficiency.

4. Good Water Resistance

Shellac paper provides resistance against environmental moisture.

Water resistance helps:

• Maintain insulation stability

• Improve durability

• Protect electrical components

5. Abrasion Resistance

The material provides good resistance against mechanical friction.

This helps protect:

• Wire surfaces

• Component edges

• Electrical assemblies

6. Grease Resistance

Shellac paper insulation materials can resist exposure to certain oily environments.

This characteristic supports applications where components may encounter:

• Industrial oils

• Mechanical lubricants

• Processing environments

7. Anti-aging Performance

Long-term stability is important for Electrical Insulation Materials.

Anti-aging characteristics help maintain:

• Mechanical properties

• Insulation performance

• Structural integrity

Technical Specification Table

Gap Filling and Insulation Function

One of the important advantages of self-adhesive shellac paper is its ability to provide both insulation and gap filling functions.

In electronic and electrical assemblies, small gaps between components can create problems such as:

• Mechanical movement

• Electrical contact risks

• Component vibration

• Heat-related stress

Shellac paper insulation gaskets provide a precise solution by filling these spaces while maintaining insulation properties.

Typical gap applications include:

The uniform thickness of shellac paper allows accurate fitting in small spaces.

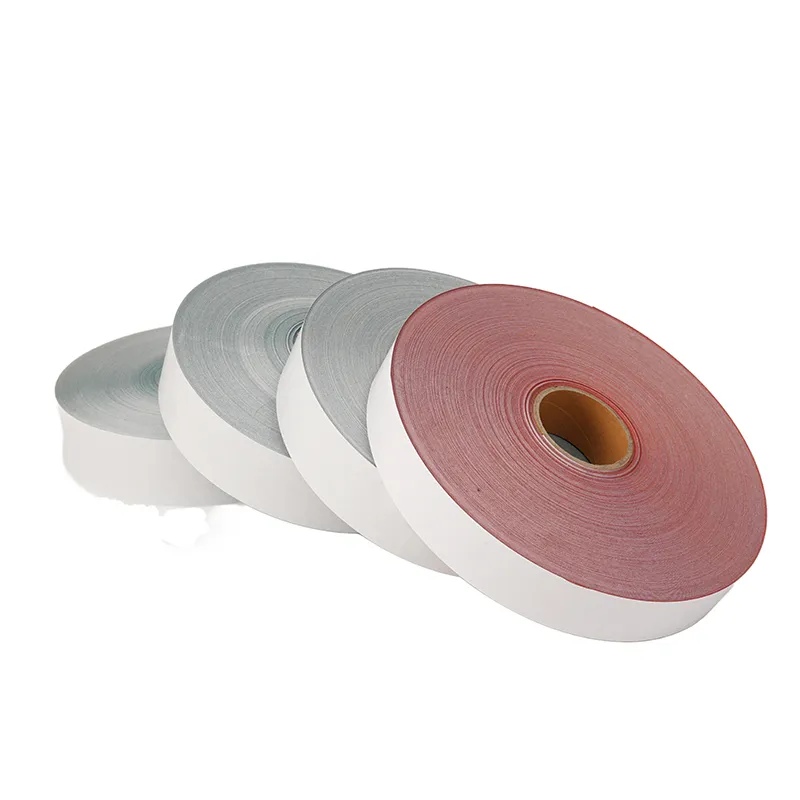

Self-adhesive Shellac Paper Roll, Single-sided Adhesive

Detailed Application Areas

Self-adhesive Shellac Paper Roll is widely used in electrical insulation, electronic assembly, battery protection, and industrial manufacturing applications. Its combination of insulation performance, flexible structure, adhesive convenience, and reliable mechanical properties makes it suitable for precision applications where space limitations and component protection are important.

The single-sided adhesive structure allows the material to be fixed securely while maintaining the insulation function of the non-adhesive surface. This design provides advantages in applications requiring both bonding and electrical separation.

1. Lithium-ion Battery Pack Insulation Applications

One of the important application areas of self-adhesive shellac paper is lithium-ion battery pack insulation.

Modern battery assemblies require reliable insulation materials to prevent:

• Short circuits

• Electrical contact between components

• Mechanical damage

• Component movement

• Thermal stress effects

Self-adhesive shellac paper is commonly applied in:

Battery Cell Insulation Function

Battery cells require proper insulation between conductive components.

Self-adhesive shellac paper helps provide:

• Stable electrical separation

• Mechanical support

• Surface protection

• Reliable positioning

The adhesive backing allows the insulation material to remain fixed during assembly and operation.

Battery Tab Protection

Battery tabs are sensitive conductive components requiring protection from accidental contact.

Shellac paper insulation gaskets can provide:

2. PCB Board Insulation Applications

Printed circuit boards contain many electronic components with different electrical potentials.

Self-adhesive shellac paper can be used between:

• PCB boards and metal housings

• Electronic components and support structures

• Conductive parts and mechanical frames

Applications include:

Advantages in Electronic Assembly

The material provides:

• Thin insulation thickness

• Accurate gap filling

• Easy installation

• Stable bonding

These characteristics make it suitable for compact electronic designs where available space is limited.

3. Motor Insulation Applications

Electric motors require insulation materials to separate conductive components and maintain reliable operation.

Shellac paper is commonly used in:

• Motor winding insulation

• Coil separation

• Slot insulation

• Component spacing

Motor applications benefit from:

4. Transformer Coil Insulation Applications

Transformers require multiple layers of insulation to prevent electrical breakdown between coils and components.

Self-adhesive shellac paper can support:

• Coil layer separation

• Winding protection

• Insulation spacing

• Component positioning

The material provides a practical solution for transformer assembly where thin and reliable insulation layers are required.

5. High-frequency Circuit Board Applications

High-frequency electronic equipment requires insulation materials with stable thickness and reliable performance.

Self-adhesive shellac paper supports:

• Inter-layer insulation

• Component separation

• Surface protection

• Mechanical spacing

Its thickness uniformity helps maintain precise assembly dimensions.

6. High-temperature Temporary Protection Applications

Self-adhesive shellac paper can also be used as a temporary protective gasket during industrial processes.

Typical applications include:

The material helps reduce direct contact between components during processing.

Manufacturing Process of Self-adhesive Shellac Paper Roll

The production of self-adhesive shellac paper involves multiple controlled manufacturing stages.

1. Base Shellac Paper Production

The first stage involves producing the insulation paper substrate.

Common raw materials include:

• Wood fiber pulp

• Mixed fiber pulp

• Cotton fiber materials

The production process generally includes:

2. Insulation Paper Treatment

After base paper production, additional processing improves performance.

Treatment objectives include:

• Better electrical insulation

• Improved flexibility

• Enhanced mechanical strength

• Improved surface quality

3. Adhesive Coating Process

A pressure-sensitive adhesive layer is applied to one side of the shellac paper.

The coating process requires control of:

Acrylic flame-retardant adhesive is commonly used because of its stable performance.

4. Release Liner Lamination

After adhesive coating, a release liner is laminated onto the adhesive surface.

The release liner provides:

• Adhesive protection

• Easy storage

• Convenient installation

• Contamination prevention

Before use, the liner is removed to expose the adhesive layer.

5. Slitting and Roll Processing

Self-adhesive shellac paper is often converted into rolls according to customer requirements.

Customization options include:

Precision slitting allows the material to meet different assembly requirements.

Performance Advantages Comparison

Self-adhesive Shellac Paper vs Traditional Insulation Paper

Self-adhesive Shellac Paper vs Double-sided Adhesive Type

Selecting the correct adhesive structure depends on application requirements.

Key Performance Advantages

1. Excellent Electrical Insulation

Electrical insulation is the primary advantage.

The material helps:

• Separate conductive components

• Reduce electrical contact risks

• Improve assembly reliability

2. Precise Thickness Control

Thickness uniformity is important for precision applications.

Advantages include:

• Accurate gap filling

• Stable component spacing

• Better assembly consistency

Common thickness options:

3. Good Flexibility

Flexible insulation materials can adapt to different structures.

Benefits:

• Easy installation

• Better surface contact

• Reduced cracking risk

• Suitable for curved surfaces

4. Strong Adhesion Performance

The pressure-sensitive adhesive provides:

• Immediate bonding

• Stable positioning

• Convenient installation

The adhesive layer reduces the need for additional mechanical fixing methods.

5. Resistance to Environmental Factors

Self-adhesive shellac paper provides resistance against:

• Moisture

• Mechanical friction

• Aging effects

• Mild chemical exposure

This improves reliability in various industrial environments.

Self-adhesive Shellac Paper Roll, Single-sided Adhesive

Detailed Technical Specification Information

Self-adhesive Shellac Paper Roll is designed as a precision insulation material combining a shellac paper substrate, pressure-sensitive adhesive coating, and protective release liner. Its technical structure allows it to meet different requirements in electrical insulation, electronic assembly, battery protection, and industrial gap filling applications.

The material can be customized according to thickness, width, roll length, and application requirements.

Technical Specification Table

Material Properties Analysis

Electrical Insulation Performance

Electrical insulation is the fundamental property of shellac paper materials.

In electrical assemblies, insulation materials must prevent unwanted current flow between components.

Self-adhesive shellac paper provides:

• Stable dielectric separation

• Reliable component isolation

• Reduced electrical contact risk

• Improved assembly safety

The insulation layer remains functional even after adhesive application because the adhesive is specifically designed for insulation-related applications.

Mechanical Flexibility

Shellac paper combines strength with flexibility.

This balance allows the material to be used in applications where rigid insulation boards cannot provide sufficient adaptability.

Mechanical advantages include:

Flexible insulation materials are especially valuable in electronic devices where internal space is limited.

Moisture Resistance Performance

Moisture can negatively affect electrical insulation systems.

Self-adhesive shellac paper provides resistance against environmental humidity.

Benefits include:

• Improved insulation stability

• Reduced moisture-related performance changes

• Better durability in various environments

Applications requiring moisture resistance include:

• Battery assemblies

• Electronic equipment

• Industrial electrical systems

Abrasion Resistance Characteristics

During assembly and operation, insulation materials may experience mechanical friction.

Abrasion resistance helps protect the material from:

• Surface wear

• Mechanical damage

• Repeated contact

This property improves reliability in applications involving movement or vibration.

Grease Resistance Characteristics

Industrial environments may contain oils, lubricants, or grease.

Shellac paper insulation materials provide good resistance against certain oily conditions.

Advantages include:

• Better surface protection

• Reduced material degradation

• Improved operational stability

Anti-aging Performance

Long-term reliability is important for electrical insulation materials.

Anti-aging characteristics help maintain:

• Physical structure

• Adhesive stability

• Electrical insulation performance

This makes the material suitable for applications requiring extended service life.

Electrical Application Advantages

Battery Pack Insulation Benefits

Lithium battery systems require reliable insulation solutions.

Self-adhesive shellac paper provides:

PCB Insulation Benefits

Electronic devices increasingly require compact insulation materials.

Self-adhesive shellac paper helps support:

• PCB protection

• Housing insulation

• Component spacing

• Mechanical separation

Advantages include:

• Thin thickness

• Accurate fitting

• Simple installation

• Stable positioning

Motor Insulation Benefits

Electric motors require insulation materials that can withstand mechanical and electrical stress.

Applications include:

• Coil separation

• Winding protection

• Internal insulation layers

Benefits:

Transformer Insulation Benefits

Transformers require reliable insulation between conductive layers.

Shellac paper can be used for:

• Coil isolation

• Layer separation

• Internal insulation spacing

The uniform thickness helps maintain stable electrical distances.

Industrial Selection Guide

Choosing suitable self-adhesive shellac paper requires evaluation of several factors.

1. Thickness Selection

Thickness selection depends on insulation distance and gap requirements.

The correct thickness helps achieve proper insulation performance.

2. Width Selection

Roll width can be customized according to application requirements.

Available width range:

2.8 mm – 1000 mm

Narrow rolls are suitable for:

• Small electronic components

• Precision assembly

Wide rolls are suitable for:

• Larger insulation areas

• Industrial processing

3. Roll Length Selection

Roll length options generally range from:

50 m – 200 m

Longer rolls provide advantages such as:

• Reduced replacement frequency

• Improved production efficiency

• Easier continuous processing

4. Adhesive Type Consideration

The adhesive layer influences application performance.

Important factors include:

Custom Processing Information

Self-adhesive shellac paper rolls can be processed according to different application requirements.

Customization options include:

Roll Slitting

Precision slitting allows production of narrow strips.

Applications:

• Battery assembly

• Electronic components

• Small insulation areas

Available slit widths:

2.8 mm – 1000 mm

Thickness Customization

Different thickness requirements can be supported.

Common thickness range:

0.1 mm – 0.5 mm

Thickness selection depends on:

• Electrical spacing

• Mechanical support

• Gap filling requirements

Roll Length Customization

Roll lengths can be adjusted according to production needs.

Common range:

50 m – 200 m

Adhesive Configuration

Single-sided adhesive design provides:

• One adhesive surface

• One pure insulation surface

This structure is different from double-sided adhesive versions.

Single-sided Adhesive vs Double-sided Adhesive

Structural Difference

Why Choose Single-sided Adhesive Structure?

Single-sided adhesive shellac paper is preferred when users require:

• Electrical insulation

• Secure positioning

• One-sided bonding

• Easy installation

• Protection of opposite surface

The non-adhesive side maintains the original insulation characteristics of shellac paper.

Storage and Handling Recommendations

Proper storage helps maintain adhesive performance and material quality.

Storage Conditions

Recommended conditions:

Handling Guidelines

During handling:

• Avoid damaging the roll edges

• Keep adhesive surface protected

• Prevent dust contamination

• Store in original packaging when possible

Proper handling ensures reliable installation performance.

Quality Control Considerations

Quality control is important for insulation materials.

Important inspection areas include:

Self-adhesive Shellac Paper Roll, Single-sided Adhesive

Advantages Summary of Self-adhesive Shellac Paper

Self-adhesive Shellac Paper Roll combines electrical insulation performance, adhesive convenience, mechanical flexibility, and precision processing capability. It is designed to meet the requirements of modern electronic, electrical, and industrial assembly applications.

The unique single-sided adhesive structure provides both secure attachment and reliable insulation protection, making it an effective material choice for applications requiring accurate positioning and electrical separation.

Main Advantages Overview

Detailed Industry Application Analysis

1. Lithium Battery Manufacturing Applications

The rapid development of rechargeable battery systems has increased the demand for reliable insulation materials. Battery packs contain multiple conductive components arranged in compact structures, requiring effective insulation solutions.

Self-adhesive Shellac Paper is used in battery systems because it provides:

• Electrical isolation

• Mechanical protection

• Space filling

• Component positioning

Battery Pack Assembly Applications

18650 Battery Pack Applications

18650 battery assemblies require precise insulation between cylindrical cells and surrounding components.

Self-adhesive shellac paper can provide:

• Cell-to-cell insulation

• Contact protection

• Mechanical stabilization

• Gap filling

The thin structure allows installation in compact battery designs.

21700 Battery Pack Applications

21700 battery systems have larger dimensions and higher energy density requirements.

The insulation material supports:

• Battery module protection

• Internal separation

• Electrical safety improvement

• Assembly convenience

2. Electronic Product Applications

Electronic devices continue to become smaller and more integrated. This creates greater demand for thin, flexible, and reliable insulation materials.

Self-adhesive shellac paper is suitable for:

• Circuit board protection

• Component isolation

• Housing insulation

• Internal spacing applications

PCB Board Protection

Printed circuit boards often require insulation between electronic components and metal structures.

Applications include:

3. Electrical Equipment Applications

Electrical equipment requires insulation materials capable of maintaining performance under long-term operation.

Self-adhesive shellac paper is used in:

• Motors

• Transformers

• Electrical panels

• Control equipment

Motor Winding Insulation

Motor windings generate electrical and mechanical stress during operation.

Shellac paper provides:

Transformer Coil Isolation

Transformer systems require multiple insulation layers.

Shellac paper supports:

• Coil separation

• Layer insulation

• Electrical distance control

• Component protection

4. High-temperature Industrial Protection Applications

Industrial processes may involve temporary exposure to heat, pressure, or mechanical contact.

Self-adhesive shellac paper can be used for temporary protection during:

• High-frequency welding

• Laser cutting operations

• Precision machining

• Assembly processes

Installation Method of Self-adhesive Shellac Paper

The peel-and-stick design makes installation simple and efficient.

Standard Installation Steps

Step 1: Surface Preparation

Before installation:

• Clean the application surface

• Remove dust and oil

• Ensure the surface is dry

A clean surface improves adhesive performance.

Step 2: Material Cutting

Cut the shellac paper roll into the required size.

Consider:

• Application area

• Required thickness

• Gap dimensions

Step 3: Remove Release Liner

Carefully peel away the protective liner.

The adhesive layer becomes ready for application.

Step 4: Positioning

Place the material accurately on the target location.

Correct positioning ensures:

• Proper insulation coverage

• Stable attachment

• Effective gap filling

Step 5: Apply Pressure

Press the material firmly onto the surface.

Pressure helps:

• Improve adhesive contact

• Remove air gaps

• Increase bonding stability

Common Problems and Solutions

Problem 1: Adhesive Does Not Stick Properly

Possible causes:

• Surface contamination

• Moisture presence

• Insufficient pressure

Solutions:

Problem 2: Material Warping After Installation

Possible causes:

• Incorrect storage

• Uneven installation

• Excessive mechanical stress

Solutions:

• Store material properly

• Apply evenly

• Select suitable thickness

Problem 3: Poor Gap Filling Performance

Possible causes:

• Incorrect thickness selection

• Improper material size

• Uneven installation

Solutions:

• Select suitable thickness

• Match material size with application area

• Ensure accurate positioning

Problem 4: Adhesive Contamination

Possible causes:

• Release liner removed too early

• Improper handling

Solutions:

• Keep liner attached before use

• Avoid touching adhesive surface

• Store in clean conditions

Frequently Asked Questions (FAQ)

What is Self-adhesive Shellac Paper?

Self-adhesive Shellac Paper is an electrical insulation paper coated with adhesive on one side. It combines shellac paper insulation properties with peel-and-stick installation convenience.

What is another name for this product?

It is also known as:

• Adhesive-backed Shellac Paper

• Single-sided Adhesive Shellac Paper

• Shellac Paper Insulation Gaskets

What is the difference between single-sided and double-sided adhesive shellac paper?

Single-sided adhesive shellac paper has adhesive on one side only, while the reverse side remains pure insulation material.

Double-sided adhesive versions have adhesive coatings on both sides.

What thickness options are available?

Common thickness ranges are:

0.1 mm to 0.5 mm

Different thicknesses are selected according to insulation distance and gap filling requirements.

What gap sizes can shellac paper fill?

It is commonly used for precision gaps ranging approximately from:

0.1 mm to 1.5 mm

What materials are used to manufacture shellac paper?

Common base materials include:

• Wood fiber pulp

• Mixed pulp

• Cotton fiber blended pulp

What adhesive type is commonly used?

Pressure-sensitive acrylic flame-retardant adhesive is commonly used because it provides stable bonding performance and compatibility with insulation applications.

Where is self-adhesive shellac paper commonly used?

Applications include:

• Lithium battery packs

• PCB insulation

• Motor winding insulation

• Transformer coil separation

• Electronic component protection

• Industrial gap filling

Can shellac paper be customized?

Yes. Custom processing options may include:

Industry Development Trends

The demand for advanced insulation materials continues to increase as electronic devices become smaller and electrical systems become more complex.

1. Increasing Demand for Thin Insulation Materials

Modern devices require:

• Smaller components

• Higher integration

• Reduced internal space

Thin shellac paper materials provide effective insulation without increasing product size.

2. Growth of Battery Applications

The expansion of:

• Electric bicycles

• Portable power equipment

• Energy storage systems

• Rechargeable devices

continues to increase demand for reliable battery insulation materials.

3. Improved Processing Customization

Future insulation materials are expected to provide:

• More precise thickness control

• More flexible roll sizes

• Better adhesive performance

4. Enhanced Safety Requirements

Electrical systems increasingly require:

• Reliable insulation

• Flame-retardant materials

• Stable long-term performance

Self-adhesive shellac paper supports these requirements through its insulation structure and adhesive technology.

Self-adhesive Shellac Paper Roll, Single-sided AdhesiveComplete Product Category Description

Overview of Self-adhesive Shellac Paper Roll

Self-adhesive Shellac Paper Roll is a high-performance electrical insulation material designed for applications requiring reliable insulation, precise gap filling, and convenient installation. By combining traditional shellac insulation paper with a pressure-sensitive adhesive layer, this material provides a practical solution for modern electrical and electronic assembly requirements.

Single-sided Adhesive Shellac Paper, also known as Adhesive-backed Shellac Paper or Shellac Paper Insulation Gaskets, consists of a shellac paper insulation substrate coated with adhesive on one side and protected by a release liner. After removing the liner, the material can be directly applied to the required surface without additional fixing methods.

The product is widely used in industries where insulation reliability, dimensional accuracy, and assembly efficiency are important. Typical applications include lithium battery pack assembly, PCB insulation, motor winding protection, transformer coil isolation, electronic component spacing, and industrial gap filling.

The single-sided adhesive structure provides a unique combination of:

• Strong positioning ability

• Electrical insulation performance

• Thin profile design

• Easy installation

• Flexible application capability

This makes Self-adhesive Shellac Paper Roll an effective material for compact electrical and mechanical systems.

Product Structure Overview

The structure of Self-adhesive Shellac Paper Roll consists of three functional layers.

Each layer contributes to the overall performance of the insulation material.

Complete Technical Review

Electrical Performance

Electrical insulation capability is the primary function of shellac paper.

The material helps maintain separation between conductive components and reduces the possibility of:

• Electrical short circuits

• Unwanted current transfer

• Component contact failures

• Insulation breakdown

The combination of insulation paper and adhesive technology provides stable electrical protection in various applications.

Mechanical Performance

Mechanical characteristics determine how effectively the material performs during assembly and operation.

Important mechanical advantages include:

The material can adapt to different shapes while maintaining its insulation function.

Adhesion Performance

The pressure-sensitive adhesive layer provides immediate bonding after installation.

Advantages include:

• Fast attachment

• Simple assembly process

• Stable positioning

• Reduced need for additional fixing methods

The adhesive system is designed to maintain bonding performance while supporting electrical insulation applications.

Environmental Performance

Self-adhesive shellac paper provides resistance against common environmental influences.

Performance characteristics include:

These characteristics help improve application durability.

Application Value Analysis

Value in Battery Industry

The battery industry requires insulation materials that combine:

• Thin structure

• Reliable electrical separation

• Strong positioning

• Easy processing

Self-adhesive Shellac Paper Roll supports battery manufacturing by providing:

Value in Electronics Industry

Electronic products continue to require smaller and more integrated designs.

Self-adhesive shellac paper provides advantages for:

• Compact circuit systems

• Electronic housing insulation

• Component spacing

• Internal protection

Its thin profile allows manufacturers to maintain insulation performance without increasing product dimensions.

Value in Electrical Equipment Manufacturing

Electrical equipment requires dependable insulation materials for long-term operation.

Applications include:

• Motors

• Transformers

• Electrical components

• Control systems

The material helps improve equipment reliability through stable insulation performance.

Value in Precision Assembly

Precision manufacturing requires materials with accurate dimensions and easy processing.

Self-adhesive shellac paper supports:

• Accurate positioning

• Consistent thickness

• Fast installation

• Reduced assembly complexity

Product Advantages Summary Table

Recommended Application Selection Guide

For Battery Pack Applications

Recommended considerations:

For PCB Applications

Important factors:

• Required insulation distance

• Available installation space

• Component arrangement

• Adhesion requirements

For Motor and Transformer Applications

Consider:

• Electrical voltage requirements

• Mechanical stress

• Operating environment

• Long-term durability requirements

Storage and Handling Best Practices

Proper storage maintains material performance.

Storage Recommendations

Handling Recommendations

During processing:

• Avoid scratching insulation surfaces

• Prevent adhesive contamination

• Do not expose adhesive layer unnecessarily

• Maintain clean working conditions

Proper handling improves installation reliability.

Manufacturing Quality Control

Quality inspection ensures stable product performance.

Important inspection items include:

Thickness Inspection

Thickness consistency affects:

• Gap filling accuracy

• Insulation distance

• Assembly compatibility

Adhesive Inspection

Adhesive quality influences:

• Bonding strength

• Installation stability

• Long-term performance

Surface Inspection

Surface quality checks help identify:

• Material defects

• Contamination

• Processing irregularities

Roll Processing Inspection

Roll quality inspection includes:

• Width accuracy

• Length accuracy

• Edge quality

• Winding consistency

Future Development Direction

The electrical insulation industry continues to develop with increasing requirements for compact, efficient, and reliable materials.

Future trends include:

1. More Compact Electronic Designs

As electronic devices become smaller, insulation materials need to provide:

• Higher performance in thinner structures

• Better dimensional accuracy

• Easier assembly

2. Expansion of Battery Technology

The growth of:

• Electric mobility

• Portable energy systems

• Rechargeable devices

will continue increasing demand for advanced insulation solutions.

3. Improved Adhesive Technology

Future adhesive systems may focus on:

• Stronger bonding

• Better temperature stability

• Improved environmental resistance

4. Higher Customization Requirements

Manufacturers increasingly require:

• Different roll widths

• Customized thickness

• Special processing formats

Flexible production capabilities will become increasingly important.

Final Conclusion

Self-adhesive Shellac Paper Roll, Single-sided Adhesive is a versatile insulation material designed for electrical, electronic, battery, and industrial applications. Combining shellac insulation paper with a pressure-sensitive adhesive layer provides a convenient and reliable solution for insulation protection, gap filling, and component positioning.

The product structure includes a release liner, adhesive coating, and shellac paper substrate. This design allows quick peel-and-stick installation while maintaining the insulation characteristics of the base material.

With excellent electrical insulation, flexibility, moisture resistance, abrasion resistance, grease resistance, and anti-aging performance, self-adhesive shellac paper provides reliable support for modern manufacturing applications.

The material is particularly valuable in lithium battery pack assembly, PCB insulation, motor winding protection, transformer coil isolation, and precision electronic applications. Its thin profile and customizable roll processing options allow it to adapt to different production requirements.

Available in thickness ranges from 0.1 mm to 0.5 mm, roll widths from 2.8 mm to 1000 mm, and roll lengths from 50 m to 200 m, the material provides flexible processing solutions for different industries.

As electrical systems become increasingly compact and advanced, reliable insulation materials will continue to play an important role in improving product safety, performance, and manufacturing efficiency.

Self-adhesive Shellac Paper Roll represents an effective insulation solution that combines traditional material advantages with modern adhesive technology, supporting the continued development of electrical and electronic manufacturing industries.
