PVC Heat Shrink Tubing for Cable Harness Protection is a practical insulating and protective material widely used in electrical wiring, battery assemblies, electronic components, lighting products, LED applications, capacitor packaging, and general cable management. Manufactured from heat-shrinkable polyvinyl chloride, PVC Heat Shrink Tubing is designed to contract when exposed to controlled heat, allowing it to conform closely around wires, cables, components, terminals, and other cylindrical or irregular surfaces.
Cable harnesses are essential in modern electrical and electronic systems. They organize multiple wires into a structured assembly while providing electrical connections between components. However, exposed wires and cable connections can be vulnerable to abrasion, moisture, dust, contamination, mechanical movement, and accidental contact. PVC Heat Shrink Tubing provides an additional protective layer that can improve insulation, organization, appearance, and environmental resistance.
The material is particularly useful when a lightweight and economical heat-shrinkable covering is required. Compared with rigid protective components, heat shrink tubing can conform to different cable diameters and connection shapes. It can also be supplied in different sizes, colors, thicknesses, lengths, and packaging formats to meet different application requirements.
For cable harness protection, PVC Heat Shrink Tubing can be positioned over a wire bundle, cable joint, terminal, connector, or component before heating. After controlled heating, the tubing contracts around the target area and forms a compact protective covering. The finished assembly can have a cleaner appearance and improved resistance to common environmental factors.
In addition to cable harness applications, PVC Heat Shrink Tubing is commonly associated with battery heat shrinking, capacitor heat shrinking, electronic component covering, lighting product protection, LED pin protection, and bottle-neck packaging. These applications demonstrate the versatility of heat-shrinkable PVC materials across electrical insulation, electronic manufacturing, component protection, and packaging.
1. What Is PVC Heat Shrink Tubing?
PVC Heat Shrink Tubing is a thermoplastic sleeve designed to shrink when heated. The tubing is manufactured with an expanded diameter and is then processed so that it can recover toward a smaller diameter when exposed to an appropriate heat source.
The basic working principle is simple:
The tubing is selected according to the size of the application.
The tubing is placed over the cable, wire, component, or connection.
Controlled heat is applied.
The PVC material softens and contracts.
The tubing conforms to the covered object.
After cooling, the tubing remains in its recovered shape.
This shrinking process allows one tubing size to accommodate a range of application dimensions, depending on the recovery characteristics of the material.
PVC Heat Shrink Tubing is often selected for applications where electrical insulation, surface protection, appearance, and cost efficiency are important. It can be produced in various colors, including black, red, blue, yellow, green, and transparent or translucent versions, depending on material formulation and production requirements.
For cable harnesses, the tubing can help keep multiple wires organized and covered. It can also be used around selected portions of a harness rather than covering the complete cable assembly.
2. PVC Heat Shrink Tubing for Cable Harness Protection
Cable harnesses may contain multiple wires with different functions, sizes, and connection points. Without additional protection, these wires can move against one another or surrounding components. Cable harness protection is therefore important in automotive systems, electrical equipment, appliances, industrial controls, lighting systems, battery assemblies, and electronic devices.
PVC Heat Shrink Tubing can provide a protective sleeve around selected portions of a cable harness. During installation, the tubing is positioned over the wire bundle and heated uniformly. The resulting sleeve follows the external shape of the harness.
The primary functions include:
Electrical insulation
Wire bundling
Cable organization
Surface protection
Abrasion reduction
Dust protection
Moisture resistance
Improved appearance
Component identification
Connection protection
Harness reinforcement
Basic mechanical protection
PVC Heat Shrink Tubing is particularly useful where a clean and compact harness structure is required.
For example, a multi-wire harness used inside electrical equipment may contain several individual conductors. Applying heat shrink tubing around a selected section can hold the wires together and create a more organized assembly. Colored tubing can additionally help distinguish different circuits or connection groups.
3. Main Features of PVC Heat Shrink Tubing
PVC Heat Shrink Tubing can offer several practical characteristics for electrical and electronic applications.
The defining characteristic is heat shrinkability. The tubing contracts after controlled heating and forms a close covering around the application.
This feature makes the material suitable for irregular cable arrangements and different wire bundle sizes.
PVC is commonly used as an electrical insulating material. Heat shrink tubing can provide an additional insulating barrier around wires, terminals, connections, and selected electronic components.
The actual insulation performance depends on material formulation, thickness, operating temperature, voltage requirements, and applicable standards.
PVC Heat Shrink Tubing is relatively lightweight compared with many rigid protective components. This makes it useful for compact electrical assemblies where unnecessary weight and bulk should be minimized.
Depending on formulation and wall thickness, PVC heat shrink tubing can provide flexible coverage around wires and cable harnesses. The tubing can follow the shape of the covered assembly after shrinking.
PVC Heat Shrink Tubing can be manufactured in various colors. Color selection can assist with wire identification, circuit organization, product appearance, and assembly management.
The tubing forms a protective layer over the covered surface. This can reduce direct exposure to dust, moisture, handling, and minor abrasion.
A properly installed heat shrink sleeve can make cable harnesses look more organized and professional. It can conceal exposed wiring and provide a uniform outer surface.
4. Applications
PVC Heat Shrink Tubing has a broad application range across electrical, electronic, battery, lighting, component packaging, and general protective applications.
| Application | Typical Function |
|---|---|
| Battery Heat Shrinking | Battery pack covering and external protection |
| Capacitor Heat Shrinking | Capacitor body covering and insulation |
| Electronic Component Covering | Surface protection and electrical insulation |
| Lighting Products | Component insulation and appearance improvement |
| LED Pin Protection | LED pin and lead protection |
| Bottle Neck Packaging | Decorative and protective shrink packaging |
| Cable Harness Protection | Wire bundling and surface protection |
| Wire Insulation | Additional electrical insulation |
| Cable Joint Protection | Protective covering around cable connections |
| Terminal Protection | Insulation and protection of terminals |
| Connector Protection | Covering and insulation around connectors |
| Wire Bundling | Organizing multiple wires into a compact assembly |
| Electrical Component Protection | Surface and environmental protection |
| Battery Wire Protection | Protection of battery wiring |
| Electronic Assembly Protection | Localized insulation and surface protection |
5. Battery Heat Shrinking
Battery heat shrinking is one of the important applications of heat-shrinkable PVC materials. Batteries and battery assemblies may contain cells, electrical connections, tabs, wires, and protective components that require an external insulating or protective covering.
PVC Heat Shrink Tubing can be used for selected battery-related applications where the material's temperature capability and electrical requirements are appropriate.
During battery heat shrinking, the tubing is placed around the intended battery assembly and heated under controlled conditions. The material contracts and creates a close-fitting outer layer.
Potential functions include:
Battery surface covering
Electrical insulation
Component identification
Wire protection
Surface protection
Improved appearance
Dust reduction
Basic moisture protection
For battery applications, material selection should consider operating temperature, electrical insulation requirements, dimensional recovery, chemical exposure, and the specific battery design.
6. Capacitor Heat Shrinking
Capacitors are widely used in electrical and electronic equipment. Many capacitor designs use an insulating sleeve or external covering around the capacitor body.
PVC Heat Shrink Tubing can be used for capacitor heat shrinking when the selected PVC formulation is suitable for the electrical, dimensional, and thermal requirements of the capacitor.
The heat-shrinkable sleeve can provide:
Electrical insulation
Body covering
Surface protection
Product identification
Improved appearance
Protection against minor environmental contamination
Different capacitor sizes require different tubing dimensions. The tubing should provide sufficient recovery without creating excessive mechanical stress on the component.
7. Electronic Component Covering
Electronic components can require localized protection against contact, dust, handling, and environmental exposure. PVC Heat Shrink Tubing can be used as a covering material for selected electronic components.
The tubing can be placed over cylindrical components, wires, leads, terminals, and component assemblies before controlled heating.
Typical functions include:
Electrical insulation
Component covering
Wire separation
Surface protection
Identification
Assembly organization
Protection from minor abrasion
The actual suitability depends on component geometry and operating conditions. Components that are sensitive to heat should be evaluated carefully before heat-shrink installation.
8. Lighting Products and LED Pin Protection
Lighting systems frequently contain wires, LED leads, terminals, connectors, and small electronic components. Heat shrink tubing can provide localized insulation and protection for these parts.
For LED applications, PVC Heat Shrink Tubing can be used around selected LED pins or lead wires where the tubing size and heat resistance are appropriate.
Possible benefits include:
LED pin insulation
Lead wire protection
Wire organization
Connection protection
Improved appearance
Reduced accidental contact
Basic dust and moisture protection
In lighting assemblies, tubing color can also contribute to visual identification or product design.
9. Bottle Neck Packaging
Heat-shrinkable PVC materials are also widely associated with packaging applications. A PVC heat shrink sleeve can be placed around a bottle neck or selected packaging area and then heated to create a close-fitting cover.
Bottle-neck applications may provide:
Decorative appearance
Product identification
Tamper indication when specifically designed for that purpose
Dust protection
Surface covering
Branding space
Packaging applications use different material constructions and shrink characteristics from electrical insulation applications. The selected material should therefore be matched to the intended packaging process.
10. Cable Harness Protection Benefits
Cable harness protection is a major application area because wire harnesses need to remain organized and protected throughout their service life.
Multiple wires can become tangled or displaced during installation. Heat shrink tubing can hold selected wires together and create a more structured harness.
The tubing creates an additional layer around the wire assembly. This can help reduce accidental contact between conductors and surrounding conductive surfaces.
A heat shrink sleeve can act as a sacrificial protective layer between the harness and surrounding surfaces.
A bundled harness covered with heat shrink tubing generally looks cleaner than a collection of loose wires.
Different colors can help distinguish circuits, cable groups, or assembly functions.
The tubing does not necessarily need to cover the entire harness. It can be applied to connection points, branches, terminals, joints, and other areas requiring additional protection.
11. Typical Product Specifications
PVC Heat Shrink Tubing is available in different sizes and constructions. The correct specifications depend on the intended application.
| Specification | Typical Consideration |
|---|---|
| Material | PVC |
| Product Type | Heat Shrink Tubing |
| Application | Electrical insulation and protection |
| Wall Type | Thin wall or standard wall |
| Color | Black, blue, red, yellow, green, clear and custom colors |
| Diameter | Selected according to application size |
| Length | Continuous roll or cut lengths |
| Wall Thickness | Selected according to insulation and mechanical requirements |
| Shrink Ratio | Depends on product design |
| Operating Temperature | Depends on PVC formulation |
| Dielectric Performance | Depends on material construction |
| Flexibility | Depends on formulation and thickness |
| Surface | Smooth or application-specific |
| Packaging | Roll, coil, cut piece or customized packaging |
| Customization | Size, color, printing, length and processing options |
The values above describe general product considerations rather than a universal specification. Actual product data should always be confirmed against the technical datasheet for the selected material.
12. How to Select the Correct Tubing Size
Selecting the correct tubing size is important for successful installation.
The first step is to measure the maximum outside diameter of the cable harness or component that the tubing must cover.
The tubing should be large enough to slide over the application before heating. At the same time, it should have sufficient recovery to form a close fit after heating.
Important factors include:
Maximum application diameter
Minimum recovered diameter
Required shrink ratio
Wall thickness
Cable geometry
Connector dimensions
Installation temperature
Required insulation thickness
Available installation space
A tubing diameter that is too small may be difficult to install. A tubing diameter that is excessively large may not recover sufficiently around the application.
13. Shrink Ratio
Shrink ratio describes the relationship between the tubing's supplied diameter and its recovered diameter.
Common heat shrink products may use different shrink ratios depending on their design. A lower shrink ratio may be suitable for applications with relatively consistent diameters, while a higher shrink ratio can be more useful when the covered assembly has significant dimensional variation.
When selecting tubing, engineers should consider both the expanded size and recovered size rather than evaluating the supplied diameter alone.
For cable harness protection, the tubing must be able to slide over the largest section of the harness and then shrink sufficiently to hold the bundle securely.
14. Wall Thickness
Wall thickness affects electrical insulation, mechanical protection, flexibility, heat transfer, and final appearance.
Thin-wall PVC Heat Shrink Tubing is often selected when compactness and flexibility are important. Thicker-wall products may be considered when increased mechanical protection or insulation thickness is required.
A basic comparison is shown below:
| Wall Type | General Characteristics | Typical Applications |
|---|---|---|
| Thin Wall | Lightweight and flexible | Wire insulation and compact harnesses |
| Standard Wall | Balanced protection and flexibility | General cable protection |
| Thick Wall | Increased material thickness | Higher mechanical protection requirements |
The correct wall thickness should be selected according to the actual electrical and mechanical requirements rather than simply choosing the thickest available option.
15. Material Characteristics of PVC
Polyvinyl chloride is a widely used thermoplastic material. It can be formulated to provide different levels of flexibility, electrical insulation, durability, and heat resistance.
PVC is attractive for heat shrink tubing because it can be processed into thin sleeves and engineered for controlled thermal recovery.
Typical advantages include:
Good processability
Cost efficiency
Electrical insulation
Availability in multiple colors
Flexible formulations
Good surface appearance
Suitability for high-volume manufacturing
However, PVC is not automatically suitable for every high-temperature or chemically aggressive application. Material compatibility must be evaluated according to the specific service conditions.
16. Electrical Insulation Performance
Electrical insulation is one of the primary reasons heat shrink tubing is used around wires and cable harnesses.
The sleeve can create an additional insulating barrier between electrical conductors and the surrounding environment. It can also help cover exposed sections around terminals, splices, and connections.
Important electrical properties may include:
Dielectric strength
Volume resistivity
Surface resistivity
Insulation resistance
Dielectric withstand performance
The actual performance depends on material formulation, wall thickness, manufacturing quality, environmental conditions, and test methods.
For high-voltage applications, the tubing should be selected using verified technical specifications rather than general material descriptions.
17. Moisture and Environmental Protection
Cable harnesses may be exposed to humidity, condensation, dust, oils, and other environmental contaminants. A heat shrink sleeve can provide a physical barrier around the covered area.
PVC Heat Shrink Tubing can help reduce direct exposure to:
Dust
Moisture
Dirt
Handling contamination
Minor splashes
Surface abrasion
However, standard heat shrink tubing should not automatically be considered waterproof or hermetically sealed. Where complete environmental sealing is required, specially designed adhesive-lined or sealing systems may be more appropriate.
18. Mechanical Protection
Wire harnesses may experience vibration, movement, rubbing, and handling during assembly and operation.
Heat shrink tubing can provide a protective outer surface that reduces direct contact between wires and nearby components.
Potential mechanical benefits include:
Abrasion reduction
Surface protection
Wire bundling
Strain distribution
Reduced wire movement
Improved harness stability
The actual mechanical protection depends heavily on wall thickness, material formulation, installation quality, and the surrounding application.
19. Cable Harness Assembly
Cable harness assembly often requires multiple operations, including wire cutting, stripping, crimping, soldering, connector installation, bundling, labeling, and insulation.
Heat shrink tubing can be incorporated into the assembly process at different stages.
A typical process is:
The wires are cut and prepared according to the harness design.
Terminals, connectors, or other electrical components are attached.
The appropriate heat shrink tubing is positioned before the connection becomes inaccessible.
The wire may be crimped, soldered, or connected according to the assembly design.
The tubing is moved over the target connection or harness section.
Controlled heat is applied evenly around the tubing.
The tubing is allowed to cool and stabilize before the assembly is handled.
20. Heat Application Methods
Several heating methods can be used for heat shrink tubing, depending on production volume and application requirements.
Common methods include:
Hot air heat guns
Industrial hot air systems
Controlled heating chambers
Infrared heating equipment
Automated shrink equipment
The heat source should provide sufficient energy for uniform recovery without overheating the PVC or the components underneath.
Uneven heating can result in wrinkles, incomplete shrinkage, localized deformation, or damage to sensitive components.
21. Installation Best Practices
Proper installation improves the appearance and performance of PVC Heat Shrink Tubing.
Choose tubing that can slide over the largest part of the application while still providing sufficient recovery.
Dust, oil, and contaminants on the tubing or cable surface can affect appearance and installation quality.
Make sure the tubing is correctly positioned before applying heat.
Move the heat source around the tubing instead of concentrating heat on one point.
Excessive heat can damage the tubing or components.
Do not immediately stretch or move the tubing after shrinking. Allow it to cool and stabilize.
22. Cable Harness Branch Protection
Modern cable harnesses often contain branching points where one group of wires separates into several smaller groups.
These branches can be mechanically vulnerable because wires change direction and experience repeated movement.
PVC Heat Shrink Tubing can be used around selected branch areas when the geometry and recovery characteristics are suitable.
Branch protection can provide:
Improved organization
Reduced wire movement
Additional insulation
Abrasion reduction
Cleaner assembly appearance
For highly complex branch structures, specialized harness protection systems may be more suitable than conventional tubing.
23. Connector and Terminal Protection
Electrical connectors and terminals are common points where wires transition into another component.
These areas may contain exposed metal surfaces or crimped connections. Heat shrink tubing can cover the connection and create an insulating sleeve.
Typical applications include:
Crimp terminals
Ring terminals
Spade terminals
Wire connectors
Cable joints
Soldered connections
Battery terminals
The tubing size should allow adequate coverage while avoiding interference with connector engagement.
24. Wire Splice Protection
Wire splices are another important application.
A splice connects two or more wires and can create a localized area that requires additional insulation and mechanical protection.
Heat shrink tubing can be placed over the splice before the connection is completed or positioned afterward if the tubing can pass over the finished connection.
A properly installed sleeve can:
Cover exposed conductors
Improve electrical insulation
Reduce accidental contact
Protect the splice surface
Improve assembly appearance
The tubing must not interfere with the electrical connection itself.
25. Color Selection
Color can have functional and visual significance.
Common colors include:
| Color | Potential Use |
|---|---|
| Black | General protection and cable bundling |
| Blue | Wire identification and product customization |
| Red | Circuit identification and positive connection marking |
| Yellow | Identification and warning applications |
| Green | Circuit or grounding identification where appropriate |
| Clear | Visual inspection of the covered area |
| Custom Colors | Product identification and OEM requirements |
Color coding should follow the applicable electrical and industry practices for the intended market.
26. Customized OEM Services
Customized OEM services can be important for battery accessory manufacturers, electronic component manufacturers, cable harness producers, lighting manufacturers, and other industrial users.
Customization may include material dimensions, color, printing, cutting, slitting, packaging, and secondary processing.

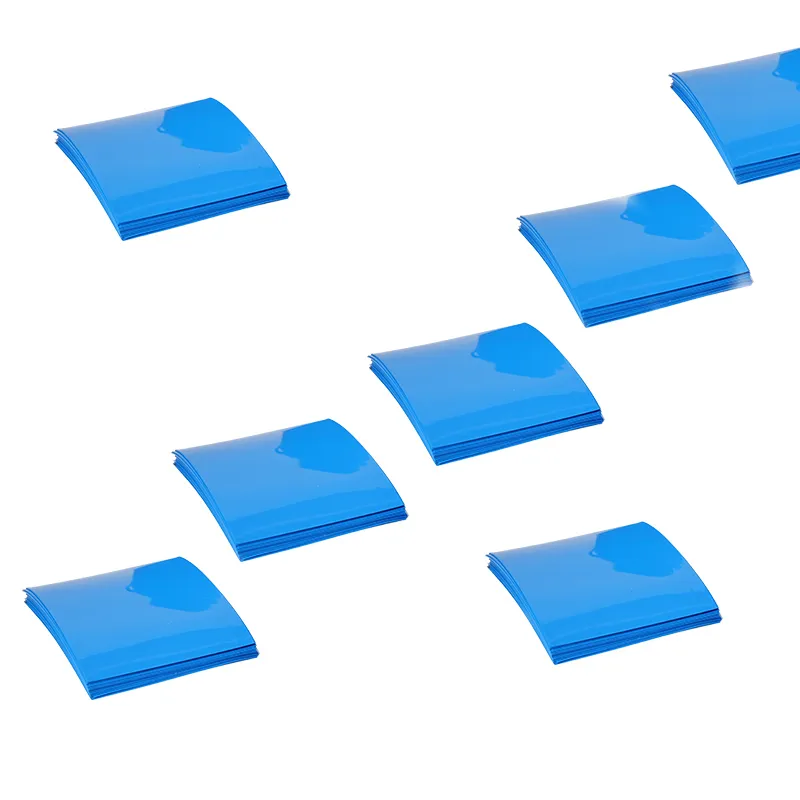

Blue PVC Heat Shrink Tubing can be supplied for applications requiring a blue appearance. Other colors may also be customized according to customer requirements, production quantities, and material availability.
Color customization can support:
Product identification
Circuit identification
Brand consistency
Assembly differentiation
Visual management
Printing can be used to add company logos, voltage specifications, product information, warning labels, or safety messages.
Examples may include:
Company logos
Voltage specifications
Product codes
Identification marks
Warning information
Safety instructions
“Do Not Short Circuit”
Printing requirements should consider ink compatibility, surface quality, durability, and the intended service environment.
High-precision slitting can be used when customers require customized widths or converted material formats.
Examples of requested widths may include:
60 mm
65 mm
70 mm
The actual available width range depends on the original material dimensions and processing equipment.
Slitting allows manufacturers to convert larger material formats into customer-specific widths for downstream production.
Die cutting can provide customized shapes for component insulation and protection.
PVC Heat Shrink Tubing or related Insulation Materials may be processed alongside:
Fish paper
Electrical insulation paper
Insulation films
Protective liners
This can enable coordinated delivery of supporting insulation components for battery and electronic assemblies.
27. Fish Paper and Epoxy Sheet Compatibility
Fish paper, also known as electrical insulation paper in many industrial applications, is commonly used for electrical insulation and component separation.
Epoxy sheets can provide rigid electrical insulation and structural support in applications requiring stronger dimensional stability.
When combined with heat shrink tubing, these materials can form a broader insulation solution.
Possible applications include:
Battery pack insulation
Electronic component insulation
Terminal insulation
Electrical barrier systems
Motor insulation
Circuit protection
Component separation
The compatibility of materials should be evaluated according to temperature, electrical requirements, adhesive interaction, dimensional tolerances, and assembly conditions.
28. Product Processing Options
Heat shrink tubing can be supplied in several forms.
| Processing Option | Description |
|---|---|
| Continuous Roll | Long-length material supplied on a roll |
| Cut Length | Tubing cut to specified lengths |
| Slitting | Material converted to specified widths |
| Printing | Logos and product information added |
| Color Customization | Custom colors according to requirements |
| Die Cutting | Custom shapes for insulation components |
| Custom Packaging | Packaging according to production requirements |
| OEM Processing | Integrated customized production services |
These processing options can reduce downstream conversion work for industrial customers.
29. Quality Control
Consistent quality is important for heat shrink tubing because dimensional variations can affect installation and final performance.
Typical quality control areas include:
Material appearance
Tubing diameter
Wall thickness
Shrink performance
Surface quality
Color consistency
Printing quality
Dimensional tolerance
Electrical insulation properties
Packaging quality
Production inspection should be performed according to the applicable product specifications and quality requirements.
30. Common Defects and Their Causes
Understanding common installation defects can help improve production quality.
Possible causes include insufficient heat, unsuitable tubing size, or uneven heating.
Wrinkling can result from uneven heating, incorrect positioning, or complex application geometry.
Excessive heat or prolonged heating can damage PVC.
A tubing size that is too large or a product with insufficient recovery may result in a loose final fit.
Sharp edges or excessive mechanical handling may damage the tubing.
Improper handling or incompatible printing systems can affect printed markings.
31. Storage Recommendations
PVC Heat Shrink Tubing should be stored in a clean and dry environment.
Recommended storage considerations include:
Avoid direct sunlight
Avoid excessive heat
Avoid high humidity
Keep away from sharp objects
Protect from contamination
Maintain original packaging when possible
Avoid unnecessary compression
Use suitable stock rotation practices
Long-term storage conditions can affect polymer materials, especially when exposed to excessive heat, ultraviolet radiation, or incompatible chemicals.
32. Chemical Compatibility
PVC Heat Shrink Tubing may come into contact with oils, fuels, cleaning agents, solvents, lubricants, or other chemicals depending on the application.
Chemical compatibility should therefore be evaluated before production use.
Important questions include:
What chemicals will contact the tubing?
How long will exposure last?
What is the exposure temperature?
Is the contact continuous or intermittent?
Will the chemical affect flexibility?
Will it cause swelling or surface degradation?
For demanding chemical environments, a different heat shrink material may be required.
33. Temperature Considerations
Temperature is a critical factor in selecting heat shrink tubing.
Two different temperature ranges should be considered:
Installation or shrink temperature
Continuous operating temperature
The tubing must be capable of shrinking under the selected heating process while also maintaining suitable properties during normal operation.
Applications involving high temperatures should not rely solely on general PVC characteristics. The actual product datasheet should be reviewed.
34. Electrical Safety Considerations
Electrical insulation products should be selected according to the voltage, current, temperature, environment, and mechanical requirements of the application.
Heat shrink tubing can provide an insulating barrier, but it should not be treated as a universal substitute for system-level electrical insulation design.
For electrical assemblies, engineers should consider:
Rated voltage
Dielectric strength
Creepage distance
Clearance
Operating temperature
Environmental conditions
Material thickness
Applicable standards
Installation quality
35. Applications in Automotive Wiring
Automotive wiring harnesses contain numerous wires and connectors distributed throughout a vehicle.
Heat shrink tubing can be used for selected automotive wiring applications where the material meets the environmental requirements.
Potential uses include:
Wire splice protection
Cable bundling
Connector insulation
Terminal protection
Battery wiring
Lighting wiring
Sensor wiring
Accessory wiring
Automotive environments can involve vibration, temperature changes, oils, moisture, and mechanical movement. Therefore, material selection must be based on the specific vehicle application.
36. Applications in Industrial Equipment
Industrial machinery often contains complex electrical wiring systems.
PVC Heat Shrink Tubing can help organize and protect wiring around:
Motors
Sensors
Control panels
Switches
Electrical cabinets
Control systems
Power supplies
Industrial lighting
The tubing can improve cable organization and provide additional insulation around selected connection points.
37. Applications in Consumer Electronics
Consumer electronic products often require compact wiring and component protection.
Heat shrink tubing may be used around:
Internal wires
Battery wires
Connector leads
Component leads
Small cable assemblies
Power connections
The compact nature of thin-wall tubing makes it useful when space is limited.
38. Applications in LED Products
LED products commonly contain small wires and leads that need electrical insulation.
Heat shrink tubing can be used for:
LED pin protection
LED wire insulation
Lighting harness protection
Connector protection
Decorative lighting wiring
Power supply connections
For small LED assemblies, thin-wall tubing can be advantageous because it can provide coverage without adding excessive bulk.
39. Applications in Battery Accessories
Battery accessory manufacturers may require a combination of tubing, insulation paper, epoxy sheets, adhesive materials, and die-cut components.
Heat shrink tubing can be integrated into a broader battery accessory production process.
Potential applications include:
Battery wire insulation
Terminal covering
Battery component protection
Wire harness organization
External sleeve protection
Identification and labeling
OEM processing can simplify procurement when multiple converted insulation components are required.
40. Applications in Capacitor Manufacturing
Capacitor manufacturers may use heat shrink sleeves for body insulation, product identification, and appearance enhancement.
The tubing can be supplied in different colors and sizes depending on capacitor dimensions and production requirements.
Important considerations include:
Capacitor diameter
Tubing diameter
Recovery ratio
Wall thickness
Heating conditions
Electrical insulation requirements
Printing requirements
Final appearance
41. Why Choose PVC Heat Shrink Tubing?
PVC Heat Shrink Tubing can be a practical choice when the application requires a combination of heat-shrinkability, insulation, protection, flexibility, and cost efficiency.
Its advantages include:
Easy installation
Compact design
Good electrical insulation
Multiple color options
Custom processing possibilities
Suitable for mass production
Lightweight construction
Clean appearance
Wire bundling capability
Broad application potential
The suitability of PVC depends on the exact operating conditions and required performance.
42. PVC Heat Shrink Tubing Compared with Other Materials
Different heat shrink materials are available for different applications.
| Material | General Characteristics | Typical Consideration |
|---|---|---|
| PVC | Economical, flexible, easy to process | General electrical and protective applications |
| Polyolefin | Good general-purpose insulation | Electrical and industrial applications |
| Fluoropolymer | High chemical and temperature resistance | Demanding environments |
| Silicone | Flexible and temperature resistant | Specialized applications |
| Elastomer | Flexible and durable | Dynamic or specialized environments |
No single material is ideal for every application. PVC is often selected when cost efficiency, flexibility, appearance, and general insulation are important.
43. Manufacturing Process
The manufacturing process for PVC Heat Shrink Tubing generally involves several stages.
PVC resin and selected additives are prepared according to the required formulation.
The raw materials are mixed to achieve the desired physical and processing properties.
The PVC compound is processed into tubular material through an extrusion process.
The tubing is expanded under controlled conditions to establish its heat-shrinkable memory.
The expanded tube is cooled and stabilized.
Dimensions, appearance, and selected physical or electrical properties are checked.
The material can be supplied as continuous rolls or converted into specified lengths or widths.
Where required, identification information or logos can be printed on the surface.
The finished material is packaged according to customer requirements.
44. Custom Dimensions
Industrial users may require non-standard dimensions because cable harnesses and components vary considerably.
Custom dimensions may include:
Custom diameter
Custom wall thickness
Custom length
Custom color
Custom width
Custom roll size
Custom printing
Custom production can be useful for high-volume applications where standardized tubing does not match the customer's assembly process.
45. Custom Printing
Printed heat shrink tubing can support both identification and branding.
Possible printed information includes:
Company logo
Product number
Voltage information
Wire identification
Safety information
Warning labels
Production codes
Batch information
For example, safety information such as “Do Not Short Circuit” can be used when appropriate for the product and application.
Printing should remain legible after the tubing is installed and exposed to normal handling conditions.
46. Slitting and Conversion
Slitting converts a wider material format into narrower widths.
High-precision slitting is particularly useful when customers require specific dimensions for downstream assembly.
For example, a customer may require:
60 mm
65 mm
70 mm
The final available width tolerance depends on the material and processing equipment.
Precision slitting can improve production efficiency by reducing the need for additional conversion at the customer's facility.
47. Die Cutting
Die cutting is a secondary processing technique used to manufacture custom-shaped insulation components.
It can be used for:
Insulation barriers
Battery separators
Terminal covers
Component liners
Protective pads
Electrical gaskets
Custom insulation shapes
When heat shrink tubing is supplied together with fish paper or epoxy sheet die-cut components, customers can obtain multiple related insulation materials through a coordinated production process.
48. Packaging and Delivery
Heat shrink tubing can be supplied in different packaging forms depending on the customer's manufacturing process.
Common formats include:
Rolls
Coils
Cut lengths
Bundled pieces
Custom labels
Custom cartons
Packaging should protect the tubing from dust, moisture, deformation, and excessive environmental exposure during storage and transportation.
49. Selection Checklist
Before purchasing PVC Heat Shrink Tubing for Cable Harness Protection, users should evaluate the following factors:
Determine whether the tubing will be used for cable harnesses, batteries, capacitors, electronic components, lighting, LED pins, or packaging.
Measure the application diameter and determine the required tubing size.
Select a suitable wall thickness based on insulation and mechanical protection requirements.
Choose standard or customized colors according to identification and appearance requirements.
Determine whether logos, specifications, warning information, or identification marks are required.
Consider whether slitting, cutting, die cutting, or other conversion services are necessary.
Review temperature, moisture, chemicals, vibration, abrasion, and other environmental factors.
Confirm insulation and dielectric requirements.
Determine whether standard products or customized OEM production is more appropriate.
50. Frequently Asked Questions
PVC Heat Shrink Tubing is a thermoplastic sleeve that contracts when heated and is used for electrical insulation, wire protection, cable management, component covering, and selected packaging applications.
Yes. It can provide additional insulation, bundling, surface protection, and improved organization for many cable harness applications.
Yes, PVC heat shrink tubing can be used for selected battery-related applications when its electrical and thermal specifications meet the requirements of the battery assembly.
Yes. Depending on production capabilities, customization may include color, size, length, printing, slitting, packaging, and die-cutting support.
Customized printing can be used for company logos, product identification, voltage specifications, warning labels, and other approved markings.
Yes. Safety information such as “Do Not Short Circuit” can be printed when required by the application.
Yes. Blue PVC Heat Shrink Tubing can be produced for applications requiring blue material, subject to product specifications and production requirements.
Yes. It can be used for selected LED pin and lead protection applications when the tubing dimensions and heating conditions are suitable.
Yes. PVC Heat Shrink Tubing can be used for selected capacitor covering applications.
Heat-shrinkable PVC materials can be used for bottle-neck and packaging applications when the material construction and shrink characteristics are designed for packaging.
Thin-wall tubing is generally lighter and more flexible, while thick-wall tubing provides a greater material layer and may provide increased mechanical protection.
The tubing is positioned over the target area and heated using controlled hot air or another appropriate heat source until it contracts around the application.
It can provide an additional insulation layer, but complete electrical system insulation requirements must be evaluated separately.
51. Conclusion
PVC Heat Shrink Tubing for Cable Harness Protection is a versatile material for electrical insulation, wire organization, cable protection, component covering, and selected packaging applications. Its heat-shrinkable design allows the tubing to conform closely to wires, cable harnesses, terminals, connectors, batteries, capacitors, electronic components, and other suitable products.
For cable harness applications, the material can improve organization, provide an additional insulating layer, reduce exposure to dust and moisture, and protect surfaces against minor abrasion. Its lightweight structure and flexible installation process make it suitable for many electrical and electronic assemblies.
Beyond cable harness protection, important applications include Battery Heat Shrinking, Capacitor Heat Shrinking, Electronic Component Covering, Lighting Products, LED Pin Protection, and Bottle Neck Packaging.
Product selection should be based on dimensions, wall thickness, shrink characteristics, operating temperature, electrical requirements, environmental conditions, and application geometry. For industrial users, customized OEM services can further improve production efficiency through custom colors, printing, slitting, die cutting, customized dimensions, and coordinated insulation component supply.
For battery accessory manufacturers and electronic component producers, the ability to combine PVC Heat Shrink Tubing with fish paper, electrical insulation paper, epoxy sheets, and other converted insulation materials can support more efficient component sourcing and assembly.
Ultimately, the most suitable PVC Heat Shrink Tubing is the material that matches the application's electrical, thermal, mechanical, dimensional, environmental, and processing requirements. Proper product selection and controlled installation are essential for achieving consistent insulation, protection, and appearance.
This website uses cookies to ensure you get the best experience on our website.
WhatsApp
Phone
