Plastic support components with support Brackets are widely used in modern equipment, battery systems, electrical assemblies, electronic devices, industrial machinery, and modular mechanical structures. These components provide practical functions such as positioning, supporting, spacing, insulation, alignment, assembly assistance, cable routing, and component protection. In battery applications, plastic Support Brackets are especially important because cylindrical cells must be accurately positioned and securely maintained throughout assembly, transportation, operation, and maintenance.
A plastic support bracket is generally manufactured from an engineering thermoplastic such as ABS, PC, PP, or PA66. Injection molding is commonly used because it provides repeatable dimensions, consistent geometry, efficient production, and the ability to incorporate functional features into a single molded component.
For cylindrical lithium battery packs, a support bracket can also function as a cell holder, cell spacer, cell positioning holder, battery support, or battery module support component. These terms may describe slightly different designs, but they share a common purpose: maintaining the required position and spacing of cylindrical cells within a battery assembly.
A typical straight-line 21700 battery holder is designed around cylindrical 21700 cells. The example specifications discussed in this article include a 22.5 mm cell spacing and a 21.3 mm hole diameter. Actual dimensions should always be confirmed against the selected cell manufacturer's mechanical drawings because cell dimensions, insulation sleeves, tolerances, and assembly requirements can vary.
Plastic support brackets are not limited to battery applications. Similar support components can be found in electrical cabinets, control equipment, communication equipment, power supplies, industrial automation systems, electronic enclosures, wiring assemblies, and mechanical equipment.
This article explains the definition, construction, materials, functions, specifications, advantages, design considerations, manufacturing process, purchasing requirements, and common applications of plastic support components with support brackets.
1. What Is a Plastic Support Bracket?
A plastic support bracket is a molded or machined polymer component designed to hold, position, separate, guide, or support another component within an assembly.
Unlike a conventional metal structural bracket, a plastic support bracket is often selected when electrical insulation, lightweight construction, corrosion resistance, dimensional flexibility, or integrated functional features are required.
In battery pack construction, a plastic support bracket can be positioned around cylindrical cells to maintain consistent cell spacing. It can also separate adjacent cells electrically, create ventilation passages, provide clearance for Nickel Strips, and help prevent cell movement during assembly.
The bracket may be installed as a single component or as a matched upper and lower pair. In many cylindrical battery pack designs, the upper and lower holders secure the two ends of the cells while maintaining the required geometry of the complete battery module.
The most important functions typically include:
Cell positioning
Cell spacing
Electrical isolation
Mechanical support
Assembly alignment
Airflow management
Cable routing
Nickel strip clearance
Spot welding assistance
Protection against movement
Module assembly support
The exact function depends on the geometry and intended application.
2. Plastic Support Components for Equipment
Plastic support components are used throughout equipment manufacturing because plastics provide a useful combination of low weight, electrical insulation, chemical resistance, design flexibility, and economical mass production.
Common plastic support components include:
Support brackets
Mounting brackets
Positioning brackets
Battery holders
Cell holders
Cell spacers
Insulating supports
Cable supports
Wire guides
Component retainers
PCB supports
Equipment feet
Structural plastic supports
Module holders
Assembly fixtures
For electrical and electronic equipment, plastic supports can reduce the possibility of unintended electrical contact between conductive components.
For battery assemblies, the support component also helps create a controlled mechanical arrangement of cells.

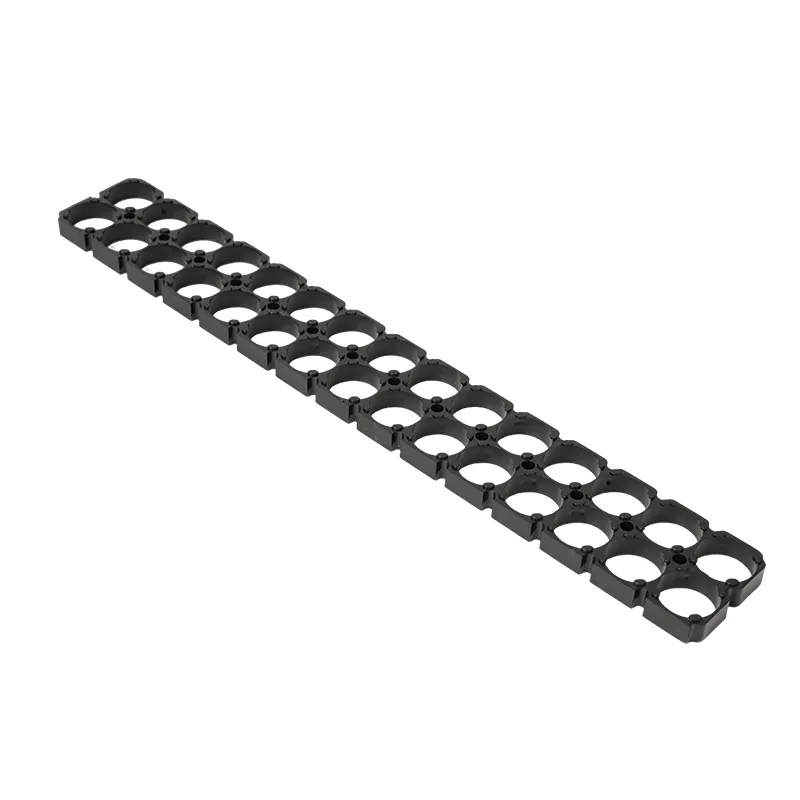

3. Straight Line 21700 Battery Holder
A straight-line 21700 battery holder is a type of cylindrical cell positioning component designed for battery packs using 21700-format cylindrical cells.
The term "straight-line" generally describes the arrangement of the cylindrical cells in parallel rows rather than a staggered pattern.
A representative design may use:
21700 cylindrical cells
22.5 mm cell spacing
21.3 mm nominal hole diameter
ABS plastic
Upper and lower holder configuration
Ventilation openings
Nickel strip clearance
Cable routing features
Custom module geometry
The hole diameter and center-to-center spacing are important mechanical parameters.
However, the dimensions should not be treated as universal specifications for every 21700 battery holder. Battery cell dimensions can vary by manufacturer, cell chemistry, protective sleeve construction, and design tolerance.
Before production, the support bracket should be matched to the actual cell dimensions and assembly requirements.
4. Common Specifications and Parameters
| Item | Typical Parameters |
|---|---|
| Compatible Cells | Straight-line 21700 battery cells, 22.5 mm cell spacing, 21.3 mm hole diameter |
| Cell Arrangement | Single cell, 2 × 2, 2 × 3, 3 × 4, 4 × 5, etc. |
| Material | ABS, PC, PP, or PA66 depending on application requirements |
| ABS Grade | Standard ABS or flame-retardant ABS |
| Flame Retardancy | UL 94 V-0 when a higher flame-retardant grade is required |
| Temperature Resistance | ABS: approximately 80–100°C; PC: approximately 120°C; PA66: approximately 150°C or higher depending on grade |
| Features | Ventilation slots, cable routing channels, nickel strip clearance notches, positioning ribs, and assembly openings |
| Color | Black is commonly selected |
| Manufacturing Process | Injection molding |
| Environmental Compliance | RoHS compliance may be specified according to project requirements |
| Configuration | Single-sided holder or matched upper and lower holders |
| Customization | Custom dimensions, cell layout, openings, markings, channels, and mounting features |
The values above are representative industry parameters rather than universal material specifications. Final specifications should be confirmed according to the selected resin grade, product design, operating environment, and applicable standards.
5. Material Selection
Material selection is one of the most important factors when designing a plastic support bracket.
Different applications require different combinations of mechanical strength, temperature resistance, flame resistance, electrical insulation, dimensional stability, chemical resistance, and cost.
The most commonly considered materials include ABS, PC, PP, and PA66.
ABS is one of the most widely used plastics for molded support brackets.
It offers a useful balance of:
Mechanical strength
Impact resistance
Processing performance
Surface quality
Dimensional stability
Cost efficiency
ABS is suitable for many general-purpose battery holders and equipment support components.
Flame-retardant ABS grades can also be selected when a higher flame resistance level is required.
However, standard ABS should not automatically be described as UL 94 V-0. The actual flame-retardant rating depends on the specific resin grade and formulation.
Polycarbonate is commonly selected when higher temperature resistance, impact performance, or dimensional stability is needed.
PC may be considered for support brackets located closer to heat-generating components.
It generally provides higher temperature performance than standard ABS, although the exact performance depends on grade, molding conditions, wall thickness, and operating environment.
Polypropylene is an economical thermoplastic with good chemical resistance and relatively low density.
It may be selected when low weight and cost efficiency are priorities.
However, PP is generally softer and less rigid than ABS or PC, so the bracket design must account for mechanical loading and deformation.
PA66, also known as nylon 66, is frequently considered for applications involving higher temperatures and demanding mechanical conditions.
PA66 can provide:
Good mechanical strength
Good wear resistance
Higher temperature capability
Good dimensional performance at elevated temperatures
Different grades of PA66 are available, including reinforced and flame-retardant grades.
6. Material Comparison
| Material | Main Advantages | Typical Considerations | Common Applications |
|---|---|---|---|
| ABS | Balanced strength, good molding performance, economical | Temperature capability lower than PC and PA66 | Battery holders, equipment brackets |
| PC | Higher temperature resistance, good impact strength | Higher material cost | Heat-exposed equipment |
| PP | Lightweight, economical, chemical resistance | Softer and less rigid | General-purpose holders |
| PA66 | High strength, temperature resistance, wear resistance | Higher cost and moisture sensitivity | High-temperature applications |
Material selection should always be based on the actual operating environment rather than price alone.
7. Electrical Insulation Function
One of the major advantages of plastic support brackets in electrical equipment is their insulating capability.
Metal brackets can conduct electricity, while many thermoplastics naturally provide electrical insulation.
In cylindrical battery modules, adjacent cells may be positioned very close to one another. A properly designed plastic cell holder can create physical separation between neighboring cells.
This can help:
Maintain cell spacing
Reduce direct contact between components
Provide mechanical separation
Support electrical insulation strategies
Maintain the designed module geometry
However, a plastic support bracket should not automatically be treated as the only insulation system in a battery pack.
Battery insulation may also involve:
Cell wrapping
Insulating films
Insulating washers
Busbar insulation
Electrical tapes
Barrier sheets
End plates
Insulating covers
The complete battery system should be evaluated as an integrated electrical and mechanical assembly.
8. Cell Positioning and Alignment
Accurate cell positioning is essential during battery pack assembly.
If cylindrical cells move during assembly, the final module can become difficult to weld, wire, inspect, or install.
A support bracket helps establish a consistent cell arrangement.
For a straight-line 21700 battery holder, the bracket can maintain the specified center-to-center spacing.
For example, a design may use:
22.5 mm cell spacing
and:
21.3 mm hole diameter
These values should be confirmed against the actual cell dimensions.
A well-designed cell positioning system can improve assembly consistency by reducing uncontrolled cell movement.
9. Support During Nickel Strip Spot Welding
Battery cell holders can also assist during nickel strip spot welding.
During battery pack assembly, cylindrical cells need to remain in a fixed position while nickel strips or other conductive interconnects are positioned and welded.
A support bracket can reduce movement by mechanically locating the cells.
Possible design features include:
Nickel strip clearance
Welding access openings
Cell positioning holes
Alignment ribs
Flat support surfaces
Routing channels
The bracket itself should be designed so that it does not interfere with the intended welding process.
The precise geometry depends on the welding equipment, nickel strip dimensions, cell configuration, and battery module layout.
10. Ventilation and Heat Dissipation
Battery packs generate heat during charging and discharging.
Plastic support components cannot replace a complete thermal management system, but their geometry can be designed to avoid unnecessarily blocking airflow.
Ventilation slots and open-grid structures may help form airflow passages between cells.
Common features include:
Ventilation holes
Side openings
Longitudinal slots
Cross-flow channels
Open-grid sections
Spacing ribs
A ventilation-oriented bracket may provide space around cylindrical cells for natural or forced airflow.
However, actual thermal performance depends on the entire battery pack design, including cell heat generation, enclosure design, fan capacity, airflow resistance, thermal interface materials, and operating conditions.
11. Cable Routing Features
Modern battery modules can contain numerous wires and signal lines.
A customized plastic support bracket can incorporate cable routing channels or wire management features.
These features may help:
Keep wires organized
Reduce cable movement
Improve assembly efficiency
Maintain clearance from conductive parts
Improve internal appearance
Simplify maintenance
Cable channels can be integrated into the injection-molded bracket rather than being added as separate components.
This can reduce the number of individual parts in an assembly.
12. Nickel Strip Clearance
Nickel strips are commonly used for electrical interconnection in cylindrical battery packs.
A cell support bracket may include clearance notches to provide space for nickel strips.
The clearance should be designed according to:
Nickel strip width
Nickel strip thickness
Welding position
Cell arrangement
Welding electrode access
Insulation requirements
Module enclosure dimensions
A properly designed clearance feature can improve assembly accessibility.
13. Upper and Lower Holder Configuration
Many cylindrical cell holders are used as matched upper and lower components.
The upper holder positions one end of the cells, while the lower holder positions the opposite end.
This configuration can provide:
Better cell alignment
Improved mechanical stability
More consistent spacing
Easier module assembly
Better control of cell movement
The exact design depends on the battery module architecture.
Some products require both upper and lower holders, while other designs use only a single positioning plate.
When purchasing a support bracket, the buyer should clearly specify whether the quotation is for:
One upper holder
One lower holder
One complete upper and lower set
A multi-piece assembly
This distinction is important for accurate pricing and quantity calculations.
14. Cell Arrangement Options
Plastic battery support components can be designed for different cell arrangements.
Common configurations include:
Single cell
2 × 2
2 × 3
3 × 4
4 × 5
5 × 5
5 × 6
Custom rectangular arrays
Custom linear arrays
The arrangement should match the electrical configuration and mechanical dimensions of the battery module.
For example, a 4-parallel, 5-series configuration may contain 20 cylindrical cells.
The support bracket should be designed to maintain the correct spacing throughout the complete cell array.
15. Straight Line Versus Staggered Arrangement
Cylindrical battery holders can use different geometric arrangements.
A straight-line holder positions cells in regular rows and columns.
A staggered holder offsets adjacent rows.
The choice depends on:
Available space
Cell density
Cooling requirements
Welding layout
Module enclosure
Busbar arrangement
Mechanical requirements
Straight-line arrangements are often easier to understand and manufacture, while staggered arrangements can provide different packaging density and airflow characteristics.
16. Why Injection Molding Is Commonly Used
Injection molding is widely used to manufacture plastic support brackets because the process is suitable for producing complex plastic components in relatively high volumes.
The process generally involves:
Plastic pellets are prepared.
The material is heated and melted.
Molten plastic is injected into a mold cavity.
The material cools and solidifies.
The molded component is ejected.
The part is inspected and processed if necessary.
Injection molding can integrate multiple features into one component.
These can include:
Cell holes
Positioning ribs
Ventilation slots
Cable channels
Mounting holes
Identification marks
Reinforcement ribs
Nickel strip clearance areas
This integration can reduce the need for secondary assembly.
17. Advantages of Injection Molded Support Brackets
Injection-molded plastic support brackets provide several advantages for equipment manufacturers.
Once the mold is properly developed, production parts can maintain consistent geometry within the specified manufacturing tolerances.
Injection molding is well suited to repeated production of large quantities.
Multiple functional structures can be molded into one component.
Plastic components are generally lighter than comparable metal parts.
Many plastics provide useful electrical insulation characteristics.
Plastic does not rust in the same way as conventional steel.
Plastic brackets can be customized for different equipment layouts.
18. Design Considerations
A successful support bracket requires more than simply selecting a plastic material.
Important design considerations include:
Cell diameter
Cell spacing
Hole diameter
Wall thickness
Rib thickness
Draft angle
Tolerance
Shrinkage
Mounting method
Ventilation
Cable routing
Welding clearance
Temperature
Flame resistance
Environmental exposure
The design should be evaluated according to the complete assembly rather than as an isolated component.
19. Hole Diameter and Cell Tolerance
The hole diameter is a critical dimension for cylindrical cell holders.
For a representative 21700 straight-line holder, the specified hole diameter may be:
21.3 mm
However, the actual required hole diameter depends on the diameter of the finished cell assembly, including any protective sleeve or insulation layer.
An overly tight hole can make assembly difficult.
An overly loose hole can permit excessive movement.
Therefore, the hole dimension should be determined using actual production cell measurements and required assembly tolerances.
20. Cell Spacing
Cell spacing determines the distance between adjacent cylindrical cells.
A representative 21700 straight-line support bracket may use:
22.5 mm center-to-center spacing
Cell spacing influences:
Module dimensions
Cooling passages
Cell density
Nickel strip layout
Mechanical stability
Electrical clearance
Enclosure size
The final spacing should be confirmed through mechanical design validation.
21. Flame Retardant Requirements
Flame retardancy can be an important consideration for battery and electrical equipment.
UL 94 is a commonly referenced flammability classification system for plastics.
When a project requires UL 94 V-0, the selected material should be a grade that has been appropriately tested and classified.
It is not correct to assume that every ABS bracket automatically meets UL 94 V-0.
Standard ABS without flame-retardant additives may have a lower classification.
When requesting a flame-retardant bracket, buyers should specify:
Required UL 94 rating
Material grade
Required thickness
Certification requirements
Applicable application standard
The final material selection should be confirmed through appropriate technical documentation.
22. Temperature Resistance
Temperature resistance is another important consideration.
A support bracket located inside a battery module can experience elevated temperatures during operation.
Representative material temperature ranges may be described as:
| Material | Representative Temperature Capability |
|---|---|
| ABS | Approximately 80–100°C |
| PC | Approximately 120°C |
| PA66 | Approximately 150°C or higher depending on grade |
These figures are general reference values rather than universal continuous-use ratings.
Actual performance depends on:
Resin grade
Reinforcement
Load
Exposure time
Humidity
Wall thickness
Mechanical stress
Operating environment
For engineering applications, the manufacturer's technical data sheet should be used for final material selection.
23. Environmental Compliance
Environmental compliance is increasingly important in global equipment manufacturing.
A plastic support bracket may be specified to meet requirements such as RoHS, depending on the intended market and application.
Buyers may request documentation related to:
Material composition
RoHS compliance
Restricted substances
Flame-retardant formulation
Recycling information
Material safety documentation
Environmental requirements should be defined during the product specification stage.
24. Color Options
Black is one of the most common colors for industrial plastic support brackets.
Black plastic can provide a practical appearance and is widely used for battery holders and equipment components.
Other colors can also be produced according to project requirements.
Possible options include:
Black
White
Gray
Blue
Green
Red
Custom colors
Color selection can also be used for:
Product identification
Assembly orientation
Model differentiation
Safety indication
Brand requirements
Color matching should be confirmed using a physical sample or an agreed color reference where appearance is important.
25. Custom Plastic Support Brackets
Custom plastic support brackets are often required when standard components cannot meet the mechanical layout of a particular equipment system.
Customization can involve:
Custom cell spacing
Custom hole diameter
Special shapes
Custom mounting holes
Ventilation openings
Cable routing channels
Nickel strip clearance
Identification markings
Cell numbering
Reinforcement ribs
Snap-fit structures
Assembly alignment features
Custom injection molding is especially useful when production volume justifies tooling investment.
26. Customization and Tooling
A Custom Support Bracket normally requires a technical drawing or 3D model before mold development.
Typical information includes:
Overall dimensions
Material
Cell model
Hole dimensions
Spacing
Tolerances
Assembly configuration
Color
Flame rating
Operating temperature
Surface requirements
Tooling cost depends on:
Part size
Part complexity
Number of cavities
Mold steel
Required tooling life
Production volume
Number of sliders or inserts
Dimensional requirements
The more complex the bracket, the more important the initial design review becomes.
27. Quality Control
Quality control for plastic support brackets can include dimensional, visual, material, and functional inspection.
Typical inspection items include:
Hole diameter
Cell spacing
Overall dimensions
Flatness
Wall thickness
Burrs
Cracks
Deformation
Flash
Color consistency
Assembly fit
Material identification
For battery cell holders, sample assembly with the intended cells is particularly useful.
This allows the manufacturer to verify whether the cell can be inserted smoothly and whether the holder maintains the required positioning.
28. Dimensional Accuracy
Dimensional accuracy is important because the bracket interacts directly with cylindrical cells and other components.
Critical dimensions may include:
Cell hole diameter
Center-to-center spacing
Overall length
Overall width
Holder height
Mounting hole position
Nickel strip clearance
Cable channel width
Injection molding naturally involves material shrinkage during cooling.
Therefore, mold design must compensate for expected material shrinkage.
29. Mechanical Support
The bracket must provide sufficient mechanical support without becoming unnecessarily heavy or bulky.
Designers may use ribs, bosses, walls, and support columns to improve stiffness.
A properly designed bracket can help prevent:
Cell movement
Misalignment
Excessive vibration
Assembly displacement
Mechanical requirements should be evaluated according to the expected loads and operating environment.
30. Vibration Considerations
Battery packs and industrial equipment can experience vibration during transportation and operation.
A support bracket can help maintain the intended position of components.
Important design factors include:
Material stiffness
Cell fit
Holder geometry
Support rib design
Mounting method
Enclosure interaction
For transportation or automotive applications, the complete assembly should be tested under appropriate vibration conditions.
31. Support Bracket Versus Structural End Plate
A support bracket is not the same as a structural end plate.
A support bracket is generally a plastic positioning and supporting component. It is mainly used for:
Positioning
Spacing
Insulation
Assembly assistance
Component support
A structural end plate is designed primarily to provide mechanical structural support.
For prismatic battery modules, side plates and end plates may be made from:
Aluminum
Steel
FR-4 Epoxy Board
Other structural materials
These components may be used together with plastic support components, but their functions are different.
The plastic holder should therefore not automatically be described as a structural end plate.
32. Common Applications
Plastic support brackets are used in many equipment categories.
They are widely used for cylindrical lithium battery assemblies.
Support components can help organize cylindrical cells in stationary energy storage modules.
Plastic brackets can support electrical components while providing insulation.
They can be used to position circuit boards, wires, connectors, and internal components.
Custom plastic brackets can support sensors, cables, modules, and mechanical components.
They may be used for cable management and internal component positioning.
Plastic support components can be integrated into equipment frames and modular assemblies.
33. Battery Pack Assembly
A typical cylindrical battery pack assembly may involve:
Selecting compatible cells.
Inspecting cell dimensions.
Installing the lower cell holder.
Positioning cylindrical cells.
Installing the upper cell holder.
Checking cell alignment.
Installing nickel strips or busbars.
Completing electrical interconnection.
Adding insulation and protection components.
Installing the module into the enclosure.
Completing inspection and testing.
The exact assembly sequence varies according to the battery architecture.
34. Importance of Cell Holder Design
Cell holder design affects more than simple positioning.
It can influence:
Assembly efficiency
Cell spacing
Module size
Airflow
Welding access
Wiring arrangement
Insulation
Mechanical stability
Therefore, the cell holder should be considered part of the overall battery module design.
35. Purchasing and Quotation Guide
When purchasing plastic support brackets, providing complete technical information can significantly reduce communication time.
A useful inquiry should include:
Product name
Cell model
Cell arrangement
Hole diameter
Cell spacing
Material
Flame-retardant requirement
Color
Quantity
Upper or lower holder requirement
Application temperature
Special features
Drawing or 3D model
36. Key Points for Purchasing and Quotation
Clearly identify the cell format and layout.
For example:
21700 straight-line battery holder, 22.5 mm spacing, 21.3 mm hole diameter, for a 4-parallel, 5-series configuration with 20 cells.
This information provides a clearer basis for product design and quotation.
If the application requires higher flame resistance, specify the required UL 94 classification.
For example:
UL 94 V-0 flame-retardant grade
The exact resin grade and test conditions should be confirmed.
Flame-retardant ABS can be suitable for many general battery pack applications.
PC or PA66 may be considered where higher temperature resistance is required.
Specify whether the holder is:
Upper holder
Lower holder
Upper and lower set
Single-sided holder
Specify whether the bracket requires:
Ventilation slots
Cable channels
Nickel strip clearance
Identification numbers
Mounting holes
Special geometry
Snap-fit structures
Reinforcement ribs
37. MOQ and Production Considerations
Custom injection-molded plastic brackets commonly involve tooling costs.
The appropriate minimum order quantity depends on the project.
For custom products, quantities may range from several hundred pieces to several thousand pieces or more.
The actual MOQ depends on:
Mold investment
Material
Production volume
Part complexity
Tooling structure
Manufacturing capacity
Packaging requirements
For large-volume battery applications, injection molding can provide better production efficiency and repeatability.
38. Cost Factors
The final cost of a plastic support bracket depends on several factors.
Major factors include:
Material
Part size
Part weight
Mold complexity
Production quantity
Surface finish
Color
Flame-retardant grade
Dimensional tolerances
Additional processing
Packaging
A simple bracket may have relatively low tooling complexity, while a bracket with multiple sliders, clips, channels, and undercuts may require a more sophisticated mold.
39. Packaging and Transportation
Plastic support brackets should be packaged to prevent deformation and surface damage during transportation.
Packaging methods may include:
Polybags
Cartons
Layered packaging
Protective separators
Palletized cartons
For larger injection-molded parts, appropriate stacking is important because excessive pressure can deform thin sections.
40. Installation Considerations
Before installation, users should inspect the bracket for:
Cracks
Flash
Deformation
Missing features
Incorrect dimensions
Contamination
The holder should be installed according to the intended orientation.
For upper and lower holders, the correct orientation is particularly important because the two components may have different locating structures.
41. Design for Assembly
Good support bracket design should simplify assembly.
Designers can use:
Chamfered entry surfaces
Alignment pins
Snap-fit features
Orientation marks
Cell numbering
Clear access openings
Integrated cable channels
These features can reduce assembly errors and improve production efficiency.
42. Maintenance and Inspection
Although plastic support components generally require little maintenance, they should be inspected when used in demanding equipment.
Inspection may include checking:
Cracks
Deformation
Looseness
Heat damage
Discoloration
Mechanical wear
Cell movement
If a bracket becomes damaged, the complete assembly should be evaluated before replacement.
43. Advantages of Plastic Support Components
Plastic support components offer several important advantages.
Plastic is generally lighter than steel and aluminum.
Many plastic materials naturally provide electrical insulation.
Plastic components are resistant to many forms of corrosion.
Complex shapes can be produced through injection molding.
Multiple functions can be combined into one molded component.
Injection molding can be economical for medium- and high-volume production.
Dimensions and features can be customized for different equipment.
44. Limitations
Plastic support brackets also have limitations.
Different polymers have different temperature capabilities.
Some plastics can deform gradually under continuous mechanical loading.
Long-term exposure to heat, ultraviolet radiation, chemicals, or moisture can affect certain plastics.
Temperature and humidity can influence some materials.
Standard plastic grades may not meet the flame rating required by a specific application.
Therefore, material selection and engineering validation are essential.
45. Engineering Considerations for Battery Applications
Battery systems require careful consideration because electrical, mechanical, and thermal requirements interact.
A plastic support bracket should be evaluated in relation to:
Cell dimensions
Cell chemistry
Operating temperature
Charging conditions
Discharging conditions
Electrical insulation
Mechanical loads
Vibration
Thermal management
Enclosure design
Welding process
The bracket itself is only one part of the complete battery system.
46. Surface and Appearance Requirements
Industrial support brackets usually prioritize functionality over decorative appearance.
Nevertheless, appearance may still be important for:
Visible equipment
Consumer products
Assembly identification
Product differentiation
Typical appearance requirements may include:
Uniform color
Smooth surfaces
No cracks
No excessive flash
No obvious sink marks
No contamination
Consistent texture
The required appearance standard should be defined before mass production.
47. Common Custom Features
A custom plastic support bracket can incorporate numerous functional features.
| Feature | Main Purpose |
|---|---|
| Cell Holes | Position cylindrical cells |
| Spacing Ribs | Maintain cell separation |
| Ventilation Slots | Support airflow |
| Cable Channels | Organize wires |
| Nickel Strip Notches | Provide welding clearance |
| Mounting Holes | Secure the bracket |
| Alignment Pins | Improve assembly accuracy |
| Identification Marks | Simplify assembly |
| Cell Numbering | Identify cell positions |
| Reinforcement Ribs | Increase stiffness |
| Snap Fits | Simplify assembly |
| Clearance Openings | Prevent interference |
48. How to Select the Right Support Bracket
A suitable plastic support bracket should be selected based on the complete application.
Consider the following questions:
What component needs to be supported?
What are its dimensions?
What spacing is required?
What operating temperature is expected?
Is electrical insulation required?
Is flame retardancy required?
Is airflow necessary?
Are cable routing features required?
Is nickel strip clearance needed?
What quantity is required?
Is customization necessary?
What applicable standards must be met?
Answering these questions before requesting a quotation can make the purchasing process more efficient.
49. Application-Specific Material Selection
There is no single plastic material that is ideal for every application.
ABS is often selected for general-purpose equipment and battery holders because of its balance of performance and cost.
PC can be considered for applications requiring improved temperature resistance and impact performance.
PP may be suitable when lightweight construction and economy are priorities.
PA66 can be considered for applications involving higher temperature or mechanical demands.
The final selection should be based on verified technical data.
50. Future Trends in Plastic Support Brackets
The development of modern equipment is increasing the demand for lightweight, integrated, and customized support components.
Future designs are likely to focus on:
Lightweight structures
Improved flame resistance
Higher temperature performance
Integrated cable management
Better ventilation
More compact cell layouts
Automated assembly
Higher dimensional precision
Multi-functional molded structures
Recyclable material options
Battery systems in particular are driving continued innovation in cell holder geometry, thermal management, and module assembly.
51. Conclusion
Plastic support components with support brackets provide practical positioning, insulation, mounting, spacing, and assembly functions across a wide range of equipment.
For cylindrical battery systems, products such as 21700 battery holders, cell spacers, cell positioning holders, battery support brackets, and plastic cell holders can help maintain consistent cell spacing and improve assembly efficiency.
A representative straight-line 21700 holder may use a 22.5 mm cell spacing and 21.3 mm hole diameter, while ABS, PC, PP, and PA66 can be considered according to application requirements.
The most important purchasing factors include:
A properly designed plastic support bracket should be regarded as part of the complete equipment or battery module rather than as an isolated component. Its mechanical, electrical, thermal, and assembly functions should be evaluated together with the rest of the system.
This website uses cookies to ensure you get the best experience on our website.
WhatsApp
Phone
