A Custom Plastic Support Bracket is a molded plastic component designed to provide positioning, spacing, insulation, protection, and assembly support for electrical and mechanical components. In lithium battery manufacturing, Custom Plastic Support Brackets are widely used to organize cylindrical battery cells and maintain a consistent arrangement inside battery modules and battery packs.
In the lithium battery industry, a 21700 straight-line battery holder generally refers to a cell positioning holder, also known as a Cell Spacer or Cell Holder. It is one of the most commonly used plastic auxiliary components for arranging cylindrical battery cells into battery packs. By maintaining the relative position of individual cells, a battery cell holder can simplify pack assembly, reduce cell movement, provide separation between adjacent cells, and support the overall organization of a cylindrical cell module.
A custom plastic Support Bracket can be designed according to the battery cell diameter, cell spacing, pack configuration, installation method, thermal management requirements, wiring layout, and assembly process. This makes the component suitable for different battery pack structures rather than limiting it to a single standardized configuration.
For 21700 cylindrical battery applications, ABS is commonly selected because it provides a useful balance of rigidity, dimensional stability, impact resistance, processability, and cost. Depending on operating temperature, mechanical requirements, electrical insulation requirements, and flame-retardant specifications, PP, PC, or PA nylon may also be considered.
These components are generally manufactured using injection molding, which allows manufacturers to produce repeatable geometries with mounting holes, cell openings, ventilation channels, cable routing features, positioning ribs, reinforcing structures, and other customized details.
What Is a Custom Plastic Support Bracket?
A custom plastic support bracket is an engineered polymer component manufactured to provide a specific positioning or support function. Unlike a generic bracket, a Custom Support Bracket is developed around the dimensions and requirements of a particular product or assembly.
In battery applications, the bracket may function as a cell holder, cell spacer, positioning frame, insulation component, assembly guide, or auxiliary structural element.
The basic purpose is to maintain a predictable relationship between components. For cylindrical battery packs, this typically means keeping individual cells properly positioned while maintaining the required spacing between neighboring cells.
A properly designed support bracket can also provide additional functions. For example, openings or ventilation slots can support airflow around the cells, while cable routing channels can help organize electrical connections. Clearance areas can be incorporated to provide space for Nickel Strips, busbars, wires, sensors, or other battery pack components.
Because battery packs differ significantly in cell quantity, arrangement, dimensions, electrical configuration, and enclosure design, custom plastic support brackets are often developed to match the specific pack architecture.

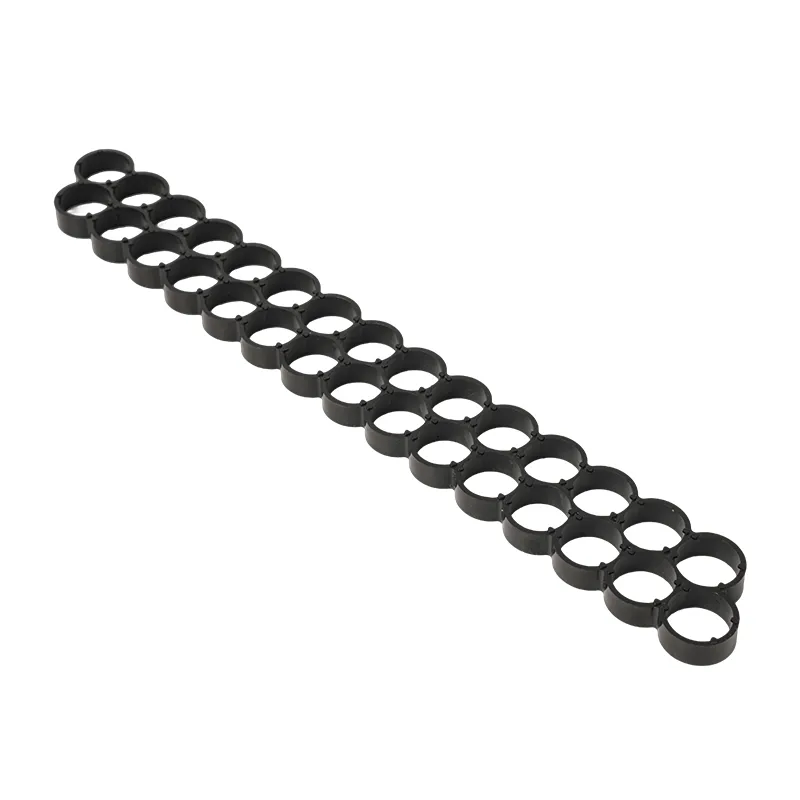

21700 Straight Line Battery Holder
The 21700 battery cell is a cylindrical rechargeable battery format commonly used in battery packs and energy storage assemblies. A 21700 cell typically has a nominal physical format of approximately 21 mm in diameter and 70 mm in length, although actual dimensions and tolerances can vary depending on the cell manufacturer and model.
A 21700 straight-line battery holder is designed to position multiple cylindrical cells in a straight or regular arrangement.
The holder generally contains circular openings or positioning features corresponding to the outer diameter of the cells. When several holders are combined, the cells can be arranged into a stable battery module.
The term Cell Spacer emphasizes the spacing function, while Cell Holder emphasizes the positioning and retention function. In practical battery assembly applications, the two terms may be used interchangeably depending on the product structure.
The support bracket does not normally replace the battery enclosure, structural frame, or end plate. Instead, it functions as an auxiliary component that helps organize and support the cylindrical cells within the larger battery assembly.
Lithium Battery Cell Holder Materials
ABS, or acrylonitrile butadiene styrene, is one of the most commonly used materials for plastic battery holders and support brackets.
ABS is popular because it offers a practical combination of:
Good rigidity
Good dimensional stability
Good impact resistance
Good injection molding performance
Smooth surface quality
Good machinability
Cost efficiency
Wide availability
Easy color customization
For general battery pack applications, ABS can provide sufficient mechanical support while remaining lightweight.
Flame-retardant ABS grades can also be considered when additional fire resistance is required. The appropriate grade should be selected according to the complete battery system, applicable standards, operating environment, and end-product certification requirements.
PP, or polypropylene, is another thermoplastic material that may be used for battery holders and plastic support components.
PP is known for its relatively low density, chemical resistance, moisture resistance, and cost effectiveness.
Compared with ABS, PP is generally more flexible. This can be useful in applications where some degree of flexibility is desirable, but it may not be appropriate where a highly rigid positioning structure is required.
PP can be considered when the design requires:
Lightweight construction
Chemical resistance
Moisture resistance
Flexible characteristics
Economical production
Material selection should always be based on the actual mechanical and thermal requirements of the application.
PC, or polycarbonate, is a high-performance engineering thermoplastic known for its strength, toughness, and relatively high temperature resistance.
A PC support bracket may be considered when the application requires greater heat resistance or mechanical performance than a standard plastic bracket can provide.
Typical advantages include:
High impact resistance
Good dimensional stability
Higher temperature capability
Good mechanical strength
Good molding characteristics
PC can therefore be useful for battery assemblies operating in comparatively demanding thermal environments.
PA, or nylon, is another engineering plastic used in applications requiring higher temperature resistance and mechanical performance.
PA66 is particularly relevant to applications involving elevated operating temperatures.
Advantages may include:
Good mechanical strength
Good wear resistance
Good temperature resistance
Good fatigue resistance
Good engineering performance
However, nylon materials can have higher moisture absorption than some other plastics, which can influence dimensional stability and mechanical properties. Therefore, material selection should consider the actual environmental conditions.
Material Comparison for Custom Plastic Support Brackets
| Material | Typical Characteristics | Main Advantages | Potential Considerations |
|---|---|---|---|
| ABS | Rigid engineering thermoplastic | Good balance of strength, cost, molding performance | Temperature capability should match the application |
| PP | Lightweight thermoplastic | Low density, chemical resistance, economical | Softer and more flexible than ABS |
| PC | Strong engineering thermoplastic | High impact resistance and higher temperature capability | Higher material cost |
| PA66 | Engineering nylon | High strength and temperature resistance | Moisture absorption should be considered |
| Flame Retardant ABS | Modified ABS grade | Improved flame resistance | Grade and certification should be verified |
The exact performance of a material depends on its formulation, grade, additives, processing conditions, geometry, and operating environment. Therefore, generic material names should not be treated as complete performance specifications.
Injection Molding Manufacturing
Custom plastic support brackets are commonly produced through injection molding.
Injection molding begins with plastic pellets being heated until they become molten. The molten polymer is then injected into a specially designed mold under controlled pressure. After the material fills the cavity, it cools and solidifies before the molded component is ejected.
Injection molding is particularly suitable for battery holders because it can provide:
Repeatable dimensions
Consistent production quality
High production efficiency
Complex geometric features
Integrated positioning structures
Ventilation openings
Cable channels
Reinforcing ribs
Snap-fit features
Mounting points
The mold can be designed around the required cell arrangement and battery pack architecture.
For high-volume production, injection molding can provide significant advantages over manually assembled or machined plastic components.
Why Customization Matters
Battery pack designs vary considerably. Even when the same cylindrical cell format is used, different manufacturers may use different cell arrangements, spacing requirements, electrical configurations, cooling methods, and enclosure structures.
A standard battery holder may not fit every design.
A custom plastic support bracket can be developed to match specific requirements such as:
Cell diameter
Cell spacing
Number of cells
Cell arrangement
Module dimensions
Upper and lower holder configuration
Ventilation requirements
Wiring requirements
Nickel strip clearance
Busbar clearance
Sensor installation
Mounting method
Enclosure dimensions
Flame-retardant requirements
Material requirements
Color requirements
This design flexibility is one of the main advantages of custom molded battery cell holders.
Main Functions of a 21700 Cell Holder
The primary function of a 21700 battery holder is to maintain the position of cylindrical cells.
Without a positioning structure, individual cells can move during assembly, transportation, vibration, or mechanical handling.
A properly designed cell holder creates defined locations for each cell and helps maintain a consistent arrangement.
Consistent spacing is important for battery pack assembly.
The distance between adjacent cells can influence:
Module dimensions
Mechanical stability
Cooling airflow
Electrical connection layout
Nickel strip placement
Busbar arrangement
Insulation design
Sensor installation
For this reason, the holder should be designed according to the actual cell dimensions and required assembly tolerance.
Plastic materials are generally electrically insulating, which allows cell holders to provide physical separation between neighboring cells.
The holder can help reduce the possibility of direct contact between adjacent components and can contribute to the overall insulation strategy of a battery pack.
However, a cell holder should not automatically be considered a complete electrical insulation system. The battery design may also require insulating films, barriers, tapes, sheets, sleeves, or other dedicated insulation components.
A cell holder can make battery pack assembly easier by keeping cells in their intended positions.
During assembly, the holder may help operators or automated equipment maintain cell alignment while electrical connections are installed.
This can be especially useful when assembling large numbers of cylindrical cells.
Battery cell holders can help prevent excessive cell movement during nickel strip spot welding.
When cells remain correctly aligned, the welding process can be more consistent and easier to manage.
The holder may also incorporate clearance areas designed around nickel strips and welding points.
The exact geometry depends on the welding process and battery pack design.
Ventilation and Thermal Management
Battery cells generate heat during operation and charging. The ability of a battery module to manage heat depends on the complete thermal design.
A plastic cell holder can contribute to airflow management by incorporating:
Ventilation slots
Open-grid sections
Air channels
Spacing between cells
Airflow openings
Structural gaps
These features may allow air to move between or around cells.
However, the holder itself is not a complete thermal management system. Battery thermal performance also depends on cell chemistry, electrical load, ambient temperature, enclosure design, airflow rate, cooling equipment, thermal interface materials, and system architecture.
Cable Routing Features
Modern battery packs may contain numerous wires and signal connections.
A custom support bracket can incorporate dedicated cable routing channels to help organize wires and reduce interference with other components.
Possible design features include:
Cable channels
Wire clips
Routing grooves
Cable clearance areas
Sensor wire passages
Connector clearance
Harness positioning features
These features can improve assembly organization and help reduce accidental wire interference.
Nickel Strip Clearance
Nickel strips are commonly used to connect cylindrical battery cells in certain battery pack configurations.
A custom plastic support bracket may include specific clearance areas to accommodate nickel strips.
The design can account for:
Nickel strip width
Nickel strip thickness
Welding location
Strip direction
Electrical connection layout
Cell arrangement
Clearance requirements
The exact design should be coordinated with the electrical connection and welding process.
Upper and Lower Cell Holders
Many cylindrical battery pack designs use a pair of cell holders.
One holder is positioned at one end of the cells, while another holder is positioned at the opposite end.
This configuration can help stabilize the cells from both sides.
A matched upper and lower holder system may provide:
Improved cell alignment
Better mechanical stability
More reliable positioning
Easier module assembly
Better control of cell spacing
Improved compatibility with welding processes
Some designs may only require a single-sided positioning component, depending on the pack structure.
Common 21700 Battery Holder Configurations
The exact configuration depends on the battery pack.
Common arrangements can include:
Single cell
2 cell
3 cell
4 cell
5 cell
2 × 2
2 × 3
3 × 3
3 × 4
4 × 4
4 × 5
5 × 5
Custom configurations
Battery configuration should be specified using the actual electrical arrangement, such as series and parallel connections, rather than relying only on physical cell count.
Common Specifications and Parameters
| Item | Typical Description |
|---|---|
| Product Type | Custom Plastic Support Bracket |
| Application | Cylindrical lithium battery assembly |
| Compatible Cell | 21700 cylindrical cell |
| Component Type | Cell Spacer or Cell Holder |
| Main Material | ABS |
| Alternative Materials | PP, PC, PA or PA66 |
| Manufacturing Process | Injection molding |
| Cell Arrangement | Single, linear, matrix, or customized |
| Function | Positioning, spacing, insulation, and assembly support |
| Ventilation | Optional ventilation slots or openings |
| Cable Routing | Optional cable channels |
| Nickel Strip Clearance | Available according to design |
| Color | Black or customized |
| Surface | Molded plastic surface |
| Customization | Geometry, dimensions, openings, markings, and structure |
| Flame Retardancy | Optional depending on material grade |
| Environmental Compliance | RoHS requirements can be specified where applicable |
These values are general design references rather than universal specifications. Final dimensions should be confirmed according to the actual cell model, holder design, material grade, and battery pack requirements.
Important Design Considerations
The cell opening should be designed around the actual outside diameter of the battery cell.
A nominal battery format does not necessarily guarantee identical physical dimensions between different cell models.
Therefore, the actual cell manufacturer's dimensional drawing should be used during bracket development.
Cell spacing should be determined based on:
Cell diameter
Required mechanical clearance
Cooling requirements
Welding structure
Insulation requirements
Module dimensions
Manufacturing tolerances
Too little clearance can make assembly difficult, while excessive spacing may unnecessarily increase module dimensions.
Injection-molded plastic components require appropriate dimensional tolerances.
Important dimensions may include:
Cell opening diameter
Center-to-center spacing
Overall length
Overall width
Thickness
Mounting hole position
Snap-fit dimensions
Alignment features
Tolerance selection should consider the material's shrinkage behavior and mold design.
Structural Design Features
Custom support brackets can incorporate various structural elements.
Positioning ribs can help guide cells into the correct location.
Reinforcing ribs can increase stiffness without requiring excessive material thickness.
Ventilation slots can create pathways for air movement.
Cable channels help organize wiring.
Mounting holes can be used to connect the holder to other components.
Snap-fit structures can simplify assembly where appropriate.
Custom molded markings can help identify:
Cell positions
Assembly direction
Product model
Series position
Parallel position
Manufacturing information
Advantages of ABS Plastic Support Brackets
ABS is widely selected for support brackets because of its balanced performance.
ABS can provide sufficient rigidity for many cell positioning applications.
ABS has good impact resistance, which can be useful during handling and assembly.
Properly selected ABS grades can maintain relatively stable dimensions under normal operating conditions.
ABS is well suited to injection molding, making it practical for high-volume production.
Compared with some higher-performance engineering plastics, ABS can provide a more economical solution for general-purpose applications.
ABS can produce a clean molded surface and can be manufactured in different colors.
Flame Retardant Requirements
Some battery applications may require flame-retardant materials.
A flame-retardant ABS grade can be considered when the battery system has specific fire safety requirements.
One commonly referenced classification is UL 94 V-0.
However, the appropriate flame-retardant grade should be selected according to the complete product design and applicable certification requirements.
It is important to distinguish between the material's flame-retardant rating and the safety performance of the complete battery pack.
A V-0 material does not mean that the entire battery assembly is automatically fireproof.
Material Selection Guide
| Application Requirement | Potential Material |
|---|---|
| General battery pack positioning | ABS |
| Cost-sensitive lightweight design | PP |
| Higher impact and temperature requirements | PC |
| Higher temperature engineering application | PA66 |
| Increased flame resistance | Flame-retardant ABS or other qualified engineering plastic |
| Custom high-performance application | Material selected according to engineering evaluation |
The final material should be validated through actual application testing.
Customization Options
A custom plastic support bracket can be customized in many ways.
Common customization options include:
Custom dimensions
Custom cell openings
Custom cell spacing
Custom cell arrangement
Custom ventilation slots
Custom cable routing
Custom nickel strip clearance
Custom mounting holes
Custom locking structures
Custom snap-fit structures
Custom identification marks
Custom numbering
Custom color
Custom material
Custom flame-retardant grade
Custom upper and lower holder configuration
This flexibility makes custom support brackets suitable for prototypes as well as mass-production battery modules.
Prototype Development
Before mass production, prototype development is recommended for customized battery components.
A prototype can be used to evaluate:
Cell fit
Cell insertion force
Cell removal
Spacing
Alignment
Holder strength
Assembly procedure
Nickel strip clearance
Wiring clearance
Ventilation
Compatibility with the battery enclosure
Prototype validation can help identify dimensional or structural problems before expensive production tooling is finalized.
Injection Mold Considerations
For custom injection-molded support brackets, mold design has a direct influence on product quality.
Important considerations include:
Gate position
Cooling system
Ejection structure
Draft angle
Wall thickness
Shrinkage
Warpage
Mold flow
Parting line
Dimensional tolerance
A well-designed mold can improve dimensional consistency and production efficiency.
Wall Thickness
Wall thickness should be designed according to the selected plastic material and component geometry.
Extremely thick sections can increase cooling time and may contribute to molding defects.
Very thin sections may reduce mechanical strength or make filling difficult.
Uniform wall thickness is generally beneficial for injection molding, although reinforcing ribs and other structures can be used where additional stiffness is required.
Quality Control
Quality control is important for custom plastic support brackets because dimensional accuracy directly affects battery assembly.
Typical inspection items can include:
| Inspection Item | Purpose |
|---|---|
| Cell Opening Diameter | Confirm cell fit |
| Cell Spacing | Confirm positioning accuracy |
| Overall Dimensions | Confirm module compatibility |
| Wall Thickness | Confirm molding consistency |
| Material | Confirm specified polymer |
| Color | Confirm appearance |
| Warpage | Check dimensional stability |
| Flash | Check molding quality |
| Cracks | Check structural integrity |
| Ventilation Openings | Confirm airflow design |
| Cable Channels | Confirm routing compatibility |
| Mounting Holes | Confirm assembly compatibility |
For larger production quantities, inspection methods can be adapted according to the required quality control plan.
Common Applications
Custom plastic support brackets can be used in a wide range of battery and electrical applications.
They can be used as auxiliary components in battery modules for electric mobility systems.
They can help organize cylindrical cells in energy storage battery assemblies.
They can support compact cylindrical cell arrangements used in portable power equipment.
They can assist with cell positioning inside backup power battery modules.
They can be incorporated into customized industrial battery assemblies.
Plastic positioning components can also be adapted for various electronic equipment requiring lightweight insulation and component support.
Custom Plastic Support Bracket vs Structural End Plate
A support bracket is not necessarily a structural end plate.
A plastic cell support bracket is primarily intended for:
Cell positioning
Cell spacing
Electrical separation
Assembly assistance
Airflow support
Component organization
A structural end plate, by contrast, may be designed to provide significant mechanical strength to the battery module.
Structural end plates can be manufactured from materials such as:
Aluminum
Steel
FR-4 Epoxy Board
Other structural materials
The exact material depends on the battery architecture and mechanical requirements.
The two components may be used together, but they perform different functions.
Design Advantages of Custom Plastic Support Brackets
Custom support brackets can offer several practical advantages.
Plastic is significantly lighter than many metals, which can help reduce component weight.
Many thermoplastic materials provide useful electrical insulation properties.
Injection molding allows designers to integrate complex geometries into a single component.
Injection molding is suitable for repeatable high-volume manufacturing.
Mounting, positioning, ventilation, and routing features can be incorporated into one molded component.
The component can be adapted to different battery pack configurations.
Purchasing and Quotation Considerations
When purchasing a custom plastic support bracket, buyers should provide sufficient technical information.
Clearly specify the battery cell format, such as a 21700 cylindrical cell.
If possible, provide the actual cell dimensional drawing.
Provide the intended physical and electrical arrangement.
For example:
Number of cells
Series count
Parallel count
Straight-line or matrix arrangement
Specify the desired center-to-center distance or obtain recommendations based on the actual cell diameter and pack design.
Specify whether the application requires:
ABS
Flame-retardant ABS
PP
PC
PA66
If the project requires flame-retardant performance, specify the required grade and applicable testing standard.
Determine whether the battery module requires a matched pair of holders or a single positioning component.
Black is widely used for battery holders, but customized colors may be possible.
Specify whether the design needs:
Ventilation slots
Cable channels
Nickel strip clearance
Mounting holes
Snap fits
Identification markings
Cell numbering
Customization Workflow
A typical custom support bracket development process can include the following stages:
Collect cell dimensions, arrangement, material requirements, operating environment, and assembly requirements.
Develop the initial bracket structure according to the battery module design.
Create a three-dimensional model for dimensional review and assembly verification.
Produce prototype samples for physical testing.
Install the actual battery cells and verify the fit.
Evaluate cell positioning, welding clearance, wiring, and installation procedures.
After design confirmation, develop the injection mold.
Produce initial molded samples and inspect critical dimensions.
Confirm material, dimensions, appearance, assembly performance, and other requirements.
Begin regular production after design and quality requirements have been confirmed.
Frequently Asked Questions
A 21700 battery holder is a component designed to position and organize cylindrical 21700 battery cells within a battery pack or module.
A Cell Spacer is a component that maintains separation and positioning between individual battery cells.
ABS is commonly used because it provides a practical balance of rigidity, impact resistance, processability, and cost.
Yes. PP may be suitable for applications where lightweight construction, chemical resistance, or cost efficiency is important.
Yes. PC can be considered when higher impact resistance and temperature performance are required.
Yes. PA66 may be considered for applications requiring higher temperature resistance and mechanical performance.
Not necessarily. A battery holder primarily positions and separates cells, while a structural end plate may provide significant mechanical support to the module.
Yes. Customization can include cell openings, spacing, dimensions, ventilation, cable routing, nickel strip clearance, mounting features, colors, materials, and identification marks.
Many cylindrical battery modules use matched upper and lower holders, but the exact configuration depends on the battery pack structure.
Conclusion
A Custom Plastic Support Bracket provides an efficient way to organize, position, separate, and support cylindrical battery cells in customized battery pack designs. For 21700 cylindrical lithium battery applications, the Cell Spacer / Cell Holder is an important auxiliary component that can help maintain cell alignment, consistent spacing, electrical separation, and assembly stability.
ABS is one of the most commonly selected materials because it offers a useful combination of rigidity, impact resistance, dimensional stability, processing performance, and cost efficiency. PP, PC, PA, and PA66 can also be considered when specific requirements call for different flexibility, temperature resistance, mechanical strength, or environmental performance.
Through injection molding, custom support brackets can incorporate ventilation slots, cable routing channels, mounting structures, nickel strip clearance areas, positioning ribs, identification markings, and other application-specific features.
For battery manufacturers and system designers, the most important factors are not simply the material or appearance of the holder. Cell dimensions, spacing, tolerance, material grade, thermal environment, electrical insulation requirements, assembly configuration, and overall battery architecture should all be considered during product development.
A properly designed custom plastic support bracket can therefore become an important auxiliary component for organized and efficient cylindrical battery module assembly while providing the design flexibility required for different battery pack structures.
This website uses cookies to ensure you get the best experience on our website.
WhatsApp
Phone
