Nickel Strip is a widely used conductive material for lithium battery pack assembly, battery tab fabrication, cell interconnection, and resistance spot welding. In cylindrical battery applications, nickel strip can serve as a practical connection between individual cells and external electrical circuits. Depending on the battery design, current requirement, welding process, mechanical configuration, and cost target, battery nickel strips may be manufactured from pure nickel or nickel plated steel.
Nickel plated steel strip is particularly common in general battery assembly because it combines a conductive nickel surface with a low carbon steel substrate. The nickel surface provides suitable soldering and welding characteristics, while the steel substrate contributes mechanical strength and helps reduce material cost. Pure nickel strip, by comparison, is generally selected when low electrical resistance, corrosion resistance, and high current performance are important design requirements.
For battery manufacturers, battery pack assemblers, DIY battery pack builders, electrical engineers, and component purchasers, understanding the material structure of nickel strip is important. The substrate, nickel coating, strip thickness, strip width, edge condition, punching pattern, and welding method can all influence the suitability of a nickel tab for a particular battery application.
Nickel strip for battery tabs is a thin metallic strip designed to provide an electrical and mechanical connection between battery cells or between battery cells and a battery protection or power connection system.
The term nickel strip may refer to different material constructions. The two common categories are pure nickel strip and nickel plated steel strip.
Pure nickel strip consists primarily of nickel throughout its material thickness. Nickel plated steel strip uses a steel substrate with a nickel coating applied to its surface.
Nickel plated steel strip is often selected for economical battery pack designs because the steel substrate provides good mechanical strength while the nickel surface provides a conductive and weldable exterior. This construction is widely associated with cylindrical lithium battery pack assembly.
Typical cylindrical battery formats include 18650, 21700, 26650, 26700, and 32650 cells. Nickel strips can be supplied as continuous coils, pre-cut strips, punched tabs, or customized stamped connector pieces.
The strip can be used with resistance spot welding equipment, automatic battery tab welding systems, or manual assembly processes depending on its form and application.
The nickel plated steel strip is made from low carbon cold rolled steel strip SPCC with a nickel plated surface. After large nickel plated coils are slit and cut into finished strips, the side edges of the finished nickel strips are not nickel plated.
This material construction should be clearly distinguished from stainless steel. Nickel plated steel strip is not the same product as nickel plated stainless steel strip.
Important Note: This product does not use stainless steel as the base material. Nickel plated stainless steel strips are generally not recommended for many battery applications because the electrical resistance of stainless steel can be significantly higher than that of nickel plated steel. In some comparisons, stainless steel strip resistance may be approximately three times higher, depending on the alloy, dimensions, condition, and measurement method. Therefore, nickel plated stainless steel strip is generally more appropriate for certain low current connection applications rather than applications requiring efficient current transmission.
The substrate of the nickel plated steel strip is low carbon cold rolled steel SPCC, with a nickel coating applied to the surface. After large nickel plated coils are slit or stamped into shape, the finished nickel strips or nickel tabs do not have a nickel plating layer on their side edges.
This edge condition is a normal result of slitting and cutting. It should be considered when designing battery pack assemblies, especially where the strip edge will be exposed to the environment or where electrical contact occurs directly at the edge.
A nickel plated steel battery strip can be understood as a layered metallic material.
The basic structure consists of:
Low carbon cold rolled steel substrate
Nickel plated surface
Slit or stamped strip geometry
Exposed cut edges after processing
The steel substrate provides the main mechanical body of the strip. The nickel coating forms the external surface.
This structure allows the product to combine several useful properties. The steel substrate provides stiffness and strength, while the nickel coating provides a metallic surface suitable for many battery connection and welding processes.
The final performance of a nickel plated steel strip depends on more than the presence of nickel. Strip thickness, strip width, nickel coating condition, substrate properties, surface cleanliness, welding parameters, and battery design all influence practical performance.
For this reason, selecting battery nickel strip only by appearance is not sufficient. Technical specifications should be evaluated together with the intended battery configuration and welding process.
Nickel is widely used in battery connection components because it offers a useful combination of electrical, mechanical, and chemical properties.
A nickel surface can provide good resistance to corrosion under many normal service conditions. It also provides a suitable metallic surface for resistance welding when the material and welding parameters are correctly matched.
Nickel strip can be manufactured in thin dimensions, making it suitable for compact battery assemblies. Thin strips can be formed, punched, bent, or cut into customized connector geometries.
For cylindrical lithium battery packs, the strip may connect multiple cells in series or parallel configurations. The exact strip configuration depends on the electrical architecture of the pack.
The nickel strip must be sufficiently strong to maintain the intended connection while also being compatible with the selected welding process.
The terms nickel strip and nickel battery tab are often used interchangeably in the battery assembly industry, but they can describe slightly different forms.
A nickel strip usually refers to a continuous or cut strip of conductive metal.
A nickel battery tab generally refers to a section of conductive material specifically shaped or positioned to connect a battery cell or battery group.
A battery tab may be:
A straight strip
A pre-cut strip
A punched tab
A stamped connector
A slotted connector
A multi-cell connection piece
A customized terminal piece
The material may be pure nickel or nickel plated steel depending on the application.
Nickel strips are frequently used with cylindrical battery cells.
Common cell formats include:
| Battery Cell Type | Typical Application Area | Nickel Strip Use |
|---|---|---|
| 18650 | Consumer electronics and DIY battery packs | Cell connection and spot welding |
| 21700 | High capacity battery packs and energy systems | Series and parallel connections |
| 26650 | Larger cylindrical battery assemblies | Battery tab connections |
| 26700 | Cylindrical battery packs | Cell interconnection |
| 32650 | Larger battery modules and power applications | High capacity cell connections |
The actual nickel strip dimensions should be selected according to the current requirement, cell arrangement, welding equipment, mechanical layout, and battery pack design.
Common Nickel Strip Materials
Pure nickel strip is manufactured primarily from nickel and is commonly used where low resistance, corrosion resistance, and good welding performance are important.
Common commercial grades may include materials such as N6 or Ni200, depending on the specification system and application requirements.
Pure nickel strip is often considered for:
High current battery packs
Energy storage systems
Power battery assemblies
Specialized lithium battery packs
Applications requiring consistent nickel material
Battery systems where material resistance is a key consideration
Pure nickel usually has a higher material cost than nickel plated steel. Therefore, it may not always be the most economical choice for general battery pack construction.
Nickel plated steel strip uses a low carbon steel substrate with a nickel coating.
Its main advantages include:
Good mechanical strength
Relatively low material cost
Suitable surface for battery welding
Good formability for many strip designs
Practical availability in multiple widths and thicknesses
Suitable for general cylindrical battery pack assembly
Nickel plated steel strip is commonly considered for standard battery packs and general-purpose battery connector applications.
However, its electrical performance is different from that of pure nickel. Battery designers should therefore select the material based on actual current requirements rather than assuming that all nickel strips have identical electrical characteristics.
Nickel Plated Steel Compared with Pure Nickel
| Property | Nickel Plated Steel | Pure Nickel |
|---|---|---|
| Base Material | Low carbon steel | Nickel |
| Surface | Nickel plated | Nickel |
| Material Cost | Generally lower | Generally higher |
| Mechanical Strength | Good | Good |
| Electrical Resistance | Depends on construction | Generally lower for equivalent strip geometry |
| Corrosion Resistance | Provided primarily by nickel surface | Good |
| Spot Welding | Suitable with correct parameters | Excellent when properly processed |
| Typical Use | General battery packs | High performance and high current applications |
| Processing | Slitting and stamping available | Slitting and stamping available |
| Custom Shapes | Available | Available |
Actual performance should always be verified according to material grade, thickness, width, coating specification, and welding conditions.
Advantages of Nickel Strip for Battery Tabs
A properly selected nickel strip can provide an effective electrical path between cylindrical battery cells.
The strip should be appropriately sized for the expected current. Increasing strip width or thickness can change the electrical characteristics of the connection.
For high current battery packs, engineers may use wider, thicker, or multiple connection strips depending on the pack architecture.
Resistance spot welding is one of the most common methods used to attach nickel strips to cylindrical battery cells.
The welding process creates localized heat at the contact interface. Correct welding parameters are necessary to produce a reliable connection without damaging the battery cell.
Important welding variables can include:
Welding current
Welding pulse duration
Electrode pressure
Electrode shape
Strip thickness
Strip material
Cell surface condition
Number of welding pulses
Nickel strip specifications should therefore be matched to the welding machine and battery cell construction.
Nickel plated steel strip benefits from the mechanical properties of the steel substrate.
This can be useful when battery packs are subjected to vibration, handling, assembly forces, or mechanical movement.
The strip must still be properly supported. Nickel strip should not be considered a substitute for a complete battery pack structural design.
Nickel provides a relatively resistant surface for many general battery assembly environments.
The nickel surface helps protect the underlying steel from direct exposure. However, cutting and slitting can expose the steel substrate along the side edges.
For this reason, the edge condition should be considered when battery packs are exposed to moisture, corrosive chemicals, high humidity, or other demanding environments.
Nickel strip can be processed into many forms.
Common processing operations include:
Slitting
Cutting
Punching
Stamping
Slotting
Bending
Forming
Customized terminal shaping
These processing options allow nickel battery tabs to be adapted to different battery module designs.
Continuous Nickel Strip Coil
Continuous coil nickel strip is suitable for automated battery pack assembly.
The material is supplied in a roll and can be fed into automatic or semi-automatic equipment.
Continuous coil material can improve production efficiency when many identical battery packs need to be assembled.
Typical applications include:
Automatic spot welding
Battery module production
High volume cylindrical cell assembly
Automated tab feeding
Continuous connector production
The coil width, thickness, winding condition, inner diameter, outer diameter, and weight can be specified according to equipment requirements.
Pre Cut Nickel Battery Tabs
Pre-cut nickel strips are convenient for manual battery pack assembly.
Instead of feeding material from a continuous coil, the assembler receives individual strips with predetermined lengths.
Pre-cut strips can be useful for:
Prototype battery packs
Small batch assembly
DIY battery projects
Repair applications
Manual welding
Customized battery layouts
The strip length can be adjusted according to the distance between cells and the required connection geometry.

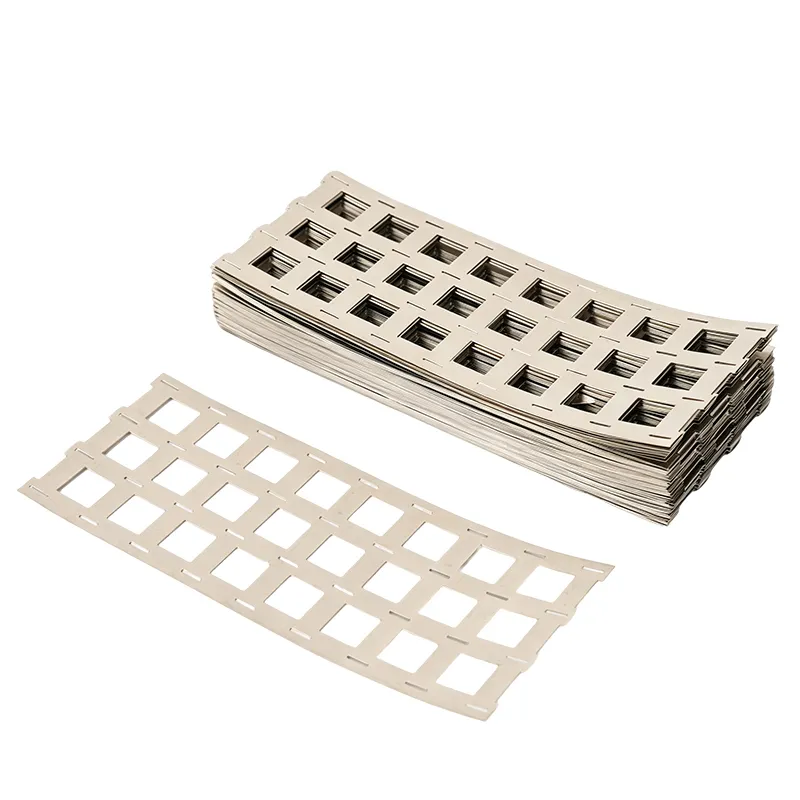

Punched Nickel Battery Tabs
Punched nickel tabs are produced using stamping or punching processes.
A punched tab may include:
Square holes
Round holes
Mounting openings
Longitudinal slots
Transverse slots
Terminal extensions
Customized connection sections
Punching allows the nickel strip to follow a specific battery pack layout.
For cylindrical cell assemblies, punched nickel strips can be designed around common cell dimensions.
Slotted Nickel Strip
Slotted nickel strips are useful when additional flexibility or a specific connection geometry is required.
Slots can be arranged in different directions.
Common configurations include:
Longitudinal slots
Transverse slots
Repeated slots
Customized openings
Connector slots
Slot dimensions should be determined by the battery pack structure and welding process.
Slots may also help accommodate mechanical spacing or provide a controlled connection geometry, but their effect on electrical resistance and mechanical strength should be evaluated.
Common Nickel Strip Specifications
The selection of nickel strip dimensions is one of the most important steps in battery tab design.
Common specifications include material type, thickness, width, length, punching pattern, and processing form.
| Specification | Common Options |
|---|---|
| Material | Nickel plated steel or pure nickel |
| Steel Substrate | SPCC low carbon cold rolled steel |
| Nickel Content for Pure Nickel | Commonly Ni ≥ 99.6% for specified grades |
| Thickness | 0.05 mm, 0.08 mm, 0.10 mm, 0.12 mm, 0.15 mm, 0.20 mm, 0.30 mm |
| Width | 2 mm to 20 mm and customized |
| Form | Coil, cut strip, punched tab, stamped connector |
| Processing | Slitting, cutting, punching, stamping, slotting |
| Application | Cylindrical lithium battery pack assembly |
These dimensions are general industry examples rather than universal standards. Actual specifications should be confirmed according to the battery design.
Nickel Strip Thickness
Thickness has a direct influence on the mechanical and electrical characteristics of the battery tab.
Common nickel strip thicknesses include:
Very thin nickel strip can be used for specialized low current or compact connection designs.
Because the material is thin, handling and welding parameters require careful control.
This thickness can be considered for compact battery connection applications where limited space is available.
0.10 mm nickel strip is commonly considered for relatively low current applications and compact battery connections.
0.12 mm is commonly used for certain cylindrical battery pack configurations, including some 1P series connection designs.
0.15 mm is a widely used thickness for general battery pack assembly.
It can be considered for 18650 battery packs and other cylindrical cell configurations when the electrical and mechanical requirements are appropriate.
0.20 mm nickel strip provides greater cross-sectional area than thinner strip and may be considered for higher current connections.
0.30 mm strip can be considered for higher power battery packs where additional conductive cross-sectional area and mechanical strength are required.
However, thicker strip can also require different welding parameters.
Nickel Strip Width
Nickel strip width affects both the physical connection area and the electrical path.
Common widths may include:
2 mm
3 mm
4 mm
5 mm
6 mm
8 mm
10 mm
12 mm
15 mm
20 mm
Custom widths can be produced through precision slitting.
For a specific battery pack, width should be selected together with thickness rather than independently.
A wider strip may provide a larger cross-sectional area and greater mechanical coverage. However, the optimum design depends on the cell arrangement and welding area.
Nickel Strip for 1P Battery Connections
A 1P configuration generally refers to a single cell or a single parallel cell position within a battery arrangement.
Nickel strip thicknesses such as 0.12 mm and 0.15 mm are commonly considered for certain 1P connection designs.
The actual selection depends on:
Battery current
Cell chemistry
Cell specification
Welding method
Connection length
Strip width
Pack architecture
The term 1P alone should not be used as the only basis for selecting strip thickness.
Nickel Strip for 2P and Higher Parallel Connections
Parallel battery configurations connect multiple cells together to increase available capacity or current capability.
Nickel tabs for 2P and higher parallel arrangements may use thicker or wider material depending on the current path.
Thicknesses such as 0.15 mm and 0.20 mm can be considered for some parallel connection designs.
For high power battery modules, 0.30 mm or other customized dimensions may be considered.
The correct selection should be based on the expected current and thermal characteristics of the complete electrical path.
Punching Hole Dimensions for Battery Tabs
Punched battery tabs can be customized for different cylindrical cell formats.
For certain 18650 battery tab designs, square openings may be approximately 11.5–12 mm × 12 mm.
For certain 21700 battery tab designs, square openings may be approximately 13.5–14.5 mm × 14.5 mm.
These dimensions are application examples rather than universal standards.
The actual punching size should be confirmed according to:
Cell diameter
Cell spacing
Insulation design
Tab position
Welding electrode position
Busbar arrangement
Battery holder structure
Nickel Strip for 18650 Battery Packs
The 18650 cell is one of the most widely recognized cylindrical lithium battery formats.
Nickel strips can be used to connect 18650 cells in series, parallel, or combined series parallel configurations.
Common applications include:
DIY battery packs
Portable power systems
Battery modules
Electronic equipment
Backup power assemblies
Power tools
Battery prototypes
For 18650 packs, the nickel strip must be selected according to the expected current rather than simply the physical cell size.
Nickel Strip for 21700 Battery Packs
21700 cells are larger than 18650 cells and are commonly used in higher capacity battery systems.
Nickel battery tabs for 21700 cells can be supplied as:
Continuous strips
Pre-cut strips
Punched tabs
Slotted connectors
Customized stamped pieces
The larger cell format may require different tab dimensions and punching patterns compared with 18650 battery packs.
Nickel Strip for 26650 Battery Packs
26650 cylindrical cells have a larger diameter than 18650 cells.
Nickel strip can be used to connect these cells into battery modules.
Depending on the battery design, the connector may require greater width, thickness, or customized geometry.
Nickel Strip for 26700 Battery Packs
26700 cells are another cylindrical battery format used in battery pack construction.
Nickel strips for these cells can be customized according to cell arrangement and welding requirements.
Pre-punched or pre-stamped connector tabs may help simplify assembly.
Nickel Strip for 32650 Battery Packs
32650 cells are larger cylindrical cells often used in larger capacity battery assemblies.
Nickel strips for 32650 battery packs may require greater cross-sectional area than those used for small cell applications.
High current battery designs should be evaluated carefully for resistance, heat generation, weld strength, and mechanical reliability.
Nickel Strip for Spot Welding
Resistance spot welding is a common joining method for battery nickel strips.
During spot welding, welding electrodes apply pressure to the strip and cell surface while an electrical pulse generates localized heat.
A successful weld requires a balance between sufficient bonding energy and protection of the battery cell.
Important parameters include:
Welding current
Welding time
Pulse count
Electrode pressure
Electrode tip condition
Nickel strip thickness
Nickel strip material
Cell terminal condition
Different nickel materials can require different welding settings.
Nickel Strip Welding Considerations
Nickel plated steel and pure nickel should not automatically be treated as identical welding materials.
The substrate and surface construction influence the resistance welding process.
Nickel plated steel contains steel below the nickel surface. Therefore, the welding behavior can differ from pure nickel.
Before large-scale production, manufacturers generally evaluate:
Weld appearance
Weld pull strength
Electrical continuity
Contact resistance
Cell temperature
Welding consistency
Electrode wear
Process validation is especially important for automated battery assembly.
Nickel Strip Soldering
Nickel strip may also be used in certain soldering applications, depending on the material, surface treatment, solder system, and intended assembly process.
The phrase "easy to solder" should be understood as a practical material characteristic rather than a guarantee that every soldering process will produce the same result.
Surface cleanliness, solder alloy, flux, temperature, heating time, and equipment can affect solderability.
For lithium battery packs, the appropriate joining method should be selected with battery safety and thermal limitations in mind.
Low Internal Resistance
Low electrical resistance is an important consideration for battery connection strips.
When current passes through a conductive connection, resistance can result in voltage drop and heat generation.
The resistance of a strip depends on factors including:
Material resistivity
Strip length
Strip width
Strip thickness
Contact quality
Weld quality
Connection geometry
Temperature
For this reason, simply specifying "nickel strip" is not enough to determine the resistance of a complete battery connection.
Pure nickel and nickel plated steel have different electrical characteristics. Battery engineers should consider the actual material specification and dimensions.
Electrical Conductivity of Nickel Battery Tabs
Nickel battery tabs must provide a stable electrical path between cells.
A larger cross-sectional area generally reduces the resistance of a conductor of the same material and length.
The cross-sectional area is determined by strip width and thickness.
For example, increasing strip thickness from 0.12 mm to 0.20 mm increases the metallic cross-sectional area when width remains constant.
Increasing strip width can have a similar effect.
However, the complete battery assembly includes weld points, cell terminals, connectors, and other conductive components. Therefore, the resistance of the complete current path must be considered.
Mechanical Properties of Nickel Plated Steel Strip
The SPCC steel substrate provides useful mechanical characteristics for battery connector applications.
These may include:
Good strip strength
Good dimensional stability
Suitable flexibility
Good stamping performance
Suitable bending behavior
Consistent strip geometry
Mechanical properties can vary depending on material condition and processing.
Battery pack designers should avoid excessive bending or repeated mechanical stress around welded areas.
Surface Quality
The surface of a nickel strip should be reasonably clean and consistent for the intended joining process.
Potential surface issues can include:
Oil contamination
Dust
Oxidation
Scratches
Coating irregularities
Excessive burrs
Clean material generally provides more predictable welding and soldering behavior.
For automated production, consistent surface quality is particularly important because contamination can affect welding stability.
Side Edge Condition
One important characteristic of slit nickel plated steel strip is the condition of its side edges.
When a nickel plated steel coil is slit into narrower strips, the cutting operation passes through the material thickness.
As a result, the newly exposed side edge can reveal the underlying steel substrate.
Therefore, the finished side edge does not necessarily have a nickel coating.
This is normal for slit material and should not automatically be considered a coating defect.
The surface and edge condition should be evaluated according to the actual manufacturing process and application requirements.
Nickel Coating on Battery Strip
The nickel coating provides the external surface of a nickel plated steel strip.
Important coating characteristics may include:
Coating continuity
Surface uniformity
Adhesion
Thickness
Corrosion resistance
Welding behavior
Solderability
Exact nickel coating specifications should be established according to the intended application.
For battery assembly, the surface must be compatible with the selected welding process.
Nickel Strip Manufacturing Process
A typical nickel plated steel strip production process may include several stages.
Low carbon cold rolled steel strip is prepared according to the required base material specification.
Nickel is applied to the steel surface through an appropriate plating process.
The nickel plated steel is supplied in large coils.
The large coil is slit into narrower widths.
The strip can be cut into individual pieces or stamped into customized tab shapes.
Specified holes or slots can be created.
Finished material can be inspected for dimensions, surface quality, burrs, and other requirements.
The finished nickel strip can be packaged as coils, cut pieces, or customized tabs.
Precision Slitting of Nickel Strip
Precision slitting is used when a large nickel plated steel coil needs to be divided into narrow strips.
Slitting controls:
Strip width
Edge condition
Coil tension
Burr level
Winding quality
Precision slitting is particularly useful for battery tab manufacturing because battery pack designs often require specific strip widths.
Stamped Nickel Battery Tabs
Stamping can transform flat nickel strip into more complex connector shapes.
Stamped tabs may include:
Holes
Slots
Extended terminals
Bent sections
Connection bridges
Cell positioning features
Customized stamping allows battery pack manufacturers to optimize the tab geometry for their assembly process.
Customized Nickel Battery Tabs
Battery pack designs vary significantly.
For this reason, nickel strips can be customized according to:
Cell format
Cell quantity
Series configuration
Parallel configuration
Current requirement
Welding equipment
Connector position
Tab length
Hole dimensions
Slot geometry
Terminal shape
Custom nickel battery tabs can reduce manual cutting and forming during assembly.
Continuous Coil vs Pre Cut Nickel Strip
| Feature | Continuous Coil | Pre Cut Strip |
|---|---|---|
| Production Method | Automatic feeding | Manual or semi automatic |
| Suitable for | High volume production | Small batch production |
| Feeding | Continuous | Individual pieces |
| Custom Length | Possible | Easy |
| Automation | High | Moderate |
| Handling | Requires coil equipment | Simple |
| Application | Automatic spot welding | Manual battery assembly |
The appropriate form depends on production volume and assembly equipment.
Nickel Strip Packaging Forms
Nickel strip can be supplied in several forms.
Coil rolls are suitable for automated equipment.
Individual pieces can be prepared for manual assembly.
Punched tabs contain predefined openings.
Stamped pieces can include customized shapes and terminal sections.
Slotted strips can contain longitudinal or transverse openings.
Battery Pack Assembly with Nickel Tabs
Nickel tabs are one component of a complete battery pack assembly.
A typical cylindrical battery pack may include:
Lithium battery cells
Nickel strips
Battery protection circuit
Cell holders
Electrical connectors
Insulating spacers
Protective enclosure
External terminals
The nickel strip provides the conductive interconnection, while other components provide protection, insulation, mechanical support, and system-level functionality.
Series Battery Connections
In a series battery configuration, cells are connected so that their voltages add.
Nickel strips can connect the positive terminal of one cell to the negative terminal of another cell.
The strip dimensions should be selected according to the current passing through the series connection.
Parallel Battery Connections
In a parallel configuration, multiple cells are connected to increase capacity and current capability.
Nickel tabs may connect multiple positive terminals or multiple negative terminals.
Parallel connections may require wider or thicker conductive paths depending on the expected current.
Series Parallel Battery Packs
Many practical battery packs use a combination of series and parallel connections.
Examples may include:
2S2P
3S2P
4S2P
4S3P
5S2P
10S2P
The exact nickel strip design depends on the electrical architecture.
Different sections of the same battery pack may require different strip dimensions.
Nickel Strip Selection Guide
When selecting nickel strip for battery tabs, consider the following factors:
Choose between pure nickel and nickel plated steel based on electrical performance, welding requirements, mechanical properties, and cost.
Select thickness according to current requirements and available welding parameters.
Select a width that provides sufficient connection area and fits the battery layout.
The strip should reach the intended connection points without unnecessary excess material.
For punched tabs, hole dimensions should match the battery cell arrangement.
Slots should be designed according to the required flexibility and geometry.
The surface should be suitable for the chosen welding or soldering process.
Slit edges should be considered when designing insulation and environmental protection.
Nickel Strip for High Current Battery Packs
High current battery packs require careful consideration of the entire current path.
Nickel strip is only one component of that path.
For high current designs, engineers may consider:
Wider strip
Thicker strip
Multiple strips
Pure nickel
Nickel plated steel
Copper based conductors
Busbars
Reinforced connection structures
The selection depends on current, voltage, thermal requirements, physical space, and safety design.
A higher current rating should not be assumed simply because a strip is thicker.
Nickel Strip for Low Current Battery Applications
Thin nickel strip can be suitable for low current applications where compact dimensions are important.
Examples can include:
Small electronic battery packs
Low power devices
Compact rechargeable battery assemblies
Prototype battery packs
Low current connector applications
Thin material can simplify forming but may have lower mechanical strength and current carrying capacity than thicker strip.
Nickel Strip for DIY Battery Packs
DIY battery pack builders commonly use nickel strips for cylindrical lithium cell connections.
Popular cell sizes include 18650 and 21700.
For DIY applications, nickel plated steel is often considered because of its balance between cost and mechanical properties.
Pure nickel may be selected when the design requires lower resistance or other performance characteristics.
DIY battery assembly should always use appropriate battery protection, insulation, welding equipment, and safe assembly procedures.
Nickel Strip for Energy Storage Battery Packs
Energy storage battery packs can contain large numbers of cylindrical cells.
Nickel strips can be used to form connections between cells and cell groups.
For larger systems, the design may incorporate multiple connection layers, busbars, protective devices, and mechanical structures.
The nickel strip specification should be selected based on the actual current and thermal requirements.
Nickel Strip for Battery Modules
Battery modules combine multiple cells into a mechanically and electrically organized assembly.
Nickel strips can be used to interconnect individual cells.
A battery module may contain:
Multiple cylindrical cells
Nickel tabs
Cell holders
Insulation
Protection circuits
Temperature monitoring
Module connectors
Customized nickel strips can simplify module assembly and reduce the number of manual processing steps.
Advantages of Preformed Nickel Battery Tabs
Preformed tabs offer several practical advantages.
They can:
Reduce manual cutting
Reduce manual punching
Improve dimensional consistency
Simplify assembly
Support automated production
Reduce material handling
Match standardized cell layouts
Preformed tabs are particularly useful when large numbers of identical battery modules are produced.
Dimensional Accuracy
Dimensional accuracy is important for battery tab assembly.
Important dimensions may include:
Strip width
Strip length
Thickness
Hole width
Hole length
Slot width
Slot length
Terminal length
Tab spacing
Consistent dimensions can help improve the repeatability of automated assembly.
Burr Control
Cutting and punching can create burrs along the edges of nickel strips.
Excessive burrs may affect:
Handling safety
Insulation
Assembly accuracy
Cell protection
Welding consistency
For this reason, battery tab manufacturing often includes attention to punching and slitting quality.
Insulation Considerations
Nickel strips are conductive components and must be properly separated from unintended conductive surfaces.
Battery packs may use insulation materials such as:
Polyimide film
Polyester film
Fish paper
Insulation sheets
Electrical tape
Heat shrink material
Custom insulating barriers
The insulating system should be designed to prevent accidental short circuits.
Nickel Strip and Battery Safety
Battery pack assembly requires careful attention to electrical and thermal safety.
Nickel strips should be selected and installed according to the battery design.
Important considerations include:
Avoiding accidental short circuits
Maintaining appropriate insulation
Using suitable welding parameters
Avoiding excessive heat
Checking weld strength
Preventing mechanical damage
Protecting exposed conductive areas
Lithium battery cells can store significant energy, so battery assembly should be performed using appropriate engineering controls and equipment.
Quality Inspection of Nickel Battery Tabs
Quality inspection may include several categories.
Measurements may include:
Thickness
Width
Length
Hole size
Slot dimensions
The surface may be checked for:
Scratches
Contamination
Coating irregularities
Oxidation
The strip edge may be checked for:
Excessive burrs
Cutting deformation
Edge cracks
Dimensional variation
Depending on requirements, electrical resistance or conductivity may be evaluated.
Spot welding performance may be evaluated through appropriate production tests.
Common Problems When Choosing Nickel Strip
Nickel plated steel and pure nickel can look similar.
Material identification should therefore rely on specifications rather than appearance alone.
A strip that is too thin may not provide sufficient current carrying capability or mechanical strength.
A strip that is unnecessarily thick may increase cost and require different welding parameters.
Width influences cross-sectional area and connection geometry.
A suitable thickness with an unsuitable width may still result in an inappropriate design.
Even a high-quality nickel strip may produce poor welds if the welding current, pulse duration, or electrode pressure is not correctly adjusted.
Nickel plated steel strips can expose the steel substrate at slit edges.
This should be considered when designing insulation and environmental protection.
Nickel Strip Storage
Proper storage helps maintain material quality.
Recommended general practices include:
Keep the material dry
Avoid prolonged exposure to moisture
Protect the surface from contamination
Avoid contact with corrosive chemicals
Prevent mechanical deformation
Keep coils properly supported
Store cut tabs in clean packaging
The exact storage requirements depend on the material specification and packaging method.
Nickel Strip Surface Protection
Nickel plated surfaces should be protected from unnecessary contamination.
During battery pack assembly, excessive oil, dust, or foreign particles can affect welding and electrical contact.
Clean handling is particularly important for automated production.
Nickel Strip for Automatic Battery Welding
Automatic battery welding equipment commonly uses continuous strip material.
The strip is fed into the machine and positioned over the battery cells.
Automatic systems may provide:
High production speed
Consistent strip positioning
Repeatable welding
Reduced manual handling
Integrated tab feeding
Programmable welding patterns
The coil dimensions must be compatible with the feeding mechanism.
Nickel Strip for Manual Welding
Pre-cut nickel strips are convenient for manual battery assembly.
The assembler positions the strip over the cell terminals and performs spot welding according to the required pattern.
Manual welding is commonly used for:
Prototyping
Small production batches
Repair
Custom battery packs
Laboratory development
Consistent welding technique remains important even in small-scale assembly.
Custom Nickel Strip Design
Custom nickel battery tabs can be developed for specific battery pack layouts.
Common customization parameters include:
| Custom Feature | Typical Requirement |
|---|---|
| Material | Nickel plated steel or pure nickel |
| Thickness | 0.05 to 0.30 mm and customized |
| Width | Customized according to current and layout |
| Length | Customized |
| Hole Shape | Square, round, slot, or custom |
| Hole Size | Customized |
| Slot Direction | Longitudinal or transverse |
| Terminal Shape | Customized |
| Supply Form | Coil or pre-cut |
| Processing | Slitting, punching, stamping, cutting |
Custom dimensions should be confirmed through technical drawings or approved samples.
Nickel Strip for Battery Tab Manufacturing
Battery tab manufacturing typically combines material processing with precision forming.
A general production sequence can include:
Material preparation
Coil inspection
Slitting
Width control
Punching
Stamping
Cutting
Deburring
Dimensional inspection
Packaging
For high volume products, tooling may be developed to produce repeated tab patterns efficiently.
Nickel Strip for Cylindrical Cells
Cylindrical cells require connection structures that follow their circular terminal geometry.
Nickel tabs can be positioned across the cell terminals.
For 18650 and 21700 battery packs, customized tab dimensions may be developed around the cell diameter and spacing.
For larger cylindrical cells such as 26650, 26700, and 32650, larger connection structures may be appropriate depending on current requirements.
Nickel Strip and Battery Pack Current
Battery current is a critical factor in nickel strip selection.
The current capacity of a connection is affected by:
Material
Thickness
Width
Length
Temperature
Connection resistance
Number of parallel paths
Weld quality
For this reason, there is no single universal current rating for all nickel strips.
Battery engineers should calculate or test the complete connection system.
Thermal Considerations
Electrical resistance can generate heat when current flows through the nickel strip.
The amount of heat depends on resistance and current.
High current applications therefore require careful thermal analysis.
Design considerations may include:
Strip cross-sectional area
Connection length
Weld resistance
Ambient temperature
Airflow
Battery enclosure
Number of parallel conductive paths
A properly selected nickel strip can help reduce unnecessary connection resistance, but the entire battery system must be evaluated.
Nickel Strip for High Density Battery Modules
High density battery modules often require compact interconnections.
Thin nickel strips and customized punched tabs can help optimize available space.
However, compact designs must still maintain sufficient insulation clearance and mechanical stability.
The tab design should be integrated with the cell holder and insulation system.
Nickel Strip for Compact Battery Packs
Compact battery packs may benefit from thin and narrow nickel strips.
Common considerations include:
Limited installation space
Short electrical paths
Small tab dimensions
Low material thickness
Customized punching
Thin nickel strips require careful handling to prevent deformation.
Nickel Strip for Industrial Battery Assembly
Industrial battery assembly may require consistent material dimensions and repeatable welding behavior.
For production applications, buyers may specify:
Material grade
Thickness tolerance
Width tolerance
Nickel coating specification
Coil weight
Coil dimensions
Surface condition
Edge condition
Packaging requirements
Clear technical specifications can help improve consistency between material batches.
Nickel Strip for Battery Repair
Pre-cut nickel tabs can also be used in battery repair and rebuilding applications.
Repair technicians may need different lengths and widths depending on the original battery configuration.
The replacement strip should match the intended electrical and mechanical requirements.
Battery repair should be performed with appropriate safety procedures and suitable equipment.
Nickel Strip Purchasing Considerations
When purchasing nickel strip for battery tabs, buyers should clarify the following information:
Material: Pure nickel or nickel plated steel
Steel Grade: SPCC when nickel plated steel is required
Thickness: For example 0.10 mm, 0.12 mm, 0.15 mm, 0.20 mm, or 0.30 mm
Width: Standard or customized
Length: Coil or pre-cut
Processing: Slitting, punching, stamping, slotting
Surface: Nickel plated surface
Edge: Slit edge with exposed substrate
Application: 18650, 21700, 26650, 26700, 32650, or another battery format
Welding: Manual or automatic spot welding
Packaging: Coil or individual pieces
Nickel Strip Specification Checklist
Before placing an order, a technical specification can include:
| Item | Specification Example |
|---|---|
| Product | Nickel Battery Strip |
| Material | Nickel Plated Steel |
| Substrate | SPCC |
| Surface | Nickel Plated |
| Thickness | 0.15 mm |
| Width | 8 mm |
| Form | Coil |
| Application | 18650 Battery Pack |
| Processing | Precision Slitting |
| Edge | Slit Edge |
| Welding | Resistance Spot Welding |
| Packaging | Coil Roll |
For customized battery tabs, a drawing can additionally specify hole dimensions, slot positions, tab length, terminal geometry, and tolerance requirements.
Nickel Strip Terminology
Different industries and suppliers may use different names for similar products.
Common terms include:
Nickel strip
Nickel battery strip
Nickel battery tab
Nickel tab
Battery connector strip
Battery connector tab
Nickel plated steel strip
Nickel plated steel tab
Nickel plated battery strip
Spot welding nickel strip
Battery welding strip
Lithium battery nickel strip
Cylindrical battery tab
Battery cell connector
Battery pack connector strip
These terms can describe similar or related products, but the exact material should always be confirmed.
Nickel Strip for Lithium Battery Assembly
Nickel strip is an important conductive component for lithium battery assembly.
Its role is to connect individual cells into an electrically functional battery configuration.
The material can be supplied in different forms to match different production methods.
For general battery pack assembly, nickel plated steel offers a practical combination of cost, mechanical strength, and nickel surface characteristics.
For demanding electrical applications, pure nickel can provide a different performance profile and may be selected when its material properties are required.
Frequently Asked Questions
A nickel battery tab is a conductive metal connector used to connect battery cells or battery cell groups. It may be made from pure nickel or nickel plated steel.
No. Nickel plated steel contains a steel substrate with a nickel surface, while pure nickel strip is primarily nickel throughout its thickness.
SPCC is a designation commonly used for cold rolled commercial quality steel in the Japanese Industrial Standards system. It is widely used as a low carbon cold rolled steel substrate for various processed steel products.
After a large nickel plated coil is slit or cut, the newly exposed side edges generally do not have the original nickel coating. The nickel plating is primarily present on the original plated surfaces.
Nickel plated steel is widely considered for general cylindrical battery pack connections, provided that its electrical, mechanical, and welding characteristics are appropriate for the application.
Neither material is universally better. Pure nickel can be advantageous where low resistance and nickel material properties are important, while nickel plated steel can offer an economical combination of mechanical strength and surface performance.
Common thicknesses include 0.10 mm, 0.12 mm, 0.15 mm, 0.20 mm, and 0.30 mm. The correct thickness depends on the battery current, connection design, welding method, and mechanical requirements.
Yes. Nickel plated steel and pure nickel strips can be punched or stamped into customized battery tabs.
Yes. Continuous coil material is commonly used for automatic battery welding and high volume production.
Yes. Pre-cut nickel strips are suitable for manual assembly, prototypes, repairs, and small batch production.
Nickel strips are commonly used with cylindrical cell formats such as 18650, 21700, 26650, 26700, and 32650.
Yes. Width, thickness, length, hole dimensions, slot geometry, terminal shape, and supply form can be customized according to technical requirements.
Conclusion
Nickel strip for nickel battery tabs is a practical conductive material for cylindrical lithium battery pack assembly, battery module manufacturing, spot welding, and customized cell interconnection.
Nickel plated steel strip is made from a low carbon cold rolled SPCC steel substrate with a nickel plated surface. This structure provides a useful balance of mechanical strength, surface performance, processability, and cost for many general battery connection applications.
A key characteristic of slit nickel plated steel strip is that the side edges created during slitting or cutting are not nickel plated. The exposed edge can reveal the underlying steel substrate, and this condition should be considered during battery pack design, insulation selection, and environmental protection.
Nickel plated steel should also be distinguished from nickel plated stainless steel. Stainless steel has different electrical properties and may have substantially higher resistance than nickel plated low carbon steel. It is therefore not automatically interchangeable with nickel plated steel for battery applications.
For battery pack manufacturers, the selection of nickel strip should consider more than material name. Material type, SPCC substrate, nickel coating, thickness, width, length, punching pattern, edge condition, welding method, electrical current, mechanical strength, and thermal requirements should all be evaluated.
Whether used as continuous coil material for automatic spot welding, pre-cut strips for manual assembly, or customized punched and stamped nickel battery tabs, nickel strip can be adapted to a wide range of cylindrical lithium battery designs.
The most suitable nickel battery tab is ultimately the one that matches the electrical requirements, welding process, mechanical structure, production method, and safety design of the complete battery pack.
This website uses cookies to ensure you get the best experience on our website.
WhatsApp
Phone
