Nickel Strip is an important conductive material used in battery module assembly, battery pack manufacturing, and cylindrical lithium battery connection systems. It is commonly used as a battery tab, connector strip, welding strip, or interconnection strip between individual battery cells. Nickel strip can be supplied as continuous coil material for automated production lines or as pre-cut individual pieces for manual assembly. Depending on the battery design, connection method, current requirements, and cell configuration, nickel-plated steel strip and pure nickel strip are two commonly used material options.
For cylindrical lithium battery packs, nickel strip is frequently associated with cell formats such as 18650, 21700, 26650, 26700, and 32650. These cylindrical cell formats are widely used in battery packs for portable electronics, power tools, lighting equipment, energy storage systems, mobility products, backup power systems, and other electrical applications.
A properly selected nickel strip provides a practical conductive path between battery cells and helps create a reliable mechanical and electrical connection during battery pack assembly. Nickel strip is especially suitable for resistance spot welding because its dimensions can be precisely controlled and its surface can be prepared for consistent welding.
The selection of nickel strip should not be based on cell size alone. Thickness, width, material composition, electrical resistance, welding equipment, welding current, battery configuration, thermal requirements, and expected operating current should all be considered when selecting a battery connector strip.
Nickel strip for battery module assembly is a narrow metal strip designed to electrically connect individual battery cells or groups of cells. In cylindrical battery packs, the strip is normally positioned across the cell terminals and attached using resistance spot welding or another suitable joining method.
The term "nickel strip" can refer to more than one material construction. Two common categories are pure nickel strip and nickel-plated steel strip.
Pure nickel strip uses nickel as the primary material. It is valued for its corrosion resistance, electrical properties, mechanical flexibility, and reliable welding characteristics. Pure nickel is commonly selected when electrical resistance, current carrying capability, corrosion resistance, and long-term connection reliability are important considerations.
Nickel-plated steel strip uses low-carbon cold-rolled steel as the base material with a nickel coating on the surface. This construction provides a combination of mechanical strength, nickel surface characteristics, and cost efficiency. It is widely used in general battery pack assembly where the electrical and mechanical requirements are compatible with the material.
Nickel strip can also be produced in different shapes. Straight strips are used for basic cell-to-cell connections, while punched nickel tabs, slotted strips, shaped connectors, and custom terminal pieces can be manufactured for more complex battery module layouts.
Battery module assembly involves connecting multiple individual cells into a larger electrical and mechanical unit. Cylindrical battery cells can be connected in series, parallel, or a combination of both depending on the required voltage and capacity.
Nickel strip provides an interconnection path between the cells. A typical battery assembly may use nickel strips to connect positive and negative terminals according to a predefined electrical configuration.
In a series connection, the cells are connected so that their voltages add together. In a parallel connection, cells are connected to increase available capacity and current capability while maintaining approximately the same nominal voltage of the individual cells.
The nickel strip design must correspond to the electrical layout of the battery module. The width and thickness of the strip influence its resistance, heat generation, mechanical strength, and welding characteristics. For this reason, a strip that works well for a small battery pack may not be suitable for a high-current battery module.
Nickel strips are frequently used with cylindrical lithium battery cells. Common cell formats include 18650, 21700, 26650, 26700, and 32650.
The first two numbers generally indicate the approximate cell diameter in millimeters, while the remaining numbers indicate the approximate cell length. Actual dimensions can vary depending on cell construction, protective components, terminals, and manufacturing tolerances.
| Battery Cell Format | Approximate Diameter | Approximate Length | Typical Nickel Strip Use |
|---|---|---|---|
| 18650 | 18 mm | 65 mm | Compact battery packs and general cylindrical cell assemblies |
| 21700 | 21 mm | 70 mm | Higher-capacity cylindrical battery modules |
| 26650 | 26 mm | 65 mm | Larger cylindrical battery assemblies |
| 26700 | 26 mm | 70 mm | High-capacity cylindrical cell packs |
| 32650 | 32 mm | 65 mm | Larger battery modules and energy storage applications |
The appropriate nickel strip size depends on the electrical design rather than the physical cell format alone.
Main Types of Nickel Strip
Pure nickel strip is manufactured primarily from nickel. Common grades used for battery connection applications include commercially pure nickel materials such as N6 and Ni200, depending on the required material specification.
Pure nickel strip can offer good corrosion resistance and stable performance in demanding electrical environments. Its combination of electrical conductivity, mechanical properties, and weldability makes it suitable for battery tab applications.
Pure nickel strip is often considered when a battery module requires a low-resistance conductive connection. However, the actual electrical performance depends on strip thickness, strip width, connection length, welding quality, temperature, and the overall battery circuit.
High nickel content
Good corrosion resistance
Good electrical conductivity
Suitable for resistance spot welding
Good mechanical flexibility
Suitable for demanding battery connection applications
Available in various thicknesses and widths
Can be supplied as coils or cut pieces
Suitable for customized battery tabs
Pure nickel is generally more expensive than nickel-plated steel, so material selection should be based on actual electrical and mechanical requirements.
Nickel-plated steel strip consists of a low-carbon cold-rolled steel substrate with a nickel-plated surface.
This construction combines the mechanical strength of steel with the surface characteristics of nickel. It is often selected for general battery pack assembly where cost efficiency and mechanical strength are important.
The steel substrate provides rigidity and strength, while the nickel coating provides a conductive and corrosion-resistant surface suitable for many battery connection applications.
Low-carbon steel substrate
Nickel-plated surface
Good mechanical strength
Good hardness
Cost-efficient material option
Suitable for many cylindrical battery pack applications
Available in continuous coils
Can be slit into customized widths
Can be punched or stamped into battery tabs
An important manufacturing characteristic is that when a nickel-plated coil is slit, the newly created side edges expose the underlying steel substrate. Therefore, the side edges of slit nickel-plated steel strip should not automatically be assumed to have nickel plating.
Continuous Coil Nickel Strip
Form: Available as continuous coil material for automatic spot welding machines or pre-cut individual strips for manual welding. Customized options include transverse or longitudinal slots and customized terminal leads.
Continuous nickel strip is particularly useful for automated battery pack assembly. The strip can be supplied in rolls with controlled width, thickness, and winding characteristics.
Automatic equipment can feed continuous strip material into a welding process, reducing the need for manual cutting and positioning. This can improve production consistency when the battery module design is standardized.
Continuous coil material is also suitable for manufacturers that require high-volume production. Strip dimensions can be specified according to the welding machine, cell arrangement, and battery module design.
Suitable for automated feeding
Supports high-volume production
Reduces manual cutting operations
Provides consistent strip dimensions
Can be manufactured to specific widths
Suitable for customized slot patterns
Can support customized terminal designs
Convenient for continuous welding processes
The coil dimensions should be matched to the automatic welding machine and material feeding system.
Pre Cut Nickel Strip
Pre-cut nickel strips are individual pieces prepared to specific lengths. They are useful for manual battery pack assembly, small production runs, prototypes, repair applications, and customized battery configurations.
A pre-cut strip can reduce preparation time because the operator does not need to cut continuous material during assembly.

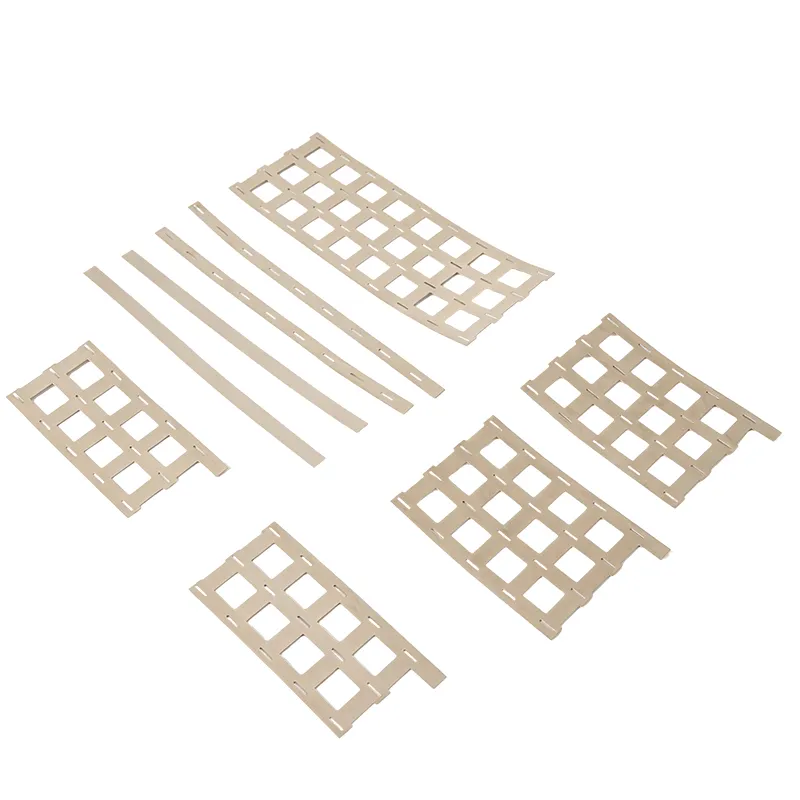

Pre-cut pieces can be supplied in straight shapes, stepped configurations, punched shapes, or other customized designs.
For manual assembly, the dimensions should correspond closely to the cell spacing and intended connection path. Excessively long strips can create unnecessary material overlap, while strips that are too short may not provide sufficient welding area.
Punched Nickel Tabs

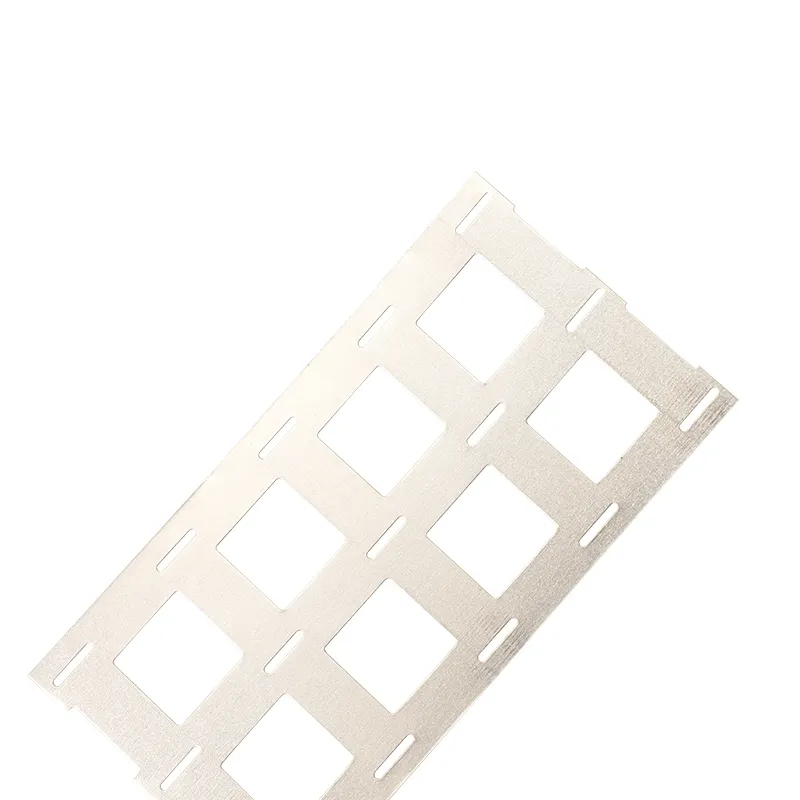

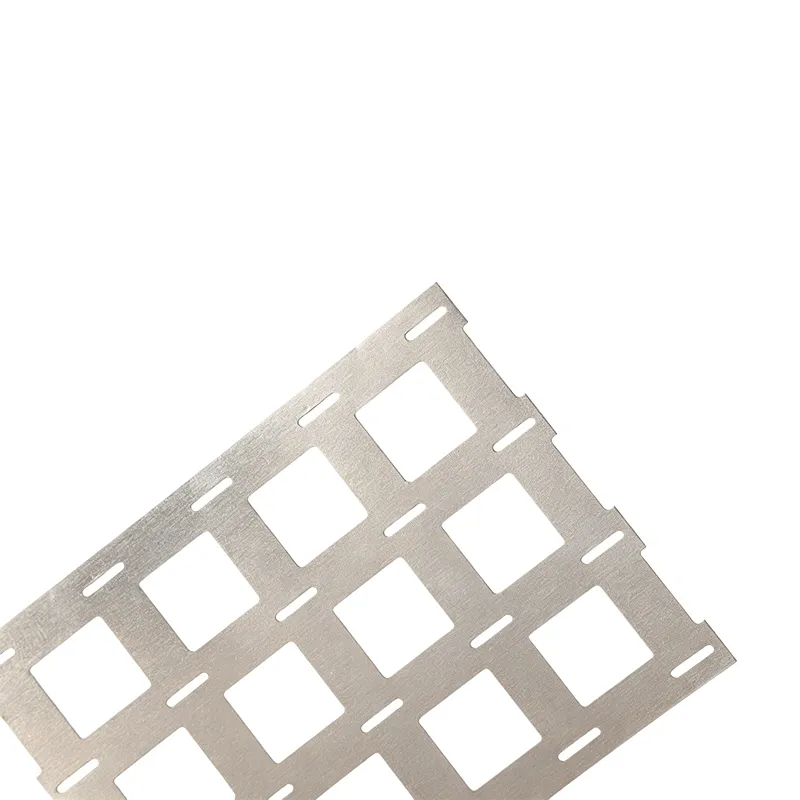

Punched nickel tabs are nickel strips that have been mechanically processed to create holes, slots, openings, or other geometric features.
Punched battery tabs can be designed for specific cylindrical cell arrangements. For example, square or rectangular openings may be used to accommodate particular battery pack structures.
Customized punching can also reduce assembly complexity by integrating multiple connection features into one component.
Typical punched features include:
Square holes
Rectangular holes
Round holes
Longitudinal slots
Transverse slots
Mounting openings
Terminal openings
Positioning features
Customized connector profiles
The exact punching dimensions should be confirmed according to the battery cell size, holder design, welding electrode geometry, and module layout.
Nickel Strip for Spot Welding
Resistance spot welding is one of the most common methods for attaching nickel strip to cylindrical battery cells.
During spot welding, electrical current passes through the welding electrodes and the materials being joined. The localized electrical resistance generates heat at the interface, creating a welded connection.
Nickel strip is suitable for this process because it can be supplied in controlled thicknesses and widths and can be processed into shapes suitable for automated or manual welding.
The quality of a spot-welded battery connection depends on several factors.
Welding current
Welding pulse duration
Electrode pressure
Electrode condition
Strip thickness
Strip material
Cell terminal material
Surface condition
Number of welding points
Welding point spacing
Welding machine configuration
A welding parameter suitable for one nickel strip thickness may not be suitable for another thickness. Welding parameters should therefore be validated through appropriate process testing.
Easy to Solder and Welding Compatibility
One stated advantage of nickel-plated battery connector strips is their convenient surface characteristics for soldering and electrical connection processes.
However, soldering and resistance spot welding are different processes. A strip selected for spot welding should be evaluated specifically for the welding equipment and joining method being used.
Nickel-plated steel strip can provide a nickel surface that is suitable for many electrical connection applications. Pure nickel strip is also commonly used for spot welding because of its material characteristics.
For production applications, weld quality should be evaluated through controlled testing rather than relying solely on material appearance.
Low Resistance Electrical Connection
Low electrical resistance is an important consideration in battery module assembly.
When electrical current passes through a conductive strip, resistance causes power loss and heat generation. The resistance of a nickel strip is affected by material resistivity, strip length, strip width, strip thickness, temperature, and connection quality.
A wider or thicker strip generally provides a larger conductive cross-sectional area, which can reduce resistance for a given material and length. However, increasing thickness can also change welding requirements.
The overall resistance of a battery module is not determined by the nickel strip alone. Weld points, cell contacts, busbars, connectors, protection devices, and other conductive components also contribute to the electrical resistance of the system.
Therefore, nickel strip selection should consider the complete current path.
Good Electrical Conductivity
Nickel strip provides an electrically conductive connection between battery cells.
Pure nickel and nickel-plated steel have different electrical characteristics because their material constructions are different. Pure nickel is generally selected when the conductive material itself needs to provide favorable electrical performance, while nickel-plated steel can provide a cost-effective alternative for applications with suitable current requirements.
For higher-current battery systems, the strip width and thickness should be carefully evaluated.
The electrical performance of a battery connection is also strongly affected by the quality of the weld. A strip with suitable material properties cannot compensate for an inadequate weld connection.
Battery Module Series Connections
Series-connected battery cells increase the voltage of the battery assembly.
Nickel strips can be positioned between adjacent cells so that the positive terminal of one cell is connected to the negative terminal of another cell.
A series battery module requires careful attention to cell arrangement and polarity. The nickel strip pattern must match the intended electrical circuit.
For example, a battery module may use a specially shaped nickel strip that crosses several cell positions while maintaining the required electrical connection.
The strip geometry can be customized through cutting, punching, slotting, and forming.
Battery Module Parallel Connections
Parallel connections connect multiple cells with the same polarity to increase the available capacity and current capability.
Parallel battery groups may require wider or thicker connection material depending on the current requirements.
The number of cells connected in parallel and the expected current should be considered when selecting the nickel strip dimensions.
For higher-current parallel groups, engineers may use wider strips, thicker strips, multiple conductive paths, or other busbar configurations.
Nickel strip should therefore be treated as one part of the complete electrical design rather than as an isolated component.
Series Parallel Battery Pack Connections
Many battery modules use a combination of series and parallel connections.
For example, a battery pack may contain several cells connected in parallel to create one cell group, with multiple groups then connected in series.
This arrangement requires nickel strips with different connection patterns within the same battery pack.
One section may require a simple cell-to-cell strip, while another section may require a wider connection, a punched tab, or a customized terminal.
The nickel strip design should follow the electrical architecture of the battery pack.
Nickel Strip Thickness Selection
Nickel strip thickness is one of the most important physical specifications.
Common battery strip thicknesses include:
0.05 mm
0.08 mm
0.10 mm
0.12 mm
0.15 mm
0.20 mm
0.30 mm
The appropriate thickness depends on the current requirements, connection configuration, welding process, available space, mechanical requirements, and battery module design.
For example, 0.12 mm and 0.15 mm nickel strips are commonly used for many compact battery connection designs, while 0.20 mm and 0.30 mm materials may be considered for applications requiring greater conductive cross-sectional area or mechanical strength.
These values should be treated as common industry options rather than universal design rules. The final selection should be validated for the specific battery application.
| Nickel Strip Thickness | General Application Consideration |
|---|---|
| 0.05 mm | Ultra-thin and compact connection applications |
| 0.08 mm | Thin battery tabs and compact electrical connections |
| 0.10 mm | Low-current and compact battery connections |
| 0.12 mm | Common battery pack connection thickness |
| 0.15 mm | General cylindrical battery pack assembly |
| 0.20 mm | Higher-current or stronger connection requirements |
| 0.30 mm | Higher-power battery module applications |
Nickel Strip Width
Strip width determines the conductive cross-sectional area together with thickness.
Common widths include:
2 mm, 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm, 12 mm, 15 mm, and 20 mm.
Customized widths can also be produced through precision slitting.
Narrow nickel strips can be useful where space is limited. Wider strips can provide greater conductive area and may be suitable for higher-current applications.
However, a wider strip may require different electrode positioning and welding parameters. It can also affect the flexibility and routing of the battery connection.
Therefore, width should be selected together with thickness rather than independently.
Common Nickel Strip Specification Table
| Specification | Common Options | Application Considerations |
|---|---|---|
| Material | Pure nickel | Low resistance and demanding connection applications |
| Material | Nickel plated steel | Cost-efficient general battery connection |
| Thickness | 0.05 to 0.30 mm | Selected according to electrical and mechanical requirements |
| Width | 2 to 20 mm | Selected according to cell arrangement and current path |
| Form | Coil | Automatic production |
| Form | Pre-cut strip | Manual assembly |
| Form | Punched tab | Customized battery connection |
| Surface | Nickel | Electrical connection and corrosion resistance |
| Processing | Slitting | Customized width |
| Processing | Punching | Customized tab geometry |
| Processing | Slotting | Specialized connection layout |
| Processing | Cutting | Custom strip length |
Nickel Strip for 18650 Battery Packs
The 18650 cylindrical lithium battery is one of the most widely recognized cylindrical battery formats.
Nickel strip can be used to connect 18650 cells in series, parallel, or series-parallel configurations.
Because 18650 cells have a relatively compact diameter, nickel strip dimensions should be selected to fit the cell spacing and battery holder.
For compact battery packs, thinner nickel strips may be used when the electrical requirements allow. For higher-current designs, wider or thicker conductive material may be required.
The strip can also be punched to create openings or shaped connection sections for specific 18650 battery pack designs.
Nickel Strip for 21700 Battery Packs
The 21700 cell format is larger than the 18650 format and is widely used in modern cylindrical battery applications.
A 21700 battery pack can require nickel strips with different dimensions from an 18650 pack because the cell spacing and terminal arrangement are different.
Customized strip width, length, punching, and slotting can help accommodate the larger cell format.
The electrical requirements of the battery pack remain the primary consideration when determining strip thickness and width.
Nickel Strip for 26650 Battery Packs
26650 cells have a larger diameter than 18650 and 21700 cells.
The larger cell format can require customized strip dimensions to match the physical spacing between cells.
Nickel-plated steel strips and pure nickel strips can both be considered for 26650 battery module applications, depending on current requirements, welding equipment, cost targets, and material specifications.
Nickel Strip for 26700 Battery Packs
26700 cylindrical cells are also suitable for battery modules requiring larger cylindrical cell formats.
Nickel strips can be cut, slit, punched, or formed according to the cell arrangement.
For larger battery modules, electrical current distribution becomes increasingly important, so strip dimensions should be selected based on the complete circuit requirements.
Nickel Strip for 32650 Battery Packs
32650 cells have a larger diameter and are used in various high-capacity cylindrical battery configurations.
The larger cell size may require longer or wider connection tabs depending on the module layout.
Nickel strip can be customized to match the required spacing, connection direction, and terminal geometry.
For high-power applications, the electrical and thermal performance of the entire interconnection system should be evaluated.
Customized Nickel Strip
Customized nickel strip can be manufactured according to battery module requirements.
Common customization options include:
Customized thickness
Customized width
Customized length
Continuous coil
Pre-cut pieces
Punching
Stamping
Slotting
Terminal lead design
Transverse slots
Longitudinal slots
Special connector shapes
Multiple-hole patterns
Customized welding areas
Customization can simplify battery pack assembly by reducing the amount of manual preparation required before welding.
Transverse Slot Nickel Strip
A transverse slot is a cut or opening extending across the width direction of a strip.
This type of design may be used to create a flexible connection section, accommodate a specific battery layout, or separate functional areas within a connector.
The exact slot geometry depends on the mechanical and electrical design.
Slot dimensions should be controlled carefully because excessive material removal can affect mechanical strength and current carrying capability.
Longitudinal Slot Nickel Strip
A longitudinal slot runs along the length direction of the strip.
Longitudinal slots can be used to create specialized connection patterns or flexible sections.
The slot can also help adapt the strip to a particular battery holder or cell arrangement.
The final design should consider the remaining conductive cross-sectional area and mechanical strength.
Customized Terminal Leads
Nickel strip can be manufactured with customized terminal leads.
A terminal lead is a shaped or extended section designed to connect the battery module to another electrical component.
Customized terminal geometry can reduce the need for additional connectors and may simplify assembly.
Terminal dimensions should be matched to the electrical system, connector interface, insulation structure, and available installation space.
Nickel Strip Surface and Edge Characteristics
Surface condition is important for both electrical connection and welding.
Nickel-plated steel strip normally has a nickel-coated surface over a steel substrate.
When a large nickel-plated coil is slit into narrower strips, the newly formed side edges may expose the underlying steel substrate.
Therefore, the top and bottom surfaces and the side edges can have different material exposure characteristics.
This distinction is particularly important when nickel-plated steel strip is specified for a battery application where edge exposure matters.
Pure nickel strip does not have the same plated-steel construction because the strip itself is primarily nickel.
Nickel Plated Steel Versus Stainless Steel
Nickel-plated steel strip should not be confused with nickel-plated stainless steel strip.
Nickel-plated steel uses low-carbon steel as the substrate. Nickel-plated stainless steel uses stainless steel as the substrate.
These materials have different electrical resistance, mechanical properties, processing characteristics, and application suitability.
For many battery connection applications, low-carbon nickel-plated steel is selected as a cost-effective alternative to pure nickel.
Stainless steel-based conductive strips may have higher electrical resistance and therefore may not be suitable for applications requiring efficient current transfer.
Material selection should always be based on the actual electrical and mechanical requirements of the battery system.
Advantages of Nickel Strip for Battery Assembly
Nickel strip offers several advantages for battery module assembly.
Nickel strip provides a conductive pathway between battery cells and other electrical components.
Nickel strip can be designed for resistance spot welding, which is widely used for cylindrical battery pack production.
Both pure nickel and nickel-plated steel are available for different application requirements.
Thickness, width, length, slotting, punching, and terminal shapes can be customized.
Continuous coil material supports automatic feeding and high-volume production.
Pre-cut strips reduce preparation work for manual assembly.
Punching allows the strip to be adapted to complex battery module layouts.
Nickel-plated steel provides a steel substrate that can offer useful mechanical strength for many battery connector applications.
Nickel surfaces can provide useful resistance to environmental corrosion compared with uncoated steel.
Battery Module Assembly Process
A typical cylindrical battery module assembly process can include several stages.
Battery cells are inspected and arranged according to the required electrical configuration.
Cells are positioned in a holder or fixture to maintain consistent spacing and orientation.
The nickel strip is positioned over the required cell terminals.
The strip is attached to the cell terminals using an appropriate resistance welding process.
The completed connections are checked for electrical continuity and other relevant characteristics.
Weld points and strip positioning are inspected to identify obvious mechanical defects.
Insulation Materials and protective components are added according to the battery pack design.
The completed cell group or battery module is integrated into the final enclosure or system.
Nickel Strip for Automatic Battery Welding
Automatic battery welding equipment can use continuous nickel strip supplied in coils.
The strip feeding system moves the material into the correct position before the welding electrodes create the connection.
Continuous strip is particularly useful when the same battery configuration is produced repeatedly.
The benefits of automatic nickel strip feeding include:
Consistent material positioning
Reduced manual handling
Faster production
Controlled strip length
Reduced cutting operations
Compatibility with automated welding lines
The coil should be manufactured with consistent thickness, width, edge quality, and winding characteristics to support stable feeding.
Nickel Strip for Manual Battery Welding
Pre-cut nickel strips are convenient for manual battery assembly.
Manual assembly is commonly used for prototypes, small production quantities, customized battery packs, laboratory development, maintenance, and repair work.
Pre-cut strips eliminate the need for operators to measure and cut the material during assembly.
The operator can position the strip directly over the cell terminals and perform the welding process according to the approved procedure.
Battery Connector Strip Dimensions
Nickel strip dimensions should be selected according to:
Cell format
Cell spacing
Current requirement
Welding process
Available installation space
Mechanical strength
Thermal conditions
Required connection length
Battery module configuration
Manufacturing method
A universal nickel strip dimension does not exist for every battery module.
The correct specification is the one that provides sufficient electrical and mechanical performance while remaining compatible with the selected welding process.
Nickel Strip for High Current Battery Applications
High-current battery applications place greater demands on the interconnection system.
As current increases, the resistance of the conductive path becomes more important because electrical losses increase with current.
For a given material, increasing strip width or thickness can increase the conductive cross-sectional area and may reduce the resistance of the strip itself.
However, the battery system should not be evaluated based only on the strip.
The resistance of weld points, cell terminals, connectors, busbars, cables, and protection devices also contributes to the total resistance.
For high-current battery modules, engineering validation is particularly important.
Nickel Strip Thermal Considerations
Electrical resistance generates heat when current passes through a conductor.
Nickel strip dimensions and material selection can therefore influence the thermal behavior of a battery module.
A narrow strip may have higher resistance than a wider strip of the same material and thickness. A thicker strip may reduce resistance but can require greater welding energy.
The thermal performance of the battery module depends on many factors, including:
Operating current
Strip resistance
Connection resistance
Ambient temperature
Battery cell temperature
Cooling system
Battery enclosure
Duty cycle
Connection geometry
The strip should therefore be evaluated as part of the complete battery thermal system.
Nickel Strip Welding Quality
Welding quality is critical for battery module reliability.
A visually acceptable weld is not necessarily a fully validated electrical and mechanical connection.
Manufacturers commonly evaluate welding through appropriate process tests, which can include mechanical pull testing, electrical resistance measurement, visual inspection, and process monitoring.
The exact testing method depends on the battery application and applicable manufacturing requirements.
Important welding quality factors include:
Consistent welding energy
Correct electrode pressure
Correct welding position
Clean contact surfaces
Appropriate strip thickness
Stable cell positioning
Proper welding equipment maintenance
Nickel Strip Storage and Handling
Nickel strip should be handled carefully to maintain surface quality and dimensional accuracy.
During storage, material should be protected from excessive moisture, contamination, physical damage, and unnecessary surface contact.
Coils should be stored in a way that prevents deformation.
Pre-cut tabs should be protected from bending and contamination.
Clean material surfaces are particularly important for consistent welding and electrical connection.
Nickel Strip Packaging Forms
Nickel strip can be packaged in different ways according to product form and customer requirements.
Continuous strips are wound into rolls and packaged for transportation and automatic processing.
Individual strips can be bundled or packed in protective containers.
Punched tabs can be separated into batches according to size and configuration.
Customized packaging can be used to separate different specifications and reduce mixing during production.
Nickel Strip Quality Considerations
When selecting nickel strip for battery module assembly, several quality characteristics should be reviewed.
The material composition should correspond to the specified pure nickel or nickel-plated steel grade.
Consistent thickness helps maintain predictable electrical and welding characteristics.
Consistent width is important for automated feeding and battery module geometry.
The surface should be free from obvious contamination, excessive oxidation, scratches, and other defects that could interfere with processing.
Slit edges should be controlled to reduce excessive burrs or sharp irregularities.
Continuous coil material should have stable winding and suitable tension for automated feeding.
Nickel Strip Burr Control
Slitting and punching processes can create edge burrs.
Excessive burrs may affect handling, insulation, automated feeding, and assembly quality.
For battery module applications, edge quality should therefore be controlled during material processing.
Precision slitting and appropriate punching tools can help improve dimensional consistency.
The required edge condition depends on the final battery module structure and insulation design.
Nickel Strip for Battery Pack Insulation
Nickel strip is a conductive component, so it must be properly integrated with the battery pack insulation system.
Insulation materials can be used to prevent unintended electrical contact between conductive components and the battery enclosure.
Depending on the battery design, insulation may include:
Insulation film
Cell holder
Fish paper
Electrical tape
Heat shrink material
Insulating barriers
Protective covers
The nickel strip should be positioned so that it does not create unintended short-circuit paths.
Nickel Strip and Battery Safety
Battery pack assembly requires careful attention to electrical and mechanical safety.
Nickel strip is only one component of a battery system. Safe battery design also depends on cell selection, cell matching, protection circuitry, insulation, thermal management, enclosure design, welding quality, and manufacturing controls.
Incorrect strip dimensions or poor weld quality can increase electrical resistance or create unreliable connections.
For this reason, battery module manufacturing should follow appropriate engineering procedures and applicable safety requirements.
Nickel Strip for DIY Battery Packs
Nickel strip is widely associated with DIY cylindrical battery pack assembly.
For small battery projects, pre-cut nickel strips can simplify assembly.
Common DIY cell formats include 18650 and 21700 cylindrical cells.
A DIY battery pack should still be designed with appropriate consideration of:
Cell polarity
Cell condition
Current requirements
Connection layout
Welding method
Insulation
Battery management system
Short-circuit protection
Thermal management
The nickel strip should be selected based on the actual electrical design rather than simply choosing the thickest available material.
Nickel Strip for Energy Storage Battery Modules
Energy storage battery modules can contain many cylindrical cells connected into larger groups.
The interconnection system must accommodate the current flow between cell groups.
Nickel strip may be used for specific connection sections, while larger systems may use busbars or other conductive structures for higher-current paths.
The appropriate solution depends on the electrical architecture, module size, current level, thermal design, and manufacturing process.
Nickel Strip for Power Tool Battery Packs
Power tool battery packs commonly require compact and mechanically stable cell connections.
Nickel strip can be used to connect cylindrical cells while allowing the pack to remain relatively compact.
For higher-power applications, the strip dimensions and weld configuration should be carefully designed to accommodate the expected current.
The battery pack may also require a protection circuit, temperature monitoring, and mechanical reinforcement.
Nickel Strip for Portable Electronics
Portable battery packs may use thin nickel strips where space and weight are important.
Thin nickel strip can provide a compact connection between cells.
However, thin material has a smaller conductive cross-sectional area, so its suitability depends on the expected current.
For portable applications, the balance between electrical performance, mechanical flexibility, available space, and manufacturing cost should be considered.
Nickel Strip for Custom Battery Modules
Custom battery modules may require special nickel strip geometries.
A customized strip can integrate several connection functions into a single stamped component.
Customization can include:
Custom width
Custom length
Custom hole pattern
Custom slot pattern
Custom terminal lead
Custom bending
Custom stamping
Custom connection spacing
This can reduce the number of separate components required during battery pack assembly.
Comparison of Pure Nickel and Nickel Plated Steel
| Characteristic | Pure Nickel Strip | Nickel Plated Steel Strip |
|---|---|---|
| Main Material | Nickel | Low carbon steel with nickel plating |
| Electrical Performance | Generally favorable for battery connections | Suitable for many general battery applications |
| Mechanical Strength | Good | Generally high due to steel substrate |
| Corrosion Resistance | Good | Nickel surface provides corrosion resistance |
| Material Cost | Generally higher | Generally more economical |
| Welding | Suitable for spot welding | Suitable for appropriate spot welding processes |
| Customization | Slitting, cutting, punching | Slitting, cutting, punching |
| Common Use | Demanding battery connections | General battery pack assembly |
| Weight | Dependent on dimensions | Dependent on dimensions |
| Edge After Slitting | Nickel material | Steel substrate may be exposed at slit edges |
How to Select Nickel Strip for Battery Module Assembly
A practical selection process can follow several steps.
Identify whether the battery pack uses 18650, 21700, 26650, 26700, 32650, or another cylindrical cell.
Determine the series and parallel arrangement.
Identify continuous and peak current requirements.
Choose pure nickel or nickel-plated steel based on electrical, mechanical, and cost requirements.
Determine the appropriate strip thickness based on current, available space, and welding requirements.
Select a width that provides an appropriate conductive cross-sectional area and fits the cell layout.
Choose continuous coil, pre-cut strip, punched tab, or customized stamped connector.
Test welding parameters with the selected material and battery cells.
Measure and inspect the finished connection as part of the complete battery module.
Common Nickel Strip Problems
Several problems can occur when unsuitable nickel strip is selected or processed incorrectly.
A strip that is too narrow or too thin for the application can contribute to excessive resistance.
Incorrect welding parameters can result in weak or inconsistent connections.
Poor slitting or punching can produce sharp edges or excessive burrs.
An unsuitable strip length can make assembly difficult or create unnecessary material overlap.
Contaminated surfaces can interfere with welding and electrical contact.
Using the wrong substrate or material grade can result in unsuitable electrical or mechanical performance.
Nickel Strip Manufacturing Processes
Nickel strip can be produced through several processing stages.
The specified nickel or nickel-plated steel material is prepared according to the required thickness.
Material may undergo rolling or precision processing to achieve the required gauge.
For nickel-plated steel, nickel is applied to the steel substrate.
Large coils are slit into narrower strips.
The material can be cut into specified lengths.
Special shapes, holes, and slots can be produced.
Certain connector designs can be formed into three-dimensional or angled configurations.
Finished material can be checked for dimensions, appearance, surface condition, and other specified characteristics.
Nickel Strip Dimensional Tolerances
Dimensional tolerance is important for automated battery pack assembly.
Thickness tolerance can influence electrical resistance and welding behavior.
Width tolerance can influence strip positioning and automated feeding.
Length tolerance is important for pre-cut battery tabs.
Hole and slot tolerances are important for punched battery connectors.
For customized battery module components, the required tolerances should be defined according to the actual assembly process.
Nickel Strip for Automated Production
Automated battery assembly requires consistent material dimensions.
Continuous nickel strip is suitable for automatic feeding systems because it can be supplied in a controlled coil format.
A stable strip width and thickness can help maintain consistent positioning during automated processing.
Customized punching or slotting can also be incorporated into continuous material when the production process requires it.
Nickel Strip for Manual Production
Manual battery assembly often benefits from pre-cut nickel tabs.
The operator can position each tab over the designated cell terminals before welding.
Pre-cut components can be especially convenient for prototypes and low-volume customized battery packs.
The dimensions should be controlled carefully to ensure consistent assembly.
Nickel Strip Product Forms
Nickel strip for battery module assembly is available in multiple forms.
| Product Form | Description | Typical Production Method |
|---|---|---|
| Continuous Coil | Long continuous strip wound into a roll | Slitting and winding |
| Pre Cut Strip | Individual straight pieces | Cutting |
| Punched Tab | Tab with holes or slots | Punching |
| Stamped Connector | Formed customized connector | Stamping |
| Slotted Strip | Strip with longitudinal or transverse slots | Slotting |
| Custom Terminal | Special lead or terminal geometry | Cutting and forming |
Nickel Strip Storage Recommendations
Nickel strip should be stored in a clean and dry environment.
Continuous coils should be protected from crushing, impact, and deformation.
Individual strips should be stored flat when possible to avoid unnecessary bending.
Punched tabs should be organized by specification to prevent mixing.
Material should be handled with clean equipment to reduce surface contamination.
For long-term storage, appropriate packaging should be maintained to protect the surface and dimensions.
Nickel Strip Application Summary
Nickel strip is a versatile interconnection material for cylindrical battery module assembly.
Its applications include:
18650 battery packs
21700 battery packs
26650 battery packs
26700 battery packs
32650 battery packs
DIY battery packs
Energy storage modules
Portable battery systems
Power tool battery packs
Backup power systems
Electrical equipment
Custom battery modules
Battery prototypes
Automated battery production
The strip can be supplied in continuous coils, pre-cut strips, punched tabs, slotted strips, and customized terminal configurations.
Frequently Asked Questions About Nickel Strip
Nickel strip is primarily used to create electrical and mechanical connections between battery cells and battery module components. It is commonly used with cylindrical lithium battery cells and is suitable for many spot welding applications.
Nickel strip can be used with various cylindrical battery cells, including 18650, 21700, 26650, 26700, and 32650 cells.
Nickel-plated steel can be suitable for many battery pack applications when its electrical, mechanical, and welding characteristics meet the requirements of the battery design.
Pure nickel strip is primarily nickel, while nickel-plated steel consists of a steel substrate with a nickel coating. They differ in electrical resistance, mechanical characteristics, material cost, and application suitability.
Yes. Nickel strip and nickel-plated steel strip are commonly processed using resistance spot welding when the material and welding parameters are appropriate for the battery application.
Yes. Continuous nickel strip can be supplied as coil material for automatic welding and battery assembly equipment.
Yes. Common customization includes thickness, width, length, punching, slotting, stamping, terminal leads, and special connector shapes.
There is no universal thickness. Common options include 0.10 mm, 0.12 mm, 0.15 mm, 0.20 mm, and 0.30 mm. The correct thickness depends on current, battery configuration, welding process, and mechanical requirements.
Common widths include 2 mm, 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm, 12 mm, 15 mm, and 20 mm, with customized widths available through precision slitting.
Yes. Nickel strip can be punched with square holes, round holes, rectangular openings, slots, and other customized features.
Yes. Customized terminal leads can be incorporated into battery connector strips according to the battery module design.
When nickel-plated steel coil is slit into narrower strips, the newly exposed side edges may expose the underlying steel substrate rather than having the same nickel coating as the original surface.
Continuous coil nickel strip can be suitable for automatic spot welding systems when the coil dimensions and material properties are compatible with the equipment.
Conclusion
Nickel strip for battery module assembly is an important conductive interconnection material for cylindrical lithium battery systems. It is available in several material types, thicknesses, widths, and product forms to accommodate different battery pack designs.
The two major material categories are pure nickel strip and nickel-plated steel strip. Pure nickel can be selected for applications where its electrical, corrosion-resistant, and welding characteristics are desirable. Nickel-plated steel provides a more economical option for many general battery pack applications while offering the mechanical characteristics of a steel substrate and a nickel-plated surface.
Form: Available as continuous coil material for automatic spot welding machines or pre-cut individual strips for manual welding. Customized options include transverse or longitudinal slots and customized terminal leads.
Nickel-plated steel battery connector strips, spot welding nickel strips, and nickel-plated tabs are suitable for 18650, 21700, 26650, 26700, 32650 and other cylindrical lithium battery cells.
Product Advantages: Easy to solder, low internal resistance, and good electrical conductivity.
The appropriate nickel strip should be selected according to the complete battery design. Material type, thickness, width, cell format, series-parallel configuration, expected current, welding equipment, connection geometry, thermal conditions, insulation structure, and mechanical requirements all influence the final specification.
For automated battery production, continuous coil nickel strip can support efficient feeding and consistent processing. For manual assembly and customized battery projects, pre-cut strips and punched nickel tabs can simplify installation. Customized slotting, punching, stamping, and terminal lead designs can further adapt the connector to specific battery module structures.
A well-designed nickel strip connection can contribute to stable electrical performance, consistent manufacturing, and reliable mechanical integration when it is correctly matched to the battery system and validated through an appropriate welding and quality-control process.
This website uses cookies to ensure you get the best experience on our website.
WhatsApp
Phone
