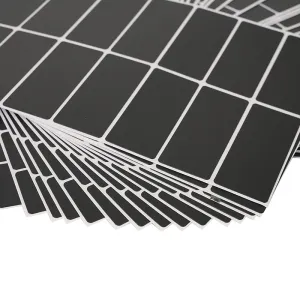

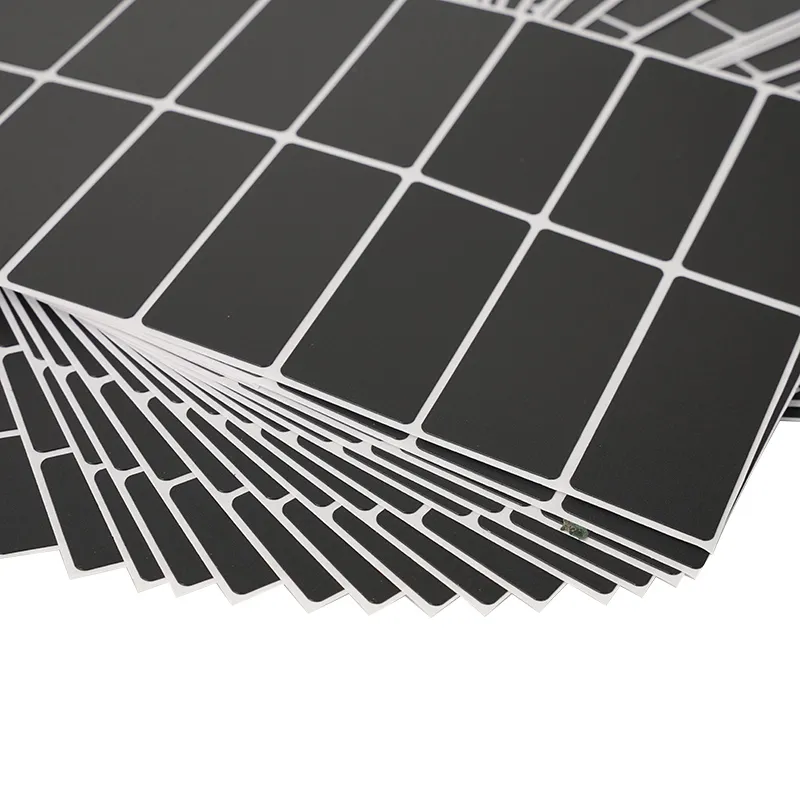

Mylar sheet insulation material is widely used in electronic devices, electrical assemblies, power equipment, industrial controls, consumer electronics, and precision components that require reliable electrical separation in a thin and lightweight format. Thin polymer insulation sheets can be converted into custom gaskets, barriers, washers, separators, protective layers, terminal covers, circuit board insulation parts, and other components designed for specific electronic assemblies.
In the electronics industry, Insulation Materials play an important role in preventing unwanted electrical contact between conductive components. A properly selected insulation sheet can provide electrical isolation while also contributing to mechanical protection, dimensional stability, thermal resistance, flame resistance, and assembly efficiency.
The term “Mylar sheet” is commonly used in commercial and industrial discussions to describe thin polyester insulation film. However, it is important to distinguish a generic market term from the actual polymer material. Mylar is associated with polyester film, while electronic insulation applications may also use polycarbonate (PC), polyethylene terephthalate (PET), polyethylene naphthalate (PEN), polyimide (PI), and other engineered polymer films.
For this reason, material selection should always be based on the required technical properties rather than the product name alone.
A suitable insulation sheet for electronic devices may need to withstand electrical stress, elevated temperatures, mechanical pressure, vibration, humidity, chemicals, repeated assembly, and long-term environmental exposure. The correct material thickness and geometry also depend on the design of the electronic device.
This film offers excellent formability, outstanding mechanical properties, good dimensional stability at high temperatures, and a high level of flame resistance. It is well suited for insulation applications in power supplies, disk drives, busbars, televisions/displays, PC boards, and business equipment. When laminated with metal foil, it can also be used for insulation and EMI/RFI shielding.
The combination of formability and mechanical performance makes this type of insulation film useful for electronic components that require customized shapes.
Good formability allows the film to be shaped around components, folded into compact structures, or converted into specially designed insulation barriers.
Outstanding mechanical properties can help the material resist handling damage, tearing, bending, vibration, and assembly stress when the material is properly selected for the application.
Good dimensional stability at high temperatures is particularly useful in electronic devices where internal temperatures may increase during continuous operation.
A high level of flame resistance can also be important for electrical and electronic products where fire safety and flame propagation control are design considerations.
When laminated with metal foil, the film can provide an insulating layer within an EMI/RFI shielding structure. This combination can help separate conductive shielding layers from other components while supporting electromagnetic interference control.
Common available thicknesses include:
0.1 mm
0.125 mm
0.175 mm
0.25 mm
0.3 mm
0.38 mm
0.5 mm
0.8 mm
Additional thicknesses may be available according to the material type, production process, design requirements, and customer specifications.
Thin 0.1 mm insulation film may be appropriate where space is highly limited. Medium thicknesses can provide a balance between electrical insulation, mechanical strength, and dimensional stability. Thicker sheets may be selected when greater physical separation, structural support, or durability is required.
The correct thickness should be determined by the actual electrical, mechanical, thermal, and dimensional requirements of the electronic device.
Custom insulation sheets can be manufactured in many different shapes and sizes.
Electronic devices often contain irregularly shaped components, narrow gaps, mounting holes, terminals, connectors, and metal structures. A standard rectangular insulation sheet may not provide adequate coverage.
Custom die cutting can create:
Circular insulation washers
Rectangular insulation sheets
Ring-shaped insulation parts
Terminal covers
Connector barriers
PCB insulation pieces
Battery insulation barriers
Busbar insulation parts
Transformer insulation components
Motor insulation parts
Custom gaskets
Protective covers
Internal separators
Custom dimensions can improve component fit and reduce unnecessary material.
Custom openings can also allow screws, terminals, connectors, wires, and other components to pass through the insulation layer without compromising the intended isolation areas.
Custom insulation components often require dedicated tooling.
For qualifying projects, free tooling and mold development may be available according to production quantity and project requirements.
The tooling design is normally based on an engineering drawing, CAD file, physical sample, or detailed dimensional specification.
Important design information may include:
Overall length
Overall width
Thickness
Hole diameter
Hole location
Slot dimensions
Corner radius
Material type
Adhesive requirements
Dimensional tolerance
Surface requirements
Tooling design should consider the material's thickness, flexibility, cutting characteristics, part geometry, and expected production volume.
A Mylar sheet insulation material is commonly understood as a thin polyester film used as an electrical insulation layer.
In commercial terminology, Mylar is frequently used as a general term for polyester film products.
The actual material should be verified before use in a critical application.
Polyester film can provide useful electrical insulation, mechanical strength, dimensional stability, and chemical resistance. Other polymer films may offer different advantages depending on the operating conditions.
For example, polycarbonate film can provide good impact resistance and formability, while polyimide film is commonly considered for higher-temperature electrical insulation applications.
Therefore, an electronic device manufacturer should specify the actual polymer rather than relying only on the word “Mylar.”
Electronic devices can operate under demanding conditions.
The insulation material may be exposed to:
Electrical voltage
Heat
Mechanical stress
Vibration
Humidity
Dust
Chemicals
Cleaning agents
Repeated assembly
Thermal cycling
The insulation film must maintain its required performance under the expected operating environment.
A material that performs well in one application may not be suitable for another application with a different temperature, voltage, or chemical environment.
The word “Mylar” is commonly associated with PET polyester film.
PET film is widely used for electrical insulation and industrial applications because it offers a useful balance of mechanical strength, electrical properties, dimensional stability, and chemical resistance.
PC polycarbonate film is a different polymer.
PC can provide good impact resistance, formability, and mechanical performance, making it suitable for selected applications that require shaped insulation components.
These two materials should not automatically be treated as interchangeable.
The actual material specification should identify the polymer type, grade, thickness, electrical properties, thermal properties, and other required characteristics.
Many people commonly refer to this material as “Mylar,” but for primary insulation and isolation in lithium batteries, PC (polycarbonate) film is the more suitable material rather than standard PET Mylar film.
This distinction is important because lithium battery applications can require specific combinations of mechanical performance, thermal stability, flame resistance, formability, and electrical insulation.
PC film may be selected for certain battery insulation applications because of its combination of mechanical properties, formability, dimensional stability at elevated temperatures, and flame resistance.
However, material suitability depends on the specific battery design.
Battery manufacturers should evaluate the film according to the cell structure, operating temperature, electrical voltage, mechanical stress, electrolyte environment, safety requirements, and qualification standards.
The phrase “Mylar insulation” should therefore not be treated as a complete material specification.
Electrical insulation is fundamental to electronic device design.
Conductive components must often be separated from one another to prevent short circuits, leakage currents, arcing, or unintended electrical paths.
A thin polymer film can provide a physical barrier between conductive surfaces.
Common applications include:
Power supplies
Circuit boards
Busbars
Transformers
Motors
Battery systems
Connectors
Terminals
Electronic housings
Control systems
Communication equipment
Consumer electronics
The required insulation performance depends on the voltage, temperature, frequency, environment, and product architecture.
Power supplies contain transformers, inductors, capacitors, circuit boards, terminals, heat sinks, connectors, and other electrical components.
Insulation film can separate conductive elements and prevent contact with metal structures.
Custom die cut insulation parts can be designed to fit around transformer terminals, mounting points, circuit boards, and other components.
Thin film construction is useful when the power supply must maintain a compact internal layout.
The material should be evaluated for dielectric performance, operating temperature, flame resistance, mechanical strength, and long-term reliability.
Busbars are conductive metal structures used to distribute electrical power.
Because busbars can carry high currents, insulation around and between conductive structures is important.
Custom insulation film can be cut to cover specific busbar surfaces while leaving mounting holes and connection areas accessible.
Busbar insulation components may include:
Flat insulation barriers
Terminal insulation covers
Hole insulation rings
Edge protection pieces
Interlayer insulation sheets
Custom busbar gaskets
The material must be selected according to the voltage, temperature, mechanical environment, and required electrical clearance.
Printed circuit boards contain conductive traces and components in a compact space.
Insulation film can be used to prevent contact between a PCB and a metal enclosure or other conductive structure.
It can also serve as a mechanical protection layer.
Custom cut PCB insulation can include mounting holes, connector openings, component clearance areas, and irregular profiles.
The insulation should not interfere with components, solder joints, connectors, or thermal management structures.
Televisions and displays contain power electronics, PCBs, connectors, metal frames, and other internal components.
Thin insulation film can be used around electrical connections and between conductive structures.
Custom shapes allow the film to fit into compact spaces.
Good dimensional stability can help maintain the intended position of the insulation component during temperature changes.
Disk drives and other precision electronic equipment require compact internal components.
Insulation film may be used as a separator, barrier, protective layer, or electrical isolation component.
The film must be compatible with the dimensional and cleanliness requirements of precision equipment.
Business equipment includes printers, copiers, scanners, communication devices, office electronics, and other systems containing electrical and mechanical components.
Die cut insulation film can be used around power supplies, circuit boards, connectors, motors, and metal structures.
Custom insulation parts can reduce manual cutting and improve assembly consistency.
Electronic housings are often manufactured from metal or conductive materials.
A polymer insulation sheet can be installed between the housing and a circuit board or electrical component.
This helps prevent unwanted electrical contact.
Custom die cut shapes can cover mounting areas and conductive surfaces without interfering with connectors or ventilation structures.
Terminals are conductive connection points that may require additional insulation around their exposed areas.
Custom insulation film can be shaped around terminal structures.
The part can include holes or slots for connection hardware while maintaining electrical separation around the terminal.
Connectors often contain multiple conductive terminals in close proximity.
Insulation film can provide secondary electrical separation and mechanical protection.
The geometry should be designed carefully to avoid interfering with connector mating.
Transformers require electrical separation between windings, cores, terminals, and other conductive structures.
Insulation films can be used as barriers, separators, spacers, and protective layers.
The appropriate material should be selected according to the transformer design and thermal class.
Motors contain windings, metal components, shafts, and other conductive structures.
Insulation film can be used in selected motor insulation applications, including barriers and separators.
Material selection depends on operating temperature, voltage, mechanical stress, and winding configuration.
Battery assemblies contain cells, terminals, busbars, connectors, and conductive housings.
Insulation film can provide barriers between conductive surfaces.
Custom shapes can improve coverage around terminals and connection structures.
Lithium battery applications require particular attention to electrical isolation, thermal stability, mechanical integrity, flame resistance, and material compatibility.
PC film may be considered for specific primary insulation applications when its properties meet the required design specifications.
Battery cells may be located close to one another.
Insulation materials can provide separation between conductive surfaces and help prevent accidental electrical contact.
The thickness and geometry should be optimized to provide adequate isolation without unnecessarily increasing the size of the battery pack.
Battery terminals are potential contact points with other conductive components.
Custom die cut barriers can cover selected terminal areas while leaving the required connection point exposed.
The design can include openings, slots, and tabs for accurate positioning.
Battery busbars connect cells and electrical modules.
Insulation around busbars can help reduce the risk of unintended contact with nearby metal components.
The final design should account for voltage, clearance, temperature, vibration, and assembly tolerance.
Electronic devices can generate electromagnetic interference.
EMI and RFI shielding is used to control unwanted electromagnetic energy.
A polymer insulation film laminated with metal foil can combine electrical isolation and electromagnetic shielding.
The conductive foil provides the shielding layer while the polymer film can provide insulation between the conductive layer and surrounding components.
Shielding effectiveness depends on frequency, conductive material, thickness, grounding, seams, openings, enclosure geometry, and installation.
Laminating insulation film with aluminum, copper, or another conductive foil can create a multifunctional material.
Potential functions include:
Electrical insulation
EMI shielding
RFI shielding
Mechanical separation
Surface protection
Component isolation
The laminate structure must be selected according to the electrical and mechanical requirements of the final application.
Flame resistance can be important in electronic devices.
Electrical equipment can contain multiple heat-generating components.
If an insulation material is exposed to excessive heat or an ignition source, its flame behavior can affect the overall safety performance of the product.
For this reason, flame-retardant grades may be required.
The exact flame classification should be verified according to the applicable material and product testing standards.
Electronic components can generate substantial heat.
Power electronics, transformers, motors, processors, and other components may operate at elevated temperatures.
An insulation film with good dimensional stability at high temperatures can help maintain its designed geometry.
Thermal performance should be evaluated according to actual operating temperature, duration, thermal cycling, and surrounding environment.
Mechanical strength allows insulation film to survive handling and assembly.
The film may be bent, punched, folded, pressed, or installed around irregular structures.
Good mechanical properties can reduce the risk of tearing or deformation.
However, mechanical performance varies with polymer type and thickness.
Formability is valuable when an insulation component must follow a curved or irregular surface.
A formable film can be converted into three-dimensional or folded structures.
This is particularly useful for battery insulation, electronic housings, connectors, terminals, and compact electrical assemblies.
Dimensional stability determines how well the material maintains its size and shape under changing environmental conditions.
Temperature changes can cause polymer materials to expand or contract.
Excessive dimensional change can affect insulation coverage and component alignment.
For precision electronic assemblies, dimensional stability can therefore be an important selection criterion.
Dielectric strength indicates the ability of an insulating material to withstand electrical stress before breakdown.
The required dielectric strength depends on voltage and application conditions.
Film thickness, temperature, humidity, surface contamination, and mechanical damage can influence actual insulation performance.
Insulation resistance describes the resistance of the insulating material to electrical current flow.
High insulation resistance is generally desirable in applications where leakage current must be minimized.
The actual value depends on material composition, thickness, temperature, humidity, and testing conditions.
Electronic equipment can be exposed to cleaning agents, oils, lubricants, adhesives, solvents, and other chemicals.
Material compatibility should be evaluated before production.
Chemical exposure can potentially affect mechanical strength, surface properties, dimensional stability, or electrical insulation.
Moisture can affect electrical insulation performance.
High humidity and condensation may reduce insulation resistance or alter surface properties.
For equipment operating in humid environments, moisture resistance should be considered during material selection.
Polymer insulation films provide a lightweight alternative to many rigid insulation materials.
This is useful in portable electronics, battery systems, compact power supplies, and lightweight industrial equipment.
Thin film can provide electrical separation without significantly increasing product weight.
Modern electronic devices often require compact internal structures.
Thin insulation films can occupy limited space while providing electrical separation.
Custom shapes can reduce unnecessary material and avoid interference with other components.
Adhesive-backed insulation film can simplify installation.
The adhesive layer allows the insulation component to remain in position during assembly.
Applications may include:
PCB insulation
Battery insulation
Metal housing insulation
Terminal insulation
Busbar insulation
Transformer insulation
Electronic module protection
The adhesive must be compatible with the film and operating environment.
Single-sided adhesive insulation contains adhesive on one side of the film.
This configuration allows the film to be attached to a substrate while maintaining an exposed insulation surface.
Double-sided adhesive film contains adhesive on both sides.
It can be used when the insulation layer needs to bond between two components.
The adhesive thickness should be considered when calculating assembly clearance.
Die cutting allows manufacturers to produce insulation parts with repeatable shapes.
Common features include:
Holes
Slots
Tabs
Notches
Cutouts
Rounded corners
Irregular outlines
Die cut components can be supplied individually, in sheets, on release liners, or in other formats according to assembly requirements.
Precision die cutting is useful when the insulation component must fit into a specific electronic assembly.
Dimensional control can be important for:
Hole position
External dimensions
Internal openings
Corner radius
Slot width
Adhesive registration
The required tolerance should be established according to the function of the part.
Rotary die cutting is suitable for continuous roll-to-roll production.
It can provide high production speed and consistent part geometry.
Rotary processing is often considered for large-volume film conversion.
Flatbed die cutting uses a flat tooling structure.
It can be suitable for prototypes, small batches, medium-volume production, and certain complex geometries.
Laser cutting can be used for some prototype and low-volume applications.
It can provide flexibility for complex shapes without requiring conventional tooling in certain circumstances.
However, heat generated during laser cutting can influence some polymer films.
Insulation Gaskets can combine electrical isolation with mechanical separation.
They may be installed between housings, circuit boards, metal components, battery structures, or electrical assemblies.
The gasket design can include mounting holes, connector openings, and other custom features.
Insulation washers are commonly used around screws, bolts, terminals, and mounting points.
They help prevent conductive hardware from contacting surrounding metal structures.
Die cut film can provide lightweight washer components in various shapes and sizes.
Insulation barriers create a physical and electrical separation between conductive components.
They are frequently used in power electronics, batteries, busbars, connectors, and electrical control equipment.
Custom barriers can be designed according to the exact geometry of the assembly.
PCB barrier films can separate circuit boards from metal housings or Brackets.
The film can be shaped to match the board outline and mounting features.
This can reduce the risk of electrical contact and mechanical abrasion.
Busbar barrier films are designed to isolate conductive busbars.
They can include holes and openings for bolts and connection points.
The film thickness and material should be selected according to electrical and thermal requirements.
Insulation film can also provide protection from mechanical contact.
It can act as a barrier between sensitive components and metal structures.
The film may reduce scratches, abrasion, vibration contact, and accidental impact.
Custom electronic insulation parts can be produced according to CAD drawings or samples.
This allows designers to create insulation components specifically for their product architecture.
Custom dimensions can reduce unnecessary overlap and improve assembly efficiency.
Common advantages include:
Thin construction
Lightweight design
Electrical insulation
Customizable geometry
Good mechanical properties
Dimensional stability
Formability
Flame resistance
Easy conversion
Compatibility with die cutting
Potential adhesive backing
Potential metal foil lamination
The actual performance depends on the polymer type, grade, thickness, processing method, and operating environment.
Manufacturing quality can affect the performance of custom insulation parts.
Important process factors include:
Material quality
Thickness control
Tooling precision
Cutting pressure
Web tension
Production speed
Part positioning
Edge quality
Adhesive alignment
Inspection
Packaging
Stable process control can improve consistency across production batches.
Choosing the right thickness requires balancing several factors.
Thicker film may provide greater mechanical support and physical separation.
Thinner film may be preferable when space is restricted.
The final choice should consider electrical voltage, dielectric strength, mechanical requirements, temperature, forming radius, assembly clearance, and cost.
Extremely tight tolerances can increase manufacturing complexity and cost.
The tolerance should therefore be based on actual functional requirements.
Critical dimensions such as terminal openings and mounting holes may require tighter control than non-critical external dimensions.
Clean cut edges are useful for reliable assembly.
Poor edge quality can create burrs, loose particles, deformation, or dimensional variation.
For electronic applications, clean edges can also help maintain intended electrical clearance.
Electronic devices can be sensitive to dust, particles, oils, and other contaminants.
Insulation film should be handled and packaged appropriately to reduce contamination.
For precision electronic applications, cleanliness requirements should be specified before production.
Custom insulation components can be supplied in different packaging formats.
Potential options include:
Bags
Stacks
Sheets
Reels
Trays
Release liners
Protective films
The appropriate packaging depends on part size, quantity, adhesive configuration, and assembly method.
Quality inspection may include visual and dimensional checks.
Typical inspection items include:
Material type
Thickness
Length
Width
Hole diameter
Hole position
Part geometry
Edge quality
Surface condition
Adhesive position
Color
Quantity
Critical electrical applications may also require electrical testing or material certification.
Film thickness affects electrical, mechanical, thermal, and assembly characteristics.
Appropriate measuring instruments should be used to verify the thickness.
The nominal thickness and tolerance should be established before production.
Dimensional inspection verifies the finished part against engineering specifications.
Simple parts can often be checked with calipers or micrometers.
Complex parts may require optical measurement or coordinate inspection.
Depending on the application, electrical testing can include:
Dielectric strength
Breakdown voltage
Insulation resistance
Surface resistance
Other application-specific tests
Testing requirements should be established based on the final product.
Electronic insulation may need to withstand:
High temperature
Low temperature
Humidity
Thermal cycling
Vibration
Chemical exposure
Mechanical stress
Testing should reproduce the expected operating conditions as closely as practical.
Repeated heating and cooling can cause dimensional changes and mechanical stress.
An insulation film used in electronic equipment should be evaluated for its ability to maintain performance after repeated temperature changes.
Industrial electronics, vehicles, motors, and other equipment may experience continuous vibration.
The insulation component must remain properly positioned and mechanically intact.
Custom shapes and adhesive backing can help maintain component positioning where appropriate.
Before selecting an insulation material, identify chemicals that may contact the component.
These may include:
Cleaning fluids
Oils
Lubricants
Adhesives
Solvents
Electrolytes
Industrial chemicals
Testing may be required for demanding environments.
Mylar sheet insulation material and related polymer insulation films can be used in many electronic devices.
Potential applications include:
Power adapters
Power supplies
Displays
Televisions
Computers
Printers
Industrial controllers
Communication equipment
Battery packs
Electronic modules
Motors
Transformers
Sensors
Control panels
Consumer electronics
The actual application depends on material properties and product design.
Power electronic equipment operates at high electrical loads and may generate substantial heat.
Insulation materials must maintain electrical isolation while tolerating the thermal environment.
Custom die cut insulation parts can fit around power components and metal heat sinks.
Consumer electronics require compact, lightweight, and reliable internal components.
Thin polymer insulation can fit within narrow spaces.
Custom shapes can simplify internal assembly.
Industrial equipment may require more robust environmental performance.
Insulation films may need to withstand vibration, heat, chemicals, humidity, and continuous operation.
Material selection should reflect the actual industrial environment.
Communication devices may contain circuit boards, connectors, antennas, shielding structures, and power components.
Insulation film can be used for electrical separation and may also form part of an EMI/RFI shielding structure when laminated with conductive foil.
Control equipment uses electrical components in compact assemblies.
Custom insulation films can separate terminals, circuit boards, metal brackets, and conductive housings.
Sensors and compact electronic modules may have very limited internal space.
Thin custom insulation components can provide separation without significantly increasing the overall size.
Standard insulation sheets may not fit every electronic device.
Custom shapes provide better coverage and can simplify installation.
A single custom component may replace several manually cut pieces.
This can reduce assembly time and improve consistency.
Custom insulation parts can be designed for automated placement.
Parts may be supplied on liners, reels, or in stacks.
Consistent dimensions and controlled adhesive placement can improve automated handling.
Prototype insulation parts allow engineers to test a design before full production.
Testing can include:
Fit
Clearance
Assembly
Electrical isolation
Thermal behavior
Mechanical stability
After validation, the design can be optimized for high-volume manufacturing.
Large production quantities can benefit from automated die cutting.
Continuous production can improve throughput and consistency.
Large-volume orders may also benefit from lower unit costs because fixed tooling and setup expenses can be distributed over more parts.
Low-volume projects can be appropriate for prototypes, replacement parts, specialized electronics, and product development.
The manufacturing method should be selected according to quantity, geometry, tolerance, and material.
Cost depends on:
Material type
Thickness
Part dimensions
Geometry
Tolerance
Adhesive
Tooling
Quantity
Packaging
Inspection
Material nesting can help reduce waste.
Simplifying non-critical geometries may also reduce tooling complexity.
Efficient layout of parts on a roll or sheet can reduce scrap.
For large-volume production, material utilization can have a significant influence on total component cost.
A complete engineering drawing helps ensure accurate production.
It should ideally identify:
Material
Thickness
Dimensions
Tolerances
Hole locations
Corner radii
Adhesive requirements
Surface requirements
Quantity
Packaging
A physical sample can supplement the drawing when necessary.
Some insulation films may require surface treatment for improved bonding, printing, coating, or lamination.
Surface requirements should be specified according to the final manufacturing process.
Insulation films may be available in transparent, natural, white, black, red, yellow, and other colors.
Color can help identify components or improve visual inspection.
However, color should not compromise required technical performance.
Transparent film can be useful where the underlying components need to remain visible.
It may support visual inspection and alignment.
Black film can provide visual separation and light blocking.
It may be useful in selected electronic housings and display-related assemblies.
White insulation film can provide a light-colored surface for identification, printing, or visual inspection.
When polymer insulation film is laminated with conductive foil, the resulting structure can provide both insulation and shielding.
This is useful in applications where electromagnetic compatibility is important.
The shielding layer must be properly connected and grounded according to the system design.
RFI shielding focuses on controlling radio-frequency interference.
A conductive foil layer combined with an insulating polymer film can contribute to an RFI shielding assembly.
The actual shielding effectiveness depends on frequency, geometry, grounding, and installation.
Insulation components must provide appropriate clearance between conductive parts.
Clearance requirements depend on voltage, pollution environment, product standard, and component geometry.
Creepage distance is the shortest path along an insulating surface between conductive components.
Insulation sheet geometry should not unintentionally reduce required creepage distance.
Electrical insulation should be designed as part of the complete safety system.
Material selection, thickness, geometry, operating temperature, contamination, humidity, and mechanical damage can all influence insulation reliability.
Long-term reliability depends on material stability and environmental conditions.
Factors such as thermal aging, electrical stress, humidity, vibration, and chemical exposure should be considered.
A suitable insulation film should maintain its required properties throughout the intended service life.
When selecting insulation material for electronic devices, consider:
Actual polymer type
Thickness
Electrical properties
Thermal performance
Mechanical properties
Formability
Flame resistance
Chemical resistance
Moisture resistance
Dimensional stability
Adhesive requirements
Die cutting requirements
Production quantity
The product name alone is not sufficient to determine suitability.
Buyers may encounter related terms such as:
Mylar Sheet Insulation
Mylar Insulation Film
Electrical Insulation Sheet
Electronic Insulation Film
PET Insulation Film
PC Insulation Film
Polycarbonate Insulation Sheet
Die Cut Mylar Sheet
Die Cut Insulation Film
Custom Insulation Sheet
Insulation Gasket
Insulation Barrier
Battery Insulation Film
Busbar Insulation Film
PCB Insulation Film
Transformer Insulation Film
Motor Insulation Film
Adhesive Backed Insulation Film
EMI Shielding Insulation Film
RFI Shielding Film
These terms describe related product categories but should not automatically be interpreted as identical materials.
A technical data sheet for electronic insulation film may include:
Polymer type
Nominal thickness
Thickness tolerance
Tensile strength
Elongation
Dielectric strength
Insulation resistance
Thermal properties
Flame classification
Dimensional stability
Chemical resistance
Surface characteristics
The actual specifications should be confirmed from the relevant material documentation.
Mylar sheet insulation material is widely associated with thin polyester insulation film used in electrical and electronic applications. Its thin construction, mechanical properties, electrical insulation capability, dimensional stability, and compatibility with die cutting make polymer film useful for many types of electronic devices.
The material can be converted into custom insulation sheets, washers, gaskets, barriers, terminal covers, PCB insulation parts, busbar barriers, battery insulation components, and other precision parts.
Available thicknesses can include 0.1 mm, 0.125 mm, 0.175 mm, 0.25 mm, 0.3 mm, 0.38 mm, 0.5 mm, and 0.8 mm, with additional thicknesses available according to project requirements.
The film can be customized in different shapes and sizes, and free tooling or mold development may be available for qualifying projects. Large-volume production can also provide opportunities for competitive unit pricing.
However, the term “Mylar” should be used carefully when specifying an engineering material. PET polyester film and PC polycarbonate film are different materials with different performance characteristics.
For lithium battery primary insulation and isolation, PC polycarbonate film may be more suitable than standard PET Mylar film for applications requiring its specific combination of formability, mechanical performance, high-temperature dimensional stability, and flame resistance.
Material selection should always be based on the actual electrical, thermal, mechanical, chemical, dimensional, and safety requirements of the final electronic device.
A properly designed Mylar sheet insulation component can provide reliable electrical separation while supporting compact product design, efficient assembly, and scalable manufacturing.
For custom electronic insulation projects, customers should provide the application, material requirements, thickness, drawing, dimensions, tolerance, operating temperature, electrical requirements, adhesive requirements, quantity, and packaging requirements. These details help ensure that the final insulation component is designed according to the actual needs of the electronic device.
This website uses cookies to ensure you get the best experience on our website.
WhatsApp
Phone
