Die cut Mylar sheets are widely used to manufacture custom insulation parts for electrical, electronic, mechanical, automotive, battery, and industrial applications. These precision-cut insulation components can be produced in a wide range of shapes, sizes, thicknesses, colors, and adhesive configurations to meet different assembly and protection requirements.
In practical manufacturing, the term Mylar insulation sheet is often used broadly for thin polymer insulation films and sheet materials used to produce washers, gaskets, spacers, barriers, pads, liners, and other electrical insulation components. Depending on the application, commonly selected materials include PP, PET, PVC, PC, and PTFE (Teflon). Each material provides a different balance of electrical insulation, temperature resistance, flexibility, chemical resistance, mechanical strength, flame retardancy, and dimensional stability.
Custom die cutting allows Insulation Materials to be converted into repeatable components according to engineering drawings, CAD files, samples, or specified dimensions. Round washers, rectangular gaskets, L-shaped insulation pieces, U-shaped barriers, rings, tabs, slots, holes, and highly customized profiles can all be considered when designing insulation parts.
The addition of pressure-sensitive adhesive can further simplify assembly. Depending on the application, insulation parts may use single-sided adhesive or double-sided adhesive. A single-sided adhesive configuration leaves one side adhesive and the opposite side available for electrical insulation or contact with another component. A double-sided adhesive configuration provides bonding on both sides and can be useful when the insulation component must remain fixed between two surfaces.
These materials are especially useful where a component needs to provide more than simple electrical isolation. A properly selected die cut insulation part can also help with moisture protection, vibration reduction, spacing, surface protection, heat resistance, flame retardancy, and assembly positioning.
What Is a Die Cut Mylar Sheet?
A die cut Mylar sheet is a thin insulating sheet or polymer film that has been converted into a specific shape through a precision die cutting process.
The term Mylar is commonly associated with polyester film, particularly PET film. However, in the insulation industry, buyers sometimes use “Mylar sheet” as a general search term for thin plastic insulation sheets. Therefore, material identification is important when selecting a product.
For applications requiring specific thermal, electrical, mechanical, or flame-retardant properties, the actual substrate should always be confirmed rather than relying only on the general term “Mylar.”
A die cut insulation part normally starts with a sheet or roll of insulating material. The material is processed using a suitable cutting method and converted into individual components or continuous parts.
The manufacturing sequence can include:
Material selection
Thickness selection
Surface treatment
Adhesive lamination
Protective liner application
Die cutting
Slitting
Waste removal
Dimensional inspection
Electrical or visual inspection
Packaging
The result is a finished insulation component designed for a particular installation position.
Common Materials for Die Cut Insulation Parts
Different electrical insulation applications require different material properties. PP, PET, PVC, PC, and PTFE are among the commonly considered materials for custom insulation parts.
PET, or polyethylene terephthalate, is widely used for electrical insulation films because of its combination of dimensional stability, mechanical strength, flexibility, and electrical insulation performance.
PET insulation sheets can be converted into:
Electrical insulation washers
Battery insulation pads
PCB insulation pieces
Transformer insulation components
Motor insulation parts
Terminal insulation sheets
Protective liners
Gaskets
Spacers
Die cut electrical barriers
PET film is available in different thicknesses and surface finishes. Transparent PET is useful when visual inspection is important, while black PET can be selected when light blocking or visual contrast is required.
PET insulation parts are particularly suitable for applications where stable dimensions and reliable electrical isolation are required.
Polypropylene, commonly abbreviated as PP, is a lightweight thermoplastic material with good moisture resistance and useful chemical resistance.
PP insulation sheets can be used for:
Electrical isolation
Protective spacers
Insulation washers
Component separation
Battery insulation
Mechanical liners
Moisture-resistant insulation components
PP can be useful when low moisture absorption and chemical resistance are important considerations.
The final performance depends on the specific PP grade, thickness, manufacturing process, and service environment.
PVC, or polyvinyl chloride, is another material frequently used for insulation applications. PVC films can provide electrical insulation, flexibility, abrasion resistance, and good processability.
PVC insulation parts can be die cut into:
Washers
Gaskets
Pads
Spacers
Protective covers
Electrical barriers
Insulation liners
Different PVC formulations provide different degrees of flexibility, temperature resistance, and flame-retardant performance. Therefore, the exact grade should be selected according to the application.
Polycarbonate, or PC, is a strong engineering thermoplastic frequently used when mechanical strength and impact resistance are important.
PC insulation sheets can provide:
Electrical insulation
Impact resistance
Dimensional stability
Mechanical protection
Heat resistance
Flame-retardant options
PC is particularly interesting for electrical and electronic components that require both insulation and mechanical protection.
Flame-retardant black PC is also used in specialized insulation applications.
PTFE, commonly known by the trade name Teflon, is recognized for its excellent chemical resistance, low friction, and high-temperature performance.
PTFE insulation parts can be used in demanding environments involving:
Chemical exposure
Elevated temperatures
Electrical isolation
Low-friction interfaces
Sealing
Mechanical separation
PTFE is more specialized than conventional PET or PP insulation materials and should be selected when its particular performance characteristics provide a meaningful advantage.
Custom Die Cutting for Insulation Parts
Custom die cutting is an efficient manufacturing method for producing large quantities of repeatable insulation components.
A cutting die is designed according to the required component geometry. The insulation sheet is positioned beneath or within the cutting system, and controlled pressure is applied to produce the required profile.
The process can create both simple and complex shapes.
Typical shapes include:
Round insulation washers
Square insulation pads
Rectangular gaskets
Ring gaskets
L-shaped insulation parts
U-shaped insulation barriers
Tab insulation pieces
Slotted washers
Multi-hole insulation sheets
Irregular custom profiles
Electronic component insulation pads
Battery insulation barriers
For production applications, die cutting provides repeatability and efficient material utilization.
The design of the cutting tool should consider material thickness, hardness, elasticity, adhesive construction, tolerances, and part geometry.
Why Use Die Cut Insulation Parts?
Custom die cut insulation parts provide several practical advantages over manually cut insulation materials.
Automated or controlled die cutting can produce a large number of components with consistent dimensions.
This is important for products where the insulation component must fit inside a defined assembly space.
For example, a Battery Insulation Gasket may need to fit around a terminal, while a PCB insulation pad may need to align with mounting holes.
Consistent dimensions help simplify assembly and reduce variation.
Pre-cut insulation parts are easier to install than sheets that must be manually trimmed.
Operators can simply place the finished component into its intended position.
Adhesive-backed versions can make installation even faster.
Properly designed cutting layouts can improve material utilization.
Multiple small insulation parts can often be arranged efficiently across a larger sheet or roll.
The actual material utilization depends on part dimensions, spacing, cutting requirements, and material characteristics.
Die cutting allows manufacturers to create shapes that would be difficult or time-consuming to produce manually.
Complex openings, holes, slots, tabs, and contours can be incorporated into a single insulation component.
Electrical Insulation Performance
One of the primary functions of a die cut insulation part is to prevent unwanted electrical contact between conductive components.
Electrical insulation is especially important in:
Battery systems
Power supplies
Motors
Transformers
PCBs
Control systems
Electrical connectors
Electronic devices
Industrial equipment
A correctly selected insulation material can create a physical barrier between conductive surfaces.
The insulation system must be designed according to the voltage, frequency, temperature, humidity, mechanical stress, and environmental conditions of the application.
Important electrical characteristics can include:
Dielectric strength
Volume resistivity
Surface resistivity
Insulation resistance
Dielectric loss
Arc resistance
Tracking resistance
The actual values depend on the material grade, thickness, test method, temperature, humidity, and manufacturing conditions.
Therefore, published material data should always be checked against the actual application requirements.
High Temperature Insulation Applications
Some electrical and mechanical systems operate under elevated temperatures.
Examples include:
Motors
Transformers
Power electronics
Heating equipment
Battery systems
Automotive electrical systems
Industrial control equipment
High-temperature machinery
The insulation material must retain sufficient mechanical and electrical performance under the expected operating conditions.
PET, PC, PTFE, and other polymer materials have different temperature capabilities. The actual temperature limit should be determined from the selected grade rather than from the generic material name alone.
For applications exposed to continuous heat, short-term temperature spikes, or thermal cycling, both the substrate and adhesive should be evaluated.
Flame Retardant Insulation Materials
Flame retardancy is an important consideration in many electrical and electronic applications.
Flame-retardant insulation materials are designed to reduce the likelihood of sustained combustion or help limit flame propagation when tested under specified conditions.
The performance of a flame-retardant material may be described using classifications such as UL 94.
However, a UL 94 rating applies to a specific material construction and test condition. It should not automatically be assumed that every thickness, color, adhesive combination, or finished die cut part has the same classification.
For this reason, customers should verify the applicable material grade and test report when a particular flame-retardant rating is required.
Flame Retardant Black PC
Flame-retardant black PC film is a specialized insulation material for electrical and electronic applications.
The described construction features a medium-textured surface on one side and a matte or semi-matte surface on the other side.
This surface structure can provide useful handling and appearance characteristics while maintaining the insulating function of the PC film.
Depending on the selected material grade and applicable testing requirements, flame-retardant black PC may be available with classifications such as UL94 VTM-0 or UL94 V-0.
The exact rating should always be confirmed using the manufacturer's technical documentation for the specific material and thickness.
Potential applications include:
Electrical insulation
PCB protection
Electronic component isolation
Battery insulation
Terminal protection
Switch insulation
Connector insulation
Control equipment insulation
Mechanical isolation
Flame-retardant barriers
Black PC can also provide visual contrast against light-colored components, which may help with component identification and assembly inspection.
Single Sided Adhesive Insulation Parts
Single-sided adhesive insulation parts have pressure-sensitive adhesive applied to one side of the insulation material.
The opposite surface remains primarily available as an insulating surface.
This configuration is useful when the insulation component needs to be fixed to one substrate while maintaining electrical separation from another component.
Typical applications include:
PCB insulation pads
Battery insulation sheets
Terminal insulation
Electronic component protection
Wire routing insulation
Mechanical spacer insulation
Housing insulation
Protective electrical barriers
The adhesive selection is important because the adhesive must remain stable under the temperature, humidity, vibration, chemical exposure, and aging conditions of the application.
Double Sided Adhesive Insulation Parts
Double-sided adhesive insulation components have adhesive layers on both sides.
They can be useful when the insulation material must be bonded between two surfaces.
Common applications include:
Electrical insulation bonding
Component positioning
Battery module insulation
PCB mounting assistance
Insulation pad fixation
Protective liner attachment
Electronic component assembly
Double-sided adhesive construction can reduce the need for mechanical fasteners in some designs.
However, adhesive bonding should not automatically be treated as the primary structural connection unless the adhesive system has been specifically designed and tested for that purpose.
Transparent Insulation Sheets
Transparent insulation films are useful when the underlying component needs to remain visible.
Transparent PET and other clear polymer films can be used for:
PCB insulation
Display component insulation
Electronic component protection
Electrical isolation
Transparent protective barriers
Sensor component insulation
The optical properties of transparent insulation materials vary depending on thickness, surface treatment, resin formulation, and manufacturing process.

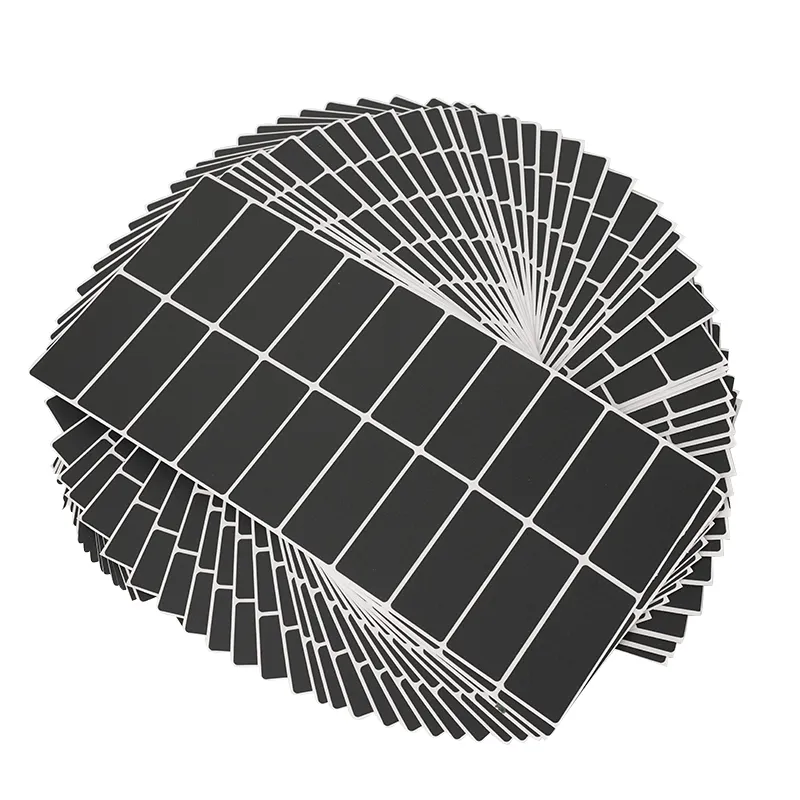

Black Insulation Sheets
Black insulation sheets are commonly selected for applications requiring an opaque appearance.
Black insulation materials can provide:
Electrical insulation
Light blocking
Visual contrast
Component separation
Surface protection
Thermal and flame-retardant performance when using an appropriate grade
Black PET, black PC, black PVC, and other polymer films can be processed into custom insulation components.
Matte Black Insulation Film
Matte black insulation film provides a non-glossy surface appearance.
A matte surface can be useful when glare reduction, visual appearance, or surface handling is important.
Depending on the material construction, matte insulation film may be used in:
Electronic equipment
Electrical assemblies
Battery systems
Automotive components
Control panels
Industrial devices
Protective barriers
Surface finish should be specified when ordering because matte, semi-matte, textured, and glossy surfaces can have different functional and visual properties.
Milky White Insulation Sheets
Milky white insulation films are frequently used where a light-colored insulation component is preferred.
Potential advantages include:
Easy visual identification
Good contrast against dark components
Electrical insulation
Clean appearance
Easy inspection
Milky white PET, PP, PVC, and PC films can be converted into custom washers, gaskets, pads, and insulation barriers.
Electrical Insulation Washers
Die cut insulation washers are widely used around screws, bolts, terminals, shafts, and other fastening components.
An insulation washer can prevent conductive hardware from directly contacting another conductive surface.
Common applications include:
PCB mounting
Motor assembly
Transformer assembly
Battery terminals
Electrical connectors
Power supplies
Control cabinets
Electronic equipment
Washer dimensions normally include the outer diameter, inner diameter, and material thickness.
For high-precision assemblies, dimensional tolerances should be defined before production.
Insulation Gaskets can combine electrical isolation with spacing, surface protection, or sealing functions.
Depending on the design, an insulation gasket may be used between:
Metal housings
PCB assemblies
Battery components
Electrical terminals
Electronic modules
Mechanical structures
Die cut gaskets can be manufactured from different polymer films and insulation materials.
When adhesive backing is added, the gasket can also function as a positioning component.
Insulation Spacers
Insulation spacers create a controlled physical distance between components.
This can help prevent electrical contact and provide mechanical separation.
Typical applications include:
Circuit boards
Battery modules
Electrical terminals
Electronic assemblies
Power supplies
Transformers
Motors
Spacer thickness should be selected according to both the electrical clearance requirement and mechanical assembly design.
Moisture Resistant Insulation
Moisture can negatively affect many electrical systems.
For applications exposed to humidity, condensation, or occasional water contact, moisture-resistant insulation materials can help maintain electrical separation.
PP, PET, PVC, PC, and PTFE have different moisture-related characteristics.
Material selection should consider:
Water exposure
Humidity
Condensation
Chemical exposure
Temperature
Long-term aging
For outdoor or demanding environments, the entire insulation system should be evaluated rather than considering the film material alone.
Anti Slip and Cushioning Functions
Insulation sheets can sometimes provide additional mechanical functions.
Depending on surface texture and material characteristics, an insulation pad may help:
Reduce component movement
Cushion contact surfaces
Prevent direct metal-to-metal contact
Reduce vibration
Protect finished surfaces
Improve assembly positioning
The anti-slip effect depends strongly on the coefficient of friction, surface finish, pressure, temperature, and mating materials.
Shock and Vibration Protection
Electronic and electrical components may experience vibration during transportation or operation.
A properly designed insulation pad can provide a small degree of cushioning while maintaining electrical isolation.
Applications may include:
Automotive electronics
Battery assemblies
Industrial control equipment
Portable electronic devices
Power equipment
Motor assemblies
However, insulation film should not automatically be considered a dedicated vibration isolator. If significant shock absorption is required, an appropriate elastomeric or cushioning material may be more suitable.
Chemical Resistance
Chemical resistance is another important consideration when selecting insulation materials.
Different polymers respond differently to:
Oils
Greases
Cleaning agents
Solvents
Electrolytes
Fuels
Industrial chemicals
PTFE is known for particularly strong chemical resistance, while other polymer materials have more application-specific resistance characteristics.
The exact chemical compatibility should be evaluated using the actual chemical composition, concentration, temperature, exposure duration, and mechanical stress.
Die Cut Insulation for Battery Applications
Battery systems require carefully designed electrical insulation.
Custom insulation parts may be used in:
Cylindrical battery packs
Prismatic battery modules
Pouch cell assemblies
Battery management systems
Busbar assemblies
Battery terminals
Cell holders
Battery housings
Die cut insulation components can help separate conductive components and protect sensitive areas from accidental contact.
Battery applications may require additional considerations such as:
Electrical isolation
Flame retardancy
Thermal stability
Electrolyte compatibility
Dimensional accuracy
Adhesive stability
Mechanical protection
Material selection should be based on the battery chemistry and actual operating environment.
Die Cut Insulation for PCB Protection
Printed circuit boards contain conductive traces, solder joints, components, connectors, and other electrically active structures.
A die cut insulation pad can be positioned between the PCB and a metal housing to reduce the risk of unwanted electrical contact.
Common PCB insulation applications include:
PCB housing isolation
Screw insulation
Component protection
Terminal isolation
Heat shield support
Connector protection
Surface protection
The insulation design should account for component height, mounting holes, screw locations, heat sources, and required electrical clearance.
Die Cut Insulation for Motors
Motors use Insulating Materials in several areas, including winding systems, terminals, housings, and electrical connections.
Custom die cut polymer insulation parts may be used as:
Terminal insulators
Spacers
Washers
Protective pads
Electrical barriers
Housing insulation components
Motor insulation requirements can be affected by voltage, temperature, vibration, moisture, and electromagnetic operating conditions.
Die Cut Insulation for Transformers
Transformers require insulation between electrical conductors and between different winding structures.
Thin insulation materials can be processed into:
Insulating washers
Coil barriers
Layer insulation
Terminal insulation
Protective gaskets
Spacers
The selected material should be compatible with the transformer's electrical and thermal requirements.
Precision and Dimensional Accuracy
Dimensional accuracy is particularly important for custom insulation parts.
A part that is too large may interfere with assembly. A part that is too small may fail to provide adequate electrical isolation.
Important dimensions may include:
Length
Width
Outside diameter
Inside diameter
Hole diameter
Slot width
Corner radius
Thickness
Adhesive thickness
For high-volume production, stable tooling and controlled processing can help maintain dimensional consistency.
Thickness Selection
Thickness is one of the most important parameters when selecting a die cut insulation sheet.
Thin films can be useful when available assembly space is limited.
Thicker materials may provide:
Increased mechanical separation
Greater puncture resistance
Additional cushioning
Greater physical barrier thickness
However, increasing thickness can also affect:
Assembly clearance
Flexibility
Die cutting behavior
Adhesive performance
Material cost
Component weight
The optimum thickness should therefore be determined from the electrical, mechanical, and dimensional requirements of the application.
Surface Finish Selection
Surface finish can influence handling, appearance, friction, adhesion, and light reflection.
Common finishes include:
Glossy
Matte
Semi-matte
Textured
Smooth
Medium-textured
For adhesive-backed insulation parts, surface energy and cleanliness are particularly important because they can affect adhesive bonding.
Adhesive Selection
The adhesive is an important part of an adhesive-backed insulation component.
Common adhesive technologies may include acrylic, rubber-based, silicone, and other pressure-sensitive adhesive systems.
Selection should consider:
Temperature range
Bonding surface
Peel strength
Shear strength
Aging resistance
Humidity
Chemical exposure
Electrical requirements
Application method
An adhesive that performs well at room temperature may not provide the same performance under high temperature or high humidity.
Release Liner
Adhesive-backed insulation materials are often supplied with a release liner.
The liner protects the adhesive before installation.
During assembly, the liner is removed and the insulation part is applied to the intended surface.
Release liner characteristics can affect:
Peeling force
Storage stability
Handling
Automated assembly
Adhesive protection
For high-volume production, liner selection can be especially important for automated pick-and-place or roll-to-roll processing.
Custom Shapes and Engineering Designs
Custom die cut insulation parts can be designed according to drawings or samples.
Possible geometries include:
Circular
Rectangular
Square
Oval
Ring-shaped
L-shaped
U-shaped
T-shaped
Tab-shaped
Slotted
Multi-hole
Irregular
CAD drawings can help define dimensions and tolerances accurately.
When preparing a drawing, it is useful to specify:
Material
Thickness
Dimensions
Tolerances
Adhesive side
Surface finish
Color
Hole dimensions
Corner radius
Packaging requirements
Advantages of Custom Die Cut Mylar Insulation
Custom die cut insulation parts offer several advantages for modern manufacturing.
Pre-cut components reduce manual cutting and trimming.
Controlled production can provide consistent geometry.
Different polymer materials can be selected for different requirements.
Single-sided and double-sided adhesive configurations can be incorporated.
Black, transparent, matte black, and milky white materials are commonly available depending on the substrate.
Die cutting supports customized geometries.
Once suitable tooling and processing conditions are established, die cutting is well suited to repeat production.
Material Selection Guide
When choosing an insulation sheet, several questions should be considered.
Higher voltage applications may require greater dielectric performance and carefully controlled insulation thickness.
The material and adhesive should remain stable across the complete operating temperature range.
If the application requires a specific flame-retardant classification, the exact material grade and thickness should be verified.
Chemical exposure should be evaluated using actual environmental conditions.
Single-sided adhesive may be appropriate for one-surface positioning, while double-sided adhesive can be useful for bonding between two surfaces.
If so, material thickness and flexibility should be considered together.
Transparent, black, white, or matte materials can be selected according to the assembly requirements.
Typical Applications
Die cut Mylar and polymer insulation sheets can be used across many industries.
Insulation washers, gaskets, spacers, and barriers can be used in electrical equipment to separate conductive parts.
PCB insulation, component protection, connector isolation, and housing protection are common applications.
Electrical insulation components are used in control modules, sensors, battery systems, connectors, and power electronics.
Die cut insulation parts can provide electrical separation between cells, busbars, housings, terminals, and electronic components.
Motors, transformers, control systems, power supplies, and automation equipment can use custom insulation components.
Small precision insulation pads and washers can be used inside electronic devices where compact electrical isolation is required.
Quality Considerations
The quality of a die cut insulation component depends on both material and processing.
Important quality characteristics include:
Stable thickness
Clean cutting edges
Accurate dimensions
Consistent shape
Reliable adhesive bonding
No excessive burrs
No unwanted delamination
Suitable surface finish
Consistent material properties
For adhesive products, the adhesive layer should also be checked for uniformity and contamination.
Common Defects in Die Cut Insulation Parts
Potential production issues can include:
Improper cutting conditions can create rough edges.
Material movement, tooling wear, or process instability can affect dimensions.
Improper processing or storage can result in adhesive contamination.
Poor bonding between layers can cause separation.
Material stress or thermal exposure can result in deformation.
Dust, oil, moisture, or other contaminants can reduce insulation or adhesive performance.
Quality control procedures should be established according to the requirements of the finished product.
Storage and Handling
Insulation films and adhesive-backed die cut parts should be stored under suitable environmental conditions.
Recommended considerations include:
Keep materials clean and dry
Avoid excessive heat
Avoid direct sunlight
Protect adhesive surfaces
Prevent mechanical deformation
Keep release liners intact
Use suitable packaging
Follow material-specific storage recommendations
For adhesive-backed materials, long-term storage conditions can affect adhesive performance.
Installation Guidelines
Before installation, the mating surface should generally be clean, dry, and free from oil or dust.
For adhesive-backed parts:
Confirm the correct insulation part.
Clean the application surface.
Remove the release liner.
Align the part carefully.
Apply uniform pressure.
Avoid unnecessary repositioning.
Allow the adhesive to develop sufficient bond strength according to its specifications.
The exact installation procedure should follow the requirements of the selected adhesive system.
Difference Between Sheet Material and Die Cut Parts
A raw insulation sheet provides a basic material format, while a die cut insulation part is already converted into its final or near-final geometry.
Raw sheets are useful for:
Manual fabrication
Prototyping
Large custom structures
Secondary processing
Die cut parts are better suited to:
Mass assembly
Repeat production
Automated manufacturing
Consistent positioning
High-volume electrical insulation
For manufacturers producing thousands or millions of identical components, custom die cutting can substantially simplify assembly operations.
Die Cut Mylar Sheet for Custom Insulation Parts
The combination of polymer insulation materials and precision die cutting provides a practical solution for custom electrical insulation components.
Whether the requirement involves a small insulation washer, a large battery barrier, a complex PCB gasket, or a thin adhesive-backed spacer, the material and geometry can be designed according to the intended application.
Commonly used materials include:
PET
PP
PVC
PC
PTFE
Available colors may include:
Black
Transparent
Matte black
Milky white
Adhesive configurations may include:
Non-adhesive
Single-sided adhesive
Double-sided adhesive
The final selection should be based on electrical requirements, temperature, mechanical conditions, environmental exposure, flame-retardant requirements, adhesive requirements, and dimensional constraints.
Frequently Asked Questions
It is a thin polymer insulation sheet that has been precision cut into a specified shape for use as an electrical, mechanical, thermal, or protective component.
Mylar is commonly associated with polyester film, while PET is the polymer material. In industrial purchasing, however, the term Mylar may sometimes be used broadly for thin polyester insulation film. The exact material specification should always be confirmed.
Common choices include PET, PP, PVC, PC, and PTFE. The appropriate material depends on temperature, electrical, mechanical, chemical, and flame-retardant requirements.
Yes. Single-sided and double-sided adhesive configurations can be used depending on the assembly design.
Common options include black, transparent, matte black, and milky white, depending on the material grade.
Yes. Specific flame-retardant PC grades are available. Some grades may meet classifications such as UL94 VTM-0 or V-0 when tested under the applicable conditions.
Yes. Die cut insulation parts can be produced in circular, rectangular, L-shaped, U-shaped, ring-shaped, tab-shaped, slotted, and other custom geometries.
They can be used in battery systems for electrical isolation, component protection, spacing, and other insulation functions, provided that the selected material is compatible with the battery's electrical, thermal, chemical, and mechanical requirements.
They can be, but both the insulation substrate and adhesive must be suitable for the actual temperature range. Adhesive performance may differ significantly from substrate performance.
Useful information includes the material, thickness, dimensions, drawing, quantity, adhesive configuration, color, surface finish, operating temperature, electrical requirements, and application environment.
Conclusion
Die Cut Mylar Sheet for Custom Insulation Parts provides a versatile solution for manufacturing precision electrical insulation components. Polymer materials such as PET, PP, PVC, PC, and PTFE can be selected according to the required electrical, thermal, mechanical, chemical, and environmental performance.
Custom die cutting makes it possible to transform these materials into insulation washers, gaskets, spacers, pads, barriers, liners, and other specialized components.
Common colors include black, transparent, matte black, and milky white, while adhesive-backed configurations can include single-sided and double-sided adhesive. These features make custom die cut insulation materials suitable for electrical equipment, electronics, PCB assemblies, battery systems, automotive electronics, motors, transformers, industrial equipment, and many other applications.
For applications requiring flame retardancy, flame-retardant black PC film can be considered when its specific material grade meets the applicable requirements. A construction featuring a medium-textured surface on one side and a matte or semi-matte surface on the other can provide both functional and visual advantages.
Ultimately, the best insulation material is determined not simply by its name but by its actual grade, thickness, electrical characteristics, temperature resistance, flame performance, chemical compatibility, adhesive construction, and dimensional requirements. Careful material selection and precision die cutting can help produce reliable, repeatable, and application-specific insulation parts for modern electrical and electronic assemblies.
This website uses cookies to ensure you get the best experience on our website.
WhatsApp
Phone
