Single Sided Adhesive Fish Paper with Heat Resistance is a specialized electrical insulation material designed for applications where reliable electrical separation, flexible fitting, surface protection, and convenient installation are required. It combines the traditional insulating characteristics of fish paper with a pressure sensitive adhesive layer on one side. This construction allows the material to function not only as an insulating barrier but also as a practical adhesive backed gasket, spacer, liner, protective pad, or electrical isolation component.
Fish paper is also commonly described as blue shell paper, blue shell insulating paper, electrical fish paper, or vulcanized fiber insulation paper in different markets. The material is traditionally associated with cyan colored electrical insulating paperboard, although commercially available grades may also appear in red and yellow variations. Depending on the raw materials, fiber composition, manufacturing process, treatment method, and intended electrical application, the physical appearance and performance characteristics can vary.
The term fish paper does not indicate that the material is manufactured from fish or fish derived materials. It is an established industrial name associated with a family of tough, flexible, paper based Electrical Insulation Materials. In many electrical and electronic applications, fish paper is valued because it can provide a useful combination of dielectric insulation, mechanical strength, flexibility, abrasion resistance, dimensional stability, and ease of fabrication.
When a pressure sensitive adhesive is applied to one side, the resulting Single Sided Adhesive Fish Paper becomes especially convenient for assembly operations. The adhesive side can be bonded to a selected component or surface, while the uncoated fish paper side remains available as an insulating and protective surface. This one sided construction is useful when electrical insulation is required on one side without unnecessarily bonding both sides of the component.
The heat resistant version is intended for applications where the insulation material may encounter elevated temperatures during assembly, operation, processing, or short term manufacturing procedures. Actual temperature resistance depends on the fish paper grade, adhesive system, thickness, bonding surface, exposure time, pressure, humidity, and other environmental factors. Therefore, application specific testing is recommended before selecting a material for a demanding thermal environment.
Understanding Fish Paper
Fish paper is a well-established electrical insulating paperboard material used in motors, generators, transformers, batteries, electronic assemblies, electrical components, and other industrial products.
The material is typically based on processed fiber structures. Traditional grades may use wood pulp, cotton fiber, or blended fiber systems. Specialized processing gives the finished sheet a combination of flexibility and mechanical strength that is useful for electrical insulation and component separation.
Fish paper is often selected when a thin, flexible, die cuttable insulating material is required. Compared with rigid plastic insulation components, paper based insulation can offer easier cutting, bending, folding, and forming. This makes it suitable for applications where the insulation must conform to a component profile or occupy a narrow gap.
The material can be supplied as sheets, rolls, strips, die cut parts, washers, rings, pads, liners, or custom shaped gaskets. When adhesive is added to one side, it can also be converted into adhesive backed strips and precision die cut insulation components.
The cyan or blue appearance is one of the most recognizable characteristics of traditional fish paper. However, color should not be treated as the sole indicator of electrical performance. Different grades may use different formulations and manufacturing methods, and technical specifications should always be checked according to the intended application.
What Is Single Sided Adhesive Fish Paper?
Single Sided Adhesive Fish Paper is fish paper insulation laminated or coated with a pressure sensitive adhesive on one surface.
The basic structure can be understood as three functional layers:
Fish paper insulation substrate
Pressure sensitive adhesive layer
Release liner or protective liner
The fish paper substrate provides the main electrical insulation and mechanical body. The adhesive provides attachment to the selected surface. The release liner protects the adhesive before installation and can be removed during assembly.
This construction creates a peel and stick insulation component that can be installed quickly without separate liquid adhesive, mechanical fasteners, or additional bonding processes.
The term single sided is important. It means that the adhesive is present on one side only. The opposite side remains a non adhesive insulating surface.
This differs from double sided adhesive Insulation Materials, where both surfaces contain adhesive. The correct construction should therefore be selected according to the assembly design.
Single sided adhesive fish paper is particularly useful when an insulating layer must remain electrically isolated from one adjacent component while being securely attached to another component.
Heat Resistance Characteristics
Heat resistance is an important consideration in electrical insulation.
Electrical components can experience elevated temperatures during normal operation, overload conditions, assembly, soldering, welding, motor operation, battery operation, or exposure to nearby heat sources.
A heat resistant fish paper system is designed to maintain useful physical and insulating characteristics under specified thermal conditions. However, the performance of the complete adhesive backed product is determined by both the fish paper and the adhesive.
The adhesive layer can become the limiting factor in a thermal application. Therefore, it is not sufficient to evaluate only the temperature resistance of the fish paper substrate. The adhesive system must also be compatible with the expected temperature range.
Important thermal factors include:
Continuous operating temperature
Short term temperature exposure
Temperature cycling
Heating and cooling rates
Adhesive softening
Adhesive flow
Adhesive aging
Dimensional stability
Electrical insulation stability
Moisture exposure at elevated temperature
Mechanical pressure during heating
For this reason, heat resistance should always be considered as a system property rather than a simple characteristic of the paper alone.
Product Features
One of the primary purposes of fish paper is electrical insulation.
The material can be used to create a physical and electrical barrier between conductive components. It can reduce the risk of direct contact between metal parts, electrical terminals, circuit components, battery components, and conductive housings.
In electrical assemblies, insulation materials may be required to provide separation between components operating at different electrical potentials.
Single Sided Adhesive Fish Paper provides a practical way to install such an insulating barrier because the adhesive holds the material in position while the fish paper itself provides the insulating layer.
The exact dielectric strength, insulation resistance, breakdown voltage, and other electrical properties depend on the specific grade and thickness. Therefore, technical data should be confirmed for applications involving defined electrical voltage requirements.
Fish paper is known for its useful flexibility.
This property makes it suitable for applications where the insulation needs to follow a curved surface, fit around a component, or occupy a narrow area.
Flexible insulation can simplify assembly because the material can often be cut, folded, wrapped, or formed without requiring a complex rigid component.
The flexibility of the finished adhesive backed product depends on:
Fish paper thickness
Fiber composition
Processing method
Adhesive thickness
Adhesive stiffness
Temperature
Bending radius
Environmental exposure
Thinner grades generally offer greater flexibility, while thicker grades can provide greater mechanical support.
Heat resistance is a key feature for electrical insulation used near motors, transformers, batteries, electronic assemblies, welding processes, and other heat generating components.
The material can be selected for applications involving elevated temperatures, provided that the complete construction has been evaluated for the expected thermal environment.
When selecting heat resistant adhesive fish paper, users should consider both continuous and temporary exposure.
A material that performs adequately under short term heating may not necessarily be suitable for long term high temperature operation.
Depending on the grade and treatment, fish paper can provide useful resistance to moisture and water exposure.
Moisture resistance is important because absorbed water can influence electrical insulation performance, dimensional stability, adhesive bonding, and mechanical characteristics.
For outdoor, humid, or condensation prone applications, the complete assembly should be evaluated under realistic environmental conditions.
Fish paper can provide useful resistance to mechanical wear.
This makes it suitable for applications where the insulation may encounter rubbing, movement, insertion, assembly pressure, or contact with adjacent components.
Wear resistance can be particularly useful in battery assemblies, electrical machinery, and mechanical electrical components where insulating barriers must remain intact during handling and service.
Some fish paper grades and adhesive systems provide resistance to oils and greases.
This can be beneficial in industrial electrical equipment, motors, mechanical assemblies, automotive components, and other environments where lubricants may be present.
However, chemical resistance depends strongly on the formulation of both the fish paper and adhesive. Compatibility testing is recommended when the product will remain in continuous contact with oils, greases, solvents, cleaning agents, or other chemicals.
Long term stability is important for electrical insulation.
Aging resistance refers to the ability of the material to maintain useful characteristics after exposure to environmental factors such as heat, humidity, mechanical stress, and time.
For adhesive backed insulation, aging should be evaluated for both the substrate and adhesive.
Potential aging factors include:
Thermal aging
Humidity aging
Oxidation
Adhesive degradation
Loss of adhesion
Embrittlement
Dimensional changes
Surface contamination
The actual service life depends on application conditions and should be verified through appropriate testing.
Why Use Single Sided Adhesive Fish Paper?
The main advantage of single sided adhesive fish paper is installation convenience.
Traditional insulation sheets may require mechanical positioning, clips, additional adhesive, or complex assembly procedures. Adhesive backed fish paper can reduce these steps by combining insulation and attachment in one material.
The adhesive side can be fixed to a selected component, while the exposed fish paper surface remains available for electrical separation.
This can provide several practical benefits:
Faster installation
Easier positioning
Reduced component movement
Simplified assembly
Clean application
Easy die cutting
Efficient material handling
Reduced need for additional fasteners
Suitable for automated or semi automated processing
These benefits make adhesive backed fish paper attractive for high volume electrical and electronic manufacturing.
Single Sided Versus Double Sided Adhesive Fish Paper
The difference between single sided and double sided adhesive fish paper is straightforward but important.
Single sided adhesive fish paper has adhesive on one surface and insulating fish paper exposed on the opposite surface.
Double sided adhesive fish paper has adhesive on both surfaces.
Single sided construction is usually preferred when the insulation needs to remain non adhesive on one side.
Double sided construction can be useful when the insulation must be bonded between two components.
Incorrectly selecting the adhesive configuration can affect assembly performance. Therefore, product descriptions and purchase specifications should clearly identify whether the required product is single sided or double sided.
For electrical isolation applications, single sided adhesive fish paper can be particularly useful because the non adhesive surface remains available as a clean insulating barrier.
Common Applications
Single Sided Adhesive Fish Paper is widely relevant to battery insulation applications.
Battery packs contain multiple conductive components positioned within compact spaces. Insulating Materials may be required around cells, terminals, tabs, busbars, housings, and other conductive structures.
Fish paper can be used as an insulating barrier between components where physical separation is required.
For cylindrical lithium ion battery assemblies, insulation materials may be used around cell ends, terminals, connection areas, and structural interfaces.
The exact construction must be selected according to the battery design, voltage, current, thermal environment, mechanical stress, and applicable safety requirements.
The 18650 cylindrical battery format is commonly used in portable power equipment, battery packs, electronics, lighting products, and other systems.

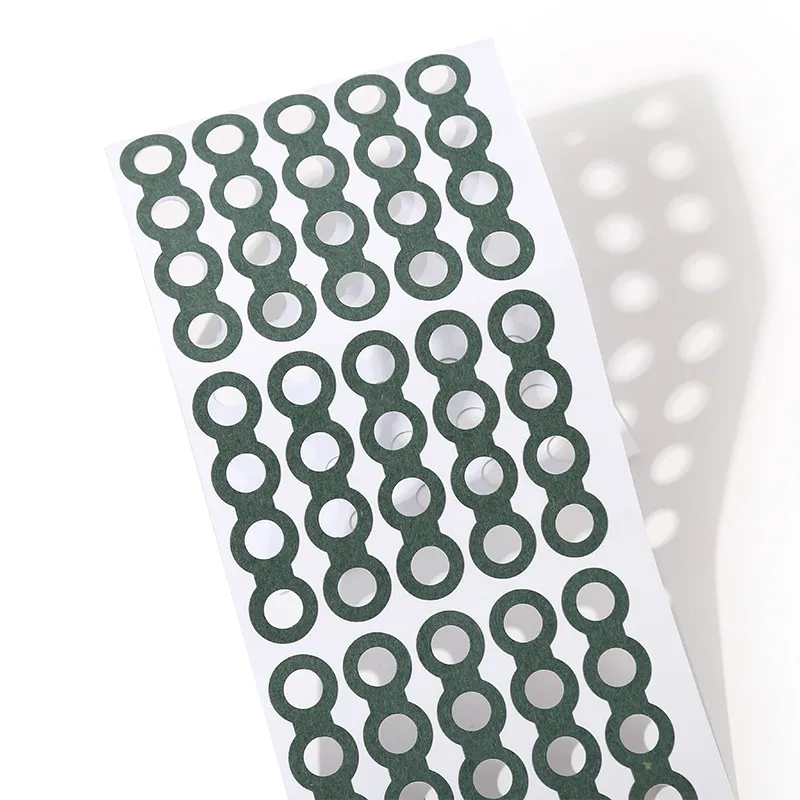

Single sided adhesive fish paper can be converted into custom shapes for use around 18650 cells and related battery components.
Potential functions include:
Electrical isolation
Terminal protection
Cell surface protection
Gap filling
Component separation
Assembly positioning
Edge protection
The final design should account for cell dimensions, enclosure geometry, temperature, vibration, electrical requirements, and assembly conditions.
21700 cylindrical cells are another common format in modern battery pack designs.
Their larger physical dimensions compared with many 18650 cells create different spacing and insulation requirements.
Adhesive fish paper can be die cut or slit into suitable configurations for battery pack assembly.
Possible applications include cell insulation, tab protection, terminal isolation, component separation, and protective lining.
Again, material selection should be based on actual pack conditions rather than cell format alone.
PCB Protection
Printed circuit boards can contain numerous conductive paths and components positioned close to metal structures.
Single sided adhesive fish paper can be used as an insulating barrier between PCB assemblies and conductive housings.
Potential applications include:
PCB to metal housing insulation
Component clearance protection
Electrical isolation
Surface protection
Edge protection
Gap insulation
Assembly cushioning
The material can be supplied in custom die cut shapes to match the PCB outline or housing geometry.
Motor Insulation
Electric motors require multiple types of electrical insulation.
Insulating materials can be used between windings, conductors, cores, terminals, and structural components.
Fish paper has historically been used in electrical machinery because of its combination of insulation, flexibility, and mechanical handling characteristics.
Adhesive backed versions can provide convenient positioning during assembly.
Possible uses include:
Winding insulation
Slot insulation
Terminal insulation
Spacer insulation
Coil protection
Component separation
Electrical barrier layers
Temperature requirements are especially important in motor applications because motor operating temperatures can vary significantly depending on load, design, cooling, and duty cycle.
Transformer Insulation
Transformers require electrical insulation between windings, conductive elements, cores, terminals, and structural components.
Fish paper insulation can be used as part of insulation systems where suitable electrical and thermal properties are required.
Single sided adhesive constructions may assist with positioning during manufacturing.
Potential functions include:
Coil insulation
Layer insulation
Terminal insulation
Spacer material
Edge protection
Component isolation
The insulation system must be selected according to transformer voltage class, temperature class, frequency, mechanical requirements, and applicable industry standards.
Electrical Assembly Applications
Electrical assemblies frequently contain conductive metal components installed close to one another.
A Thin Insulation Gasket can help maintain electrical separation without significantly increasing assembly size.
Single sided adhesive fish paper can be particularly useful when:
Space is limited
A thin insulating barrier is needed
The material must stay in position during assembly
Components have irregular shapes
Manual or automated installation is required
This makes the material suitable for a wide range of electrical equipment and electronic products.
Spacer Gasket Applications
Fish paper can also function as a spacer gasket between rigid metal components.
In mechanical electrical assemblies, two metal components may require physical separation even when they are mechanically connected.
An insulating spacer can provide:
Electrical isolation
Controlled spacing
Surface protection
Reduced direct metal contact
Improved assembly consistency
The material can be die cut into rings, washers, strips, rectangular pads, or custom geometries.
Gap Filling and Gap Sealing
An Insulation Gasket can also help fill narrow gaps between components.
Gap filling does not necessarily mean creating a waterproof seal. In electrical insulation applications, gap filling may primarily refer to occupying an unwanted clearance between components.
This can help reduce the possibility of accidental contact and improve assembly consistency.
Fish paper is particularly useful for thin gap applications because it can be manufactured in relatively thin gauges and converted into precision shapes.
Die Cutting and Custom Shapes
One of the important advantages of fish paper is its suitability for converting.
Depending on material grade and thickness, it can be processed into:
Circular gaskets
Rectangular pads
Washers
Rings
Strips
Tabs
Covers
Liners
Battery insulation pieces
PCB protection pieces
Custom electrical barriers
Die cutting allows manufacturers to create repeatable shapes that match specific component geometries.
Adhesive backed fish paper is particularly suitable for die cut parts because the adhesive can help hold the part in position during assembly.
Slitting and Roll Conversion
Fish paper can also be supplied in roll form.
Roll material is useful for applications requiring continuous insulation strips or high volume conversion.
Slitting can produce narrower rolls according to the required width.
Common converted formats include:
Narrow insulation strips
Adhesive backed rolls
Battery insulation strips
Electrical barrier strips
Gasket roll stock
Custom width insulation rolls
Roll conversion can reduce material waste and improve production efficiency when a large number of repeated parts are required.
Thickness Selection
Thickness is one of the most important factors when selecting fish paper insulation.
Thin material may be appropriate where space is limited and only a small insulating barrier is required.
Thicker material can provide greater mechanical support, spacing, and resistance to handling.
Typical thickness ranges may vary according to the product grade and application. Common industrial specifications can include thin gauges suitable for electronic insulation as well as thicker grades for spacer and gasket applications.
Thickness selection should consider:
Required electrical clearance
Mechanical compression
Available installation space
Required flexibility
Die cutting requirements
Thermal conditions
Surface roughness
Component tolerances
The selected thickness should be verified against the actual assembly requirements.
Adhesive Selection
The adhesive is a critical part of Single Sided Adhesive Fish Paper.
Common pressure sensitive adhesive systems may include acrylic or rubber based technologies, depending on the intended application.
Acrylic adhesive systems are often selected when good aging, temperature stability, and environmental resistance are required.
Important adhesive properties include:
Initial tack
Peel adhesion
Shear strength
Temperature resistance
Aging stability
Humidity resistance
Surface compatibility
Chemical resistance
Removability
Permanent bonding performance
The best adhesive depends on the substrate.
Smooth metal surfaces, painted surfaces, plastics, glass, coated components, and textured surfaces can have very different bonding characteristics.
Surface Preparation
Proper surface preparation can significantly improve adhesive performance.
Before installation, the bonding surface should generally be:
Clean
Dry
Free from dust
Free from oil
Free from grease
Free from loose particles
Free from incompatible coatings
Contamination can reduce adhesive contact and result in premature lifting or peeling.
The exact cleaning method should be compatible with the substrate.
Installation Process
A typical installation process for single sided adhesive fish paper can include the following steps.
Check the roll or die cut part for visible damage, contamination, wrinkles, or incorrect dimensions.
Clean and dry the bonding surface.
Align the fish paper with the intended location before removing the release liner if possible.
Peel away the protective liner without unnecessarily touching the adhesive surface.
Place the adhesive side against the selected substrate.
Press the material firmly and evenly to promote contact between the adhesive and substrate.
Check for lifting edges, wrinkles, bubbles, contamination, or misalignment.
Installation conditions can affect final bond performance. Temperature, pressure, surface cleanliness, and dwell time should be controlled according to the adhesive system.
Electrical Isolation Benefits
Electrical isolation is one of the most important reasons to use fish paper.
A properly selected insulating barrier can help prevent unwanted conductive contact between components.
In compact electronic equipment, metal housings and conductive components can be positioned very close together. A thin fish paper gasket can provide an additional insulating layer without requiring a large increase in assembly dimensions.
Applications can include:
Battery terminals
Circuit boards
Electrical connectors
Motor components
Transformer components
Power supply assemblies
Metal housings
Electronic enclosures
The material should not be considered a substitute for a complete electrical safety design. Creepage, clearance, voltage, contamination, temperature, humidity, and mechanical movement must all be considered.
Mechanical Protection
Fish paper can provide more than electrical insulation.
Its physical structure can help protect component surfaces from direct contact with adjacent materials.
Potential mechanical functions include:
Cushioning
Separation
Surface protection
Edge protection
Abrasion reduction
Assembly positioning
Contact reduction
This combination of electrical and mechanical functions can make fish paper a useful multi purpose material.
Chemical and Environmental Considerations
Electrical insulation materials may encounter environmental conditions such as humidity, oils, greases, dust, cleaning agents, and temperature fluctuations.
Before selecting Single Sided Adhesive Fish Paper for a demanding environment, compatibility should be evaluated.
Important environmental conditions include:
Relative humidity
Water exposure
Condensation
Oil exposure
Grease exposure
Solvent exposure
UV exposure
Temperature cycling
Mechanical vibration
Long term compression
The fish paper substrate and adhesive should be evaluated as a complete system.
High Temperature Processing Applications
Adhesive fish paper can sometimes be used as a temporary protective or insulating pad during industrial processes involving elevated temperatures.
Potential applications may include manufacturing operations where components require temporary separation or surface protection.
Examples can include:
High frequency welding environments
Laser cutting environments
Electrical assembly
Heat assisted processing
Temporary component protection
However, adhesive backed products should not automatically be assumed to withstand direct exposure to extremely high temperatures.
The maximum safe temperature depends on the adhesive, substrate, exposure duration, heat transfer mechanism, and contact conditions.
For high temperature manufacturing, users should confirm the product's thermal limits through technical documentation and application testing.
Fish Paper Color Variations
Traditional fish paper is commonly associated with a cyan or blue appearance.
Depending on the material formulation and production process, fish paper products may also be supplied in other colors.
The commonly referenced color terminology includes:
Cyan or blue shell paper
Yellow shell paper
Red shell paper
Color may help distinguish material types in manufacturing environments, but it should not be used as the only method of determining material properties.
Technical specifications remain more important than color when selecting electrical insulation.
Blue Shell Paper
Blue shell paper is another commonly used name associated with cyan fish paper.
The name is generally related to the characteristic blue or cyan appearance.
Blue shell paper can be converted into:
Insulation sheets
Insulation strips
Gaskets
Washers
Pads
Roll stock
Adhesive backed insulation
Die cut components
Its use in electrical assemblies is closely associated with insulation and mechanical separation.
Yellow Shell Paper
Yellow shell paper refers to a yellow colored variation of fish paper or related electrical insulating paper products.
The color can provide visual identification during manufacturing.
As with blue or cyan grades, the actual electrical, thermal, mechanical, and chemical properties should be confirmed from the technical specification rather than inferred from color.
Red Shell Paper
Red shell paper refers to a red colored variation of fish paper or related electrical insulation material.
It can be used in applications where color coding is helpful.
The same principle applies: color is primarily an identification feature and should not be treated as a performance specification.
Manufacturing and Processing
The production of fish paper involves specialized fiber processing and sheet forming techniques.
The exact manufacturing process can differ between grades.
General production stages may involve:
Fiber preparation
Pulp blending
Sheet formation
Pressing
Drying
Surface treatment
Conditioning
Slitting
Coating
Adhesive lamination
Release liner application
Die cutting or roll conversion
The final material properties depend on raw materials, fiber structure, pressing conditions, treatment processes, adhesive chemistry, and finishing.
Pressure Sensitive Adhesive Technology
A pressure sensitive adhesive is designed to bond when pressure is applied.
Unlike liquid adhesives, it does not normally require a separate curing process to establish initial adhesion.
This is particularly useful in manufacturing because it simplifies assembly.
Pressure sensitive adhesive construction allows fish paper to function as a peel and stick insulation component.
Important characteristics include:
Tack
Peel strength
Shear strength
Cohesion
Temperature stability
Aging performance
Substrate compatibility
Different adhesive technologies can be selected for different environments.
Release Liner Function
The release liner protects the adhesive before installation.
It helps prevent contamination and premature bonding during storage and handling.
During installation, the liner is removed to expose the adhesive surface.
A suitable release liner can improve:
Storage stability
Handling convenience
Die cutting
Automated processing
Manual installation
Material protection
The liner may be paper based or film based depending on the product construction.
Packaging and Storage
Proper storage is important for adhesive backed insulation products.
General storage considerations include:
Keep material clean
Protect from excessive moisture
Avoid direct sunlight
Avoid extreme temperatures
Keep the release liner intact
Prevent excessive compression
Store in suitable packaging
Avoid contamination of adhesive surfaces
Storage conditions should follow the specific product manufacturer's technical recommendations.
Quality Control
Quality control for Single Sided Adhesive Fish Paper can include several inspection categories.
Dimensions such as width, length, thickness, and die cut geometry should be controlled.
The material can be inspected for:
Wrinkles
Scratches
Contamination
Delamination
Surface defects
Edge damage
Adhesive irregularities
Adhesion characteristics can be evaluated using suitable test methods.
Depending on the grade, electrical properties may be tested according to relevant standards.
Thermal behavior may be evaluated through controlled temperature exposure.
Tensile strength, flexibility, tear resistance, and other properties may be evaluated according to the intended application.
Important Product Specifications
When purchasing Single Sided Adhesive Fish Paper with Heat Resistance, users should consider several specifications.
These may include:
Material type
Fish paper grade
Thickness
Width
Roll length
Adhesive type
Adhesive thickness
Adhesive color
Release liner type
Dielectric strength
Temperature resistance
Peel adhesion
Shear strength
Tensile strength
Flexibility
Water resistance
Oil resistance
Grease resistance
Aging resistance
Die cutting tolerance
Slitting tolerance
Not every application requires every specification, but the critical characteristics should be clearly defined before ordering.
Thickness and Electrical Performance
Thickness can influence electrical insulation performance.
In general, a thicker insulation layer can provide a greater physical barrier, but electrical performance depends on material composition, manufacturing quality, dielectric properties, and environmental conditions.
Increasing thickness can also affect:
Flexibility
Die cutting
Assembly clearance
Bending radius
Compression
Overall component dimensions
Therefore, the thinnest possible material is not always the best choice, and the thickest material is not necessarily the safest choice.
The correct thickness should balance electrical, mechanical, thermal, and dimensional requirements.
Adhesion and Electrical Insulation
The adhesive layer serves a different function from the fish paper.
The fish paper primarily provides insulation and mechanical structure, while the adhesive provides attachment.
A strong adhesive does not automatically mean better electrical insulation.
Similarly, a highly insulating fish paper does not necessarily guarantee excellent adhesion.
The two properties must therefore be considered independently.
A well designed Single Sided Adhesive Fish Paper system combines sufficient insulation performance with reliable attachment.
Applications in Electronic Products
Electronic products increasingly require thin insulation materials because internal spaces are limited.
Fish paper can be useful for:
PCB insulation
Battery insulation
Terminal isolation
Metal housing insulation
Component separation
Connector protection
Electrical barrier applications
Internal assembly protection
The material can be converted into custom shapes to fit complex electronic components.
Applications in Power Electronics
Power electronics equipment can contain conductive components, heat generating components, metal housings, and compact electrical assemblies.
Insulation materials may be required to maintain electrical separation while also tolerating elevated temperatures.
Heat resistant adhesive fish paper can be considered for suitable applications where the material's electrical, thermal, and adhesive specifications meet the requirements.
Applications in Battery Manufacturing
Battery manufacturing is an important area for thin electrical insulation materials.
Battery cells and packs can require insulation around:
Terminals
Tabs
Cell ends
Busbars
Conductive frames
Metal housings
Circuit boards
Single sided adhesive fish paper can be converted into precise components for these locations.
Because battery assemblies can experience heat, vibration, moisture, and mechanical stress, material qualification is important.
Applications in E Bike Battery Packs
Electric bicycle battery packs often contain multiple cylindrical or prismatic cells arranged in compact structures.
Insulation materials can help separate conductive components and reduce the possibility of unintended contact.
Adhesive backed fish paper can assist with:
Cell insulation
Terminal protection
Tab insulation
Component separation
PCB insulation
Housing isolation
Actual application suitability depends on the battery design and operating environment.
Applications in Power Tools
Battery powered power tools may experience vibration, heat, impact, and repeated charging cycles.
Internal battery packs therefore require reliable electrical insulation and mechanical protection.
Fish paper insulation can be used in suitable locations to provide separation between cells, terminals, tabs, and conductive structures.
The adhesive backed format can simplify installation during pack assembly.
Applications in Electrical Motors
Motors operate under electrical and mechanical stress.
Insulation materials may need to tolerate:
Heat
Vibration
Electrical stress
Mechanical movement
Abrasion
Moisture
Fish paper can be used in suitable motor insulation applications when its grade and temperature class meet the design requirements.
Applications in Transformers
Transformer construction requires careful control of electrical insulation.
Fish paper can be used as part of layered insulation, coil separation, terminal protection, and spacer systems.
For higher voltage applications, the complete insulation system must be evaluated according to the relevant electrical design and safety requirements.
Advantages for Industrial Manufacturing
Single Sided Adhesive Fish Paper offers several manufacturing advantages.
The material can combine insulation and attachment in a single component.
This can simplify:
Manual assembly
Repetitive production
Component positioning
Die cut part installation
Roll to roll processing
Automated converting
The adhesive backing can also reduce the need for separate positioning steps.
Custom Converting
Custom converting allows insulation materials to be adapted to specific applications.
Common services can include:
Slitting
Die cutting
Punching
Laminating
Roll conversion
Sheet cutting
Custom width processing
Custom shape processing
Custom converting is particularly useful for products requiring precise dimensional control.
Die Cut Gasket Design
A Die Cut Insulation Gasket can be designed around a specific component.
Common geometries include:
Round
Oval
Square
Rectangular
Ring shaped
Washer shaped
Tab shaped
Irregular custom profiles
Design considerations include:
Hole diameter
Outer diameter
Edge clearance
Corner radius
Adhesive exposure
Material thickness
Tolerance
Installation direction
Choosing the Right Fish Paper
The correct fish paper should be selected based on application requirements.
Important questions include:
What temperature will the material experience?
What voltage must it insulate?
Will it contact metal?
Will it contact plastic?
Will oil or grease be present?
Will the material experience vibration?
Does the insulation need adhesive on one side?
Does the part need to be removable?
Will the material be die cut?
Is a roll format required?
What thickness can the assembly accommodate?
Answering these questions can help narrow down the appropriate material specification.
Common Mistakes During Material Selection
One common mistake is selecting material based only on color.
Another is considering only the fish paper and ignoring the adhesive.
Other common mistakes include:
Choosing the wrong thickness
Using double sided adhesive when single sided adhesive is required
Ignoring temperature cycling
Ignoring humidity
Applying adhesive to a contaminated surface
Exceeding the recommended temperature
Using the material without verifying electrical requirements
Ignoring dimensional tolerances
Assuming all fish paper grades have identical properties
A complete technical evaluation can help avoid these problems.
Single Sided Adhesive Fish Paper for Electrical Isolation
Electrical isolation is a central application of this material.
The fish paper substrate provides a non conductive barrier, while the adhesive keeps the insulation positioned against the selected component.
This is especially useful when conductive metal components must remain separated.
The product can therefore be described as:
Electrical insulation gasket
Adhesive insulation gasket
Fish paper insulation gasket
Single sided adhesive fish paper
Electrical isolation pad
Adhesive backed fish paper
Insulating spacer material
These descriptions reflect different aspects of the same product construction.
Single Sided Adhesive Fish Paper for PCB Protection
PCB protection is another practical application.
A circuit board can be positioned close to a metal enclosure or mounting component. A fish paper barrier can reduce the possibility of unwanted contact.
The adhesive can hold the insulation in the required position during assembly.
Potential benefits include:
Electrical isolation
Surface protection
Component separation
Reduced contact risk
Improved assembly stability
Simple installation
Single Sided Adhesive Fish Paper for Battery Protection
Battery protection applications require careful consideration because battery assemblies can contain high current conductive components.
Fish paper can be used to create insulation barriers around appropriate areas.
Potential applications include:
Cell insulation
Terminal insulation
Tab insulation
Busbar isolation
PCB insulation
Housing insulation
The material should be selected according to the complete battery pack design.
Thermal Cycling
Thermal cycling can be more demanding than exposure to a single constant temperature.
Repeated heating and cooling can create differences in expansion and contraction between the fish paper, adhesive, and substrate.
This may influence:
Adhesion
Dimensional stability
Edge lifting
Internal stress
Material aging
For applications with significant temperature cycling, qualification testing should include realistic thermal cycles.
Vibration and Mechanical Stress
Electrical insulation used inside motors, vehicles, power tools, and battery packs can experience vibration.
A suitable insulation material should remain positioned under expected mechanical conditions.
Adhesive selection becomes particularly important in vibrating assemblies.
The fish paper must also have sufficient mechanical integrity for the application.
Moisture and Humidity
Humidity can influence both electrical insulation and adhesive performance.
High humidity can affect:
Insulation resistance
Adhesion
Dimensional stability
Surface condition
Long term aging
For applications exposed to humidity, testing under controlled moisture conditions can provide useful information.
Environmental Compatibility
Environmental compatibility is an important part of product qualification.
Potential environmental conditions include:
High temperature
Low temperature
Humidity
Water
Oil
Grease
Dust
Vibration
Mechanical pressure
Chemical exposure
The product should be evaluated under the actual expected combination of conditions rather than a single isolated variable.
Sustainability Considerations
Fish paper is a paper based insulation material and can contain fiber based raw materials.
Its environmental profile depends on the fiber source, manufacturing process, coatings, adhesives, release liners, and disposal method.
When environmental considerations are important, users can request information regarding:
Fiber source
Manufacturing process
Adhesive chemistry
Release liner
Packaging
Recycling possibilities
Applicable environmental requirements
The presence of an adhesive and release liner can influence end of life handling.
Storage Life
Adhesive backed insulation materials can have a defined storage life depending on adhesive chemistry and storage conditions.
Factors that may influence storage stability include:
Temperature
Humidity
UV exposure
Packaging
Contamination
Compression
Storage duration
The release liner should remain intact until the material is ready for use.
Packaging Formats
Single Sided Adhesive Fish Paper can be supplied in different formats.
Common formats include:
Rolls
Sheets
Narrow strips
Die cut pieces
Pads
Washers
Rings
Custom shapes
Roll formats are suitable for converting operations, while die cut components are convenient for direct assembly.
Industry Applications
The material can be used across several industries, including:
Battery manufacturing
Consumer electronics
Electrical equipment
Power electronics
Motor manufacturing
Transformer manufacturing
Automotive electronics
Industrial controls
Power tools
Energy storage
Electronic assemblies
Electrical machinery
The specific grade should always be matched to the operating environment.
Product Selection Guide
When evaluating a Single Sided Adhesive Fish Paper product, the following checklist can be useful:
Confirm that the fish paper grade is appropriate for the intended electrical and mechanical function.
Select a thickness that provides sufficient insulation while fitting the available space.
Confirm adhesive type, adhesion strength, and thermal capability.
Check both continuous and short term temperature exposure.
Confirm dielectric and insulation requirements.
Verify roll width, part size, thickness tolerance, and die cut tolerance.
Consider humidity, water, oil, grease, chemicals, and vibration.
Determine whether the material will be used as a sheet, roll, strip, or die cut component.
Frequently Asked Questions
It is an electrical insulation material consisting of a fish paper substrate with pressure sensitive adhesive on one side.
Fish paper is a traditional industrial name for a family of paper based electrical insulation materials. The name does not indicate that the material is made from fish.
Blue shell paper is a common name associated with cyan colored fish paper used for electrical insulation.
Yes, suitable fish paper grades are designed for electrical insulation. Specific dielectric properties depend on the grade and thickness.
Heat resistance depends on the fish paper and adhesive system. The complete product should be evaluated according to the intended temperature and exposure duration.
Suitable grades can be used in battery insulation applications, including cell, tab, terminal, and component isolation.
Yes. It can be used as an insulating barrier between PCBs and conductive metal housings or other components when the material specifications are suitable.
Yes. Fish paper is commonly converted into custom die cut insulation parts.
Yes. Roll stock is useful for slitting, converting, and high volume applications.
Single sided adhesive fish paper has adhesive on one side only. Double sided adhesive fish paper has adhesive on both sides.
Some grades provide useful oil and grease resistance. Compatibility should be verified for the specific chemicals and exposure conditions.
Yes. It can function as an electrical insulation gasket, spacer gasket, separator, liner, or protective pad depending on the application.
Yes. Fish paper can be used as an insulating spacer or gasket between rigid metal components when the selected grade meets the electrical and mechanical requirements.
Conclusion
Single Sided Adhesive Fish Paper with Heat Resistance is a versatile electrical insulation material that combines the functional characteristics of fish paper with the installation convenience of a pressure sensitive adhesive.
Its main value comes from the combination of electrical insulation, flexibility, mechanical separation, surface protection, and adhesive attachment.
The material can be used in battery packs, PCB assemblies, motors, transformers, power electronics, electrical equipment, metal housings, and other applications requiring controlled electrical separation.
Fish paper is commonly associated with cyan or blue shell paper, although yellow and red variations are also used. Different grades can provide different combinations of insulation, flexibility, moisture resistance, wear resistance, chemical resistance, and thermal stability.
The single sided adhesive configuration is particularly useful when one surface must be bonded while the opposite surface remains a non adhesive insulating barrier.
Heat resistance should always be evaluated as a complete system property because the adhesive layer and fish paper substrate may have different thermal limitations.
For demanding applications, material selection should consider electrical requirements, temperature, humidity, mechanical stress, chemical exposure, thickness, adhesive performance, and dimensional requirements.
With suitable material selection and correct processing, Single Sided Adhesive Fish Paper can serve as an efficient insulation gasket, spacer, protective pad, electrical barrier, battery insulation component, PCB protection layer, and custom die cut electrical insulation part.
This website uses cookies to ensure you get the best experience on our website.
WhatsApp
Phone
