Single Sided Adhesive Fish Paper with Excellent Bonding Strength is a specialized electrical insulation material designed to combine reliable electrical isolation, flexible paper based insulation, and strong pressure sensitive adhesion in one practical construction. It is widely suitable for applications where an insulating layer must remain securely attached to a metal, plastic, PCB, battery component, electrical component, or other compatible substrate.
The material generally consists of a fish paper insulation substrate, a pressure sensitive adhesive layer applied to one side, and a release liner protecting the adhesive before installation. The single sided construction means that only one surface is adhesive, while the opposite surface remains a non adhesive insulating surface.
This configuration provides an important functional advantage. The adhesive side can be firmly attached to a selected component, while the exposed fish paper surface can continue to provide electrical isolation, mechanical separation, surface protection, cushioning, or gap filling.
Fish paper is a traditional electrical insulation material commonly associated with blue or cyan colored insulating paper. Depending on the material grade and manufacturing process, fish paper products may also be available in other colors and constructions. The material is valued for its combination of flexibility, electrical insulation, mechanical strength, abrasion resistance, and processing versatility.
When excellent bonding strength is required, the adhesive system becomes a critical part of the product design. The bonding performance of single sided adhesive fish paper depends not only on adhesive chemistry but also on substrate cleanliness, surface energy, application pressure, temperature, contact area, and environmental conditions.
For this reason, excellent bonding strength should be understood as a combination of adhesive formulation and proper application conditions rather than simply a high adhesive value on a product specification sheet.
What Is Single Sided Adhesive Fish Paper?
Single Sided Adhesive Fish Paper is an electrical insulation material consisting of a fish paper substrate coated or laminated with pressure sensitive adhesive on one side.
The basic construction can be described as:
Fish Paper Insulation Substrate + Pressure Sensitive Adhesive + Release Liner
Each layer performs a different function.
The fish paper substrate provides the primary insulation and physical structure.
The adhesive provides bonding between the fish paper and the selected substrate.
The release liner protects the adhesive before installation.
After the release liner is removed, the material can be applied directly to a prepared surface.
This peel and stick design makes the product convenient for electrical assembly, battery insulation, PCB protection, motor components, transformer insulation, metal housing isolation, spacer applications, and custom gasket manufacturing.
The term “single sided adhesive” is important because it clearly distinguishes this material from double sided adhesive insulation products.
Single sided adhesive fish paper has adhesive on only one side. The opposite surface remains non adhesive.
This construction is particularly useful when one side must remain available as a clean insulating barrier.
Understanding Fish Paper
Fish paper is a long established electrical insulating paper material used in electrical and electronic manufacturing.
It is commonly manufactured from processed fiber based materials and can be engineered to provide a combination of:
Electrical insulation
Flexibility
Mechanical strength
Abrasion resistance
Dimensional stability
Processing convenience
Surface protection
Fish paper is often used in applications where a thin, flexible insulating material is required.
Unlike rigid insulation components, paper based insulation can be cut, folded, bent, punched, slit, laminated, and die cut into many different configurations.
This makes it particularly useful for electrical gaskets, battery insulation pieces, motor insulation, transformer insulation, PCB protection pads, terminal barriers, spacers, washers, and custom insulating components.
The traditional cyan or blue appearance is widely recognized in the electrical insulation industry.
However, color alone should not be used to determine electrical or thermal performance. Material properties depend on the specific grade, fiber structure, manufacturing process, thickness, treatment, and conversion method.
Why Bonding Strength Matters
Bonding strength is one of the most important performance characteristics of adhesive backed insulation.
A fish paper gasket may have excellent electrical insulation properties, but if the adhesive fails to hold the gasket in its intended position, the entire assembly can lose its designed protection.
Strong bonding helps maintain the position of the insulation during:
Assembly
Handling
Vibration
Thermal cycling
Mechanical movement
Transportation
Long term operation
Reliable adhesion can prevent:
Edge lifting
Material movement
Wrinkling
Peeling
Shifting
Accidental exposure of conductive surfaces
For compact electrical products, stable positioning can be particularly important because even a small amount of movement may alter the distance between conductive components.
Product Features
The primary feature of this product is strong adhesion.
A suitable pressure sensitive adhesive can create reliable bonding between fish paper and compatible substrates.
Depending on the adhesive formulation, the product may be suitable for bonding to:
Metal
Stainless steel
Aluminum
Painted metal
Plastic
PCB surfaces
Battery components
Electrical housings
Coated surfaces
The actual adhesion level depends on the substrate surface, cleanliness, temperature, pressure, adhesive formulation, and contact area.
Fish paper provides the main electrical insulation function.
It can act as a physical barrier between conductive components and help prevent unwanted electrical contact.
Potential applications include:
Battery terminal insulation
PCB isolation
Metal housing insulation
Motor winding insulation
Transformer component separation
Electrical gasket applications
Terminal protection
Component isolation
Specific dielectric strength and insulation resistance should be verified according to the selected grade.
Fish paper is flexible enough for many applications involving curved surfaces and narrow spaces.
This allows the material to follow component contours without requiring complex rigid parts.
Flexibility can also simplify installation and die cutting.
The fish paper substrate provides useful mechanical support.
It can function as both an insulating layer and a mechanical separator between adjacent components.
This dual function makes fish paper suitable for electrical gaskets, spacers, pads, and protective liners.
The material can provide useful resistance to mechanical rubbing and handling.
This is particularly useful in assemblies where insulation may encounter movement or repeated contact.
Depending on the material grade, fish paper can provide useful resistance to water and moisture.
Moisture resistance is important because water absorption can influence electrical insulation, dimensional stability, and adhesive performance.
Suitable grades may provide resistance to oils and greases.
This can be beneficial for motors, industrial equipment, mechanical electrical systems, and automotive applications.
Chemical compatibility should always be evaluated for the actual operating environment.
Long term aging can influence both the fish paper substrate and adhesive.
A suitable material can be selected for applications requiring resistance to:
Heat aging
Humidity aging
Oxidation
Adhesive degradation
Mechanical aging
The actual service life depends on application conditions.
Construction of Single Sided Adhesive Fish Paper
The product can generally be understood as a layered material.
This is the main electrical insulation layer.
The pressure sensitive adhesive provides bonding to the selected surface.
The liner protects the adhesive during storage, handling, transportation, and die cutting.
This layered construction allows the material to be converted into rolls, sheets, strips, gaskets, washers, pads, and custom die cut shapes.
Pressure Sensitive Adhesive Technology
Pressure sensitive adhesive is designed to create adhesion when sufficient pressure is applied.
Unlike liquid adhesives, pressure sensitive adhesives normally do not require a separate curing stage for initial bonding.
This provides several manufacturing advantages.
The operator can:
Position the material.
Remove the release liner.
Apply the adhesive side.
Apply pressure.
Complete the basic installation.
This simple process can improve assembly efficiency.
What Determines Bonding Strength?
Bonding strength is influenced by multiple variables.
Important factors include:
Acrylic and rubber based pressure sensitive adhesives can have different adhesion characteristics.
Different substrates have different surface energy levels, which influences wetting and adhesion.
Oil, grease, dust, moisture, and loose particles can reduce bonding.
Adequate pressure helps the adhesive contact more of the substrate surface.
Adhesive behavior can change with temperature.
Some pressure sensitive adhesives develop stronger adhesion after remaining in contact with the substrate.
Extremely rough surfaces can reduce effective adhesive contact.
Humidity, heat, chemicals, and vibration can influence long term adhesion.
Metal Surface Bonding
Metal is one of the most common substrates for adhesive insulation.
Single sided adhesive fish paper can be applied to suitable:
Steel
Stainless steel
Aluminum
Copper
Metal housings
Metal Brackets
Metal frames
Metal surfaces should generally be clean and free from oil, grease, dust, oxidation residues, and other contaminants.
The exact surface preparation procedure depends on the substrate.
Aluminum Surface Applications
Aluminum is commonly used in battery housings, electronic equipment, heat dissipation structures, and industrial components.
Adhesive fish paper can provide an insulating layer between aluminum structures and electrical components.
Because aluminum surfaces can have oxide layers and surface treatments, adhesive compatibility should be evaluated before production.
Stainless Steel Applications
Stainless steel can be used for electrical housings, mechanical supports, industrial equipment, and structural components.
Single sided adhesive fish paper can be used as a separator between stainless steel and conductive or sensitive components.
The surface should be clean and dry before bonding.
Plastic Surface Bonding
Plastic substrates can vary significantly in surface energy and chemical composition.
Some plastics are easy to bond, while others can be more difficult.
Common considerations include:
Plastic type
Surface finish
Mold release contamination
Surface energy
Temperature
Chemical compatibility
Application testing is recommended for unfamiliar plastic substrates.
PCB Protection Applications
Printed circuit boards are often installed near metal housings and conductive structures.
A thin fish paper insulation layer can provide an additional barrier between the PCB and conductive surfaces.
Potential functions include:
Electrical isolation
PCB surface protection
Metal housing separation
Edge protection
Gap insulation
Component protection
The adhesive side can hold the insulation in the desired position during assembly.
Battery Pack Insulation
Battery packs contain multiple conductive components in compact spaces.
Single sided adhesive fish paper can be used for suitable battery insulation applications.
Potential uses include:
Cell insulation
Terminal protection
Tab insulation
Busbar isolation
PCB insulation
Housing insulation
Component separation
Battery applications can involve elevated temperatures, vibration, electrical stress, and repeated charge and discharge cycles.
Therefore, material qualification is especially important.
18650 Battery Applications
18650 cylindrical cells are widely used in battery packs.

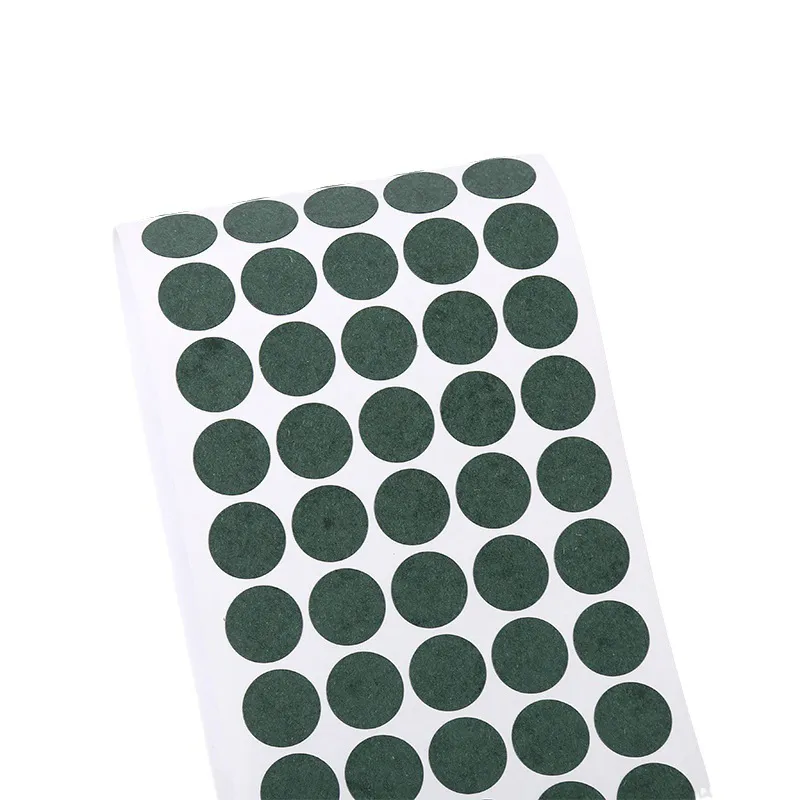

Adhesive fish paper can be converted into custom pieces for use around:
Cell ends
Terminals
Tabs
Connection areas
Protective barriers
The material can help provide electrical isolation and component separation.
21700 Battery Applications
21700 battery cells are larger cylindrical cells commonly used in modern battery pack designs.
The increased cell dimensions can create different insulation requirements.
Custom die cut fish paper can be designed for:
Terminal insulation
Cell protection
Tab protection
Connection isolation
Component separation
E Bike Battery Applications
E bike battery packs can experience vibration, heat, moisture, and repeated charging cycles.
Internal Insulation Materials help separate conductive components.
Adhesive backed fish paper can be used in suitable locations to improve insulation and component positioning.
Power Tool Battery Applications
Battery powered power tools can experience vibration, impact, heat, and repeated cycling.
Fish paper insulation can be used around suitable battery components to provide electrical separation.
Strong adhesive bonding can help keep the insulating material positioned during assembly and operation.
Motor Insulation Applications
Electric motors require insulation between various conductive and mechanical components.
Fish paper can be used for suitable:
Winding insulation
Slot insulation
Coil separation
Terminal protection
Spacer applications
Adhesive backed versions can simplify positioning during manufacturing.
Transformer Insulation
Transformers require reliable insulation between electrical conductors and structural components.
Fish paper can be used in suitable transformer insulation applications.
Potential uses include:
Coil separation
Layer insulation
Terminal insulation
Spacer material
Electrical barriers
The material must be selected according to voltage, temperature, frequency, and insulation system requirements.
Electrical Gasket Applications
Fish paper can function as an electrical Insulation Gasket between two components.
A gasket can provide:
Electrical isolation
Mechanical separation
Surface protection
Controlled spacing
Component positioning
When adhesive is added to one side, the gasket can be installed and held in position before final assembly.
Gap Filling Applications
Thin fish paper can be used to occupy narrow spaces between components.
Gap filling may help:
Prevent unwanted contact
Maintain component separation
Improve assembly consistency
Protect component surfaces
Reduce movement
The appropriate thickness depends on the actual gap and assembly tolerance.
Spacer Applications
Fish paper can be used as a spacer between rigid components.
This is particularly useful when components must remain physically separated while maintaining a compact assembly.
Adhesive backing can prevent the spacer from shifting during installation.
Heat Resistance
Heat resistance is an important consideration for electrical insulation.
The actual thermal performance of adhesive backed fish paper depends on both the fish paper substrate and adhesive.
The following factors should be considered:
Continuous temperature
Short term temperature
Temperature cycling
Heating rate
Cooling rate
Adhesive softening
Adhesive flow
Thermal aging
The adhesive may become the limiting factor in some high temperature applications.
Thermal Cycling Performance
Temperature cycling can cause repeated expansion and contraction.
This can create mechanical stress between the fish paper, adhesive, and substrate.
Potential effects include:
Edge lifting
Peeling
Adhesive creep
Dimensional changes
Internal stress
For demanding applications, thermal cycling tests can help evaluate long term performance.
Vibration Resistance
Electrical components installed in vehicles, power tools, motors, and industrial machines can experience vibration.
Strong adhesive bonding can help keep the insulation in place.
However, vibration performance depends on:
Adhesive shear strength
Bond area
Substrate cleanliness
Temperature
Mechanical stress
Component geometry
The complete assembly should be tested under realistic vibration conditions.
Moisture Resistance
Humidity and moisture can influence both insulation and adhesion.
Potential concerns include:
Reduced insulation resistance
Adhesive degradation
Dimensional changes
Surface contamination
Long term aging
For humid environments, appropriate environmental testing should be considered.
Oil and Grease Resistance
Some industrial electrical assemblies operate near oils and greases.
A compatible fish paper and adhesive system can provide useful resistance to these substances.
However, chemical compatibility should be evaluated because different oils, lubricants, and cleaning agents can behave differently.
Aging Performance
Aging resistance is important for long service life.
Long term exposure to heat, humidity, oxygen, mechanical stress, and chemicals can gradually change material properties.
Adhesive aging can include:
Loss of tack
Reduced peel strength
Adhesive hardening
Adhesive softening
Edge lifting
Residue formation
The appropriate adhesive should therefore be selected according to expected service conditions.
Single Sided Adhesive Versus Double Sided Adhesive
Single sided adhesive fish paper has one adhesive surface.
Double sided adhesive fish paper has two adhesive surfaces.
Single sided construction is generally preferred when:
Only one component needs bonding
The opposite surface must remain non adhesive
Electrical isolation is required
A clean insulating surface is desired
Double sided construction may be more appropriate when the insulation must bond between two surfaces.
Correct product identification is essential during purchasing.
Adhesive Bonding Process
A typical bonding process can include several steps.
Check the substrate for contamination, damage, oxidation, or coatings.
Remove dust, grease, oil, and other contaminants.
Align the fish paper before final bonding.
Remove the release liner carefully.
Place the adhesive side onto the target surface.
Apply sufficient pressure to create close contact.
Allow the adhesive to develop its intended bond according to the adhesive system.
Check the bonded component for wrinkles, bubbles, lifting edges, and misalignment.
Surface Preparation
Surface preparation can have a major influence on bonding strength.
A clean surface allows the adhesive to contact the substrate more effectively.
Common contaminants include:
Dust
Oil
Grease
Moisture
Fingerprints
Mold release agents
Loose particles
The cleaning method must be compatible with the substrate and production process.
Adhesive Bonding to Painted Surfaces
Painted metal surfaces are common in industrial equipment and electronic housings.
Adhesive performance depends on:
Paint formulation
Surface finish
Paint adhesion
Surface energy
Curing condition
Cleanliness
Testing should be performed when the adhesive will remain bonded to painted surfaces for long periods.
Bond Area
The size of the adhesive contact area influences overall bonding performance.
A larger effective contact area can generally provide more total bonding capacity.
However, the required bond area depends on the mechanical forces acting on the insulation.
Design should consider:
Peel forces
Shear forces
Tensile forces
Vibration
Temperature
Component movement
Peel and Shear Forces
Adhesive backed insulation can experience different types of mechanical stress.
Peel forces attempt to lift the adhesive from one edge.
Shear forces act parallel to the bonded surface.
A well designed application should minimize unnecessary peel stress and distribute mechanical loads across the bond area.
Mechanical Flexibility
The flexibility of fish paper helps it conform to different surfaces.
This can be particularly valuable when insulating:
Curved housings
Battery components
Motor components
Wires
Terminals
Irregular surfaces
The bending radius should be compatible with the selected material thickness.
Die Cutting
Single sided adhesive fish paper is suitable for precision converting.
It can be die cut into:
Washers
Rings
Rectangles
Squares
Tabs
Strips
Battery insulation pieces
PCB insulation pieces
Custom gaskets
Die cutting allows repeatable production of complex insulation shapes.
Slitting
Roll material can be slit into narrower widths.
Slitting is useful for producing:
Insulation strips
Narrow gaskets
Battery insulation rolls
Terminal insulation
Electrical barrier tape like formats
Custom width processing can reduce production waste.
Roll Supply
Single sided adhesive fish paper can be supplied in roll form.
Roll stock is useful for:
High volume production
Automated converting
Slitting
Continuous application
Custom width processing
The roll dimensions should be selected according to the converting equipment.
Thickness Selection
Thickness affects both electrical and mechanical performance.
Thinner materials can be useful where space is limited.
Thicker materials can provide greater spacing and mechanical support.
Important considerations include:
Electrical clearance
Mechanical strength
Flexibility
Available space
Die cutting
Bending radius
Compression
Component tolerance
The correct thickness should be selected based on actual application requirements.
Electrical Insulation Performance
Electrical insulation performance can include several parameters.
These may include:
Dielectric strength
Insulation resistance
Breakdown voltage
Surface insulation
Electrical stability under temperature
The required values depend on the electrical system.
For high voltage or safety critical applications, the material should be qualified according to applicable standards and engineering requirements.
Mechanical Protection
Fish paper can provide mechanical protection in addition to insulation.
It may help protect surfaces from:
Scratching
Rubbing
Direct contact
Edge impact
Component movement
This makes it useful as a multifunctional gasket and protective liner.
Environmental Conditions
When selecting adhesive fish paper, consider the complete operating environment.
Potential conditions include:
High temperature
Low temperature
Humidity
Water
Oil
Grease
Chemicals
Vibration
Dust
Mechanical pressure
Testing should reflect the actual combination of conditions whenever possible.
High Temperature Processing
Adhesive backed fish paper can be considered for certain temporary protection and insulation applications involving elevated temperatures.
Potential applications include:
High frequency welding
Laser processing
Heat assisted assembly
Temporary electrical protection
Component separation
However, direct exposure to very high temperatures can exceed the adhesive's operating range.
The adhesive should therefore be selected according to the duration and intensity of thermal exposure.
Temporary Protective Applications
The material can also serve as a temporary protective pad during manufacturing.
For example, it may be used to prevent direct contact between components during a processing step.
After processing, the insulation can remain in place or be removed depending on the application design.
Manufacturing Advantages
Single sided adhesive fish paper combines insulation and attachment in one material.
This can simplify manufacturing by reducing the need for:
Separate glue
Mechanical clips
Positioning fixtures
Additional insulating components
It can also support faster manual assembly and automated converting.
Custom Manufacturing Formats
Depending on application requirements, adhesive fish paper can be converted into:
Rolls
Sheets
Strips
Pads
Gaskets
Washers
Rings
Custom die cut components
Custom converting allows the material to fit specific component geometries.
Quality Control
Quality control can cover several categories.
Check for:
Wrinkles
Scratches
Contamination
Delamination
Adhesive defects
Edge damage
Check:
Thickness
Width
Length
Die cut dimensions
Tolerances
Evaluate:
Peel strength
Tack
Shear strength
Bond stability
Evaluate relevant insulation properties according to the material grade.
Evaluate performance under the intended temperature range.
Product Specification Considerations
When selecting Single Sided Adhesive Fish Paper with Excellent Bonding Strength, consider the following characteristics:
Fish paper type
Material thickness
Adhesive type
Adhesive thickness
Release liner
Bonding strength
Peel adhesion
Shear strength
Dielectric strength
Insulation resistance
Temperature resistance
Moisture resistance
Oil resistance
Grease resistance
Aging resistance
Flexibility
Width
Roll length
Die cutting tolerance
The exact specifications should be selected according to the final application.
Common Applications
Single sided adhesive fish paper can be used in:
Battery packs
18650 battery assemblies
21700 battery assemblies
E bike batteries
Power tool batteries
PCB assemblies
Motor insulation
Transformer insulation
Electrical housings
Metal component isolation
Electrical gaskets
Spacer applications
Terminal protection
Component separation
Industrial electronics
Benefits for Battery Assembly
Battery assembly requires insulation materials that can remain accurately positioned.
Strong adhesive bonding can reduce the possibility of insulation movement during assembly and operation.
Potential benefits include:
Improved positioning
Electrical isolation
Component separation
Reduced movement
Simplified installation
Consistent assembly
Battery systems should always be evaluated under actual operating and abuse conditions.
Benefits for PCB Assembly
PCB assemblies often have tight dimensional requirements.
A thin adhesive backed fish paper component can provide insulation without occupying excessive space.
The adhesive can help maintain the gasket's position during assembly.
This can reduce the possibility of the insulating material moving toward conductive components.
Benefits for Electrical Gaskets
Electrical gaskets need to provide stable insulation and reliable positioning.
Single sided adhesive fish paper combines these functions in a compact construction.
It can be die cut into precise shapes to match component geometries.
Benefits for Metal Housing Insulation
Electronic and electrical products often use conductive metal housings.
A fish paper insulation layer can create a barrier between the housing and internal electronics.
The adhesive can secure the insulation directly to the housing.
Choosing Excellent Bonding Strength
When strong adhesion is a key requirement, several factors should be evaluated together.
First, identify the substrate.
Second, determine the expected temperature range.
Third, evaluate the required peel and shear performance.
Fourth, consider surface preparation.
Fifth, evaluate long term environmental exposure.
Sixth, select the appropriate adhesive construction.
This approach is more reliable than selecting a product based only on the phrase “strong adhesive.”
Common Selection Mistakes
Common mistakes include:
Selecting adhesive based only on initial tack
Ignoring long term shear strength
Ignoring temperature
Ignoring humidity
Applying to contaminated surfaces
Using insufficient application pressure
Selecting incorrect thickness
Confusing single sided and double sided adhesive
Ignoring substrate compatibility
Assuming all fish paper grades have identical performance
A complete application evaluation can reduce these risks.
Frequently Asked Questions
It is fish paper insulation with pressure sensitive adhesive applied to one side.
The adhesive layer provides a convenient bonding function while the fish paper continues to provide electrical insulation.
It refers to the ability of the adhesive system to maintain reliable attachment to a compatible substrate under specified conditions.
Yes, suitable adhesive grades can bond to compatible metal surfaces.
Yes, depending on the plastic type and adhesive system.
Yes. It can be used as an insulating barrier and protective pad when the material is compatible with the PCB assembly.
Suitable grades can be used for battery insulation, terminal protection, tab isolation, and component separation.
Yes. Fish paper is generally valued for its flexibility compared with many rigid insulation materials.
Yes. It can be converted into custom gaskets, pads, washers, rings, tabs, and other shapes.
Yes. Roll supply is suitable for slitting and high volume converting.
Heat resistance depends on the fish paper grade and adhesive system. The complete construction should be evaluated for the intended temperature.
No. Single sided adhesive fish paper has adhesive on one side only, while double sided adhesive fish paper has adhesive on both sides.
Certain grades can provide useful resistance to oil and grease, but chemical compatibility should be verified for the intended environment.
Conclusion
Single Sided Adhesive Fish Paper with Excellent Bonding Strength is a versatile adhesive backed electrical insulation material designed for applications requiring reliable electrical separation and secure attachment.
Its key advantage is the combination of a flexible fish paper insulation substrate and a strong pressure sensitive adhesive layer.
The fish paper provides electrical insulation, mechanical separation, surface protection, flexibility, and convenient converting characteristics. The adhesive provides attachment to compatible substrates and helps maintain the insulation in the intended position.
This makes the material suitable for battery packs, PCB assemblies, electrical housings, motors, transformers, power electronics, electrical gaskets, spacers, terminal protection, and other industrial insulation applications.
Strong bonding performance depends on adhesive chemistry, substrate compatibility, surface preparation, application pressure, temperature, contact area, and environmental conditions. Therefore, proper installation and application testing are important for achieving reliable long term performance.
The single sided configuration is especially useful when the adhesive needs to contact only one component while the opposite fish paper surface remains a clean, non adhesive electrical insulation barrier.
With suitable material selection, dimensional control, adhesive selection, and converting technology, Single Sided Adhesive Fish Paper can provide a practical solution for electrical isolation, component protection, gap filling, gasket production, battery insulation, PCB protection, and industrial electrical assembly.
This website uses cookies to ensure you get the best experience on our website.
WhatsApp
Phone
